If any package contents are missing or damaged, please contact the retail store, online
retailer, or reseller/distributor that the item was purchased.
Features
The Megapixel PoE Day/Night PTZ Network Camera, model TV-IP662PI, provides day and
night monitoring over a large area. Pan and tilt the camera from a mobile device, record
video to a Micro SD Card, and have camera email motion detection video clips. A
wall/ceiling mounting kit is included and the camera’s off white housing blends into
most environments
Megapixel Video
Experience Megapixel 720p HD video with H.264 video compression
Night Vision
Night vision up to 7.5 meters (25 ft.) in complete darkness (indoor rating)
Dynamic DNS
Support for Dyn.com and NO-IP.com dynamic DNS service providers
PoE
No need to install this camera near a power source, power and data are received
through a single Ethernet cable
PTZ
Pan, tilt, and zoom the camera from a mobile device

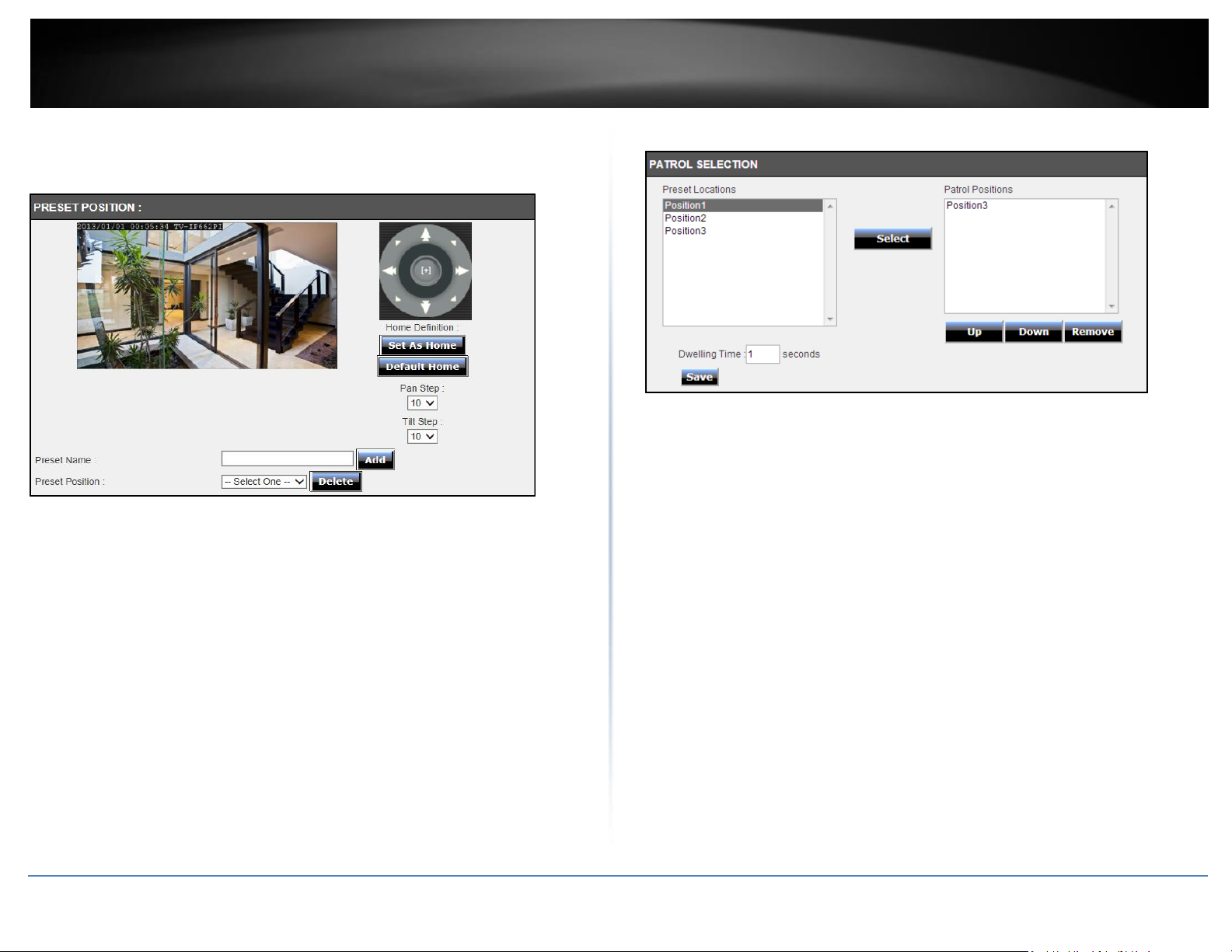

Preset Auto-Patrol
Define preset PTZ auto-patrol points
Digital Zoom
Zoom in by a factor of four
Motion and Sound Detection Emails
Receive email snapshots and video clips triggered by motion and sound
Mounting Hardware
Mounting bracket supports ceiling installation
Two-Way Audio
Built-in microphone and connect a third party speaker for two-way audio
Storage
Store video to a Micro SD card (up to 32 GB) or to a Samba server
Light Sensor: Detects the light source to turn IR on or off.
Focus Ring: Turn to adjust the focus of the camera.
Microphone: Built-in microphone for audio can be turned on or off.
IR LED – Built-in 6 IR LED for night vision uses.
Camera Lens: Focal Length: 4.6 mm, F2.0; Focal Depth: 20 cm – infinity
Power/Link LED: This LED indicator is solid blue when your camera is powered
on. If this LED indicator is off, there is no power to your camera. This LED
indicator is blinking green when there is connection/data to your camera.
Rear Panel View
Micro SD Slot – Insert a micro SD card into this slot to store video/image data.
Reset Button – Use an item such as a paperclip to push and hold this button for
6 seconds and release to reset your camera to its factory defaults.
Power Port – Connect the included power adapter from your camera to an
available power outlet. Note: Use only the adapter that came with your
camera.
Speaker Port – Connects an external active speaker.
Air Vent – This is to cool the camera.
PoE / Ethernet Port – Connect Ethernet cables to your wired network devices.
Please do not mount the camera until after you complete the installation steps from the
CD-ROM. Temporarily place the camera next to your computer.
To attach the metal plates carry out the following:
Remove the two rubber pads under the base of the Camera.
Slide the metal plate onto the base of the camera, making sure that the two
holes on the base of the camera align with the two screw holes on the base of
the camera.
Secure the metal plate to the base of the Camera with the two screws
provided.
The camera can now be mounted to the ceiling or a wall. See the diagram
below for more information.
Power over Ethernet (PoE) Injector
A Power over Ethernet (PoE) Injector (sold separately) is designed to supply power to
PoE Access Points, TV-IP662PIs or other PoE Powered Devices (PDs) through the
Ethernet cable. We recommend the TRENDnet TPE-113GI Gigabit Power over Ethernet
(PoE) injector. This product is sold separately. More details are available on the
TRENDnet web site.
To setup a TRENDnet PoE injector (TPE-113GI) with the TV-IP662PI, connect one end of
an ordinary RJ45 cable to the PoE port at the back of the injector, and the other end of
the Ethernet cable to the TV-IP662PI.
Wait for the camera to generate power from the PoE injector, the LED at the front of the
camera will blink green when power is delivered. If you are not getting power from the
injector, please check your equipment or read the PoE injector user manual.
To setup a TRENDnet PoE switch (TPE-S80, sold separately) with the TV-IP662PI, connect
one end of an ordinary Etherenet cable to one of the PoE ports, and the other end to
the Ethernet port at the back of the camera.
As the image displays, connect the power cord to your TPE-S80. Then connect your TVIP662PI to one of the PoE ports. Connect your computer to one of the non-PoE ports.
Using the Autorun Wizard
The Autorun supports both Windows & Mac operating systems. Insert the Installation
CD-ROM into your computer’s CD-ROM drive to initiate the Autorun program. The
Autorun Wizard program will run automatically.
For Windows users: If the autorun wizard does not run, go to the CD-ROM folder and
run Autorun.exe to start installation wizard.
For Mac users: Please click InstallWizard to start installation wizard.
4. Connect one end of the network cable to your camera and the other end to
your router. Click Next to continue.
6. If you only have one camera on your network, the wizard will automatically
select it. Otherwise, if you have more than one camera, it will provide several
options from the list. The wizard provides the Model Name and MAC Address
of the camera. If you do not see any of your camera(s) in the wizard, click Retry
to scan for the camera again. Click Next to continue.
5. The wizard will search the network for your camera.
Using your mobile3 device, in this example it is an Android phone, touch the Bar Code
scanning app on your phone. Hold it up to the QR Code on the wizard that reads,
Android, and scan the image. The Bar Code app will read the QR Code and record it.
Here is Apple iTunes version
Scan the QR Code using one of IOS’s QR Code apps. The app will automatically create an
HTML link to the iTunes App Store. You will be immediately directed to the iTunes App
Store. Click the link to download.
The app will copy the QR link and provides a HTML link to the TRENDnet app. You will be
directed to the Google Play™ Storefront to download the app. Download the app,
install it and use the app on your mobile device to view the TRENDnet camera.
Please refer to Quick Installation Guide that included in the CD-ROM to install the
mobile applications or learn how to use mobile accessibility.
To locate the IP address of your camera(s) on the same network with your PC, please
install the Setup Wizard utility (for Windows only) from the SetupWizard folder .
1. Insert the included CD-ROM into your CD/DVD drive, browse to the CD drive
of the SetupWizard folder and run SetupWizardSetup_1.2.3.4804.msi to
begin the installation wizard.
2. The following screen will show up. Click Next and following the screen to
5. Connect an RJ-45 cable from a switch/router to the Ethernet port on the back
of the camera and connect the AC power adapter to the camera. Click Next to
proceed.
6. From the list of cameras that appears, select the camera and click Next to
continue. If your camera is not listed, please ensure your camera is powered on
and connected to the network then click Re-Scan to scan the camera from
your network.
7. Login to your camera by entering the ID and Password. By default, both the ID
and Password are set to admin. Click Next to continue.

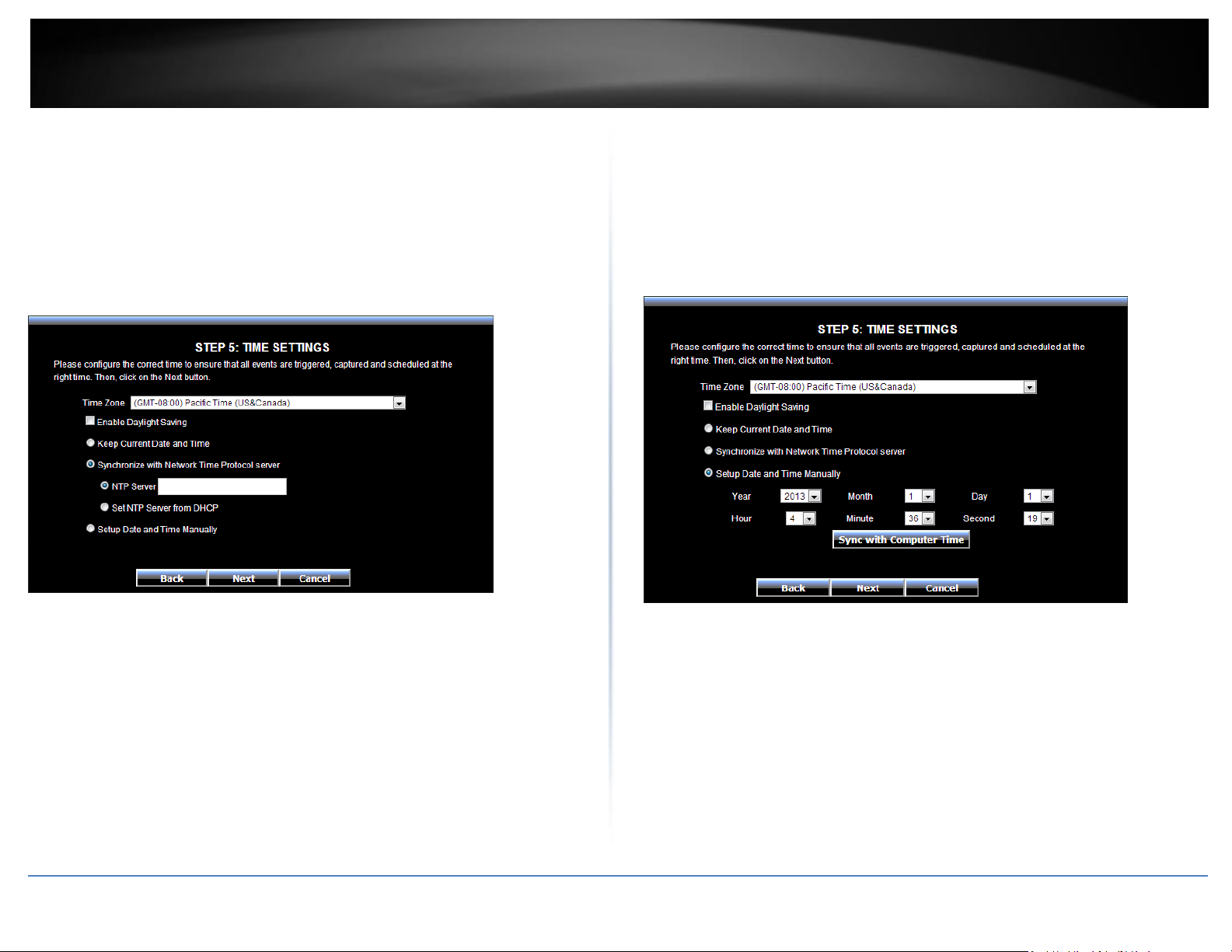

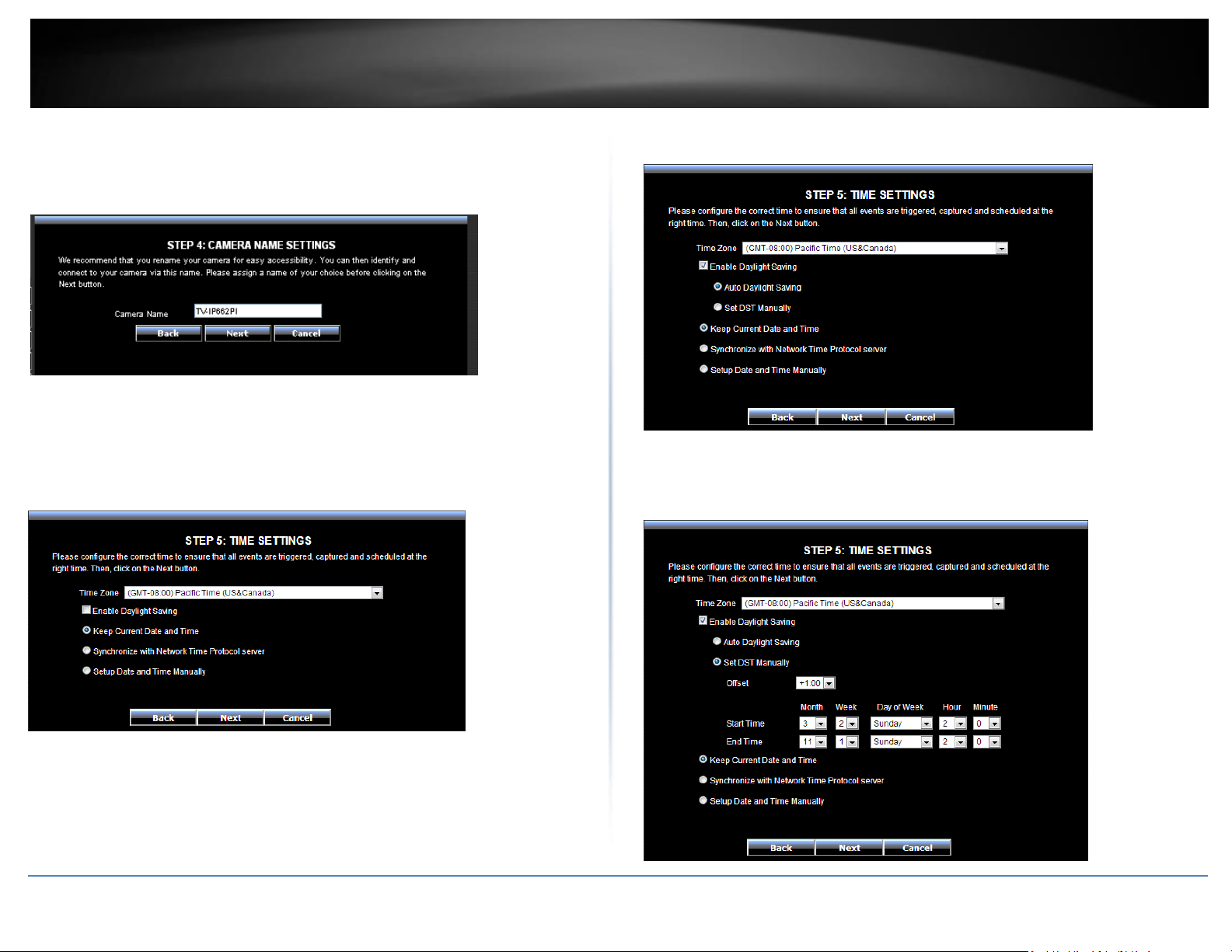

9. Enter a camera name, date and time. The name will be used to identify
your camera on the network. If your camera is in the same time zone as the
computer you are using, click the Copy Local Time icon to copy the local
time to the camera. Click Next to continue.
8. It is strongly recommended that you change your password to secure the
camera from being accessed by others. Check the Change Password box and
enter the new password in both password fields to confirm the new password.
Click Next to continue.

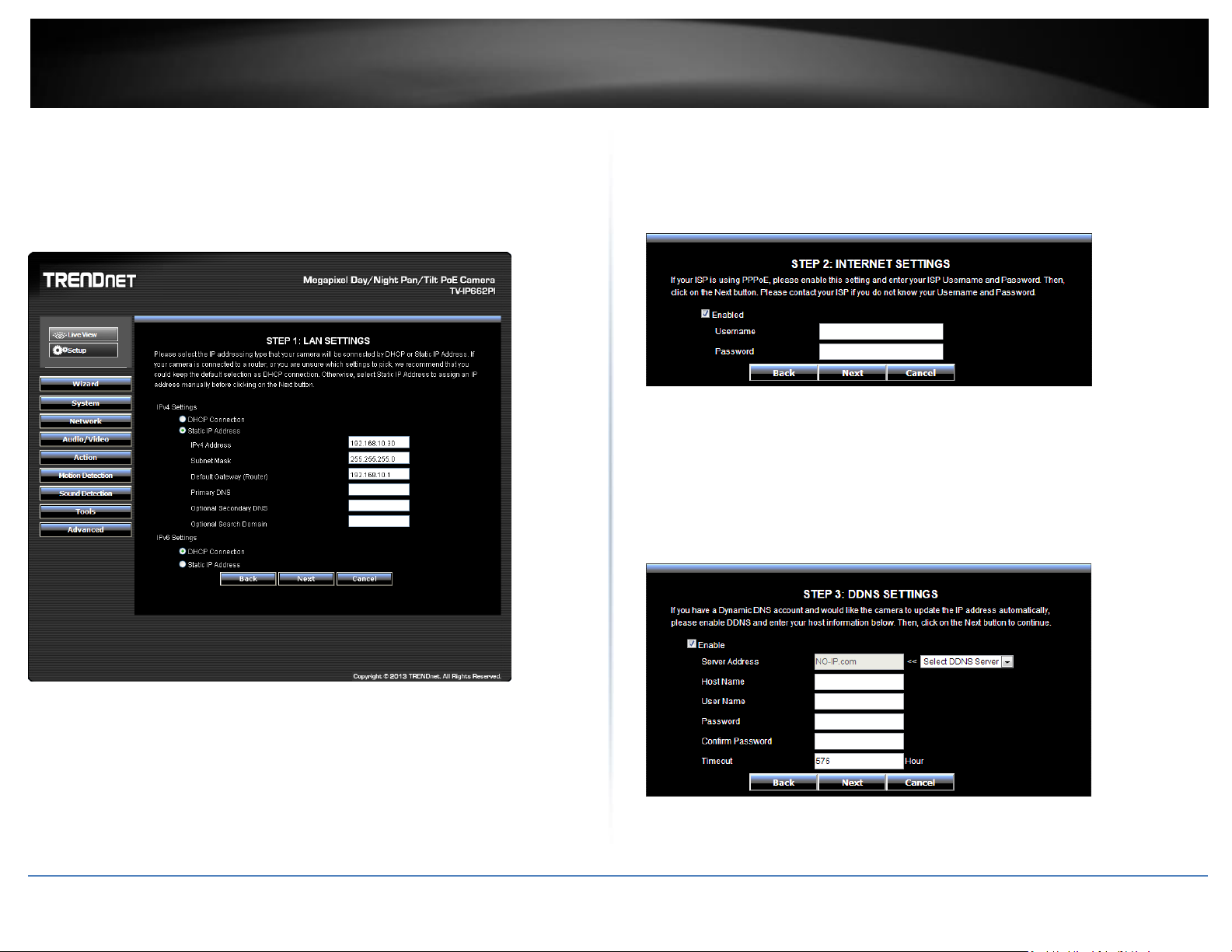

10. Select a connection option and click Next to continue.
PPPoE: Select this option if your camera is directly connected to a DSL modem
and your ISP requires a PPPoE authentication to the Internet.
DHCP: Select this option if your camera is connected to a router and DHCP is
enabled.
Fixed IP: Select this option if your wish to connected the camera via a fixed IP.
TRENDnet User’s Guide
TV-IP662PI
12
11. A summary screen of the settings you have chosen appears. Click Next to
continue.

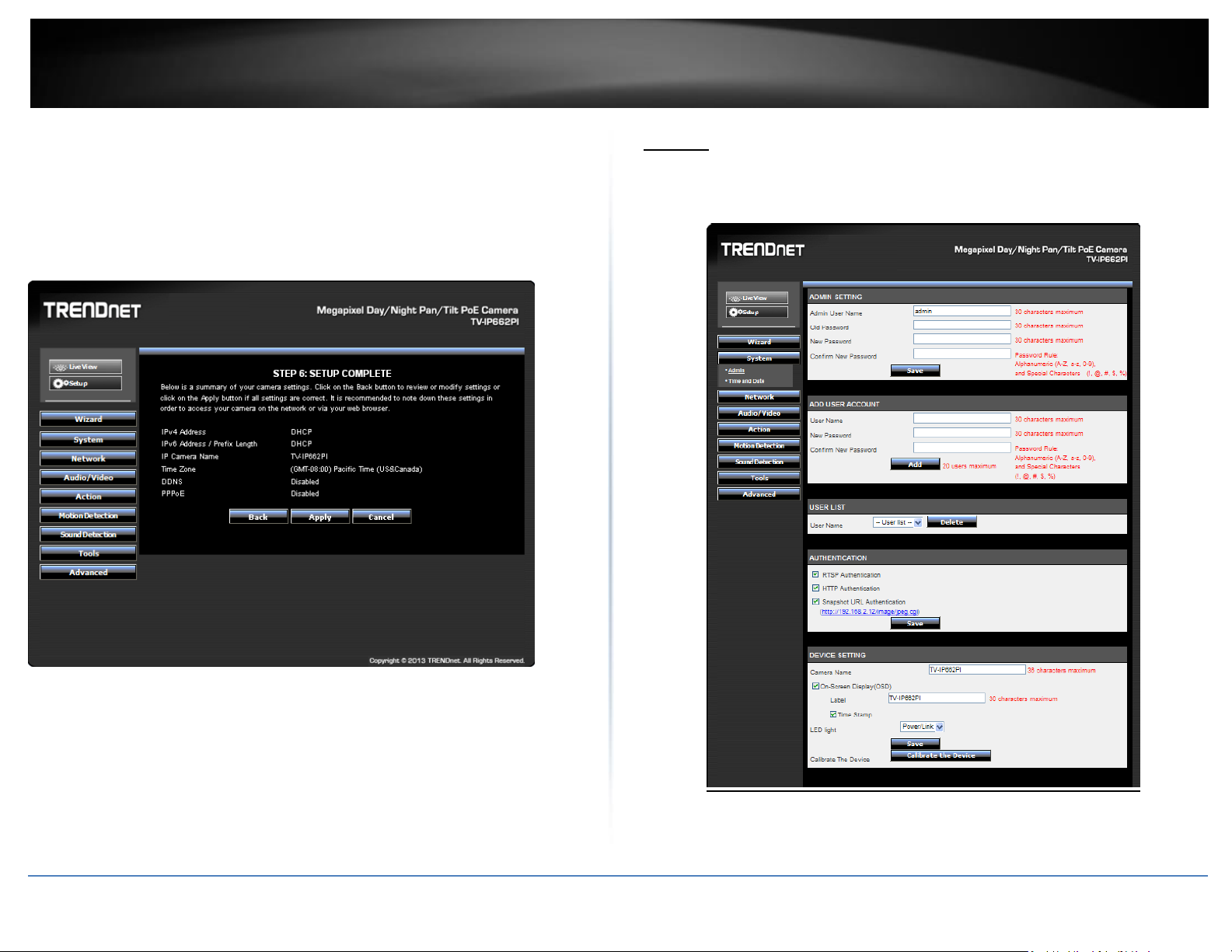

13. When the Setup Wizard has finished, the configuration is complete and the
following screen appears:
12. After the Setup Wizard configures the camera, the wizard starts to setup
After completing the Autorun Wizard from the CD, you are ready to use your camera.
The camera’s built-in Web configuration utility is designed to allow you to easily access
and configure your TV-IP662PI camera. Open a web browser such as Internet Explorer®
and enter the IP address of your camera (through the setup wizard utility software on
the CD). To log in, type the Username admin and the password you created in the
Autorun Wizard. If you did not create a password or you just press the reset button for
reset, the default password is admin. After entering your password, click OK.
Note: By default, this camera obtains an IP address from a DHCP server on the local
network. To find the IP address of the camera, consult the DHCP client list on the DHCP
server on your wireless router or install the Setup Wizard utility software from CD.
However, if there is no DHCP server available, the static default IP address of this
camera is 192.168.10.30, in case you are connecting the camera directly with your PC
without another device in-between.
To log in, type the Username admin and the password you created in the Setup Wizard.
If you did not create a password, the default password is admin. After entering your
password, click OK.
For Internet Explore Web Browser
After you have logged in, Internet Explorer will prompt you to install the camera add-on
required. Click Allow to install the add-on.
After the add-on was successfully installed, the Live View video feed will be displayed.
After you have logged in, you need to install the required plug-in. Click the link below
the camera view finder to install the plug-in. Download the plug-in to a folder on the
local PC and run the download plug-in file.
Click Close to finish the installation.
Click Next to continue.
Note: Please ensure all browsers are closed during the installation.
Click this button to view the live video feedback of this
camera.
Click this button to access the setup pages for this
camera.
This icon is used to display the motion detection status
of the current live video feed. This icon will be white
when no motion is detected and will be yellow when
motion is detected.
This icon is used to display the recording status of the
current live video feed. This icon will be white when not
recording and will be yellow when recording.
Day Mode will be displayed when the camera is
supplying video feed in a daylight (normal light)
environment.
Night Mode will be displayed when the camera is
supplying video feed in a night time (low light)
environment.
When the Day Mode is active, the video feed will be in
color.
When the Night Mode is active, the video feed will be in
black and white.
This is the pan and tilt control panel. Click the left, right,
up or down arrows to control the camera to pan or tilt in
the direction needed. Also, for more accuracy, arrows
are available in between the left, right, up and down
arrows. Click the [+] button to return the camera to the
home position.
Main Web User Interface
After successfully logging into the Web User Interface of the camera, the following
window will appear.
The following table describes all the icons and settings that can be configured on the
Live View page:
