Traxxas 7185A, 7186A Instruction Manual

Visitez Traxxas.com/manuals pour télécharger
les instructions dans votre langue.

Visite la página Traxxas.com/manuals para
descargar el instrucciones en su idioma.

Auf Traxxas.com/manuals, können Sie
anleitung in Ihrer Sprache downloaden.

1/16 E-Revo LED Light Kit Instructions

Note: Ensure vehicle battery is unplugged before beginning installation. Retain and reuse all parts and fasteners (unless otherwise noted).
Your model may differ slightly from the one shown in the illustrations.

Kit Contents:

1 - LED lighting module

(included with part
#7185A only)

2 - Power tap
3 - LED harness
4 - Front bumper
5 - Rear bumper
6 - Zip ties (3)

Tools Needed:

• 2.5mm hex driver

• 2.0mm hex driver

• 1.5mm hex driver

• Wire cutter (to trim
zip tie excess)

Tip: Sort the hardware by assembly as you remove them so you can easily locate the
correct hardware during reinstallation. (A)

A

Remove These Parts to Allow Installation of the

Front bumper

Servo guard /
cover plate

3

* Larger red connector for telemetry use only

LED Light Kit

Motor

Gear cover

Receiver box cover

LED Harness Installation

1. Remove the parts shown in Fig. A.

2. Install the LED lighting module and route the
wires through the loop guide (B).

3. Route the short end of the LED harness through
the front body mount (D).

4. Snap the LEDs into the new front bumper (C).

5. Route the wires against the front bumper; then,
install the bumper on the front bumper mount.
Secure the harness to the front body mount with
a zip tie (trim excess) (C, D).

6. Continue to route the LED harness down the center of the chassis as shown in Fig. J.
Plug the LED harness connector into the LED lighting module. Route the module wires
and the LED harness around the transmission and secure them with a zip tie
(trim excess) (J).

JJ

Wiring LayoutWiring Layout

Zip tie

2

Zip tie

5

4

*

ESC

Wire clamp

BB

LED lighting LED lighting

modulemodule

1

Loop guideLoop guide

6

Rear bumper
(under wing)

Rear shock mount

C

LED harness

7. Fully loosen the two rear shock mount
screws, raise the rear shock mount
slightly, and route the long end of the
LED harness under the shock mount
(between the shocks). Tighten the rear
shock mount screws; then, continue
routing the LED harness toward the

rear bumper (E).

CAUTION: Do not pinch the wiring
between the shock mount and the chassis.

8. Snap the LEDs into the new rear
bumper (F).

9. Route the wires against the rear
bumper; then, install the bumper on the
rear bumper mount. Secure the harness
to the rear body mount with a zip tie
(trim excess) (F, G). Plug the LED harness
connector into the LED lighting module.

10. Thread the red wire from the LED
lighting module through the opening
in the receiver box cover and plug the
connector into any available channel in
the receiver box (DO NOT use the V/T or
RPM ports) (H).

Note: If you install the included power
tap, the red female connector from the
power tap can be used to connect the
temperature/voltage sensor (part #6523,
sold separately) to the electronic speed
control (ESC).**

11. Reinstall the ESC, the receiver box cover,
the wire clamp, the motor, and the gear
cover.

Note:

Ensure that the blue o-ring is properly
seated in the groove around the receiver
box cover. Check for proper adjustment of
the gear mesh. Refer to the vehicle Owner’s
Manual for detailed instructions.

12. Plug the battery into the High-Current

Connector on the ESC (I).

13. The lights will turn on when the ESC is

turned on.

LEDs

Zip tie

Front bumper

Covers Part(s) #7185A, 7186A

D

bumper

EE

F

G

HH

I

Zip tie

Front

mount

Rear shock mount screwsRear shock mount screws

LEDs

Zip tie

Receiver box coverReceiver box cover

High-Current Connector

Power TapPower Tap

LED harnessLED harness

Rear bumper

LED
harness

Rear
bumper

Blue O-ringBlue O-ring

on the ESC

LED lighting module

Receiver box

(Receiver box cover and wire clamp removed
from the wiring layout for clarity)

Traxxas, 6250 Traxxas Way, McKinney, TX 75070,

Wing removed to show
rear bumper location

TRAXXAS.com

Phone: [phone], Fax: [phone], e-mail: [e-mail]

HKC20057-R00 Rev. 200724

HKC20057-R02 Rev 201026

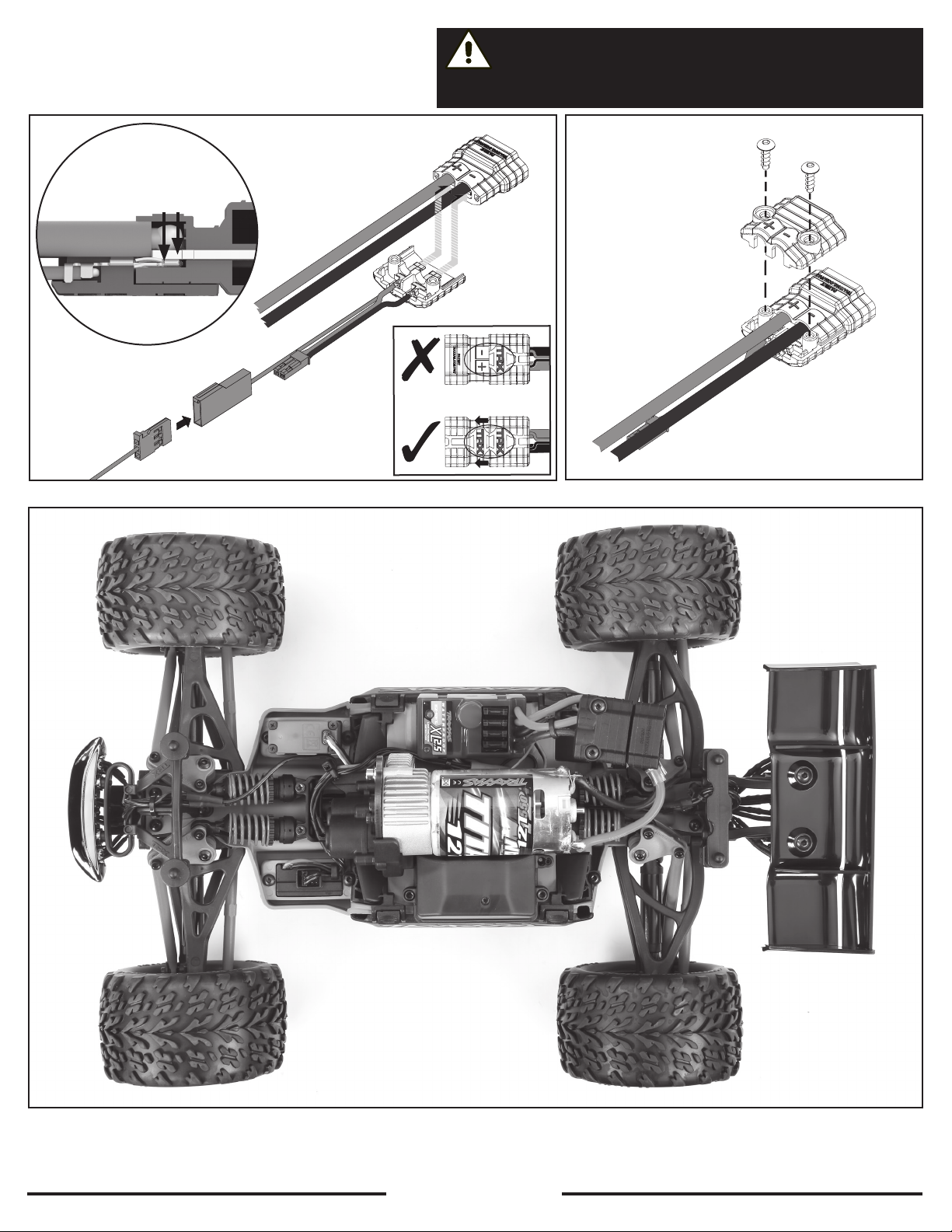

Installation of the power tap

Note: If the wiring from your speed control is not equipped with the 2-pin male
connector (black wire with red connector), you must install the included power tap on
the High-Current Connector.

CAUTION: RISK OF DAMAGE TO

Note the polarity and wire color on the

ACCESSORIES!

pre-installed wires on the power tap. Ensure the polarity is correct during
installation on the High-Current Connector: red (+) (positive), black (-) (negative).

During installation, be sure that

the terminals of the High-Current

Connector and the power tap

make full contact.

ESC Wiring

Power Tap

Temperature/Voltage
Sensor (part #6523,
sold separately)**

**TQi Radio System required for functionality. Visit Traxxas.com for more information.

ESC Wiring

High-Current
Connector

ESC

Power Tap

Wire colors mismatched

2.6x8mm BCS

ESC Power
Tap Cover

ESC Wiring
