TP-Link TL-SL1226P User Manual
Business Networking Solution
Installation Guide
Unmanaged PoE+ Switch
About this Installation Guide
This Installation Guide describes the hardware characteristics, installation methods and the
points that should be attended to during installation.
This Installation Guide is structured as follows:
Chapter 1 Introduction
This chapter describes the external components of the switch.
Chapter 2 Installation
This chapter illustrates how to install the switch.
Chapter 3 Connection
This chapter illustrates how to do the physical connection of the switch.
Appendix A Troubleshooting
Appendix B Hardware Specifications
Audience
This Installation Guide is for:
Network Engineer Network Administrator
Conventions
• Some models featured in this guide may be unavailable in your country or region. For local
sales information, visit https://www.tp-link.com.
• The speed of the ports in Extend Mode will downgrade to 10 Mbps. The actual transmission
distance may vary due to power consumption of PoE-powered devices or the cable quality
and type.
• PoE budget calculations are based on laboratory testing. Actual PoE power budget is not
guaranteed and will vary as a result of client limitations and environmental factors.
• The figures in Chapter 2 and Chapter 3 are for demonstration purposes only. Your switch may
differ in appearance from that depicted.
• This guide uses the specific formats to highlight special messages. The following table lists
the notice icons that are used throughout this guide.
Remind to be careful. A caution indicates a potential which may result in device damage.
Remind to take notice. The note contains the helpful information for a better use of the
product.
Related Document
This Installation Guide is also available in PDF on our website. To obtain the latest
documentation and product information, visit the official website: https://www.tp-link.com.
Contents
Chapter 1 Introduction ——————————— 1
1.1 Product Overview ...........................................................1
1.2 Appearance .......................................................................1
Chapter 2 Installation ——————————— 6
2.1 Package Contents ..........................................................6
2.2 Safety Precautions .........................................................6
2.3 Installation Tools ..............................................................8

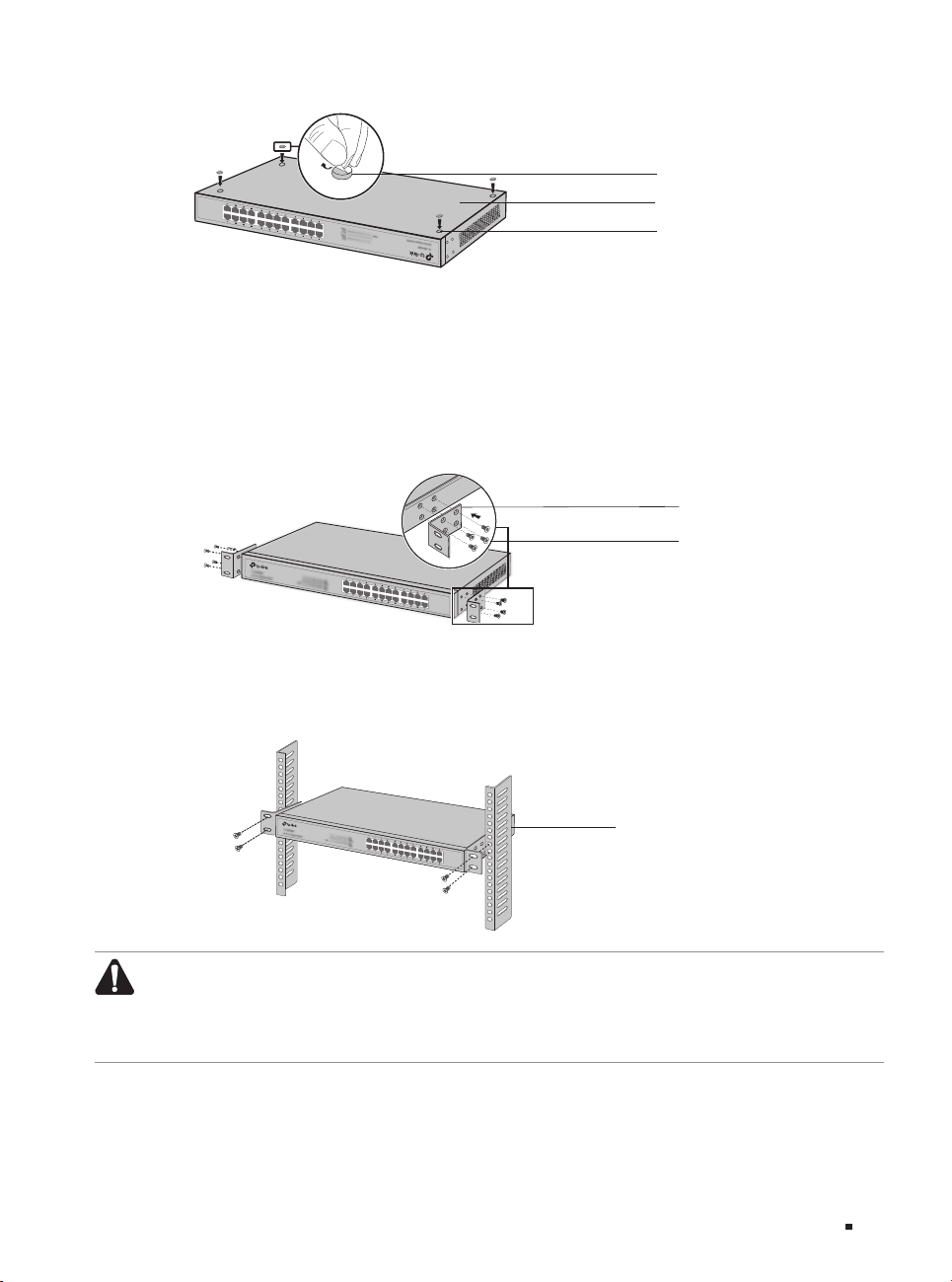

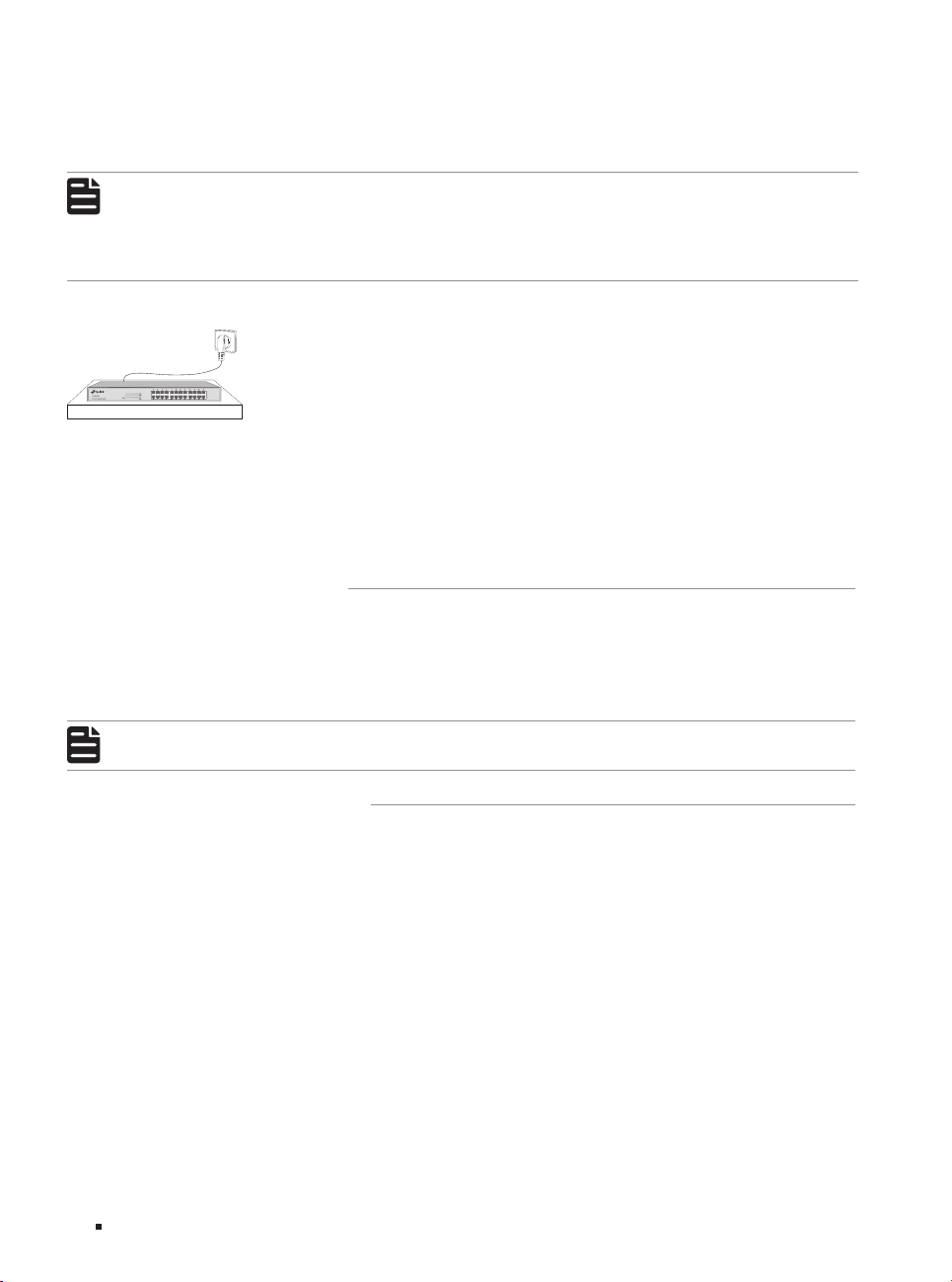

2.4 Product Installation ........................................................8
Chapter 3 Connection ——————————— 10
3.1 Ethernet Port ....................................................................10
3.2 SFP Port ..............................................................................10
3.3 Verify Installation .............................................................10

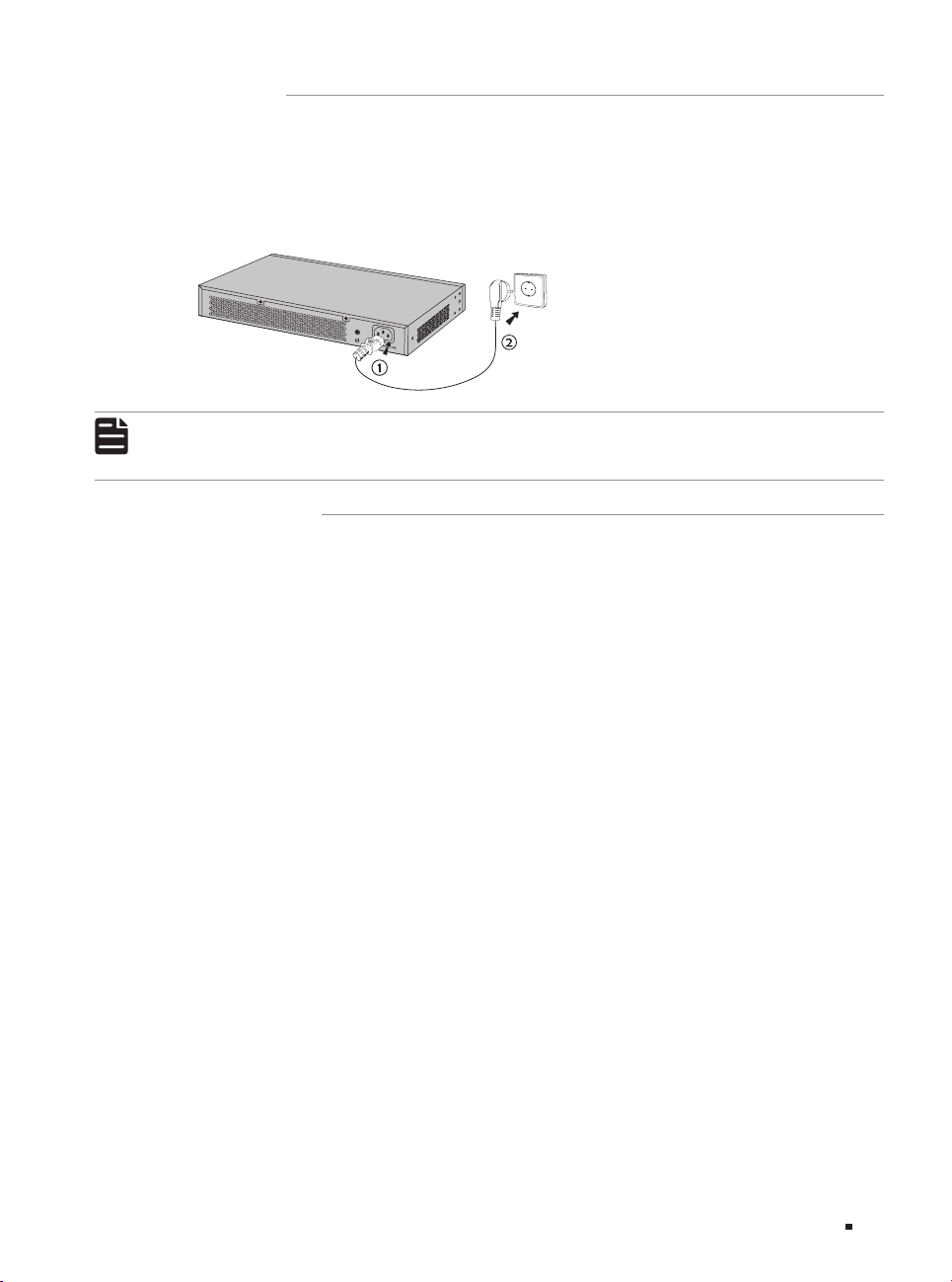

3.4 Power On ............................................................................11
3.5 Initialization ........................................................................11
Appendix A Troubleshooting ———————— 12
Appendix B Specications ————————— 13
Unmanaged PoE+ Switch
Chapter 1 Introduction
1.1 Product Overview
TL-SL1218P, TL-SL1218MP, and TL-SL1226P are Power Sourcing Equipment (PSE*) which require
no configurations. The 10/100 Mbps RJ45 ports on the switch support the Power over Ethernet
(PoE*) function, which can automatically detect and supply power to those powered devices (PDs*)
complying with IEEE 802.3af and IEEE 802.3at.
Note:
■
*PSE is a device (switch or hub for instance) that will provide power in a PoE setup.
■
*PoE is a technology that describes a system to transmit electrical power, along with data, to
remote devices over standard twisted-pair cable in an Ethernet network.
■
*PD is a device powered by a PSE and thus consumes energy. Examples include powering
IP telephones, wireless LAN access points, network cameras, network hubs, embedded
computers and so on.
1.2 Appearance
■
Front Panel
The front panels of TL-SL1218P and TL-SL1218MP are shown as the following figure.
Figu re 1-1 Front Panel of T L-SL1218P
LEDs Switches 10/100/1000 Mbps
Figu re 1-2 Front Panel of T L-SL1218MP
LEDs Switches 10/100/1000 Mbps
LEDs
LED Indication
PWR
On: The switch is powered on.
Off: The switch is powered off.
10/100 Mbps
RJ45 Port (Port 1-16)
10/100 Mbps
RJ45 Port (Port 1-16)
RJ45 Port (Port 17-18)
RJ45 Port (Port 17-18)
SFP Port
(Port 18F)
SFP Port
(Port 17F-18F)
Introduction
1
Unmanaged PoE+ Switch
LED Indication
Port 1–16
On: Running at 10/100 Mbps but no activity.
Flashing: Running at 10/100 Mbps and is transmitting or receiving data.
Off: No device is linked to the corresponding port.
Link/Act
PoE Status
PoE Max
Port 17–18/18F (for TL-SL1218P)
Port 17–18/17F–18F (for TL-SL1218MP)
Green On: Running at 1000 Mbps but no activity.
Green Flashing: Running at 1000 Mbps and is transmitting or receiving data.
Yel low On : Running at 10/100 Mbps but no activit y.
Yellow Flashing: Running at 10/100 Mbps and is transmit ting or receiving data.
Off: No device is linked to the corresponding port.
On: The por t is connecting to a PD and supplying power for it.
Flashing: The PoE power circuit may be in short or the power current may be overloaded.
Off: No PD is connected to the corresponding por t, or no power is supplied according to
the power limits of the port.
For TL-SL1218P
On: Total power supply ≥ 143 W.
Flashing: Total power supply ≥ 143 W and lasts for more than 2 minutes.
Off: Total power supply ≤ 143 W.
For TL-SL1218MP
On: Total power supply ≥ 243 W.
Flashing: Total power supply ≥ 243 W and lasts for more than 2 minutes.
Off: Total power supply ≤ 243 W.
Switches
Switch Indication
Extend Mode
Priority Mode
(1–8)
Isolation
(1–16)
2
Introduction
Extend Mode switch 1–8 and 9–16 can control the rate and power supply distance of
corresponding ports.
Off: The corresponding ports (1–8/9–16) run at 10/100 Mbps and support PoE power
supply up to 100 m away.
On: The corresponding ports (1–8/9 –16) run at 10 Mbps and support PoE power supply up
to 250 m away.
Off: All the ports transmit data with the same priority.
On: Por t 1–8 transmit data with a higher priority than Port 9–18. When congestion occurs,
packets which are transmitted by the ports with a higher priority occupy the whole
bandwidth.
Off: Port 1–16 can transmit data with every port.
On: Port 1–16 cannot transmit data with each other. They can transmit data only with port
17–18 .
