TD-W8961NB
300Mbps Wireless N ADSL2+ Modem Router (Annex
B)
Rev: 3.0.1
1910010748
COPYRIGHT & TRADEMARKS
Specifications are subject to change without notice. is a registered trademark
of TP-LINK TECHNOLOGIES CO., LTD. Other brands and product names are trademarks or
registered trademarks of their respective holders.
No part of the specifications may be reproduced in any form or by any means or used to make any
derivative such as translation, transformation, or adaptation without permission from TP-LINK
TECHNOLOGIES CO., LTD. Copyright © 2013 TP-LINK TECHNOLOGIES CO., LTD. All rights
reserved.
http://www.tp-link.com
TP-LINK TECHNOLOGIES CO., LTD
FCC STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to pro-vide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not in-stalled and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/ TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
1) This device may not cause harmful interference.
2) This device must accept any interference received, including interference that may
cause undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
Note: The manufacturer is not responsible for any radio or TV interference caused by
unauthorized modifications to this equipment. Such modifications could void the user’s authority
to operate the equipment.
FCC RF Radiation Exposure Statement
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled
environment. This device and its antenna must not be co-located or operating in conjunction with
any other antenna or transmitter.
“To comply with FCC RF exposure compliance requirements, this grant is applicable to only
Mobile Configurations. The antennas used for this transmitter must be installed to provide a
separation distance of at least 20 cm from all persons and must not be co-located or operating in
conjunction with any other antenna or transmitter.”
TP-LINK TECHNOLOGIES CO., LTD
CE Mark Warning
This is a Class B product. In a domestic environment, this product may cause radio interference,
in which case the user may be required to take adequate measures.
Canadian Compliance Statement
This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject
to the following two conditions:
(1)This device may not cause interference, and
(2)This device must accept any interference, including interference that may cause undesired
operation of the device.
Cet appareil est conforme aux norms CNR exemptes de licence d’Industrie Canada. Le
fonctionnement est soumis aux deux conditions suivantes:
(1)cet appareil ne doit pas provoquer d’interférences et
(2)cet appareil doit accepter toute interférence, y compris celles susceptibles de provoquer un
fonctionnement non souhaité de l’appareil.
This device has been designed to operate with the antennas listed below, and having a maximum
gain of 3 dBi. Antennas not included in this list or having a gain greater than 3 dBi are strictly
prohibited for use with this device. The required antenna impedance is 50 ohms.
To reduce potential radio interference to other users, the antenna type and its gain should be so
chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that permitted for
successful communication.
Industry Canada Statement
Complies with the Canadian ICES-003 Class B specifications.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
This device complies with RSS 210 of Industry Canada. This Class B device meets all the
requirements of the Canadian interference-causing equipment regulations.
Cet appareil numérique de la Classe B respecte toutes les exigences du Règlement sur le
matériel brouilleur du Canada.
Korea Warning Statements:
당해 무선설비는 운용중 전파혼신 가능성이 있음.
TP-LINK TECHNOLOGIES CO., LTD
NCC Notice & BSMI Notice
注意！
依據 低功率電波輻射性電機管理辦法
第十二條 經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻
率、加大功率或變更原設計之特性或功能。
第十四條 低功率射頻電機之使用不得影響飛航安全及干擾合法通行；經發現有干擾現象時，應立
即停用，並改善至無干擾時方得繼續使用。前項合法通信，指依電信規定作業之無線電信。低功率
射頻電機需忍受合法通信或工業、科學以及醫療用電波輻射性電機設備之干擾。
安全諮詢及注意事項
●請使用原裝電源供應器或只能按照本產品注明的電源類型使用本產品。
●清潔本產品之前請先拔掉電源線。請勿使用液體、噴霧清潔劑或濕布進行清潔。
●注意防潮，請勿將水或其他液體潑灑到本產品上。
●插槽與開口供通風使用，以確保本產品的操作可靠並防止過熱，請勿堵塞或覆蓋開口。
●請勿將本產品置放於靠近熱源的地方。除非有正常的通風，否則不可放在密閉位置中。
●請不要私自打開機殼，不要嘗試自行維修本產品，請由授權的專業人士進行此項工作。
UkrSEPRO
Продукт сертифіковано згідно с правилами системи УкрСЕПРО на відповідність вимогам
нормативних документів та вимогам, що передбачені чинними законодавчими актами
України.
Safety Information
When product has power button, the power button is one of the way to shut off the product;
when there is no power button, the only way to completely shut off power is to disconnect the
product or the power adapter from the power source.
Don’t disassemble the product, or make repairs yourself. You run the risk of electric shock
and voiding the limited warranty. If you need service, please contact us.
Avoid water and wet locations.
This product can be used in the following countries:
AT BG BY CA CZ DE DK EE
ES FI FR GB GR HU IE IT
LT LV MT NL NO PL PT RO
RU SE SK TR UA
TP-LINK TECHNOLOGIES CO., LTD
DECLARATION OF CONFORMITY
For the following equipment:
Product Description: 300Mbps Wireless N ADSL2+ Modem Router (Annex B)
Model No.: TD-W8961NB
Trademark: TP-LINK
We declare under our own responsibility that the above products satisfy all the technical
regulations applicable to the product within the scope of Council Directives:
Directives 1999/5/EC, Directives 2004/108/EC, Directives 2006/95/EC, Directives 1999/519/EC,
Directives 2011/65/EU
The above product is in conformity with the following standards or other normative documents
ETSI EN 300 328 V1.7.1: 2006
ETSI EN 301 489-1 V1.9.2:2011& ETSI EN 301 489-17 V2.2.1:2012
EN 55022:2010
EN 55024:2010
EN 61000-3-2:2006+A1:2009+A2:2009
EN 61000-3-3:2008
EN60950-1:2006+A11：2009+A1:2010+A12:2011
EN62311:2008
The product carries the CE Mark:
Person responsible for marking this declaration:
Yang Hongliang
Product Manager of International Business
Date of issue: 2013
TP-LINK TECHNOLOGIES CO., LTD.
Building 24 (floors 1, 3, 4, 5), and 28 (floors 1-4) Central Science and Technology Park, Shennan
Rd, Nanshan, Shenzhen, China
CONTENTS
Package Contents .................................................................................................... 1
Chapter 1 Introduction ......................................................................................... 2
1.1 Product Overview.................................................................................. 2
1.2 Main Features ....................................................................................... 2
1.3 Conventions .......................................................................................... 3
Chapter 2 Hardware Installation.......................................................................... 4
2.1 The Front Panel .................................................................................... 4
2.2 The Back Panel..................................................................................... 5
2.3 Installation Environment........................................................................ 6
2.4 Connecting the Modem Router ............................................................. 7
Chapter 3 Quick Installation Guide ..................................................................... 9
3.1 Configure PC......................................................................................... 9
3.2 Login ................................................................................................... 12
Chapter 4 Software Configuration .................................................................... 15
4.1 Status.................................................................................................. 15
4.1.1 Device Info............................................................................................... 15
4.1.2 System Log.............................................................................................. 16
4.1.3 Statistics .................................................................................................. 17
4.2 Quick Start .......................................................................................... 19
4.3 Interface Setup.................................................................................... 20

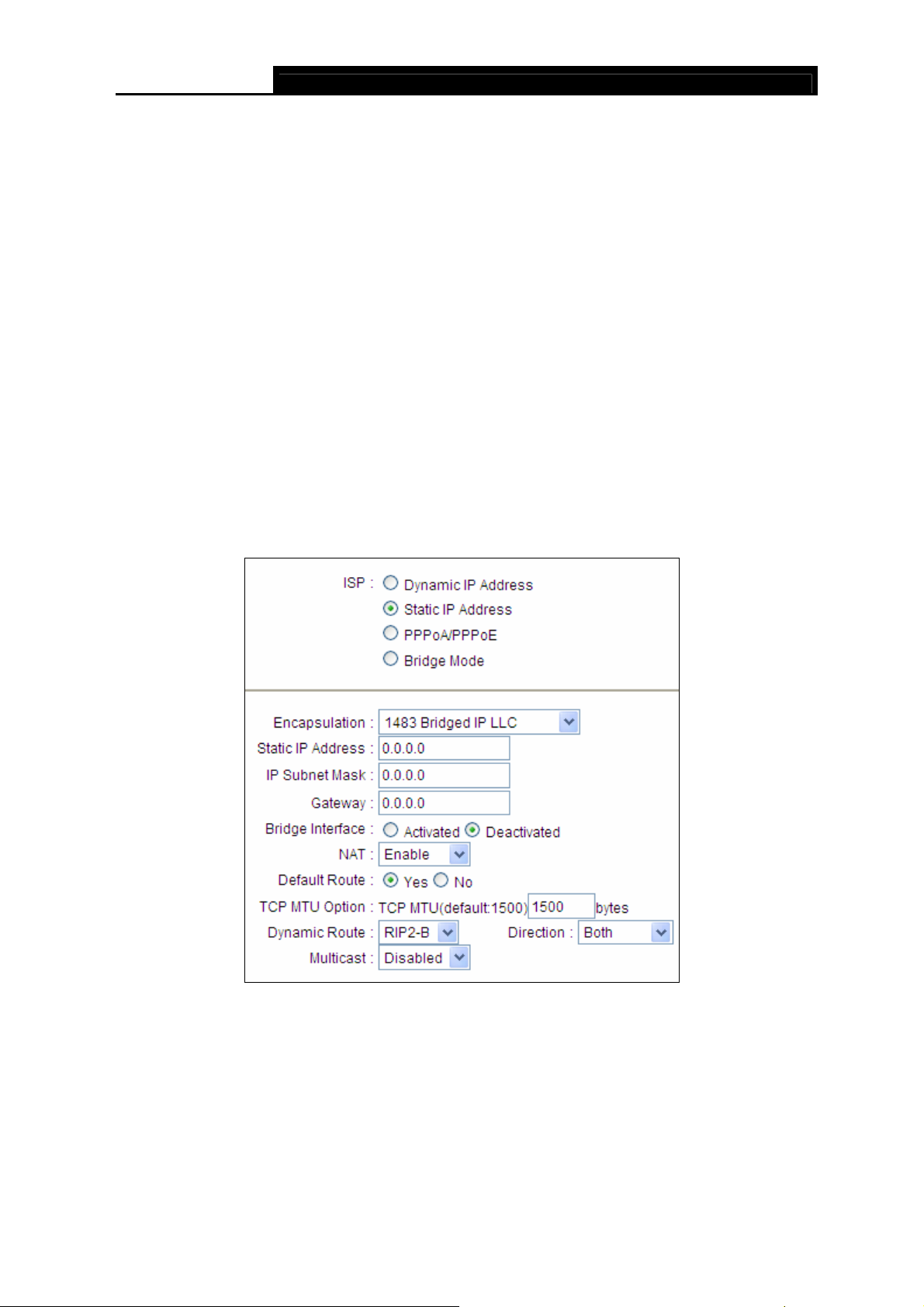

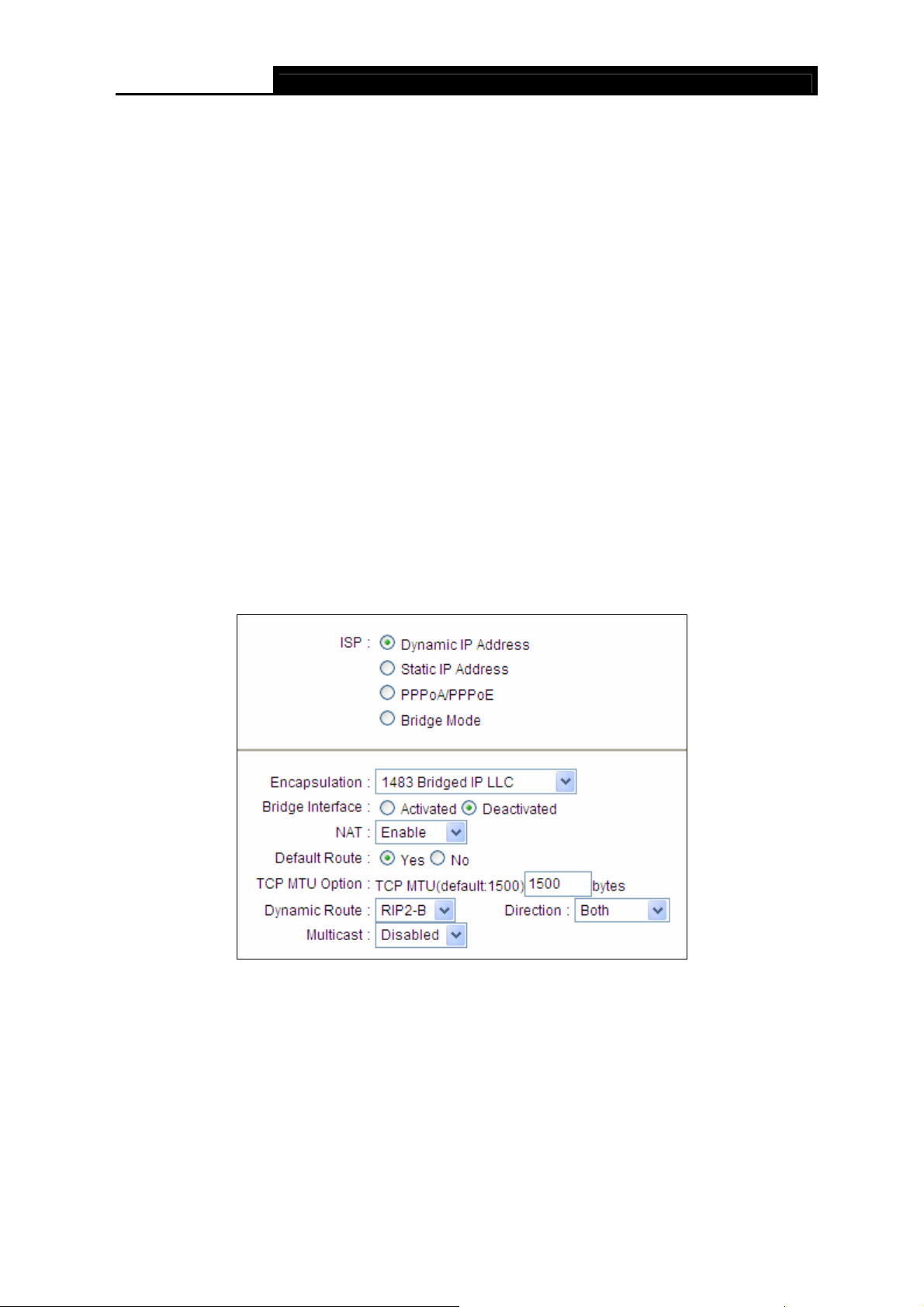

4.3.1 Internet .................................................................................................... 20
4.3.2 LAN ......................................................................................................... 24

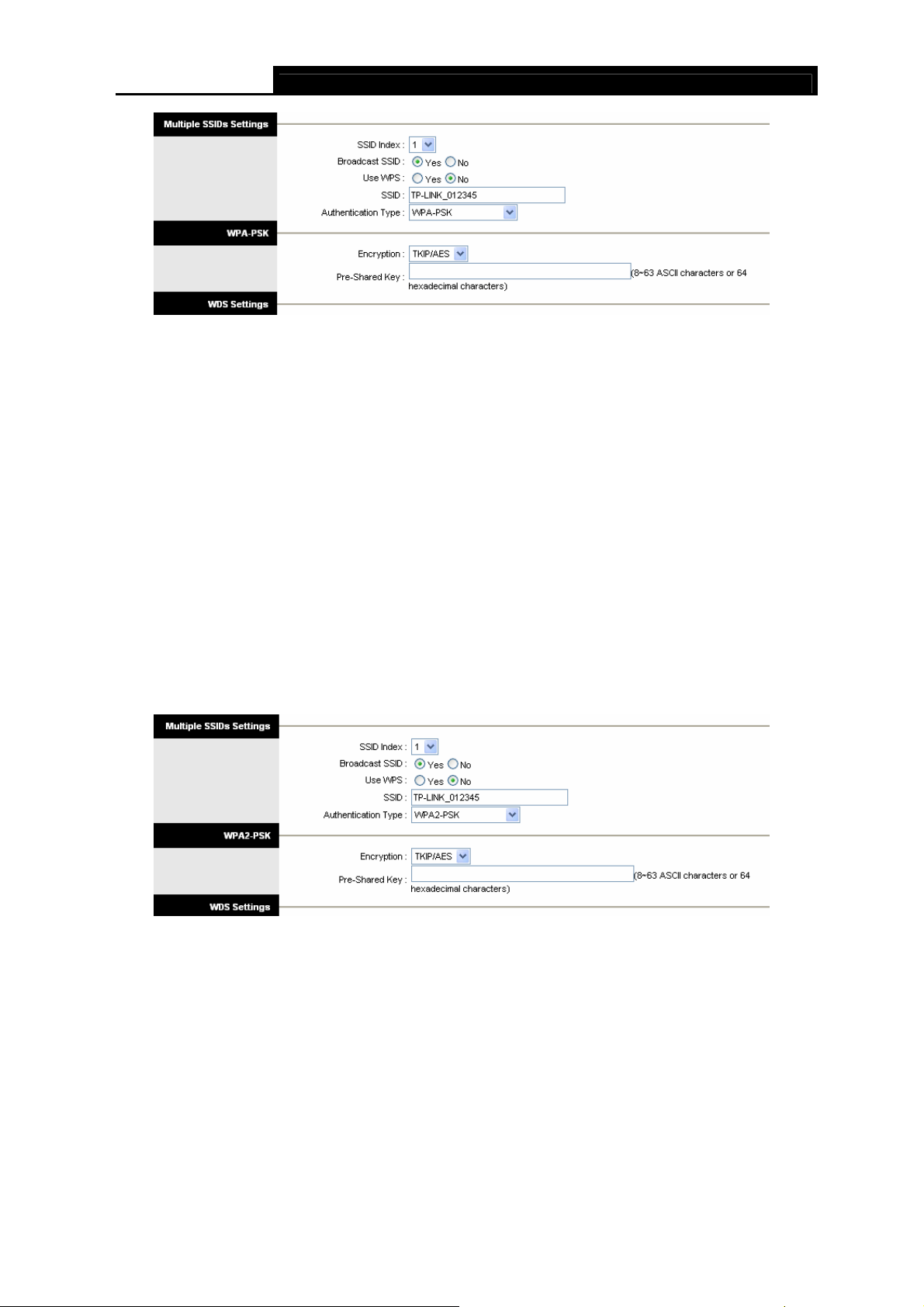

4.3.3 Wireless................................................................................................... 28
4.4 Advanced Setup.................................................................................. 39

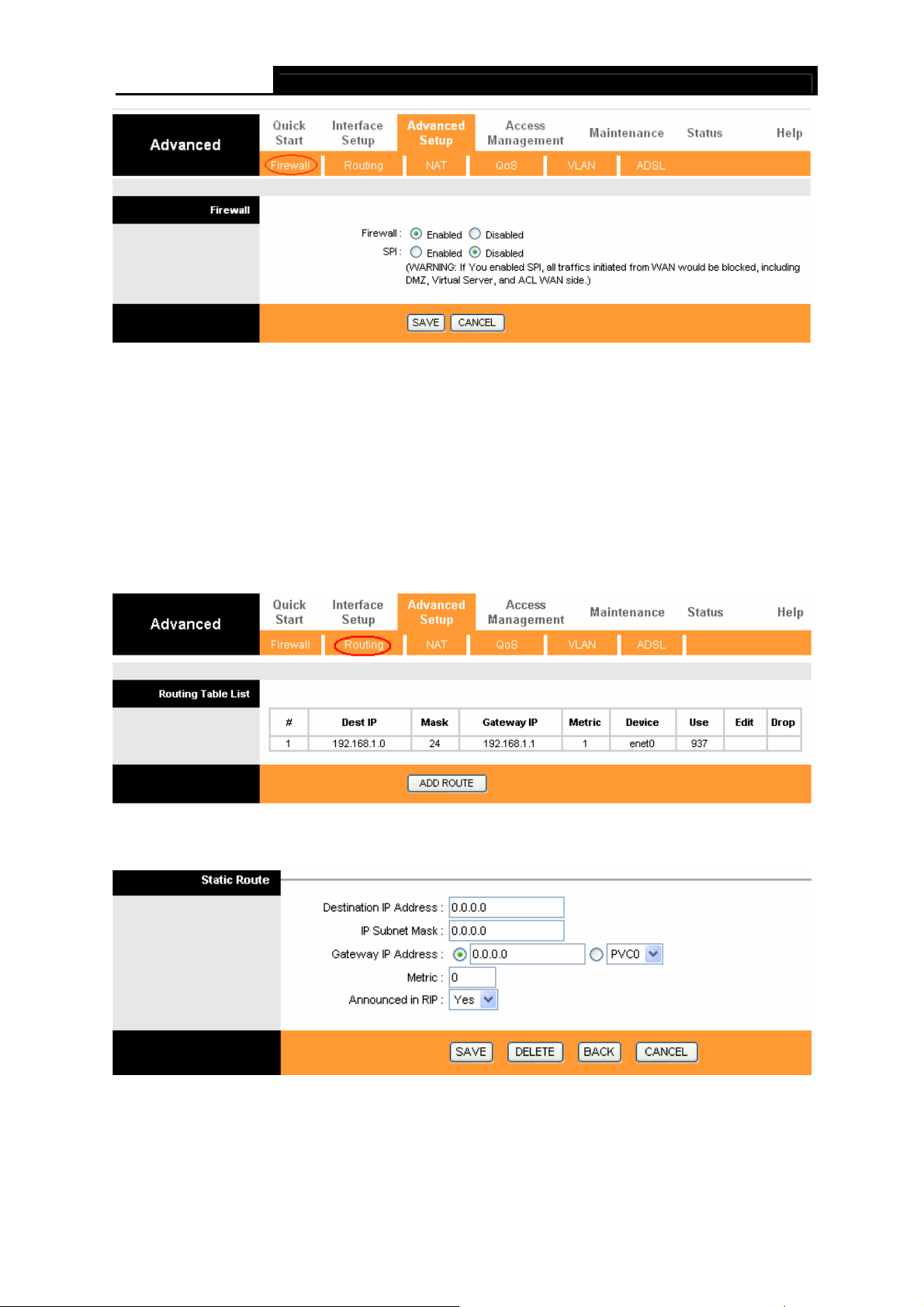

4.4.1 Firewall .................................................................................................... 39
4.4.2 Routing .................................................................................................... 40
4.4.3 NAT ......................................................................................................... 41
4.4.4 QoS ......................................................................................................... 44

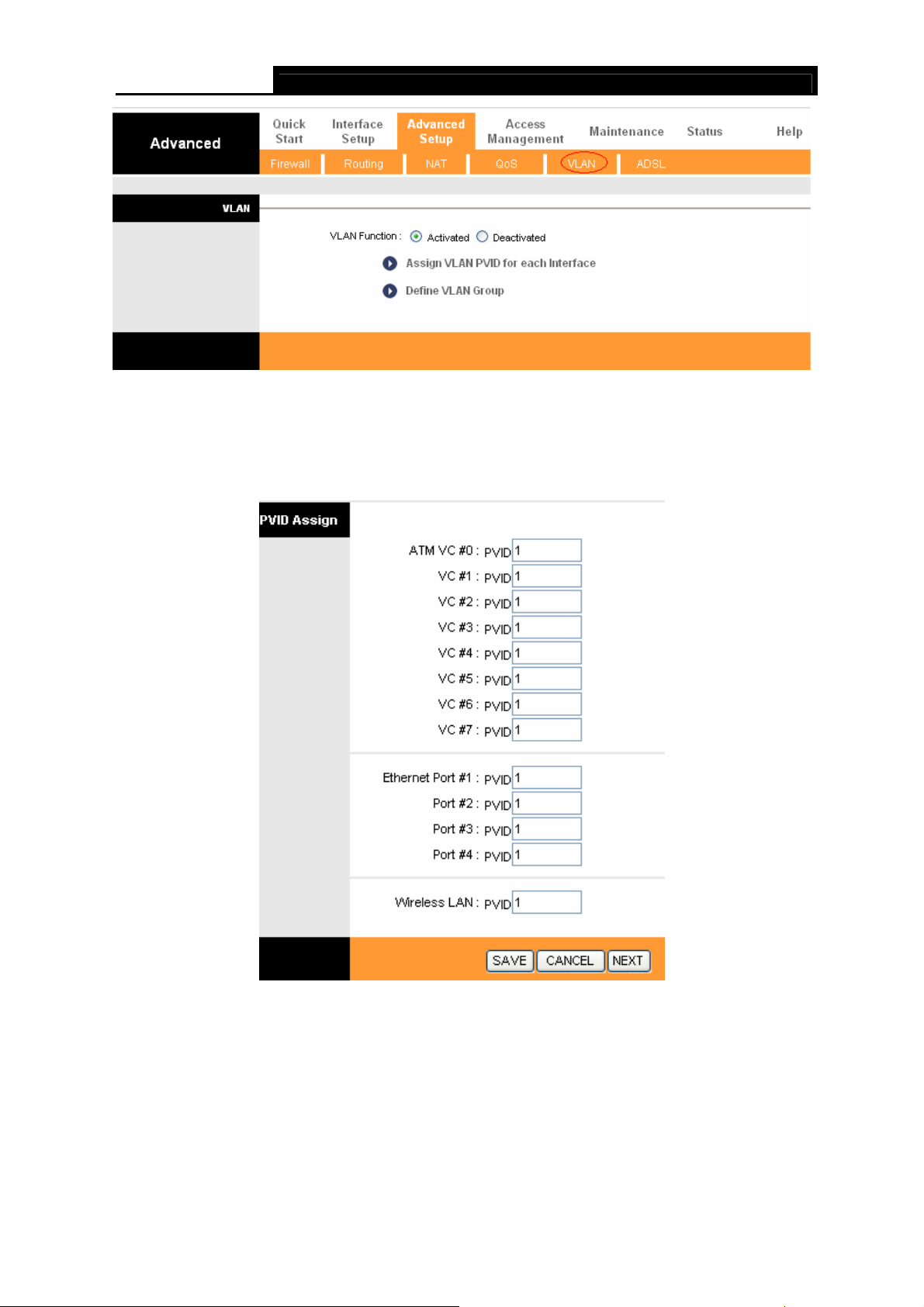

4.4.5 VLAN ....................................................................................................... 46
4.4.6 ADSL ....................................................................................................... 48
4.5 Access Management........................................................................... 49
4.5.1 ACL ......................................................................................................... 49

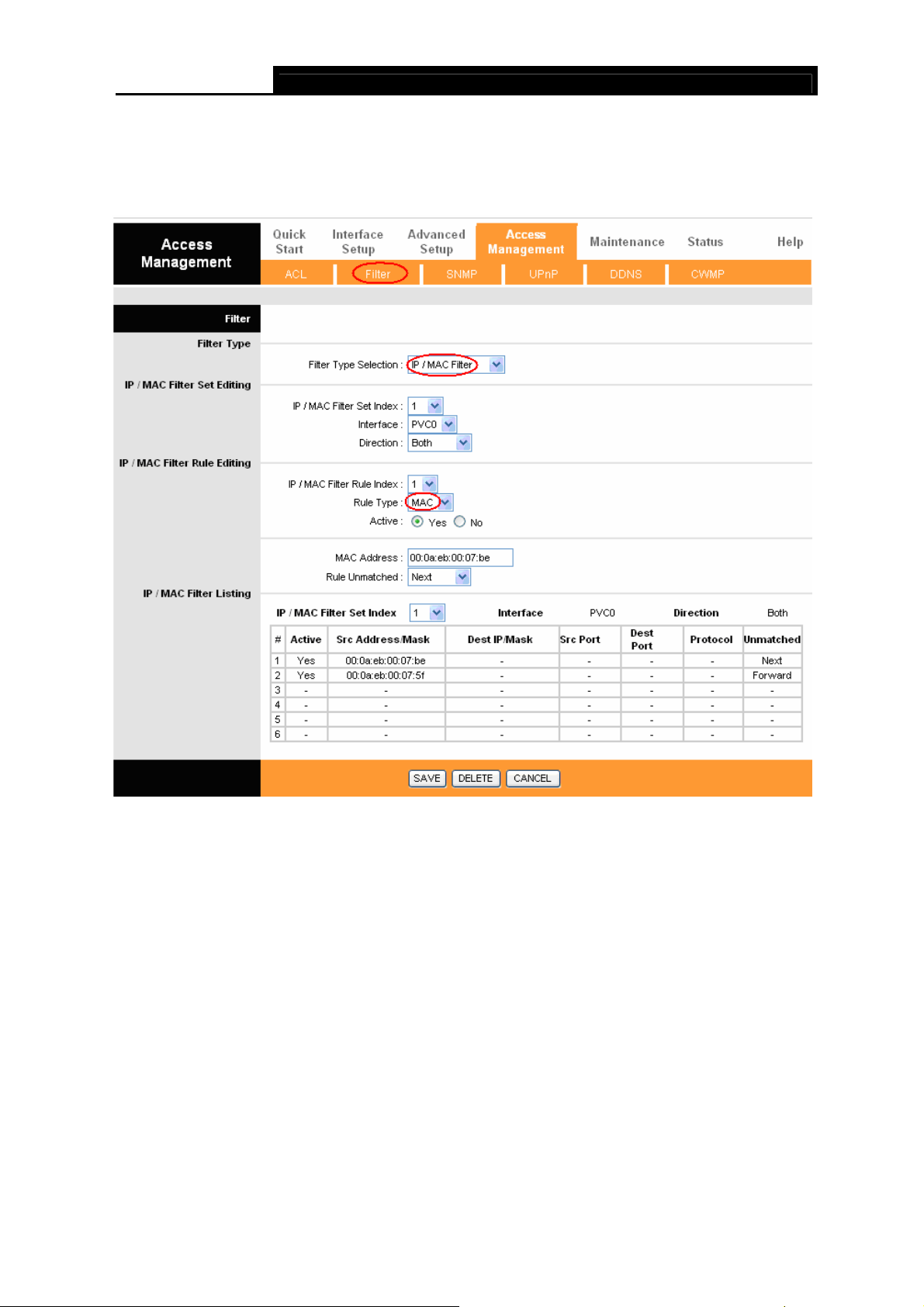

4.5.2 Filter ........................................................................................................ 50
4.5.3 SNMP ...................................................................................................... 58
4.5.4 UPnP ....................................................................................................... 58
4.5.5 DDNS ...................................................................................................... 59
4.5.6 CWMP ..................................................................................................... 59
4.6 Maintenance........................................................................................ 60
4.6.1 Administration.......................................................................................... 61

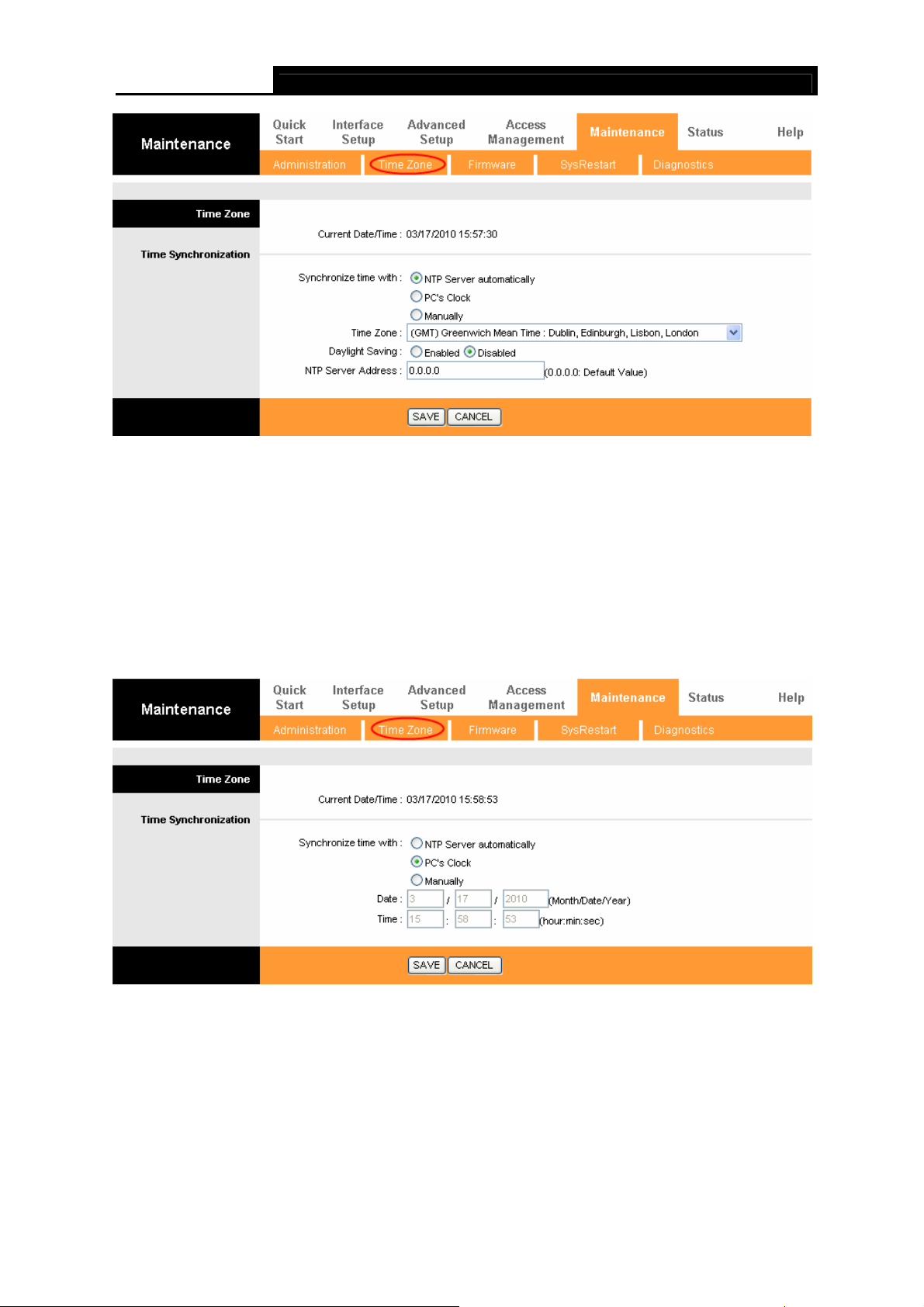

4.6.2 Time Zone ............................................................................................... 61
4.6.3 Firmware.................................................................................................. 63
4.6.4 SysRestart ............................................................................................... 65
4.6.5 Diagnostics.............................................................................................. 65

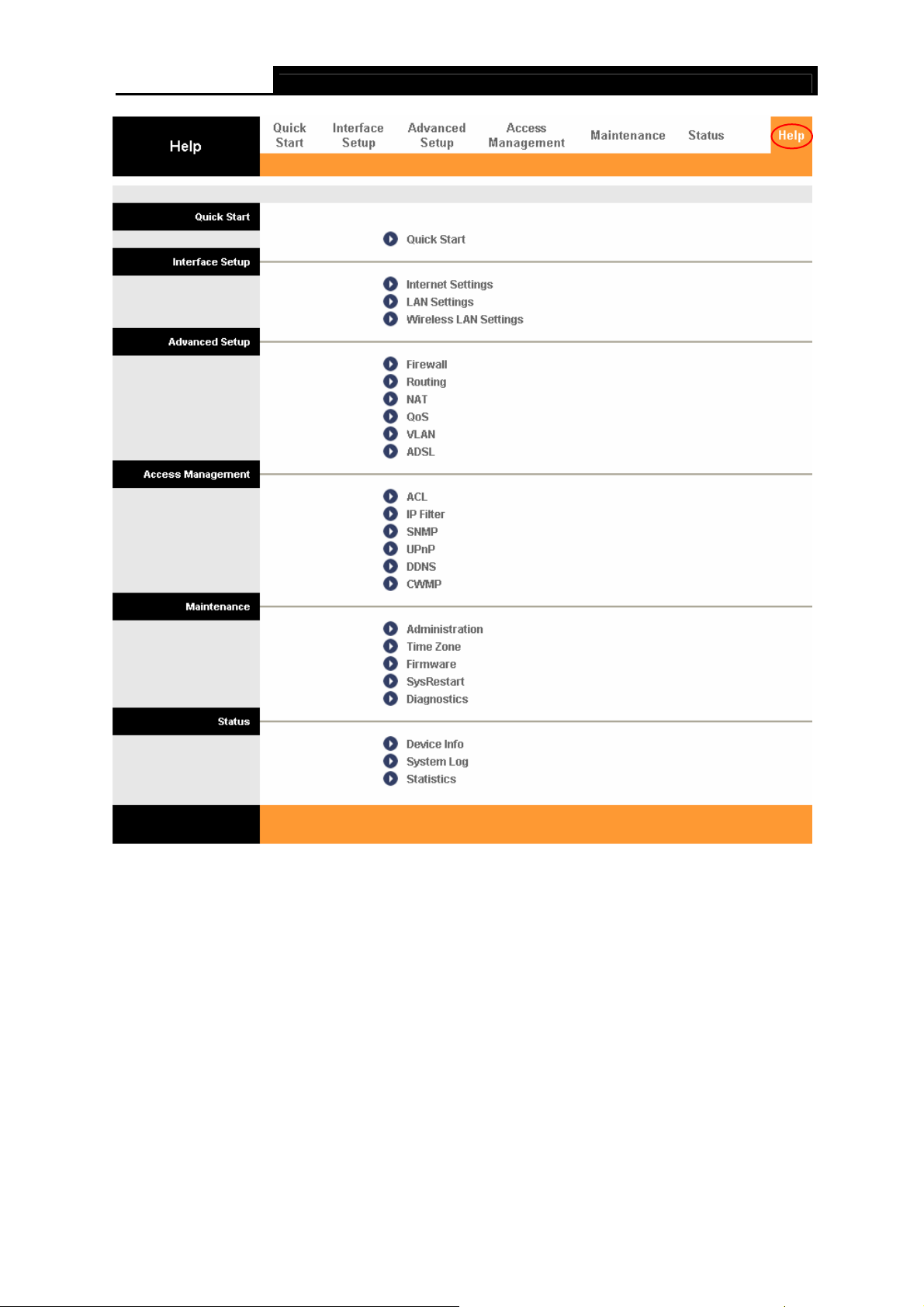

4.7 Help..................................................................................................... 66
Appendix A: Specifications................................................................................... 68
Appendix B: Troubleshooting............................................................................... 69
Appendix C: Technical Support............................................................................ 79
TD-W8961NB 300Mbps Wireless N ADSL2+ Modem Router (Annex B) User Guide
Package Contents
The following contents should be found in your package:
One TD-W8961NB 300Mbps Wireless N ADSL2+ Modem Router (Annex B)
One Power Adapter for TD-W8961NB 300Mbps Wireless N ADSL2+ Modem Router (Annex
B)
Quick Installation Guide
One RJ45 cable
Two RJ11 cables
One ADSL splitter
One Resource CD which includes this User Guide
Note:
Make sure that the package contains the above items. If any of the listed items are damaged or
missing, please contact your distributor.
1
TD-W8961NB 300Mbps Wireless N ADSL2+ Modem Router (Annex B) User Guide
Chapter 1 Introduction
Thank you for choosing the TD-W8961NB 300Mbps Wireless N ADSL2+ Modem Router
(Annex B).
1.1 Product Overview
The device is designed to provide a simple and cost-effective ADSL Internet connection for a
private Ethernet or IEEE 802.11n/ IEEE 802.11g/ IEEE 802.11b wireless network.
The TD-W8961NB connects to an Ethernet LAN or computers via standard Ethernet ports. The
ADSL connection is made using ordinary telephone line with standard connectors. Multiple
workstations can be networked and connected to the Internet using a single Wide Area Network
(WAN) interface and single global IP address. The advanced security enhancements, IP/MAC
Filter, Application Filter and URL Filter can help to protect your network from potentially
devastating intrusions by malicious agents from the outside of your network.
Quick Start of the Web-based Utility is supplied and friendly help messages are provided for the
configuration. Network and Router management is done through the Web-based Utility which can
be accessed through local Ethernet using any web browser.
ADSL
The TD-W8961NB supports full-rate ADSL2+ connectivity conforming to the ITU and ANSI
specifications. In addition to the basic DMT physical layer functions, the ADSL2+ PHY supports
dual latency ADSL2+ framing (fast and interleaved) and the I.432 ATM Physical Layer.
Wireless
In the most attentive wireless security, the modem router provides multiple protection measures. It
can be set to turn off the wireless network name (SSID) broadcast so that only stations that have
the SSID can be connected. The modem router provides wireless LAN 64/128-bit WEP encryption
security, WPA-PSK/WPA2-PSK authentication, as well as TKIP/AES encryption security.
1.2 Main Features
Four 10/100Mbps Auto-Negotiation RJ45 LAN ports (Auto MDI/MDIX), one RJ11 port.
Provides external splitter.
Adopts Advanced DMT modulation and demodulation technology.
Supports bridge mode and modem router function.
Multi-user sharing a high-speed Internet connection.
Downstream data rates up to 24Mbps, upstream data rates up to 3.5Mbps (With Annex M
enabled).
Supports long transfers, the max line length can reach to 6.5Km.
Supports remote configuration and management through SNMP
2
and CWMP.
Supports PPPoE, it allows connecting the internet on demand and disconnecting from the
Provides reliable ESD and surge-protect function with quick response semi-conductive surge
High speed and asymmetrical data transmit mode, provides safe and exclusive bandwidth.
Supports All ADSL industrial standards.
Compatible with all mainstreams DSLAM (CO).
Provides integrated access of internet and route function which face to SOHO user.
Real-time Configuration and device monitoring.
Supports Multiple PVC (Permanent Virtual Circuit).
Built-in DHCP server.
Built-in firewall, supporting IP/MAC filter, Application filter and URL filter.
Supports Virtual Server, DMZ host and IP Address Mapping.
Supports Dynamic DNS, UPnP and Static Routing.
TD-W8961NB 300Mbps Wireless N ADSL2+ Modem Router (Annex B) User Guide
Internet when idle.
protection circuit.
Supports system log and flow Statistics.
Supports firmware upgrade and Web management.
Provides WPA-PSK/WPA2-PSK data security, TKIP/AES encryption security.
Provides 64/128-bit WEP encryption security and wireless LAN ACL (Access Control List).
1.3 Conventions
The modem router or device mentioned in this User Guide stands for TD-W8961NB without any
explanations.
Parameters provided in the pictures are just references for setting up the product, which may
differ from the actual situation.
3
TD-W8961NB 300Mbps Wireless N ADSL2+ Modem Router (Annex B) User Guide
Chapter 2 Hardware Installation
2.1 The Front Panel
Figure 2-1
The LEDs locate on the front panel. They indicate the device’s working status. For details, please
refer to LED Explanation.
LED Explan
Name Status Indication
(Power)
(ADSL)
(INTERNET)
ation:
On
Off
On
Flash
Off
On
Flash
Off
On Wireless is enabled but no data is being transmitted.
The modem router is powered on.
The modem router is off. Please ensure that the power adapter
is connected correctly.
ADSL line is synchronized and ready to use.
The ADSL negotiation is in progress.
ADSL synchronization fails. Please refer to Note 1 for
troubleshooting.
The network is available with a successful Internet connection.
There is data being transmitted or received via the Internet.
There is no successful Internet connection or the modem
router is operating in Bridge mode. Please refer to Note 2 for
troubleshooting.
The modem router is sending or receiving data over the
(WLAN)
(WPS)
Flash
Off Wireless function is disabled.
On
Flash
Off
wireless network.
A wireless device has been successfully added to the network
by WPS function.
WPS handshaking is in process and will continue for about 2
minutes. Please press the WPS button on other wireless
devices that you want to add to the network while the LED is
flashing.
The WPS function is disabled or the wireless device fails to be
added to the network in 2 minutes after WPS function is
enabled. Please refer to 4.3.3 WPS Settings
information.
4
for more
TD-W8961NB 300Mbps Wireless N ADSL2+ Modem Router (Annex B) User Guide
On
(LAN1-4)
Note:
1. If the ADSL LED is off, please check your Internet connection first. Refer to 2.4 Connecting
the Modem Router for more information about how to make Internet connection correctly. If
you have already made a right connection, please contact your ISP to make sure if your
Internet service is available now.
2. If the Internet LED is off, please check your ADSL LED first. If your ADSL LED is also off,
please refer to Note 1. If your ADSL LED is GREEN ON, please check your Internet
configuration. You may need to check this part of information with your ISP and make sure
everything have been input correctly. Refer to 4.1.1 Device Info
information.
Flash
Off
There is a device connected to this LAN port.
The modem router is sending or receiving data over this LAN
port.
There is no device connected to this LAN port.
and 4.3.1 Internet for more
2.2 The Back Panel
Figure 2-2
5
POWER: The Power plug is where you will connect the power adapter.
ON/OFF: The switch for the power.
WPS: The switch for the WPS function. For details, please refer to 4.3.3.1 Wireless-WPS
RESET: There are two ways to reset the modem router 's factory defaults.
WiFi: The switch for the WiFi function.
1, 2, 3, 4 (LAN): Through the port, you can connect the modem router to your PC or the other
ADSL: Through the port, you can connect the modem router with the telephone. Or you can
Antennas: Used for wireless operation and data transmit.
TD-W8961NB 300Mbps Wireless N ADSL2+ Modem Router (Annex B) User Guide
Settings.
Method one: With the modem router powered on, use a pin to press and hold the Reset
button for at least 5 seconds. And the modem router will reboot to its factory default settings.
Method two: Restore the default setting from “Maintenance-SysRestart” of the modem
router's Web-based Utility.
Ethernet network devices.
connect them by an external separate splitter. For details, please refer to 2.4 Connecting the
Modem Router.
2.3 Installation Environment
The Product should not be located where it will be exposed to moisture or excessive heat.
Place the modem router in a location where it can be connected to the various devices as
well as to a power source.
Make sure the cables and power cord are safely placed out of the way so they do not create a
tripping hazard.
The modem router can be placed on a shelf or desktop.
Keep away from the strong electromagnetic radiation and the device of electromagnetic
sensitive.
Figure 2-3 Wall-mount Install
6
TD-W8961NB 300Mbps Wireless N ADSL2+ Modem Router (Annex B) User Guide
Note:
The diameter of the screw, 3.5mm<D<7.8mm, and the distance of two screws is 107.5mm. The
screw that project from the wall need around 4mm based, and the length of the screw need to be
at least 20mm to withstand the weight of the product.
2.4 Connecting the Modem Router
Before installing the device, please make sure your broadband service provided by your ISP is
available. If there is any problem, please contact your ISP. Before cable connection, cut off the
power supply and keep your hands dry. You can follow the steps below to install it.
Step 1: Connect the ADSL Line.
Method one: Plug one end of the twisted-pair ADSL cable into the ADSL port on the rear
panel of TD-W8961NB, and insert the other end into the wall socket.
Method two：You can use a separate splitter. External splitter can divide the data and
voice, and then you can access the Internet and make calls at the same time. The
external splitter has three ports:
• LINE: Connect to the wall jack
• PHONE: Connect to the phone sets
• MODEM: Connect to the ADSL port of TD-W8961NB
Plug one end of the twisted-pair ADSL cable into the ADSL port on the rear panel of
TD-W8961NB. Connect the other end to the MODEM port of the external splitter.
Step 2: Connect the Ethernet cable. Attach one end of a network cable to your computer’s
Ethernet port or a regular hub/switch port, and the other end to the LAN port on the
TD-W8961NB.
Step 3: Power on the computers and LAN devices.
Step 4: Attach the power adapter. Connect the power adapter to the power connector on the rear
of the device and plug in the adapter to a electrical outlet or power extension. The
electrical outlet shall be installed near the device and shall be easily accessible.
7
TD-W8961NB 300Mbps Wireless N ADSL2+ Modem Router (Annex B) User Guide
Figure 2-4
8
TD-W8961NB 300Mbps Wireless N ADSL2+ Modem Router (Annex B) User Guide
Chapter 3 Quick Installation Guide
3.1 Configure PC
After you directly connect your PC to the TD-W8961NB or connect your adapter to a Hub/Switch
which has connected to the modem router, you need to configure your PC’s IP address. Follow
the steps below to configure it..

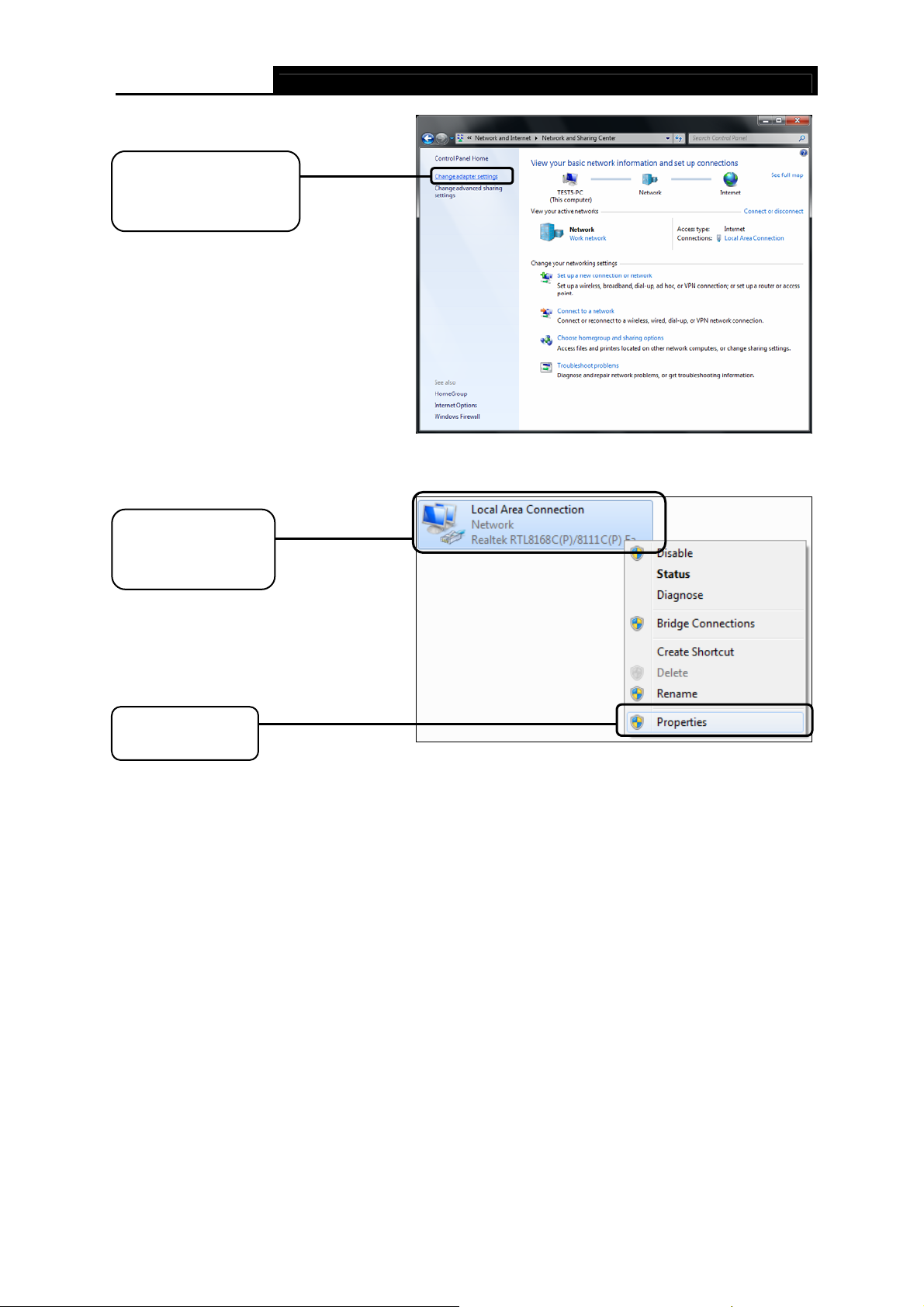

Step 1: Click the Start menu on your desktop, right click My Network Places, and then select
Properties (shown in Figure 3-1).
Figure 3-1
Step 2: Right click Local Area Connection (LAN), and then select Properties.
9
TD-W8961NB 300Mbps Wireless N ADSL2+ Modem Router (Annex B) User Guide
Figure 3-2

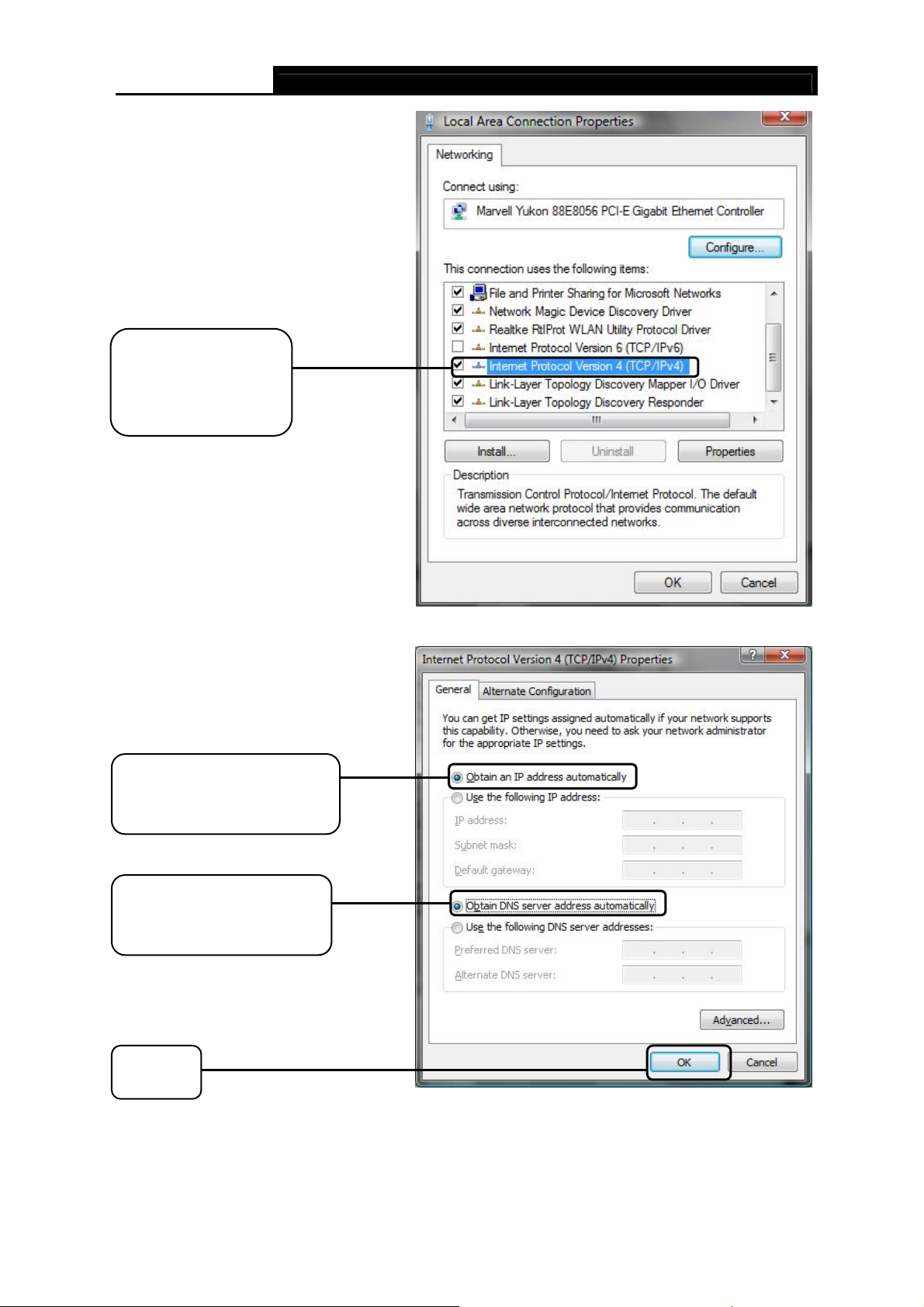

Step 3: Select General tab, highlight Internet Protocol (TCP/IP), and then click the Properties
button.
Figure 3-3
10
Step 4: Configure the IP address as Figure 3-4 shows. After that, click OK.
TD-W8961NB 300Mbps Wireless N ADSL2+ Modem Router (Annex B) User Guide
Figure 3-4
Note:

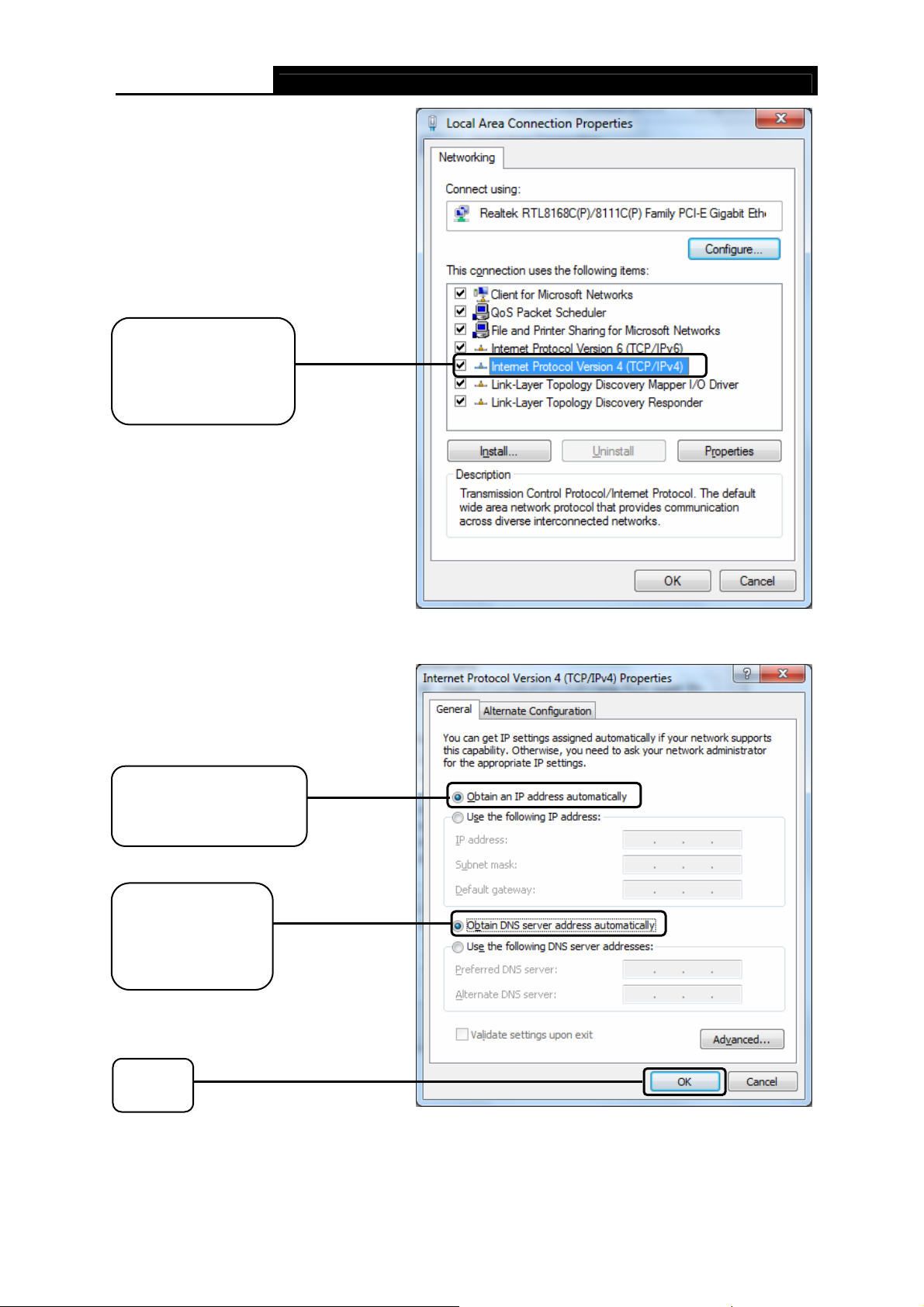

You can configure the PC to get an IP address automatically, select “Obtain an IP address
automatically” and “Obtain DNS server address automatically” in the screen above.
Now, you can run the Ping command in the command prompt to verify the network connection.
Please click the Start menu on your desktop, select run tab, type cmd or command in the field
and press Enter. Type ping 192.168.1.1 on the next screen, and then press Enter.
If the result displayed is similar to the screen below, the connection between your PC and the
modem router has been established.
Figure 3-5
11
If the result displayed is similar to the screen shown below, it means that your PC has not
connected to the modem router.
You can check it follow the steps below:
1) Is the connection between your PC and the modem router correct?
2) Is the TCP/IP configuration for your PC correct?
TD-W8961NB 300Mbps Wireless N ADSL2+ Modem Router (Annex B) User Guide
Figure 3-6
The LEDs of LAN port which you link to the device and the LEDs on your PC's adapter should
be lit.
If the modem router's IP address is 192.168.1.1, your PC's IP address must be within the
range of 192.168.1.2 ~ 192.168.1.254.
3.2 Login
Once your host PC is properly configured, please proceed as follows to use the Web-based Utility:
Start your web browser and type the private IP address of the modem router in the URL field:
192.168.1.1.
After that, you will see the screen shown below, enter the default User Name admin and the
default Password admin, and then click OK to access to the Quick Start screen. You can follow
the steps below to complete the Quick Start.
Figure 3-7
12
Step 1: Select the Quick Start tab, then click RUN WIZARD, and you will see the next screen.
Step 2: Configure the time for the modem router, and then click the NEXT button.
TD-W8961NB 300Mbps Wireless N ADSL2+ Modem Router (Annex B) User Guide
Click the NEXT button.
Figure 3-8
Figure 3-9
Step 3: Select the connection type to connect to the ISP (We select PPPoE/PPPoA mode for
example here), and then click the NEXT button.
Figure 3-10
Step 4: Configure the following options provided by your ISP: Username, Password, VPI, VCI
and Connection Type. Then click NEXT.
13
Step 5: Configure the rules for the WLAN, and click NEXT.
TD-W8961NB 300Mbps Wireless N ADSL2+ Modem Router (Annex B) User Guide
Figure 3-11
Figure 3-12
Note:
If the Access Point is activated, the wireless function will be available even without the external
antenna because of an additional printed antenna. To adopt the wireless security protection
measures, please refer to section 4.3.3.
Step 6: Click NEXT to finish the Quick Start.
Figure 3-13
14
TD-W8961NB 300Mbps Wireless N ADSL2+ Modem Router (Annex B) User Guide
Chapter 4 Software Configuration
This User Guide recommends using the “Quick Installation Guide” for first-time installation. For
advanced users, if you want to know more about this device and make use of its functions
adequately, maybe you will get help from this chapter to configure the advanced settings through
the Web-based Utility.
After your successful login, you can configure and manage the device. There are main menus on
the top of the Web-based Utility; submenus will be available after you click one of the main menus.
On the center of the Web-based Utility, there are the detailed configurations or status information.
To apply any settings you have altered on the page, please click the SAVE button.
4.1 Status
Choose “Status”, you can see the next submenus: Device Info, System Log and Statistics.
Click any of them, and you will be able to configure the corresponding function.
Figure 4-1
Click any of them, and you will be able to view the corresponding information.
4.1.1 Device Info
Choose “Status→Device Info” menu, and you will be able to view the device information,
including LAN, WAN and ADSL. The information will vary depending on the settings of the modem
router configured on the Interface Setup screen.
15
TD-W8961NB 300Mbps Wireless N ADSL2+ Modem Router (Annex B) User Guide
Figure 4-
Note:
Click the other submenus System Log or Statistics in Figure 4-2, and you will be able to view the
system log and traffic statistics about the modem router.
2
4.1.2 System Log
Choose “Status→System Log” menu, and you will be able to query the logs of the modem
router.
16
TD-W8961NB 300Mbps Wireless N ADSL2+ Modem Router (Annex B) User Guide
Figure 4-3
The modem router can keep logs of all traffic. You can query the logs to find what happened to the
modem router.
Click the CLEAR LOG button to clear the logs.
Click the SAVE LOG button to save the logs.
4.1.3 Statistics
Choose “Status→Statistics” menu, and you will be able to view the network traffic over Ethernet,
ADSL and WLAN.
17
TD-W8961NB 300Mbps Wireless N ADSL2+ Modem Router (Annex B) User Guide
Figure 4-4
Interface: You can select Ethernet, ADSL and WLAN to view the corresponding network
traffic over different ports.
Select Ethernet, and you will see the statistics table as below.
Statistics Table:
Transmit Frames
Transmit Multicast Frames
Transmit
Statistics
Receive
Statistics
Transmit total Bytes
Transmit Collision
Transmit Error Frames
Receive Frames
Receive Multicast Frames
Receive total Bytes
Receive CRC Errors
Receive Under-size Frames
The frames transmitted over the Ethernet port.
The multicast frames transmitted over the Ethernet
port.
The total bytes transmitted over the Ethernet port.
The collision occurred over the Ethernet port when
data is being transmitted.
The error frames over the Ethernet port when data is
being transmitted.
The frames received over the Ethernet port.
The multicast frames received over the Ethernet port.
The total bytes received over the Ethernet port.
The CRC errors occurred over the Ethernet port when
data is being received.
The Under-size frames received over the Ethernet
port.
18
TD-W8961NB 300Mbps Wireless N ADSL2+ Modem Router (Annex B) User Guide
Select ADSL, and you will see the statistics table as below.
Statistics Table:
Transmit
Statistics
Receive
Statistics
Transmit total PDUs
Transmit total Error Counts
Receive total PDUs
Receive total Error Counts
The total PDUs transmitted over the ADSL port.
The total errors occurred over the ADSL port when data
is being transmitted.
The total PDUs transmitted over the ADSL port.
The total errors occurred over the ADSL port when data
is being received.
Select WLAN, and you will see the statistics table as below.
Statistics Table:
The frames transmitted over the WLAN when wireless data is
being transmitted.
The errors occurred over the WLAN when wireless data is being
transmitted.
Transmit
Statistics
Tx Frames Count
Tx Errors Count
The drops occurred over the WLAN when wireless data is being
transmitted.
The frames received over the WLAN when wireless data is being
transmitted.
The errors occurred over the WLAN when wireless data is being
received.
The drops occurred over the WLAN when wireless data is being
received.
Receive
Statistics
Tx Drops Count
Rx Frames Count
Rx Errors Count
Rx Drops Count
Click the REFRESH button to refresh immediately.
4.2 Quick Start
Please refer to " 3.2 Login".
19
