TD-8840 User Guide

External ADSL2+ ROUTER

Rev：1.0.1

Specifications are subject to change without notice. is a registered trademark of

TP-LINK TECHNOLOGIES CO., LTD. Other brands and product names are trademarks or

registered trademarks of their respective holders.

No part of the specifications may be reproduced in any form or by any means or used to make any

derivative such as translation, transformation, or adaptation without permission from TP-LINK

FCC STATEMENT

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to pro-vide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not in-stalled and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

• Consult the dealer or an experienced radio/ TV technician for help.

CE Mark Warning

This is a class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures.

EC DECLARATION OF CONFORMITY (EUROPE)

In compliance with the EMC Directive 89/336/EEC, Low Voltage Directive 73/23/EEC, this product

meets the requirements of the following standards:

• EN55022

• EN55024

• EN60950

SAFETY NOTICES

Caution:

Do not use this product near water, for example, in a wet basement or near a swimming pool.

III

Package contents

The following contents should be found in your box:

¾ One TD-8840 External ADSL2+ ROUTER

¾ One AC power Adapter for TD-8840 External ADSL2+ ROUTER

¾ One Resource CD for TD-8840 External ADSL2+ ROUTER, including:

• This Guide

• Other Helpful Information

• Quick installation Guide Program

¾ Quick installation Guide

¾ One RJ45 cable

¾ Two RJ11 cable

¾ One ADSL splitter

Note:

)

If any of the listed contents are damaged or missing, please contact the retailer from whom you purchased the product for assistance.

COMMENT

Chapter 1. Introduction ........................................................................................ 1

1.1 Product Overview ...................................................................................................... 1

1.2 Main Features ........................................................................................................... 1

1.3 Supporting protocol ................................................................................................... 2

1.4 Transmit data-rate ..................................................................................................... 2

1.5 ATM propert .............................................................................................................. 3

1.6 System support ......................................................................................................... 3

1.7 Working environment ................................................................................................ 3

1.8 Electric parameter ..................................................................................................... 3

1.9 Conventions .............................................................................................................. 4

Chapter 2. Hardware Installation ......................................................................... 5

2.1 System requirement .................................................................................................. 5

2.1.1 LED explanation ............................................................................................................... 5

2.2 Rear-panel ................................................................................................................ 6

2.3 Hardware installation procedures.............................................................................. 6

Chapter 3. System Configuration ........................................................................ 8

3.1 Computer Configuration ............................................................................................ 8

3.2 Login ......................................................................................................................... 9

3.3 Web Setup .............................................................................................................. 11

3.4 Software Dial ........................................................................................................... 28

Chapter 4. Advantage management setup ....................................................... 30

Appendix A: FAQ.................................................................................................... 31

Appendix B: Default Config................................................................................... 33

Appendix C: Contact Information ......................................................................... 34

TD-8840 External ADSL2+ Router User Guide

Chapter 1. Introduction

1.1 Product Overview

TP-LINK® TD-8840 External ADSL2+ ROUTER is the latest product designed and manufactured

by TP-LINK TECHNOLOGIES CO., LTD. With TP-LINK’s excellent circuit design and high quality

production, we guarantee the ADSL2+ ROUTER’s high performance, great stability and easy to

use.

The TD-8840 uses integrated ADSL2+ transceiver. The AFE supports full-rate ADSL connectivity

conforming to the ITU and ANSI specifications.

In addition to the basic DMT physical layer functions, the ADSL PHY supports dual latency ADSL

framing (fast and interleaved) and the I.432 ATM Physical Layer.

The TD-8840 is a complete plug-and-play solution. With standard Ethernet interface, it can be

directly connected to any 10M/100M Ethernet devices, support Auto-MDIX.

The TD-8840 not only uses html (web mode through Ethernet port) to configure the ROUTER but

also uses external utility software. You can download it from our website (http://www.tp-link.com).

1.2 Main Features

¾ High speed and asymmetry data transmit mode, built-in 4-port switch realize multi-user to

share wide-band internet access

¾ Support All ADSL2+ industrial standards

¾ Compatible with all mainstream DSLAM (CO)

¾ Firmware upgradeable

¾ Provide integrated access of internet and route function which face to SOHO user

¾ Advanced DMT modulation and demodulation

¾ Real-time Configuration and device monitoring

¾ Quick response semi-conductive surge protect circuit, provides reliable ESD and

surge-protect function

TD-8840 External ADSL2+ Router User Guide

1.3 Supporting protocol

- G.992.1 (G.dmt) - Annex A

- G.992.2 (G.lite) - Annex A

- ANSI T1.413

- G.992.3 (ADSL2) - Annex A and Annex M

- G.992.5 (ADSL2+) Annex A and Annex M

- ADSL dual latency (fast path and interleaved path)

- I.432 ATM physical layer compliant

- Supports RFC2364 (PPPoA)

- Supports RFC2516 (PPPoE)

- Supports RFC2684 (EoA)(Bridged *and Router)

- Supports RFC1577 (IPoA)

Note:

)

“*” Needs the third-party software.

1.4 Transmit data-rate

¾ Max download data-rate: 24Mbps

¾ Max upload data-rate: 1Mbps

¾ Max line length: 6Km

TD-8840 External ADSL2+ Router User Guide

1.5 ATM propert

¾ AAL0, AAL5, OAM, RM, and raw cell types supported

¾ Direct hardware support for 4 Receive VCs, with additional RX VCs and TX VCs supported in

software

¾ Full 24-bit Virtual Path Identifier (VPI) and Virtual Circuit Identifier (VCI)

1.6 System support

¾ Support PVC

¾ Support NAT、DHCP and so on

¾ Support IEEE 802.3、IEEE 802.3u

¾ Support 10Base-T/100BASE-TX full-duplex or half duplex Ethernet

¾ Support Auto-MDIX

1.7 Working environment

¾ Operating temperature: 0 ~40 ℃℃

¾ Storage temperature: -40 ~70 ℃℃

¾ Humidity: 10%~90% (non-condensing)

1.8 Electric parameter

¾ Adaptor power Output: 9VAC/0.8A，50Hz or 60 Hz

¾ Power consumption: 6W Maximum

TD-8840 External ADSL2+ Router User Guide

1.9 Conventions

The Router or TD-8840, or device mentioned in this User guide stands for TD-8840 External

ADSL2+ ROUTER without any explanations.

Parameters provided in the pictures are just references for setting up the product, which may

differ from the actual situation.

You can set the parameters according to your demand.

TD-8840 External ADSL2+ Router User Guide

Chapter 2. Hardware Installation

The TD-8840 maintains five separate interfaces, four Ethernet and one ADSL interface. The

Router should not be located where it will be exposed to moisture or excessive heat. Place the

Router in a location where it can be safely connected to the various devices as well as to a power

source.

2.1 System requirement

Confirm your computer has been installed with networking interface card (NIC) before connecting

ADSL2+ ROUTER to your computer, with operating system supporting the TCP/IP protocol.

2.1.1 LED explanation

The front panel of ADSL2+ ROUTER includes one power indicator (RED) and seven function

indicators (GREEN), as explained in chart below:

Indicator Description Status Function Details

On Power OK

PWR Power

Off Power fail

Slow flash Self-detecting when power up

ADSL ADSL status

ALARM Mistake

Quick flash Connecting to the telecom network

On Connection to telecom network OK

There is mistake when ADSL transmitting data

or receiving data

ACT Data

Off ADSL normal

On There is data transmitting or receiving on WAN

TD-8840 External ADSL2+ Router User Guide

port

Off No data transmitting or receiving on WAN port

On 1~4(LAN) port normal

Off Connection on 1~4(LAN) port abnormal

LAN(1-4) Ethernet

Data transmitting or receiving on 1~4(LAN)

Flash

port

2.2 Rear-panel

¾ ON/OFF: Turn on/off the ADSL2+ ROUTER’s power.

¾ Power (9VAC/0.8A input): please do not use any unknown power adaptor, otherwise your

ADSL2+ ROUTER may be damaged.

¾ RESET(reset default): First press the reset button of ROUTER, then turn on the ROUTER’s

power for at least three seconds. It will resume the default manufacturer’s setup.

¾ 1~4(LAN): Connect with your computer’s NIC.

¾ LINE(WAN): Connect to the MODEM Port of Splitter or Connecting the telephone line.

2.3 Hardware installation procedures

The procedure to install the Router can be described in general terms in the following steps:

First Step: Connect the MODEM port of Splitter with the TD-8840 ADSL2+ ROUTER LINE port

by telephone line.

Second Step: Connect category 5 cable with RJ45 jacks to the ADSL2+ ROUTER’s LAN port and

your computer’s NIC.

Third Step: Plug one end of the AC Power Adapter into the Power jack on the Ethernet ADSL2+

ROUTER and the other end to a standard electrical outlet.

Last Step: Check the line connection to see if everything is ready. Power up finally.

TD-8840 External ADSL2+ Router User Guide

Figure 2-1

TD-8840 External ADSL2+ Router User Guide

Chapter 3. System Configuration

3.1 Computer Configuration

1. Connect the cable according to Chapter 2, turn on the power.

2. Change the IP address of your PC（Figure 3-1）: Open TCP/IP Properties of the LAN card in

your PC, enter the IP address as 192.168.1.* (* is any value between 2 to 254, Net mask is

255.255.255.0, Gateway is 192.168.1.1, DNS address is the value provided by ISP).

Figure 3-1

Note:

)

Users of Windows 98 can open TCP/IP Properties according to the following: Right-click (Mouse)

Network Neighbor -> Choose Properties -> Double-click TCP/IP.

Users of Windows 2000/NT/XP can do the following: Right-click Network Neighbor -> Choose

Properties -> Right-click Local Connection -> Choose Properties -> Double-click Internet

Protocol (TCP/IP).

Note:

)

The words in fact may be different with this guide.

Remarks: you can check whether your configuration is successful through PING command. Enter

Ping 192.168.1.1

If the screen looks like the following, you have been successful.

TD-8840 External ADSL2+ Router User Guide

Figure 3-2

If the screen looks like the following, the connection has failed. Please try again.

Figure 3-3

3.2 Login

Startup Internet Explorer, and enter 192.168.1.1;then enter default user name(admin) 、

password(admin), When ADSL2+ connection is OK, you will see the Figure 3-2.

You will then see the Figure 3-5, you will see some information such as link rate and so on.

TD-8840 External ADSL2+ Router User Guide

Figure 3-4

Figure 3-5

User name and password is “admin”; if you want to change them, please go to “Management” Æ

“Access control”Æ“Passwords” changing them. (Figure 3-6)

TD-8840 External ADSL2+ Router User Guide

Figure 3-6

3.3 Web Setup

Choose “Advanced Setup”Æ”WAN”, you will enter the page of Wide Area Network (WAN)

Setup, you will see the Figure 3-7.

Figure 3-7

There are 7 PVC links in the WAN setup page, choose the appropriate PVC according to your

need, and then click the edit button, you will enter the page of ATM PVC Configuration (See

Figure 3-8)

TD-8840 External ADSL2+ Router User Guide

Figure 3-8

Enter VPI/VCI value and service category which is provided by your ISP, click next to enter the

next step. You will see the Figure 3-9.

Note:

)

The type of network protocol selected may be different in different areas, there are five types （Figure 3-9）, So you should ask your ISP to acquire the local type of network protocol and Encapsulation mode.

TD-8840 External ADSL2+ Router User Guide

Figure 3-9

After choosing the proper protocol, enter the correct parameters supported by your ISP. Enable

the configurations, then you will go to Internet.

1. PPP over ATM (PPPoA)

If you select the protocol of PPP over ATM (PPPoA), you will see the Figure 3-10, enter the value

of user name and password which is provided by your ISP, after selecting the other function(often

using the default setup), click the next button.

You will see the Figure 3-11, then turn on the selected functions according to your demands.

TD-8840 External ADSL2+ Router User Guide

Figure 3-10

Clicking the next button to enter the next step, you will see the Figure 3-12, finally click save to

complete the configuration.

Figure 3-11

TD-8840 External ADSL2+ Router User Guide

Figure 3-12

2. PPP over Ethernet (PPPoE)

If you select the protocol of PPP over Ethernet (PPPoE), you will see the Figure 3-13, enter the

value of user name and password which is provided by your ISP, after selecting the other function

(often using the default setup), click the next button.

You will see the Figure 3-14, then turn on the selected functions according to your needs. Clicking

the next button to enter the next step, you will see the Figure 3-15, finally click save to complete

the configuration.

TD-8840 External ADSL2+ Router User Guide

Figure 3-13

Figure 3-14

TD-8840 External ADSL2+ Router User Guide

Figure 3-15

3. MAC Encapsulation Routing (MER)

If you select the protocol of MAC Encapsulation Routing (MER), you will see the page(Figure

3-16), Enter the parameter and the way which is provided by your ISP, then click the next button.

You will see the Figure 3-17, then turn on the selected functions according to your needs. Clicking

the next button to enter the next step, you will see the Figure 3-18, finally click save to complete

the configuration.

TD-8840 External ADSL2+ Router User Guide

Figure 3-16

Figure 3-17

4. IP over ATM (IPoA)

If you select the protocol of IP over ATM (IPoA), you will see the Figure 3-19, enter the parameter

and the way which is provided by your ISP, then click the next button.

TD-8840 External ADSL2+ Router User Guide

Figure 3-18

Figure 3-19

You will see the page (Figure 3-20), then turn on the selected functions according to your needs.

Clicking the next button to enter the next step, you will see the Figure 3-21, finally click save to

complete the configuration.

TD-8840 External ADSL2+ Router User Guide

Figure 3-20

Figure 3-21

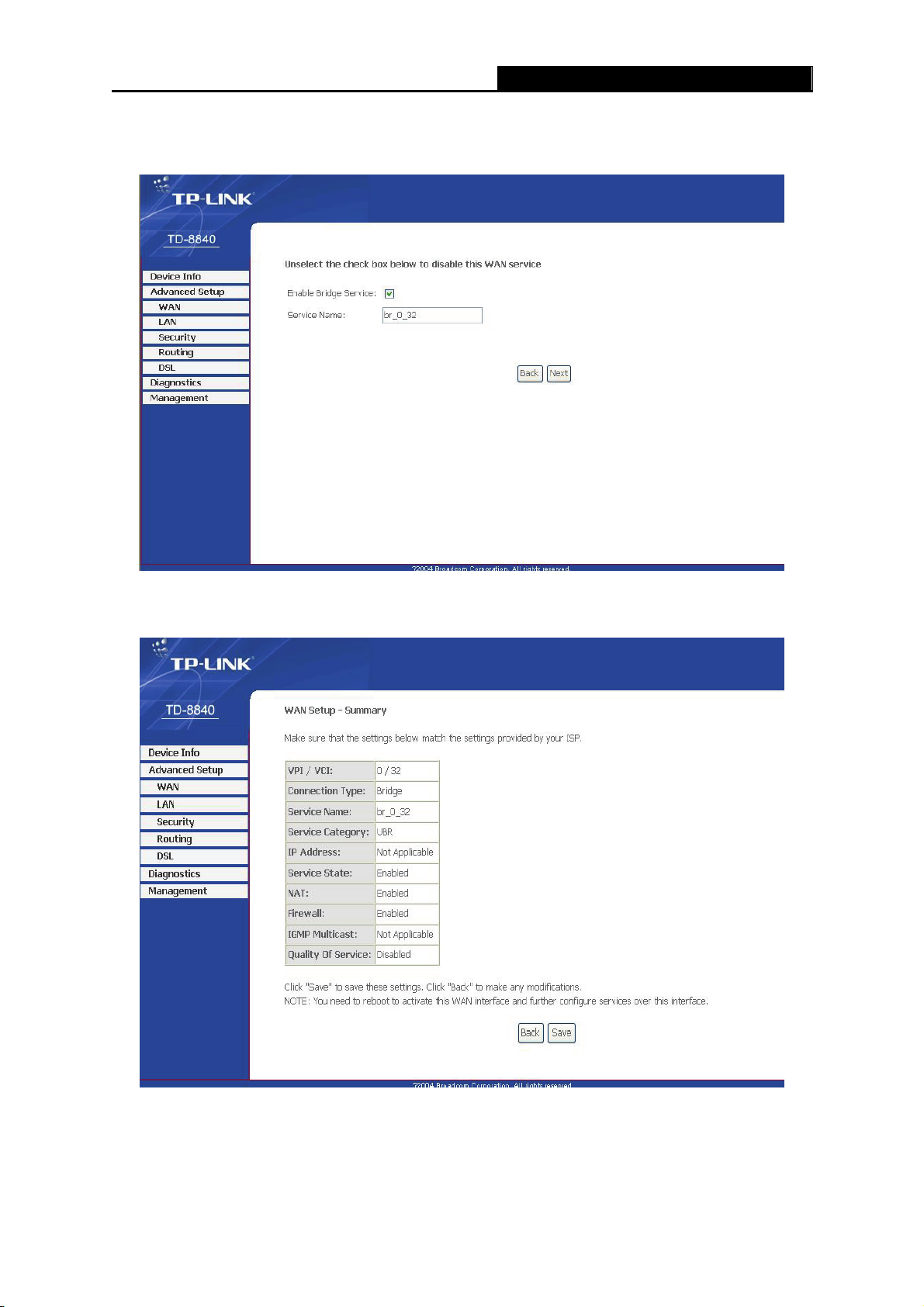

5. Bridging

If you select the Bridging protocol, you just open the bridge service function options,

the Figure 3-22, then click the next button, you will see the Figure 3-23, finally click save to

you will see

complete the configuration.

TD-8840 External ADSL2+ Router User Guide

Figure 3-22

Figure 3-23

Note:

)

After you complete any setup, the new setup must be saved and the Router must be restarted for

the configuration to go into effect. Please click the Save/Reboot button to restart, referring to the Figure 3-24.

TD-8840 External ADSL2+ Router User Guide

Figure 3-24

Note:

)

All of the above setup is under windows XP OS.

3.3.1 DHCP IP Reservation

When you specify a reserved IP address for a PC on the LAN, that PC will always receive the

same IP address each time when it accesses the DHCP server. Reserved IP addresses should

be assigned to servers that require permanent IP settings.

To setup an Address Reservation entry:

Note:

)

1. DHCP IP Reservation are not available for the connection type of Bridge here, they won’t display on the screen below since only Bridge is selected.

2. DHCP IP Reservation are not available for the connection type of PPPoE with PPP IP Extention function selected, and they won’t display on the screen below since PPP IP Extention is selected.

Choose “Advanced Setup”Æ“LAN”, and you will see the LAN screen, the section allows you to configure the Router’s LAN ports settings, and you can configure the DHCP IP Reservation

function in this screen.

TD-8840 External ADSL2+ Router User Guide

Figure 3-25

1. Click the Set Address Reservation botton, and the Address Reservation screen pop up,

as it showed below ;

Figure 3-26

2. Click New Entry botton to add new entries, and the screen showed below pop up, you can

modify an address reservation entry in this screen;

3. Type the MAC Address(00:13:8F:A9:E6:CA for instance) of the computer which you want to

TD-8840 External ADSL2+ Router User Guide

Figure 3-27

reserve an IP(192.168.1.100 for instance) for in the MAC Address text box;

4. Type the IP Address(192.168.1.100 for instance) you have reserved in the Reserved IP

Address text box;

5. Click save botton to save the settings you have set;

Note:

)

The MAC Address and IP Address added in the text box used for illustrating. That may be differences with your circs.

6. When you have saved the settings, the new entry will added to the Address Reservation

screen showed below.

Figure 3-28

7. Click Save/Reboot button to save the settings and reboot the router.

Note:

)

The function won't take effect until the router reboots.

TD-8840 External ADSL2+ Router User Guide

3.3.2 DNS

When you select the connection type PPPoE, PPPoA, MER or IPoA for WAN configuration, you

will see the DNS menu in the Web-based Utility (shown in Figure 3-29). It includes DNS Server

and Dynamic DNS submenus.

Figure 3-29

3.3.2.1. DNS Server

Choose “Advanced Setup”Æ“DNS”Æ“DNS Server”. You can see the DNS Server screen, this

screen allows you to configure the DNS Server Addresses (shown in Figure 3-30).

TD-8840 External ADSL2+ Router User Guide

Figure 3-30

If you select Enable Automatic Assigned DNS, this Router will accept automatically the first

received DNS assignment from one of PPPoA, PPPoE or MER/DHCP enabled PVC(s) during the

connection establishment. If the checkbox is not selected, please enter the primary and /or

optional secondary DNS server IP addresses provided by your ISP. Then click the Save button to

save the new configuration.

Note:

)

You have to reboot the Router to make the new configuration take effect.

3.3.2.2. Dynamic DNS

Choose “Advanced Setup”Æ“DNS”Æ“Dynamic DNS”, you can see the Dynamic DNS screen,

this screen allows you to configure the Dynamic DNS (shown in Figure 3-31).

The Router offers a Dynamic Domain Name System (DDNS) feature. DDNS lets you assign a

fixed host and domain name to a dynamic Internet IP Address. The Dynamic DNS service allows

you to alias a dynamic IP address to a static hostname in any of the many domains, allowing your

Router to be more easily accessed from various locations on the Internet.

TD-8840 External ADSL2+ Router User Guide

Figure 3-31

To setup DDNS, follow these instructions:

1. Click the Add button (pop-up Figure 3-31), then you will set the DDNS in the next screen

(shown in Figure 3-32).

TD-8840 External ADSL2+ Router User Guide

Figure 3-32

Note:

)

This page allows you to add a Dynamic DNS address from DynDNS.org,TZO or No-IP.

2. Select D-DNS provider(DynDNS.org,TZO or No-IP) in the drop-down list.

3. Enter the Hostname of the DNS Server, and select the corresponding Interface for the

DDNS, you can leave it default.

4. Type the User Name and Password for your DDNS account.

5. Click the Save/Apply button to save the entry.

3.4 Software Dial

If TD-8840 CPE work in bridged (RFC 1483 Bridged) mode when it connecting Internet. You must

install dial software on your PC. There are some software working on WINDOWS in market,

example for EnterNet3000、RASPPPoE、WinPeET.

How do I set up the connection in the windows XP?

1. The users of Windows XP can click the “start->All Programs->Accessories->

Communications->New connection wizard”, then click Next to enter the configuration

page.

2. Please you select the “connect to the internet” ,and then click the Next button to enter the

next page and select the “set up my connection manually”, click Next to enter the next

page.

3. Please select the “connect using a broadband connection that requires user name and

password”, click Next to type the name of your ISP in the current page, and then click

Next.

TD-8840 External ADSL2+ Router User Guide

4. Enter an ISP account name and password, if you have forgotten an existing account

name or password, please connect with your ISP, click Next.

5. To create the connection and close this wizard, click finish to add a shortcut to this

connection to your desktop.

6. When you assess the internet by ADSL, double-click this shortcut of dial connection in your

desktop, enter the account name and password, then click connect to connect the internet.

TD-8840 External ADSL2+ Router User Guide

Chapter 4. Advantage management setup

In order to satisfy our customer's needs we offer an excellent Web management interface. Feel

free to utilize the Advantage application and online software upgrades. The functions of the Web

management interface are as follows:

1. Upgrade software

2. Modify the default IP address of the port of LAN(192.168.1.1)

3. Modify the login password

4. Configure DHCP

5. Check the information of IP and the operation status

6. Configure the NAT function

7. Configure the DNS parameters

8. Configure Security rule

9. Configure DSL parameter

TD-8840 External ADSL2+ Router User Guide

Appendix A: FAQ

1. What related parameters are required to acquire ISP when you want to access the

internet by ADSL2+ Router?

1) Dial user: Connection protocol, User name, Password, Value of VPI/VCI, Encapsulation

mode of AAL5 and so on.

2) Static IP user: Connection protocol, WAN IP Address, Subnet Mask, Gateway, Value of

VPI/VCI, Encapsulation mode of AAL5 and so on.

2. About Connection protocol, VCI/VPI, Encapsulation mode of AAL5

1) This product supports the PPP protocol over ATM (PPPoA)、PPP over Ethernet

(PPPoE)、MAC Encapsulation Routing (MER)、IP over ATM (IPoA) and Bridging. You

may be used with any one of the five protocols above. Because the ISP in different areas

supports different protocol, you must choose the protocol which is supported by your

ISP.

2) The VPI is the English abbreviation of the Virtual Path Identifier, the VCI is the English

abbreviation of the Virtual Channel Identifier, the value of VCI/VPI must be compatible

with the value that provided by ISP.

3) Encapsulation mode of AAL5 include: LLC/SNAP and VC_MAX(often using LLC/SNAP).

3. Why the LAN’s and the NIC’s LED both bright, but the configuration interface is

inaccessible?

1) Use the order of ping 192.168.1.1 to check the Accuracy of connection.

2) Check the Accuracy of working NIC.

3) Whatever the setup of the IP address on your computer (if you close the DHCP function,

you can't obtain the IP address automatically, must specify the IP address of your

computer manually).

4) Run the winipcfg order in the windows 95/98(run the ipconfig order in the windows 2000)

to check whether setup the IP address, subnet mask, default gateway by DHCP.

5) Resume the ADSL Modem default configuration if necessary.

4. Have complete all configurations, but can’t dial through computer

1) Check the indicator of ADSL, it should be working in normally.

TD-8840 External ADSL2+ Router User Guide

2) Check the accuracy of parameter of value of VPI/VCI, Encapsulation mode of AAL5 and

so on, whether you need to install the dial software, such as Winpoet, Enternet.

3) This product has the PPP dial procedure inside

software if your protocol is PPPoA or PPPoE, ADSL Modem will connect automatically.

4) You can check whether your ADSL Modem succeeds in connection with PING

command.

, so you will not need to use the dial

TD-8840 External ADSL2+ Router User Guide

Appendix B: Default Config

User name

Password

IP Address

admin

192.168.1.1

TD-8840 External ADSL2+ Router User Guide

Appendix C: Contact Information

For help with the installation or operation of TP-LINK Product, please visit our website.

http://www.tp-link.com

TP-Link TD-8840 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Chapter 1. Introduction

1.1 Product Overview

1.2 Main Features

1.3 Supporting protocol

1.4 Transmit data-rate

1.5 ATM propert

1.6 System support

1.7 Working environment

1.8 Electric parameter

1.9 Conventions

Chapter 2. Hardware Installation

2.1 System requirement

2.1.1 LED explanation

2.2 Rear-panel

2.3 Hardware installation procedures

Chapter 3. System Configuration

3.1 Computer Configuration

3.2 Login

3.3 Web Setup

3.3.1 DHCP IP Reservation

3.3.2 DNS

3.4 Software Dial

Chapter 4. Advantage management setup

Appendix A: FAQ

Appendix B: Default Config

Appendix C: Contact Information
