User Manual
LiDAR Navigation Robot Vacuum & Mop
+ Smart Auto-Empty Dock
*Images may dier from actual products.
©2023 TP-Link 7106510021 REV1.2.0
Page 2
IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS
BEFORE USING THIS APPLIANCE
WARNING – To reduce the risk of re, electric shock, or injury:
• Do not leave appliance when plugged in. Unplug from outlet when not in use and before servicing.
• Do not use outdoors or on wet surfaces.
• Do not allow to be used as a toy. Close attention is necessary when used by or near children.
• Use only as described in this manual. Use only manufacturer’s recommended attachments.
• Do not use with damaged cord or plug. If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped
into water, return it to a service center.
• Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not run
appliance over cord. Keep cord away from heated surfaces.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
• Do not handle plug or appliance with wet hands.
• Do not put any object into openings. Do not use with any opening blocked; keep free of dust.
• Do not use to pick up ammable or combustible liquids, such as gasoline, or use in areas where they may be present.
• Keep hair, loose clothing, ngers, and all parts of body away from openings and moving parts.
• Turn o all controls before unplugging.
• Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce air
ow.
• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
• Do not use without dust bag and/or lters in place.
• Use extra care when cleaning on stairs.
WARNING: Do not charge non-rechargeable batteries.
WARNING: Read all safety warnings and instructions. Failure to follow the warnings and instructions may result in electric shock, re
and/or serious injury.
Risk of explosion. Floor sanding can result in an explosive mixture of ne dust and air. Use oor-sanding machine only in a well-ventilated
area free from any ame or match.
• Prevent unintentional starting. Ensure the switch is in the o-position before connecting to battery pack, picking up or carrying the
appliance. Carrying the appliance with your nger on the switch or energizing appliance that have the switch on invites accidents.
• Recharge only with the charger specied by the manufacturer. A charger that is suitable for one type of battery pack may create a risk
of re when used with another battery pack.
• Use appliances only with specically designated battery packs. Use of any other battery packs may create a risk of injury and re.
Page 3
• Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, ush with water. If liquid
contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
• When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal
objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a re.
• Do not use a battery pack or appliance that is damaged or modied. Damaged or modied batteries may exhibit unpredictable
behavior resulting in re, explosion or risk of injury.
• Do not expose a battery pack or appliance to re or excessive temperature. Exposure to re or temperature above 130°C may cause
explosion.
• Follow all charging instructions and do not charge the battery pack or appliance outside of the temperature range specied in the
instructions. Charging improperly or at temperatures outside of the specied range may damage the battery and increase the risk of
re.
• Do not charge the battery at ambient temperature below 39°F (4°C) or above 104 °F (40°C). Also keeping the temperature range of
between 39-104°F when storing unit or during use.
• Have servicing performed by a qualied repair person using only identical replacement parts. This will ensure that the safety of the
product is maintained.
• Do not modify or attempt to repair the appliance except as indicated in the instructions for use and care.
• Place the cords from other appliances out of the area to be cleaned.
• Do not operate the vacuum in a room where an infant or child is sleeping.
• Do not operate the vacuum in an area where there are lit candles or fragile objects on the floor to be cleaned.
• Do not operate the vacuum in a room that has lit candles on furniture that the vacuum may accidentally hit or bump into.
• Do not allow children to sit on the vacuum.
• Do not use the vacuum on a wet surface.
• To reduce the risk of electric shock, this appliance has a polarized plug (one blade is wider than the other). This plug will t in a polarized
outlet only one way. If the plug does not t fully in the outlet, reverse the plug. If it still does not t, contact a qualied electrician to
install the proper outlet. Do not change the plug in any way.
• Household use only
• The charging dock must only be supplied at safety extra-low voltage dened in the standard of EN 60335-1 corresponding to the
marking on the charging dock.
• This charging dock can only charge lithium batteries and can only charge one battery at a time. The capacity of the battery does not
exceed 5000mAh.
WARNING: Do not charge non-rechargeable batteries.
SAVE THESE INSTRUCTIONS
Page 4
For Robot Vacuum:
TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of directives 2014/53/EU, 2009/125/EC, 2011 /65/EU and (EU)
2015/863. The original EU declaration of conformity may be found at https://www.tapo.com/en/support/ce/
TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of the Radio Equipment Regulations 2017.
The original UK declaration of conformity may be found at https://www.tapo.com/support/ukca/
Safety Information
Keep the device away from water, re, humidity or hot environments.
This appliance contains batteries that are only replaceable by skilled persons.
Do not attempt to disassemble, repair, or modify the device. If you need service, please contact us.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualied persons in order to avoid a hazard.
Avoid replacement of a battery with an incorrect type that can defeat a safeguard.
Warning
Avoid disposal of a battery into re or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion.
Do not leave a battery in an extremely high temperature surrounding environment that can result in an explosion or the leakage of ammable liquid or gas;
Do not leave a battery subjected to extremely low air pressure that may result in an explosion or the leakage of ammable liquid or gas.
The instructions shall state the substance of the following:
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have
been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
The appliance is only to be used with the power supply unit provided with the appliance.
WARNING: For the purposes of recharging the battery, only use the detachable supply unit provided with this appliance.
The appliance contains a 5000mAh lithium-ion battery.
This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they
have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning
and user maintenance shall not be made by children without supervision.
For Auto-Empty Dock / Battery:
TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of directives 2014/30/EU, 2014/35/EU, 2009/125/EC,
2011/65/EU and (EU)2015/863. The original EU declaration of conformity may be found at https://www.tapo.com/en/support/ce/
TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of the Electromagnetic Compatibility Regulations 2016 and
Electrical Equipment (Safety) Regulations 2016.
The original UK declaration of conformity may be found at https://www.tapo.com/support/ukca/
For EU/UK Region
Operating Frequency:
2400MHz~2483.5MHz / 20dBm (Wi-Fi)
2402MHz~2480MHz / 10dBm (Bluetooth)
For indoor use only
Page 5
Package Contents

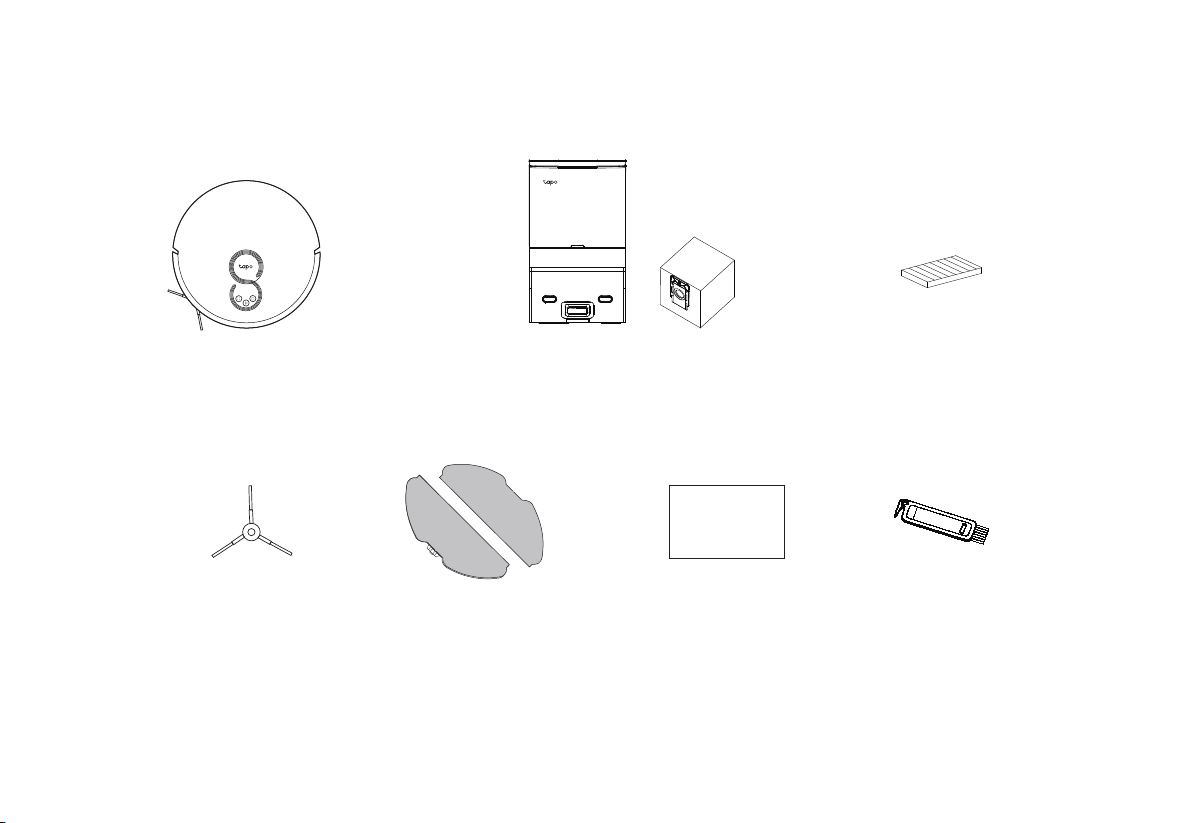

Robot Vacuum*
*One side brush and HEPA Filter installed
Side Brush ×1
Washable Mop Cloth ×1
Auto-Empty Dock* + Dust Bag ×1
*One dust bag installed
User Manual ×1Mop Cloth Mount* +
*One mop cloth installed
1
HEPA Filter ×1
User Manual
Cleaning Brush ×1
Page 6
Overview
Robot Vacuum

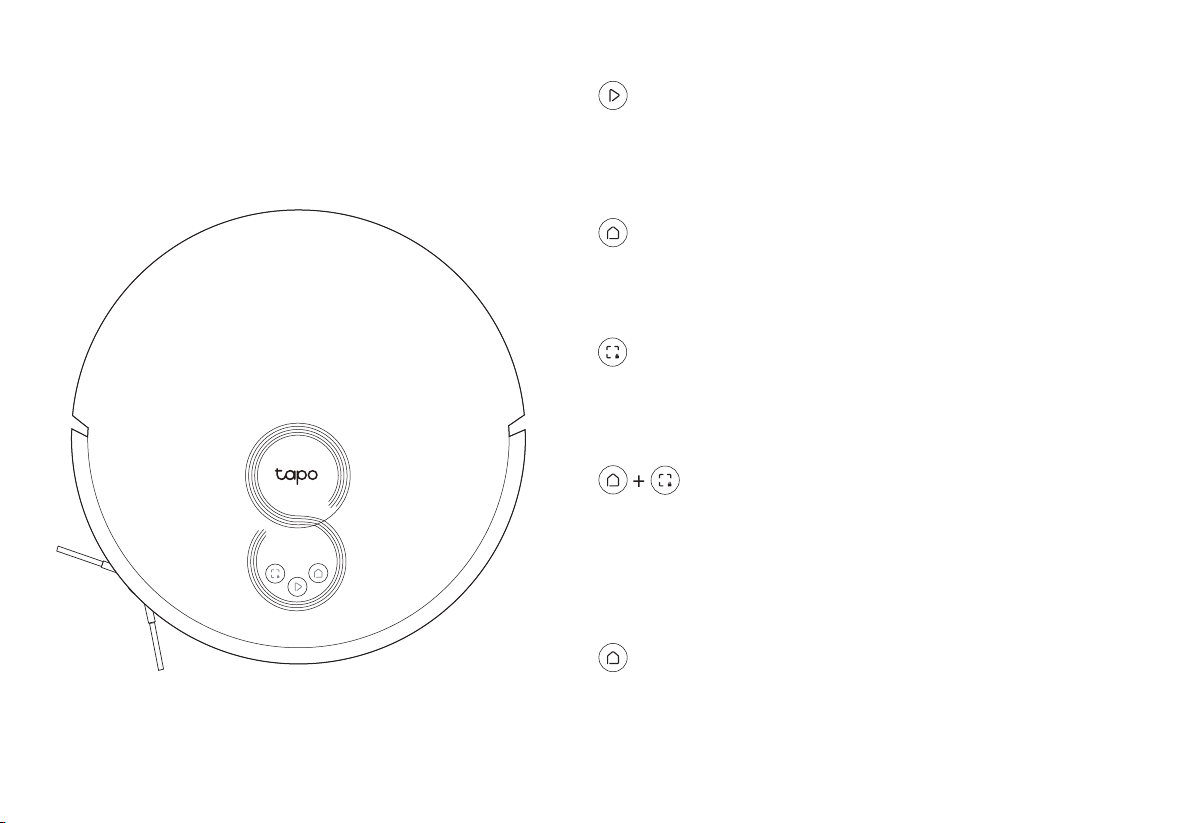

Power/Clean
• Press once: Start/pause cleaning.
• Press and hold for 5 seconds: Turn on/o the robot vacuum.
*For the rst use, slide the power switch from OFF to ON to turn on.
Dock
• Return to the dock to charge.
• Empty the bin when docked.
Spot Cleaning/Child Lock
• Press once: Start spot cleaning.
• Press and hold for 5 seconds: Turn on/o the child lock.
Combination Button
• Press and hold simultaneously for 5 seconds:
Enter setup mode to congure network.
• Press and hold simultaneously for 10 seconds:
Restore to factory default settings.
LED
• Red: Battery level < 20%; Error
• Orange: Battery level between 20% and 80%
• Green: Battery level > 80%
2
Page 7

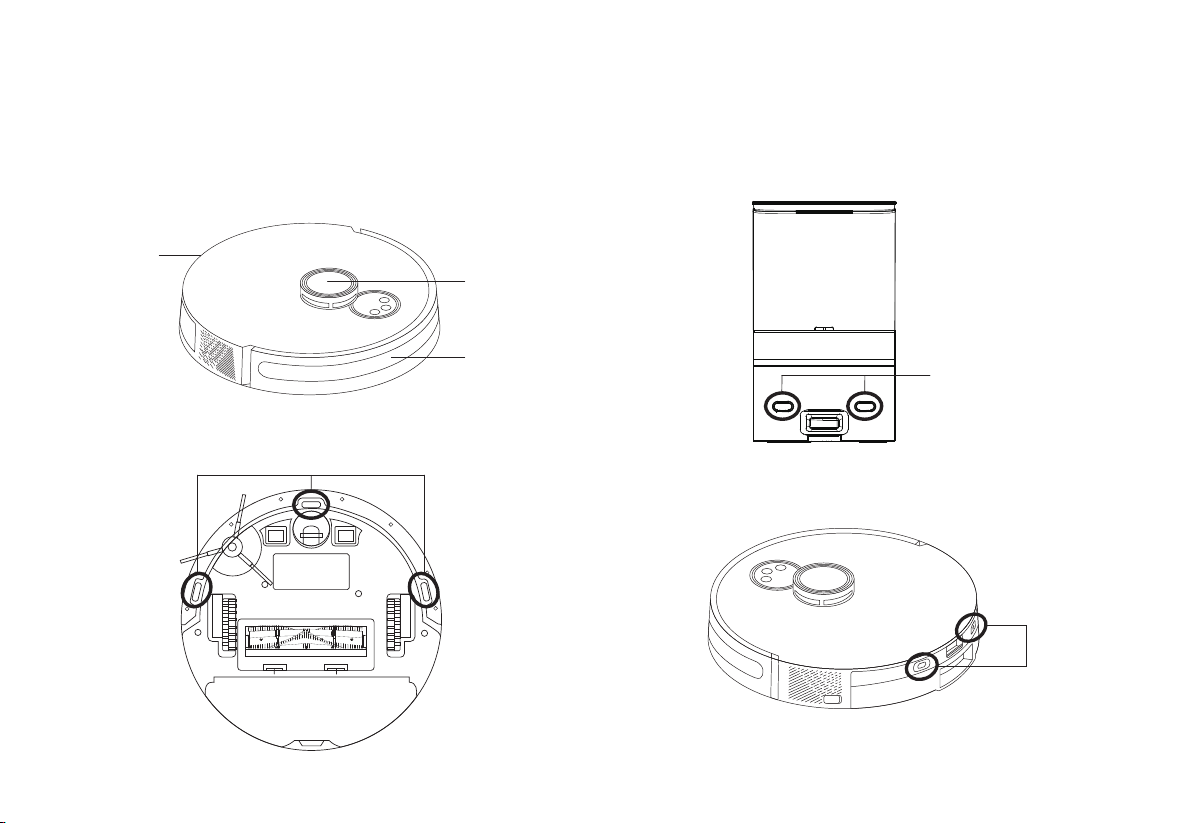

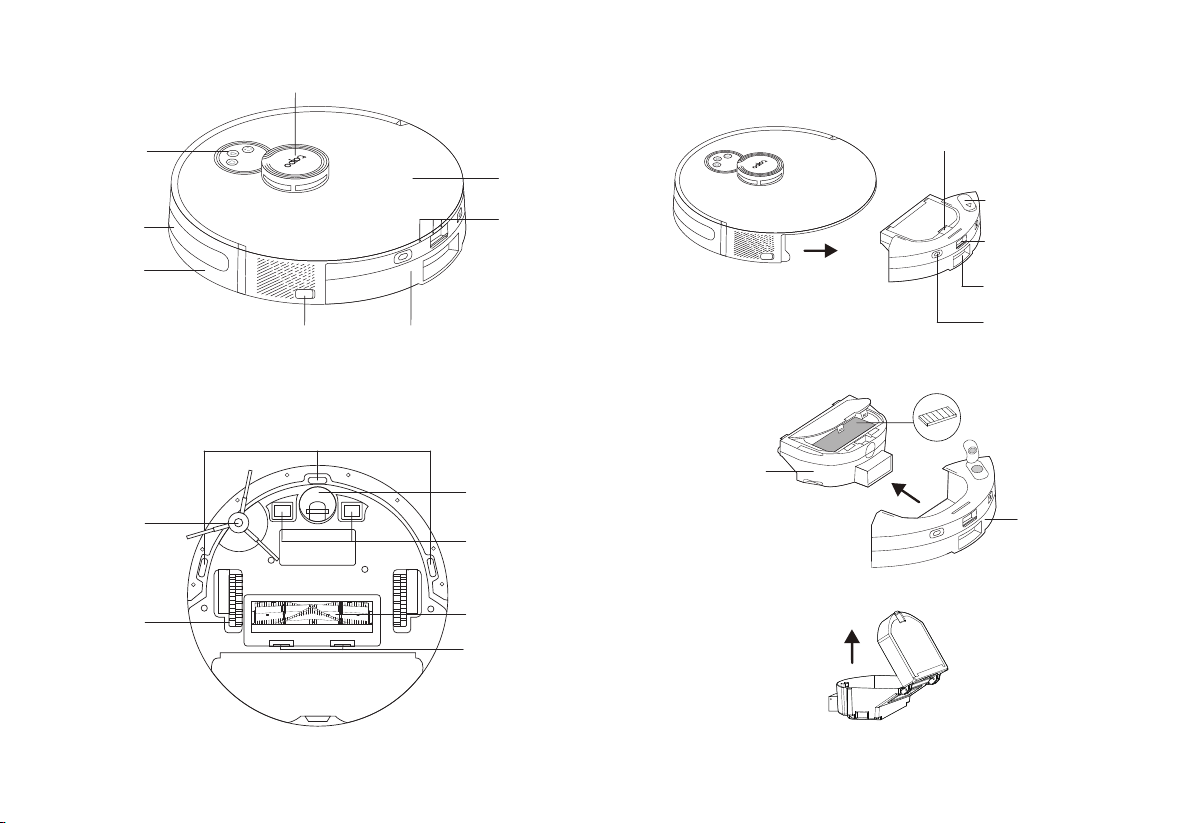

LiDAR
Buttons
& LEDs
Recharge
Sensor
Bumper
Side Brush
Wheel
OFF
ON
Power Switch
Cli Sensors
Cover
Recharge
Sensor

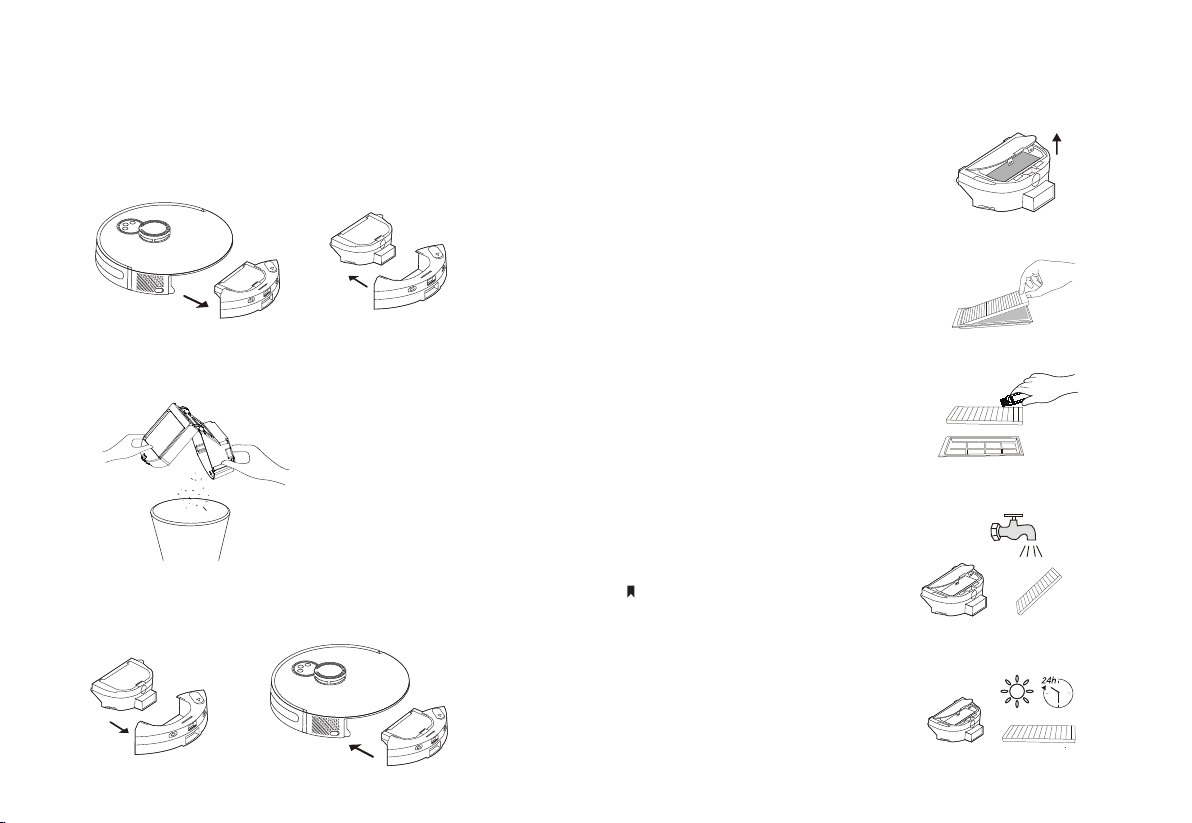

Dustbin & Water Tank
Caster Wheel
Charging Contacts
Main Brush
Main Brush Cover Latch
Dustbin
Filter Latch
Rubber Plug
Water Tank Latch
OFF
O
N
Dust Collection Port
Charging Contacts
Filter
Water Tank
Open Dustbin
3
Page 8
Overview

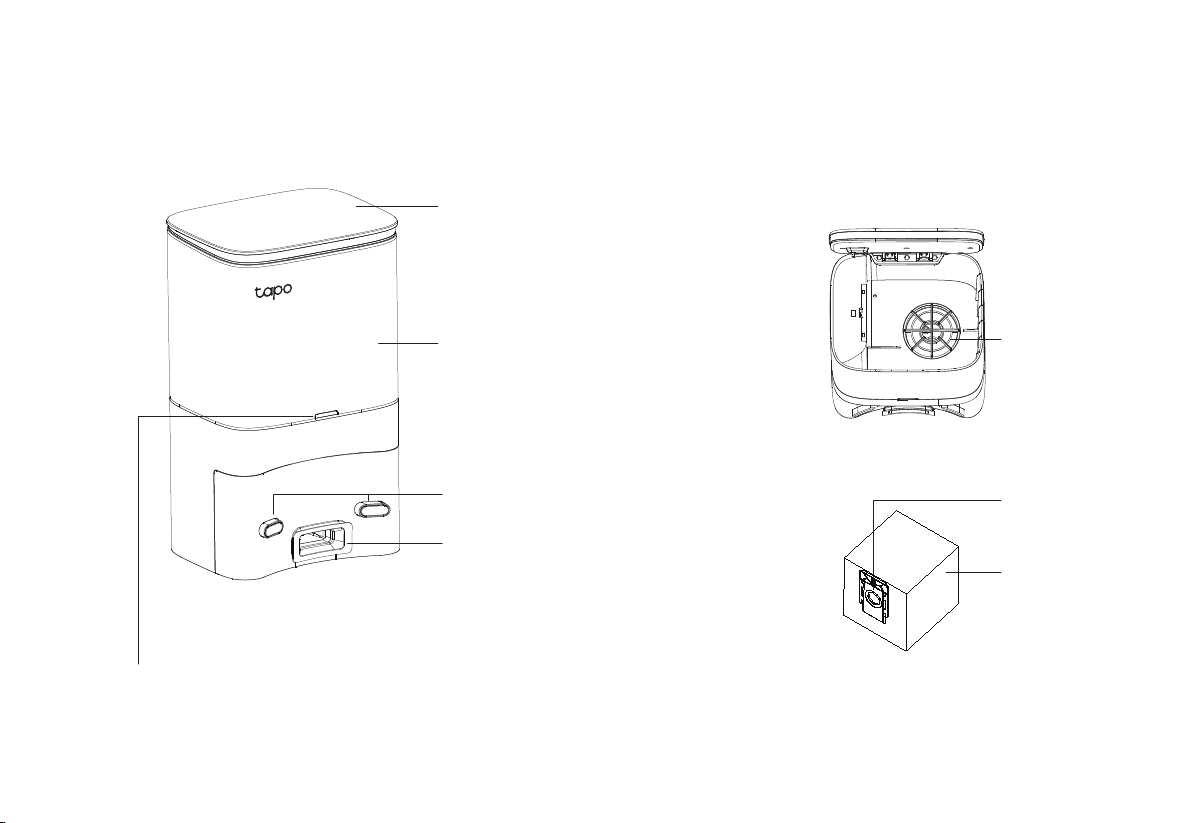

Auto-Empty Dock

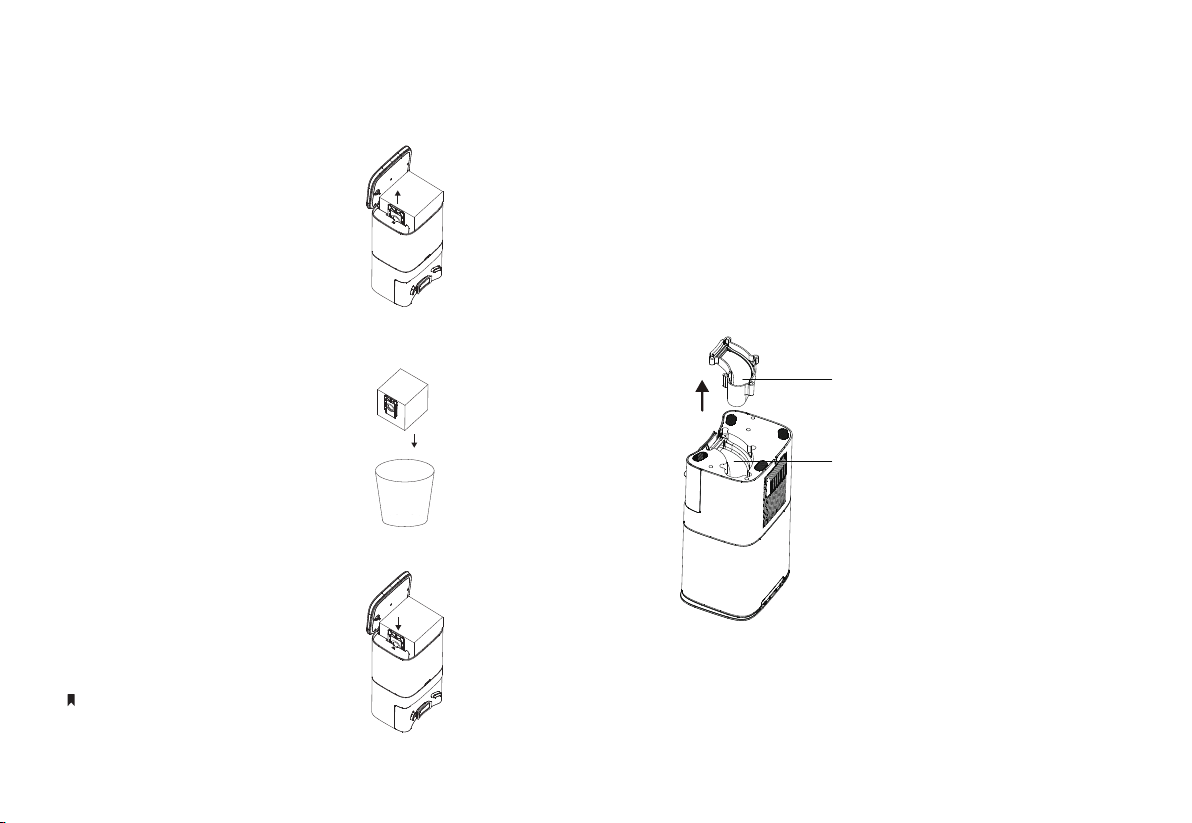

Top cover
Open to install/take out the dust bag.
Put the cover back on each time you open it.
LED Indicator
Dust Bag Compartment
Charging Contacts
Dust Collection Port
The dust in the robot vacuum will be
collected into the dust bag through the
port.
• White: Working properly
• O: Robot vacuum is connected to the dock; sleeping.
• Solid Red: Dust bag not installed; top cover not closed.
• Flashing Red: Error
4
Fan Filter
Dust Bag Handle
Dust Bag
Page 9
1
Position the Dock
2
Remove Protective Strip

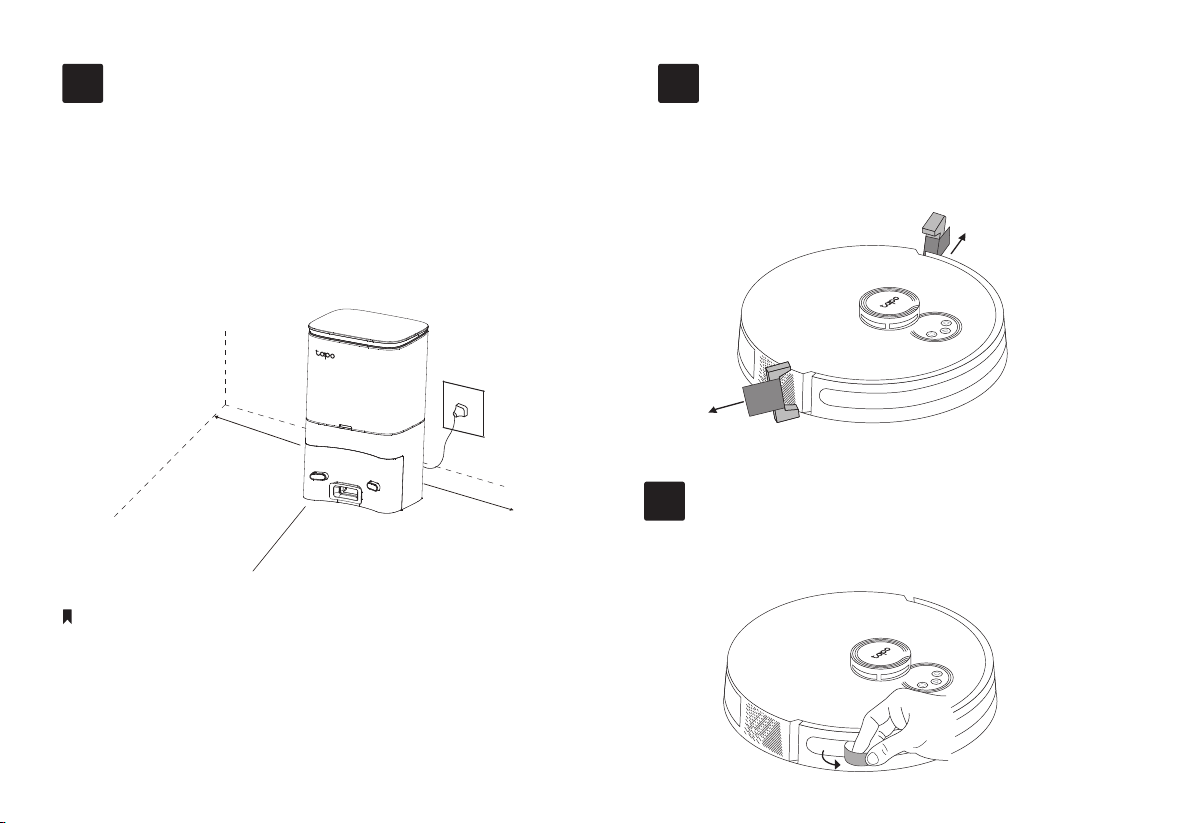

1. Place the dock on a level surface, at against a wall,
without obstacles within 1.5m (4.9ft) in front and
0.5m (1.6ft) on left and right.
2. Connect the power cord to the power source.
Ensure the cable is kept tidy.
0.5m (1.6ft)
0.5m (1.6f
t)
1.5m (4.9ft)
Notes
• To ensure a better user experience, make sure the area is with good Wi-Fi signals.
• Do not place it in direct sunlight. Ensure the area around the dock is free of clutter to
improve docking performance.
• To prevent the risk of your robot vacuum falling downstairs, ensure that the dock is
placed at least 1.2m (4 ft) away from stairs.
• Always keep the dock powered on, otherwise the robot vacuum will not automatically
return. And do not move the dock frequently.
• Place a waterproof pad to prevent the mop from wetting the oor when the robot
vacuum is being charged.
Before use, remove the protective strips on
both sides of the front bumper.
3
Remove Protective Film
Remove the protective lm on the front bumper.
5
Page 10
4
OFF
ON
Power On and Charge
Slide the power switch from OFF to ON to turn on
your robot vacuum.
Notes
• If the power switch is in the ON position, you can also press and hold the button
for 5 seconds to turn on/o your robot vacuum.
• If the power switch is in the OFF position, the robot vacuum will automatically turn
on when it is charged on the dock, and turn o when it leaves the charging dock.
OFF
ON

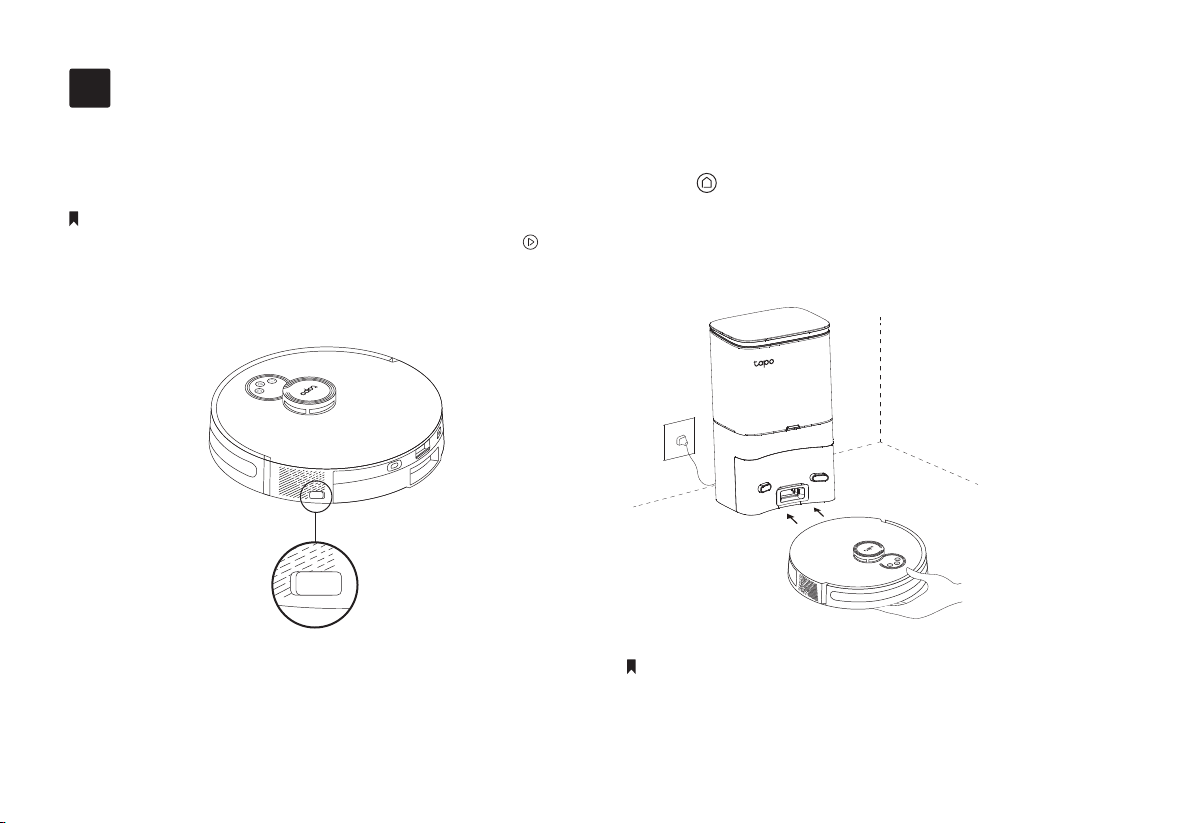

Place the robot vacuum on the charging dock
or tap to send it back to the dock to charge.
It will return to the dock at the end of a cleaning
job and whenever it needs to recharge.
Notes
• When the LED of the charging dock ashes 3 times and then goes out, the
charging will begin.
• We recommend that you charge the robot vacuum fully for about 4 hours prior
to starting the rst cleaning job.
6
Page 11
5
Download the Tapo App and Connect to Wi-Fi

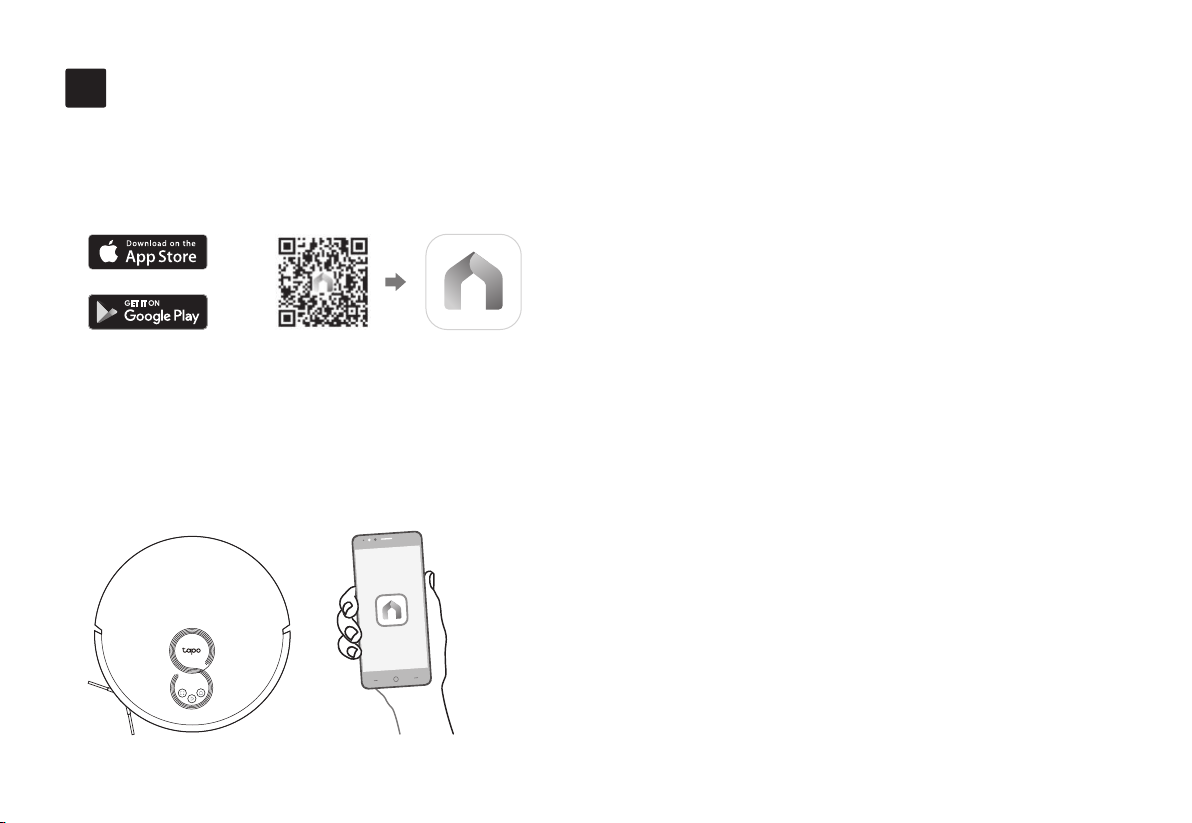

1. Download the Tapo app from the App
Store or Google Play, then log in.
OR
2. Open the Tapo app, tap + icon, and select
your model. Follow the step-by-step
instructions to easily set up your robot
vacuum.
In the Tapo app, you can enjoy the following
functions.
• Smart Maps
Create smart maps to tell your robot vacuum where
to clean.
• Cleaning Modes & Preferences
Customize vacuum power, water level, cleaning
times, and cleaning areas.
• Scheduled Cleaning
Set an automatic cleaning schedule, then the robot
vacuum will clean automatically at the set time and
return to the dock after cleaning.
• Custom Zones & Virtual Walls
Add restricted zones and virtual walls to prevent
access to certain areas and rooms.
7
Page 12
6
Cleaning

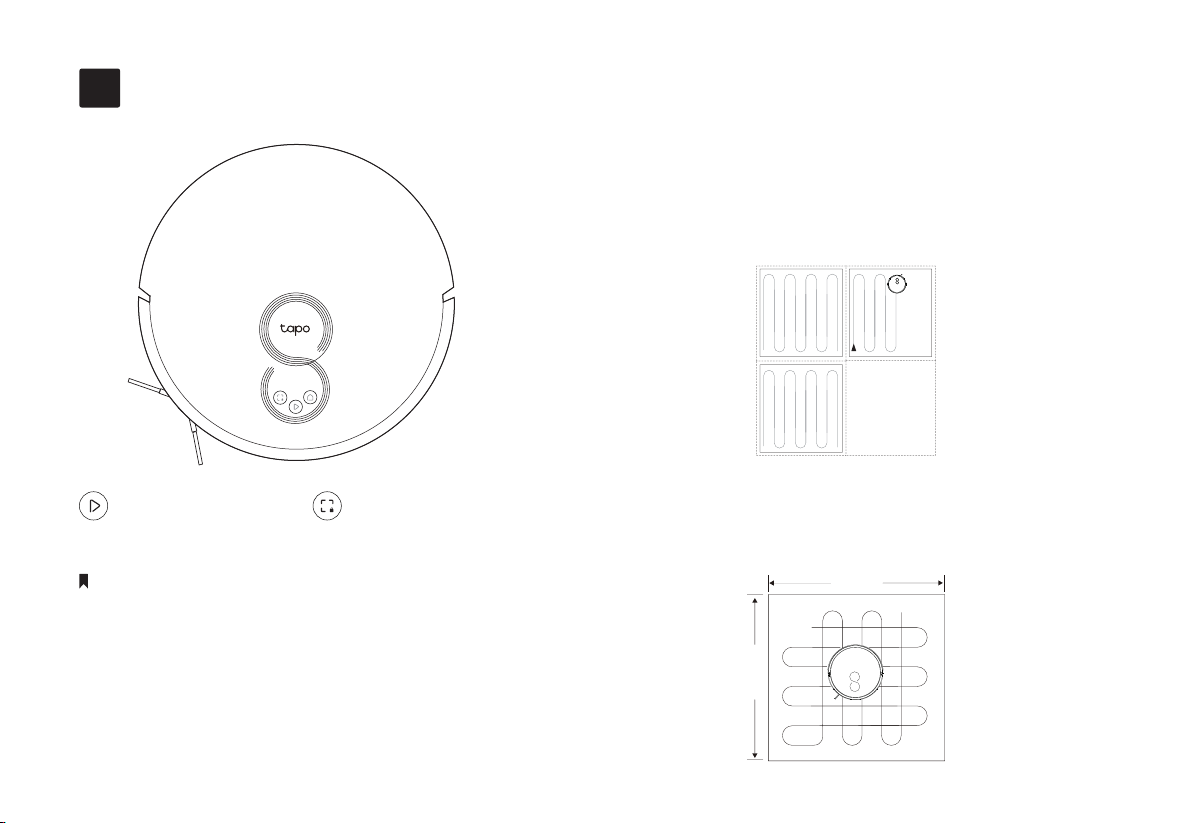

The robot vacuum will automatically explore and clean
your home in neat rows. It will return to the charging
station at the end of a cleaning job and whenever it
needs to recharge.
Press Once
Press Once
Start/pause cleaning. Start spot cleaning.
Notes
• Cleaning cannot start if the battery is too low. Charge your robot vacuum rst.
• Pick up obstacles like wires, clothing, and plastic bags. Loose wires and objects
may get caught in the robot vacuum, resulting in disconnection or damage to
wires and property.
• Put away high pile carpet before cleaning. You can choose to avoid carpeted
areas in the app.
• Do not pick up the robot vacuum during cleaning.
• If the cleaning area is too small, the area may be cleaned twice.
• If the robot vacuum is paused for 10 minutes, it will automatically enter sleep
mode and the cleaning job will be canceled.
In Spot Cleaning mode, it will clean a rectangular area of
1.5m × 1.5m (4.9ft × 4.9ft) centered on itself.
1.5m (4.9ft)
1.5m (4.9ft)
8
Page 13
7

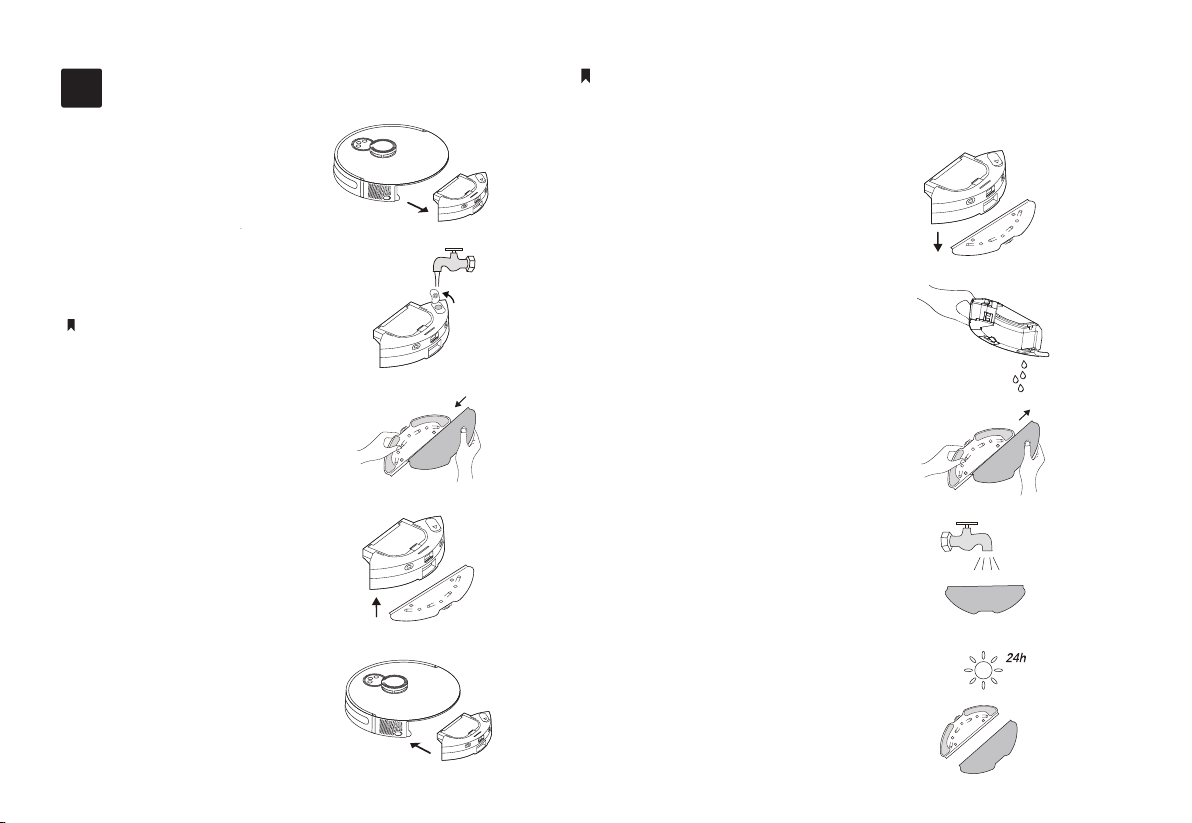

Mopping
1. Take out the dustbin
and water tank.
2. Remove the rubber plug and
add up to 300ml of water to
the water tank.
• Fill with cool/room temperature water only.
Be careful not to wet the metal contacts.
• Use only cleaning agents specied by Tapo.
Others may corrode the water tank.
• Vacuum oors at least 3 times before the rst mopping cycle.
• To prevent wetting the carpet, add a virtual wall to the carpeted area in the Tapo app.
• The ability to cross obstacles is reduced when mopping.
• It is recommended to wash the mop cloth after each use.
OFF
ON
1. Remove the mop cloth mount.
2. Empty the water tank.
3. Install the washable
mop cloth.
4. Install the mop cloth
mount.
5. Re-install the dustbin
and water tank.
3. Remove the washable
mop cloth.
4. Clean the mop cloth.
5. Sun dry mop cloth and
mop cloth mount.
OFF
ON
9
Page 14
8
Care and Maintenance
To maintain optimal performance, maintain the robot vacuum according to the following guidelines.
Part Maintenance Frequency Replacement Frequency*
Dustbin Clean/wash as needed
Filter
Main Brush
Side Brush
Dust Bag
Mop Cloth After each use
Caster Wheel
Main Wheels
Sensors
Charging Contacts
*Replacement frequency may vary depending on the actual situation. Parts should be replaced if visible wear appears.
Once a week
Every 2 weeks
Once a month
/ Replaced when it is full
Clean as needed
Once a month
Once a month
10
/
3-6 months
6-12 months
3-6 months
2-3 months
/
/
/
/Once a month
Page 15
Empty the Bin
Clean the Filter
1. Remove the dustbin and water tank.
OFF
ON
2. Open the dustbin to empty the dustbin.
3. Place the dustbin back inside the robot vacuum.
OFF
O
N
1. Remove the dustbin and
open the lid.
2. Remove the lter.
3. Clean the lter with a
cleaning brush.
4. Wash the dustbin and lter.
Do not wash with hot water or detergents.
5. Air-dry the dustbin and lter
thoroughly, then install the lter
in the previous orientation.
11
Page 16

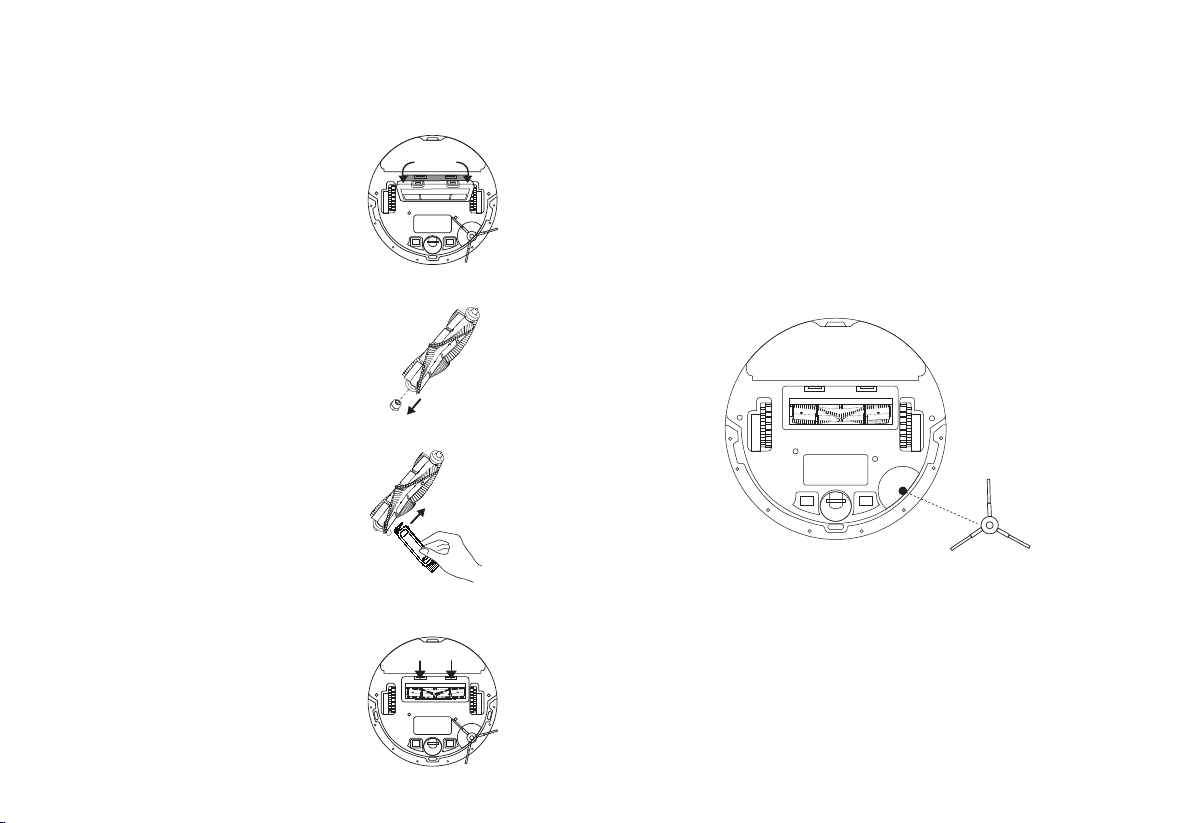

Clean the Main Brush Clean the Side Brush
1. Turn the robot vacuum
over, then unlatch and
remove the main brush
cover.
2. Remove the brush and
its end cap.
3. Remove any hair or
debris with the
cleaning brush.
4. Re-install the cap and
main brush. Press on
the main brush cover to
lock it in place.
1. Pull rmly to remove the side brush and remove any entangled
debris. Wipe with a damp cloth if needed.
2. Re-install the side brush and press it tightly to ensure it is
installed in place.
12
Page 17

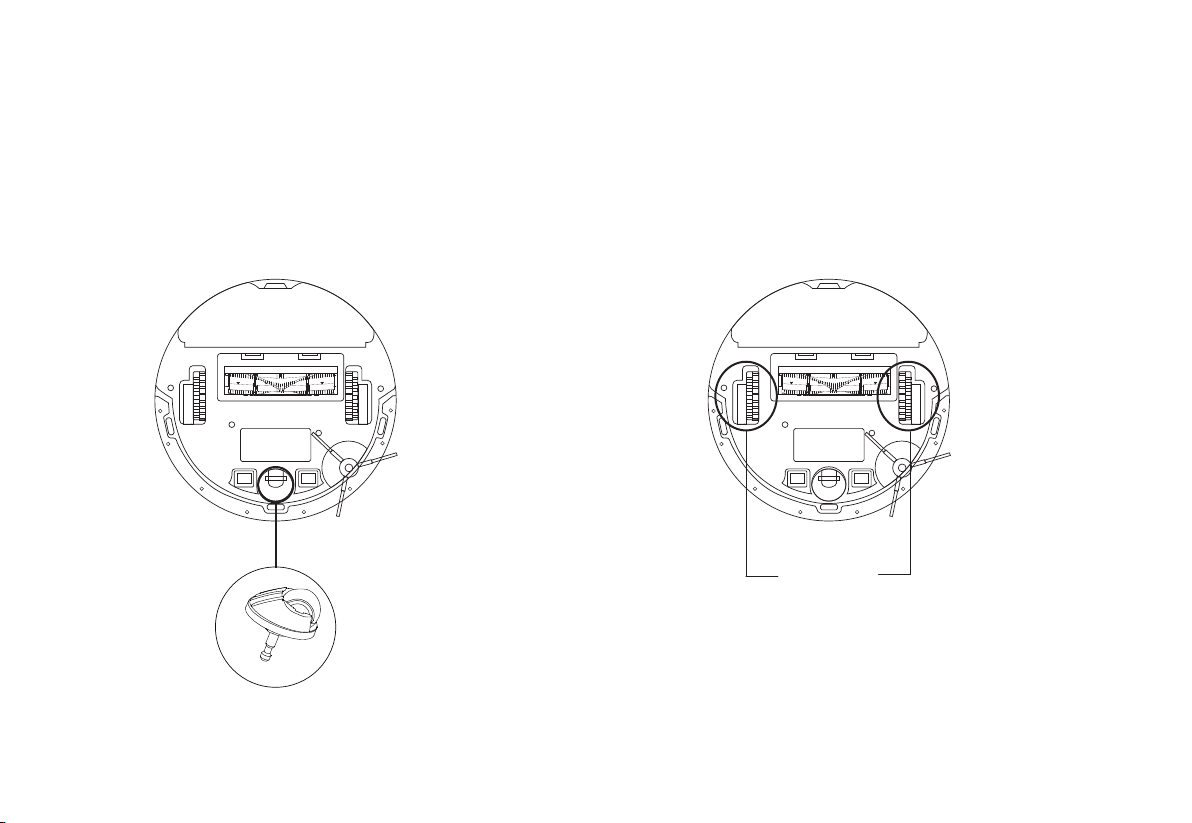

Clean Main WheelsClean the Caster Wheel
1. Pull rmly to remove the caster wheel and remove hair or dirt.
2. Re-install the caster wheel and press it rmly in place.
Wipe main wheels with a clean, dry cloth.
Main Wheels
13
Page 18
Clean the LiDAR and Sensors Clean the Charging Contacts
Wipe the LiDAR and sensors with a clean, dry cloth. Wipe the charging contacts with a clean, dry cloth.
Recharge
Sensor
Cli Sensors
LiDAR
Recharge
Sensor
Charging Contacts
Charging
Contacts
14
OFFON
Page 19
Replace the Bag
Clean Up the Dust Channel
1. Open the top cover and pull up
the handle of the dust bag to
remove.
2. Throw away the used dust
bag.
3. Install a new dust bag and put
the cover back on.
Put the cover back on each time you open it.
If the LED ashes red after replacing the dust bag, please
check if the dust channel is blocked by foreign objects.
If the dust channel is blocked, use a screwdriver to remove
the transparent cover of the dust channel, and clean out
foreign objects.
Transparent Cover of Dust
Dust Channel
15
Page 20
9
Troubleshooting
Issues Solution
1. Check if the power switch on the left side of the robot vacuum is toggled to “ON”.
Setup failure
Charging failure
Recharge failure
2. The battery level is low. Please place the robot vacuum on the dock to charge and it will start automatically when it is
ready.
3. Check your internet connection or check if you have congured Allow List or Firewall settings on your router.
1. Please remove the robot vacuum and check whether the indicator light of the dock is on, and make sure that the power
adapter of the dock are plugged in.
2. Poor contact. Please clean up the spring contacts on the dock and the charging contacts on the robot vacuum.
1. There are many obstacles near the dock. Please place the dock in an open area and try again.
2. The robot vacuum is far from the dock. Please place the robot vacuum near the dock and try again.
3. Please clean up the spring contacts on the dock and the recharge sensor/charging contacts on the robot vacuum.
Abnormal operation
Abnormal noise during
cleaning
Decreased cleaning ability
or dust leakage
Failure to connect to Wi-Fi
Scheduled cleaning
doesn’t work
Shut down and try again.
There may be foreign matter entangled in the main brush, side brush or wheels. Please clean up after shutdown.
1. The dustbin is full. Please clean the dustbin.
2. The lter is clogged. Please clean or replace the lter.
3. The main brush is entangled by foreign matter. Please clean the main brush.
1. The Wi-Fi signal is poor. Please make sure the robot vacuum is in an area with good Wi-Fi signals.
2. Wi-Fi connection is abnormal. Please reset the Wi-Fi and download the latest app and try again.
3. The password is entered incorrectly. Please check.
4. The robot vacuum only supports the 2.4 GHz frequency band. Please connect to a 2.4 GHz Wi-Fi.
1. The battery level is low. The scheduled cleaning will work when the battery level is above 20%.
2. The cleaning is already in progress when the schedule starts.
3. Do Not Disturb is set in the app. Make sure the schedule is not within the set Do Not Disturb period.
4. There is no internet access for your Wi-Fi network and your robot vacuum has restarted.
16
Page 21
Issues Solution
Whether the robot vacuum
consumes power when it is
placed on the dock
Whether the robot vacuum
needs to be charged for 16
hours for the rst three times
After the robot vacuum
returns to the dock,
automatic dust collection
does not start.
Automatic dust collection is
interrupted after startup or
dust collection is not
thorough.
The interior of the dock
is dirty.
The power consumption is very low when the robot vacuum is placed on the dock, which helps the battery to maintain
optimal performance.
Lithium battery has no memory eect when in use, and there is no need to wait when it is fully charged.
1. Please check if the dock is powered on. Automatic dust collection will not start until the robot vacuum has cleaning for
more than 30 minutes in total.
2. Dust collection is too frequent (more than 3 times in 10 minutes).
3. Do Not Disturb is set in the app. The robot vacuum will not automatically collect dust during the Do Not Disturb period.
4. Please check if the cover of the dock is closed properly. If not, the red light will be on.
5. Please check if a dust bag is installed properly. If not installed or improperly installed, the red light will be on.
6. To ensure smooth dust collection, it is recommended to let the robot vacuum recharge automatically after cleaning.
Manually moving the robot vacuum back to the dock may cause unstable connection.
7. Please check the dust bag regularly to see if it is full, because overloaded dust bag may break, block the dust collection
pipe and cause damage to the dock.
8. If the problem persists, the components may be abnormal. Please contact the technical support.
1. Check if the dust bag is full. If the dust bag is full, replace it.
2. The dust collection port of the robot vacuum is jammed by foreign objects, causing the dust box bae to fail to open.
3. Check if the dust channel of the dock is blocked.
4. Please do not move the robot vacuum during dust collection for fear of damage.
5. There may be water in the dust box of the robot vacuum, so that dust can not be extracted easily. Please try to prevent
the robot vacuum extracting excessive water, which will aect the dust collection performance.
1. Fine particles will pass through the dust bag and be adsorbed on the inner wall of the dock. Please check and clean
up them regularly.
2. The dust bag may be damaged. Please check and replace if necessary.
3. Severe dirt accumulation in the inner chamber has a certain impact on the fan and air pressure sensor. It is
recommended to clean up the interior of the dust container regularly.
If the corresponding issues cannot be solved by referring to the above methods, please contact our Technical Support.
17
Page 22
10
Voice Prompts for Issues
Voice Prompt Solution
Error 1: Battery Error.
Please refer to the manual or app.
Error 2: Wheel Module Error.
Please refer to the manual or app.
Error 3: Side Brush Error.
Please refer to the manual or app.
Error 4: Suction Fan Error.
Please refer to the manual or app.
Error 5: Main Brush Error.
Please refer to the manual or app.
Error 6: Water Pump Error.
Please refer to the manual or app.
Error 7: LiDAR Error. Please refer
to the manual or app.
Error 8: Abnormal operation.
Please check whether the
power switch is turned on.
If the corresponding issues cannot be solved by referring to the above methods, please contact our Technical Support.
The battery temperature is too high or too low. Please wait until the battery temperature changes to 0℃- 40℃ (32℉- 104℉) .
Please check whether there are foreign objects stuck in the wheels, and restart the robot vacuum.
Please check whether there are foreign objects stuck in the side brush, and restart the robot vacuum.
Please check whether there are foreign objects stuck in the fan port, and restart the robot vacuum.
Please clean the dust box and lter, and restart the robot vacuum.
Please remove the main brush and clean the main brush, the connection part of the main brush, the main brush cover and
the dust suction port. Please restart the robot vacuum after cleaning.
Please clean the water tank, water pump connections on the tank and robot vacuum, the water outlet at the bottom of
robot vacuum, and check the mop module. Please try to restart the robot vacuum after cleaning.
Please check whether there are foreign objects in the laser sensor, and restart the robot vacuum after cleaning.
Please toggle the power switch on the robot vacuum to “ON”.
18
Page 23
Energy Saving ModeEnergy Saving Mode
When the robot vacuum is docked, press and hold the Power button and the Dock button for more than 15 seconds
until the LED turns o. And it will enter the Energy Saving mode.
In this mode, only the charging feature will work. Other functions will not work, such as LEDs will be o, sensors will not work,
and Wi-Fi will be disconnected.
To exit the Energy Saving mode, press the Power button on the robot vacuum. It will restart to normal mode automatically.
19
Page 24
?
Need some help?
Visit www.tapo.com/support/
for technical support, user guides, FAQs, warranty & more
Loading...
