Toyota C HR 2020 Owner's Manual

Download

Pictorial index

For safety

and security

Search by illustration

Make sure to read through them

Instrument

cluster

Operation of

each component

Driving

Interior features

Maintenance

and care

When trouble

arises

Vehicle

specifications

For owners

How to read the gauges and meters, the variety of warning lights and indicators, etc.

Opening and closing the doors and windows, adjustment before driving, etc.

Operations and advice which are necessary for driving

Usage of the interior features, etc.

Caring for your vehicle and maintenance procedures

What to do in case of malfunction or emergency

Vehicle specifications, customizable features, etc.

Reporting safety defects for U.S. owners, and seat belt and SRS airbag instructions for Canadian owners

Index

C-HR_OM_USA_OM10634U

Search by symptom

Search alphabetically

TABLE OF CONTENTS

For your information....................... 6

Reading this manual.................... 10

How to search.............................. 11

Pictorial index .............................. 12

For safety and security

1-1. For safe use

Before driving...................... 22

For safe driving ................... 24

Seat belts ............................ 26

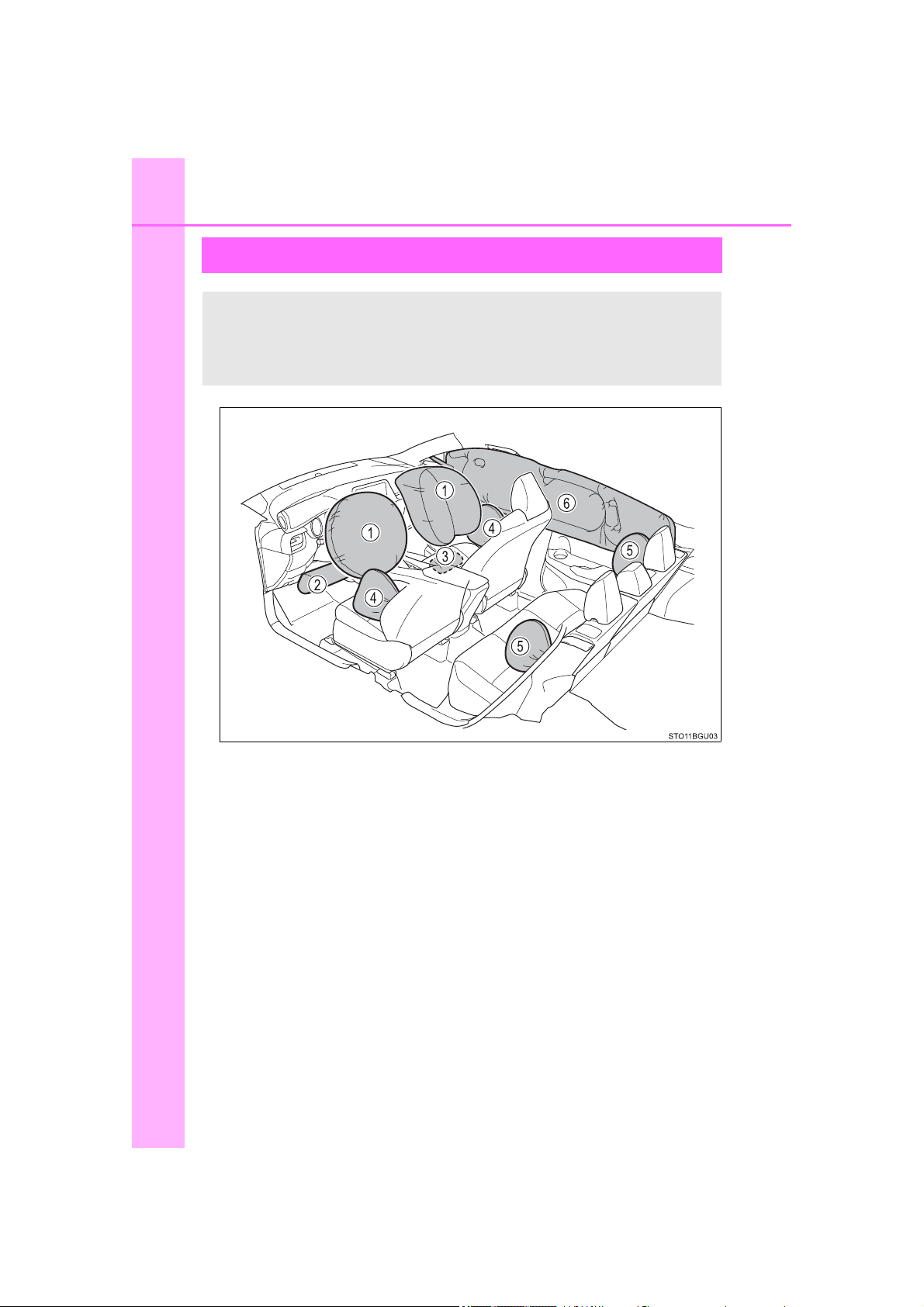

SRS airbags........................ 32

Front passenger occupant

classification system ......... 46

Exhaust gas precautions..... 53

1-2. Child safety

Riding with children............. 54

Child restraint systems........ 55

1-3. Emergency assistance

Safety Connect.................... 74

1-4. Theft deterrent system

Engine immobilizer

system............................... 81

Operation of each

component

3-1. Key information

Keys...................................110

3-2. Opening, closing and

locking the doors

Side doors .........................118

Back door ..........................125

Smart key system..............131

3-3. Adjusting the seats

Front seats.........................141

Rear seats ......................... 143

Head restraints .................. 145

3-4. Adjusting the steering

wheel and mirrors

Steering wheel................... 149

Inside rear view mirror.......151

Outside rear view

mirrors ............................. 152

3-5. Opening and closing

the windows

Power windows..................155

Instrument cluster

2. Instrument cluster

Warning lights and

indicators........................... 86

Gauges and meters............. 94

Multi-information display ..... 97

Fuel consumption

information ...................... 105

C-HR_OM_USA_OM10634U

Driving

4-1. Before driving

Driving the vehicle............. 162

Cargo and luggage............ 172

Vehicle load limits ............. 175

Trailer towing..................... 176

Dinghy towing.................... 177

4-2. Driving procedures

Engine (ignition) switch

(vehicles without

a smart key system)........ 178

Engine (ignition) switch

(vehicles with

a smart key system)........ 181

Continuously variable

transmission.................... 188

Turn signal lever................ 193

Parking brake.................... 194

Brake Hold ........................ 199

4-3. Operating the lights and

wipers

Headlight switch................ 202

Automatic High Beam ....... 207

Fog light switch ................. 212

Windshield wipers and

washer ............................ 213

Rear window wiper and

washer ............................ 216

4-4. Refueling

Opening the fuel tank

cap...................................218

4-5. Using the driving

support systems

Toyota Safety Sense P......222

PCS (Pre-Collision

System) ...........................228

LDA (Lane Departure

Alert with steering

control) ............................242

Dynamic radar cruise

controlwith full-speed

range ............................... 252

Driving mode select ...........267

BSM (Blind Spot

Monitor) ........................... 269

RCTA (Rear Cross

Traffic Alert).....................278

Driving assist systems .......286

4-6. Driving tips

Winter driving tips..............292

C-HR_OM_USA_OM10634U

TABLE OF CONTENTS

Interior features

5-1. Using the air conditioning

system and defogger

Air conditioning system ..... 298

Heated steering wheel/

seat heaters .................... 306

5-2. Using the interior lights

Interior lights list ................ 308

• Interior lights ................. 309

• Personal lights .............. 310

5-3. Using the storage

features

List of storage features...... 311

• Glove box...................... 312

• Console box.................. 312

• Bottle holders................ 313

• Cup holders .................. 314

Luggage compartment

features ........................... 315

5-4. Using the other interior

features

Other interior features ....... 321

• Sun visors..................... 321

• Vanity mirrors................ 321

• Power outlet.................. 322

• Assist grips ................... 323

Maintenance and care

6-1. Maintenance and care

Cleaning and protecting

the vehicle exterior .......... 326

Cleaning and protecting

the vehicle interior ........... 330

6-2. Maintenance

Maintenance

requirements ...................333

General maintenance ........ 336

Emission inspection and

maintenance (I/M)

programs ......................... 340

6-3. Do-it-yourself maintenance

Do-it-yourself service

precautions......................341

Hood..................................344

Positioning a floor jack.......346

Engine compartment .........347

Tires...................................362

Tire inflation pressure........372

Wheels...............................376

Air conditioning filter .......... 379

Wireless remote

control/electronic key

battery .............................383

Checking and replacing

fuses................................387

Headlight aim (vehicles

with front fog lights) ......... 391

Light bulbs ......................... 393

C-HR_OM_USA_OM10634U

Refer to “MULTIMEDIA OWNER’S MANUAL” for information regarding the equipment listed below.

• Hands-free system (for cellular phone)

• Rear view monitor system

• Audio system

• Connected services

When trouble arises

7-1. Essential information

Emergency flashers .......... 408

If your vehicle has to be

stopped in

an emergency ................. 409

If the vehicle is trapped

in rising water.................. 411

7-2. Steps to take in an

emergency

If your vehicle needs

to be towed ..................... 412

If you think something is

wrong .............................. 419

Fuel pump shut off

system............................. 420

If a warning light turns

on or a warning buzzer

sounds ............................ 421

If a warning message is

displayed......................... 431

If you have a flat tire.......... 436

If the engine will not

start ................................. 447

If the electronic key

does not operate

properly (vehicles with

a smart key system)........ 449

If the vehicle battery is

discharged ...................... 452

If your vehicle

overheats ........................ 457

If the vehicle becomes

stuck ................................460

Vehicle specifications

8-1. Specifications

Maintenance data

(fuel, oil level, etc.) ..........464

Fuel information................. 472

Tire information..................475

8-2. Customization

Customizable features.......488

8-3. Items to initialize

Items to initialize................499

For owners

Reporting safety defects

for U.S. owners ........................ 502

Seat belt instructions

for Canadian owners

(in French)................................503

SRS airbag instructions

for Canadian owners

(in French)................................505

Index

What to do if...

(Troubleshooting).....................516

Alphabetical index......................520

C-HR_OM_USA_OM10634U

For your information

Main Owner’s Manual

Please note that this manual applies to all models and explains all equipment, including options. Therefore, you may find some explanations for equipment not installed on your vehicle.

All specifications provided in this manual are current at the time of printing. However, because of the Toyota policy of continual product improvement, we reserve the right to make changes at any time without notice.

Depending on specifications, the vehicle shown in the illustrations may differ from your vehicle in terms of color and equipment.

Noise from under the vehicle after turning off the engine

Approximately five hours after the engine is turned off, you may hear a sound coming from under the vehicle for several minutes. This is the sound of a fuel evaporation leakage check and it does not indicate a malfunction.

Accessories, spare parts and modification of your Toyota

A wide variety of non-genuine spare parts and accessories for Toyota vehicles are currently available in the market. You should know that Toyota does not warrant these products and is not responsible for their performance, repair, or replacement, or for any damage they may cause to, or adverse effect they may have on, your Toyota vehicle.

This vehicle should not be modified with non-genuine Toyota products. Modification with non-genuine Toyota products could affect its performance, safety or durability, and may even violate governmental regulations. In addition, damage or performance problems resulting from the modification may not be covered under warranty.

Installation of a mobile two-way radio system

The installation of a mobile two-way radio system in your vehicle could affect electronic systems such as:

● Multiport fuel injection system/sequential multiport fuel injection system

● Toyota Safety Sense P

● Dynamic radar cruise control with full-speed range

● Anti-lock brake system

● SRS airbag system

● Seat belt pretensioner system

Be sure to check with your Toyota dealer for precautionary measures or special instructions regarding installation of a mobile two-way radio system.

C-HR_OM_USA_OM10634U

Vehicle data recording

The vehicle is equipped with sophisticated computers that will record certain data, such as:

The recorded data varies according to the vehicle grade level and options with which it is equipped. These computers do not record conversations or sounds, and only record images outside of the vehicle in certain situations.

• Engine speed / Electric motor speed (traction motor speed)

• Accelerator status

• Brake status

• Vehicle speed

• Operation status of the driving assist systems, such as the ABS and precollision system

• Images from the front camera (available only when certain safety systems are activated, which varies depending on the vehicle specifications).

● Data Transmission

Your vehicle may transmit the data recorded in this computer to Toyota without notification to you.

● Data usage

Toyota may use the data recorded in these computers to diagnose malfunctions, conduct research and development, and improve quality.

Toyota will not disclose the recorded data to a third party except:

• With the consent of the vehicle owner or with the consent of the lessee if the vehicle is leased

• In response to an official request by the police, a court of law or a government agency

• For use by Toyota in a lawsuit

• For research purposes where the data is not tied to a specific vehicle or vehicle owner

● Recorded image information can be erased by your Toyota dealer.

The image recording function can be disabled. However, if the function is disabled, data from when the pre-collision system operates will not be available.

● To learn more about the vehicle data collected, used and shared by

Toyota, please visit www.toyota.com/privacyvts/. Usage of data collected through Safety Connect (U.S. mainland only) If your Toyota has Safety Connect and if you have subscribed to those services, please refer to the Safety Connect Telematics Subscription Service Agreement for information on data collected and its usage.

● To learn more about the vehicle data collected, used and shared by

Toyota, please visit www.toyota.com/privacyvts/.

C-HR_OM_USA_OM10634U

Event data recorder

This vehicle is equipped with an event data recorder (EDR). The main purpose of an EDR is to record, in certain crash or near crash-like situations, such as an air bag deployment or hitting a road obstacle, data that will assist in understanding how a vehicle’s systems performed. The EDR is designed to record data related to vehicle dynamics and safety systems for a short period of time, typically 30 seconds or less.

The EDR in this vehicle is designed to record such data as:

• How various systems in your vehicle were operating;

• Whether or not the driver and passenger safety belts were buckled/fastened;

• How far (if at all) the driver was depressing the accelerator and/or brake pedal; and,

• How fast the vehicle was traveling.

These data can help provide a better understanding of the circumstances in which crashes and injuries occur.

NOTE: EDR data are recorded by your vehicle only if a non-trivial crash situation occurs; no data are recorded by the EDR under normal driving conditions and no personal data (e.g., name, gender, age, and crash location) are recorded. However, other parties, such as law enforcement, could combine the EDR data with the type of personally identifying data routinely acquired during a crash investigation. To read data recorded by an EDR, special equipment is required, and access to the vehicle or the EDR is needed. In addition to the vehicle manufacturer, other parties, such as law enforcement, that have the special equipment, can read the information if they have access to the vehicle or the EDR.

● Disclosure of the EDR data

Toyota will not disclose the data recorded in an EDR to a third party except when:

• An agreement from the vehicle’s owner (or the lessee for a leased vehicle) is obtained

• In response to an official request by the police, a court of law or a government agency

• For use by Toyota in a lawsuit

However, if necessary, Toyota may:

• Use the data for research on vehicle safety performance

• Disclose the data to a third party for research purposes without disclosing information about the specific vehicle or vehicle owner

C-HR_OM_USA_OM10634U

Scrapping of your Toyota

WARNING

The SRS airbag and seat belt pretensioner devices in your Toyota contain explosive chemicals. If the vehicle is scrapped with the airbags and seat belt pretensioners left as they are, this may cause an accident such as a fire. Be sure to have the systems of the SRS airbag and seat belt pretensioner removed and disposed of by a qualified service shop or by your Toyota dealer before you scrap your vehicle.

Perchlorate Material

Special handling may apply, See www.dtsc.ca.gov/hazardouswaste/perchlorate.

Your vehicle has components that may contain perchlorate. These components may include airbag, seat belt pretensioners, and wireless remote control batteries.

■ General precautions while driving

Driving under the influence: Never drive your vehicle when under the influence of alcohol or drugs that have impaired your ability to operate your vehicle. Alcohol and certain drugs delay reaction time, impair judgment and reduce coordination, which could lead to an accident that could result in death or serious injury.

Defensive driving: Always drive defensively. Anticipate mistakes that other drivers or pedestrians might make and be ready to avoid accidents.

Driver distraction: Always give your full attention to driving. Anything that distracts the driver, such as adjusting controls, talking on a cellular phone or reading can result in a collision with resulting death or serious injury to you, your occupants or others.

■ General precaution regarding children’s safety

Never leave children unattended in the vehicle, and never allow children to have or use the key.

Children may be able to start the vehicle or shift the vehicle into neutral. There is also a danger that children may injure themselves by playing with the windows, or other features of the vehicle. In addition, heat build-up or extremely cold temperatures inside the vehicle can be fatal to children.

C-HR_OM_USA_OM10634U

Reading this manual

WARNING: Explains something that, if not obeyed, could cause death or serious injury to people.

NOTICE: Explains something that, if not obeyed, could cause damage to or a malfunction in the vehicle or its equipment.

Indicates operating or working procedures. Follow the steps in numerical order.

Indicates the action (pushing, turning, etc.) used to operate switches and other devices.

Indicates the outcome of an operation (e.g. a lid opens).

Indicates the component or position being explained.

Means “Do not”, “Do not do this”, or “Do not let this happen”.

C-HR_OM_USA_OM10634U

How to search

■ Searching by name

• Alphabetical index .......P. 520

■ Searching by installation

position

• Pictorial index................P. 12

■ Searching by symptom or

sound

• What to do if...

(Troubleshooting)........P. 516

■ Searching by title

• Table of contents.............P. 2

C-HR_OM_USA_OM10634U

Pictorial index

Exterior

■

Doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 118

Locking/unlocking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 118

Opening/closing the side windows. . . . . . . . . . . . . . . . . . . . . . P. 155

Locking/unlocking using the mechanical key

Back door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 125

Locking/unlocking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 125

Outside rear view mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 152

Adjusting the mirror angle . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 152

Folding the mirrors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 153

Defogging the mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 301

. . . . . . . . . . . . P. 449

C-HR_OM_USA_OM10634U

Pictorial index

Windshield wipers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 213

Precautions for winter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 292

To prevent freezing (windshield wiper de-icer)

Fuel filler door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 218

Refueling method. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 218

Fuel type/fuel tank capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 466

Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 362

. . . . . . . . . . . P. 301

Tire size/inflation pressure . . . . . . . . . . . . . . . . . . . . . . . . . P. 470

Winter tires/tire chains . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 292

Checking/rotation/tire pressure warning system . . . . . . . . . P. 362

Coping with flat tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 436

Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 344

Opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 344

Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 466

Coping with overheating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 457

Camera

Light bulbs of the exterior lights for driving

(Replacing method: P. 393, Watts: P. 471)

Front side marker lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 202

Headlights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 202

Front fog lights

Parking lights/daytime running lights . . . . . . . . . . . . . . . . . P. 202

Front turn signal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 193

Parking lights/daytime running lights (LED type). . . . . . . . P. 202

Side turn signal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 193

Tail lights/side marker lights/turn signal lights. . . . . . P. 193, 202

Back-up lights

Shifting the shift lever to R. . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 188

License plate lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 202

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 212

: If equipped

: Refer to “MULTIMEDIA OWNER’S MANUAL”.

C-HR_OM_USA_OM10634U

Pictorial index

■Instrument panel

Engine switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 178, 181

Starting the engine/changing the positions Starting the engine/changing the modes

Emergency stop of the engine . . . . . . . . . . . . . . . . . . . . . . . . . P. 409

When the engine will not start . . . . . . . . . . . . . . . . . . . . . . . . . P. 447

Warning messages

Shift lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 188

Changing the shift position . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 188

Precautions against towing . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 412

When the shift lever does not move . . . . . . . . . . . . . . . . . . . . P. 191

Meters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 94

Reading the meters/adjusting the instrument panel . . . . . . P. 94, 96

Warning lights/indicator lights . . . . . . . . . . . . . . . . . . . . . . . . . . P. 86

When the warning lights come on . . . . . . . . . . . . . . . . . . . . . . P. 421

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 431

. . . . . . . . . . . . . P. 178

. . . . . . . . . . . . . . . P. 181

C-HR_OM_USA_OM10634U

Pictorial index

Multi-information display . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 97

If a warning messages or indicator is displayed . . . . . . . . . . . P. 431

Turn signal lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 193

Headlight switch

Headlights/parking lights/tail lights/daytime running lights. . . . P. 202

Front fog lights

Windshield wiper and washer switch . . . . . . . . . . . . . . . . . P. 213

Rear window wiper and washer switch . . . . . . . . . . . . . . . . P. 216

Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 213, 216

Adding washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 359

Emergency flasher switch . . . . . . . . . . . . . . . . . . . . . . . . . . P. 408

Hood lock release lever. . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 344

Tilt and telescopic steering lock release lever . . . . . . . . . . P. 149

Air conditioning system . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 298

Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 298

Rear window defogger. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 301

Seat heaters

Multimedia system

Trip information/past record. . . . . . . . . . . . . . . . . . . . . . . . . . . P. 105

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 212

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 306

C-HR_OM_USA_OM10634U

: Vehicles without a smart key system

: Vehicles with a smart key system

: If equipped

: Refer to “MULTIMEDIA OWNER’S MANUAL”.

■Switches

Pictorial index

Automatic High Beam switch . . . . . . . . . . . . . . . . . . . . . . . . P. 207

Fuel filler door opener. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 220

Heated steering wheel switch

Instrument panel light control dial. . . . . . . . . . . . . . . . . . . . . P. 96

Window lock switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 155

Outside rear view mirror switches . . . . . . . . . . . . . . . . . . . . P. 152

Power window switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 155

Door lock switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 121

Parking brake switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 194

Applying/releasing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 194, 195

Precautions against winter season . . . . . . . . . . . . . . . . . . . . . P. 293

Warning buzzer/light/message. . . . . . . . . . . . . . . . . P. 197, 423, 431

VSC off switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 287

Brake hold switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 199

. . . . . . . . . . . . . . . . . . . . . . P. 306

C-HR_OM_USA_OM10634U

Pictorial index

Meter control switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 98

Vehicle-to-vehicle distance switch. . . . . . . . . . . . . . . . . . . . P. 252

LDA (Lane Departure Alert

with steering control) switch . . . . . . . . . . . . . . . . . . . . . . . . P. 245

Cruise control switch

Dynamic radar cruise control with full-speed range. . . . . . . . . P. 252

Talk switch Telephone switches* Audio remote control switches*

C-HR_OM_USA_OM10634U

: If equipped

: Refer to “MULTIMEDIA OWNER’S MANUAL”.

■Interior

Pictorial index

SRS airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 32

Floor mats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 22

Front seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 141

Rear seats. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 143

Head restraints. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 145

Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 26

Console box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 312

Inside lock buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 121

Cup holders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 314

Bottle holders. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 313

C-HR_OM_USA_OM10634U

Pictorial index

“SOS” button

Interior lights/personal lights . . . . . . . . . . . . . . . . . . . . P. 309, 310

Vanity lights* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 321

Assist grips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 323

Vanity mirrors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 321

Sun visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 321

Inside rear view mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 151

* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 74

C-HR_OM_USA_OM10634U

*: If equipped

Pictorial index

C-HR_OM_USA_OM10634U

For safety and security

1-1. For safe use

Before driving...................... 22

For safe driving ................... 24

Seat belts ............................ 26

SRS airbags........................ 32

Front passenger occupant

classification system ......... 46

Exhaust gas precautions..... 53

1-2. Child safety

Riding with children............. 54

Child restraint systems........ 55

1-3. Emergency assistance

Safety Connect ................... 74

1-4. Theft deterrent system

Engine immobilizer

system .............................. 81

C-HR_OM_USA_OM10634U

1-1. For safe use

Before driving

Floor mat

Use only floor mats designed specifically for vehicles of the same model and model year as your vehicle. Fix them securely in place onto the carpet.

Insert the retaining hooks (clips) into the floor mat eyelets.

Turn the upper knob of each retaining hook (clip) to secure the floor mats in place.

*: Always align the marks.

The shape of the retaining hooks (clips) may differ from that shown in the illustration.

C-HR_OM_USA_OM10634U

1-1. For safe use

WARNING

● Check that the floor mat is securely

fixed in the correct place with all the provided retaining hooks (clips). Be especially careful to perform this check after cleaning the floor.

● With the engine stopped and the shift

lever in P, fully depress each pedal to the floor to make sure it does not interfere with the floor mat.

Observe the following precautions. Failure to do so may cause the driver’s floor mat to slip, possibly interfering with the pedals while driving. An unexpectedly high speed may result or it may become difficult to stop the vehicle. This could lead to an accident, resulting in death or serious injury.

■ When installing the driver’s floor mat

● Do not use floor mats designed for other models or different model year

vehicles, even if they are Toyota Genuine floor mats.

● Only use floor mats designed for the driver’s seat.

● Always install the floor mat securely using the retaining hooks (clips) pro-

vided.

● Do not use two or more floor mats on top of each other.

● Do not place the floor mat bottom-side up or upside-down.

■ Before driving

For safety and security

C-HR_OM_USA_OM10634U

1-1. For safe use

For safe driving

For safe driving, adjust the seat and mirror to an appropriate position before driving.

Correct driving posture

Adjust the angle of the seatback so that you are sitting straight up and so that you do not have to lean forward to steer. (P. 14 1)

Adjust the seat so that you can depress the pedals fully and so that your arms bend slightly at the elbow when gripping the steering wheel. (P. 141, 149)

Lock the head restraint in place with the center of the head restraint closest to the top of your ears. (P. 1 4 5)

Wear the seat belt correctly. (P. 2 6 )

Correct use of the seat belts

Make sure that all occupants are wearing their seat belts before driving the vehicle. (P. 2 6) Use a child restraint system appropriate for the child until the child becomes large enough to properly wear the vehicle’s seat belt. (P. 55)

C-HR_OM_USA_OM10634U

1-1. For safe use

WARNING

Adjusting the mirrors

Make sure that you can see the rear of the vehicle clearly by adjusting the inside and outside rear view mirrors properly. (P. 151, 152)

Observe the following precautions. Failure to do so may result in death or serious injury.

● Do not adjust the position of the driver’s seat while driving.

Doing so could cause the driver to lose control of the vehicle.

● Do not place a cushion between the driver or passenger and the seatback.

A cushion may prevent correct posture from being achieved, and reduce the effectiveness of the seat belt and head restraint.

● Do not place anything under the front seats.

Objects placed under the front seats may become jammed in the seat tracks and stop the seat from locking in place. This may lead to an accident and the adjustment mechanism may also be damaged.

● Always observe the legal speed limit when driving on public roads.

● When driving over long distances, take regular breaks before you start to

feel tired. Also, if you feel tired or sleepy while driving, do not force yourself to continue driving and take a break immediately.

For safety and security

C-HR_OM_USA_OM10634U

1-1. For safe use

Seat belts

Make sure that all occupants are wearing their seat belts before driving the vehicle.

Correct use of the seat belts

● Extend the shoulder belt so that it comes fully over the shoulder, but does not come into contact with the neck or slide off the shoulder.

● Position the lap belt as low as possible over the hips.

● Adjust the position of the seatback. Sit up straight and well back in the seat.

● Do not twist the seat belt.

Fastening and releasing the seat belt

To fasten the seat belt, push the plate into the buckle until a click sound is heard.

To release the seat belt, press the release button.

C-HR_OM_USA_OM10634U

1-1. For safe use

Adjusting the seat belt shoulder anchor height (front seats)

Push the seat belt shoulder anchor down while pressing the release button.

Push the seat belt shoulder anchor up.

Move the height adjuster up and down as needed until you hear a click.

Seat belt pretensioners (front and outboard rear seats)

The pretensioners help the seat belts to quickly restrain the occupants by retracting the seat belts when the vehicle is subjected to certain types of severe frontal or side collision or a vehicle rollover.

The pretensioners do not activate in the event of a minor frontal impact, a minor side impact or a rear impact.

For safety and security

C-HR_OM_USA_OM10634U

■ Emergency locking retractor (ELR)

The retractor will lock the belt during a sudden stop or on impact. It may also lock if you lean forward too quickly. A slow, easy motion will allow the belt to extend so that you can move around fully.

■ Automatic locking retractor (ALR)

When a passenger’s shoulder belt is completely extended and then retracted even slightly, the belt is locked in that position and cannot be extended. This feature is used to hold the child restraint system (CRS) firmly. To free the belt again, fully retract the belt and then pull the belt out once more. (P. 57)

■ Child seat belt usage

The seat belts of your vehicle were principally designed for persons of adult size.

● Use a child restraint system appropriate for the child, until the child

● When the child becomes large enough to properly wear the vehicle’s seat

■ Replacing the belt after the pretensioner has been activated

If the vehicle is involved in multiple collisions, the pretensioner will activate for the first collision, but will not activate for the second or subsequent collisions.

■ Seat belt extender

If your seat belts cannot be fastened securely because they are not long enough, a personalized seat belt extender is available from your Toyota dealer free of charge.

1-1. For safe use

becomes large enough to properly wear the vehicle’s seat belt. (P. 55)

belt, follow the instructions regarding seat belt usage. (P. 26)

C-HR_OM_USA_OM10634U

1-1. For safe use

WARNING

Obtain medical advice and wear the seat belt in the proper way. (P. 26)

Women who are pregnant should position the lap belt as low as possible over the hips in the same manner as other occupants, extending the shoulder belt completely over the shoulder and avoiding belt contact with the rounding of the abdominal area.

If the seat belt is not worn properly, not only the pregnant woman, but also the fetus could suffer death or serious injury as a result of sudden braking or a collision.

Observe the following precautions to reduce the risk of injury in the event of sudden braking, sudden swerving or an accident. Failure to do so may cause death or serious injury.

■ Wearing a seat belt

● Ensure that all passengers wear a seat belt.

● Always wear a seat belt properly.

● Each seat belt should be used by one person only. Do not use a seat belt

for more than one person at once, including children.

● Toyota recommends that children be seated in the rear seat and always

use a seat belt and/or an appropriate child restraint system.

● To achieve a proper seating position, do not recline the seat more than

necessary. The seat belt is most effective when the occupants are sitting up straight and well back in the seats.

● Do not wear the shoulder belt under your arm.

● Always wear your seat belt low and snug across your hips.

■ Pregnant women

For safety and security

C-HR_OM_USA_OM10634U

WARNING

■ People suffering illness

■ When children are in the vehicle

■ Seat belt pretensioners (front seats and outboard rear seats)

■ Adjustable shoulder anchor (front seats)

■ Seat belt damage and wear

1-1. For safe use

Obtain medical advice and wear the seat belt in the proper way. (P. 26)

P. 6 6

● Do not place anything, such as a cushion, on the front passenger’s seat.

Doing so will disperse the passenger’s weight, which prevents the sensor from detecting the passenger’s weight properly. As a result, the seat belt pretensioner for the front passenger’s seat may not activate in the event of a collision.

● If the pretensioner has activated, the SRS warning light will come on. In

that case, the seat belt cannot be used again and must be replaced at your Toyota dealer.

Always make sure the shoulder belt is positioned across the center of your shoulder. The belt should be kept away from your neck, but not falling off your shoulder. Failure to do so could reduce the amount of protection in an accident and cause death or serious injuries in the event of a sudden stop, sudden swerve or accident. (P. 27)

● Do not damage the seat belts by allowing the belt, plate, or buckle to be

jammed in the door.

● Inspect the seat belt system periodically. Check for cuts, fraying, and loose

parts. Do not use a damaged seat belt until it is replaced. Damaged seat belts cannot protect an occupant from death or serious injury.

● Ensure that the belt and plate are locked and the belt is not twisted.

If the seat belt does not function correctly, immediately contact your Toyota dealer.

● Replace the seat assembly, including the belts, if your vehicle has been

involved in a serious accident, even if there is no obvious damage.

● Do not attempt to install, remove, modify, disassemble or dispose of the

seat belts. Have any necessary repairs carried out by your Toyota dealer. Inappropriate handling may lead to incorrect operation.

C-HR_OM_USA_OM10634U

1-1. For safe use

WARNING

NOTICE

■ Using a seat belt extender

● Do not wear the seat belt extender if you can fasten the seat belt without

the extender.

● Do not use the seat belt extender when installing a child restraint system

because the belt will not securely hold the child restraint system, increasing the risk of death or serious injury in the event of an accident.

● The personalized extender may not be safe on another vehicle, when

used by another person, or at a different seating position other than the one originally intended.

■ When using a seat belt extender

When releasing the seat belt, press on the buckle release button on the extender, not on the seat belt. This helps prevent damage to the vehicle interior and the extender itself.

For safety and security

C-HR_OM_USA_OM10634U

1-1. For safe use

SRS airbags

The SRS airbags inflate when the vehicle is subjected to certain types of severe impacts that may cause significant injury to the occupants. They work together with the seat belts to help reduce the risk of death or serious injury.

C-HR_OM_USA_OM10634U

1-1. For safe use

◆ SRS front airbags

SRS driver airbag/front passenger airbag Can help protect the head and chest of the driver and front passen-

ger from impact with interior components SRS driver’s knee airbag Can help provide driver protection SRS front passenger’s seat cushion airbag Can help restrain the front passenger

◆ SRS side and curtain shield airbags

SRS front side airbags Can help protect the torso of the front seat occupants SRS rear side airbags Can help protect the torso of occupants in the rear outer seats SRS curtain shield airbags

● Can help protect primarily the head of occupants in the outer

seats

● Can help prevent the occupants from being thrown from the vehi-

cle in the event of vehicle rollover

For safety and security

C-HR_OM_USA_OM10634U

1-1. For safe use

SRS airbag system components

Front impact sensors Front passenger airbag “AIR BAG ON” and “AIR BAG

OFF” indicator lights Side impact sensors (front) Side impact sensors (front

doors) Seat belt pretensioners and

force limiters (front) Side airbags (front) Side airbags (rear) Curtain shield airbags Side impact sensors (rear)

Driver’s seat position sensor Driver airbag Driver’s knee airbag SRS warning light Airbag sensor assembly Seat belt pretensioners and

force limiters (rear) Seat cushion airbag Front passenger’s seat belt

buckle switch Driver’s seat belt buckle

switch Front passenger occupant

classification system (ECU and sensors)

C-HR_OM_USA_OM10634U

1-1. For safe use

WARNING

Your vehicle is equipped with ADVANCED AIRBAGS designed based on the US motor vehicle safety standards (FMVSS208). The airbag sensor assembly (ECU) controls airbag deployment based on information obtained from the sensors etc. shown in the system components diagram above. This information includes crash severity and occupant information. As the airbags deploy, a chemical reaction in the inflators quickly fills the airbags with nontoxic gas to help restrain the motion of the occupants.

■ SRS airbag precautions

Observe the following precautions regarding the SRS airbags. Failure to do so may cause death or serious injury.

● The driver and all passengers in the vehicle must wear their seat belts

properly. The SRS airbags are supplemental devices to be used with the seat belts.

● The SRS driver airbag deploys with considerable force, and can cause

death or serious injury especially if the driver is very close to the airbag. The National Highway Traffic Safety Administration (NHTSA) advises:

Since the risk zone for the driver’s airbag is the first 2 - 3 in. (50 - 75 mm) of inflation, placing yourself 10 in. (250 mm) from your driver airbag provides you with a clear margin of safety. This distance is measured from the center of the steering wheel to your breastbone. If you sit less than 10 in. (250 mm) away now, you can change your driving position in several ways:

• Move your seat to the rear as far as you can while still reaching the ped-

als comfortably.

• Slightly recline the back of the seat.

Although vehicle designs vary, many drivers can achieve the 10 in. (250 mm) distance, even with the driver seat all the way forward, simply by reclining the back of the seat somewhat. If reclining the back of your seat makes it hard to see the road, raise yourself by using a firm, nonslippery cushion, or raise the seat if your vehicle has that feature.

• If your steering wheel is adjustable, tilt it downward. This points the air-

bag toward your chest instead of your head and neck. The seat should be adjusted as recommended by NHTSA above, while still maintaining control of the foot pedals, steering wheel, and your view of the instrument panel controls.

For safety and security

C-HR_OM_USA_OM10634U

WARNING

● If the seat belt extender has been con-

nected to the front seat belt buckles but the seat belt extender has not also been fastened to the latch plate of the seat belt, the SRS front airbags will judge that the driver and front passenger are wearing the seat belt even though the seat belt has not been connected. In this case, the SRS front airbags may not activate correctly in a collision, resulting in death or serious injury in the event of a collision. Be sure to wear the seat belt with the seat belt extender.

■ SRS airbag precautions

1-1. For safe use

● The SRS front passenger airbag also deploys with considerable force, and

can cause death or serious injury especially if the front passenger is very close to the airbag. The front passenger seat should be as far from the airbag as possible with the seatback adjusted, so the front passenger sits upright.

● Improperly seated and/or restrained infants and children can be killed or

seriously injured by a deploying airbag. An infant or child who is too small to use a seat belt should be properly secured using a child restraint system. Toyota strongly recommends that all infants and children be placed in the rear seats of the vehicle and properly restrained. The rear seats are safer for infants and children than the front passenger seat. (P. 55)

C-HR_OM_USA_OM10634U

WARNING

■ SRS airbag precautions

● Do not sit on the edge of the seat or

lean against the dashboard.

● Do not allow a child to stand in front of

the SRS front passenger airbag unit or sit on the knees of a front passenger.

● Do not allow the front seat occupants to

hold items on their knees.

● Do not lean against the door, the roof

side rail or the front, side and rear pillars.

● Do not allow anyone to kneel on the

passenger seats toward the door or put their head or hands outside the vehicle.

1-1. For safe use

For safety and security

C-HR_OM_USA_OM10634U

WARNING

● Do not attach anything to or lean any-

thing against areas such as the dashboard, steering wheel pad and lower portion of the instrument panel. These items can become projectiles when the SRS driver, front passenger and driver’s knee airbag deploy.

● Do not attach anything to areas such as

the door, windshield, side window, front or rear pillar, roof side rail and assist grip.

● Vehicles without a smart key system:

Do not attach any heavy, sharp or hard objects such as keys and accessories to the key. The objects may restrict the SRS driver’s knee airbag inflation or be thrust into the driver’s seat area by the force of the deploying airbag, thus causing a danger.

■ SRS airbag precautions

1-1. For safe use

C-HR_OM_USA_OM10634U

1-1. For safe use

WARNING

■ SRS airbag precautions

● If a vinyl cover is put on the area where the SRS driver’s knee airbag will

deploy, be sure to remove it.

● Do not use seat accessories which cover the parts where the SRS side

airbags and SRS seat cushion airbag inflate as they may interfere with inflation of the SRS airbags. Such accessories may prevent the side airbags and seat cushion airbag from activating correctly, disable the system or cause the side airbags and seat cushion airbag to inflate accidentally, resulting in death or serious injury.

● Do not strike or apply significant levels of force to the area of the SRS air-

bag components or the front doors. Doing so can cause the SRS airbags to malfunction.

● Do not touch any of the component parts immediately after the SRS air-

bags have deployed (inflated) as they may be hot.

● If breathing becomes difficult after the SRS airbags have deployed, open a

door or window to allow fresh air in, or leave the vehicle if it is safe to do so. Wash off any residue as soon as possible to prevent skin irritation.

● If the areas where the SRS airbags are stored, such as the steering wheel

pad and front and rear pillars garnishes, are damaged or cracked, have them replaced by your Toyota dealer.

● Do not place anything, such as a cushion, on the front passenger’s seat.

Doing so will disperse the passenger’s weight, which prevents the sensor from detecting the passenger’s weight properly. As a result, the SRS front airbags for the front passenger may not deploy in the event of a collision.

For safety and security

C-HR_OM_USA_OM10634U

WARNING

■ Modification and disposal of SRS airbag system components

1-1. For safe use

Do not dispose of your vehicle or perform any of the following modifications without consulting your Toyota dealer. The SRS airbags may malfunction or deploy (inflate) accidentally, causing death or serious injury.

● Installation, removal, disassembly and repair of the SRS airbags

● Repairs, modifications, removal or replacement of the steering wheel,

instrument panel, dashboard, seats or seat upholstery, front, side and rear pillars or roof side rails or front door panels, trims and speakers

● Modifications to the front door panel (such as making a hole in it)

● Repairs or modifications of the front fender, front bumper, or side of the

occupant compartment

● Installation of a grille guard (bull bars, kangaroo bar, etc.), snow plows,

winches or roof luggage carrier

● Modifications to the vehicle’s suspension system

● Installation of electronic devices such as mobile two-way radios and CD

players

● Modifications to your vehicle for a person with a physical disability

C-HR_OM_USA_OM10634U

1-1. For safe use

■ If the SRS airbags deploy (inflate)

● Slight abrasions, burns, bruising, etc., may be sustained from SRS airbags,

due to the extremely high speed deployment (inflation) by hot gases.

● A loud noise and white powder will be emitted.

● Parts of the airbag module (steering wheel hub, airbag cover and inflator) as

well as the front seats, parts of the front and rear pillars, and roof side rails, may be hot for several minutes. The airbag itself may also be hot.

● The windshield may crack.

● Fuel supply to the engine will be stopped. (→P. 420)

● For Safety Connect subscribers, if any of the following situations occur, the

system is designed to send an emergency call to the response center, notifying them of the vehicle’s location (without needing to push the “SOS” button) and an agent will attempt to speak with the occupants to ascertain the level of emergency and assistance required. If the occupants are unable to communicate, the agent automatically treats the call as an emergency and helps to dispatch the necessary emergency services. ( P. 74)

• An SRS airbag is deployed.

• A seat belt pretensioner is activated.

• The vehicle is involved in a severe rear-end collision.

■ SRS airbag deployment conditions (SRS front airbags)

● The SRS front airbags will deploy in the event of an impact that exceeds the

set threshold level (the level of force corresponding to an approximately 12 - 18 mph [20 - 30 km/h] frontal collision with a fixed wall that does not move or deform).

However, this threshold velocity will be considerably higher in the following situations:

• If the vehicle strikes an object, such as a parked vehicle or sign pole, which can move or deform on impact

• If the vehicle is involved in an underride collision, such as a collision in which the front of the vehicle “underrides”, or goes under, the bed of a truck

● Depending on the type of collision, it is possible that only the seat belt pre-

tensioners will activate.

● The SRS seat cushion airbag on the front passenger seat will not operate if

the occupant is not wearing a seat belt.

For safety and security

C-HR_OM_USA_OM10634U

■ SRS airbag deployment conditions (SRS side and curtain shield airbags)

● The SRS side and curtain shield airbags will deploy in the event of an

● Both SRS curtain shield airbags may deploy in the event of a severe side

● Both SRS curtain shield airbags will deploy in the event of vehicle rollover.

● Both SRS curtain shield airbags may also deploy in the event of a severe

■ Conditions under which the SRS airbags may deploy (inflate), other than

a collision

The SRS front airbags and SRS curtain shield airbags may also deploy if a serious impact occurs to the underside of your vehicle. Some examples are shown in the illustration.

● Hitting a curb, edge of pavement or hard

● Falling into or jumping over a deep hole

● Landing hard or falling

1-1. For safe use

impact that exceeds the set threshold level (the level of force corresponding to the impact force produced by an approximately 3300 lb. [1500 kg] vehicle colliding with the vehicle cabin from a direction perpendicular to the vehicle orientation at an approximate speed of 12 - 18 mph [20 - 30 km/h]).

collision.

frontal collision.

surface

The SRS curtain shield airbags may also deploy under the situations shown in the illustration.

● The angle of vehicle tip-up is marginal

● The vehicle skids and hits a curb stone

C-HR_OM_USA_OM10634U

1-1. For safe use

■ Types of collisions that may not deploy the SRS airbags (SRS front air-

bags)

The SRS front airbags do not generally inflate if the vehicle is involved in a side or rear collision, if it rolls over, or if it is involved in a low-speed frontal collision. But, whenever a collision of any type causes sufficient forward deceleration of the vehicle, deployment of the SRS front airbags may occur.

● Collision from the side

● Collision from the rear

● Vehicle rollover

■ Types of collisions that may not deploy the SRS airbags (SRS side and

curtain shield airbags)

The SRS side and curtain shield airbags may not activate if the vehicle is subjected to a collision from the side at certain angles, or a collision to the side of the vehicle body other than the passenger compartment.

● Collision from the side to the vehicle

body other than the passenger compartment

● Collision from the side at an angle

For safety and security

The SRS side airbags do not generally inflate if the vehicle is involved in a frontal or rear collision, if it rolls over, or if it is involved in a low-speed side collision.

● Collision from the front

● Collision from the rear

● Vehicle rollover

C-HR_OM_USA_OM10634U

The SRS curtain shield airbags do not generally inflate if the vehicle is involved in a rear collision, if it pitches end over end, or if it is involved in a low-speed side or low-speed frontal collision.

● Collision from the rear

● Pitching end over end

■ When to contact your Toyota dealer

In the following cases, the vehicle will require inspection and/or repair. Contact your Toyota dealer as soon as possible.

● Any of the SRS airbags have been inflated.

● The front of the vehicle is damaged or

1-1. For safe use

deformed, or was involved in an accident that was not severe enough to cause the SRS front airbags to inflate.

● A portion of a door or its surrounding

area is damaged, deformed or has had a hole made in it, or the vehicle was involved in an accident that was not severe enough to cause the SRS side and curtain shield airbags to inflate.

● The pad section of the steering wheel,

dashboard near the front passenger airbag or lower portion of the instrument panel is scratched, cracked, or otherwise damaged.

C-HR_OM_USA_OM10634U

● The front passenger’s seat cushion sur-

face is scratched, cracked, or otherwise damaged.

● The surface of the seats with the SRS

side airbag is scratched, cracked, or otherwise damaged.

● The portion of the front pillars, rear pil-

lars or roof side rail garnishes (padding) containing the SRS curtain shield airbags inside is scratched, cracked, or otherwise damaged.

1-1. For safe use

For safety and security

C-HR_OM_USA_OM10634U

Canada

U.S.A.

1-1. For safe use

Front passenger occupant classification system

Your vehicle is equipped with a front passenger occupant classification system. This system detects the conditions of the front passenger seat and activates or deactivates the front passenger airbag and seat cushion airbag in the front passenger side.

SRS warning light Seat belt reminder light “AIR BAG ON” indicator light “AIR BAG OFF” indicator light

C-HR_OM_USA_OM10634U

1-1. For safe use

Condition and operation in the front passenger occupant classification system

Adult*

■

Indicator/

warning light

Devices

“AIR BAG ON” and “AIR BAG OFF”

indicator lights

SRS warning light Off

Seat belt reminder light

Front passenger airbag

Side airbag

on the front passenger seat

Curtain shield airbag

in the front passenger side

Seat cushion airbag in the front passenger

side

Front passenger’s seat belt pretensioner

and force limiter

“AIR BAG ON”

Off*

flashing

Activated

Activated*

deactivated

Activated

For safety and security

C-HR_OM_USA_OM10634U

1-1. For safe use

■

Child*

Indicator/

warning light

Devices

“AIR BAG ON” and “AIR BAG OFF”

indicator lights

SRS warning light Off

Seat belt reminder light

Front passenger airbag

Side airbag

on the front passenger seat

Curtain shield airbag

in the front passenger side

Seat cushion airbag

in the front passenger side

Front passenger’s seat belt pretensioner

and force limiter

“AIR BAG OFF”

or “AIR BAG

flashing

Deactivated or

activated

Deactivated or

activated

ON”

Off*

Activated

2, 4

C-HR_OM_USA_OM10634U

1-1. For safe use

■

Child restraint system with infant*

“AIR BAG ON” and “AIR BAG OFF”

indicator lights

Indicator/

warning light

Devices

Front passenger’s seat belt pretensioner

■ Unoccupied

“AIR BAG ON” and “AIR BAG OFF”

Indicator/

warning light

SRS warning light Off

Seat belt reminder light

Front passenger airbag Deactivated

Side airbag

on the front passenger seat

Curtain shield airbag

in the front passenger side

Seat cushion airbag

in the front passenger side

and force limiter

indicator lights

SRS warning light

Seat belt reminder light

“AIR BAG

flashing

Activated

Deactivated

Activated

“AIR BAG OFF”

OFF”

Off*

Off

For safety and security

Devices

Front passenger’s seat belt pretensioner

C-HR_OM_USA_OM10634U

Front passenger airbag Deactivated

Side airbag

on the front passenger seat

Curtain shield airbag

in the front passenger side

Seat cushion airbag

in the front passenger side

and force limiter

Activated

Deactivated

Activated

■

1-1. For safe use

There is a malfunction in the system

“AIR BAG ON” and “AIR BAG OFF”

indicator lights

Indicator/

warning light

Devices

Front passenger’s seat belt pretensioner

: The system judges a person of adult size as an adult. When a smaller

adult sits in the front passenger seat, the system may not recognize him/ her as an adult depending on his/her physique and posture.

: In the event the front passenger is wearing a seat belt.

: In the event the front passenger does not wear a seat belt

: For some children, child in seat, child in booster seat or child in convertible

seat, the system may not recognize him/her as a child. Factors which may affect this can be the physique or posture.

: Never install a rear-facing child restraint system on the front passenger

seat. A forward-facing child restraint system should only be installed on the front passenger seat when it is unavoidable. (P. 55)

: In case the indicator light is not illuminated, consult this manual on how to

install the child restraint system properly. (P. 57)

SRS warning light

Seat belt reminder light

Front passenger airbag Deactivated

Side airbag

on the front passenger seat

Curtain shield airbag

in the front passenger side

Seat cushion airbag

in the front passenger side

and force limiter

“AIR BAG OFF”

Activated

Deactivated

Activated

C-HR_OM_USA_OM10634U

1-1. For safe use

WARNING

■ Front passenger occupant classification system precautions

Observe the following precautions regarding the front passenger occupant classification system. Failure to do so may cause death or serious injury.

● Wear the seat belt properly.

● Make sure the front passenger’s seat belt plate has not been left inserted

into the buckle before someone sits in the front passenger seat.

● Make sure the “AIR BAG OFF” indicator light is not illuminated when using

the seat belt extender for the front passenger seat. If the “AIR BAG OFF” indicator light is illuminated, disconnect the extender tongue from the seat belt buckle, and reconnect the seat belt. Reconnect the seat belt extender after making sure the “AIR BAG ON” indicator light is illuminated. If you use the seat belt extender while the “AIR BAG OFF” indicator light is illuminated, the SRS airbags for the front passenger may not activate, which could cause death or serious injury in the event of a collision.

● Do not apply a heavy load to the front passenger seat or equipment (e.g.

seatback pocket).

● Do not put weight on the front passenger seat by putting your hands or

feet on the front passenger seat seatback from the rear passenger seat.

● Do not let a rear passenger lift the front passenger seat with their feet or

press on the seatback with their legs.

● Do not put objects under the front passenger seat.

For safety and security

C-HR_OM_USA_OM10634U

WARNING

■ Front passenger occupant classification system precautions

1-1. For safe use

● Do not recline the front passenger seatback so far that it touches the rear

seat. This may cause the “AIR BAG OFF” indicator light to be illuminated, which indicates that the SRS airbags for the front passenger will not activate in the event of a severe accident. If the seatback touches the rear seat, return the seatback to a position where it does not touch the rear seat. Keep the front passenger seatback as upright as possible when the vehicle is moving. Reclining the seatback excessively may lessen the effectiveness of the seat belt system.

● If an adult sits in the front passenger seat, the “AIR BAG ON” indicator

light is illuminated. If the “AIR BAG OFF” indicator is illuminated, ask the passenger to sit up straight, well back in the seat, feet on the floor, and with the seat belt worn correctly. If the “AIR BAG OFF” indicator still remains illuminated, either ask the passenger to move to the rear seat, or if that is not possible, move the front passenger seat fully rearward.

● When it is unavoidable to install a forward-facing child restraint system on

the front passenger seat, install the child restraint system on the front passenger seat in the proper order. (P. 57)

● Do not modify or remove the front seats.

● Do not kick the front passenger seat or subject it to severe impact. Other-

wise, the SRS warning light may come on to indicate a malfunction of the front passenger occupant classification system. In this case, contact your Toyota dealer immediately.

● Child restraint systems installed on the rear seat should not contact the

front seatbacks.

● Do not use a seat accessory, such as a cushion and seat cover, that cov-

ers the seat cushion surface.

● Do not modify or replace the upholstery of the front seat.

C-HR_OM_USA_OM10634U

1-1. For safe use

WARNING

Exhaust gas precautions

Harmful substance to the human body is included in exhaust gases if inhaled.

Exhaust gases include harmful carbon monoxide (CO), which is colorless and odorless. Observe the following precautions. Failure to do so may cause exhaust gases enter the vehicle and may lead to an accident caused by light-headedness, or may lead to death or a serious health hazard.

■ Important points while driving

● Keep the back door closed.

● If you smell exhaust gases in the vehicle even when the back door is

closed, open the windows and have the vehicle inspected at your Toyota dealer as soon as possible.

■ When parking

● If the vehicle is in a poorly ventilated area or a closed area, such as a

garage, stop the engine.

● Do not leave the vehicle with the engine on for a long time.

If such a situation cannot be avoided, park the vehicle in an open space and ensure that exhaust fumes do not enter the vehicle interior.

● Do not leave the engine running in an area with snow build-up, or where it

is snowing. If snowbanks build up around the vehicle while the engine is running, exhaust gases may collect and enter the vehicle.

■ Exhaust pipe

The exhaust system needs to be checked periodically. If there is a hole or crack caused by corrosion, damage to a joint or abnormal exhaust noise, be sure to have the vehicle inspected and repaired by your Toyota dealer.

For safety and security

C-HR_OM_USA_OM10634U

WARNING

1-2. Child safety

Riding with children

Observe the following precautions when children are in the vehicle. Use a child restraint system appropriate for the child, until the child becomes large enough to properly wear the vehicle’s seat belt.

● It is recommended that children sit in the rear seats to avoid accidental contact with the shift lever, wiper switch, etc.

● Use the rear door child-protector lock or the window lock switch to avoid children opening the door while driving or operating the power window accidentally. (P. 122, 155)

● Do not let small children operate equipment which may catch or pinch body parts, such as the power window, hood, back door, seats, etc.

Never leave children unattended in the vehicle, and never allow children to have or use the key.

Children may be able to start the vehicle or shift the vehicle into neutral. There is also a danger that children may injure themselves by playing with the side windows, the moon roof (if equipped) or other features of the vehicle. In addition, heat build-up or extremely cold temperatures inside the vehicle can be fatal to children.

C-HR_OM_USA_OM10634U

1-2. Child safety

Child restraint systems

Before installing a child restraint system in the vehicle, there are precautions that need to be observed, different types of child restraint systems, as well as installation methods, etc., written in this manual.

● Use a child restraint system when riding with a small child that cannot properly use a seat belt. For the child’s safety, install the child restraint system to a rear seat. Be sure to follow the installation method that is in the operation manual enclosed with the restraint system.

Table of contents

Points to remember......................................................................P. 55

Child restraint system ..................................................................P. 57

When using a child restraint system ............................................P. 58

Child restraint system installation method

• Fixed with a seat belt ...............................................................P. 61

• Fixed with a child restraint LATCH anchor ...............................P. 67

• Using an anchor bracket (for top tether strap) .........................P. 70

For safety and security

Points to remember

The laws of all 50 states of the U.S.A. as well as Canada now require the use of child restraint systems.

● Prioritize and observe the warnings, as well as the laws and regulations for child restraint systems.

● Use a child restraint system until the child becomes large enough to properly wear the vehicle’s seat belt.

● Choose a child restraint system that suits your vehicle and is appropriate to the age and size of the child.

C-HR_OM_USA_OM10634U

WARNING

■ When a child is riding

■ Handling the child restraint system

1-2. Child safety

Observe the following precautions. Failure to do so may result in death or serious injury.

● For effective protection in automobile accidents and sudden stops, a child

must be properly restrained, using a seat belt or child restraint system which is correctly installed. For installation details, refer to the operation manual enclosed with the child restraint system. General installation instruction is provided in this manual.

● Toyota strongly urges the use of a proper child restraint system that con-

forms to the weight and size of the child, installed on the rear seat. According to accident statistics, the child is safer when properly restrained in the rear seat than in the front seat.

● Holding a child in your or someone else’s arms is not a substitute for a

child restraint system. In an accident, the child can be crushed against the windshield or between the holder and the interior of the vehicle.

If the child restraint system is not properly fixed in place, the child or other passengers may be seriously injured or even killed in the event of sudden braking, sudden swerving, or an accident.

● If the vehicle were to receive a strong impact from an accident, etc., it is

possible that the child restraint system has damage that is not readily visible. In such cases, do not reuse the restraint system.

● Make sure you have complied with all installation instructions provided

with the child restraint system manufacturer and that the system is properly secured.

● Keep the child restraint system properly secured on the seat even if it is

not in use. Do not store the child restraint system unsecured in the passenger compartment.

● If it is necessary to detach the child restraint system, remove it from the

vehicle or store it securely in the luggage compartment.

C-HR_OM_USA_OM10634U

1-2. Child safety

Child restraint system

Types of child restraint system installation methods

■

Confirm with the operation manual enclosed with the child restraint system about the installation of the child restraint system.

Seat belt attachment

Child restraint LATCH anchors attachment

Anchor brackets (for top tether strap) attachment

Installation method Page

For safety and security

P. 61

P. 67

P. 70

C-HR_OM_USA_OM10634U

1-2. Child safety

When using a child restraint system

When installing a child restraint system to a front passenger

■

seat

For the safety of a child, install a child restraint system to a rear seat. When installing child restraint system to a front passenger seat is unavoidable, adjust the seat as follows and install the child restraint system.

● Raise the seatback as much

as possible

● Move the seat to the rear-

most position

● If the head restraint interferes

with the child restraint system installation and the head restraint can be removed, remove the head restraint

C-HR_OM_USA_OM10634U

1-2. Child safety

WARNING

● A forward-facing child restraint system

may be installed on the front passenger seat only when it is unavoidable. When installing a forward-facing child restraint system on the front passenger seat, move the seat as far back as possible, even if the “AIR BAG OFF” indicator light is illuminated.

● Do not allow the child to lean his/her

head or any part of his/her body against the door or the area of the seat, front or rear pillars, or roof side rails from which the SRS side airbags or SRS curtain shield airbags deploy even if the child is seated in the child restraint system. It is dangerous if the SRS side airbags and curtain shield airbags inflate, and the impact could cause death or serious injury to the child.

■ When using a child restraint system

Observe the following precautions. Failure to do so may result in death or serious injury.

● Never install a rear-facing child restraint system on the front passenger

seat even if the “AIR BAG OFF” indicator light is illuminated. In the event of an accident, the force of the rapid inflation of the front passenger airbag can cause death or serious injury to the child if the rear-facing child restraint system is installed on the front passenger seat.

● A forward-facing child restraint system may be installed on the front pas-

senger seat only when it is unavoidable. A child restraint system that requires a top tether strap should not be used in the front passenger seat since there is no top tether strap anchor for the front passenger seat.

If the head restraint interferes with the child restraint system installation and the head restraint can be removed, remove the head restraint.

For safety and security

C-HR_OM_USA_OM10634U

WARNING

● If the driver’s seat interferes with the

child restraint system and prevents it from being attached correctly, attach the child restraint system to the right-hand rear seat.

● Adjust the front passenger seat so that

it does not interfere with the child restraint system.

■ When using a child restraint system

1-2. Child safety

Observe the following precautions. Failure to do so may result in death or serious injury.

● When a booster seat is installed, always ensure that the shoulder belt is

positioned across the center of the child’s shoulder. The belt should be kept away from the child’s neck, but not so that it could fall off the child’s shoulder.

● Use child restraint system suitable to the age and size of the child and

install it to the rear seat.

C-HR_OM_USA_OM10634U

1-2. Child safety

Child restraint system fixed with a seat belt

A child restraint system for a small child or baby must itself be properly restrained on the seat with the lap portion of the lap/shoulder belt.

◆ Installing child restraint system using a seat belt (child

restraint lock function belt)

Install the child restraint system in accordance to the operation manual enclosed with the child restraint system.

■ Rear-facing — Infant seat/convertible seat

Place the child restraint system on the rear seat facing the rear of the vehicle.

Run the seat belt through the child restraint system and insert the plate into the buckle. Make sure that the belt is not twisted.

For safety and security

Fully extend the shoulder belt and allow it to retract to put it in lock mode. In lock mode, the belt cannot be extended.

C-HR_OM_USA_OM10634U

1-2. Child safety

While pushing the child restraint system down into the rear seat, allow the shoulder belt to retract until the child restraint system is securely in place.

After the shoulder belt has retracted to a point where there is no slack in the belt, pull the belt to check that it cannot be extended.

After installing the child restraint system, rock it back and forth to ensure that it is installed securely. (P. 66)

■ Forward-facing — Convertible seat

If installing the child restraint system to the front passenger seat is unavoidable, refer to P. 58 for front passenger seat adjustment.

If the head restraint interferes with the child restraint system installation and the head restraint can be removed, remove the head restraint. (P. 145)

Place the child restraint system on the seat facing the front of the vehicle.

C-HR_OM_USA_OM10634U

Run the seat belt through the child restraint system and insert the plate into the buckle. Make sure that the belt is not twisted.

1-2. Child safety

Fully extend the shoulder belt and allow it to retract to put it in lock mode. In lock mode, the belt cannot be extended.

While pushing the child restraint system into the rear seat, allow the shoulder belt to retract until the child restraint system is securely in place.

After the shoulder belt has retracted to a point where there is no slack in the belt, pull the belt to check that it cannot be extended.

If the child restraint has a top tether strap, follow the child restraint manufacturer’s operation manual regarding the installation, using the top tether strap to latch onto the top tether strap anchor. (P. 70 )

After installing the child restraint system, rock it back and forth to ensure that it is installed securely. (P. 66)

For safety and security

C-HR_OM_USA_OM10634U

■

1-2. Child safety

Booster seat

If installing the child restraint system to the front passenger seat is unavoidable, refer to P. 58 for front passenger seat adjustment.

High back type: If the head restraint interferes with your child restraint system, and the head restraint can be removed, remove the head restraint. (P. 145)

Place the child restraint system on the seat facing the front of the vehicle.

 Booster type  High back type

Sit the child in the child restraint system. Fit the seat belt to the child restraint system according to the manufacturer’s instructions and insert the plate into the buckle. Make sure that the belt is not twisted.

Check that the shoulder belt is correctly positioned over the child’s shoulder and that the lap belt is as low as possible. (P. 26)

C-HR_OM_USA_OM10634U

1-2. Child safety

◆ Removing a child restraint system installed with a seat belt

Press the buckle release button and fully retract the seat belt.

When releasing the buckle, the child restraint system may spring up due to the rebound of the seat cushion. Release the buckle while holding down the child restraint system.

Since the seat belt automatically reels itself, slowly return it to the stowing position.

For safety and security

C-HR_OM_USA_OM10634U

WARNING

■ When installing a child restraint system

■ When installing a booster seat

■ Do not use a seat belt extender

1-2. Child safety

Observe the following precautions. Failure to do so may result in death or serious injury.

● Do not allow children to play with the seat belt. If the seat belt becomes

twisted around a child’s neck, it may lead to choking or other serious injuries that could result in death. If this occurs and the buckle cannot be unfastened, scissors should be used to cut the belt.

● Ensure that the belt and plate are securely locked and the seat belt is not

twisted.

● Shake the child restraint system left and right, and forward and backward

to ensure that it has been securely installed.

● After securing a child restraint system, never adjust the seat.

● When a booster seat is installed, always ensure that the shoulder belt is

positioned across the center of the child’s shoulder. The belt should be kept away from the child’s neck, but not so that it could fall off the child’s shoulder.

● Follow all installation instructions provided by the child restraint system

manufacturer.

● When securing some types of child restraint systems in rear seats, it may

not be possible to properly use the seat belts in positions next to the child restraint without interfering with it or affecting seat belt effectiveness. Be sure your seat belt fits snugly across your shoulder and low on your hips. If it does not, or if it interferes with the child restraint, move to a different position. Failure to do so may result in death or serious injury.

To prevent the belt from going into ALR lock mode, do not fully extend the shoulder belt. ALR mode causes the belt to tighten only. This could cause injury or discomfort to the child. (P. 28)

If a seat belt extender is used when installing a child restraint system, the seat belt will not securely hold the child restraint system, which could cause death or serious injury to the child or other passengers in the event of sudden braking, sudden swerving or an accident.

C-HR_OM_USA_OM10634U

1-2. Child safety

Child restraint system fixed with a child restraint LATCH anchor

Child restraint LATCH anchors

■

LATCH anchors are provided for the rear outboard seats. (Buttons displaying the location of the anchors are attached to the seats.)

■ When installing in the rear outboard seats

Install the child restraint system in accordance to the operation manual enclosed with the child restraint system.

If the head restraint interferes with the child restraint system installation and the head restraint can be removed, remove the head restraint. (P. 145)

Flip up and fold the cover, and fix it with the hook-andloop fastener.

For safety and security

C-HR_OM_USA_OM10634U

Canada only

1-2. Child safety

 With flexible lower attachments

Latch the hooks of the lower attachments onto the LATCH anchors.

For owners in Canada: The symbol on a child restraint system indicates the presence of a lower connector system.

 With rigid lower attachments

Latch the buckles onto the LATCH anchors.

For owners in Canada: The symbol on a child restraint system indicates the presence of a lower connector system.

C-HR_OM_USA_OM10634U

1-2. Child safety

After installing the child restraint system, rock it back and forth to ensure that it is installed securely. (P. 66)

■ When installing in the rear center seat

There are no LATCH anchors behind the rear center seat. However, the inboard LATCH anchors of the outboard seats, which are

16.1 in. (410 mm) apart, can be used if the child restraint system manufacturer’s instructions permit use of those anchors with the anchor spacing stated. Child restraint systems with rigid lower attachments cannot be installed in the center seat. This type of child restraint system can only be installed in the outboard seat.

■ Laws and regulations pertaining to anchors

The LATCH system conforms to FMVSS225 or CMVSS210.2. Child restraint systems conforming to FMVSS213 or CMVSS213 specifications can be used. This vehicle is designed to conform to SAE J1819.

For safety and security

C-HR_OM_USA_OM10634U

WARNING

■ When installing a child restraint system

1-2. Child safety

Observe the following precautions. Failure to do so may result in death or serious injury.

● When using the LATCH anchors, be sure that there are no foreign objects

around the anchors and that the seat belt is not caught behind the child restraint system.

● Follow all installation instructions provided by the child restraint system

manufacturer.

● Never attach two child restraint system attachments to the same anchor. In

a collision, one anchor may not be strong enough to hold two child restraint system attachments and may break. If the LATCH anchors are already in use, use the seat belt to install a child restraint system in the center seat.

● When securing some types of child restraint systems in rear seats, it may

● If the seat is adjusted, reconfirm the security of the child restraint system.

Using an anchor bracket (for top tether strap)

■

Anchor brackets (for top tether strap)

Anchor brackets are provided for each rear seat. Use anchor brackets when fix-

ing the top tether strap.

C-HR_OM_USA_OM10634U

1-2. Child safety

Top tether strap

Hook

■

Fixing the top tether strap to the anchor bracket

Install the child restraint system in accordance to the operation manual enclosed with the child restraint system.

 Rear outboard seats

Remove the head restraint. (P. 145)

Latch the hook onto the anchor bracket and tighten the top tether strap.

Make sure the top tether strap is securely latched. (P. 66)

For safety and security

If the head restraint does not interfere with the child restraint system installation, install the head restraint.

C-HR_OM_USA_OM10634U

Top tether strap

Hook

1-2. Child safety

 Rear center seat

Adjust the head restraint to the upmost position.

If the head restraint interferes with your child restraint system, and the head restraint can be removed, remove the head restraint. (P. 145)

Latch the hook onto the anchor bracket and tighten the top tether strap.

Make sure the top tether strap is securely latched.

When installing the child restraint system with the head restraint being raised, be sure to have the top tether strap pass underneath the head restraint.

C-HR_OM_USA_OM10634U

1-2. Child safety

WARNING

■ Laws and regulations pertaining to anchors

The LATCH system conforms to FMVSS225 or CMVSS210.2. Child restraint systems conforming to FMVSS213 or CMVSS213 specifications can be used. This vehicle is designed to conform to SAE J1819.

■ When installing a child restraint system

Observe the following precautions. Failure to do so may result in death or serious injury.

● Firmly attach the top tether strap and make sure that the belt is not twisted.

● Do not attach the top tether strap to anything other than the anchor

bracket.

● After securing a child restraint system, never adjust the seat.

● Follow all installation instructions provided by the child restraint system

manufacturer.

● Rear center seat: When installing the child restraint system with the head

restraint being raised, after the head restraint has been raised and then the anchor bracket has been fixed, do not lower the head restraint.

For safety and security

C-HR_OM_USA_OM10634U

1-3. Emergency assistance

Safety Connect

Safety Connect is a subscription-based telematics service that uses Global Positioning System (GPS) data and embedded cellular technology to provide safety and security features to subscribers. Safety Connect is supported by Toyota’s designated response center, which operates 24 hours per day, 7 days per week.

Safety Connect service is available by subscription on select, telematics hardware-equipped vehicles.

By using the Safety Connect service, you are agreeing to be bound by the Telematics Subscription Service Agreement and its Terms and Conditions, as in effect and amended from time to time, a current copy of which is available at Toyota.com in the United States, Toyotapr.com in Puerto Rico and Toyota.ca in Canada. All use of the Safety Connect service is subject to such then-applicable Terms and Conditions.

■ System components

“SOS” button LED light indicators Microphone



C-HR_OM_USA_OM10634U

: If equipped

1-3. Emergency assistance

■

Services

Subscribers have the following Safety Connect services available:

● Automatic Collision Notification

Helps drivers receive necessary response from emergency service providers. (P. 77 )

*: U.S. Patent No. 7,508,298 B2

● Stolen Vehicle Location

Helps drivers in the event of vehicle theft. (P. 78)

● Emergency Assistance Button (SOS)

Connects drivers to response-center support. (P. 7 8 )

● Enhanced Roadside Assistance

Provides drivers various on-road assistance. (P. 7 8 )

■ Subscription

After you have signed the Telematics Subscription Service Agreement and are enrolled, you can begin receiving services. A variety of subscription terms are available for purchase. Contact your Toyota dealer, call the following appropriate Safety Connect response center or push the “SOS” button in your vehicle for further subscription details.

• The United States 1-800-331-4331

• Canada 1-888-869-6828

• Puerto Rico 1-877-855-8377

For safety and security

C-HR_OM_USA_OM10634U

1-3. Emergency assistance

■ Safety Connect Services Information

● Phone calls using the vehicle’s Bluetooth

technology will not be possible

when Safety Connect system is active and in use.

● Safety Connect is available beginning Fall 2009 on select Toyota models (in

the contiguous United States only). Contact with the Safety Connect response center is dependent upon the telematics device being in operative condition, cellular connection availability, and GPS satellite signal reception, which can limit the ability to reach the response center or receive emergency service support. Enrollment and Telematics Subscription Service Agreement are required. A variety of subscription terms are available; charges vary by subscription term selected and location.

● Automatic Collision Notification, Emergency Assistance and Stolen Vehicle

Location are available in the United States, including Hawaii and Alaska, Puerto Rico and Canada, and Enhanced Roadside Assistance are available in the United States, Puerto Rico and Canada.

● Automatic Collision Notification, Emergency Assistance, Stolen Vehicle and

Enhanced Road Assistance are not available in the U.S. Virgin Islands. For vehicles first sold in the U.S. Virgin Islands, no Safety Connect services will function in or outside the U.S. Virgin Islands.

● Safety Connect services are not subject to section 255 of the Telecommuni-

cations Act and the device is not TTY compatible.

■ Languages

The Safety Connect response center will offer support in multiple languages. The Safety Connect system will offer voice prompts in English, Spanish, and French. Please indicate your language of choice when enrolling.

■ When contacting the response center

You may be unable to contact the response center if the network is busy.

C-HR_OM_USA_OM10634U

1-3. Emergency assistance

Safety Connect LED light Indicators

When the engine switch is turned to the “ON” position (vehicles without smart key system) or IGNITION ON mode (vehicles with smart key system), the red indicator light comes on for 2 seconds then turns off. Afterward, the green indicator light comes on, indicating that the service is active. The following indicator light patterns indicate specific system usage conditions:

● Green indicator light on = Active service

● Green indicator light flashing = Safety Connect call in process

● Red indicator light (except at vehicle start-up) = System malfunction

(contact your Toyota dealer)

● No indicator light (off) = Safety Connect service not active

Safety Connect services

■ Automatic Collision Notification

In case of either airbag deployment or severe rear-end collision, the system is designed to automatically call the response center. The responding agent receives the vehicle’s location and attempts to speak with the vehicle occupants to assess the level of emergency. If the occupants are unable to communicate, the agent automatically treats the call as an emergency, contacts the nearest emergency services provider to describe the situation, and requests that assistance be sent to the location.

For safety and security

C-HR_OM_USA_OM10634U

■

1-3. Emergency assistance

Stolen Vehicle Location

If your vehicle is stolen, Safety Connect can work with local authorities to assist them in locating and recovering the vehicle. After filing a police report, call the Safety Connect response center at 1-800331-4331 in the United States, 1-877-855-8377 in Puerto Rico or 1888-869-6828 in Canada, and follow the prompts for Safety Connect to initiate this service. In addition to assisting law enforcement with recovery of a stolen vehicle, Safety-Connect-equipped vehicle location data may, under certain circumstances, be shared with third parties to locate your vehicle. Further information is available at Toyota.com in the United States, Toyotapr.com in Puerto Rico and Toyota.ca in Canada.

■ Emergency Assistance Button (“SOS”)

In the event of an emergency on the road, push the “SOS” button to reach the Safety Connect response center. The answering agent will determine your vehicle’s location, assess the emergency, and dispatch the necessary assistance required.

If you accidentally press the “SOS” button, tell the response-center agent that you are not experiencing an emergency.

Enhanced Roadside Assistance

■

Enhanced Roadside Assistance adds GPS data to the already included warranty-based Toyota roadside service.

Subscribers can press the “SOS” button to reach a Safety Connect response-center agent, who can help with a wide range of needs, such as: towing, flat tire, fuel delivery, etc. For a description of the Enhanced Roadside Assistance services and their limitations, please see the Safety Connect Terms and Conditions, which are available at Toyota.com in the United States, Toyotapr.com in Puerto Rico and Toyota.ca in Canada.

C-HR_OM_USA_OM10634U

1-3. Emergency assistance

Safety information for Safety Connect

Important! Read this information before using Safety Connect.

■ Exposure to radio frequency signals

The Safety Connect system installed in your vehicle is a low-power radio transmitter and receiver. It receives and also sends out radio frequency (RF) signals.

In August 1996, the Federal Communications Commission (FCC) adopted RF exposure guidelines with safety levels for mobile wireless phones. Those guidelines are consistent with the safety standards previously set by the following U.S. and international standards bodies.

● ANSI (American National Standards Institute) C95.1 [1992]

● NCRP (National Council on Radiation Protection and Measure-

ment) Report 86 [1986]

● ICNIRP (International Commission on Non-Ionizing Radiation Protection) [1996]

Those standards were based on comprehensive and periodic evaluations of the relevant scientific literature. Over 120 scientists, engineers, and physicians from universities, and government health agencies and industries reviewed the available body of research to develop the ANSI Standard (C95.1).

The design of Safety Connect complies with the FCC guidelines in addition to those standards.

For safety and security

C-HR_OM_USA_OM10634U

■ Certification for Safety Connect

1-3. Emergency assistance

C-HR_OM_USA_OM10634U

1-4. Theft deterrent system

Engine immobilizer system

The vehicle’s keys have built-in transponder chips that prevent the engine from starting if a key has not been previously registered in the vehicle’s on-board computer.

Never leave the keys inside the vehicle when you leave the vehicle.

This system is designed to help prevent vehicle theft but does not guarantee absolute security against all vehicle thefts.

Vehicles without a smart key system: The indicator light flashes after the key has been removed from the engine switch to indicate that the system is operating. The indicator light stops flashing after the registered key has been inserted into the engine switch to indicate that the system has been canceled.

Vehicles with a smart key system: The indicator light flashes after the engine switch has been turned off to indicate that the system is operating. The indicator light stops flashing after the engine switch has been turned to ACCESSORY or IGNITION ON mode to indicate that the system has been canceled.

For safety and security

C-HR_OM_USA_OM10634U

1-4. Theft deterrent system

■ System maintenance

The vehicle has a maintenance-free type engine immobilizer system.

■ Conditions that may cause the system to malfunction

● If the grip portion of the key is in contact with a metallic object

● If the key is in close proximity to or touching a key to the security system

(key with a built-in transponder chip) of another vehicle

■ Certifications for the engine immobilizer system

 For vehicles sold in the U.S.A.

 For vehicles sold in Canada

C-HR_OM_USA_OM10634U

 For vehicles sold in the U.S.A.

NOTICE

 For vehicles sold in Canada

1-4. Theft deterrent system

For safety and security

■ To ensure the system operates correctly

Do not modify or remove the system. If modified or removed, the proper operation of the system cannot be guaranteed.

C-HR_OM_USA_OM10634U

1-4. Theft deterrent system

C-HR_OM_USA_OM10634U

Instrument cluster

2. Instrument cluster

Warning lights and

indicators .......................... 86

Gauges and meters ............ 94

Multi-information display ..... 97

Fuel consumption

information ...................... 105

C-HR_OM_USA_OM10634U

2. Instrument cluster

Warning lights and indicators

The warning lights and indicators on the instrument cluster and center panel inform the driver of the status of the vehicle’s various systems.

For the purpose of explanation, the following illustration displays all warning lights and indicators illuminated.

The units used on the meters and some indicators may differ depending on the target region.

C-HR_OM_USA_OM10634U

2. Instrument cluster

Warning lights

Warning lights inform the driver of malfunctions in the indicated vehicle’s systems.

Warning lights Pages

Brake system warning light (red) (U.S.A.) P. 421

Brake system warning light (red) (Canada) P. 421

1, 3

Malfunction indicator lamp (U.S.A.) P. 422

Malfunction indicator lamp (Canada) P. 422

SRS warning light P. 422

ABS warning light (U.S.A.) P. 422

ABS warning light (Canada) P. 422

Electric power steering system warning light (red)

Electric power steering system warning light (yellow)

“RCTA OFF” indicator (if equipped) P. 422

Slip indicator light P. 423

P. 422

Instrument cluster

C-HR_OM_USA_OM10634U

Brake system warning light (yellow) P. 423

PCS warning light P. 423

2. Instrument cluster

Warning lights Pages

Parking brake indicator (U.S.A.) P. 423

Parking brake indicator (Canada) P. 423

Low fuel level warning light P. 423

Driver’s and front passenger’s seat belt reminder light

Rear passengers’ seat belt reminder lights (on the center panel)

: These lights turn on when the engine switch is turned to the “ON” position

(vehicles without a smart key system) or IGNITION ON mode (vehicles with a smart key system) to indicate that a system check is being performed. They will turn off after the engine is started, or after a few seconds. There may be a malfunction in a system if a light does not come on, or if the lights do not turn off. Have the vehicle inspected by your Toyota dealer.

: The light flashes to indicate a malfunction.

: The light comes on to indicate a malfunction.

Tire pressure warning light P. 424

P. 424

C-HR_OM_USA_OM10634U

2. Instrument cluster

Indicators

The indicators inform the driver of the operating state of the vehicle’s various systems.

Indicators Pages

Turn signal indicator P. 193

Headlight indicator (U.S.A.) P. 202

Tail light indicator (Canada) P. 202

Front fog light indicator (if equipped) P. 212

Headlight high beam indicator P. 203

Automatic High Beam indicator P. 207

Parking brake indicator (U.S.A.) P. 194

Parking brake indicator (Canada) P. 194

1, 2

BSM OFF indicator (if equipped) P. 269

BSM outside rear view mirror indicator (on the outside rear view mirrors) (if equipped)

P. 269,

278

Instrument cluster

1, 3

C-HR_OM_USA_OM10634U

“RCTA OFF” indicator (if equipped) P. 278

Security indicator (on the center panel) P. 81

Slip indicator light P. 287

2. Instrument cluster

1, 2

Indicators Pages

VSC off indicator P. 287

PCS warning light P. 232

: These lights turn on when the engine switch is turned to the “ON” position

: The light turns on when the system is off.

: The light flashes to indicate that the system is operating.

“AIR BAG ON/OFF” indicator (U.S.A.) (on the center panel)

“AIR BAG ON/OFF” indicator (Canada) (on the center panel)

P. 46

C-HR_OM_USA_OM10634U

2. Instrument cluster

Indicators and symbols displayed on the multi-information display

Indicators Pages

1, 2, 3

Brake hold operated indicator P. 199

Brake hold standby indicator P. 199

LDA indicator P. 245

Cruise control indicator P. 252

Cruise control “SET” indicator P. 252

Radar cruise control indicator P. 252

“SPORT” indicator P. 267

“ECO MODE” indicator P. 267

Eco Driving Indicator Light P. 93

Low outside temperature indicator P. 94

: These lights turn on when the engine switch is turned to the “ON” position

: The light turns on when the system is operating.

: The light flashes to indicate a malfunction.

Instrument cluster

C-HR_OM_USA_OM10634U

2. Instrument cluster

Symbols on multi-information display Pages

Charging system warning light P. 421

Low engine oil pressure warning light P. 421

High engine coolant temperature warning light P. 424

Smart key system (if equipped) P. 181

Brake Override System/Drive-Start Control P. 425

C-HR_OM_USA_OM10634U

■ Eco Driving Indicator Light

WARNING

During Eco-Friendly acceleration (Eco driving), Eco Driving Indicator Light will turn on. When the acceleration exceeds Zone of Eco driving, and when the vehicle is stopped, the light turns off.

Eco Driving Indicator Light availability can be customized. The default setting is on. (P. 490)

2. Instrument cluster

Eco Driving Indicator Light will not operate in the following conditions:

● The shift lever is in anything other than D.

● The vehicle is being driven in “SPORT” mode (P. 267)

● The vehicle speed is approximately 80 mph (130 km/h) or higher.

■ If a safety system warning light does not come on

Should a safety system light such as ABS and SRS airbag warning light not come on when you start the engine, this could mean that these systems are not available to help protect you in an accident, which could result in death or serious injury. Have the vehicle inspected by your Toyota dealer.

Instrument cluster

C-HR_OM_USA_OM10634U

2. Instrument cluster

Gauges and meters

The units used on the speedometer may differ depending on the target region.

Tachometer

Displays the engine speed in revolutions per minute.

Multi-information display

Presents the driver with a variety of driving-related data. (P. 97) Displays warning messages in case of a malfunction. (P. 431)

Speedometer

Displays the vehicle speed.

Fuel gauge

Displays the quantity of fuel remaining in the tank.

Outside temperature display

Displays the outside temperature within the range of -40°F (-40°C) to 122°F (50°C). Low outside temperature indicator comes on when the ambient temperature is 37°F (3°C) or lower.

C-HR_OM_USA_OM10634U

2. Instrument cluster

Odometer and trip meter display

Displays the following items. Odometer:

Displays the total distance the vehicle has been driven. Trip meter:

Displays the distance the vehicle has been driven since the meter was last reset. Trip meters A and B can be used to record and display different distances independently.

Maintenance required information: Displays the remaining distance until the engine oil should be changed. If “-” is displayed before distance, it means oil maintenance is overdue. Have the engine oil changed by your Toyota dealer.

• Displays the maintenance required information when the engine switch is turned to the “ON” position (vehicles without smart key system) or in IGNITION ON mode (vehicles with smart key system).

• Maintenance required information reset method (P. 334)

Shift position and shift range display

Displays the selected shift position or selected shift range. (P. 188)

Engine coolant temperature gauge

Displays the engine coolant temperature.

Changing the display

Instrument cluster

Switches the items of the odometer and trip meter display by pressing the “TRIP” switch.

When the trip meter is displayed, pressing and holding the “TRIP” switch will reset the trip meter.

C-HR_OM_USA_OM10634U

NOTICE

2. Instrument cluster

Instrument panel light control

The brightness of the instrument panel lights can be adjusted.

Brighter Darker

■ The meters and display illuminate when

Vehicles without a smart key system: The engine switch is in the “ON” position.

Vehicles with a smart key system: The engine switch is in IGNITION ON mode.

■ Outside temperature display

● In the following situations, the correct outside temperature may not be dis-

played, or the display may take longer than normal to change.

• When stopped, or driving at low speeds (less than 16 mph [25 km/h])

• When the outside temperature has changed suddenly (at the entrance/ exit of a garage, tunnel, etc.)

● If “” is displayed continuously, the system may be malfunctioning. Tak e

your vehicle to your Toyota dealer.

■ Adjusting the clock

The clocks can be adjusted on the audio system screen. Refer to “MULTIMEDIA OWNER’S MANUAL”.

■ To prevent damage to the engine and its components

● Do not let the indicator needle of the tachometer enter the red zone, which

indicates the maximum engine speed.

● The engine may be overheating if the engine coolant temperature gauge

enters the red zone (“H”). In this case, immediately stop the vehicle in a safe place, and check the engine after it has cooled completely. (P. 457)

C-HR_OM_USA_OM10634U

2. Instrument cluster

Multi-information display

Display contents

The multi-information display presents the driver with a variety of vehicle data.

● Menu icons Displays the following informa-

tion when an icon is selected. (P. 98) Some of the information may be displayed automatically depending on the situation.

Drive information

Select to display various drive data. (P. 98)

Audio system-linked display

Instrument cluster

Select to enable selection of an audio source or track on the meter using the meter control switches.

Driving assist system information

Select to display the operational status of the following systems:

• LDA (Lane Departure Alert with steering control) (P. 242)

• Dynamic radar cruise control with full-speed range (P. 252)

Warning message display

Select to display warning messages and measures to be taken if a malfunction is detected. (P. 431)

Settings display

Select to change the meter display settings and the operation settings of some vehicle functions. (P. 100)

C-HR_OM_USA_OM10634U

2. Instrument cluster

Operating the meter control switches

The multi-information display is operated using the meter control switches.

Return to the previous screen Enter/set Select an item/change pages

Drive information

● Current fuel consumption (bar type/numerical value)

Displays the current rate of fuel consumption.

● Average fuel consumption (after reset*2/after start/after refuel)*

Displays the average fuel consumption since the function was reset, the engine was started, and the vehicle was refueled, respectively

Use the displayed average fuel consumption as a reference.

● Average vehicle speed (after reset*2/after start)*

Displays the average vehicle speed since the function was reset and the engine was started, respectively

● Elapsed time (after reset*2/after start)*

Displays the elapsed time since the function was reset and the engine was started, respectively

● Distance (range/after start)*

Displays the estimated maximum distance that can be driven with the quantity of fuel remaining and the distance driven after the engine was started, respectively

• This distance is computed based on your average fuel consumption. As a result, the actual distance that can be driven may differ from that displayed.

• When only a small amount of fuel is added to the tank, the display may not be updated. When refueling, turn the engine switch off. If the vehicle is refueled without turning the engine switch off, the display may not be updated.

C-HR_OM_USA_OM10634U

2. Instrument cluster

● Eco Driving Indicator Zone Display

P. 102

● Speedometer

Displays the vehicle speed.

● G Monitor

P. 103

● Display off

A blank screen is displayed.

: Can be registered to Drive information 1 and 2. (P. 100)

: Resetting procedures:

• Select a function to be reset using the meter control switches and then press and hold to reset.

• If there is more than one function that can be reset, check boxes will be displayed next to those functions.

Instrument cluster

C-HR_OM_USA_OM10634U

100

2. Instrument cluster

Settings display

The settings of the following items can be changed, refer to P. 488.

For functions that can be enabled or disabled, the function switches between on and off each time is pressed.

● LDA (Lane Departure Alert with steering control) (P. 24 2)

Select to set up the following items.

• Steering Assist on/off

• Alert sensitivity

• Sway Alert on/off

• Sway sensitivity

● PCS (Pre-Collision System) (P. 228)

Select to set up the following items.

• PCS on/off

• PCS sensitivity

● BSM (Blind Spot Monitor) (if equipped) (P. 2 6 9)

Select to set up the following items.

• BSM function on/off

• BSM Sensitivity

• BSM Brightness

• RCTA function on/off

● Driving mode select (P. 267)

C-HR_OM_USA_OM10634U
