ALADDIN - User manual Rev. 23 of 08/07/2016

ALADDIN

User manual

0123

Product cod. 1240211 ALADDIN HW2.0 Rev. 23 - 2016

ALADDIN - User manual Rev. 23 of 08/07/2016

Caution: Federal law restricts this device to sale by or on the order of an optometrist, optician, or an

ophthalmologist.

Thank you for choosing this product.

Please read the information in this manual carefully. You must be familiar with its contents in order to work with the device.

The manufacturer has a policy of continuous improvement of its products, so it is possible that some instructions, specifications and pictures in this manual may differ slightly from the product you purchased. The manufacturer also reserves the right to make any changes to this manual without notice.

The original text of this manual is in English.

SW v.: 1.5.x

Manufacturer

VISIA imaging S.r.l. Via Martiri della Libertà 95/e 52027 San Giovanni Valdarno (AR) Italy

Distributor

Topcon Europe Medical B.V. Essebaan 11 2908 LJ Capelle a/d IJssel The Netherlands www.topcon.eu medical@topcon.eu

ALADDIN - User manual Rev. 23 of 08/07/2016

Contents

1 Intended Use ............................................................................................................................................. 7

1.1 Description of functionalities ............................................................................................................ 7

1.2 Users .................................................................................................................................................. 9

1.3 Positioning the patient .................................................................................................................... 10

1.4 Places of use .................................................................................................................................... 10

1.5 Contraindications ............................................................................................................................ 10

2 Accessibility and scope of the manual .................................................................................................... 11

3 Introduction ............................................................................................................................................ 12

3.1 Main characteristics ........................................................................................................................ 12

4 Precautions ............................................................................................................................................. 13

4.1 EMC table ........................................................................................................................................ 14

5 Symbols ................................................................................................................................................... 16

5.1 Labeling on the device ..................................................................................................................... 17

6 Safety instructions .................................................................................................................................. 18

6.1 General ............................................................................................................................................ 18

6.2 Electrical safety ................................................................................................................................ 19

6.3 LED emission safety ......................................................................................................................... 19

6.4 Installation with external devices or IT Network............................................................................. 19

6.5 Transport and packaging ................................................................................................................. 20

6.6 Cleaning ........................................................................................................................................... 20

6.7 Package contents ............................................................................................................................. 20

6.8 Checking the measurements ........................................................................................................... 20

6.9 Cybersecurity ................................................................................................................................... 21

7 Product warranty and reliability ............................................................................................................. 22

8 Legal provisions ...................................................................................................................................... 22

9 Components ............................................................................................................................................ 23

9.1 Main Body ........................................................................................................................................ 23

9.2 Other components .......................................................................................................................... 24

10 Installation /uninstallation of the system ............................................................................................... 25

10.1 Installing the system ........................................................................................................................ 25

10.2 Uninstalling the system ................................................................................................................... 28

11 ALADDIN accessories and equipment ..................................................................................................... 31

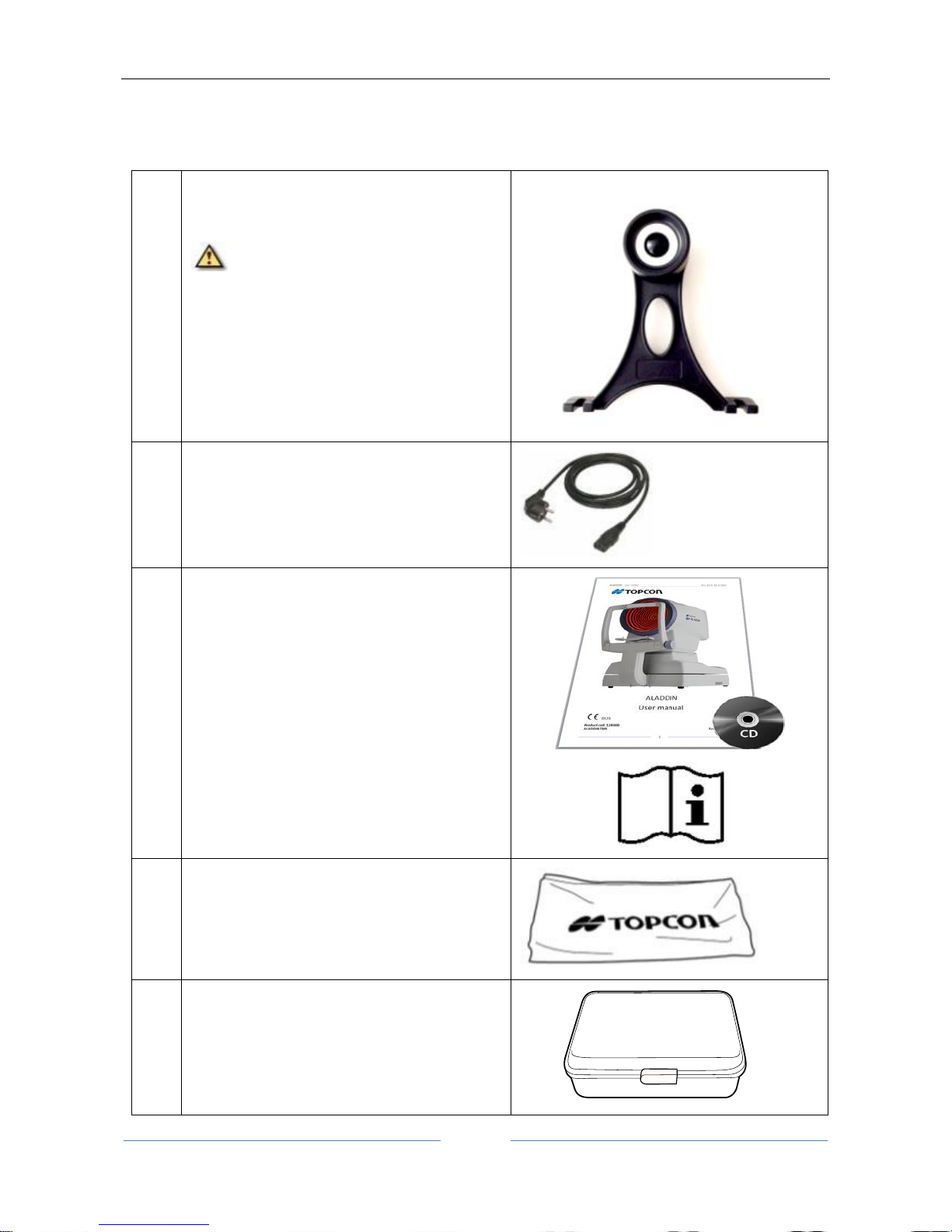

11.1 Standard equipment ........................................................................................................................ 31

ALADDIN - User manual Rev. 23 of 08/07/2016

12 Setting up the instrument ....................................................................................................................... 32

12.1 Connection modes ........................................................................................................................... 32

13 OPERATING INSTRUCTIONS .................................................................................................................... 33

13.1 General description of functionalities ............................................................................................. 33

13.1.1 General instructions ................................................................................................................ 34

13.2 Checking the calibration .................................................................................................................. 34

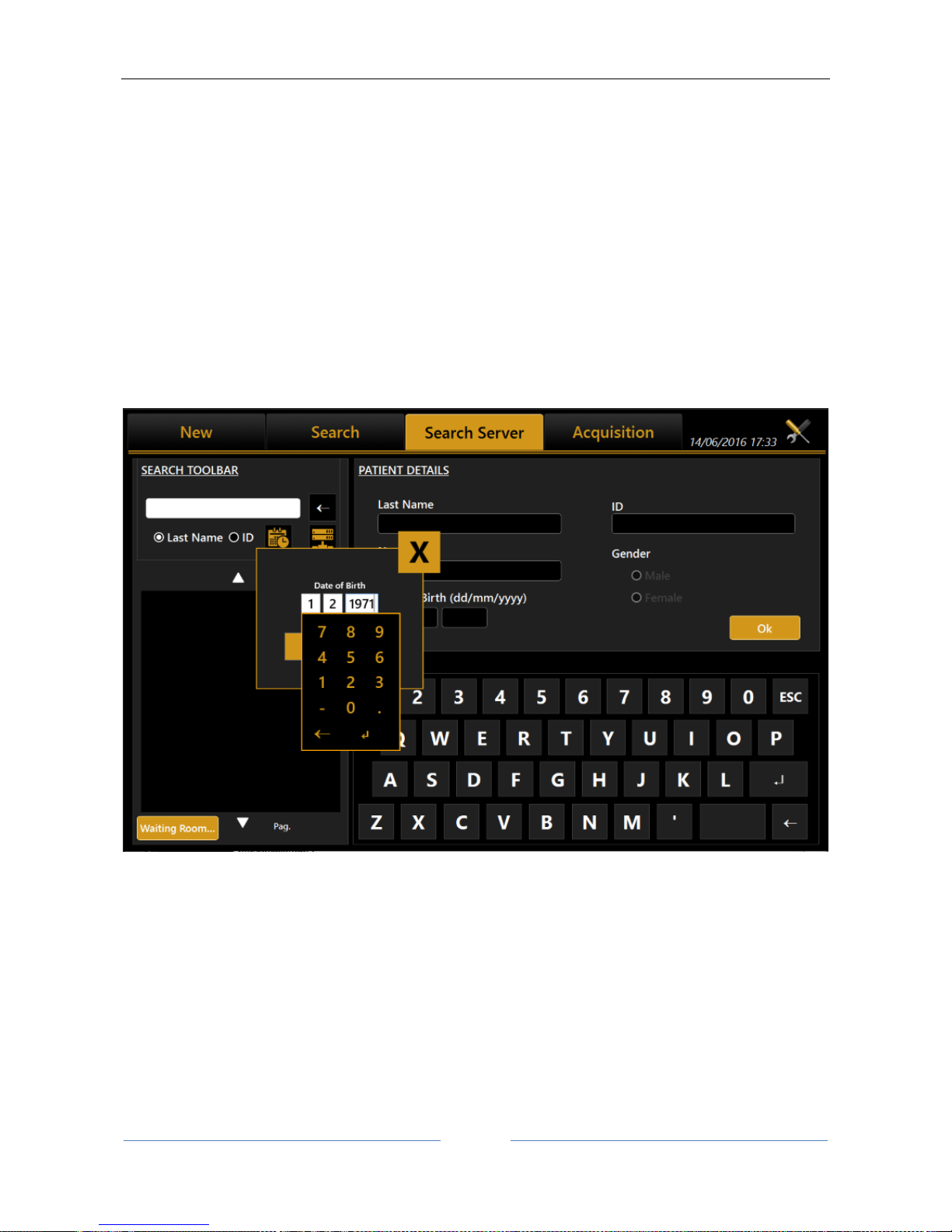

13.3 Patient entry/selection .................................................................................................................... 38

13.3.1 Creating a new patient ............................................................................................................ 39

Entering special characters ................................................................................................................ 39

Selecting crystalline and vitreous body type ...................................................................................... 39

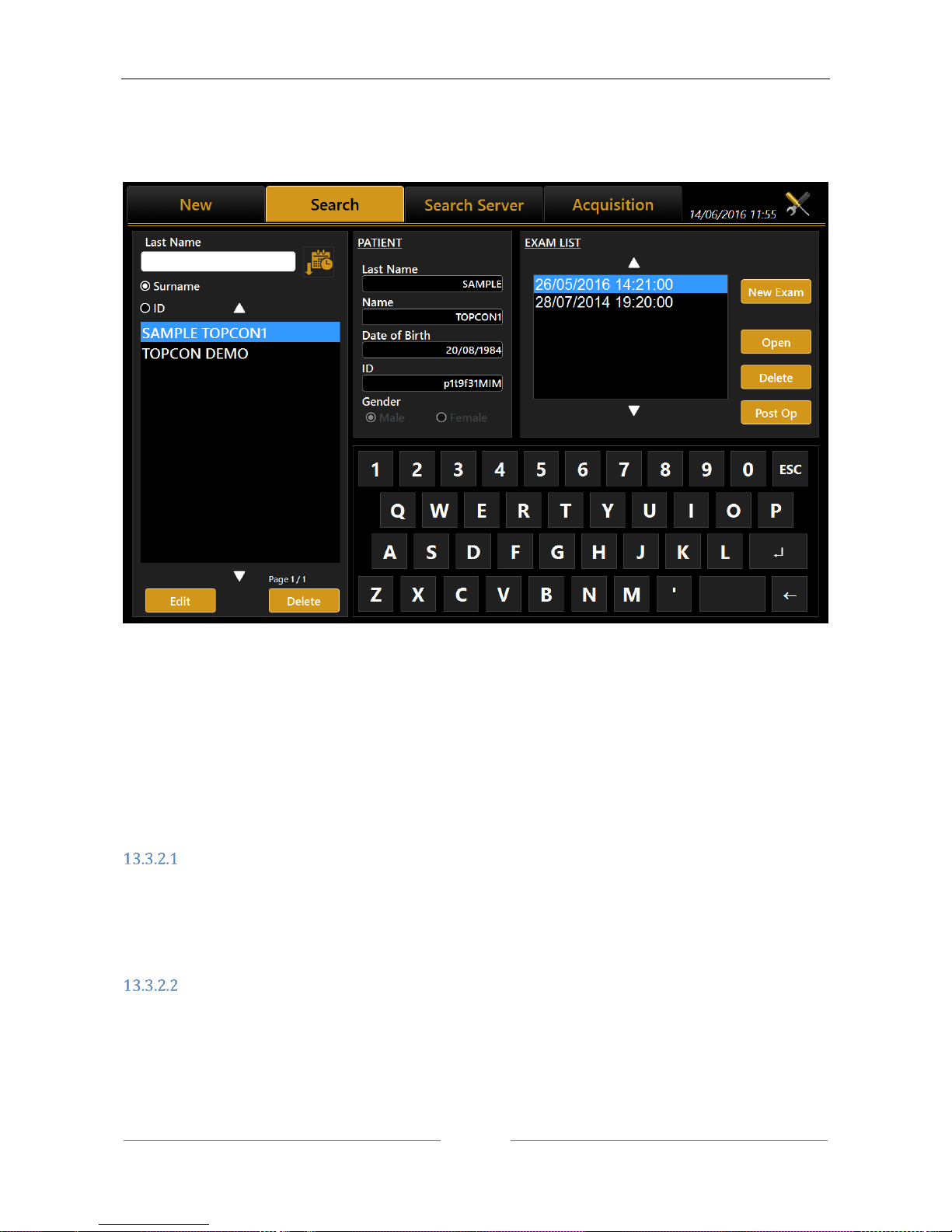

13.3.2 Selecting or modifying a patient .............................................................................................. 43

Open an examination or acquire data for the selected patient ......................................................... 43

Delete or edit the selected patient .................................................................................................... 43

Insert the Post-Op (after surgery) refraction data ............................................................................. 44

13.3.3 Selecting a patient from Server ............................................................................................... 45

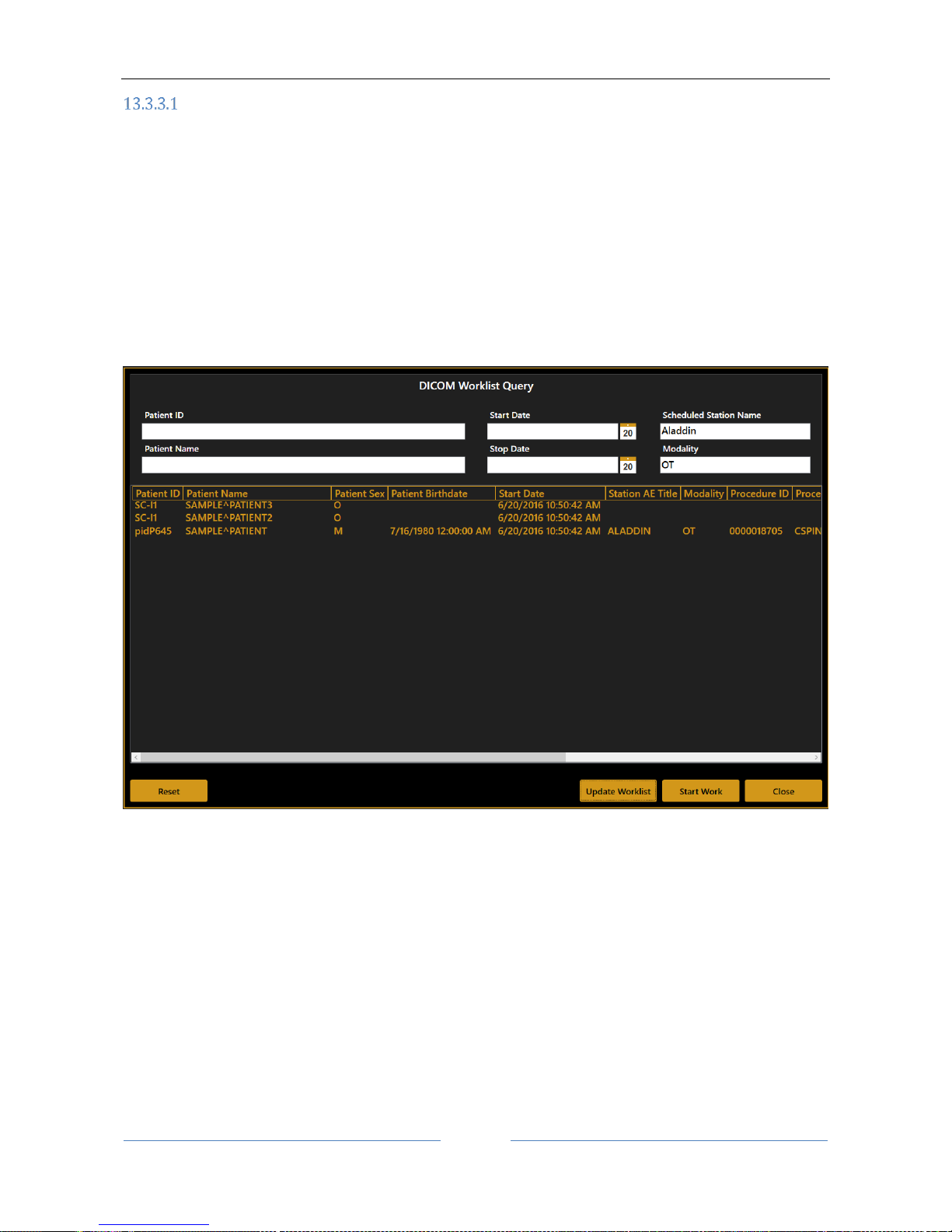

Start an exam from the Waiting Room .............................................................................................. 47

13.4 Acquisition environment: general instructions ............................................................................... 48

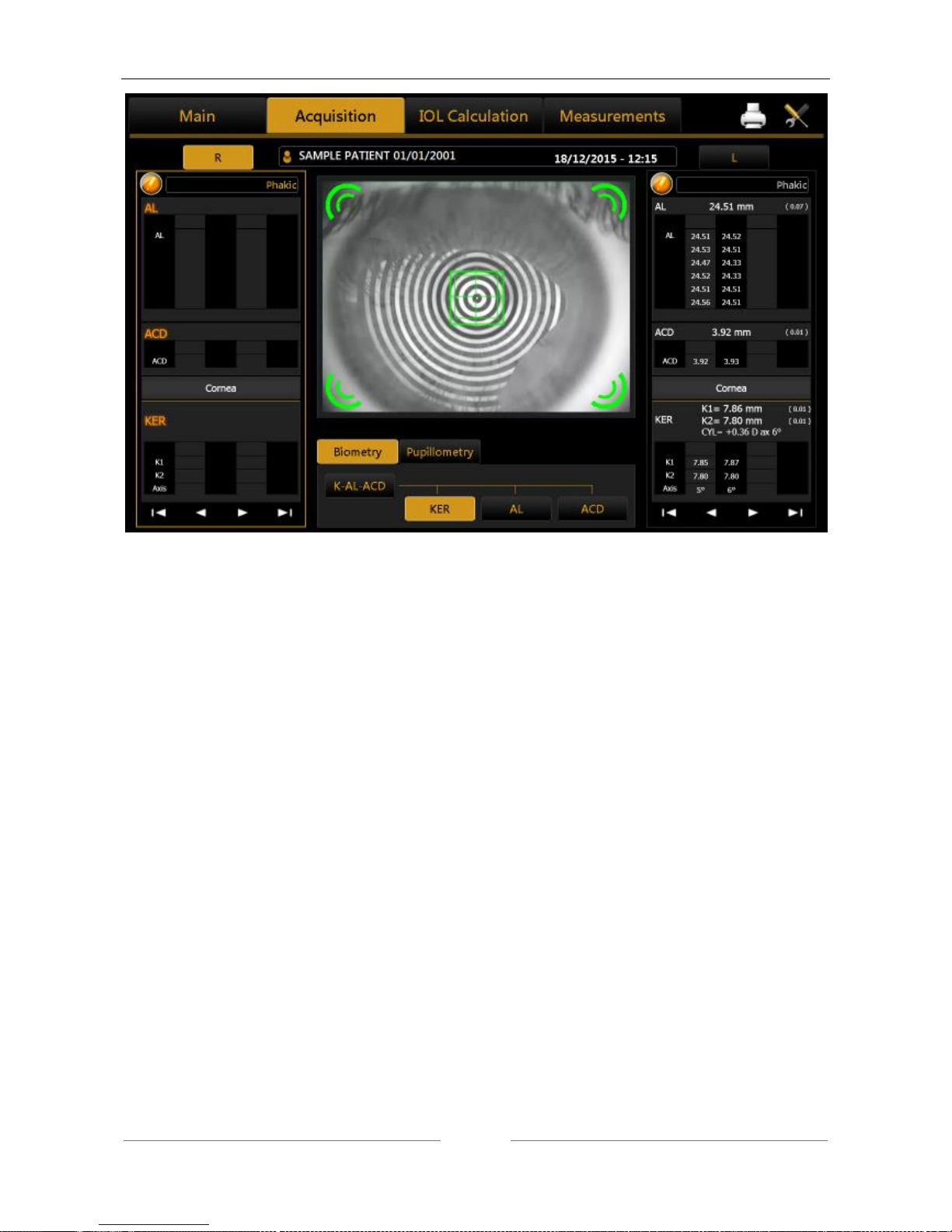

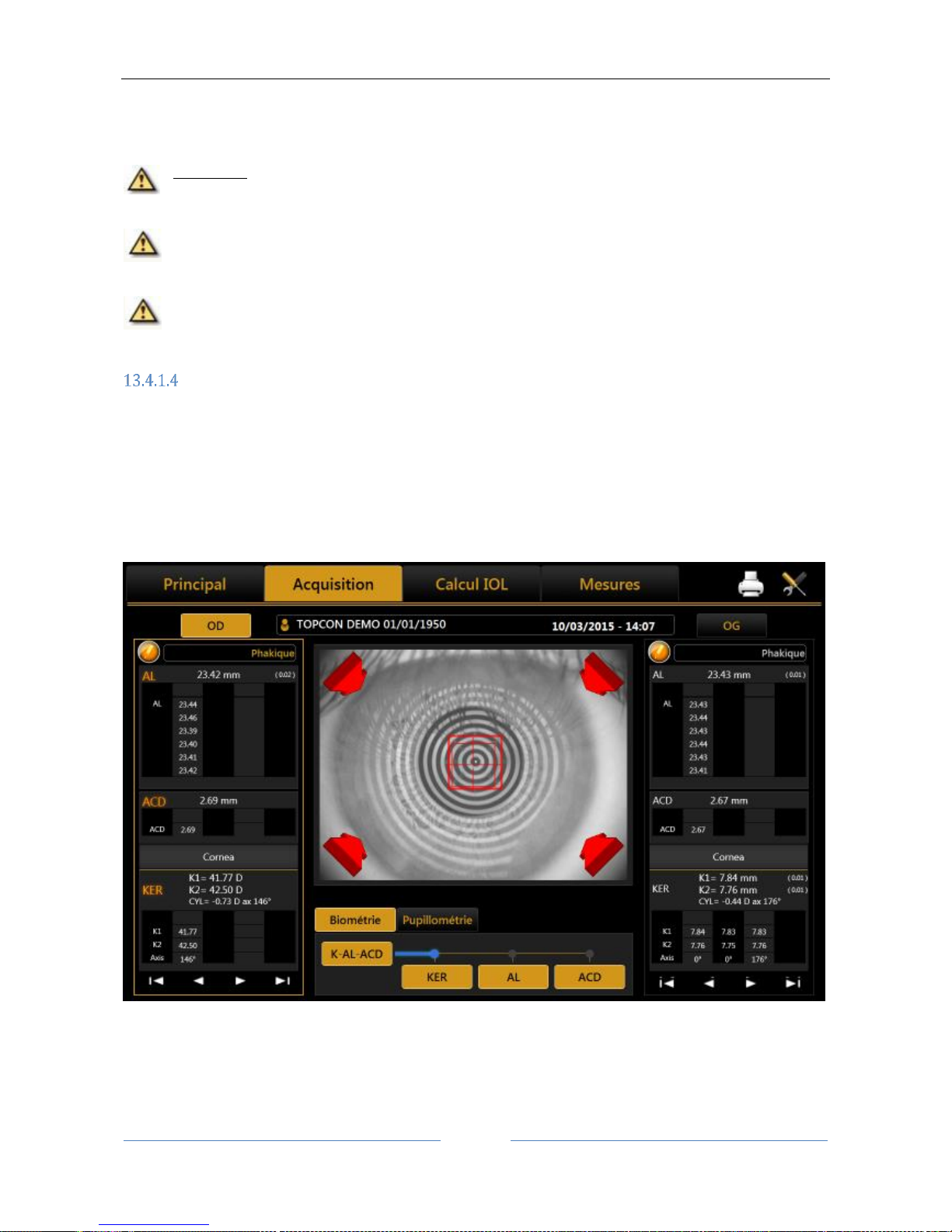

13.4.1 Description of the Acquisition screen...................................................................................... 50

Description of results ......................................................................................................................... 50

Errors in Measurements ..................................................................................................................... 51

Biometry ............................................................................................................................................. 52

Pupillometry ....................................................................................................................................... 53

13.5 Full biometry acquisition (K-AL-ACD) .............................................................................................. 53

13.5.1 Acquisition procedure ............................................................................................................. 54

13.5.2 Further adjustments for the anterior chamber depth ............................................................ 56

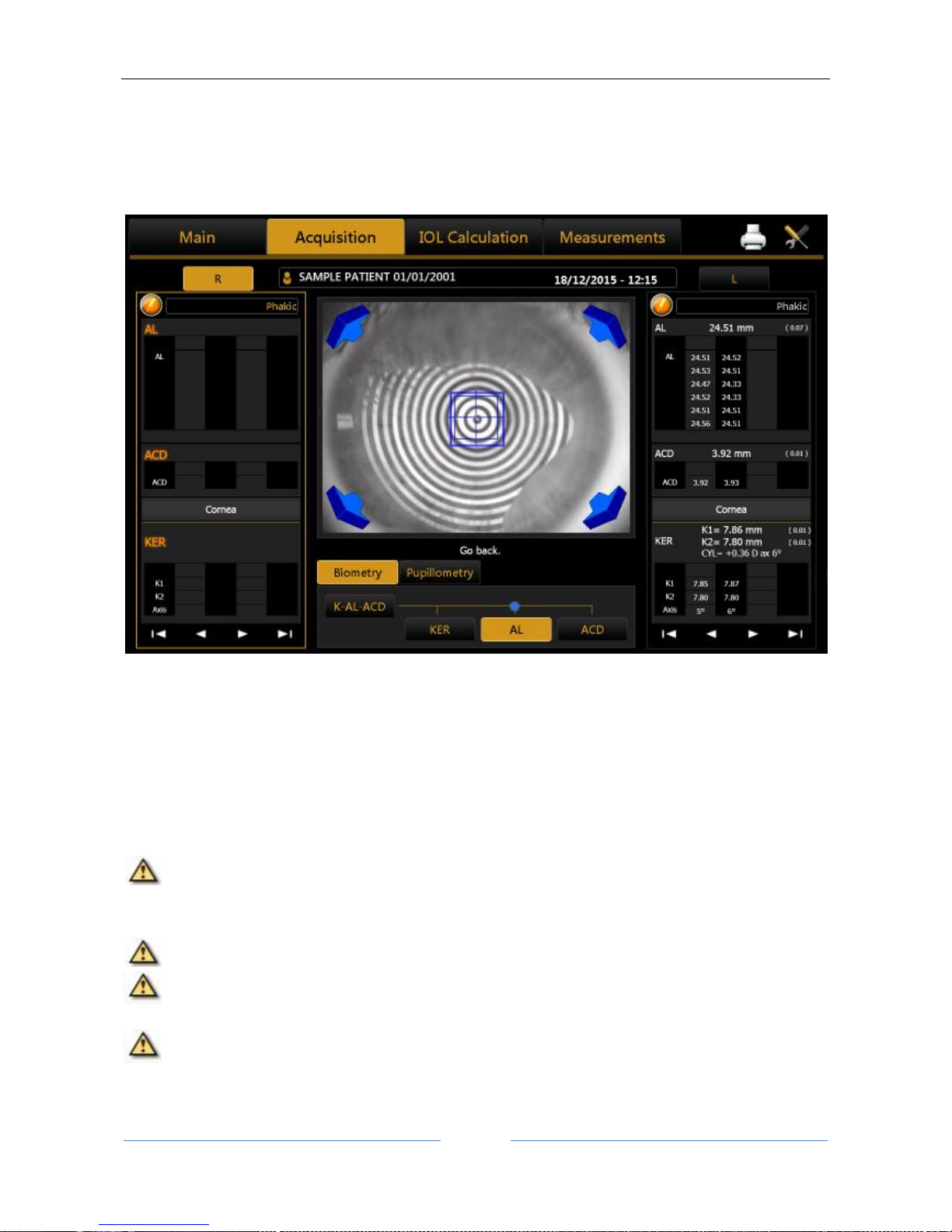

13.6 Acquisition of axial length measurements (AL) ............................................................................... 56

13.7 Acquisition of the anterior chamber measurement (ACD) ............................................................. 57

13.8 Keratometry acquisition (KER) ......................................................................................................... 59

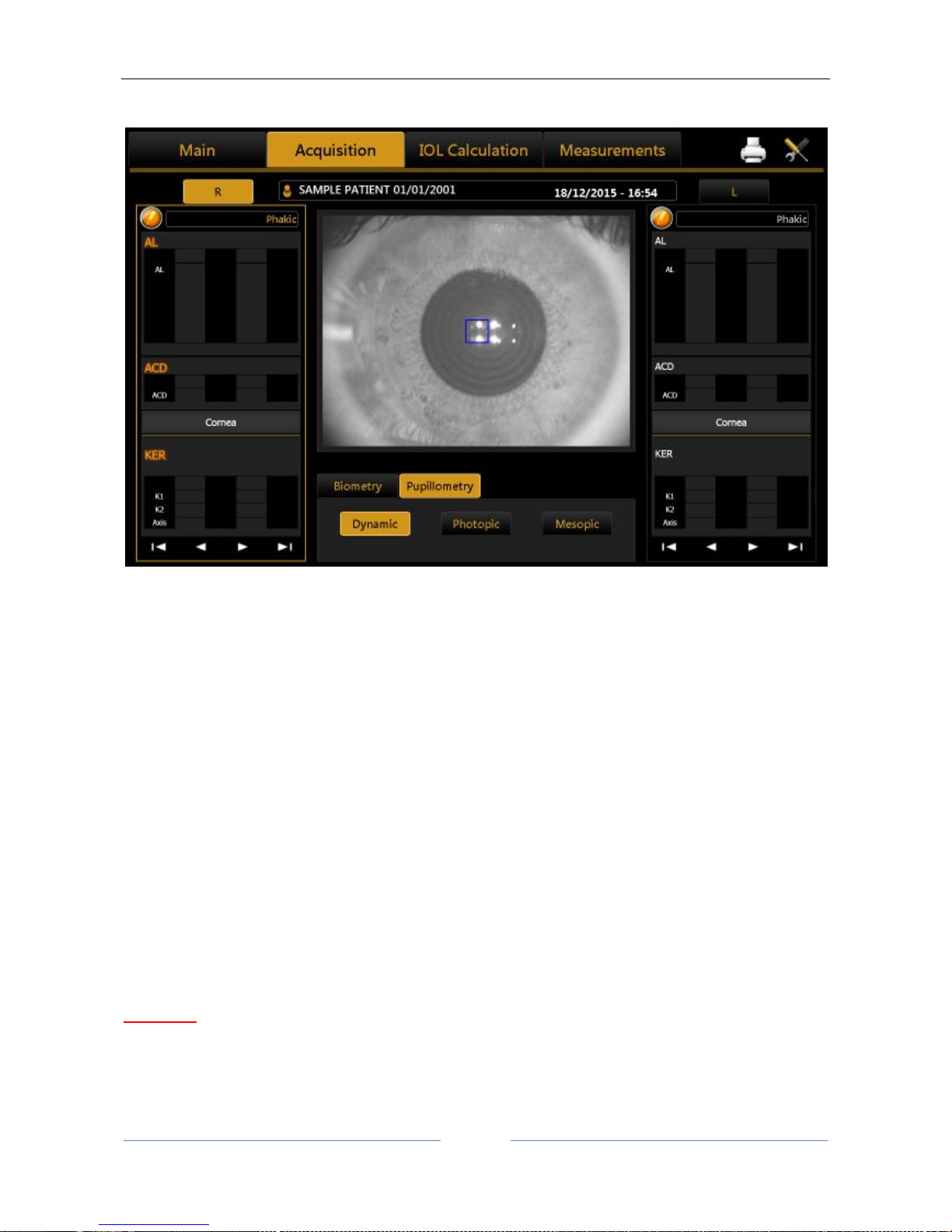

13.9 Acquisition of the dynamic, photopic, mesopic pupillometry........................................................ 61

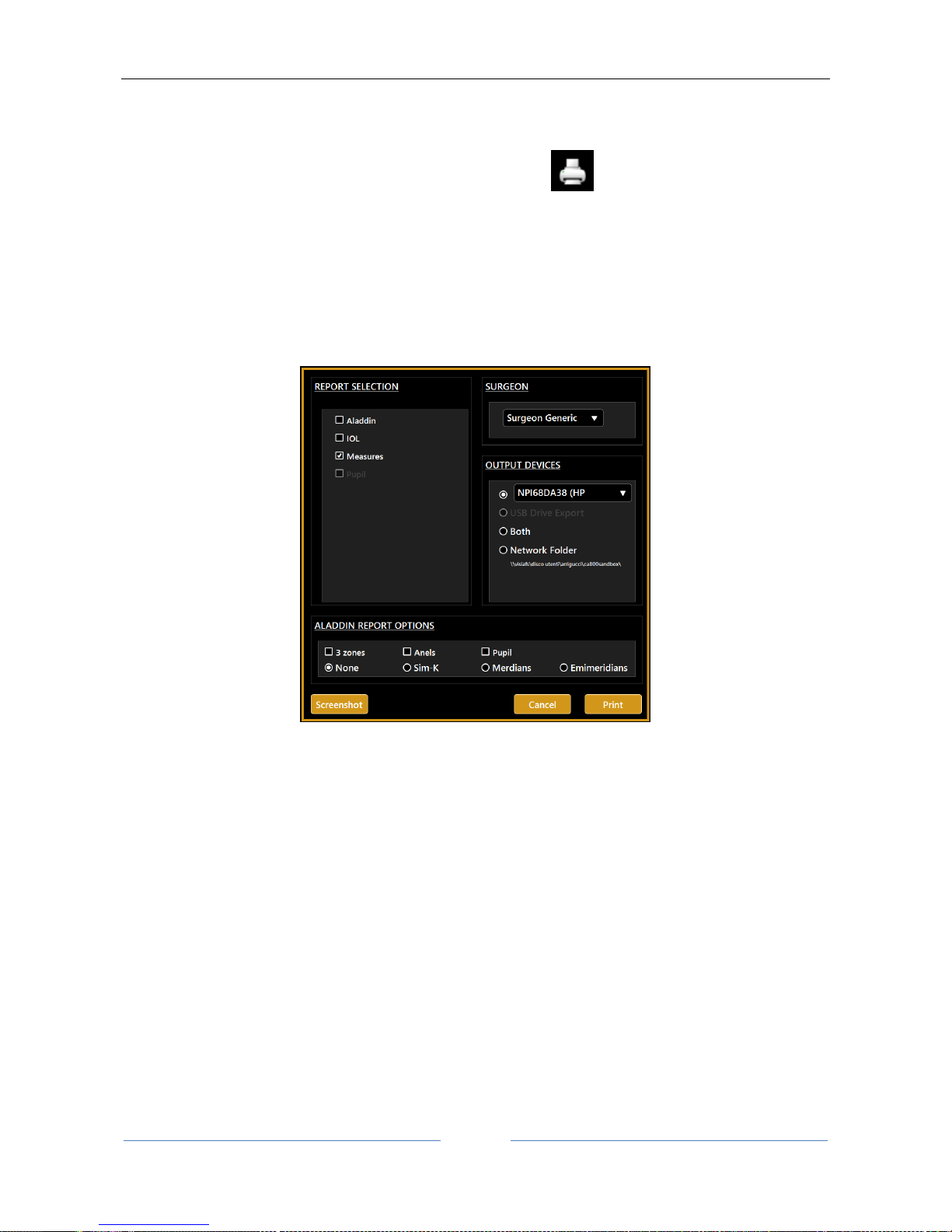

13.10 Report printing ............................................................................................................................ 63

13.10.1 Available Printers ................................................................................................................. 64

13.10.2 Custom Reports ................................................................................................................... 65

13.11 Data Exportation .......................................................................................................................... 66

13.12 IOL CALCULATION ........................................................................................................................ 68

13.12.1 Data ..................................................................................................................................... 69

13.12.2 Spherical IOL calculation ...................................................................................................... 71

ALADDIN - User manual Rev. 23 of 08/07/2016

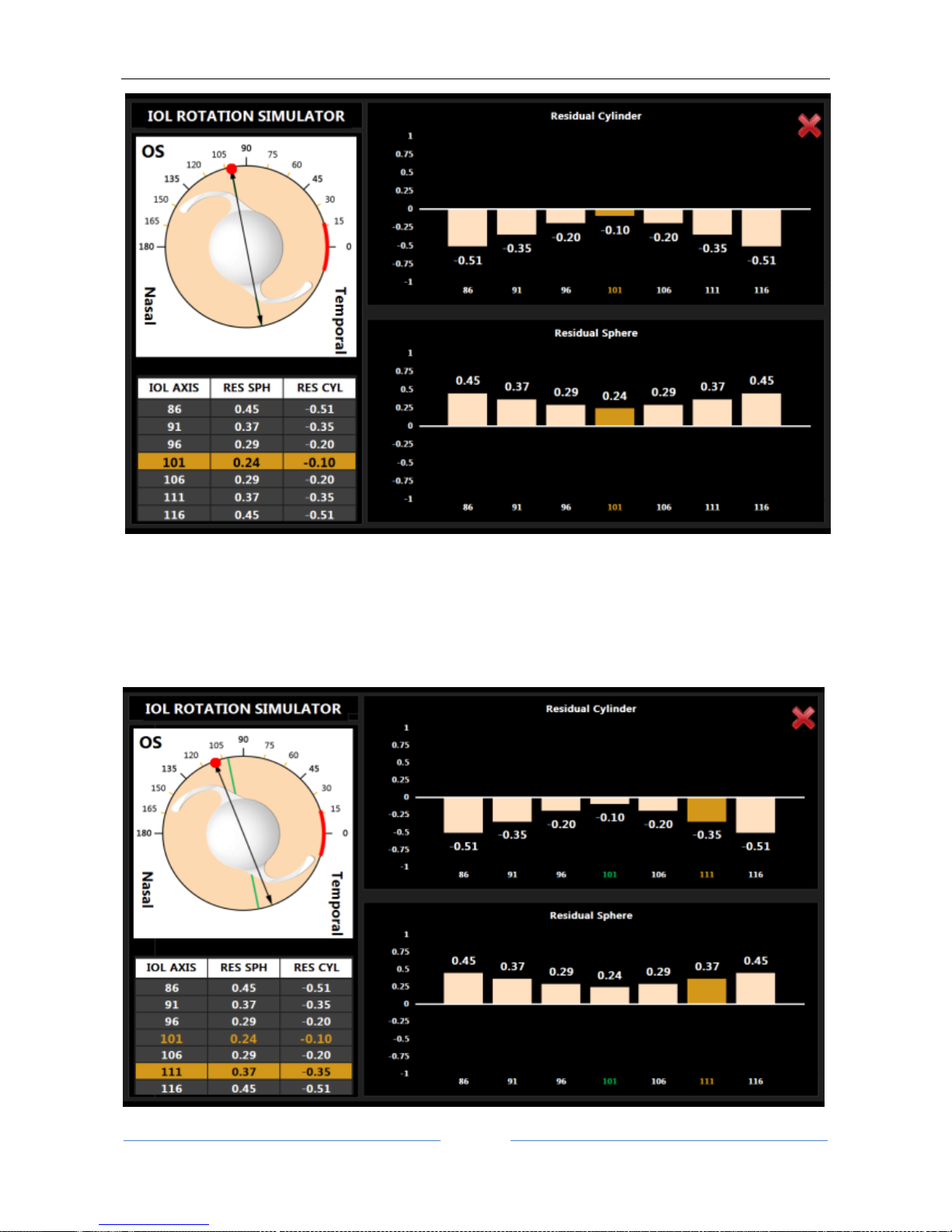

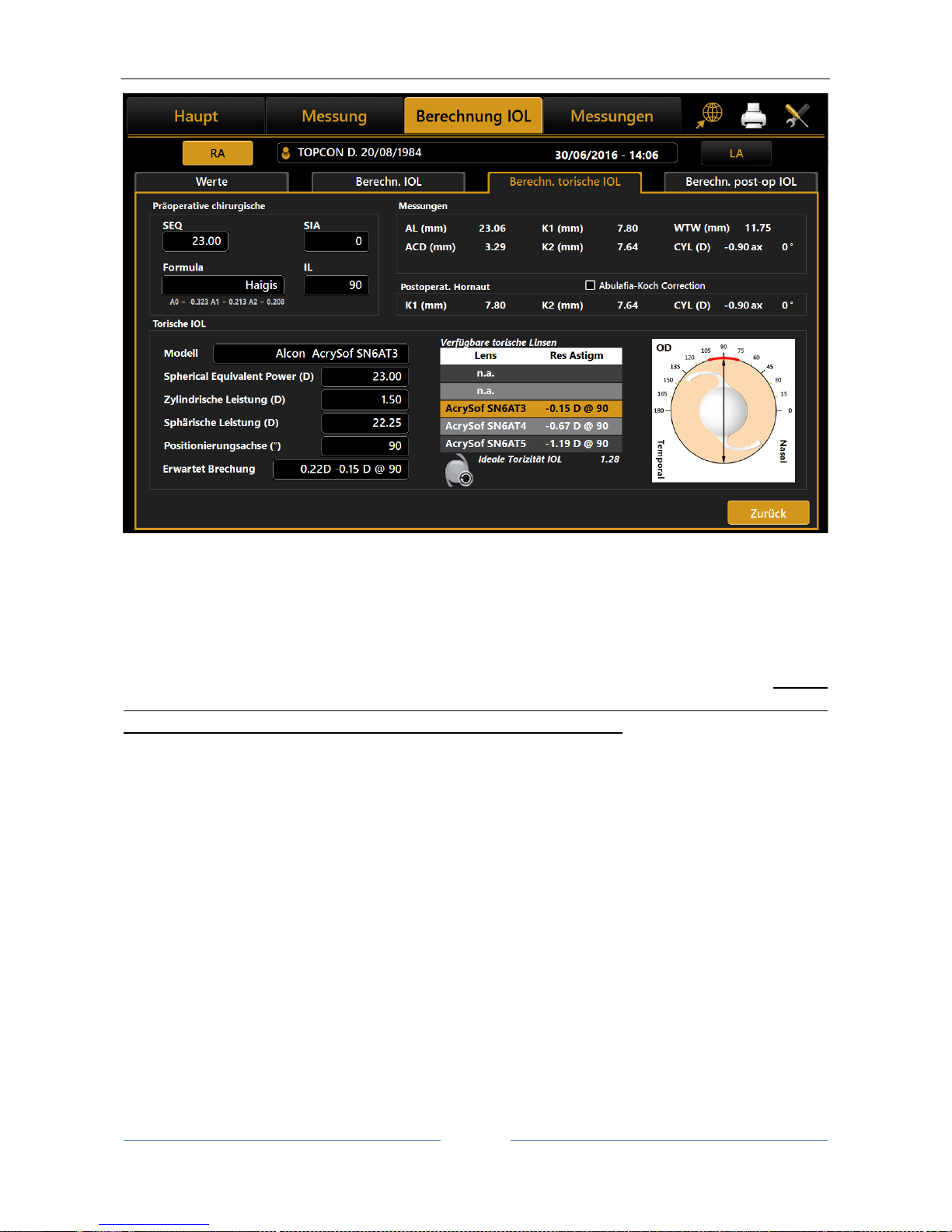

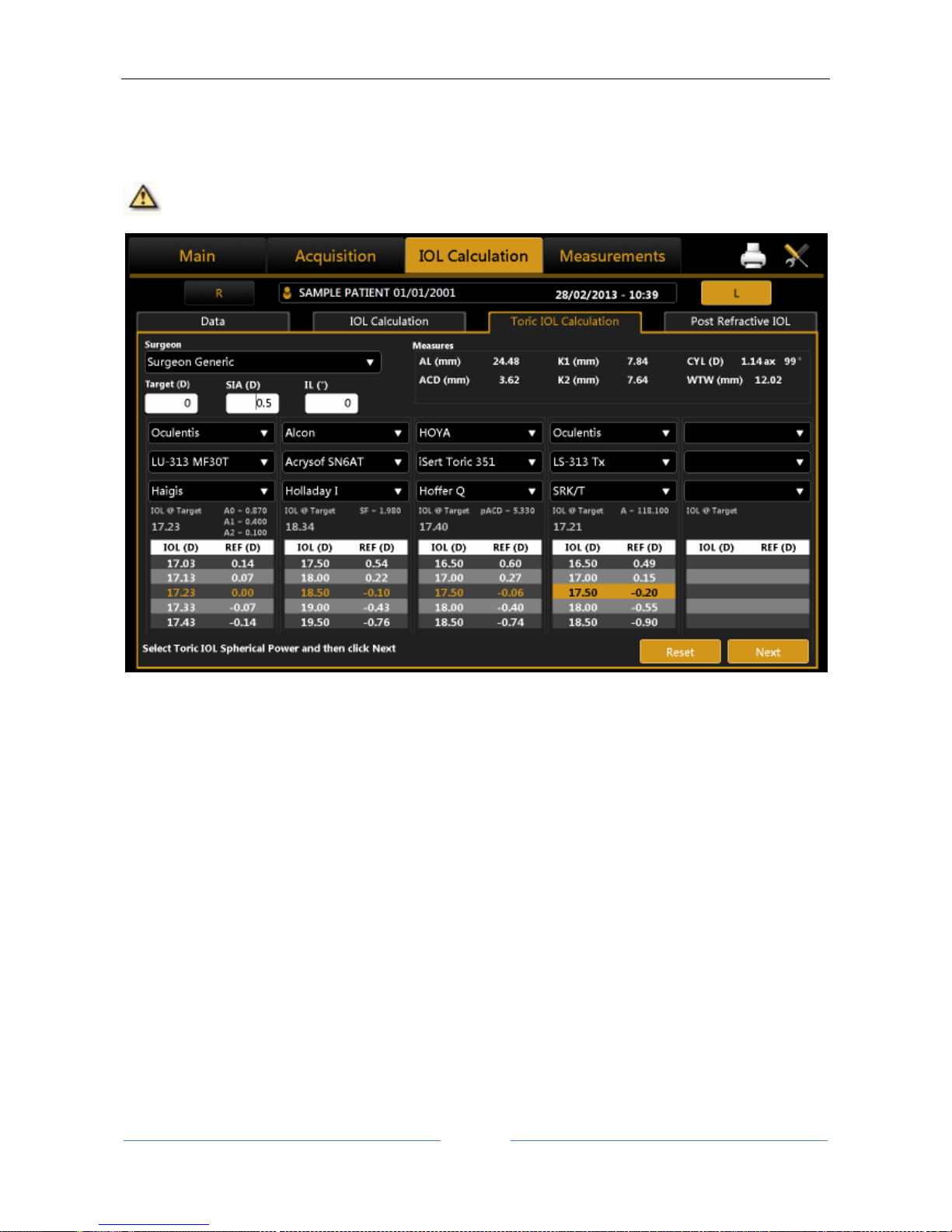

13.12.3 Toric IOL calculation ............................................................................................................ 73

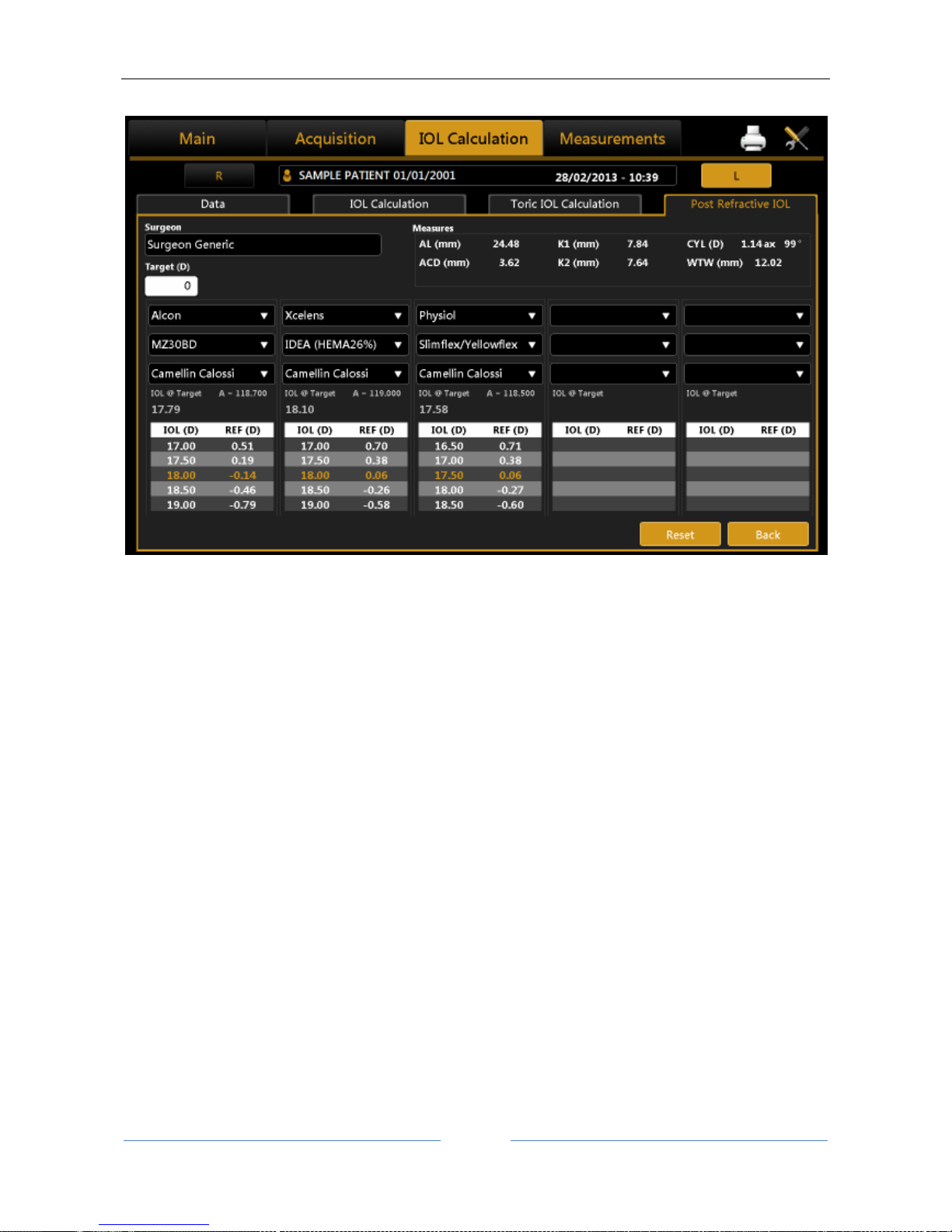

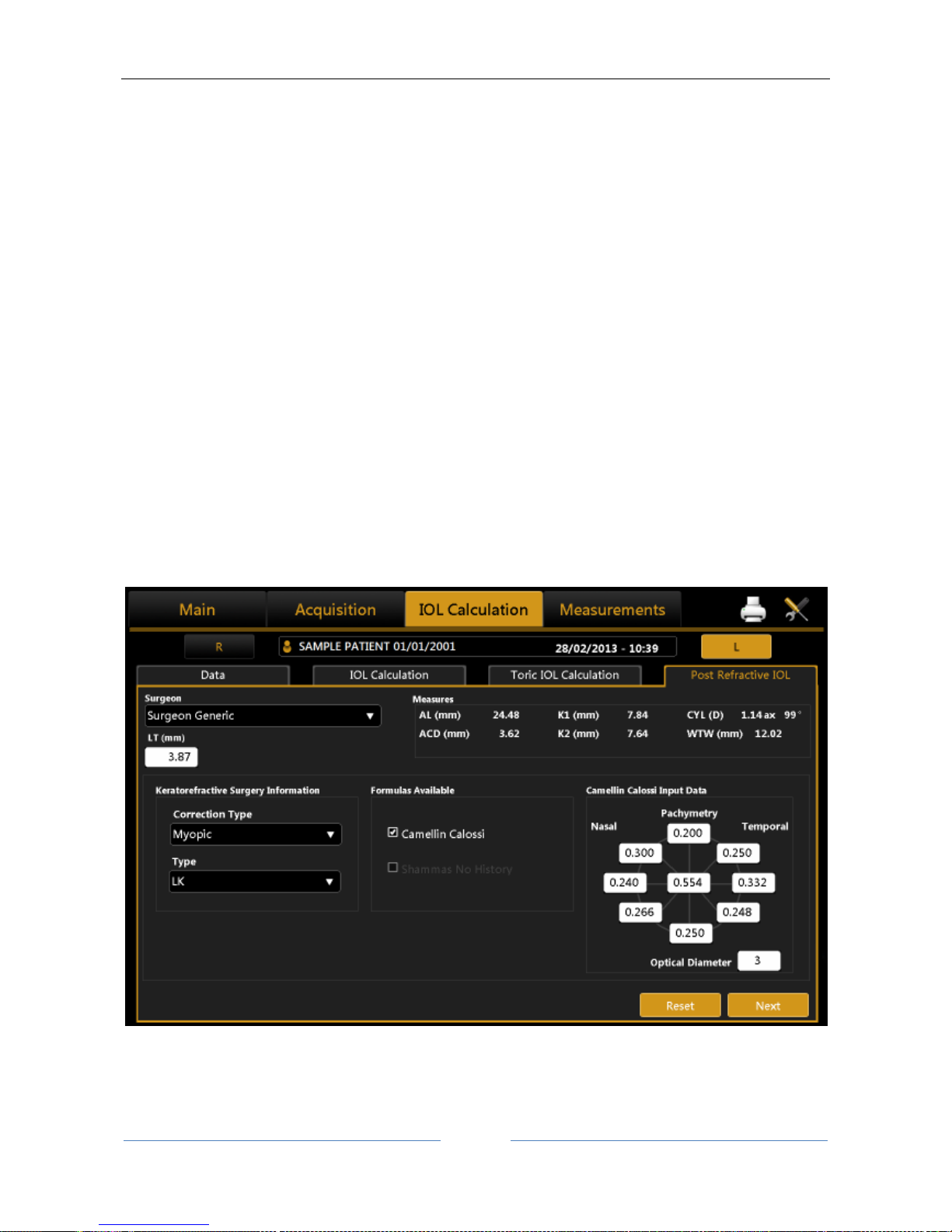

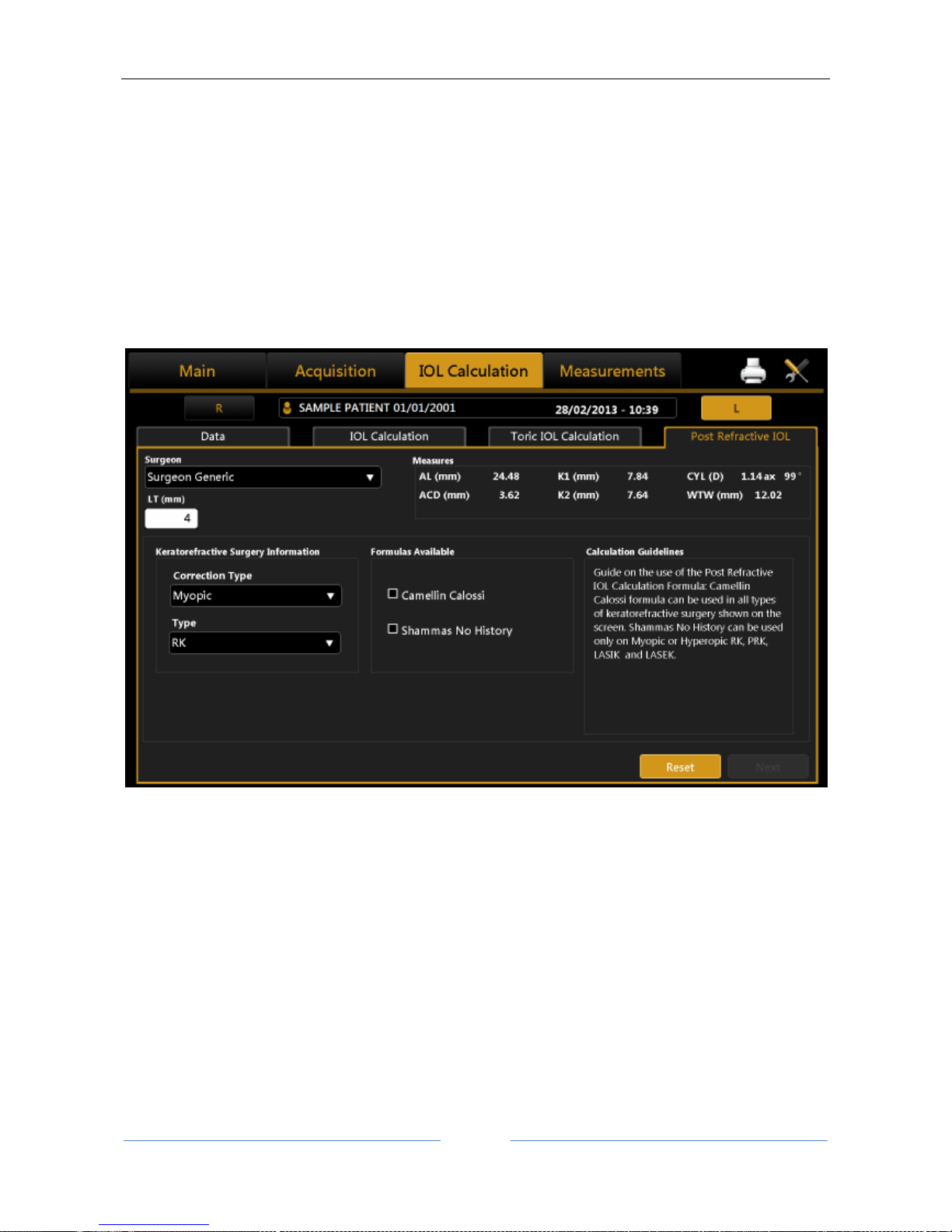

13.12.4 Post Refractive IOL calculation ............................................................................................ 76

13.13 MEASUREMENTS ......................................................................................................................... 79

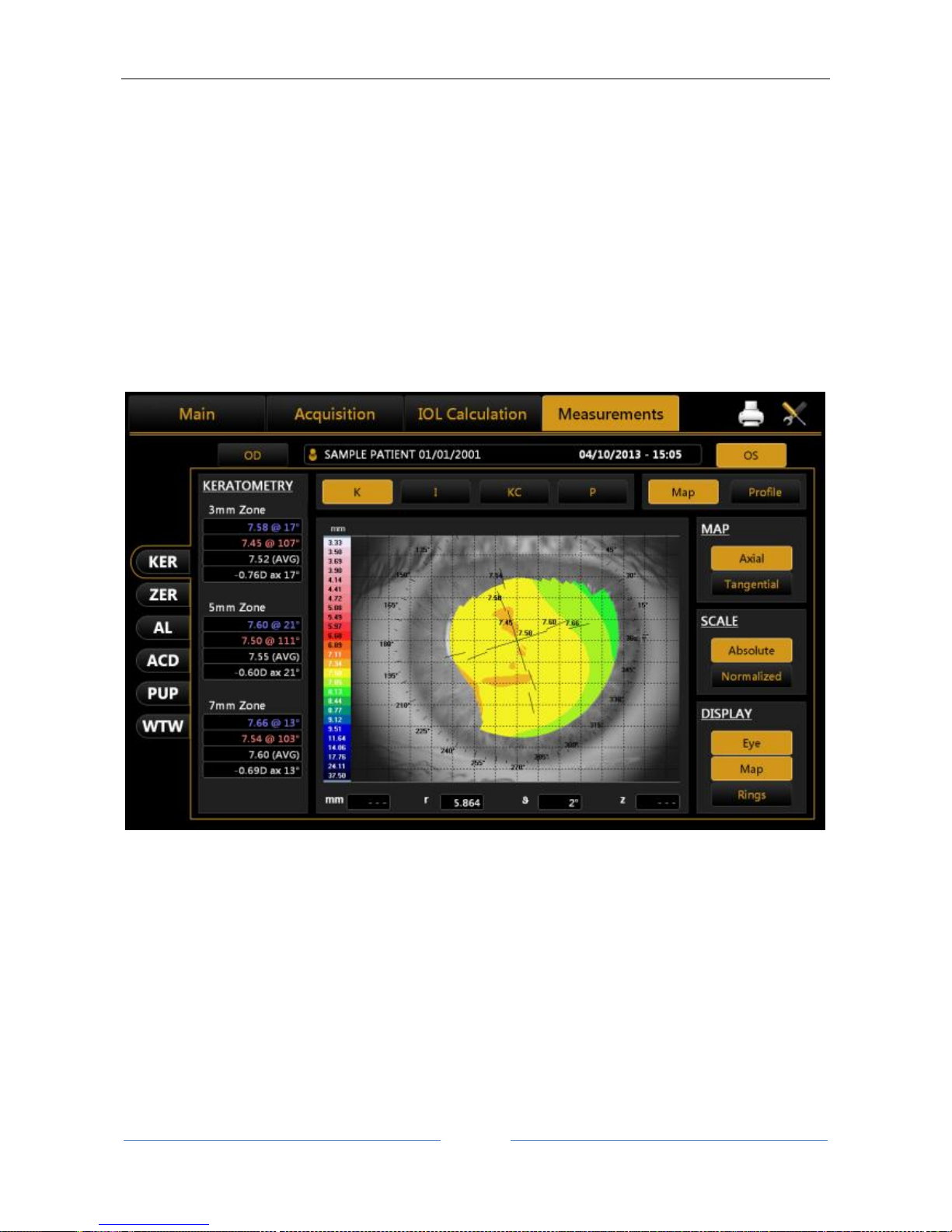

13.13.1 TOPOGRAPHIC MAP (KER) ................................................................................................... 79

Topographic map indices ............................................................................................................... 80

Keratometry ................................................................................................................................... 80

Keratorefractive indices ................................................................................................................. 80

Keratoconus ................................................................................................................................... 81

Pupil ............................................................................................................................................... 82

Profile ............................................................................................................................................. 84

13.13.2 Zernike ................................................................................................................................. 85

13.13.3 AXIAL LENGTH (AL) .............................................................................................................. 88

13.13.4 ANTERIOR CHAMBER DEPTH (ACD) ..................................................................................... 89

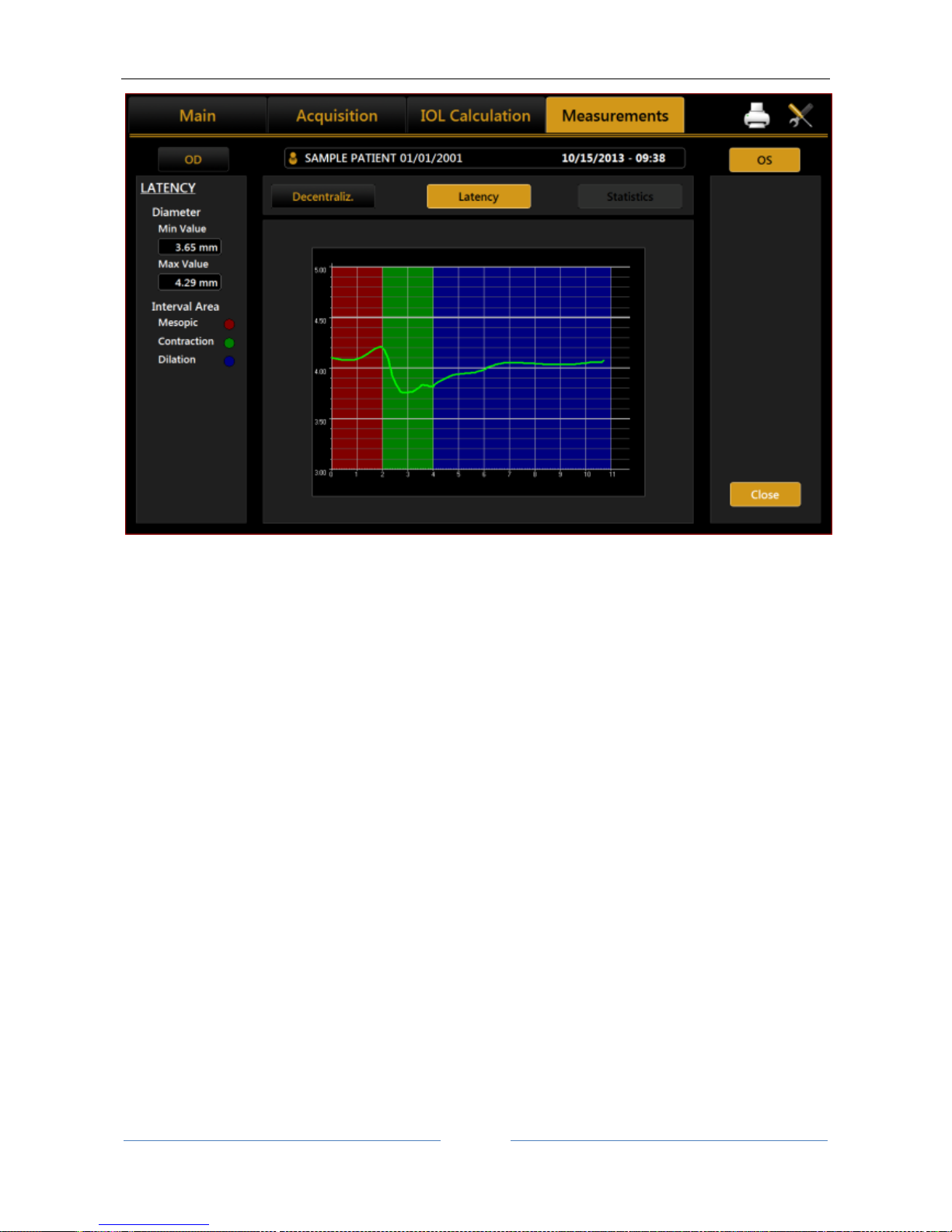

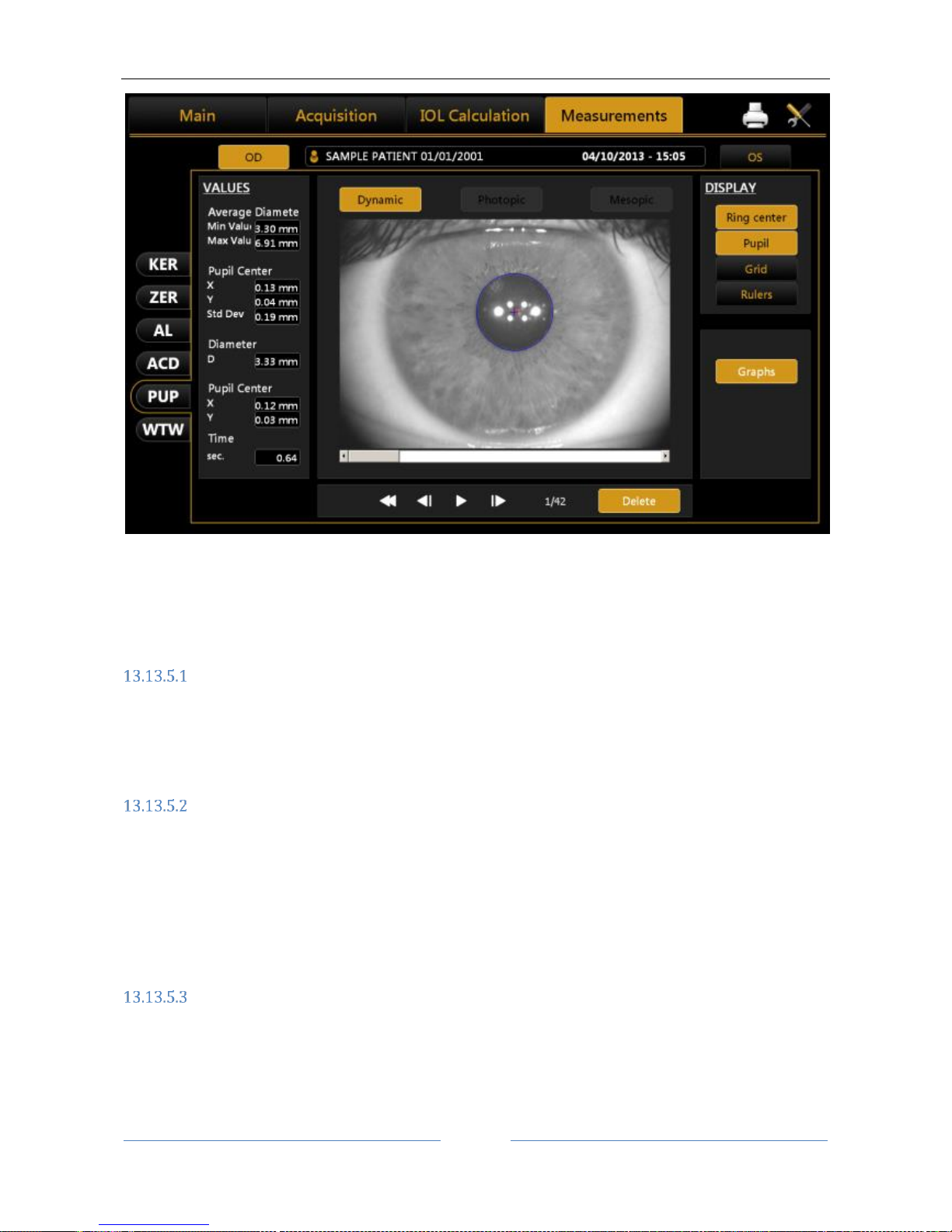

13.13.5 PUPILLOMETRY (PUP) .......................................................................................................... 89

Display............................................................................................................................................ 90

Sequences ...................................................................................................................................... 90

Dynamic ......................................................................................................................................... 90

Photopic, Mesopic ......................................................................................................................... 91

Functions........................................................................................................................................ 91

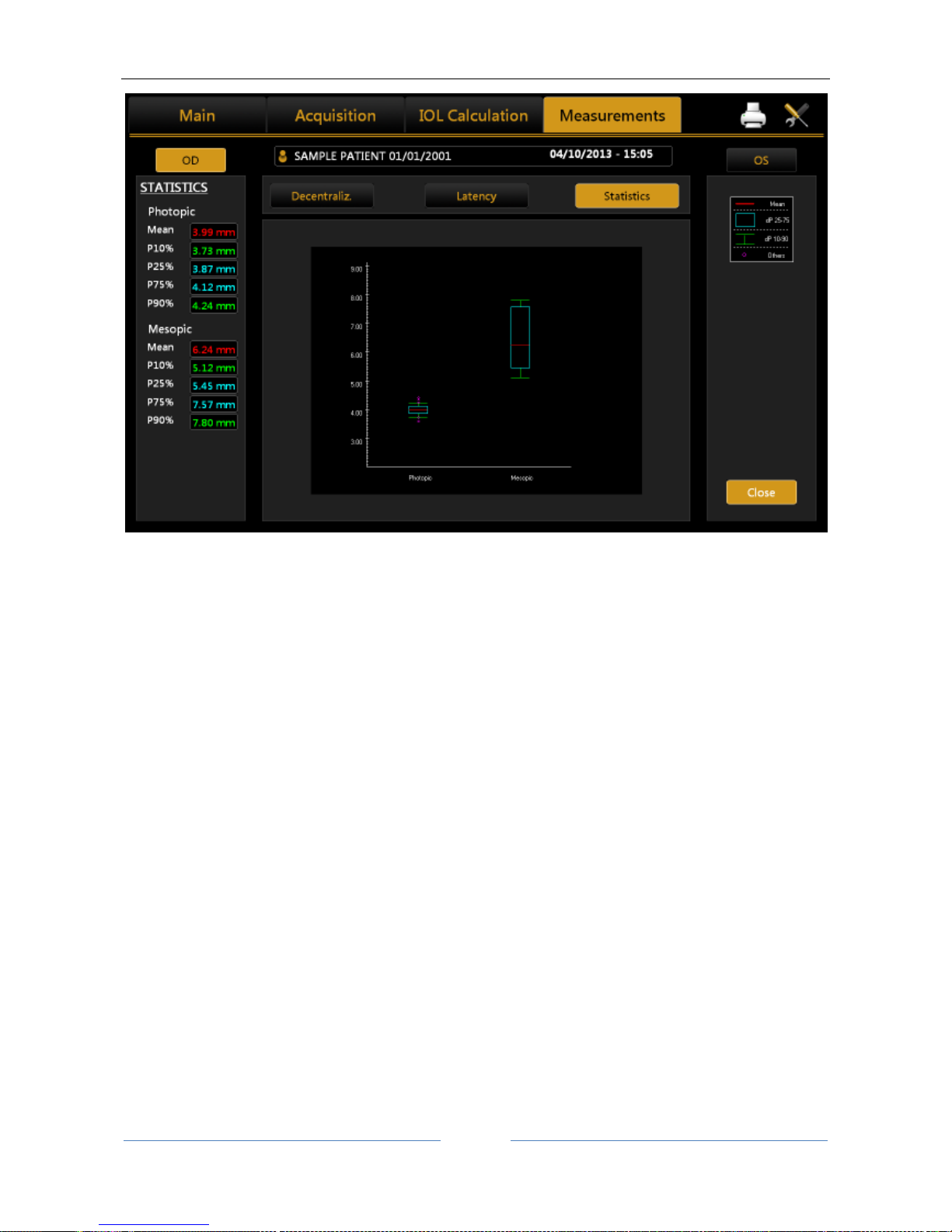

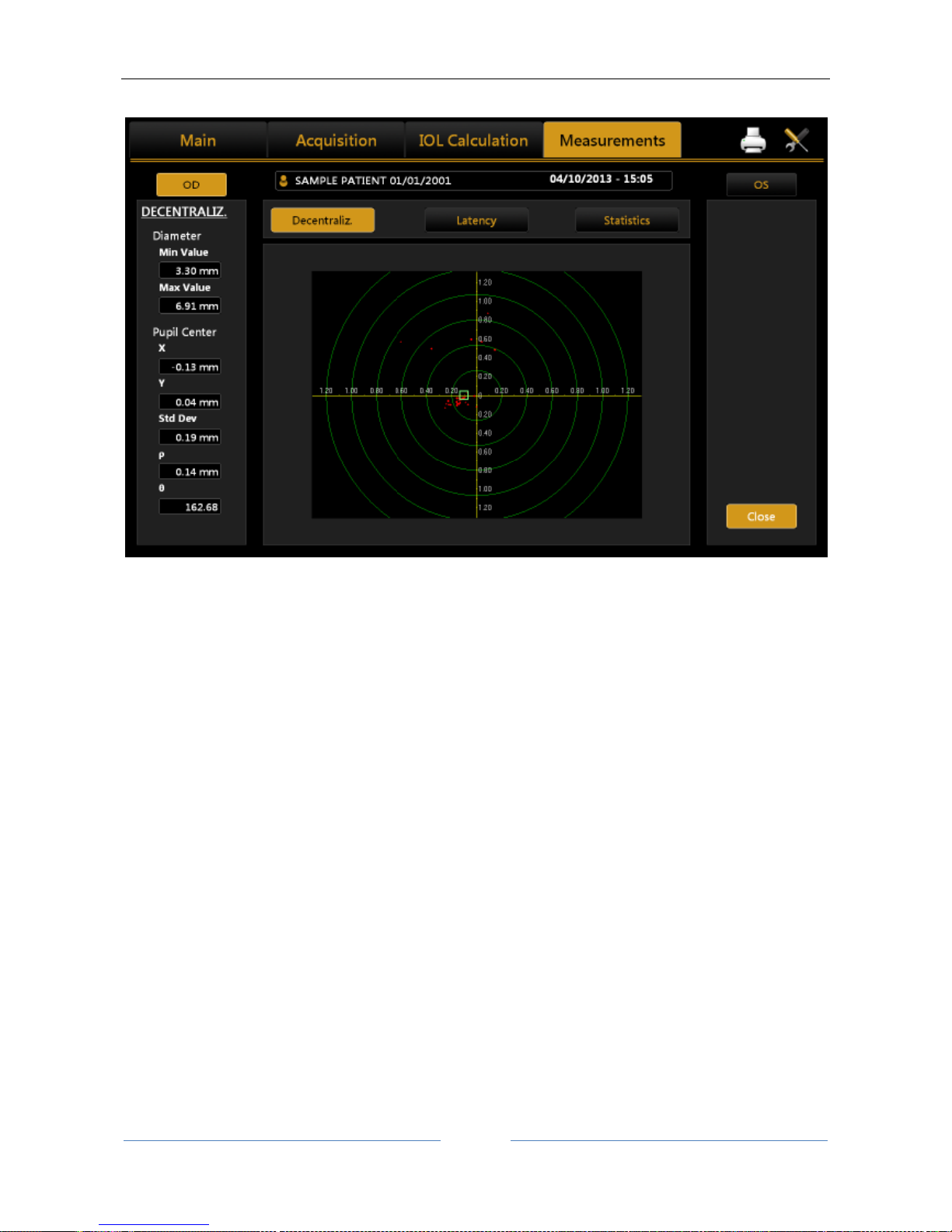

Graphs ............................................................................................................................................ 91

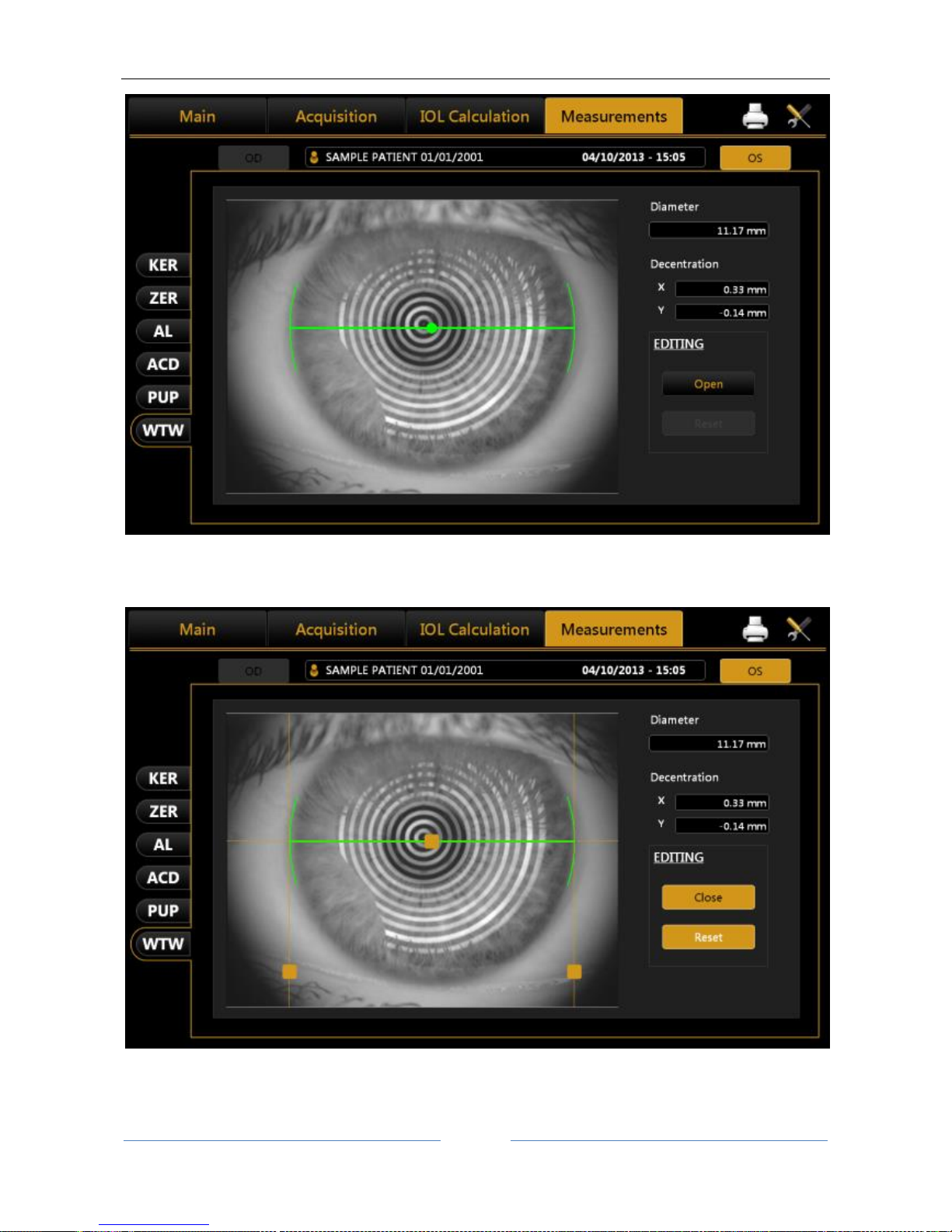

13.13.6 WHITE TO WHITE ................................................................................................................. 94

13.14 EXAMINATION DATA SAVING ...................................................................................................... 97

13.15 SETTINGS...................................................................................................................................... 98

13.15.1 General ................................................................................................................................ 99

13.15.2 Measurements ..................................................................................................................... 99

Scales ............................................................................................................................................. 99

Topography Map Color scale ....................................................................................................... 102

Map Option .................................................................................................................................. 103

Pupillometry ................................................................................................................................ 103

13.15.3 Surgeons ............................................................................................................................ 104

13.15.4 IOL ...................................................................................................................................... 105

General ........................................................................................................................................ 105

Preset ........................................................................................................................................... 106

IOL list .......................................................................................................................................... 108

13.15.5 Connectivity ....................................................................................................................... 115

Network folder configuration ...................................................................................................... 115

XML Export ................................................................................................................................... 116

IMAGEnet i-base software ........................................................................................................... 116

ALADDIN - User manual Rev. 23 of 08/07/2016

IMAGEnet 6 Server software ....................................................................................................... 117

Export to External Software settings ........................................................................................... 117

DICOM .......................................................................................................................................... 119

13.15.6 Admin ................................................................................................................................ 121

Report .......................................................................................................................................... 121

Remote Assistance ....................................................................................................................... 122

Updating the integrated software ............................................................................................... 123

Backup & Restore ........................................................................................................................ 128

Closing the software .................................................................................................................... 132

14 Operating voltage and fuse change ...................................................................................................... 133

14.1 Changing the operating voltage .................................................................................................... 133

14.2 Changing the fuse .......................................................................................................................... 134

15 Technical specifications ........................................................................................................................ 135

15.1 General .......................................................................................................................................... 135

15.2 Electrical data ................................................................................................................................ 135

15.3 Optical radiation ............................................................................................................................ 136

15.4 Performance Testing ..................................................................................................................... 137

15.5 Information on measurements ..................................................................................................... 139

15.6 Environmental conditions ............................................................................................................. 139

15.7 Mechanical Specifications ............................................................................................................. 140

15.8 Other Specifications: Onboard PC component specifications ....................................................... 140

16 Declaration of conformity ..................................................................................................................... 141

17 Appendix: Installing an external printer .............................................................................................. 142

17.1 Getting drivers and transferring them to ALADDIN ...................................................................... 142

17.2 Disabling the Write Filter ............................................................................................................... 142

17.3 Installing a local printer (USB) ....................................................................................................... 143

17.4 Installing a network printer (LAN) ................................................................................................. 146

17.5 Re-Enabling the Write Filter .......................................................................................................... 147

ALADDIN - User manual Rev. 23 of 08/07/2016

1 Intended Use

ALADDIN is intended for biometric determination of the following ocular measurements: axial length, corneal radius, corneal cylinder axis, anterior chamber depth, white-to-white (WTW) and pupil diameter of the human eye. ALADDIN also measures corneal topography.

For patients who are candidates for intraocular lens (IOL) implantation, ALADDIN also aids in the calculation of the appropriate IOL power and type to be implanted.

ALADDIN is intended for use by physicians and eye-care professionals and may only be used under the supervision of a physician.

1.1 Description of functionalities

Aladdin is a combined device for the measurement of various parameters used in the application of intraocular lenses.

The instrument can work in two different modes:

1. Consecutive acquisition of all the measurements available on the eye

2. Individual acquisitions for each type of measurement

Aladdin includes six types of measurement in a single instrument.

 Axial length(AL)  Corneal topography  Keratometry(KER)  Corneal diameter (white-to-white)  Pupillometry  Anterior chamber depth (ACD)

Axial length is the distance between the cornea and the inner limiting membrane. It is measured with a lowcoherence interferometry system with a super luminescent diode. The measuring range goes from 15 mm to 38 mm

Keratometry is used to measure the corneal curvature. It is based on the reflection of the Placido disk on the eye at a controlled working distance for high measuring precision.

Aladdin allows the user to acquire the corneal topography of the eye. The “Corneal Map” is obtained from the reflection of 24 rings of the Placido disk at a distance of 80 millimetres from the patient's eye. The position

of the device in relation to the patient’s eye serves as the starting point to make adjustments in the respective

measurement modes. With the acquisition of the corneal topography, the Corneal Diameter can be determined. The Corneal Diameter is also known as "white- to- white" distance.

The pupillometry is performed with LEDs of different wavelengths. In particular, the instrument uses infrared LEDs to dilate the pupil and white LEDs to reproduce photopic light conditions and to contract the pupil (dynamic pupillometry).

ACD (anterior chamber depth) is the distance between the anterior surface of the crystalline (anterior capsule) and the outermost stratum of the cornea (epithelium), measured along the optical axis where the latter is biggest. This measurement is performed using the reflection principle of a slit light projected onto the anterior surfaces of the eye.

ALADDIN - User manual Rev. 23 of 08/07/2016

Caution should be practised when using the device’s ACD measurement for any given intraocular lens

calculation because of the high variability of this measurement.

The ACD measurement is the distance between corneal epithelium and the crystalline lens surface.

Aladdin has an onboard PC with the dedicated software that provides all the functionalities described.

The information obtained from the measurements can be used for various applications, for example: Cataract operations, IOL calculation, IOL toric calculation and post lasik calculation. The intraocular lens power suggestion is made using scientifically recognised formulae: Holladay 1, Haigis, Hoffer Q, SRK / T, SRK II, Camellin-Calossi, Shammas No history.

The Haigis, HofferQ, Holladay, SRK® II and SRK®/T formulae are implemented in the software. Please refer to the following literature references on the formulae (in case of specific questions please contact Visia Imaging):

• Haigis: http://www.augenklinik.uni-wuerzburg.de/uslab/ioltxt/haid.htm

• HofferQ: HOFFER KJ: The Hoffer Q formula: A comparison of theoretic and regression formulas.

J Cataract Refract Surg, 19:700-712, 1993; ERRATA 20:677, 1994

• Reply: Errata in printed Hoffer Q formula. Journal of Cataract & Refractive Surgery, Volume 33,

Issue 1, Pages 2-3, January 2007, Authors:Kenneth J. Hoffer, MD

• Holladay: HOLLADAY JT, PRAGER TC, CHANDLER TY, MUSGROVE KH, LEWIS JW, RUIZ RS: A three-

part system for refining intraocular lens power calculations. J Cataract Refract Surg, 14:17-24, 1988

• SRKII: RETZLAFF J: A new intraocular lens calculation formula, Am Intra-Ocular Implant Soc J

6:148-152, 1980

• SRK/T: RETZLAFF J, SANDERS DR, KRAFF MC: Development of the SRK/T intraocular lens implant

power calculation formula. J Cataract Refract Surg 16 (3):333-340, 1990

Correction of corneal radii/corneal refraction after corneal refractive surgery:

• HOLLADAY JT: IOL calculations following RK. Refract Corneal Surg 5(3):203, 1989

• HOFFER KJ: Intraocular lens power calculation for eyes after refractive keratotomy. J Refract Surg

11:490:493, 1995

Calculation of phakic implants:

• vd HEIJDE GL, FECHNER PU, WORST JGF: Optische Konsequenzen der Implantation einer

negativen Intraokularlinse bei myopen Patienten. Klin MB1 Augenheilk 192:99-102, 1988

• HOLLADAY JT: Refractive power calculations for intraocular lenses in the phakic eye. Am J

Ophthalmol 116:63-66, 1993

• HAIGIS W: Biometry in complicated situations, 9th Conv. of DGII 1995, Rochels et al (Hrsg.),

Springer, 17-26, 1996

Relations between ultrasound and optical biometer calculation constants:

• RETZLAFF J, SANDERS DR, KRAFF MC (1990): Lens Implant Power Calculation - A manual for

ophthalmologists & biometrists, 3rd edition, Slack Inc, Thorofare NJ, USA

• HAIGIS W, LEGE B, MILLER N, SCHNEIDER B: Comparison of immersion ultrasound biometry and

partial coherence interferometry for IOL calculation according to Haigis, Graefes Arch Clin Exp Ophthalmology (2000) 238:765-773

ALADDIN - User manual Rev. 23 of 08/07/2016

• HOLLADAY, JT: International intraocular lens implant registry 2003. J Cataract Refract Surg (2003)

29:176-197

• HAIGIS W: Relations between optimized IOL constants. Symposium on Cataract, IOL and

Refractive Surgery of the American Society of Cataract and Refractive Surgery (ASCRS), Philadelphia, PA, USA, June 1-5, 2002, Abstracts, p.112, 2002

Intraocular lens power calculation AFTER corneal refractive surgery:

• Camellin-Calossi: M. Camellin, MD; A. Calossi, Optom “A new formula for intraocular lens power

calculation after refractive Corneal Surgery”, Journal of Refractive Surgery, vol. 22 Feb. 2006.

This formula is for use in patients who have had prior refractive surgery. Each such patient is

unique and results may vary widely. You should interpret all IOL power recommendations with caution.

• Shammas No-history: SHAMMAS H.J., SHAMMAS M.C: “No-history method of intraocular lens

power calculation for cataract surgery after myopic laser in situ keratomileusis”, J Cataract Refract Surg 2007; 33:31–36 Q 2007 ASCRS and ESCRS.

• Shammas No-history: SHAMMAS H.J., SHAMMAS M.C., GARABET A., KIM J.H., SHAMMAS A. ,

LABREE L.: Correcting the Corneal Power Measurements for Intraocular Lens Power Calculations After Myopic Laser In Situ Keratomileusis” - American Journal of Ophthalmology (Impact Factor:

4.02). 10/2003; 136(3):426-32.

• Shammas No-history: SHAMMAS H.J., SHAMMAS M.C., HILL W.E.: Intraocular lens power

calculation in eyes with previous hyperopic laser in situ keratomileusis” - J Cataract Refract Surg 2013; 39:739–744 Q 2013 ASCRS and ESCRS.

Toric IOL calculation:

 HB Fam, KL Lim: Meridional analysis for calculating the expected spherocylindrical refraction in

eyes with toric intraocular lenses. Journal of Cataract & Refractive Surgery, 2007 - Elsevier

 N Alpins: Astigmatism analysis by the Alpins method. Journal of Cataract & Refractive Surgery,

2001 - Elsevier

 G Savini, KJ Hoffer, M Carbonelli, P Ducoli: Influence of axial length and corneal power on

the astigmatic power of toric intraocular lenses - Journal of Cataract & …, 2013 - Elsevier

 JT Holladay, TV Cravy, DD Koch: Calculating the surgically induced refractive change following

ocular surgery. - Journal of Cataract & Refractive Surgery, 1992 – Elsevier

 Abulafia A, Koch DD, Wang L, Hill WE, Assia EI, Franchina M, Barrett GD: New regression formula

for toric intraocular lens calculation. – Journal of Cataract & Refractive Surgery, 2016 - Elsevier

1.2 Users

Users: medical staff, opticians, ophthalmologists.

For surgery and intraocular lens implantation, the device can only be used under medical supervision. For the other applications, the device must be used by qualified personnel.

ALADDIN - User manual Rev. 23 of 08/07/2016

1.3 Positioning the patient

The patient must be positioned in such a way that the distance from the device to the eye is 80 mm. A steady head position and the correct device-to -patient distance is promoted by resting the patient’s head well against the chin rest and forehead band.

A correct alignment with the patient’s pupils can be visually checked by the operator referring to the two

lines on the forehead supports.

Figure 1

It is necessary to tell the patient to look steadily at the fixation point in the center of the Placido disk.

The position of the device in relation to the patient’s eye thus found is a starting point for fine measurement

adjustments. The patient does not use the controls. The patient may be an elderly person, an invalid, or a child. In any case the device is to be controlled by the aforementioned specialized personnel.

1.4 Places of use

The intended places of use are: health care centers, doctors' surgeries, operating theatres.

1.5 Contraindications

Patient could have a dazzle effect, after the exam, dues to the device lights, but it disappears in few minutes.

ALADDIN - User manual Rev. 23 of 08/07/2016

2 Accessibility and scope of the manual

Keep these instructions in a safe place close to the device. The manual must be at hand at all times. For best use of the instrument, read the instructions carefully.

The purpose of this manual is to inform the user as to all the device's functions, settings, safety, installation, maintenance, cleaning and storage instructions.

ALADDIN - User manual Rev. 23 of 08/07/2016

3 Introduction

3.1 Main characteristics

ALADDIN is a multifunction medical device used for the detection of various biometric parameters, particularly useful for the calculation of spherical, toric or personalized intraocular lenses. It records a wide range of parameters, which are acquired by using different techniques.

Optical Biometry: by means of the low-coherence optical interferometry method, ALADDIN executes axial length measurements (between 15 and 38mm).

Anterior chamber depth: slit light projection - by projecting a slit of certain characteristics onto the eye, you can determine the length of the optical axis of the anterior chamber, a very important measurement for the calculation of IOL.

Topography: the device acquires a topographic map of the patient of approximately 6,200 points using a 24ring Placido disk to show the description of the corneal surface. This measurement also provides a Keratometry at 3mm, 5mm and 7mm 7mm (or at 2,4,6 mm depending on the settings) with the respective corneal astigmatism.

Pupillometry: for an accurate calculation of intraocular lenses, the instrument has a set of LEDs onboard that allows a measurement of Photopic, Mesopic and Dynamic pupillometry.

White-to-White: as a result of the corneal topography and by means of an internal software algorithm, a white-to-white value can be obtained, i.e. the corneal diameter recorded at the limbus.

The software can give suggestions for the choice of intraocular lens based on several different formulae.

Similarly, a database of intraocular lenses is also implemented. Before the calculation is made, the data for the desired lens must be entered.

ALADDIN also covers all the basic functions of corneal topography for recording some keratorefractive parameters.

ALADDIN - User manual Rev. 23 of 08/07/2016

4 Precautions

This electronic instrument is a precision tool. Make sure to use it and keep it in a suitable place, at a normal temperature, humidity and atmospheric pressure out of direct sunlight.

 To ensure proper functioning, install the instrument in a vibration-free location.  Connect all cables correctly before use.  Use the recommended network voltage.  When the instrument is not in use, turn off the power supply and protect it from the sun and from

dust.

 To obtain accurate and reliable measurements, keep the measuring cone clean and free of dust.

This product conforms to the EMC standard (IEC 60601-1-2 3rd Edition).

- ELECTRICAL MEDICAL DEVICES require special EMC precautions and must be installed and activated

in accordance with the EMC instructions provided in the accompanying documentation.

- Portable RF communication instruments may interfere with medical devices.

- Use of accessories and cables other than those supplied with the instrument, except cables sold by

the equipment manufacturer as spare parts, may lead to an increase in emissions and reduce the device's or system's immunity.

- The eventual cables connected to USB and LAN ports must be less than 3 meters length.

- The device must not be used in contact with other devices.

If use of the device in contact with other instruments is unavoidable, check that the device works properly in the required configuration.

Caution should be practised when using the device’s ACD measurement for any given intraocular lens

calculation because of the high variability of this measurement.

The ACD measurement is the distance between corneal epithelium and the crystalline lens surface.

The FDA labelling for some IOLs contain sizing based upon white-to-white measurements derived from studies in which this measurement is done with callipers. It is unknown whether the white-to-white measurement from this device yields results systematically biased compared to those from calliper measurements. Thus, sizing based upon white-to-white measurements from this device may not be consistent with those based upon measurements with callipers.

ALADDIN - User manual Rev. 23 of 08/07/2016

4.1 EMC table

Emission issues

ALADDIN is intended for use in the electromagnetic environment specified below. The customer or user must ensure that it is used only in such an environment.

Emission test

Compliance

Electromagnetic environment - guide

RF emissions CISPR 11

Group 1

ALADDIN uses RF energy only for its internal function. Therefore, its RF emissions are very low and are not likely to cause any interference in neighbouring electronic devices.

RF emissions CISPR 11

Class B

ALADDIN is suitable for use in all residential buildings and those directly linked to a low-voltage supply network that supplies residential buildings.

Harmonic Emissions IEC 61000-3-2

Class A Compliant

The device can be used in all buildings, including residential buildings and those connected to the low-voltage mains network that supplies residential buildings.

Emissions of voltage fluctuations/flicker IEC 61000-3-3

Compliant

Immunity issues

ALADDIN is intended for use in the electromagnetic environment specified below. The customer or user must ensure that it is used only in such an environment.

Immunity issues

Test level EN 60601-1-2

Compliance level

Electromagnetic environment - guide

Electrostatic discharge (ESD) EN 61000-4-2

 6kV on contact  8kV in air

The floors must be wood, cement or ceramic. If the floors are covered with synthetic material, relative humidity must be at least 30%.

Transients/fast electric Trains EN 61000-4-4

2kV power supply lines

2kV power

supply lines

The power supply should be typical of a commercial environment or hospital.

Surge EN 61000-4-5

1kV differential mode 2kV common mode

The power supply should be typical of a commercial environment or hospital.

Voltage dips, short interruptions and voltage variations on power supply input lines EN 61000-4-11

< 5% U

(>95% dip in UT) for 0.5 cycle

40% U

(60% dip in UT) for 5 cycles

70% U

(30% dip in UT) for 25 cycles

< 5% U

(>95% dip in UT) for 5 seconds

< 5% U

(>95% dip in UT) for 0.5 cycle

40% U

(60% dip in UT) for 5 cycles

70% U

(30% dip in UT) for 25 cycles

< 5% U

(>95% dip in UT) for 5 seconds

The power supply should be typical of a commercial environment or hospital. If the user requires the device to operate continuously even during a power cut, we recommend powering the device with an uninterruptable power supply (UPS) or a battery.

ALADDIN - User manual Rev. 23 of 08/07/2016

Immunity aspects at RF

The device is intended for use in the electromagnetic environment specified below. The customer or the user of the device must ensure that it is used only in such an environment.

Portable and mobile RF communication devices must be used no closer to any part of the device, including the cables, than the recommended separation distance, calculated from the equation applicable to the frequency of the transmitter.

Immunity test

Test level EN 60601-1-2

Compliance level

Electromagnetic environment – guide

Recommended separation distance (where P is the maximum output power rating of the transmitter in Watts (W) according to the transmitter manufacturer and d is the recommended separation distance in meters (m)).

Conducted RF EN 61000-4-6

3 Vrms from 150kHz to 80MHz

d = 1.2 P from 150kHz to 80MHz

Radiated RF EN 61000-4-3

3 V/m from 80MHz to

2.5GHz

3 V/m from 80MHz to

2.5GHz

d = 1.2 P from 80 MHz to 800 MHz d = 2.3 P from 800 MHz to 2.5 GHz

Field strengths from fixed RF transmitters, as determined in an electromagnetic site survey, should be less than the compliance level in each frequency range. Interference may occur in the vicinity of equipment marked with the following symbol:

Recommended separation distance between portable and mobile radio communication devices and

the ALADDIN device

ALADDIN is intended for use in an electromagnetic environment in which radiated RF disturbances are under control. The customer or the user of the device can help prevent electromagnetic interference by maintaining a minimum distance between mobile and portable RF communication devices (transmitters) and the ALADDIN device as recommended below, according to the maximum output power of the radio communication devices.

Maximum nominal output power of the transmitter (W)

Separation distance according to the frequency of the transmitter (m)

150kHz to 80MHz

d = 1.2 P

80MHz to 800MHz

d = 1.2 P

800MHz to 2GHz

d = 2.3 P

0.01

0.12

0.23

0.1

0.38

0.73

1.2

2.3

3.8

7.3

100

For transmitters with maximum output powers not listed above, the recommended separation distance d in meters (m) can be calculated using the equation applicable to the frequency of the transmitter, where P is the nominal maximum output power of the transmitter in Watts (W) according to the transmitter manufacturer.

Note: (1) At 80 MHz and 800 MHz the separation distance of the higher frequency range applies. (2) These guidelines may not be applicable in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects and people.

Power frequency magnetic field EN 61000-4-8

3 A/m

Power frequency magnetic fields must have levels characteristic of a typical commercial or hospital environment.

ALADDIN - User manual Rev. 23 of 08/07/2016

5 Symbols

Symbols

IEC

publications

Description

IEC 60417-

5840

CLASS I DEVICE ACCORDING TO EN 60601-1 APPLIED PART TYPE B

PRODUCT COMPLIANT WITH DIRECTIVE 93/42/EC

Type A

EN ISO

19980

CORNEAL TOPOGRAPHY ACCORDING TO ISO 19980:2005

IEC 60417-

5032

ALTERNATING CURRENT

ISO 7010-

W001

GENERAL WARNING

EN ISO

15223-1

REFERENCE OR MODEL NUMBER

ISO 7010-

M002

FOLLOW THE INSTRUCTIONS FOR USE

EN ISO

15223-1

MANUFACTURER

Group 1

EN ISO

15004-2

PRODUCT CLASSIFIABLE AS GROUP 1 IN ACCORDANCE WITH EN ISO 15004-2

EN 62471

PRODUCT CLASSIFIABLE AS EXEMPT GROUP IN ACCORDANCE WITH EN 62471

EN ISO

15223-1

TEMPERATURE LIMITATION

Indicate the temperature limits to which the medical device can be safely exposed.

EN ISO

15223-1

HUMIDITY LIMITATION

Indicate the range of humidity to which the medical device can be safely exposed.

EN ISO

15223-1

ATHMOSPHERIC PRESSURE LIMITATION

Indicate the range of atmospheric pressure to which the medical device can be safely exposed.

EXEMPT GROUP

EN62471

ALADDIN - User manual Rev. 23 of 08/07/2016

EN ISO

15223-1

KEEP DRY

Indicates a medical device that needs to be protected from moisture.

HANDLE WITH CARE

ISO 780

THIS WAY UP

Indicates correct upright position of the transport package.

This symbol is solely applicable for EC member countries.

To avoid potential negative consequences for the environment and possibly human health, this instrument should be disposed of (i) for EU member countries – in accordance with WEEE (Directive on Waste Electrical and Electronic Equipment) or (ii) for all other countries, in accordance with local disposal and recycling laws.

5.1 Labeling on the device

ALADDIN - User manual Rev. 23 of 08/07/2016

6 Safety instructions

6.1 General

 ALADDIN should be used only for its intended purposes as detailed in this manual.  It must be installed by qualified personnel.  The device must be used in the environmental conditions as specified in this document.  The least favorable environment is defined as the maximum values of temperature for the unit to be

operating in, while the unit is consuming the maximum current. The environmental value is stated as +40°C. The maximum current absorption occurs during full biometry acquisition.

 The maximum temperature of applied parts (chinrest and headrest) can exceed 41°C when the device is

used at environmental temperature close to 40°C. The device temperature doesn’t exceed 48°C anyway.

Considering the examination duration, the patient condition and the parts that are in contact with the patient, there aren’t any known contraindications about to the contact with the device.

 If the device has just been delivered or has been subjected to thermal shock, wait at least one

hour before making measurements on patients.

 Keep this manual at hand close to the device at all times.  The physician or device user must inform the patient of the pertinent safety instructions and

ensure that they are adhered to.

 Connect the device to the supply mains using one of the cables supplied with the device  Position the unit so that it is not difficult to disconnect the plug for connection to the supply main.  Perform all the control functions (detailed in the relative section in this document) before carrying

out measurements on patients. In addition, if software interface shows an “Initializing error” warning, don’t go on with measurements. Also “Low repeatability of measure” warning originates a wrong IOL

calculation.

 Only personnel with the appropriate training and experience may use the device and interpret the

results.

 Turn off the device if it is not going to be used for a long period of time.  If external forces act on the device (e.g. if it is knocked or dropped), it must be thoroughly checked

before proceeding to examine patients. To do this, refer to the relative section in this manual. If necessary, send the device in for repair.

 Use only original ALADDIN accessories and spare parts specific for this device.  Remove all the covering (dust sheet) from the device before turning it on.  Do not use the device close to highly inflammable materials or in areas with an explosion hazard.

 Unauthorized installation of software in the device is forbidden.  After the examination, the patient may be slightly dazed. It is recommended to advise the patient

to wait a few minutes before driving or performing actions that require perfect vision.

 When operating the chinrest up/down switch, be careful not to pinch the patient’s hand. The

patient may be injured.

ALADDIN - User manual Rev. 23 of 08/07/2016

6.2 Electrical safety

 To avoid risk of electric shock, this device must be connected to supply mains with protective

earth.

 ALADDIN has an on-board power supply unit installed. For connection to the mains, use only the

manufacturer-approved cables provided with the device.

 Before performing maintenance on the device, turn it off and disconnect the power cable.  Do not touch the LAB/USB ports contacts and the patient at the same time.

6.3 LED emission safety

The light emitted from this instrument is not potentially hazardous.

ALADDIN has a series of LEDs of various types and powers installed. All the characteristics are detailed in the Technical Specifications section in this manual. The LED groups comply with the emission limits for the Group 1 instruments of the standard UNI EN ISO 15004-2.

All sources are classifiable as EXEMPT GROUP according to EN 62471.

6.4 Installation with external devices or IT Network

ALADDIN complies with the CE marking requirements.

 Before connecting an external device, such as a computer, printer, monitor, keyboard, mouse or

other devices, make sure that they comply with the EN 60950-1 standard and have the CE marking.

 When ALADDIN is installed in rooms for medical use, the PC and the connected printer must be powered

by means of an IEC 60601-1 compliant insulating transformer.

 If ALADDIN is installed in rooms for medical use without a computer, it is not necessary to use an

insulating transformer.

 Do not use mobile phones or other devices not compliant with the requirements of class B EMC close to

ALADDIN.

 Every external device that has to be connected to ALADDIN must have a connection cable (USB or

LAN) with a maximum length of 3 m.

The purpose of ALADDIN connection to an IT network is report printing and remote technical assistance.  The ALADDIN USB port must be connected to printer with USB or LAN interface. Ask Topcon technical

assistance for printer driver installation.

 The ALADDIN can be connected to a Local Area Network (LAN) through the LAN connector. The network

must have Ethernet protocol (IEEE 802.3). Ask Topcon technical assistance and the system administrator for ALADDIN and network settings.

 The purpose of ALADDIN connection is saving PDF report on an external network folder or technical

service intervention on the machine.

 Connection of ALADDIN to a computer network that includes other equipment could result in previously

unidentified RISKS; identify, analyze, and control such RISKS (refer to IEC 60601-1:2005).

 Subsequent changes to a computer network could introduce new RISKS and require new analysis.

ALADDIN - User manual Rev. 23 of 08/07/2016

 Changes to the computer network include:

 Changes in computer or data network configuration  Connection of additional items to computer network  Disconnecting items from computer network  Update of equipment connected to computer network  Upgrade of equipment connected to computer network  The term computer network used here corresponds to the term network/data coupling in IEC 60601-

1:2005.

6.5 Transport and packaging

 The device must be transported and stored in its original packaging.  For the storage and transport conditions, refer to the relative section in this document.  Carefully keep the original packaging in order to use it if you need to transport the device.  To move the device for short distances (without packaging) and to insert it in and remove it from the

original packaging, grip the device with both hands, one on the front headrest arch and the other in the recess on the rear of the device (where the locking system is).

 Completely unscrew the two transportation locks and the semi-lock (Figure 10) before use.

 Lower the instrument to its minimum height using the joystick, then lock ALADDIN using the

instrument semi-lock and the two “instrument locking devices” for transportation (Figure 10).

6.6 Cleaning

 Regularly clean dust off the device using a soft cloth. For more persistent superficial dirt, use a soft cloth

dampened with water or alcohol at maximum 70%.

 Be careful not to get the device wet and clean it only as indicated to prevent damaging it. Never

use solvents or other abrasive agents.

 The device comes with a dust cover to be used to protect it. Cover ALADDIN if it is not going to be used

for a long period of time.

 Before turning on the device, remove the cover. Never put the cover on when the device is on.

6.7 Package contents

 Power cable  Manual  Dust cover  Accessory for the calibration check

NB: keep the original packaging for storage or transport of the device.

6.8 Checking the measurements

 The calibration must be checked when the device has been transported from one place to another

and when it has suffered an impact or thermal shocks.

ALADDIN - User manual Rev. 23 of 08/07/2016

 Check the measurements every day when turning on the device using the instrument provided.  The user of the device must check that the measurements provided by the device are plausible.  It is advisable to visually check all the light sources before examining patients to make sure that they

come on properly.

 If the device frequently emits error signals, turn it off and contact technical support to have the device

checked.

 In patients with blue eyes, acquisition of pupillometry in mesopic lighting conditions can be

difficult to accomplish. In this case, we suggest acquiring the mesopic data through dynamic pupillometry.

 Contact lenses must not be worn by the patient during data acquisition.

6.9 Cybersecurity

 When performing the installation of a new unit the user MUST set his own credentials to prevent

unauthorized physical access to the device.

 Make sure the USB devices you intend to connect to the instrument are secured against

malware/viruses.

 Patient data on USB devices can become corrupted when inserting into computers for backup or

transfer.

 The use of antivirus software on computers is recommended and it is responsibility of the user.  To protect data exported to USB from unauthorized access, use dedicated USB data for storage.  Installation of any unapproved software, including drivers, could degrade the performances of the

instrument and may void the instrument warranty.

ALADDIN - User manual Rev. 23 of 08/07/2016

7 Product warranty and reliability

 The product warranty is valid only if all the instructions detailed in this document are followed.  The product warranty is forfeited in the event of loss or damage due to improper or incorrect use of

the device.

 The product warranty is valid only if it is equipped with its original accessories.  If the device is opened by unauthorized personnel, the manufacturer is relieved of all

responsibility and the warranty shall become null and void.

 N.B.: Modifications or repairs to the product, especially where they require opening the device, may

only be carried out by technical personnel authorized by the manufacturer.

8 Legal provisions

93/42/EEC – 2007/47/EC:  Class IIA medical device EN 60601-1:  Class I type B EN 60601-1-2:  EMC EN 15004-2:  Group 1 EN 62471:  All the sources are “EXEMPT GROUP” UNI EN ISO 19980  Type A

ALADDIN - User manual Rev. 23 of 08/07/2016

9 Components

9.1 Main Body

Figure 2

Figure 3

LCD display with touchscreen

Joystick with acquisition button

Semi-lock

Instrument locking devices for transportation

Placido disk

ALADDIN - User manual Rev. 23 of 08/07/2016

Figure 4

9.2 Other components

Figure 5

NB: The parts in contact with the patient (applied parts) are the forehead rest in Teflon and the chin rest in acrylonitrile butadiene styrene resin (ABS)

ON/OFF button

Forehead rest

Chin rest

Locking pins for chin rest papers

Wheel for adjusting the rest position

USB ports (2)

Power connector

(with fuse carrier)

LAN port

ALADDIN - User manual Rev. 23 of 08/07/2016

10 Installation /uninstallation of the system

ALADDIN is packed for shipping in a double cardboard box on a dedicated pallet with specially shaped cardboard parts inside to guarantee instrument safety during shipment.

Two special warning labels are applied on the outside of the cardboard box. Please check them as

described below before accepting the instrument consignment, or accept it only with reserve.

If the circle on the label shown below is white, it means that the instrument has been handled without tipping. If it is red, the instrument may have been damaged during shipping.

If the white rectangle on the label shown above is red in the middle, it means that the instrument may have been damaged by shock during transport.

Keep the original packaging for future use. The system must always be moved/shipped in its original

packaging, which is specifically designed for damage protection.

10.1 Installing the system

Before installing the system, read the “Safety Instructions” in this manual.

Figure 6 shows the complete packaging of the instrument. Cut the extensible film and the packing straps. Open the external box, and remove the wood panel as shown in Figure 7.

Figure 6

ALADDIN - User manual Rev. 23 of 08/07/2016

Figure 7

Remove the manual and the accessories from the dedicated spaces between the two pieces of cardboard (see Figure 8).

Figure 8

The accessories are:

 “Topcon” box:

o calibration checking device o chin rest paper o chin rest pins o touchscreen pen o silicon cloth

 Power cable  “Topcon” ALADDIN dust cover  ALADDIN user manual

ALADDIN - User manual Rev. 23 of 08/07/2016

Open the internal box and remove the specially shaped cardboard that holds the instrument. The instrument can now be taken out of the package. The steps are illustrated in Figure 9.

Figure 9

Be careful when taking ALADDIN HW3.0 out of the box gripping it by the chin rest arch and the base

beside the joystick.

Remove the Nylon cover.

Place the instrument on a flat surface.

Completely unscrew the two transportation locks and the semi-lock (Figure 10).

Connect the power cable provided. The instrument is now ready for use.

ALADDIN - User manual Rev. 23 of 08/07/2016

Figure 10

10.2 Uninstalling the system

Take the original packaging.

Set the instrument to the minimum height using the joystick. Lock the device using the instrument semi-lock and the two “instrument locking devices” for transportation (Figure 10).

Figure 11

Place the Nylon cover over the instrument and insert it in the box, as shown in Figure 11. Follow the sequence of steps shown in Figure 12.

Semi-lock

Instrument locking devices for transportation

ALADDIN - User manual Rev. 23 of 08/07/2016

Figure 12

Put the accessories in the dedicated spaces. Position the wood panel with the shock absorbers in the lower part. Close the external box with strong packing tape or use extensible film and packing straps.

ALADDIN - User manual Rev. 23 of 08/07/2016

11 ALADDIN accessories and equipment

11.1 Standard equipment



Calibration checking device

The calibration checking device shows

the serial number of the instrument with which it is associated. To properly check calibration, the calibrator provided with the instrument must always be used.



Power cable



Manual



Protective cover



Touchscreen pen

silicon cloth

chin rest paper

chin rest pins

ALADDIN - User manual Rev. 23 of 08/07/2016

12 Setting up the instrument

12.1 Connection modes

Figure 13

ALADDIN - User manual Rev. 23 of 08/07/2016

13 OPERATING INSTRUCTIONS

ALADDIN is designed to work in stand-alone mode. For this reason, all the software functions are automatically loaded when the device is turned on, enabling the user to control the device and guiding him or her through the various phases:

- Entry of patient data

- Acquisition of the various possible modes

- Display of measurements

- Selection of intraocular lenses

More information for each function and the description of all the settings and other functions included is provided in the following paragraphs of this chapter, to which we refer you for further details.

To interact with the software, the LCD display with touchscreen is used. To activate the button or the desired function, simply touch the screen close to the command. The screen is highly sensitive. Minimum pressure is required, indeed advised.

13.1 General description of functionalities

The Aladdin device has the following functionalities:

 Cornea image acquisition and topographic analysis.  Measurement of the eye's axial length.  Measurement of the anterior chamber depth with the slit projection method.  White-to-White measurement.  Dynamic pupillometry acquisition: recording of a sequence of images of the pupil in varying light

conditions. Acquisition of the static pupillometry in controlled light conditions (photopic and mesopic).

 Analysis of the wavefront aberrations generated by the front surface of the cornea with Zernike

analysis: information on the cornea's optical properties and on the optical problems that can hinder vision.

 Intraocular lenses (IOL and Toric IOL) calculation, both BEFORE and AFTER refractive surgery (by

means of the Camellin-Calossi and Shammas No History formulae).

Refer to the literature related to the Camellin-Calossi formula (in case of specific questions please contact Visia Imaging):

• Camellin-Calossi: M. Camellin, MD; A. Calossi, Optom “A new formula for intraocular lens power

calculation after refractive Corneal Surgery”, Journal of Refractive Surgery, vol. 22 Feb. 2006.

Refer to the literature related to the Shammas No History formula (in case of specific questions please contact Visia Imaging):

• Shammas No-history: Shammas H.J., Shammas M.C:“No-history method of intraocular lens

power calculation for cataract surgery after myopic laser in situ keratomileusis”, J Cataract Refract Surg 2007; 33:31–36 Q 2007 ASCRS and ESCRS.

ALADDIN - User manual Rev. 23 of 08/07/2016

• Shammas No-history: Shammas H.J., Shammas M.C., Garabet A., Kim J.H., Shammas A. , LaBree

L.: Correcting the Corneal Power Measurements for Intraocular Lens Power Calculations After Myopic Laser In Situ Keratomileusis” - American Journal of Ophthalmology (Impact Factor: 4.02). 10/2003; 136(3):426-32.

• Shammas No-history: Shammas H.J., Shammas M.C., Hill W.E.:Intraocular lens power calculation

in eyes with previous hyperopic laser in situ keratomileusis” - J Cataract Refract Surg 2013;

39:739–744 Q 2013 ASCRS and ESCRS.

These formulae are for use in patients who have had prior refractive surgery. Each such patient is unique and results may vary widely. You should interpret all IOL power recommendations with caution.

General instructions

On the various screens displayed by the software there are symbols that provide access to certain functions available in several working environments.

Access to the "Settings" section, described in detail in the dedicated paragraph.

Direct printing of the report or saving a PDF file depending on the options selected in the print section.

13.2 Checking the calibration

The calibration must be checked when the device has been transported from one place to another

and when it has suffered an impact or thermal shocks.

Check the calibration of the device every day before starting patient examinations.

Set the calibration tool supplied with the device (Figure 14) in the special holes in the chin rest and press until the tool is blocked on the device. Check that the calibration tool is perfectly aligned with the device. If the calibration tool is positioned correctly, all the rings of the Placido disk should be seen reflected in the center on the surface of the hemisphere (Figure 15).

Figure 14

ALADDIN - User manual Rev. 23 of 08/07/2016

CORRECT alignment

WRONG alignment

Figure 15

To check the calibration, turn on the instrument, and when asked to check the calibration, press Start (Figure 16) and then press Close (Figure 17).

Figure 16

ALADDIN - User manual Rev. 23 of 08/07/2016

Figure 17

To check the calibration, turn on the instrument and, when asked to check the calibration, press OK. By pressing ok, the test patient is automatically created. Now check and several times acquire the calibration checking device using the complete acquisition (AL-ACD-K), in check calibration is not possible to acquire the single measurements. If the calibration is ok, the “Valid” word will be display for all the three measurements (Figure 18).

ALADDIN - User manual Rev. 23 of 08/07/2016

Figure 18

If the measurements are incorrect, the words “Repeat” or “Not Valid” will be displayed besides the wrong measurement (Figure 19).

Figure 19

VALID

Good calibration, your device is ok

REPEAT

Bad acquisition, you must repeat

NOT VALID

Incorrect calibration, call the assistance

If the calibration goes wrong, try acquiring at least two or three times more with this tips:

 improving the environmental conditions (less light and no reflections on the sphere);  cleaning the sphere of the calibration tool;  make sure that the calibration tool is position correctly.

If the calibration check is still not valid, do not take any patient measurement and contact Topcon Technical Support to have the Aladdin instrument checked.

To complete the measurements, check that all the measurements are valid, click on “Main” to start a new examination, and when asked, press Yes to save the current “Calibration Check”.

ALADDIN - User manual Rev. 23 of 08/07/2016

13.3 Patient entry/selection

When the instrument is turned on, the software displays the following screen. To continue the examination, you always need to enter a patient or select one from those on file.

Figure 20

Figure 20 shows the section for creating a new patient, entering Last Name, Name and Birth Date as required

ALADDIN - User manual Rev. 23 of 08/07/2016

fields (Gender and ID are optional). You can set from the settings environment to have only the ID as required field.

13.3.1 Creating a new patient

To create a new patient, select the “New” tab and enter the data using the on-screen keyboard. Once you have entered the new patient data, click on the “Ok” button or select the “Acquisition” tab to confirm the information and continue with the examination. If you want to empty all the fields click on the “Clear” button. Before going into the acquisition environment, additional information on the patient is required, in particular the presence and type of crystalline and the nature of the vitreous body (Figure 22).

An external keyboard or another input device compatible with “keyboard wedge interface” (PS/2) such as barcode or card reader can be connected to the device to input text. The user must assure that the desired textbox is under focus before the input action.

Before connecting an external device, such as a computer, printer, monitor, keyboard, mouse or other devices, make sure that they comply with the EN 60950-1 standard and have the CE marking.

Entering special characters

A special character can be entered simply by touching and holding the corresponding letter as shown in Figure 21:

Figure 21

Selecting crystalline and vitreous body type

Once the patient identity record has been created, it is possible to select the type of cristallyne and vitreous humor for each patient’s eye, by pressing the “Acquisition” button (please see the following Figure 22)

ALADDIN - User manual Rev. 23 of 08/07/2016

Figure 22

For each eye, select the type of crystalline currently present:

 Phakic: the patient has a natural crystalline lens.  Aphakic: the patient does not have any crystalline lens from birth or as a result of surgery.  Pseudophakic: the patient has an intraocular lens substituting the crystalline. In this case, it is very

important to also detail the type of material used by the surgeon:

o Unknown o Silicon o PMMA o Acrylate o Memory

The measured axial eye length depends on the measuring mode selected. Depending on the measuring mode selected, Aladdin corrects the measurement with a constant defined as follows. Aladdin device takes into consideration two conditions of the eye that can alter the measurement of axial length:

- Vitreous body filled of silicone oil

- Implant of intra ocular lens

The difference of the measurement is caused by a different group refraction index considered in the formula. According to bibliographic data, the calculations have been performed to assess the amount of correction that must be applied to correct the measurement in these special cases. The correction data have been compared with predicate device assumptions and a table of corrections has been elaborated as follows:

ALADDIN - User manual Rev. 23 of 08/07/2016

The correction values (in mm) of the natural vitreous body

Phakic

APhakic

0.21

Pseudophakic Unknown material

0.11

Pseudophakic Silicone IOL

0.12

Pseudophakic PMMA IOL

0.11

Pseudophakic Acrylic IOL

0.1

Pseudophakic Memory IOL

0.11

For the vitreous body you can choose between:

 Natural: the vitreous body has never been operated or treated such as to alter its composition.  Silicon Oil: the vitreous body has been filled, even only partly, with silicon oil.

The correction values (in mm) of the vitreous body filled by Silicon Oil

Phakic

-0.74

APhakic

-0.86

Pseudophakic Unknown material

-0.75

Pseudophakic Silicone IOL

-0.74

Pseudophakic PMMA IOL

-0.75

Pseudophakic Acrylic IOL

-0.76

Pseudophakic Memory IOL

-0.75

All this information is required because, on the basis of the artificial materials and their optical properties present inside the eye, the instrument always corrects the measurements obtained to the most precise value possible. Once this information has been entered, you can access the acquisition environment. For more details on the acquisition environment see the dedicated section.

The vitreous body nature is expressed, if different from natural, in the acquisition view as well as in the output reports, as shown in the following figures. The lens nature is always reported.

ALADDIN - User manual Rev. 23 of 08/07/2016

13.3.2 Selecting or modifying a patient

On the input screen, click on the "List" tab to access all the patients included in the database (see Errore. L'origine riferimento non è stata trovata.).

Figure 23

On this screen you can select a previously created patient and the examinations associated with him/her.

The list can be viewed by patient ID or by Last Name (and name) selecting the corresponding radio button.

If you type into the “Last Name” field, a search is done in the local database for patients with the corresponding surname or whose surname contains the selected key, same for patient ID.

By pressing the button on the right, the patient list is ordered alphabetically (A to Z) or by last exam date (most recent first).

Open an examination or acquire data for the selected patient

In the left column, clicking on a patient in the “Exam List” frame displays the list of associated examinations. In this list, you can access examinations or delete them, using the “Open” or “Delete” buttons. After having selected a patient, another examination can be carried out by pressing the "Acquisition” tab or pressing on “New Exam” button.

Delete or edit the selected patient

From the list of patients, select the exam you want to delete and press the "Delete" button. The program will ask you to confirm the choice.

ALADDIN - User manual Rev. 23 of 08/07/2016

Press "Edit" to change the name, surname or date of birth. This takes you back to the initial "New" tab. From here, you can edit the information you need to change and press “Ok” or “Cancel” to confirm or cancel the changes.

Insert the Post-Op (after surgery) refraction data

Through this function the user can update the data related to a single exam of the chosen patient. This means that if the patient has already undergone surgery, the new refractive status can be recorded as a main factor to personalize constants of the implanted IOL.

Figure 24

Opening the Post-Op section, the screen shown Figure 24 will be displayed.

In this section you can insert the Post-Op Data (IOL information plus actual refraction) in the meantime looking at the Pre Operative Data.

ALADDIN - User manual Rev. 23 of 08/07/2016

13.3.3 Selecting a patient from Server

Once enabled, Aladdin IMAGEnet i-base’s integration from Aladdin’s settings panel (refer to IMAGEnet ibase configuration), it’s possible to select a new patient from the patient list retrieved from IMAGEnet i-base (Figure 25).

In the same way, Aladdin can be activated to search patients from DICOM services (refer to DICOM configuration section):

 DICOM Patient Root Query: search patient’s details on enable patient’s archive server  DICOM Modality Worklist: get the list of patients and tasks in the waiting room

The user can search for a patient either by surname, by id or by date of birth (i-base only). Will be created a list of patients corresponding to the search criteria (Figure 27). Once selected a patient, the user can create a new examination in the standard mode by clicking on the Acquisition or OK button button.

Figure 25

The user can search from IMAGEnet i-base and/or DICOM sources at the same time by enabling/disabling the corresponding options using the server selection button.

ALADDIN - User manual Rev. 23 of 08/07/2016

Figure 26

Figure 27

ALADDIN - User manual Rev. 23 of 08/07/2016

Start an exam from the Waiting Room

If DICOM Modality Worklist service is configured, Aladdin is able to search for pending patient’s examinations in the waiting room. Pressing on the “Waiting Room…” button (Figure 26) shows a list of the pending

worklists for the current day. The list can filtered by one or more of the other criteria:

 Patient Name  Patient ID  Examination date range  Scheduled Station Name (default is “Aladdin”)*  Modality (default is “OT”)*

* = contact DICOM services administrator for details on these settings

Figure 28

Each time the filtering criteria are changed, press “Update Worklist” to update the list of matching items.

Once the desired work is selected, press “Start Work” to start a new exam relative to the selected work.

ALADDIN - User manual Rev. 23 of 08/07/2016

13.4 Acquisition environment: general instructions

Figure 29

Figure 29 shows the acquisition screen.

The joystick illustrated in Figure 30 is the only part the user has to physically control during acquisition. The button on the top marked "Acquisition button" starts the acquisition of the various measurements. The thumb wheel marked "Height Regulation" allows you to adjust the instrument's height according to the patient's position. On the chin rest there is also a knob for adjusting the height if the adjuster on the joystick is not enough to achieve the correct position.

To perform the acquisition, position the patient with his/her chin on the chin rest and forehead on the forehead rest. This is the correct position for performing the examination.

The button is available in both eye columns; its function is to modify the nature of the lens and Vitreous body during the examination. The Axial Length will automatically be corrected depending on the new refractive index.

ALADDIN - User manual Rev. 23 of 08/07/2016

Figure 30

Wheel for adjusting the chinrest height.

The position of the chin rest must be both comfortable and correct, i.e. it must allow the person performing the measurement to center correctly on the fixation LED.

Make sure the patient's forehead is well up against the forehead rest.

ALADDIN - User manual Rev. 23 of 08/07/2016

13.4.1 Description of the Acquisition screen

Figure 31

Figure 31 shows the acquisition screen from where all the operations to acquire the required measurements are performed. The acquisition window has the following commands:

 OD and OS: indicate the eye being acquired (the one highlighted in yellow); they are normally

selected automatically, depending on the position into which you move the instrument.

 Biometry: gives access to the biometric measurement section  Pupillometry: gives access to the pupillometry section

 The buttons at the bottom of the data frame for each eye serve to scroll

the measurements, as some of these are hidden if more than four acquisitions are made per eye.

When the acquisition is done, and the eye is selected: the correctly acquired measurements are displayed in white and incorrect measurements are displayed in red. See Figure 32.

Description of results

For each Biometry and Keratometry result a dedicated section is present. In each section the total result is shown together with the standard deviation between the single results (if more than one) and eventual warning or error signs (described in the following section).

Single results: one for each acquisition

Standard deviation of single results

Total Result

ALADDIN - User manual Rev. 23 of 08/07/2016

Errors in Measurements

Sometimes the measurement is taken in one of these conditions: bad focus, closed eyelid, tear film irregularity, high standard deviation in multiple measurements, movement, measurement not in range; in this case, a warning sign appears above the measurement.

ATTENTION: When the symbol is shown above a measurement, it means that the software recognized an error during the acquisition, which are bad focus, closed eyelid, tear film irregularity, high standard deviation in multiple measurements, movement, measurement not in range.

Figure 32

The possible problems in acquisition are found in the software with the following methods:

Error cause

Identification

Closed eyelid

Missing ring reflection on the eye Placido Image, on the upper hemisphere of the cornea

Movement

Interlace pattern shown in acquired image

BrokenTear film

Missing ring reflection on the eye on Placido Image

Bad focus

Defocus of ring reflection on acquired image

High standard deviation on repetition

Big difference between repeated acquisitions

Measurement not in range

Output out of instrument range of measurement

ALADDIN - User manual Rev. 23 of 08/07/2016

If a warning sign is shown above a measurement, it is recommended to make further acquisitions until reliable data is obtained.

It is very important that the main types of measurement (KER-AL-ACD) taken are shown without a warning sign, otherwise it will not be possible to proceed to IOL Calculation with the current data

(valid ACD is needed only if using Haigis formula).

Caution should be practised when using the device’s ACD measurement for any given intraocular lens

calculation because of the high variability of this measurement.

The ACD measurement is the distance between the corneal epithelium and the crystalline lens surface.

As shown in the figure above, accessing IOL Calculation, an error window will be shown warning the user to reacquire the measurements or to manually enter a new set of data.

If the user proceeds manual input (Figure 33), the software will pre-populate all the fields with acquired data, even those with error or warning signs. . It is also possible to enter arbitrary data, if possible taken with other instruments.

Figure 33

Biometry

Selecting the "Biometry" button, you can perform the axial length, anterior chamber depth and keratometry acquisitions either individually or in a full "AL-ACD-K" measurement, where the instrument executes all the measurements in sequence, i.e.

 Axial Length  Anterior Chamber Depth  Keratometry

ALADDIN - User manual Rev. 23 of 08/07/2016

To perform the measurements individually, simply click on one of the “AL” (axial length), “ACD” (anterior chamber depth) or “KER” (keratometry) buttons.

WARNING: a correct ACD measurement cannot be made without acquiring the patient's keratometry.

Caution should be practised when using the device’s ACD measurement for any given intraocular lens

calculation because of the high variability of this measurement.

The ACD measurement is the distance between corneal epithelium and the crystalline lens surface.

Pupillometry

Selecting the "Pupillometry" button gives access to the environment for the acquisition of the following measurements:

 Dynamic pupillometry  Photopic pupillometry  Mesopic pupillometry

13.5 Full biometry acquisition (K-AL-ACD)

Figure 34

This is a special mode which successively performs all the measurements described in detail in the following paragraphs, specifically:

- Axial length measurement

- Anterior chamber depth

ALADDIN - User manual Rev. 23 of 08/07/2016

- Acquisition of the topographic map with all associated measurements

- Identification of Mesopic and Photopic pupil

13.5.1 Acquisition procedure

Backlighting of the Placido disk is automatically activated when you enter the acquisition environment. If the instrument is not used for a few minutes, the cone turns off; to turn it on again, just press the joystick button. To acquire the image or measurements in general, whatever mode you are in, simply proceed as follows:

1. Align the live image in the center and focus, then press the joystick button to start the acquisition.

2. Move the instrument forwards and backwards (following the indications of the red and blue arrows

on the screen) to find the ideal focus. While you find the ideal focus achieve the central alignment by centering the two squared aims with vertical or horizontal movements.

3. When the green indicators are displayed and the two squares are centered (both green), press the

joystick button again and the system will automatically capture the required image and/or measurements.

4. Don’t move the joystick in the few seconds during the acquisition.

Focusing and centering guidance system is composed of two aspects:

 Centering  Focusing distance

Centering ideal conditions are achieved by centering the two squared aims by means of horizontal and vertical movements. The squared aims are the following:

Ideal Centering Marker, represents the ideal axis of alignment, matching the center of rings in the Placido image of the eye

Current Centering Marker, represents the current axis of alignment , matching the center of the viewport

The two squares assume different colors depending on two aspects: focusing position and centering in tolerance.

Focusing ideal conditions are achieved by following the 4 indicators at the corners of the viewport, which explain the needed movement in the “forward/backward” direction.

The red arrows indicate to move the instrument forwards towards the patient's eye. In this situation the centering aims assume different tones of red color, as follows:

The centering condition is out of tolerance (Ideal Centering Marker and Current Centering Marker have different tones)

The centering condition is in tolerance (Ideal Centering Marker and Current Centering Marker have the same tone)

ALADDIN - User manual Rev. 23 of 08/07/2016

The blue arrows indicate to move the instrument backwards away from the patient. In this situation the centering aims assume different tones of blue color, as follows:

The centering condition is out of tolerance(Ideal Centering Marker and Current Centering Marker have different tones)

The centering condition is in tolerance (Ideal Centering Marker and Current Centering Marker have the same tone)

The green icons indicate that the ideal focus has been reached. Press the joystick button to start the automatic acquisition procedure. In this situation the centering aims assume different colors, as follows:

The centering condition is out of tolerance (Ideal Centering Marker is orange and Current Centering Marker is yellow)

The centering condition is in tolerance (Ideal Centering Marker and Current Centering Marker are both green)

During the acquisition procedure, pulsating signals appear above the “KER”, “AL” and “ACD” buttons to guide you through the several acquisition steps. They are explained in the following table.

The system is waiting for the user click on acquisition button. Follow the guide for right centering and focusing, then click the joystick.

The system is acquiring. Wait until it has finished.

The system has finished the acquiring procedure.

The system is acquiring or waiting for user input in a previous step of the acquisition sequence.

ALADDIN - User manual Rev. 23 of 08/07/2016

13.5.2 Further adjustments for the anterior chamber depth

Caution should be practised when using the device’s ACD measurement for any given intraocular lens

calculation because of the high variability of this measurement.

The ACD measurement is the distance between corneal epithelium and the crystalline lens surface.

At the end of the automatic acquisition of K-values and axial length, ACD must be acquired manually following the alignment procedure.

Figure 35

The slit is turned on, and the central alignment of the slit on the corneal apex can be performed.

Follow the instructions of the red and blue arrows until optimum acquisition conditions have been reached and the software will automatically capture the image for the measurement.

13.6 Acquisition of axial length measurements (AL)

Interpretation of axial length measurements

As a rule, an interference signal is produced if the measuring light is reflected by the retinal pigmented epithelium of the eye. This signal is utilized for axial length measurements. Note: Ultrasonic biometrical instruments measure the axial length as the distance between the cornea and the inner limiting membrane, because the sound waves are reflected at this membrane. To ensure that the measured values obtained with the Aladdin are compatible with those obtained through acoustic axial length measurement, the system automatically adjusts for the distance difference between the inner limiting

ALADDIN - User manual Rev. 23 of 08/07/2016

membrane and the pigmented epithelium. The displayed axial length values are thus directly comparable to those obtained by immersion ultrasound, and no re-calculation or correction factors are necessary. Deviations may nevertheless occur between the displayed axial lengths and ultrasonic readings (particularly in the applanation procedure). By selecting this mode, the acquisition environment shown in Figure 36 appears.

Figure 36

The side columns show the measurements performed for the two eyes (OD = right, OS = left). For each acquisition, six measurements of the axial length are performed. The information displayed is the same as in “K-AL-ACD” acquisition.

13.7 Acquisition of the anterior chamber measurement (ACD)

The anterior chamber depth may only be measured on phakic eyes! ACD measurements of

pseudophakic eyes result in measuring errors and/or incorrect readings. The readings for pseudophakic eyes do not reflect the anterior chamber depth.

The keratometer measurement must be performed before anterior chamber depth measurement.

Caution should be practised when using the device’s ACD measurement for any given intraocular lens

calculation because of the high variability of this measurement.

The ACD measurement is the distance between corneal epithelium and the crystalline lens surface.

Fine adjust the device, so that:

ALADDIN - User manual Rev. 23 of 08/07/2016

 the fixation point is displayed in optimum focus in the square on the screen (only the fixation point

should be within the square, not the other image details),

 no reflections must be in the image of the cornea (can cause interference), otherwise the reading

will be incorrect,

 the anterior crystalline lens is optimally visible. As a rule, the image of the fixation point will lie

between the images of the cornea and the crystalline lens. It should be close to (but not within) the

optical section of the crystalline lens. By selecting this mode, the acquisition environment appears as shown in Figure 37. Press the joystick button and move the device according to the instructions of the automatic guidance system (red and blue arrows) until ideal conditions have been reached (green icons).

Figure 37

The acquisition proceeds by projecting a slit light beam onto the cornea ( Figure 38).

ALADDIN - User manual Rev. 23 of 08/07/2016

Figure 38

Follow the instructions of the red and blue arrows until optimum acquisition conditions have been reached and the software will automatically capture the image for the measurement. In these conditions, the instrument records the anterior chamber depth.

13.8 Keratometry acquisition (KER)

Keratometry is used to measure the corneal curvature. It is based on the reflection of the Placido disk on the eye at a controlled working distance for high measurement precision. Aladdin allows the user to acquire the corneal topography of the eye. The “Corneal Map” is obtained from the reflection of 24 rings of the Placido disk at a distance of 80 millimeters from the patient's eye. The position of the device, in relation to the patient’s eye thus found, serves as a starting point for fine adjustments to be made in the respective measurement mode.

By selecting this mode, the acquisition environment shown in Figure 39 appears.

ALADDIN - User manual Rev. 23 of 08/07/2016

Figure 39

In this mode, the topographic map of the cornea is acquired. Knowing the distance of the corneal apex, with a precision of microns, at the time of acquisition of the topographical image, the software applies to each of the 256 zero crossing, identified for each of the 24 RINGS, a correction factor given by the ratio between correct mean value and mean radius of the ring.

Concerning the calculation, the software performs the standard calculation of 6,144 zero crossing points, identified at the 24 RINGS along the 256 semi-meridian.

In order to increase the measurement precision, interferometry is used to evaluate the corneal distance.

The keratometry data is evaluated in the right column, which is referring to the left eye. This section has the same interactions as the “K-AL-ACD” acquisition.

However, since it is not possible for the human eye to stay still, the images acquired manually in a range close to the optimum focus (which is the optimal operating range of the device) can be out-of-focus.

ALADDIN - User manual Rev. 23 of 08/07/2016

13.9 Acquisition of the dynamic, photopic, mesopic pupillometry

Figure 40

By selecting this mode, the acquisition environment shown in Figure 40 appears on the screen. In order to acquire the pupillometry, first of all you need to center the blue rectangle, which is overlaid in the

image on the reflection of the four LEDs, as shown in Figure 41.

Press the joystick button to start the acquisition and press the button again to stop the acquisition. As already mentioned in the introductory paragraphs, three types of acquisition can be performed:

- Dynamic pupillometry

- Photopic controlled light conditions (Photopic)

- Mesopic controlled light conditions (Mesopic)

In the case of the dynamic pupillometry, recording of the state of the pupil is started, first in mesopic conditions, then photopic and then mesopic again. The data on the diameters measured are recorded and shown in the "Measurement" section.

For the dynamic acquisition, a sequence of images is recorded and allows you to "review" the evolution of the pupil through the various different light conditions to which it is subjected. In the pupillometry acquisition in static controlled light conditions: photopic and mesopic, certain frames are saved, which you can display by scrolling the associated gallery in the Pupil  Measurements section.

WARNING: With blue eyes, acquisition of pupillometry in mesopic lighting conditions can be difficult to accomplish. In this case, we suggest acquiring the mesopic data through dynamic pupillometry.

ALADDIN - User manual Rev. 23 of 08/07/2016

Figure 41

Acquisition in photopic controlled light conditions

Acquisition in mesopic controlled light conditions

Figure 42

ALADDIN - User manual Rev. 23 of 08/07/2016

13.10 Report printing

After every measurement, you can print the corresponding report or print all the measurements made in the

current exam. In the top-right corner of the screen, press on the button.

As shown in Figure 43 you can now select from the left column which report to print and also with which surgeon preset (from the “Surgeon” box).

You can print directly to an external printer or a USB drive and also print to both simultaneously.

Figure 43

In addition to these two options you can select a network folder as destination of report to print. For network folder settings, see 13.15.5.1.

The “Aladdin Report Options” allow to define which overlay will be printed in the topography maps images of the “Aladdin”. Refer to sections 13.13.1 and to 13.15.2 for details about this options.

By clicking on the Screenshot button (Figure 43) you can open the print screen preview and, as shown in Figure 44, send to print the document as represented in the preview.

ALADDIN - User manual Rev. 23 of 08/07/2016

Figure 44

13.10.1 Available Printers

The printing form is showing a list of available printers. The available printers are the one installed on the Operating System. Refer to “Appendix: Installing an external printer” or ask to your technical support in order to have the desired printer installed.

The application pre-selects always the last used printer.

ALADDIN - User manual Rev. 23 of 08/07/2016

13.10.2 Custom Reports

If the unit has been provided with Customized Reports they will be available to be selected for printing or exporting in the Printing form. In order to obtain custom reports contact you technical assistance.

ALADDIN - User manual Rev. 23 of 08/07/2016

13.11 Data Exportation

After every measurement, you can export the corresponding reports or xml date made in the current exam.

In the top-right corner of the screen, press on the button. The popup of Figure 45 is show where you can select one or more destinations for exportation.

Figure 45

Currently available destinations are:

 DICOM Storage SCP Server, the selected reports are sent to the designed DICOM storage location

according to prior defined settings. Refer to DICOM configuration for further details. Select the

desired reports to save on the Storage location.

You will receive the confirmation message in case of successful or unsuccessful transfer.

ALADDIN - User manual Rev. 23 of 08/07/2016

If Storage Commitment is configured you will receive the confirmation message in case of successful

or unsuccessful transfer.

 IMAGEnet 6/IMAGEnet i-base, the selected reports and data are sent to IMAGEnet i-base or

IMAGEnet 6 if activated and configured from the settings. If both are enabled the destination is

IMAGEnet 6.

 PhacoOptics®: http://www.phacooptics.net/, export biometry data in xml format to a network

shared folder, to be imported in PhacoOptics® software. Refer to section 13.15.5 and to

PhacoOptics® software instruction for further details on configuration.

 XML: create XML file with biometry data and IOL calculations (also images of the eye topography)

that is exported to the configured network shared folder. Refer to section 13.15.5.

When the selection of the destination you can press “Export” to perform exportation of data to the destinations, or “Cancel” to just close.

ALADDIN - User manual Rev. 23 of 08/07/2016

13.12 IOL CALCULATION

ALADDIN also includes a section for calculation of the intraocular lenses (IOL Calculation).

In order to perform the intraocular lens power calculation, the available power interval, the increments and the calculation constants must be provided for each type of formula and lens. These, however, do not depend solely on the type of lens and the calculation formula, but are also closely linked to the measuring technology and the surgical techniques used. It is strongly recommended that the user optimize the IOL constants in clinical practice and the type of device used for acquisition of the biometric data.

Figure 46

The screen has various sections, which we will explore in detail below:

- Data

- IOL Calculation

- Toric IOL calculation

- Post Refractive IOL Calculation

Caution: The Toric IOL Calculation function is not available for the US market.

The first time a surgeon enters in IOL Calculation, it will appear the panel shown in Figure 47 that contains the Disclaimer regarding the usage of the IOL Calculation. The Disclaimer will appear every time you enter in IOL Calculation or you want to print a IOL report, unless you check the box below before clicking the OK button. The Disclaimer is also replicated in the IOL settings (see 13.15.4.1), where you can even reactivate its appearance at every IOL usage.

ALADDIN - User manual Rev. 23 of 08/07/2016

Figure 47

13.12.1 Data

In this section there is a summary of the measurements performed with the instrument.

The screen displayed for the “Data” tab is as shown in Figure 46. As you can see, it has two sections:

- Biometry: detailing the data on the ocular biometry

- Keratometry: detailing the patient's keratometric data

From the “Source” field (present in both the Biometry and Keratometry sections, Figure 46), you can choose to use the measurements of the “Aladdin” instrument as source, or to enter them manually by pressing the “Manual” button. In this case, a panel opens (Figure 48) where you can enter the data manually using the numeric keypad.

ALADDIN - User manual Rev. 23 of 08/07/2016

Figure 48

In Figure 48 (Manual Keratometry tab), you can enter values both in Diopters or Millimeters. The values will be automatically recognized according to a specific range. This range goes from 6.75mm to 9.64mm, (from 35Diopters to 50Diopters). Also every mm/D conversion from now on will be performed on the basis of the current index in this section.

In Figure 48 you can manually enter biometry data; knowing that an external instrument does not always work in Optical mode, you can also select acoustic measurement mode.

WARNING: The responsibility for any data entered and checked manually lies exclusively on the user.

WARNING: Using data from acoustic instruments also means that the constant of every IOL must be optimized for those kinds of instrument; at present, it is more common to find online only databases of lenses optimized for optical interferometry instruments.

ALADDIN - User manual Rev. 23 of 08/07/2016

13.12.2 Spherical IOL calculation

The section where you process the data collected for the calculation of the best intraocular lens is divided into three main parts:

The IOL Calculation section is fundamental in calculating the total spherical power that will compensate the removal of the crystalline in cataract surgery. This calculation, depending on the case, will be sufficiently precise to guarantee the patient optimal vision.

In certain cases, however, if the corneal astigmatism exceeds a disturbance value, i.e. if faced with a medium or medium-high astigmatism, it is advisable to implant an intraocular lens that also takes this factor into account (refer to the following section).

In the “Toric IOL Calculation” section, a surgeon who has established, by means of a topography, the need for an astigmatic correction, can confidently use the Oculentis toric lens calculation. The calculation is made on the basis of the ideal spherical IOL and the patient's characteristics. The software then, on the basis of the corneal astigmatism, recalculates the one on the IOL plane, also considering the possible astigmatism induced by surgery.

The Toric IOL is thus chosen, which guarantees post-operation refraction with minimum residual astigmatism.

Caution: The Toric IOL Calculation function is not available for the US market.

Finally, in the “Post Refractive IOL” section you can calculate the intraocular lenses for patients who have already had refractive surgery to correct myopia or hypermetropia.

Figure 49

ALADDIN - User manual Rev. 23 of 08/07/2016

Figure 49 above shows the SW environment for entering data for the “IOL Calculation”. In the “Surgeon” field, you can choose which surgeon will perform the IOL implant and any customization of the constants or presetting of the preferred lenses and formulae will be applied on this basis. In “Target” field the target refractive value for the Post-Op must be inserted. The “Measurements” field summarizes the measurement data. From the drop-down menu, select the IOL manufacturer and model, as well as the preferred formula with which to calculate the best lens. Once this data has been entered, the most appropriate lens can be chosen at the discretion of the surgeon. The latter is highlighted in orange. Once selected, the lens will be memorized as the preferred one and will be shown highlighted on the report printout.

Pressing “Reset” will reset the initial preset conditions.

ALADDIN - User manual Rev. 23 of 08/07/2016

13.12.3 Toric IOL calculation

Toric IOL calculation is divided into two main steps. The first one consists on the calculation of the Spherical Equivalent Power; in the second one you can select the toric IOL that produce the best correction.

Caution: The Toric IOL Calculation function is not available for the US market.

Figure 50

Figure shows the first-step interface that has quite the same structure as the normal IOL calculation. The available toric lenses you can select come from a list of models whose calculation constants have been published by their manufacturer. The user can in case insert new toric manufacturers and/or models inside toric IOL settings section (see 13.15.4.3).

In addition to choosing the “Target”, you need to specify also the “Surgical Induced Astigmatism (SIA)” and “Incision Location (IL)”. The former identify the astigmatism (in diopters) induced by the incision while the latter identify the surgical incision axis. After having selected the toric IOL model and one of the available formulas, a values table from which to choose the Spherical Equivalent Power is obtained. Once you choose a lens, pressing “Next” at the bottom right, you enter in the second-step of toric IOL calculation (Figure 48).

ALADDIN - User manual Rev. 23 of 08/07/2016

Figure 51

“Measures” and “Surgical Pre Op Data” frames summarize the values used in the first-step calculation.

“Expected Post Op Cornea” frame gives information about the post surgery patient eye Keratometry, taking

into account the aforementioned SIA and IL.

If the option “Abulafia-Koch correction” is selected the astigmatism is corrected in the “Expected Post Op Cornea” by taking into account, together with SIA and IL, the nomogram-based correction. Refer to “Abulafia

A, Koch DD, Wang L, Hill WE, Assia EI, Franchina M, Barrett GD: New regression formula for toric intraocular lens calculation. – Journal of Cataract & Refractive Surgery, 2016 – Elsevier”. If the Toric IOL calculation is

performed using the Abulafia-Koch Correction it is reported in the corresponding Toric IOL report.

As a result, the “Toric IOL” frame, immediately below, details the best toric lens computed automatically by the system for the manufacturer and model selected previously in the first-step.

From “Available Toric Lenses” table you can choose also a different spherical and cylinder value for the lens, based on the Residual Astigmatism you want to achieve (under-correction/overcorrection). In particular, the best toric lens value is shown in the central row and (if available) the ones that under-correct above the central row, the ones that overcorrect below.

At the right side, you can find an image that illustrates the ideal position of the IOL once the implant is in place and in red the incision location angle.

Under the table, the small icon opens the Toric Rotation Misalignment Simulator (Figure 52).

ALADDIN - User manual Rev. 23 of 08/07/2016

Figure 52

This simulation shows the impact of a wrong axis placement that can occur during surgery and how it affects the residual sphere and cylinder refraction of the patient. The simulator starts at the correct axis placement and displays in the left bottom table a series of misalignment angles close to the ideal one. Selecting a different row you can see the new residual sphere and cylinder at the selected axis. In Figure 53 is shown the selection of a ten degrees misalignment, with the new axis selected in orange and the correct one in green.

ALADDIN - User manual Rev. 23 of 08/07/2016

Figure 53

13.12.4 Post Refractive IOL calculation

In this section, you can calculate intraocular lenses also for patients who have undergone refractive surgery to correct myopia or hyperopia by using the Camellin-Calossi formula and the Shammas no-history formula (Figure 54).

These formulae are used with patients who have had prior refractive surgery. Each such patient is unique and results may vary widely. You should interpret all IOL power recommendations with caution. In this environment, you need to manually enter certain fundamental data.

Figure 54

The first is the surgeon who performs the operation. As in IOL calculation, the constants may differ from one surgeon to another. The second data is the "LT”, i.e. the crystalline lens thickness. Next, select the correction type between the option shown below:

 Myopic  Hyperopic  Unknown

If the correction type is unknown:

- it won’t be possible to select the surgery type

- It is not possible to choose the Shammas No-History formula

- to use the Camellin Calossi formula, you must insert in the Input Data the pachimetry values and the

optic zone diameter.

ALADDIN - User manual Rev. 23 of 08/07/2016

If the correction type is myopic or hyperopic, you have to select the surgery type performed on the patient from those listed:

1. Radial Keratotomy (RK)

2. Photo Refractive Keratectomy (PRK)

3. Lasik

4. Lasek

5. LK

6. PTK

7. Unknown

In case of Radial Keratotomy, Photo Refractive Keratectomy, Lasik and Lasek you need to insert in the

“Refractive Change” frame the correct ametropia type and the correction factor obtained by the operation ( “SIRC”).

In case of LK, PTK or Unknown only the Camellin Calossi formula is available and you need to insert the current Pachymetric data as well as the diameter of the optical zone to improve the accuracy of the final calculation (Figure 55).

The Unknown option must be selected every time that you don’t know the type of surgery or one of the associated information. For example if you know your patient has undergone Radial Keratotomy or Photo Refractive Keratectomy or Lasik or Lasek but you don’t know the SIRC value, select Unknown and insert the pachimetry values.

Figure 55

By pressing “Next” you move on to the final diagram of the calculation. Here you decide on the “Target” and select the lens make and model. If you highlight the lens selected, the result is memorized and highlighted on the report.

ALADDIN - User manual Rev. 23 of 08/07/2016

Figure 56

The final result of the Post-Op calculation is shown in Figure 56 with the suggested lens highlighted in yellow.

ALADDIN - User manual Rev. 23 of 08/07/2016

13.13 MEASUREMENTS

All measurements performed during the examination can be reviewed in detail in the "Measurements" section. There are four types of measurement.

- KER: Keratometry

o ZER: Zernike Analysis

- AL: Axial length

- ACD: Anterior chamber depth

- PUP: Pupillometry

to which various environments correspond, described in detail in the following sections.

13.13.1 TOPOGRAPHIC MAP (KER)

Figure 57

The environment displayed is shown in Figure 57. Click on the “OD” or “OS” buttons to display the map of the right or left eye. The R and L buttons are only active if the keratometry of the eye in question has been acquired. In the right column, you can select the following options:

 Axial or Tangential: axial map or tangential map  Absolute or Normalized: absolute scale or standardized scale  Eye, Map, Rings: to display the image of the eye, the map, the rings

Pressing on any point on the map displays the following information:

ALADDIN - User manual Rev. 23 of 08/07/2016

 Diopters (D)  Radius (r)  Meridians (θ)  Altimetry (z)

The Scale buttons allow to switch between Absolute and Normalized (adjustable) scale color steps. When Normalized is pressed the button is replaced with controls that allows to adjust the color step for the current topography map. Minimum step size is 0.25 D or 0.05 mm depending on the selected measure unit.

Refer to section 13.15.2 for more settings relative to the topographic map representation.

Topographic map indices

The diagnostic indices can be selected with the following buttons (at the top, above the map):

 K: Keratometry  I: Keratorefractive indices  KC: Keratoconus  P: Pupil

Keratometry

Press the “K” button to display the keratometric data on the 3 mm, 5 mm and 7 mm zones, as shown in Figure 57 (by settings the zones can be set to 2,4,6 mm).

Keratorefractive indices

Press the ”I” button to view the keratorefractive indices:

ALADDIN - User manual Rev. 23 of 08/07/2016

Figure 58

 Astigmatism: Astigmatism at 3 and 5 mm (or 2 and 4 mm)  Pupil Avg: Average pupil power for a pupil of 4.5 mm  Asphericity: Asphericity of the cornea at 8 mm diameter  Spherical Aberration: Longitudinal spherical aberration of a 4.5mm diameter cornea area  Curvature Irregularity: Irregularity of curvature calculated on the standard deviation of the

instantaneous readings for a 4.5mm diameter cornea area

 Asymmetry + SAI: Asymmetry between the most curved hemisphere and the flattest one calculated

for 4.5mm diameter cornea area and an SAI (Surface Asymmetry Index) that represents the surface

asymmetry index of the 4.5mm diameter cornea area.

Keratoconus

Press the “KC” button to open Keratoconus screening with the following information:

ALADDIN - User manual Rev. 23 of 08/07/2016

Figure 59

 AK: Apical curvature.

Represents the power of the cornea in its apex

 AGC: apical gradient of curvature.

Represents the average variations per unit of length of the corneal power, taking the apical power as

reference.

 SI: difference between the average power of two circular zones centered in the vertical axis of the

ruler and placed in the lower hemisphere and in the upper hemisphere of the cornea respectively.

 Kpi: Keratoconus diagnosis probability index.

Based on the combined evaluation of the first three indices with the probability index, there are three different possibilities: topographic picture not compatible with keratoconus (green); suspected keratoconus (yellow); topographic picture compatible with keratoconus (red). If the topographic picture is compatible with keratoconus or indicates a suspected keratoconus, the numerical values of the geometric parameters of the cone are shown at the bottom of the panel. These are:

 A: area of the keratoconus (mm²)  D: average diameter of the keratoconus (mm)  r, ø: polar coordinates (mm, °) of the barycentre of the keratoconus in relation to the centre of the

map

 RND: circularity factor of the keratoconus

Pupil

Press the “P” button to open the pupil's indices:

ALADDIN - User manual Rev. 23 of 08/07/2016

Figure 60

 KC: KC represents the central keratometry in diopters  Avg Pupil Power: Average pupil power for a pupil of 4.5 mm and 3.0 mm  Photopic

o Pupil Dec.: Pupil decentralization from optical axis o Avg Pupil Ø: Mean diameter of the pupil

 Mesopic

o Pup Dec.: Pupil decentralization from optical axis o Avg Pupil Ø: Mean diameter of the pupil

ALADDIN - User manual Rev. 23 of 08/07/2016

Profile

Press the "Profile" button to view the curvature profile along the most curved meridian and the flattest meridian (red and blue). The difference is displayed in green (Figure 61).

By pressing the arrow buttons, you can vary the flattest and the most curved meridians. The graph will be modified accordingly. Pressing the “Map” button, you go back to the topographic map.

Figure 61

ALADDIN - User manual Rev. 23 of 08/07/2016

13.13.2 Zernike

The Zernike module provides a comprehensive view of the wavefront aberrations generated by the front surface of the cornea. The results of the Zernike axis are illustrated by means of numerical indices and graphic representations (Figure 62).

Figure 62

Click on the “OD” or “OS” buttons to view the results of the Zernike analysis for the right or left eye. On the left the OPD Map is detailed, representing the total aberration that corresponds to the sum of all the aberration components and the RMS value. This allows you to quantify the deviation with respect to an ideal wavefront. On entering the module, the aberrations map is displayed ( “Maps” section):

 Histograms of the Zernike expansion coefficients: each histogram represents the weight of the

corresponding polynomial.

 Primary aberrations map:

 Astigmatism: the map, the magnitude in diopters, the axis and the RMS value are displayed  Spherical aberration: the map, the quantity of longitudinal spherical aberration in diopters

and the RMS value are displayed

 Coma: the map, the RMS value and the direction are displayed  High Order: all the components of a higher order than the primaries are grouped; the map

and the RMS value are displayed.

Click on “Graphs” at the top left to display the vision quality summary (Figure 63). This section displays:

 Zernike Coefficient pyramid: represents the numerical value of each coefficient by means of a grey

scale; the greater the coefficient, the greater the color contrast with the pyramid's background.

 Point Spread Function: represents the intensity of the wavefront in the retina.

ALADDIN - User manual Rev. 23 of 08/07/2016

 Spot Diagram: represents the spatial distribution of the wavefront over the retina.  Visus/Visus Low Contrast: represent the patient's real vision at high and low

contrast.

Figure 63

The data displayed refers only to the component induced by the anterior surface of the cornea, not by the eye's entire optical system.

Press the “Maps” button to return to the maps display.

The “Pupil” button opens a panel (Figure 64) where you can select the diameter of the pupil (in a range between 2 mm and 7.5 mm) to see how the aberrations change with the variation of the pupil diameter.

ALADDIN - User manual Rev. 23 of 08/07/2016

Figure 64

It is possible to switch between ETDRS and Landolt C Visus simulation view.

ALADDIN - User manual Rev. 23 of 08/07/2016

13.13.3 AXIAL LENGTH (AL)

Figure 65

Figure 65 shows an axial length measurement.

In this screen you can select and display the interferometric graph for each measurement and from the left and right columns the measurements performed for the right eye and left eye, respectively. The measurements highlighted in yellow are the ones used to calculate the average axial length and are acceptable with respect to signal/noise. Those highlighted in red are those discarded by the system, for being unacceptable. It is always advisable to repeat a discarded measurement carefully.

ALADDIN - User manual Rev. 23 of 08/07/2016

13.13.4 ANTERIOR CHAMBER DEPTH (ACD)

Figure 66

Figure 66 gives an example of ACD (Anterior Chamber Depth) measurement.

Looking at the image in the centre of the screen, you can see that three different reflections are present. From the bottom, the first reflection is the slit's point of origin and is irrelevant for calculation purposes. The second half-moon-shaped reflection is the reflection of the light slit on the first corneal surface. The third reflection is divided into crystalline reflection - you can see that this reflection has a high thickness - and iris reflection. The latter is also irrelevant for calculation purposes. As for the axial length, if the instrument does not record good quality reflections, or if the data is inconsistent, the acquisition is discarded.

Caution should be practised when using the device’s ACD measurement for any given intraocular lens

calculation because of the high variability of this measurement.

The ACD measurement is the distance between corneal epithelium and the crystalline lens surface.

13.13.5 PUPILLOMETRY (PUP)

The pupillometry module allows displaying and analyzing the dynamic and static pupillometry (pupil images acquired in controlled light conditions).

Normally, if the pupillometry is acquired, the software goes into dynamic mode (Figure 67).

ALADDIN - User manual Rev. 23 of 08/07/2016

Figure 67

Click on “OD” or “OS” to display the pupillometry of the right or left eye, respectively. With the patient's eye in view, buttons are located below the home screen. These buttons are used to navigate between the acquired frames. The current frame is shown next to the buttons.

Display

 Ring Center: Shows the position of the fixation point  Pupil: Shows the blue ring, which highlights the pupil's edges  Grid: Shows an overlaid grid  Rulers: Shows calibrated rulers

Sequences

The user can select the sequence of images to be displayed using the buttons at the top:

 Dynamic  Photopic

 Mesopic

The active buttons are those for which at least one acquisition is present.

Dynamic

Clicking on the "Dynamic" button to display the dynamic pupillometry in the left column, the following information will also be displayed:

 Average: Value of the maximum and minimum pupil diameter measured in all the images acquired

during the sequence

 Pupil Center: Cartesian coordinates of the average pupil center and its standard deviation

ALADDIN - User manual Rev. 23 of 08/07/2016

 Diameter: Pupil diameter for the frame selected  Pupil Center (frame): Cartesian coordinates of the center of the pupil for the frame selected

Photopic, Mesopic

By clicking on the “Photopic”, “Mesopic” buttons static pupillometry acquisitions will be displayed, with the following information:

 Value of the average pupil diameter measured in all the images acquired during the sequence

The other information is the same as that already described for the dynamic pupillometry.

Functions

Graphs

Pressing the “Graphs” button displays the graphs relating to the pupil. This function is explained in the next paragraph.

Delete

Pressing the “Delete” button, the system cancels the current pupillometry frame and the data it contains.

Graphs

In this section three types of graph are displayed:

 Decentralization (Figure 68)  Latency (Figure 69)  Statistics (Figure 70)

In all these graphs you can select which eye you want to analyze by clicking on “OD” or “OS”. The “Close” button closes the graphs.

ALADDIN - User manual Rev. 23 of 08/07/2016

Decentralization

Figure 68

The green concentric circles identify the decentralization of the pupil center with respect to the fixation point. The red dots, on the other hand, represent the coordinate variations during acquisition of the dynamic pupillometry.

Latency

ALADDIN - User manual Rev. 23 of 08/07/2016

Figure 69

The graph shows the time in seconds on the abscissa and the pupil diameter in mm on the ordinate, in a scale standardized on the maximum and minimum value recorded. Next the progression of the pupil’s diameter over time is represented.

Taking into account that dynamic pupillometry consists of acquiring various images in variable light conditions, from mesopic to photopic and back to mesopic, on the "Settings" screen you can set the acquisition times for each mode (explained later). The left column shows the key to the graph.

Red for acquisition in mesopic light conditions. Green to indicate the pupil contraction phase following a change in brightness brought about by the LEDs

coming on. Blue for the pupil dilation phase following the change from LEDs on to LEDs off.

Remember that these graphs are only available if the acquisition of the dynamic pupillometry has been performed.

Statistics

ALADDIN - User manual Rev. 23 of 08/07/2016

Figure 70

The graph represents the static value of the percentile of the sample for each acquisition in controlled light conditions. As indicated in the key on the right-hand side and by the values detailed on the left, the red line represents the average value of the sample, the blue frame the value interval between the 25% and 75% percentiles, the green line the value interval between the 10% and 90% percentiles, and the red circle the values outside this interval. The graph is displayed only if images of the pupil have been acquired in photopic or mesopic conditions.

13.13.6 WHITE TO WHITE

The White to White section allows you to view the value of the corneal diameter calculated from limbus.

ALADDIN - User manual Rev. 23 of 08/07/2016

Figure 71

Clicking on the Open button in the Edit menu, the user can manually reposition positional indicators in order to refine the diameter measurements.

Figure 72

Next to the image, obtained by automatic white to white calculation, you can see:

 Corneal diameter;

ALADDIN - User manual Rev. 23 of 08/07/2016

 Decentralisation: deviation from the center of the iris with respect to the fixation point.

By changing the indicators position also values of corneal diameter and offset of the visual axis x and y are updated. The Reset button restores all values to the ones obtained by the automatic calculations of system.

ALADDIN - User manual Rev. 23 of 08/07/2016

13.14 EXAMINATION DATA SAVING

After performing some acquisitions and eventual IOL calculations, in order to save the data from the examination, click on the home button. As shown in Figure 73, the software will ask the user to confirm the action.

Figure 73

If you want to save the data of the patients without doing an acquisition, you have to press the “main” button when you are in the “acquisition” panel. The system will ask you if you want to save the current patient’s details.

ALADDIN - User manual Rev. 23 of 08/07/2016

13.15 SETTINGS

To access the “Settings” section, press the button.

Figure 74

The settings screen is divided into the following categories.

ALADDIN - User manual Rev. 23 of 08/07/2016

 General  Measurements  Surgeons  IOL  Report  Admin

From each settings environment you can close and return to the previous activity by selecting the "Close" button.

13.15.1 General

Refer to Figure 74: Language: The first time the program is started, the default language set is English and the keyboard layout is "QWERTY". To change the language settings, select the desired language from those that appear by clicking on the  button, press “Set” to set automatic start with the chosen language. It is suggested to reboot the device to apply all the settings. Keyboard Layout: To change the keyboard layout, select the desired layout and press "Set". You can display the update of the layout in the personal details window ("Main"). Date: Choose the desired date format and press on the “Set” button. You can also set the current system

date and time by clicking on the “Edit” button. Pointing Devices: Toggles the mouse cursor (on or off). OD/OS Notation: Toggles between two different notations, OD/OS will show the Latin notation to indicate

which eye is being acquired. The native language will depend on the words for left and right. Patient Required Fields: Toggles between two different options of required fields for creation of new

patient’s details. With ID only the ID is the only required field to insert when creating a patient. With this

option the patient list is by default shown by ID (can be changed to Surname and Name in the patient list view).

13.15.2 Measurements

The acquisition settings panel allows you to set parameters for display of the corneal map, the printout and acquisition and display of the pupillometry (Errore. L'origine riferimento non è stata trovata.).

Scales

Type

Select a map type:

 Axial  Tangential

Scales

Select a scale measure:

 Diopters  Millimeters

ALADDIN - User manual Rev. 23 of 08/07/2016

100

Select a scale type:

 Absolute  Normalized

Select a scale color map:

 Classic  ISO

 ISO 2005

Cylinder Notation

Select the type of cylinder notation:

 Positive  Negative

Figure 75

Refractive Index

Select the refractive index to work with. You can choose from 5 indices:

 1.3315  1.3320  1.3360  1.3375  1.3380

ISO 19980:2012(en) Ophthalmic instruments — Corneal topographers

ISO 19980:2005(en) Ophthalmic instruments — Corneal topographers

Topcon ALADDIN User Manual
