Texas Instruments TPSM84424EVM, TPSM84624EVM, TPSM84824EVM User Manual

User's Guide
SNVU581A–November 2017–Revised March 2018
Using the TPSM84824, TPSM84624, and TPSM84424EVM
Contents
1 Description.................................................................................................................... 2
2 Getting Started ............................................................................................................... 2
3 Test Point Descriptions ..................................................................................................... 3
4 Performance Data ........................................................................................................... 4
5 Bill of Materials (BOM) ...................................................................................................... 6
6 Schematic..................................................................................................................... 8
7 PCB Layout................................................................................................................... 9
List of Figures
1 EVM User Interface.......................................................................................................... 2
2 Efficiency (V 3 Efficiency (V
4 EN Start-up Waveforms..................................................................................................... 4
5 EN Shutdown Waveforms .................................................................................................. 4
6 Transient Performance...................................................................................................... 4
7 TPSM84824EVM Schematic ............................................................................................... 8
8 Topside Component Layout (Top View) .................................................................................. 9
9 Topside Copper (Top View) ................................................................................................ 9
10 Layer 2 Copper (Top View) ............................................................................................... 10
11 Layer 3 Copper (Top View) ............................................................................................... 10
12 Bottom-Side Copper (Top View) ......................................................................................... 11

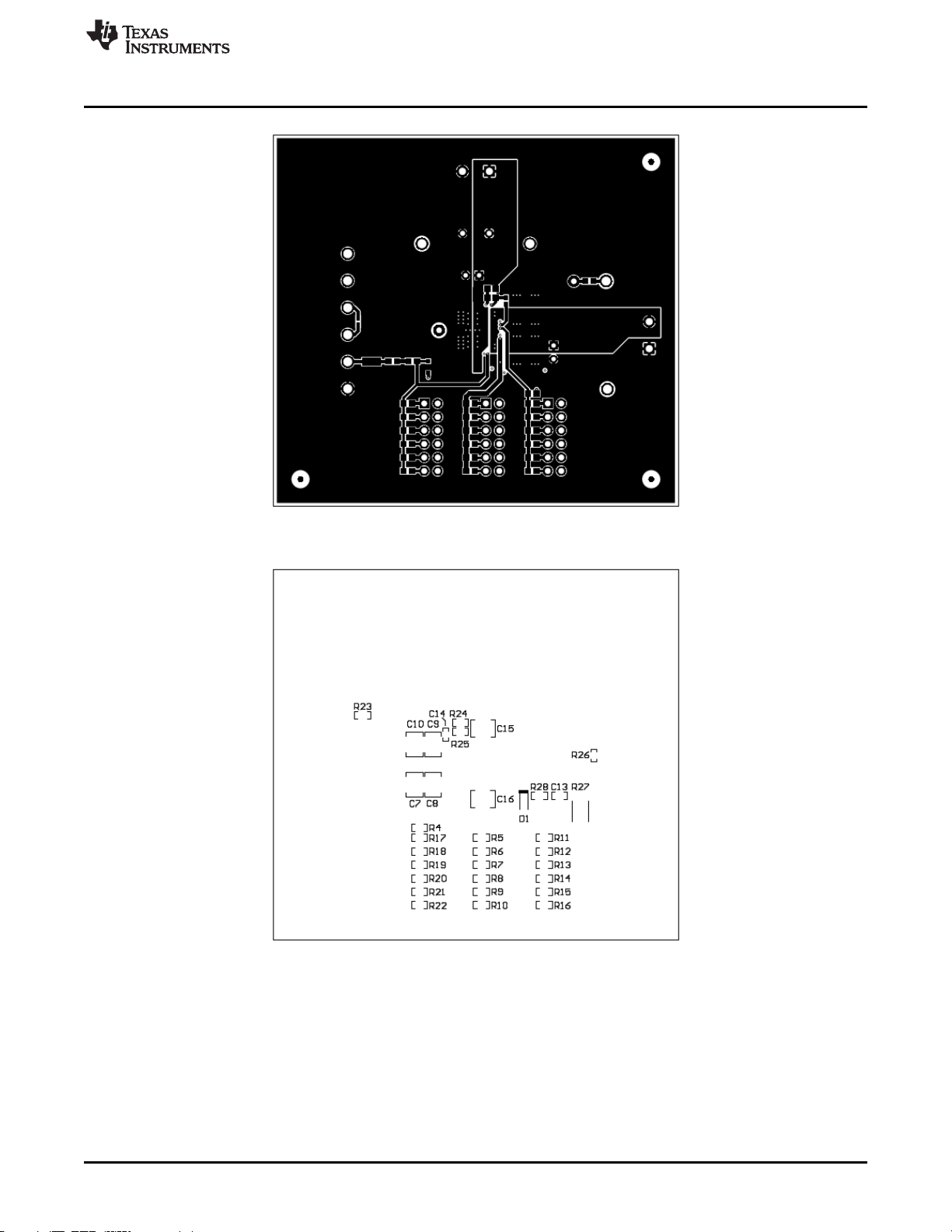

13 Bottom-Side Component Layout (Bottom View) ....................................................................... 11
= 12 V)....................................................................................................... 4
IN
= 5 V) ........................................................................................................ 4
IN
1 Output Voltage and Switching Frequency Jumper Settings............................................................ 3
2 Test Point Descriptions ..................................................................................................... 3
3 EVM Bill of Materials ........................................................................................................ 6
Trademarks
All trademarks are the property of their respective owners.
SNVU581A–November 2017–Revised March 2018
Submit Documentation Feedback
Copyright © 2017–2018, Texas Instruments Incorporated
List of Tables
Using the TPSM84824, TPSM84624, and TPSM84424EVM
1
Description

1 Description

This EVM features the TPSM84824/624/424 synchronous buck power module configured for operation with a 4.5-V to 17-V input voltage range. The output voltage can be set to one of six popular values by using a configuration jumper. Similarly, the switching frequency can be set to one of six values with a jumper. Additionally, the RTT resistor value, which selects the TurboTrans feature for improved transient response, is also selectable using a jumper. The full output current rating of the device can be supplied by the EVM. Input and output capacitors are included on the board to accommodate the entire range of input and output voltages. Monitoring test points are provided to allow measurement of efficiency, power dissipation, input ripple, output ripple, line and load regulation, and transient response. Control test points and component footprints are provided for use of the ENABLE, PGOOD, and CLK features of the device. The EVM uses a recommended PCB layout that maximizes thermal performance and minimizes output ripple and noise.

2 Getting Started

Figure 1 highlights the user interface items associated with the EVM. The VIN Power terminal block (J1) is
used for connection to the host input supply and the VOUT Power terminal block (J2) is used for connection to the load. These terminal blocks can accept up to 16-AWG wire.
www.ti.com
Figure 1. EVM User Interface
The S+ and S- test points for both VIN and VOUT, located near the power terminal blocks are intended to be used as voltage monitoring points where voltmeters can be connected to measure VIN and VOUT. Do
not use these S+ and S- monitoring test points as the input supply or output load connection points. The PCB traces connecting to these test points are not designed to support high currents.
The VIN Scope (J3) and VOUT Scope (J4) test points can be used to monitor VIN and VOUT waveforms with an oscilloscope. These test points are intended for use with un-hooded scope probes outfitted with a low-inductance ground lead (ground spring) mounted to the scope probe barrel. The two sockets of each test point are on 0.1 inch centers. The scope probe tip should be inserted into the socket marked with a white dot, and the scope ground lead should be inserted into the other socket.
The control test points located to the left of the device are made available to test the features of the device. The UVLO feature can be adjusted by changing resistors R24 and R25 on the bottom of the board. An external voltage can be applied to the PULL_UP test point for the PGOOD signal. Refer to the
Test Points Descriptions section of this guide for more information on the individual control test points.
2
Using the TPSM84824, TPSM84624, and TPSM84424EVM
Copyright © 2017–2018, Texas Instruments Incorporated
SNVU581A–November 2017–Revised March 2018
Submit Documentation Feedback
www.ti.com
The Fsw SELECT jumper (P1), the VOUT SELECT jumper (P2) and the RTT SELECT jumper (P3) are provided for selecting the desired output voltage, the appropriate switching frequency and the appropriate TurboTrans resistor value. Before applying power to the EVM, ensure that the jumpers are present and properly positioned for the intended output voltage, switching frequency, and TurboTrans resistor value. Refer to Table 1 for the recommended jumper settings. Always remove input power before changing the jumper settings.
Table 1. Output Voltage and Switching Frequency Jumper Settings
VOUT Select Fsw Select RTT Select
1 V 350 kHz 2 kΩ
1.2 V 450 kHz 3 kΩ
1.8 V 600 kHz 6 kΩ
3.3 V 1000 kHz 11 kΩ 5 V 1250 kHz 18 kΩ
7.5 V 1350 kHz 28 kΩ

3 Test Point Descriptions

Wire-loop test points and two scope probe test points have been provided as convenient connection points for digital voltmeters (DVM) or oscilloscope probes to aid in the evaluation of the device. A description of each test point follows:
Test Point Descriptions
Table 2. Test Point Descriptions
VIN S+ Input voltage monitor. Connect the positive lead of a DVM to this point for measuring efficiency. VIN S– Input voltage monitor. Connect the negative lead of a DVM to this point for measuring efficiency. VOUT S+ Output voltage monitor. Connect the positive lead of a DVM to this point for measuring efficiency, line
VOUT S– Output voltage monitor. Connect the negative lead of a DVM to this point for measuring efficiency, line
AGND Analog ground test point. PGND Power ground test point. VIN Scope (J3) Input voltage scope monitor. Connect an oscilloscope to this set of points to measure input ripple voltage. VOUT Scope (J4) Output voltage scope monitor. Connect an oscilloscope to this set of points to measure output ripple
ENABLE Enable test point. Connect this test point to AGND to disable the device. Leave this test point open to
PGOOD Monitors the power good signal of the device. This is an open drain signal. PULL_UP Test point provided for applying a pull-up voltage for the PGOOD signal. A 100-kΩ pull-up resistor (R26) is
CLK Synchronization clock input test point. An AC coupling capacitor (C13) is present on the EVM between this
(1)
Refer to the product datasheet for absolute maximum ratings associated with above features.
regulation, and load regulation.
regulation, and load regulation.
voltage and transient response.
enable the device.The UVLO resistor divider (R24 and R25) is connected at this point.
present on the EVM between this test point and the PGOOD signal.
test point and the SYNC pin of the device. Pads for a termination resistor (R27) are present between this test point and PGND. An external clock signal can be applied to this point to synchronize the device to an appropriate frequency.
(1)
SNVU581A–November 2017–Revised March 2018
Submit Documentation Feedback
Copyright © 2017–2018, Texas Instruments Incorporated
Using the TPSM84824, TPSM84624, and TPSM84424EVM
3
Output Current (A)
Efficiency (%)
0 1 2 3 4 5 6 7 8
40
45
50
55
60
65
70
75
80
85
90
95
100
D001
V
OUT
, F
SW
9.0 V, 1.3 MHz
7.5 V, 1.3 MHz
5.0 V, 1.2 MHz
3.3 V, 1.0 MHz
2.5 V, 800 kHz
1.8 V, 600 kHz
1.2 V, 450 kHz
1.0 V, 400 kHz
0.8 V, 300 kHz
Output Current (A)
Efficiency (%)
0 1 2 3 4 5 6 7 8
40
45
50
55
60
65
70
75
80
85
90
95
100
D002
V
OUT
, F
SW
3.3 V, 1.0 MHz
2.5 V, 800 kHz
1.8 V, 600 kHz
1.2 V, 450 kHz
1.0 V, 400 kHz
0.8 V, 300 kHz
Performance Data

4 Performance Data

Figure 2 through Figure 5 demonstrate the TPSM84824EVM performance. For more data regarding the
TPSM84824, TPSM84624, or the TPSM84424, please see the product data sheet.
Figure 2. Efficiency (VIN= 12 V) Figure 3. Efficiency (VIN= 5 V)
www.ti.com
Figure 4. EN Start-up Waveforms
4
Using the TPSM84824, TPSM84624, and TPSM84424EVM
Copyright © 2017–2018, Texas Instruments Incorporated
Figure 5. EN Shutdown Waveforms
SNVU581A–November 2017–Revised March 2018
Submit Documentation Feedback
www.ti.com
Performance Data
Figure 6. Transient Performance
SNVU581A–November 2017–Revised March 2018
Submit Documentation Feedback
Copyright © 2017–2018, Texas Instruments Incorporated
Using the TPSM84824, TPSM84624, and TPSM84424EVM
5
Bill of Materials (BOM)

5 Bill of Materials (BOM)

See Table 3 for the TPSM84824EVM, TPSM84624EVM, or TPSM84424 bill of materials.
www.ti.com
Table 3. EVM Bill of Materials
Designator Qty Value Description
C1, C2 2 10µF CAP, CERM, 10 µF, 25 V,+/- 10%, X7R, 1210 1210 GRM32DR71E106KA12L MuRata
C3, C4, C5, C6 4 47µF CAP, CERM, 47 µF, 10 V,+/- 10%, X7R, 1210 1210 GRM32ER71A476KE15L MuRata
C12 1 100µF CAP, AL, 100 µF, 50 V, +/- 20%, 0.162 ohm, TH EEUFC1H101B Panasonic C13 1 47pF CAP, CERM, 47 pF, 50 V,+/- 1%, C0G/NP0, 0603 0603 GRM1885C1H470FA01J MuRata
J1, J2 2 Terminal Block, 5.08 mm, 2x1, Brass, TH
J3, J4 2 Socket Strip, 2x1, 100mil, Black, Tin, TH
P1, P2, P3 3 Header, 100mil, 6x2, Tin, TH
R1 1 10.0k RES, 10.0 k, 1%, 0.063 W, 0402 0402 CRCW040210K0FKED Vishay-Dale R5 1 15.0k RES, 15.0 k, 1%, 0.1 W, 0603 0603 CRCW060315K0FKEA Vishay-Dale R6 1 10.0k RES, 10.0 k, 1%, 0.1 W, 0603 0603 CRCW060310K0FKEA Vishay-Dale R7 1 4.99k RES, 4.99 k, 1%, 0.1 W, 0603 0603 CRCW06034K99FKEA Vishay-Dale R8 1 2.21k RES, 2.21 k, 1%, 0.1 W, 0603 0603 CRCW06032K21FKEA Vishay-Dale
R9 1 1.37k RES, 1.37 k, 1%, 0.1 W, 0603 0603 CRCW06031K37FKEA Vishay-Dale R10 1 866 RES, 866, 1%, 0.063 W, 0603 0603 CRCW0603866RFKEA Vishay-Dale R11 1 143k RES, 143 k, 1%, 0.1 W, 0603 0603 CRCW0603143KFKEA Vishay-Dale R12 1 110k RES, 110 k, 1%, 0.1 W, 0603 0603 CRCW0603110KFKEA Vishay-Dale R13 1 82.5k RES, 82.5 k, 1%, 0.1 W, 0603 0603 CRCW060382K5FKEA Vishay-Dale R14 1 48.7k RES, 48.7 k, 1%, 0.1 W, 0603 0603 CRCW060348K7FKEA Vishay-Dale R15 1 38.3k RES, 38.3 k, 1%, 0.1 W, 0603 0603 CRCW060338K3FKEA Vishay-Dale R16 1 35.7k RES, 35.7 k, 1%, 0.1 W, 0603 0603 CRCW060335K7FKEA Vishay-Dale
R17, R28 2 2.00k RES, 2.00 k, 1%, 0.1 W, 0603 0603 CRCW06032K00FKEA Vishay-Dale
R18 1 3.01k RES, 3.01 k, 1%, 0.1 W, 0603 0603 CRCW06033K01FKEA Vishay-Dale R19 1 6.04k RES, 6.04 k, 1%, 0.1 W, 0603 0603 CRCW06036K04FKEA Vishay-Dale R20 1 11.3k RES, 11.3 k, 1%, 0.1 W, 0603 0603 CRCW060311K3FKEA Vishay-Dale R21 1 18.2k RES, 18.2 k, 1%, 0.1 W, 0603 0603 CRCW060318K2FKEA Vishay-Dale R22 1 28.0k RES, 28.0 k, 1%, 0.1 W, 0603 0603 CRCW060328K0FKEA Vishay-Dale R23 1 0 RES, 0, 5%, 0.1 W, 0603 0603 ERJ-3GEY0R00V Vishay-Dale R24 1 86.6k RES, 86.6 k, 1%, 0.1 W, 0603 0603 CRCW060386K6FKEA Vishay-Dale
Package
Reference
2x1 5.08 mm
Terminal Block
Socket Strip,
100mil, 2pin
Header, 6x2,
100mil, Tin
Part Number Manufacturer
ED120/2DS On-Shore Technology
310-43-102-41-001000 Mill-Max
PEC06DAAN Sullins Connector Solutions
6
Using the TPSM84824, TPSM84624, and TPSM84424EVM
SNVU581A–November 2017–Revised March 2018
Submit Documentation Feedback
Copyright © 2017–2018, Texas Instruments Incorporated
