Texas Instruments LM317DCY Schematic [ru]

www.ti.com

OUTPUT

INPUT

KCS (TO-220) P ACKAGE

(TOP VIEW)

ADJUST

OUTPUT

OUTPUT

INPUT

KC (TO-220) P ACKAGE

(TOP VIEW)

ADJUST

OUTPUT

DCY (SOT-223) PACKAGE

(TOP VIEW)

INPUT

OUTPUT

ADJUST

OUTPUT

KTE PACKAGE

(TOP VIEW)

INPUT
OUTPUT
ADJUST

OUTPUT

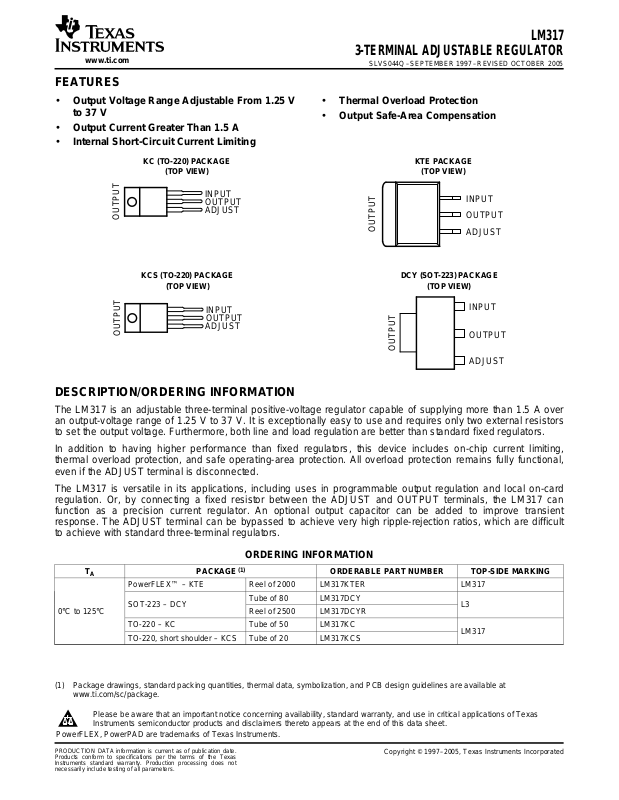

3-TERMINAL ADJUSTABLE REGULATOR

SLVS044Q – SEPTEMBER 1997 – REVISED OCTOBER 2005

FEATURES

• Output Voltage Range Adjustable From 1.25 V • Thermal Overload Protection

to 37 V

• Output Current Greater Than 1.5 A

• Internal Short-Circuit Current Limiting

• Output Safe-Area Compensation

LM317

DESCRIPTION/ORDERING INFORMATION

The LM317 is an adjustable three-terminal positive-voltage regulator capable of supplying more than 1.5 A over
an output-voltage range of 1.25 V to 37 V. It is exceptionally easy to use and requires only two external resistors
to set the output voltage. Furthermore, both line and load regulation are better than standard fixed regulators.

In addition to having higher performance than fixed regulators, this device includes on-chip current limiting,
thermal overload protection, and safe operating-area protection. All overload protection remains fully functional,
even if the ADJUST terminal is disconnected.

The LM317 is versatile in its applications, including uses in programmable output regulation and local on-card
regulation. Or, by connecting a fixed resistor between the ADJUST and OUTPUT terminals, the LM317 can
function as a precision current regulator. An optional output capacitor can be added to improve transient
response. The ADJUST terminal can be bypassed to achieve very high ripple-rejection ratios, which are difficult
to achieve with standard three-terminal regulators.

0 ° C to 125 ° C Reel of 2500 LM317DCYR

(1) Package drawings, standard packing quantities, thermal data, symbolization, and PCB design guidelines are available at

PowerFLEX, PowerPAD are trademarks of Texas Instruments.

PRODUCTION DATA information is current as of publication date.
Products conform to specifications per the terms of the Texas
Instruments standard warranty. Production processing does not
necessarily include testing of all parameters.

ORDERING INFORMATION

T

A

PowerFLEX™ – KTE Reel of 2000 LM317KTER LM317

SOT-223 – DCY L3

www.ti.com/sc/package.

Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas
Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.

TO-220 – KC Tube of 50 LM317KC
TO-220, short shoulder – KCS Tube of 20 LM317KCS

PACKAGE

(1)

Tube of 80 LM317DCY

ORDERABLE PART NUMBER TOP-SIDE MARKING

Copyright © 1997–2005, Texas Instruments Incorporated

LM317

www.ti.com

ADJUST

OUTPUT

INPUT

LM317
3-TERMINAL ADJUSTABLE REGULATOR

SLVS044Q – SEPTEMBER 1997 – REVISED OCTOBER 2005

SCHEMATIC DIAGRAM

Absolute Maximum Ratings

(1)

over virtual junction temperature range (unless otherwise noted)

MIN MAX UNIT

VI– V
T

J

T

stg

(1) Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings

only, and functional operation of the device at these or any other conditions beyond those indicated under "recommended operating
conditions" is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.

Package Thermal Data

PowerFLEX™ (KTE) High K, JESD 51-5 23 ° C/W 3 ° C/W

TO-220 (KC/KCS) High K, JESD 51-5 19 ° C/W 17 ° C/W 3 ° C/W

(1) Maximum power dissipation is a function of TJ(max), θJA, and TA. The maximum allowable power dissipation at any allowable ambient

temperature is PD= (TJ(max) – TA)/ θJA. Operating at the absolute maximum TJof 150 ° C can affect reliability.

(2) For packages with exposed thermal pads, such as QFN, PowerPAD™, or PowerFLEX™, θJPis defined as the thermal resistance

between the die junction and the bottom of the exposed pad.

Input-to-output differential voltage 40 V

O

Operating virtual junction temperature 150 ° C
Lead temperature 1,6 mm (1/16 in) from case for 10 s 260 ° C
Storage temperature range –65 150 ° C

(1)

PACKAGE BOARD θ

SOT-223 (DCY) High K, JESD 51-7 53 ° C/W 30.6 ° C/W

JA

θ

JC

(2)

θ

JP

2

www.ti.com

3-TERMINAL ADJUSTABLE REGULATOR

SLVS044Q – SEPTEMBER 1997 – REVISED OCTOBER 2005

Recommended Operating Conditions

MIN MAX UNIT

VI– V
I

O

T

J

Electrical Characteristics

over recommended ranges of operating virtual junction temperature (unless otherwise noted)

Line regulation

Load regulation IO= 10 mA to 1500 mA

Thermal regulation 20-ms pulse, TJ= 25 ° C 0.03 0.07 %V
ADJUST terminal current 50 100 µ A
Change in

ADJUST terminal current
Reference voltage VI– VO= 3 V to 40 V, PD≤ 20 W, IO= 10 mA to 1500 mA 1.2 1.25 1.3 V
Output-voltage

temperature stability
Minimum load current

to maintain regulation

Maximum output current A

RMS output noise voltage
(% of VO)

Ripple rejection VO= 10 V, f = 120 Hz dB

Long-term stability TJ= 25 ° C 0.3 1 %/1k hr

Input-to-output differential voltage 3 40 V

O

Output current 1.5 A
Operating virtual junction temperature 0 125 ° C

PARAMETER TEST CONDITIONS

(2)

VI– VO= 3 V to 40 V %/V

C

= 10 µ F,

ADJ

TJ= 25 ° C

TJ= 0 ° C to 125 ° C

(1)

MIN TYP MAX UNIT

TJ= 25 ° C 0.01 0.04
TJ= 0 ° C to 125 ° C 0.02 0.07

(3)

VO≤ 5 V 25 mV
VO≥ 5 V 0.1 0.5 %V
VO≤ 5 V 20 70 mV
VO≥ 5 V 0.3 1.5 %V

VI– VO= 2.5 V to 40 V, PD≤ 20 W, IO= 10 mA to 1500 mA 0.2 5 µ A

TJ= 0 ° C to 125 ° C 0.7 %V

VI– VO= 40 V 3.5 10 mA
VI– VO≤ 15 V, PD< P

VI– VO≤ 40 V, PD< P

(4)

MAX

(4)

, TJ= 25 ° C 0.15 0.4

MAX

1.5 2.2

f = 10 Hz to 10 kHz, TJ= 25 ° C 0.003 %V

= 0 µ F
= 10 µ F

(3)

(3)

62 64

57

C

ADJ

C

ADJ

LM317

O

O

/W

O

O

O

(1) Unless otherwise noted, the following test conditions apply: |VI– VO| = 5 V and I

techniques are used to maintain the junction temperature as close to the ambient temperature as possible.

= 1.5 A, TJ= 0 ° C to 125 ° C. Pulse testing

OMAX

(2) Line regulation is expressed here as the percentage change in output voltage per 1-V change at the input.
(3) C
(4) Maximum power dissipation is a function of TJ(max), θJA, and TA. The maximum allowable power dissipation at any allowable ambient

is connected between the ADJUST terminal and GND.

ADJ

temperature is PD= (TJ(max) – TA)/ θJA. Operating at the absolute maximum TJof 150 ° C can affect reliability.

3

www.ti.com

9.98

9.985

9.99

9.995

10

10.005

10.01

0

0.1

0.2

0.3

0.4

0.5

0.6

0.7

0.8

0.911.1

1.2

1.3

1.4

1.5

I

OUT

– A

V

OUT

– V

T = 25°C

A

T = –40°C

A

T = 125°C

A

V = 10 V Nom

OUT

-0.4

-0.2

0

0.2

0.4

0.6

0.8

1

1.2

1.4

0

0.2

0.4

0.6

0.811.2

1.4

1.6

1.822.2

2.4

2.6

2.833.2

3.4

I

OUT

– A

V

OUT

– V

T = 125°C

A

T = 25°C

A

T = –40°C

A

V = V

OUT REF

-5

-4.5

-4

-3.5

-3

-2.5

-2

-1.5

-1

-0.5

0

-30

-20

-10

0

10

20

30

40

50

60

70

Tim e – µs

Load Current – A

9

9.2

9.4

9.6

9.8

10

10.2

10.4

10.6

10.8

11

V

IN

V

OUT

C = 10 µF

ADJ

-5

-4.5

-4

-3.5

-3

-2.5

-2

-1.5

-1

-0.5

0

-30

-20

-10

0

10

20

30

40

50

60

70

Tim e – µs

Load Current – A

9

9.2

9.4

9.6

9.8

10

10.2

10.4

10.6

10.8

11

V

OUT

Deviation – V

V

IN

V

OUT

C = 0 µF

ADJ

LM317
3-TERMINAL ADJUSTABLE REGULATOR

SLVS044Q – SEPTEMBER 1997 – REVISED OCTOBER 2005

LOAD REGULATION LOAD REGULATION

TYPICAL CHARACTERISTICS

4

LOAD TRANSIENT RESPONSE LOAD TRANSIENT RESPONSE

www.ti.com

1.24

1.245

1.25

1.255

1.26

1.265

1.27

1.275

1.28

1.285

0

5

10

15

20

25

30

35

40

VIN– V

V

OUT

– V

T = 125°C

A

T = 25°C

A

T = –40°C

A

14

15

16

17

18

19

20

-25

-15

-5

5

15

25

35

45

55

65

Tim e – µs

V

IN

Change – V

9.98

10.00

10.02

10.04

10.06

10.08

10.10

V

OUT

– V

V

OUT

V

IN

C = 0 µF

ADJ

14

15

16

17

18

19

20

-25

-15

-5

5

15

25

35

45

55

65

Tim e – µs

V

IN

Change – V

9.98

10.00

10.02

10.04

10.06

10.08

10.10

10.12

V

OUT

– V

V

OUT

V

IN

C = 10 µF

ADJ

-90

-80

-70

-60

-50

-40

-30

-20

-10

100 1000 10000 100000 1000000

Frequency – Hz

Ripple Rejection – dB

VIN= 15 V

V

OUT

= 10 V

I

OUT

= 500 mA

TA= 25°C

100

1k

10k 100k

1M

C = 0 µF

ADJ

C = 10 µF

ADJ

TYPICAL CHARACTERISTICS (continued)

LM317

3-TERMINAL ADJUSTABLE REGULATOR

SLVS044Q – SEPTEMBER 1997 – REVISED OCTOBER 2005

LINE REGULATION LINE TRANSIENT RESPONSE

LINE TRANSIENT RESPONSE RIPPLE REJECTION

vs

FREQUENCY

5

www.ti.com

-68

-66

-64

-62

-60

-58

-56

-54

-52

-50

0

0.1

0.2

0.3

0.4

0.5

0.6

0.7

0.8

0.911.1

1.2

1.3

1.4

1.5

I

OUT

– A

Ripple Rejection – dB

VIN= 15 V

V

OUT

= 10 V

f = 120 Hz

TA= 25°C

-75

-70

-65

-60

-55

-50

-45

-40

-35

5 10 15 20 25 30 35

V

OUT

– V

Ripple Rejection – dB

VIN– V

OUT

= 15 V

I

OUT

= 500 mA

f = 120 Hz

TA= 25°C

LM317
3-TERMINAL ADJUSTABLE REGULATOR

SLVS044Q – SEPTEMBER 1997 – REVISED OCTOBER 2005

TYPICAL CHARACTERISTICS (continued)

RIPPLE REJECTION RIPPLE REJECTION

vs vs

OUTPUT CURRENT OUTPUT VOLTAGE

6

www.ti.com

LM317

R

1

240 Ω

I

Adj

R

2

Adjust

C

i

(Note A)

0.1 µF

C

O

(Note B)

1.0 µF

V

I

V

O

(Note C)

NOTES: A. Ci is not required, but is recommended, particularly if the regulator is not in close proximity to the power-supply filter

capacitors. A 0.1-µF disc or 1-µF tantalum provides sufficient bypassing for most applications, especially when adjustment

and output capacitors are used.
B. CO improves transient response, but is not needed for stability.
C. VO is calculated as shown:

Because I

Adj

typically is 50 µA, it is negligible in most applications.

D. C

ADJ

is used to improve ripple rejection; it prevents amplification of the ripple as the output voltage is adjusted higher. If

C

ADJ

is used, it is best to include protection diodes.

E. If the input is shorted to ground during a fault condition, protection diodes provide measures to prevent the possibility of

external capacitors discharging through low-impedance paths in the IC. By providing low-impedance discharge paths for

C

O

and C

ADJ

, respectively, D1 and D2 prevent the capacitors from discharging into the output of the regulator.

OutputInput

V

ref

= 1.25 V

VO V

ref



1 

R

2

R

1



 (I

Adj

 R2)

D1 (Note E)
1N4002

D2 (Note E)
1N4002

C

ADJ

(Note D)

LM317

3-TERMINAL ADJUSTABLE REGULATOR

SLVS044Q – SEPTEMBER 1997 – REVISED OCTOBER 2005

APPLICATION INFORMATION

Figure 1. Adjustable Voltage Regulator

7

www.ti.com

C1

0.1 µF

R1
120 Ω

R2
3 kΩ

INPUT OUTPUT

ADJUST

LM317

V

O

+35 V

R3
680 Ω

−10 V

Since I

Adj

typically is 50 µA, it is negligible in most applications.

V

O

 V

ref



1 

R2  R3

R1



 I

Adj

(R2  R3) – 10 V

VO is calculated as:

C1

0.1 µF

C3
1 µF

R1
240 Ω

INPUT OUTPUT

ADJUST

LM317

V

O

V

I

D1
1N4002
(see Note A)

R2
5 kΩ

C2
10 µF

NOTE A: D1 discharges C2 if the output is shorted to ground.

ADJUST

OUTPUTINPUT

V

I

R1

LM317

I

limit



1.2
R1

LM317
3-TERMINAL ADJUSTABLE REGULATOR

SLVS044Q – SEPTEMBER 1997 – REVISED OCTOBER 2005

APPLICATION INFORMATION (continued)

Figure 2. 0-V to 30-V Regulator Circuit

Figure 3. Adjustable Regulator Circuit With Improved Ripple Rejection

Figure 4. Precision Current-Limiter Circuit

8

www.ti.com

C1

0.1 µF

C2
1 µF

R1
240 Ω

INPUT OUTPUT

ADJUST

LM317

V

I

INPUT OUTPUT

ADJUST

V

O

LM317

R2

720 Ω

R3
120 Ω

R4
1 kΩ

Output

Adjust

R1

1.2 kΩ

R2
20 kΩ

INPUT OUTPUT

ADJUST

LM317

V

O

V

I

INPUT OUTPUT

ADJUST

LM317

V

O

(1)

V

I

INPUT OUTPUT

ADJUST

LM317

V

O

(1)

V

I

INPUT OUTPUT

ADJUST

LM317

V

O

(1)

V

I

R1
120 Ω

R2
1 kΩ

(1) Minimum load current from each output is 10 mA. All output voltages are within 200 mV of each other.

APPLICATION INFORMATION (continued)

LM317

3-TERMINAL ADJUSTABLE REGULATOR

SLVS044Q – SEPTEMBER 1997 – REVISED OCTOBER 2005

Figure 5. Tracking Preregulator Circuit

Figure 6. 1.25-V to 20-V Regulator Circuit With Minimum Program Current

Figure 7. Adjusting Multiple On-Card Regulators With a Single Control

9

www.ti.com

R1
240 Ω

R2

2.4 kΩ

INPUT OUTPUT

ADJUST

LM317

V

I

R

S

0.2 Ω

(see Note A)

NOTE A: RS controls the output impedance of the charger.

The use of RS allows for low charging rates with a fully charged battery.

Z

OUT

 R

S



1

R2
R1



INPUT OUTPUT

ADJUST

LM317

V

I

24 Ω

R1
240 Ω

INPUT OUTPUT

ADJUST

LM317

VO = 15 V

V

I

D1
1N4002

R2

2.7 kΩ

C1
25 µF

R3

50 kΩ

2N2905

LM317
3-TERMINAL ADJUSTABLE REGULATOR

SLVS044Q – SEPTEMBER 1997 – REVISED OCTOBER 2005

APPLICATION INFORMATION (continued)

Figure 8. Battery-Charger Circuit

Figure 9. 50-mA Constant-Current Battery-Charger Circuit

Figure 10. Slow Turn-On 15-V Regulator Circuit

10

www.ti.com

480 Ω

120 Ω

INPUT OUTPUT

ADJUST

LM317

V

I

120 Ω

480 Ω

INPUT OUTPUT

ADJUST

LM317

V

I

12 V

I(PP)

6 V

O(PP)

2 W (TYP)

R1
240 Ω

R2

1.1 kΩ

INPUT OUTPUT

ADJUST

LM317

V

I+

R3
(see Note A)

V

I−

NOTE A: R3 sets the peak current (0.6 A for a 1-Ω resistor).

APPLICATION INFORMATION (continued)

LM317

3-TERMINAL ADJUSTABLE REGULATOR

SLVS044Q – SEPTEMBER 1997 – REVISED OCTOBER 2005

Figure 11. AC Voltage-Regulator Circuit

Figure 12. Current-Limited 6-V Charger Circuit

11

www.ti.com

INPUT OUTPUT

ADJUST

LM317

V

I

2N2905

INPUT OUTPUT

ADJUST

LM317

INPUT OUTPUT

ADJUST

LM317

TL080

0.2 Ω

0.2 Ω

0.2 Ω

100 Ω

5 kΩ

5 kΩ

150 Ω

1.5 kΩ

200 pF

4.5 V to 25 V

_

+

INPUT OUTPUT

ADJUST

LM317

2N2905

22 Ω

V

I

5 kΩ

500 Ω

120 Ω

1N4002

See
Note A

10 µF
(see Note B)

47 µF

10 µF

TIP73

V

O

NOTES: A. The minimum load current is 30 mA.

B. This optional capacitor improves ripple rejection.

LM317
3-TERMINAL ADJUSTABLE REGULATOR

SLVS044Q – SEPTEMBER 1997 – REVISED OCTOBER 2005

APPLICATION INFORMATION (continued)

Figure 13. Adjustable 4-A Regulator Circuit

12

Figure 14. High-Current Adjustable Regulator Circuit

PACKAGE OPTION ADDENDUM

www.ti.com

26-Mar-2007

PACKAGING INFORMATION

Orderable Device Status

(1)

Package

Type

Package

Drawing

Pins Package

Qty

Eco Plan

LM317DCY ACTIVE SOT-223 DCY 4 80 Green (RoHS &

no Sb/Br)

LM317DCYG3 ACTIVE SOT-223 DCY 4 80 Green (RoHS &

no Sb/Br)

LM317DCYR ACTIVE SOT-223 DCY 4 2500 Green (RoHS &

no Sb/Br)

LM317DCYRG3 ACTIVE SOT-223 DCY 4 2500 Green (RoHS &

no Sb/Br)

LM317KC NRND TO-220 KC 3 50 Pb-Free

LM317KCE3 NRND TO-220 KC 3 50 Pb-Free

LM317KCS ACTIVE TO-220 KCS 3 50 Pb-Free

LM317KTER NRND PFM KTE 3 2000 TBD Call TI Call TI
LM317KTTR ACTIVE DDPAK/

TO-263

LM317KTTRG3 ACTIVE DDPAK/

TO-263

(1)

The marketing status values are definedas follows:

KTT 3 500 Green (RoHS &

no Sb/Br)

KTT 3 500 Green (RoHS &

no Sb/Br)

ACTIVE: Product device recommended for newdesigns.
LIFEBUY: TI has announced that thedevice will be discontinued, and a lifetime-buy period is in effect.
NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in

a new design.

PREVIEW: Device has been announced butis not in production. Samples may or may not be available.
OBSOLETE: TI has discontinued the productionof the device.

(RoHS)

(RoHS)

(RoHS)

(2)

Lead/Ball Finish MSL Peak Temp

CU SN Level-2-260C-1YEAR

CU SN Level-2-260C-1YEAR

CU SN Level-2-260C-1YEAR

CU SN Level-2-260C-1YEAR

CU SN N / A for Pkg Type

CU SN N / A for Pkg Type

CU SN N / A for Pkg Type

CU SN Level-3-245C-168 HR

CU SN Level-3-245C-168 HR

(3)

(2)

Eco Plan - The planned eco-friendly classification: Pb-Free (RoHS), Pb-Free (RoHS Exempt), or Green (RoHS & no Sb/Br) - please check

http://www.ti.com/productcontent for the latest availability informationand additional product content details.

TBD: The Pb-Free/Green conversion plan hasnot been defined.
Pb-Free (RoHS): TI's terms "Lead-Free" or "Pb-Free" mean semiconductor products that are compatible with the current RoHS requirements

for all 6 substances, including the requirement that lead not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered
at high temperatures, TI Pb-Free productsare suitable for use in specified lead-free processes.
Pb-Free (RoHS Exempt): This component has a RoHS exemption for either 1) lead-based flip-chip solder bumps used between the die and
package, or 2) lead-based die adhesive used between the die and leadframe. The component is otherwise considered Pb-Free (RoHS
compatible) as defined above.
Green (RoHS & no Sb/Br): TI defines "Green" to mean Pb-Free (RoHS compatible), and free of Bromine (Br) and Antimony (Sb) based flame
retardants (Br or Sb do notexceed 0.1% by weight in homogeneous material)

(3)

MSL, Peak Temp. -- The Moisture Sensitivity Level rating according to the JEDEC industry standard classifications, and peak solder

temperature.

Important Information and Disclaimer:The information provided on this page represents TI's knowledge and belief as of the date that it is
provided. TI bases its knowledge and belief on information provided by third parties, and makes no representation or warranty as to the
accuracy of such information. Efforts are underway to better integrate information from third parties. TI has taken and continues to take
reasonable steps to provide representative and accurate information but may not have conducted destructive testing or chemical analysis on
incoming materials and chemicals. TI and TI suppliers consider certain information to be proprietary, and thus CAS numbers and other limited
information may not be available forrelease.

In no event shall TI's liability arising out of such information exceed the total purchase price of the TI part(s) at issue in this document sold by TI
to Customer on an annual basis.

Addendum-Page 1

MECHANICAL DATA

MPDS094A – APRIL 2001 – REVISED JUNE 2002

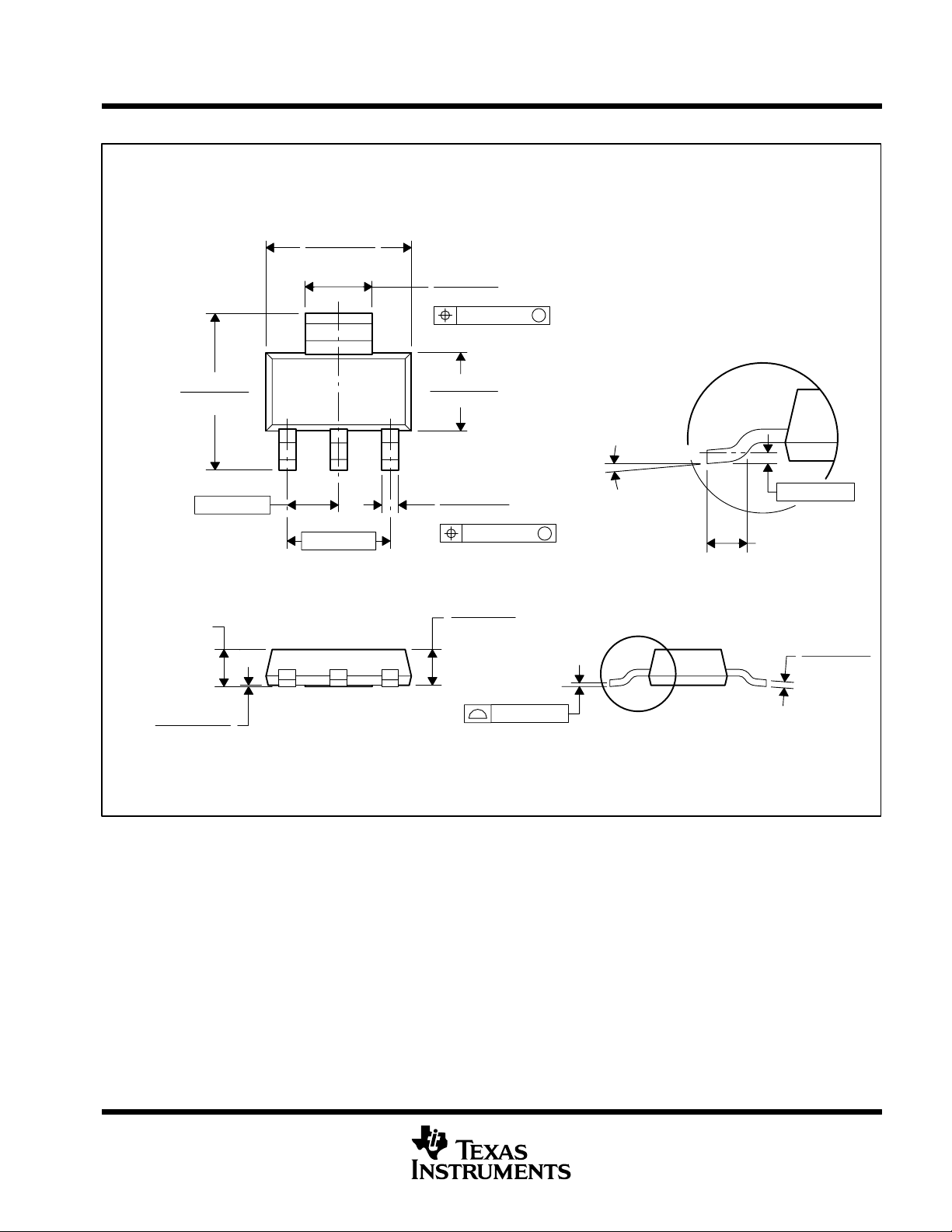

DCY (R-PDSO-G4) PLASTIC SMALL-OUTLINE

6,70 (0.264)
6,30 (0.248)

3,10 (0.122)

4

2,90 (0.114)

0,10 (0.004)

M

7,30 (0.287)
6,70 (0.264)

1 2 3

2,30 (0.091)

4,60 (0.181)

1,80 (0.071) MAX

0,10 (0.0040)

0,02 (0.0008)

NOTES: A. All linear dimensions are in millimeters (inches).

B. This drawing is subject to change without notice.
C. Body dimensions do not include mold flash or protrusion.
D. Falls within JEDEC TO-261 Variation AA.

3,70 (0.146)
3,30 (0.130)

0,84 (0.033)
0,66 (0.026)

0,10 (0.004)

1,70 (0.067)
1,50 (0.059)

Seating Plane

M

0,08 (0.003)

0°–10°

Gauge Plane

0,25 (0.010)

0,75 (0.030) MIN

0,35 (0.014)
0,23 (0.009)

4202506/B 06/2002

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

MECHANICAL DATA

MPFM001E – OCTOBER 1994 – REVISED JANUARY 2001

KTE (R-PSFM-G3) PowerFLEX PLASTIC FLANGE-MOUNT

0.420 (10,67)

0.410 (10,41)

0.295 (7,49)
NOM

0.100 (2,54)

0.200 (5,08)

1

0.375 (9,52)

0.365 (9,27)

0.360 (9,14)

0.350 (8,89)

0.220 (5,59)
NOM

3

0.025 (0,63)

0.031 (0,79)

0.320 (8,13)

0.310 (7,87)

0.010 (0,25)

0.360 (9,14)

0.350 (8,89)

M

0.080 (2,03)

0.070 (1,78)

0.050 (1,27)

0.040 (1,02)

0.010 (0,25) NOM

Thermal Tab
(See Note C)

Seating Plane

0.004 (0,10)

0.005 (0,13)

0.001 (0,03)

NOTES: A. All linear dimensions are in inches (millimeters).

B. This drawing is subject to change without notice.
C. The center lead is in electrical contact with the thermal tab.
D. Dimensions do not include mold protrusions, not to exceed 0.006 (0,15).
E. Falls within JEDEC MO-169

PowerFLEX is a trademark of Texas Instruments.

0.010 (0,25)
NOM

0.041 (1,04)

0.031 (0,79)

Gage Plane

3°–6°

0.010 (0,25)

4073375/F 12/00

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

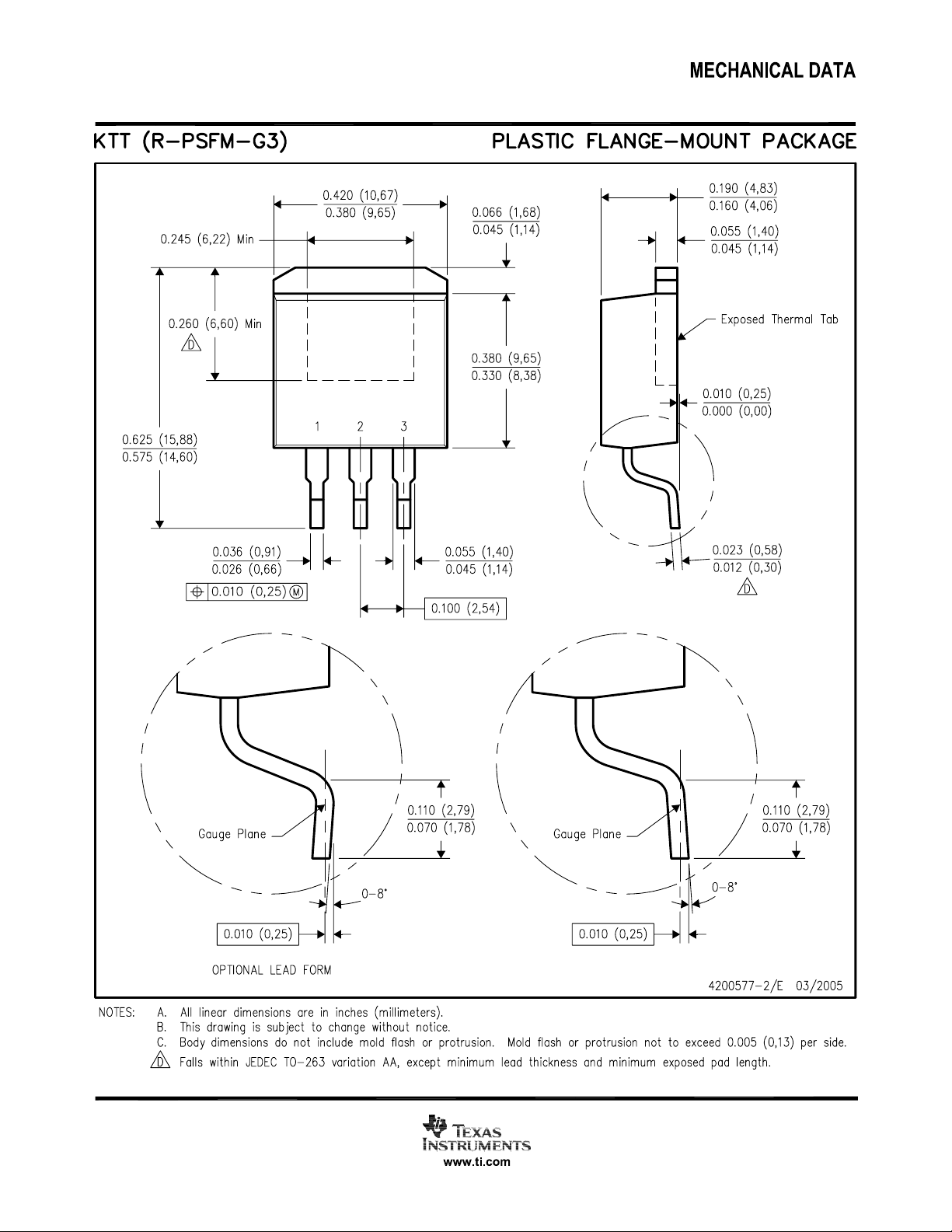

1

IMPORTANT NOTICE

Texas Instruments Incorporated and its subsidiaries (TI) reserve the right to make corrections, modifications,
enhancements, improvements, and other changes to its products and services at any time and to
discontinue any product or service without notice. Customers should obtain the latest relevant information
before placing orders and should verify that such information is current and complete. All products are sold
subject to TI’s terms and conditions of sale supplied at the time of order acknowledgment.

TI warrants performance of its hardware products to the specifications applicable at the time of sale in
accordance with TI’s standard warranty. Testing and other quality control techniques are used to the extent
TI deems necessary to support this warranty. Except where mandated by government requirements, testing
of all parameters of each product is not necessarily performed.

TI assumes no liability for applications assistance or customer product design. Customers are responsible
for their products and applications using TI components. To minimize the risks associated with customer
products and applications, customers should provide adequate design and operating safeguards.

TI does not warrant or represent that any license, either express or implied, is granted under any TI patent
right, copyright, mask work right, or other TI intellectual property right relating to any combination, machine,
or process in which TI products or services are used. Information published by TI regarding third-party
products or services does not constitute a license from TI to use such products or services or a warranty or
endorsement thereof. Use of such information may require a license from a third party under the patents or
other intellectual property of the third party, or a license from TI under the patents or other intellectual
property of TI.

Reproduction of information in TI data books or data sheets is permissible only if reproduction is without
alteration and is accompanied by all associated warranties, conditions, limitations, and notices.
Reproduction of this information with alteration is an unfair and deceptive business practice. TI is not
responsible or liable for such altered documentation.

Resale of TI products or services with statements different from or beyond the parameters stated by TI for
that product or service voids all express and any implied warranties for the associated TI product or service
and is an unfair and deceptive business practice. TI is not responsible or liable for any such statements.

Following are URLs where you can obtain information on other Texas Instruments products and application
solutions:

Products

Applications

Amplifiers amplifier.ti.com Audio www.ti.com/audio

Data Converters dataconverter.ti.com Automotive www.ti.com/automotive

DSP dsp.ti.com Broadband www.ti.com/broadband

Interface interface.ti.com Digital Control www.ti.com/digitalcontrol

Logic logic.ti.com Military www.ti.com/military

Power Mgmt power.ti.com Optical Networking www.ti.com/opticalnetwork

Microcontrollers microcontroller.ti.com Security www.ti.com/security

Low Power Wireless www.ti.com/lpw Telephony www.ti.com/telephony

Video & Imaging www.ti.com/video

Wireless www.ti.com/wireless

Mailing Address: Texas Instruments
Post Office Box 655303 Dallas, Texas 75265

Copyright © 2007, Texas Instruments Incorporated
