Texas Instruments 74ACT11074N, 74ACT11074DR, 74ACT11074DBR, 74ACT11074DBLE, 74ACT11074D Datasheet

74ACT11074

DUAL POSITIVE-EDGE-TRIGGERED D-TYPE FLIP-FLOP

WITH CLEAR AND PRESET

SCAS498A – DECEMBER 1986 – REVISED APRIL 1996

1

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

D

Inputs Are TTL-Voltage Compatible

D

Center-Pin VCC and GND Configurations to
Minimize High-Speed Switching Noise

D

EPIC

t

(Enhanced-Performance Implanted

CMOS) 1-mm Process

D

500-mA Typical Latch-Up Immunity
at 125°C

D

Package Options Include Plastic
Small-Outline (D) and Shrink Small-Outline
(DB) Packages, and Standard Plastic
300-mil DIPs (N)

description

This device contains two independent positive-edge-triggered D-type flip-flops. A low level at the preset (PRE)
or clear (CLR

) input sets or resets the outputs regardless of the levels of the other inputs. When PRE and CLR
are inactive (high), data at the data (D) input meeting the setup-time requirements are transferred to the outputs
on the low-to-high transition of the clock (CLK) pulse. Clock triggering occurs at a voltage level and is not directly
related to the rise time of the clock pulse. Following the hold time interval, data at the D input may be changed
without affecting the levels at the outputs.

The 74ACT11074 is characterized for operation from –40°C to 85°C.

FUNCTION TABLE

INPUTS

OUTPUTS

PRE

CLR

CLK D Q Q

L H X X H L
H LXXLH
L LXXH{H

{

H H ↑ HHL
H H ↑ LLH
H H L X Q

0

Q

0

†

This configuration is unstable; that is, it does not
persist when either PRE

or CLR returns to its

inactive (high) level.

Copyright  1996, Texas Instruments Incorporated

PRODUCTION DATA information is current as of publication date.
Products conform to specifications per the terms of Texas Instruments
standard warranty. Production processing does not necessarily include
testing of all parameters.

Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of
Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.

EPIC is a trademark of Texas Instruments Incorporated.

1
2
3
4
5
6
7

14
13
12
11
10

9
8

1PRE

1Q
1Q

GND

2Q
2Q

2PRE

1CLK
1D
1CLR
V

CC

2CLR
2D
2CLK

D, DB, OR N PACKAGE

(TOP VIEW)

74ACT11074
DUAL POSITIVE-EDGE-TRIGGERED D-TYPE FLIP-FLOP
WITH CLEAR AND PRESET

SCAS498A – DECEMBER 1986 – REVISED APRIL 1996

2

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

logic symbol

†

S

C1
1D
R

2

3

6

5

1Q

2Q

1Q

2Q

1
14
13
12
7
8
9
10

1PRE

1CLR

2PRE

2CLR

1CLK

1D

2CLK

2D

†

This symbol is in accordance with ANSI/IEEE Std 91-1984 and IEC Publication 617-12.

absolute maximum ratings over operating free-air temperature range (unless otherwise noted)

†

Supply voltage range, V

CC

–0.5 V to 6 V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Input voltage range, V

I

(see Note 1) –0.5 V to V

CC

+ 0.5 V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Output voltage range, VO (see Note 1) –0.5 V to V

CC

+ 0.5 V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Input clamp current, I

IK

(V

I

< 0 or VI > VCC) ±20 mA. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Output clamp current, I

OK

(V

O

< 0 or VO > VCC) ±50 mA. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Continuous output current, I

O

(V

O

= 0 to VCC) ±50 mA. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Continuous current through V

CC

or GND ±100 mA. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Maximum power dissipation at TA = 55°C (in still air) (see Note 2):D package 1.25 W. . . . . . . . . . . . . . . . . . .

DB package 0.5 W. . . . . . . . . . . . . . . . . . .

N package 1.1 W. . . . . . . . . . . . . . . . . . . .

Storage temperature range, T

stg

–65°C to 150°C. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

†

Stresses beyond those listed under “absolute maximum ratings” may cause permanent damage to the device. These are stress ratings only, and
functional operation of the device at these or any other conditions beyond those indicated under “recommended operating conditions” is not
implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.

NOTES: 1. The input and output voltage ratings may be exceeded if the input and output current ratings are observed.

2. The maximum package power dissipation is calculated using a junction temperature of 150_C and a board trace length of 750 mils,
except for the N package, which has a trace length of zero.

recommended operating conditions

MIN MAX UNIT

V

CC

Supply voltage 4.5 5.5 V

V

IH

High-level input voltage 2 V

V

IL

Low-level input voltage 0.8 V

V

I

Input voltage 0 V

CC

V

V

O

Output voltage 0 V

CC

V

I

OH

High-level output current –24 mA

I

OL

Low-level output current 24 mA

Dt/D

v Input transition rise or fall rate 0 10 ns/V

T

A

Operating free-air temperature –40 85 °C

74ACT11074

DUAL POSITIVE-EDGE-TRIGGERED D-TYPE FLIP-FLOP

WITH CLEAR AND PRESET

SCAS498A – DECEMBER 1986 – REVISED APRIL 1996

3

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

electrical characteristics over recommended operating free-air temperature range (unless
otherwise noted)

TA = 25°C

PARAMETER

TEST CONDITIONS

V

CC

MIN TYP MAX

MIN

MAX

UNIT

4.5 V 4.4 4.4

I

OH

= –50

m

A

5.5 V 5.4 5.4

V

OH

4.5 V 3.94 3.8

V

I

OH

= –24

mA

5.5 V 4.94 4.8

IOH = –75 mA

†

5.5 V 3.85

4.5 V 0.1 0.1

I

OL

=

50

m

A

5.5 V 0.1 0.1

V

OL

4.5 V 0.36 0.44

V

I

OL

=

24 mA

5.5 V 0.36 0.44

IOL = 75 mA

†

5.5 V 1.65

I

I

VI = VCC or GND 5.5 V ±0.1 ±1

m

A

I

CC

VI = VCC or GND, IO = 0 5.5 V 4 40

m

A

D

I

CC

‡

One input at 3.4 V , Other inputs at GND or V

CC

5.5 V 0.9 1 mA

C

i

VI = VCC or GND 5 V 3.5 pF

†

Not more than one output should be tested at a time, and the duration of the test should not exceed 10 ms.

‡

This is the increase in supply current for each input that is at one of the specified TTL voltage levels rather than 0 V or VCC.

timing requirements over recommended ranges of supply voltage and free-air temperature (unless
otherwise noted) (see Figure 1)

TA = 25°C
MIN MAX

MIN

MAX

UNIT

f

clock

Clock frequency

0 100 0 100 MHz

PRE or CLR low 5 5

twPulse duration

CLK low or high 5 5

ns

Data high or low 4.5 4.5

t

su

S

etup time before

CLK↑

PRE or CLR inactive 2 2

ns

t

h

Hold time after CLK↑ 0 0 ns

switching characteristics over recommended ranges of supply voltage and free-air temperature
(unless otherwise noted) (see Figure 1)

FROM TO

TA = 25°C

PARAMETER

(INPUT) (OUTPUT)

MIN TYP MAX

MIN

MAX

UNIT

f

max

100 125 100 MHz

t

PLH

1.5 5.7 8.9 1.5 9.6

t

PHL

PRE

or

CLR

Q

or

Q

1.5 6.6 11.3 1.5 12.5

ns

t

PLH

1.5 6 8.5 1.5 9.4

t

PHL

CLK

Q or Q

1.5 5.7 8 1.5 8.8

ns

operating characteristics, V

CC

= 5 V, T

A

= 25°C

PARAMETER TEST CONDITIONS TYP UNIT

C

pd

Power dissipation capacitance per flip-flop CL = 50 pF, f = 1 MHz 30 pF

74ACT11074
DUAL POSITIVE-EDGE-TRIGGERED D-TYPE FLIP-FLOP
WITH CLEAR AND PRESET

SCAS498A – DECEMBER 1986 – REVISED APRIL 1996

4

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

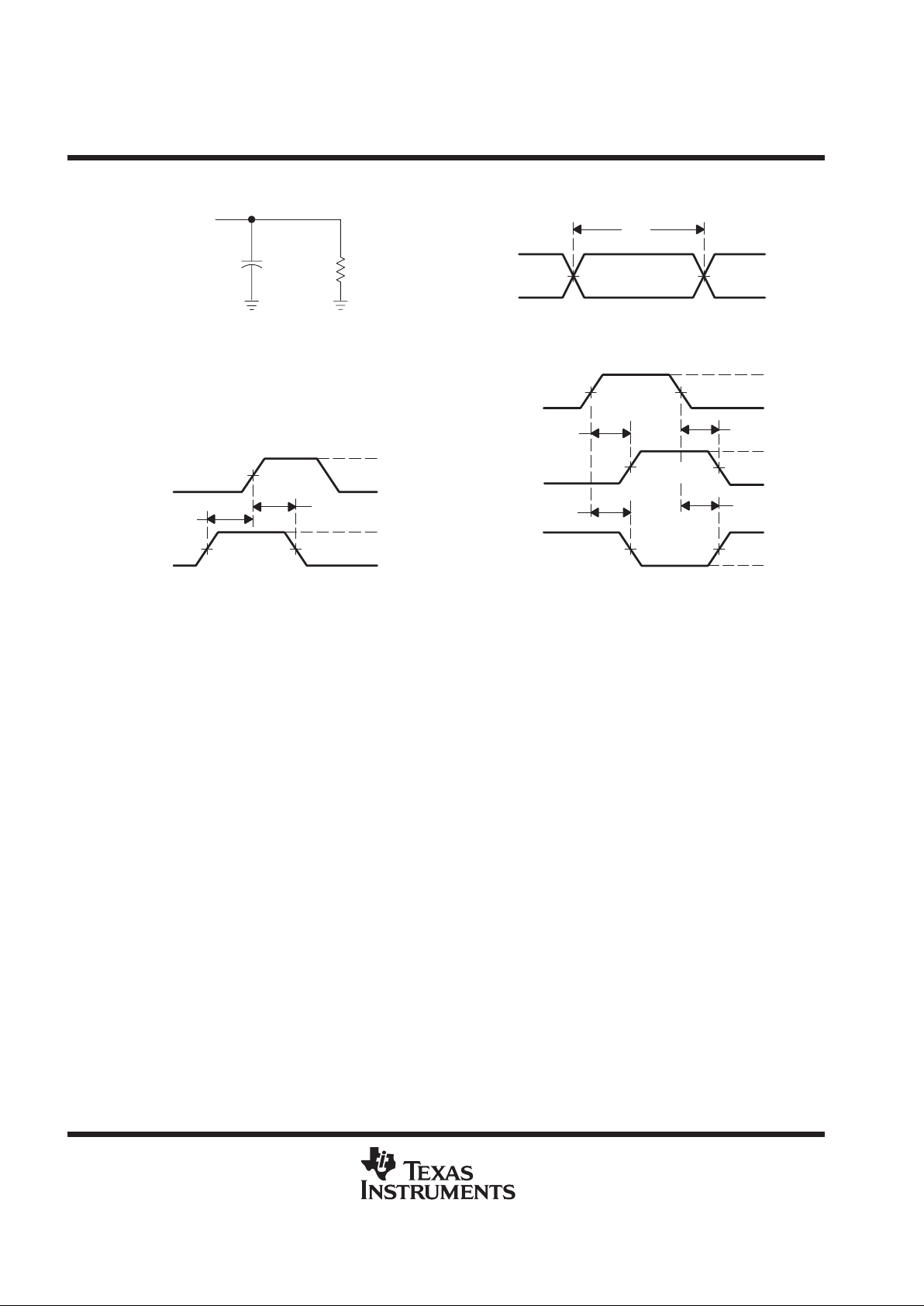

PARAMETER MEASUREMENT INFORMATION

50% V

CC

1.5 V

1.5 V

1.5 V

3 V

3 V

0 V

0 V

t

h

t

su

VOLTAGE WAVEFORMS

Data Input

t

PLH

t

PHL

t

PHL

t

PLH

V

OH

V

OH

V

OL

V

OL

1.5 V 1.5 V

3 V

0 V

50% V

CC

50% V

CC

Input

(see Note B)

Out-of-Phase

Output

In-Phase

Output

Timing Input

(see Note B)

50% V

CC

VOLTAGE WAVEFORMS

3 V

0 V

1.5 V 1.5 V

t

w

VOLTAGE WAVEFORMS

Input

LOAD CIRCUIT

From Output

Under Test

CL = 50 pF

(see Note A)

500 Ω

NOTES: A. CL includes probe and jig capacitance.

B. All input pulses are supplied by generators having the following characteristics: PRR ≤ 1 MHz, ZO = 50 Ω, tr = 3 ns, tf = 3 ns.

C. The outputs are measured one at a time with one input transition per measurement.

Figure 1. Load Circuit and Voltage Waveforms
