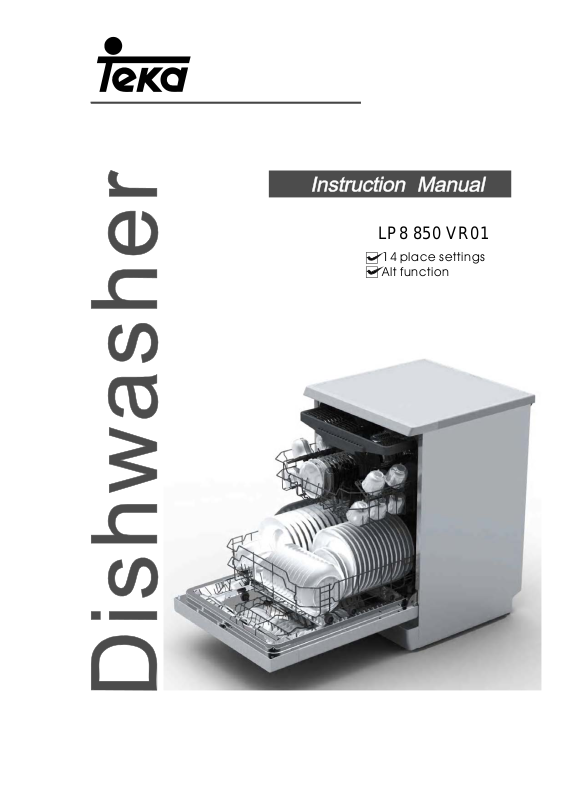

LP8 850 VR01
14 place settings
Alt function
Fordetailedoperatingmethodread thecorrespondingcontent on t he instructionmanual.
Switch on the appliance
Fill the detergent dispenser
Check the rinse aid level
Checkthe regeneration
salt level
Load the baskets
Select a programme
Open the door, press the On/Off button to switch on the appliance.
Witheachwashcycle.
For programmes with pre-wash only.
(Follow the user instructions!)
Electric indicator on control panel(if provided).
(On models with watersoftener system only.)
Electricindicator on control panel (if provided).
If there is no salt warning light in the control panel
(for some models), you can estimate when to fill the salt into
the softener by the number of cycles the dishwasher has run.
Scrapeoff any large amount of leftover food. Soften remnants ofburnt foodin pa ns,
thenload the baskets. Referto the dishwasherloadinginstructions.
Press the Programme Button, the selected programme indicator lights up.
( See the section entitled Operationg instruc tion )“”
C
B
A
Running thedishwasher
Changing the programme
Add forgottendishes in the
dishwasher.
If the appliance is switched
off during a wash cycle.
Switch off the appliance
Close the door, turn on the water tap . The machine will start working
after about 10 seconds.
1.A running cycle can onlybe modified if it has been running for a short time.Otherwise the detergent
may have already been released and the water alreadydrained. If this is the case, the detergent
dispenser mustbe refilled.
2. Open the door, press the program button more than 3 seconds, the machine will be in
standbystate, thenyou can change the program t o thedesiredcycle setting.
1.Open the door a little to stop the washing.
2.After the spray arms stop working, you can open the door
completely.
3.Addforgottendishes.
4.Close the door, the dishwasher will run after 10 seconds.
If the appliance is switched off during a wash cycle, when switched
on again, please re-select the washing cycle and operate the dishwasher
according to the original Power-on state.
When the working cycle has finished, the buzzer of the
dishwasher will sound 8 times, then stop.
Turn off the appliance using the On/Off Button.
Open the door careful ly.
Hots team may esc ape
when thedoorisopened!
Turn off the water tap,
unload the baskets
Warning: wait a few minutes (about 15 minutes) before unloading the dishwasher to avoidhandling
the dishes and utensils while they are still hot and more susceptible to break.
They will alsodry better.Unload the appliance, starting from the lower basket.
Dear Customer,
This appli ance is intended t o be use d in h ousehol d
andsimilarapplications such as:
-staff kitch en ar eas in s hops, off ices and other
workin g en viro nme nts;
-farm houses;
-by cli ents inh otels , motels and othe r residen tial
ty pe e nvir o nment s;
-bed andbreakfast type environments.
Pleasecarefully readth ism anualbefore usingthe
dishwasher,it willhelpyou to useandmaintainthe
dishwasher properly.
Keep it as a re f er i n the late r days .
Passit onto any subsequentownerof the appliance.
ControlPanel...................................................3
Dishw as h er Feat ure s... ... .. ....... ......... . ... ........ ...3
A WaterSoftener...... ...... ....... ..... ...... ...... ..... ..4、
B Loadin g the S a lt into the Softener.... .. . ... .. . .. .. 5、
C Fill theRinseAidDispenser.........................5、
D Function ofDetergent.................................6
、
Thismanual containssections on safetyInstructions,
Operating Instructio ns, InstallationInstructionsand
Trouble sho o tin g Tip s, etc.
To re view the section on t roublesho oting Tips
will help you t osolve some common problems
byyourself .
Ifyou can not solve the problems by yo urself ,
please ask fo r the help of p rofessional technician s.
Attentio n b efore or after loading the Dis hwash er
Baskets...................... ....................................9
Loadingthe upper Basket................... ............10
Loading the Lower Basket.......... .......... ...........10
CutleryBasket.................................. ............11
Therecommend ed method load ing b ig
dishwar e......... ........................... ................ ...12
WashCycleTable.................................. .........13
Turning on theAppliance................................14
ChangetheProgramme..................................14
At theend of the Wash Cycle...........................14
FilteringSystem.............................................15
Caring for the Dishwasher......................... ......16
Position ingtheApplian ce...............................17
About Powe r C o nnec ti on.... ... .... .. . ... ..... . .. ...... . 17
Water Co nnec ti on.... ... .... .. . ... ..... . .. .... ... .. .... ... .18
Startof dishwasher........................................19
The manufactu rer,following a p olicy ofconstant
development a nd updati ng of the product, may
make modificatio ns witho ut givi ng prior notice.
Beforecallingforservice................... ..............20
Errorcodes................................... ................21
Technical information.....................................22
When using your dishwashe r, follow the prec aut i ons lis t ed below:
This appliance must be grounded. In the event of a
malfunction or breakdown, grounding will reduce
the risk of anelectric shock by providing a path of
least resistance of electric current. This appliance
is equipped with a cord having an equipmentgrounding conductor and a grounding plug.
The plug must be plugged into an appropriate outlet
that is installed and grounded in accordance with
all local codes and ordinances.
Donotabuse,siton,orstandonthedoorordish
rack of the dishwasher.
Do not touch theheating element during or
immediately after use.
(This instruction is only applicableto machines
with a visual heating element.)
Do not operate your dishwasher unless all
enclosure panels are properly in place. Open
the door very carefully if the dishwasher is
operating, there is a risk of water squirting out.
Do not place any heavy objectson or stand on the
door when it is open. The appliance could tip
forward.
When loadin g items to be washed :
1) Locate sharp items so t hat theyare not likely
to damage the door seal;
2) Warning: Kniv es and other utensil s wi th
sharp points must be l oaded in t he ba sket
with their points down orplaced in a
horizontalposition.
When using y our dishwasher, you should
pr ev ent plastic ite m s fr om c oming in t o co ntact
with the h eating element.(T his inst ruction is only
applicable to machines with a v isual he ating
element. )
Check that th e deterge nt comparm ent is e mpty
after completio n of the wash cycle.
Do not wash plastic items unless they are marked
dishwasher safe or the equivalent. For plastic items
n
ot so marked, check the manufacturer's
recommendations.
Use only det ergent and rinse additives
design ed for an a ut omati c dishwas her.
Never use so ap, laun dry dete rgent, or h and
washing dete rgent in your dishwasher. Keep
these pr oducts o ut of th e reach of chi ldren.
Improper connection of the equipment-grounding
conductor can result in the risk of an electric shock.
Check with a qualified electrician or service
representative if you are in doubt whether the
appliance is properly grounded. Do not modify the
plug provided with the appliance; If it does not fit
the outlet. Have a proper outlet installed by a
qualified electrician.
Keep children away from detergent and rinse aid, keep
children away from the open door of the dishwasher,
there could still be some detergent left inside.
This appliance is not intended for use by persons
(including children )with reduced physical, sensory or
mental capabilities, or lack of experience and
knowledge ,unless they have been given supervision
or instruction concerning use of the appliance by a
person responsible for their safety.
Children should be supervised to ensure that they do
not play with the appliance.
Dishwasher de tergents are strongly al kaline, th ey
can be extr emely dangerou s if swallowed.Avoid
contact with ski n and e yes and keep children away
from t he dishwas her when the door is open.
The door sh ould n ot be left open,
since this could increase t he ris k of tripping.
Ifthes upplycordis damaged,it mustbe replaced
bythemanufactureroritsserviceagentora
similar ly q uali fi ed pers on in order to av oid a
hazard.
Remove the door to the washing compartment when
removing an old dishwasher from service or discarding it.
Pleasedispose ofpacking m aterials properly.
Use the dishwasher only for its intended function.
During installat ion, the power suppl y must n ot
be exces sively or d angerously bent or f latten ed.
Do not tamper with controls.
The applianc e is to be connec ted to the water
mains us ing new hose sets and that old hose-sets
should not be reused.
The maximum number of place settings to be
washed is 14 .
The maximum permissible i nlet wa ter pressure is
1Mpa.
The minimum permissible i nlet wat er press ure is
0.04Mpa.
Dispose o f the d ishwasher packaging mater ial corre ctly.
All packagi ng mate rials ca n be rec ycled .
Plastic pa rts ar e marked w ith th e standar d internat ional a bbreviation s:
PE for polyethylene, e.g. s heet wrapping materia l
PS forpolystyrene, e.g.padding material
POM polyoxymethylene, e.g. plastic clips
PP polypropylene , e.g. Salt filler
ABS Acrylonitri le Bu tadiene Sty rene, e.g. Control Panel .
Packagingmaterialcould bedangerous for children!
For di sposing of pa ckage a nd the a ppliance please go to a recycling centre. There fore cut
offthepow ersupply cableand makethedoor closin gdevice unusab le.
Cardboardpac kaging is manufactured from recycled paper and shouldbe dispos edin the
waste p aper collec tion f or recy cling.
By ensurin g thi s product is disposed of correctly, you wil l help pre vent po tential n egative
consequences for the e nvironment and human h ealth, w hich cou ld otherw ise be c aused
byinappropriatewastehandling of thisproduct.
For m ore deta iled infor mation a bout rec ycling o f this product, please con tact your local
city office and your hou sehold w aste dispos al servic e.
DISPOSAL: Do not dispose this product as unsorted m unicipal waste. Collect ion of such
waste separa tely forspecial tr eatment is necessary.
3.Operation Instruction3.Operation Instruction
IMPORTANTIMPORTANT
To get the best performance from your dishwasher, read all operating instructions
before using it for the first time.
Control PanelControl Panel
11
22
On/Off Button: To turn on/off the power supply.
11
Delay Button : To Press the button to delay.
22
Display screen: to show the reminding time
33
and the state(running state, delay time etc )
Program indicators:
Rinse Aid indicator:
Indicates when the dispenser needs to be refilled.
Add salt indicator:
Indicates when the dispenser needs to be refilled.
Delay time ,Remain time ,or error codes indicator:
Alt function indicator:
66
33
44 55
Alt
Program Button : To Press the button to select
44
appropriate Program.
Alt Button: Dual zone wash function, press the
55
button to select either upper basket or lower basket
loaded, and the response indicator will blinking.
Program step indicators:
66
Pre-wash indicator:
Main-wash indicator:
Rinse indicator:
Drying indicator:
Program end indicator:
Dishwasher FeaturesDishwasher Features
Front view
1
2
3
4
5
6
7
Top spray arm
1
Cutlery rack
2
Upper basket
3
4
5
6
8
9
Inner pipe
Lower basket
Salt container
10
33
11
Dispenser
7
Cup shelf
8
Spray arms
9
Back View
Filter assembly
10
11
Inlet pipe connector
12
Drain pipe
12
Before using you r dishwa sher for the first time:
A. Set th e wat er softener
B. Add 1.5Kg d ishwasher salt and t hen ful l fill t he sal t con tainer w ith w ater
C. Filltherinseaiddispenser
D. Fil l indet e r gent
The water soften er must be set m anually, using the w ater ha rdness di al.
The water soften er is des igned to remove min erals an d salts f rom t he water, which woul d ha ve
a detrimental o r adverse effect on the operation of the app liance.
The higher the content of these minerals and salts , the har der your water is .
The softener sho uld be adjusted accord ing to the hardness of the wate r in you r area. Yourlocal WaterA uthor ity
can advise youonthe hardnessofthe waterin yourarea.
Adjusting Salt Consumption
The dishwasher is designed to allow for adjustment in the amo unt of salt co nsumed bas ed o n the ha rdness of
the waterused.Thisis intended tooptimise and customise thelevel o f salt consumption.
Pleasefollowthe stepsbelowfor adjustmentin saltconsumption.
1. O pen the door ,Switch on the a ppliance;
2. Pr ess the Program button for more than 5 s econds to start the water soft ener
set mod el within 60sec onds af ter the a ppliance was switched on( The Salt a nd
Rinseaidwarning lights willbe on periodicallyw henitg et inthe setmodel );
3. Pr ess the Program button to sel ect the proper set according to y our local environm ent,
the sets w ill change in the following sequence: H1- >H2->H3- >H4->H5-> H6;
4. Pr ess t he Pow er but ton to e nd th e se t up model.
WATER HARD N E SS
dH
6-11
12-17 2.1-3.0
18-22 31-40 22-28 3.1-4.0
23-34 4.1-6.0
35-55 61-98 43-69 6.1-9.8
dH=1.25Clarke=1.78 fH=0.178mmol/l
1
fH
0~90~5 0~0.94
10-20
21-30
41-60
Clark e
0~6
7-14
15-21
29-42
mmol/l
1.0-2.0 H2 9
Selector Position
H1
H3
H4
H5
H6
Salt consumption
(gram/cycle )
0
12
20
30
60
DH: German degree
fH: Frenchdegree
Clark: Britishdegree
The manufa ctory s etting: H4 (EN 50242)
Contact your local water board for inf ormation on the har dness of your water su pply.
If yo urm odel doe sno t have any water softener,you may s kip this section.
WATER SOFTENER
Thehardness o f the wa ter varie s from p lace to place. If hard water i s used i n the di shwasher, deposits w ill
form on the dishes and utensils.
Theappliance i s equipp ed with aspecial soften er that uses a salt container spe cifically designed to el iminate
lime an d mi nera ls fr om the wat er.
Always use the salt i ntended f or u se with dishwasher.
The salt c ontain er is l ocated beneath the lower bas ket and should b e filled a s e xplained
inthe f ollowing :
Attention!
Only use salt spe cifi cally desi gned for t he use i n dishwa shers! Every other type of
salt not specifically de signed fo r the u se in ad ishwa sher, especially t able salt, will
damage the w ater softener.I n caseof dama ges caused by the use of un suitable
salt the manufacturer doe s not g ive anywarranty nor is li able for any damage s caused.
Only fill wi th salt justbefore starting one of the co mplete wa shing pro grams.
This will p revent any grains ofsalt or salty wate r,wh ich may have b een spi lled,
remaining on the bottom o f th e machi ne for any period of time, which may cause
corrosion.
A After the lower b as ket ha s been removed, unscrew and remove the cap from the salt con tainer.
B Place the end of the fu nnel ( supp lied) i nto t he ho le and introdu ce abou t 1.5 kg o f di shwasher salt.
C
Fullfill the saltcon tainer withwater,Itisnormalfor asmallamount of water to comeout ofthe
salt cont ainer.
D After filli ng th e cont ainer , screw th e cap tightly back clo ckwise.
E Thesaltwarning light will stop being afterthesaltcontainer has been filled with salt.
F Immed iately a ft er fillin g t he salt into the salt co ntain er, a washing program should be started
program Ot herwise the filt er sys tem, p ump o r ot her i mport ant pa rts of t he machine may be damag ed
bysalty water.This is outof warranty.
3.If the mach ine ne eds to be dumped f or the r easo ns of t ransit, r epair a nd so on, please u se the b ibulous c loth or
analog toblot up thewater in thesalt container, and screwthecap tight ly, afterward,transitor repair themachine.
After transi ting or re pairing the mach ine and c onfirmin g it in order,load the salt into the softener a ccordin g to th e
process of B. Loading the salt int o the S oftener . Ot herwise, itcould b e make the big da mage to the machine, f or
example,rustiness,conkand so on.Such problems are outoftheguarantee range.
).
1.The salt con tainer mu st only be r efilled w hen the salt warn ing light in the control panel comes on.
Depending on how well t he salt dissolve s, the s alt warni ng light may still be on even though the
salt container is filled.
If there is n o salt warning li ght in the control panel (for some Models),you can estimate when to f ill
the salt int o the so ftener by the cyc les that the dishw asher has run.
2. If there are spills of the salt, a soak or a rapid program should be run to remove the excessive salt.
“”
(Wesuggest to use a short
RinseAid Dispenser
The ri nse aid is rel eas ed d uring the final rin se to preve nt water fro m forming droplets on yo ur dis he s, wh ich can
leave spots andstreaks. It also improves dry ing by allowing water tor oll offt he di shes. Your dishwa sher is
designed touse liquidrinseaids.The rinse aid dispenser is located inside thedoornext tothe detergent dispenser.
To fi l l the dispens er, open the c ap an d pour the rinse aid in to th e d ispe nse r until th e le vel i ndi cator turn s c omplete ly
black. The volume of the rinseaidcontainer is about 110ml.
Function of R inseAid
Rinse aid is automa tically a dded during t he last rinse, ensuring thorough rinsing, and spot an d s treak fr ee drying.
Attention!
Only use branded rinse aid for dishwasher. Never fillthe rinseaiddispenser withanyother substances
(e.g. Dishwasher cleaning ag ent, liq uid d eterge nt). Th is would damage t he app lian ce.
Whento Refillthe RinseAid Dispenser
Ifthere is no rinse-aid warning ligh t in thecontrol p anel, you can estimat e the amount from the colour
ofthe opti cal level indicator C located next to the c ap. When the rin se-aid c ontainer i s full, the whole
indicator will be dark .As the rinse-aid diminishes, t he size o f the dark dot de creases. Youshould never let
the ri nse aid l ev el fall 1 / 4 ful l.
Asthe rinse aid dimin ishes, th e siz eof the black dot
ontherinse aidlevel indicatorchanges, as illustrated b elow.
Full
3/4full
1/2full
1/ 4 full- Should refill to eliminatespotting
Empty
""
To open t he d i spenser, tu rn t he ca p to the "ope n" ( left ) arr ow a nd lift it o ut.
1
Pour t he ri nse aid into th e dis pen ser, being caref ul n ot to ov erfill .
2
Replace the capby inserting it a ligned with "open " arrow and turning it to the closed (right) arrow.
3
Cl ean up an y r inse aid spi lled w hile dur in g f illingwith an ab sorb ent c loth to avoid ex cess ive f oamin g
during the next wash.
Don't for get to re place the cap be fore you close dis hwasher do or.
Adjusti ng R inseA id Di spenser
The rinse aid dispe nser ha s six or four s ettings. Always start wi th the d ispens er
set on "4". If spots and poor drying are a p roblem, i ncrea se the amount of r inse
aid dispensed b y removing the d ispe nser li d and r otating the dial to "5". If the
dishes st ill are notdrying properly o r are show spots, a djust th e di al to the next
higher lev er until your dish es are spot-free. The recommend ed setti ng is "4".
(Factoryvalue is "4".)
Increasethe doseif there aredrops of water or lime spotson thedishes after washing.
Reduce it ifthereare stickywhitis hstainson yourdisheso ra bluish filmonglassware o r
knifeblades.
Detergents with its chem ic al ingred ients are ne cessary t o rem ove dirt,crus h dirt an d transport it out of the di shwasher.
Mostof the commercialquality detergentsare suitableforthisp urpose.
Attention!
Proper Use ofDetergent
Useonly det ergent s pecifically m ade for the use i n dis hwashers. K eep yourdetergent fr esh and dry.
Don't putpowdered detergent intothedispenseru ntil you'rereadyto washdishes.
Deterg ents
The rear e 3 sor t s of detergents
1.With phosphate and withchlorine
2.Withphosph ate andwithout c hlorine
3.Withoutph osphate and without chlorine
Normally new pu lverised detergent is without phos phate. Thus the water so ftener fu nction o f
phosphate is not given. In this c a se we recomm e nd to fi ll s a l t in th e sa lt contai n er even when
the hardness of water is o nly 6 dH. If detergents w ithout phosp hate are used in the case of hard water
often white s pots app ear on d ishes an d glasse s. In th is case please add m ore d etergent to reach
better r esults. D eter gent s withou t ch lorin e do on ly bl e ach a li ttle. Strongand co l o u red sp o ts w i ll no t
beremoved completely.I n thi scase p lease ch oose a p rogram with a hi gher temperature.
°
Concentr ated Deter gent
Based ontheir chemical composition,detergents canbe splitin twobasictypes:
conventional, alkaline detergents withcaustic components
lo w alkaline conce ntra t ed d eter ge nts with natu ral e nzym es
Detergent Tablets
Detergent tabletsofdifferent brands dissolve atdifferentspeeds. For thisr eason some
detergent tablets ca nnot dissolve and develop their fu ll cle aning power during short
programs. There fore please u se l ong prog rams wh en usin g deterg ent table ts, t o
ens ure t he complete removal of d e terge n t re sidu als.
DetergentDispenser
The dispenser m ust be re filled be fore the start of e ach was h cycle f ollowing the instructions
provided in t he w ash cycle ta ble . Your dishwasher use s less de tergent and rinse aid than
Conventiona ldishwasher. Generally,onlyone tablespoon of detergent isneeded for
anormalwashload.Moreheavily soiled itemsneedmoredetergent. Alwaysadd the
detergen t j ust b e fore starting the dishwas her, othe rwis e it coul d g et da mp and w ill not
dissolv e pr operly.
Amountof De tergentto Use
If the lid is closed: press release button.The lid will spring open.
Always add th e detergent just before st arting ea ch wash cycl e.
Only usebranded detergent aidfor dishwasher.
Dishwasher de tergent i s corrosive! Take c are to keepit out of reach of c hildren.
A
B
Fillin Detergent
Fillthe de tergent disp enser w ith deter gent.
The marking i n d icates th e dosing l e vels , as
illus t ra ted on t he ri gh t:
The place o f main w ash cycle de tergent placed.
A
The place o f pr e-wash cycle det ergent place d.
B
Pleaseobserve th e manu facturers do sing and storage
Recommendationsas stated on thedetergent packaging.
Closethe lid and pressuntil i t locks in place.
If the dishes a re heavily s o il ed, place anad ditio nal
detergent do sein the pre-wash det ergent chamber. This detergen t will take effect d uring the pre-wash phas e.
Youfind i nformatio n about the amount o f de tergent for the single programme onthe last page .
Please aw are, tha t accordi ng t othe lev el soiling and the specific hardnes s of water d ifference s are po ssible.
Please observethe manufacturer's recommendations on thedetergent packaging.
Consider buying utensils whichareidentified as dishwasher-proof.
Use a mild detergentthatis described as'kindto dishes'. Ifnecessary,seekfurther
information from the detergent manufacturers.
Forparticularitems,select aprogramwith as lowatemperatureaspossible.
To prev ent da ma ge, do not take glass a nd c utle ry out of the di shw ashe r i mmed iatel y
after t he p r ogram me h as e nde d.
Are n ot su itable
Cutlerywith w ooden,hornchinaor
mother-of-pearl handles
Plastic ite ms that are not h eat resis tant
Older cutl ery with glued parts t hat a re not
temperature resistant
Bonded cutl ery ite ms or dishes
Pewter or cooper items
Crystal glass
Steel items subject t o rusting
Wooden platters
Items madefrom synthetic fibres
(For best perf ormance of the di shwasher,follow the se loading guidelines.
Features and ap peara nce of baske ts and cutlery ba skets may var y fr om your mod el.)
Scrape off any large amount s o f leftover food. Soften r emnants of burnt f ood in pans.
It is no t necess ary to ri nse t he d ishes under running water.
Place objects in the dishwasher in following way:
1.Itemssuch as cups, g lasses, pots/pans, etc. a re faced downwards.
2.Curvedi tems, or ones with recesses, shoul d be loade d asla nt so th at water can run off.
3.Allu tensils a re stacked securely and can not tip over.
4.Allutensils are placed in t he way t hat the spray arms can rotate f reely during washin g.
Ve ry sm all it ems should n ot be w ashed in the dishwas her as th ey could easily fall out of the basket.
Are of limitedsuitability
Some types ofglasses c an become
dull after a large number of washes
Silver an d a lumi num part s ha ve a
tendencytodiscolour duringwashing
Glazedpatterns mayfade ifmachine
washed frequent ly
Load hollow it ems suc h as cup s, glasses, pans etc. With the opening facing downwards so that
wat e r canno t collec t in the c ontai n e r or a deepb a se.
Dishesand items of cutlery mustnot lieins ide oneanother, or cover each other.
Toavoid da mage to glasses, th ey mus t not touch.
Load larg e ite ms which are most difficul t to c lean in to the lower basket.
The upper basket is de signed to hold more d elicate and lighter d ishware such as glasses , coffee
andtea cups
Long blad ed kni ves sto red in a n upr ight po sition are a potenti al haza rd!
Long and/or sharp itemsof cutlery such as carving knives must bepositione d
horizon tally in the upper b aske t.
Please do not ove rload yo ur di shwashe r. T his is important for good r esults a nd fo r
reasonab le consu mption of energy.
To prevent water dripping fr om the upper basket into the lower basket, w e re commend that you
empty the lower basket first and t hen the upper ba sket.
The u pper basket is designed t o ho ld more delicate
and lighter di shware such as glasses, coffee and
teacupsandsaucers, aswellas plates,smallbowls
andshallow pans(aslongasthey arenottoodirty).
Positionthe dishes andcookwareso that they will
notgetmoved by thespray ofwater.
Please be remin ded that :
Pots,servingbowls,etc,mustalwaysbeplacedtopdown.
D eep pots sh o u ld be slanted t o allow wate r to f low out .
The B otto m B ask et fe atur es folding sp ikes so tha t l arge r or more po t s an d p ans can be l o aded.
We sugges t tha t you pl ace large items and t he m ost
difficult to cleanitemsare tobeplacedintothe lower
basket: su ch a s pots, p ans, lids, serving dishes and
bowls, as show n in th e figur e bel ow. It is preferable t o
pla ce s ervi n g di shes a nd li ds on the s i d e of the racks
in order to avoid blocking t he ro tation of the top spray
arm.
Adjust ing the Upper Bas ket
The height of the upper basket can be adjusted i n order to
create more space for large utensils b oth fo r the upper
/lower basket . The hei ght of the upper basket can be
adjusted by lift u p the basket for the upper position, and up
press the handle to lowe r the upper basket, s ee the picture
below:
Foldin g b ack th e c up shelives
For better st acking ofpo ts a nd pans ,
the spikes c an b e fol de d down as
show in th e pict ure ri ght .
Foldin g Spi kes o f Lower Bask et
For better stacking ofpots and pa ns,
the spi kes can be f olded down as
show in the p ictu re right.
Cutleryshould be placed inthe cutlery rackseparately
from each ot her in th e ap propriate positions, and d o
make sure the utensils d o not nest together, this ma y
cause badperformance.
6.Starting a washing program6.Starting a washing program
Wash Cycle TableWash Cycle Table
( )
NOTE:NOTE:
ProgramProgram
Intensive
Normal
ECO
(*EN 5 0242)
Glass
1Hour
Rapid
For heaviest soiled crockery,
and normally soiled pots
pans dishes etc with dried
on soiling.
For normally soiled loads,
such as pots, plates,glasses
and lightly soiled pans.
This is standard programme,
it is suitable to clean normally
soiled tableware and it is the
most efficient programme in
terms of its combined energy
and water consumption for
that type of tableware.
For lightly soiled crockery
and glass
For lightly soiled loads that
do not need excellent drying
efficiency.
A shorter wash for lightly
soiled loads and quick wash.
Means: need to fill rinse into the Rinse-Aid Dispenser.
Description
Cycle Selection
Cycle Selection
Information
Information
Description
of Cycle
of Cycle
Pre-wash(50 )
Wash (65 )
Rinse
Rinse
Rinse(65 )
Drying
Pre-wash( 45 )
Wash (55 )
Rinse
Rinse (65 )
Drying
Pre-wash
Wash (50 )
Rinse(65 )
Drying
Pre-wash
wash(45 )
Rinse
Rinse(60 )
Drying
Pre-wash(50 )
Wash(60 )
Rinse (60 )
Drying
Wash (40 )
Rinse
Rinse (45 )
Detergent
Detergent
pre/main
pre/main
5/30g
(or3in1)
5/30g
(or3in1)
5/30g
(or3in1)
5/30g
5/30g
(or3in1)
30g
Running
Running
time(min)
time(min)
175
185
175
115
60
40
Energy
Energy
(Kwh)
(Kwh)
1.6
1.3
0.93
0.87
1.15
0.6
Water
Water
(L)
(L)
17
14
10
14
10
10
Rinse
Rinse
Aid
Aid
NOTE:NOTE:
*EN 5 0242 : This programme is the test cycle. The information for comparability test
in accordance with EN 50242, as follows:
Capacity: 14 setting
Position Upper basket: upper wheels on rails
Rinse aid setting: 6
Pl:0.49w; Po:0.45w.
Turning On the ApplianceTurning On the Appliance
Starting a cycle wash
1
Draw out the lower and upper basket, load the dishes and push them back.
It is commended to load the lower basket first, then the upper one (see the section entitled
Loading the Dishwasher ).
2
Pour in the detergent (see the section entitled Salt, Detergent and Rinse Aid ).
3
Insert the plug into the socket. The power supply is 220-240 VAC /50 HZ, the specification
of the socket is 10A 250VAC. Make sure that the water supply is turned on to full pressure.
4
Open the door, press the ON/OFF Button, and the display will turn on.
5
Press the program Button to selected your desired program.
If a program is selected, the response light will light. Then close the door, the dishwasher begins
to start.
1111
Premise:
Acycl e that is underw ay can on ly be modified if it has only been r unning for a short t ime. Ot herwis e, the
1
detergent m ay hav e alr eady be en re leased, a nd the appliance m ay have already dr ained the wash water.
If t his is the case, th e deter gent disp enser must be refi lled ( see t he section ent itled " Loading the
Detergent " ).
Open the door , t he machin e wi ll pause, press the p rogram bu tton more than
2
3s then you can cha nge t he pro gram to the desired cycle setting (see thesection en titled " St arting a w ash
cycle. . ." ).
Ifyou open the doorduringa wash cycle , the machine will pause. The programlightw ill
stopblinkingandthe buzzerwill mooing every minuteunless you close the door.After
you c lose the door ,the mac hine will keep on worki ng after 10 second s.
Ifyour model has broken remember function,the machinewillgo on tofinish the selected
program .
Aforgottendish can be added any time before the detergent cup opens.
Open thedoor a little .
1
afterthe powercut
Add forgotten dishes.
3
After the spray arms stop working, you can open the door
2
completely.
When th e workin g cy cle has finished, the buzzer o f th e dishwa sher will so u nd for 8 seco n d s , th en st op. Turn o ff
the appliance using the ON/OFF b utton, shut off the wa ter supp ly and op en t he door ofthe di shwashe r.
Wait for a few minutes bef ore unlo ading th e dishwa sher to a voi dhandlin g the dishes and utensils while th ey
are still hot and m ore suscept ible tobreakage. The y will al so dry be tter.
Close the door, the dishwasher will run
4
after 10 seconds.
SwitchOff the Dishwasher
The program light is on but is not blinking, onl y in this case the programme h as ended .
2.Turn off thewatertap!
On/Off1.Switchoff the dishwa sher by pressing the Button.
Openthe door carefully.
Hot dishes ar e sensit ive to kn ocks. The di shes shou ld ther efore be a llowed t o cool d own arou nd 15 minutes
beforeremoving from the appliance.
Open the d ishwasher's door,leave it ajar and wai t a few minutes before remov ing the dishes. In this way they
will be cool er and t he dryi ng will be improved.
Unloadingthe dishwasher
Itis normal that the di shwasher is wet insid e.
Empty the l ower ba sket first a nd the n the upperone. Thi s will avoid water dripping from the upper Basket onto
the dishes in the lower one.
Washth e arms in soapy a nd war m wa ter and use a sof t bru sh t o
clean thejets.Replacethemafter rinsingthem thoroughly.
When following this procedure from step1 to step 3, the filter system will be removed;
when following it from Step 3 to Step 1, the filter system will be installed.
It is dan gerous to ope n th e door when was hi ng , be c a us e the hot wat e r may scal d y ou .
The filter prevents lar ger remnants of food or ot her obj ects from getting insi de th epum.
Theresidues may block thefilter, in thiscase they must be removed.
The filter system c onsists of a coarse fi lter,aflat ( Main f ilter)
An d a microfilter(F i ne filt er).
1
2
3
2
1
3
Main filter
Foodand soil particles trapped inthisfilterarepulverized by a
special jet on the l ower spr ay arm an d washe d down todrain.
Coarse filter
Large r items, suc h as p i e c esof bones or gl ass, tha t coul d block
thedrain are trapped inthe coarsefilter. To remove the items
caught by the fil ter,gen tly s queeze the tap on th e top of this
filterandlift out.
Fine filter
This filterholdssoiland food residues in thesum pareaa nd
prevents it frombeingredeposit onthedishes duringwashcycle.
Filterassembly
The filter efficiently re moves food particles fro m the wa sh wate r,al lowing it to be rec ycled du ring t he cycl e.
Fo r bes t performa n c e an d resul ts, t he filter mu stbe cl eane d regularly. F or t h isre a s on, i t i s a goodidea to
remove th e larger food par ticles tr apped in the filter after each wash cyc le by rin sing the semicirc ular filte r and
cup unde r runnin g water. To re move th e filt er device , pull th e cup handle in t he upwa rd direct ion.
Th e d is h washer m us t n e ver beused w i thout the filter s.
Improper replacement of the filter may reduce the performanc e level of the appliance
anddamagedishes andutensils.
2
1
Step 1 Turn the filter in ant i-clockwis e directio n,：
Step 2 lift the filter assy up：
When following this procedure from step1 to step 2, the filter system will be removed;
when following it from Step 2 to Step 1, the filter system will be installed.
Remarks:
- Inspect t he filter s for blo cking a fter e very time th e dis hwasher ha s been u sed.
- By unscrew ing the c oarse fi lter, you can remove the filter syst em. Re move any foo d remna nts and
clean thefilters under running water.
Theentire filterassemblyshouldbe cleanedoncea week.
Cleaning the Filter
To cl ean the coa rse f ilter and t he fine filt e r, use a cleaning brush . R e as semble t hefilter p ar t s as s ho wn in t h e f i gures
on the la st page a nd r eins ert the e nti re assembly in the dis hwa sher, pos itio ning it in its seat and pressing dow nwar ds.
Whenc leaningthefilters,don'tknockonthem.Otherwise,thefilterscouldbe
contorted and theperformanceofthedishwasher could bedecreased.
The control p anel can be clea ned by u sing a l ightly dam pened c loth.
After cleaning, m ake sureto dry it thoroughly.
For the exterior, use a good a pp lia nc e po lish w ax .
Neveruse sharp objects, sco uring pads o r har sh clean ers on a ny part o f the dishwasher.
CleaningThe Door
To cle an th eedge around the door, you sho uld u se only a soft wa rm, damp cloth.
To avoi d pene tration o f water i nto t he door lock and elect rical com ponents, do not
usea spray cleaner of any kind.
Never use a spr ay c leaner t o clean t he d oor panel as it m ay damage the door loc k
and electricalcomponents.
Abrasive agents o r som e paper towels should not be used b ecause of the risk of
scra tching or leaving sp ots on the s t ainl es s steel s urfa ce.
Protec tAga inst Freez ing
please t ake frost protection meas ures o nthe di shwasher in winter. Every fter washing c ycles,
please op erate as follows
1.Cut offthe electrical powertothedishwasher.
2.Turnoff the water su pply an d disconnec t th e water i nlet pi pe from the water val ve.
3.Drain the water from the inlet pipe an d water valve. (Use a pan to gather the w ater)
4.Reconnect the wate r inlet pipe to t he wate r valve.
5.Remove the filte r at the bottom of the tub and use a sponge to soak up water in the sump.
：
If your dishwasher cannot work because of t he ice,
please con tact pr ofessiona l service persons.
timea
Cleani ng the SprayArms
It is ne ce ssar y to c l e an t h e sp ray a r ms regularly fo r ha r d
water chemicalswillclog the spray armjetsandbearings.
Tore m ov e the u pper sp r a y a rm , hold the nut, r ot ate the arm
clockwisetoremove it.
To remove thelowerspray arm, pull out the sprayarm upward.
Washthe arms in soapy and w arm water and use a soft brush to
clean the jets . Repl ace them after rinsin g them thoroughly.
AfterEvery Wash
After ever y wash, turn off the w ater supply to th e
appliance and leave th e doo r slightl y open sot ha t
moisture a nd odour s ar e not tra pped in side.
Removethe Plug
Before cleani ng or p erformi ng mainten ance, always
remove the plug from the socket.
No Sol vent s or Abras ive Cleani ng
To cleantheexteriorand rubber partsof the dishwasher,
donot usesolventsor abrasive cleani ngproducts.
Only use a clo th with warm so apy wate r.
Torem ove s p ots o r st a ins from the sur face of t he
interi or, use a clot h da mpe ned with wa ter ana l ittle
vinegar,o r a cleaning pro duct mad e speci fically for
dishw ashers.
Position the appliance i n t he desired location. The back should rest again st the w all behind it, and the sides,
along the adjacent ca binets or walls. The d ishwasher is equippe d with water supply a nd drain hoses th at can
be positio ned eith er to t he righ t or the left s ides to facilitate pro per in stallatio n.
Whennotin Use for aLongTime
It isrecommend that yourunawash cyclewith the
dishwasher empt y and the n remove th e plu g from the
socket, turn o ff the wa ter supp ly and l eave the door of
the app lian c e sl ight ly op en. Th is will help th e d oo r
sealsto lastlonger and prevent odoursfrom forming
withinthe appliance.
Moving theA ppli ance
If the app liance m ust be moved, try to keep it in the
vertical position. Ifabsolutelynecessary, itcanbe
positioned on its back.
Seals
Oneofthefactorsthatcauseodourstoforminthe
dishwasher is foo d th at remain s trappe din the seals.
Periodic cleaning with a damp sponge will prev ent t his
fro m occurr ing.
Once the appliance is positioned for levelling, t he height of the dishw ashe r
may be altered v ia adjust ment of the screwing level of the feet. In any case,
the applia nce should not be inclin ed more than 2 .
For personal safety:
DO NOT USE AN EXTENSION CORD OR AN ADAPTER PLUG WITH THIS APPLIANCE.
DONOT, UNDERANYCIRCUMSTANCES, CUT OR REMOVETHE EARTHING
CONNECTION FROM THE POWER CORD.
Please look at the rating label t o knowthe rat ing volta ge and connect t he dishwash er to the appropr iate pow er suppl y.
Use the r equired fuse 10 amp , tim e delay f use orcircuit bre aker rec ommended and prov ide separate circuit s erving
only this appliance.
Ensure the v oltage a nd frequenc y of thepower being cor responds to
those on the rating plate . Only insert the p lug into an electrica l socket which is earthed
properly.Ifthe el ectrical sock et to wh ich the a pplianc e must b e conne cted is not
appropriate f or the plug , replacethesocket, ratherthanusinga adaptors or the likeas
theycould causeove rheatingandburns.
This appliance must be earthed. In the event of a malfunction or breakdown, earthing will reduce the risk of
electric shock by providing a path of least resistance for the electric current. This appliance is equipped with a
cord havingan equipm ent-earthing conductor andan earthing plug. The plug mustbe plugged into an
appropriate outlet that is installed and earthed in accordance with all local standards and requirements.
Improper connection of the equipment earthing conductor can result in the risk of an
electric shock.
Check with a qualified electrician or service representative if you are in doubt whether the
appliance is properly earthed.
Do not modify the plug provided with the appliance. If the plug does not fit properly to the
outlet, please have a qualified electrician to install a proper outlet.
for personal safety:
DO NOT USE AN EXTENSION CORD OR AN ADAPTER PLUG WITH THIS APPLIANCE.
DO NOT, UNDER ANY CIRCUMST ANC ES, CUT OR REMOVE THE
CONNECTION
Theappliancemustbeconnectedtothewatermainsusingnewhose-sets.
The o ld hose-sets should not be reused.
Waterpressure must b e between 0 ,04 MPa and 1 MPa. If the pressure is belo w the
minimum consult our Service Departmentfor advice.
Pull The safety supply hoses completely out from storage compartment located at rear of dishw asher.
1
Tighter the screws of the safety supply hose to the faucet with thread 3/4inch.
2
FROM THE POWER CORD.
EARTHING
Turn water fully on before starting the dishwasher.
3
The safety supply hose consists of t he doubl e wall s. The hose' s sy stem guaran tees its intervention b y b locking t he
flow of wate r in c ase of thesupply hosebreaking a nd whe n the air space b etween the s upply hose itself a nd th e outer
corrugated hos e is fullof water.
Ahose that attache s to a sink spray c an burs t if it is install ed on the same w ater line as the d ishwasher.If your si nk
has one, it is recomm ended that the hose be disconnected and the hole plugged .
Turn off the water.
1
Unscrew the safety supply hose from the faucet.
2
Connect the col d wa ter suppl y hose to a thread ed 3 /4(inch) connector and m ake sure that i t is f astened t ightly in place.
Ifthew ater pipesare newor havenot been usedfor anextendedperiodoftime, let thewater runto make surethatthe
water is cle ar and fre e of impurities. I f t his precauti on is not taken, th ere isa risk t hat t he water inlet can get blocked
and da m a ge the ap pliance.
Insertthe drain hose into a drain pipe witha minimumdiameter of 40mm, or let it run into thesink,making sure to
avoid bendi ng or crimping it. The top of the hose mus t be less than 1000mm.
Front
NOTE
The top of the hose
must beless than
1000mm.
Counter
A
Drain pipe
B
φ 40mm
How to Drain ExcessWater FromH oses
If the sink is 1 000 hi gher from t he floor, th e ex c ess w a ter i n ho ses cannot be dr ained dire c tl y
into the sink. Itwill be necessaryto drainexcess w ater fromhoses intoa bowl o rsuitable
container that is held out side and lower than t he si nk.
Wat er Outl e t
Connect the wate r drain hose. The drain hose must be correctly f itted t o avoi d water leaks.
Ensure that the water drain hose is not kinked or s quashed .
Extension Hose
Ifyou need a drain hose extension,makesure touseasimilar drain hose.
It must be no longer th an 4 m etres; ot herwise the cleaning effectof the dishwasher coul d be reduced.
Syphon Conn ection
The waste conn ecti on must be at a he ight less t han 1000 m m (maxi m u m) fr om thebottom of t he d ish.
The water dr ain hose should be f ixed .
Thefollowingthings shouldbe checkedbefore startingthe dishwasher.
1
Thedishwasheris levelandfixed properly
The i nle t va lv e is open
2
3
Thereis a leakageat the connections ofthe conducts
Thewires aretightly connected
4
5
The poweris switched on
6
The i nlet and dr ain hoses are k notte d
7
Allpacking materials and printingsshouldbe taken out fromthe dishwasher
After installation, please make sure tokeep this manual.
The conten t of this manual is very he lpfulto the users.
Fuse blown, or the
circuit breakeracted
Replace fuse or reset circuit breaker. Remove any other
appliance s sharing the same circuit with the dishwasher
Technical
problem s
Power supplyis not
turned on
Water pressure is low
Door of dishwasher
not properly closed.
Kink in drain hose
Filter clogged
Kitchen sink clogged
Improper detergent
Spilled rinse-aid
Make sure the dishwasher is turned on and the door is
closed securely.
Make sure the power cord is properly plugged into the
wall socket.
Check that the water supply is connected properly and
the water is turned on.
Make sure to close the door properly and latch it.
Check drain hose.
Check coarse the filter
(see section titled " Cleaning The Filter ")
Check the kitchen sink to make sure it is draining well.
If the problem is the kitchen sink not draining ,you may
need a plumber rather than a serviceman for dishwashers.
Use only the special dishwasher detergent to avoidsuds.
If this occurs, open the dishwasher and let suds evaporate.
Add 1 gallon of cold water to the tub.Close and latch the
dishwasher, then select anycycle. Dishwasherwill drain
outthewaterat the first step.Openthe doorafter draining
is stop and check if the suds is disappeared.
Repeat if necessary.
Always wipe up rinse-aid spills immediately.
General
problem s
Noise
Detergent with
colourant was used
Hard wat er minerals
The affected items are
notcorrosion resistant.
A programme was not
run after dishwasher
salt wasadded.
Traces of salt have
gotten into the wash cycle.
The lid of the softer
is loose
A spray arm is
knocking against
an itemin a basket
Items of crockery
are loose in the
wash cabinet
This may be caused
by on-site installation
or the cross-section of
the piping.
Make sure that the detergent is the one without
colourant.
To clean the interior, use a damp sponge with
dishwasher detergent and wear rubber gloves.
Never use any other cleaner than dishwasher
detergent for the risk of foaming or suds.
Always run the quick wash programme .
without any crockery in the dishwasher and
without selecting the Turbo function (if present),
after adding dishwasher salt.
Check the lip .Ensure the fixis fine.
Interrupt the programme, and rearrange the items
which are obstructing the spray arm.
Interrupt the programme,
and rearrange the items of crockery .
This hasno influence on the dishwasher function.
if in doubt, contact a suitably qualified plumber.
The dishes were not
loaded correctly.
See notes in " Loading the Dishwasher Baskets ".
Unsa ti s
-factory
washin g
resu lt
Theprogramme was
notpowerful enough.
Not enough detergent
wasdispensed.
Items are blocking
the path of spray arms.
The filter combination
inthebaseofwash
cabinet is not clean or
is not correctly fitted.
This may cause
the spray arm jets
to get blocke d.
Combination of soft
water and too much
detergent.
Aluminum utensils
have rubbed against
dishes.
Dishes block
detergent cups.
Improper loading
Too little rinse-aid
Select a more intensive programme.
See" Wash Cycle Table ".
Use more detergent, or change your detergent.
Rearrange the items so that the spray can rotate freely.
Clean and/or fit the filter combination correctly.
Clean the spray arm jets. See "Cleaning the Spray
Arms".
Use less detergent if you have soft water and select
a shortest cycle to wash the glassware and to get
them clean.
Use a mild abrasive cleaner to eliminate those marks.
Re-loadin g the dishes properly.
Load the dishwasher as suggested in the directions.
Increase the amount of rinse-aid/refill the rinse-aid
dispenser.
Unsa ti s
-factory
dryi ng
resu lt
Dishes are removed
too soon
Wrong program
has been selected
Use of cutlery with
a low-quality coating
Do not empty your dishwasher immediately after
washing. Open the door slightly so that the steam can
escape. Begin unloadingthe dishwasher only once t
he dishes are barely warm to the touch. Empty the low
basket first. This prevents water form dropping off
dishes in the upper basket.
In short program the washing temperature is lower.
This also lowers cleaning performance. Choose
a program with a long washing time.
Water drainage is more difficult with these items.
Cutlery or dishes of this type are not suitable for
washing in the dishwasher.
When some malfunctions come on, the appliance will displ ay error codes to warn you:
E1
E4
Longer inlet time.
Overflow.
Faucets is not opened, or water intake is
restricted,or water pressure is too low.
Some element of dishwasher leaks .
E8
Failure of orientation of distributary valve
Open circuit or break of distributary valve
If overflow occu rs, turn off the main water supply before calling a service.
If there is water in the base pan because of an overfill or small leak,
the water should be removed before restarting the dishwasher.
Height: 845mm
Width : 598mm
Depth: 600mm
(with the door closed)
Water pre ssur e: 0.04- 1.0M Pa
Pow er s up pl y: see r a t ing l a bel
Capacity: 14place settings
Cutlery bask et could b e have 5 positi ons:
Mode 1
Position o ne: li ft the l eft b asket up, both left and r ight
baskets are sideling.
Mode 2
Position tw o: adju st the left basket to lower position, l eft
basket is flat and r ight basket is s ideling.
Mode3
Mode 4
Mode 5
Position t hree: lift the r ight b asket up, both l eft and r ight
baskets are flat.
Position F our: M ove the right basket from r ight to left, two
basket are overlapping.
Position F ive: Remove t he rig ht bask et fr om the t ray,
only has t he lef t baske t.
TechnicalData Sheet
Sheet o f hous ehold dish washer according to EU Direc tive 1059 /2010:
Manufacturer
Type/D escription
Standard place settings
Energy efficienc y c lass
Annual energy consumption
Energy consumpti on of t he standard cleaning cycle
Power consu mption of off-mode
Power consu mption of left-on m ode
Annual water consumpti on
Drying efficiency cl ass
Standard clea ning c ycle
Program durati on of t he standard cleaning cycl e
Noise level
Mounting
Couldbebuild-in
TEKA
LP8 850 VR01
14
A++
266 kWh
0.93 kWh
0.45 W
0.49 W
2800 li tre
A
ECO 50
175 mi n
49dB(A) re 1 pW
Free st anding
Yes
℃
Height
Width
Depth (with connectors)
Power consumption
Rated vol tage / fr equency
Waterpressure (flow pre ssure)
NOTE：
A+ ++ (highest efficiency) to D (lowest efficiency)
En e rgy consumpti on 266 k Wh pe r year, based on 280 st anda rd cl e a ning c y cl es using co l d water fi l l and
the consumpti on of t he low p ower mode s.Actual energy consumpt ion will depend on how the app liance is use d.
Waterconsumption 2800 litreper year,based on280 standard cleaning cycles. Actualwaterconsumption
will de p e nd on h ow t he a ppliance is use d.
A(high est efficiency) to G (lowest e fficiency)
This program i s su itable for cleaning soi led norma lly soil ed table ware and that it is the
most efficientprogramme in terms of itscombined energyand water consump tion for
that ty pe o f tablew are.
Thedevicemeets theE uropean standardsand t hedirectives inthec urre ntversion at delivery:
-LVD2006/95/EC
-EMC2004/ 108/EC
- E r P 20 09/125/EC
“”
“”
84.5 cm
59.8 cm
60 cm
1760-2100 W
AC220-240V/ 5 0H z
0.4-10bar =0.04-1Mpa
The above values have bee n measur ed in acc ordance with standards under spec ified operatin g co nditions.
Results may varygreatly ac cording toquantity a nd pol lution of the dishes, water hardness,
amount of dete rgent , etc.
The manual is based on the Europea n Union' s stand ards and rules.
Loading...
