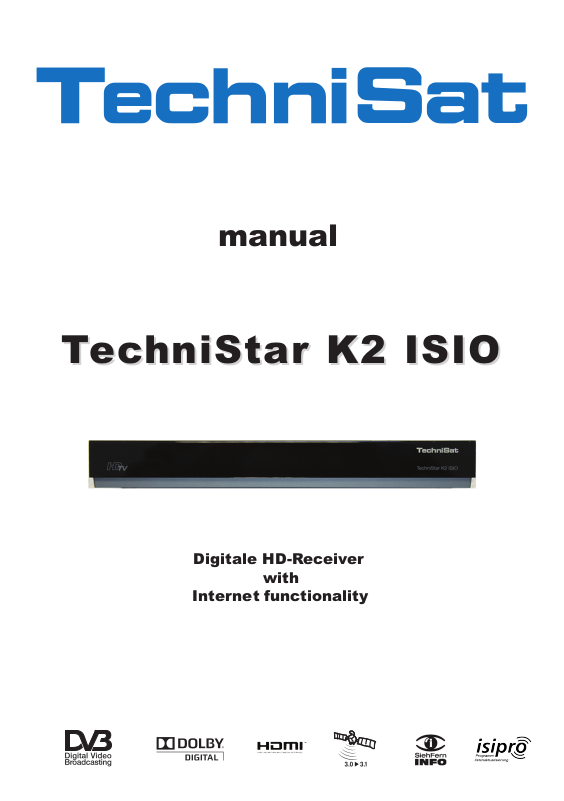

T

T

ec

ec

hniStar K2 ISIO

hniStar K2 ISIO

Digitale HD-Receiver

with

Internet functionality

2

1 illustration

cable-

out

DC-in

digital audio

out

analogue audio

out

SCART-socket

TV

analogue audio

out

Ethernet-

interface

cable-in

HDMI-

out

IR-

connection

USB-

interfaces

ON/Standby

arrow button up/down

TV/Radio

LED-display

CI-slot

card reader:

> Insert the CONAX-Smartcard

(golden Chip face down and alingned

in insertion direction) till the as far as

it willl go.

Inserting the CI / CI+ -module:

> Please refer to the manual of the manufacturer of the CI / CI+ -module

and the card.

> Insert the appropriate smartcard in the corresponding

CI-module.

> Insert the CI-module into the CI-slot carefully.

2 Please read this first

Before connecting and using the device, first check that everything has been supplied and
familiarise yourself with the safety instructions.

You should have received:

1 Digital receiver, 1 Remote control, 2 Batteries (1.5V micro-cell), 1 HDMI cable,
1 mains cable.

2.1 Safety instructions

For your own protection you should read the safety precautions carefully before using your
new receiver.
The manufacturer accepts no liability for damage caused by inappropriate handling, or by
non-compliance with the safety precautions.

Function-related discharge current may occur with electrical equipment. This is
acceptable and poses no risk, even if it is experienced as a slight tingling.
To prevent such discharge current, mains operated devices (receivers, TVs etc) must
always be installed or connected with the power switched off, i.e. all devices must be
disconnected from the mains.

- Only operate the receiver in a temperate climate.

- To ensure adequate ventilation, place the receiver on a flat, horizontal surface and
do not place any objects on top of it. There are ventilation slots here to allow heat to
be dissipated from the interior of the unit.

- Do not place any burning objects, such as lit candles, on top of the receiver.

- Do not expose the receiver to water droplets or water spray, and do not place
any objects filled with liquid, such as vases, on top of it. If water gets into the unit,
immediately remove the mains plug and inform the service department.

- Do not operate any sources of heat near the receiver which may also heat it up.

- Do not obstruct the ventilation slots.

3

- Do not open the receiver housing under any circumstances! You risk receiving an
electric shock. Any necessary repairs to the receiver should only be carried out by
qualified service personnel.

In the following circumstances you should disconnect the device from the mains power
and consult an expert:

> the power cable or mains plug is damaged

> the device has been exposed to moisture or liquid has got into it

> there are significant malfunctions

> there is severe external damage

2.2 Periods of non-use

During a storm or lengthy period of non-use (e.g. holiday), the receiver should be
disconnected from the mains and the antenna cable removed.
Before you disconnect the receiver from the mains, you should first switch it to standby
mode and wait until the time appears in the display or the red LED light is displayed.

2.3 Important notes on operation

Operation of the digital receiver is simplified through the use of so-called "On Screen
Displays" (OSD). This also means that the number of keys on the remote control unit is
reduced.

All functions are displayed on screen, and can be controlled by means of a few control
buttons.

Functions that are logically related are combined into a "MENU". The selected function will
be highlighted.

The red, yellow, blue and green function keys are indicated by coloured bars at the bottom
of the screen. In the various menus, these coloured bars represent different functions, which
can be implemented by pressing the appropriately coloured keys (multi-function keys) on the
remote control. The function keys are only activated when a brief description is displayed in
the appropriate field.
The button identifications and terms that appear in the OSD menu are shown in bold type
in this operating manual.

Help: where available, press the blue function key in the menus to display the help text;
press again to close the help window.

2.4 Important information on data security

Before handing your receiver over to your supplier for maintenance purposes, we
recommend that you remove all storage media or data carriers.

Restoring data is not part of maintenance or repair work. TechniSat accepts no responsibility
for the loss of, or damage to, data during repair work.

4

2.5 Disposal advice

The packaging material used for your receiver consists entirely of recyclable materials.
Please sort the components appropriately, and dispose of them in line with your local waste
disposal regulations.

At the end of its useful life span, this receiver may not be disposed of with your regular
household waste. It must be taken to a recycling collection point for electrical and electronic
equipment.

This is indicated by the

symbol on the product, the operating manual or the packaging.

The materials used can be re-used in accordance with their labelling.
By ensuring that valuable raw materials in old equipment are re-used, you can make a
valuable contribution towards protecting our environment.

Please contact your local authority for the location of the nearest recycling point.

Please ensure that spent batteries removed from the remote control and electronic waste
items are not sent to your regular household refuse site, but are correctly disposed of (either
in special bins for problem waste, or at collection points in the retail trade).

5

3 Important notice

Dear customer,

This quick start manual describes the most important connection options and basic
operation steps to enable you to quickly start using the TechniStar K2 ISIO.

4 Remote control

4.1 Changing the battery

> Open the cover on the battery compartment at the rear of the remote control by

pushing it in the direction of the arrow and then lifting it off.

> Insert the supplied batteries, ensuring that the poles are the right way around

(indicator visible in battery compartment).

> Close the battery compartment again.

4.2 Remote control code

By switching over the remote control option it is possible to use this remote control to
operate one TechniSat television and two TechniSat receivers using the same coding.

> Hold down the remote control code button to switch over the remote control

option and press the OK button as often as necessary until the LED for the desired
remote control option (TV, SAT1 or SAT2) flashes briefly.

The currently set remote control code will be displayed, as the appropriate LED
flashes, while pressing a button.

6

Remote control code

On/Standby

Sound on/off

Numeric keypad keys

Recording

EPG/SFI

Page up

Back

TV/Radio mode

Rewind

Info

Fast forward

Programme +/- Volume +/-

Menu

Zoom/Format

Function keys

Stop/DVR

Arrow keys

Pause / Play

Options selection

Navigator / Function

selection

Page down

WWW key

OK

Alarm

Language selection

PiP

HDMI

Teletext

Freeze frame /

Jogshuttle

Timer

7

5 Connection of the DVB-Receiver

a. connnection to the power supply

b. connection of the cable - input of the DVB-Receiver with the antenna socket of the

cable network .

c. connection of cable-out with the antenne in of the TV set.

d. HDMI-connection of the DVB-Receiver with the TV set.

e. Scartverbindung des DVB-Receivers mit dem Fernsehgerät.

f. Connection of the audio-out with a HiFi- / Surround-sound device.

e

c

d

f

a

b

Die im folgenden erscheinenden Verweise a b c usw. beziehen sich auf die Zeichnung auf
Seite 18.

5.1 Connecting the power supply

The digital receiver should be connected to the power supply only when the de
vice is completely wired to all the required components. This prevents damage
to the receiver and other components.
a Once all the connections are made according to the procedures set out below,
the receiver (now connected to the power supply) should be plugged into a 230
V / 50–60 Hz outlet.

5.2 &DEOH FRQQHFWLRQ

5.2.1 FRQQHFWLRQ RI D DVB-Receiver

b Connect the antenna cable to the antenna input on the receiver.

5.2.2 FRQQHFWLRQ RI D 79 VHW

c Connect the receiver (HDMI output) to the TV (HDMI input) with an HDMI
cable. If the TV has the appropriate features, it will switch automatically to the
HDMI input once the digital receiver is turned on.
Alternatively:
d Connect the TV to the receiver with a SCART cable.

5.3 HiFi / surround sound amplifier
e For optimal sound quality, the digital receiver can be connected to a HiFi /

surround sound amplifier.

5.3.1 Digital connection
e If the amplifier has the correct power input, the

DIGITAL AUDIO OUT port should be connected to the power
or optical in slot on the amplifier.
Depending on the station, the available sampling rates are 32, 44.1 and 48 kHz.
This input also has a Dolby Digital signal, if one is sent out.

5.4 USB port

The USB port is used to update the software, display images and play music
and movies.

5.5 Network port (RJ45)

You can use the network port to connect the receiver to your existing network. This
enables you to use the app bar and HbbTV applications offered by programme providers

and to connect to the Internet

.

6 Initial installation

The first time you boot up the device, the AutoInstall installation wizard will be
displayed in the startup window. Use the installation wizard to easily set up the
key settings on the digital receiver.
Explanations of possible setting options will appear at each step in the instal
lation.
To stop the initial installation, click on the
of the installation wizard. The device starts up with the standard default program.
During the subsequent steps of the installation, press the green function key to
confirm the settings and move to the next step.
Press the red function key to go back to the previous step and correct incorrect
settings.
Follow the on screen instructions.

Language

> When the installation wizard is first launched, a language selection window is
displayed.

Selecting the country

> Use the arrow keys to select the country in which the device is used.
This selection will set the time zone and will sort the program list.

AV-Ausgang

>Please choose with the arrow buttons on the left/right, if you have connected

the device with a Scartcable (EuroAV) or a HDMI/YPbPr-cable to your TV - Set.
>Please press OK, to set your choice.

Aspect ratio

> Use the left / right arrow keys to set the aspect ratio of the connected TV. This
selection will automatically fit the image to the TV.

Netzwork configuration

A automatic check of the network configuration is made in this step.

> Do you not want to check the network configuration please ush the button INFO.

> If you like to check or change the network settings, please push the OPTION button

Please use the arrow buttons up/down for choosing wether you like to configure a LAN

or WLAN and press OK.

Please check the nework settings as descripted in point 6.6.2 and 6.6.3 of the manual.

> Please push the info button for saving your settings, the test of the network configuration will

start again.

>

>

Searching for stations

To search for a station:
> Using the up / down arrow keys, select "All Channels"
if you want to search for all encoded and uncoded channels or "All
Uncoded Channels" if you you want to search for public channels.
> The green function key is used to search
all channels automatically.

Software updates

Once the antenna set-up is complete, the digital receiver checks for all available
updates for the device. Any available updates can be performed automatically.

Channel search / ISIPRO (where available)

You have various options for searching for new channels or updating the channel list. You
can use the ISIPRO channel list function to download a new channel list for your receiver
from the satellite or run a channel search.

> To download an up-to-date channel list, use the up/down arrow keys to highlight

the ISIPRO - service list update item.

> To download the available current channel list, use the up/down arrow keys to

highlight the ISIPRO - service list update item and start the process by pressing
the OK button.

The current channel list will now be downloade d via satellite. Please observe

subsequent screen display s and notes.

> If you want to run a channel search via satellite instead of updating the channel list,

or if the DVB-S reception signal has not been configured, use the up/down arrow
keys to highlight the All channels or All unencr ypted channels field, then
start the channel search process by pressing the OK button.
In this search, all selected satellites in the antenna configuration are automatically
scanned for channels. This procedure may take several minutes. Please take note of
note all messages displayed on the screen.
If the channel search/channel list update has been skipped, the default channel list is loaded.
