Teac R-1 User Manual

9A10303200

FM/AM Radio

OWNER’S MANUAL

MANUEL DU PROPRIÉTAIRE

MANUAL DEL USUARIO

ENGLISH FRANÇAIS ESPAÑOL

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

IMPORTANT SAFETY INSTRUCTIONS

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10)Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11)Only use attachments/accessories specified by the manufacturer.

12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of time.

14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

< Do not expose this apparatus to drips or

splashes.

< Do not place any objects filled with

liquids, such as vases, on the apparatus.

< Do not install this apparatus in a confined

space such as a book case or similar unit.

< The apparatus draws nominal non-

operating power from the AC outlet with its POWER switch in the off position.

< The apparatus should be located close

enough to the AC outlet so that you can easily grasp the power cord plug at any time.

< An apparatus with Class ! construction

shall be connected to an AC outlet with a protective grounding connection.

WARNING : TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

CAUTION

< DO NOT REMOVE THE EXTERNAL CASES

OR CABINETS TO EXPOSE THE ELECTRONICS. NO USER SERVICEABLE PARTS ARE WITHIN!

For U.S.A.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the equipment and/or the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

ENGLISH

< IF YOU ARE EXPERIENCING PROBLEMS

WITH THIS PRODUCT, CONTACT TEAC FOR A SERVICE REFERRAL. DO NOT USE THE PRODUCT UNTIL IT HAS BEEN REPAIRED.

CAUTION

Changes or modifications to this equipments not expressly approved by TEAC CORPORATION for compliance will void the user’s warranty.

Contents

Before Use

Thank you for choosing TEAC. Read this manual carefully to get the best performance from this unit.

Important Safety Instruction . . . . . . . . . . . . 2

Before Use . . . . . . . . . . . . . . . . . . . . . . . . . 4

Rechargeable Batteries . . . . . . . . . . . . . . . . 5

Connection. . . . . . . . . . . . . . . . . . . . . . . . . 6

Names of Each Control . . . . . . . . . . . . . . . . 8

Listening to the Radio . . . . . . . . . . . . . . . . . 9

Listening to FM Stereo . . . . . . . . . . . . . . . 10

Listening to an External Saurce . . . . . . . . . 10

Troubleshooting . . . . . . . . . . . . . . . . . . . . 11

Specifications . . . . . . . . . . . . . . . . . . . . . . 11

Read this before operation

< As the unit may become warm during

operation, always leave sufficient space around the unit for ventilation.

< Do not use any AC adaptors other than

the one included with this unit to avoid fire, electric shock, etc. Be sure to connect the AC adaptor to an AC outlet that supplies the correct voltage.

< Choose the installation location of your

unit carefully. Avoid placing it in direct sunlight or close to a source of heat. Also avoid locations subject to vibrations and excessive dust, heat, cold or moisture.

< Do not open the cabinet as this might

result in damage to the circuitry or electrical shock. If a foreign object should get into the unit, contact your dealer or service company.

< When removing the AC adaptor from the

wall outlet, Always pull gently on the adaptor case. Never yank the cord.

< Do not attempt to clean the unit with

chemical solvents as this might damage the finish. Use a clean, dry cloth.

< Keep this manual in a safe place for

future reference.

CAUTION

The product shall not be exposed to dripping or splashing and that no object filled with liquids, such as vases, shall be placed on the product.

Do not install this equipment in a confined space such as a book case or similar unit.

Rechargeable Batteries

The R-1 uses a Nickel-Metal-Hydride battery pack stored in the battery compartment. Leaving the AC adaptor connected to the R1 and plugged in AC line, even when not in use, ensures the batteries will be fully charged when you need to use the R-1 on battery power. The R-1 can be used for 6 to 7 hours after batteries are fully charged.

< When the batteries become discharged

and need to be recharged, the POWER ON indicator blinks at intervals. And the blinling will grow faster as the batteries get closer to discharge until the R-1 shuts off automatically to protect the batteries.

< When the R-1 is not used but the AC

adaptor plugged in, the batteries will be completely charged within approximately

3.5 hours from full discharge. During this period the POWER ON indicator flushes at intervals.

< When the R-1 is ON and the AC adaptor

plugged in, the batteries will be completely charged within approximately 24 hours.

< It may take up to 4 charge and discharge

cycles before the batteries are operating at full capacity when the R-1 is new or left unused for several weeks. It is suggested that the R-1 is plugged in for about 12 hours before you use it first.

< Once the R-1 has been fully charged

while it is OFF, do not unplug the AC adaptor and then immediately plug it again, as this will restart the charging even though the batteries are fully charged. Doing this repeatedly will damage the batteries.

< If the R-1 is not plugged in, the batteries

will slowly self-discharge as a safety measure.

Battery Replacement

When the batteries are exhausted, replace the battery pack with new one.

1. Remove the battery compartment cover.

2. Disconnect the connector of the battery pack, and remove it.

3. Insert a new battery pack and connect its connector.

4. Close the cover.

Caution:

< Do not heat or disassemble rechargeable

batteries and never dispose of old batteries by throwing them in a fire

ENGLISH

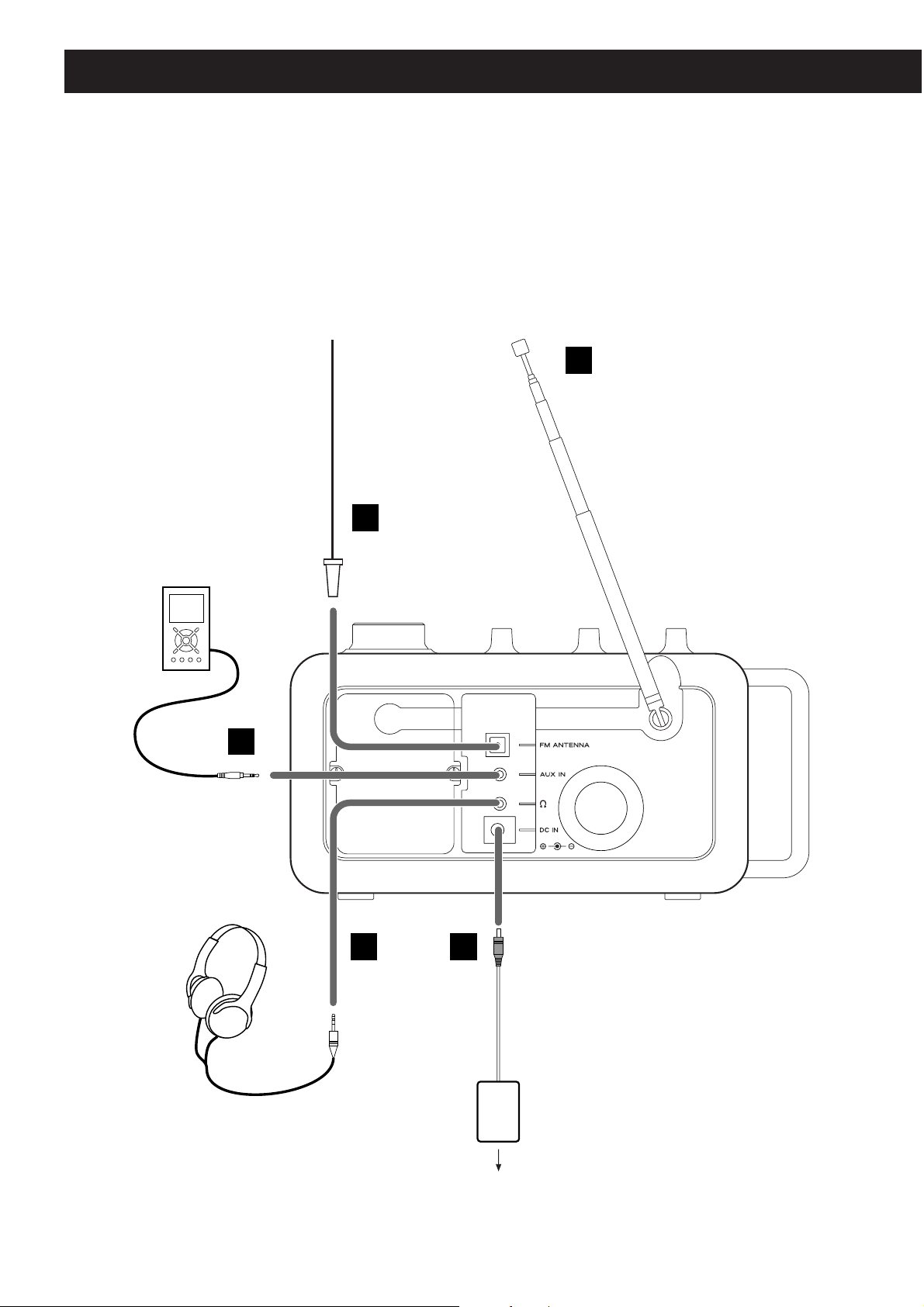

Connection

CAUTION

< Switch off the power before making connections. < Read the instructions of each component you intend to use with this unit. < Be sure to insert each plug securely. To prevent hum and noise, do not bundle the

connection cords.

12V

AC outlet

FM Telescopic Antenna

Stretch the telescopic antenna to it's fullest length and rotate it to the direction that gives the best reception.

FM Antenna

You can connect the provided lead-type FM antenna to the terminal. While in FM mode, tune in an FM station and extend the lead to find a position for the best reception. This antenna may need to be repositioned if you move your unit to a new location.

AUX IN jack

You can connect a portable audio player to this jack. Connect the LINE OUT or PHONES jack (audio output jack) of the player using the supplied stereo mini plug cable.

When using the PHONES jack of your mini player, you must adjust the volume of the mini-player or you may hear no sound from your R-1.

ENGLISH

< Turning the volume of the mini player up too high may cause the sound from

your R-1 to be distorted. If this is the case, reduce the volume of the mini player until the distortion stops and then adjust the volume level of the R-1 to a comfortable listening level

PHONES

For private listening, insert the headphones plug into this jack, and adjust the volume using the VOLUME knob.

< You can listen to stereo using headphones when you are receiving an FM

stereo broadcast.

DC IN

Connect the provided AC adaptor to this jack. Then, connect the AC adaptor’s plug to the AC wall socket.

< Do not use any AC adaptors other than the one included with this unit to

avoid fire, electric shock, etc. Be sure to connect the adaptor to an AC outlet that supplies the correct voltage.

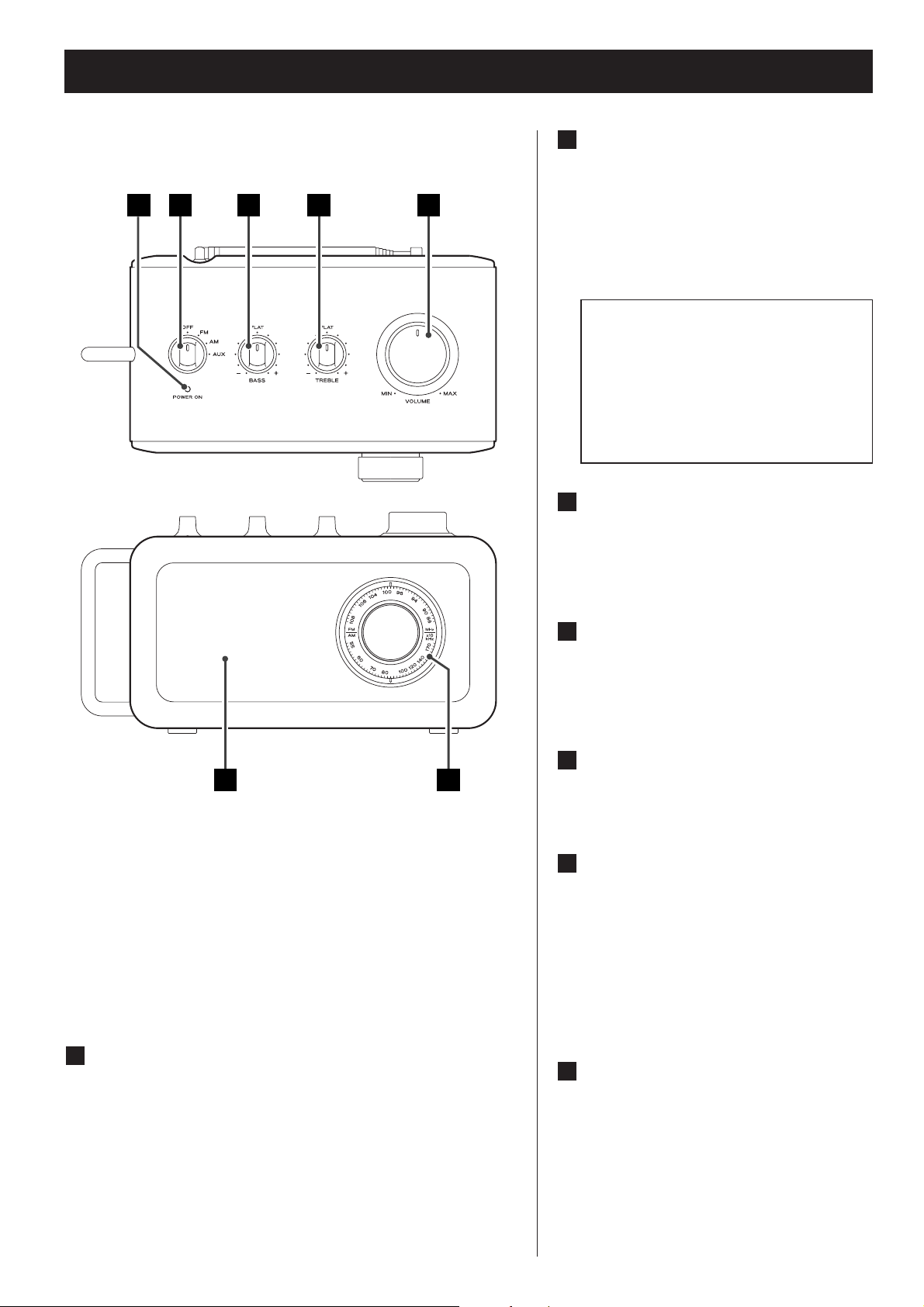

Names of Each Control

A B C D E

G F

POWER ON indicator

This indicator lights when the unit is turned on. This indicator lights when the batteries are being charged even though the unit is turned off. After the batteries are fully charged the indicator goes off.

Function knob

Use this knob to turn the unit ON and to select FM, AM or AUX. Select OFF to turn the unit off.

The equipment draws nominal nonoperating power from the AC outlet with its FUNCTION switch in the OFF position.

BASS knob

Turn this knob to adjust the bass level.

TREBLE knob

Turn this knob to adjust the treble level.

VOLUME knob

Turn this knob to adjust the volume.

TUNING knob

Turn this knob to tune in a station. In FM mode upper tuning indicator pointing to FM frequency lights. In AM mode lower tuning indicator pointing to AM frequency lights.

Speaker

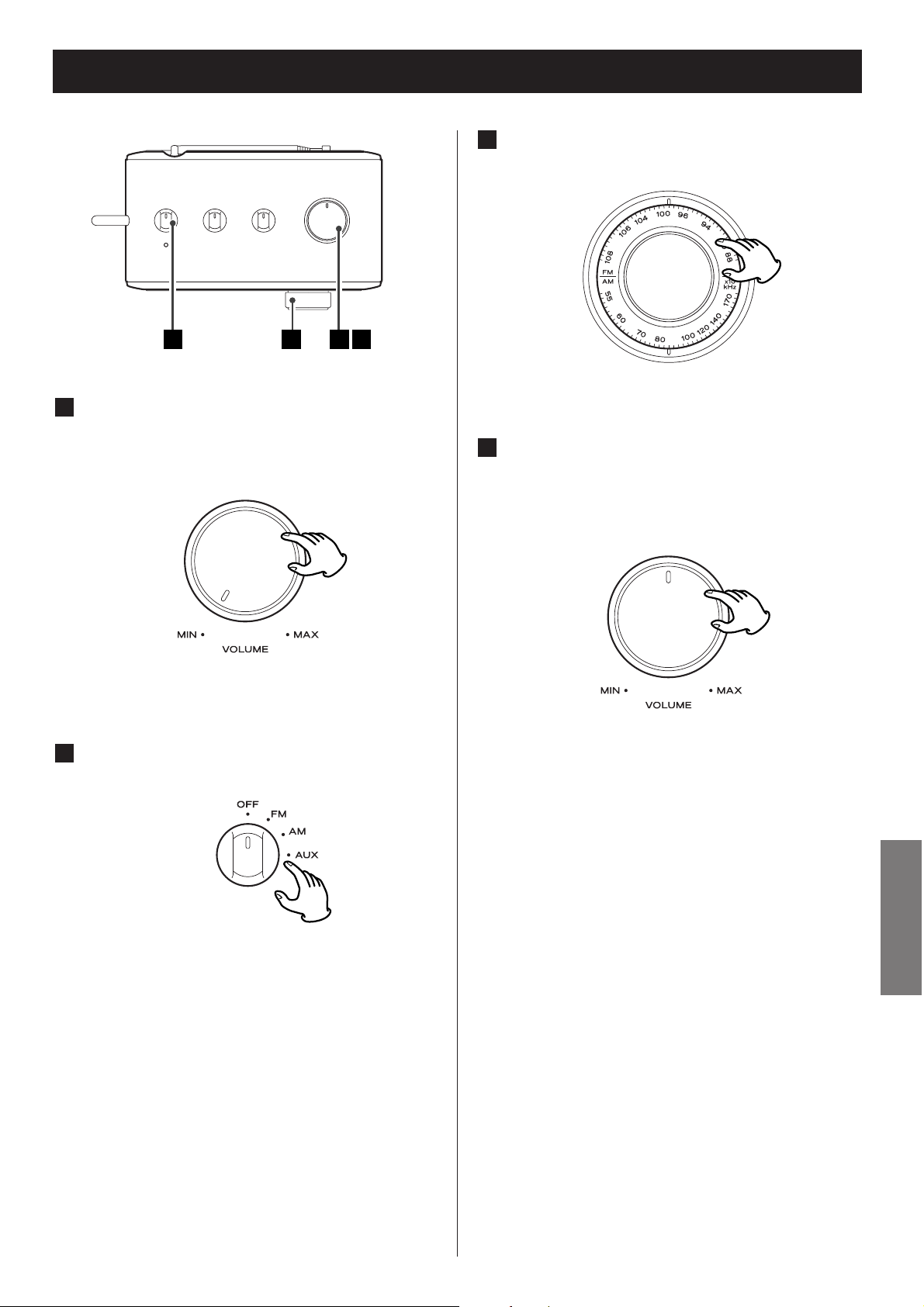

Listening to the Radio

2 1 43

To prevent a sudden high-level noise, turn the VOLUME knob counterclockwise to minimize the volume.

Turn the TUNING knob to tune in a station.

Gradually turn up the volume to the required level by turning the VOLUME knob.

ENGLISH

Turn the FUNCTION knob to select FM or AM.

< In FM mode the upper tuning indicator

pointing to the FM frequency dial lights. In AM mode the lower tuning indicator pointing to the AM frequency dial lights.

If the AM reception is poor,

turn the unit around to find the best position for AM stations. The AM antenna is built in within the cabinet so rotating the cabinet may improve the reception.

FM broadcast

For the best reception, rotate either the extendable antenna or the plug-in wire antenna until you get stations clearly.
