LCD TV
LCDV1501M
LCDV1901M
WARRANTY REGISTRATION
Keep your purchase receipt to enable you to proceed quickly in the event of a Warranty Service.
Please read this warranty card.
Warranty Terms & Conditions
1. TEAC warrants to the original retail purchaser only, that this product is free from defects in material and
workmanship under normal domestic use and authorises free service during the warranty period at any TEAC
Authorised Centre only. TEAC warranty only applies to products purchased, used and servic ed in Australia .
2. Subject to the terms herein, this warranty effectively covers the equipment as specified in the Warranty Periods
Table from the date of purchase.
3. All parts, except the external cabinet, are warranted as specified in Warranty Periods Table, and will be repaired or
replaced at the sole judgement of TEAC.
4. Normal customer maintenance as described in the owner’s manual is not covered by this warranty (such as cleaning
VCR heads etc.)
5. This warranty does not apply to equipment showing abuse, damage or that it may have been tampered with, altered
or repaired outside any TEAC Authorised Service Centre. If so, the warranty will be void.
*Your nearest Authorised TEAC Service Centre is listed in your Owners Manual
6. In the event that this unit or any defective parts must be returned to TEAC Service Centres, a copy of this warranty
certificate and of your purchase receipt must be enclosed to be a valid warranty. Such equipment or parts must be
sent freight prepaid to the nearest authorised TEAC Service Centre. After the repair, the unit will be available for
collection by the owner or it will be returned to the owner. The warranty does not cover freight or insurance. In all
cases of in-transit damages or loss, a claim must be filed against the carrier by the purchaser.
7. In home service will only be provided as part of this warranty if all the following conditions are met;
a) The product is a Colour Television of 56cm screen size or over.
b) The product is within the warranty period.
c) The product is located within the normal service area of the local TEAC Service Provider.
In any other situation or circumstance, where an in home service call is made, a service fee will be charged by the
Service Provider including travel fee if outside normal service area.
8. TEAC National Service Centre in home service and installation is available at competitive rates.
9. No one is authorised to assume any liability on behalf of TEAC or impose any obligation on it, in connection with
the sale of any equipment other than as stated in this warranty and outlined above.
10. In no event will TEAC be responsible or liable for indirect or consequential damages from interrupted operations or
other causes.
11. Warranty is not transferable to any subsequent purchaser if the product is sold during the warranty period,
TEAC PRODUCT
Televisions / Plasma 106 cm and
above
LCD televisions 56cm and above 1 Year (In-Home Service Included)
Televisions – 56cm and above 1 Year (In-Home Service Included)
All Televisions under 56 cm 1 Year (No In-Home Service)
Digital Set Top Boxes & Module 1 Year (No In-Home Service)
VCR 1 Year (No In-Home Service)
DVD & Module 1 Year (No In-Home Service)
DVD Recorder & PVR Module 1 Year (No In-Home Service)
Audio Systems 1 Year (No In-Home Service)
* Extended promotional warranty may apply to certain products (for more info please contact: service@teac.com.au)
In home service administration fee is applied after 1
WARRANTY PERIOD
1 Year (In-Home Service Included)
st
year of warranty.
WARRANTY PROCEDURES
Please keep this information for your own records.
Please refer to the owner’s manual to ensure that you have followed the correct installation and operating procedures.
1. Read owner’s manual carefully
2. If you require Warranty Service, please contact the TEAC Service Centre
3. Please have your purchase receipt as your proof of purchase and the following details completed for a valid
Warranty.
Owner’s Name
Owner’s Address
Postcode
Model Name/No. Serial No.
Dealer’s Name
Dealer’s Address
Postcode
4. Please ensure that your product is packed appropriately upon return to the service centre.
If you have any other queries regarding service or warranty please contact the TEAC National Service Centre below:
service@teac.com.au
www.teac.com.au
1800 656 700
Table Of Contents
Important Safety Instructions-------------------------------------------------Characteristic Features---------------------------------------------------------Disc Information-------------------------------------------------------------------Front Panel--------------------------------------------------------------------------Rear Panel---------------------------------------------------------------------------Remote Control--------------------------------------------------------------------System Connections------------------------------------------------------------
Connecting to Power Supply----------------------------------------------------Connecting to External AV Signal Source-----------------------------------Connecting to External AV Signal Source (YPbPr)-----------------------Connecting to External AV Input Device (AV Output)--------------------Connecting to PC -----------------------------------------------------------------Connecting to Earphone --------------------------------------------------------Connecting to TV Antenna-------------------------------------------------------
TV Function-------------------------------------------------------------------------
Preparations------------------------------------------------------------------------Image Setting-----------------------------------------------------------------------
12
12
12
13
13
14
14
15
16
16
16
1
4
5
6
8
9
Audio Setting-----------------------------------------------------------------------Setup Setting------------------------------------------------------------------------
NICAM Function------------------------------------------------------------------DVD Playback Operation------------------------------------------------------USB and SD/MS/MMC Card Function-------------------------------------DVD System Setup--------------------------------------------------------------Troubleshooting-----------------------------------------------------------------Specifications---------------------------------------------------------------------
19
20
24
25
30
31
3
3
7
8
Important Safety Instructions
Caution: use of any controls, adjustments, or procedures other than those specified herein may
result in hazardous radiation exposure.
Caution
1. The product contains a low-power device. In order to ensure the safety of the laser device, do not
remove any cover and attempt to repair the unit. If any service needed, please contact the
distributor or its authorized service center.
2. To reduce the risk of electric shock, do not remove the cover (back). No user-serviceable parts
inside. Refer serving to qualified service personnel. Unplug the product from the wall outlet before
serving or when it is unused for a long period of time.
3. The manufacturer should not hold responsibility for the damage caused by any substitutions and
modification of the product without authorization from the manufacturer’s or authorized unit.
WARNING
The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids,
such as vases, shall be placed on the apparatus.
Copyright Protection
This product incorporates copyright protection technology that is protected by U.S. patents and
other intellectual property rights. Use of this copyright protection technology must be authorized
by Macrovision, and is intended for home and other limited viewing uses only unless otherwise
authorized by Macrovision. Reverse engineering or disassembly is prohibited.
This symbol indicates that dangerous voltage instituting a risk of electric shock is
present within this unit.
This symbol indicates that there are important operation and maintenance
instructions in the literature accompanying the appliance.
Caution: Laser radiation when open. Do not stare into beam.
- 1 -
Important Safety Instructions
NOTES
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Following all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings.
8. Install according to the manufacturer instructions. Do not install near any heat sources such as
radiators, heat registers, stoves or other apparatus (including amplifiers) that produce heat.
9. Read, heed and follow all instructions to ensure correct and safe installation and
interconnection of the apparatus.
10. The apparatus shall not be exposed to dripping or splashing and that no objects filled with
liquids, such as vases, shall be placed on the apparatus.
11. The mains socket-outlet shall be installed near the apparatus and the mains plug shall remain
readily operable.
12. Protect the power cord from being walked on or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the apparatus.
13. Only use attachments/accessories specified by the manufacturer.
14. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold
with the apparatus. When a cart is used, use caution when moving the cart/apparatus
combination to avoid injury from tip-over.
15. Unplug the apparatus during lightning storms or when unused for long periods of time.
16. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has
been damaged in any way, such as power-supply cord or plug is damaged, liquid has been
spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or
moisture, does not operate normally, or has been dropped.
17. The apparatus shall be connected to a mains socket outlet with a protective earthing
connection.
Note: Do not touch the color TFT LCD screen by hand directly.
IMPORTANT FOR LASER PRODUCTS
1. CLASS 1 LASER PRODUCT
2. DANGER: Visible laser radiation when open and
interlock failed or defeated. Avoid direct exposure to
beam.
3. CAUTION: Do not open the top cover. There are
no user serviceable parts inside the unit. Leave all
servicing to qualified service personnel.
- 2 -
Recommendation to Avoid or Minimize Phosphor Burn-in
Like all phosphor-based display devices and all TFT LCD Displays, LCD TV' s can be susceptible to
phosphor burn under certain circumstances. Certain operating conditions, such as the continuous
display of a static image over a prolonged period of time, can result in phosphor burn if proper
precautions are not taken. To protect your investment in this LCD TV, please adhere to the following
guidelines and recommendations for minimizing the occurrence of image burn.
1.Always enable and use your computer's screen-saver function during use with a computer input
source.
2.Display a moving image whenever possible.
3.Change the position of the menu display from time to time.
4.Always power down the LCD TV when you are finished using it.
5.Lower the brightness and contrast levels as much as possible without impairing image readability.
6.Display an image with many colour and colour gradations (i.e. photographic or photorealistic
images).
7.Create image content with minimal contrast between light and dark areas, for example white
characters on black backgrounds. Use complementary or pastel colors whenever possible.
8.Avoid displaying images with few colors and distinct, sharply defined borders between colors.
Burn-in is not covered by the warranty.
Cell Defect
The TFT LCD panel consists of fine cells. Although the panels are produced with more than
99.9percent active cells, there may be some cells that do not produce light or remain lit.
Warranty
Warranty does not cover any damage caused by image retention.
- 3 -
Characteristic Features
This product incorporates DVD player, LCD display and TV receiver in one system.
Multiple Mode
TV mode
CVBS mode
S-VIDEO mode
COMPONENT mode
VGA mode
DVD mode
High Quality Property
High Resolution
Adopt an MPEG2 decoding format to achieve
horizontal resolution more than 500 lines.
LCD (Liquid Crystal Display)
Designed with 19" color TFT liquid crystal
display clearly shows the data.
Stereo amplifier
Built-in two speakers provide high quality
sound.
AV and VGA Input
Can be connected to external audio and video
signal source and PC.
Special Function
Support sleep time setting function and favorite
channel setting function, etc.
Multi-audio and Multi-video modes
Support multi-audio and multi-video modes,
provide more selecting.
USB and CARD PORTS
Designed with USB and SD/MS/MMC card port,
can be connected to USB device or
SD/MS/MMC Card.
Auto TV Searching Function
Can be connected to the TV antenna, support
Auto and manual TV programs searching
function.
NICAM Function
Supports the NICAM function. According to the
broadcasting programs, you can choose the
corresponding soundtrack.
Advanced Playing Features
Compatibility
DVD, CD and JPEG discs compatible.
All Playback Functions
Fast forward and backward, slow playback and
repeat playback.
Special playback.
Support multi-angle, multi-language and
multi-subtitle playback.
NOTE: It is normal for a TFT screen to
experience some light or dark spots appearing
on the LCD screen.
- 4 -
Disc Information
Discs Formats Supported By This Player
DVD
CD Audio 12cm 74min
JPEG Still high resolution 12cm
The operating method of some DVD discs is specified by the software maker. Please refer to
the instruction manual of the disc.
About Disc Terms
Title
Generally, pictures or music compressed on a DVD are divided into several sections, “title”.
DISC LOGO CONTENTS SIZE MAXIMUM TIME
Audio+Video
(active picture)
12cm
133min(SS-SL)
242min(SS-DL)
266min(DS-SL)
484min(DS-DL)
Chapter
The smaller section unit of picture or music in a DVD under the title, usually one title is comprised of
one or more chapters and each of them is numbered for easy searching. But some discs may not
have a recording chapter.
Track
A segment of picture or music on a CD. Each track is numbered for searching.
- 5 -
Front Panel
1. 19" color TFT screen
19" color TFT screen clearly show the data.
2. SOURCE button
Press to select mode among TV, CVBS, S-VIDEO, COMPONENT, VGA and DVD.
In setup menu, the same function as ENTER button.
3. MENU button
Press to enter or return to the previous setup menu.
4. CH ▲/▼ button
In the TV mode, press to select channels.
In setup menu, the same function as ▲/▼ direction buttons.
5. VOL ▲/▼ button
In the TV mode, press to decrease or increase the volume.
In setup menu, the same function as ◄/► direction buttons.
6. PLAY button
Press to play the disc in DVD mode.
7. ■ STOP button
Press to stop disc playback in DVD mode.
- 6 -
Front Panel
8. Eject button
Press to eject the disc out in DVD mode.
9. Power button
Press to enter or exit the standby mode.
10. SD/MS/MMC Card Port
Insert the SD, MS or MMC card into the port.
11. Disc Tray Slot
Used to load disc.
12. Earphone Jack
When connected to earphone, the internal speakers will automatically turn off.
13. USB Connecting Port
Connecting to the USB device.
14. Remote Sensor
Remote sensor window for the remote control.
15. Power Indicator
In normal playback status, it is blue; in standby mode, it turns red.
16. Speakers
Two speakers output high quality stereo sound.
- 7 -
Rear Panel
1. Y/Pb/Pr Input Jack
Connected to the Y/Pb/Pr input in
COMPONENT mode.
2. Y/Pb/Pr L/R Audio Input Jack
Connected to the L/R audio input in
COMPONENT mode.
3. Composite Audio/Video Output Jack
In the CVBS mode, connected to output
the Audio/Video signals.
4. S-VIDEO and CVBS Audio/Video Input
Jack
Connected to the S-VIDEO input in
S-VIDEO mode or CVBS input in the
CVBS mode. The L/R audio input jacks
can be used in the both S-VIDEO and
CVBS modes.
5. TV Signal Input Jack
Connected for the external TV signal
input.
6. DC 12V Input Jack
Connect the power adaptor or the car
adaptor.
7. VGA Input Jack
Connected to the VGA output jack on a
personal computer.
8. PC AUDIO Input Jack
Connected to the PC audio output jack.
- 8 -
Remote Control
Remote Control Drawing
1. POWER button
Press to turn on or off this unit.
2. TV button
Press to shift to TV mode.
3. DVD button
Press to shift to DVD mode.
4. P.M. button
Press to shift the screen picture modes
among User, Standard, Soft, Bright and
Shine.
5. S.M. button
Press to shift the sound modes among
User, Standard, Music, Movie and
Speech.
6. 0~9 Number buttons
Press to select numbers such as TV
channel.
7. FAV button
Press to access to the favorite channel.
8. STEREO/AUDIO button
Press to shift sound track when in TV
mode.
Press to select audio language or audio
track when in DVD mode.
9. VOL+/- button
Press to increase or decrease the volume.
10. MUTE button
Press to turn on or off speaker output.
11. EXIT button
Press to exit from the setup menu.
12. Direction buttons (▲▼◄►)
In the setup menu, press the ▲▼ button
to select a desired item and press the ◄►
button to adjust or set.
13. ENTER button
Press to confirm your selection.
14. SOURCE button
Press to select mode among TV, CVBS,
S-VIDEO, COMPONENT, VGA and DVD.
15. PLAY button
Press to play a disc when in the DVD
mode.
16. PAUSE button
When in DVD mode, press to pause
playback. Press the PLAY button to
resume normal playback.
17. / button
Press to search backward or forward
when in DVD mode.
Under teletext mode, it’s the teletext color
button.
18. TITLE button
When a DVD is playing, press the TITLE
button to go to the title menu and display
disc contents.
Under TV, CVBS or S-VIDEO mode,
press to display/close the teletext.
- 9 -
Remote Control
19. MENU button (under DVD mode)
Press to enter disc menu when in DVD
mode.
Under teletext mode, press to disable
teletext display and press again to
resume.
20. SETUP button
Press to open DVD setup menu when in
DVD mode.
Under teletext mode, press to display
index page.
21. SLOW button
Press to activate slow playback function
when in DVD mode.
Under teletext mode, press once to
display the concealed information, such
as solution of riddles or puzzles; press
again to resume the riddles information
from the display.
22. VGA button
Press to shift to VGA mode.
23. COMPONENT button
Press to shift to COMPONENT mode.
24. DISPLAY button
Press to display the reference information
of the current program.
25. SET FAV button
Press to set the current channel as the
favorite channel.
26.
27. SCAN/SUBTITLE button
28. CH +/- button
29. ASPECT button
30. MENU button
/+10 buttons
When in TV mode, press to return to the
channel previously viewed. When in DVD
mode, press to select numbers greater
than 10.
When in TV mode, press to scan the
programs and press again to stop
scanning. When in DVD mode, press to
select alternate subtitle languages during
playback of a multiple language DVD disc.
When in TV mode, press to select
channel.
Press to shift the aspect ratio of the
screen between Fill Screen and Aspect
Normal.
Press to enter or exit the setup menu.
31. SLEEP button
This feature allows you to set up sleep
time when in TV mode. Press the button
repeatedly to select the desired sleep time
or “Off” to close this function.
32. Eject button
Press to eject the disc from the unit.
33. ■ STOP button
Press to stop disc playback when in DVD
mode.
34. / button
Press to skip to the previous or next
chapter/track when in DVD mode.
Under teletext mode, it’s the teletext color
button.
35. REPEAT button
Press to repeat a chapter, track, title or all
program content when in DVD mode.
Under teletext mode, press to freeze the
current page and press again to resume.
36. ANGLE button
Press to select various camera angles (if
the DVD supports multiple camera angles)
when in DVD mode.
Under teletext mode, press the button first
time to double the size of teletext letters in
the upper half of the screen, second to
double the size of teletext letters in the
lower half of the screen and third to
resume normal status.
37. CARD button
Press to shift among disc playback, USB
playback and SD/MS/MMC playback.
Under teletext mode, press to select four
groups 3-digit numbers that displayed in
different colors at the bottom of the screen.
Press the color buttons on the remote
control to select, then use the number
buttons to input the corresponding number
to display the page.
Repeat the above procedures for each
page to be stored, using a different color
button accordingly each time.
38. GOTO button
Press to select the desired disc starting
time, title or chapter when in DVD mode.
Under TV mode, press to display the
realclock and press the EXIT button to
exit.
- 10 -
Remote Control
Preparation of Remote Control
Softly push the back cover to open the battery
compartment.
Insert two batteries (1.5V, size AAA), please
make sure the polarity matches the marks
inside the compartment.
Softly press the back cover to close it.
Under normal use the battery will last for
six months.
Take out battery when the remote is not in
use for a long time.
Using of Remote control
Point the remote control unit from no more than
about 7m from the remote control sensor and
within about 60 degrees of the front of the unit.
• The operating distance may vary
depending to the brightness around.
Notes:
• Do not point bright lights directly at the
remote control sensor.
• Do not place objects between the remote
control unit and the remote control sensor.
• Do not use this remote control unit while
simultaneously operating the remote
control unit of any other equipment.
- 11 -
System Connections
• Before connections, disassemble the jack cover first.
• Do not connect the power cord until all other connections have been made.
• Ensure that you observe the color cord when connecting audio and video cables.
Connecting to Power Supply
Power is supplied through the provided appropriative power adapter, one end is connected to the
DC 12V IN jack on the side panel of the unit, the other end to the wall AC outlet.
Connecting to External AV Signal Source
Use the audio and video cable to connect the AV input jacks on the rear panel of the unit to the
external AV signal source. Use the S-VIDEO cable to connect the S-VIDEO input jack on the rear
panel of the unit to the external AV signal source.
After connection, turn on the power of the unit and the external AV signal source and then press the
SOURCE button to shift to CVBS or S-VIDEO mode.
Note: the L/R audio input jacks can be used in the both CVBS and S-VIDEO modes.
- 12 -
System Connections
Connecting to External AV Signal Source（YPbPr）
Use the audio and video cables to connect the Y/Pb/Pr input Jacks on the rear panel of the unit to
the external AV signal source.
After connection, turn on the power of the unit and external AV signal source and then press the
SOURCE button to shift to COMPONENT mode.
Connecting to External AV Input Device（AV Output）
Use the audio and video cable to connect the AV output jacks on the side panel of the unit to the
external AV input device.
After connection, turn on the power of the unit and external AV input device and then press the
SOURCE button to shift to the corresponding mode.
Note: The unit can only output TV, CVBS and S-VIDEO signals.
- 13 -
System Connections
Connecting to PC
The unit can be connected to PC (person computer) via the VGA cable. Follow the steps and the
figure below to connect.
1. Connect one end of the VGA cable to the VGA input jack on the side panel and the other end
to the PC.
2. Connect one end of the audio cables to the PC audio input jack on the side panel and the other
end to the PC audio output jack.
3. Set the PC’s resolution at 1024×768@60Hz.
After connection, turn on the unit and the PC and then press the SOURCE button to shift to VGA
mode.
Connecting to Earphones
This unit can be connected to an earphone for listening music privately. See the below figure for
derails:
After connecting to the earphone, the internal speakers output will turn off automatically.
Note: Excessively loud volume could damage your hearing. So turn down the volume before
you connect the headphones, and then raise the volume to comfortable level.
- 14 -
System Connections
Connecting to TV Antenna
This unit can be connected to the TV signal input source via the TV jack on the rear panel.
After connection, turn on the power of the unit. Then press the SOURCE button to shift to TV mode.
After connecting to the antenna, turn on the unit, and go on with program searching, you can
follow the below steps to select channels:
1. For 0~9 channel:
Press the number buttons to select the channel X
selected channel.
Or press the number buttons to select channel X, and press the ENTER button to go to the
selected channel immediately.
Or press the number buttons to select channel 0X
immediately.
2. For 10~99 channel:
Press the number buttons to select channel XX
immediately.
* X is the channel number.
, wait several seconds and it will go to the
, and it will go to the selected channel
, and it will go to the selected channel
- 15 -
TV Function
NOTE: In other mode, you can refer to the following instructions in TV mode to go on with
some settings.
Preparations
1. After connection, press the POWER button to turn on the power. (If it is turned on, the power
indicator is blue.)
2. Press the SOURCE button to shift to TV mode. You can go on with the following operations:
Image Setting
Press the MENU button once to enter the setup
menu. Press the ▲▼ button to select Image and
press the ENTER button to enter the menu
shown on the right.
In the Image setup menu, press the ▲▼ button
to select the desired item. Press the MENU
button to return to the previous menu.
Scheme Setup
This item is used to change picture effect.
Press the ▲▼ button to select Scheme and
press the ENTER button to enter. Press the
▲▼ button to select the desired item and press
the ENTER button to confirm your selection.
Press the MENU button to return to the previous
menu.
Picture Setup
This item is used to change user’s mode.
Press the ▲▼ button to select Picture and
press the ENTER button to enter. Press the
▲▼ button to select the desired item and press
the ENTER button to confirm your selection.
Press the MENU button to return to the previous
menu.
- 16 -
TV Function
Brightness Setup
Press the ▲▼ button to select
Brightness and press the ◄►
button to adjust the value. Press
the MENU button to return to the
previous menu.
Contrast Setup
Press the ▲▼ button to select Contrast and press the ◄► button to adjust the value. Press the
MENU button to return to the previous menu.
Hue Setup
Press the ▲▼ button to select Hue and press the ◄► button to adjust the value. Press the MENU
button to return to the previous menu.
Note: This item is only available under NTSC TV signal mode.
Colour
Press the ▲▼ button to select Colour
MENU button to return to the previous menu.
Sharpness Setup
Press the ▲▼ button to select Sharpness and press the ◄► button to adjust the value. Press the
MENU button to return to the previous menu.
Advanced Setup
Press the▲▼ button to select Advanced and press
the ENTER button to enter.
In the menu, press the ▲▼◄► direction button to
move the image. Press the MENU button to return
to the previous menu.
Note: This item is only available in DVD, VGA and COMPONENT modes.
(Saturation) Setup
(Saturation) and press the ◄► button to adjust the value. Press the
- 17 -
TV Function
When the VGA signal is connected to the unit, the Advanced setup menu is shown below:
Press the “▲▼” button to select the desired item
and press the “ENTER” button to enter it’s setup
menu. Press the “MENU” button to return to the
previous menu.
Auto Adjust:
If the monitor is not clear, you should carry out “Auto Adjust”.
Press the “▲▼” button to select “Auto Adjust” and press the “ENTER” button to enter it’s menu.
Press the “▲▼” button to select “Yes” to activate this function or “No” to cancel. Press the “MENU”
button to return to the previous menu.
Image Pos:
Press the “▲▼” button to select “Image Pos” and press the “ENTER” button to enter it’s menu.
Within the menu, press the “▲▼◄►” button to move the image. Press the “MENU” button to return
to the previous menu.
Phase:
Press the “▲▼” button to select “Phase” and press the “ENTER” button to enter it’s menu. Press
the “◄►” button to adjust the value. Press the “MENU” button to return to the previous menu.
Clock:
Press the “▲▼” button to select “Clock” and press the “ENTER” button to enter it’s menu. Press
the “◄►” button to adjust the value. Press the “MENU” button to return to the previous menu.
Auto Color:
Press the “▲▼” button to select “Auto Color” and press the “ENTER” button to activate this
function. Press the “MENU” button to return to the previous menu.
sRGB:
Press the “▲▼” button to select “sRGB” and press the “ENTER” button to enter it’s menu. Press
the “▲▼” button to select “On” to activate this function or “Off” to cancel. Press the “MENU”
button to return to the previous menu.
- 18 -
TV Function
Audio Setting
Press the MENU button once to enter the setup
menu. Press the ▲▼ button to select Audio and
press the ENTER button to enter the menu shown on
the right.
In the Audio setup menu, press the ▲▼ button to
select the desired item. Press the MENU button to
return to the previous menu.
Volume Setup
Press the ▲▼ button to select Volume and press the ◄► button to adjust the level. Press the
MENU button to return to the previous menu.
Bass Setup
Press the ▲▼button to select Bass and press the ◄► button to adjust the level. Press the MENU
button to return to the previous menu.
Treble Setup
Press the ▲▼button to select Treble and press the ◄► button to adjust the level. Press the
MENU button to return to the previous menu.
Balance Setup
Press the ▲▼ button to select Balance and press the ◄► button to adjust the level. Press the
MENU button to return to the previous menu.
Auto Volume Setup
Press the ▲▼ button to select Auto Volume and press the ENTER button to access the menu.
Press the ▲▼ button to select “On” or “Off” and press the ENTER button to confirm. Press the
MENU button to return to the previous menu.
Sound Mode Setup
Press the ▲▼ button to select Sound Mode and
press the ENTER button to enter. Press the ▲▼
button to select the desired item and then press the
ENTER button to confirm your selection. Press the
MENU button to return to the previous menu.
- 19 -
TV Function
Setup Setting
Press the MENU button once to enter the setup
menu. Press the ▲▼ button to select Setup and
press the ENTER button to enter the menu shown on
the right.
In the Setup menu, press the▲▼ button to select
the desired item. Press the MENU button to return to
the previous menu.
Tuner/Channel
Press the ▲▼ button to select the
Tuner/Channel and press the ENTER button
to enter the menu shown on the right. Press the
▲▼ button to select the desired item. Press
the MENU button to return to the previous
menu.
Country
Press the ▲▼ button to select the
Country and press the ENTER
button to enter the menu shown on
the right. Press the ▲▼ button to
select the desired item. Press the
MENU button to return to the
previous menu.
- 20 -
TV Function
Auto Scan
Press the ▲▼ button to select the Auto Scan and press the ENTER button to start auto scan. The
screen will display shown below:
Auto scan will take a few minutes, when the tuning operation completes the unit will exit and
memorize the programs by sequence automatically.
During tuning, press the MENU button to exit the auto scan mode.
Prog Organizer
Press the ▲▼ button to select the
Prog Organizer and press the
ENTER button to enter the menu
shown on the right.
In the Prog Organizer setup menu,
press the ▲▼ button to select the
desired item. Press the MENU
button to return to the previous
menu.
Channel Name
Press the ▲▼ button to select the Channel Name and press the ENTER button to enter. Then
press the ▲▼ button to select letters or press the number button to input numbers. Press the
MENU button to return to the previous menu.
Skip
Press the ▲▼ button to select Skip and press the ENTER button to activate or cancel this function.
Press the MENU button to return to the previous menu.
Swap
Press the ▲▼ button to select Swap from Ch and press the ENTER button to enter. Press the
number buttons to select program number. Repeat the above operations to Swap To Ch. Then
Press the ▲▼ button to select Perform Swap and press the ENTER button to confirm.
- 21 -
TV Function
Manual Install
Press the ▲▼ button to select the
Manual Install and press the
ENTER button to enter the menu
shown on the right.
In the Manual Install setup menu,
press the ▲▼ button to select the
desired item. Press the MENU
button to return to the previous
menu.
Search
Press the ▲▼ button to select Search and press the ► or ◄ to start searching forward or
backward. Press the MENU button to return to the previous menu.
Color System
Press the ▲▼ button to select Color System and press the ENTER button to enter. Press the
MENU button to return to the previous menu.
Fine Tune
Press the ▲▼ button to select Fine Tune and press the ENTER button to enter. Press the ► or ◄
controls to start fine tuning forward or backward. Press the MENU button to return to the previous
menu.
This feature allows for minor adjustments to the integrated electronic tuner’s ability to tune in weak
broadcast signals or where applicable solve minor irregularities in cable channel tuning parameters.
CH ▲▼
Press the ▲▼ button to select CH ▲▼ and press the ENTER button to enter. Press the number
buttons to enter the channel number. Press the MENU button to return to the previous menu.
Store
Press the ▲▼ button to select Store and press the ENTER button to store the above operations.
Note: The “CH ▲▼” and “Store” items only function when the program is searched out.
- 22 -
TV Function
Language
Press the ▲▼ button to select the Language, press
the ENTER button to enter the setup, press the ▲▼
button to select item. Press the MENU button to
return to the previous menu.
Factory Reset
Press the ▲▼ button to select the Factory Reset
and press the ENTER button to enter. Press the ▲▼
button to select “Yes” or “No” and press the ENTER
button to reset to the default status or to cancel.
Press the MENU button to return to the previous
menu.
- 23 -
NICAM Function
The unit support NICAM function under TV mode.
Under NICAM TV broadcast:
1. When receiving stereo audio signals, press the STEREO/AUDIO button on the remote control
repeatedly to shift the sound tracks between Nicam Stereo and Mono and the screen will
appear corresponding display as shown below:
2. When receiving bilingual audio signals, press the STEREO/AUDIO button on the remote
control repeatedly to shift the sound tracks among Nicam I, Nicam II, Nicam I+II and Mono
and the screen will appear corresponding display as shown below:
3. When receiving mono audio signals, press the STEREO/AUDIO button on the remote control
repeatedly to shift the sound tracks between Nicam Mono and Mono and the screen will
appear corresponding display as shown below:
Under A2 TV broadcast:
1. When receiving stereo audio signals, press the STEREO/AUDIO button on the remote control
repeatedly to shift the sound tracks between Stereo and Mono and the screen will appear
corresponding display as shown below:
2. When receiving bilingual audio signals, press the STEREO/AUDIO button on the remote
control repeatedly to shift the sound tracks among I, II and I+II and the screen will appear
corresponding display as shown below:
3. When receiving mono audio signals, press the STEREO/AUDIO button on the remote control to
display sound track Mono on the screen.
- 24 -
DVD Playback Operation
Preparation：After connections, turn on the unit and select the relevant video input before
playback.
Disc Loading Steps:
1. Press the POWER button to turn on the power. Press the SOURCE button and select DVD,
press the ENTER button to confirm and shift to DVD mode.
2. Handing the disc with its printed side outward vertically to the disc tray. (Referring to the below
picture.)
3. Slightly put the disc into the disc tray.
4. As disc is automatically taken in the disc tray fully, the player will search a disc and play it
automatically in DVD mode.
Warning: Do not play poor quality discs that may damage the player’s lens.
DVD Playback
Region Code
DVD players and discs are coded by region. These regional codes must match the played discs. If
the codes don’t match, the disc cannot be played. This player’s default code is region 4.
Play
Press the PLAY button to start playback. Press the STOP button once on the remote control to stop
playback, and press the PLAY button again to resume playback.
Stop
Press the ■ STOP button once to stop playback and press the PLAY button to resume normal
playback. Press this button twice repeatedly to stop playback completely and the unit will return to
the previous system mode.
- 25 -
DVD Playback Operation
Pause
Press the PAUSE button once to pause the playback; press it repeatedly to start step-by-step
playback. Press the PLAY button to resume normal playback.
Previous and Next
Press the button to go to the next chapter. Press the button once to return to the beginning of
the current chapter or track; press it twice to go to the previous chapter.
Fast Playback
Press the or FWD/REV SCAN button on the remote control to activate fast backward or
forward playback.
SLOW
During DVD disc playback, press the SLOW button on the remote control to start slow playback.
During slow playback, press the PLAY button to resume normal playback.
Repeat
Use the REPEAT button repeatedly to repeat a chapter, title or all.
◆ Some discs do not support the repeat function.
Menu
Normally there is a selecting menu for DVD discs. You can press the MENU button (under DVD
mode) to enter the menu, and use the direction buttons to highlight an item. Then press the ENTER
button to confirm.
Title & Chapter
Normally there are several titles in a DVD disc, and several chapters (sections) in a title. You can
select any title or chapter quickly by entering the relevant number.
Language (Audio)
There can be up to 8 audio languages on a DVD disc. When you play a multi-language DVD disc
you can use press the AUDIO button on the remote control to select a language.
Subtitle
The DVD player can support multiple kinds of subtitles. When you play a multi-subtitle disc you can
press the SUBTITLE button on the remote control to select different subtitles.
- 26 -
DVD Playback Operation
GOTO
During DVD disc playback, press the GOTO button on the remote control once, there will be a
menu displayed on the screen. You can set or select items for your preference. Use the
direction buttons to select items and press the ENTER button to enter and use the direction
buttons to select the desired item. Press the direction button to return. When select the
Title/Chapter, TT Time/CH Time, use number buttons to input desired title/chapter number time.
◆ Some DVD discs do not support the search function.
Various Camera Angles
The movies on some DVDs have been recorded from various camera positions. This lets you enjoy
the same scene from different perspectives. In this case you’ll usually find a marking on the DVD
sleeve.
When playing a DVD containing various camera angles the camera symbol appears on the screen.
Press the ANGLE button repeatedly until the desired perspective is shown. The picture will be
adjusted in 1～2 seconds.
CD Playback
The player will play all tracks on a CD disc by default. You can use the and (PREV/NEXT skip)
buttons, or number buttons to select a track.
Stop
Press the ■ STOP button once to stop playback and press the PLAY button to resume normal
playback. Press this button twice repeatedly to stop playback completely and the unit will return to
the previous system mode.
Pause
Press the PAUSE button to pause the playback and then press the PAUSE button again or PLAY
button to resume normal playback.
Previous and Next
Press the button once to go the beginning of this track. Press twice repeatedly to go the previous
track.
press the button to play from the beginning of the next track.
Fast Playback
Press the or FWD/REV SCAN button on the remote control to activate fast backward or
forward playback.
- 27 -
DVD Playback Operation
Repeat
Use the REPEAT button repeatedly to repeat Track, All or to cancel repeat.
◆ Some discs do not support the repeat function.
Audio
During CD playback, press the AUDIO button on the remote control to select the audio output mode:
Mono Left, Mono Right, Mix-Mono and Stereo.
Goto
Press the GOTO button to access the time-selected state. You can select Disc Go To, Track Go To
or Select Track respectively by pressing this button repeatedly. Use the 0-9 buttons to enter the
desired time, and then the player will play according to the selected time.
JPEG Playback
JPEG is a common picture format that requires small amounts of storage per image and has low
loss in resolution. Hundreds of pictures can be stored on a disc in this format. In order to view JPEG
photo albums, you can ask your film development company to make a ”PICTURE CD” when they
develop your film.
Normal Playback
Load a JPEG disc in. For JPEG disc, there will be a root menu displayed on the screen. Use the
ENTER button and the direction button to select a submenu, and then use the ▲▼ direction button
to select the contents. Many discs have other contents besides pictures.
For Picture CD disc, it will display the pictures automatically.
During playback, press the or button to select picture.
◆ Many discs have other contents besides pictures.
Stop
Press the STOP button once to stop playback and return to the preview menu. Press the
PLAY button to resume normal playback. Press this button twice repeatedly to stop playback
completely and the unit will return to the previous system mode.
Pause
Press the PAUSE button to pause playback, press the PAUSE button again or PLAY button to
resume playback.
Repeat
During playback, press the REPEAT button repeatedly, and the repeat modes are Shuffle, Random,
Single, Repeat One, Repeat All and Repeat Off.
- 28 -
DVD Playback Operation
Previous and Next
During playback, press the or button to select picture.
Menu
Press the MENU button once to stop playback and return to the root menu.
GOTO
During playback, press the GOTO button on the remote control once, use the number buttons to
input the file number.
Picture Rotation
This can be used only when the picture is normally displayed. Once another picture is selected,
rotation will be cancelled automatically. Use the buttons to rotate the picture.
◆ Some JPEG disc may not support rotating function.
- 29 -
USB and SD/MS/MMC Card Function
USB and SD/MS/MMC Card Function
Preparation:
1. Connect the unit to the power supply.
2. Press the POWER to turn on the unit.
3. Press the SOURCE button to shift to DVD mode.
4. Insert the USB into the unit’s USB slot, or insert the SD/MS/MMC card into the SD/MS/MMC
card slot on the right side of the unit. Please see the below figure:
Make sure that files are stored in the USB and SD/MS/MMC card before connection.
5. Press the CARD button to shift among disc playback, USB playback and SD/MS/MMC
playback. The default state is disk playback. Please see the below figure:
6. Press the buttons to select the folder and press the ENTER button to enter.
7. Press the buttons to select the desired track. Then press the PLAY button to start
playback.
8. Press the STOP button to stop playback. Press the button to return to the folder menu.
Note:
1. The screen display will vary from disc to disc.
2. Pull out the USB or SD/MS/MMC card directly after the files are played. Then the unit will
be in the state of disc playback again.
3. The multi-media card reader and USB may subject to different compatibility identities due
to different brands' flash card or flash disk.
00:00 00:00
001/002
BAK
JPEG
- 30 -
DVD System Setup
Preparations
1. Connect to the power supply and turn on the unit.
2. Press the SOURCE button to shift to DVD mode.
3. Press the SETUP button on the remote control to display the settings menu. The menu includes
General setup, Audio setup, Video se
4. Press the direction buttons on the remote control to select a category. All the items in the
category will appear on the screen.
5. Press the SETUP button again to exit the setup.
General Setup Page
Press the SETUP button to enter the General setup menu. The screen will display as the below:
TV Display
Angle Mark
tup and Preference setup.
In the menu, Use the direction buttons to
select the desired item. Press the ENTER button to
enter the item. Press the button to return.
1. Press the direction buttons to select TV
Display.
2. Press the ENTER button to enter the setup.
3.
Use the direction buttons to select items.
4.
Press the ENTER button again to confirm
selection and return.
1. Press the direction buttons to select
Angle Mark.
2. Press the ENTER button to enter the setup.
3.
Use the direction buttons to select On or
Off.
4.
Press the ENTER button again to confirm
selection and return.
- 31 -
DVD System Setup
t
r
r
t
OSD Lang
Captions
Screen Saver
Last Memory
The item is used to select the OSD language.
1. Press the direction buttons to select OSD
Lang.
2. Press the ENTER button to enter the setup.
Use the direction buttons to select items.
3.
Press the ENTER button again to confirm
4.
selection and return.
1. Press the direction buttons to selec
Captions.
2. Press the ENTER button to enter the setup.
Use the direction buttons to select items.
3.
Press the ENTER button again to confirm
4.
selection and return.
1. Press the direction buttons to selec
Screen Saver.
2. Press the ENTER button to enter the setup.
Use the direction buttons to select On o
3.
Off.
Press the ENTER button again to confirm
4.
selection and to return.
1. Press the direction buttons to select Last
Memory.
2. Press the ENTER button to enter the setup.
3. Use the direction buttons to select On o
Off.
4. Press the ENTER button again to confirm
selection and return.
- 32 -
DVD System Setup
t
t
Media Center
Audio Setup Page
Press the SETUP button to enter the General setup menu, then use the direction buttons to
select Audio Setup Page, the screen will display as the below:
Dolby Digital Setup
Dual Mono
Press the direction buttons to selec
1.
Media Center.
Press the ENTER button to enter the setup.
2.
Use the direction buttons to select DVD,
3.
USB, SD/MMC or MS.
Press the ENTER button again to confirm
4.
selection and return.
In the menu, Use the direction buttons to
select the desired item. Press the ENTER button to
enter the item. Press the button to return.
1. Press the direction buttons to selec
Dolby Digital.
2. Press the ENTER button to enter the setup, the
screen will display as left:
In the menu, use the direction buttons to
3.
select items.
Press the ENTER button to enter the setup.
4.
Press the button to return.
1. Press the direction buttons to select Dual
Mono.
2. Press the ENTER button to enter the setup.
Use the direction buttons to select items.
3.
Press the ENTER button again to confirm
4.
selection and return.
- 33 -
DVD System Setup
t
r

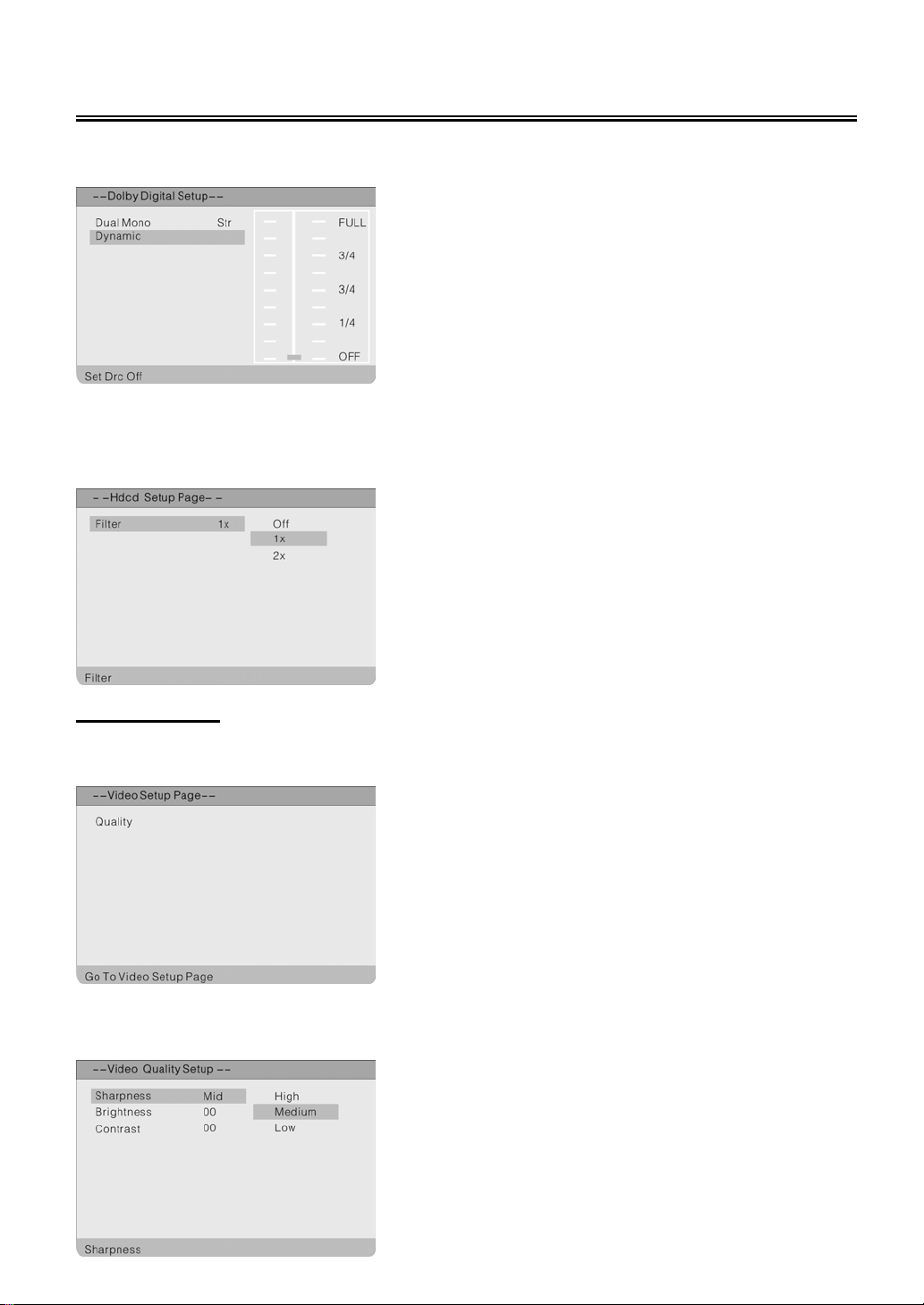

Dynamic
HDCD Setup
In the Audio Setup Page, use the direction buttons to select HDCD Setup. Press the ENTER
button to enter the setup and the screen will display as below:
Video Setup
Press the SETUP button to enter the General setup menu, then use the direction buttons to
select Video Setup Page, the screen will display as the below:
Video Quality Setup
Select Quality, press the ENTER button to enter the menu as below:
1. Press the direction buttons to selec
Dynamic.
2. Press the ENTER button to enter the setup, the
screen will display as left:
3. Press the ENTER button to enter.
4. Use the direction buttons to adjust.
5.
Press the ENTER button again to confirm
setting and return.
6.
Press the button to return.
1. In the menu, press the ENTER button to ente
the setup.
2. Use the direction buttons to select items.
Press the ENTER button again to confirm
3.
selection and return.
Press the button to return.
4.
In the menu, Use the direction buttons to
select the desired item. Press the ENTER button to
enter the item. Press the button to return.
1. In the menu, Use the direction buttons to
select the desired item.
2. Press the ENTER button to enter the item.
3. Press the button to return.
- 34 -
DVD System Setup
t
t
t
Sharpness
Brightness
Contrast
Preference Setup
Press the SETUP button to enter the General setup menu, then use the direction buttons to
select Preference Page, the screen will display as the below:
1. Press the direction buttons to selec
Sharpness.
2. Press the ENTER button to enter the setup.
3. Use the direction buttons to select High,
Medium or Low.
4. Press the ENTER button again to confirm
selection and return.
1. Press the direction buttons to selec
Brightness.
2. Press the ENTER button to enter the setup, the
screen will display as left:
3. Use the direction buttons to adjust the
level.
4. Press the ENTER button again to confirm
setting and return.
1. Press the direction buttons to selec
Contrast.
2. Press the ENTER button to enter the setup, the
screen will display as left:
3. Use the direction buttons to adjust the
level.
4. Press the ENTER button again to confirm
setting and return.
In the menu, Use the direction buttons to
select the desired item. Press the ENTER button to
enter the item. Press the button to return.
- 35 -
DVD System Setup
t
t
t
t

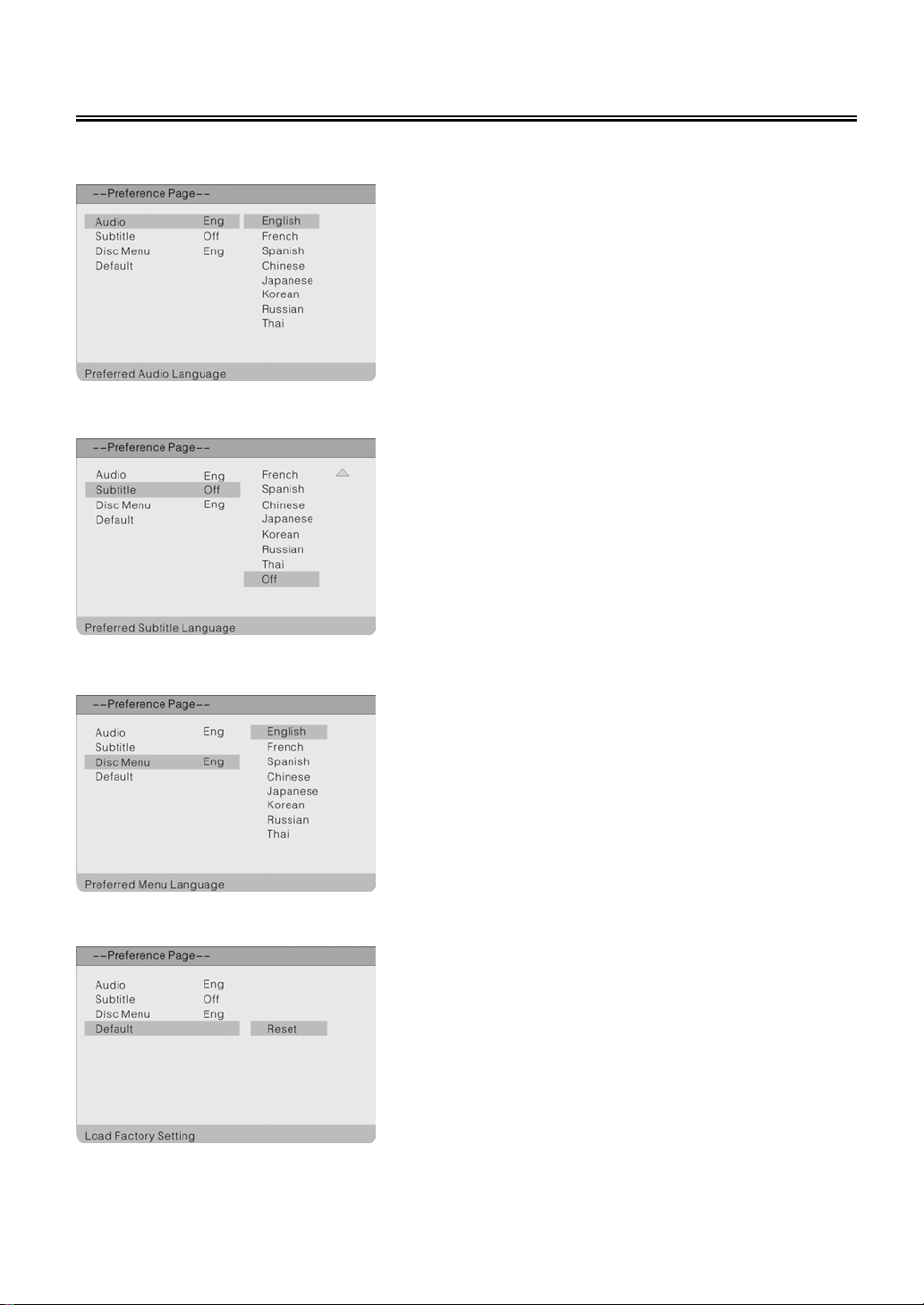

Audio
Subtitle
Disc Menu
Default
1. Press the direction buttons to selec
Audio.
2. Press the ENTER button to enter the setup,
see the left figure:
3. Press the direction buttons to select audio
language.
4. Press the ENTER button again to confirm
setting and return.
1. Press the direction buttons to selec
Subtitle.
2. Press the ENTER button to enter the setup,
see the left figure:
3. Press the direction buttons to selec
Subtitle language.
4. Press the ENTER button again to confirm
setting and return.
1. Press the direction buttons to select Disc
Menu.
2. Press the ENTER button to enter the setup,
see the left figure:
1. Press the direction buttons to select Menu
language.
2. Press the ENTER button again to confirm
setting and return.
1. Press the direction buttons to selec
Default.
2. Press the ENTER button to select Reset.
3. Press the ENTER button, all the settings will
return to the default status.
- 36 -
Troubleshooting
SYMPTOM CHECK ITEM
Make sure disc is loaded in.
Make sure disc is loaded upside down.
Make sure disc is not dirty or warped.
The player cannot play.
There is no sound.
LCD is no display
Make sure the player’s region code is the same as region code
of DVD disc.
Make sure water condensation has not occurred. If it occurs,
take out disc and leave the player on for at least one hour.
Make sure system connection is correct.
Make sure the sound setup of DVD disc is correct.
Make sure disc is not dirty or warped.
Clean or replace the disc.
Make sure the speakers are not muted.
In the TV mode, set the correct sound mode.
Make sure the unit is turned on and the connections are
correct.
Make sure the power adapter is correctly connected.
Cannot continue to play and
play a section repeatedly.
There is no picture or picture
move up and down Unsteady.
The remote control does not
work.
Make sure is not in repeat status.
Make sure disc is not dirty or damaged.
Check if the connections with the external AV signal source
are correct.
Correctly set the items in the picture menu.
Check if the video type input signal is not corresponding to the
unit.
Make sure the unit is turned on and in correct video type.
Make sure there are no obstructions between the remote
control and the player.
Make sure the remote control is pointing at the player.
Make sure batteries are inserted and the polarity is correct.
Make sure battery is not weak.
Other Notes:
Static or other external interfere may cause the player to behave abnormally. In this occurs, unplug
the power-supply cord from the outlet and plug it in again to reset the player. If the problems persist,
then please disconnect the power and consult a qualified technician.
- 37 -
Specifications
Model LCDV1901M
Screen Size 19-inch TFT LCD TV
Native Resolution
Brightness 300cd/m2
Contrast Radio 800 : 1
Response time (ms) 5ms
Color System PAL
Sound System BG/I/DK
Tuner VHF/UHF: 48.25~863.25MHz
Antenna 75Ω VHF/UHF input
Stereo NICAM/A2
VIDEO INPUT
CVBS input PAL/SECAM/NTSC
S-VIDEO input
COMPONENT
Audio in RCA Stereo audio input
OTHERS
1440×900 Pixels
Y/C separate video signal Y...1 Vp-p/negative sync/75Ωinput C...0.283
Vp-p/75Ωinput(NTSC) 0.3 Vp-p/75Ωinput(PAL)
RCA,0.7Vp-p/75Ω input
(480I/60Hz,480P/60Hz,576I/50Hz,576P/50Hz,720P/50Hz,720P/60Hz,10
80I/50,1080I/60Hz)
DVD Player
Multi Media USB Card Reader
VGA
Te le te xt
Audio in RCA Stereo audio input
TV SET OUT
AV output monitor
Speaker Output 5W+5W
Power Requirement AC100 to 240V, 50/60Hz
Power Consumption < 60W
Standby Power <6W
Dimension
Net Weight About 9.2 Kg
Ambient Temperature
DVD+/-RW, DVD-R, CD, CD-R, CD-RW, JPEG, DivX 3.11/4.x/5.x/6.x
MS, SD, MMC 3 in 1 Card reader and USB compatible
Max Volume up to 512MB
15 Pin, Analog RGB signal, 0.7Vp-p, 75Ωinput(VGA, SVGA, XGA,
WXGA computer signal compatibility)
1024*768@60Hz, 800*600@60Hz, 640*480@ 60Hz
10 pages
494mm × 184mm × 412mm（LXWXD）
10~45℃
Note: Specifications subject to change without pre-notice. Weight and dimensions are approximate.
- 38 -
TEAC AUSTRALIA PTY.,LTD.
A.B.N.: 11 113 998 048
Service Providers in Australia
please contact one of the following service providers in your area if you require service for your product.
ACT
Name Address Phone Fax
Associated Electronics 7 Molonglo Mall FYSHWICK 2609 (02)62 80 4698 (02)62 80 5437
Inpulse Electronics 3 Sloane Street MARIBYRNONG 3032 (03)93 17 4000 (03)39 17 4040
QQ Electronics Pty Ltd Unit 5, 14-38 Bellona Avenue REGENTS PARK 2143 1300 883 229 (02)97 38 1311
Maxwell Electronics 106 Bath Road KIRRAWEE 2232 (02)95 42 3000 (02)95 42 3377
TCS (Total Care Services) 62 Leader Street FORESTVILLE 5035 (08)83 51 1044 (08)83 51 1043
NSW
Name Address Phone Fax
B & H Electronics 466 David Street ALBURY 2640 (02)60 41 3911 (02)60 21 7455
Border Video & TV Service
Bourkes Video & Tv Service 111 Danger Street ARIMDALE 2350 (02)67 71 1513 (02)67 71 1696
Nichols Electronics Shop 4/70 River Street BALLINA 2478 (02)66 86 9422 (02)66 81 4999
Baytech Electronics Shop 3, 270 Beach Road BATEHAVEN 2536 (02)44 72 7023 (02)44 72 7354
Sapphire Electronics
Lawson Radio & TV 298 Great Western Highway LAWSON 2783 (02)47 59 1254 (02)47 59 2312
Visual Audio Services 510 Chapple Street - PO BOX 76 BROKEN HILL 2880 (08)80 87 4055 (08)80 87 4055
T K Electronics Unit 2 10 O’Hart Close CHARMHAVEN 2263 (02) 43 92 0828 (02)43 93 1018
TV Technologies 20 Marcia Street COFFS HARBOUR 2450 (02)66 51 7366 (02)66 50 0152
Coogee Electronic Service 261 Arden Street COOGEE 2034 (02)93 15 8566 (02)66 50 0152
Electronics 2000 Shop 3/190 Sharp Street COOMA 2630 (02)64 52 4179 (02)64 52 4179
Lachlan Valley TV 49 Vaux Street COWRA 2794 (02)63 42 2189 (02)63 42 2189
Greg’s TV 2 Bingalong Street DALMENY 2546 (02)44 76 7544 (02)44 76 7544
Deniliquin Hi-Tech 44 Hardinge Street DENILIQUIN 2710 (03)58 81 1444 (03)58 81 1444
Western Electronic Service 437 Hopkins Parade DUBBO 2830 (02)68 82 3905 (02)68 82 3870
Con Carr Retravision 126-128 Murray Street FINLEY 2713 (03)58 83 1611 (03)58 83 2114
Forbes TV & Video Repairs 132 Rankin Street FORBES 2871 (02)68 52 2921 (02)68 52 2921
Forster Electronic Services Shop 15, Forster Tower, Wallis Street FORSTER 2428 (02)65 54 5352 (02)65 54 5352
V.J. & C.M. Davey TV & 137 Meade Street GLEN INNES 2370 (02)67 32 2260 (02)67 32 2260
Ray White Television Repairs 2 Taylor Street GOULBURN 2580 (02)48 22 4050
Repairs & Spares 140 Fitzroy Street GRAFTON 2460 (02)66 42 1911 (02)66 43 3961
Griffith Home Appliance 94-98 Yambil Street GRIFFITH 2680 (02)69 62 1826
S & K Electronics 111 Banna Avenue GRIFFITH 2680 (02)69 62 2847 (02)69 64 7774
Ron Burns Electrical 8 Hillcrest Road GUNNEDAH 2380 (02)67 42 3299
Tele – Fridge Electronics 82 Conadill y Street GUNNEDAH 2380 (02)67 42 0022 (02)67 42 3878
Inverlec Electronics Shop 1,20 Glen Innes Road INVERELL 2360 (02)67 22 4522 (02)67 22 4522
Maxwell Electronics 106 Bath Road KIRRAWEE 2232 (02)95 42 3000 (02)95 42 3377
Jag Electronics 59 Tambourine Bay Road LANE COVE 2066 (02)94 27 5478 (02)94 28 2634
AVL Electronics 2/87 Bold Street LAURIETON 2443 (02)65 59 6330 (02)65 59 6330
Shop 3, 339 Urana Road LAVINGTON 2641 (02)60 40 2229 (02)60 40 2184
U5B/85 Bega Street BEGA 2550 (02)64 92 2522 (02)64 93 2062
Leeton Appliances 99 Grevillia Street LEETON 2705 (02)69 53 4151 (02)69 53 4151
Hans Electronic Services 147 Magellan Street LISMORE 2480 (02)66 21 9311 (02)66 21 9711
Robert Peatfield 2 West Street MACKSVILLE 2447 (02)65 68 2867 (02)65 68 2867
Mullumbimby TV Service Shop 3 97-99 Stuart Street MULLUMBIMBY 2482 (02)66 84 2335 (02)66 84 3554
John Rice TV Service 13 Park Avenue MURWILLUMBAH 2484 (02)66 72 3292 (02)66 72 3292
Spencer Electronics Unit 2, 26 Somerset Avenue NARELLAN 2567 (02)46 47 2046 (02)46 47 2046
Kaputar TV Service
27 Maitland Street NARRABRI 2390 (02)67 92 1017 (02)67 92 1017
Newcastle Quickfix/ J P Electronics Shop 5, 468 Pacific Hwy BELMONT 2280 (02)49 45 4699 (02)49 45 5696
NSW
Name Address Phone Fax
Videotel Unit 1/17 Quinns Lane SOUTH NOWRA 2541 (02)44 21 5250 (02)44 23 3280
Ideal Electronics 145 Woodward Street ORANGE 2800 (02)63 62 8270 (02)63 62 8270
Parkes Sight 'n' Sound 67 Clarinda Street PARKES 2870 (02)68 62 4475 (02)68 63 4209
Vickery Sound
Quickfix Repairs 118 Stafford Street PENRITH 2750 (02)47 22 8550 (02)47 22 9949
171 Brisbane Water Drive POINT CLARE 2250 (02)43 23 3623 (02)43 23 1581
BJRAE Electronics 2/199 Adelaide Street RAYMOND TERRACE 2324 (02)49 87 7032 (02)49 87 6194
QQ Electronics Pty Ltd Unit 5, 14-38 Bellona Avenue REGENTS PARK 2143 1300 883 229 (02)97 38 1311
Quickfix Repairs Shop 17 West Market Street RICHMOND 2754 (02)45 78 2111 (02)45 78 2021
Tech 1 Electronic Repairs Shop1/12 Sunset Ave WARILLA 2528 (02)42 97 5397 (02)42 97 5398
Cherries Electronics Unit 3, 8 Walter Street SINGLETON 2330 (02)65 71 2488 (02)65 71 2488
Videtel Video, TV & Monitor 232 Marius Street EAST TAMWORTH 2340 (02)67 61 3788 (02)67 61 3388
Peel Television Service 1 Macquarie Street TAMWORTH 2340 (02)67 66 3928 (02)67 66 9932
Colour Fix TV & Video Service 172 Bridge Street TAMWORTH WEST 2340 (02)67 65 5539 (02)65 62 0561
Hawkins Electronic Service 94 Manning Street TAREE 2430 (02)65 52 2288 (02)65 52 4059
Household Electronics 3/39 Shearwater Drive TAYLORS BEACH 2316 (02)49 19 0344 (02)49 19 0355
That Repair Shop 122 Fitzmaurice Street WAGGA WAGGA 2650 (02)69 21 5200 (02)69 25 9491
Schuberts Electronics 53 Hastings Street WAUCHOPE 2446 (02)65 85 1533 (02)65 85 3816
ILLAWARRA Electronics Solution Shop 3, 60 Lakeside Drive KANAHOOKA 2530 (02)42 61 9234 (02)42 61 9227
United Television Service Pty Ltd 390 Keira Street WOLLONGONG 2500 (02)42 28 4555 (02)42 26 3453
Vac Shak Pty Ltd 16 Lovell Street YOUNG 2594 (02)63 82 5700 (02)63 82 7366
QLD
Name Address Phone Fax
McMahon Electrical Traders 23 Mabel Street ATHERTON 4883 (07)40 91 1788 (07)40 91 1741
Beerwah Electronics Peachester Road BEERWAH 4519 (07)54 94 0466 (07)54 94 0416
Bremer Television Service 36 Station Road BOOVAL 4304 (07)32 82 3593 (07)32 82 1214
Bowen Retravision (Northern Elect) 40 George Street BOWEN 4805 (07)47 86 1633 (07)47 86 2257
Telefix Unit 9, 19 Lensworth Street COOPERS PLAINS 4108 (07)33 23 2700 (07)33 23 2730
Nielsons Radio & TV Service 68 Gavin Street BUNDABERG 4670 (07)41 53 1377 (07)41 53 1534
A1 Sound & TV Service 14 Gloucester Road BUDERIM 4556 (07)54 45 4777 (07)54 45 1311
Caboolture Video & Microwave 4/125 Morayfield Road CABOOLTURE 4510 (07)54 95 3477 (07)54 95 3477
Digital TV Service 197 Lyons Street WESTCOURT 4870 (07)40 51 1711 (07)40 51 1771
Garrows Video & TV Service 4/74 Omrah Avenue CALOUNDRA 4551 (07)54 91 3238 (07)54 91 7457
Charleville Radio & TV 14 Wills Street CHARLEVILLE 4470 (07)46 54 1633 (07)46 54 2266
Jab Electronics Cnr. Ruby & Egerton Streets EMERALD 4720 (07)49 87 7770 (07)49 87 7772
Precise Electronics 1 / 4 Northview Street MERMAID BEACH 4218 (07)55 75 1377 (07)55 72 4689
Ready Electronics Shop 3/1 Tibbing Street NERANG 4211 (07)55 96 6359 (07)55 02 2734
Tweed Television Shop 3/12 Machinery Drive SOUTH TWEED HEADS 2486 (07)55 24 4483
Harbour City TV & Video Shop 3/1 Mellefont Street GLADSTONE 4680 (07)49 72 9495 (07)49 72 9495
Lloyd Lawrence Electronics Shop 8-9, 5 Torquay Road HERVEY BAY 4655 (07)41 24 3787 (07)41 24 3787
Professional VCR Sales Service 90 Mourilyan Road INNISFAIL 4860 (07)40 61 4720 (07)40 61 4720
Dunstans SBTV 37 Kingaroy Street KINGAROY 4619 (07)41 62 1547 (07)41 62 2343
Nev Robert Electronics 31 Hart Street MACKAY 4740 (07)49 57 6498 (07)49 51 3737
Sunland TV Service Unit 5 Centre One, Norval Court MAROOCHYDORE 4558 (07)54 43 6444 (07)54 43 6464
Telefix Unit 1, 96 Aerodrome Road MAROOCHYDORE 4558 (07)33 23 2700 (07)33 23 2730
Sunland TV Service Shop 4, 54 Rene Street NOOSAVILLE 4566 (07)54 74 2101
Cumners Electronics Shop 4, 131 Old Pacific Highway OXENFOR D 4210 (07)55 73 5250 (07)55 73 5403
N & M TV & Video Service 47a Yandilla Street PITTSWORTH 4356 (07)46 93 2886 (07)46 93 2886
C.Q. Video & TV Service 227 Berserker Street ROCKHAMPTON 4701 (07)49 28 8811 (07)49 28 2698
Matthew's TV & Video Service 176 Main Street ROCKHAMPTON 4701 (07)49 28 5377 (07)49 28 5608
Top Beat Entertainment & Elec 97A Folkestone Street STANTHORPE 4380 (07)46 81 0681 (07)46 81 0682
T.I. TV Repairs 11 Summer Street THURSDAY ISLAND 4875 (07)40 90 2139 (07)40 69 2577
Clark & Webb TV & Radio 14 Grange Street TOOWOOMBA 4350 (07)46 32 7290 (07)46 32 9244
Downs Radio & TV Service (DR TV) 35 Dent Street TOOWOOMBA 4350 (07)46 32 1044 (07)46 32 1224
Townsville Electronics 197 Ingham Road WEST END 4810 (07)47 75 7774 (07)47 79 6867
Top Beat Entertainment & Electrical 46 Wood Street WARWICK 4370 (07)46 61 2690
NT
Name Address Phone Fax
The Television Workshop Shop 4 Elder St Centre ALICE SPRINGS 0870 (08)89 52 8555 (08)89 52 5557
New Age Electronics Unit 1/21 Delatour Street COCONUT GROVE 0810 (08)89 48 1755 (08)89 48 1766
Eletech Service 13 Sandalwood Ave NHULUNBUY 0880 (08)89 87 3828 (08)89 87 3828
SA
Name Address Phone Fax
TCS (Total Care Services) 62 Leader Street FORESTVILLE 5035 (08)83 51 1044 (08)83 51 1043
E.K. Dunstan & Co 255 Main Street CLARE 5453 (08)88 42 2144 (08)88 42 3942
Peter's Electronics 25 Lorna Street LOXTON 5333 (08)85 84 6920 (08)85 84 6920
Gambier Sound& Vision Repairs 16-18 Watson Tce MT GAMBIER 5290 (08)87 23 3955 (08)87 23 3855
Portside Technologies 28 Hallet Place PORT LINCOLN 5606 (08)86 82 1500
Pirie Antenna & TV 283B Senate Road PORT PIRIE 5540 (08)86 32 2565 (08)86 33 0091
Riverland Electronics Services 113 Renmark Avenue RENMARK 5341 (08)85 86 5600 (08)85 86 5533
Victor Electronic Service 44 Torrens Street VICTOR HARBOR 5211 (08)85 52 1471 (08)85 52 1098
Eyre Electronics 15B Forsyth Street WHYALLA 5600 (08)86 45 4764 (08)86 45 5576
TAS
Name Address Phone Fax
R.M Electronics 32 Strahan Street BURNIE SOUTH 7320 (03)64 31 8922 (03)64 31 89 22
Somerset Electronics 16 Douglas Street EAST DEVONPORT 7310 (03)64 27 0016
D.J. Hingston 95 James Road SPREIGHTON 7310 (03)64 27 2145 (03)64 27 2145
Integrated Components 54A Albert Road MOONAH 7009 (03)62 78 1932 (03)62 78 8387
K.T. National Electronics 1 Hobart Road SANDHILL 7249 (03)63 44 5665 (03)63 43 0466
VIC
Name Address Phone Fax
Border Video & TV Service 362 Griffith Road LAVINGTON 2641 (02)60 40 2229 (02)60 40 2184
Greene's Television Services 149 Hummfray Street BALLARAT 3350 (03)53 32 6256 (03)53 32 7597
Ted Rivett Services 145 Creswick Road BALLARAT 3550 (03)53 32 6371 (03)53 33 4002
Proud’s Hi Fi 78- 80 Pall Mall BENDIGO 3550 (03)54 42 2722 (03)54 42 2522
All – Tronics 78A Garsead Street BENDIGO 3550 (03)54 42 7000 (03)54 41 7502
Inpulse Electronics 3 Sloane Street MARIBYRNONG 3032 (03)93 17 4000 (03)39 17 4040
B M Tronics 197 Murray Street COLAC 3250 (03)52 32 1504 (03)52 32 1935
T & C Electronics Service 31 Pegleg Road EAGLEHAWK 3556 (03)54 46 3000 (03)54 46 3022
Echuca TV & Video Service 1/7 Mitchell Street ECHUCA 3564 (03)54 80 7874
Central Appliance Service 222 Moorabool Street GEELONG 3200 (03)52 22 1418 (03)52 22 1418
RTD Services Pty Ltd 25-29 Fairlie Street GEELONG NORTH 3215 (03)52 78 9766 (03)52 78 3545
Linke Electrical Repairs 82 Londsdale Street HAMILTON 3300 (03)55 72 5788 (03)55 72 4090
Frank Ritchie Electrical P/L 9 Victoria Street KERANG 3579 (03)54 52 2908 (03)54 52 2908
Harold Hurren 26 Fitzroy Street KILMORE 3764 (03)57 82 1327 (03)57 82 1487
Soundwave Electronics 2B Holt Street LEONGATHA 3953 (03)56 62 3665 (03)56 62 3665
Sunshine Electronics Aust Shop 2, 17 Moore Street MOE 3825 (03)51 26 1110 (03)51 26 1275
Peninsula VCR Repairs
1/8 Virginia Street MORNINGTON 3931 (03)59 75 0800 (03)59 76 2300
Ferguson Electronics 116 Orange Avenue MILDURA 3500 (03)50 23 5846 (03)50 21 2690
Bensi TV Electrical Pty. Ltd. 128 Nicholson Street ORBOST 3888 (03)51 54 1454 (03)51 54 1344
G & R Video & TV Services Pty. 24 Dunkirk Avenue SHEPPARTON 3630 (03)58 21 0258 (03)58 21 8187
Inpulse Electronics 496 Whitehorse Road SURREY HILLS 3027 (03)93 17 4000 (03)98 36 5922
Swantronics 45 Campbell Street SWAN HILL 3585 (03)50 33 1633 (03)50 33 1287
Earl & Becker 4-26 Shakespeare Street TRARALGON 3844 (03)51 74 8454 (03)51 74 8454
BM Tronics 459 Raglan Parade WARRNAMBOOL 3280 (03)55 61 6622 (03)55 62 8388
Tellycare (Nugents) 105 Queen Street WARRAGUL 3820 (03)56 22 1102 (03)56 22 1102
John B. Electronics Shop 94 High Street WODONGA 3690 (02)60 56 1066 (03)57 28 7299
WA
Name Address Phone Fax
AB Video 50 Cockburn Road ALBANY 6330 (08)98 42 1270 (08)98 42 2728
Albany TV Service Shop 8 35-37 Campbell Road ALBANY 6330 (08)98 41 1573 (08)98 42 5958
Camtec Bunbury 1/31 Denning Road BUNBURY 6230 (08)97 91 7277 (08)97 91 7377
Excel Electronics 3 Newman Court NICKOL 6725 (08)91 44 1266 (08)91 44 1266
Eclipse Kimberley Unit 4, 20 Hunter Street BROOME 6725 (08)91 92 2832 (08)92 92 8069
Elricks TV Service 62 Spencer Street BUNBURY 6230 (08)97 21 4047 (08)97 21 1161
Busselton TV & Video 65B Strelley Street BUSSELTON 6280 (08)97 54 4457 (08)97 54 4824
Electronic Plus Unit 3/11 Egan Street CARNARVON 6701 (08)99 41 3690 (08)99 41 3660
Esperance Communications 33 Norseman Road ESPERANCE 6450 (08)90 71 3344 (08)90 71 4545
Bird Electronics 14 Abraham Street GERALDTON 6530 (08)99 64 1631 (08)99 21 7584
Geraldton Radio & TV Service 26 Anzac Terrace GERALDTON 6530 (08)99 64 2777 (08)99 64 2776
Oz West Electronics 6/200 Winton Road JOONDALUP 6027 (08)93 00 1066
Printek Electronics 1 Lesueur Drive JURIEN BAY 6516 (08)96 52 1664 (08)96 52 1664
Kalgoorlie Electronics 395 Hannan Street KALGOORLIE 6430 (08)90 21 1420 (08)90 21 1420
J & P Electronics 3/88 Albany Hwy KOJONUP 6395 (08)98 31 1991 (08)98 31 1991
Tuckerbox Retravision White Gum Street/P.O. BOX 941 KUNUNNURRA 6743 (08)91 68 1100 (08)91 68 2491
Waytec Electronics Unit 3, 10 Thornborough Road MANDURAH 6210 (08)95 82 0882 (08)95 82 0352
Manjimup TV Service 88 Giblett Street / P.O. BOX 370 MANJUMUP 6258 (08)97 71 1598 (08)97 72 4025
Chris's TV & Satelite 66 Barrack Street MERREDIN 6415 (08)90 41 1484 (08)90 41 1484
G & J Suckling Radio & TV 1 Hale Street NARROGIN 6312 (08)98 81 2148 (08)98 81 3129
Proton 21A Charles Street NORTHAM 6401 (08)96 22 3168 (08)96 22 3168
TEAC Perth Service Centre 273 Great Eastern Highway BELMONT 6104 (08)94 79 6499 (08)94 79 6544
Charles Hunt Electronics 25 Brodie Court BALDIVIS 6171 (08)63 63 5593 (08)95 24 2890
S & R TV Service Unit 7/42 Crompton Road ROCKINGHAM 6168 (08)95 92 1130 (08)95 92 3685
TEAC CUSTOMER CARE CENTRE (TCCC)
Free call: 1800 656 700
Between Monday to Friday – EST 9AM to 5PM
This electricaland electronicequipment indicatesthat thisproduct
shall notbe treatedas householdwast. insteadits shall behanded
over toapplicable collectionpoint forrecycling ofelectrical and
electronic equipment.By ensuringthis productis disposedof
correctly,you will helpprevent potentialnegative consequences
for theenvironment andhuman health,which couldotherwise be
cause byinappropriate wastehandling.
6850 0002 3800
Loading...
