Teac HS-P82 User Manual

Download

HS-P82

Portable Multitrack Field Recorder

OWNER'S MANUAL

D01088920A

2 TASCAM HS-P82

IMPORTANT SAFETY INSTRUCTIONS

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

This appliance has a serial number located on the rear panel. Ple ase record the model number and serial number and retain them for your records.

Model number

Serial number

For U.S.A.

TO THE USER

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provi de reasonable protection a gainst harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not instal led a nd used i n accordan ce with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

WARNING: TO PREVENT FIRE

OR SHOCK HAZARD, DO

NOT EXPOSE THIS

APPLIANCE TO RAIN OR

MOISTURE.

In North America use only on 120V supply.

CAUTION

Chang es or modi fications to this equipm ent not expressly approved by TEA C CORPORATION for compliance could void the user's authority to operate this equipment.

TASCAM HS-P82 3

IMPORTANT SAFETY INSTRUCTIONS

1 Read these instructions.

2 Keep these instructions.

3 Heed all warnings.

4 Follow all instructions.

5 Do not use this apparatus near water.

6 Clean only with dry cloth.

7 Do not block any ventilation openings. Install in

accordance with the manufacturer's instructions.

8 Do not inst a l l near any heat sou rc e s such

as radiators, heat regis ters, stoves, or other apparatus (including amplifiers) that produce heat.

9 Do not defeat the safety purpose of the polarized

or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not ﬁt into your outlet, consult an electrician for replacement of the obsolete outlet.

10 Protect the power cord from being walked on

or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11 Only use attachments/accessories specified by

the manufacturer.

Do not expose this apparatus to drips or splashes.

•

Do not place any objects filled with liquids, such

• as vases, on the apparatus.

Do not install this apparatus in a confined space

• such as a book case or similar unit.

The apparatus draws nominal non-operating

• power from the AC outlet with it s POWER or

STANDBY/ON switch not in the ON position.

The apparatus should be located close enough

• to the AC outlet so that you can easily grasp the

power cord plug at any time.

The mains plug is used as the disconnect device,

• th e di s con n ect de v ic e sh al l re ma in re ad il y

operable.

If the product uses batteries (including a battery

• pack or installed batteries), they should not be

exposed to sunshine, fire or excessive heat.

CAUTION for products that use replaceable lithium

• batteries: there is danger of explosion if a battery

is replaced wi th an in c orrect type of bat ter y. Replace only with the same or equivalent type.

Caution should be taken when using earphones or

• headphones with the product because excessive

sound pressure (volume) from earphones or headphones can cause hearing loss.

If you are experiencing problems with this product,

• contact TEAC for a service referral. Do not use the

product until it has been repaired.

12 Use only with the cart, stand, tripod, bracket, or

table speciﬁed by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13 Unplug this apparatus during lightning storms or

when unused for long periods of time.

14 Refer all servicing to qualified service personnel.

Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

4 TASCAM HS-P82

IMPORTANT SAFETY INSTRUCTIONS

CAUTIONS ABOUT BATTERIES

This product uses batteries. Misuse of batterie s could cause a leak, rupture or other trouble. Always abide by the following precautions when using batteries.

Never recharge non-rechargeable batteries. The

• batteries could rupture or leak, causing fire or

injury.

When installing batter ies, pay attention to the

• polarity indications (plus/minus (+/–) orientation),

and install them correctly in the battery compartment as indicated. Putting them in backward could make the batteries rupture or leak, causing fire, injury or stains around them.

When you store or dispose of batteries, isolate their

• terminals with insulating tape or similar to prevent

them from contacting other batteries or metallic objects.

When throwing used batteries away, follow the

• disposal instructions indicated on the batteries

and the local disposal laws.

Do not use batteries other than those specified.

• Do not mix and use new and old batteries or differ-

ent types of batteries together. The batteries could rupture or leak, causing fire, injury or stains around them.

Do not carry or store batteries together with small

• metal objects. The batteries could short, causing

leak, rupture or other trouble.

Do not heat or disassemble batteries. Do not put

• them in fire or water. Batteries could rupture or

leak, causing fire, injury or stains around them.

If the battery fluid leaks, wipe away any fluid on

• the battery case before inserting new batteries. If

the battery fluid gets in an eye, it could cause loss of eyesight. If fluid does enter an eye, wash it out thoroughly with clean water without rubbing the eye and then consult a doctor immediately. If the fluid gets on a person’s body or clothing, it could cause skin injuries or burns. If this should happen, wash it off with clean water and then consult a doctor immediately.

Remove the batteries if you do not plan to use

• the unit for a long time. Batteries could rupture or

leak, causing fire, injur y or stains around them. If the battery fluid leaks, wipe away any fluid on the battery compartment before inserting new batteries.

TASCAM HS-P82 5

1 − Introduction .........................................7

Features ........................................................... 7

Included items ................................................. 7

Conventions used in this manual ................... 7

Intellectual property rights ............................ 7

Precautions for placement and use ............... 8

Beware of condensation ................................ 8

Cleaning the unit ............................................ 8

Cleaning the display ....................................... 8

About CF cards ................................................ 8

Precautions for use .................................... 8

2 − Names and functions of parts .............9

Front panel ...................................................... 9

Rear panel .................................................... 11

Right side panel ........................................... 11

Left side panel .............................................. 12

Home Screen ................................................ 13

3 − Preparation .........................................16

Inserting and removing CF cards ................ 16

Inserting CF cards ..................................... 16

Removing CF cards ................................... 16

Power supply ................................................. 16

Using the AC adaptor ................................... 17

Using batteries installed in the unit ............ 17

Types of batteries that can be used

internally .................................................. 17

Installing internal batteries ..................... 17

Removing batteries .................................. 18

Inserting batteries into the battery case

(BC-10AA) ................................................. 18

Precautions for the use of batteries ...... 18

Using an external DC power source ............ 18

Attaching a V-Mount type battery ......... 18

About the display ......................................... 19

Adjusting the display angle .................... 19

Adjusting the display and indicator

brightness ................................................. 19

Cautions on the display ........................... 19

Turning the power ON and OFF ................... 20

Setting the time of the built-in clock .......... 20

Battery display .............................................. 21

Panel lock function ...................................... 22

DIGITAL I/O connector .................................. 22

Recording duration ....................................... 22

4 − Recording and Playback ....................23

Preparing to record....................................... 23

Formatting a CF card .............................. 23

Create a new project .............................. 24

Set the master clock ................................. 25

Set the recording tracks .......................... 25

Set the file format ................................... 25

Make other recording settings ............... 26

Connecting microphones and

headphones ............................................. 26

Setting the inputs .................................... 27

Adjust the input level .............................. 28

Monitor the input ................................... 28

Make a recording .......................................... 28

Stop recording ......................................... 29

RETAKE ..................................................... 29

Voice memo and slate tone function .... 29

Play a recording ............................................ 29

Select a project/scene/take ...................... 29

Start playback .......................................... 30

Mixing the playback sound ..................... 30

CALL .......................................................... 30

5 – Projects................................................ 31

File formats.................................................... 31

Monophonic and polyphonic modes ...... 31

About project screens ................................... 31

Project screen .......................................... 31

Scene screen ............................................ 31

Take screen .............................................. 32

Project operations......................................... 32

Creating new projects ............................. 32

Editing the project name ....................... 33

Changing a project name later ............... 33

Editing the name of the first scene ........ 33

Loading projects ...................................... 34

Rebuilding projects .................................. 34

Erasing a project ...................................... 34

Scene operations ........................................... 35

Creating new scenes ................................ 35

Loading scenes ......................................... 35

Rebuilding scenes .................................... 36

Copying scenes ......................................... 36

Erasing scenes .......................................... 37

Take operations ............................................. 37

Loading takes ........................................... 37

Erasing takes ............................................ 37

Adding and removing “@” to take

names ....................................................... 38

6 – Internal Settings and Operations ......39

Menu screen ................................................. 39

Recording settings (REC SETUP) ................... 39

REC TRACKS page ................................... 39

FILE FORMAT page .................................. 39

OPTIONS page ......................................... 39

Playback settings (PLAY SETUP) ................... 40

Sync and time code settings (SYNC T/C)...... 40

CLOCK page ............................................ 40

TIMECODE page ...................................... 41

SETUP page ............................................. 41

I/O page ................................................... 42

Editing output time code user bits ......... 42

6 TASCAM HS-P82

Contents

Edit the START TIME ................................ 42

Mixer settings (MIXER SETUP) ..................... 43

INPUT page .............................................. 43

SIGNAL PROCESSING page ..................... 43

LOW CUT FILTER (button) ........................ 43

SETUP page ............................................. 44

CHx NAME (button) ................................. 44

Limitation on the number of characters 44

Channel settings (CHANNEL SETUP) ............44

Level meter settings (METER SETUP) ........... 45

System settings (SYSTEM SETUP) ................. 46

PREFERENCES page ................................. 46

ALARM TONE page ................................. 46

CLOCK ADJUST page .............................. 46

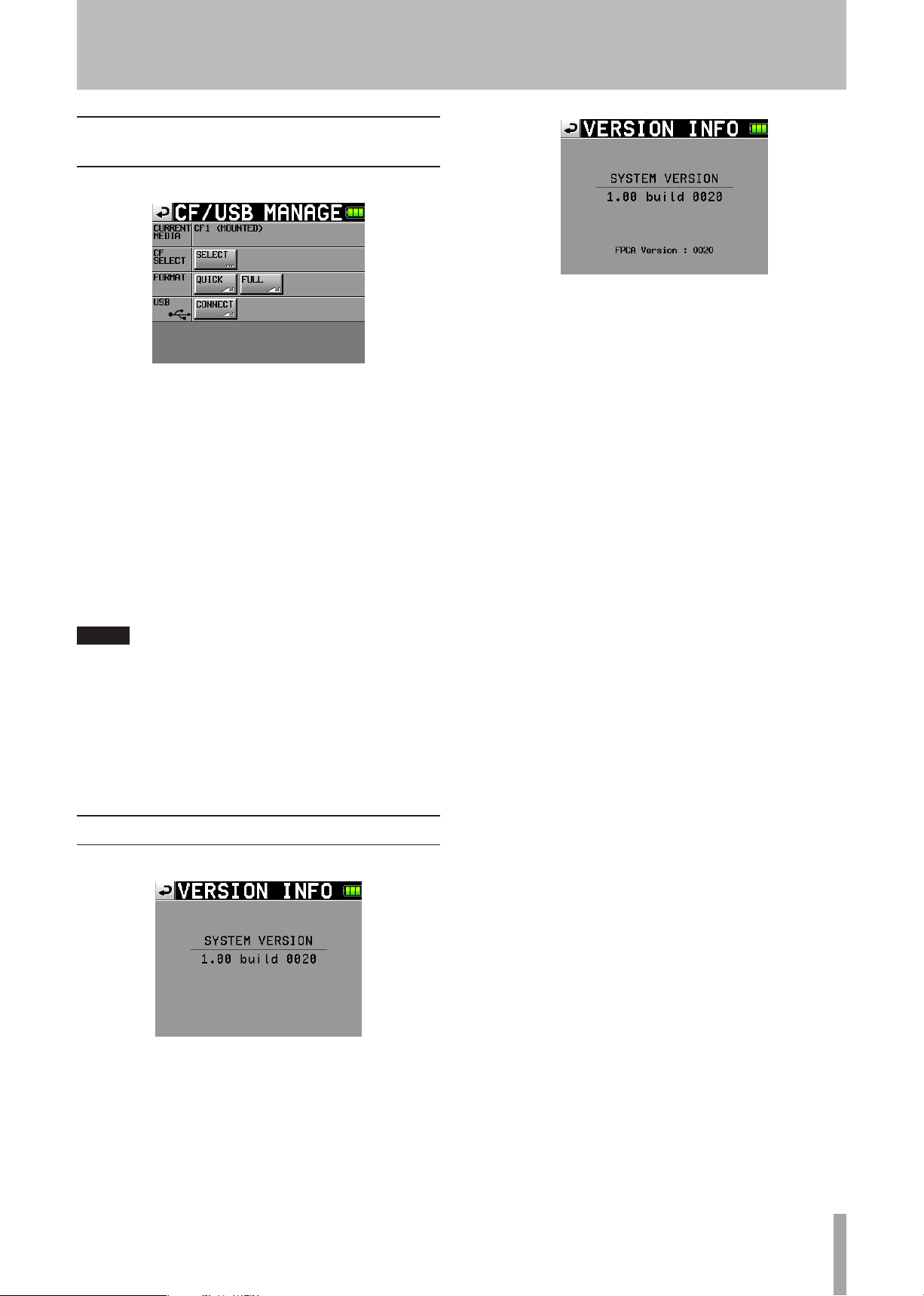

Managing CF cards and the USB connection

(CF/USB MANAGE) ........................................ 47

Version display (VERSION INFO) .................. 47

7 – Mark and Locate Functions ...............48

Mark functions .............................................. 48

Adding marks ........................................... 48

Using keys to locate to marks ................ 48

Mark list screen ....................................... 48

Locating to marks .................................... 48

Viewing mark information ...................... 48

Erasing marks ........................................... 49

Editing marks ........................................... 49

Manual locate function ............................... 50

8 – Transferring Data between the Unit

and a Computer ................................51

Operating system requirements .................. 51

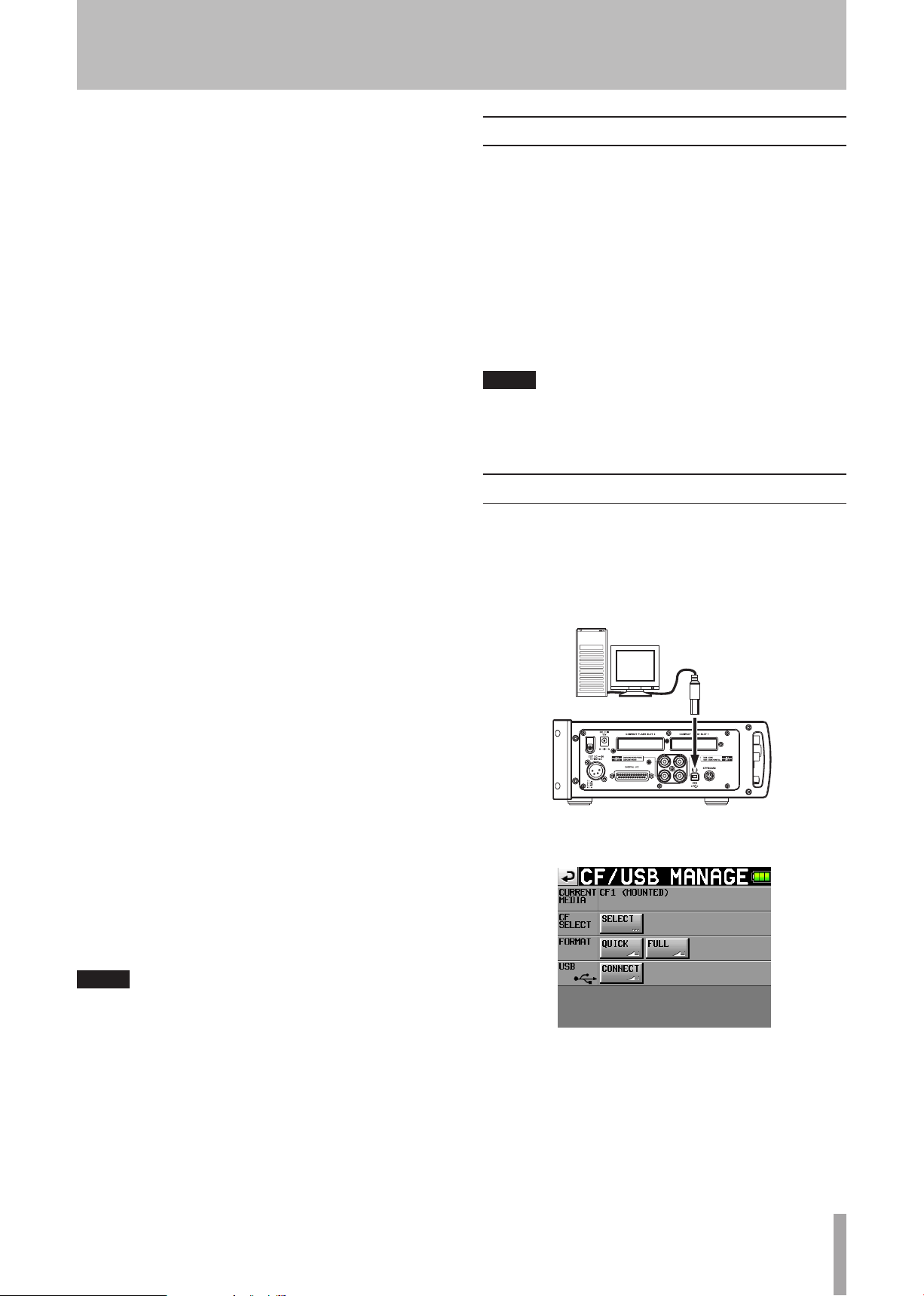

Connecting with a computer ....................... 51

Disconnecting from a computer .............52

Folder structure ............................................ 53

File names ...................................................... 53

9 – Troubleshooting .................................54

10 – Messages ..........................................55

11 – Specifications ....................................60

General .......................................................... 60

Input and output .........................................60

Analog audio input and output ............ 60

Digital audio input and output ............. 60

Control inputs and outputs ..................... 60

Audio performance ...................................... 61

Computer compatibility ............................... 61

Other specifications ...................................... 61

Dimensional drawings .................................. 62

Blcok diagram ............................................... 63

TASCAM HS-P82 7

1 − Introduction

Thank you very much for purchasing a TASCAM HS-P82 Portable Multitrack Field Recorder. Please read this manual thoroughly before using the unit so that you understand correct operating procedures and can use its functions fully. We hope that you enjoy using this unit for many years.

Please keep this manual so that you can read it at any time. A digital copy of this manual can also be downloaded from our website (http://www.tascam.com/)

Features

CF cards used as recording media (Ultra DMA

• compatible)

Recording possible at 16 or 24 bit with sampling

• frequencies of 44.1, 48, 88.2, 96, 176.4 or 192 kHz as

well as 48 kHz pull-up or pull-down

10-channel recording possible (8 input + 2 stereo mix at

• sampling frequencies of 44.1 or 48 kHz)

Mic/line inputs can provide +48V phantom power

• Large 3.5-inch color TFT display that is easy to read

• Intuitive operation using a touch panel interface

• Operation possible using 10 AA batteries or an NP

• battery installed in the unit

External battery input connector (XLR-4-32)

• Broadcast Wave Format (BWF) compatible

• Built-in mic (monaural) is convenient for voice memos

• SMPTE time code input and output

• Pre-recording function

• Digital input section includes a sample rate converter

• Transfer files to a computer using the USB 2.0 connector

• PC keyboard (PS/2) connector

• Protection against file loss from sudden power outages

•

Included items

This product includes the following items.

Take care when opening the package not to damage the items. Keep the package materials for transportation in the future.

Please contact the store where you purchased this unit if any of these items are missing or have been damaged during transportation.

Main unit• .........................................................................1

AC adaptor (TASCAM PS-1225L)• .................................1

Power cord for AC adaptor• ..............................................1

Battery case (TASCAM BC-10AA)• ................................1

V-Mount bracket• .............................................................1

V-Mount bracket screw kit• ..............................................1

Warranty card• ..................................................................1

Owner's manual (this manual)

•

........................................1

CAUTION

Be sure to use the supplied AC adaptor (TASCAM-P1225L) and the power cord for the AC adaptor. Use of a different

adaptor could cause malfunction, ﬁre or electric shock.

Conventions used in this manual

In this manual, we use the following conventions:

Keys, jacks and other parts on the main unit and external

• devices are indicated like this: MENU

Messages on the unit’s display are shown like this:

• “CompactFlash card” is abbreviated as “CF card.”

• Additional information is provided as necessary as tips,

• notes and cautions.

TIP

These are tips about how to use the unit.

NOTE

These provide additional explanations and describe special cases.

CAUTION

Failure to follow these instructions could result in injury, damage to equipment or lost recording data, for example.

Intellectual property rights

TASCAM is a registered trademark of TEAC

• Corporation.

CompactFlash is a US registered trademark of SanDisk

• Corporation.

Microsoft, Windows, Windows Vista, and Windows 7 are

• either registered trademarks or trademarks of Microsoft

Corporation in the United States and/or other countries.

Apple, Macintosh, Mac OS and Mac OS X are

• trademarks of Apple Inc.

IDX and V-Mount are trademarks of IDX Company, Ltd.

• Other company names, product names and logos in this

• document are the trademarks or registered trademarks of

their respective owners.

Any data, including, but not limited to information, described herein are intended only as illustrations of such data and/or information and not as the specifications for such data and/or information. TEAC Corporation disclaims any warranty that any use of such data and/or information shall be free from infringement of any third party’s intellectual property rights or other proprietary rights, and further, assumes no liability of whatsoever nature in the event of any such infringement, or arising from or connected with or related to the use of such data and/or information.

8 TASCAM HS-P82

1 − Introduction

This product is designed to help you record and reproduce sound works to which you own the copyright, or where you have obtained permission from the copyright holder or the rightful licensor. Unless you own the copyright, or have obtained the appropriate permission from the copyright holder or the rightful licensor, your unauthorized recording, reproduction or distribution thereof may result in severe criminal penalties under copyright laws and international copyright treaties. If you are uncertain about your rights, contact your legal advisor. Under no circumstances will TEAC Corporation be responsible for the consequences of any illegal copying performed using the recorder.

Precautions for placement and use

The guaranteed operating temperature range of this

• product is 0º - 40º C (32º- 104º F).

In order to promote the emission of heat, do not place

• anything on top of this product.

Do not place this product on top of a powered amplifier

• or other equipment that emits heat.

The HS-P82 supports only Type I Compact Flash media. Type I cards are typically FLASH-ROM based and provide higher performance and durability than hard disk cards.

A list of CF cards that we have confirmed to work with this unit is provided on our website (http://www.tascam.com).

CAUTION

We can accept no responsibility for any loss of the data you record using this product onto a CF card.

Precautions for use

CompactFlash cards are precision devices. To prevent damage to the card or the slot, please observe the following cautions.

Do not leave a CF card in an extremely hot or cold

• location.

Do not leave a CF card in an extremely damp location.

•

Do not allow a CF card to become wet.

•

Do not place any object on top of a CF card, or twist

• or bend it.

Do not subject a CF card to strong impact.

•

Beware of condensation

If the unit is moved from a cold to a warm place, or used immediately after a cold room has been heated or otherwise exposed to a sudden temperature change, condensation could occur. Should this happen, leave the unit for one or two hours before turning the unit on.

Cleaning the unit

Wipe the unit with a soft dry cloth to clean it. Do not use any benzine, paint thinner, alcohol or other chemical agents. Doing so could damage the surface of the unit or cause fading.

Cleaning the display

Slightly wipe the display with a soft dry cloth that does not shed dust (e.g. a cleaning cloth). Avoid wiping with a stiff cloth or rubbing with force. Doing so could damage the surface of the LCD. Do not use benzene, thinner, manicure remover, alcohol or similar substances.

About CF cards

The capacities and performance of your HS-P82 will vary based on the speed and abilities of the Compact Flash (CF) media used. Older and some cheaper Compact Flash (CF) cards use slower memory components and little internal buffering which results in poor recording performance. Newer CF cards, not only perform reading and writing faster, but also come in larger storage size.

TASCAM HS-P82 9

Front panel

2 − Names and functions of parts

1 Input trim knobs

Use to adjust the input levels of the analog mic inputs. (See “Adjust the input level” on page 28.)

2 HOME key

Press to open the Home Screen.

Press the MENU key while pressing and holding the

HOME key to open the

LOCK SETUP

screen. (See “Panel

lock function” on page 22.)

Turn the DATA dial while pressing and holding the

HOME key to adjust the brightness of the color display,

the SLATE indicator and the PAUSE , REC and P L AY

[CALL] keys.

Push and turn the DATA dial while pressing and holding the HOME key to adjust only the brightness of the color display.

3 MENU key

Press to open the

screen.

Press the MENU key while pressing and holding the

HOME key to open the

LOCK SETUP

screen. (See “Panel

lock function” on page 22.)

4 Color display

This 3.5-inch TFT color display with a resolution of 320 x 240 shows various types of information and responds to touch.

5 DATA dial

Turn the DATA dial to change settings, and press it to use it as an ENTER key. When setting parameter values, press while turning to change them in large increments (coarse mode). When a pop-up window is open, this works as an OK or

button.

Turn the DATA dial while pressing and holding the

HOME key to adjust the brightness of the color display,

the SLATE indicator and the PAUSE , REC and P L AY

[CALL] keys.

Push and turn the DATA dial while pressing and holding the HOME key to adjust only the brightness of the color display.

6 PAUSE key/indicator

Press this key during playback to put the unit in playback standby. This key lights when in standby.

Press this key while recording to put the unit in recording standby. This key lights when in standby.

Press this key when the unit is stopped to put the unit in recording standby. This key lights when in standby.

7 REC key/indicator

When a recordable CF card is installed and the unit is stopped, press this key to start recording to a new file.

When in recording standby, press this key to resume recording to a new file or the current file.

This key lights when recording.

If you press this key while recording, recording to the current file stops, but recording continues on a new file.

CAUTION

If you press the REC key less than 4 seconds after

•

beginning recording, the unit will not start recording a new take.

If a ﬁle with the take number 999 exists, recording another

•

take is not possible.

8 PHONES jack/knob

Connect stereo headphones to this 6.3 mm (1/4”) standard stereo phones jack. Use the PHONES knob to adjust the headphone output level.

CAUTION

Before connecting headphones, turn the PHONES knob to the minimum volume. Failure to do so could cause sudden loud noises to occur, which might damage your hearing or equipment.

10 TASCAM HS-P82

2 − Names and functions of parts

9 SLATE key/indicator and SLATE mic

Press and hold the SLATE key more than 0.5 sec to record the sound input through the SLATE mic or the internal oscillator tone to all tracks that are being recorded. The indicator lights while being pressed.

NOTE

In order to prevent accidental operation of the SLATE key,

•

it must be held down brieﬂy to turn this function ON.

Set whether the signal from the built-in microphone or a

•

tone is recorded on the PREFERENCES page of the SYSTEM SETUP screen. (See “PREFERENCES page” on page 46.)

0 switch

Press to turn the power ON and OFF. When you turn OFF the power, a pop-up message for power off appears.

q PROJECT key

Press to open the

PROJECT

screen. (See “Projects” on

page 31.)

w EXIT/CANCEL [PEAK CLEAR] key

Press to cancel input or item selection. On the Home Screen, this functions as the PEAK CLEAR button. Press this to clear peak hold marks from the level meters.

When the

screen or

PROJECT

screen is open, press this to return to the Home Screen. On other screens, press this to return to the previous screen. When a popup window is open, press this to cancel an operation.

e STOP [RETAKE] key

Press to stop recording or playback.

Press this while pressing and holding the SHIFT key to erase the last recorded take and retake the recording.

While recording, press this key to stop recording and stop the unit at the beginning of the last recorded file.

r Ô [Â] key (search backwards)

When stopped/in playback standby/during playback:

Press briefly to skip to the beginning of the current

•

take (file) or the previous file, and stop/continue playback standby/resume playback at the beginning of that take (file).

Press to search backwards while pressing.

•

Press this key while pressing the

•

SHIFT key to move

to the previous mark, and stop/continue playback standby/resume playback.

r [¯] key (search forward)

When stopped/in playback standby/during playback:

Skip to the beginning of the next take (file), and stop/

•

continue playback standby/resume playback at the beginning of that take (file).

Press to search forward while pressing.

•

While pressing the

•

SHIFT key, press this key to move

to the next mark, and stop/continue playback standby/ resume playback.

t PLAY [CALL] key/indicator

When stopped or in playback standby, press this key to start playback. The key lights during playback.

While pressing the SHIFT key, press this to use the CALL function (locate to the point where playback was last started from standby).

Press this key when in recording standby to start recording. The PL AY key does not light in this case.

y SHIFT key

When stopped/in playback standby/during playback:

Press the

•

Ô [Â] while pressing and holding this

key to move to the previous mark, and stop/continue playback standby/resume playback.

Press the

•

[¯] key while pressing and holding

this key to move to the previous mark, and stop/ continue playback standby/resume playback.

Press the

•

PLAY [CALL] key while pressing and

holding this key, to use the CALL function (locate to the point where playback was last started from standby).

Press the

•

STOP [RETAKE] key while pressing and

holding this key to erase the last recorded take and retake the recording.

u MARK key

Press this key to add a mark at the current time. The maximum number of marks, including automatic marks, possible in a single file (take) is 99. (See “Mark functions” on page 48.)

TASCAM HS-P82 11

Rear panel

2 − Names and functions of parts

i Battery compartment

Open the cover to install batteries. See page 17 for information about the types of batteries that can be used.

Right side panel

o V-Mount bracket attachment holes

You can attach the included V-Mount bracket here. (See “Attaching a V-Mount type battery” on page 18.)

p Kensington lock mounting hole

a LINE OUT connectors

Connect a monitor speaker system or other equipment to these balanced XLR analog connectors (1: GND, 2: HOT, 3: COLD) that output the internally-mixed stereo signal.

s MIC/LINE selection switches

Set these switches according to the type of input signal.

MIC 0: Use when inputting a microphone.

MIC –25: Use when inputting a microphone. This

applies a 25 dB pad to the mic input.

LINE: Use for line level input.

d MIC/LINE IN connectors

These are XLR balanced analog input connectors (1: GND, 2: HOT, 3: COLD). Their standard and maximum

input levels depend on the settings of the MIC/LINE selection switches.

CAUTION

Conﬁrm that phantom power is OFF before connecting a

•

line level device to a MIC/LINE IN connector. If you connect a line level device while phantom power is ON, that device or this unit could be damaged.

Conﬁrm that phantom power is OFF before connecting or

•

disconnecting a condenser microphone to a MIC/LINE IN connector. If you connect a microphone while phantom power is ON, that mic or this unit could be damaged.

Do not connect an unbalanced dynamic microphone to an

•

XLR connector that is supplying phantom power. Doing so could damage the microphone or this unit.

12 TASCAM HS-P82

2 − Names and functions of parts

Left side panel

f Cord holder

Use this to hold the cord of the included TASCAM PS1225L adaptor designed for this unit to prevent the plug from becoming disconnected.

g DC IN connector

Connect the included TASCAM PS-1225L adaptor designed for this unit here.

h COMPACT FLASH SLOT 2 (CF 2)

Insert a CF card here.

j COMPACT FLASH SLOT 1 (CF 1)

Insert a CF card here.

k EXT DC IN connector

Connect external DC power here. Use a supply with an output voltage of DC 11-16 and an output current of 2A or more. The connector is XLR-4-32 (1: –, 2: NC, 3: NC, 4: +).

l DIGITAL I/O connector

Use this D-sub 25-pin AES3-2003/IEC60958-4 (AES/ EBU) format connector for digital audio input and output. Transmission occurs at double speed when the sampling frequency is 88.2/96 kHz and at quad speed when 176.4/192 kHz. The digital input section includes a sampling rate converter that is compatible with 32–216 kHz sampling frequencies.

; CASCADE/WORD/VIDEO (IN 2) connector

Use this BNC connector to input cascade, word clock (44.1, 48, 88.2, 96, 176.4 or 192 kHz as well as 48 kHz pull-up or pull-down) or video reference (NTSC/PAL black burst, HDTV Tri-Level) signals.

z CASCADE/WORD (OUT 2) connector

Use to output word sync signals (44.1, 48, 88.2, 96,

176.4 or 192 kHz as well as 48 kHz pull-up or pulldown).

x TIME CODE/DIGITAL (OUT 1) connector

Use this BNC connector to output SMPTE time code. Internal settings can be changed to allow AES3-2003/ AES-3id-2001 (AES/EBU) format digital audio signal to be output. Transmission occurs at double speed when the sampling frequency is 88.2/96 kHz and at quad speed when 176.4/192 kHz.

c TIME CODE (IN 1) connector

Use this BNC connector to input SMPTE time code.

v USB connector

Use a USB 2.0 cable to connect this unit to a computer. Driver software is not necessary. The computer recognizes each of the CF card slots in this unit as a unique mass storage device, so two separate devices appear on the computer if both slots contain cards. Use the USB connection to transfer audio files on the CF cards in this unit to the computer.

b KEYBOARD connector

Connect an IBM PC-compatible keyboard with a PS/2 interface, and use it to input project, scene, and channel names, for example. By default, the unit is set to use a US keyboard. When using a Japanese keyboard, since the key allocation is different, change the setting on the

PREFERENCES

page of the

SYSTEM SETUP

screen.

TASCAM HS-P82 13

2 − Names and functions of parts

Home Screen

Press the HOME key to open the Home Screen.

Home Screen - Playback

1 Transport status

The current transport state is shown.

Playback

Playback standby

Stopped

Backward search

Forward search

Recording

Recording standby

2 Time counter

The current time displayed is either the elapsed time or the remaining time. Touch this part of the screen to change the time display mode.

3 Time display mode

This shows the current time display mode. Touch this part of the screen to change the time display mode.

No indicator: elapsed time from the beginning of the take is shown.

REMAIN: remaining time until the end of the take is shown. When recording, the remaining time until the “Max File Size” is reached is shown.

TOTAL: Elapsed time from the beginning of the scene is shown.

TOTAL REMAIN: Remaining time until the end of the scene is shown. When recording, the remaining amount of time that can be recorded on the currently selected CF card, which depends on the current recording settings, is shown.

T/C: The time code for the file being recorded or played is shown.

4 Time code status (button/indicator)

When accurate time code is input and the input time code matches the time code settings made on the unit, this indicator appears green.

When the input time code does not match the time code settings made on the unit, this indicator appears to be unlit.

Touch this part of the screen to open the screen. (See “Sync and time code settings (SYNC T/C)” on page 40.)

5 Audio synchronization status (button/indicator)

When the selected Master clock is synchronized, this indicator appears green.

This blinks when the selected Master clock is out of range or unavailable.

Touch this part of the screen to open the screen. (See “Sync and time code settings (SYNC T/C)” on page 40.)

6 Power supply status

This image appears when the unit is operating using the included AC adaptor designed for this unit. This image, which shows the amount of remaining battery charge, appears when the unit is operating using an external battery. This image, which shows the amount of remaining battery charge, appears when the unit is operating using batteries installed in the battery compartment.

When using an external battery or batteries inside the

unit, when the remaining charge becomes low the ( ) or ( ) icon blinks.

Touch this part of the screen to open the screen. (See “Battery display” on page 21.)

NOTE

If the “Icon Type” on the “BATTERY” screen is set to “VOLTS,” the battery icon shows the power voltage.

External battery

Internal battery

7 Scene/take name

This shows the mode of the currently active file and the scene/take name.

Polyphonic mode (Multitrack WAV file)

Monophonic mode (Single track WAV file)

SYNC T/C

BATTERY

14 TASCAM HS-P82

2 − Names and functions of parts

Touch this part of the screen to open the

PROJECT

(current project/scene take list) screen. (See “Project operations” on page 32.)

8 SOLO indicators, track numbers, level meters, track

name display and recording functions

A track’s number appears black if it can be used for recording and gray if it is unavailable. (Availability depends on the sampling frequency setting.) The track number areas also act as overload indicators, turning red during overloads. When the limiter is operating, the track number areas turn blue.

During playback, the meters show the playback levels. At all other times, the level of the track input signal is shown on each track that is enabled for recording.

The track name display areas (4 characters or less) below the level meters also show the track recording status.

When the MIC/LINE selection switch is set to MIC 0 or

MIC –25, if you turn the input trim knob, the track name

display area below the meters shows the gain value for a while.

When the input source is set to a digital input, the following messages appear:

If there is no corresponding input,

•

If the input signal differs from the settings made in the

•

unit,

AESx-x UNLOCK

If the Cbit information of the input signal is no audio,

•

AESx-x NOT AUDIO

If the Cbit information of the input signal is non

•

professional,

If other Cbit information of the input signal differs

•

AESx-x NOT PRO

from actual operation mode,

AESx-x NO SIGNAL

AESx-x Cbit ERROR

If you touch a level meter, that channel is soloed. Yellow highlighting appears around the level meter and the number of a channel that is soloed. The level meters of the other channels are dimmed.

The following settings can be made for the display of the level meters in the

screen.

Peak hold time

•

Release time

•

Overload light level

•

Reference level line display ON/OFF

•

METER SETUP

screen from the

9 SOLO indicator

If any channel is being soloed, the yellow, and the

DATA dial when the channel is soloed to adjust its level

SOLO

level knob is shown. Turn the

SOLO

indicator lights

while soloed.

Yellow highlighting appears around the level meter and the number of a channel that is soloed. The level meters of the other channels are dimmed.

To choose a channel to solo, touch its level meter.

Home Screen, Playback

AESx-x NO SIGNAL

AESx-x UNLOCK

Home Screen, Record setting

Home Screen, Recording

TASCAM HS-P82 15

2 − Names and functions of parts

PAN/LVL Screen, Playback

Information Screen, Playback

0 Recording media

This shows which of the two CF slots is being used, as well as the remaining recording time for the current sampling frequency, bit rate and number of recording tracks. The background of the media that is currently being used appears green during playback and red when recording. If there is no media in the slot, dashes are shown and the background is grey.

If the card has no project, a CF card is inserted during recording into an empy, unused slot,

UNMOUNT

stopped, either the remaining recording time or

ect

appears.

When an unformatted CF card is inserted, appears.

Press this part of the screen to open the CF screen (media selection screen). (See “Formatting a CF card” on page 23.)

q REC TRACKS button

Press this button to show the record function buttons and the buttons to edit the take number (Next Take).

NoProject

appears. When

appears. When recording is

NoProj-

UNFORMAT

SELECT

In solo mode, the alphabet and the number area cannot be selected.

When the unit is put in recording standby, the file name of the take to be recorded is shown above the scene/take name button on the Home Screen.

In the following cases,

---

appears and the value cannot

be changed.

No project or scene is loaded

•

The selected CF card is unavailable

•

The current take is 999

•

w PAN/LVL button

Press this button to open a screen with pan pots and level adjustments for stereo mix recording and the output signal from PHONES and LINE OUT.

If you press a

PAN

2MixLVL

knob on a channel, the

parameter can be controlled with the DATA dial.

If two channels are linked, the

PAN

knob functions as a

balance adjustment knob.

When in solo mode,

PAN

2MixLVL

knob cannot be

selected.

e INFO button

Press this button to show the current settings of the unit and information about the loaded file.

Next Take

The take number can be set using one letter from the alphabet and a number from 1 to 999. Touch the alphabet area (it becomes yellow) and use the +/- buttons or the

DATA dial to change the value. Press the number area to

highlight it in yellow and turn the DATA dial to change the value.

The

Sys. Info

screen shows the current settings of this unit. Touch this part of the screen to open the screen.

The

File Info

screen shows information about the currently loaded file. Touch this part of the screen to open the

PROJECT

screen.

r Mark List button

Press this button to open the mark list. (See “Mark list screen” on page 48.)

t Manual Locate button

Press this button to open the screen for locating manually. (See “Manual locate function” on page 50.)

SYNC T/C

16 TASCAM HS-P82

3 − Preparation

Inserting and removing CF cards

Inserting CF cards

Insert a CF card into COMPACT FLASH SLOT 1 or SLOT

2 on the left side panel of the unit in order to use it for

recording and playback.

NOTE

CF cards can be inserted whether or not the power is ON or OFF.

1 Open the CF card slot.

Removing CF cards

Turn the unit power OFF or stop operations before removing a CF card.

CAUTION

Never remove a CF card during recording or playback, while transmitting data by USB or doing anything else that accesses the CF card.

1 Open the CF card slot cover.

2 Press the square button to the right of the CF card

slot to bring the button out.

2 Insert the CF card with the correct orientation. With

the labeled side up, insert the end with the connector completely.

3 Close the cover.

NOTE

If you cannot close the slot cover, remove the CF card once and press the square button to the right of the slot in and then reinsert the card.

3 Press the square button in again to partially eject the

CF card.

4 Pull the CF card out by hand.

Power supply

Power can be supplied to this unit by one of the following options: the included TASCAM PS-1225L AC adaptor designed for this unit, an external battery or batteries installed in the unit. If more than one source of power is available, the AC adaptor power is used before batteries and the external DC battery is used before batteries installed in the unit. If the voltage of the power source being used goes below the minimum set on the battery screen or the power plug of the AC adaptor/external battery is disconnected, the unit does the following.

If the

•

Battery Caution

the

SYSTEM SETUP

is output through the headphones output.

If another power source is available, a message appears and the power source changes in the order described above.

item on the

screen is set to ON, a warning sound

ALARM TONE

page of

TASCAM HS-P82 17

TASCAM PS-1225L

DC plug

AC outlet

3 − Preparation

Touch the the message.

If no other power source is available, a warning message

• appears, and the unit automatically stops recording and

playback after 20 seconds and then shuts down. Provide one of power sources.

button or press the DATA dial to close

A hook (cord holder) to fix the cord of the AC adaptor is also on the left side panel. Wrap the cord around the hook when connecting it to prevent it from being disconnected during use.

CAUTION

Always use the included TASCAM PS-1225L AC adaptor designed for this unit. Use of a different adapter could cause malfunction, ﬁre or electric shock.

Using batteries installed in the unit

If an external battery that has a voltage higher than the

• NOMINAL value is connected while the internal battery

is used, the following message appears.

Using the AC adaptor

Connect the included TASCAM PS-1225L AC adaptor designed for this unit to the DC IN connector on the left side panel.

Types of batteries that can be used internally

The following types of batteries can be used in this unit.

AA alkaline batteries (10) (use the BC-10AA battery

• case)

AA NiMH batteries (10) (use the BC-10AA battery case)

• NiMH NP-type battery

• Lithium-ion NP-type battery

•

NOTE

This unit does not have the ability to recharge batteries. When using a rechargeable battery or batteries, charge before use in a suitable charging device.

Installing internal batteries

Loosen the screw and open the cover of the battery compartment on the rear panel, and insert the battery case (TASCAM BC-10AA) or NP-type battery.

Then close the cover and tighten the screw.

18 TASCAM HS-P82

IDX V-Mount cover

IDX V

-Mount adaptor

V-Mount bracket

IDX V-Mount adaptor

3 − Preparation

Removing batteries

Open the cover of the battery compartment by loosening the screw on the rear panel, and push the lever on the right side of the battery compartment down. This unlocks and ejects the battery (or case).

Inserting batteries into the battery case (BC-10AA)

external DC power use, the attachment procedures for a V-Mount type battery from IDX Company, Ltd. are described.

Attaching a V-Mount type battery

1 As shown in the following illustration, remove the

cover attached to the V-Mount external battery adaptor (IDX C-EB (XLR)).

The a screws are required in step 2.

The b spacers are not needed so store them with the

cover.

1 Open the cover of the battery case (TASCAM BC-

10AA).

2 Insert 10 AA batteries with the correct +/-

orientation.

3 Close the cover.

Precautions for the use of batteries

Misuse of batteries could result in leakage, rupture or

• other trouble. Please read the warnings on the batteries

and page 4 of this manual carefully.

When changing batteries, replace all 10 batteries at the

• same time.

2 Attach the V-Mount bracket to the rear panel using

the included V-Mount bracket screw kit (c) as shown in the following illustration.

Check the TOP and BOTTOM indications for the

V-Mount bracket and attach it with the correct orientation.

3 Attach the V-Mount external battery adaptor (IDX

C-EB (XLR)) to the V-Mount bracket that is attached to the rear panel using the a screws removed in step

Using an external DC power source

The unit can be powered by connecting an external DC power source with an output voltage of 11-16V and an output current of 2A or more to the EXT DC IN connector (XLR-4-32) on the left side panel of this unit.

For how to use V-Mount type batteries, see the instructions included with the battery. In the following examples of

TASCAM HS-P82 19

3 − Preparation

4 Connect the cable from the V-Mount external battery

adaptor (IDX C-EB (XLR) to the EXT DC IN connector on the left side panel.

5 Insert the V-Mount battery into the V-Mount

external battery adaptor (IDX C-EB (XLR).

About the display

Adjusting the display angle

Pull the bottom of the display forward, as shown in the following illustration, to allow the angle to be adjusted. Push the bottom of the display (at the TASCAM logo) back in to restore it to its flat position.

CAUTION

Do not push the display screen itself.

Adjusting the display and indicator brightness

Turn the DATA dial while pressing and holding the HOME key to adjust the brightness of the display, the PAUSE , REC and PLAY [CALL] keys and the SL ATE indicator.

Push and turn the DATA dial while pressing and holding the HOME key to adjust only the brightness of the color display.

Cautions on the display

The display can easily be scratched, so do not use

• pointed objects, including fingernail tips, to touch it.

Always touch it with your fingers.

Do not press the display forcefully with a finger or poke

• it with a pen, toothpick or other pointed object. Doing so

could scratch the display or cause malfunction.

The display touch panel is comprised of a film and glass.

• Do not apply a strong force to its surface. Doing so could

break the glass.

When using the display, do not put a hand on the panel

• or push around the display forcefully. Doing so could

prevent accurate position detection.

Do not place anything on top of the display or otherwise

• put weight on the same place for a long time. Doing

so could cause the panel to warp or result in inaccurate position detection.

Do not apply a commercially available screen protection

• film to the display. Doing so could prevent normal

operation.

Slightly wipe the display with a soft dry cloth that does

• not shed dust (e.g. a cleaning cloth). Avoid wiping with a

stiff cloth or rubbing with force. Doing so could damage the surface of the LCD. Do not use benzene, thinner, manicure remover, alcohol or similar substances.

NOTE

The display is produced with extremely high-precision manufacturing technologies. More than 99.99% of the pixels operate to specification. Less than 0.01% of the pixels may occasionally misfire or appear as red or black dots.

This has no effect on the recorded sound and does not constitute a malfunction.

20 TASCAM HS-P82

3 − Preparation

Turning the power ON and OFF

Push the switch on the front panel down to turn the power ON.

The following Start Up screen appears.

Setting the time of the built-in clock

1 Press the MENU key on the front panel to open the

screen.

2 Touch the

SETUP

SYSTEM SETUP

screen.

button to open the

SYSTEM

To turn the power OFF, push the switch on the front panel down again. A confirmation screen appears to verify that you want to turn the power OFF. Follow the instructions on the screen to turn the power OFF.

NOTE

When using an external DC power source or an internal battery, a voltage of at least 11 V is necessary when starting up.

3 Touch the

CLOCK ADJUST

tab to open the screen where

you can set the built-in clock.

4 Touch the item that you want to change, and use the

DATA dial on the front panel to change the value.

5 Touch the

SET

button, or push the DATA dial to

confirm the setting.

NOTE

After purchasing this unit, set the clock before making your ﬁrst recording. If you do not set the clock, the time stamps on recording ﬁles will not be correct

TASCAM HS-P82 21

3 − Preparation

Battery display

At the top right of every screen is a button that opens the power screen.

Touch this button to open the

STAT US

This shows the currently active power source.

AC/DC EXT/BATT

The indicator for the currently active power source appears green.

The current voltage for each power source is shown beneath its

HEALTH

label.

The type of battery currently installed in the unit is shown beneath the

NONE

PACK

BATT

label.

: No internal battery is installed

: Shown when an NP type battery is installed

: Shown when a battery case (BC-10AA) is

installed

The following settings can be made for the

BATT

items.

MINIMUM

•

: Set the minimum battery voltage between 9.0

V and 13.0 V in 0.5 V steps (default value: 10.5V)

NOMINAL

•

: Set the usual voltage to 12.0 V (default value),

13.2 V, 14.4 V, 14.8 V or 15.0 V

BATTERY

management screen.

DC EXT

and

The recommended values depending on the type of battery are as follows.

NP type batteries

Type of batteries Minimum voltage Nominal voltage

NiMH 12.0 V 11.0 V 12.0 V

NiMH 13.2V 12.0 V 13.2 V

Li-Ion 14.4V 13.0 V 14.4 V

Li-Ion 14.8 V 13.0 V 14.8 V

Deep cycle lead 12 V

10.5 V 12.0 V

Batteries (using the supplied battery case BC -10AA)

Type of batteries Minimum voltage Nominal voltage

NiMH rechargeable batteries (AA)

Alkaline batteries (AA)

10.5 V 12.0 V

9.0 - 9.5 V 15.0 V

The minimum and nominal voltages in the above tables are typical values of commercially available batteries. Please set them according to the battery manual.

CAUTION

If the minimum voltage is too low, there is a danger of damaging rechargeable batteries through excessive discharge.

NOTE

A great amount of power is required to provide phantom power to a condenser microphone. If you use a condenser microphone while running the unit on AA batteries (NiMH rechargeable or alkaline), the operation time will be greatly shortened because of their low capacities. If you need to operate the unit for a long time, use the AC adaptor or a battery with great capacity.

Touch the area of the value that you want to change. When the background color changes, use the DATA dial to set the value.

ICON TYPE (Battery status display):

You can set the battery status display icon type by touching the

BARS

( / ) or

default value is

BARS

VOLTS

( / ) button. The

22 TASCAM HS-P82

DigitalIn

DigitalOut

1425

3 − Preparation

Panel lock function

Press the MENU key while pressing and holding the HOME key on the front panel to open a screen where you can disable or enable all operation from the front panel.

The front panel is divided into three sections. You can lock and unlock each of these sections separately.

If you try to operate a control that is locked, the following pop-up message appears.

Recording duration

The table below shows the amount of recording time possible on CF cards of various capacities for each available recording format.

File recording

format and

number of

recordable

tracks

16-bit, 44.1 kHz, 8 tracks

16-bit, 44.1 kHz, 8 tracks + stereo mix

16-bit, 48 kHz, 8 tracks

16-bit, 48 kHz, 8 tracks + stereo mix

24-bit, 44.1 kHz, 8 tracks

24-bit, 44.1 kHz, 8 tracks + stereo mix

24-bit, 48 kHz, 8 tracks

24-bit, 48 kHz, 8 tracks + stereo mix

24-bit, 88.2 kHz, 8 tracks

24-bit, 96 kHz, 8 tracks

24-bit, 176.4 kHz, 4 tracks

24-bit, 192 kHz, 4 tracks

3 hours 9 minutes

2 hour 31 minutes

2 hours 54 minutes

2 hours 19 minutes

2 hours 6 minutes

1 hour 41 minutes

1 hour 56 minutes

1 hour 33 minutes

1 hour 3 minutes

58 minutes 1 hour 56

1 hour 3 minutes

58 minutes 1 hour 56

CF card capacity

8 GB 16 GB 32 GB

6 hours 18 minutes

5 hours 2 minutes

5 hours 47 minutes

4 hours 38 minutes

4 hours 12 minutes

3 hours 22 minutes

3 hours 51 minutes

3 hours 5 minute

2 hours 6 minutes

minutes

2 hours 6 minutes

minutes

12 hours 36 minutes

10 hours 5 minutes

11 hours 34 minutes

9 hours 16 minutes

8 hours 24 minutes

6 hours 43 minutes

7 hours 43 minute

6 hours 10 minutes

4 hours 12 minutes

3 hours 51 minutes

4 hours 12 minutes

3 hours 51 minutes

DIGITAL I/O connector

The DIGITAL I/O connector on the left side panel is a D-sub 25-pin AES3-2003/IEC60958-4 (AES/EBU) digital audio input and output connector. The pin assignments are as follows.

The recording times shown above are estimates. They

• might differ depending on the CF card in use.

The recording times shown above are not continuous

• recording times, but rather they are the total possible

recording times for the CF card.

TASCAM HS-P82 23

4 − Recording and Playback

In this chapter, we explain basic procedures for recording with a microphone. The display on this unit functions as a touch panel. Operate the unit using its keys, switches and touch panel display buttons.

NOTE

This unit can record a maximum of 8 separate tracks and a stereo track (when the sampling frequency is set to 44.1 or 48 KHz). The maximum number of input channels is 8. The stereo track records a stereo mix of the 8 recorded tracks.

On every screen except the Home Screen, a “ ” button appears at the top left. Touch this button to return to the previous screen.

2 Touch the

MANAGE

screen.

3 Touch the

to open the CF

CF/USB MANAGE

SELECT

button next to the CF

SELECT

button to open the

screen.

CF/USB

SELECT

item

Preparing to record

Formatting a CF card

CAUTION

Formatting a CF card erases all the data on it.

•

Format a CF card with this unit. (If a CF card is formatted

•

with another equipment or PC, some malfunction may occur.)

Format CF cards with this unit. (If a CF card is formatted

•

with other equipment or a PC, errors may occur.)

1 Press the MENU key on the front panel to open the

screen.

4 Touch the button for the CF card that you want to

format to select it. The background of the selected CF card appears yellow.

5 Touch the

CF/USB MANAGE

6 Touch the

SET

button to confirm and return to the

screen.

QUICK

button next to the

FORMAT

item. The

following pop-up message appears.

NOTE

If no CF card is inserted in that slot, the pop-up message appears: “CF1/CF2 Is not available.”

7 Touch the OK button on the pop-up message. During

formatting, the following pop-up message appears.

24 TASCAM HS-P82

4 − Recording and Playback

When formatting completes, the following pop-up message appears.

8 Touch the

CREATE PROJECT

button on the pop-up message. The

screen automatically opens.

On the first page, you can set the project name, the name of the first created scene, the sampling frequency, and the sampling frequency written to BWF chunks.

Touch the

button to open the next page.

9 To make a new project, follow the procedures

starting with step 2 in the following “Create a new project” section.

NOTE

Format CF cards with this unit. (If a CF card is formatted with other equipment or a PC, errors may occur.)

Create a new project

1 Press the PROJECT key on the front panel to open

the

PROJECT

screen.

Set the frame type for the project or select the default

factory preset from this page.

For details about each item, see “Creating new projects” on page 32.

3 After you complete making the settings touch the

CREATE PROJECT

NOTE

If a project with the same project name already exists, the CREATE PROJECT button appears gray and you will not be able to create a new project. If this happens, press the "Project Name" button on the screen (The Project Name Edit screen opens). Then, change the project name. After that, press the "Enter" button on the screen or press the DATA dial.

button.

2 Touch the

PROJECT

The

CREATE PROJECT

screen.

CREATE PROJECT

button to open the

screen has two pages.

CREATE

4 Press the okay button on the confirmation pop-up

message that appears.

The Home Screen reopens.

TASCAM HS-P82 25

Set the master clock

1 Press the HOME key on the front panel to open the

Home Screen.

2 Touch the

where you can set the clock.

SYNC

button to open the

SYNC T/C

screen

4 − Recording and Playback

On the

REC TRACKS

function of the tracks that you want to record (arm tracks for recording). Touch the record function buttons below the level meters to turn each track record function ON or OFF.

When a track’s record function is ON, the button background appears red.

NOTE

When the sampling frequency is 44.1 kHz or 48 kHz, to

•

record a stereo mix at the same time as the separate tracks (1-8), turn the LR 2MIX record function ON. The internal mixer creates a stereo mix of the other tracks.

You can also open the “REC TRACKS” page to set the

•

record function by pressing the MENU key to open the “MENU” screen and touching the “REC SETUP” button.

page, you can turn ON the record

3 Select the master clock that you want to use from the

MASTER

item on the

SYNC T/C

screen.

Set the recording tracks

1 Press the HOME key on the front panel to open the

Home Screen.

Set the file format

1 Press the MENU key on the front panel to open the

screen.

2 Touch the

screen.

REC SETUP

button to open the

REC SETUP

2 Touch the

page of the

REC TRACKS

REC SETUP

button to open the screen.

REC TRACKS

26 TASCAM HS-P82

Microphones

Headphones

4 − Recording and Playback

3 Touch the

FILE FORMAT

tab to open the following

screen.

On the

FILE FORMAT

page, you can set the file mode, bit length, maximum file size, and behavior when a recording is paused. For details, see “FILE FORMAT page” on page

39.

Make other recording settings

Touch the

OPTIONS

tab to open the following screen.

Connect headphones to the PHONES connector on

the front panel. Keep the headphones knob turned to MIN (all the way to the left) when connecting headphones.

When using a condenser mic, follow the procedures below to turn phantom power ON.

1 Press the MENU key on the front panel to open the

screen.

On the

OPTIONS

page, you can set the pre-recording time and the use of auto markers. For details, see “OPTIONS page” on page 39.

Connecting microphones and headphones

Connect a microphone to the MIC/LINE connector.

Set all the MIC/LINE switches next to the input

connectors on the right side panel to MIC 0.

2 Touch the

SETUP

screen.

MIXER SETUP

button to open the

MIXER

TASCAM HS-P82 27

4 − Recording and Playback

3 Touch the buttons next to the

on the

INPUT

page for the input channels that need

PHANTOM +48V

item

phantom power to turn it ON.

CAUTION

Conﬁrm that phantom power is OFF before connecting a

•

line level device to a MIC/LINE IN connector. If you connect a line level device while phantom power is ON, that device or this unit could be damaged.

Conﬁrm that phantom power is OFF before connecting

•

or disconnecting a condenser microphone to a MIC/LINE IN connector. If you connect or disconnect a microphone while phantom power is ON, that mic or this unit could be damaged.

Do not connect an unbalanced dynamic microphone to an

•

XLR connector that is supplying phantom power. Doing so could damage the microphone or this unit.

Setting the inputs

1 Press the MENU key on the front panel to open the

screen.

On the

SIGNAL PROCESSING

page, you can reverse the phase, and turn the low-cut filter and limiter ON or OFF. To adjust the low-cut filter settings, touch the

Filter

button to open the

LOW CUT FILTER

LowCut

screen. For

details, see “SIGNAL PROCESSING page” on page 43.

2 Touch the

SETUP

screen.

MIXER SETUP

button to open the

MIXER

From the

SETUP

page, you can edit channel names and

turn channel links ON and OFF.

To edit channel names, touch the buttons next to the

NAME

item. For details, see “CHx NAME (button)” on

page 44.

Input settings can also be changed on the

CHx SETUP (1-8)

screens.

Touch the

To open a the top of the

CHANNEL SETUP

CHx SETUP

screen, touch that

MIXER SETUP

button on the

screen.

CHANNEL

button at

See “Channel Settings (CHANNEL SETUP)” on page 44 details about making settings on the

CHANNEL SETUP

screens.

On the

INPUT

page, set each channel’s input source, turn phantom power ON or OFF for each input, and turn the sampling rate converter ON or OFF for each pair of inputs. For details, see “INPUT page” on page 43.

3 If necessary, open the

SIGNAL PROCESSING

and

tabs to make additional settings.

SETUP

28 TASCAM HS-P82

4 − Recording and Playback

Adjust the input level

1 Press the HOME key on the front panel to open the

Home Screen.

2 Use a connected mic to input sound, and adjust the

input level using the input trim knob so that the level meter on the screen does not overload. If the mic input level is too high, set the MIC/LINE selection switch next to the MIC/LINE connector to MIC –25, and then adjust the input level with the input trim knob again.

The channel name display area beneath the meter shows the gain value for a while.

Monitor the input

Touch the PAN/LVL button on the Home Screen to open the following screen where you can adjust the level and pan knobs. The mixed signal of all the channels after these adjustments is sent to the outputs for headphones and external speakers and can be monitored.

When in solo mode, selected.

You can also make these adjustments on the screens.

PAN

2MixLVL

knob cannot be

CHx SETUP

NOTE

By pressing in an input trim knob, you can prevent it from accidental operation. When a knob is out, it can be turned.

NOTE

If the sampling frequency is set to 44.1 or 48 kHz, you can simultaneously record the stereo mix of the channels with their levels and pan positions adjusted.

Make a recording

Press the REC key to start recording.

The transport status display at the top left of the Home Screen changes into the recording status display and part of the background of the Home Screen becomes red, indicating that the unit is recording. The time counter starts at the same time.

TASCAM HS-P82 29

If you press the REC key while recording, recording to the current file stops, but recording continues on a new file.

NOTE

If you press the REC key less than 4 seconds after

•

beginning recording, the unit will not start recording a new take.

If a ﬁle with the take number 999 exists, recording another

•

take is not possible.

Stop recording

Press the STOP [RETAKE] key to stop recording.

4 − Recording and Playback

NOTE

Alternatively, press the scene/take name area on the Home Screen to open the “PROJECT screen.

2 Touch the “ ®” button next to the project that you

want to play to open the scene selection screen.

RETAKE

Press the STOP (RETAKE) key while pressing and holding the SHIFT key to erase the last recorded take.

If a 2Mix take was recorded simultaneously, it is also erased.

If the REC key was pressed during recording to record multiple consecutive takes, retake is possible only from the beginning of the recording of the last take.

Voice memo and slate tone function

Press and hold the SLATE key on the front panel more than

0.5 sec to momentarily record the signal through the built-in mic on the front panel or a slate tone signal. Set whether the mic input signal or the internal oscillator tone is recorded on the

PREFERENCES

page of the

SYSTEM SETUP

screen. (See

“PREFERENCES page” on page 46.)

NOTE

In order to prevent accidental operation of the SLATE key, it must be held down brieﬂy to turn this function ON.

Play a recording

Select a project/scene/take

1 Press the PROJECT key on the front panel tool to

open the

PROJECT

screen.

3 Touch the “ ®” button next to the scene that you

want to play to open the take selection screen.

4 Touch the “ ®” button next to the take that you

want to play.

If the take is currently in the selected project, a

selected take?

pop-up message appears.

Load

If the take is not currently in the selected project, a

Selected take is in another project

pop-up

message appears.

30 TASCAM HS-P82

4 − Recording and Playback

The message above appears when the take is in the current project.

The message above appears when the take is not in the current project.

5 Touch the OK button in the confirmation pop-up

message.

When loading completes, the Home Screen reopens.

Start playback

Press the PLAY [CALL] key.

Press the PAUSE key to pause playback.

Press the PLAY [CALL] key again to resume playback.

Press the STOP [RETAKE] key to stop playback.

Press the Ô [Â] and [¯] keys briefly to change the take. Press and hold these keys to search backward or forward during playback.

2 Touch the

open the

PAN knobs: Use these to adjust the left-right position

sent to the stereo bus.

2Mix LVL knob: Use these to adjust the level sent to the

stereo bus.

When in solo mode, selected.

3 Touch the knob that you want to adjust.

Use the DATA dial on the front panel to adjust this

parameter.

PAN/LVL

page.

PAN

button on the Home Screen to

2MixLVL

knob cannot be

NOTE

On the PLAY SETUP screen, you can set whether only the currently selected take is played or whether all the takes within the current scene are played. (See “Playback settings (PLAY SETUP)” on page 40.)

Mixing the playback sound

Use the internal mixer function to mix the recorded tracks into stereo and output them to the line output and PHONES connectors.

1 Press the HOME key on the front panel to open the

Home Screen.

TIP

Press the DATA dial as you turn it to make adjustments in larger increments. This is useful for making rough adjustments quickly.

CALL

While pressing the SHIFT key, press the PLAY (CALL) key to use the CALL function (locate to the point where playback was last started from standby), and put the unit in playback standby mode.

TASCAM HS-P82 31

5 – Projects

This unit manages audio files in projects. Each CF card contains project folders, and each project folder contains scene folders. These scene folders contain audio files called takes.

Project: Contains all the materials for one program or work

Scene: Includes all the materials for a certain part of a

project

Take: A recording that is part of a scene

File formats

This unit can record and play the following types of file formats.

File format: BWF

• Sampling frequencies: 44.1, 48, 48 pull-down, 48

• pull-up, 88.2, 96, 176.4 and 192 kHz

Bit length: 16 or 24

• Number of tracks:

• 1–8 tracks (at 44.1, 48, 88.2 or 96 kHz)

1–8 tracks + stereo mix (at 44.1 or 48 kHz) 1–4 tracks (at 176.4 or 192 kHz)

File mode: monophonic or polyphonic

•

Monophonic and polyphonic modes

In monophonic mode, each track is recorded as an independent monaural BWF file.

In polyphonic mode, multiple tracks are recorded together as a BWF file.

When transferring a file to an audio application that is compatible with polyphonic files, multiple tracks can be input at once.

The 2mixfile is always recorded as a polyphonic file (stereo file).

About project screens

Press the PROJECT key on the front panel to open the

PROJECT

selection, scene selection or take selection) opens.

screen. The last used

PROJECT

screen page (project

Project screen

Directory display: The current directory level and number

of projects is shown. (In the example above, the root directory of CF card 1 contains 12 projects.)

NUM OF SCENE: This shows the number of scenes in

each project.

Fs: This shows the sampling frequency of the project. The

values are abbreviated. 44.1 kHz is shown as “ kHz –0.1% (pull-down) as “48k–,” 48 kHz +0.1% (pullup) as “ “

ENTER: Press a project “ ®” button to show the contents

of that project.

Project name buttons: Touch to select a project or projects.

INFO button: Touch to open a pop-up window that shows

information about the project that is currently selected.

If no project is selected, press this button to show information about the current CF card.

CREATE PROJECT button: Touch to open the

PROJECT

MULTI SELECT button: Touch to enable the selection of

multiple projects.

MENU button: Touch to open a pop-up menu where you

can select

Scroll buttons: Use these buttons to scroll to the beginning

or end of the list or scroll one page (five lines) forward or backward. You can also scroll through the list one line at a time using the DATA dial.

Touch the project/scene name shown to the left of the battery icon to open a screen that shows the list of takes in the current project/scene.

176k

48k+

,” 88.2 kHz as “

.”

screen.

LOAD, REBUILD, EDIT NAME

88k

” and 176.4 kHz as

and

44k

CREATE

DELETE

,” 48

Scene screen

Project name display: The current project name is shown.

32 TASCAM HS-P82

5 – Projects

NUM OF TAKE: This shows the number of takes in each

scene.

TOTAL TIME: This shows the total recording time of the

takes in this scene.

ENTER: Press a scene “ ®” button to show the contents

of that scene.

Scene name buttons: Touch to select a scene or scenes.

INFO button: Touch to open a pop-up window that shows

information about the scene that is currently selected.

If no scene is selected, press this button to show information about the current project.

MAKE SCENE button: Touch to open the

MAKE SCENE

screen.

MULTI SELECT button: Touch to enable the selection of

multiple scenes.

MENU button: Touch to open a pop-up menu where you

can select

LOAD, REBUILD, COPY

, and

DELETE

Scroll buttons: Use these buttons to scroll to the beginning

or end of the list or scroll one page (five lines) forward or backward. You can also scroll through the list one line at a time using the DATA dial.

Touch the project/scene name shown to the left of the battery icon to open a screen that shows the list of takes in the current project/scene.

Take screen

Scene name display: The current scene name is shown.

LENGTH: This shows the length of each take. ENTER: Press a take “ ®” button to load the take.

Take name buttons: Touch to select a take or takes.

INFO button: Touch to open a pop-up window that shows

information about the take that is currently selected.

If no take is selected, press this button to show information about the current scene.

CIRCLE TAKE button: Touch to add or remove the @ to

the take name.

MULTI SELECT button: Touch to enable the selection of

multiple takes.

MENU button: Touch to open a pop-up menu where you

can select

Scroll buttons: Use these buttons to scroll to the beginning

or end of the list or scroll one page (five lines) forward

LOAD, REBUILD

, and

DELETE

or backward. You can also scroll through the list one line at a time using the DATA dial.

Project operations

Creating new projects

1 Press the PROJECT key on the front panel to open

the

PROJECT

2 Touch the

screen to open the screen has two pages.

On the first page of the can make the following settings.

Project Name: Touch the

the screen where you can edit the project name.

On the of characters allowed is indicated by the yellow background. The maximum number of characters for project and scene names is 31. Extra characters are discarded.

Scene Name: Touch the

screen where you can change the name of the first scene.

Fs: Set that sampling frequency of the project.

48k-0.1% sampling frequency is pull-down compatible, and 48k+0.1% is pull-up compatible.

BWF Chunk Fs: Set the sampling frequency for BWF

chunks. To use the actual sampling frequency of the recordings, select pull-down, select 48k±0.1%.

NEXT: Open the next page.

The second page of the following settings.

screen.

CREATE PROJECT

Project Name

PROJECT NAME

screen, the maximum number

Scene Name

Actual Rate

Fake Rate

CREATE PROJECT

button on the

PROJECT

screen. This

screen, you

button to open

button to open a

. For pull-up/

to write 48k instead of

screen has the

TASCAM HS-P82 33

5 – Projects

Frame Type: Set the Time code Frame Type.

OTHERS: Use the

parameters to create a project or select

Preset

to use the default settings.

Current Settings

of other

Factory

3 After you complete making the settings, touch the

CREATE PROJECT

NOTE

If a project with the same project name already exists, the CREATE PROJECT button appears gray and you will not be able to create a new project. If this happens change the project name.

button.

4 Touch the OK button when the confirmation pop-up

message appears.

Caps button: Use to input uppercase letters.

Space button: Use to input a space.

<– / –> buttons: Use these to move the cursor.

Enter button: Touch this to confirm the input name.

NOTE

When the “PROJECT NAME” screen is open, you can also use an external keyboard that is connected to the KEYBOARD connector on the left side panel to input names.

2 Touch the

Enter

button on the

PROJECT NAME

screen

or press the DATA dial to confirm the project name.

Changing a project name later

1 Select the project that you want to change on the

PROJECT

2 Touch the

screen.

button to open a pop-up menu.

When creation of the project completes, the Home Screen reopens.

NOTE

Immediately after creation, the new project becomes the

•

current project.

The letter “C” appears on the folder icon to the left of the

•

name of the currently active project on the “PROJECT” screen.

Editing the project name

1 Touch the

PROJECT

shown below.

Project Name

button on the

screen to open the

CREATE

PROJECT NAME

screen as

NOTE

When multiple projects are selected, the “LOAD” and “EDIT NAME” items are not available.

3 Touch the

open the

EDIT NAME

PROJECT NAME

button in the pop-up menu to

screen.

4 Input the project name using the procedures

described above.

5 Touch the

ENTER

button on the

PROJECT NAME

screen

or press the DATA dial to confirm the project name and return to the

PROJECT

screen.

Editing the name of the first scene

Touch the

screen to open the following screen.

Scene Name

button on the

CREATE PROJECT

Character buttons: Use these to input the project name.

BS button: Use this to erase the character to the left of the

cursor.

DEL button: Use this to erase the character to the right of

the cursor.

Shift button: Touch this to switch between numerals and

symbols and uppercase and lowercase Roman letters.

Follow the same procedures as in “Editing the project name” on page 33 to change the scene name.

34 TASCAM HS-P82

5 – Projects

NOTE

The scene name cannot be changed later because it is also used for take ﬁle names.

Loading projects

1 Press the PROJECT key on the front panel to open

the

PROJECT

2 Select the project that you want to load.

3 Touch the

NOTE

When multiple projects are selected, the “LOAD” and “NAME EDIT” items are not available.

4 Touch the

screen.

button to open a pop-up menu.

LOAD

button in the pop-up menu.

3 Touch the

button on the

PROJECT

screen to open

a pop-up menu.

4 Touch the

REBUILD

button in the pop-up menu.

5 Touch the OK button or press the DATA dial when a

confirmation pop-up message appears.

5 Touch the OK button or press the DATA dial when the

confirmation pop-up message appears.

After loading completes the Home Screen opens.

NOTE

When a project is loaded, the last loaded scene is also loaded. The highest numbered take in that scene is also loaded

Rebuilding projects

Rebuild a project to play data files that were not recorded by the unit, including scenes that were copied from another project within the unit, and audio files that were copied from a computer to a scene within the unit (files copied from a computer must be a format that the unit can play).

During rebuilding, a progress status pop-up appears. When rebuilding completes, the pop-up disappears and the Home Screen opens.

NOTE

If you rebuild when no project has been selected in the PROJECT screen, the selected CF card is rebuilt entirely.

Erasing a project

1 Press the PROJECT key on the front panel to open

the

PROJECT

2 Select the project that you want to erase.

Touch the

screen to allow the selection of multiple projects.

screen.

MULTI SELECT

button on the

PROJECT

1 Press the PROJECT key on the front panel to open

the

PROJECT

screen.

2 Select the project that you want to rebuild.

Touch the

MULTI SELECT

button on the

PROJECT

screen to allow the selection of multiple projects.

3 Touch the

the pop-up menu.

button on the

PROJECT

screen to open

TASCAM HS-P82 35

5 – Projects

4 Touch the

DELETE

button in the pop-up menu.

5 Touch the OK button or press the DATA dial when a

confirmation pop-up message appears.

During erasure, a progress status pop-up appears. When erasure completes, the pop-up disappears.

CAUTION

When you erase a project, every scene and take in the project is also erased.

Scene operations

Creating new scenes

1 Touch the PROJECT key on the front panel to open

the

PROJECT

2 Touch the “®” button of the project where you want

to add a scene to open the scene screen.

screen.

Follow the same procedures as in “Editing the project name” on page 33 to name the scene.

NOTE

You cannot use the “@” symbol at the beginning of a scene name.

4 Touch the

Enter

button or press the DATA dial to

open a confirmation pop-up message. Touch the OK button or press the DATA dial to confirm the scene name.

The new scene becomes the current scene immediately after it is created.

During the creation of a scene, a progress status popup appears. When scene creation completes, the pop-up disappears and the Home Screen reopens.

Loading scenes

1 Press the PROJECT key on the front panel to open

the

PROJECT

screen.

3 Touch the

MAKE SCENE

button to open the

screen where you can name the scene.

MAKE SCENE

2 Touch the “®” button for the project that contains

the scene that you want to load to open the scene screen.

3 Select the scene that you want to load.

4 Touch the

button to open a pop-up menu.

5 Touch the

LOAD

button in the pop-up menu.

36 TASCAM HS-P82

5 – Projects

6 Touch the OK button or press the DATA dial when a

confirmation pop-up message appears.

When loading completes, the Home Screen opens.

NOTE

The letter “C” appears on the folder icon to the left of the scene name of the currently selected scene.

Rebuilding scenes

Rebuild a scene to play data files that were not recorded by the unit, including scenes that were copied from another project within the unit and audio files that were copied from a computer to a scene within the unit (files copied from a computer must be a format that the unit can play).

1 Press the PROJECT key on the front panel to open

the

PROJECT

2 Touch the “®” button for the project that contains

the scene that you want to rebuild to open the scene screen.

3 Select the scene that you want to rebuild. Touch

the

MULTI SELECT

multiple scenes.

screen.

button to enable the selection of

During rebuilding, a progress status pop-up appears. When rebuilding completes, the pop-up disappears.

NOTE

You can also rebuild a scene from that scene’s take selection screen.

Copying scenes

You can copy scenes between CF1 and CF2 (two CF cards are necessary).

If you copy a scene, the same directory structure is created at the copy destination.

CAUTION

To play copied scenes on this unit, you must rebuild the

•

destination project or the scene.

If you copy a scene with a different sampling frequency

•

into a project, the scene cannot be rebuilt.

1 Press the PROJECT key on the front panel to open

the

PROJECT

2 Press the “®” button for the project that contains

the scene that you want to copy to open the scene screen.

3 Select the scene that you want to copy. Touch the

MULTI SELECT

multiple scenes.

4 Touch the

a pop-up menu.

screen.

button to enable the selection of

button on the

PROJECT

screen to open

4 Touch the

5 Touch the

button to open a pop-up menu.

REBUILD

button in the pop-up menu item.

6 Touch the OK button or press the DATA dial when a

confirmation pop-up message appears.

5 Touch the

COPY

button in the pop-up menu.

6 Touch the OK button or press the DATA dial when a

confirmation pop-up message appears.

During copying, a progress status pop-up appears. When copying completes, the pop-up disappears and the Home Screen opens.

TASCAM HS-P82 37

NOTE

If a scene with the same name already exists on the destination CF card, a message conﬁrming that you want to overwrite the existing scene appears. Touch the OK button or press the DATA dial to overwrite the existing ﬁle and copy the selected scene to the destination.

5 – Projects

When you erase a scene, every take in that scene is also

•

erased.

You cannot edit scene names.

•

Take operations

Loading takes

1 Press the PROJECT key on the front panel to open

the

PROJECT

2 Press the “®” button for the project that contains

the take that you want to load.

3 Press the “®” button for the scene that contains the

take that you want to load.

screen.

Erasing scenes

1 Press the PROJECT key on the front panel to open

the

PROJECT

2 Press the “®” button for the project that contains

the scene that you want to erase to open the scene screen.

3 Select the scene that you want to erase. Touch the

MULTI SELECT

multiple scenes.

4 Touch the

a pop-up menu.

screen.

button to enable the selection of

button on the

PROJECT

screen to open

4 Select the take that you want to load.

5 Touch the

6 Press the

NOTE

Or, press the “®” button next to the take that you want to load.

button to open a pop-up menu.

LOAD

button in the pop-up menu.

7 Touch the OK button or press the DATA dial when a

confirmation pop-up message appears

5 Touch the

DELETE

button in the pop-up menu.

6 Touch the OK button or press the DATA dial when a

confirmation pop-up message appears.

During erasure, a progress status pop-up appears. When erasure completes, the pop-up disappears.

CAUTION

When loading completes, the Home Screen opens.

Erasing takes

1 Press the PROJECT key on the front panel to open

the

PROJECT

2 Press the “®” button for the project that contains

the take that you want to erase.

3 Press the “®” button for the scene that contains the

take that you want to load.

screen.

38 TASCAM HS-P82

5 – Projects

4 Select the take that you want to erase. Touch the

MULTI SELECT

multiple scenes.

button to enable the selection of

5 Touch the

6 Touch the

7 Touch the OK button or press the DATA dial when a

confirmation pop-up message appears.

button to open a pop-up menu.

DELETE

button in the pop-up menu.

During erasure, a progress status pop-up appears. When erasure completes, the pop-up disappears.

Adding and removing “@” to take names

Select a take and touch the “ or remove “@” to the take name.

TIP

You can use this to mark the good takes, for example.

CAUTION

You cannot edit take names.

CIRCLE @ TAKE

” button to add

TASCAM HS-P82 39

6 – Internal Settings and Operations

In this chapter, we explain the unit’s internal settings in detail.

Menu screen

Press the MENU key on the front panel to open the following

• REC SETUP button

Use to make recording settings.

• PLAY SETUP button

Set the unit to play only one take or play every take.

• SYNC T/C button

Makes settings related to synchronization and time code.

• MIXER SETUP button

Make settings related to the mixer.

• CHANNEL SETUP button

Make settings for each channel.

• METER SETUP button

Make level meter settings.

• SYSTEM SETUP button

Make system settings.

• CF/USB MANAGE button

Manage CF cards and USB operations.

• VERSION INFO button

Show the system version.

screen.

Recording settings (REC SETUP)

(Default setting status: all buttons OFF.)

FILE FORMAT page

Use this to make file format settings.

File Mode

Set the mode for recording files.

MONO (default value): Each track is handled as a monaural

file.

POLY: Multiple tracks are handled as a single combined

file.

Bit Length

Set the quantization bit rate for recording files.

Setting buttons:

Max File Size

Set the maximum size for recording files.

Setting buttons:

Pause Mode

Set whether or not to divide files when a recording is paused.

Setting buttons:

16bit, 24bit

640MB, 1GB, 2GB

SPLIT

(default value)

(default value), NO

(default value)

SPLIT

The

REC SETUP

FILE FORMAT

the screen to open the corresponding page.

screen has three tabbed pages:

and

OPTIONS

. Touch the tabs at the bottom of

REC TRACKS

REC TRACKS page

Turn the record function ON and OFF for each track.

Touch the record function buttons below the level meters to turn the record function ON for the tracks that are to be recorded and OFF for the tracks that are not to be recorded. When the record function is ON, the button background appears red.

OPTIONS page

Make settings related to the pre-recording and auto markers.

40 TASCAM HS-P82

6 – Internal Settings and Operations

PreREC Time

Set the pre-recording time and ON/OFF settings. Turn this function ON/OFF and set the time in seconds. (Default setting:

OFF

)

To set the recording time, touch the knob. You can adjust the value using the DATA dial. The range of setting values is 1–5 seconds. (Default value: 2 seconds)

Auto Marker

Make settings related to auto markers.

Audio Over: Use this to add markers when the set audio

level is detected. Turn this function ON or OFF. (Default setting:

OFF

To set the audio detection level in decibels, touch the knob. You can adjust the value using the DATA dial. The range of setting values is –0.2 dB to –0.03 dB. (Default value: –0.2 dB)

Settings made here are reflected in the “Over Level” setting on the METER SETUP screen.

Time Interval: Use this to add marks at fixed time intervals.

Turn this function ON or OFF and set the time interval. (Default setting:

OFF

)

To set the time, touch the knob. You can adjust the value using the DATA dial. The range of setting values is 1–10 minutes.

(Default value: 5 minutes)

Sync Unlock: Use this to add a mark when synchronization

with the master clock is lost. Turn this function ON or OFF. (Default setting:

OFF

)

Playback settings (PLAY SETUP)

screen to open the corresponding page.

CLOCK page

View various clock status information and select the clock used for synchronization.

Select the master clock to use from the options.

INT (default value): Use this unit’s internal clock.

WORD: Synchronize with the word clock input through the

CASCADE/WORD/VIDEO IN connector.

VIDEO: Synchronize with the video clock input through the

CASCADE/WORD/VIDEO IN connector.

AES (1-2, 3-4, 5-6, 7-8): Synchronize with the clock of the

AES/EBU digital signal input through the DIGITAL I/O connector.

You cannot select an input as the master clock if the

sampling rate converter is ON for that input.

NOTE

A check mark appears on the button of the currently active

•

master clock.

If synchronization from an external clock is interrupted,

•

the unit’s internal clock becomes active. In this case, a check mark appears on the INT button to show that it has become the active clock, and an “x” appears on the button of the external clock that had been selected.

MASTER

item

Play Mode

Set how the playback of takes is handled.

One Take: Only the currently selected take is played back.

All Take: All the takes in the currently loaded project are

played back.

(Default setting:

One Take

)

Sync and time code settings (SYNC T/C)

Use the code settings. This screen has four pages:

CODE, SETUP

SYNC T/C

and

screen to make synchronization and time

CLOCK, TIME-

I/O

. Touch the tabs at the bottom of the

NOTE

The statuses of the digital input signals (AESx-x IN) are shown in the STATUS item as follows.

When locked "Locked (xx.xxxkHz)"

When sampling frequency conversion is ON "Locked (xx.xxxkHz FsCnv)"

When unlocked "Unlocked (xx.xxxkHz)"

When there is no signal

TASCAM HS-P82 41

6 – Internal Settings and Operations

"Unlocked (No signal)"

When there is no audio signal "Not Audio"

When Cbit information is not professional "Not Professional"

When other Cbit information and the actual operation mode are different "Unmatched Cbit"

TIMECODE page

Make settings related to time code. The first illustration below shows the screen when set to Free Run mode, and the second shows when set to Free Once or Jam Sync mode.

STAT US

This area shows the unit’s time code generator mode and current project time code frame type.

GENERATOR

The top line shows the time of the current time code generator.

The bottom line shows the user bits.

Touch the display area to open the

When the time code generator is in Free Run mode, press the

TC IN

The frame type appears at the left side in green.

The top line shows the time of the input time code.

The bottom line shows the user bits of the input time code.

In free run mode, touch the current time code and set it as the start time of the time code generator.

If the time code generator mode is Free Once or Jam Sync, the capture status display ( when waiting for time code, and it turns off after time code

GENERATOR

RESTART

button to restart the time code generator.

item

EDIT

button or the user bit

T/C USER BITS

CAPTURE

WAITING

screen.

button to input the

indicator) lights green

is captured.

START TIME

When you touch the time when the time code restarts is shown. Touch the

TIME

item

EDIT

GENERATOR

item’s

RESTART

button, the

START

button or the start time display area to open

the start time setting screen.

SETUP page

Make settings related to the time code generator.

STAT US

This shows the timecode frame type of the current project.

TC GEN MODE

Set the time code generator mode.

FREE RUN: The time code generator runs on its own

FREE ONCE (default value): After the input time code is captured once, the unit starts free run mode.

TIME OF DAY: When you turn the power ON, set the TC GEN MODE to this setting or reset the internal clock, the time is captured from the internal clock and then the unit starts free run mode.

JAM SYNC: When time code is input, the unit synchronizes to the input time code. If time code input is interrupted, the unit enters free run mode.

REGEN: The unit synchronizes to the input time code.

REC RUN: The time code generator only functions during recording. At all other times, the time code generator stops.

POWER OFF GEN

Set whether or not the time code generator continues to run when the power is turned on again after being turned off while it was running. (Default setting:

When set to TIME OF DAY, REGEN or REC RUN this setting has no effect.

When set to “ON,” the time code continues to advance even while the power is turned OFF, so when you turn the power ON again, the time code generator restarts with a continuation of the running time. This makes capturing the time code again and other preparations unnecessary.

However, since this function uses the built in clock as the basis for interpolation, sometimes a small error might occur in the value of the restarted time code.

When frame type is 23.976F, 29.97DF, 29.97ND, 30DF, deviation will be larger.

OFF

)

42 TASCAM HS-P82

POWER ON POWER OFF POWER ON

T/C GEN MODEPOWER OFF GEN

OFF

FREE RUN

- -:- - 07:00 08:00 - -:- - 07:00 08:00 09:00

STARTTIME

07:00:00

- -:- - 07:00 08:00 09:00 10:00 11:00 12:00

Time

10:00 11:00 12:00 13:00 14:00 15:00 16:00

Master Timecode

10:00 11:00 12:00 13:00 14:00 15:00 16:00

OFF

FREE ONCE

- -:- -11:00 12:00 - -:- - 00:00 15:00 16:00

- -:- -11:00 12:00 13:00 14:00 15:00 16:00

POWER ON POWER OFF POWER ON

T/C GEN MODEPOWER OFF GEN

OFF

FREE RUN

07:00 08:00 09:00 10:00 07:00 08:00 09:00

STARTTIME

07:00:00

07:00 08:00 09:00 10:00 11:00 12:00 13:00

Time

10:00 11:00 12:00 13:00 14:00 15:00 16:00

Master Timecode

10:00 11:00 10:00 11:00- -:- - 10:00 11:00

OFF

FREE ONCE

10:00 11:00 12:00 13:00 00:00 10:00 11 :00

10:00 11:00 12:00 13:00 14:00 15:00 16:00

OFF

JAM SYNC

10:00 11:00 10:00 11:00 00:00 10:00 11:00

10:00 11:00 10:00 11 :00 12:00 10:00 11:00

OFF

JAM SYNC

- -:- -11:00 12:00 - -:- - 00:00 15:00 16:00

- -:- -11:00 12:00 13:00 14:00 15:00 16:00

CAPTURE

CAPTURE CAPTURE

CAPTURE

Case 1: Master timecode is continuing

Case 2: Master timecode is not continuing

“CAPTURE” means the unit recognizes the incoming timecode.

6 – Internal Settings and Operations

I/O page

Set the output sources for

STAT US

This shows the status of synchronization signals.

BNC OUT1

Set the signal output through the TIME CODE/DIGITAL

(OUT 1) connector.

Setting buttons:

TIME CODE, AES3id 2MIX

BNC OUT1

and

BNC OUT2

(default value)

BNC OUT2

Set the signal output through the CASCADE/ WORD (OUT

2) connector.

Setting buttons:

WORD OUT

(default value),

WORD THRU

Editing output time code user bits

On the

TIMECODE

button or the user bits display area to open the

BITS

screen.

Enter the eight digits of data in hexadecimal (base 16) format.

If you begin input without selecting a digit, input will occur in order from the smallest place.

Touch a digit to select it for input. When selected the digit’s background color becomes yellow. Use the number buttons or the DATA dial to enter two digits (two byte) at a time.

Touch the

TIP

Use this for the date, for example.

•

You can use a PS/2 keyboard to set these values. Press the

•

ESC key to reset all the digits to 0.

Edit the START TIME

On the

TIMECODE

button or the start time display area to open the setting screen where you can set the time code generator start time.

Use the

FRAME EDIT

determine whether or not to input the frame value. The first screen below shows the screen with frame edit ON, and the second one shows it OFF

page, touch the

ENTER

button to confirm the value.

CLEAR

button to reset all digits to 0.

page, touch the

button on the

GENERATOR

START TIME

item

START TIME

EDIT

T/C USER

EDIT

screen to

TASCAM HS-P82 43

6 – Internal Settings and Operations

Use the number buttons to input the start time for the time code generator.

If you begin input without selecting a digit, input will occur in order from the smallest place.

Touch a digit to select it for input. When selected, the digit’s background color becomes yellow. Use the number buttons for the DATA dial to enter two digits at a time.

Touch the

ENTER

button to confirm.

CLEAR

button to reset the values to 0.

NOTE

You cannot turn Fs CONVERT ON for the digital input selected for the master clock.

Press a channel button on the top line to open the corresponding

CHx SETUP

screen.

SIGNAL PROCESSING page

Turn phase inversion, low-cut filters and limiters ON and OFF on this page.

TIP

You can use a PS/2 keyboard to set these values. Press the ESC key to reset all the digits to 0.

Mixer settings (MIXER SETUP)

Make mixer settings on this screen.

The

MIXER SETUP

PROCESSING

screen to open the corresponding page.

INPUT page

Make input settings on this page.

screen has 3 pages:

and

SETUP

. Touch the tabs at the bottom of the

INPUT, SIGNAL

PHASE (ø buttons)

Touch these buttons to turn phase inversion ON or OFF (The phase is fixed at 180º). (Default settings: all

Low Cut Filter

Touch these to turn the low-cut filter ON or OFF. Touch the

LowCut Filter

setting screen. (Default settings: all

button to open the

OFF

LOW CUT FILTER

)

LIMITER

Turn the limiter ON and OFF. (Default settings: all

Press a channel button on the top line to open the corresponding

CHx SETUP

screen.

LOW CUT FILTER (button)

Touch the

CESSING CUT FILTER

LowCut Filter...

page of the

MIXER SETUP

screen.

” button on the

screen to open the

SIGNAL PRO-

OFF

LOW

)

INPUT SOURCE

Set the input source for each channel (A1–A8: analog inputs, D1–D8: digital inputs). (Default settings: A1–A8)

PHANTOM POWER +48V

Turn the phantom power for each input ON or OFF. (Default settings: all

OFF

)

Fs CONVERT

Turn the sampling rate converter ON or OFF for each pair of inputs. (Default settings: all

OFF

)

ON/OFF

Turn the low-cut filter ON or OFF. (Default settings: all

OFF

)

FREQ

Touch the knob for the cutoff frequency that you want to adjust. Use the DATA dial to adjust it. The setting values are

40Hz, 80Hz

(defaule) and

120Hz

44 TASCAM HS-P82

6 – Internal Settings and Operations

SLOPE

Set the filter slope. (Default setting: all

Press a channel button on the top line to open the corresponding

CHx SETUP

screen.

SETUP page

Access the channel name editing screen and turn channel links ON and OFF on this page.

CH NAME

Touch these buttons to edit the name of the corresponding channel.

CH Link

Touch these buttons to turn channel links ON and OFF. (Default settings: all

OFF

)

The following parameters are shared by link channels.

2MIX volume

SOLO

LOW CUT FILTER

LIMITER

REC FUNCTION

INPUT SOURCE (analog/digital selection)

Phantom power ON/OFF

The signals sent from linked channels to the 2MIX bus are affected by the balance setting. (Left channels are sent only to the L bus and right channels are sent to the R bus.)

When channels are linked, if one of the channel inputs overloads, the limiter is applied to both channels. However, the blue appearance of the track number when limiting is activated is not affected by the link, so only the channel with the overloading input appears blue.

Press a channel button on the top line to open the corresponding

CHx SETUP

screen.

CHx NAME (button)

Edit the name of the selected channel on this screen.

Use the character types.

Shift

and

Caps

buttons to change the available

–12dB

)

Follow the same procedures to enter names as in “Editing the project name” on page 33. A maximum of 4 characters are allowed in channel names.

Limitation on the number of characters

On the CH screen, and characters allowed is indicated by the yellow background. Characters on the grey background are discarded when you touch the

NAME

CHx NAME

Enter

Channel settings (CHANNEL SETUP)

Make settings for each channel.

Select the channel using the tabs at the bottom of the screen.

PHANTOM +48V button: Turn phantom power ON or

OFF. (Default setting: OFF)

Fs CONVERT button: Turn the sampling rate converter ON

or OFF. (Default setting: OFF)

Ax/Dx (numbered by channel) button: select the input

source. (Default setting: A1–A8)

ø button: Turn phase inversion ON or OFF. (Default setting:

OFF)

Low Cut Filter button: Turn the low-cut filter ON or OFF.

(Default setting: OFF)

Low Cut Filter knob: Touch the knob to adjust the low-cut

filter cutoff frequency. Use the DATA dial to adjust it. (Ssettings:

–12dB/–18dB buttons: Set the low-cut filter slope. (Default

setting:

LIMITER button: Turn the limiter ON or OFF. (Default

setting: OFF)

REC button: Turn the record function ON or OFF.

When ON, the button background and the level meter channel name become red. (Default value: off)

–12dB

screen (

PROJECT NAME

screen,

screen), the maximum number of

button.

40Hz, 80Hz

(default) and

120Hz

)

SCENE NAME

TASCAM HS-P82 45

6 – Internal Settings and Operations

Level knob: Touch the knob to adjust the level sent to the

stereo bus. When its background color turns yellow, use the DATA dial to adjust it. Setting values range from “–∞” dB –

+10

dB. (Default setting:

Pan pot knob: Touch the knob to adjust the stereo position

of the signal sent to the stereo bus. When its background color turns yellow, use the DATA dial to adjust it. Setting values range from

L100

value. (Default setting: C)

Level meter: During playback, the meter shows the

playback level. For tracks that have the record function ON and are not playing back, the meter shows the input signal level.

The area at the bottom of the level meter shows the track

name (4 characters or less) and acts as a record function indicator. If the MIC/LINE selection switch for the current channel is set to MIC 0 or MIC –25, the name area momentarily shows the gain value when you turn the input trim knob. If the input source is set to a digital and there is no signal on the corresponding digital input or the input signal differs from the unit setting, the channel meter display appears gray and the following messages appear.

If there is no corresponding input,

•

If the input signal differs from the settings made in the

• unit,

AESx-x UNLOCK

If the Cbit information of the input signal is no audio,

•

AESx-x NOT AUDIO

If the Cbit information of the input signal is non

• professional,

If other Cbit information of the input signal differs

•

AESx-x NOT PRO

from actual operation mode,

Channel name button: Touch this button at the lower right

of the screen to edit the name of the channel.

˙ or ¥ button: Touch this button to open the setting screen

of the next channel.

When channels are linked, the screen appears as follows.

0dB

)

R100

with C as the center

AESx-x Cbit ERROR

AESx-x NO SIGNAL

Level meter settings (METER SETUP)

Make level meter settings on this screen.

Peak Hold Time knob: Touch this to set the peak hold time.

Use the DATA dial to adjust the time. The setting values are 0 sec, 1 sec, 2 sec and inf (hold forever). (Default value:

1 sec

)

Release Time knob: Touch this to set the release time. Use

the DATA dial to adjust the time. The setting values are

Slow, Normal

and

Fast

. (Default setting:

Normal

)

Over Level knob: Touch this to set the level at which the

overload indicator lights (the amount in dB below the maximum level). Use the DATA dial to adjust the level. The setting value range is

–0.17 dB, –0.13 dB, –0.10 dB, –0.06 dB,

–0.20 dB

(default value),

–0.03 dB

These settings are reflected in the Audio Over setting of

the Auto Marker item on the OPTIONS page of the REC SETUP screen.

Ref. Level Line button: Touch to turn the reference level

line ON or OFF. (Default setting: ON)

The channel setup screen for the stereo (L/R) channel has fewer options and appears as follows.

NOTE

If you press the EXIT/CANCEL [PEAK CLEAR] key when the Home Screen is open, the peak hold display resets.

46 TASCAM HS-P82

WriteError

InputClip

CFRemainCaution

BatteryCaution

6 – Internal Settings and Operations

System settings (SYSTEM SETUP)

Make system settings on this screen.

The

SYSTEM SETUP

ALARM TONE

bottom of the screen to open the corresponding page.

PREFERENCES page

Set system preferences on this page.

KBD Type

Set the connected keyboard type.

Setting buttons: US (default setting) and

screen has 3 pages:

and

CLOCK ADJUST

PREFERENCES

. Touch the tabs at the

JPN

Write Error

Set whether or not an alarm sounds when there is a write error. (Default setting: ON)

Input Clip

Set whether or not an alarm sounds when the input exceeds the maximum. (Default setting:

OFF

)

Battery Caution

Set whether or not an alarm sounds when the battery voltage becomes low. (Default setting: ON)

CF Remain Caution

Set whether or not an alarm sounds when the remaining amount of time on the CF card becomes low. (Default setting: ON)

Touch the knob and when its background color turns yellow, use the DATA dial to adjust the amount of remaining time setting. The setting value range is 1–9 minutes. (Default value:

3 min

)

The alert sounds have the following patterns.

Solo Mode

Set the solo mode.

Set to “Single” to solo one track at a time or “Mix” to allow more than one track to be soloed at the same time.

Setting buttons:

Single

(default setting) and

Mix

Slate Type

Set whether the slate signal is input from the built-in mic or is a tone signal.

Setting buttons:

INT MIC

(default setting) and

TONE

Ref. Level

Set the reference level for analog input and output to a number of decibels below the maximum level (full bit rate utilization).

Setting buttons: and

–20dB

–9dB, –14dB, –16dB

(default value),

–18dB

ALARM TONE page

Make alarm settings.

Alert sound patterns

CLOCK ADJUST page

Set the time of the built-in clock.

Touch the item that you want to set. Use the DATA dial to adjust the item. When you finish setting the items, press the

DATA dial or touch the

page to confirm the setting.

SET

button on the

CLOCK ADJUST

NOTE

While setting the time, the clock stops and the “:” does not blink. When you touch the SET button, the clock starts again and the “:” blinks.

TASCAM HS-P82 47

6 – Internal Settings and Operations

Managing CF cards and the USB connection (CF/USB MANAGE)

Use this screen to manage CF cards and USB connections.

CURRENT MEDIA

This shows the currently selected card.

CF SELECT

Touch this to open the CF choose the CF card for recording and playback.

SELECT

screen where you can

FO RMAT

Format the CF media using either options.

QUICK: This only formats file management information.

FULL: This formats the entire disc.

NOTE

CF cards with capacities of 2 GB or less that have been formatted by this unit might be seen by computers as having no open capacity, preventing ﬁles and folders from being written.

USB

Connect the unit with a computer. (See “Connecting with a computer” on page 51.)

QUICK

FULL

format

Version display (VERSION INFO)

Show the unit’s SYSTEM version.

Touch the bottom center of the screen to show the version of the internal device data.

48 TASCAM HS-P82

7 – Mark and Locate Functions

Mark functions

Adding marks

One file (take) can have a maximum of 99 marks, including automatically-created marks.

Use the following two methods to create marks.

Push the

•

Use the auto marker function (see OPTION page on page

•

39.)

Depending on the auto marker function, marks are automatically added when a certain audio level is exceeded, at regular time intervals and when synchronization errors occur.

Marks are named according to how they were made.

MARK key: MARK XX

Audio level: OVER XX

At time interval: TIME XX

When a synchronization error occurs: UNLK XX

The following automatic marks cannot be turned ON or OFF.

Recording start point: REC xx

Recording end point: END xx

Pre-recordings start point: PRE xx

MARK key on the front panel.

NAME button: Touch to reorder the marks by name

descending or ascending.

TIME button: Touch to reorder the marks by time descending

or ascending.

Mark name and mark time buttons: Touch to select the

mark.

Locate buttons (“ ”): Touch one of these to locate to

the corresponding mark.

LIST INFO button: Touch this to see a list of the number of

marks by type in the currently selected take.

RENUMBER button: Renumber the marks. Reorder marks

by time ascending, and change the numbers at the ends of the mark names to reflect that order.

DELETE button: When a mark is selected, touch the

LETE

button to erase that mark.

Edit button: When a mark is selected, touch the

to edit that mark.

Scroll buttons: Use these buttons to scroll to the beginning

or end of the list or scroll one page (five lines) forward or backward. You can also scroll through the list one line at a time using the DATA dial.

Locating to marks

Touch the “ ” button to locate to that mark.

Viewing mark information

Touch the open the mark list information screen that shows a list of the number of marks by type in the currently loaded take.

Touch the

LIST

LIST INFO

screen.

Edit

button on the

button again to return to the

MARK LIST

screen to

DE-

button

MARK

Using keys to locate to marks

Press the Ô [Â] or [¯] key while pressing and holding the SHIFT key to locate to the previous or next mark.

Mark list screen

Touch the the

Mark List

MARK LIST

button on the Home Screen to open

screen.

NOTE

After recording, the MARK LIST screen might show a TOTAL number of marks that is 2 or 3 greater than the sum of the

TASCAM HS-P82 49

7 – Mark and Locate Functions

MANUAL MARK, TIME, OVER and UNLK marks. This is because the total includes REC, END and PRE (when using prerecording) marks that are always created during recording.

Erasing marks

1 Select the mark that you want to erase on the

LIST

screen or type of mark that you want to erase

on the

MARK LIST

information screen.

MARK LIST screen

MARK

2 Touch the

Touch the

Edit

button to open the

FRAME EDIT

button to set whether or not

MARK EDIT

screen.

the frame value can be edited. The first screen below shows this option ON, and the second shows it OFF.

MARK LIST information screen

2 Touch the

DELETE

button.

3 When a confirmation pop-up message appears, press

the OK button or the DATA dial to erase the mark or marks.

Editing marks

1 Select the mark that you want to edit on the

LIST

screen.

MARK

3 Touch a number button to edit a mark. Use the DATA

dial to change the time for the selected number.

Press the

return to the

Touch the

TIP

You can use a PS/2 keyboard to set these values. Press the Enter key to conﬁrm and press the ESC key to reset all the digits to 0.

ENTER

button to confirm the setting and

MARK LIST

CLEAR

screen.

button to reset the input values.

50 TASCAM HS-P82

7 – Mark and Locate Functions

Manual locate function

You can directly input a time and locate to it. Touch the

Manual Locate MANUAL LOCATE

set whether or not the frame value can be edited. The first screen below shows this option ON, and the second shows it OFF.

button on the Home Screen to open the

screen. Touch the

FRAME EDIT

button to

There are three locate modes.

ABS: Input an actual time and locate to it.

+: Input an amount of time to go forward from the current

time and locate to the new time.

–: Input an amount of time to go back from the current time

and locate to the new time.

Input the time using the number buttons. You can also select a number field and use the DATA dial to adjust the time.

Press the to the Home Screen.

Touch the

You can use a PS/2 keyboard to set these values. Press the Enter key to conﬁrm and press the ESC key to reset all the digits to 0.

TIP

LOCATE

button to locate to the new time and return

CLEAR

button to reset the input values.

TASCAM HS-P82 51

8 – Transferring Data between the Unit and a Computer

Computer

USB

By connecting this unit with a computer by USB, you can transfer data and check the composition of folders and files. Be aware, however, if you change or erase a file inside a project, or change any names, the HS-P82 might not be able to play that project.

Precautions when copying files to a

computer

Please be aware of the following when copying files from a CF card formatted for the HS-P82 to a computer.

If you plan to play a project correctly on an HS-P82

• again at a later date, copy the entire project folder and do

not change any part of it. If you change the composition of the folder or copy only the WAV files, the unit might not be able to play the project with the correct number of tracks or track numbers, for example.

Precautions when copying files from a

computer

Please be aware of the following when copying files to a CF card formatted for the HS-P82 from a computer.

To play a copied file, execute the REBUILD option on

• the project selection page of the

The HS-P82 can only play back linear PCM WAV files

• that have sampling frequencies of 44.1, 48, 88.2, 96,

176.4 or 192 kHz and bit rates of 16 or 24 bits. It cannot play any other type of file. The HS-P82 cannot recognize files in formats other than WAV. The unit will ignore other types files.

Files with different sampling frequencies cannot be used

• in the same project. Only add files to an existing project

that have the same sampling frequency as the project. Files that have sampling frequencies that are different from the project setting cannot be played.

File and folder names that use Japanese and other

• multi-byte characters cannot be displayed correctly.

Do not copy files larger than 2 GB to a CF card formatted

• for the HS-P82. Doing so could cause operation of the

unit to become unstable and other files on the CF card to be damaged.

In this chapter, references to a “computer” mean a personal computer running a Windows or Macintosh operating system that is compatible with this unit. See the following section.

PROJECT

screen.

Operating system requirements

This unit can be connected with computers running the following operating systems.

Windows

Windows XP, Windows Vista or Windows 7

Mac OS X

Mac OS X 10.2 or later

When this unit is connected to a computer, it will be recognized as a removable disk. Special drivers are not necessary.

NOTE

Transmission of data between this unit and a computer is conducted at USB 2.0 speed (maximum). Use of a USB 2.0 compatible cable is necessary to achieve this speed.

Connecting with a computer

By connecting this unit with a computer by USB, you can transfer audio data recorded by the unit to the computer

Use the USB port on this unit to connect it to a computer.

1 Connect this unit and the computer by a USB cable.

2 Touch the

to open the

CF/USB MANAGE

button on the

screen.

screen

NOTE

•

Connect this unit with a computer to transmit audio data recorded on it to the computer.

CF cards with capacities of 2 GB or less that have been formatted by this unit might be seen by computers as having no open capacity, preventing ﬁles and folders from being written.

3 Touch the

following pop-up message appears.

CONNECT

button next to the USB item. The

52 TASCAM HS-P82

8 – Transferring Data between the Unit and a Computer

4 Touch the OK button to start the connection with the

computer. The following screen appears while the unit is connected to a computer.

CAUTION

This unit receives power from batteries or an AC adaptor. It

•

cannot be powered by USB.

Do not connect the unit to a computer by USB when the

•

battery level is low. If the power is disrupted during data transfer, data could be lost and that data might not be recoverable.

Disconnecting from a computer

Use the following procedures to disconnect from a computer. Always follow these procedures carefully because failure to do so could result in damage to some files.

CAUTION

Do not interrupt the USB connection or disconnect the USB cable during data transfer. Doing so could damage data on the computer or this unit.

1 Close connections from the computer. The HS-P82

has two CF card slots. Use the following procedures to close the connections for each card.

Disconnecting from Windows XP, Windows Vista

or Windows 7

Right-click the CF card device (the E drive in the illustration) that you want to eject using Windows Explorer and select eject.

NOTE

If you click the Safely Remove Hardware icon in the system tray (usually at the bottom right of the screen) and eject the hardware, both CF cards in the HS-P82 slots are ejected. To reconnect with the computer, disconnect and reconnect the USB cable once.

Disconnecting from a Macintosh

Drag the HS-P82 icon for this device to the trash, select it and type Command + E or select “Eject” from the File menu to eject a card.

NOTE

Depending on the OS version and settings, you can also eject the card by clicking the eject icon next to the HS-P82 drive shown in the Finder window or by control-clicking the icon and selecting “Eject” from the contextual menu.

At this point, it is safe to remove CF cards from the unit. You can also insert a different CF card and continue recording.

2 Close the connection from this unit.

To close the connection with the computer from this unit, touch the

CANCEL

button. The following message

appears in a pop-up window.

TASCAM HS-P82 53

ROOT

Project01

Project02

Scene001 (Example of Poly)

Scene001-T001.wav

Scene001-T002_ST.wav

Scene001-T002.wav

Scene002 (Example of Mono)

Scene002-T001

：：

Scene002-T001_1.wav Scene002-T001_2.wav Scene002-T001_3.wav Scene002-T001_4.wav Scene002-T001_5.wav Scene002-T001_6.wav Scene002-T001_7.wav Scene002-T001_8.wav

Scene002-T002

Scene002-T001_ST.wav Scene002-T002_ST.wav

Scene002-T002_1.wav Scene002-T002_2.wav Scene002-T002_3.wav Scene002-T002_4.wav Scene002-T002_5.wav Scene002-T002_6.wav Scene002-T002_7.wav Scene002-T002_8.wav

：：

Scene001-T001_ST.wav

8 – Transferring Data between the Unit and a Computer

Touch the OK button in the pop-up window to close the connection with the computer and return to the

MANAGE

screen. Touch the

CANCEL

button to return to the

CF/USB

USB mode pop up window.

3 Disconnect the USB cable.

Folder structure

The folder structure is as shown below. You can check the structure of folders and files by connecting the HS-P82 to a computer. Be aware, however, if you change or erase a file inside a project, or change any names, the HS-P82 might not be able to play that project.

File names

The format used in naming files is as follows.

1-8 track poly files

[Scene name]-[take name prefix][take number].wav

1-8 track mono files

[Scene name]-[take name prefix][take number][track number].wav

2mix files

[Scene name]-[take name prefix][take number]_ST.wav

NOTE

Poly ﬁles are created directly in the scene folder.

Mono ﬁles are created inside folders that are made for each take inside the scene folder.

54 TASCAM HS-P82

9 – Troubleshooting

If the operation of this unit becomes irregular, please check the following things before requesting repair. If the following measures do not resolve the problem, contact the store where you purchased the device or a TEAC Repair Center

Power does not turn on.

Confirm that the plug is fully inserted in the power outlet

• when you use the supplied AC adaptor.

Confirm that the cable is fully inserted in the unit when

• you use the V-Mount external battery adaptor.

Confirm that the battery has enough remaining power.

•

Media is not recognized.

Confirm that the CF card is securely inserted into the CF

• slot.

Playback is not possible.

Confirm that the file is of a compatible sampling

• frequency (44.1/48/48pull-down/48pull-up/88.2/96/176.

4/192 kHz) and bit rate (16/24).

There is no sound.

Reconfirm the connections of your monitoring system

• and check the level of your amplifier.

Recording is not possible.

Reconfirm connections.

• Adjust the recording levels.

•

Setting changes that I made are not

remembered.

This unit backs up settings each time they are changed.

• However, backup might fail if the power is turned off

too soon after making a setting change. Do not turn the power off immediately after changing a setting.

I hear noise.

Confirm that all cable connections are secure.

•

The touch panel does not work properly.

Do not use commercially-available protective film for

• LCD screens on the touch panel.

Confirm that the panel lock function is not engaged and

• locking the display.

I cannot create a new project.

Confirm that a project with the same name does not

• already exist.

If the amount of space remaining on the CF card is too

• small, a new project cannot be created. Erase unnecessary

data and then try again.

TASCAM HS-P82 55

10 – Messages

The following is a list of messages shown in pop-up windows by this unit. The HS-P82 displays pop-up windows according to conditions. Refer to this list to learn more about each message as well as how to respond to them.

Message Details and responses Remarks

--- error --INFO WRITING

--- FORMAT --Completed.

--- FULL FORMAT --FORMAT CFn?

This will erase all data on card

Really Continue?

--- FULL FORMAT ---

Formatting CFn...

--- QUICK FORMAT --FORMAT CFn?

This will erase all data on card

Really Continue?

--- QUICK FORMAT ---

Formatting CF n ...

--- RETAKE ---

Delete last take?

""tttttttttt""

--- Shutdown -- working...

--- USB Mode ---

Touch OK To Disable USB

--- USB Mode ---

Touch OK To Enable USB

--- USB Mode ---

USB Mode Enabled.

Touch CLOSE To end

AC Adapter Power Lost,

Switched to N

AESn-n Input: Fs convert On

Cannot select as Master clock.

Cannot Change Now

Currently **ing

Cannot Copy

Not enough space on CFn

Cannot Copy.

Scene already exists on CFn.

Overwrite Scene?

Cannot create more than

100 projects.

Cannot create new mark point..

Mark point already exists

at the same timestamp.

Cannot create new project.

Media Full.

Cannot increment Take. Interval is too short.

Cannot make more than

1000 scenes.

Cannot make new scene.

Medial Full.

Cannot Power Off Now

Currently **ing

Cannot RECORD.

(Internal state error)

Cannot RECORD.

Media Full.

Cannot RECORD.

Take limit reached.

Please change to another Scene

An error occurred while writing information.

Format has completed.

Full format will be executed. n = 1 or 2

Full format is occurring. n = 1 or 2

Quick format will be executed. n = 1 or 2

Quick format is occurring. n = 1 or 2

A retake will be executed. tttttttt = the name of the take to be

deleted

The unit is shutting down.

USB mode will be disabled.

USB mode will be enabled.

USB mode is enabled.

AC power has been lost, so a different power source (N) has been activated.

The sampling rate converter is ON for the

N = "EXTERNAL DC" or "INTERNAL BATTERY"

n-n = 1-2, 3-4, 5-6, 7-8 digital input that you tried to set as the clock master.

This item cannot be changed during

** = "Play" or "Record" playback or recording.

There is not enough available space on the

n = 1 or 2 copy destination card.

A scene with the same name already exists

n = 1 or 2 at the copy destination. Do you want to overwrite that scene?

The maximum number of projects has already been reached, so a new project cannot be created.

You tried to create a mark at a time where a mark already exists. You cannot create a mark at the same time as another mark.

The card does not have enough space, so you cannot create a new project.

The interval is not long enough to allow the unit to increment the take.

The maximum number of scenes has already been reached, so a new scene cannot be created.

The card does not have enough space, so you cannot create a new scene.

You cannot turn the power OFF during

** = "Play," "Record" or“Work” playback or while recording.

Something is preventing recording.

The CF card does not have enough space, so you cannot record.

Since the maximum number of recordable takes or the take number has been reached, recording is not possible. Change the scene.

56 TASCAM HS-P82

10 – Messages

Message Details and responses Remarks

Cannot Retake.

No Recent Take History.

Cannot set Mark point.

Mark limit reached.

Cannot turn Fs convert On.

AESn-n Input is already

Master Clock.

CFn DEVICE ERROR

CFn Format failed

CFn has no projects.

Please create a project.

CFn is not available.

CFn is not usable

CFn MEDIUM ERROR

CFn not recommended format

for Recording/Playing.

CFn not recommended

for Recording/Playing.

(not UltraDMA)

CFn Read Error

CFn unrecognized format

Please Format this card.

CFn unsupported type

CFn Write Error

CFn(vvvvvvvv) NUM OF PROJECTS : p USED SIZE : u FREE SIZE : f TOTAL SIZE : t

Completed

Copy N selected scene

to CFn?

Copying scene...

Create new project?

""pppppppp"" ""ssssssss""

Fs:**kHz, Frame Type:**F

Create Project failed

Creating Project...

Delete all marks

of this type?

(Count:N)

Delete N selected marks?

Delete N selected project?

Delete N selected scene?

Delete N selected take?

Deleting Project...

Deleting Scene...

Deletin g Take...

You cannot retake.

You cannot create more than 99 marks.

You tried to turn the sampling rate converter

n-n = 1-2, 3-4, 5-6, 7-8 on for the digital input that is selected as the master clock.

The CF card cannot be recognized. n = 1 or 2

An error occurred during formatting, and

n = 1 or 2 formatting could not be completed.

The CF card does not have even one project.

There is no CF card. n = 1 or 2

You cannot copy. n = 1 or 2

The unit failed to read the card. n = 1 or 2

The media was not formatted by this unit, so proper recording and playback cannot be guaranteed.

n = 1 or 2

This appears when the card is

formatted with a cluster size that is

smaller than the standard of this unit. This card does not meet the specifications

n = 1 or 2 required by the system, so using it for recording/playback is not recommended.

An error occurred when reading the card. n = 1 or 2

This card has been formatted in a format

n = 1 or 2 other than FAT. Format it for use with this unit.

This card does not meet the specifications

n = 1 or 2 required by the system, so it cannot be used.

An error occurred when writing to the card. n = 1 or 2

This shows information about the CF card n = 1 or 2

vvvvvvvv = volume level

p: project number, u: capacity used

f: unused capacity, t: total capacity of

CF card The operation has completed.

Confirm that you want to copy the selected scene(s).

N = number of selected scenes

n = 1 or 2 The scene is being copied.

Confirm that you want to create a new project.

pppppppp = name of project to be

created

ssssssss = name of first scene to be

created The creation of the project failed.

The project is being created.

Confirm the deletion of marks of the selected type.

N = number of marks of selected

mark type

Confirm the deletion of the selected marks. N = number of marks

Confirm the deletion of the selected projects. N = number selected

Confirm the deletion of the selected scenes. N = number selected

Confirm the deletion of the selected takes. N = number selected

The project is being deleted.

The scene is being deleted.

The take is being deleted.

TASCAM HS-P82 57

Message Details and responses Remarks

Digital Input Error AES1- 2 (Unlocke d) AES3-4 (no signal) AES5-6 (not audio) AES7-8 (unmatched Cbit)

External Clock Lost, Switched to Internal

External Clock Regained

Switch to External?

EXTERNAL DC Power Lost,

Switched to INTERNAL BATTERY

EXTERNAL DC power

now available,

Switch to EXTERNAL DC? EXTERNAL DC Voltage too low, Switched to INTERNAL BATTERY

Input Volume Locked

Input Volume

is loc ked

INTERNAL BATTERY Power Lost,

Switched to EXTERNAL DC

INTERNAL BATTERY Voltage too low,

Switched to EXTERNAL DC

Last loaded project has

no scenes.

Please make new scene.

Last loaded project

cannot be found.

Please select a project.

Last loaded scene

cannot be found. Please select a scene. Load selected project?

""pppppppp""

Load selected Scene?

""ssssssss""

Load selected Take?

""tttttttt""

Loading Project...

Loading Scene...

Loading Take...

Lost all power.

Shutdown automatically

in 20 seconds.

Make new scene?

""ssssssss""

Make Scene failed

Making Scene...

Mark Point set

New Scene Name must not

start with ""@""

No Call Point

An error occurred with the digital input selected for the input signal.

Synchronization with an external clock was disrupted, so the internal clock was activated.

Synchronization with an external clock became possible again.

External DC power was lost, so the internal battery was activated.

While operating using the internal battery, external DC power became available.

The voltage of the external DC battery became low, so the internal battery was actived.

The input volume control has been locked to prevent misoperation.

The internal battery was removed, so the external DC power source was activated.

The voltage of the internal battery became low, so the external DC power source was activated.

The most recently loaded project does not have any scenes. Create a new scene.

The last selected project cannot be found. Select a different project.

The last selected scene cannot be found. Select a scene.

Confirm that you want to load the selected project.

Confirm that you want to load the selected scene.

Confirm that you want to load the selected take.

The project is loading.

The scene is loading.

The take is loading.

All power sources have been lost. The unit will automatically shut down in 20 seconds.

Confirm that you want you want to make a new scene.

Creation of the scene failed.

The scene is being created.

The mark has been created.

The scene name is not allowed. A scene name must not start with the "@" mark.

The call point does not exist.

10 – Messages

• Unlocked:

not synchronized with system

• no signal:

no signal is being input

• not audio:

Cbit information of input signal is not audio

• not professional:

Cbit information of input signal is consumer

• unmatched Cbit:

other Cbit information of input signal is different from actual operation mode

pppppppp = name of project to load

ssssssss = name of scene to load

tttttttt = name of take to load

ssssssss = scene name

58 TASCAM HS-P82

10 – Messages

Message Details and responses Remarks

No Mark Point

No Tracks Armed for Record

Operation failed.

Internal File / Folder

limit reached.

Operation failed.

Cannot find this ***.

Please Rebuild.

Operation failed.

Internal File / Folder

limit reached.

Operation failed.

Path Name is too long.

Play Error.

Play Error

Buffer underrun

Power Off ?

Touch OK to confirm

pppppppp SCENES : n Fs : f TIMECODE : t

Project Delete failed.

Project Load failed.

Project Rename failed

Project save failed.

Reading Media...

Reading Data...

Rebuild all Projects?

Rebuild current Project?

Rebuild current Scene?

Rebuild failed

Rebuild selected Project?

Rebuild selected Scene?

Reb uilding All...

Rebuilding project...

Rebuilding scene...

RECORD Error

Buffer overflow RECORD stopped.

Media Full.

The mark point does not exist. You tried to skip marks before the

Mark point was accorded. This disappears automatically after 2 seconds.

The record function is not ON for any tracks.

The operation could not be completed for some reason.

The maximum number of files and folders that can be created has been reached, so the operation could not be completed.

The selected project/scene/take could not

*** = project, scene or take be found, so the operation could not be completed. Rebuild the selected item.

The maximum number of files or folders has been reached, so you cannot create a new folder.

The path name has more characters than allowed, so the operation could not be completed.

This message appears when making

a scene or recording results in a

file path name of more than 255

characters. This can occur if you

give projects and scenes long names

using a computer. An error occurred during playback.

During playback, the unit failed to read the data in time.

Confirm that you want to turn the power OFF.

This shows project information pppppppp = project name

n: number of scenes

f: sampling frequency

t: type of timecode frame Deletion of the project failed.

Loading of the project failed.

Changing the name of the project failed.

An error occurred while saving the project, and saving failed. Use the CLOSE button to close the pop-up window. The FAT file system might be broken. Format the CF card or use a different one. Formatting will erase all data on the card.

The media is being read.

Data is being read.

Confirm that you want to rebuild all projects.

Confirm that you want to rebuild the current project.

Confirm that you want to rebuild the current scene.

Rebuilding failed.

Confirm that you want to rebuild the selected project.

Confirm that you want to rebuild the selected scene.

All projects are being rebuilt.

The project is being rebuilt.

The scene is being rebuilt.

An error occurred during recording.

The buffer became full during recording, and writing to the card was too late.

The CF card ran out of space, so recording stopped

TASCAM HS-P82 59

Message Details and responses Remarks

Renaming Project

""pppppp""

to ""nnnnnn""

Renumber marks?

Scene Copy failed

Scene Delete failed.

Scene Load failed.

Screen Locked

Touch Panel Locked Out

Screen Locked

LCD Section Locked

Selected take is in

another project.

Load that project

and selected Take?

ssssssss TAKES : n Fs : f TOTAL SIZE : u TOTAL TIME : t

Starting USB

Switched to AC Adapter.

Take Delete failed.

Take Load failed.

There is no project.

Please create a project.

There is no scene

Please make a scene.

This name already exists.

Transport Locked

Transport Keys

are locked

tttttttt

date

fs/bit/FileMode/NumOfTracks

SIZE: u

LENGTH: *h**m**s**

10 – Messages

The project is being renamed. pppppp = old project name

nnnnnn = new project name

Confirm that you want to remember the marks

Copying failed.

Deletion of the scene failed.

Loading of the scene failed.

The touch panel has been locked to prevent misoperation.

The LCD section has been locked to prevent misoperation.

The selected take belongs to a different project.

Scene information display ssssssss = scene name

n: number of takes f: sampling frequency u: space used t: total time of all takes

USB mode is being enabled.

The AC power source is now being used.

Deletion of the take failed.

Loading of the take failed.

There is no project so the recording cannot be made. Please make a project.

There is no scene so the recording cannot be made. Please make a scene.

A project, scene or take that has the same name already exists.

The transport keys have been locked to prevent misoperation.

Take information display tttttttt = take name

date: year/month/day hour: minutes fs: sampling frequency bit: bit rate FileMode: MONO or POLY NumOfTracks: number of tracks u: space used

Writing Syst em File...

Recording information is being written when recording has stopped.

60 TASCAM HS-P82

11 – Specifications

General

Recording media

CF card (CompactFlash card)

File system

FAT32

File format

BWF (Monophonic, Polyphonic)

Number of channels

8 channels (44.1/48/88.2/96 kHz)

8 channels + stereo mix (44.1/48 kHz)

4 channels (176.4/192 kHz)

Quantization bit rate

16 bit/24 bit

Sampling frequency

44.1/47.952/48/48.048/88.2/96/176.4/192 kHz (47.952/48.048: 48 kHz ± 0.1% pull-up/pull-down)

Reference clock

Internal, Word in, Video in, Digital in (CH 1-2, CH 3-4,

CH 5-6, CH 7-8)

Timecode frame rate

23.976, 24, 25, 29.97 DF, 29.97 NDF, 30 DF, 30 NDF

Built-in mic

Omnidirectional, monaural

Maximum input level: +15 dBu (4.36 Vrms), +18 dBu

(6.16 Vrms), +20 dBu (7.75 Vrms), + 22 dBu (9.76 Vrms), +24 dBu (12.28 Vrms) [Selection]

When

•

LINE OUT connectors (L/R)

PHONES connector

MIC –25 is selected:

Input impedance: 2.4 kΩ

Minimum input level: –45 dBu (4.36 Vrms)

Maximum iput level: +11 dBu (2.75 Vrms)

When

MIC 0 is selected:

Input impedance: 2.4 kΩ

Minimum input level: –70 dBu (0.25 mVrms)

Maximum iput level: –14 dBu (0.15 Vrms)

Connector: XLR-3-32 (1: GND, 2: HOT, 3: COLD)

Output impedance: 100Ω or less

Nominal output level (Ref. level: –9 dB):

+ 6 dBu (1.55 Vrms)

Nominal output level (Ref. level: Other than –9 dB): + 4

dBu (1.23 Vrms)

Maximum output level: +15 dBu (4.36 Vrms), +18 dBu

(6.16 Vrms), +20 dBu (7.75 Vrms), + 22 dBu (9.76 Vrms), +24 dBu (12.28 Vrms) [Selection]

Connector: 6.3 mm (1/4”) stereo standard jack

Maximum output level: 100 mW + 100 mW or more

(THD+N 1% or less, into 32 Ω)

Limiter

Attach time: 3 msec

Release time: 300 msec

Threshold: -5 dBFS

Ratio: 32:1

Low cut filter

Cut off frequency: 40/80/120 Hz

Slope: –12 dB/OCT. –18dB/OCT

Input and output

Analog audio input and output

MIC IN/LINE IN connectors (1-8)

Connector: XLR-3-31 (1: GND, 2: HOT, 3: COLD)

When

•

LINE is selected:

Input impedance: 10 kΩ

Nominal input level (Ref. level: –9 dB):

+ 6 dBu (1.55 Vrms)

Nominal input level (Ref. level: Other than –9 dB):

+ 4 dBu (1.23 Vrms)

Digital audio input and output

DIGITAL I/O connector

Connector: D-Sub 25 pin connector

Format: AES3-2003/IEC60958-4 (AES/EBU)

Minimum input voltage: 200 mVp-p

Maximum input voltage: 7 Vp-p

Output voltage: 3.5 Vp-p

DIGITAL OUT connectors

Connector: BNC connector

Format: AES3-2003/AES-3id-2001 (AES/EBU)

Output volatage: 1 Vp-p/75Ω

Control inputs and outputs

EXT DC IN connector

Connector: XLR4-32 connector (1: –, 2: NC, 3: NC, 4: +)

Input voltage: 11-16 V (2A)

CASCADE/WORD/VIDEO IN connector

Connector: BNC connector

Input voltage: 5 V TTL equivalent

Input impedance: 75Ω ±10%

TASCAM HS-P82 61

11 – Specifications

Allowable frequency deviation of external synch: ±100 ppm

CASCADE/WORD OUT connector

Connector: BNC connector

Output voltage: 5 V TTL equivalent

Output impedance: 75Ω ±10%

Sampling frequency: 44.1/47.952/48/48.048/88.2/96/

176.4/192 kHz (47.952/48.048: 48 kHz ± 0.1% pull-up/

pull-down)

TIME CODE IN connector

Connector: BNC connector

Input voltage: 0.5 - 5 Vp-p

Input impedance: 10 kΩ

TIME CODE OUT connector

Connector: BNC connector

Output voltage: 2.0 Vp-p

Output impedance: 600Ω

USB port

Port: USB B-type 4-pin Format: USB2.0 HIGH SPEED (480 MHz)

KEYBOARD connector

Connector: mini-DIN connector (PS/2)

Audio performance

Frequency response

INPUT (MIC/LINE) → LINE OUT:

20 Hz - 20 kHz 0 dB (±0.5 dB) Fs = ALL at 40 kHz –1 dB (±1.0 dB) Fs = 88.2/96 kHz at 80 kHz –3 dB (+1/–2 dB) Fs = 176.4/192 kHz

Distortion

INPUT (LINE) → LINE OUT: 0.003% or less

(Reference level: When –20 dB, +23 dBu input, 1 kHz, AES-17 LPF)

INPUT (MIC –25) → LINE OUT: 0.02% or less

(Reference level: When –20 dB, –10 dBu input, Trim +20 dB 1 kHz, AES-17 LPF)

INPUT (MIC 0) → LINE OUT: 0.02% or less

(Reference level: When –20 dB, –35 dBu input, Trim +20 dB 1 kHz, AES-17 LPF)

S/N ratio

INPUT (LINE) → LINE OUT: 110 dB or more (22 kHz

LPF A-weighted)

INPUT (MIC –25) → LINE OUT: 100 dB or more (22

kHz LPF A-weighted)

INPUT (MIC 0) → LINE OUT: 100 dB or more (22 kHz

LPF A-weighted)

Computer compatibility

See the TASCAM web site (www.tascam.com) for the most recent information about OS compatibility.

Windows

Pentium 300 MHz or faster

128 MB or more memory

USB port (USB 2.0)

Macintosh

Power PC G3, G4, Intel Mac 266 MHz or faster

64 MB or more memory

USB port (USB 2.0)

Recommended USB host controller

Intel chipset

Supported OS

Windows XP, Windows Vista, Windows 7

Macintosh Mac OS X 10.2 or later

Other specifications

Power

AC 100-240 V, 50-60 Hz (AC adaptor PS-1225L)

10 AA batteries (Alkaline or NiMH)

External DC battery (DC 11-16 V, 2A or more)

Battery operation time (continuous operation)

NP type battery (Li-Ion: 14.8 V/4.6 Ah (68 W))

About 5 hours (JEITA playback time)

About 5 hours (JEITA recording time)

AA type battery (NiMH)

About 2 hours (JEITA playback time)

About 2 hours (JEITA recording time)

(48 kHz, 24-bit, 8 ch, with phantom power OFF. Varies

with operating conditions.)

Power consumption: 18 W

Dimensions (W x H x D)

270 x 99.7 x 260 mm (excluding protrusions)

Weight: 3.65 kg (not including batteries)

Operating temperature range: 0–40ºC

62 TASCAM HS-P82

270 mm

99.7 mm

260 mm

11 – Specifications

Dimensional drawings

TASCAM HS-P82 63

Blcok diagram

Input

/slate

2mix

rec

func

Input

/slate

rec

/play

rec

/play

Stereo out

(AES/EBU)

Meter

A/D

limiter

Meter

MIC/MIC(-25dB)/LINE

48v

trim

Analog input 1 to 8

Digital input 1 to 8

XLR

D-sub 25 pin

Analog output

Digital output

ch 1 to 8

Play Tracks

D/A

Phones

alarm tone

D/A

D-sub

25 pin

XLR

Track8

CF Card

Track 1

Track 2

Track 3

Track 4

Track 5

Track 6

Track 7

Track 8

Track1

solo

Solo buss

Stereo buss

Volume

Pan

Phones level

Master Level

SRC

A/D

Internal Mic.

(for Slate)

Test Tone

(1k Sine)

StereoTrack

BNC

StereoTrack

Clip

LCF

audio IF

CF Card

limiter

Clip

Record

Tracks

Channel 1

solo

Volume

solo

Volume

solo

Volume

solo

Volume

solo

Volume

Meter

solo

Volume

Meter

solo

Volume

Pan

Channel 8

Track2

Track3

Track4

Track5

Track6

Track7

audio

audio IF

slate source

select

limiter on

LCF on

Phantom on

input/slate

rec/play

Input

/slate

solo

rec/play/slate

limiter on

rec

/play

Meter

Input

/slate

rec/play

Meter

Input

/slate

rec/play

Meter

Input

/slate

rec/play

Meter

Input

/slate

rec/play

Meter

solo

Rec func.

2mix

rec func.

rec/slate

11 – Specifications

HS-P82

TEAC CORPORATION

Phone: +81-42-356-9143 1-47 Ochiai, Tama-shi, Tokyo 206-8530, Japan

TEAC AMERICA, INC. www.tascam.com

Phone: +1-323-726-0303 7733 Telegraph Road, Montebello, California 90640 USA

TEAC CANADA LTD. www.tascam.com

Phone: +1905-890-8008 Facsimile: +1905-890-9888 5939 Wallace Street, Mississauga, Ontario L4Z 1Z8, Canada

TEAC MEXICO, S.A. de C.V. www.teacmexico.net

Phone: +52-55-5010-6000 Río Churubusco 364, Colonia Del Carmen, Delegación Coyoacán, CP 04100, México DF, México

TEAC UK LIMITED www.tascam.co.uk

Phone: +44-8451-302511 Suites 19 & 20, Building 6, Croxley Green Business Park, Hatters Lane, Watford, Hertfordshire, WD18 8TE, UK

TEAC EUROPE GmbH www.tascam.de

Phone: +49-611-71580 Bahnstrasse 12, 65205 Wiesbaden-Erbenheim, Germany

www.tascam.jp

Printed in China
