Teac Esoteric G-0Rb Owner's Manual

D00989221C

Master Clock Generator

Owner’s Manual

2

CAUTION

< DO NOT REMOVE THE EXTERNAL CASES OR CABINETS TO

EXPOSE THE ELECTRONICS. NO USER SERVICEABLE PARTS
ARE WITHIN!

< IF YOU ARE EXPERIENCING PROBLEMS WITH THIS PRODUCT,

CONTACT TEAC FOR A SERVICE REFERRAL. DO NOT USE THE
PRODUCT UNTIL IT HAS BEEN REPAIRED.

WARNING: TO PREVENT FIRE OR SHOCK
HAZARD, DO NOT EXPOSE THIS APPLIANCE
TO RAIN OR MOISTURE.

IMPORTANT SAFETY INSTRUCTIONS

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in accordance
with the manufacturer’s instructions.

8) Do not install near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including amplifiers) that
produce heat.

9) Do not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two blades with
one wider than the other. A grounding type plug has two
blades and a third grounding prong. The wide blade or the
third prong are provided for your safety. If the provided plug
does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched
particularly at plugs, convenience receptacles, and the point
where they exit from the apparatus.

11) Only use attachments/accessories specified by the
manufacturer.

12) Use only with the cart, stand, tripod,
bracket, or table specified by the
manufacturer, or sold with the apparatus.
When a cart is used, use caution when
moving the cart/apparatus combination to
avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when
unused for long periods of time.

14) Refer all servicing to qualified service personnel. Servicing is
required when the apparatus has been damaged in any way,
such as power-supply cord or plug is damaged, liquid has
been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not
operate normally, or has been dropped.

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK). NO USER­SERVICEABLE PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the
presence of uninsulated “dangerous voltage” within
the product’s enclosure that may be of sufficient
magnitude to constitute a risk of electric shock to
persons.

The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in
the literature accompanying the appliance.

< Do not expose this apparatus to drips or splashes.

< Do not place any objects filled with liquids, such as vases, on

the apparatus.

< Do not install this apparatus in a confined space such as a

book case or similar unit.

< The apparatus draws nominal non-operating power from the

AC outlet with its STANDBY/ON switch in the standby
position.

< The apparatus should be located close enough to the AC

outlet so that you can easily grasp the power cord plug at any
time.

< An apparatus with Class

!

construction shall be connected to

an AC outlet with a protective grounding connection.

< Batteries (battery pack or batteries installed) shall not be

exposed to excessive heat such as sunshine, fire or the like.

< Excessive sound pressure from earphones and headphones

can cause hearing loss.

3

Contents

This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following
measures:

• Reorient or relocate the equipment and/or the receiving
antenna.

• Increase the separation between the equipment and
receiver.

• Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician
for help.

CAUTION

Changes or modifications to this equipments not expressly
approved by TEAC CORPORATION for compliance will void the
user’s warranty.

For U.S.A.

For European customers

Disposal of your old appliance

1. When this crossed-out wheeled bin symbol is
attached to a product it means the product is
covered by the European Directive
2002/96/EC.

2. All electrical and electronic products should be disposed of
separately from the municipal waste stream via designated
collection facilities appointed by the government or the
local authorities.

3. The correct disposal of your old appliance will help prevent
potential negative consequences for the environment and
human health.

4. For more detailed information about disposal of your old
appliance, please contact your city office, waste disposal
service or the shop where you purchased the product.

Thank you for choosing Esoteric. Read this manual
carefully to get the best performance from this unit.

Contents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Before Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Identifying the Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Basic Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

4

Features

Up to 192 kHz Word Sync clock production

With the advent of digital equipment using higher sampling
frequencies than ever, 176.4 kHz and 192 kHz word clocks
(sync signals) are made available in addition to conventional

44.1 kHz, 48 kHz, 88.2 kHz and 96 kHz clocks.
As an additional plus, the output circuitry consists of 3
separate channels with a total of 6 output terminals, thus
offering the capability of handling a variety of audio
equipment controlled by different word clocks. Also, each of
the 3 output channels is switch-selectable between 1xFs,
2xFs, and 4xFs, so you can, for example, get an 88.2 kHz and
a 176.4 kHz machine synchronized by connecting them to the
single G-0Rb.

Clocks Generated by Internal High-precision
Oscillator

The G-0Rb uses an advanced rubidium oscillator (monthly
precision variation: projected within ±0.05ppb) that generates
astonishingly super-accurate clocks.

Ready for connection to external oscillators

Clocks can also be generated by inputting an external 10
MHz reference signal. This system can be further upgraded by
connecting, for example, an ultra-high-precision cesium
atomic oscillator used in special applications.

Universal Clock Output

A universal clock output (100 kHz) has been provided for
Esoteric’s original format (96 kHz in the case of PAL-FILM
operation). Connection with a universal clock-compatible
device makes it possible to support various frequency sources.

PAL Film Source-capable Clock Frequencies

The PAL (European TV format) film source is a better image
quality than NTSC discs provide. However, PAL video system is
standardized at 25 frames per second while the PAL film
source discs use the rate of 24 frames per second. So, if these
discs are played back without inserting one additional frame
per second in the process of conversion, the sound pitch may
be higher than is expected. To play PAL film source material
correctly, it is necessary to reduce the play speed by 4% and
play at 24 frames per second. To meet this requirement, the
G-0Rb is designed to output clock frequencies of 96% of
48/96/192 kHz (i.e., 46.08/92.16/184.32 kHz).

To play PAL film source material, connect the Esoteric UX-1 Pi
or any other Universal Player that is equipped to accept 96%
clock frequencies.

Super-rigid Chassis to Ensure
Uncompromised Sound Quality

A rigid chassis featuring a total weight of 18 kg (40 pounds)
helps to provide a stabilized platform for the clock operation.

< 5-mm thick steel base plate completely eliminates external

vibrations.

< Triangular pinpoint feet composed of case-hardened tool

steel ensures enhanced stability against vibration.

Employs carefully selected highest quality
components

Tight-tolerance components are carefully hand-picked and
secured to the rugged chassis to support the high-precision
clock operation.

5

Before Use

Placement of the unit

High-quality hardened tool steel is used for the pin-point feet,
securely attached to the bottom of the player. Although the
cover feet may appear loose, the weight of the unit causes
them to be firm and secure, and the design effectively damps
and reduces vibration.

< Be careful to avoid injury when moving the unit, on account

of its weight. Get someone to help you if necessary.

< To protect easily scratched furniture, you may stick the felt

supplied with the unit to the feet.

Pin-point foot

Bottom plate
of the unit

Steel foot

Cover foot retaining screws

Cover foot

Read this before operation

< As the unit may become warm during operation, always leave

sufficient space around the unit for ventilation.

< The voltage supplied to the unit should match the voltage as

printed on the rear panel. If you are in any doubt regarding
this matter, consult an electrician.

< Choose the installation location of your unit carefully. Avoid

placing it in direct sunlight or close to a source of heat. Also
avoid locations subject to vibrations and excessive dust, heat,
cold or moisture.

< Do not place the unit on the amplifier/receiver.

< Do not open the cabinet as this might result in damage to the

circuitry or electrical shock. If a foreign object should get into
the unit, contact your dealer or service company.

< When removing the power plug from the wall outlet, always

pull directly on the plug, never yank the cord.

< Do not attempt to clean the unit with chemical solvents as

this might damage the finish. Use a clean, dry cloth.

< Keep this manual in a safe place for future reference.

Maintenance

If the surface of the unit gets dirty, wipe with a soft cloth or
use diluted neutral cleaning liquid. Be sure to remove any
fluid completely. Do not use thinner, benzine (naphtha) or
alcohol as they may damage the surface of the unit.

6

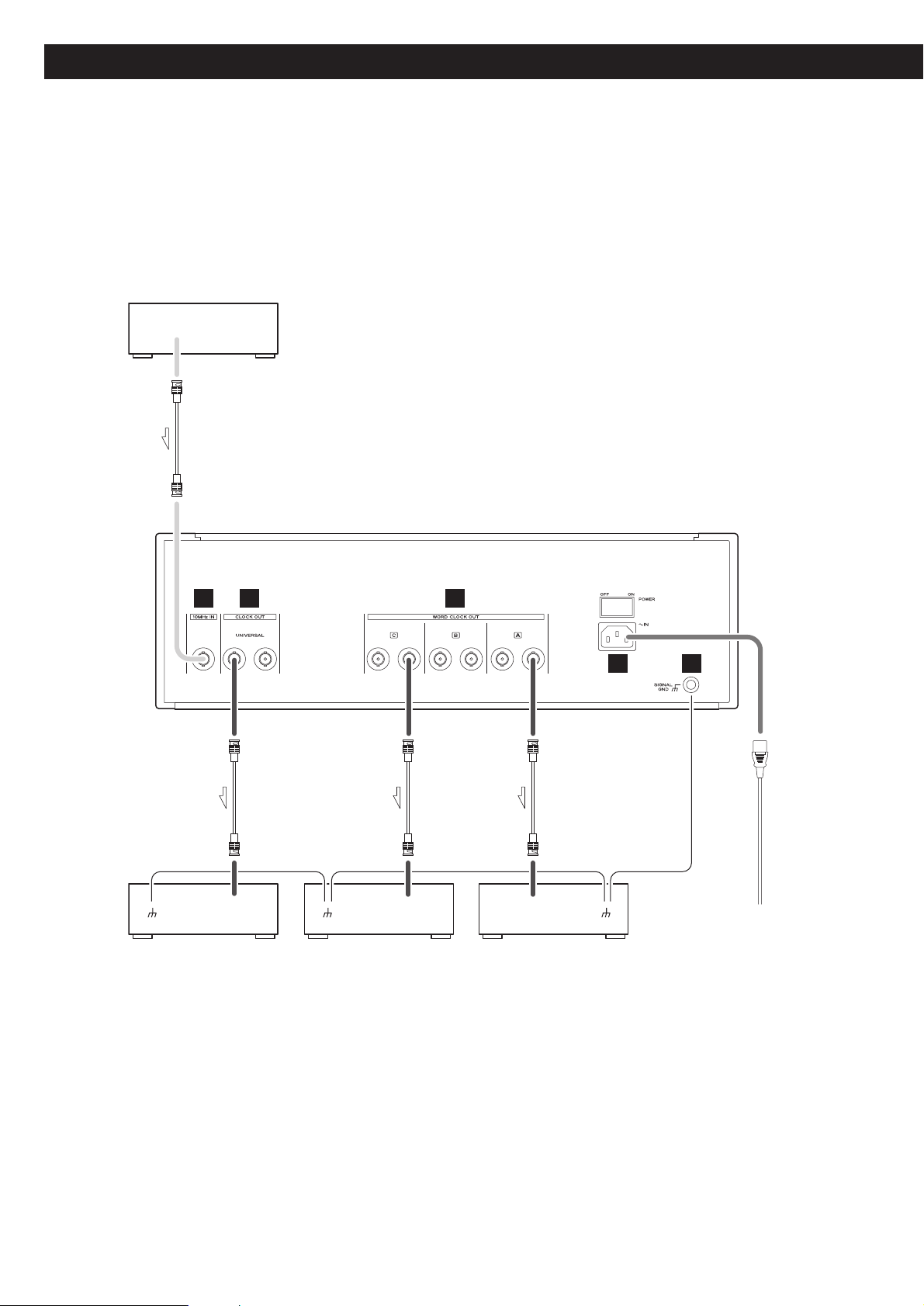

Connection

CAUTION:

< Switch off the power to all equipment before making connection.
< Read the instructions of each component you intend to use with this unit.
< For other connections, read the instructions of each component you intend to use with this unit.

BNC coaxial cable (75Ω)

Supplied power cord

Wall socket

Universal player etc.

BNC coaxial cable (75Ω)

BNC coaxial cable (75Ω)

BNC coaxial cable (50Ω)

External rubidium 10MHz oscillator etc.

CD transport etc. D/A converter etc.

10 MHz OUT

C B A

WORD SYNC

IN

E

WORD SYNC

WORD SYNC

IN

IN

D

7

WORD CLOCK OUT terminals

These terminals output precise word synchronization signals. Connect these OUT terminals to the
WORD SYNC IN terminals of the other digital equipment (CD player, D/A converter, etc.), using a
commercially available BNC coaxial cable.

< Each of the A, B, and C channels is switch-selectable between 1xFs, 2xFs, and 4xFs. So you can,

for example, connect an 88.2 kHz and a 176.4 kHz machine to the single G-0Rb and synchronize
them. Three buttons (A, B, and C) are provided on the front panel for each channel.

UNIVERSAL CLOCK OUT terminal

Universal clock signal is an original synchronization format developed by Esoteric.
These terminals output universal clock signals. Connect these OUT terminals to the WORD SYNC
IN terminals of the other matched equipment (UX-1 Pi, P-01,etc.), using a commercially available
BNC coaxial cable (75 ohms).

< Although the CD and Super Audio CD frequencies are multiples of 44.1 kHz while the DVD

frequency is a multiple of 48 kHz, the universal clock enables compatibility with any disc. The lack
of the need to switch the frequency mode for each disc results in considerable convenience.

< Please refer to the manual or other references in advance to determine whether or not the

connected device is compatible with a universal clock (100 kHz).
The following models are not compatible with a universal clock:

P-0, P-0s, P-70, P-70 (upgraded), D-70, D-70 (upgraded)

10MHz IN terminal

You can use the input of external 10MHz reference frequency. Connect this terminal to the
output terminal of the external 10MHz oscillator. Use a commercially available BNC coaxial cable
for connection.

< If the output level of the oscillator is outside the allowable input range of this unit, the oscillator

cannot be used. Refer to the oscillator manual for information on the output level and accuracy
of the oscillator.

SIGNAL GND connection

Audio quality might be slightly improved by connecting the SIGNAL GND terminal of another
device using commercially available vinyl-coated wire.

< Note that this is NOT an electrical safety ground (earth).

Power cord receptacle

After all other connections have been made, insert the supplied AC power cord into this
receptacle, then connect the other end of the power cord into the wall socket.

< Ensure that your AC voltage corresponds to the voltage marked on the rear panel of the unit.

Consult a qualified electrician if you are in doubt.

< Use only the supplied Esoteric power cord. Use of other power cords may result in fire or electric

shock. Unplug the power cord when you are not going to use the unit for an extended period of
time.

E

D

C

B

A

8

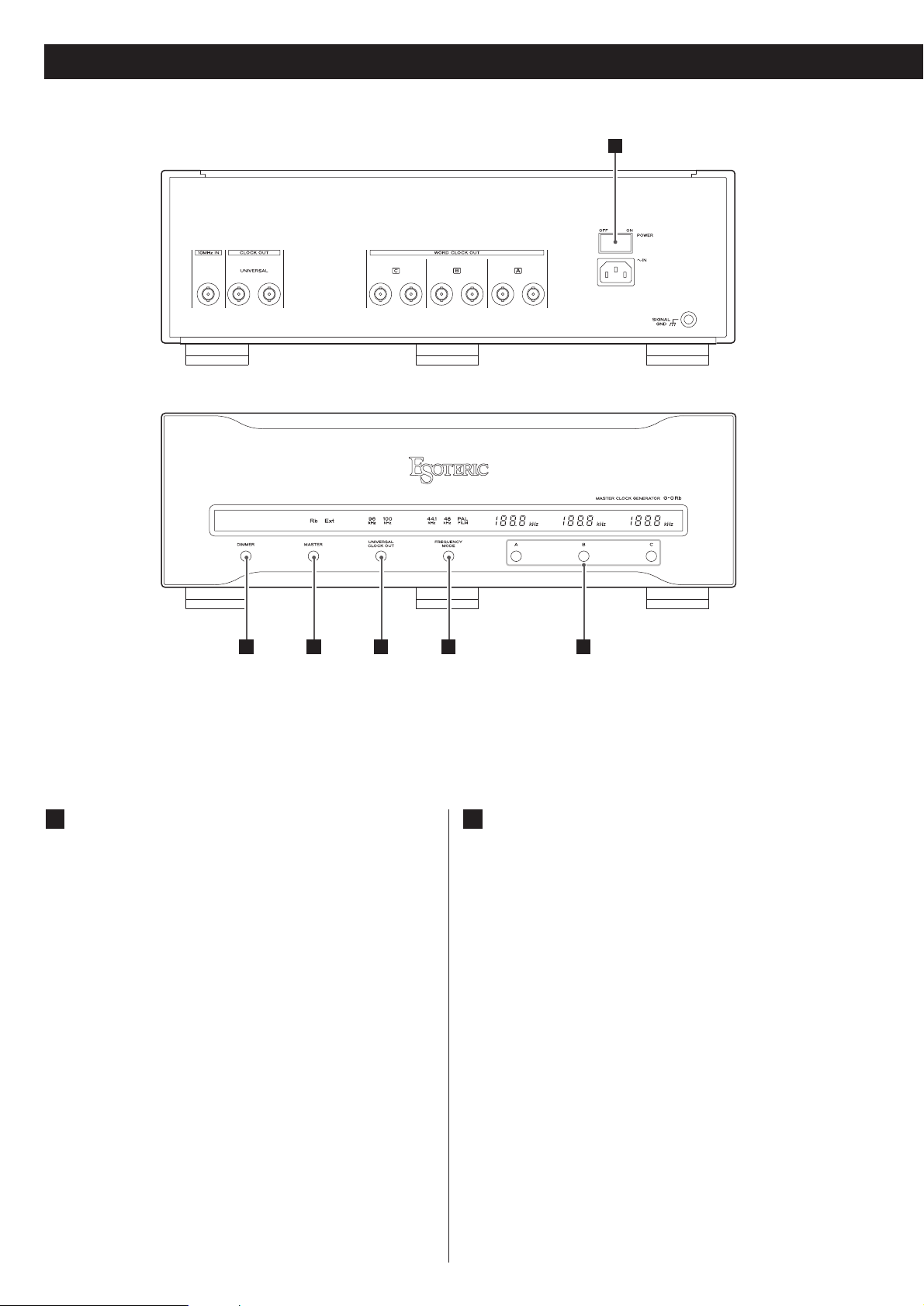

Identifying the Parts

POWER switch

Use this switch to turn the unit on and off.

< When the G-0Rb is turned on, the process of pre-heating

the rubidium oscillator to its operating temperature gets
started. It takes several minutes before the oscillator is ready
for operation.

A

DIMMER button

Press this button to dim the display on the front panel to
suit the environment in which you listen to music.

Full brightness (normal mode)

z

Medium brightness

z

Minimum brightness

z

All the illuminations are turned off except the MASTER
button indicator (“Rb” and “Ext”).

< This setting is stored even when power is turned off and the

unit is unplugged.

< When you turn on the power or you operate other buttons,

the display temporarily lights at full brightness. It is dimmed
after the clock signal is stabilized (after the indicator for the
MASTER button stops blinking and lights steadily).

B

A

B C D E F

9

MASTER button

Press this button to select the signal source you will use for
the reference frequency.
When the clock signal is stabilized, the indicator for the
MASTER button stops blinking and lights steadily.

Rb:

When using the internal rubidium oscillator as the source
clock

Ext:

When using the input from the reference sourced 10MHz IN
terminal

UNIVERSAL CLOCK OUT button

Use this to switch the Universal Clock output on or off.
Universal Clock is the TEAC-ESOTERIC original clock for
universal players.
When the FREQUENCY MODE is set to 44.1kHz or 48kHz,
the frequency of the universal clock is set to 100kHz. When
the FREQUENCY MODE is set to PAL FILM, the frequency of
the universal clock is set to 96kHz.
When OFF is selected, the indicator turns off.

FREQUENCY MODE button

Use this to select the fundamental frequency of the word
clock.

44.1kHz:

Select this for playback of CD, Super Audio CD, etc.

48kHz:

Select this for playback of DVD, DAT, etc.

PAL FILM:

This is used for reproducing PAL DVD discs at 24 frames/sec.

Frequency change buttons [A/B/C]

The frequency of the each line (A/B/C) is changeable
between 1x/2x/4x of the fundamental frequency and off.
Following frequency can be selected for each FREQUENCY
MODE.
When OFF is selected, the indicator turns off.

44.1kHz:

44.1kHz, 88.2kHz, 176.4kHz

48kHz:

48kHz, 96kHz, 192kHz

PAL FILM:

48P (46.08kHz), 96P (92.16kHz), 192P (184.32kHz)

F

E

D

C

Specifications

Clock outputs

44.1 kHz lines . . . . . . . . . . . . . 44.1 kHz, 88.2 kHz, 176.4 kHz

48 kHz lines . . . . . . . . . . . . . . . . . . . 48 kHz, 96 kHz, 192 kHz

PAL FILM lines . . . . . . . . . . 46.08 kHz, 92.16kHz, 184.32 kHz

UNIVERSAL CLOCK lines . . . . . . . . . . . . . . . . 100 kHz, 96 kHz

Terminals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . BNC coaxial

Output. . . . . . . . . . . . . . . . . rectangular wave (TTL level/75Ω)

Accuracy . . . . . . . Under ±0.05ppb (factory setting, ppb: 10

-9

)

Stabilized time of the output clock

When the G-0Rb is turned on . . . . . . . . . . . . . . . . 10 minutes

When the MASTER button or the FREQUENCY MODE button

is pressed. . . . . . . . . . . . . . . . . . . . . . . . Less than 10 seconds

Frequency input

Frequency . . . . . . . . . . . . . . . . . . . . 10 MHz (under ±10 ppm)

Terminal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . BNC coaxial

Input level . . . . . . . . . . . . . . . . Sine wave: 0.5 - 1.0 Vrms/50Ω

Rectangular wave: 1.5 - 2.5 Vpp/50Ω

General

Power supply

Europe model . . . . . . . . . . . . . . . . . . . . . AC 230 V, 50 Hz

U.S.A./Canada model. . . . . . . . . . . . . . . . AC 120 V, 60 Hz

Korea model . . . . . . . . . . . . . . . . . . . . . . AC 220 V, 60 Hz

Power consumption . . . . . . 81 W (maximum), 33 W (nominal)

Weight . . . . . . . . . . . . . . . . . . . . . . . . . . 18 kg (39 11/16 lbs)

External dimensions (W x H x D) . . . . . . . 442 x 153 x 351 mm

(17 3/8” x 6” x 13 13/16”)

Operating temperature. . . . . . . . . . . . . . . . . . . . +5˚C - +35˚C

Accessories

Power cord x 1
Felt x 3
Warranty card x 1
Owner’s manual x 1

• Design and specifications are subject to change without
notice.

• Weight and dimensions are approximate.

• Illustrations may differ slightly from production models.

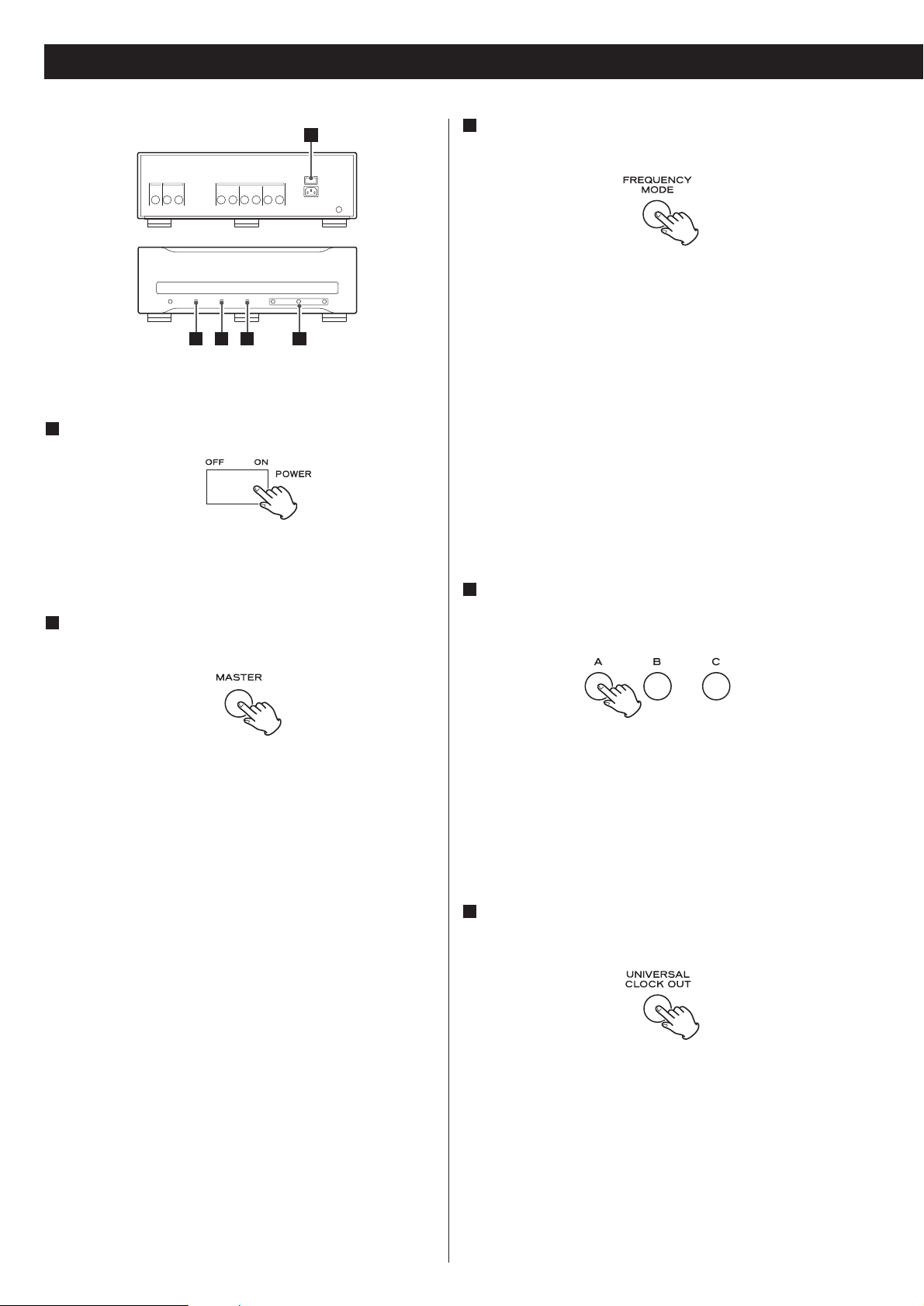

10

Basic Operation

Turn the G-0Rb on.

Display and indicators on the front panel light up.

Press the MASTER button to select which oscillator you
will use for the reference frequency.

Rb:

Select this to use the internal rubidium oscillator as the
source clock.

Ext:

Select this to use the input from the reference sourced
10MHz IN terminal

2

1

Select the appropriate frequency mode using the
FREQUENCY MODE button.

44.1kHz:

Select this for playback of CD, Super Audio CD, etc.

48kHz:

Select this for playback of DVD, DAT, etc.

PAL FILM:

This is used for reproducing PAL DVD discs at 24 frames/sec.

< When only using the UNIVERSAL CLOCK OUT terminal, either

44.1 kHz or 48 kHz may be selected.

< Before you set PAL FILM mode, confirm that the connected

unit can be synchronized with the frequency of PAL FILM.

If your units are connected to the WORD SYNC OUT
terminals, select the frequency of the word clock for
each line by pressing the A, B or C button.

< Set the frequency as high as the connected units will allow for

synchronization.

Note:

Select 44.1 kHz for the P-0 or P-0s.
Select 88.2 kHz for the P-70.

If your units are connected to the UNIVERSAL CLOCK
OUT terminals, press the UNIVERSAL CLOCK OUT button
to turn it on.

“100 kHz” lights when you set the master mode to 44.1kHz
or 48kHz. “96 kHz” lights when you set the master mode to
PAL FILM.

5

4

3

1

42 35

11

NOTE:

If you connect this unit to other manufacturers units, be sure
to read the manuals of those devices to confirm the frequency
range of synchronization.

Dual AES connection will require you to set the clock
frequency at one half of the audio signal frequency.

Troubleshooting

In case you experience any problem with this unit, please take
the time to look through this chart and see if you can solve the
problem yourself before you call your dealer.

No power

e Check the connection to the AC power supply. Check and

make sure the AC source is not a switched outlet and that,
if it is, the switch is turned on. Make sure there is power to
the AC outlet by plugging another item such as a lamp or
fan.

e Turn on the POWER switch on the rear panel.

Not synchronized

e Check to see if the current word clock output is supported

by the connected players. If necessary, select a word clock
frequency that is appropriate for the individual players.
There are occasions where the word clock available for
synchronization varies depending on the connection and
settings of the individual players. For details, consult the
manual for each player.

e If you are using the PAL FILM mode, check to see whether

the connected player supports the PAL FILM frequency (-4%
of the standard frequency).

e Check to see whether the sync outputs on the rear panel are

connected to the acceptable sync inputs of the individual
players.

Desired frequency not selectable with A, B, and C buttons

e Select the proper fundamental frequency in FREQUENCY

MODE before operating the buttons.

Odd sound pitch

e Do not use the PAL FILM mode for NTSC discs or PAL discs

other than film source discs.

If normal operation cannot be obtained, unplug the power
cord from the outlet and plug it again. This resets the
internal micro-computer which can be disturbed during
electrical storms, power interruptions, et cetera.

< Settings are stored even when power is turned off and the

unit is unplugged.

< When not in use turn off the power switch on the back of the

unit.

< Once settings have been made, those settings can be used

simply by turning on the power the next time the unit is used.
Switch the frequency mode using the FREQUENCY MODE
button depending on the disc to be played or device.

< Although the CD and Super Audio CD frequencies are

multiples of 44.1 kHz while the DVD frequency is a multiple
of 48 kHz, the universal clock enables compatibility with any
disc. The lack of the need to switch the frequency mode for
each disc results in considerable convenience.

Set the connected units to the slave mode (word
synchronization input mode).

Read the instructions of each component to turn Word Sync
on.

Example:

D-01: select “Rb IN” using the WORD button.

D-70 upgraded: select “WORD+RAM” using the CLOCK
MODE switch (front panel), then select “IN M1” using the
remote control unit.

P-01: select “Rb IN” using the WORD button.

P-70/P-70 upgraded: turn ON the WORD SYNC switch (front
panel), then set the PLL filter switch (back panel) to
“MODE2”.

X-01: select “Word M1 ON” using the CLOCK MODE button.

6

0108.MA-1202C

This appliance has a serial number located on the rear panel. Please record
the model number and serial number and retain them for your records.

Model number Serial number

TEAC ESOTERIC COMPANY

3-7-3, Nakacho, Musashino-shi, Tokyo 180-8550, Japan Phone: [phone] e-mail: [e-mail]

TEAC AMERICA, INC. 7733 Telegraph Road, Montebello, California 90640 Phone: [phone]

TEAC CANADA LTD. 5939 Wallace Street, Mississauga, Ontario L4Z 1Z8, Canada Phone: [phone]

TEAC MEXICO, S.A. De C.V Campesinos N°184, Colonia Granjas Esmeralda, Delegacion Iztapalapa, CP 09810, México DF Phone: [phone]

TEAC UK LIMITED Unit 19 & 20, The Courtyards, Hatters Lane, Watford, Hertfordshire, WD18 8TE, U.K. Phone: [phone]

TEAC EUROPE GmbH Bahnstrasse 12, 65205 Wiesbaden-Erbenheim, Germany Phone: [phone]
