TEAC CTF-5151 Service manual

SERVICE MANUAL
CTF5151
MAR04 SERVCTF5151
TEAC
y
y
SERVICE MANUAL
EC-21166
1. Caution……………………………………………………………2
2. Specification………………………………………………………6
3. BOM List ……………………… ……………...............................9
4. Alignment Procedure………………………………………….…29
5. Block Diagram……………………………………………………36

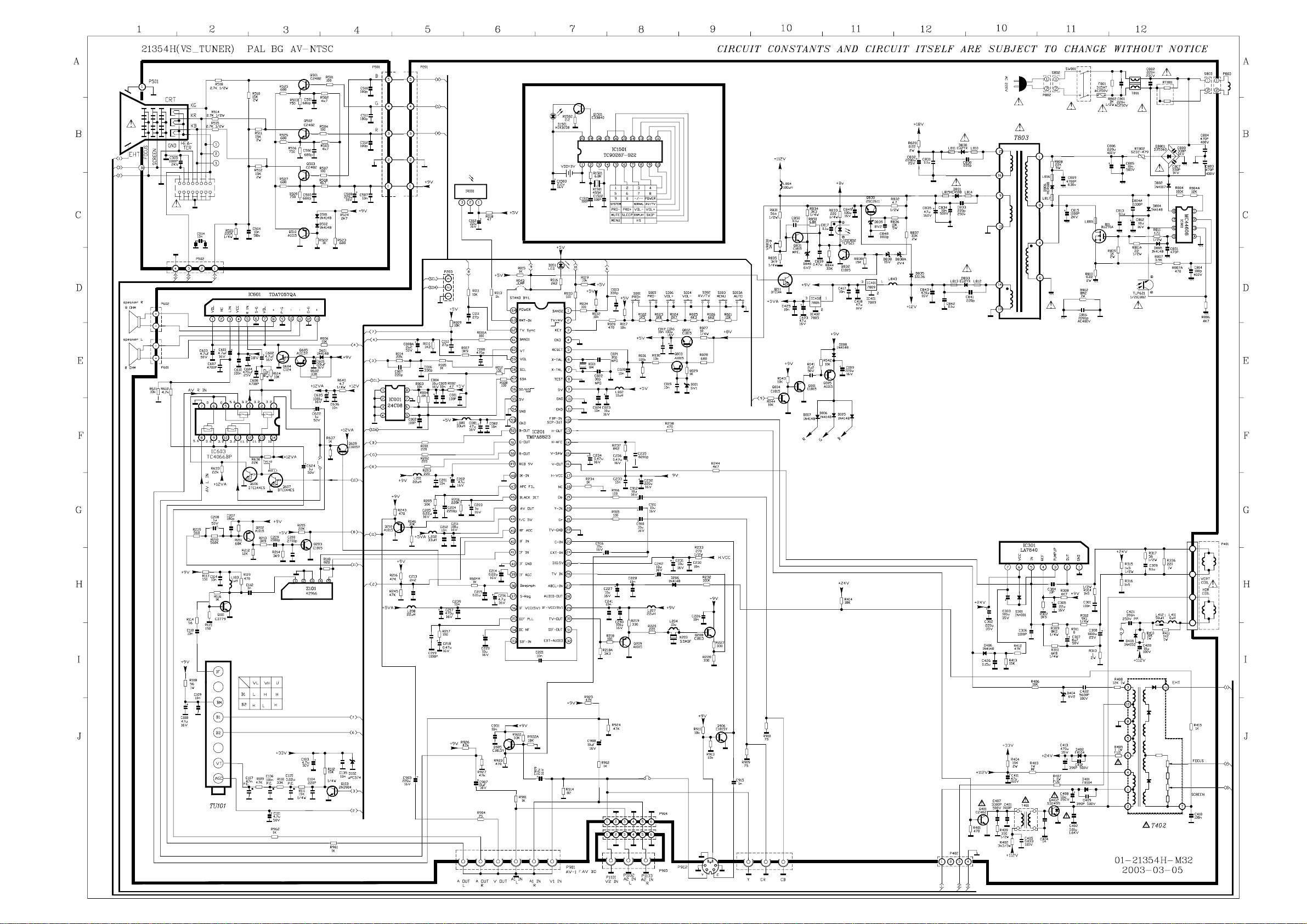

6. Schematic Diagram………………………………………………37
7. PCB Layout………….……………………………………………38
8. Explode Diagram…….……………………………………………39
This manual is the latest at the time of printing, and does not
include the modification which ma
the constant improvement of product.
be made after the printing, b
CAUTION:
Use of controls, adjustments or procedures other than those specified herein may result in hazardous radiation exposure.
CAUTION: T O REDUCE THE RISK OF
CAUTION
RISK RISK OF OF ELECTRIELECTRICC
SHOCK SHOCK DO DO NOT NOT OPEN.OPEN.
The lighting flash with arrowhead symbol, with an equilateral triangle is intended to alert the user to the presence of uninsulated voltage within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to the person.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
ELECTRICAL SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
dangerous
WARNING: TO REDUCE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT
EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
2
IMPORTANT SAFETY INSTRUCTIONS
CAUTION:
Read all of these instructions. Save these instructions for later use . Follow all Warnings and Instructions marked on the audio equipment.
1. Read Instructions- All the safety and operating instructions should be read before the product is operated.
2. Retain Instructions- The safety and operating instructions should be retained for future reference.
3. Heed Warnings- All warnings on the product and in the operating instructions should be adhered to.
4. Follow Instructions- All operating and use instructions should be followed.
FOR YOUR PERSONAL SAFETY
1. When the power cord or plug is damaged or frayed, unplug this television set from the wall outlet and refer servicing to qualified service personnel.
2. Do not overload wall outlets and extension cords as this can result in fire or electric shock.
3. Do not allow anything to rest on or roll over the power cord, and do not place the TV where power cord is subject to traffic or abuse. This may result in a shock or fire hazard.
4. Do not attempt to service this television set yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
5. Never push objects of any kind into this television set through cabinet slots as they may touch dangerous voltage points or shor t out parts that could result in a fire or electric shock. Never spill liquid of any kind on the television set.
6. If the television set has been dropped or the cabinet has been damaged, unplug this television set from the wall outlet and refer servicing to qualified service personnel.
7. If liquid has been spilled into the television set, unplug this television set from the wall outlet and refer servicing to qualified service personnel.
8. Do not subject your television set to impact of any kind. Be particularly careful not to damage the picture tube surface.
9. Unplug this television set from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.
10.1. Do not place this television set on an unstable cart, stand, or table. The television set may fall, causing serious injury to a child or an adult, and serious damage to the appliance. Use only with a cart or stand recommended by the manufacturer, or sold with the television set. Wall or shelf mounting should follow the manufacturer s instructions, and should use a mounting kit approved by the manufacturer.
10.2. An appliance and car t combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.
3
PROTECTION AND LOCATION OF YOUR SET
11. Do not use this television set near water ... for example, near a bathtub, washbowl, kitchen sink, or laundry tub, in a
wet basement, or near a swimming pool, etc. Never expose the set to rain or water. If the set has been exposed to rain or water, unplug the set from the wall outlet and refer servicing to qualified service personnel.
12. Choose a place where light (artificial or sunlight) does not shine directly on the screen.
13. Avoid dusty places, since piling up of dust inside TV chassis may cause failure of the set when high humidity persists.
14. The set has slots, or openings in the cabinet for ventilation purposes, to provide reliable operation of the receiver, to protect it from overheating. These openings must not be blocked or covered.
Never cover the slots or openings with cloth or other material. Never block the bottom ventilation slots of the set by placing it on a bed, sofa, rug, etc. Never place the set near or over a radiator or heat register. Never place the set in enclosure, unless proper ventilation is provided.
a built-in
PROTECTION AND LOCATION OF YOUR SET
15.1. If an outside antenna is connected to the television set, be sure the antenna system is grounded so as to provide some
protection against voltage surges and built up static charges, Section 810 of the National Electrical Code, NFPA No. 70-1975, provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrode, and requirements for the grounding electrode.
EXAMPLE OF ANTENNA GROUNDING AS PER NATIONAL ELECTRICAL CODE INSTRUCTIONS
EXAMPLE OF ANTENNA GROUNDING AS PER
NATIONALELECTRICAL CODE
ANTENNA LEAD- INWIRE
GROUND CLAMP
ELECTRIC SERVICE
EQUIPMENT
NEC-NATIONALELECTRICAL CODE
ANTENNA DISCHARGE UNIT (NEC SECTION 810-20)
GROUNDING CONDUCTORS (NECSECTION 810-21)
GROUND CLAMPS
POWER SERVICE GROUNDING ELECTRODE SYSTEM (NEC ART 250. PARTH)
15.2. Note to CATV system installer : (Only for the television set with CATV reception)
This reminder is provided to call the CATV system attention to Article 820-40 of the NEC that provides
installer s guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.
16. An outside antenna system should not be located in the vicinity of overhead power lines or other electric lights or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.
17. For added protection for this television set during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna. This will prevent damage due to lightning and power-line surges.
4
OPERATION OF YOUR SET
18.
This television set should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply at your home, consult your television dealer or local power company. For television sets designed to operate from batter y power, refer to the operating instructions.
19. If the television set does not operate normally by following the operating instructions, unplug this television set from the wall outlet and refer servicing to qualified service personnel. Adjust only those controls that are covered in the operating instructions as improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the television set to normal operation.
20. When going on a holiday : If your television set is to remain unused for a period of time, for instance, when you go on a holiday, turn the television set and unplug the television set from the wall outlet.
off
IF THE SET DOES NOT OPERATE PROPERLY
21. If you are unable to restore normal operation by following the detailed procedure in your operating instructions, do not attempt any further adjustment. Unplug the set and call your dealer or service technician.
22. Whenever the television set is damaged or fails, or a distinct change in performance indicates a need for service, unplug the set and have it checked by a professional service technician.
23. It is normal for some TV sets to make occasional snapping or popping sounds, particularly when being turned on or off. If the snapping or popping is continuous or frequent, unplug the set and consult your dealer or service technician.
FOR SERVICE AND MODIFICATION
24. Do not use attachments not recommended by the television set manufacturer as they may cause hazards.
25. When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.
26. Upon completion of any service or repairs to the television set, ask the ser vice technician to perform routine safety checks to determine that the television is in safe operating condition.
5
PFS2 FORMAT-1 Report
p
p
g
g
gy
g
q
q
r
y
y
g
g
play
ype
(
y
y)
y)
g
g (
)
p
p
p
p
guag
p
Date: 2003-9-16 15:12
ProductView......:
Re
ort by............:
Specs / Products
MasterData Customer Id Version Status Brand EAN UPC Rece
tion +Tunin +Tunin +Tunin +Fre +Channels +IF Fre +TV Systems Off Ai +Add Systems Ext In
+TV S +Sound S Picture - Processin +Scan +Scan Modes +Wide Screen Switchin +Combfilter +Picture Control
+Pict Enhancement +Pict Noise Reduction Picture - Dis +Display T +Screen Format +Size +Deflection S +Tube Technology (CRT onl +CRT Defl +CRT Gun +CRT Ma +Resolution +Coatin +White Point Sound +RMS Power Intern +RMS Power Extern +Surround Sound +Sound Features +Sound Control Sound - S +S +S +S User Interface +Interface Name +Voice Control +Menu +Menu Colours +Menu Lan +Special Features
+O +PP Features +Tuning/Install Features
+Clock/Timer Functions
- presets/channels
- technolo
- Indication
Bands
stems Multi
stems
Visual)" - size/vis. cm
stem (CRT onl
n field
only for D.V. sets
eakers eaker configuration eakers used eaker Size
es
erational Features
Product:
CT-M5110H
TEAC AUSTRALIA PTY LTD
0.1
New
TEAC
\ \
100
VST
X
UVSH
100
PAL B/G
NTSC 3.58, NTSC 4.43, NTSC
Play Back, PAL 60
PAL-Multi
AV Stereo
Standard
4;3
Brightness, Colour, Contrast, Color Temperature, Hue, Sharpness Cont Var, Smart Pict. 4 Modes
Black Stretch
DV - CRT - RF 4:3 21"
Black Matrix, Iron
Stand Gun Neutral
Mute Volume
2
Normal
L01- Full Interface
Cursor Control
English No signal Auto Standby,Timer Power ON/OFF, Favorite Channel, Sleep timer, Game, Calendar, Notebook, Hotel lock , Auto Search
Auto Store, Factory Mode, Fine Tuning, Manual Search/Store, Manual Sort, Service Mode Clock, On/off timer, Sleep timer
2003-9-16 15:13 21166 PFS 1 of 3
Date: 2003-9-16 15:12
p
p
(
)
(
)
(
)
r
p
(
)
)
)
)
)
(
)
)
)
y
g
p
t
)
(
)
)
(
)
(
)
(
)
p
)
p
p
y
g
g
p
p
y
g
y
g
q
y
yp
p
ProductView......:
Re
ort by............:
Specs / Products
+Local Controls Front
+Local Controls To +Indicators - screen +Indicators - front +Numb of Loc Cont +Number of Ind. +Local Controls Remote Control Connectors Rea +Scart RGB+Y/C+CVBS +Scart RGB+CVBS +Scart CVBS+Y/C +Com +In Y/C+Cinch +In Y/C+Cinch(CVBS+Mo +In Y/C+Cinch(St +In BNC (CVBS +In Cinch(CVBS+St +In Cinch +Out Cinch(CVBS+St +Out Cinch(CVBS+Mo +Out Cinch Audio Stereo +Out Cinch Audio Mono +Out Cinch Dolb +Out Cinch Subwoofer +Di +Louds +Control Busses +Feature Slot +ITV Smart Port +Terr. Antenna in Guide + IR Blaster Jack Connectors Fron +In Y/C + Cinch(CVBS+St +In Y/C + Cinch Stereo +In Cinch +In Cinch (CVBS+Mo +Headphone Out +Feature Slot Connectors Side +In Y/C + Cinch +In Y/C + Cinch Stereo +In Cinch +IN Cinch +Headphone Out Connectors To +In Cinch (CVBS + St +Headphone Out Connectors Mechanical +Head +Cinch A/V in/out +Cinch Com +Cinch Y/C St +Cabinet Name +Confi +Gra
-Cabinet Colour and Finish
Silver Frost
+Mechanics +S General +Se +Chassis +Software Deliver +Software Version +Mains Volta +Mains Fre +T Power Consum
onent In (Y/U/V) Cinch
CVBS+Mo
Audio Out
eakers
CVBS + St+ Mo
CVBS + St+ Mo
CVBS + Mo
hone
lin
uration
hics/Logo's
eaker Visibilit
ment
uenc
e Mains Cord
incl Mains incl Mains Old
CVBS+St
Surround
CVBS+St
onent
Mode
e
tion (P)TV in On
Product:
CT-M5110H
Channel +-, Volume +-, TV/AV,MENU, Power Switch,
RC Recvd LED, SB LED
7 1
X
X
75 Ohms (IEC type)
X
21166
Standard
Standard 4:3 M28
240V
50Hz
2003-9-16 15:13 21166 PFS 2 of 3
Date: 2003-9-16 15:12
p
p
y
g
g)
)
g
R
quip
ging
guag
pp
pp
pp
quip
ging
ging
ging
pp
g
V
ype
g
y
(
g
gy
g
g
ype
ype
y
yp
yp
k
y
g
t
)
y
)
ProductView......:
Re
ort by............:
Specs / Products
Power Consumption SB in Watts Power Consum +Power in "ON" for +Power in Standb +Power in "OFF" for Wei Weight (P)TV (excl. Package Weight AVUnit excl Packagin +INDICATION on BACKCOVE +Channel Final E +Packa +Documents and manuals +Lan +Cables Su +Antenna Su +Stand Su +Aux E Packa Packa Packa Miscellaneous +EAN Indication +A +Tests +Local Inte
+Service Call-Rate PIP/POP +T +Features Di +Transmission Built-in Data S +Text Standard + +Nbr bck +Text Technolo +Di +Program Guide Built-in Clock/Timer +T +Features Built-in Radio +T Built-in PC displa +PC Synch +PC Control Built-in DVD drive +T +T +Version of Deck Phased Out Items +Tuner/Frontend +Sensitivit +CRT EHT +Li +Accoun +XX(Radio Antenna in +Non Volatile Memor +In Y/C + Cinch(CVBS+Mo Version of deck
ht (P)TV (incl. Packagin
ment
robation
arious Perf. Param.
ital Reception
Tele)text Features
ital Data handlin
e of Medium e of Dec
htning Protection
tion Semi SB in W
for
- methods
es DFU
lied
lied
lied
m Supplied
- width cm
- height cm
- depth cm
ration
stem
rnd page / Mem Size
Product:
CT-M5110H
Less then 3W
No
No No No
2003-9-16 15:13 21166 PFS 3 of 3
Flowchart chart of alignment procedure for M28 chassis:
B+ adjustment NICAM
Adjustment
Sub-brightness
Adjustment
Pincushion and
screen width
adjustment
White balance
Adjustment
Screen center
& size
adjustment
(PAL)
Aging Adjustment of
Screen center
& size
adjustment
(NTSC)
Electrical
properties
checking for
chassis
screen voltage
and focus
QC checking
RF AGC
adjustment
Sub-color &
Sub-tint
adjustment
ALIGNMENT PROCEDURE FOR M28 CHASSIS:
I) Adjustment of B+ voltage
1. Apply 110-240VAC(±5V) to mains power input, and Philips standard testing pattern to RF input.
2. Adjust VR830 in STANDARD mode until voltage at TP2 (B+) is 112V ±0.5V.
II) NICAM Adjustment (for NICAM model only)
1. Apply a 38.9MHz color bar with NICAM signal to the IF input.
2. Monitor the DC voltage at pin 15 of IC1101.
3. Adjust T1101 until the voltage at pin 15 of IC1101 becomes 2.5 +/- 0.1V.
4. Then check the waveform at pin 4 and 6 of P1103 and it must show correct audio signal.
III) The alignment of RFAGC
1. Connect the detector shown below to collector of Q101.
2. Receive a grey scale signal with 70dBμV amplitude.
3. Adjust RFAGC item until the output of the detector becomes 0.8Vpp
Collector of Q101
To CRO
IV) Adjustment of Sub-contrast, Sub-tint and Sub-colour for NSTC and PAL signal.
A
b
1. Enter D-mode, and connect the probe of Oscilloscope to the conjunction between R201 and P201 (B-out).
2. Apply the Grey-scale/Colour-bar (NTSC signal) to the AV input, in STANDARD status.
3. Select CNTC to adjust the sub-contrast, until that the amplitude “A” is 2.5V
4. Select COLC to adjust the sub-colour by tuning the amplitude of “a” and “d” to the same.
5. Select TNTC to adjust the sub-tint by tuning the amplitude of “b” and “c” to the same.
6. Apply the Grey-scale/Colour-bar (PAL signal) to the AV input, in STANDARD status.
7. Select COLP to adjust the sub-colour by tuning the amplitude of “a”, “b”, “c” and “d” to the same.
V) Adjustment of Focus, Screen Voltage and Sub-brightness
1. Receive a crosshatch pattern.
2. Adjust the “FOCUS” VR on the flyback the make the picture clear.
3. Enter D-mode and press “MUTE” key and the screen will become a horizontal line. Then adjust the “SCREEN” VR on the flyback transformer to set the intensity of the line to a minimum visible level (the line can just be seen).
4. Press “MUTE” key again and the TV will become full raster.
5. Select BRTC to adjust the sub-brightness, until that the 2 be seen.
VI) Adjustment of White balance
1. Receive a black and white pattern at STANDARD status.
2. Use a color analyzer to measure the black side of the screen. By changing the value of BB and GB, set the reading of the color analyzer to x=284, y=299.
3. Then measure the white side of the screen. By changing the value of BD and GD, set the reading of the color analyzer to x=284, y=299.
4. Repeat step 2&3 until you can get the correct reading for both black and white sides.
VII) Adjustment of Pincushion and Picture Width (for pure flat model only)
1. Receive a crosshatch pattern.
2. Adjust VR302 until the vertical line become straight.
3. Adjust VR303 for horizontal size.
a
c
d
nd
dark bar of 8 level grey scales just can
P-P
as shown below.
VIII) Adjustment of Picture Geometry (PAL)
1. Apply the crosshatch pattern (PAL signal) to the RF input, in STANDARD status.
2. Select HPOS to adjust the Horizontal center.
3. Select VP50 to adjust the Vertical center.
4. Select HIT to adjust the Vertical amplitude.
5. Select VLIN to adjust the vertical linearity.
6. Select VSC to adjust the vertical S-correction.
IX) Adjustment of Picture Geometry (NTSC)
1. Apply the crosshatch pattern (NTSC signal) to the RF input, in STANDARD status.
2. Select HPS to adjust the Horizontal center.
3. Select VP60 to adjust the Vertical center.
4. Select HITS to adjust the Vertical amplitude.
5. Select VLIS to adjust the vertical linearity.
6. Select VSS to adjust the vertical S-correction.
X) Adjustment of OSD position
1. Enter D-mode and press key “1”, then choose OSDH(OSDHS) item and adjust the OSD vertical position 50HZ(60HZ).
2. Enter D-mode and press key “NOTE”, then choose the OSD1 item and adjust the OSD horizontal position(Volume bar,Picture bar,Half blue panel OSD).
3. Enter D-mode and press key “NOTE”, then choose the OSD2 item and adjust the OSD horizontal position except OSD1 item.
XI)D-mode:
1. press D-Mode ON/OFF key, and then you can enter the D-mode.
2. press VOLUME DOWN key on the unit DISPLAY key on the remote handset
After enter D-mode you can adjust the setting according to the following procedure,
until the volume decrease to minimum level, then press the
(don’t release the volume key) and you can enter D- mode.
ITEM Description Initial
GROUP1 KEY 0 RB R CUT OFF GB G CUT OFF BB B CUT OFF GD G DRIVE BD B DRIVE
GROUP2 KEY 1 HPOS/ Horizontal Position 50HZ HPS Horizontal Position 60HZ HIT/ Hight 50Hz HITS hight 60 hz VP50 Vertical Position 50Hz VP60 Vertical Position 60HZ VLIN V Linearity 50Hz VLIS V Linearity 60hz VSC VS Correction 50Hz VSS VS Correction 60HZ VBLK V BLK Start / Stop VCEN V CENTERING OSDH OSD vertical position 50HZ OSDHS OSD vertical position 60HZ
GROUP 3 KEY 3 CNTX CONTRAST MAX. CNTN CONTRAST MIN. BRTX BRIGHT MAX.(difference from center) BRTN BRIGHT MIN.(difference from center) COLX COLOR MAX.(difference from center) COLN COLOR MIN. TNTX TINT MAX.(difference from center) TNTN TINT MIN.(difference from center)
GROUP 4 KEY 4 BRTC BRIGHT CENTER COLC COLOR CENTER NTSC COLS COLOR CENTER SECAM COLP COLOR CENTER PAL(shift data from COLC) SCOL SUB COLOR ( Cr input (#21) gain up) SCNT SUB CONTRAST CNTC CONTRAST CENTER TNTC TINT CENTER
GROUP 5 KEY 5 ST3 SHARP CENTER 3.58NTSC TV SV3 SHARP CENTER 3.58NTSC VIDEO ST4 SHARP CENTER OTHER TV SV4 SHARP CENTER OTHER VIDEO SVD SHARP CENTER DVD ASSH ASYMMETRY-SHARPNESS SHPX SHARP MAX.(difference from center)
SHPN SHARP MIN.(difference from center)
GROUP 6 KEY 6 OPT OPTION DATA
0 D mode key 0: No use 1 :use 1 0:normal 1: mute sound when no sync in TV 2 0:NORMAL 1: mute video during change channle 3 au gain 0:50khz 1: 25khz 4 when no sync 1: AFT 0: no AFT 5 AV change 1: mute 0: no mute sound 6 Korea PAL50 BLINK function 1:enable 0:disable 7 standby state 0: high standby 1: low standby
FLG0
0 OVER MOD 1 N Buzz Cancel 2 3 SLO f0 shift 4 hotel mode TV mode enter 5 hotel mode av mode enter 6 hotel mode 7 vco readjust when position select 0:enable 1:disable
FLG1
0 1: 7 key 0: 6 key 1 Secam 0:disable 1:enable 2 LOGO 0:disable 1:enable 3 TINT por 4 PIF SELECT 01:45.75 MHZ 5 011 :38.9MHZ 6 100 :38MHZ 7 APC 1:AUTO 0:PRESET
STBY
0 1
hd kill timer set *40us
2 3 4 when STBY.5=0 ,after AC on 0: standby 1: power on 5 after AC power on, 0: ref STBY.4 1: last state 6 auto sleep function 7
MODE0
0 NICAM 0:DISABLE 1:ENABLE 1 English language select 2 Russia language select 3 vietnam language select 4 mute type 0: y mute 1: RGB mute 5 when mode0.7 = 1 ; preset sound system after ASM 6 00: BG 01 :I 10:DK 11: M 7 preset sound system after ASM 0:disable 1:enable
MODE1
0 BG system enable 1 I system enable 2 DK system enable
3 M system enable 4 VIDEO2 enable 5 video3 enable 6 YUV enable
7 Thailand Dual language 0:Disable 1:Enable MUTT standby -->wake time STAT contrast up timer afer standy off
GROUP 7 KEY 7 RF AGC RF AGC SBY SECAM B-Y BLACK ADJUST SRY SECAM R-Y BLACK ADJUST BRTS SUB BRIGHT shift data of BRTC TXCX TEXT RGB CONTRAST MAX. RGCN TEXT RGB CONTRAST MIN. SECD SECAM MODE
GROUP 9 KEY 8 V25 VOLUME 25 V50 VOLUME 50 V100 VOLUME 100
GROUP 10 KEY 9 SVM SVM PYNX Normal H.SYNC max PYNN Normal H.SYNC min PYXS Search H.SYNC max PYNS Search H.SYNC min
GROUP 11 KEY CALENDAR CLTO TV mode & SOUND SYS != M
CLTM TV mode & SOUND SYS = M CLVO VIDEO CLVD YUV MODE
CLTO CLTM CLVO CLVD bit setting
7 KILLER OFF
6 P/N ID
5 C GAMMA
4
NTSC-MATRIX
3
2
1
Y DL
0
ABL ABL SETUP
5 TB1254N RGB ABL
4 TB1254N WPS
3
2
ABLpoint setup
1
0
DCBS VIDEO DATA SETUP
0~3 Y GAMMA BLACK STRETCH
*Reset EEPROM Data: Press D-mode and Press 0752.
4~5 OSD LEVEL
DEF V AGC SELECT
0 V AGC reference, 0:depends on YC Vcc 1:Depends on integrated regulator
GROUP 14 KEY NOTE-BOOK OSD1
OSDF1 OSD2 OSD Horizontal Position except OSD1 items
OSDF2 OSD PLL DATA except OSDF1 items
HAFC
NOIS HAFC DATA
UCOM MCU DATA
OSD Horizontal Position(volume bar, Picture bar,Half blue panel OSD)
OSD PLL DATA(volume bar, Picture bar,Half blue panel OSD)
0 when nois.2 = 1 ; TV hafc gain
1 if nois.2 = 0 TV hafc gain depend on noise(0~1)
2 in video mode hafc gain
3
0 noise det
1
2 fix the hafc gain
PART NO. DESCRIPTION QTY
08-02188H-CRY ASS'Y - CRT BD 10-1N4148-ABX DIODE 1N4148 (SWITCHING) 1 D502 10-1N4148-ABX DIODE 1N4148 (SWITCHING) 1 D501 11-SA1015-YBX TRANSISTOR 2SA1015Y 1 Q510 11-SC2482-0BX TRANSISTOR 2SC2482 1 Q501 11-SC2482-0BX TRANSISTOR 2SC2482 1 Q502 11-SC2482-0BX TRANSISTOR 2SC2482 1 Q503 18-CB0101-JNX RES. C.F. 100 OHM 1/6W +/-5% 1 R501 18-CB0101-JNX RES. C.F. 100 OHM 1/6W +/-5% 1 R504 18-CB0101-JNX RES. C.F. 100 OHM 1/6W +/-5% 1 R507 18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R522 18-CB0272-JNX RES. C.F. 2.7k OHM 1/6W +/-5% 1 R524 18-CB0472-JNX RES. C.F. 4.7k OHM 1/6W +/-5% 1 R502 18-CB0472-JNX RES. C.F. 4.7k OHM 1/6W +/-5% 1 R505 18-CB0472-JNX RES. C.F. 4.7k OHM 1/6W +/-5% 1 R508 18-CB0681-JNX RES. C.F. 680 OHM 1/6W +/-5% 1 R525 18-CB0681-JNX RES. C.F. 680 OHM 1/6W +/-5% 1 R526 18-CB0681-JNX RES. C.F. 680 OHM 1/6W +/-5% 1 R527 18-CB0681-JNX RES. C.F. 680 OHM 1/6W +/-5% 1 R523 18-CB0751-JNX RES. C.F. 750 OHM 1/6W +/-5% 1 R503 18-CB0751-JNX RES. C.F. 750 OHM 1/6W +/-5% 1 R506 18-CB0751-JNX RES. C.F. 750 OHM 1/6W +/-5% 1 R509 18-CD0104-JNX RES. C.F. 100K OHM 1/4W +/-5% 1 R521 18-FE0272-JNX RES. M.O. 2.7K OHM 1/2W +/-5% 1 R514 18-FE0272-JNX RES. M.O. 2.7K OHM 1/2W +/-5% 1 R515 18-FE0272-JNX RES. M.O. 2.7K OHM 1/2W +/-5% 1 R518 18-FG0153-JHX RES. M.O. 15k OHM 2W +/-5% 1 R510 18-FG0153-JHX RES. M.O. 15k OHM 2W +/-5% 1 R511 18-FG0153-JHX RES. M.O. 15k OHM 2W +/-5% 1 R512 26-AIM103-KBX CAP. CER 0.01UF 500V +/-10% B 1 C504 26-AMK221-KBX CAP. CER 220PF 2KV +/-10% B 1 C505 26-EBP103-ZFX CAP. CER 0.01UF 50V +80/-20% F 1 C514 26-EBP103-ZFX CAP. CER 0.01UF 50V +80/-20% F 1 C507 26-EBP181-JCX CAP. CER 180PF 50V +/-5% CH 1 C510 26-EBP181-JCX CAP. CER 180PF 50V +/-5% CH 1 C511 26-EBP181-JCX CAP. CER 180PF 50V +/-5% CH 1 C512 26-EBP681-JCX CAP. CER 680 pF 50V +/-5% 1 C501 26-EBP681-JCX CAP. CER 680 pF 50V +/-5% 1 C502 26-EBP681-JCX CAP. CER 680 pF 50V +/-5% 1 C503 35-139730-00X FERR. BEAD BF60 2 40-02135S-CRD P.C.B. CRT BD 1 41-WJ0050-B00 WIRE BARE JUMPER 5MM 1 41-WJ0050-B00 WIRE BARE JUMPER 5MM 1 41-WJ0050-B00 WIRE BARE JUMPER 5MM 1 41-WJ0075-B00 WIRE BARE JUMPER 7.5MM 1 J502 41-WJ0075-B00 WIRE BARE JUMPER 7.5MM 1 J503 41-WJ0100-B00 WIRE BARE JUMPER 10MM 1 J501 41-WJ0100-B00 WIRE BARE JUMPER 10MM 1 J504 46-10967W-01X PIN BASE *1 TJC1-1A 1 P503 46-28816H-05X HS 5P24 500 TJC3-5Y/SCN-5Y 1 46-30615H-04X HS 4P24 460 F/W TJC3-4Y/SCN-4 1 25-BCB221-M1X CAP. ELEC 220 UF 16V +/-20% 1 C508
Location
Page 1 of 14 CTF5151
47-CRT004-XX0 CRT SOCKET GZS10-2-AC2 1 41-WJ0075-B00 WIRE BARE JUMPER 7.5MM 1 J505 08-0D166H-PW1 ASS'Y - POWER BD 10-0FR104-FBX DIODE FR104 (FAST RECTIFIER) 1 D830 10-0FR104-FBX DIODE FR104 (FAST RECTIFIER) 1 D802 10-0FR104-FBX DIODE FR104 (FAST RECTIFIER) 1 D833 10-1N4148-ABX DIODE 1N4148 (SWITCHING) 1 D805 10-1SS136-ABX DIODE 1SS136 1 D804 10-1SS136-ABX DIODE 1SS136 1 D835 10-79C8V2-DBX DIODE ZENER 8V2 1/2W 5% 1 D839 10-HER108-FBX DIODE HER108 1 D806 10-HS16VC-DBX DIODE 500mW 16HSC 1 D838 10-HS6V2B-DBX DIODE 6V2 500mW 1 D840 11-SC1815-YBX TRANSISTOR 2SC1815Y 1 Q832 11-SC1815-YBX TRANSISTOR 2SC1815Y 1 Q831 11-SC2688-LAX TRANSISTOR 2SC2688L (NPN) 1 Q830 11-SK2996-0AX TRANSISTOR 2SK2996 (MOS) 1 Q801 13-0HPC92-2CP PHOTO COUPLER HPC922-C 1 IC802 13-44608P-40P IC MC44608P40 1 IC801 18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R809 18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% 1 R844 18-CB0332-JNX RES. C.F. 3.3k OHM 1/6W +/-5% 1 R834 18-CB0333-JNX RES. C.F. 33K OHM 1/6W +/-5% 1 R838 18-CB0362-JNX RES. C.F. 3.6K OHM 1/6W +/-5% 1 R807 18-CB0472-JNX RES. C.F. 4.7k OHM 1/6W +/-5% 1 R806 18-CB0622-JNX RES. C.F. 6.2k OHM 1/6W +/-5% 1 R850 18-CD0123-JNX RES. C.F. 12K OHM 1/4W +/-5% 1 R804A 18-CD0220-JNX RES. C.F. 22 OHM 1/4W +/-5% 1 R811A 18-CD0221-JNX RES. C.F. 220 OHM 1/4W +/-5% 1 R833 18-CD0392-JNX RES. C.F. 3.9K OHM 1/4W +/-5% 1 R835 18-CD0471-JNX RES. C.F. 470 OHM 1/4W +/-5% 1 R811 18-CE0479-JNX RES. C.F. 4.7 OHM 1/2W +/-5% 1 R832 18-CE0563-JNX RES. C.F. 56k OHM 1/2W +/-5% 1 R831 18-DD0104-FNX RES. M.F. 0.1M OHM 1/4W +/-1% 1 R804 18-FG0153-JHX RES. M.O. 15k OHM 2W +/-5% 1 R837 18-KF0825-JH3 RES. H.VOLT.CC 8.2M OHM 1W +/-5% 1 R812 20-TR103H-5CX TRIMMER B10K HORIZ TYPE 1 VR830 22-NTC479-XX0 NTC 4.7 OHM +/-18% NTC4.7D2-14 1 RT802 25-382890-M1X CAP. ELEC 150UF 400V +/-20% 30X30 1 C806 25-BCA102-M1X CAP. ELEC 1000 UF 16V +/-20% 1 C849 25-BEB100-M1X CAP. ELEC 10 UF 35V +/-20% 1 C812 25-BJG101-M1X CAP. ELEC 100 UF 160V +/-20% 1 C835 26-ABC221-JZX CAP. CER 220 PF 50V +/-5% SL 1 C841 26-AGK221-KRX CAP. CER 220 PF 250V +/-10% 1 C830 26-AIC472-KBX CAP. CER 4700 PF 500V +/-10% B 1 C807 26-AIC472-KBX CAP. CER 4700 PF 500V +/-10% B 1 C808 26-AIM103-KBX CAP. CER 0.01UF 500V +/-10% B 1 C834 26-AIM103-KBX CAP. CER 0.01UF 500V +/-10% B 1 C805 26-AKK221-KRX CAP. CER 220 PF 1KV +/-10% R 1 C833 26-AMK102-KRX CAP. CER 1000 pF 2KV +/-10% R 1 C815 26-EBP102-KBX CAP. CER 1000 PF 50V +/-10% B 1 C848 26-EBP102-KBX CAP. CER 1000 PF 50V +/-10% B 1 C804A 27-AQT224-MVH CAP. M.PP 0.22 UF 275VAC 20% 1 C801
Page 2 of 14 CTF5151
27-MBC104-J0X CAP. M.P.E 0.1 UF 63V +/-5% 1 C836 27-MBC104-J0X CAP. M.P.E 0.1 UF 63V +/-5% 1 C850 27-MHM104-K0X CAP. METAL P.E. 0.1UF 400V 10% 1 C802A 27-RJP472-J0X CAP. PP 4700 PF 630V +/-5% 1 C809 34-R101K2-1BX COIL CHOKE 100 UH +/-10% 1 L804 34-R330J2-0EX COIL PL - 33 UH +/-5% 1 L843 35-139730-00X FERR. BEAD BF60 2 35-139730-00X FERR. BEAD BF60 2 35-139730-00X FERR. BEAD BF60 2 35-139730-00X FERR. BEAD BF60 2 36-LIF004-XX0 LINE FILTER LCL-2821 1 T801 41-WJ0050-B00 WIRE BARE JUMPER 5MM 1 J800A 41-WJ0050-B00 WIRE BARE JUMPER 5MM 1 J800B 41-WJ0050-B00 WIRE BARE JUMPER 5MM 1 J800C 41-WJ0050-B00 WIRE BARE JUMPER 5MM 1 J800D 41-WJ0050-B00 WIRE BARE JUMPER 5MM 1 J801A 41-WJ0050-B00 WIRE BARE JUMPER 5MM 1 J801B 41-WJ0050-B00 WIRE BARE JUMPER 5MM 1 J801C 41-WJ0050-B00 WIRE BARE JUMPER 5MM 1 J801D 41-WJ0065-B00 WIRE BARE JUMPER 6.5MM 1 J810 41-WJ0075-B00 WIRE BARE JUMPER 7.5MM 1 J809 41-WJ0085-B00 WIRE BARE JUMPER 8.5MM 1 J812 41-WJ0090-B00 WIRE BARE JUMPER 9MM 1 J805 41-WJ0100-B00 WIRE BARE JUMPER 10MM 1 R804B 41-WJ0100-B00 WIRE BARE JUMPER 10MM 1 J822 41-WJ0100-B00 WIRE BARE JUMPER 10MM 1 J827 41-WJ0100-B00 WIRE BARE JUMPER 10MM 1 R807A 41-WJ0105-B00 WIRE BARE JUMPER 10.5MM 1 J824 41-WJ0110-B00 WIRE BARE JUMPER 11MM 2 41-WJ0115-B00 WIRE BARE JUMPER 11.5MM 1 J823 41-WJ0125-B00 WIRE BARE JUMPER 12.5MM 1 J804 41-WJ0125-B00 WIRE BARE JUMPER 12.5MM 1 J808 41-WJ0125-B00 WIRE BARE JUMPER 12.5MM 1 J832 41-WJ0145-B00 WIRE BARE JUMPER 14.5MM 1 J826 41-WJ0150-B00 WIRE BARE JUMPER 15MM 1 J802 41-WJ0150-B00 WIRE BARE JUMPER 15MM 1 J821 41-WJ0160-B00 WIRE BARE JUMPER 16MM 1 J825 41-WJ0170-B00 WIRE BARE JUMPER 17MM 1 J830 41-WJ0175-B00 WIRE BARE JUMPER 17.5MM 1 J807 41-WJ0175-B00 WIRE BARE JUMPER 17.5MM 1 J831 41-WJ0190-B00 WIRE BARE JUMPER 19MM 1 J811 41-WJ0195-B00 WIRE BARE JUMPER 19.5MM 1 J828 41-WJ0195-B00 WIRE BARE JUMPER 19.5MM 1 J829 46-10962W-02X PIN BASE *2 TJC2-2A 1 P801 46-28559W-02X PIN BASE *2 TJC1-2A 1 P802 50-02000D-1VS7 FUSE 250V/2A 1 F801 64-B30100-104 M/C SCREW B 3 X 10 1 66-20516X-0B0 FUSE HOLDER 2 66-343730-0B0 HOLLOW RIVET 1.6X3.0XL3.2 2 66-343730-0B0 HOLLOW RIVET 1.6X3.0XL3.2 4 66-343730-0B0 HOLLOW RIVET 1.6X3.0XL3.2 3 66-343730-0B0 HOLLOW RIVET 1.6X3.0XL3.2 6 71-DYP000-WX1 LABEL 1
Page 3 of 14 CTF5151
90-209770-SR1 SILICONE GREASE G-746 0.0006 66-382330-0B7 RIVET 2.0X3.7X3.5 8 67-H35984-5A0 HEAT SINK 1 18-RG0228-JHX RES. WIRE ROUND 0.22 OHM 2W +/-5% 1 R810 26-EBP101-JCX CAP. CER 100PF 50V +/-5% CH 1 C814 25-BCA102-M1X CAP. ELEC 1000 UF 16V +/-20% 1 C832 26-EBP471-JCX CAP. CER 470PF 50V +/-5% CH 1 C851 10-0RU3AM-F0X DIODE RU3AM (FAST RECOVERY) 1 D831 26-EBP103-ZFX CAP. CER 0.01UF 50V +80/-20% F 1 C813 26-EBP103-ZFX CAP. CER 0.01UF 50V +80/-20% F 1 C831 26-EBP103-ZFX CAP. CER 0.01UF 50V +80/-20% F 1 C842 10-0RL255-EBX DIODE RL255 (POWER RECTIFIER) 1 D815 10-0RL255-EBX DIODE RL255 (POWER RECTIFIER) 1 D816 10-0RL255-EBX DIODE RL255 (POWER RECTIFIER) 1 D817 10-0RL255-EBX DIODE RL255 (POWER RECTIFIER) 1 D818 22-PTC200-XX1 PTC 20 OHM +/-20% 1 RT801 36-TRF133-AX0 TRANSFORMER CONV.BCK-3546 1 T803 18-GJ0103-KUX RES. CEMENT 10K OHM 5W +/-10% 1 R836 18-GJ0223-KUX RES. WIRE ROUND 22k OHM 5W +/-10% 1 R808 26-APK102-ME4 CAP. CER 1000PF 400VAC+/-20% E 1 C816 26-APK102-ME4 CAP. CER 1000PF 400VAC+/-20% E 1 C803 26-APK102-ME4 CAP. CER 1000PF 400VAC+/-20% E 1 C804 25-BDA471-M1X CAP. ELEC 470 UF 25V +/-20% 1 C843 08-0D181H-FC2 ASS'Y - FRONT CAB(LS-PM) 02-GND021-XX0 ASS"Y - CRT GND WIRE&HOUSE 1 36-DEG210-BX3 DEGAUSSING COIL 2500mm 1 42-51208D-AX1 SPEAKER 5W 8 OHM 1 W601 42-51208D-AX1 SPEAKER 5W 8 OHM 1 W602 44-21RFLS-PM2A 21"CRT A51LYZ095X90 1 CRT01 46-27250H-02X HS 2P24 450/5 F/W TJC3-02H 1 46-37144H-02X HS 2P 2468#22 450mm S11-2Y/7mm 1 54-113970-0U0 PVC TUBE #5 L=ROLL 0.32 54-128700-0X0 FIBRE WASHER 3.3 X 10 X 0.8 1 54-205140-000 SPACER CRT MOUNTING T=2MM 4 55-D181FC-0AN FRONT CABINET 1 56-396460-0HA DECORATIVE LENS 1 56-D181FB-0HA PUSH BUTTON 1 56-D181LS-0HC LENS 1 56-D181PK-0HA POWER KNOB 1 59-130460-00X RUBBER PAD (25mmX7mm) 2 62-345690-1UN ASSISTANT RAIL HIPS-KINGFA 113 (VO) 1 63-B30080-AB4 S/T SCREW B 3 X 8 AB 1 63-S30100-AB4 S/T SCREW S 3 X 10 AB 2 63-B30100-AB4 S/T SCREW B 3 X 10 AB 3 63-W30100-AB4 S/T SCREW W 3 X 10 AB 8 63-W30100-AB4 S/T SCREW W 3 X 10 AB 2 63-W30120-AB4 S/T SCREW W 3 X 12 AB 22 65-A60200-20E WASHER 6 X 20 X 2MM 4 67-X12668-0E0 SPRING CRT 6mmX40mmX0.5mm 1 67-X24970-0E0 SPRING 1 57-10654X-00F cable ties(2.5mmX95mm) 10 54-314740-0X0 CRT FIBRE SHEET (22mmX22mmX0.8mm) 8 46-27688H-04X HS 4P A/B 400/13 RBGW TJC1/4Y 1
Page 4 of 14 CTF5151
18-CB0225-JNX RES. C.F. 2.2M OHM 1/6W +/-5% 1 R1 41-BF0450-0BB WIRE UL1007#24 450 BLACK 1 FOR R1 67-105580-0E2 SOLDERING TAG 1 FOR R1 54-343300-0X0 HEAT SHRINKABLE TUBE 3 X 0.25 0.02 63-H60250-AB4 S/T SCREW H 6 X 25 AB 4 65-A35120-12E WASHER 2 55-D181MC-1AN MIDDLE CABINET 1 63-W30080-AB4 S/T SCREW W 3 X 8 AB 1 56-C276LS-0HC LENS 1 08-0D181H-KEY ASS'Y - KEY BD 18-CB0152-JNX RES. C.F. 1.5k OHM 1/6W +/-5% 1 R022A 18-CB0182-JNX RES. C.F. 1.8K OHM 1/6W +/-5% 1 R023A 18-CB0272-JNX RES. C.F. 2.7k OHM 1/6W +/-5% 1 R024A 18-CB0432-JNX RES. C.F. 4.3K OHM 1/6W +/-5% 1 R025A 18-CB0470-JNX RES. C.F. 47 OHM 1/6W +/-5% 1 R013A 18-CB0622-JNX RES. C.F. 6.2k OHM 1/6W +/-5% 1 R026A 25-HCB220-M1X CAP. ELEC 22 UF 16V +/-20% 1 C011A 40-21181H-KEA P.C.B. KEY BD 1 41-WJ0050-B00 WIRE BARE JUMPER 5MM 1 R016A 41-WJ0065-B00 WIRE BARE JUMPER 6.5MM 1 R018A 46-31789H-02X HS 2P22 400 MM TJC3-2Y/SCN-2Y 1 46-31789H-02X HS 2P22 400 MM TJC3-2Y/SCN-2Y 1 46-28553H-04X HS 4P24 400 F/W TJC3-4Y SCN-4Y 1 48-TAC001-XX0 TACT SWITCH 1 S001A 48-TAC001-XX0 TACT SWITCH 1 S002A 48-TAC001-XX0 TACT SWITCH 1 S003A 48-TAC001-XX0 TACT SWITCH 1 S004A 48-TAC001-XX0 TACT SWITCH 1 S005A 48-TAC001-XX0 TACT SWITCH 1 S006A 02-IRR001-XX1 IR RECEIVER MODULE HRM380017 1 IR001 08-0D181H-RC2 ASS'Y - REAR CAB(94V0,RCA) 54-114000-00X FELT TAPE (150mmX19mmX0.3mm) 7 55-D189RC-1AN REAR CABINET 1 58-D106SI-3UI INLAY SIDE AV 1 58-D181MP-0UI PLATE MODEL NO. 1 58-D192RI-8UI INLAY REAR AV 1 59-130460-00X RUBBER PAD (25mmX7mm) 2 62-314340-0UN FBT SUPPORTER HIPS-KINGFA 113 (VO) 1 62-378080-1UN TRACK 1 62-389620-0UD POWER LINE BLOCK 1 63-B40200-AB2 S/T SCREW B 4 X 20 AB 6 63-F30100-BT3 S/T SCREW F 3 X 10 BT (BLACK) 2 63-W30100-AB4 S/T SCREW W 3 X 10 AB 2 63-W30100-AB4 S/T SCREW W 3 X 10 AB 2 63-W30100-AB4 S/T SCREW W 3 X 10 AB 2 08-0D181H-SW3 ASS'Y - POWER SWITCH (SAA) 14-LED03R-XX0 LED RED HFR303J(R)(3mm) 1 D001 46-39318H-02X HS 2P 1617#22 300 TJC-1-26/VH-3Y 1 46-33079W-02X PIN BASE *2 TJC3-2A 1 46-35063W-03X PIN BASE *3 VH-3A 1 48-POW001-AX0 SWITCH POWER 1 SW801 46-35063W-03X PIN BASE *3 VH-3A 1 P801 51-JC0243-0PN01 POWER CORD 1
Page 5 of 14 CTF5151
66-382330-0B7 RIVET 2.0X3.7X3.5 4 40-21181H-SWA0X P.C.B. BD 1 66-382330-0B7 RIVET 2.0X3.7X3.5 4 41-WJ0060-B00 WIRE BARE JUMPER 6mm 1 J001 41-WJ0060-B00 WIRE BARE JUMPER 6mm 1 J002 57-LEDK10-000 LED BRACKET 1 08-0D276H-AVY ASS'Y - SIDE AV BD 40-21189H-SIA P.C.B. SIDE AV BD 1 46-30790H-06X HS 6P24 400 TJC3-6Y/SCN-6Y 1 47-RCA001-XX0 RCA SOCKET AV-8.4-6 (RED) 1 P1103 47-RCA002-XX0 RCA SOCKET AV-8.4-6 (WHITE) 1 P1102 47-RCA003-XX0 RCA SOCKET AV-8.4-6 (YELLOW) 1 P1101 08-D1814H-PA1 ASS'Y - PACKING PARTS(23) 72-D1814H-E23 OPERATION MANUAL 1 74-022032-6WE POLYBAG (23cmX34cmX0.06mm) 1 74-120120-80HAA POLYBAG W/SUFFOCATION WARNING 1 75-D181LL-CC0 POLYFOAM "LL" 1 75-D181LR-CC0 POLYFOAM "LR" 1 75-D181UL-CC0 POLYFOAM "UL" 1 75-D181UR-CC0 POLYFOAM "UR" 1 76-A21181-0AT CARTON BOX 1 49-382550-BAT BATTERY R06P AA 1.5V 5# 2 08-HS46F0-M28A ASS'Y - IR HANDSET(4H) RC951 13-00AS12-13B IC AS1213B 1 IC1501 14-IRE05B-XX0 IR EMITTING DIODE TSAL6200 1 D1501 18-CB0221-JNX RES. C.F. 220 OHM 1/6W +/-5% 1 R1502 18-CB0229-JNX RES. C.F. 2.2 OHM 1/6W +/-5% 1 R1501 25-HBB479-M1X CAP. ELEC 4.7 UF 10V +/-20% 1 C1502 26-EBP101-JCX CAP. CER 100PF 50V +/-5% CH 1 C1503 26-EBP101-JCX CAP. CER 100PF 50V +/-5% CH 1 C1504 40-113SLF-RMB P.C.B. REMOTE HANDSET BD 1 41-WJ0070-B00 WIRE BARE JUMPER 7MM 1 J1501 45-COS455-KY1 CERAMIC RESONATOR 455KHz 1 X1501 49-HS46F0-00X RUBBER PAD KEYS 1 55-HS46FB-0HA CASE LOWER - REMOTE HANDSET 1 55-HS46FD-0HA DOOR BATT. - REMOTE HANDSET 1 55-HS46FT-0HA CASE UPPER - REMOTE HANDSET 1 58-HS46F3-7UI INLAY REMOTE HANDSET 1 63-B26060-BT2 S/T SCREW B 2.6 X 6 BT 1 67-X26968-0E2 BATT. TERMINAL (+/-) 1 67-X31028-0E2 SPRING - BATTERY (-) 1 67-X31029-0E2 SPRING - BATTERY (+) 1 74-009022-60C POLYBAG HANDSET (9CMX22CM) 1 11-0BC337-0BX TRANSISTOR (NPN) BC337-40 1 Q1501 08-D1814H-MA2 ASS'Y - MAIN BD 10-0FR104-FBX DIODE FR104 (FAST RECTIFIER) 1 D401 10-0FR104-FBX DIODE FR104 (FAST RECTIFIER) 1 D402 10-1N4001-EBX DIODE 1N4001 (RECTIFIER) 1 D301 10-1N4002-EBX DIODE 1N4002 (RECTIFIER) 1 D405 10-1N4148-ABX DIODE 1N4148 (SWITCHING) 1 D005 10-1N4148-ABX DIODE 1N4148 (SWITCHING) 1 D206 10-1N4148-ABX DIODE 1N4148 (SWITCHING) 1 D006 10-1N4148-ABX DIODE 1N4148 (SWITCHING) 1 D007
Page 6 of 14 CTF5151
10-1N4148-ABX DIODE 1N4148 (SWITCHING) 1 D601 10-1N4148-ABX DIODE 1N4148 (SWITCHING) 1 D008 10-1N4148-ABX DIODE 1N4148 (SWITCHING) 1 D002 10-79C5V1-DBX DIODE ZENER 5V1 1/2W 5% 1 D001 10-79C6V2-DBX DIODE ZENER 6V2 1/2W 5% 1 D404 11-2N3904-0BX TRANSISTOR 2N3904 (NPN) 1 Q103 11-C124ES-0BX TRANSISTOR PDTC124ES (NPN) 1 Q604 11-C144ES-0BX TRANSISTOR PDTC144ES (NPN) 1 Q606 11-C144ES-0BX TRANSISTOR PDTC144ES (NPN) 1 Q607 11-C144ES-0BX TRANSISTOR PDTC144ES (NPN) 1 Q211 11-DD1555-0AX TRANSISTOR 3DD1555 1 Q402 11-SA1015-YBX TRANSISTOR 2SA1015Y 1 Q003 11-SA1015-YBX TRANSISTOR 2SA1015Y 1 Q202 11-SA1015-YBX TRANSISTOR 2SA1015Y 1 Q005 11-SA1015-YBX TRANSISTOR 2SA1015Y 1 Q209 11-SA1015-YBX TRANSISTOR 2SA1015Y 1 Q210 11-SA1015-YBX TRANSISTOR 2SA1015Y 1 Q605 11-SC1815-YBX TRANSISTOR 2SC1815Y 1 Q203 11-SC1815-YBX TRANSISTOR 2SC1815Y 1 Q002 11-SC1815-YBX TRANSISTOR 2SC1815Y 1 Q208 11-SC1815-YBX TRANSISTOR 2SC1815Y 1 Q905 11-SC1815-YBX TRANSISTOR 2SC1815Y 1 Q609 11-SC1815-YBX TRANSISTOR 2SC1815Y 1 Q603 11-SC1815-YBX TRANSISTOR 2SC1815Y 1 Q608 11-SC2482-0BX TRANSISTOR 2SC2482 1 Q401 11-SC3779-DBX TRANSISTOR 2SC3779D (RF AMPL) 1 Q101 13-000040-66P IC 4066 (ANALOG SW.) 1 IC603 13-00M24C-08P IC EEPROM 8K M24C08 1 IC001 13-L7809C-VAP IC L7809CV 1 IC401 13-LA7840-00S IC LA7840 1 IC301 13-TDA705-7AS IC TDA7057AQ (R/L AUDIO O/P) 1 IC601 18-CB0101-JNX RES. C.F. 100 OHM 1/6W +/-5% 1 R001A 18-CB0101-JNX RES. C.F. 100 OHM 1/6W +/-5% 1 R033 18-CB0101-JNX RES. C.F. 100 OHM 1/6W +/-5% 1 R034 18-CB0101-JNX RES. C.F. 100 OHM 1/6W +/-5% 1 R047 18-CB0101-JNX RES. C.F. 100 OHM 1/6W +/-5% 1 R218 18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R005 18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R013 18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R015 18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R029 18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R116 18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R415 18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R604A 18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R610 18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R622 18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R637 18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R901 18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R912 18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R961 18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R962 18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% 1 R009 18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% 1 R001 18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% 1 R019
Page 7 of 14 CTF5151
18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% 1 R030 18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% 1 R032 18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% 1 R611 18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% 1 R614 18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% 1 R406 18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% 1 R017 18-CB0104-JNX RES. C.F. 100K OHM 1/6W +/-5% 1 R031 18-CB0122-JNX RES. C.F. 1.2k OHM 1/6W +/-5% 1 R010 18-CB0123-JNX RES. C.F. 12k OHM 1/6W +/-5% 1 R212 18-CB0151-JNX RES. C.F. 150 OHM 1/6W +/-5% 1 R217 18-CB0151-JNX RES. C.F. 150 OHM 1/6W +/-5% 1 R115 18-CB0151-JNX RES. C.F. 150 OHM 1/6W +/-5% 1 R117 18-CB0153-JNX RES. C.F. 15k OHM 1/6W +/-5% 1 R111 18-CB0153-JNX RES. C.F. 15k OHM 1/6W +/-5% 1 R112 18-CB0183-JNX RES. C.F. 18k OHM 1/6W +/-5% 1 R414 18-CB0221-JNX RES. C.F. 220 OHM 1/6W +/-5% 1 R201 18-CB0221-JNX RES. C.F. 220 OHM 1/6W +/-5% 1 R202 18-CB0221-JNX RES. C.F. 220 OHM 1/6W +/-5% 1 R203 18-CB0222-JNX RES. C.F. 2.2k OHM 1/6W +/-5% 1 R016 18-CB0222-JNX RES. C.F. 2.2k OHM 1/6W +/-5% 1 R042 18-CB0223-JNX RES. C.F. 22k OHM 1/6W +/-5% 1 R014 18-CB0223-JNX RES. C.F. 22k OHM 1/6W +/-5% 1 R215 18-CB0223-JNX RES. C.F. 22k OHM 1/6W +/-5% 1 R633 18-CB0223-JNX RES. C.F. 22k OHM 1/6W +/-5% 1 R636 18-CB0224-JNX RES. C.F. 220k OHM 1/6W +/-5% 1 R206 18-CB0271-JNX RES. C.F. 270 OHM 1/6W +/-5% 1 R233 18-CB0273-JNX RES. C.F. 27k OHM 1/6W +/-5% 1 R922A 18-CB0303-JNX RES. C.F. 30K OHM 1/6W +/-5% 1 R205 18-CB0331-JNX RES. C.F. 330 OHM 1/6W +/-5% 1 R219 18-CB0331-JNX RES. C.F. 330 OHM 1/6W +/-5% 1 R228 18-CB0331-JNX RES. C.F. 330 OHM 1/6W +/-5% 1 R227 18-CB0331-JNX RES. C.F. 330 OHM 1/6W +/-5% 1 R220 18-CB0332-JNX RES. C.F. 3.3k OHM 1/6W +/-5% 1 R218A 18-CB0332-JNX RES. C.F. 3.3k OHM 1/6W +/-5% 1 R046 18-CB0333-JNX RES. C.F. 33K OHM 1/6W +/-5% 1 R110 18-CB0333-JNX RES. C.F. 33K OHM 1/6W +/-5% 1 R602 18-CB0333-JNX RES. C.F. 33K OHM 1/6W +/-5% 1 R922 18-CB0333-JNX RES. C.F. 33K OHM 1/6W +/-5% 1 R232 18-CB0392-JNX RES. C.F. 3.9K OHM 1/6W +/-5% 1 R213 18-CB0392-JNX RES. C.F. 3.9K OHM 1/6W +/-5% 1 R307 18-CB0392-JNX RES. C.F. 3.9K OHM 1/6W +/-5% 1 R214 18-CB0392-JNX RES. C.F. 3.9K OHM 1/6W +/-5% 1 R007 18-CB0470-JNX RES. C.F. 47 OHM 1/6W +/-5% 1 R002 18-CB0471-JNX RES. C.F. 470 OHM 1/6W +/-5% 1 R119 18-CB0471-JNX RES. C.F. 470 OHM 1/6W +/-5% 1 R238 18-CB0471-JNX RES. C.F. 470 OHM 1/6W +/-5% 1 R243 18-CB0471-JNX RES. C.F. 470 OHM 1/6W +/-5% 1 R401 18-CB0471-JNX RES. C.F. 470 OHM 1/6W +/-5% 1 R923 18-CB0471-JNX RES. C.F. 470 OHM 1/6W +/-5% 1 R020 18-CB0472-JNX RES. C.F. 4.7k OHM 1/6W +/-5% 1 R244 18-CB0472-JNX RES. C.F. 4.7k OHM 1/6W +/-5% 1 R308 18-CB0472-JNX RES. C.F. 4.7k OHM 1/6W +/-5% 1 R612 18-CB0472-JNX RES. C.F. 4.7k OHM 1/6W +/-5% 1 R613
Page 8 of 14 CTF5151
18-CB0472-JNX RES. C.F. 4.7k OHM 1/6W +/-5% 1 R011 18-CB0473-JNX RES. C.F. 47K OHM 1/6W +/-5% 1 R109 18-CB0473-JNX RES. C.F. 47K OHM 1/6W +/-5% 1 R216 18-CB0473-JNX RES. C.F. 47K OHM 1/6W +/-5% 1 R245 18-CB0473-JNX RES. C.F. 47K OHM 1/6W +/-5% 1 R924 18-CB0473-JNX RES. C.F. 47K OHM 1/6W +/-5% 1 R927 18-CB0473-JNX RES. C.F. 47K OHM 1/6W +/-5% 1 R925 18-CB0473-JNX RES. C.F. 47K OHM 1/6W +/-5% 1 R926 18-CB0560-JNX RES. C.F. 56 OHM 1/6W +/-5% 1 R114 18-CB0561-JNX RES. C.F. 560 OHM 1/6W +/-5% 1 R209 18-CB0564-JNX RES. C.F. 560K OHM 1/6W +/-5% 1 R210 18-CB0681-JNX RES. C.F. 680 OHM 1/6W +/-5% 1 R028 18-CB0683-JNX RES. C.F. 68K OHM 1/6W +/-5% 1 R211 18-CB0750-JNX RES. C.F. 75 OHM 1/6W +/-5% 1 R904 18-CB0820-JNX RES. C.F. 82 OHM 1/6W +/-5% 1 R914 18-CB0821-JNX RES. C.F. 820 OHM 1/6W +/-5% 1 R118 18-CB0822-JNX RES. C.F. 8.2K OHM 1/6W +/-5% 1 R237 18-CB0822-JNX RES. C.F. 8.2K OHM 1/6W +/-5% 1 R006 18-CB0822-JNX RES. C.F. 8.2K OHM 1/6W +/-5% 1 R312 18-CD0100-JNX RES. C.F. 10 OHM 1/4W +/-5% 1 R027 18-CD0479-JNX RES. C.F. 4.7 OHM 1/4W +/-5% 1 R640 18-CD0562-JNX RES. C.F. 5.6K OHM 1/4W +/-5% 1 R310 18-CD0822-JNX RES. C.F. 8.2K OHM 1/4W +/-5% 1 R309 18-CE0109-JNX RES. C.F. 1 OHM 1/2W +/-5% 1 R314 18-CE0331-JNX RES. C.F. 330 OHM 1/2W +/-5% 1 R409 18-CE0560-JNX RES. C.F. 56 OHM 1/2W +/-5% 1 R317 18-EF0109-JGX RES. FUS. 1 OHM 1W +/-5% (LS) 1 R403 18-EF0109-JGX RES. FUS. 1 OHM 1W +/-5% (LS) 1 R405 18-EF0109-JGX RES. FUS. 1 OHM 1W +/-5% (LS) 1 R418 18-EG0339-JHX RES. FUS. 3.3 OHM 2W +/-5% 1 R407 18-FF0103-JGX RES. M.O. 10k OHM 1W +/-5% 1 R410 18-FF0472-JGX RES. M.O. 4.7K OHM 1W +/-5% 1 R441 18-FF0123-JGX RES. M.O. 12k OHM 1W +/-5% 1 R408 18-FF0221-JGX RES. M.O. 220 OHM 1W +/-5% 1 R336 18-FF0560-JGX RES. M.O. 56 OHM 1W +/-5% 1 R108 18-FG0109-JHX RES. M.O. 1 OHM 2W +/-5% 1 R313 18-FG0153-JHX RES. M.O. 15k OHM 2W +/-5% 1 R404 25-BCB100-M1X CAP. ELEC 10 UF 16V +/-20% 1 C004 25-BCB100-M1X CAP. ELEC 10 UF 16V +/-20% 1 C023 25-BCB100-M1X CAP. ELEC 10 UF 16V +/-20% 1 C227 25-BCB100-M1X CAP. ELEC 10 UF 16V +/-20% 1 C242 25-BCB100-M1X CAP. ELEC 10 UF 16V +/-20% 1 C907 25-BCB100-M1X CAP. ELEC 10 UF 16V +/-20% 1 C908 25-BCB100-M1X CAP. ELEC 10 UF 16V +/-20% 1 C220 25-BCB101-M1X CAP. ELEC 100 UF 16V +/-20% 1 C016 25-BCB101-M1X CAP. ELEC 100 UF 16V +/-20% 1 C240 25-BCB101-M1X CAP. ELEC 100 UF 16V +/-20% 1 C605 25-BCB101-M1X CAP. ELEC 100 UF 16V +/-20% 1 C211 25-BCB101-M1X CAP. ELEC 100 UF 16V +/-20% 1 C416 25-BCB101-M1X CAP. ELEC 100 UF 16V +/-20% 1 C009 25-BCB220-M1X CAP. ELEC 22 UF 16V +/-20% 1 C909 25-BCB220-M1X CAP. ELEC 22 UF 16V +/-20% 1 C305 25-BCB221-M1X CAP. ELEC 220 UF 16V +/-20% 1 C232
Page 9 of 14 CTF5151
25-BCB221-M1X CAP. ELEC 220 UF 16V +/-20% 1 C635 25-BCB221-M1X CAP. ELEC 220 UF 16V +/-20% 1 C903 25-BCB470-M1X CAP. ELEC 47 UF 16V +/-20% 1 C423 25-BCB470-M1X CAP. ELEC 47 UF 16V +/-20% 1 C202 25-BCB470-M1X CAP. ELEC 47 UF 16V +/-20% 1 C108 25-BCB470-M1X CAP. ELEC 47 UF 16V +/-20% 1 C081 25-BCB470-M1X CAP. ELEC 47 UF 16V +/-20% 1 C418 25-BCB471-M1X CAP. ELEC 470 UF 16V +/-20% 1 C217 25-BDA102-M1X CAP. ELEC 1000 UF 25V +/-20% 1 C308 25-BDA471-M1X CAP. ELEC 470 UF 25V +/-20% 1 C604 25-BEA221-M1X CAP. ELEC 220 UF 35V +/-20% 1 C302 25-BEA471-M1X CAP. ELEC 470 UF 35V +/-20% 1 C413 25-BEB101-M1X CAP. ELEC 100 UF 35V +/-20% 1 C303 25-BFB109-M1X CAP. ELEC 1 UF 50V +/-20% 1 C208 25-BFB109-M1X CAP. ELEC 1 UF 50V +/-20% 1 C622 25-BFB109-M1X CAP. ELEC 1 UF 50V +/-20% 1 C624 25-BFB109-M1X CAP. ELEC 1 UF 50V +/-20% 1 C203 25-BFB109-M1X CAP. ELEC 1 UF 50V +/-20% 1 C214 25-BFB229-M1X CAP. ELEC 2.2 UF 50V +/-20% 1 C008A 25-BFB478-M1X CAP. ELEC 0.47 UF 50V +/-20% 1 C218 25-BFB479-M1X CAP. ELEC 4.7 UF 50V +/-20% 1 C307 25-BFB479-M1X CAP. ELEC 4.7 UF 50V +/-20% 1 C101 25-BFB479-M1X CAP. ELEC 4.7 UF 50V +/-20% 1 C103 25-BFB479-M1X CAP. ELEC 4.7 UF 50V +/-20% 1 C216 25-BFB479-M1X CAP. ELEC 4.7 UF 50V +/-20% 1 C601 25-BFB479-M1X CAP. ELEC 4.7 UF 50V +/-20% 1 C602 25-BFB479-M1X CAP. ELEC 4.7 UF 50V +/-20% 1 C603 25-BHB100-M1X CAP. ELEC 10 UF 100V +/-20% 1 C420 25-BLA100-M1X CAP. ELEC 10 UF 250V +/-20% 1 C408 26-AIC102-KBX CAP. CER 1000 PF 500V +/-10% B 1 C401 26-AIC102-KBX CAP. CER 1000 PF 500V +/-10% B 1 C404 26-AIC332-KBX CAP. CER 3300 PF 500V +/-10% B 1 C407 26-AIC391-KBX CAP. CER 390 PF 500V +/-10% B 1 C409 26-AIC391-KBX CAP. CER 390 PF 500V +/-10% B 1 C412 26-EBP100-JCX CAP. CER 10PF 50V +/-5% CH 1 C304 26-EBP102-KBX CAP. CER 1000 PF 50V +/-10% B 1 C112 26-EBP102-KBX CAP. CER 1000 PF 50V +/-10% B 1 C219 26-EBP102-KBX CAP. CER 1000 PF 50V +/-10% B 1 C306 26-EBP103-ZFX CAP. CER 0.01UF 50V +80/-20% F 1 C212 26-EBP103-ZFX CAP. CER 0.01UF 50V +80/-20% F 1 C109 26-EBP103-ZFX CAP. CER 0.01UF 50V +80/-20% F 1 C019 26-EBP103-ZFX CAP. CER 0.01UF 50V +80/-20% F 1 C114 26-EBP103-ZFX CAP. CER 0.01UF 50V +80/-20% F 1 C024 26-EBP103-ZFX CAP. CER 0.01UF 50V +80/-20% F 1 C201 26-EBP103-ZFX CAP. CER 0.01UF 50V +80/-20% F 1 C241 26-EBP103-ZFX CAP. CER 0.01UF 50V +80/-20% F 1 C005 26-EBP103-ZFX CAP. CER 0.01UF 50V +80/-20% F 1 C228 26-EBP103-ZFX CAP. CER 0.01UF 50V +80/-20% F 1 C230 26-EBP103-ZFX CAP. CER 0.01UF 50V +80/-20% F 1 C233 26-EBP103-ZFX CAP. CER 0.01UF 50V +80/-20% F 1 C425 26-EBP103-ZFX CAP. CER 0.01UF 50V +80/-20% F 1 C417 26-EBP103-ZFX CAP. CER 0.01UF 50V +80/-20% F 1 C110 26-EBP103-ZFX CAP. CER 0.01UF 50V +80/-20% F 1 C239
Page 10 of 14 CTF5151
26-EBP103-ZFX CAP. CER 0.01UF 50V +80/-20% F 1 C020 26-EBP103-ZFX CAP. CER 0.01UF 50V +80/-20% F 1 C017 26-EBP103-ZFX CAP. CER 0.01UF 50V +80/-20% F 1 C636 26-EBP103-ZFX CAP. CER 0.01UF 50V +80/-20% F 1 C931 26-EBP103-ZFX CAP. CER 0.01UF 50V +80/-20% F 1 C135 26-EBP103-ZFX CAP. CER 0.01UF 50V +80/-20% F 1 C082 26-EBP103-ZFX CAP. CER 0.01UF 50V +80/-20% F 1 C221 26-EBP181-JCX CAP. CER 180PF 50V +/-5% CH 1 C207 26-EBP221-JCX CAP. CER 220PF 50V +/-5% CH 1 C007 26-EBP221-JCX CAP. CER 220PF 50V +/-5% CH 1 C104 26-EBP221-JCX CAP. CER 220PF 50V +/-5% CH 1 C427 26-EBP270-JCX CAP. CER 27PF 50V +/-5% CH 1 C010 26-EBP270-JCX CAP. CER 27PF 50V +/-5% CH 1 C011 26-EBP331-JCX CAP. CER 330PF 50V +/-5% CH 1 C006 26-EBP331-JCX CAP. CER 330PF 50V +/-5% CH 1 C003 26-EBP390-JCX CAP. CER 39PF 50V +/-5% CH 1 C021 26-EBP390-JCX CAP. CER 39PF 50V +/-5% CH 1 C022 27-AGR274-JSX CAP. M.PP 0.27UF 250V +/-5% S 1 C421 27-AGQ563-J0X CAP. M.PP 0.056 UF 250V +/-5% 1 C410 27-ALR103-J0X CAP. M.PP 0.01 UF 1.6KV +/-5% 1 C402 27-MBC104-J0X CAP. M.P.E 0.1 UF 63V +/-5% 1 C106 27-MBC104-J0X CAP. M.P.E 0.1 UF 63V +/-5% 1 C301 27-MBC104-J0X CAP. M.P.E 0.1 UF 63V +/-5% 1 C309 27-MBC104-J0X CAP. M.P.E 0.1 UF 63V +/-5% 1 C610 27-PBA224-J0X CAP. P.E 0.22UF 63V +/-5% 1 C105 27-PBC103-J0X CAP. P.E. 0.01UF 63V +/-5% 1 C215 27-PBC152-J0X CAP. P.E 0.0015UF 63V +/-5% 1 C209 27-PBC222-J0X CAP. P.E 0.0022UF 63V +/-5% 1 C213 27-PBC222-J0X CAP. P.E 0.0022UF 63V +/-5% 1 C204 27-PBC272-J0X CAP. P.E 0.0027UF 63V +/-5% 1 C210 27-PBC472-J0X CAP. P.E 0.0047UF 63V +/-5% 1 C607 27-PBC472-J0X CAP. P.E 0.0047UF 63V +/-5% 1 C608 27-PBC473-J0X CAP. P.E 0.047 UF 63V +/-5% 1 C107 27-PBC562-J0X CAP. P.E 0.0056UF 63V +/-5% 1 C422 27-PBC822-J0X CAP. P.E 0.0082UF 63V +/-5% 1 C235 34-A109K0-1IX COIL CHOKE 1 UH +/-10% 1 L103 34-R100J2-0EX COIL PL - 10 UH +/-5% 1 L002 34-R120J2-0EX COIL PL - 12 UH +/-5% 1 L204 34-R220J2-0EX COIL PL - 22 UH +/-5% 1 L208 34-R220J2-0EX COIL PL - 22 UH +/-5% 1 L201 34-R220J2-0EX COIL PL - 22 UH +/-5% 1 L207 34-R330J2-0EX COIL PL - 33 UH +/-5% 1 L080 36-HDR001-AX1 TRANSFOR HOR. DRIVE (MAGNETIC CORE) 1 T401 36-LIN500-XX1 COIL LINEARITY 50 UH 1 L412 36-WID960-XX1 COIL WIDTH 96 UH 1 L411 37-SC2502-84C0X FLYBACK BSC25-0284C 1 T402 41-WJ0050-B00 WIRE BARE JUMPER 5MM 1 J411 41-WJ0050-B00 WIRE BARE JUMPER 5MM 1 J412 41-WJ0050-B00 WIRE BARE JUMPER 5MM 1 J420 41-WJ0050-B00 WIRE BARE JUMPER 5MM 1 L101 41-WJ0050-B00 WIRE BARE JUMPER 5MM 1 L202 41-WJ0055-B00 WIRE BARE JUMPER 5.5 MM 1 J008 41-WJ0060-B00 WIRE BARE JUMPER 6mm 1 C243
Page 11 of 14 CTF5151
41-WJ0060-B00 WIRE BARE JUMPER 6mm 1 C915 41-WJ0060-B00 WIRE BARE JUMPER 6mm 1 J010 41-WJ0060-B00 WIRE BARE JUMPER 6mm 1 J101 41-WJ0060-B00 WIRE BARE JUMPER 6mm 1 J104A 41-WJ0060-B00 WIRE BARE JUMPER 6mm 1 J107 41-WJ0060-B00 WIRE BARE JUMPER 6mm 1 J109 41-WJ0060-B00 WIRE BARE JUMPER 6mm 1 J110 41-WJ0060-B00 WIRE BARE JUMPER 6mm 1 J210 41-WJ0060-B00 WIRE BARE JUMPER 6mm 1 J218 41-WJ0060-B00 WIRE BARE JUMPER 6mm 1 J222 41-WJ0060-B00 WIRE BARE JUMPER 6mm 1 J226 41-WJ0060-B00 WIRE BARE JUMPER 6mm 1 J406 41-WJ0060-B00 WIRE BARE JUMPER 6mm 1 J421 41-WJ0060-B00 WIRE BARE JUMPER 6mm 1 J605 41-WJ0060-B00 WIRE BARE JUMPER 6mm 1 J901A 41-WJ0060-B00 WIRE BARE JUMPER 6mm 1 J915 41-WJ0060-B00 WIRE BARE JUMPER 6mm 1 J916 41-WJ0060-B00 WIRE BARE JUMPER 6mm 1 J919 41-WJ0060-B00 WIRE BARE JUMPER 6mm 1 R008 41-WJ0060-B00 WIRE BARE JUMPER 6mm 1 R012 41-WJ0060-B00 WIRE BARE JUMPER 6mm 1 R200 41-WJ0060-B00 WIRE BARE JUMPER 6mm 1 R917 41-WJ0065-B00 WIRE BARE JUMPER 6.5MM 1 J011 41-WJ0065-B00 WIRE BARE JUMPER 6.5MM 1 J208 41-WJ0065-B00 WIRE BARE JUMPER 6.5MM 1 J305 41-WJ0065-B00 WIRE BARE JUMPER 6.5MM 1 J908 41-WJ0065-B00 WIRE BARE JUMPER 6.5MM 1 J913 41-WJ0065-B00 WIRE BARE JUMPER 6.5MM 1 J920 41-WJ0065-B00 WIRE BARE JUMPER 6.5MM 1 R311 41-WJ0065-B00 WIRE BARE JUMPER 6.5MM 1 J911 41-WJ0070-B00 WIRE BARE JUMPER 7MM 1 J104 41-WJ0070-B00 WIRE BARE JUMPER 7MM 1 J307 41-WJ0070-B00 WIRE BARE JUMPER 7MM 1 J906 41-WJ0070-B00 WIRE BARE JUMPER 7MM 1 J015 41-WJ0075-B00 WIRE BARE JUMPER 7.5MM 1 J001 41-WJ0075-B00 WIRE BARE JUMPER 7.5MM 1 J005 41-WJ0075-B00 WIRE BARE JUMPER 7.5MM 1 J013 41-WJ0075-B00 WIRE BARE JUMPER 7.5MM 1 J103 41-WJ0075-B00 WIRE BARE JUMPER 7.5MM 1 J205 41-WJ0075-B00 WIRE BARE JUMPER 7.5MM 1 J206 41-WJ0075-B00 WIRE BARE JUMPER 7.5MM 1 J207 41-WJ0075-B00 WIRE BARE JUMPER 7.5MM 1 J209 41-WJ0075-B00 WIRE BARE JUMPER 7.5MM 1 J303 41-WJ0075-B00 WIRE BARE JUMPER 7.5MM 1 J304 41-WJ0075-B00 WIRE BARE JUMPER 7.5MM 1 J602 41-WJ0075-B00 WIRE BARE JUMPER 7.5MM 1 J907 41-WJ0075-B00 WIRE BARE JUMPER 7.5MM 1 J914 41-WJ0075-B00 WIRE BARE JUMPER 7.5MM 1 J603 41-WJ0080-B00 WIRE BARE JUMPER 8 MM 1 J014 41-WJ0085-B00 WIRE BARE JUMPER 8.5MM 1 J219 41-WJ0085-B00 WIRE BARE JUMPER 8.5MM 1 J227 41-WJ0090-B00 WIRE BARE JUMPER 9MM 1 J225 41-WJ0090-B00 WIRE BARE JUMPER 9MM 1 J601
Page 12 of 14 CTF5151
41-WJ0095-B00 WIRE BARE JUMPER 9.5MM 1 J404 41-WJ0100-B00 WIRE BARE JUMPER 10MM 1 J012 41-WJ0100-B00 WIRE BARE JUMPER 10MM 1 J221 41-WJ0100-B00 WIRE BARE JUMPER 10MM 1 J403 41-WJ0105-B00 WIRE BARE JUMPER 10.5MM 1 J212 41-WJ0105-B00 WIRE BARE JUMPER 10.5MM 1 J223 41-WJ0105-B00 WIRE BARE JUMPER 10.5MM 1 J224 41-WJ0110-B00 WIRE BARE JUMPER 11MM 1 J009 41-WJ0115-B00 WIRE BARE JUMPER 11.5MM 1 J604 41-WJ0115-B00 WIRE BARE JUMPER 11.5MM 1 J918 41-WJ0120-B00 WIRE BARE JUMPER 12MM 1 J401 41-WJ0120-B00 WIRE BARE JUMPER 12MM 1 J910 41-WJ0125-B00 WIRE BARE JUMPER 12.5MM 1 D408 41-WJ0125-B00 WIRE BARE JUMPER 12.5MM 1 J002 41-WJ0125-B00 WIRE BARE JUMPER 12.5MM 1 J003 41-WJ0125-B00 WIRE BARE JUMPER 12.5MM 1 J102 41-WJ0125-B00 WIRE BARE JUMPER 12.5MM 1 J105 41-WJ0125-B00 WIRE BARE JUMPER 12.5MM 1 J106 41-WJ0125-B00 WIRE BARE JUMPER 12.5MM 1 J216 41-WJ0125-B00 WIRE BARE JUMPER 12.5MM 1 J306 41-WJ0125-B00 WIRE BARE JUMPER 12.5MM 1 J402 41-WJ0125-B00 WIRE BARE JUMPER 12.5MM 1 R306 41-WJ0130-B00 WIRE BARE JUMPER 13MM 1 J204 41-WJ0130-B00 WIRE BARE JUMPER 13MM 1 J211 41-WJ0135-B00 WIRE BARE JUMPER 13.5MM 1 J006 41-WJ0135-B00 WIRE BARE JUMPER 13.5MM 1 J215 41-WJ0150-B00 WIRE BARE JUMPER 15MM 1 C406A 41-WJ0150-B00 WIRE BARE JUMPER 15MM 1 L402 41-WJ0150-B00 WIRE BARE JUMPER 15MM 1 J112 41-WJ0165-B00 WIRE BARE JUMPER 16.5MM 1 J220 41-WJ0165-B00 WIRE BARE JUMPER 16.5MM 1 J302 41-WJ0175-B00 WIRE BARE JUMPER 17.5MM 1 J004 41-WJ0180-B00 WIRE BARE JUMPER 18MM 1 R045 41-WJ0195-B00 WIRE BARE JUMPER 19.5MM 1 J217 41-WJ0200-B00 WIRE BARE JUMPER 20MM 1 J213 45-OSC8M0-0Y0 CRYSTAL 8.0MHZ 1 X001 45-SAW296-6M00G SAW FILTER K2966M 1 Z101 45-TRA5M5-0Y0 CER TRAP TPS 5.5MHZ 1 X203 46-12866W-02X PIN BASE *2 S11-02Y 1 46-20598W-04X PIN BASE *4 TJC1-4A 1 46-33079W-02X PIN BASE *2 TJC3-2A 1 46-33079W-02X PIN BASE *2 TJC3-2A 1 46-33079W-03X PIN BASE *3 TJC3-3A 1 P203 46-33079W-04X PIN BASE *4 TJC3-4A 1 46-33079W-04X PIN BASE *4 TJC3-4A 1 46-33079W-05X PIN BASE *5 TJC3-5A 1 46-33079W-06X PIN BASE *6 TJC3-6A 1 47-RCA035-XX0 RCA JACK AV-3.2-6W-K 1 P901 62-227680-0UA BRACKET ABS-KINGFA 606 (UO) 1 64-P30060-104 M/C SCREW 3 X 6 (ZINC) 2 64-P30100-104 M/C SCREW P 3 X 10 2 64-P30100-104 M/C SCREW P 3 X 10 2 65-Z30050-23M NUT M 3 2
Page 13 of 14 CTF5151
66-343730-0B0 HOLLOW RIVET 1.6X3.0XL3.2 2 66-343730-0B0 HOLLOW RIVET 1.6X3.0XL3.2 2 66-343730-0B0 HOLLOW RIVET 1.6X3.0XL3.2 3 66-343730-0B0 HOLLOW RIVET 1.6X3.0XL3.2 4 66-382330-0B7 RIVET 2.0X3.7X3.5 2 67-H30752-3A0 HEAT SINK 2 67-H34423-CA0 HEAT SINK 1 70-271510-00A SERVICE CARD 1 71-270870-0A9 LABEL 2 90-269080-ZU0 CLEAN COATING TC-131L 14KG/BARREL 0.0001 66-343730-0B0 HOLLOW RIVET 1.6X3.0XL3.2 2 41-WJ0050-B00 WIRE BARE JUMPER 5MM 1 L209 18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 C226 18-RG0228-JHX RES. WIRE ROUND 0.22 OHM 2W +/-5% 1 R620 07-389VI5-NX0 TUNER UVS1053-EW(HB 5V 38.9) 1 TU101 25-BJA470-M1X CAP. ELEC 47 UF 160V +/-20% 1 C411 67-H10918-4M2 HEAT SINK 1 67-H10918-4M2 HEAT SINK 1 26-EBP471-JCX CAP. CER 470PF 50V +/-5% CH 1 C008 25-BCB221-M1X CAP. ELEC 220 UF 16V +/-20% 1 C231 41-WJ0065-B00 WIRE BARE JUMPER 6.5MM 1 J108 13-A19V04-TOP IC A19V04-TO 1 IC201 25-GFB228-K1X CAP. ELEC 0.22 UF 50V +/-10% 1 C205 25-GFB478-K1X CAP. ELEC 0.47 UF 50V 10%CEC-K 1 C236 27-RCP333-J0X CAP. PP 0.033 UF 100V +/-5% 1 C405 25-GFB478-K1X CAP. ELEC 0.47 UF 50V 10%CEC-K 1 C234 10-CW574C-DJX DIODE CW574CD 1 D102 25-DFB109-M1X CAP. ELEC 1 UF 50V +/-20% NP 1 C916 40-2135MH-MAF P.C.B. MAIN BD 1 18-GJ0332-JUX RES. CEMENT 3.3K 5W +/-5% 1 R402 18-CB0472-JNX RES. C.F. 4.7k OHM 1/6W +/-5% 1 R003 18-CB0472-JNX RES. C.F. 4.7k OHM 1/6W +/-5% 1 R004 13-L7805C-VAP IC L7805CV 1.5A (REGULATOR) 1 IC402 26-AMK331-JZX CAP. CER 330 pF 2KV +/-5% SL 1 C406B
Page 14 of 14 CTF5151
M117 Block Diagram By ZSM 2001/12/20
220V~
E2PROM IC002
D801—D804
Tuner TU101
CPU
IC001
KEY
IF AMP Q101
IC801
IR001 Sensor
SAW Z101
Q801 AMP.
TMPA8821
IC201
T803 Transformer
R/G/B
V.out
H.out
IC603 TV/AV SW
112v 12V 12V
Q501 Q503 Q505 AMP .
V. AMP. IC301
H.drive AMP.
Q401 Q402
Audio AMP.
IC601
FBT T402
Speaker
CRTR/G/B
EHT FOCUS SCREEN
220V,24V
6.3V
AV Vin
AV Ain
A V AoutAV Vout
Loading...
