CD/TUNER/AMPLIFIER
NOTES
PC boards shown are viewed from parts side.
The parts with no reference number or parts number in the
exploded views are not supplied.
As regards the resistors and capacitors, refer to the circuit
diagrams contained in this manual.
Parts marked with this sigh are critical components.
They must be replaced with identical components - refer to
the appropriate parts list and ensure exact replacement.
9A08312000
SERVICE MANUAL
2
SERVICE MANUAL
3
SERVICE MANUAL
4
SERVICE MANUAL
5
SERVICE MANUAL
6
SERVICE MANUAL
7
SERVICE MANUAL
8
SERVICE MANUAL
9
SERVICE MANUAL
10
SERVICE MANUAL
11
SERVICE MANUAL
12
SERVICE MANUAL
13
SERVICE MANUAL
14
SERVICE MANUAL
15 16
17 18
19
20
21
22
23 24
25 26
27 28
29 30
SERVICE MANUAL
31 32
SERVICE MANUAL
33 34
35 36
S7
x4
x4
X9
S3
x2
S1
S4
x2
S1
x3
S6
CTS3+8J
CTW3+10G
CTS3+8J
CTB3+8J
KTB3+10G
CTB3+10GFC
CTB3+8JFZ
S6
CTB3+8J
x2
S9
CTW3+10J
CTB3+8J
S6
x4
S3
KTB3+10G
S8
CTB3+8G
x4
S11
CTB4+8F
x4
S10
CTW3+16J
x2
S5
CTW3+8J
x3
CTW3+6J
S12
KTB3+10G
x2
S3
x2
S6
CTB3+8J
S13
X9
KTB3+10GFZ
x2
x4
CTB3+8J
S6
x3
x2
S2
KNOB ASS'Y

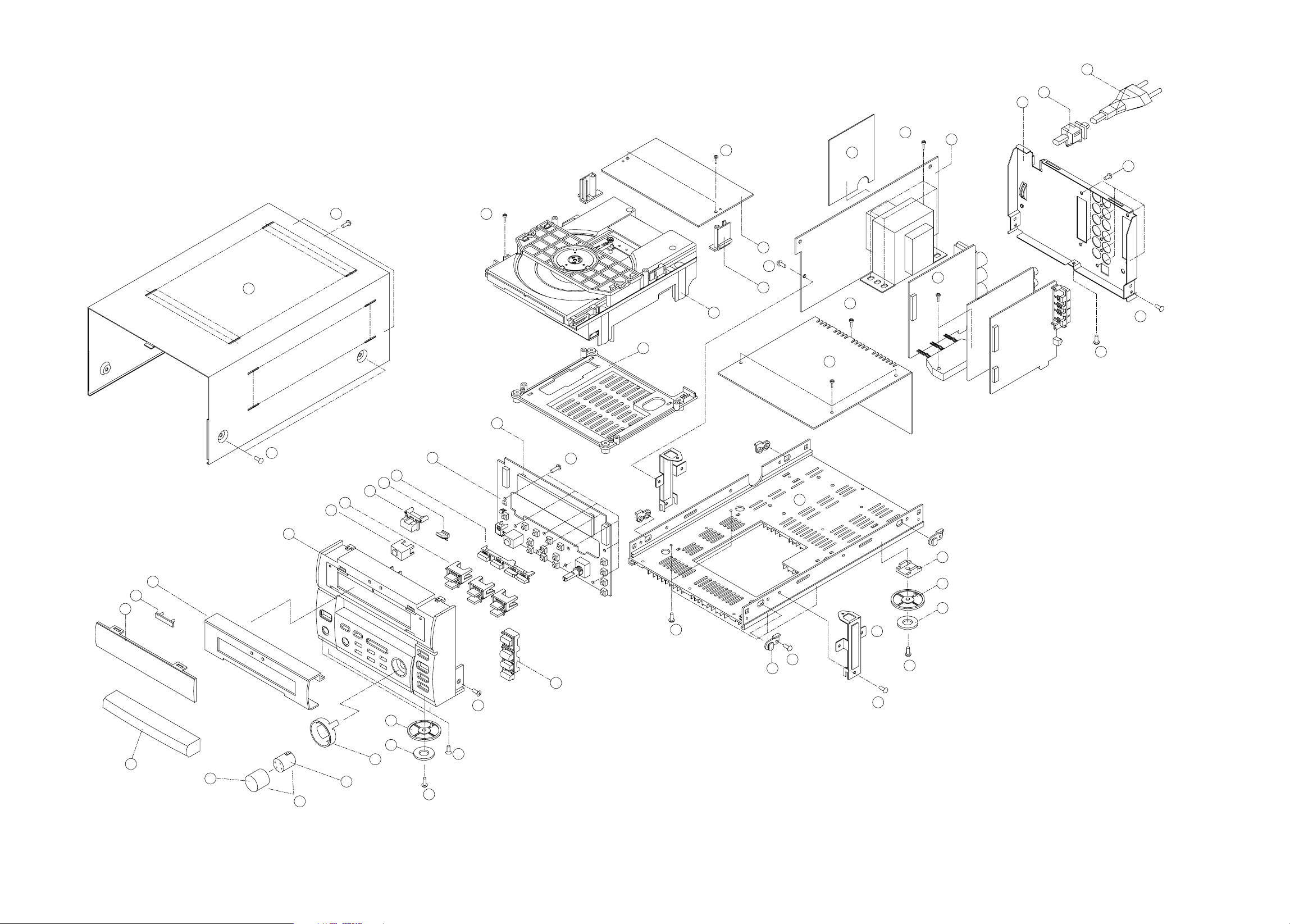

EXPLODED VIEW
13
30
2
5
6
7
1
3
4
8
18
12
11
10
9
16
17
31
19
20
18
17
21
22
23
26
27
28
25
24
29
32
33
14
15
SERVICE MANUAL SERVICE MANUAL
37 38
EXPLODED VIEW (CR-H80)
REF. NO. PARTS NO. DESCRIPTION REMARKS
19A08124900 WINDOW, FIP CGU1A224
29A08124800 DOOR, CD CGR1A173M9ZK87
39A08127900 BADGE, TEAC CR-H80 KGB1A080Z
49A08128000 ORNAMENT, FRONT(AL) KGK1A055YC21
59A08163900 CAP , KNOB KGK2A056C21
69A08163800 KNOB, ROTARY KBN2A119
79A08128300 ORNAMENT, VOLUME KGR1A174MBC22
89A08125100 PANEL, SUB CGW1A271M9ZK87
99A08125000 WINDOW, SENSOR CGU1A225
10 9A08124500 KNOB, MODE CBT1A682M9K87
11 9A08124300 KNOB, POWER CBT1A680M9K87
12 9A08124700 INDICATOR, POWER CGL1A178
13 9A08124400 KNOB, FUNCTION CBT1A681M9K87
14 9A08124600 KNOB, BAND CBT1A683M9ZK87
15 9A08164000 VOLUME KNOB ASS’Y KGK2A056ZA
16 SUB PCB(MC-D80TCCC)
17 9A07872900 FOOT CKL1A059M9K63
18 9A07889500 CUSHION, FOOT KHG1A165
19 9A07873500 LOCKER, TOP CMH1A088
20 9A07878700 BOTTOM CHASSIS, BOTTOM CUA1A175
21 9A07873600 SUPPORT, MECHA CMH1A091
22 9A07870900 MECHANISM KSL2130CCM BJDKSL2130CCM
23 9A07891600 SUPPORT, PCB KMH1A092
24 CD PCB
25 POWER SUB PCB ASS’Y JPN
26 9A08130300 PANEL, REAR KKF5A177V
27
£
9A06754900 BUSHING, AC CORD KHR1A028
28
£
9A08125200 POWER, CORD CJA2J049Z
29 9A07891700 SHEET, INSULATOR KMX1A094
30 9A08130200 CABINET, TOP KKC2B100S26
31 9A07891500 BRACKET, PCB KMD1A396
21 9A07873600 SUPPORT, MECHA CMH1A091
33 9A08877300 BRACKET, FLT CMD1A374
S1 9A01397400 SCREW KTS3+8J KTS3+8J
S2 9A08164100 SCREW KTB3+10GFC
S3 9A01377400 SCREW, KTB3+10G KTB3+10G
S4 9A05985100 SCREW KTW3+10G KTW3+10G
S5 9A05339200 SCREW KTW3+8J KTW3+8J
S6 9A01535800 SCREW, KTB3+8J KTB3+8J
S7 9A01377200 SCREW KTB3+8JFZ KTB3+8JFZ
S8 9A01420500 SCREW, KTB3*8G KTB3+8G
S9 9A06700000 SCREW KTW3+10J KTW3+10J
S10 9A06028100 SCREW KTW3+16J KTW3+16J
S11 9A01477800 SCREW, KTB4*8F KTB4+8F
S12 9A05966100 SCREW KTW3+6J KTW3+6J
S13 9A01377300 SCREW, KTB3+10GFZ KTB3+10GFZ
F 901
£
9A08127700 FUSE KBA2C2000TLJ
EXPLODED VIEW (CR-H80MK2)
REF. NO. PARTS NO. DESCRIPTION REMARKS
19A08124900 WINDOW, FIP CGU1A224
29A09054600 DOOR, CD CGR1A173M7ZK101
39A08877500 BADGE, TEAC CR-H80MK2 KGB1A080X
49A09055800 ORNAMENT, FRONT(AL) CGK1A055XC25
5
6
79A08128300 ORNAMENT, VOLUME KGR1A174MBC22
89A09056000 PANEL, SUB CGW1A271M7ZK101
99A08125000 WINDOW, SENSOR CGU1A225
10 9A09055600 KNOB, MODE CBT1A682M7K101
11 9A09055400 KNOB, POWER CBT1A680M7K101
12 9A09055900 INDICATIOR, POWER CGL2A178
13 9A09055500 KNOB, FUNCTION CBT1A681M7K101
14 9A09055700 KNOB, BAND CBT1A683M7ZK101
15 9A09054900 VOLUME KNOB ASS’Y GKG2A056YA
16 SUB PCB (MC-D80TCCC)
17 9A07872900 FOOT CKL1A059M9K63
18 9A07889500 CUSHION, FOOT KHG1A165
19 9A07873500 LOCKER, TOP CMH1A088
20 9A09054800 BOTTOM CHASSIS ASS’Y CUACRH80MK2DMCC
21 9A07873600 SUPPORT, MECHA CMH1A091
22 9A09056400 MECHANISM HJDKSL2130CCM
23 9A07891600 SUPPORT, PCB KMH1A092
24 CD PCB
25 POWER SUB PCB ASS’Y JPN
26 9A09056100 PANEL, REAR CKF5A177U
27
£
9A06754900 BUSHING, AC CORD KHR1A028
28
£
9A08125200 POWER, CORD CJA2J049Z
29 9A07891700 SHEET, INSULATOR KMX1A094
30 9A09056500 CABINET, TOP KKC6B100S35
31 9A08945100 BRACKET, PCB CMD1A081
32
33 9A08877300 BRACKET, FLT CMD1A374
S1 9A01397400 SCREW KTS3+8J KTS3+8J
S3 9A01377400 SCREW,KTB3+10G KTB3+10G
S4 9A05985100 SCREW KTW3+10G KTW3+10G
S5 9A05339200 SCREW KTW3+8J KTW3+8J
S6 9A01535800 SCREW,KTB3+8J KTB3+8J
S7 9A01377200 SCREW KTB3+8JFZ KTB3+8JFZ
S8 9A01420500 SCREW,KTB3*8G KTB3+8G
S9 9A06700000 SCREW KTW3+10J KTW3+10J
S10 9A06028100 SCREW KTW3+16J KTW3+16J
S11 9A01477800 SCREW,KTB4*8F KTB4+8F
S12 9A05966100 SCREW KTW3+6J KTW3+6J
S13 9A01377300 SCREW,KTB3+10GFZ KTB3+10GFZ
F 901
£
9A08127700 FUSE KBA2C2000TLJ
SERVICE MANUAL
39
MAIN PCB ASS’Y
REF. NO. PARTS NO. DESCRIPTION REMARKS
9A08162200 MAIN PCB ASS’Y JPN COP11264J
9A08126200 MAIN PCB CUP11264Y
9A07879800 WIRE ASS’Y 8202040AA CWE8202040AA
9A07880000 WIRE ASS’Y NT20001 CWZNT20001
BN91 9A07879200 WIRE ASS’Y 10P , 50MM CWB1C010050EN
BN98 9A07879400 WIRE ASS’Y 4P , 100MM CWB1D004100BM
BT01 9A08124000 BATTERY,RECHARGEABLE BABGP40BVH3A3H
C124 9A07886400 CAP,STYROLE HCQS1H471JZ
C127 9A01405900 C,VARIABLE 20PF A020S12 KCRA020S12
C134 9A07897400 CAP,ELECT HCEA1HH0R1T HCEA1HH0R1T
C244 C246 9A08127800 CAP,FILM KCFE1J184JBT
C245 C247 9A08127800 CAP,FILM KCFE1J184JBT
C530 C531 9A07883600 CAP , ELECT 3300/50V HCEA1HH332E
C820 9A07882100 CAP,ELECT 1000/6.3V HCEA0JH102T
CF01 CF02 9A06544600 FILTER,CERAMIC E107MSHAT BVFE107MSHAT
CF03 9A07006300 FILTER CERAMIC PBF450JR3 BVFPFB450JR3
CN10 9A06250600 WAFER 02GA19ZM KJP02GA19ZM
CN11 9A07890200 CONNECTOR MOLEX35237-0910 KJP09GB99ZM
CN12 9A07889800 CONNECTOR MOLEX35237-0610 KJP06GB99ZM
CN21 9A07890400 CONNECTOR MOLEX35237-1310 KJP13GB99ZM
CN22 CN51 9A07890000 CONNECTOR MOLEX35237-0710 KJP07GB99ZM
CN61 9A07891000 WAFER, CARD CABLE GF120-2 KJP27GA115ZG
CN62 9A07890800 WAFER, CARD CABLE GF120-2 KJP21GA115ZG
CN94 9A07890600 WAFER, CARD CABLE GF120-1 KJP17GA115ZG
D101 9A08163000 DIODE,VARICAP HVDSVC342LT
D103 C105 9A07887200 DIODE 1SS131M HVD1SS131MT
D201 C202 9A07887200 DIODE 1SS131M HVD1SS131MT
D501 9A06224900 DIODE , BRIDGE PBU604F BVDPBU604F
D502- D506 9A07887200 DIODE 1SS131M HVD1SS131MT
D801- D805 9A07887200 DIODE 1SS131M HVD1SS131MT
IC11 9A08163100 IC,(IF+MPX) LA1836M HVILA1836M
IC12 9A08163300 IC,PLL LC72131M” HVILC72131M
IC21 9A08882800 I.C,(VOLUME+FUNCTION) HVITDA7318D
IC22 IC23 9A08163400 IC,OP AMP NJM2068MD HVINJM2068MDTE1
IC24 9A08163200 IC,LC4966 HVILC4966
IC51 9A08163700 IC,AMP STK4132MK2 HVISTK4132(2)
IC81 9A08622700 IC,MICOM CR-H100 V31.04 HVIANAM1320ACT
IC82 9A08163500 IC,NJM4556AL HVINJM4556AL
IC83 9A06878400 VOLTAGE DETECTOR BVIRE5VL30CARZ
JK01 9A08883100 TERMINAL,ANT(USA 75 OHM) CJJ3G010Z
JK02 9A08883200 JACK,PIN BOARD JK060092JN CJJ4R018Z
JK21 9A07872700 TERMINAL,IN/OUT CJJ4R012Z
JK51 9A08125300 S.P TERMINAL CJJ5P010Z
L105 9A07886600 COIL,AXAIL 10UH HLQ02C100KT
L801 9A07886700 COIL,AXAIL 100UH HLQ02C101JT
L802 9A07886600 COIL,AXAIL 10UH HLQ02C100KT
OPC1 9A08126500 MODULE,OPTICAL HJS9L001Z
Q101 C102 9A07888400 T.R,KTC3192OT HVTKTC3192OT
Q103 9A08884100 TR,KRA107M HVTKRA107MT
Q104 9A03745100 TR,KSA1175-YTA KVTKSA1175YT
Q107 9A08878300 TR,KRC107M HVTKRC107MT
Q108 9A03745100 TR,KSA1175-YTA KVTKSA1175YT
Q201- Q205 9A07888500 TR,KTD1302T HVTKTD1302T
Q206 9A08884100 TR,KRA107M HVTKRA107MT
Q207 9A07888500 TR,KTD1302T HVTKTD1302T
SERVICE MANUAL
40
MAIN PCB ASS’Y
REF. NO. PARTS NO. DESCRIPTION REMARKS
Q208- Q210 9A08878300 TR,KRC107M HVTKRC107MT
Q502 Q503 9A08878300 TR,KRC107M HVTKRC107MT
Q504 9A08884100 TR,KRA107M HVTKRA107MT
Q505 Q506 9A03745100 TR,KSA1175-YTA KVTKSA1175YT
Q507 9A08878300 TR,KRC107M HVTKRC107MT
Q801 9A07888500 TR,KTD1302T HVTKTD1302T
Q802 9A08878300 TR,KRC107M HVTKRC107MT
Q803 9A08884100 TR,KRA107M HVTKRA107MT
Q804 9A07888500 TR,KTD1302T HVTKTD1302T
Q805 9A08878300 TR,KRC107M HVTKRC107MT
Q806 9A08884100 TR,KRA107M HVTKRA107MT
Q807 9A07887900 T.R KSB811YT HVTKSB811YT
Q808 9A03745100 TR,KSA1175-YTA KVTKSA1175YT
Q809 Q810 9A07888500 TR,KTD1302T HVTKTD1302T
Q811 Q812 9A01388800 TR,KSC945-YTA KVTKSC945CYT
Q815 9A01388800 TR,KSC945-YTA KVTKSC945CYT
Q816 Q817 9A08878300 TR,KRC107M HVTKRC107MT
R535
£
9A07892000 RES,CARBON 1K OHM 1/2W KRD50FJ102T
R536- R539
£
9A07892100 RES,CARBON 2.2K OHM 1/2 J KRD50FJ222T
R540
£
9A07892000 RES,CARBON 1K OHM 1/2W KRD50FJ102T
R541 R542
£
9A05338000 RES,METAL 10 OHM 1W J KRG1ANJ100H
R543 R544
£
9A06062000 R, CEMENT 0.27 2W KRF2CJR27H
RY51 9A09058500 RELAY HSL4A010ZU
S101 9A04882400 SW,TACT DC-D2100 KST1A010Z
T101 9A07873000 COIL,AM ANT2 CLA2C005
T102 9A07873300 COIL,AM OSC CLO2B008Z
T103 9A09229500 I.F.T.FM CLI3B030Z
T104 9A08125400 I.F.T. AM CLI2B111Z
TF01 9A08126600 TUNER PACK(JAPAN) HNVFTE3J508T
VR11 9A08131400 RES,SEMI FIXED(4.7K OHM) KVN1RA472B01T
VR12 9A08040700 RES,SEMI FIXED(22K OHM) KVN1RA223B01T
WF11 9A07890100 WAFER MOLEX35336-0910 KJP09GA98ZM
WF12 9A07889700 WAFER MOLEX35336-0610 KJP06GA98ZM
WF21 9A07890300 WAFER MOLEX35336-1310 KJP13GA98ZM
WF22 WF51 9A07889900 WAFER MOLEX35336-0710 KJP07GA98ZM
X101 9A07491700 RESONATOR,CERAMIC HVFZTB456F11
X102 9A07491800 FILTER,CERAMIC HVFLZU450C4N
X104 9A08883700 CRYSTAL HOX07200A200C
X801 9A08879000 CRYSTAL HOX08000E160C
X802 9A05188800 CRYSTAL, 32,768KHZ DT-38 BOX00032A120C
SERVICE MANUAL
41
POWER SUB PCB ASS’Y
REF. NO. PARTS NO. DESCRIPTION REMARKS
9A08162300 POWER SUB PCB ASS’Y JPN COP11298J
9A09058300 SUB PCB(MC-D80TCCC) CUP11298Y
BN95 9A07879300 WIRE ASS’Y 1C903100BM CWB1C903100BM
C931 9A07884100 CAP,ELECT 100/35V HCEA1VH101T
C932 C933 9A07883800 CAP,ELECT 47/50V HCEA1HH470T
C935 C936 9A07883400 CAP,ELECT 100/50V HCEA1HH101T
C940 C941 9A07884200 CAP,ELECT 1000/35V HCEA1VH102E
C942 9A07884300 CAP,ELECT 2200/35V HCEA1VH222E
CN61 9A07891100 WAFER,CARD CAGF120-27S-L KJP27GB116ZG
CN62 9A07890900 WAFER,CARD CAGF120-21S-L KJP21GB116ZG
CN91 9A05330700 WAFER MOLEX 53014-1010 KJP10GA19ZM
CN92 9A05356400 WAFER MOLEX53014-0510 KJP05GA19ZM
CN95 9A05329100 WAFER MOLEX 5267-03A KJP03GA01ZM
CN97 9A06674400 WAFER,7.92MM (YUNHO) KJP02KA060ZY
CN98 9A05329300 WAFER MOLEX 5267-04A KJP04GA01ZM
D601 9A08131100 L.E.D, YELLOW SLR342YCTB7 KVD342YCTB7T089
D602 9A07887200 DIODE 1SS131M HVD1SS131MT
D901- D910 9A05194700 DIODE,1N4003ST KVD1N4003ST
D915 D916
£
9A07886900 DIODE,ZENER 13V ZENER HVDMTZJ13BT
D917- D919
£
9A07887100 DIODE,ZENER 6.2V ZENER HVDMTZJ6.2BT
D920
£
9A07892400 DIODE , ZENER 9.1V 1/2W KVDUZ9.1BMT
D921
£
9A07887000 DIODE,ZENER 33V 1/2W HVDMTZJ33BT
F902 9A05328200 HOLDER,FUSE KJCFC5S KJCFC5S
FIP1 9A07889000 F.I.P SVA10MM17 KFLSVA10MM17
JK61 9A08126400 JACK,HEADPHONE(SILVER) HJJ2D003Y
JW03 9A07879700 WIRE P202110VV CWEP202110VV
JW61 9A07879900 WIRE ASS’Y AMC660JW52 CWZAMC660JW52
L901 9A07886600 COIL,AXAIL 10UH HLQ02C100KT
Q601 9A08878300 TR,KRC107M HVTKRC107MT
Q602 9A08884100 TR,KRA107M HVTKRA107MT
Q901- Q903 9A08884100 TR,KRA107M HVTKRA107MT
Q904- Q906 9A08878300 TR,KRC107M HVTKRC107MT
Q908 Q910
£
9A07888000 T.R KSC2316YT HVTKSC2316YT
Q909 Q915
£
9A08883500 TR,KTC2026Y HVTKTC2026Y
Q911
£
9A07888200 T.R KTA1274YT HVTKTA1274YT
Q916 9A09058700 TR,KTA1046Y HVTKTA1046Y
R904
£
9A07892200 RES,METAL 330 OHM 1W J KRG1ANJ331H
R920 R921
£
9A06062000 R, CEMENT 0.27 2W KRF2CJR27H
R922 R923
£
9A06760900 R,FUSE 0.47 J 1W KRQ1AJR47H
R924
£
9A05890500 R,CARBON 1/2W 100 KRD50FJ101T
RC61 9A08563600 SENSOR,REMOCON KRVHIM602H32
S601- S615 9A07878500 SW,TACT SKHV10910G CST1A012ZT
SJ61 9A08162900 VR,ENCODER EC16B243040F HSR2A011Z
T901
£
9A08125600 TRANS,POWER(JAPAN) CLT5P037ZJ
SERVICE MANUAL
42
CD PCB ASS’Y
REF. NO. PARTS NO. DESCRIPTION REMARKS
9A07873700 CD PCB ASS’Y COP11263B
9A07878800 CD PCB CUP11263Z
BN92 9A07879100 WIRE ASS’Y 5P , 50MM CWB1C005050EN
CN31 9A05356400 WAFER MOLEX53014-0510 KJP05GA19ZM
CN32 9A05329700 WAFER MOLEX53014-0610 KJP06GA19ZM
CN33 9A07890500 WAFER , CARD CABLE 16P 1. KJP16GB113ZG
CN94 9A07890700 WAFER, CARD CABLE(ANGLE)G KJP17GB116ZG
D301- D303 9A07887200 DIODE 1SS131M HVD1SS131MT
IC31 9A08878700 IC,DIGITAL SERVO TC9462F HVITC9462F
IC32 9A07887400 I.C RF DIGI SERVO TA2109F HVITA2109F
IC33 9A07887300 I.C POWER DRIVER TA2092N HVITA2092N
IC34 9A07871100 I.C NJM7805FA BVINJM7805FA
IC35 9A07887500 I.C TA7291S HVITA7291S
L301 9A07886600 COIL,AXAIL 10UH HLQ02C100KT
L302 9A07886700 COIL,AXAIL 100UH HLQ02C101JT
Q301 9A07888100 T.R TKTA1266YT HVTKTA1266YT
X301 9A09058400 CRYSTAL HOX16934A120C
INCLUDED ACCESSORIES (CR-H80)
REF. NO. PARTS NO. DESCRIPTION REMARKS
9A08164300 SPEAKER ASS’Y LS-H80A
9A01397000 ANTENNA TERMINAL T-60 KSA267
9A07871200 REMOCON TRANSMITTER ASS’Y CARTCR-H100TCCC
9A07927800 OWNER’S MNL J, CR-H80 CQX1A574Z
9A08046100 ADAPTOR,75-300 (NTSC) KLR1T201
9A08131000 AM LOOP ANTENNA ASS’Y KSA2A012Z
9A08153900 BATTERY KABAAM1.5V
INCLUDED ACCESSORIES (CR-H80mk2)
REF. NO. PARTS NO. DESCRIPTION REMARKS
9A08046100 ADAPTOR,75-300 (NTSC) KLR1T201
9A09055100 SPEAKER ASS’Y LS-H80MK2
9A09054500 INSTRUCTION MANUAL ASSY CQXCRH80MK2DMCC
9A07871200 REMOCON TRANSMITTER ASS’Y CARTCR-H100TCCC
9A08668000 O/M CR-H80MK2 (J) CQX1A574Y
9A08880800 ANT,FM.T(LUG TYPE) CSA267
9A08880900 AM LOOP ANTENNA ASS’Y CSA3A012Z
9A09055200 BATTERY HABAAM1.5V
Loading...
