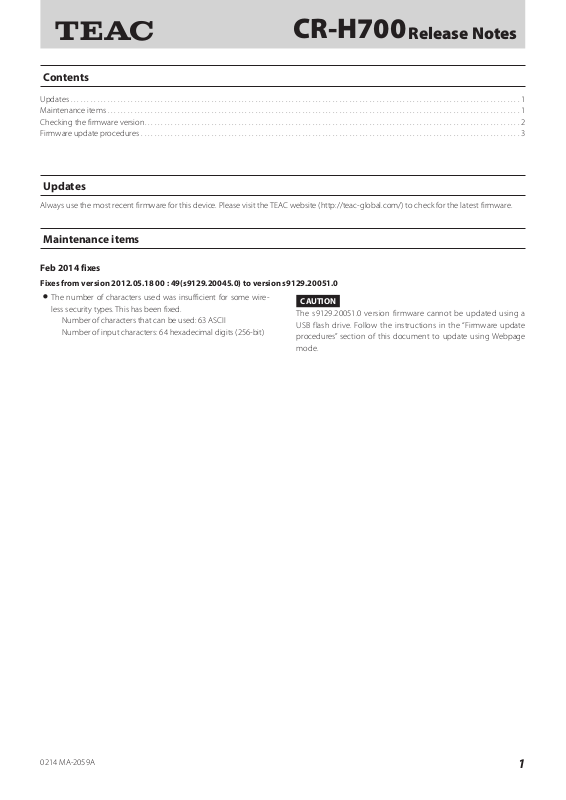

Page 1
Z
CR-H700
Release Notes
Contents
Updates ......................................................................................................................................1
Maintenance items ...........................................................................................................................1
Checking the firmware version ................................................................................................................2
Firmware update procedures .................................................................................................................3
Updates
Always use the most recent firmware for this device. Please visit the TEAC website (http://teac-global.com/) to check for the latest firmware.
Maintenance items
Feb 2014 fixes
Fixes from version 2012.05.18 00 : 49(s9129.20045.0) to version s9129.20051.0
o
The number of characters used was insufficient for some wireless security types. This has been fixed.
Number of characters that can be used: 63 ASCII
Number of input characters: 64 hexadecimal digits (256-bit)
CAUTION
The s9129.20051.0 version firmware cannot be updated using a
USB flash drive. Follow the instructions in the “Firmware update
procedures” section of this document to update using Webpage
mode.
0214 MA-2059A
1
Page 2
Z
CR-H700
Checking the firmware version
Release Notes
Check the firmware version of your CR-H700 before starting firmware updating procedures.
1 Press the SOURCE button repeatedly to select net-
work mode.
o
You can also use the remote control's NET button.
2 Press the BAND button to select “Internet Radio”.
4 Turn the MULTI JOG knob to select “Information”,
and then press the ENTER button.
The menu item changes as follows:
Device Name Edit q Net work q Information q Software
Update q (Return to) Device Name Edit
5 Turn the MULTI JOG knob to select “Firmware
Version”, and then press the ENTER button.
The firmware version will appear on the display.
Example
Press the BAND button repeatedly to cycle through the following options.
AMqFMqInternet RadioqMedia Player
o
You can also use the remote control's TUNER button.
3 Press the MENU button to select “Setup Menu”.
Firmware Version
s9129.20051.0
2
Page 3
Z
CR-H700
Firmware update procedures
Release Notes
Download the desired firmware from the TEAC website* and save
the file on your computer before following the instructions below.
*http://teac-global.com/
CAUTION
Uncompress the downloaded file.
This document uses screen shots of Internet Explorer 8 for
Windows XP.
1 Connect the unit to your LAN using a wireless or
wired connection.
For detailed information, see the “Connections” and “Network
Configuration” sections.
OR
4 Press the MENU button on the unit. Select
“Software Update”, and then select “Webpage”.
o
The unit will restart automatically.
o
The unit's IP address will appear on the its display after it
restarts.
5 Start your web browser, and then enter the unit's
IP address.
6 Click “Browse...” and then select the desired rm-
ware le (“fw” extension).
hub or router
2 Press the SOURCE button repeatedly to select
TUNER mode.
Select the directory with the uncompressed file downloaded
from the TEAC website.
3 Select “Internet Radio” or “Media Player” by
repeatedly pressing the BAND button on the unit
or the TUNER button on the remote control.
Continued on the next page e
3
Page 4
Z
CR-H700
Release Notes
7 Click Upload.
If the following message appears, click OK, and then return to
Step 5 again.
8 Click OK to start the rmware update.
CAUTION
o
If the following window is displayed on the screen during
the update process, the unit's firmware is being updated.
Please wait.
WARNING
Unplugging the power cord or the occurrence of a power
outage could interrupt the update process and result in permanent damage to the unit.
o
If the following message appears, do not click OK until
the unit restarts. If you click OK by mistake before the unit
restarts, the webpage will not appear.
When the update starts, the following message appears.
o
The update status is also displayed on the unit.
o
After the firmware update completes, the unit will restart
automatically.
4
