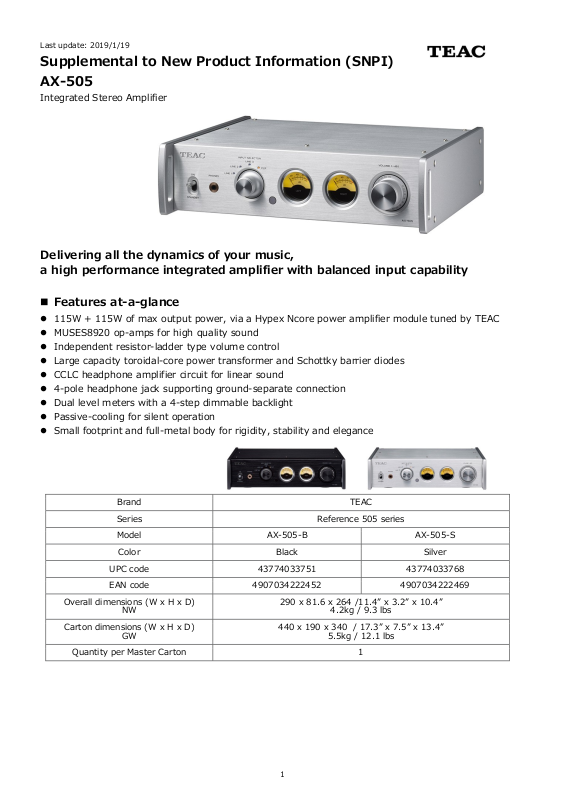

TEAC AX-505 Product information

Last update: 2019/1/19

Supplemental to New Product Information (SNPI)

1

AX-505

Integrated Stereo Amplifier

Delivering all the dynamics of your music,
a high performance integrated amplifier with balanced input capability

 Features at-a-glance

 115W + 115W of max output power, via a Hypex Ncore power amplifier module tuned by TEAC
 MUSES8920 op-amps for high quality sound
 Independent resistor-ladder type volume control
 Large capacity toroidal-core power transformer and Schottky barrier diodes
 CCLC headphone amplifier circuit for linear sound
 4-pole headphone jack supporting ground-separate connection
 Dual level meters with a 4-step dimmable backlight
 Passive-cooling for silent operation
 Small footprint and full-metal body for rigidity, stability and elegance

Brand

TEAC

Series

Reference 505 series

Model

AX-505-B

AX-505-S

Color

Black

Silver

UPC code

43774033751

43774033768

EAN code

4907034222452

4907034222469

Overall dimensions (W x H x D)

NW

290 x 81.6 x 264 /11.4” x 3.2” x 10.4”

4.2kg / 9.3 lbs

Carton dimensions (W x H x D)

GW

440 x 190 x 340 / 17.3” x 7.5” x 13.4”

5.5kg / 12.1 lbs

Quantity per Master Carton

1

Last update: 2019/1/19

Supplemental to New Product Information (SNPI)

2

 Product overview

The AX-505 is a stereo integrated amplifier that delivers 115W + 115W of output power but occupies
just an A4-size footprint.

In the power amplifier section we’ve employed a cool-running and energy-efficient option, a TEAC­tuned Ncore module by Hypex from Netherlands. Its clear sound with low distortion and high Signal­to-Noise ratio reproduces Hi-Res audio content with true dynamism and musical verve.
In addition, the AX-505 also provides high quality headphone listening, via an integrated headphone
amplifier, one that that supports ‘ground separate’ connection.

Admittedly more ‘eye-candy’ than a functional necessity, a pair of eye-catching level meters on the
front panel track musical volume levels as they ebb and flow. The user experience is further
enhanced by the presence of a well-damped volume control finished with a machined aluminum knob
for precise volume adjustment. A Passive-cooling design, for completely silent operation, allows the
listener to focus on their music without the distraction of irritating fan noise.

Combine this state-of-the-art stereo integrated amplifier with TEAC's latest standalone DAC unit, the
UD-505, or the NT-505 USB DAC/Network Player and you can revel in all the benefits of high-spec,
Hi-Res audio, such as DSD512 and PCM 768kHz content.

 Ncore power amplifier by Hypex, specially tuned by TEAC

The AX-505 is based around a high-performance, energy-efficient
Hypex Ncore power amplifier module which delivers 115W+ 115W
of output power from a small unit. This isn’t a standard Ncore
module… it has been carefully tuned by TEAC to deliver maximum
musical expression from the full breadth of musical repertoire.

 Carefully selected parts, exclusively designed for hi-fi applications

From MUSE op-amps in the analogue section - which fundamentally determines the amplifier’s sound
quality - to ladder-resistor type volume controls, our engineers have carefully chosen all key
components from ‘made for hi-fi’ ranges, wherever possible.

 XLR balanced inputs

The AX-505 is equipped with a pair of XLR balanced analogue audio inputs,
designed to help minimise external noise picked up as an analogue audio signal
travels down the interconnect cable.

 CCLC headphone amplifier circuit for maximum linearity

The AX-505 is also equipped with a 4-pole headphone output jack that supports ‘ground-separate’
connection for excellent channel separation during headphone listening. The CCLC (Coupling
Capacitor-less Circuit) headphone amplifier circuit design, meanwhile, eliminates coupling condensers
in the circuit’s output stage. This reduces sonic colouration during processing, so delivering a more
authentic audio signal to your headphones.

Last update: 2019/1/19

Supplemental to New Product Information (SNPI)

3

 A high capacity toroidal-core power transformer

In the power supply section, the AX-505 employs a high capacity toroidal-core power transformer
along with Schottky barrier diodes in the rectifying circuit.
The advantage of Schottky barrier diodes over conventional types is that they supply cleaner and
more stable current, reducing rectifier noise in every part of the amplifier’s circuitry.

 Passive-cooling design for silent operation

It makes no sense for an amplifier to deliver excellent sound to loudspeakers while generating
spurious operating noise from a cooling fan. That is why our engineers paid special attention to the
AX-505’s circuit and cabinet design, creating a parts layout that would allow for the natural removal
of heat, so achieving a compact but powerful amplifier that doesn’t require a cooling fan.

 Full-metal body for rigidity, stability and elegance

It’s not just the front panel that’s firmly attached to the robust steel inner chassis – the top and side
panels are affixed to it, too. This high standard of construction helps reduce mechanical vibration via
heavy parts. A compact design with an A4-sized footprint, the AX-505 fits comfortably into even the
smallest of modern spaces.

 Plenty of inputs for maximum versatility

On the rear panel, connectors are located with a wide
pitch between them, in order to allow the use of
interconnects with bulky plugs. Three set of RCA
analogue inputs offer you the potential of creating a full­scale hi-fi system, even if you start off using the AX-505 as part of a relatively minimalist desktop PC
audio set-up.
The AX-505 is also equipped with a set of wide-pitch, diagonally offset (for easy wiring)
screw-type speaker terminals, capable of accommodating high quality AWG8 gauge cables
and banana plugs.

 User-friendly interface for ease of use

In order to provide a more tactile response, the AX-505 employs a volume control with a
machined aluminum knob for precise volume control, while a classic toggle is used to switch
the amplifier on and off. The remote control, topped with a luxurious aluminum cover, allows
you to adjust volume in 0.5dB steps at moderate volumes.

 Dual level meters that track the pulse of your music

A pair of level meters that dance in time as volume levels change help add
a visual dimension to your music while enhancing the amplifier’s
considerable aesthetic appeal. A 4-step dimmer which can disable the
meters or further emphasise movement (by increasing sensitivity by
+20dB), can be chosen according to preference.
Even if the level meters are disabled and the backlight is switched off, you can still easily tell if the
unit is turned on or off from distance, simply by noting the position of the toggle-type power switch.

Last update: 2019/1/19

Supplemental to New Product Information (SNPI)

4

■ Key Features

 115W + 115W of max output power from a Hypex Ncore power amplifier module, tuned by TEAC
 MUSES8920 op-amps for high quality sound
 Independent resistor ladder-type volume controls
 Large capacity toroidal-core power transformer with Schottky barrier diodes
 CCLC headphone amplifier circuit for linear sound
 1/8inch (3.5mm) 4-pole headphone jack supporting ‘ground-separate’ connection
 Dual level meter with 4-step dimmable backlight
 Passive-cooling design for silent operation
 Full-metal body for rigidity, stability and elegance
 Compact design with an A4-sized footprint
 XLR balanced analogue input
 Three sets of unbalanced RCA analogue audio inputs with a wide-pitch connector layout
 A set of gold-plated, screw-type speaker terminals compatible with AWG8 cable and banana plugs
 Auto power-saving
 Remote control included
 RoHS compliant

 Specifications

Analog audio inputs

Balanced
Connector XLR (2:HOT), x 1 pair
Max input level 3.0Vrms

Unbalanced
Connector RCA Pin x 3 pairs (gold-plated)
Max input level 2.5Vrms

Audio outputs

Speakers
Connector Screw-type x 1 set (gold-plated, compatible with AWG8 and Banana plugs)
Supported speaker impedance 4 to 8 ohms

Headphone output
Connector 1/8” (3.5mm) 4-pole stereo headphone jack x 1
Connection Ground separate
Max output power 360mW + 360mW (32 ohms loaded, THD 10%, JEITA)
Frequency response 5Hz to 150kHz (-3dB)
Signal-to-Noise ratio 115dB
Total harmonic distortion 0.003% (output power 30mW, 32 ohms loaded)
Compatible impedance range 16 - 600ohms

Audio performance

Rated output power 115W + 115W (4 ohms, 1kHz, THD 0.8%)

Last update: 2019/1/19

Supplemental to New Product Information (SNPI)

5

70W + 70W (8 ohms, 1kHz, THD 0.8%)

Total harmonic distortion 0.002% (8 ohms, 1kHz, 12.5W, JEITA)
Signal-to-Noise ratio 110dB (8 ohms, 1kHz, IHF-A)
Frequency response 10Hz to 50kHz (-5dB, XLR input 1V, 8 ohms, JEITA)

General

Operating power AC 120V, 60Hz (US/Canada)
AC 220-240V, 50/60Hz (UK/Europe)

Power consumption
Models for Europe and USA/Canada
56W
Overall dimensions (W x H x D) 11 1/2” x 3 1/4” x 10 1/2” ( 290 x 81.6 x 264mm)
Net weight 9 3/8 lbs. / 4.2 kg

Included items

Remote control (RC-1332) x1
AAA batteries x 2
AC power cable x1
Owner’s Manual (including Warranty)

 Rear Panel
