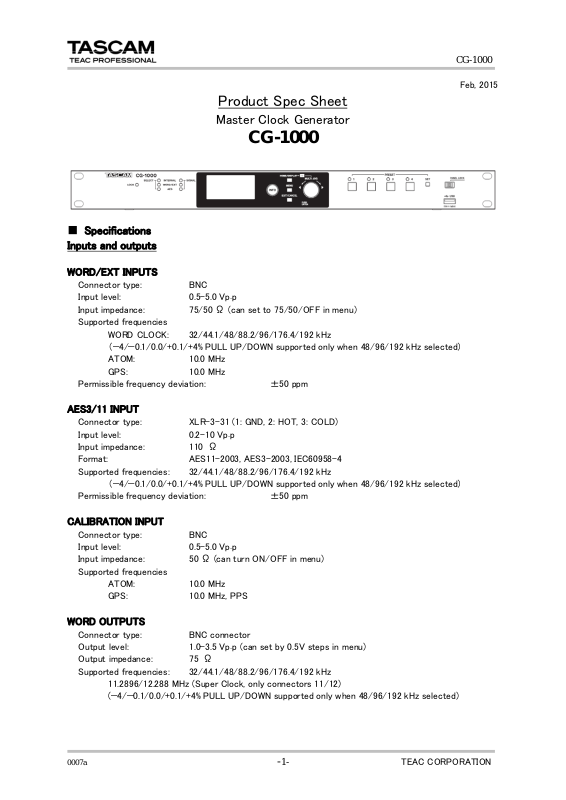

CG-1000
Product Spec Sheet
Master Clock Generator
CG-1000
■ Specifications
Inputs and outputs
WORD/EXT INPUTS
Connector type: BNC
Input level: 0.5-5.0 Vp
Input impedance: 75/50 Ω (can set to 75/50/OFF in menu)
Supported frequencies
WORD CLOCK: 32/44.1/48/88.2/96/176.4/192 kHz
（−4/−0.1/0.0/+0.1/+4% PULL UP/DOWN supported only when 48/96/192 kHz selected）
ATOM: 10.0 MHz
GPS: 10.0 MHz
Permissible frequency deviation: ±50 ppm
AES3/11 INPUT
Connector type: XLR-3-31 (1: GND, 2: HOT, 3: COLD)
Input level: 0.2-10 Vp
Input impedance: 110 Ω
Format: AES11-2003, AES3-2003, IEC60958-4
Supported frequencies: 32/44.1/48/88.2/96/176.4/192 kHz
（−4/−0.1/0.0/+0.1/+4% PULL UP/DOWN supported only when 48/96/192 kHz selected）
Permissible frequency deviation: ±50 ppm
CALIBRATION INPUT
Connector type: BNC
Input level: 0.5-5.0 Vp
Input impedance: 50 Ω (can turn ON/OFF in menu)
Supported frequencies
ATOM: 10.0 MHz
GPS: 10.0 MHz, PPS
WORD OUTPUTS
Connector type: BNC connector
Output level: 1.0-3.5 Vp
Output impedance: 75 Ω
Supported frequencies: 32/44.1/48/88.2/96/176.4/192 kHz
11.2896/12.288 MHz (Super Clock, only connectors 11/12)
(−4/−0.1/0.0/+0.1/+4% PULL UP/DOWN supported only when 48/96/192 kHz selected)
-p
-p
-p
-p (can set by 0.5V steps in menu)
Feb, 2015
0007a -1- TEAC CORPORATION
Page 2
CG-1000
AES3/11 OUTPUTS
Connector type: XLR-3-32 (1: GND, 2: HOT, 3: COLD)
Output level: 2.5 Vp
Output impedance: 110 Ω
Format: AES11-2003, AES3-2003, IEC60958-4
Supported frequencies: 32/44.1/48/88.2/96/176.4/192 kHz
(−4/−0.1/0.0/+0.1/+4% PULL UP/DOWN supported only when 48/96/192 kHz selected)
-p
S/PDIF OUTPUTS
Connector type: RCA pin jack
Output level: 0.5 Vp
Output impedance: 75 Ω
Format: IEC60958-3 (S/PDIF)
Supported frequencies: 32/44.1/48/88.2/96/176.4/192 kHz
(−4/−0.1/0.0/+0.1/+4% PULL UP/DOWN supported only when 48/96/192 kHz selected)
-p
Performance
Internal oscillator
Type: OCXO（oven-controlled crystal oscillator）
Permitted frequency deviation: ±0.01 ppm （Adjusted value when shipped new from the
factory）
Frequency temperature characteristics: ±0.05 ppm （0 to 40℃）
Long-term frequency stability: ±0.005 ppm （daily）
±0.5 ppm （annually）
General
Power
AC100 V–240 V, 50/60Hz
Power consumption
10 W
External dimensions
483 x 45 x 310mm (width × height × depth)
Weight
3.1 kg (6.8 lb)
Operating temperature range
0–40℃ (32–104゜F)
0007a -2- TEAC CORPORATION
Page 3
CG-1000
■ Dimensional drawings
_________________________________________________________________________________________________________________________________________________
※TASCAM is trademark of TEAC CORPORATION, registered in the U.S. and other countries.
※Other company names, product names and logos are the trademarks or registered trademarks of their
owners.
※Specifications and appearance are subject to change without notice.
※All information included in this document is as of Feb, 2015.
0007a -3- TEAC CORPORATION
