EN |
|

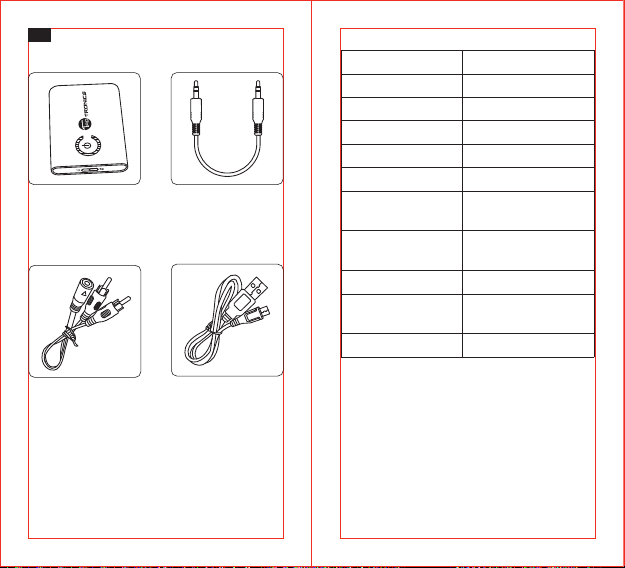

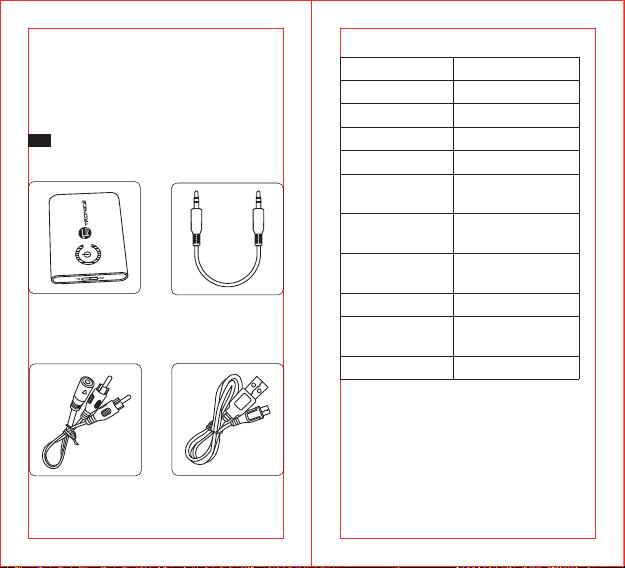

Package Contents |
|
TaoTronics Wireless |
3.5mm Audio Cable |
2-in-1 Adapter |
|
(Model:TT-BA07) |
|
3.5mm Female to |
USB Charging Cable |
2 RCA Male Cable |
|
Speci cations
Bluetooth® Version |
Bluetooth® V5.0 |
|
Bluetooth® Pro le |
A2DP / AVRCP |
|
Audio Codex |
aptX |
|
|
|
|
Range |
33 ft / 10 m |
|
|
|
|
Charging Power |
5V DC |
|
|
|
|
Battery Capacity |
160 mA |
|
|
|
|
Working Hours |
Approx. 10 hours |
|
(Receiver Mode) |
||
|
||
|
|
|
Working Hours |
Approx. 10 hours |
|
(Transmitter Mode) |
||
|
||
|
|
|
Charging Time |
2 hours |
|
|
|
|
Dimension (L x W x H) |
1.79 x 1.28 x 0.37 in / |
|
4.55 x 3.25 x 0.95 cm |
||
|
||
Weight |
0.48 oz / 13.8 g |
|
|
|
01/02

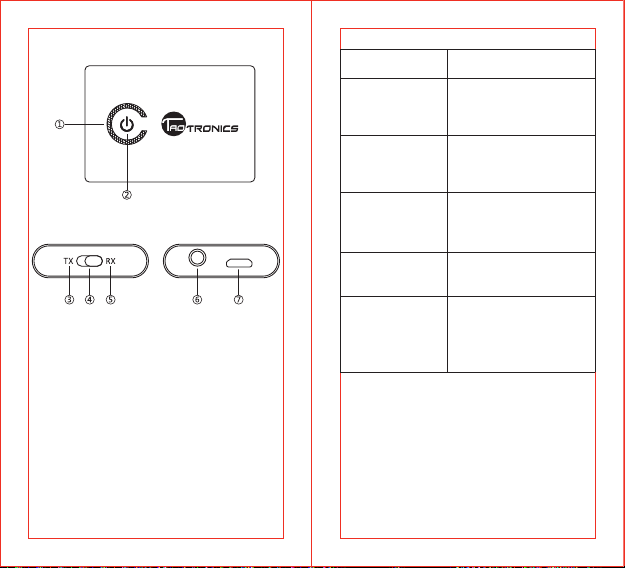

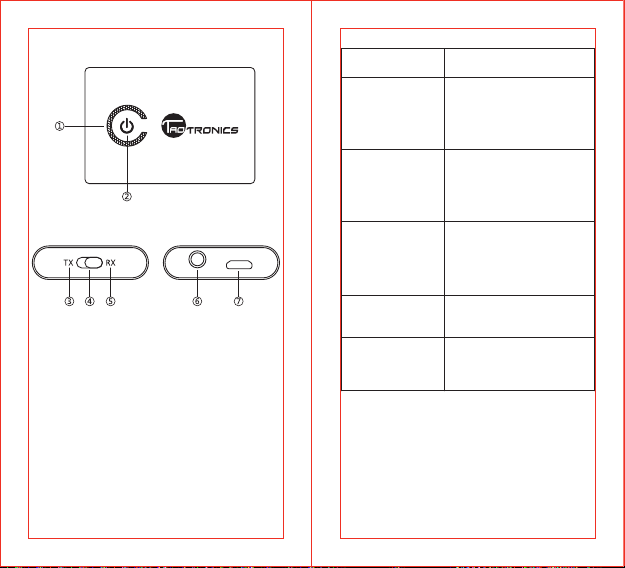

Product Diagram |
|
LED Indicator |
Power Button |
Transmitter Mode |
Mode Switch |
Receiver Mode |
3.5mm Audio Port |
Micro USB Charging Port |
Control Functions
Function Operation
When off, press and hold the Power
Power On
Button for 5 seconds
When on, press and hold the Power
Power Off
Button for 5 seconds
When powered on, press the Power
Pairing
Button twice to start pairing.
Slide the Mode Switch to and from
Mode Switch
TX and RX
In RX mode, press the Power Button
Play / Pause
once to play / pause music
Note:
•The mode can only be successfully switched after the adapter is turned off for 3 seconds.After the switch, the pairing history of the previous devices will be cleared.
03/04
LED Indicators
LED Indicator |
Status |
|
|
Solid Red LED |
Charging |
|
|
LED Off |
Fully charged |
|
|
Flashing Red |
Pairing in Transmitter |
and Blue |
/ Receiver Mode |
|
|
Flashing Red |
Low battery |
|
|
Solid Blue LED |
Successfully paired |
|
|
Flashing Blue |
Powered on but not paired |
(Every 2 Seconds) |
with Bluetooth® devices |
Note:
•For rst time use, once powered on, the adapter will automatically enter pairing mode. Please follow the instructions below on how to pair.
How to Use
Charging
1.Connect the micro-USB end of the charging cable to the charging port of the Bluetooth® adapter.
2.Plug the USB end of the charging cable to a USB charging port or any active USB port.
3.The LED indicator will turn red when charging. It will automatically turn off when the device is fully
charged.
Note:
•You can use the adapter while it is charging.
•We recommend charging the unit for at least 2 hours before using it for the rst time.
Pairing
Pair in TX mode:
1.Set the TT-BA07 to TX mode and connect it to your audio transmitting device.
2.Place your Bluetooth® audio receiving device within a 3 feet / 1 meter range and set it to pairing mode.
3.Press and hold the Power Button for 5 seconds (LED indicator ashes blue slowly) and tap twice to enter pairing mode (LED indicator ashes red and blue alternately).After approximately 30 seconds, the pairing will be done (LED indicator in solid blue).
Pair in RX mode:
Press and hold the Power Button of the adapter for 5 seconds (LED indicator ashes blue slowly). It will start pairing 5 seconds after being powered on (LED indicator ashes red and blue alternatively).
1.Activate the Bluetooth® function on your phone and search for the nearby Bluetooth® devices:
•For iOS: Settings > Bluetooth® > On
•For Android: Settings > Wireless & Networks > Bluetooth®: On > Scan for devices
05/06
2.Find “TaoTronics TT-BA07” in the search results and tap on it to connect. Once connected, the LED indicator will turn solid blue.
Note:
•The adapter enters pairing mode automatically when powered on for the rst time.
•The original pairing memory will be cleared after a mode switch. It will automatically start pairing each time it’s powered on.
•If a PIN code is required for pairing, try 0000 (four zeroes), 8888 (four eights), 1111 (four ones), or 1234.
•The adapter can remember previously paired devices and will attempt to pair with devices automatically, without going into pairing mode.
Pair with two devices at the same time
In TX mode:
In TX mode, the adapter is able to pair with two Bluetooth® stereo earphones/speakers at the same time.
1.Follow the previous instructions in the “Pairing” section to pair the TT-BA07 with your rst device.
2.Turn off the Bluetooth® function on your rst device, tap the Power Button twice to pair and connect to your second device.
3.Turn on the Bluetooth® function on your rst device. In approximately 30 seconds, the rst device will
automatically connect in.
Note:
•When you pair with two devices, both can play music at the same time.
•The adapter will automatically re-pair when powered on.
In RX mode:
In RX mode, the adapter is able to pair with two Bluetooth® devices at the same time.
1.Follow previous instructions in the “Pairing” section to pair the TT-BA07 with your rst device. Disable the Bluetooth® function on your rst device.Tap the Power Button twice to pair with the second device.
2.Turn on the Bluetooth® of the rst device, now
TT-BA07 adapter is successfully paired with both devices.
Note:
•Only one device can play music at any time.You have to stop the music on one device to play on the other.
•The adapter will automatically re-pair when powered on.
Care and Maintenance
•Keep the adapter away from heat and humidity.
•Do not expose the adapter to direct sunlight or extreme heat.
•Do not try to take the adapter apart. It may cause serious damage.
•Do not drop or knock the adapter on hard surfaces as it damages the interior circuit.
•Do not use chemicals or detergents to clean the product.
•Do not scrape the surface with sharp objects.
07/08
