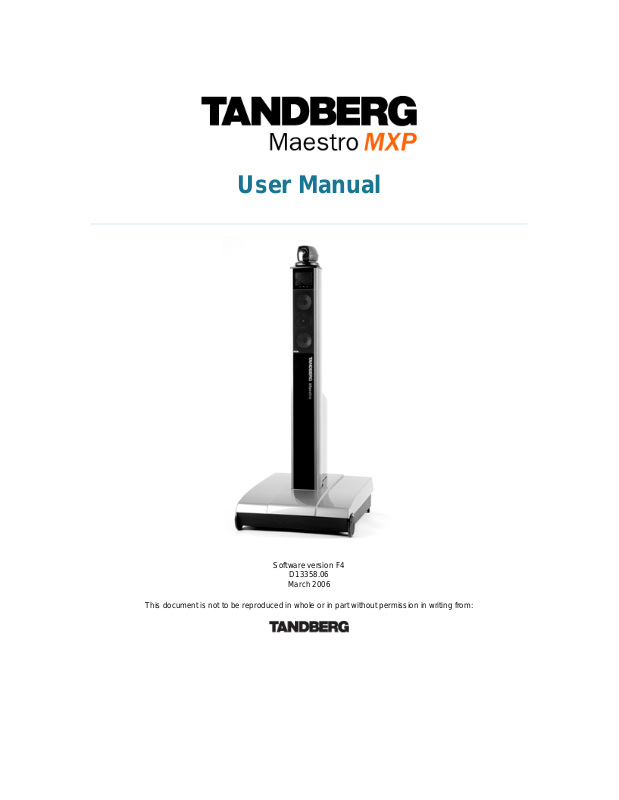

TANDBERG MXP User Manual

User Manual

Software version F4

D13358.06

March 2006

This document is not to be reproduced in whole or in part without permission in writing from:

TANDBERG Maestro MXP

Trademarks and Copyright

All rights reserved. This document contains information that is proprietary to TANDBERG. No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form, or by any means, electronically, mechanically, by photocopying, or otherwise, without the prior written permission of TANDBERG. Nationally and internationally recognized trademarks and trade names are the property of their respective holders and are hereby acknowledged.

Third Party Software

Amended / Expanded Copyright notices for third-party software on the TANDBERG MXP systems are listed below:

Full copies of the licenses and warranty statements are located on the product CD in the license files directory.

The non-commercial third party code is distributed in binary form under the terms of non-copyleft style open source licenses such as BSD, Artistic or MIT/X Consortium.

The product also has some binary code distributed under the terms of the GNU public license with an exemption which allows static links to non-copyleft commercial code.

In accordance with section (3) of the GNU General Public License, copies of such code will be provided upon request by contacting TANDBERG. Please contact us by using the Online Support section at

www.tandberg.net or the “contact us” section of this manual. Please provide USD

10.00 for media and shipping.

Agfa

Contains iType™ from Monotype Imaging Corporation.

CMU-SNMP

X Consortium License.

Dropbear - an SSH2 server

open source license.

User Manual

eCos

Copyright (c) 1982, 1986, 1991, 1993 The Regents of the University of California. All rights reserved. (c) UNIX System Laboratories, Inc. All or some portions of this file are derived from material licensed to the University of California by American Telephone

and Telegraph Co. or Unix System Laboratories, Inc. and are reproduced herein with the permission of UNIX System Laboratories, Inc.

Copyright (C) 1995, 1996, 1997, and 1998 WIDE Project. * All rights reserved. Copyright (c) 2000 Brian Somers <brian@Awfulhak.org> Copyright (c) 1998 The NetBSD Foundation, Inc. * All rights reserved. Copyright (c) 1997 Niklas Hallqvist. All rights reserved. Copyright (c) 1988 Stephen Deering. Copyright (c) 1992, 1993 The Regents of the University of California. All rights reserved. This code is derived from software contributed to Berkeley by Stephen Deering of Stanford University. Portions of eCos code are distributed under several BSD style licenses. Other portions of eCos code are distributed under

the terms of the GNU General Public License with a non-copyleft exception which allows static links to non-copyleft programs.

ExPat XML Parser:

Copyright (c) 1998, 1999, 2000 Thai Open Source Software Center Ltd and Clark Cooper Copyright (c) 2001, 2002, 2003, 2004, 2005, 2006 Expat maintainers. The ExPat XML parser is distributed under the terms of the ExPat License which is a MIT/X Consortium style open

source license

ICU

ICU is distributed under the terms of the ICU license, which is a MIT/X Consortium style license.

OpenSSL

(http://www.openssl.org/)" Copyright (C) 1995-1998 Eric Young (eay@cryptsoft.com) * All rights reserved. OpenSSL is distributed under the terms of the OpenSSL and SSLeay licenses, which are both BSD style open source

licenses.

iii

TANDBERG Maestro MXP

snprintf

Copyright 1999, Mark Martinec. mark.martinec@ijs.si All rights reserved Snprintf is distributed under the terms of the snprintf license, which is a Frontier Artistic style open source license. A standard copy of snprintf can be located at the author’s web site: http://www.ijs.si/software/snprintf/

xSupplicant (wpa_supplicant) 802.1x

Disclaimer

The information in this document is furnished for informational purposes only, is subject to change without prior notice, and should not be construed as a commitment by TANDBERG. The information in this document is believed to be accurate and reliable; however TANDBERG assumes no responsibility or liability for any errors or inaccuracies that may appear in this document, nor for any infringements of patents or other rights of third parties resulting from its use. No license is granted under any patents or patent rights of TANDBERG.

This document was written by the Research and Development Department of TANDBERG, Norway. We are committed to maintain a high level of quality in all our documentation. Towards this effort, we welcome you to

and structure of this document.

Environmental Issues

User Manual

TANDBERG visual communication products significantly reduce the need for travel and thereby help reduce various types of pollution. TANDBERG recommends the use of low energy peripherals, such as EnergyStar™ monitors. Thank you for buying a TANDBERG product.

Battery handling

The batteries for the Remote Control are Long Life Alkaline batteries, which means you will need fewer batteries, further benefiting the environment. Please follow the guidelines on the packing material for handling and disposal instructions for the batteries.

Waste handling

This TANDBERG product contains no consumables that require disposal. You should retain the packaging materials in case future shipment is necessary. Please contact your local authorities for information on waste handling and recycling regulations for electronic p roducts

Production of products

Our factories employ the most efficient environmental methods for reducing waste and pollution. Our designers do their best to ensure TANDBERG products are highly recyclable.

Digital User Manuals

TANDBERG is pleased to announce that it has replaced the printed versions of its User Manuals with a digital CD version. Instead of a range of different user manuals, there is now one CD which can be used with all TANDBERG MXP products. The CD contains a variety of supported languages. The environmental benefits of digital manuals are significant, from saving paper, to reduced weight for shipping. Even the CD itself is recyclable. Not only are they more ecological, digital manuals are more user friendly. A simple web-based search feature helps users directly access the information they need. In addition, this TANDBERG video system now has an intuitive on-screen help function, which provides a range of useful features and tips. If desired, the user manuals on the CD can still be printed locally.

TANDBERG Maestro MXP

Operator Safety Summary

For your protection, please read these safety instructions completely before operating the equipment and keep this manual for future reference. The information in this summary is intended for operators. Carefully observe all warnings, precautions and instructions both on the apparatus and in the operating instructions.

Equipment Markings

The lightning flash symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltages” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electrical shock. The exclamation mark within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions accompanying the equipment.

Warnings

 Water and moisture - Do not operate the equipment under or near water - for example

near a bathtub, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool or in areas with high humidity.

 Cleaning - Unplug the apparatus from the wall outlet before cleaning or polishing. Do not

use liquid cleaners or aerosol cleaners. Use a lint-free cloth lightly moistened with water for cleaning the exterior of the apparatus.

 Ventilation - Do not block any of the ventilation openings of the apparatus. Install in

accordance with the installation instructions. Never cover the slots and openings with a cloth or other material. Never install the apparatus near heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce h eat.

 Grounding or Polarization - Do not defeat the safety purpose of the polarized or

grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or third prong is provided for your safety. If the provided plug does not fit into your outlet, consult an electrician.

 Power-Cord Protection - Route the power cord so as to avoid it being walked on or

pinched by items placed upon or against it, paying particular attention to the plugs, receptacles, and the point where the cord exits from the apparatus.

 Attachments - Only use attachments as recommended by the manufacturer.  Accessories - Most systems should only be used with a cart, stand, tripod, bracket, or

table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

 Lightning - Unplug this apparatus during lightning storms or when unused for long periods

of time.

User Manual

 ISDN cables - CAUTION - To reduce the risk of fire, use only No. 26 AWG or larger

telecommunication line cord.

 Servicing - Do not attempt to service the apparatus yourself as opening or removing

covers may expose you to dangerous voltages or other hazards, and will void the warranty. Refer all servicing to qualified service personnel.

 Damaged Equipment - Unplug the apparatus from the outlet and refer servicing to

qualified personnel under the following conditions:

 When the power cord or plug is damaged or frayed  If liquid has been spilled or objects have fallen into the apparatus  If the apparatus has been exposed to rain or moisture  If the apparatus has been subjected to excessive shock by being dropped, or the

cabinet has been damaged

 If the apparatus fails to operate in accordance with the operating instructions

vii

TANDBERG Maestro MXP

If you have any questions, comments or suggestions, please see the

www.tandberg.net.

It is also possible to send a fax or mail to the attention of: Product and Sales Support

TANDBERG P.O. Box 92 1325 Lysaker Norway Tel: +47 67 125 125 Fax: +47 67 125 234

Online Support section at

viii

User Manual

Table of Contents

1 Introduction............................................................................................................................. 13

1.1 At a Glance .......................................................................................................................... 16

1.2 Menu Structure .................................................................................................................... 20

2 Installation .............................................................................................................................. 22

2.1 Unpacking and Mounting.....................................................................................................23

2.2 Connecting Cables............................................................................................................... 25

2.3 Monitor Configuration........................................................................................................... 27

2.4 System Configuration........................................................................................................... 28

3 General Use ........................................................................................................................... 31

3.1 The Welcome Screen .......................................................................................................... 32

3.2 Using the Remote Control.................................................................................................... 33

3.2.1 Navigation................................................................................................................ 37

3.2.2 Selfview.................................................................................................................... 38

3.2.3 Layout...................................................................................................................... 40

3.2.4 Mic Off...................................................................................................................... 41

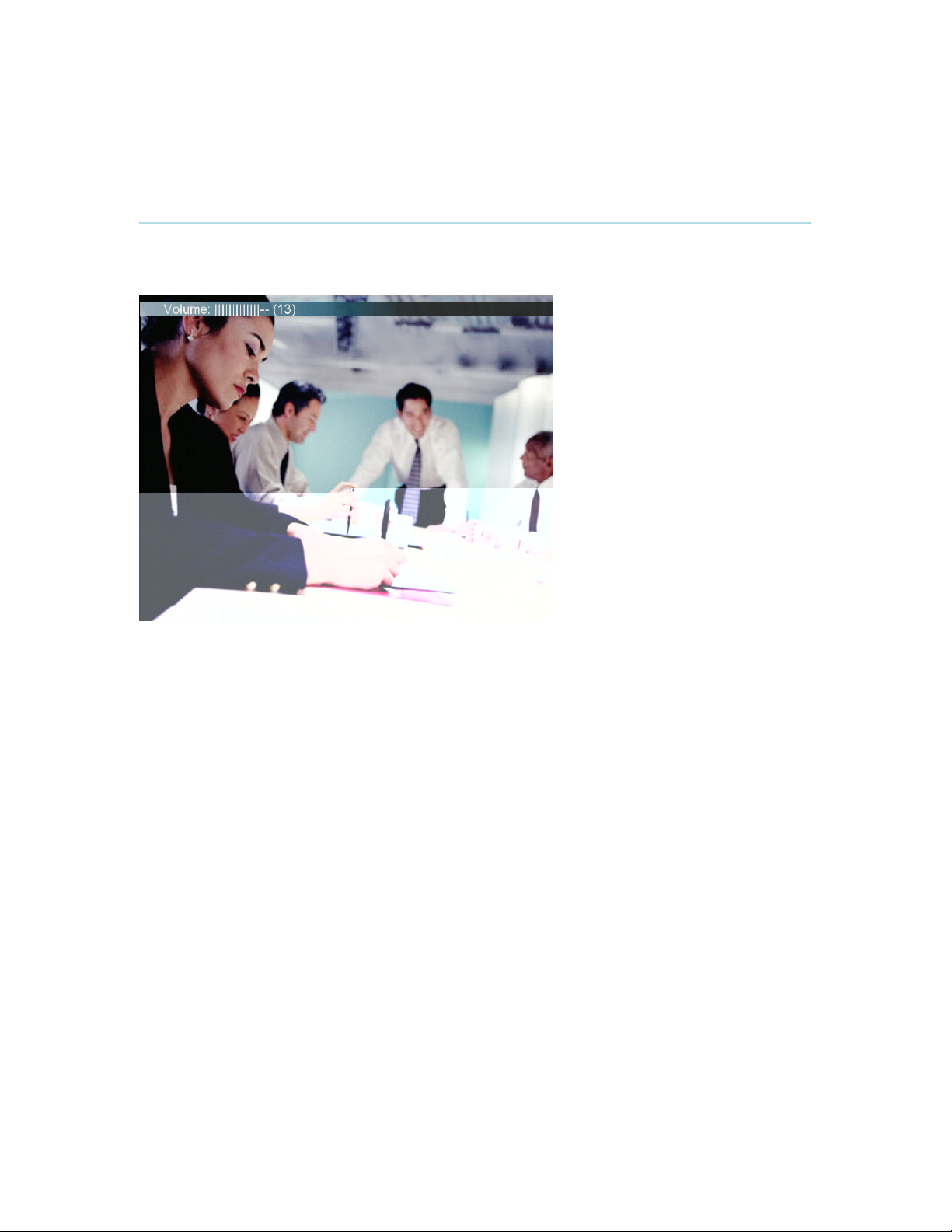

3.2.5 Volume + and -......................................................................................................... 42

3.2.6 Number and Letter keys........................................................................................... 43

3.2.7 Touch Tones............................................................................................................ 44

3.3 On-screen Indicators............................................................................................................ 45

3.4 Using the Menu.................................................................................................................... 47

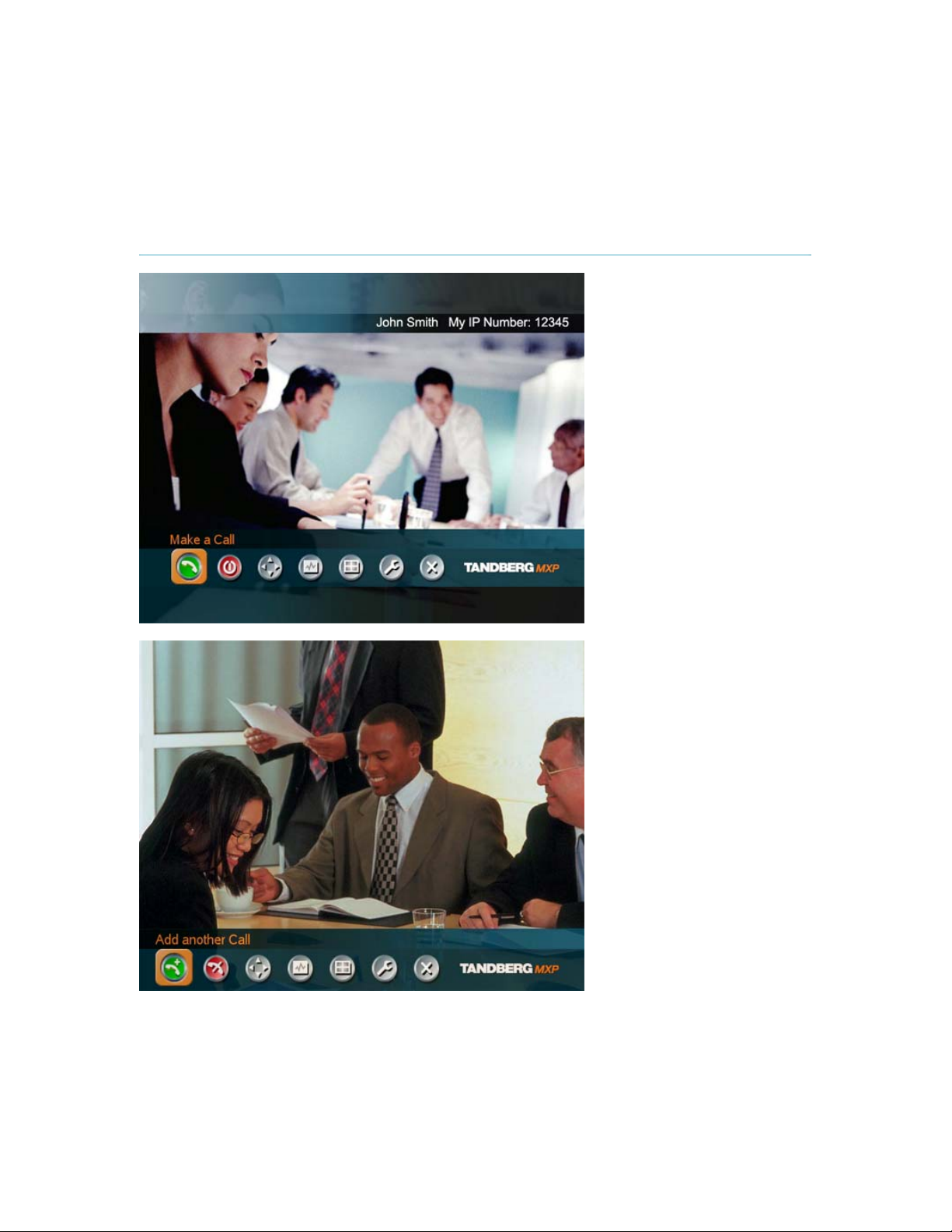

3.5 Make a Call.......................................................................................................................... 49

3.5.1 Place Video Call....................................................................................................... 50

3.5.2 Place Telephone Call............................................................................................... 51

3.5.3 Add Call ................................................................................................................... 52

3.5.4 Call Settings............................................................................................................. 54

3.5.5 Streaming................................................................................................................. 55

3.6 Answer an incoming call...................................................................................................... 57

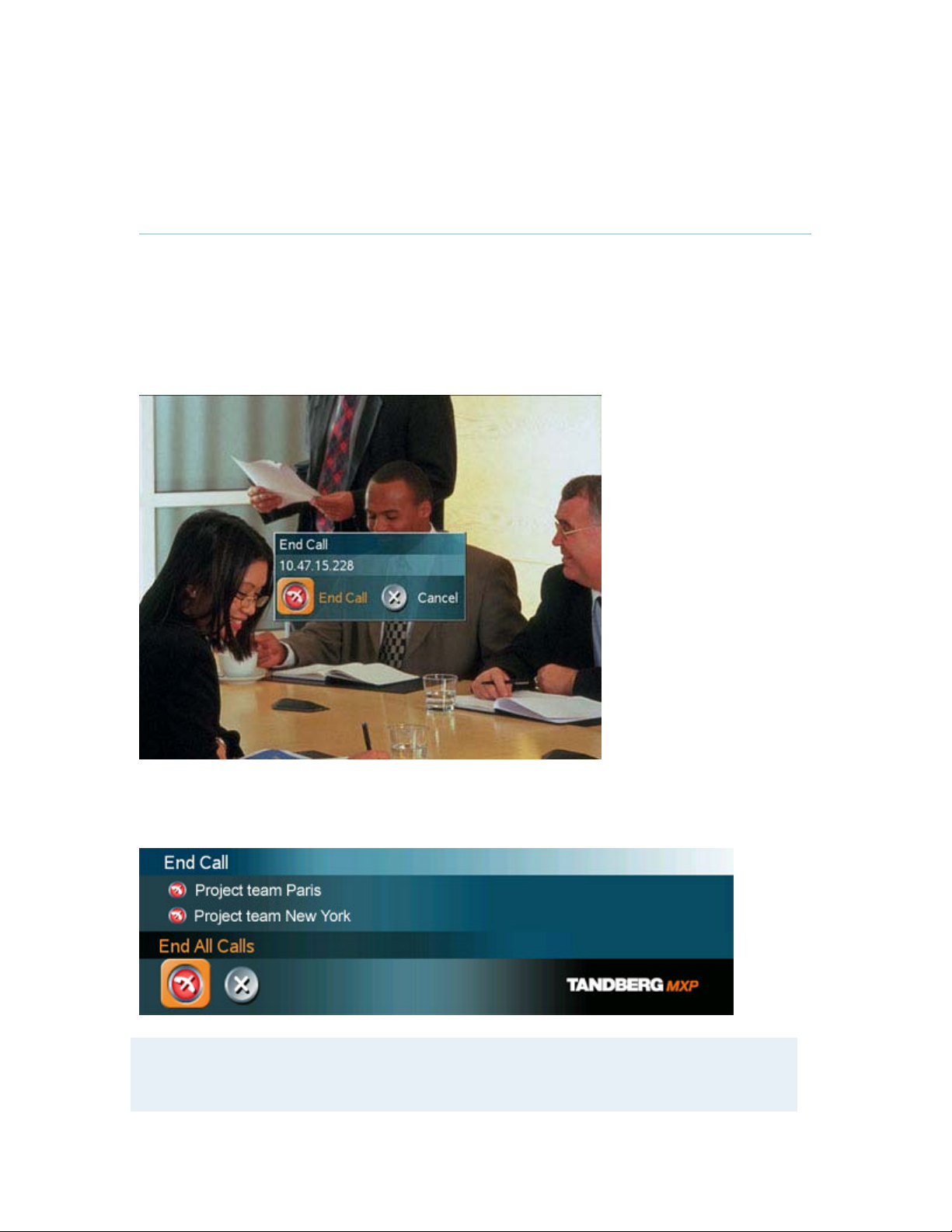

3.7 End Call................................................................................................................................ 58

3.8 Standby................................................................................................................................ 59

3.8.1 Delay Standby for 1 hour......................................................................................... 60

3.8.2 Delay Standby for 3 hours....................................................................................... 61

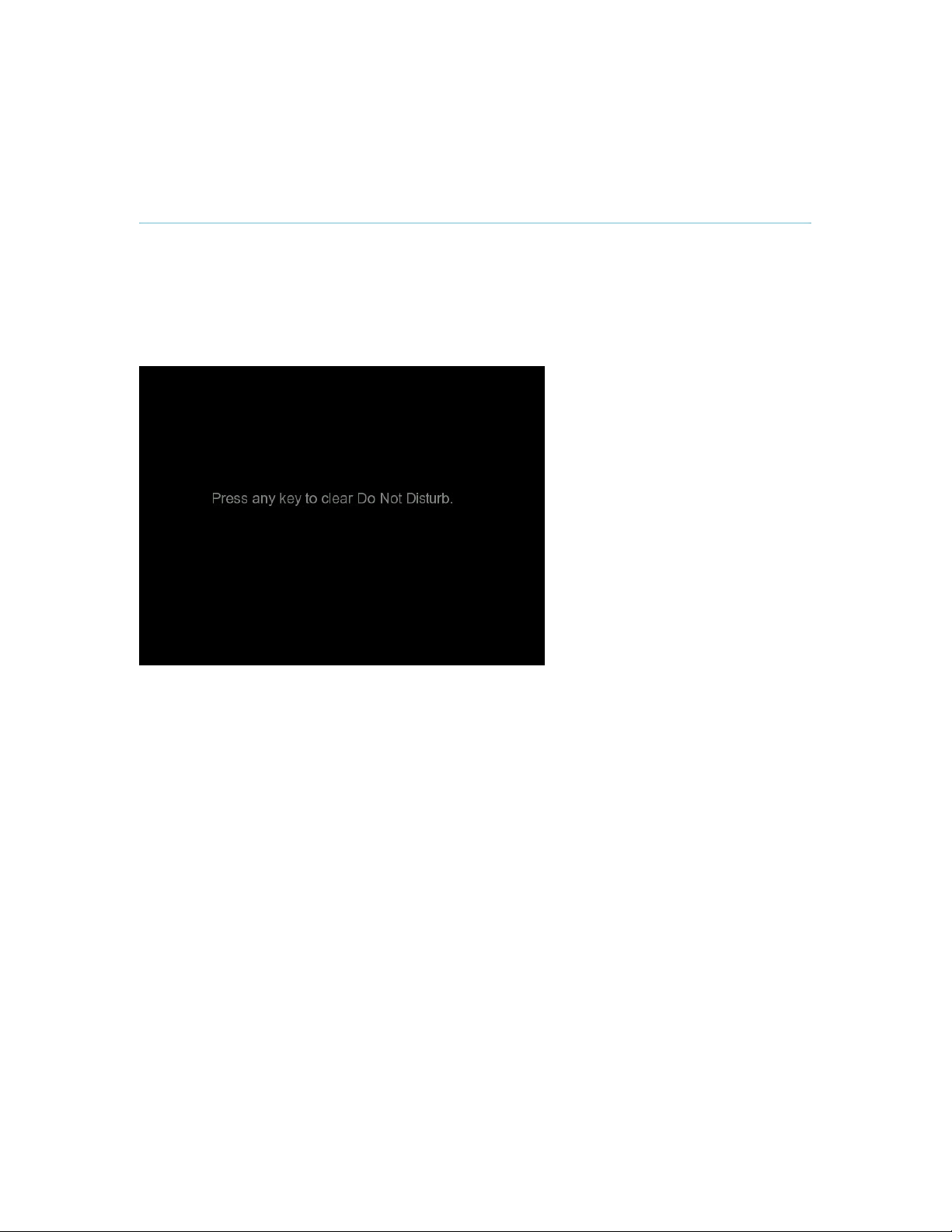

3.8.3 Do Not Disturb ......................................................................................................... 62

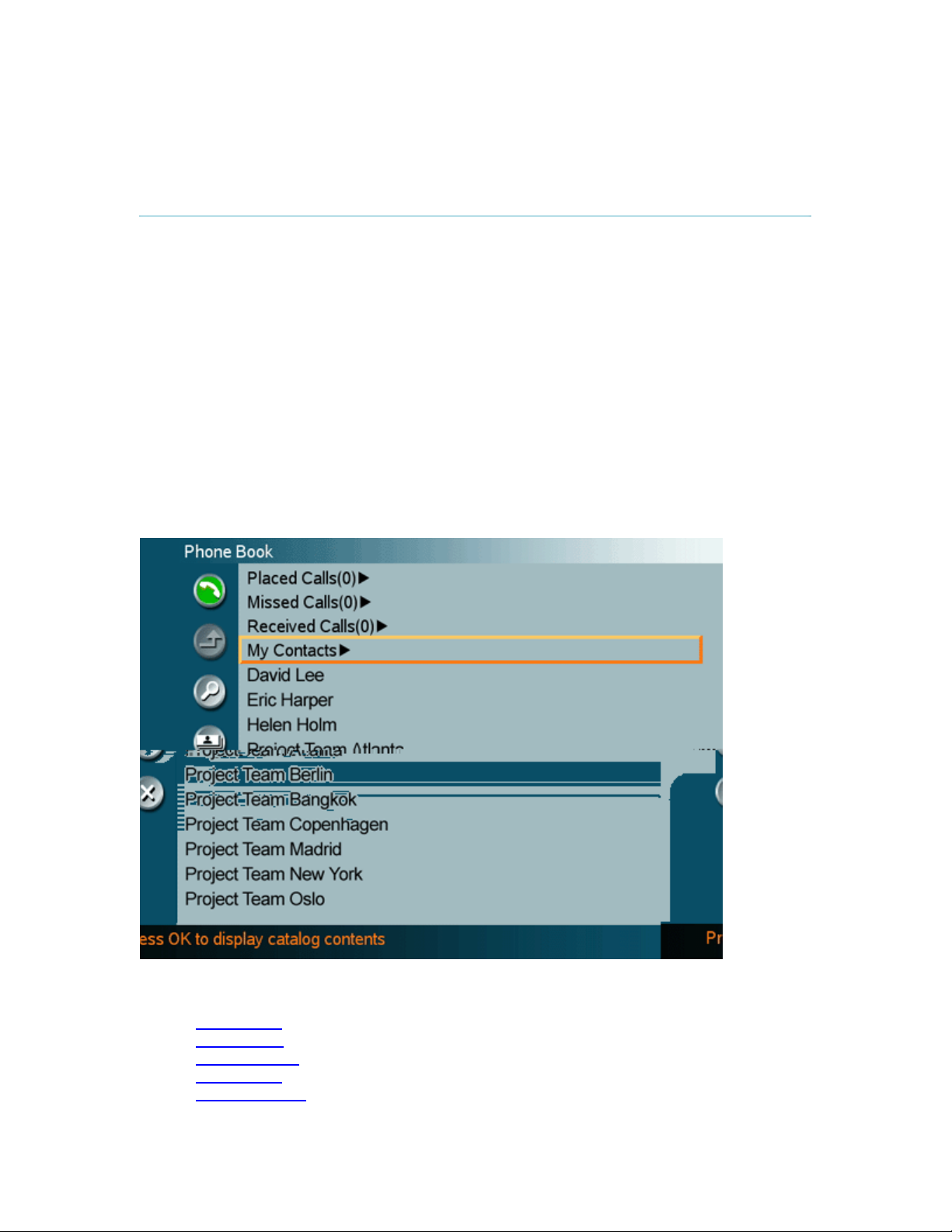

3.9 Phone Book ......................................................................................................................... 63

3.9.1 Call Log.................................................................................................................... 64

3.9.2 My Contacts............................................................................................................. 65

3.9.3 Global Contacts ....................................................................................................... 72

3.10 Camera Control.................................................................................................................. 76

3.10.1 Move Camera .......................................................................................................... 77

3.10.2 Far End Control........................................................................................................ 78

3.10.3 Camera Presets....................................................................................................... 79

3.10.4 TANDBERG Tracker................................................................................................ 80

3.10.5 Picture Control......................................................................................................... 81

3.10.6 Camera Tracking ..................................................................................................... 82

3.11 Presentation....................................................................................................................... 83

3.11.1 Presentation Key...................................................................................................... 84

3.11.2 Presentation Menu................................................................................................... 85

3.11.3 PC Presenter (DVI/VGA Input)................................................................................ 86

3.11.4 PC Soft Presenter and VNC.................................................................................... 87

3.11.5 Dual Stream (DuoVideoTF/H.239)............................................................................ 88

3.11.6 Take New Snapshot................................................................................................. 89

TANDBERG Maestro MXP

3.11.7 Display Snapshot..................................................................................................... 90

3.12 Conference Services.......................................................................................................... 91

3.12.1 Request Floor and Release Floor............................................................................ 94

3.12.2 Conference Layout................................................................................................... 95

3.12.3 Terminal Names....................................................................................................... 96

3.12.4 Chair Control............................................................................................................ 97

3.12.5 Assign Floor and Release Floor from Participant.................................................... 98

3.12.6 View Site and End View........................................................................................... 99

3.12.7 Disconnect Participant........................................................................................... 100

3.12.8 Terminate Meeting................................................................................................. 101

3.12.9 More about MultiSite (embedded MCU)................................................................ 102

3.13 Control Panel................................................................................................................... 104

3.13.1 Diagnostics ............................................................................................................ 105

3.13.2 System Information................................................................................................ 106

3.13.3 Channel Status ...................................................................................................... 107

3.13.4 Call Status.............................................................................................................. 109

3.13.5 System Selftest...................................................................................................... 110

3.13.6 View Administrator Settings................................................................................... 111

3.13.7 IP Address Conflict Check..................................................................................... 115

3.13.8 Warnings................................................................................................................ 116

3.13.9 Text Chat ............................................................................................................... 118

3.13.10 Audio Demo....................................................................................................... 119

3.13.11 Administrator Settings ....................................................................................... 120

3.13.12 Restart............................................................................................................... 121

3.13.13 User Guide ........................................................................................................ 122

4 Administrator Settings.......................................................................................................... 123

4.1 General Settings................................................................................................................ 124

4.1.1 Language............................................................................................................... 125

4.1.2 System Name ........................................................................................................ 126

4.1.3 International Name................................................................................................. 127

4.1.4 Auto Answer........................................................................................................... 128

4.1.5 Phone Book Settings ............................................................................................. 129

4.1.6 External Services Settings..................................................................................... 130

4.1.7 Permissions ........................................................................................................... 131

4.1.8 Screen Settings...................................................................................................... 133

4.1.9 Software Options ................................................................................................... 139

4.1.10 Date and Time Settings ......................................................................................... 140

4.2 Menu Settings.................................................................................................................... 141

4.2.1 Input Editor Language............................................................................................ 142

4.2.2 Menu Timeout in Call............................................................................................. 143

4.2.3 Menu on TV ........................................................................................................... 144

4.2.4 Menu on PC........................................................................................................... 145

4.2.5 Balloon Help........................................................................................................... 146

4.2.6 Administrator Password......................................................................................... 147

4.2.7 Kiosk Mode Settings.............................................................................................. 148

4.2.8 Startup ................................................................................................................... 151

4.2.9 Icons....................................................................................................................... 153

4.3 Presentation Settings......................................................................................................... 154

4.3.1 Presentation Start.................................................................................................. 155

4.3.2 H.239 ..................................................................................................................... 156

4.3.3 Startup Video Source............................................................................................. 157

4.3.4 Presentation Source .............................................................................................. 158

4.3.5 Snapshot Source ................................................................................................... 159

4.3.6 Auto-Display Snapshot.......................................................................................... 160

4.3.7 PIP Appearance..................................................................................................... 161

4.3.8 PIP Placing ............................................................................................................ 162

User Manual

4.3.9 VNC Settings ......................................................................................................... 163

4.4 Call Quality......................................................................................................................... 164

4.4.1 Video Algorithm...................................................................................................... 165

4.4.2 Audio Algorithm...................................................................................................... 166

4.4.3 AAC-LD 128kbps (stereo audio)............................................................................ 167

4.4.4 Natural Video......................................................................................................... 168

4.4.5 Max Upstream Rate (kbps).................................................................................... 169

4.4.6 Video Quality.......................................................................................................... 170

4.4.7 Default Call Settings .............................................................................................. 173

4.5 Audio.................................................................................................................................. 176

4.5.1 Inputs ..................................................................................................................... 177

4.5.2 Outputs .................................................................................................................. 181

4.5.3 Echo Control.......................................................................................................... 183

4.5.4 Stereo Settings ...................................................................................................... 184

4.5.5 Audio Leveling (AGC)............................................................................................ 186

4.5.6 Alert Tones and Volume ........................................................................................ 187

4.6 Video.................................................................................................................................. 188

4.6.1 Camera Tracking Mode ......................................................................................... 189

4.6.2 MCU Status Line.................................................................................................... 190

4.6.3 Floor to Full Screen................................................................................................ 191

4.6.4 Web Snapshots...................................................................................................... 192

4.6.5 MultiSite Picture Mode........................................................................................... 193

4.6.6 Video Name........................................................................................................... 195

4.7 Security.............................................................................................................................. 196

4.7.1 Encryption.............................................................................................................. 197

4.7.2 Encryption Mode.................................................................................................... 198

4.7.3 Passwords ............................................................................................................. 199

4.8 Network.............................................................................................................................. 200

4.8.1 ISDN/External/Leased E1/T1................................................................................. 201

4.8.2 LAN Settings.......................................................................................................... 211

4.8.3 Network Profiles..................................................................................................... 227

4.8.4 Data Port................................................................................................................ 228

4.8.5 Restore Default Settings........................................................................................ 229

5 Peripheral Equipment........................................................................................................... 230

5.1 Interfaces ........................................................................................................................... 231

5.1.1 Video...................................................................................................................... 231

5.1.2 Audio...................................................................................................................... 235

5.1.3 Network.................................................................................................................. 236

5.1.4 Data port................................................................................................................ 242

5.2 Document Camera............................................................................................................. 243

5.3 DVD / VCR......................................................................................................................... 244

5.4 Additional Cameras............................................................................................................ 245

5.5 Additional Microphones...................................................................................................... 246

5.6 The TANDBERG DNAM and Speakers............................................................................. 248

5.7 Stereo Speaker Kit............................................................................................................. 252

5.8 Telephone Add-On............................................................................................................. 254

5.9 Dual Monitor....................................................................................................................... 255

5.10 XGA Monitors and Projectors .......................................................................................... 256

5.11 VESA Display Power Management................................................................................. 257

5.12 Digital Monitor Power Management................................................................................. 258

5.13 Extended Display Identification Data (EDID)................................................................... 259

6 Appendices........................................................................................................................... 261

6.1 Appendix 1......................................................................................................................... 262

6.2 Appendix 2......................................................................................................................... 265

6.3 Appendix 3......................................................................................................................... 268

6.4 Appendix 4......................................................................................................................... 269

TANDBERG Maestro MXP

6.5 Appendix 5......................................................................................................................... 270

6.6 Appendix 6......................................................................................................................... 273

6.7 Appendix 7......................................................................................................................... 274

6.8 Appendix 8......................................................................................................................... 275

6.9 Appendix 9......................................................................................................................... 276

6.10 Appendix 10..................................................................................................................... 277

6.11 Appendix 11..................................................................................................................... 278

6.12 Appendix 12..................................................................................................................... 281

6.13 Appendix 13..................................................................................................................... 283

6.14 Appendix 14..................................................................................................................... 284

6.15 Appendix 15..................................................................................................................... 286

6.16 Appendix 16..................................................................................................................... 291

7 Glossary ............................................................................................................................... 292

8 Index..................................................................................................................................... 301

xii

1 Introduction

The TANDBERG Maestro MXP provides high-end performance features, large monitors and precision audio. This creates a collaborative meeting environment for medium to large-sized meeting rooms.

Audio Quality

High-performance audio provides a richer, more complete visual communication experience. The MPEG4 AAC-LD standard is used to provide true standards-based CD-quality, stereo audio.

The Digital Natural Audio Module

(DNAM), specifically designed for videoconferencing, provides higher fidelity sound for more natural sounding spoken-word. The DNAM features 250W of power.

Users can record and send stereo audio from stereo presentation and playback sources using PCs, DVDs and VCRs using the proper cables.

NEW Eliminate disturbance from GSM mobile phones and Blackberry devices

Video Quality

Features which ensure high quality video include:

 Natural Video

which provides a 60 fields per second true interlaced picture.

 Support for H.264 in MultiSite, DuoVideo/H.239 and encryption.  SXGA input and 2 x XGA output through DVI-I (analog or digital).  WAVE II (Wide Angle View) Camera that delivers the widest angle of view in the industry.  H.264 video compression up to 2Mbps.  Support for native 16:9 Wide XGA monitors by increasing the resolution to 1280x768

(WXGA).

 Automatic use of WXGA format when ”VGA Monitor Format” is set to Wide.

NEW High Definition (HD) Support on all TANDBERG MXP systems with a DVI input

and output

NEW High quality video and native 16:9 formats

Network

The system supports videoconferencing via both IP and ISDN networks. The bandwidth capabilities are:

 up to 4Mbps* on IP  up to 2Mbps* on ISDN  up to 6Mbps* IP in MultiSite.  SIP support, for both point-to-point and MultiSite*.

If channels are dropped during a videoconferencing session, downspeeding

automatically

maintains connections without interruption.

TANDBERG Maestro MXP

Security

Secure Conference

provides embedded encryption for both Point-to-Point and MultiSite call and

ensures both privacy and security. The system is delivered with integrated Expressway™ firewall traversal technology. When used

together with a TANDBERG Border Controller it enables:

 Secure and seamless traversal of ANY firewall.  No missing features when traversing the firewall – works with H.264, MPEG4 audio,

encryption.

 Outside systems, such as home office s, to be part of the enterprise dial plan.  Dialing to systems by URI, e.g. user@company.com.

NEW H.460, ITU Standardized firewall traversal, support NEW High security network authentication (802.1x)

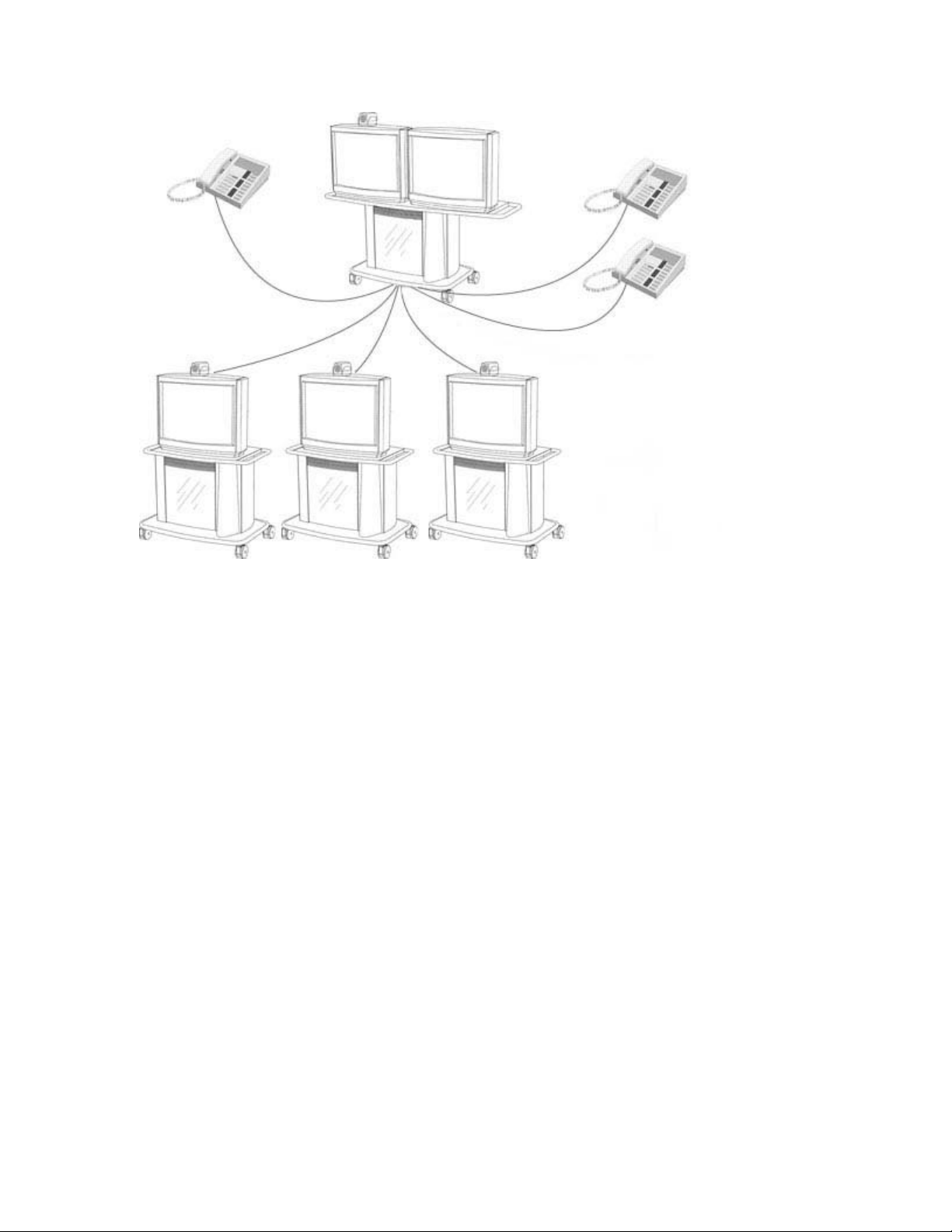

MultiSite*

The optional embedded MultiSite

functionality can connect up to 6 video sites and 5 audio sites. Embedded MultiSite supports screen layouts such as VoiceSwitched, AutoSplit, 4 Split and 5+1 Split. The optional embedded MultiSite functionality supports any combination of ISDN and IP participants in a conference (up to the total).

Superior quality and reliability in MultiSite calls is ensured by the systems support for:

 DuoVideo/H.239 to provide for presenting full PC resolution information  AES and DES encryption to provide security  H.264 video algorithm to provide the best video at all bandwidths

 Rate matching  Transcoding

to support different call rates for all sites in a MultiSite

to support different protocols for all sites in a MultiSite.

The TANDBERG videoconferencing system can also be used as an audio telephone bridge (assuming ISDN connection(s)).

Presentations

The Natural Presenter Package* (NPP) makes it possible to include PC presentations in videoconferences and comprises:

 Digital Clarity  Duo Video

which transmits exceptionally high-quality, native resolution video.

/H.239 which allows participants at the far end to simultaneously watch a presenter on one screen and a live PC presentation in native resolution on a second monitor (up to SXGA on compatible monitors).

 PC Presenter

which allows a PC connection via standard DVI/VGA cable supporting up

to SXGA resolution.

 PC SoftPresenter

which shows PC images via a LAN connection supporting XGA

resolution.

 Auto Layout to automatically choose the best layout for the call.  PC Zoom which allows the native resolution PC image to be zoomed in/out with the

remote control to get SXGA resolution.

Installation

Users can display video and presentations in the best layout based on the situation. Supported screen layouts are:

 Picture in Picture (PiP)  Picture outside Picture (PoP)  Side by Side

User interfaces

A web-interface to the codec provides:

 System management, diagnostics and software uploads.  Text chat/closed captioning.  Unicast Streaming – which allows broadcasting of audio/video via an IP network to a

single compatible client (RealMedia™ or Apple Quicktime™) or streaming server.

The On-Screen Menu:

 Provides an easy interface for first-time users with symbols and descriptions.  Builds upon the familiar current interface.

NEW Enhanced language support with Asian and non-Latin character text input in the

menu for local language system names

NEW Support for new optional remote control

 improved usability  separate ordering

NEW Simplified on-screen menu, Kiosk Mode, for special purposes

The remote control has a simplified look and feel, an auto system wake-up when picked up, and large, easy-to-read keys.

Interoperability

The TANDBERG Maestro MXP is worldwide compatible with other ITU standards-based videoconferencing systems from many other vendors worldwide.

* - optional feature. To check which options are installed, select Control Panel - Diagnostics - System Information in the menu.

- TANDBERG First

TANDBERG Maestro MXP

1.1 At a Glance

WAVE II Camera

The main camera is mounted on top of the product. The main camera includes a high quality color camera with a fast pan/tilt/zoom action. The main camera is controlled by the system’s infrared remote control and operates pan/tilt, focus and zoom. Up to fifteen camera positions can be pre-stored using Camera Presets.

A locking mechanism fixates the camera on top of the product. To release the locking mechanism and remove the camera push the grey button on the rear end of the camera stand

Installation

Internal LCD Display

The system has a built-in 5inch LCD designed to optimize system configuration and give the user access to menus and test video signals without attaching or powering an external display device. The LCD gives full control of all system settings and status. Below the LCD there are three system indicators, one red light indicating that the system is powered, one yellow light indicate that a call is active, and one green light indicate that the table microphones are muted.

External display

The TANDBERG Maestro is designed to give unlimited flexibility on the choice of display technologies and solutions to display video, and is an ideal solution for large meeting rooms which already are equipped with e.g. front projector and screen. For transferring video signal to one or more external display devices the Codec has the following video outputs:

- DVI-I analog or digital interface

- XGA

- MiniDin, S-video

- RCA / Phono, Composite video The usage of S-video gives the best quality for showing video of a far end, and use of DVI-I and

XGA gives the best quality at PC presentation. Read user manual on the display device for configuration of settings at external display to meet setting at the Codec.

Codec

The codec is the heart of the system. Its main task is the compression of outgoing video, audio and data, the transmission of this information to the far end and the decompression of the incoming information - the name codec comes from a combination of the two wo rds compression and decompression.

The system is easily movable with four wheels and one handle. The codec is located inside the pedestal and behind the codec cover, which is easy removable. The pedestal stands on a solid base with an access hatch on the rear. On the inside of the hatch there are pockets for storing remote control and microphones. Pull the hatch to open. Inside the base there is room for additional equipment, e.g. a VCR/DVD, and for storage of cables. The Digital Natural Audio Module is built into the pedestal.

Remote Control

The remote control is used to control all functions of the system. If the screen saver is activated (black monitor), touching the remote control will automatically wake up the system. The remote control uses 4 AAA batteries. The system will tell you when batteries are running low. Change the batteries at the back of the remote control.

TANDBERG Maestro MXP

The reach of the remote control signal is 20 meters. For users sitting in an open plan office, this can cause problems. Use the little, white switch placed under the batteries to change the reach of the signal from 20 meters to 2 meters. This will prevent you from unintentionally controlling another video system, when you control your own system.

Microphone

The high quality table microphone is designed to be placed on a table during a videoconference. Up to three microphones can be connected. The ideal location for the microphone is on a flat surface at least 2m (6.5 ft) from the front of the system. The microphone cable should always point towards the system. The system will automatically equalize sound levels. Loud and soft voices are picked up and transmitted to the far end at approximately the same level.

Digital Natural Audio Module

The Digital Natural Audio Module (DNAM) is designed to enhance the audio quality during a videoconference. The DNAM provides natural sounding audio, as if the person or another sound source in the conference is present in the same room as you.

The DNAM is a frequency-compensated sound system optimized for voice and other sounds that appears in modern videoconferencing. It is designed and dedicated specifically for videoconferencing requirements. The use of the highest quality speaker elements as well as proper amplifier- and software techniques minimizes signal distortion.

The system will automatically detect the DNAM and optimize the audio output. Once detected the audio output will be in digital format (S/PDIF). The DNAM supports both analog and digital input.

The DNAM amplifier and speaker cabinet are integrated directly into the Maestro pedestal.

TANDBERG Tracker

The tracker is a small infrared remote control device made to steer the camera to any desired location within the room. Typically, several trackers would be used with each system.

Each tracker has two buttons:

 One Single person button to point the camera at a

specific person/location.

 One Group button to point the camera at all

participants.

Beneath the battery in the tracker, there is a switch, which can be set to 16 different positions between 0 and F. For camera preset 10 to 15, the numbers A to F should be selected.

For more information, contact your local TANDBERG representative.

Installation

TANDBERG Maestro MXP

1.2 Menu Structure

The menu structure is divided into two parts. The Main Menu is available for all users and contains all the functionality of the system. The Administrator Menu contains all the settings of the system. The Administrator Settings are accessible from the Main Menu by selecting Control Panel and Administrator Settings. Making changes to the Administrator Settings will change the behavior of the system. The menu structure for Main Menu and Administrator Settings is shown below.

Installation

Note that the system features and menu settings may vary depending on network selection and software package.

TANDBERG Maestro MXP

2 Installation

Precautions:

 Never install communication wiring during a lightning storm.  Never install jacks for communication cables in wet locations unless the jack is

specifically designed for wet locations.

 Never touch uninstalled communication wires or terminals unle ss the telephone line has

been disconnected at the network interface.

 Use caution when installing or modifying communication lines.  Avoid using communication equipment (other than a cordless type) during an electrical

storm. There may be a remote risk of electrical shock from lightning.

 Do not use the communication equipment to report a gas leak in the vicinity of the leak.  Always connect the product to an earthed socket outlet.  The socket outlet shall be installed near to the equipment and shall be easily accessible.  Never install cables without first switching the power OFF.  1TR6 network type is not approved for connection directly to the telecommunications

network. This network type is only to be used behind a PABX.

 X.21 network type is not approved for connection directly to the telecommunications

network. This network type is only to be used together with already approved equipment, and is not meant for direct connections to the telecommunication networks.

 V.35/RS-449/RS-366 network type is not approved for connection directly to the

telecommunications network. This network type is only to be used together with already approved equipment, and is not intended for direct connection to the telecommunication networks.

This product complies with directives: LVD 73/23/EC, EMC 89/366/EEC, R&TTE 99/5/EEC

2.1 Unpacking and Mounting

Installation

1 Unpacking

The TANDBERG Maestro is delivered in one transport case with all components inside. Remo ve the case in the order shown on Figure 1.

The accessories box contains:

 Wave II camera  2x Table Microphones  Remote Control and Tracker with batteries  Documentation  Cables for external displays

Figure 1

2 Mounting of the camera

Mount the camera as shown in figure 2.

Figure 2

3 Open the back of the system

For access to the cables, microphones and remote control, remove the back cover as shown in Figure 3. The codec cover and the back cover are both held in place by magnets.

TANDBERG Maestro MXP

Figure 3

2.2 Connecting Cables

Installation

1. Power cable

Find the right power cable that works for your country in the accessories box, and connect to power cable from base, and to an electrical distribution socket.

2. Microphone cable Connect the microphone cable to the microphone.

3. a) ISDN BRI

Connect the ISDN cables to the ISDN sockets (S/T interface) provided by the network provider. The main ISDN number will be that number associated with the socket to which ISDN cable number 1 has been connected.

3. b) ISDN PRI

If using the PRI interface, the E1/T1 cable should be connected to a CSU (Channel Service Unit). It is recommended that a CSU is used between the system and the PRI line from the network provider, see Appendix 8

4. LAN cable

To connect the system to a Local Area Network (LAN), connect the cable labeled "LAN Ethernet" to a suitable Ethernet port on the LAN.

5. External Display device

a. S-video – connect cable from Codec Video Out 1 to External display b. DVI-I / VGA – find cable in accessories box and connect cable from DVI-I out single on the Codec to external display c. Composite – find cable in accessories box and connect cable from Video out 4 on the Codec to external display

TANDBERG Maestro MXP

6. PC

Connect cable from DVI-I in PC from the Codec to PC.

2.3 Monitor Configuration

Installation

Configuration of external display (projector)

 Select 16:9 or 4:3 format on the projector.  Make sure that the main projector is connected to the DVI-I Single output on the codec.

Please refer to the projector user manual for further information.

TANDBERG Maestro MXP

2.4 System Configuration

The system must be configured for each installation. Configuration settings can be made via the system menu. If an external IMUX or non-standard network is being used it may be necessary to configure any associated external equipment.

Navigate through the menu system using the arrow keys and OK. Remember to press the Save button on the bottom of each menu to save the changes. Press Cancel (x) to return to the previous Menu. See General Use remote control.

General configuration:

1. Open the General Settings menu

Press OK/Menu to open the Main Menu, if not already displayed. Select Control Panel - Administrator Settings - General to open the General Settings menu.

for more information about how to use the menus and the

2. Language

Press OK in the Language field and select the desired language from the list.

3. System Name / International Name*

Enter a name in the System Name field using the number keys on the remote control, in the same way as with a mobile or cellular phone. Hold down the # key for one second to switch back and forth from numbers to alpha characters.

4. Auto Answer, Phone Book Settings, External Services Settings and Permissions

These settings may be left unchanged if no special needs are required. See chapter

General Settings

for more information.

5. Screen Settings

When using wide screen (16:9) monitors, set TV Monitor Format to Wide (16:9). TANDBERG also recommends setting Picture Layout to Picture outside Picture when using 16:9 monitors. Picture outside Picture provides a display layout optimized for wide screen monitors. The display layout may be changed at any time using the Layout button on the remote control.

6. Software Options

To activate options for the system, a new option key must be entered in the Software Options menu (see paperwork accompanying the system). The Presenter option key should be entered under “New Option Key”. Any bandwidth option key should be entered under “New Bandwidth Key”. For more information on these options, please contact your TANDBERG representative.

7. Date and Time Settings

Select your preferred Date and Time Settings.

8. Save changes

Remember to save any changes made in a menu by selecting the Save button on the menu line and pressing OK.

Network configuration:

1. Open the Network menu

Press OK/Menu to open the Main Menu, if not already displayed. Select Control Panel - Administrator Settings - Network to open the Network menu.

Installation

2. ISDN configuration

Set the Network type to the desired network. Specify the settings for the selected network in the relevant menu. Enabled but unused ISDN lines (i.e. lines not active) should be disabled. For details, follow the instructions in ISDN /External/Leased

E1/T1. See also the examples in Appendix 9: Connecting the system to the Switched 56 network and in Appendix 10: Connecting the system to ISDN using NT1 network adapters.

3. LAN configuration

Select LAN Settings in the Network menu and specify the necessary LAN settings according to the instructions from your LAN administrator. For details, follow the instructions in LAN Settings refer to H.323 Settings

. If there is an H.323 Gatekeeper present on your LAN,

as well.

TANDBERG Maestro MXP

4. Network Profiles

Please refer to Network Profiles

for details

5. Data Port

Please refer to Data Port

for details

6. Save changes

Remember to save any changes made in the menu by selecting the Save button on the Menu line and pressing OK.

* The International Name field is only visible if the system name contains Asian and non-Latin character text input.
