Page 1

LD427SSX

Owner’s Manual Guide d’utilisation Manual del Usuario

EnglishEspañol Français

HIGH-DEFINITION TELEVISION

NEED HELP?

BESOIN D’AIDE ?

¿NECESITA AYUDA?

PLEASE CALL TOLL FREE!

APPELEZ NOTRE NUMÉRO GRATUIT !

¡LLAME POR FAVOR SIN COSTO!

1-866-321-3927

OR VISIT OUR WEB SITE AT

OU VISITEZ NOTRE SITE WEB À L’ADRESSE

Ó VISITE NUESTRO SITIO WEB EN

www.sylvaniaconsumerelectronics.com

MODEL NUMBER SERIAL NUMBER

TO RECEIVE DIGITAL/ANALOG SIGNAL, YOU MUST CONNECT ANTENNA.

POUR RECEVOIR LE SIGNAL NUMÉRIQUE /ANALOGIQUE, VOUS DEVEZ CONNECTER L’ANTENNE.

PARA RECIBIR LA SEÑAL DIGITAL/ ANALÓGICA, DEBE CONECTAR LA ANTENA.

Page 2

Before You Start

Avant de Commencer

Antes de Comenzar

Connection

Connexion

Conexiones

Initial Setup

Conﬁ guration Initiale

Instalación Inicial

Basic Operation

Opérations de Base

Operación Básica

Before You Start

Avant de Commencer

Antes de Comenzar

Connection

Connexion

Conexiones

Initial Setup

Conﬁ guration Initiale

Instalación Inicial

Basic Operation

Opérations de Base

Operación Básica

Before You Start

Avant de Commencer

Antes de Comenzar

Connection

Connexion

Conexiones

Initial Setup

Conﬁ guration Initiale

Instalación Inicial

Basic Operation

Opérations de Base

Operación Básica

Quick Start GuideQuick Start Guide

Guide de Démarrage Rapide

Guía de Inicio Rápido

Need help connecting this LCD TV? Call us at 1-866-321-3927

Vous avez besoin d’aide pour connecter ce téléviseur LCD ? Appelez-nous au 1-866-321-3927

¿Necesita ayuda para conectar esta TV LCD? Llame al número 1-866-321-3927

All of us at SYLVANIA wish you will be very pleased with your unit.



L’ensemble du personnel de SYLVANIA espère que vous serez satisfait de votre appareil.



Todos en SYLVANIA deseamos que esté muy complacido(a) con su unidad.



itial

uratio

Initiale

alación

Opérations de B

ase

Operación Básica

alación Inicial

ase

Opératio

Operac

Avant de Commen

cer

Antes de Comenzar

Channel Selection

Sélection de Chaîne Selección de Canal

- When selecting analog channel 11.

Lorsque vous sélectionnez le canal analogique 11.

Cuando seleccione el canal analógico 11.

- When selecting digital channel 11-1. Be sure to press

before entering the subchannel number.

Lorsque vous sélectionnez le canal numérique 11-1. N’oubliez pas d’appuyer sur la toucher

avant d’appuyer sur le numéro du sous-canal.

Cuando seleccione el canal digital 11-1 asegúrese de presionar

antes de indicar el número de subcanal.

Volume Adjustment

Réglage du Volume Ajuste de Volumen

Switch the Input

Changer D’entrée Cambie la Entrada

Or ou o

e.g.) When selecting HDMI1.

ex.) Lorsque vous sélectionnez HDMI1.

p.ej.) Cuando seleccione HDMI1.

Attaching the Stand

Fixation du Support Fijación de la Base

Go on the next page...

Allez à la page suivante…

Pase a la siguiente página…

NoNo NonNon NoNo

Do you have any AV device(s) to connect to this unit?

Souhaitez-vous connecter d’autres appareils AV à ce téléviseur ?

¿Tiene algún dispositivo AV para conectar a esta unidad?

Yes Yes UiUi SíSí

Connecting the Antenna

Connexion de L’antenne Conexión de la Antena

Antenne VHF / UHF Antena VHF / UHF

VHF / UHF antenna

cable TV company

Société de télévision par câble compañía de TV por cable

What do I need in this procedure?

De quoi ai-je besoin pour réaliser cette procédure ?

¿Qué necesito para este procedimiento?

An RF coaxial cable (not included)

Câble RF coaxial (non fourni)

Un cable coaxial RF (no incluido)

or ou o

HDMI1

Volume 30

Plug in the AC power cord, then press .

Branchez le cordon d’alimentation secteur, puis appuyez sur

Enchufe el cable alimentador de CA y presione

Select your language.

Sélectionnez votre langue.

Seleccione su idioma.

Initial Setup

Select the language for setup display.

Elija el idioma de ajuste.

Sélectionner langue écran config.

Select Enter Skip

SETUP

Español

Français

ENTER

English

Select “Antenna” or “Cable”.

Sélectionnez “Antenne” ou “Câble”.

Seleccione “Antena” o “Cable”.

Initial Setup

Antenna

Cable

Skip

Select Enter Skip

SETUP

Back

BACK

ENTER

Make sure the antenna is connected to "ANT.IN" jack. Select the destination of "ANT.IN" jack.

Cable

Antenna

ANT.IN

• “Autoscan” will begin.

La “Autoscan” commence.

Se inicia la función “Autoscan”.

Initial Setup

Skip

SETUP

Analog channels 0ch

Digital channels 0ch

Now the system is scanning for channels, please wait. Autoscan will take up to 20 minutes to complete.

Select “Retail” or “Home”.

Sélectionnez “Magasin” ou “Maison”.

Seleccione “Tienda” o “Casa”.

Initial Setup

HomeRetail

Select Enter

ENTER

Select “Retail” or “Home” for your location.

Insert the neck of the main unit to the stand’s hole.

Insérez le col de l’unité principale dans l’ori ce de la base.

Inserte el cuello de la unidad principal en el ori cio del soporte.

DTV

Page 3

Before You Start

Avant de Commencer

Antes de Comenzar

Connection

Connexion

Conexiones

Initial Setup

Conﬁ guration Initiale

Instalación Inicial

Basic Operation

Opérations de Base

Operación Básica

Connection GuideConnection Guide

Guide de Connexion

Guía de Conexiones

Need help connecting this LCD TV? Call us at 1-866-321-3927

Vous avez besoin d’aide pour connecter ce téléviseur LCD ? Appelez-nous au 1-866-321-3927

¿Necesita ayuda para conectar esta TV LCD? Llame al número 1-866-321-3927

Optimize your HD TV experience by properly connecting your components.

Optimisez votre expérience de la télévision haute déﬁ nition en connectant correctement vos composants.

Optimice su experiencia en TV HD conectando correctamente los componentes.

HDMI OUT jack

prise de HDMI OUT

toma de HDMI OUT

HDMI cable

Câble HDMI

Cable HDMI

DVI OUT jack (including PC)

prise de DVI OUT (including PC)

toma de DVI OUT (including PC)

DVI-HDMI

conversion cable + audio cables

Câble de conversion DVI-HDMI + câbles audio

Cable de conversión DVI HDMI + cables de audio

COMPONENT VIDEO OUT jack

prise de COMPONENT VIDEO OUT

toma de COMPONENT VIDEO OUT

Component

video cable + audio cables

Câble vidéo composant + câbles audio

Cable de vídeo en componente + cables de audio

S-VIDEO OUT jack

prise de S-VIDEO OUT

toma de S-VIDEO OUT

S-Video cable + audio cables

Câble S-Vidéo + câbles audio

Cable de S-Video + cables de audio

VIDEO OUT jack

prise de VIDEO OUT

toma de VIDEO OUT

Video cable + audio cables

Câble vidéo + câbles audio

Cable de vídeo + cables de audio

DIGITAL AUDIO IN jack

prise de DIGITAL AUDIO IN

toma de DIGITAL AUDIO IN

Coaxial Audio cable

Câble audio coaxial (audio numérique)

Cable coaxial de audio (Audio Digital)

ANALOG AUDIO IN jack

prise de ANALOG AUDIO IN

toma de ANALOG AUDIO IN

Audio cables

Câbles audio (audio analogique)

Cables de audio (Audio Analógico)

your device has;

votre appareil possède ;

su dispositivo tiene;

jack type is;

le type de prise est ;

el tipo de toma es;

necessary cable is;

le câble nécessaire est ;

el cable necesario es;

Separate analog audio cable(s) is also required for this connection.

Vous aurez également besoin de câble audio analogiques pour e ectuer ce branchement.

Se requieren también cables separados de audio analógico para esta conexión.

Do not use an extension cord between the USB  ash memory and the unit. Always insert the USB  ash memory to this unit directly.

Veuillez ne pas utiliser de rallonge USB entre la clé USB et l’appareil. Insérez toujours directement la clé USB dans cet appareil, sans intermédiaire.

No utilice un cable de extensión entre la memoria  ash USB y la unidad. Inserte siempre la memoria  ash USB directamente en la unidad.

USB Flash Memory

Port pour Clé USB

Memoria Flash USB

Image de très bonne qualité

Mejor imagen

Image de qualité standard

Imagen estándar

STANDARD

AUDIO

GOODGOOD

AUDIO

Audio de bonne qualité

Buen audio

Audio de qualité standard

Audio estándar

Image/Audio de qualité optimale

Máximo imagen e audio

VERY BEST

PICTURE /

AUDIO

VERY BEST

PICTURE /

/ / /

AUDIO

DIDIDI

OOO

BETTER


STANDARD


Image d’excellente qualité

La mejor imagen

BEST

BEBEBE


Image de bonne qualité

Buena imagen

GOOD

GGGGOGOGOGOO

DDDDDDD

DDDDD


TUR

EEEEE

Page 4

The model and serial numbers of this unit may be found on the cabinet. You should record and retain those numbers for future reference.

Model No.:

Serial No.:

LD427SSX

 Precautions

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS

TO RAIN OR MOISTURE.

APPARATUS SHALL NOT BE EXPOSED TO DRIPPING OR SPLASHING AND NO OBJECTS

FILLED WITH LIQUIDS, SUCH AS VASES, SHALL BE PLACED ON THE APPARATUS.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC

SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The caution marking is located on the rear or bottom of the cabinet.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the apparatus’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the apparatus.

Important Safety Instructions

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in

accordance with the manufacture’s instructions.

8. Do not install near any heat sources such as radiators,

heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or

grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

FCC WARNING

This apparatus may generate or use radio frequency energy. Changes or modifications to this apparatus may cause harmful interference unless the modifications are expressly approved in the manual. The user could lose the authority to operate this apparatus if an unauthorized change or modification is made.

RADIO-TV INTERFERENCE

This apparatus has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This apparatus generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this apparatus does cause harmful interference to radio or television reception, which can be determined by turning the apparatus off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

1) Reorient or relocate the receiving antenna.

2) Increase the separation between the apparatus and receiver.

3) Connect the apparatus into an outlet on a circuit different from that to which the receiver is connected.

4) Consult the dealer or an experienced radio/TV technician for help.

DECLARATION OF CONFORMITY

Trade Name: SYLVANIA Responsible Party: FUNAI CORPORATION, INC. Model: LD427SSX Address: 201 Route 17 North Suite No. 903 Rutherford, New Jersey 07070 U.S.A. Telephone Number: 201-727-4560

10. Protect the power cord from being walked on or

pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the

manufacturer.

12. Use only with the cart, stand, tripod, bracket,

or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when

unused for long periods of time.

14. Refer all servicing to qualified service personnel.

Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

This Class B digital apparatus complies with Canadian ICES-003.

Do not place the unit on the furniture that is capable of being tilted by a child and an adult leaning, pulling, standing or climbing on it. A falling unit can cause serious injury or even death.

Page 5

EnglishEspañol Français

This apparatus should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided. Make sure to leave a space of 4 inches (10cm) or more around this apparatus.

Disconnect the mains plug to shut off when find trouble or not in use. The mains plug shall remain readily operable.

CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type. WARNING: Batteries (battery pack or battery installed) shall not be exposed to excessive heat such as sunshine, fire or the like.

LAMP IN LCD CONTAINS MERCURY, DISPOSE ACCORDING TO LOCAL, STATE OR FEDERAL LAW.

WARNING: To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the instructions.

LASER SAFETY

This unit employs a laser. Only a qualified service person should remove the cover or attempt to service this device, due to possible eye injury.

CAUTION: Use of controls or adjustments or performance of procedures other than those specified herein may result in

CAUTION: Visible and invisible laser radiation when open and interlock defeated. Do not stare into beam. LOCATION:

IMPORTANT COPYRIGHT INFORMATION

Unauthorized copying, broadcasting, public performance and lending of discs are prohibited. This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.

TO AVOID THE HAZARDS OF ELECTRICAL SHOCK AND FIRE

• Do not handle the AC power cord with wet hands.

• Do not remove this unit’s cabinet. Touching parts inside the cabinet could result in electric shock and/or damage to this unit. For service and adjustment inside the cabinet, call a qualified dealer or an authorized service center.

• Do not pull on the AC power cord when disconnecting it from an AC outlet. Grasp it by the plug.

• Do not put your fingers or objects into the unit.

LOCATION AND HANDLING

• The openings should not be blocked by placing the unit on a bed, sofa, carpet, rug, or other similar surface.

• Do not install the unit near or over a radiator or heat register.

• Do not install the unit in direct sunlight, near strong magnetic fields, or in a place subject to dust or strong vibration.

• Avoid a place with drastic temperature changes.

• Install the unit in a horizontal and stable position. Do not place anything directly on top or bottom of the unit. Depending on your external devices, noise or disturbance of the picture and/or sound may be generated if the unit is placed too close to them. In this case, please ensure enough space between the external devices and the unit.

• Depending on the environment, the temperature of this unit may increase slightly. This is not a malfunction.

DEW CONDENSATION WARNING

• Dew condensation may form inside the unit in the following conditions. If so, do not use this unit at least for a few hours until its inside gets dry.

- The unit is moved from a cold place to a warm place.

- Under conditions of high humidity.

- After heating a cold room.

NOTE ABOUT RECYCLING

• This unit’s packaging materials are recyclable and can be reused. Please dispose of any materials in accordance with your local recycling regulations.

• Batteries should never be thrown away or incinerated but disposed of in accordance with your local regulations concerning chemical wastes.

WHEN CARRYING THIS UNIT

• At least two people are required when carrying this unit.

• Make sure to hold the upper and bottom frames of the unit firmly as illustrated.

hazardous radiation exposure.

Inside, near the deck mechanism.

 Trademark Information

• HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

• Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories.

• Manufactured under license under U.S. Patent #’s: 5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,487,535 & other U.S. and worldwide patents issued & pending. DTS and DTS 2.0 + Digital Out are registered trademarks and the DTS logos and Symbol are trademarks of DTS, Inc. © 1996-2008 DTS, Inc. All Rights Reserved.

• Products that have earned ENERGY STAR® are designed to protect the environment through superior energy efficiency.

• “Blu-ray Disc“ and

•

is a trademark of DVD Format/Logo Licensing Corporation.

• “BONUSVIEW” is a trademark of Blu-ray Disc Association.

• Java and all other Java trademarks and logos are trademarks or registered trademarks of Sun Microsystems, Inc. in the United States and / or other countries.

are trademarks.

Page 6

NTRODUCTION

 Symbols Used in this Manual

The following is the description for the symbols used in this manual. Description refers to:

TV FUNCTIONS BLURAY FUNCTIONS

: Playback of BD-video

: Analog TV operation

DTV

: Digital TV operation

• If neither symbol appears under the function heading,

operation is applicable to both.

• If none of symbol appears under the function heading, operation is applicable to all.

DVD

: Playback of DVD-video

: Playback of audio CD

 Supplied Accessories

owner’s manual (1EMN25027A)

quick start guide (1EMN25028)

main remote control (NF035UD)

simple remote control (NH101UD)

registration card (1EMN25030)

screw kit for attaching the stand (1ESA21716)

batteries (AA x 2)

• If you need to replace these accessories, please refer to the part No. with the illustrations and call our toll free customer support line found on the cover of this manual.

batteries (AAA x 2)

AAA

cable management tie (1EM428657)

AC power cord (WAV0162LW001) or (WAV0162LTE03)

 Attaching the Stand

You must attach the stand to the unit to have it as a table top unit. Be sure the front and rear of the stand match the proper direction.

Spread a thick and soft cloth over a

table as shown below. Place the main unit face down onto it. Make sure not to damage the screen. At least two people are required at this step.

Insert the neck under the bottom

of the main unit to the stand’s hole (shown by arrow

➀

front side

Drive Phillips pan screws in the 4

threaded holes at the bottom of the stand until they are tight.

screw holesscrew holes

➁ ➁

To remove the stand from this unit

Unscrew the Phillips pan screws indicated by above “➁”screw holes. After the screws are removed pull the stand up toward the rear of the unit. Be careful not to drop the stand when you remove it.

Note:

• When attaching the stand, ensure that all screws are tightly fastened. If the stand is not properly attached, it could cause the unit to fall, resulting in injuries as well as damage to the unit.

• Make sure to use a table which can support the weight of this unit and is larger than this unit.

• Make sure the table is in a stable location.

Page 7

 Features

EnglishEspañol Français

INTRODUCTION PREPARATION

TV BD/DVD

• DTV/TV/CATV

- You can use your remote control to select channels which are broadcast in digital format and conventional analog format. Also, cable subscribers can access their cable TV channels.

• Information Display (DTV only)

- You can display the title, contents and other information of the current DTV program on the TV screen.

• Autoscan

- This unit automatically scans and memorizes channels available in your area, eliminating difficult setup procedures.

• Child Lock

- This feature allows you to block children’s access to inappropriate programs.

• Closed Caption Decoder

- Built-in closed caption decoder displays text for closed caption supported programs.

• MTS/SAP Tuner

- Audio can be selected from the remote control.

• Auto Shut Off Function

- If there is no signal input from the antenna terminal and no operation for 15 minutes, the unit will turn off automatically.

• Sleep Timer

- This feature will automatically turn off the power of the unit at a specific time.

• Choices for On-screen Language

- Select your on-screen language: English, Spanish or French.

• Stereo Sound Function

• PLL Frequency Synthesized Tuning

- Provides free and easy channel selection and lets you tune directly to any channel using the number buttons on the remote control.

• Various Adjustment for Picture and Sound

- Customizes image quality to suitable for your room and sets the sound as your preference.

• HDMI Input

- When using HDMI1 Input, you can enjoy this unit as a PC monitor if your PC has DVI output terminal.

• Component video Input

• S-Video Input

• AV Input

• USB Terminal

- The JPEG or the MP3 files stored in a USB flash memory can be played back on this unit.

• Digital audio Output

• Analog audio Output

• Dolby Digital Sound

- Enjoy Dolby Digital multi-channel surround sound when you connect the unit to your Dolby Digital decoder.

• DTS

- You can enjoy movie dynamic and realistic sound like movie theater when you connect the unit to your DTS decoder.

• Still / Fast / Slow / Step Playback

- Various playback modes are available including still pictures, fast forward/reverse, slow motion and step frames.

• BD/DVD Menus in a Desired Language

- You can display BD/DVD menus in a desired language, if available on a BD-video or a DVD-video.

• Auto Power Off

- If there is no operation for 20 minutes, the unit will turn itself off automatically.

• Parental Lock

- Block the viewing of a unsuitable for children.

• Resume Playback

- Lets you resume playback from the point at which playback was stopped.

• Bit Rate Indication

• DRC (dynamic range control)

- You can control the range of sound volume.

• Selecting a Camera Angle

- You can select the desired camera angle, if a BD/DVD contains sequences recorded from different angles.

• Virtual Surround

• Search

- chapter search / title search / track search / time search

• Marker

- The part on the disc designated by user can be called back.

• Repeat

- chapter / title / track / all / A-B

• Program Playback for audio CD

- You can program the order of tracks to play them back in designated order.

• Random Playback for audio CD

- This unit can shuffle the order of tracks to play them back in randomly.

Accessing from [AUDIO] button

During playback

• Choices for Audio Language and Stereo Sound Function

- Select your desired languages or stereo sound function when different options are available on your disc.

BD-video or a DVD-video

WATCHING TV

OPTIONAL SETTING

OPERATING BLU-RAY

BLU-RAY SETTING TROUBLESHOOTING

INFORMATION

Accessing from [SUBTITLE] button

During playback

• Subtitles in a Desired Language

- You can select a desired language for displaying subtitle, if that language is available on a BD-video or a DVD-video.

Page 8

NTRODUCTION

 Contents

Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Trademark Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

INTRODUCTION

Symbols Used in this Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Supplied Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Attaching the Stand . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Terminals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Remote Control Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Installing the Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

PREPARATION

Antenna Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Connection to Cable Receiver or Satellite Box . . . . . . . . . .10

External Device Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Cable Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Plug In the AC Power Cord . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

TV Functions

Initial Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

WATCHING TV

Channel Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Volume Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Sleep Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Still Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Switching Each Input Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Switching Audio Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

TV Screen Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

TV Screen Display Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

OPTIONAL SETTING

Main Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

Autoscan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

Channel List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

Manual Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

Antenna Confirmation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

Language Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

Picture Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

Sound Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

Closed Caption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

Child Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

PC Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32

Energy Saving Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

Current Software Info . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

JPEG/MP3 Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

BLU-RAY Functions

OPERATING BLU-RAY

Playable Media . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36

Unplayable Media . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36

Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37

Using the Title Menu,

Disc Menu / Pop-up Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . .37

Resume Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38

Fast Forward / Fast Reverse . . . . . . . . . . . . . . . . . . . . . . . . . . . .38

Slow Forward . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38

Paused / Step-by-step Playback . . . . . . . . . . . . . . . . . . . . . . . .38

Repeat Playback. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39

Rapid Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39

Random Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39

Programmed Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40

Search Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41

On-screen Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43

Special Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44

BLU-RAY SETTING

Blu-ray Setup Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47

Blu-ray Language Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47

Blu-ray Video Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48

Blu-ray Audio Setting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49

Parental Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50

Others. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51

Reset to the Default Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . .52

Language Code List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52

TROUBLESHOOTING

FAQ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53

Troubleshooting Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54

INFORMATION

Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .56

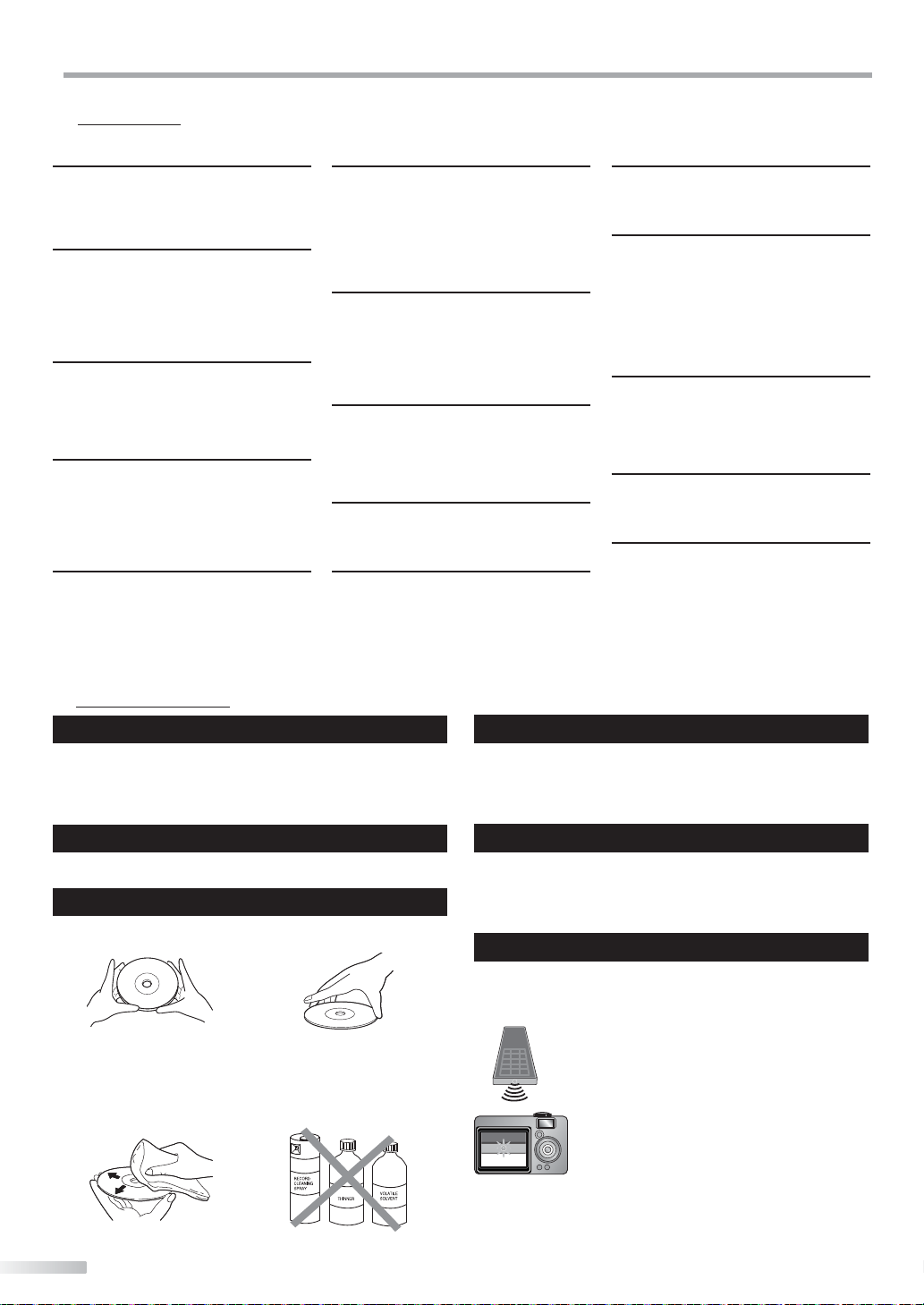

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .56

Cable Channel Designations . . . . . . . . . . . . . . . . . . . . . . . . . . .57

General Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57

Electrical Specification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57

Other Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57

Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58

To get the latest software information of this unit, please visit the following our website;

http:// www.sylvaniaconsumerelectronics.com

any storage medium, in any form or for any purpose without the express prior written consent of Funai. Furthermore, any unauthorized commercial distribution of this manual or any revision hereto is strictly prohibited.

Information in this document is subject to change without notice. Funai reserves the right to change the content herein without the obligation to notify any person or organization of such changes.

with the design is a registered trademark of Funai Electric Co., Ltd and may not be used in any way without the express written consent of Funai. All other trademarks used herein remain the exclusive property of their respective owners. Nothing contained in this manual should be construed as granting, by implication or otherwise, any license or right to use any of the trademarks displayed herein. Misuse of any trademarks or any other content in this manual is strictly prohibited. Funai shall aggressively enforce its intellectual property rights to the fullest extent of the law.

Page 9

EnglishEspañol Français

INTRODUCTION PREPARATION

 Control Panel

1. PLAY B (p. 37)

Press to begin the disc playback.

2. STOP C (p. 37)

Press to stop the disc playback.

3. EJECT A (p. 37)

1 2 3

Press to eject the disc.

4. VOLUME

Press to adjust the volume or move right ( through the main menu items.

5. SETUP

V (p. 20)

Press to display the main menu.

6. CHANNEL K / L (p. 16 / p. 17)

Press to select channels or move up (K) / down (L) through the main menu items.

7. POWER

yy (p. 15)

(p. 16)

) / left (L)

WATCHING TV

VOLUME

CHANNEL

PLAY

STOP

EJECT

SETUP

WER

POWER

Press to turn the unit on and off.

8. Disc loading slot (p. 37)

8 9

10 11 12

Insert the disc with the label side facing forward.

9. Infrared sensor window

Receives infrared rays transmitted from the remote control.

10. POWER indicator

Lights up green when power is on.

OPTIONAL SETTING

11. STAND BY indicator

Lights up red when power is off.

 Ter mi na ls

S-VIDEO

VIDEO

AUDIO

VIDEO 2

12. DISC indicator

Lights up orange when the disc is inserted.

[Side Panel]

13. S-Video / Video / Audio Input jack for VIDEO 2 (p. 12)

S-Video, RCA video, RCA audio cable connection from an external device.

OPERATING BLU-RAY

14. USB terminal (p. 14)

Use this terminal only to play back MP3 / JPEG files stored in the USB flash memory, or when software update is needed.

15. HDMI 2 Input jack (p. 10 / p. 11)

BLU-RAY SETTING TROUBLESHOOTING

16 17 18

USB

HDMI 2

HDMI connection from HDMI device.

[Rear Panel]

16. AC power Inlet (p. 14)

Connect the supplied AC power cord for a standard AC outlet.

17. Cable management (p. 14)

You can bundle the cables when you attach the supplied cable management tie here.

18. Digital audio Output jack (p. 13)

21 22

Coaxial digital cable connection for a decoder or an audio receiver.

Component video and Audio Input jack

19.

(p. 10 / p. 12) RCA component video cable and RCA audio cable connection from an external device.

20. S-Video / Video / Audio Input jack for VIDEO 1 (p. 12)

S-Video, RCA video, RCA audio cable connection from

an external device.

21. Antenna Input jack (p. 10)

INFORMATION

RF coaxial cable connection for your antenna or cable TV signal.

22. Audio Input jack for HDMI 1 (p. 11 / p. 13)

RCA audio cable connection from a DVI device. When you connect your PC that has a DVI terminal, use a stereo mini plug-RCA conversion cable as well. (For HDMI 1 Input jack only)

Note for USB terminal:

• User should not connect any devices to the USB terminal such as digital camera, keyboard, mouse, etc. (because these will not work).

• The software update is, in most cases, handled by an authorized service person or in some circumstances the user may be asked to do the software upgrade themselves.

23. Audio Output jack (p. 13)

RCA audio cable connection for an external device.

24. HDMI 1 Input jack (p. 10 / p. 11 / p. 13)

HDMI connection for HDMI or DVI device. When you connect your PC that has a DVI terminal, you can enjoy this unit as a PC monitor.

25. HDMI 3 Input jack (p. 10 / p. 11)

HDMI connection from HDMI device.

Page 10

NTRODUCTION

 Remote Control Function

Main remote control Simple remote control

1 2

2 5

23 24

25 5 6

10 11

12 13

14 15

16 17

18 19

When using a universal remote control to operate this unit.

• Make sure the component code on your universal remote control is set to our brand. Refer to the manual accompanying your remote control for more details.

• We do not guarantee 100% interoperability with all universal remote controls.

27 1

1. INPUT SELECT (p. 17) Press to access connected external devices

like a BD/DVD recorder.

2. POWER (p. 15) Press to turn the unit on and off.

3. Number buttons (p. 16)

• Press to select channels.

• Press to select chapter, title (BD/DVD), or track (CD) directly.

(hyphen)

• Press to shift the subchannel from the main channel.

4. SETUP (p. 20 / p. 47)

Press to display the main menu.

5. ENTER (p. 15)

Press to decide the command of setting when the

main menu is displayed.

/ B / K / L (cursor) (p. 15)

Press to move left / right / up / down through

the items.

7. BACK (p. 18)

Press to return to the previous menu operation.

8. CH RETURN (p. 16)

Press to return to previously viewed channel.

9. VOL.

Press to adjust the volume.

10.

Press to turn the sound on and off.

11. SKIP H / G (p. 42)

Press to skip forward or backward chapters,

12. PAUSE F (p. 17 / p. 38)

TV mode

• Press to pause screen image.

BLU-RAY mode

• Press to pause the disc playback.

13. RED / GREEN / BLUE / YELLOW buttons (p. 39)

• Press to select items on some BD menus. (BD)

• In the File list, Random or Program playback mode,

14. TOP MENU (p. 37)

Press to display the top menu (BD/DVD).

K / L (p. 16)

MUTE (p. 16)

titles (BD/DVD) or tracks (CD).

press to switch between pages. (CD)

29 16123028

Note:

• This manual is described only the main remote control buttons on each function. The simple remote control is omitted.

Page 11

EnglishEspañol Français

INTRODUCTION PREPARATION

15. MODE (p. 39)

• Press to display the setting for the rapid playback and the picture adjustment (BD/DVD).

• Press to display the setting for the virtual surround (BD/DVD).

• Press to display the setting for the noise reduction (DVD).

• In stop mode with BD inserted, press to display a menu for setting the BD audio mode (BD).

• In stop mode with audio CD inserted, press to display menus for program and random playback (CD).

16. POP MENU (p. 37)

Press to display the pop-up menu / disc menu

(BD/DVD).

17. SEARCH MODE (p. 41)

Press to display the search menu.

18. CLEAR (p. 39)

• Press to clear the numbers entered incorrectly.

• Press to cancel the point A for A-B repeat.

• Press to remove the track number in program input (CD).

19. ANGLE (p. 46)

Press to access various camera angles on the disc

(BD/DVD).

20.

EJECT (p. 37)

Press to eject the disc.

21. PICTURE PRESET (p. 23)

Press to select the desired picture mode setting.

22. AUDIO PRESET (p. 24)

Press to select the desired sound mode setting.

23. SLEEP (p. 16)

Press to activate the sleep timer.

24. AUDIO (p. 17 / p. 45)

Digital mode (DTV)

• Press to select the audio language.

Analog mode (TV)

• Press to select the audio mode.

BLU-RAY mode

• Press to select the audio language (BD/DVD) or sound mode (CD).

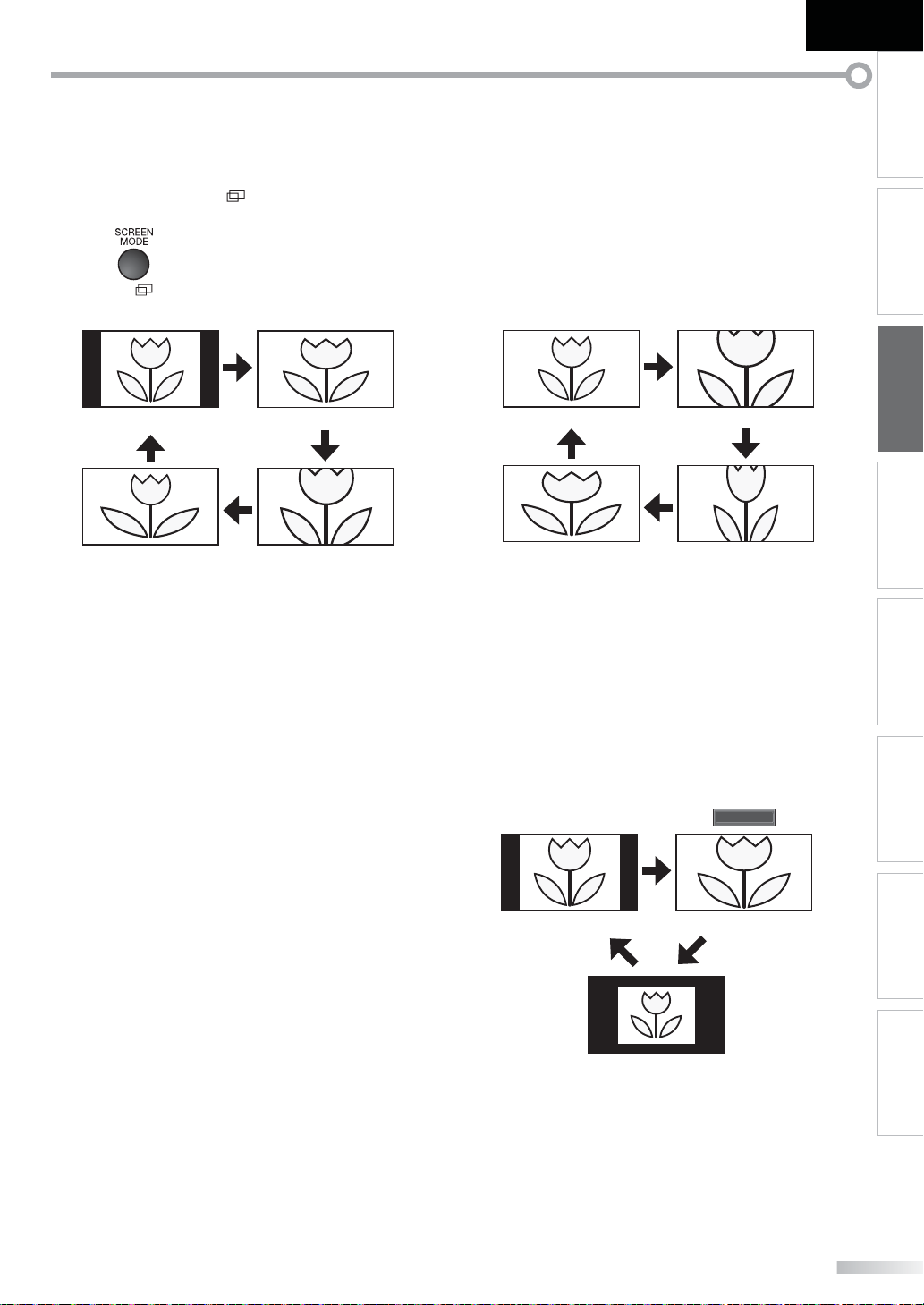

25. SCREEN MODE

Press to select aspect ratio available for the TV screen.

26. INFO (p. 18 / p. 43)

Digital mode (DTV)

• Press to display the channel information, signal type and TV setting.

Analog mode (TV)

• Press to display the channel number, signal type and TV setting.

External input mode

• Press to display the external input mode, signal type and TV setting.

BLU-RAY mode

• Press to display the current status.

27. CH K / L (p. 16 / p. 17)

Press to select channels and the external input mode.

28. REV E / FWD D (p. 38)

Press to begin slow forward playback during the pause mode (BD/DVD) and search forward or backward through the disc.

29. STOP C (p. 37) Press to stop the disc playback.

30. PLAY B (p. 38) Press to begin the disc playback.

31. REPEAT (p. 39) Press to toggle between various repeat modes.

32. SUBTITLE (p. 44) Press to display the subtitle menu (BD/DVD).

33. A-B (p. 39) Press to playback a defined section between

point A and B repeatedly.

34. PIP (p. 46) Press to turn the picture-in picture feature on or off

(only applicable to BD-video which supports the PIP function).

(p. 19)

WATCHING TV

OPTIONAL SETTING

OPERATING BLU-RAY

BLU-RAY SETTING TROUBLESHOOTING

 Installing the Batteries

Install the batteries matching the polarity indicated inside battery compartment of the remote control.

Main remote control

(AA x 2)

Simple remote control

(AAA x 2)

Battery Precautions:

• Be sure to follow the correct polarity as indicated in the battery compartment. Reversed batteries may cause damage to the device.

• Do not mix different types of batteries together (e.g., Alkaline and Carbon-Zinc, or rechargeable batteries like ni-cad, ni-mh, etc) or old batteries with fresh ones.

• If the device is not to be used for a long period of time, remove the batteries to prevent damage or injury from possible battery leakage.

• Do not try to recharge batteries; they can overheat and rupture.

INFORMATION

Page 12

REPARATION

No supplied cables are used in this connection:

Please purchase the necessary cables at your local store. High Speed HDMI cable (also known as HDMI category 2 cable) is recommended for the better compatibility.

Before you connect... Be sure your antenna or other device is connected properly before plugging in the AC power cord.

 Antenna Connection

Connect the RF coaxial cable on your home outlet to the antenna input jack of this unit.

e.g.)

VHF / UHF antenna

RF coaxial cable

cable TV signal

* Once connections are completed, turn on the unit and begin initial setup. Channel scanning is necessary for the unit

to memorize all available channels in your area. Refer to “Initial Setup” on page 15.

Note:

• If you have any question about the DTV’s antenna, visit www.antennaweb.org for further information.

• Depending on your antenna system, you may need different types of combiners (mixers) or separators (splitters). Contact your local electronics store for these items.

• For your safety and to avoid damage to this unit, please unplug the RF coaxial cable from the antenna input jack before moving the unit.

• If you use an antenna to receive analog TV, it should also work for DTV reception. Outdoor or attic antennas will be more effective than settop versions.

• To switch your reception source easily between antenna and cable, install an antenna selector.

• If you connect to the cable system directly, contact the CATV installer.

rear of this unit

 Connection to Cable Receiver or Satellite Box

Use an HDMI or an RCA component video cable to connect the HDMI or the Component video Input jack of the unit to the HDMI or the component video output jack of the cable receiver / satellite box. If you connect to the unit’s Component video Input jack, connect RCA audio cables to the Audio L/R jacks below the Component video connector.

COMPONENT VIDEO OUT

(green)

(green)(green)

HDMI cable

Pr/CrPb/CbY

(red)

(blue)

(red)(red)

(blue)(blue)

(green)(green) (blue)(blue) (red)(red)

side or rear of this unit

RCA component video cable and RCA audio cable

e.g.)

satellite dish

ANT IN

cable TV signal

including PPV

RF coaxial cable

cable receiver / satellite box

* You can also connect this unit to the cable receiver

or satellite box other than the HDMI or the component video output jack because they might have different output jacks.

* Required cables and connecting methods of the

cable receiver / satellite box, or the availability channel for the clear QAM may differ depending on the cable / satellite provider. For more information, please contact your cable / satellite provider.

HDMI OUT

AUDIO OUT

STEREO PCM

Page 13

No supplied cables are used in this connection:

Please purchase the necessary cables at your local store. High Speed HDMI cable (also known as HDMI category 2 cable) is recommended for the better compatibility.

 External Device Connection

[HDMI Connection]

HDMI connection offers the highest picture quality. HDMI (High-Definition Multimedia Interface) transports high definition video and multi-channel digital audio through a single cable.

e.g.)

TITLE 5 CHAPTER 15 REPEAT A-B

HDMI OUT

HDMI cable

side or rear of this unit

EnglishEspañol Français

INTRODUCTION

PREPARATION

WATCHING TV

OPTIONAL SETTING

BD/DVD recorder with the HDMI output jack

Note:

• This unit accepts 480i / 480p / 720p / 1080i / 1080p video signals, and 32kHz / 44.1kHz / 48kHz audio signals.

• This unit accepts only 2 channel audio signal (LPCM).

• You need to select “PCM” for the digital audio of the device you connected or check the HDMI audio setting. There may be no audio output if you select “Bitstream”, etc.

• This unit only accepts signals in compliance with EIA861.

[HDMI-DVI Connection]

Use an HDMI-DVI conversion cable to connect the unit to external video devices equipped with DVI output jack.

e.g.)

AUDIO OUT

RCA audio cable

rear of this unit

OPERATING BLU-RAY

BLU-RAY SETTING TROUBLESHOOTING

INFORMATION

STEREO PCM

cable receiver or satellite box with the DVI output jack

DVI OUT

HDMI-DVI conversion cable

Note:

• This unit accepts 480i / 480p / 720p / 1080i / 1080p video signals.

• HDMI-DVI connection requires separate RCA audio connections as well.

• Audio signals are converted from digital to analog for this connection.

• DVI does not display 480i image that is not in compliance with EIA/CEA-861/861B.

To HDMI1To HDMI1 input jack onlyinput jack only

Page 14

REPARATION

No supplied cables are used in this connection:

Please purchase the necessary cables at your local store.

[Component video Connection]

RCA component video connection offers better picture quality for video devices connected to the unit. If you connect to the unit’s Component video Input jack, connect RCA audio cables to the Audio L/R jacks below the Component video connector.

e.g.)

RCA component video cable

TITLE 5 CHAPTER 15 REPEAT A-B

BD/DVD recorder with the component video output jack

(red)(blue)(green)

COMPONENT VIDEO OUT

AUDIO OUT

Pr/CrPb/CbY

(green)(green)

(blue)(blue)

(red)(red)

rear of this unit

RCA audio cable

Note:

• This unit accepts 480i / 480p / 720p / 1080i video signals.

[S-Video or Video Connection]

S-Video connection offers good picture quality and an RCA video connection offers standard picture quality for video devices connected to the unit. If you connect to the unit’s S-Video Input jack or Video Input jack, connect RCA audio cables to the Audio L/R jacks below the Video connector. When the audio jack of the video device is monaural, connect an RCA audio cable to the Audio L Input jack.

e.g.)

STEREO

STAND-BY

AUDIO OUT

VIDEO

OUT

S-VIDEO

OUT

VCR

RCA video cable

S-Video cable

TITLE 5 CHAPTER 15 REPEAT A-B

BD/DVD recorder with

rear of this unit

the S-Video or video output jack

camcorder

video game

AUDIO OUT

VIDEO

OUT

S-VIDEO

OUT

S-Video cable

RCA video cable

RCA audio cable

Note:

• If you connect to the S-Video Input jack and the Video Input jack at the same time, the S-Video connection will have priority.

RCA audio cable

side of this unit

S-VIDEO

VIDEO

AUDIO

VIDEO 2

Page 15

No supplied cables are used in this connection:

Please purchase the necessary cables at your local store.

EnglishEspañol Français

INTRODUCTION

[Audio Output Connection]

 Digital (for digital broadcasting only)

If you connect this unit to an external digital audio device, you can enjoy multi-channel audio like 5.1ch digital broadcasting sound. Use a digital audio coaxial cable to connect the unit to external digital audio devices. During BD or DVD playback, you can enjoy Dolby Digital and DTS surround sound.

 Analog (for both analog and digital broadcasting)

If you connect this unit to an external analog audio device, you can enjoy stereo (2-channel) audio. Use an RCA audio cable to connect the unit to external analog audio devices.

e.g.)

Dolby Digital or

DTS decoder

stereo system

DIGITAL AUDIO

COAXIAL IN

AUDIO IN

digital audio coaxial cable

rear of this unit

RCA audio cable

[PC Connection]

This unit can be connected to your PC that has a DVI terminal. Use an HDMI-DVI conversion cable for this connection and it requires stereo mini plug-RCA conversion cable as well. If you connect this unit to your PC, you can use this unit as a PC monitor.

e.g.)

rear of this unit

PREPARATION

WATCHING TV

OPTIONAL SETTING

OPERATING BLU-RAY

BLU-RAY SETTING TROUBLESHOOTING

stereo mini plug-RCA conversion cable

DVI OUT

HDMI-DVI HDMI-DVI

personal computer

HDMI-DVI conversion cable should be with ferrite core.

conversion cableconversion cable

To HDMI1To HDMI1 input jack onlyinput jack only

The following signals can be displayed:

Format Resolution Refresh rate Format Resolution Refresh rate

VGA 640 x 480 60Hz

SVGA 800 x 600 60Hz 1,360 x 768 60Hz

WXGA

1,280 x 768 60Hz

XGA 1,024 x 768 60Hz FHD 1,920 x 1,080 60Hz

Other formats or non-standard signals will not be displayed correctly.

Note:

• Please purchase the HDMI-DVI conversion cable that has a ferrite core.

• The following operations may reduce noise.

- Attach a ferrite core to the AC power cord of your PC.

- Unplug the AC power cord and use the built-in battery of your PC.

INFORMATION

Page 16

REPARATION

Supplied accessories used in this connection are as follows:

• cable management tie x 1

• AC power cord x 1

[USB Flash Memory]

This unit offers easy playback JPEG pictures and MP3 musics. Insert the USB flash memory to the USB terminal shown as below. For more details, refer to “JPEG/MP3 Playback” on page 34.

side of this unit

Note:

• The USB flash memory is not supplied with this unit.

• Do not use an extension cord between the USB flash

memory and the unit. Always insert the USB flash memory to this unit directly.

• We do not guarantee the all USB flash memory can be

supported on this unit.

• Be sure to keep a backup copy of the original files on your

device before you play them back on this unit. We have no responsibilities for damage or loss of your stored data.

• When you ready to remove a USB flash memory, at first turn

off the unit to avoid any damage for your data and the unit.

• If the USB flash memory left behind in the USB terminal and

you turn off the unit, the “USB”(main menu) will appear automatically when you turn on the unit again.

 Cable Management

Attach the supplied cable management tie first into the holes on the lower side of the rear of this unit shown as below. Keep the cables through this holder to avoid tangle them.

rear of this unit

 Plug In the AC Power Cord

Make sure that the AC power cord must be plugged to an AC outlet after all the necessary connections are completed.

rear of this unit

AC power cord

AC outlet

Caution:

• Do not connect the AC power cord to a power supply outside the indicated voltage of this unit (AC 120V). Connecting the AC power cord to a power supply outside of this range may result in fire or electrical shocks.

Note:

• Each time you plugged in the AC power cord, any operations will not be performed for a few seconds. This is not a malfunction.

Page 17

EnglishEspañol Français

These operations are accessible by remote control. Some may also be accessible by controls on the main unit.

TV Functions

INTRODUCTION

 Initial Setup

This section will guide you through the unit’s initial setting which includes selecting a language for your on-screen menu and autoscan, which automatically scans and memorizes viewable channels.

Before you begin:

Make sure the unit is connected to antenna or cable.

After making all the necessary connections,

press [POWER] to turn on the unit.

• This operation may take a few moments.

Use [Cursor K / L] to select the on-screen language

from the choices on the right side of the TV screen. (English / Español / Français)

Initial Setup

Select the language for setup display.

Elija el idioma de ajuste.

Sélectionner langue écran config.

Select Skip

ENTER

Enter

• “Initial Setup” menu on step 3 will be displayed in the

selected language after you press [ENTER].

Use [Cursor K / L] to select “Antenna” for TV channels

or “Cable” for CATV channels, then press [ENTER].

Initial Setup

Make sure the antenna is connected to“ANT. IN” jack.

Select the destination of “ANT. IN” jack.

Antenna

Cable

ENTER

Select Skip

• “Autoscan” will begin.

Initial Setup

Now the system is scanning for channels,please wait. Autoscan will take up to 20 minutes to complete.

Analog channels 0ch

Digital channels 0ch

English

Español

Français

SETUP

Antenna Cable Skip

ANT.IN

SETUPBACK

BackEnter

SETUP

Skip

Use [Cursor s / B] to select the desired location setting,

then press [ENTER].

Initial Setup

Select “Retail” or “Home” for your location.

Select Enter

HomeRetail

ENTER

• Select ”Retail”, the unit will be set up with predefined setting for retail displays. In this setting, the power consumption may possibly exceed the limited requirement of the ENERGY STAR® qualification.

• Select ”Home”, the unit is set to maximize the energy efficiency for home setting and it can be adjusted through a choice of picture and sound quality according to your preference.

• When the initial setup is completed, the lowest memorized channel with the confirmation message of the location setting will be displayed on the TV screen.

Note:

• If you connect the cable system directly, contact the CATV installer.

• If you press [POWER] or [SETUP] during autoscan, this setting will be canceled.

• The initial autoscan function can be executed for either “Antenna” or “Cable” only once. When you change the connection (Antenna / Cable), set autoscan again. Refer to page 20.

• If there is no signal input from the antenna terminal and no operation for several seconds after you turn on the unit, “Helpful Hints” appears. Follow the instructions listed on the TV screen.

Initial Setup

No channel is registered.

Try Autoscan again?

Verify that you have a cable connected to the

on the back of the TV, the channel installation process

searches this connection. If you are using a cable or satellite

box, please confirm the input which you have connected the

box and press the “INPUT SELECT” key on the remote control to

select the appropriate source input.

"ANT. IN" jack

ENTER

Select Skip

Enter

Retry Later

SETUP

• You must set ”Home” in step 4. Otherwise, the settings of picture and sound quality you adjusted will not be memorized after you turn off the unit.

After an initial setup is completed...

• If you want to scan the channels automatically again, refer to “Autoscan” on page 20.

• You can add the desired channels unmemorized by “Autoscan”. Refer to “Manual Register” on page 21.

• If you want to change to another language, refer to “Language Selection” on page 22.

• If you want to change the location setting, refer to “Location” on page 33.

PREPARATION

WATCHING TV

OPTIONAL SETTING

OPERATING BLU-RAY

BLU-RAY SETTING TROUBLESHOOTING

INFORMATION

Page 18

ATCHING TV

 Channel Selection

Select channels by using [CH K / L] or [the Number buttons].

• To select the memorized channels, use [CH K / L] or [the Number buttons].

• To select the non-memorized channels, use

[the Number buttons].

To Use [the Number buttons]

- When selecting analog channel 11

DTV

- When selecting digital channel 11-1

Be sure to press [-] before entering the subchannel number.

• Press [CH RETURN] to return to the previously channel.

About digital TV broadcasting:

With its high definition broadcast, digital broadcasting far surpasses analog broadcasting in both its picture and sound quality. Not all digital TV broadcasts are high definition (HD). To confirm whether your watching TV program is in HD, refer to the program guide, contact your cable / satellite provider or local TV stations.

NTSC

(analog mode)

(Soccer)

CH4

(Soccer)

CH4

Air time

6:00

6:30

CH4-1

(Soccer)

ATSC

(digital mode)

(Soccer)

CH4-1

main channel

(News)

CH4-2

CH4-3

(Tennis)

 Volume Adjustment

This section describes how to adjust the volume. The mute function, which turns the sound off and on, is also described.

Use [VOL. X / Y] to adjust the audio volume.

Volume 30

The volume bar will be displayed at the bottom of the TV screen when adjusting the volume.

• The volume bar will automatically disappear in a few seconds.

Press [

MUTE] to turn off and on the sound.

Mute

“Mute” is displayed on the TV screen for a few seconds.

Press [

MUTE] again or [VOL. X / Y] to recover the

original volume.

 Sleep Timer

The sleep timer can be set to automatically turn off the unit after an incremental period of time.

Press [SLEEP] to set the sleep timer.

Sleep timer display appears on the TV screen.

Sleep Off

main channel

7:00

CH4

(Soccer)

7:30

8:00

(Soccer)

CH4-1

main channel

can be changed by using

CH4-1

main channel

(Soccer)

CH4-2

subchannel

What is the subchannel?

By using high compression technology, digital broadcasting offers a service that enables multiple signals to send simultaneously. Therefore, you can select more than one program per main channel since digital broadcasting technology distinguishes between multiple channels broadcast by a single network.

Note:

• “No Signal” will appear on the T V screen after the subchannel broadcast is over.

• “Audio only program“ message will appear on the TV screen, when you receive only sound signal.

subchannelsubchannel

(News)

[CH K / L]

Press [SLEEP] repeatedly to change the amount of time

until shut off.

Sleep 120min.

You can set your unit to turn off after a set period of time (from 30 to 120 minutes).

• Each press of [SLEEP] will increase the time by 30

minutes.

• After setup, the sleep timer display can be called up

for checking by pressing [SLEEP].

To cancel the sleep timer

Press [SLEEP] repeatedly until “Sleep Off” is displayed on the TV screen.

Note:

• The sleep timer display will automatically disappear in a few seconds.

• When you disconnect the unit from the AC outlet or when a power failure occurs, the sleep timer setting will be canceled.

Page 19

EnglishEspañol Français

INTRODUCTION

 Still Mode

You can pause the image shown on the TV screen.

Press

[PAUSE F ] to pause the image shown on the TV

screen.

Still

• The sound output will not be paused.

• If no signal is detected or protected signal is received during still mode, the image remains paused and the sound output will be muted.

• The still function will be released after 5 minutes.

To cancel still mode, press any button except [POWER].

 Switching Each Input Mode

You can easily switch with the remote control to the DTV (ATSC) and TV (NTSC) or to access external devices when they are connected to the unit.

Press [INPUT SELECT] or [CH K] repeatedly to cycle through the input modes.

Input Select

TV Video1 Video2 Component HDMI1 HDMI2 HDMI3

DTV/TV channel

 Switching Audio Mode

This section describes how to switch the audio in the analog mode and how to switch the audio language in the digital mode.

Press [AUDIO] to display the currently selected audio mode. While receiving an MTS broadcast, press repeatedly to cycle through the available audio channel.

When all audio are available

SAP / STEREO SAP / MONO

SAP / STEREO

When stereo and monaural audio are available

MONO / STEREO MONO / STEREO

When SAP and monaural audio are available

SAP / MONO SAP / MONO

When only monaural audio is available

(cannot be switched)

STEREO : Outputs stereo-audio SAP : Outputs second audio program MONO : Outputs mono-audio

DTV

Press [AUDIO] to display the currently selected

language and the number of available languages.

SAP / STEREO

MONO

11-1

English 1/3

PREPARATION WATCHING TV

OPTIONAL SETTING

OPERATING BLU-RAY

BLU-RAY SETTING TROUBLESHOOTING

Video1

Video2

Component

(or PC input)

HDMI1

HDMI2

HDMI3

• Pressing [CH L] reverses the direction of the input modes.

Press [AUDIO] repeatedly to cycle through the

available audio languages.

• Available languages differ depending on the broadcast. “Other” is displayed when the audio language cannot be acquired, or the acquired languages are other than English, Spanish or French.

Note:

• [AUDIO] does not control external audio devices.

• The information display will automatically disappear in a few seconds.

INFORMATION

Page 20

ATCHING TV

 TV Screen Information

You can display the currently selected channel or other information such as the audio mode on the TV screen.

In the analog mode, the current channel number and the audio mode are displayed.

DTV

In the digital mode, the detailed broadcasting information for the current channel such as program title, program guides are displayed.

Press [INFO].

SAP / STEREO

480i

• The current channel number, audio mode, type of resolutions for video signal, TV aspect ratio, CC and TV program rating are displayed on the top-right corner of the TV screen.

• To clear the display, press [INFO] again. You can also press [BACK].

TV-PG DLSV

4:3

Press [INFO] to display the details of the currently selected program.

Broadcasting information

The following information is displayed.

1 2

A Day of Memories

A quarter-century ago,which may now qualify as the good old days of newspapering,run-of-paper sales accounted for 80 percent of the industry's advertising revenues. Department stores and supermarket were

TV: TV-14

1 program title 2 program guide

(The program guide added to broadcasting information is displayed to a maximum of 4 lines.)

3 broadcast station 4 channel number 5 audio language

Refer to “Switching Audio Mode” on page 17.

6 effective scanning lines and scan mode 7 digital TV format 8 program aspect ratio 9 CC (not available if closed caption is set to “Off”) 10 child lock rating

KABC

English 1/2

1080i

Rating

11-1

16:9HDHD

16:9

5 6, 7, 8

Note:

• When the program guide consists of more than 4 lines, use

[Cursor K/ L] to scroll.

• “No description provided.” is displayed when the program guide is not provided.

• While the program guide is displayed, the closed caption function is interrupted.

• In external input mode, the following screen is displayed; e.g.) When an external device is connected to Video Input

jack.

Video

480iSDSD

480i

TV-PG DLSV

• The information display will automatically disappear in 1 minute.

Page 21

 TV Screen Display Mode

4 types of display modes can be selected when the broadcasting station is sending 4:3 or 16:9 video signal. And 3 types of display modes can be selected for PC input signal.

Press [SCREEN MODE ] repeatedly to switch the TV aspect ratio.

For 4:3 video signal

EnglishEspañol Français

INTRODUCTION

PREPARATION WATCHING TV

For 16:9 video signal

Sidebar Full

Wide Cinema

Sidebar

Display a 4:3 picture at its original size. Sidebars appear on both edges of the screen.

Full

Display a 4:3 picture at a 16:9 size; the picture is stretched horizontally to fill the screen.

Cinema

Display a 4:3 picture at a 16:9 size; the picture is stretched horizontally and vertically to fill the screen. This crops out the top and bottom of the picture.

Wide

Display the picture with its center at the original size and the edges stretched horizontally to fill the screen.

Full

Expand

Zoom

Cinema

Full

Display a 16:9 picture at its original size.

Zoom

Display a 16:9 picture at its maximum size without changing its horizontal and vertical ratio.

Cinema

Display a vertically stretched picture.

Expand

Display a horizontally stretched picture.

For PC input signal through

Normal Full

HDMI1

Input mode

OPTIONAL SETTING

OPERATING BLU-RAY

BLU-RAY SETTING TROUBLESHOOTING

Dot By Dot

Normal

Display a proportionately stretched picture. Sidebars appear on both edges of the screen.

Full

Display a picture that is stretched out of proportion to fill the screen.

Dot By Dot

Display a picture in its original size.

INFORMATION

Page 22

PTIONAL SETTING

 Main Menu

This section describes the overview of the main menu displayed when you press [SETUP]. For more details, see the reference page for each item. The main menu consists of the function setting items below.

Press [SETUP].


SOUND

CHANNEL

DETAIL

LANGUAGE

BLU-RAY


You can adjust the picture quality. Refer to “Picture Adjustment” on page 23.

SOUND

You can adjust the sound quality. Refer to “Sound Adjustment” on page 24.

CHANNEL

• You can automatically scan the viewable channels. Refer to “Autoscan” on page 20.

• You can skip the undesired channels when selecting the channels using [CH K / L]. Refer to “Channel List” on page 21.

• You can add the channels that were not scanned by the autoscan. Refer to “Manual Register” on page 21.

DETAIL

• You can change the display format for closed caption, which displays the dialogue of a TV program or other information across the TV screen. Refer to “Closed Caption” on page 25.

• You can set the viewing limitations. Refer to ‘‘Child Lock” on page 28.

• You can adjust the position, stability and clarity of the PC screen. Refer to “PC Settings” on page 32.

• You can select the energy saving mode. Refer to “Energy Saving Mode” on page 33.

• When you adjust the desired “PICTURE” and “SOUND” mode, you must switch the setting from “Retail” to “Home”. Refer to “Location” on page 33.

• You can confirm the version of the software currently used in this unit. Refer to ”Current Software Info” on page 34.

LANGUAGE

You can change the language (English, Spanish, French) displayed on the main menu. Refer to “Language Selection” on page 22.

BLU-RAY

You can customize some functions for the disc playback. Make sure the unit is in stop mode. Refer to “BLU-RAY SETTING“ section on page 47.

USB

You can view the picture or listen to the music that the JPEG or the MP3 files stored in a USB flash memory. Refer to “JPEG/MP3 Playback” on page 34.

Note:

“USB” will be in gray if the USB flash memory is not inserted

to this unit.

USB

 Autoscan

If you switch wires (e.g., between antenna and CATV) or if you move the unit to a different area after the initial setting, or if you restore the DTV channel you deleted, you will need to perform autoscan.

Before you begin: Make sure the unit is connected to antenna or cable.

Press [SETUP] to display the main menu.

Use [Cursor K / L] to select “CHANNEL” , then press

[ENTER].


Use [Cursor K / L] to select “Autoscan”, then press

[ENTER].

Use [Cursor K / L] to select an appropriate option, then press [ENTER].

• When aerial antenna is connected, select “Antenna”.

• When connected to CATV, select “Cable”.

• “Autoscan” will begin.

• When the scanning and memorizing are completed, the lowest memorized channel will be displayed.

Note:

• After setting “Autoscan”, using [CH K / L] on the remote

control skips unavailable programs automatically.

• If you connect the cable system directly, contact the CATV installer.

• If you press [POWER] or [SETUP] during autoscan, the setting will be canceled.

• Even if “Autoscan“ is completed, the channel setting will be lost if the AC power cord is unplugged before turning off the unit by pressing [POWER].

• The PIN Code will be required once you set a PIN Code in the “Child Lock“ (refer to page 28).

• If you want to change your PIN Code, follow the instruction of “New Password” (refer to page 31).

SOUND

CHANNEL

DETAIL

LANGUAGE

BLU-RAY

USB

Channel


Autoscan

SOUND

Channel List

CHANNEL

Manual Register

Antenna

DETAIL

LANGUAGE

BLU-RAY

USB

Autoscan


SOUND

Autoscan will rescan all channels. Autoscan will take up to 20 minutes to complete.

CHANNEL

Select the destination of "ANT.IN" jack.

DETAIL

Antenna

LANGUAGE

BLU-RAY

USB

Now the system is scanning for Channels,please wait Autoscan will take up to 20 minutes to complete.

75%

Analog channels 10ch

Digital channels 6ch

Cable

SETUP

Exit

Back Antenna Cable

ANT.IN

Page 23

EnglishEspañol Français

INTRODUCTION

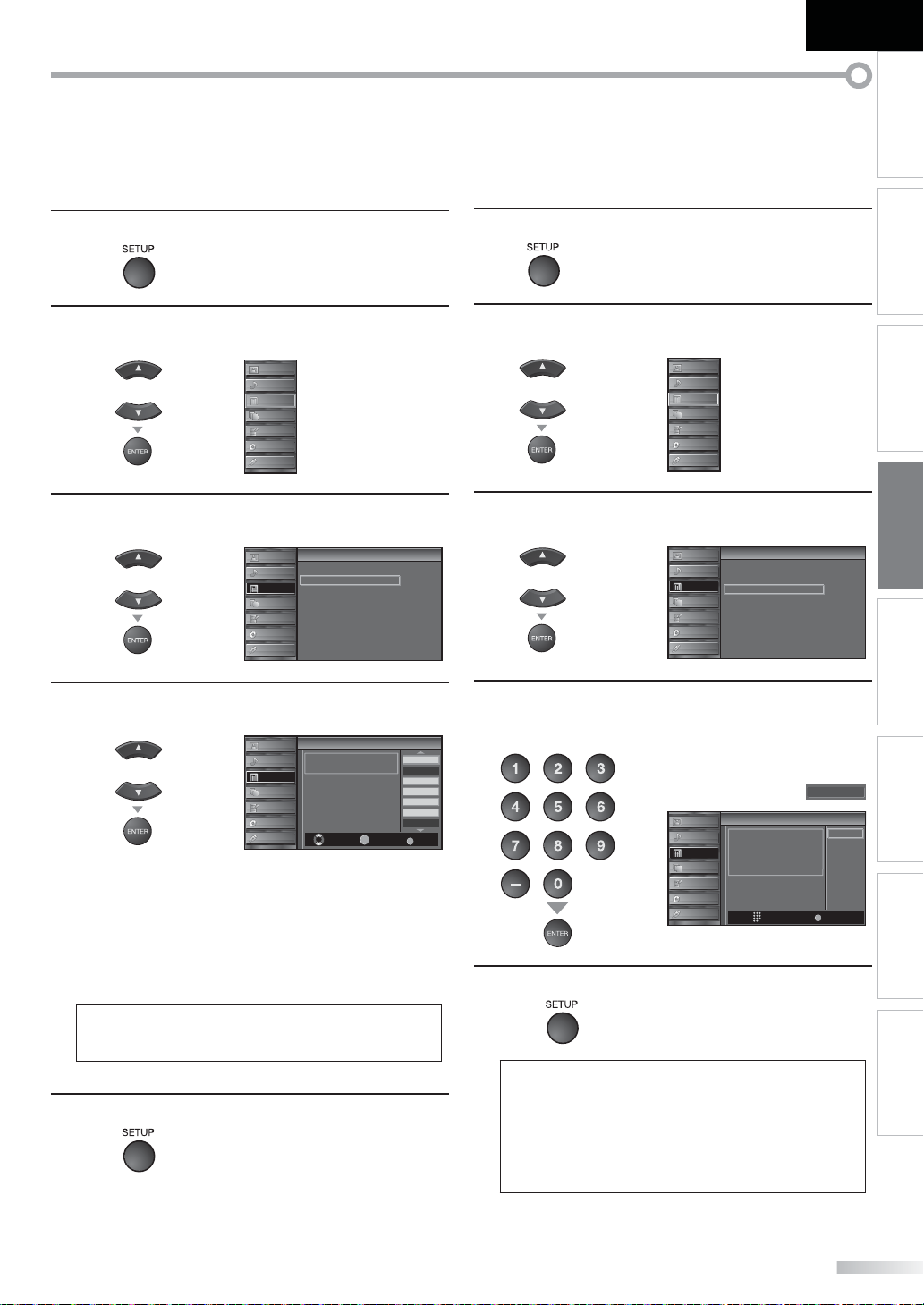

 Channel List

The channels selected here can be skipped when selecting the channels using [CH K / L]. Those channels can still be selected with [the Number buttons].

Press [SETUP] to display the main menu.

Use [Cursor K / L] to select “CHANNEL”, then press

[ENTER].


Use [Cursor K / L] to select “Channel List”, then press

[ENTER].

SOUND

CHANNEL

DETAIL

LANGUAGE

BLU-RAY

USB


SOUND

CHANNEL

DETAIL

LANGUAGE

BLU-RAY

USB

Channel

Autoscan Channel List Manual Register Antenna

 Manual Register

This function lets you add the channels that were not added by the autoscan due to the receptible condition at the initial setting.

Press [SETUP] to display the main menu.

Use [Cursor K / L] to select “CHANNEL”, then press

[ENTER].


Use [Cursor K / L] to select “Manual Register”, then

press [ENTER].

SOUND

CHANNEL

DETAIL

LANGUAGE

BLU-RAY

USB


SOUND

CHANNEL

DETAIL

LANGUAGE

BLU-RAY

USB

Channel

Autoscan Channel List Manual Register Antenna

PREPARATION

WATCHING TV

OPTIONAL SETTING

OPERATING BLU-RAY

Use [Cursor K / L] to select the channel you want to

remove, then press [ENTER].

Channel List


Highlight channels for Ch

SOUND

CHANNEL

DETAIL

LANGUAGE

BLU-RAY

USB

Up/Down key selection.

ENTER

Ch Select Watch/Skip Back

• The channel display for the removed channel darkens. You will not be able to select the channel again using [CH K / L].

• To reactivate a removed channel, use [Cursor K / L] and press [ENTER]. The registered channels are highlighted.

• When you remove a main channel, its subchannels are removed as well.

Note:

• The channel with the “DTV” indicated on the display is ATSC. Otherwise the channel is NTSC.

Press [SETUP] to exit.

DTV 6

DTV 8

DTV 48

DTV 67

BACK

Use [the Number buttons] to enter the number of the

channel you want to add, then press [ENTER].

BLU-RAY SETTING TROUBLESHOOTING

Press [SETUP] to exit.


SOUND

CHANNEL

DETAIL

LANGUAGE

BLU-RAY

USB

Manual Register

For analog channels, select a channel to register using number keys.

For digital channels, you must perform Autoscan function.

Ch Change

BACK

Back

INFORMATION

Note:

• If setup completes successfully, “Added to the channel list” is displayed.

• If external input is used, it is not possible to register the channel and “Unavailable” will be displayed on the TV screen.

• By using [CH K / L], you can select the memorized channels only.

Page 24

PTIONAL SETTING

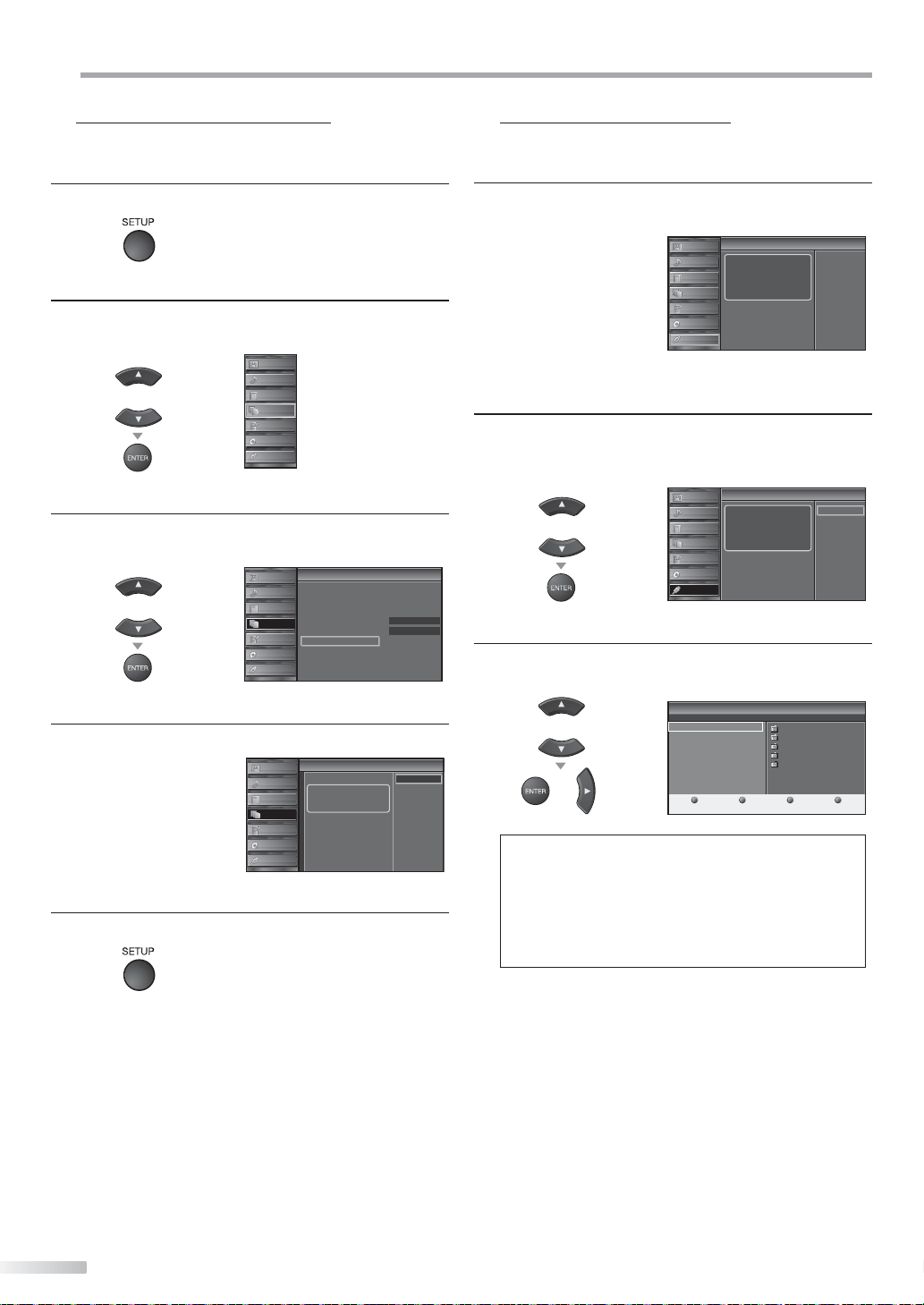

 Antenna Confirmation

DTV

This function lets you check the digital signal strength of each channel.

Press [SETUP] to display the main menu.

Use [Cursor K / L] to select “CHANNEL”, then press

[ENTER].


Use [Cursor K / L] to select “Antenna”, then press

[ENTER].

Use [the Number buttons] or [CH

channel for which you want to check the digital signal strength.

SOUND

CHANNEL

DETAIL

LANGUAGE

BLU-RAY

USB


SOUND

CHANNEL

DETAIL

LANGUAGE

BLU-RAY

USB

Channel

Autoscan Channel List Manual Register Antenna

K / L

] to select the

 Language Selection

You can choose English, Spanish, or French as your on-screen language.

Press [SETUP] to display the main menu.

Use [Cursor K / L] to select “LANGUAGE”, then press

[ENTER].


SOUND

Use [Cursor K / L] to select “English”, “Español” or

“Français”, then press [ENTER].

Press [SETUP] to exit.

CHANNEL

DETAIL

LANGUAGE

BLU-RAY

USB


SOUND

Select the language for setup display.

CHANNEL

Elija el idioma de ajuste.

DETAIL

Sélectionner langue écran config.

LANGUAGE

BLU-RAY

USB

Language

English

Español

Français

Antenna


SOUND

CHANNEL

DETAIL

LANGUAGE

BLU-RAY

USB

• If the channel is set to analog channel or external input, you cannot confirm the antenna condition.

Antenna


SOUND

CHANNEL

Indicator is available for digital broadcasting

DETAIL

only.

LANGUAGE

BLU-RAY

Press [SETUP] to exit.

USB

Current50 50 Max

Ch Change

11-1

Back

Video

Back

Note:

• If you need the English menus instead of the Spanish or

French menus, press [SETUP]. Use [Cursor K / L] to select “IDIOMA” or “LANGUE”, then press [ENTER]. Use [Cursor K / L] to select “English”, then press [ENTER]. Press [SETUP] to exit the main menu.

Page 25

 Picture Adjustment

You can adjust brightness, contrast, color, tint, sharpness and color temperature.

EnglishEspañol Français

INTRODUCTION

Before you begin: You must set ”Home” in ”Location” (refer to page 33).

Otherwise, the settings you adjusted will not be memorized after you turn off the unit.

Press [SETUP] to display the main menu.

Use [Cursor K / L] to select “PICTURE”, then press

[ENTER].


Use [Cursor K / L] to select the item you want to adjust,

SOUND

CHANNEL

DETAIL

LANGUAGE

BLU-RAY

USB

then press [ENTER].


Adjust the picture quality.


SOUND

CHANNEL

DETAIL

LANGUAGE

BLU-RAY

USB

Picture Mode

Brightness Contrast Color Tint Sharpness Color Temperature

Personal

Normal

Picture Mode

Use [Cursor K / L] to select the desired setting, then press [ENTER]. (‘‘Personal“, ‘‘Standard“, ‘‘Sports“, ‘‘Movie“ and ‘‘Game“)



Picture Mode

SOUND

CHANNEL

DETAIL

LANGUAGE

BLU-RAY

USB

Brightness Contrast Color Tint Sharpness Color Temperature

Personal

Standard Sports Movie Game

Brightness

Contrast

Color

30 60 36

0 0

Tint

Sharpness

Color Temperature

Brightness, Contrast, Color, Tint, Sharpness, Color Temperature

Use [Cursor K / L] to select the desired setting, then use [Cursor

Brightness 30

Adjust

Contrast

Adjust Move

Color

Adjust Move

Tint

Adjust Move

Color Temp. Normal

Adjust Move

Press [SETUP] to exit.

] to adjust.

Cursor

to decrease

ENTER

Move

Enter

0Sharpness

ENTER

Enter

ENTER

Enter

ENTER

Enter

ENTER

Enter

ENTER

Enter

brightness

to decrease contrast

to decrease color intensity

to add red to add green

to soften to sharpen

to add warm colors

Cursor

to increase brightness

to increase contrast

to increase color intensity

to add cool colors

PREPARATION

WATCHING TV

OPTIONAL SETTING

OPERATING BLU-RAY

BLU-RAY SETTING TROUBLESHOOTING

Note:

• If you press [PICTURE PRESET], the items for “Picture

Mode“ (“Personal”, “Standard”, “Sports”, “Movie” and “Game”) will appear at the upper left of the TV screen, in which you can switch to the desired setting.

• To cancel picture adjustment, press [SETUP].

• Only the ‘‘Personal“ setting can be adjusted.

INFORMATION

Page 26

PTIONAL SETTING

 Sound Adjustment

You can adjust the sound mode, equalizer and some other sound functions.

Before you begin: You must set ”Home” in ”Location” (refer to page 33).

Press [SETUP] to display the main menu.

Use [Cursor K / L] to select “SOUND”, then press

[ENTER].

Use [Cursor K / L] to select the sound type you want to

adjust, then press [ENTER].

Adjust the following items.

Sound Mode

Use [Cursor K / L] to select the desired setting, then press [ENTER]. (“Personal “, “Standard “, “Movie “, “Music “and “News “)

Equalizer

Adjust tonal quality for each frequencies. Use [Cursor s / and use [Cursor K / L] to adjust the level, then press

[ENTER].

Virtual Surround Sound

Virtual Surround Sound gives you the stereo phonic virtual space through your existing 2-channel stereo system.

Otherwise, the settings you adjusted will not be memorized after you turn off the unit.


] to select the specific frequency

SOUND

CHANNEL

DETAIL

LANGUAGE

BLU-RAY

USB


SOUND

CHANNEL

DETAIL

LANGUAGE

BLU-RAY

USB


SOUND

CHANNEL

DETAIL

LANGUAGE

BLU-RAY

USB


SOUND

CHANNEL

DETAIL

LANGUAGE

BLU-RAY

USB

Sound

Sound Mode Equalizer Virtual Surround Sound Auto Volume Leveling TV Speakers

Sound

Sound Mode

Equalizer

Virtual Surround Sound

Auto Volume Leveling TV Speakers

Equalizer

120Hz0500Hz01.5kHz05kHz010kHz

Standard

On Off Ext. Amp

Personal

Standard

Movie Music News

Use [Cursor K / L] to select the desired option, then press [ENTER].

Virtual Surround Sound


This selects the modes for

SOUND

more spatial or surround sound

CHANNEL

DETAIL

LANGUAGE

BLU-RAY

USB

reproduction.

On Emphasized effect. Off Natural effect.

Auto Volume Leveling

This function keeps a constant loudness differential between the TV commercials and the programs.

Use [Cursor K / L] to select the desired option, then press [ENTER].

Auto Volume Leveling


Auto Volume Leveling reduces

SOUND

CHANNEL

DETAIL

LANGUAGE

BLU-RAY

USB

volume differences between channels and programs, providing a consistent audio level.

Select if you want to reduce volume

differences between the TV commercials and the programs.

Off

Select if you want to remove the auto volume leveling.

TV Speakers

Select the audio output from the unit’s speakers, or not. If your amplifier compatible with the CEC function is connected to this unit using an HDMI cable, some part of the sound operations such as volume up can access synchronized by using this unit’s remote control.

Use [Cursor K / L] to select the desired option, then press [ENTER].

TV Speakers


"On":

SOUND

Sound will be output from the TV

CHANNEL

DETAIL

LANGUAGE

BLU-RAY

USB

speakers.

"Off":

Sound will not be output from the TV speakers.

"Ext. Amp":

Operation is possible by connecting to the HDMI-CEC compatible amp with a HDMI cable. For details look in the user manual.

Off

The sound will be output from the unit’s speakers.

The sound will not be output from the unit’s speakers.

This function allows you to control audio

Ext. Amp

output from CEC-compatible devices with the unit’s remote control.

Press [SETUP] to exit.

Note:

• If you press [AUDIO PRESET], the items for “Sound Mode“

(“Personal”, “Standard”, “Movie”, “Music” and “News”) will appear at the upper left of the TV screen, in which you can switch to the desired setting.

• To cancel sound adjustment, press [SETUP].

• We do not guarantee 100% interoperability with other brands of CEC compliant devices.

Off

Ext. Amp

Page 27

EnglishEspañol Français

INTRODUCTION

 Closed Caption

You can view closed captioning (CC) for TV programs, movies and news. Closed caption refers to text of dialogue or descriptions displayed onscreen.

Press [SETUP] to display the main menu.

Use [Cursor K / L] to select “DETAIL”, then press

[ENTER].


Use [Cursor K / L] to select “Closed Caption”, then

press [ENTER].

See the following description for setting each item.


SOUND

CHANNEL

DETAIL

LANGUAGE

BLU-RAY

...

“A. Caption Service”

...

“B. Digital Caption Service”

...

“C. Caption Style”.

USB

SOUND

CHANNEL

DETAIL

LANGUAGE

BLU-RAY

USB


SOUND

CHANNEL

DETAIL

LANGUAGE

BLU-RAY

USB

Closed Caption

Caption Service Digital Caption Service Caption Style

 page 25

 page 26

Detail

Closed Caption Child Lock PC Settings Energy Saving Mode Location Current Software Info

Off Off

On Home

A B C

A. Caption ServiceA. Caption Service

Use [Cursor K / L] to select “Caption Service”, then

press [ENTER].

Closed Caption


Caption Service

SOUND

Use [Cursor K / L] to select the desired closed caption,

then press [ENTER].

Caption mode

CC1 and Text1;

are the primary caption and text services. The captioning or text is displayed in the same language as the program’s dialogue (up to 4 lines of script on the TV screen, where it does not obstruct relevant parts of the picture).

CC3 and Text3;

serve as the preferred data channels. The captioning or text is often a secondary language.

CC2, CC4, Text2 and Text4;

are rarely available and broadcasters use them only in special conditions, such as when “CC1” and “CC3” or “Text1” and “Text3” are not available.

• There are 3 display modes according to programs:

Paint-on mode:

Displays input characters on the TV screen immediately.

Pop-on mode:

Once characters are stored in memory, they are displayed all at once.

Roll-up mode:

Displays the characters continuously by scrolling (max. 4 lines).

Digital Caption Service

CHANNEL

Caption Style

DETAIL

LANGUAGE

BLU-RAY

USB

Closed Caption


Caption Service Off

SOUND

Digital Caption Service

CHANNEL

Caption Style

DETAIL

LANGUAGE

BLU-RAY

USB

PREPARATION

Off Off

WATCHING TV

CC1 CC2 CC3 CC4

OPTIONAL SETTING

Text1 Text2 Text3 Text4

OPERATING BLU-RAY

BLU-RAY SETTING TROUBLESHOOTING

INFORMATION

Press [SETUP] to exit.

Page 28

PTIONAL SETTING

B. Digital Caption ServiceB. Digital Caption Service

DTV

In addition to the basic closed caption described on page 25, DTV has its own closed caption called digital caption service. Use this menu to change the settings for digital caption service.

Use [Cursor

then press [ENTER].

Use [Cursor

service, then press [ENTER].

Off

Service 1~6

Press [SETUP] to exit.

Note:

• “Digital Caption Service” that you can switch differs depending on the broadcast description.

L] to select “Digital Caption Service”,

Closed Caption


Caption Service

SOUND

Digital Caption Service

L] to select the desired digital caption

CHANNEL

DETAIL

LANGUAGE

BLU-RAY

USB


SOUND

CHANNEL

DETAIL

LANGUAGE

BLU-RAY

USB

Caption Style

Closed Caption

Caption Service

Digital Caption Service

Caption Style

Select if you do not want digital caption service. This is the default.

Select one of these before changing any other item in “Closed Caption” menu. Choose “Service1” under normal circumstances.

Off Off

Off

Service1 Service2 Service3 Service4 Service5 Service6

DTV

C. Caption StyleC. Caption Style

You can change the caption style such as font, color or size, etc.

Use [Cursor

L] to select “Caption Style”, then press

[ENTER].

Closed Caption


Caption Service

SOUND

CHANNEL

DETAIL

LANGUAGE

BLU-RAY

USB

Digital Caption Service Caption Style

Use [Cursor

L] to select “User Setting”, then press

[ENTER].

Caption Style


User Setting

SOUND

Use [Cursor

L] to select “On”, then press [ENTER].

Use [Cursor

L] to select an item, then press

[ENTER]. Then use [Cursor

Font Style

CHANNEL

Font Size Font Color

DETAIL

Font Opacity

LANGUAGE

Background Color Background Opacity

BLU-RAY

Edge Color

USB

Edge Type

Caption Style


User Setting

SOUND

Font Style

CHANNEL

Font Size Font Color

DETAIL

Font Opacity

LANGUAGE

Background Color Background Opacity

BLU-RAY

Edge Color

USB

Edge Type

L] to select the desired

setting and press [ENTER].

Picture display

Off Off

Off

Font0

Middle White

Solid Black Solid Black None

Off

ABCDEFGHIJKL

Edge

(Edge Color and Edge Type)

Font

(Font Style, Font Size, Font Color and Font Opacity or Transparency)

Background

(Background Color and Background Opacity or Transparency)

• The setting description for each item is shown on the next page.

• Review your setting choice made on the next page by looking in the upper right corner of the displayed setting box (not all selections show the differences selected).

Page 29

EnglishEspañol Français

INTRODUCTION

Font Style

Closed Captioning font style can be changed as below.


SOUND

CHANNEL

DETAIL

LANGUAGE

BLU-RAY

USB

Caption Style

User Setting

Font Style

Font Size Font Color Font Opacity Background Color Background Opacity Edge Color Edge Type

Closed Caption

Font Size

Font size of the displayed caption can be switched as below.


SOUND

CHANNEL

DETAIL

LANGUAGE

BLU-RAY

USB

Caption Style

User Setting Font Style

Font Size

Font Color Font Opacity Background Color Background Opacity Edge Color Edge Type

Closed Caption

Large

Middle

Small

Font Color

Font color of the displayed caption can be switched as below.

Caption Style


SOUND

CHANNEL

DETAIL

LANGUAGE

BLU-RAY

USB

Caption Style

User Setting Font Style Font Size

Font Color

Font Opacity Background Color Background Opacity Edge Color Edge Type

Closed Caption

White

Black Red Green Blue Yellow Magenta Cyan

Edge Color

Edge color of the displayed caption can be switched as below.

Caption Style


SOUND

CHANNEL

DETAIL

LANGUAGE

BLU-RAY

USB

Caption Style

User Setting Font Style Font Size Font Color Font Opacity Background Color Background Opacity

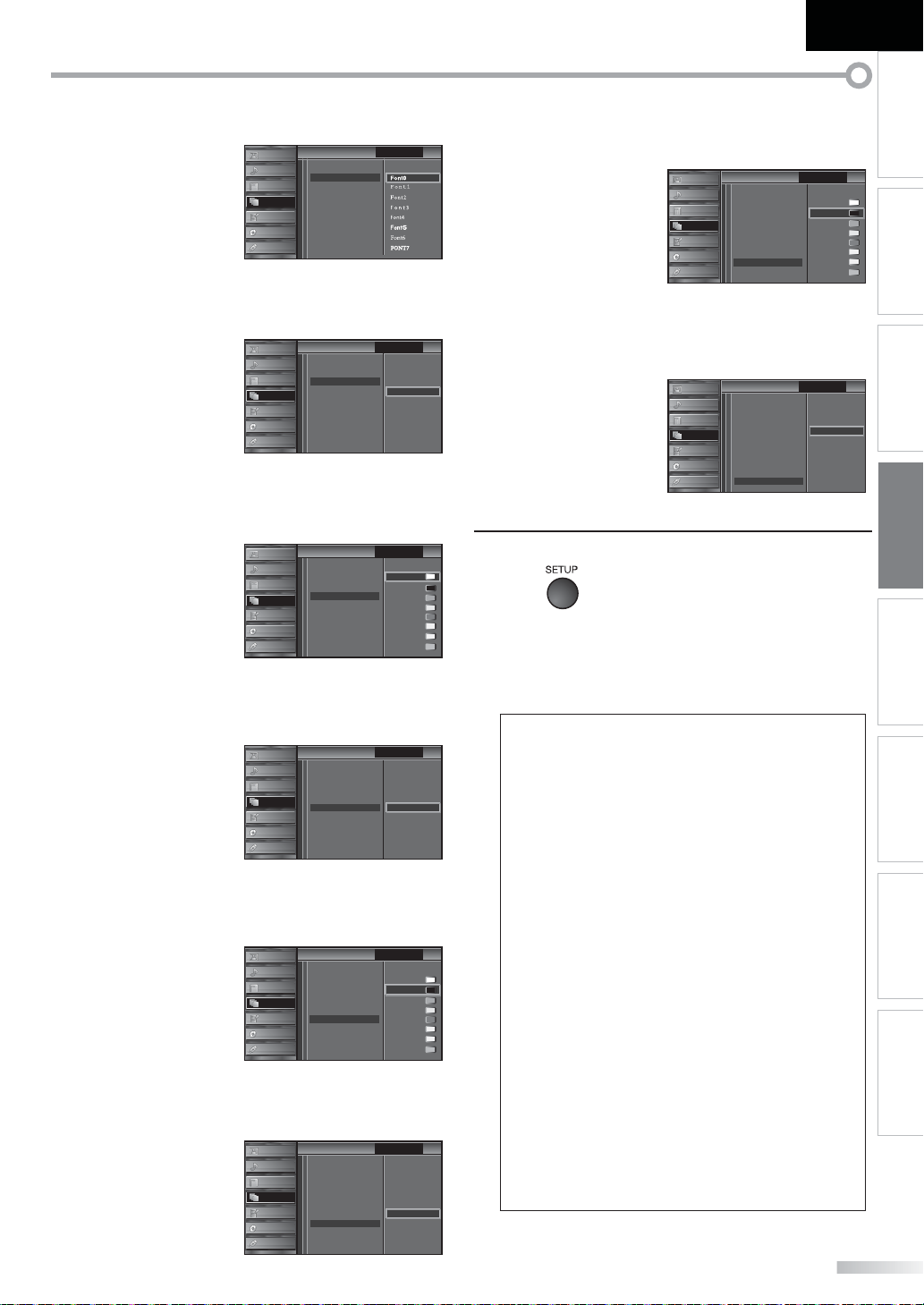

Edge Color

Edge Type

Closed Caption

Edge Type

Edge type of the displayed caption can be switched as below.

Press [SETUP] to exit.


SOUND

CHANNEL

DETAIL

LANGUAGE

BLU-RAY

USB

Caption Style

User Setting Font Style Font Size Font Color Font Opacity Background Color

Background Opacity

Edge Color

Edge Type

Closed Caption

White

Black

Red Green Blue Yell ow Magenta Cyan

None

Raised Depressed Uniform L.Shadow R.Shadow

PREPARATION

WATCHING TV

OPTIONAL SETTING

OPERATING BLU-RAY

Font Opacity

Font opacity of the displayed caption can be switched as below.


SOUND

CHANNEL

DETAIL

LANGUAGE

BLU-RAY

USB

Caption Style

User Setting Font Style Font Size Font Color

Font Opacity

Background Color Background Opacity Edge Color Edge Type

Closed Caption

Solid

Flash Translucent Transparent

Background Color

Background color of the displayed caption can be switched as below.

Caption Style


SOUND

CHANNEL

DETAIL

LANGUAGE

BLU-RAY

USB

Caption Style

User Setting Font Style Font Size Font Color Font Opacity

Background Color

Background Opacity Edge Color Edge Type

Closed Caption

White

Black

Red Green Blue Yellow Magenta Cyan

Background Opacity

Background opacity of the displayed caption can be switched as below.


SOUND

CHANNEL

DETAIL

LANGUAGE

BLU-RAY

USB

Caption Style

User Setting Font Style Font Size Font Color Font Opacity Background Color

Background Opacity

Edge Color Edge Type

Closed Caption

Solid

Flash Translucent Transparent

Note:

• To show the closed caption on your TV screen, broadcast signal must contain the closed caption data.

• Not all TV programs and commercials have the closed caption or all types of the closed caption.

• Captions and texts may not match the TV voice exactly.

• Changing channels may delay the closed caption for a few seconds.

• Adjusting or muting the volume may delay the closed caption for a few seconds.

• Abbreviations, symbols and other grammatical shortcuts may be used in order to keep pace with the on-screen action. This is not a malfunction.

• The caption or text characters will not be displayed while the main menu or functions display is shown.

• If a black box appears on the TV screen, this means that the closed caption is set to the text mode. To clear the box, select “CC1”, “CC2”, “CC3”, “CC4” or “Off”.

• If the unit receives poor quality television signals, the captions may contain errors, or there might be no captions at all. Some possible causes of poor quality signals are:

- Automobile ignition noise

- Electric motor noise

- Weak signal reception

- Multiplex signal reception (ghosts or screen flutter)

• The unit retains the closed caption setting if the power fails.

• Closed caption will not be displayed when you are using an HDMI connection.

• When the unit receives special effects playback signal (i.e., Search, Slow and Still) from a VCR’s video output channel (CH3 or CH4), the unit may not display the correct caption or text.

BLU-RAY SETTING TROUBLESHOOTING

INFORMATION

Page 30

PTIONAL SETTING

 Child Lock

Child lock reads the ratings for programs, then denies access to the programs which exceed the rating level you set. With this function, you can block certain programs inappropriate for children and any channels or external input modes can be invisible.

Press [SETUP] to display the main menu.

Use [Cursor

L] to select “DETAIL”, then press

[ENTER].


Use [Cursor K / L] to select “Child Lock”, then press

SOUND

CHANNEL

DETAIL

LANGUAGE

BLU-RAY

USB

[ENTER].

Detail


Closed Caption

SOUND

Child Lock

Use [the Number buttons] to enter the 4-digit

CHANNEL

DETAIL

LANGUAGE

BLU-RAY

USB

PC Settings Energy Saving Mode Location Current Software Info

numbers for your PIN Code.

Child Lock


SOUND

CHANNEL

DETAIL

Enter password.

LANGUAGE

BLU-RAY

USB

PIN Code

See the following description for setting each item.

Child Lock


...

“A. Channel Lock”

...

“B. MPAA Rating”

...

“C. TV Rating”.

...

“D. New Password”

SOUND

CHANNEL

DETAIL

LANGUAGE

BLU-RAY

USB

Channel Lock MPAA Rating TV Rating Canadian English Rating Canadian French Rating Downloadable Rating Clear Downloadable Rating New Password

 page 29

 page 30

 page 31

A B C

Note:

• When you select a rating and set it to “Block”, the higher ratings will be blocked automatically. The lower ratings will be available for viewing.

• When you set the highest rating to “View”, all ratings turn to “View” automatically.

• To block any inappropriate programs, set your limits in

On Home

--- -

BACK

Back

“MPAA Rating”, “TV Rating” and “Downloadable Rating”.

• The child lock setting will be retained after a power failure (except the access code reverts to 0000).

• If the rating is blocked, will appear.

• “Downloadable Rating” will be available when the unit receives a digital broadcast using the new rating system.

• If the broadcasting signal does not have the Downloadable Rating information, “Downloadable Rating is currently not available.” will appear. This message will also appear when you try to access “Downloadable Rating” after you have cleared the Downloadable Rating information, and the new information has not been downloaded since.

• The Canadian rating systems on this unit based on CEA-766-A and the Canadian Radio-Television and Telecommunications Commission (CRTC) policy.

• When you have not set up your PIN Code,

enter [0], [0], [0], [0].

• When the PIN Code is correct, “Child Lock” menu is displayed.

Page 31

EnglishEspañol Français

INTRODUCTION

A. Channel LockA. Channel Lock

Particular channels or external input modes can be invisible in this function.

Use [Cursor K / L] to select “Channel Lock”, then press

[ENTER].

Child Lock


Cannel Lock

SOUND

MPAA Rating

Use [Cursor K / L] to select the desired rating, then

press [ENTER] repeatedly to switch between “View” and “Block”.

Press [SETUP] to exit.

CHANNEL

DETAIL

LANGUAGE

BLU-RAY

USB


SOUND

CHANNEL

DETAIL

LANGUAGE

BLU-RAY

USB

TV Rating Canadian English Rating Canadian French Rating Downloadable Rating Clear Downloadable Rating New Password

Channel Lock

Video 1 Video 2 Component HDMI 1 HDMI 2 HDMI 3

ENTER

Select View/Block Back

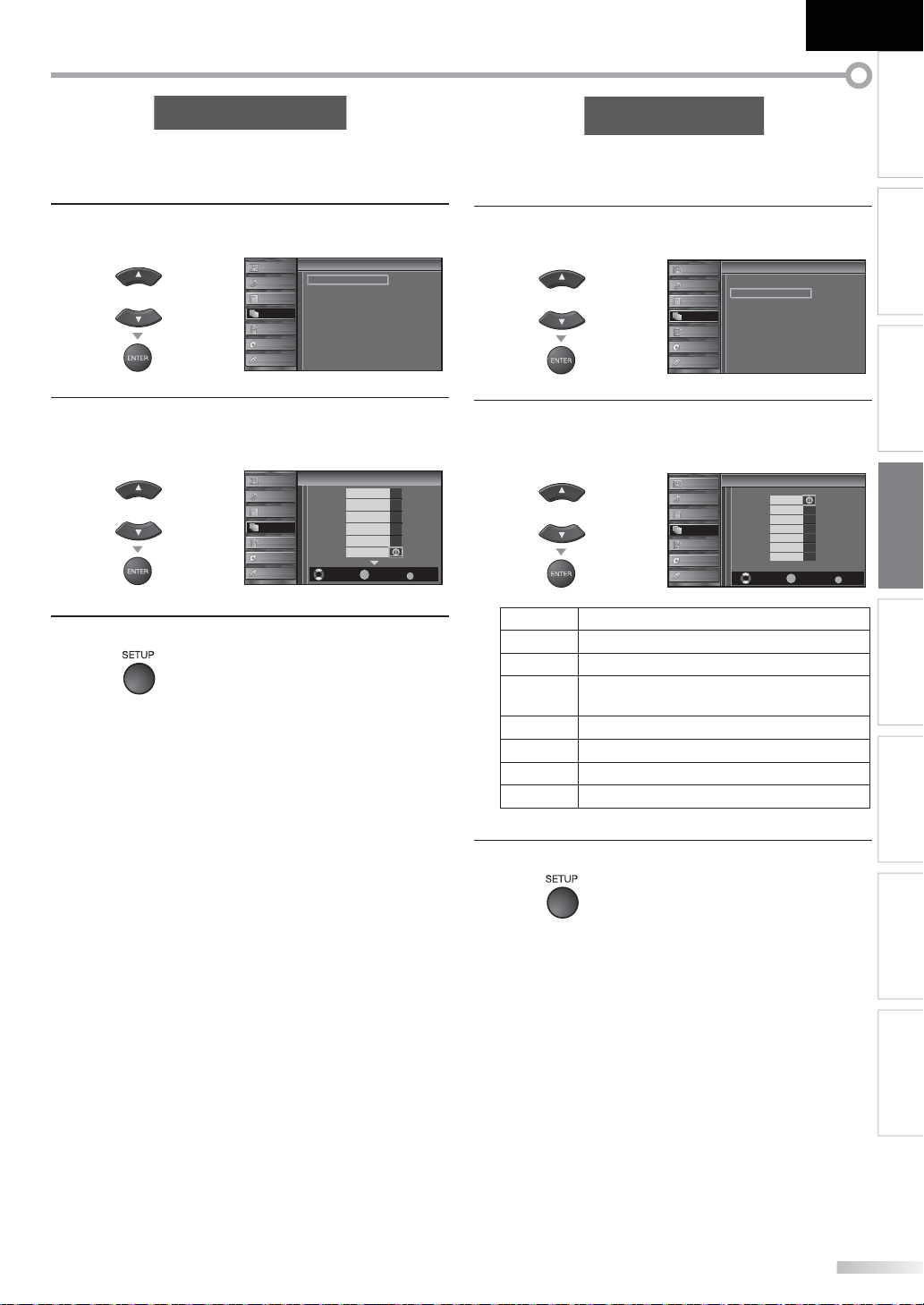

B. MPAA RatingB. MPAA Rating

MPAA Rating is the rating system created by MPAA (Motion Picture Association of America).

PREPARATION

Use [Cursor K / L] to select “MPAA Rating”, then press

[ENTER].

Child Lock


Cannel Lock

SOUND

MPAA Rating

Use [Cursor K / L] to select the desired rating, then

press [ENTER] repeatedly to switch between “View” and “Block”.

BACK

Rating Category X Mature audience only NC-17 No one under 17 admitted

PG-13 Unsuitable for children under 13 PG Parental guidance suggested G General audience NR No rating

Restricted; under 17 requires accompanying parent or adult guardian

CHANNEL

DETAIL

LANGUAGE

BLU-RAY

USB


SOUND

CHANNEL

DETAIL

LANGUAGE

BLU-RAY

USB

TV Rating Canadian English Rating Canadian French Rating Downloadable Rating Clear Downloadable Rating New Password

MPAA Rating

X NC-17 R PG-13 PG G NR

ENTER

Select View/Block Back

WATCHING TV

OPTIONAL SETTING

BACK

OPERATING BLU-RAY

BLU-RAY SETTING TROUBLESHOOTING

Press [SETUP] to exit.

INFORMATION

Page 32

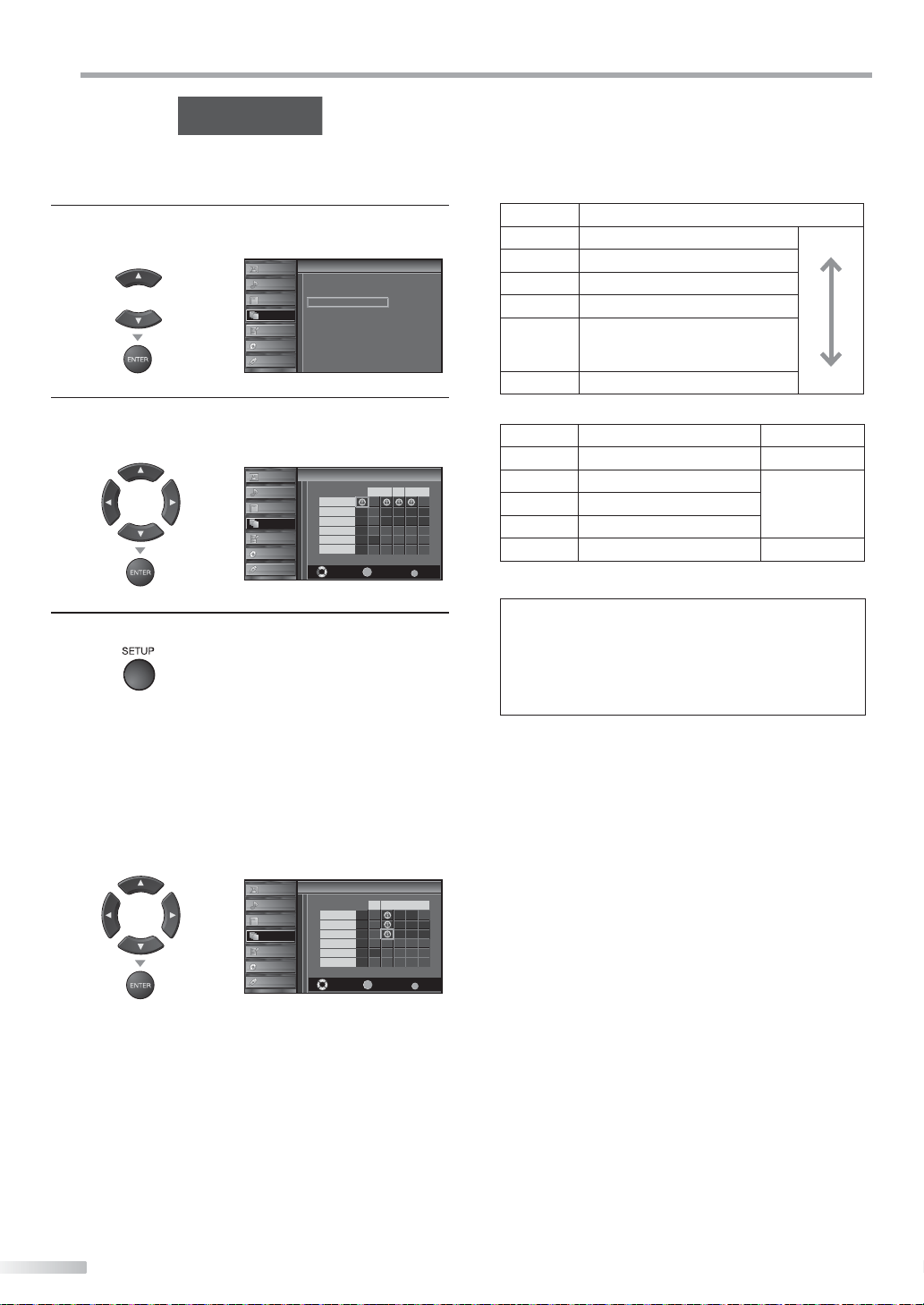

PTIONAL SETTING

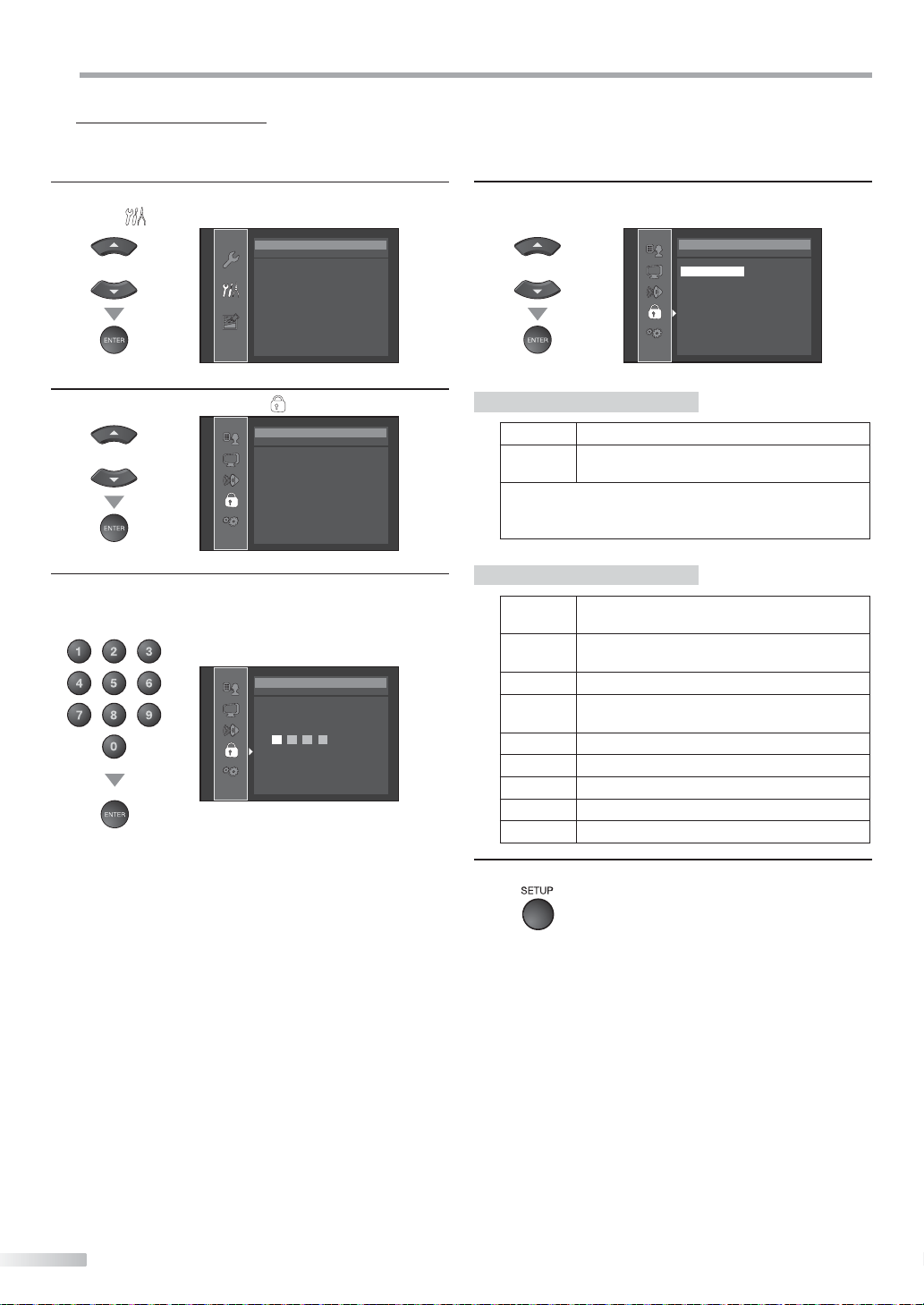

C. TV RatingC. TV Rating

Use [Cursor K / L] to select “TV Rating”, then press

[ENTER].

Child Lock


Cannel Lock

SOUND

MPAA Rating

Use [Cursor K / L / s

CHANNEL

TV Rating Canadian English Rating

DETAIL

Canadian French Rating

LANGUAGE

Downloadable Rating Clear Downloadable Rating

BLU-RAY

New Password

USB

] to select the desired rating,

then press [ENTER] repeatedly to switch between “View” and “Block”.

TV Rating


Press [SETUP] to exit.

SOUND

CHANNEL

DETAIL

LANGUAGE

BLU-RAY

USB

TV-MA TV-14 TV-PG TV-G TV-Y7 TV-Y

ENTER

Select View/Block Back

To set the sub ratings

As for TV-MA, TV-14, TV-PG, or TV-Y7, you can further set the sub ratings to block specific elements of programming. To set the sub ratings, follow the step below.

V S L D

BACK

Rating Category TV-MA Mature audience only higher TV-14 Unsuitable for children under 14 TV-PG Parental guidance suggested TV-G General audience

TV-Y7

Appropriate for all children 7 and older

TV-Y Appropriate for all children lower

Sub Rating Category Rating FV Fantasy Violence TV-Y7 V Violence S Sexual Situation L Coarse Language

TV-PG TV-14 TV-MA

D Suggestive Dialogue TV-PG, TV-14

Note:

• Blocked sub rating will appear beside the main rating category in “TV Rating” menu.

• You cannot block a sub rating (D, L, S or V) if the main rating is set to “View”.

• Changing the category to “Block” or “View” automatically changes all its sub ratings to the same (“Block” or “View”).

Use [Cursor K / L /

] to select the desired rating,

then press [ENTER] repeatedly to switch between “View” and “Block”.

TV Rating


SOUND

CHANNEL

DETAIL

LANGUAGE

BLU-RAY

USB

V S L D

FV TV-MA TV-14 TV-PG TV-G TV-Y7 TV-Y

BACK

ENTER

Select View/Block Back

Page 33

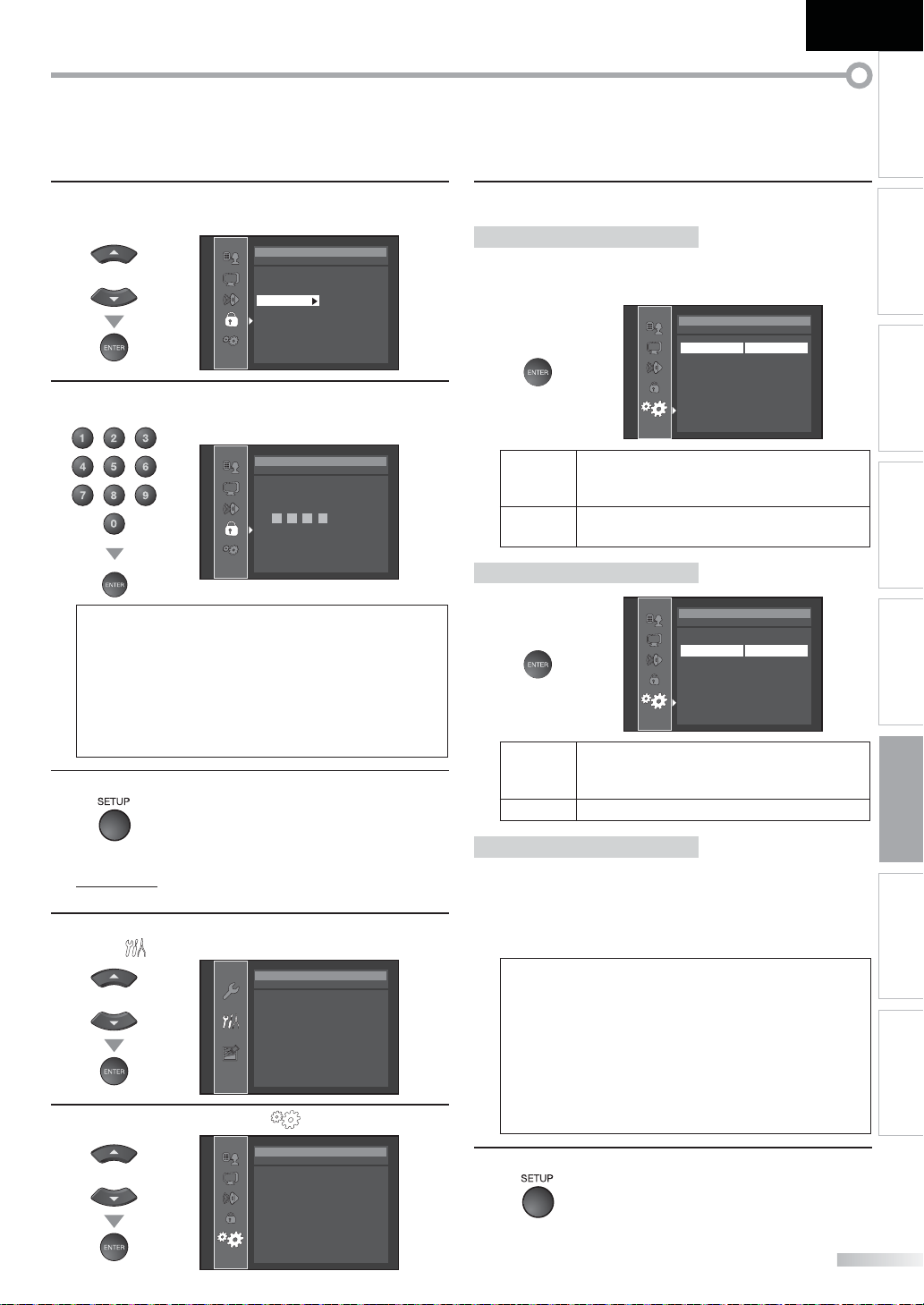

D. New PasswordD. New Password

Although the default code (0000) is supplied with the unit, you can set your own PIN Code.

EnglishEspañol Français

INTRODUCTION

Use [Cursor K / L] to select “New Password”, then press

[ENTER].

Child Lock


Channel Lock

SOUND

MPAA Rating

Press [the Number buttons] to enter the new 4-digit

CHANNEL

DETAIL

LANGUAGE

BLU-RAY

USB

TV Rating Canadian English Rating Canadian French Rating Downloadable Rating Clear Downloadable Rating New Password

PIN Code.

• Enter PIN Code again in “Confirm password.” entry field.

New Password


SOUND

Press [SETUP] to exit.

Enter password.

CHANNEL

DETAIL

Confirm password.

LANGUAGE

BLU-RAY

USB

----

PIN Code

PREPARATION

WATCHING TV

OPTIONAL SETTING

BACK

Back

OPERATING BLU-RAY

Note:

• Make sure new PIN Code and confirm PIN Code must be exactly the same. If they are different, the space is cleared for reentering.

• Your PIN Code will be erased and return to the default (0000) when a power failure occurs. If you forget the PIN Code, unplug the AC power cord for 10 seconds to restore the PIN Code to 0000.

BLU-RAY SETTING TROUBLESHOOTING

INFORMATION

Page 34

PTIONAL SETTING

 PC Settings

This function lets you adjust the PC screen position during PC input through the HDMI 1 Input jack.

Press [SETUP] to display the main menu.

Use [Cursor

L] to select “DETAIL”, then press

[ENTER].


SOUND

CHANNEL

DETAIL

LANGUAGE

BLU-RAY

USB

Use [Cursor

L] to select “PC Settings”, then press

[ENTER].


SOUND

CHANNEL

DETAIL

LANGUAGE

BLU-RAY

USB

Detail

Closed Caption Child Lock PC Settings Energy Saving Mode Location Current Software Info

On Home

Adjust the setting.

Position Reset

Use [Cursor K / L] to select “Reset”, then press [ENTER].

Position Reset


Resets the display position of the

SOUND

CHANNEL

DETAIL

LANGUAGE

BLU-RAY

USB

picture.

• The horizontal/vertical position of the PC screen are automatically adjusted.

Horizontal Position, Vertical Position

Use [Cursor

Horizontal Position

H. Position

Adjust Move

Vertical Position

V. Position

Adjust Move

] to adjust.

Cursor

to move PC

ENTER

Enter

ENTER

Enter

screen left

to move PC

screen up

Cursor

to move PC screen right

to move PC screen down

Cancel Reset

Use [Cursor K / L] to select the setting you want to

adjust, then press [ENTER].

PC Settings


Position Reset

SOUND

CHANNEL

DETAIL

LANGUAGE

BLU-RAY

USB

Horizontal Position Vertical Position

Press [SETUP] to exit.

0 0

Note:

• You may not obtain an appropriate screen with “Position Reset” for some signals. In this case, adjust the settings manually.

Page 35

EnglishEspañol Français

INTRODUCTION

 Energy Saving Mode

You can set whether the power consumption is saved or not.

Press [SETUP] to display the main menu.

Use [Cursor

[ENTER].

Use [Cursor

press [ENTER].

L] to select “DETAIL”, then press


SOUND

CHANNEL

DETAIL

LANGUAGE

BLU-RAY

USB

L] to select “Energy Saving Mode”, then

Detail


Closed Caption

SOUND

CHANNEL

DETAIL

LANGUAGE

BLU-RAY

USB

Child Lock PC Settings Energy Saving Mode Location Current Software Info

On Home

 Location

When you select ”Retail”, the power consumption may possibly exceed the limited requirement of the ENERGY STAR® qualification.

Press [SETUP] to display the main menu.

Use [Cursor

[ENTER].

Use [Cursor

[ENTER].

L] to select “DETAIL”, then press


SOUND

CHANNEL

DETAIL

LANGUAGE

BLU-RAY

USB

L] to select “Location”, then press


SOUND

CHANNEL

DETAIL

LANGUAGE

BLU-RAY

USB

Detail

Closed Caption Child Lock PC Settings Energy Saving Mode Location Current Software Info

On Home

PREPARATION

WATCHING TV

OPTIONAL SETTING

OPERATING BLU-RAY

Use [Cursor

press [ENTER].

Off

Press [SETUP] to exit.

L] to select the desired mode, then

Energy Saving Mode


SOUND

When set to “On”, pow er consumption is reduced by decreasing backlight

CHANNEL

brightness.

DETAIL

LANGUAGE

BLU-RAY

USB

Select if you want to reduce the power consumption.

The power consumption may possibly exceed the limited requirement of the ENERGY STAR® qualification.

Use [Cursor

L] to select the desired location, then

BLU-RAY SETTING TROUBLESHOOTING

press [ENTER].

Location


Location Home is

Off

Press [SETUP] to exit.

SOUND

CHANNEL

DETAIL

LANGUAGE

BLU-RAY

USB

recommended for normal home use. In the Retail S tore mode, all settings are fixed.

Retail

Home

INFORMATION

Page 36

PTIONAL SETTING

 Current Software Info

This function shows what version of the software currently used.

Press [SETUP] to display the main menu.

Use [Cursor

[ENTER].

Use [Cursor

then press [ENTER].

Confirm the version of the software currently used.

Press [SETUP] to exit.

L] to select “DETAIL”, then press


SOUND

CHANNEL

DETAIL

LANGUAGE

BLU-RAY

USB

L] to select “Current Software Info”,

Detail


Closed Caption

SOUND

Child Lock

CHANNEL

DETAIL

LANGUAGE

BLU-RAY

USB


SOUND

CHANNEL

DETAIL

LANGUAGE

BLU-RAY

USB

PC Settings Energy Saving Mode Location Current Software Info

Current Software Info

Release Version:

CL42OB_1.0

On Home

 JPEG/MP3 Playback

This unit can play JPEG and MP3 files. Use the USB flash memory contains those files.

Insert the USB flash memory to the USB terminal of this

unit.

Setup


SOUND

This menu allows you to enjoy your photos and music via your USB

CHANNEL

device.

DETAIL

LANGUAGE

BLU-RAY

USB

• The main menu appears automatically.

Use [Cursor

L] to select “USB” and press [ENTER].

The highlight will move to the name of your USB flash memory, then press [ENTER] again.

USB


SOUND

This menu allows you to enjoy your photos and music via your USB

Use [Cursor

L] to select “Picture” or “Music”, and

then press [ENTER] or [Cursor

Back

CHANNEL

device.

DETAIL

LANGUAGE

BLU-RAY

USB

Your USB


Music

1 2 3 4

Press ''ENTER'' key to play/pause.

Note:

It is recommended that files to be played back in this unit are recorded under the following specifications: <MP3>

• Sampling frequency : 32 kHz or 44.1 kHz or 48 kHz

• Constant bit rate : 32 kbps - 320 kbps

<JPEG>

• Upper limit : 24 Mpixel


Image1.jpg Image2.jpg Image3.jpg Image4.jpg Image5.jpg

Your USB

Your US B

Page 37

EnglishEspañol Français

INTRODUCTION

[Picture]

Use [Cursor press [ENTER] or [Cursor

• To switch a “List” or a “Thumbnails”,

press [2] by [the number button].

• The unit goes to the slide show automatically.

To pause/begin the slide show, press [ENTER].

• You can use [the number buttons] (between [1] and [4]) to see the file detail ( settings (➁~➃).

Item Detail

➀

More detail

➃

Start show

➁

Transitions

➂

Slide time

➃

Stop show

➁

Rotate

➂

Zoom

L] to select the desired file, and then

Your USB



Image2.jpg Image3.jpg Image4.jpg Image5.jpg

1 2 3 4

Press ''ENTER'' key to play/pause.

Your USB Picture

1 2 3 4

Press ''ENTER'' key to play/pause.

) or change the following

➀

Picture: Image1.jpg By:

1 2 3 4

Press [1] to display file details below. “Name”, “Album”, “Date”, “Size” and “Next”. Press [1] again to disappear file details.

Press [4] or [ENTER] to start the slide show. While the slide show is on, the following setting will be displayed.

Press [2], then use [Cursor way of the transition mode choosing from; “Dissolve”, “Wipe right”, “Wipe left”, “ Wipe up”, “Wipe down”, “Box in” and “Box out”.

Press [2], then use [Cursor display time choosing from; “Short”, “Medium” and “Long”.

Press [4] or [ENTER] to stop the slide show. While the slide show is off, the following setting will be displayed.

Every press on [2] will turn the picture clockwise by 90 degrees.

Press [3], then use [Cursor zoom factor (1x, 2x or 4x). Press [ENTER] to set the zoom factor.

Picture Image1.jpg

Image1.jpg 1200:900 2009:04:02 17:42:06

Thumbnails

Picture Image1.jpg

List

TransitionsMore detail Slide time Stop show

L] to select the

L] to change the

L] to select the


[Music]

Use [Cursor press [ENTER] or [Cursor

L] to select the desired file, and then

Your USB

Music

Music1.mp3

Music2.mp3

1 2 3 4

Press ''ENTER'' key to play/pause.

Music Music1.mp3

Title: Music1 Artist: None Album: Easy Symphony Duration: 00:04:28 Year: 2007

• Playback will begin from the file you choose.

To pause/begin the playback, press [ENTER].

• You can use [the number buttons] (between [1] and [3]) to see the file detail (➀) or change the following settings (➁ or ➂).

Track: Music1 Artist: None

1 2 3 4

00:53 04:28

RepeatMore detail Shuffle

Item Detail

➀

More detail

Press [1] to display file details below. “Title”, “Artist”, “Album”, “Duration” and “Year”. Press [1] again to disappear file details.

Press [2] to play back the desired file repeatedly.

➁

Repeat

Press [2] to play back the all files in the folder repeatedly. To cancel the repeat playback, press [2] until “ ” or “ ” disappears.

➂

Shuffle

Press [SETUP] to exit.

Press [3] to play back the music randomly. To return to the normal playback, press [3] again.

Note:

• To go back to the previous screen (except when the “List” is

displayed), press [Cursor s].

• The USB flash memory is not supplied with this unit.

• We do not guarantee the all USB flash memory can be supported on this unit.

• Be sure to keep a back up copy of the original files on your device before you play them back on this unit. We have no responsibilities for damage or loss of your stored data.

• When you ready to remove a USB flash memory, at first turn off the unit to avoid any damage for your data and the unit.

PREPARATION

WATCHING TV

OPTIONAL SETTING

OPERATING BLU-RAY

BLU-RAY SETTING TROUBLESHOOTING

INFORMATION

Page 38

PERATING BLU-RAY

 Playable Media

BLU-RAY Functions

Media Type

Logo

Recorded

Signal

Media Size 5 inches (12 cm)

BD-video DVD-video DVD-RW DVD-R audio CD CD-RW CD-R DTS-CD

MPEG2,

MPEG-4 AVC,

SMTPE VC-1

MPEG2 CD-DA digital audio

 Unplayable Media

NEVER play back the following discs. Otherwise, malfunction may result!

3 inches (8 cm) disc, BD with region codes other than A, BD-RE (Ver. 1.0), BD-R (Ver. 1.2, HTL 4x or LTH 2x), BD-RE/-R in BDAV format, BD-ROM for personal computers, BD-RE/-R with MP3 or JPEG files, Total Hi Def, BD-DVD combination, HD DVD, DVD with region codes other than 1 or ALL, DVD-RAM, DVD-ROM for personal computers, DVD-RW/-R/+RW/+R with MP3 or JPEG files, DVD-audio, CD-I, Photo CD, Video CD, CDV, CD-G, CD-ROM for personal computers, CD-RW/-R with MP3 or JPEG files including Kodak Picture CD, the discs with labels, scratches, stains, blemishes, etc.

On the following disc, the sound MAY NOT be heard.

super audio CD

Any other discs without compatibility indications

Note:

• Unfinalized discs cannot be played back.

• For DVD-RW/R, discs recorded in the VR (video recording) format cannot be played back. Only the finalized video format discs can be played back.

• Some discs cannot be played back because of incompatible recording conditions, characteristics of the recorder or special properties of discs.

• Only the sound recorded on the normal CD layer can be delivered. The sound recorded on the high density super audio CD layer cannot be delivered.

• Do not use a single CD adaptor which makes 3 inches (8 cm) to 5 inches (12 cm) disc.

• You can play back discs with the marks listed in “Playable Media”. If you use non-standardized discs, this unit may not play them back or the sound and video quality will be compromised.

Region Codes

This unit has been designed to play back BD-video with region “A” or “ALL REGIONS” and DVD-video with region “1” or “ALL”. You cannot play back BD-video or DVD-video that are labeled for other regions. Look for the symbols on the right on your BD-video or DVD-video. If these region symbols do not appear on your BD-video or DVD-video, you cannot play back the disc in this unit.

The letter or number inside the globe refers to region of the world.

A BD-video or DVD-video labeled for a specific region can only be played back in the unit with the same region code.

BD-video

DVD-video

Color Systems

BD-video and DVD-video are recorded in different color systems throughout the world. The most common color system is NTSC (which is used primarily in the United States and Canada).

This unit uses NTSC, so the disc you play back must be recorded in the NTSC system. You cannot play back the disc recorded in other color systems.

Structure of Disc Contents

The contents of BD/DVD are generally divided into titles. Titles may be further subdivided into chapters.

BD/DVD

title1 title2

chapter 1

Audio CD are divided into tracks.

track 1

chapter 2

track 2

chapter 1

Audio CD

track 3

chapter 2

track 4

chapter 3

track 5

Page 39

EnglishEspañol Français

These operations are accessible by remote control. Some may also be accessible by controls on the main unit.

INTRODUCTION

 Playback

Before you begin:

Turn on the amplifier and any other equipment which is connected to this unit. Make sure the external audio receiver (not included) are set to the correct channel.

Press [POWER] to turn on the unit.

Insert a disc with label facing forward.

label

• In case the DVD was recorded on both sides, make sure the label of the side you want to play back is facing forward.

The unit switches to the BLU-RAY mode when the unit was

in TV mode and detects the type of disc. (BD, DVD or CD) Then s

tarts

playback

e.g.) BD

• When you insert an audio CD, “File List” will appear.

• Press [PLAY B] if the unit does not go to the BLU-RAY mode or the playback does not start automatically.

Press [STOP C] to stop playback temporarily.

File List

CD_DA

9 10 11 12 13 14

1 / 13

automatically

0 : 00 : 03

3:36

4:14 4:45 3:50 3:53 4:20 5:01

Page DownPage Up

1 / 3

 Using the Title Menu,

Disc Menu / Pop-up Menu

Many of BD-video and DVD-video discs contain title menu (BD-video / DVDvideo), disc menu (DVD-video) or pop-up menu (BD-video) which guides you through the available functions in the disc. The contents of the menus may differ depending on the discs.

Title menu (BD-video / DVD-video)

Press [TOP MENU].

• The title menu will appear.

Use [Cursor K / L / s / B] to select an item, then press

[ENTER].

Press [TOP MENU] to exit.

Pop-up menu (BD-video) / Disc menu (DVD-video)

Press [POP MENU].

DVD

e.g.) Top Menu

Title 1 Top Menu

Chapter 2

Chapter 3 Chapter 4 Chapter 5 Chapter 6

e.g.) Disc Menu

Disc Menu

Subtitle

Audio Angles Shooting Episode (Bonus Title)

Back to Topmenu

e.g.) Pop-up Menu

PREPARATION

WATCHING TV

OPTIONAL SETTING

OPERATING BLU-RAY

BLU-RAY SETTING TROUBLESHOOTING INFORMATION

• If playback remains stopped for 20 minutes, the unit will turn itself off automatically when “Auto Power Off“ is set to “On“.

Press [A EJECT] to eject the disc.

Note:

• “ ” may appear at the top-right on the TV screen when the operation is prohibited by the disc or this unit.

• Some BD/DVD may start playback from title 2 or 3 due to specific programs.

• During the playback of a 2-layered disc, pictures may stop for a moment. This happens while the 1st layer is being switched to the 2nd layer. This is not a malfunction.

• When you cannot remove the disc, you may try either following operations.

- Press and hold [A EJECT] on the unit for more than 5

seconds.

- Unplug the AC power cord and plug it in again, then press

[A EJECT].

It will take about 10 seconds to eject the disc, while that the unit will not respond to any key commands.

Pop-up MenuPop-up Menu

Title 1 Title 2 Bonus Title

• The disc menu will appear when DVD-video is inserted.

• For BD-video, this is a special feature available for some

BD-videos. When you press [POP MENU], a menu pops out on the TV screen during playback.

Use [Cursor K / L / s / B] to select an item, then press

[ENTER].

Press [POP MENU] to exit.

Note:

• Menu operations may vary depending on the disc. Refer to the manual accompanying the disc for more details.

Ifyouhaveso methingtosa y,seethispict urebeforeyou

Page 40

PERATING BLU-RAY

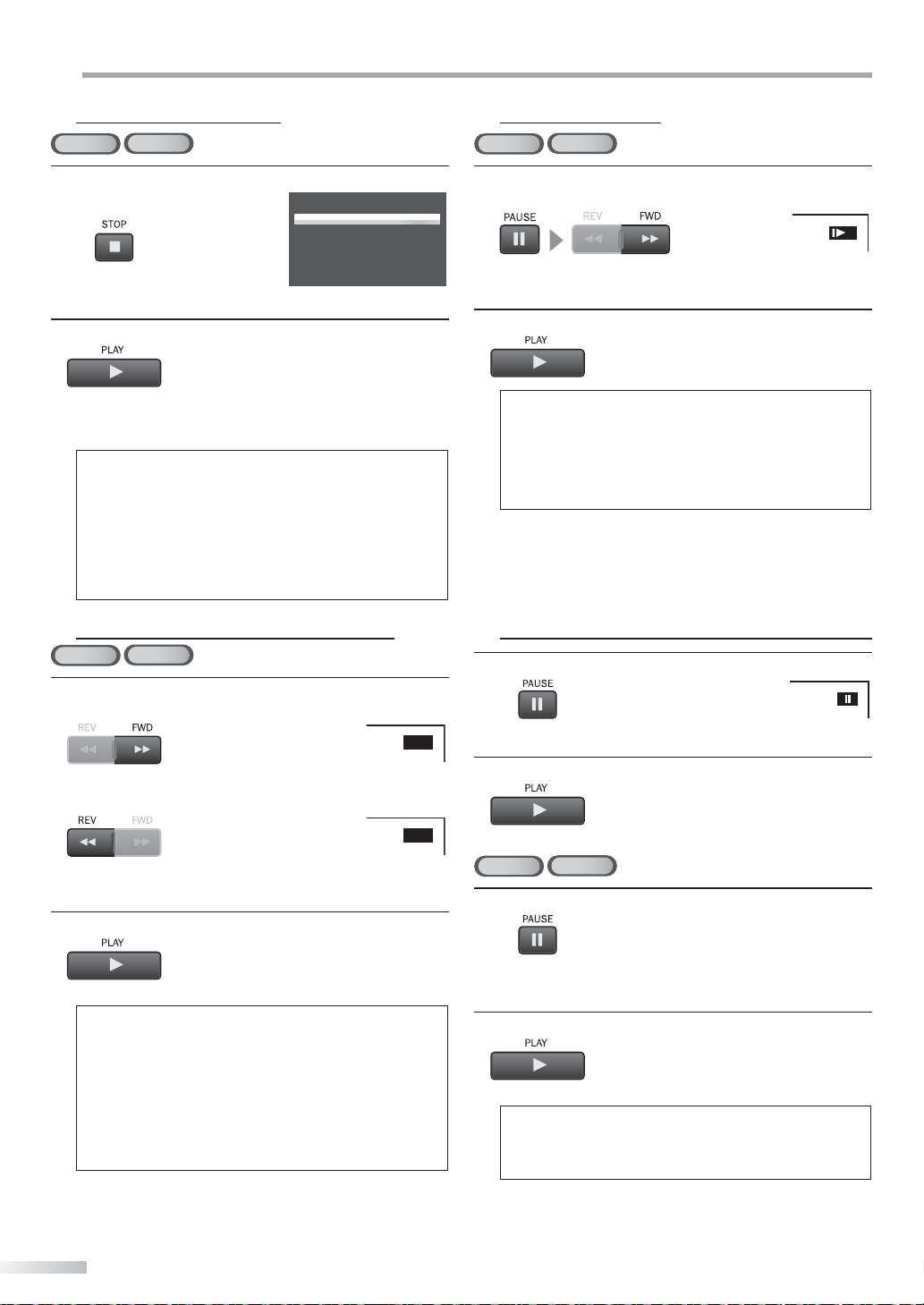

 Resume Playback

Press [STOP C] during playback.

• Resume message will appear on the TV screen.

Press [PLAY B].

• Playback will resume from the point at which playback was stopped.

Note:

• To cancel resume, press [STOP C] one more time in the

• The resume information will be kept even when the unit is

DVD

Resume ON

Press ‘PLAY’ to play from here. To play from the beginning, press ‘STOP’ first and then ‘PLAY’.

stop mode. On some discs, [STOP C] will not work while the resume message appears. Please wait until the message disappears.

turned off. However, ejecting the disc will cancel the resume feature. Playback will start at the beginning the next time you insert the disc.

 Fast Forward / Fast Reverse

During playback, press [FWD D] repeatedly for fast

forward.

During playback, press [REV E] repeatedly for fast reverse.

DVD

 Slow Forward

During playback, press [PAUSE F],

then press [FWD D].

• Every time you press [FWD D], playback speed will

change.

Press [PLAY B] to return to normal playback.

Note:

• The approximate speed for the slow forward playback is 1

• Only slow forward is available.

• Set “Still Mode” setting to “Field” in “Video” menu if pictures

DVD

(1/16x), 2 (1/8x), 3 (1/2x).

in the slow forward playback mode are blurred. Refer to “Still Mode” on page 48.

 Paused / Step-by-step Playback

Press [PAUSE F] during playback.

• Playback will be paused and sound will be muted.

Press [PLAY B] to return to normal playback.

• Every time you press [FWD D] or [REV E], the

playback speed will change.

Press [PLAY B] to return to normal playback.

Note:

• For BD, the approximate speed for the fast forward is 1 (1.3x), 2 (10x), 3 (30x), 4 (70x), and 5 (200x). And for the fast reverse, it is 1 (2x), 2 (10x), 3 (30x), 4 (70x), and 5 (200x).

• For DVD, the approximate speed for the fast forward or reverse playback is 1 (2x), 2 (8x), 3 (20x), 4 (50x), and 5 (100x).

• For audio CD, the approximate speed is 1 (2x), 2 (8x), and 3 (30x).

• For audio CD, fast forward / fast reverse search between different tracks are not available during program and random playback.

In pause mode, press [PAUSE F] repeatedly.

• Every time you press [PAUSE F], playback will

advance one step at a time.

Press [PLAY B] to return to normal playback.

DVD

Note:

• Set “Still Mode” to “Field” in the “Video” menu if pictures in the step-by-step playback are blurred. Refer to page 48.

• Only step by step forward is available.

Page 41

EnglishEspañol Français

DVD

INTRODUCTION

 Repeat Playback

Repeats playback particular chapter, title or track during playback.

You can also repeat playback between A and B on a disc.

During playback, press

Press [REPEAT] to change the repeat mode.

Off (repeat Off)

Chapter (current chapter repeat)

Title (current title repeat)

Off (repeat Off)

Track (current track repeat)

All (entire disc repeat)

To cancel repeat playback, press [REPEAT] repeatedly

until “Off“ appears.

A-B repeat

During playback, press [A-B] at your desired starting

point (A).

Press [A-B] once again at your desired ending point (B).

• Point B should be set in the same chapter, title or track as point A.

• Within a few seconds, the section A-B will begin to play back repeatedly.

To cancel A-B repeat, press [A-B] repeatedly until “Off“

appears.

[REPEAT]

Off

A -

 Rapid Playback

This function plays back approximately at 1.3 times the normal playback while keeping the sound output. This function is available only on discs recorded in the Dolby Digital format.

During playback, press [MODE] repeatedly until “ ”

appears.

Press [ENTER] or [Cursor s / B] to switch “ ” (1.3x), or “Off”.

or or

Off Plays back in normal speed.

Press [PLAY B] to return to normal playback.

Note:

• Virtual surround does not work during this function.

• This function may not work at some points on a disc.

• During this function, 2ch LPCM will be output from Digital

DVD

Plays back approximately at 1.3 times of normal playback.

audio Output jack.

Off

 Random Playback

This function shuffles the playing order of tracks instead of playback in the sequence.

In stop mode, press [MODE] repeatedly until “Random”

menu appears.

audio CD

“Random” will be displayed.

“CD -DA” will be displayed.

File list

Operation guide

Total playback time of all tracks

Playback status

Press [PLAY B] to start random playback.

Track information

File list in the original order Press [RED] to go to the previous page. Press [GREEN] to go to the next page.

1 75 6

Random Total

CD_DA

1 0:36 2 3 4 5 6 7

- - / 16

1:14 0:45 0:50 0:53 0:20 0:54

Page Down

1 : 13 : 29

PREPARATION

WATCHING TV

OPTIONAL SETTING

OPERATING BLU-RAY

BLU-RAY SETTING TROUBLESHOOTING INFORMATION

Note:

• Repeat setting (except “All”) will be cleared when moving to another title or chapter, track.

• Repeat playback or A-B repeat may not available with some discs.

• A-B repeat does not function during chapter, title, track or all repeat playback.

• To cancel point A, press [CLEAR] at step 1 in “A-B Repeat”.

• Stopping playback will cancel “A-B Repeat”.

To exit from the random playback mode, press [STOP C]

first, then press [MODE] repeatedly until “File List” appears.

Page 42

PERATING BLU-RAY

Note:

• During the random playback, press [STOP C] once to set the resume point, and then press [PLAY B] to resume random playback from where [STOP C] was pressed (audio CD).

• To repeat the current track in the random mode, follow the steps 1 and 2 in “Repeat Playback” on page 39 and select “

Track”.

• To repeat the entire random selections, follow the steps 1 and 2 in “Repeat Playback” on page 39 and select “ All”.

• Playback from a desired track is not available during random playback.

• Press [BACK] to switch to the program playback mode.

 Programmed Playback

You may determine the order in which tracks will play back.

In stop mode, press [MODE] repeatedly until “Program”

menu appears.

audio CD

“Program” will be displayed.

“CD -DA” will be displayed.

File list

Programmed list

Cumulative playback time of all tracks in the

: Track information

: File list in the original order : File list in the programmed order

programmed list

Playback status

Current page / Total page number

Operation guide

: Press [RED] to go to the previous

page in the  le list.

Press [GREEN] to go to the next

page in the  le list.

Press [BLUE] to go to the previous

page in the programmed list.

Press [YELLOW] to go to the next

page in the programmed list.

• The programmed tracks are displayed in the right hand screen.

• Press [CLEAR] to erase the last track of the program.

• Use [Cursor K / L] to select “All Clear” at the bottom of the list to erase all the tracks in the program.

1 732 4 5

- - / 16

Program Total

CD_DA

0:36

1:14

0:45

0:50

0:53

0:20

0:54

1:14 0:50

1:14

0:50

0:53

0:54

0:36

Page Down Page Prev Page NextPage Up

0 : 26 : 24

Use [Cursor K / L] to select a desired track, then press

[ENTER] to store.

• Additional tracks may be on other screens. Use

[Cursor

K / L

] to go on to the next / previous pages.

• Repeat this step until you have selected all the tracks you wish to play back in the program.

- - / 16

Program Total

CD_DA

9 10 11 12 13 14

0:36

1:14 0:45 0:50 0:53 0:20 0:54

Page Down Page Prev Page NextPage Up

1:14 0:50

1:14

0:50

0:53

0:54

0:36

• Up to 99 tracks can be ordered.

• If 8 or more tracks were in a program, use

[BLUE/YELLOW] to see all the tracks.

Press [PLAY B] to start programmed playback.

2/16

0:01:05

Program Total

CD_DA

1:14

0:50

1:14

0:50

0:53

0:54

0:36

Page Down

To exit from the programmed playback mode, press

[STOP C] first, then press [MODE] repeatedly until “File List” appears.

Note:

• While a program is being played back, [STOP C] works as

follows:

- Pressing [STOP C] once: The track will be in the resume mode. Next time you press [PLAY B], the playback will resume from the point where it is stopped in the programmed playback.

- During program playback, press [STOP C] twice to display the program screen. To go back to the normal program playback, press [BACK] to exit from the program screen, then press [PLAY B].

• To repeat the current track in the program, press [REPEAT]

repeatedly until “ Track” appears during playback.

• To repeat the entire program, press [REPEAT] repeatedly

until “All” appears during playback.

• The program will be cleared when;

- the unit is turned into the standby mode.

- the media mode is switched to the TV mode.

- the disc is removed.

• You cannot use [the Number buttons] to select another track during programmed playback. Use [RED/GREEN] to select other tracks in the program.

• You cannot combine random playback with programmed playback.

• You cannot alter a programmed order during playback.

• You can start programmed playback only while in “Program” menu.

0 : 26 : 24

0:26:24

Page 43

EnglishEspañol Français

DVD

INTRODUCTION

 Search Functions

By using [SEARCH MODE], you can select the following search modes.

Chapter Search

/12

Title Search

MKR

Off

/12

1 23

/12

Time Search

Marker Search

Chapter Search

Time Search

Note:

• For BD/DVD, chapter search cannot be performed in the stop mode. For BD, it also cannot be performed when the unit has kept the resume information.

• The total number of chapters / titles / tracks in your disc; with less than 10 chapters / titles / tracks, press the chapter / title / track number directly. To play a double-digit chapter / title / track, press the chapter / title / track number.

• Track search is not available for programmed or random playback.

Time SearchTime Search

You can select the desired time which the disc is played back from.

During playback, press [SEARCH MODE] repeatedly

until “ “ appears.

e.g.) BD

TOTAL

0 0 : 42 : 58

Press [the Number buttons] to select your desired

time lapse within 30 seconds.

TOTAL

0 0 : 42 : 58

PREPARATION

WATCHING TV

OPTIONAL SETTING

OPERATING BLU-RAY

Chapter / Title / Track SearchChapter / Title / Track Search

You can select chapters, titles or tracks on the disc.

During playback, press [SEARCH MODE] repeatedly

until “ “ / “TR“ appears.

• If you want to perform the title search,

press [SEARCH MODE] repeatedly until “TT“ appears.

e.g.) BD

_ _ / 1 2

Press [the Number buttons] to select your desired

chapter, title or track within 30 seconds.

_ _ / 1 2

To play back a single-digit chapter, title or track when there are more than 10 chapters, titles or tracks, press [ENTER] after entering the chapter, title or track number.

Playback will start automatically from the chapter, title

or track you selected.

Playback will start automatically from the time you

selected.

Note:

• When there is no need to enter a number, “0” appears automatically. For example, “0: 0_: _ _” appears in the time search menu if the total time of the title or track is less than 10 minutes.

• Press [CLEAR] to erase the incorrect input at step 2.

• Time search can only be performed during playback or when the unit has kept the resume information (except for BD). It cannot be performed in the stop mode.

BLU-RAY SETTING TROUBLESHOOTING INFORMATION

Page 44

PERATING BLU-RAY

Marker SearchMarker Search

This feature allows you to assign a specific point on a disc to be called back later.

To set a marker

During playback, press [SEARCH MODE] repeatedly

until “

Use [Cursor s / B] to select an available marker within

30 seconds.

When the playback reaches the point at which you

want to set a marker, press [ENTER].

• Marker is now set.

MKR

DVD

“ appears.

e.g.) BD

MKR

1 23456789

23456789

1 0 : 13 : 05

Direct SearchDirect Search

Using [SKIP H / G]

During playback, press [SKIP H / G] repeatedly

until a desired chapter, title or track will be selected.

current chapter/track

/TR 1 /TR 2 /TR 3 /TR 4

Playback will start automatically from the chapter, title

or track you selected.

[SKIP H] [SKIP G]

current title

TT 1 TT 2 TT 3 TT 4

[SKIP H] [SKIP G]

(If the disc has no chapter.)

Note:

• [SKIP H / G] are not available when playback is stopped.

Using [the Number buttons]

Press [the Number buttons] to select your desired chapter, title or track.

(TR)

(

)

(TT)

Press [BACK] to exit.

To return to the marker later

Repeat step 1 in “To set a marker”.

select the desired marker.

e.g.) BD

MKR

Press [ENTER] at the desired marker to restart playback

from the specific point which you set.

MKR

Note:

• Marker search menu will disappear in about 30 seconds when there is no input.

• You can mark up to 9 points.

• To clear a marker, select the marker to be cleared, and then press [CLEAR].

• Ejecting the disc or turning off the power will erase all markers.

• Selecting “ also erase all markers.

• For BD, marker search cannot be performed when the unit has kept resume information or the unit is in the stop mode.

” at step 3 in the section “To set a marker” will

Use [Cursor s / B] to

23456789

1 0 : 13 : 05

23456789

1 0 : 13 : 05

Note:

• As for the BD-video, how it performs will be strongly determined by the disc, and may not perform as described here.

Page 45

 On-screen Display

DVD

You can check the information about the current disc by pressing [INFO] on the remote control.

During playback, press [INFO] repeatedly until

your desired screen display mode appears.

EnglishEspañol Français

INTRODUCTION

PREPARATION

Title / Chapter information

• current title number

• current chapter number / total chapters

1 1/10 A B

• current repeat setting appears only when the repeat setting is active

C: chapter repeat / T: title repeat /

A B: A-B repeat

• appears only when multi-angle is available on the BD

• current playback status

Title information

• total titles

1 / 18 0 : 08 : 04

• elapsed time of the current title

• remaining time of the current title

1 / 18 1 : 46 : 19-

disappear

1 / 14 0 : 00: 51

• current repeat setting appears only when the repeat

1 / 14 0 : 03: 43

Track information

• current track number / total tracks

• elapsed time of the current track

• current playback status

setting is active

T: track repeat / A: all repeat / A B: A-B repeat

Chapter information

• current chapter number / total chapters

• elapsed time of the current chapter

3 / 5 0 : 01 : 02

• current repeat setting appears only when the repeat setting is active

C: chapter repeat / T: title repeat /

A B: A-B repeat

• appears only when multi-angle is available on the DVD

• current playback status

• remaining time of the current chapter

3 / 5 0 : 58 : 08-

Title information

• current title number / total titles

• elapsed time of the current title

1 / 18 0 : 08 : 04

• remaining time of the current title

1 / 18 1 : 46 : 19-

WATCHING TV

OPTIONAL SETTING

OPERATING BLU-RAY

BLU-RAY SETTING TROUBLESHOOTING INFORMATION

Bit rate information

• bit rate indication for the amount of audio and video data currently being read

• layer number appears only when playing a 2-layered disc

L0: Layer 0 is played back L1: Layer 1 is played back

disappear

Disc information

1 / 14 0 : 02: 47

1 / 14 0 : 51: 17

• remaining time of the current track

• elapsed time of the entire disc

• remaining time of the entire disc

Page 46

PERATING BLU-RAY

 Special Settings

Subtitle LanguageSubtitle Language

This unit allows you to select a subtitle language (if available) during BD/ DVD playback.

During playback, press [SUBTITLE] repeatedly to

display “Primary Subtitle”, “Secondary Subtitle” or “Subtitle Style”.

Use [Cursor K / L] repeatedly until your desired subtitle or style.

• current subtitles language

• subtitles can be varied on the

e.g.)

displayed number

Primary Subtitle Off (subtitle Off)

Primary Subtitle 1 ENG / 4 (English subtitle)

Primary Subtitle 2 FRE / 4 (French subtitle)

...

Press [SUBTITLE] to exit.

Primary Subtitle 1 ENG / 4

Press [SUBTITLE] to exit.

Note:

• To cancel the subtitle, select “Off” at step 2.

• Using [Cursor s / B] can also be switched between current

subtitle setting and “Off”.

• If your language is not shown after pressing [Cursor K / L]

several times, the disc may not have that language. However, some discs allow you to change subtitle languages setting in the disc menu or pop-up menu. (Operation varies depending on the disc, so refer to the manual along with the disc.)

• When “Not Available” appears on the TV screen, it means no subtitle is recorded on the scene.

• If you choose a language that has 3-letter-language code, the code will be displayed every time you change the subtitle language setting. If you choose any other languages, “---” will be displayed instead. Refer to page 52.

• Ejecting the disc will cancel your subtitle setting.

• If 4-digit language code appears in the subtitle menu, refer to “Language Code List“ on page 52.

BD Audio ModeBD Audio Mode

There are 2 options for the “BD Audio Mode” setting; either by setting the output to the secondary and interactive audio accompanied by the primary audio or by setting only the primary audio. Depending on the setting of the mode, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, DTS, or DTS-HD output changes between multi LPCM and bitstream.

In stop mode, press [MODE] repeatedly until

“ “ appears.

BD Audio Mode Mix Audio Output

DVD

During playback, press [SUBTITLE].

Use [Cursor K / L] repeatedly until your desired subtitle.

• current subtitles language

e.g.)

• subtitles can be varied on the displayed number

Off (subtitle Off)

1 ENG /3 (English subtitle)

2 FRE /3 (French subtitle)

1 ENG /4

...

Press [Cursor K / L] to select the sound level.

Mix Audio Output

HD Audio Output

Press [BACK] to exit.

If it is available, BD-video’s secondary and interactive audio will be output with the primary audio. The secondary audio is the audio for the secondary video (Director’s comment etc.) and the interactive audio is the audio for the interactive application (Button click sounds etc.).

Only the primary audio will be output.

BD Audio Mode HD Audio Output

Note:

• In “Mix Audio Output” mode, if there is no secondary and interactive audio, the audio will be output as “HD Audio Output” mode.

Page 47

EnglishEspañol Français

INTRODUCTION

Some BD and DVD contain multiple audio streams. Those are often in different audio languages or audio formats. For BD, available audio varies depending on “BD Audio Mode” setting. Refer to page 44 for more information.

During playback, press [AUDIO] repeatedly to display

“Primary” or “Secondary”.

Use [Cursor K / L] to select your desired audio stream.

e.g.)

• For “Secondary”, use [ Cursor / B] to switch between

current audio setting and “Off”.

Press [AUDIO] repeatedly to exit.

DVD

During playback, press [AUDIO] repeatedly until your

desired language appears.

Use [Cursor K / L] to select your desired audio stream.

e.g.)

Audio SoundtrackAudio Soundtrack

Primary 1 ENG LPCM Multi-ch / 6

• current audio language

• current audio format

• audio stream can be varied on the displayed number

Primary 1 ENG LPCM (English audio)

Primary 2 ENG Dolby D (English audio)

Primary 3 FRE DTS (French audio)

1 ENG Dolby D 3/2.1ch 48k /3

• current audio language

• current audio format

• audio stream can be varied on the displayed number

1 ENG Dolby D 3/2.1ch 48k (English audio)

1 FRE Dolby D 2/0ch 48k (French audio)

During playback, press [AUDIO] repeatedly until the

desired sound mode appears.

Stereo

• current audio stream channel

Use [Cursor K / L] to select your desired audio stream

channel.

Stereo

R-ch Only right channel is active.

L-ch Only left channel is active.

Press [AUDIO] repeatedly to exit.

Both right and left channels are active (stereo)

Note:

• The secondary audio will not be output when the secondary video is not displayed or when “BD Audio Mode” is set to “HD Audio Output”. (For some BD, secondary audio will be output even when secondary video is off.)

• The sound mode cannot be changed during playback of discs not recorded in multiple audio.

• Some discs allow changing the audio language setting on the disc menu. (Operation varies depending on the discs. Refer to the manual accompanying the disc.)

• [AUDIO] may not work on some discs with multiple audio streams or channels (e.g. DVDs that allow changing audio setting on the disc menu).

• If you select a language that has a 3-letter-language code, the code will be displayed every time you change the audio language setting. If you select any other languages, “---” will be displayed instead. Refer to page 52.

• Audio Language selection cannot be made during rapid playback.

• If 4-digit-language code appears in the subtitle menu, refer to page 52.

• If the disc has no audio language, “Not Available” will be displayed on the TV screen.

• For DTS-CD (5.1 music disc), selecting audio streams or channels is not available.

PREPARATION

WATCHING TV

OPTIONAL SETTING

OPERATING BLU-RAY

BLU-RAY SETTING TROUBLESHOOTING INFORMATION

1 SPA Dolby D 2/0ch 48k (Spanish audio)

Press [AUDIO] repeatedly to exit.

Page 48

PERATING BLU-RAY

Camera AnglesCamera Angles

Some BD/DVD may contain scenes which have been shot simultaneously from various angles. You can change the camera angle if “ the screen.

During playback, press [ANGLE] repeatedly

until “ “ appears.

Use [Cursor K / L] repeatedly until your desired

camera angle appears.

Press [BACK] or [ANGLE] to exit.

DVD

1 / 3

• angles can be varied on the displayed number.

2 / 3

” appears on

Note:

• If “Angle Icon” is set to “Off” in “Others” menu, “ ” will not appear. Refer to page 51.

PIP (BONUSVIEW) SettingPIP (BONUSVIEW) Setting

Some BD-video have the PIP function which enables you to display the secondary video in the primary video. You can call up the secondary video by pressing [PIP] whenever the scene contains the secondary video.

Virtual Surround Virtual Surround

You can enjoy virtual surround on your 2 channel stereo system.

During playback, press [MODE] repeatedly until “ ”

appears.

Off

Use [Cursor K / L] to select the sound level.

Off No surround effect 1 Natural surround effect 2 Stronger surround effect

Press [BACK] to exit.

Note:

• Virtual surround does not function during rapid playback.

• For the virtual surround, audio signal will always be 2-channel LPCM.

• Turn down the level or select “Off” if the sound is distorted.

Noise ReductionNoise Reduction

DVD

Reduces the noise of the playback picture.

During playback, press [PIP].

• primary video

• secondary video

• PIP information will appear. Use [Cursor K / L] to select the secondary video you want.

• The secondary video will be displayed and the secondary audio will be output.

• Use [Cursor “off”.

Press [BACK] or [PIP] to remove the PIP information.

/ B] to display the secondary video or

Note:

• Secondary video can also be called up by pressing [MODE].

• The secondary audio will not be output when the secondary audio is set to “Off” or when “BD Audio Mode” is set to “HD Audio Output”. Refer to “Audio Soundtrack” on page 45 and “BD Audio Mode” on page 44.

During playback, press [MODE] repeatedly until “ ”

appears.

Noise Reduction Off

Use [Cursor s / B] to select the sound level.

Off Shows the original picture as recorded.

Press [BACK] to exit.

Executes 3D noise reduction which detects and deletes the noise by comparing each picture frames.

Executes MPEG noise reduction which reduces the block noise and mosquito noise on the subtitle on movie.

Executes both MPEG noise reduction and 3D noise reduction.

Noise Reduction 1

Note:

• The setting will remain the same even if the unit is turned to the standby mode.

• You cannot adjust the setting during rapid playback.

Page 49

LU-RAY SETTING

Settings are only effective when the unit is in BLU-RAY mode and any discs should not be played back.

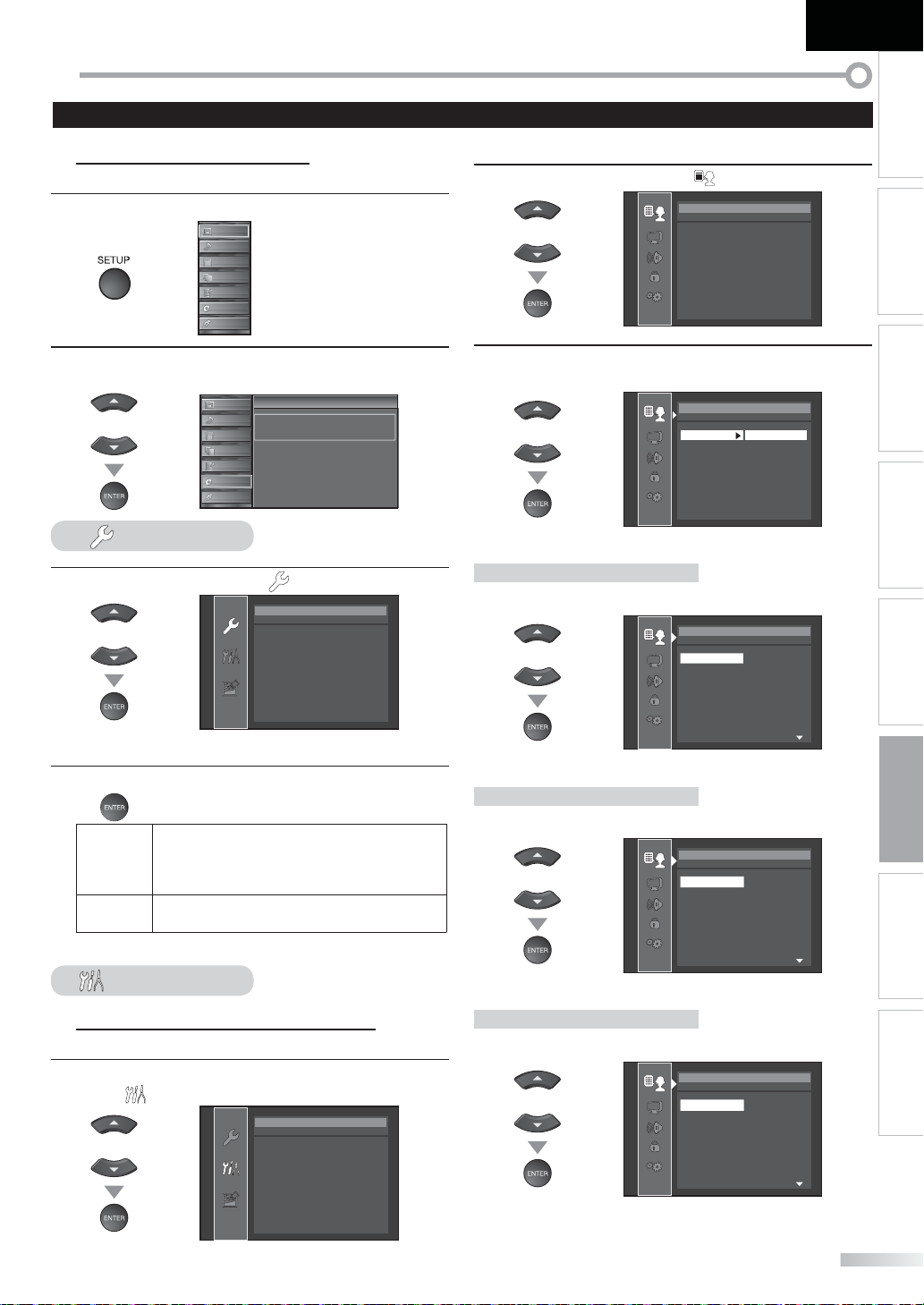

 Blu-ray Setup Menu

You can change the desired language when playing back the disc.

Press [SETUP] to display the main menu.

Use [Cursor K / L] to select “BLU-RAY”, then press


SOUND

CHANNEL

DETAIL

LANGUAGE

BLU-RAY

USB

[ENTER].

Setup


SOUND

CHANNEL

DETAIL

LANGUAGE

BLU-RAY

USB

Press “ENTER” key to move to BD Setup.

Use [Cursor K / L] to select “ “, then press [ENTER].

Language

Use [Cursor K / L] to select the desired item, then press

Audio Original Subtitle Off Disc Menu English

[ENTER].

Language

Audio Original

Subtitle Off Disc Menu English

Quick

EnglishEspañol Français

INTRODUCTION

PREPARATION

WATCHING TV

OPTIONAL SETTING

Use [Cursor K / L] to select “ ”, then press [ENTER].

Quick

Digital Out Bitstream

• The “Quick“ menu will appear on the TV screen.

Press [ENTER] to select your desired digital output.

When playing back discs recorded in Dolby

Bitstream

Digital, Dolby Digital Plus, Dolby TrueHD, DTS or DTS-HD, the corresponding core stream (Dolby Digital or DTS) are output.

LPCM

2ch LPCM will be output from Digital Audio Output jack.

Custom

 Blu-ray Language Setting

You can change the desired language when playing back the disc.

Follow steps 1-2 above, then use [Cursor K / L] to

select “ ”, then press [ENTER].

Custom

Language Video Audio Parental Others

Audio *1, *2 (Default: Original)

Select the desired audio language.

Language

Audio

Original

English French Spanish German Italian Swedish

Subtitle *1, *2 (Default: Off)

Select the desired subtitle language.

Language

Subtitle

Off

English French Spanish German Italian Swedish

Disc Menu *1 (Default: English)

Select the desired language in Blu-ray menu.

Language

Disc Menu

English

French Spanish German Italian Swedish Dutch

OPERATING BLU-RAY

BLU-RAY SETTING

TROUBLESHOOTING

INFORMATION

Page 50

LU-RAY SETTING

Note:

• To change the on-screen language, call up “Language” from the main menu and set the desired language. Refer to “Language Selection” on page 22.

• Language options are not available with some discs.

• If “Other” is selected in “Audio”, “Subtitle” or “Disc Menu”, press 4-digit number to enter the code for the desired language. Refer to “Language Code List” on page

52.

• Only the languages supported by the disc can be selected.

• Language setting for Audio and Subtitle are not available with some discs.

Press [SUBTITLE] to select subtitles available on the BD/DVD.

Press [AUDIO] to select audio available on the BD/DVD.

• If the BD/DVD’s default settings for audio and subtitle are the same language, the subtitles may not show unless you turn them on.

Press [SETUP] to exit.

 Blu-ray Video Setting

You can change the desired language when playing back the disc.

Follow steps 1-2 on page 47, then use [Cursor K / L] to

select “ ”, then press [ENTER].

Custom

Use [Cursor K / L] to select “ ”, then press [ENTER].

Language Video Audio Parental Others

Video

Progressive Mode Auto Still Mode Auto

Progressive Mode (Default: Auto)

Sets the optimum progressive output for the images in a material stored.

Video

Progressive Mode Auto

Still Mode Auto

Auto

Video

Detects 24 frame film material (movies) and automatically select appropriate progressive mode.

Suited for playing back video material discs (TV shows or animation).

Still Mode (Default: Auto)

Adjusts picture resolution and quality in “Still Mode”.

Video

Auto

Field

Frame

Press [SETUP] to exit.

Automatically selects the best resolution setting (“Frame” or “Field”).

Select “Field” when the pictures are distorted. Stabilizes the pictures, although the picture quality may become coarse.

Select “Frame” when you want to display motionless pictures in high resolution. Improves the picture quality, although it may produce the pictures distorted.

Progressive Mode Auto

Still Mode

Auto

Use [Cursor K / L] to select the desired item, then

press [ENTER].

Video

Progressive Mode Auto

Still Mode Auto

Page 51

 Blu-ray Audio Setting

Choose the appropriate audio settings for your equipment. It only affects during the playback of BD/DVD.

Follow steps 1-2 on page 47, then use [Cursor K / L] to

select “ ”, then press [ENTER].

Custom

Language Video Audio Parental Others

EnglishEspañol Français

Down Sampling (Default: On)

This function is available only on digital outputting of a disc recorded in 96kHz.

Audio

BD Audio Mode Mix Audio Output Digital Out Bitstream

Down Sampling On

DRC Auto

INTRODUCTION

PREPARATION

WATCHING TV

Use [Cursor K / L] to select “ ”, then press [ENTER].

Audio

Use [Cursor K / L] to select the desired item, then press

BD Audio Mode Mix Audio Output Digital Out Bitstream Down Sampling On DRC Auto

[ENTER].

BD Audio Mode (Default: Mix Audio Output)

You can select whether to output the primary and secondary audio or only the primary audio.

Audio

BD Audio Mode Mix Audio Output

Digital Out Bitstream Down Sampling On DRC Auto

Mix Audio Output

HD Audio Output

At the same time, 7 outputs the primary and secondary audio if it is available.

Outputs only the primary audio.

On When outputting in 48kHz. Off When outputting the original sound.

Note:

• When playing back a 96 kHz disc with the copyright protection or when ‘‘Virtual Surround” is set to “1” or “2”, the sound will be down sampled at 48 kHz even if the “Down Sampling” is set to “Off”. Refer to “Virtual Surround” on page 46.

DRC (dynamic range control) (Default: Auto)

This function is available only on the discs which are recorded in the Dolby Digital format.

Audio

When the discs that are recorded in the Dolby

Auto

Off No effects (original sound).

TrueHD format is in playback, this unit detects DRC setting of the disc and set the DRC setting of this unit to “On” or “Off ” automatically.

Compress the range between soft and loud sounds.

BD Audio Mode Mix Audio Output Digital Out Bitstream Down Sampling On

DRC

Auto

OPTIONAL SETTING

OPERATING BLU-RAY

BLU-RAY SETTING

TROUBLESHOOTING

Digital Out (Default: Bitstream)

Set to “Bitstream“ when this unit is connected to a Dolby Digital decoder and DTS decoder.

Audio

BD Audio Mode Mix Audio Output

Digital Out Bitstream

Down Sampling On DRC Auto

When playing back discs recorded in Dolby

Bitstream

LPCM

Digital, Dolby Digital Plus, Dolby TrueHD, DTS or DTS-HD, the corresponding core stream (Dolby Digital or DTS) are output.

2ch LPCM signal will be output from Digital Audio Out jack.

Press [SETUP] to exit.

INFORMATION

Page 52

LU-RAY SETTING

 Parental Setting

Parental setting prevents your children from viewing inappropriate materials. (password protected.) Playback will stop if the ratings exceed the levels you set.

Follow steps 1-2 on page 47, then use [Cursor K / L] to

select “ ”, then press [ENTER].

Custom

Language Video Audio Parental Others

Use [Cursor K / L] to select the desired item, then press

[ENTER].

Parental

BD Rating Level All

DVD Rating Level All Password Change

Use [Cursor K / L] to select “ ”, then press [ENTER].

Parental

Use [the Number buttons] to enter the 4-digit

BD Rating Level All DVD Rating Level All

numbers (except for the default password 4737) for your password, then press [ENTER].

Parental Password

Please enter a 4 - digit password.

• If you have set password already, use

[the Number buttons] to enter the current 4-digit password.

• If you forget the password, enter [4], [7], [3], [7].

The password will be cleared and “BD Rating Level”, “DVD Rating Level” will be set to “0”, “All” accordingly.

BD Rating Level

All To release the limitation. Age

Setting

To set the age limitation.

• After selecting Age Setting, use [the Number buttons] to enter the age from 0 – 254. (e.g. for age 15, press [0], [1], [5]).

DVD Rating Level

All

8 [Adult]

7 [NC-17] No one under 18 admitted.

6 [R]

5 [PGR] Parental guidance recommended. 4 [PG-13] Unsuitable for children under 13. 3 [PG] Parental guidance suggested. 2 [G] General audience. 1

[Kid Safe]

Press [SETUP] to exit.

Parental Control is inactive; all discs can played back.

DVD software of any grades (adult / general / children) can be played back.

Restricted; under 18 requires accompanying parent or adult guardian.

Suitable for children.

Page 53

To change the Password

Follow steps 1-2 on page 47 and 3-5 on page 50.

Use [Cursor K / L] to select “Password Change”, then press [ENTER].

Parental

Use [the Number buttons] to enter the new 4-digit

password.

BD Rating Level All DVD Rating Level All

Password Change

Use [Cursor K / L] to select the desired item, then press

[ENTER]. Angle Icon (Default: On)

You can set whether to display the angle icon or not during BD/DVD playback.

Others

Angle Icon On

Auto Power Off On Software Upgrade

EnglishEspañol Français

INTRODUCTION

PREPARATION

WATCHING TV

Parental Password

Please enter a 4 - digit password.

0000

Don’t forget the password. Press ‘ENTER / OK’ to activate password.

Note:

• BD-video/DVD-video may not respond to parental lock settings. Make sure this function works with your BD-video/ DVD-video.

• Record the password in case you forget it.

• If you forget the password, enter [4], [7], [3], [7]. The password will be cleared and “BD Rating Level”, “DVD Rating Level” will be set to “0”, “All” accordingly.

• A power failure will not erase your password.

Press [SETUP] to exit.

 Others

You can change the other functions.

Follow steps 1-2 on page 47, then use [Cursor K / L] to

select “

Use [Cursor K / L] to select “ ”, then press [ENTER].

”, then press [ENTER].

Custom

Language Video Audio Parental Others

Others

Angle Icon On Auto Power Off On Software Upgrade

During BD/DVD playback, the angle icon will

Off

appear on the TV screen when the BD/DVD has the scene with various angles.

The angle icon will be unshown even if the BD/DVD has the scene with various angles.

Auto Power Off (Default: On)

Others

Angle Icon On

Auto Power Off On

Software Upgrade

This unit is automatically turned off and goes

Off Sets off the “Auto Power Off”.

to the standby mode after 20 minutes of no use.

Software Upgrade

Upgrades the current BD Loader software. You must upgrade to the latest version of TV software before this step. Please visit our website;

http:// www.sylvaniaconsumerelectronics.com

for more information

Note:

• Never unplug the AC power cord while the software is upgrading. When the software upgrade is complete, the word “Finish” will appear at the bottom right of the TV screen. When the upgrade has finished, press [POWER] to complete the upgrade procedure. The disc with the file of the software upgrade ejects automatically next time you turn on the unit.

• Use a disc that only contains the software upgrade file. We recommend using DVD-RW or CD-RW to store the file.

• Software downgrade is not available.

Press [SETUP] to exit.

OPTIONAL SETTING

OPERATING BLU-RAY

BLU-RAY SETTING

TROUBLESHOOTING

INFORMATION

Page 54

LU-RAY SETTING

You can reset all the settings except for the parental setting and on-screen menu language or clear the saved BD-ROM data.

Follow steps 1-2 on page 47, then use [Cursor K / L] to

select “ ”, then press [ENTER].

Initialize

Use [Cursor K / L] to select desired item, then press

Setup Erase Saved BD-ROM Data

[ENTER].

Initialize

Setup

Erase Saved BD-ROM Data

Setup (Default: No)

Select “Yes” to reset the setup menu to the default.

Initialize Setup

Initialize?

Yes

Erase Saved BD-ROM Data (Default: No)

Select “Yes” to erase all saved BD-ROM Data from the unit.

Initialize Erase Saved BD-ROM Data

Do you wish to erase BD-ROM data from the player? THIS WILL ERASE ALL SAVED BD-ROM DATA FROM THE PLAYER.

Yes

Note:

• When you want to cancel the initialization, select “No” at

step 4, then press [ENTER].

Press [SETUP] to exit.

 Language Code List  Reset to the Default Setting

Language Code

Abkhazian 4748 Afar 4747 Afrikaans 4752 Albanian 6563 Amharic 4759 Arabic 4764 Armenian 5471 Assamese 4765 Aymara 4771 Azerbaijani 4772 Bashkir 4847 Basque 5167 Bengali;Bangla 4860 Bhutani 5072 Bihari 4854 Bislama 4855 Breton 4864 Bulgarian [BUL] 4853 Burmese 5971 Byelorussian 4851

Cambodian 5759 Catalan 4947 Chinese [CHI] 7254 Corsican 4961 Croatian 5464 Czech [CZE] 4965 Danish [DAN] 5047 Dutch [DUT] 6058 English [ENG] 5160 Esperanto 5161 Estonian 5166

Faroese 5261 Fiji 5256 Finnish [FIN] 5255 French [FRE] 5264 Frisian 5271 Galician 5358 Georgian 5747 German [GER] 5051 Greek [GRE] 5158 Greenlandic 5758 Guarani 5360 Gujarati 5367 Hausa 5447 Hebrew 5569 Hindi 5455 Hungarian [HUN] 5467

Icelandic [ICE] 5565 Indonesian 5560 Interlingua 5547 Interlingue 5551 Inupiak 5557 Irish [IRI] 5347 Italian [ITA] 5566 Japanese [JPN] 5647 Javanese 5669 Kannada 5760 Kashmiri 5765 Kazakh 5757 Kinyarwanda 6469 Kirghiz 5771 Kirundi 6460 Korean [KOR] 5761 Kurdish 5767

Laothian 5861 Latin 5847 Latvian;Lettish 5868 Lingala 5860 Lithuanian 5866 Macedonian 5957 Malagasy 5953 Malay 5965 Malayalam 5958 Maltese 5966 Maori 5955

A-B

C-E

F-H

I-K

L-N

Language Code

Marathi 5964 Moldavian 5961 Mongolian 5960 Nauru 6047 Nepali 6051 Norwegian [NOR] 6061

O-R

Occitan 6149 Oriya 6164 Oromo(Afan) 6159 Panjabi 6247 Pashto;Pushto 6265 Persian 5247 Polish [POL] 6258 Portuguese [POR] 6266 Quechua 6367 Rhaeto-Romance 6459 Romanian [RUM] 6461 Russian [RUS] 6467

Samoan 6559 Sangho 6553 Sanskrit 6547 Scots Gaelic 5350 Serbian 6564 Serbo-Croatian 6554 Sesotho 6566 Setswana 6660 Shona 6560 Sindhi 6550 Singhalese 6555 Siswat 6565 Slovak [SLO] 6557 Slovenian 6558 Somali 6561 Spanish [SPA] 5165 Sundanese 6567 Swahili 6569 Swedish [SWE] 6568

Tagalog 6658 Tajik 6653 Tamil 6647 Tatar 6666 Telugu 6651 Thai 6654 Tibetan 4861 Tigrinya 6655 Tonga 6661 Tsonga 6665 Turkish [TUR] 6664 Turkmen 6657 Twi 6669

U-Z

Ukrainian 6757 Urdu 6764 Uzbek 6772 Vietnamese 6855 Volapuk 6861 Welsh 4971 Wolof 6961 Xhosa 7054 Yiddish 5655 Yoruba 7161 Zulu 7267

Note:

• If you choose a language that has a 3-letter abbreviation, the code will be displayed every time you change the audio or subtitle language setting above. If you choose any other language, ‘---’ will be displayed instead. (3-letter abbreviation is written in bracket.)

Page 55

ROUBLESHOOTING

 FAQ

EnglishEspañol Français

INTRODUCTION

Question Answer

• Check the antenna or cable connection to the main unit.

• Check the batteries of the remote control.

• Check if there is an obstacle between the infrared sensor window and the remote control.

• Test the signal output. If OK, then possible infrared sensor trouble.

My remote control does not work. What should I do?

How come the Initial setup appears every time I turn on this unit?

Why I cannot watch some TV programs.

How come there is no image from the connected external devices?

Whenever I entered channel number, it changes automatically.

My disc cannot be played back. Is there any way I can play my disc?

Why are captions not displayed entirely? Or, captions are delayed behind the dialogue.

How can I set the clock ? • There is no clock function on this unit.

Refer to “IR Signal Check” on page 56.

• Aim the remote control directly at the infrared sensor window on the front of the unit.

• Reduce the distance to the unit.

• Re-insert the batteries with their polarities (+/– signs) as indicated.

• When there is an infrared-equipped device such as PC near this unit, it may interrupt the remote control signal of this unit.

• Move the infrared-equipped device away from this unit, change the angle of the infrared sensor or turn off the infrared communication function.

• Connect the RF coaxial cable to the unit directly and run the initial setup.

• Make sure to complete the channel scan before turning off the unit.

• Make sure autoscan has been completed. Refer to “Autoscan” on page 20.

• Autoscan must be completed when you set up the unit for the first time or move it to a location where previously unavailable channels are broadcast.

• The selected channel may not be broadcasting.

• When autoscan is interrupted and not completed, some channels will not be received. Make sure to complete. Refer to “Autoscan” on page 20.

• The selected channel cannot be viewed by the “Child Lock” setting. Refer to ‘‘Child Lock” on page 28.

• The unit requires some kind of antenna input. An indoor antenna (VHF /UHF), an external antenna (VHF /UHF) or an RF coaxial cable from your wall cable/satellite box needs to be plugged into the unit.

• Check if the right input mode is selected by pressing [INPUT SELECT] or

[CH K / L]. Refer to “Switching Each Input Mode” on page 17.

using

• Check the antenna or cable connection to the unit.

• When using the Composite Video Connection check that the Green (Y), Blue (Pb/Cb) and Red (Pr/Cr) connectors are connected to their corresponding colored jacks on the unit.

• Many digital channels have alternate channel numbers. The unit changes the numbers automatically to the ones signifying the broadcasting stations. These are the numbers used for analog broadcasts.

• Clean the disc.

• Ensure the disc is correctly inserted.

• Check if the disc is defective by trying another disc.

• Cancel the parental lock or change the control level.

• Insert a correct disc that plays back on this unit.

• Handle a disc with special care so that it does not have fingerprints, scratches or dusts on its surface.

• Captions that are delayed a few seconds behind the actual dialogue are common for live broadcasts. Most captioning production companies can display a dialogue to maximum of 220 words per minute. If a dialogue exceeds that rate, selective editing is used to insure that the captions remain up-to date with the current TV screen dialogue.

PREPARATION

WATCHING TV

OPTIONAL SETTING

OPERATING BLU-RAY

BLU-RAY SETTING

TROUBLESHOOTING

INFORMATION

Page 56

ROUBLESHOOTING

 Troubleshooting Guide

If the unit does not perform properly when operated as instructed in this manual,

check the following chart and all connections once before calling for service.

Symptom Remedy

• Make sure the AC power cord is plugged in.

• Make sure that the AC outlet supplies the proper voltage, plug another electrical

No power

You cannot turn off the unit immediately.

Control button does not work.

Power is ON but no screen image.

No picture or sound

No color

Adjusted ‘‘PIC TURE” or ‘‘SOUND” is not effective every time turn on the unit.

Sound OK, picture poor

Picture OK, sound poor

You see a distorted picture or hear an unusual sound.

appliance into the AC outlet.

• If a power failure occurs, unplug the AC power cord for 1 minute to allow the unit to reset itself.

• The unit may take about 1 minute to be shutting down when;

- you turn off this unit right after you turned on this unit.

- you turn off this unit right after you switch any input modes such as the DTV/TV

channels, Video, Component or HDMI while a disc is playing back.

• Press only one button at a time. Do NOT press more than one buttons at the same time.

• Check whether the connection of the antenna, cable receiver or satellite box is connected correctly.

• Check whether all the cables to the unit are connected to the correct output jack of your device like BD/DVD recorder.

• Make sure that the selected input mode is connected to the working input jack.

• Check if your computer is NOT in sleep mode when the input mode of this unit is in PC mode. Tap any key on the keyboard to wake up your computer.

• Check if the power is on.

• Check if the right input mode is selected.

• Check whether all the cables to the unit are connected to the correct output jack of your device like BD/DVD recorder.

• View other TV channels. The problem might be limited to the broadcasting station.

• Turn off the unit and wait for about 1 minute, then turn on the unit again.

• Check whether the connection of the antenna, cable receiver or satellite box is connected correctly.

• Make sure that the selected input mode is connected to the working input jack.

• Check if your computer is NOT in sleep mode when the input mode of this unit is in PC mode. Tap any key on the keyboard to wake up your computer.

• Make sure that the sound is not muted. Press [ and current volume level will appear on the TV screen.

• Make sure that the volume is NOT set to “0” or “Mute”. If so, use [VOL. X / Y] to adjust the desired volume.

• View other TV channels. The problem might be limited to the broadcasting station.

• Adjust “Color” in the main menu.

• You must set ”Home” in ”Location” (refer to page 33). Otherwise, the settings you adjusted will not be memorized after you turn off the unit.

• Electrical interference from nearby appliances may affect picture quality.

• Adjust “Contrast” and “Brightness” in the main menu.

• View other TV channels. The problem might be limited to the broadcasting station.

• For the best picture quality, watch “high definition” wide screen programs. If the HD content is not available, watch “standard definition” programs instead.

• View other TV channels. The problem might be limited to the broadcasting station.

• Check if the audio cable is connected in correctly.

• You may be getting interference from electrical appliances, automobiles, motorcycles or  uorescent lights.

• Try moving the unit to another location to see if this is the cause of the problem.

MUTE] so that the volume bar

Ghosts, lines or streaks in picture

You see “noise” or “trash” on the screen.

Different color marks on the TV screen

• Electrical interference from nearby appliances may affect picture quality.

• View other TV channels. The problem might be limited to the broadcasting station.

• When the capabilities of the unit exceed the capabilities of the digital broadcasting, the signal will be increased to match the capabilities of the display of the unit. This may cause noise or trash.

• View other TV channels. The problem might be limited to the broadcasting station.

Page 57

EnglishEspañol Français

INTRODUCTION

Symptom Remedy

You switch to a different input and the volume.

You switch to a different input and the screen size changes.

The display image does not cover the entire screen.

Captions are displayed as a

white box. No caption is displayed in the Closed Caption-supported program.

No caption is displayed when playing back a disc or a cassette tape containing captions.

Black box is displayed on the TV screen.

Completely distorted picture or black/white picture with BD/ DVD.

Picture freezes momentarily during playback.

• This unit will memorize the volume level from the last time you adjusted it.

• If the volume of the sound from another device is higher or lower, then the loudness will change.

• This unit will memorize the viewing mode from the last time you used the particular input modes.

• If you are using the unit as a PC monitor, make sure that “Horizontal Position” and “Vertical Position” in “PC Settings” are set correctly.

• If you are watching TV or using the Video, S-Video, Component video or HDMI with 480i Input, press [SCREEN MODE

• Interference from buildings or weather conditions may cause captioning to be incomplete.

• Broadcasting station may shorten the program to insert advertisement. The closed caption decoder cannot read the information of the shortened program.

• The disc or cassette tape may be illegally copied, or the caption signal might not have been read during copying.

• The text mode is selected for caption. Select “CC1”, “CC2”, “CC3”, “CC4” or “Off”.

• Make sure the disc is compatible with the unit.

• Check the disc for finger prints/scratches and clean with a soft cloth wiping from center to edge.

] repeatedly to switch various screen modes.

PREPARATION

WATCHING TV

OPTIONAL SETTING

OPERATING BLU-RAY

• Clean the disc.

• Ensure the disc is correctly inserted.

Disc cannot be played.

B D

Buttons do not work or the unit

stops responding.

The unit does not respond to

some operating commands during playback.

Angle does not switch.

Playback does not start when the title is selected.

The password for rating level

has been forgotten.

• Check if the disc is defective by trying another disc.

• Cancel the parental lock or change the control level.

• Insert a correct disc that plays on this unit.

• Handle a disc with special care so that it does not have fingerprints, scratches, or dusts on its surface.

• To completely reset the unit, unplug the AC power cord from the power outlet for 5-10 seconds.

• Operations may not be permitted by the disc. Refer to the instructions of the disc.

• The angle cannot be switched for BD/DVD which do not contain multiple angles. In some cases multiple angles are only recorded for specific scenes.

• Check the “Parental” setting.

• Enter the default password (4737), then your forgotten password will be cleared.

Note:

• To get the latest software information of this unit, please visit the following our website; http:// www.sylvaniaconsumerelectronics.com

• The LCD panel is manufactured to provide many years of useful life. Occasionally a few non active pixels may appear as a fixed point of blue, green or red. This is not to be considered a defect in the LCD screen.

• Some functions are not available in specific modes, but this is not a malfunction. Read the description in this manual for more details on correct operations.

• Some functions are prohibited on some discs.

BLU-RAY SETTING

TROUBLESHOOTING

INFORMATION

Page 58

NFORMATION

 Glossary

AT SC

Acronym that stands for Advanced Television Systems Committee and the name of the digital broadcasting standards.

Aspect Ratio

The width of a TV screen relative to its height. Conventional TVs are 4:3 (in other words, the TV screen is almost square); widescreen models are 16:9 (the TV screen is almost twice as wide as its height).

BD-Java

With some BD which support Java applications, you can enjoy the interactive functions such as games or interactive menus.

CEC (Consumer Electronics Control)

This allows you to operate the linked functions between our brand devices with CEC feature and this unit. We do not guarantee 100% interoperability with other brands of CEC compliant devices.

Component video

This is a video signal format that conveys each of 3 principal colors of light (red, blue and green) through different signal lines. This allows the viewers to experience picture colors as original as it is. There are several signal formats, including Y / Pb / Pr and Y / Cb / Cr.

DTS (Digital Theater System)

DTS is a multi-channel surround sound system. By connecting to DTS decoder, you can enjoy movie dynamic and realistic sound like movie theater. DTS surround sound technologies were developed by DTS, Inc.

Dolby Digital

The system developed by Dolby Laboratories to compress digital sound. It offers stereo sound (2ch) or multi-channel audio.

HDMI

(High-Definition Multimedia Interface)

Interface that supports all uncompressed, digital audio/video formats including set-top box, BD/DVD recorder or digital television, over a single cable.

HDTV (High Definition TV)

Ultimate digital format that produces high resolution and high picture quality.

NTSC

Acronym that stands for National Television Systems Committee and the name of the current analog broadcasting standards. Off the air NTSC signals will no longer be sent by broadcasting stations during 2009.

Password / PIN Code

A stored 4-digit number that allows access to parental control features.

Region Code

Regions associate discs and players with particular areas of the world. This unit will only play back discs that have compatible region codes. You can find the region code of your unit by looking on the rear panel. Some discs are compatible with more than one region (or all regions).

SAP (Secondary Audio Program)

Second-audio channel delivered separately from main-audio channel. This audio channel is used as an alternate in bilingual broadcasting.

SDTV (Standard Definition TV)

Standard digital format that is similar to the NTSC picture quality.

S-Video

Offers higher quality images by delivering each signal, color (c) and luminance (y) independently of each other through a separate cable.

 Maintenance

Cabinet Cleaning

• Wipe the front panel and other exterior surfaces of the unit with a soft cloth immersed in lukewarm water and wrung dry.

• Never use a solvent or alcohol. Do not spray insecticide liquid near the unit. Such chemicals may cause damage and discoloration to the exposed surfaces.

Panel Cleaning

Wipe the panel of the unit with a soft cloth. Before cleaning the panel, disconnect the AC power cord.

Disc Handling

Handle the discs so that fingerprints and dust do not adhere to the surfaces of the discs.

• Always store the disc in its protective case when it is not used.

• To clean-off, use a soft cloth.

• Do not use a hard cloth since this will mar the disc.

• Wipe the disc in a straight line form center to edge.

• Never wipe with a circular motion.

Servicing

Should your unit become inoperative, do not try to correct the problem yourself. There are no user serviceable parts inside. Turn off the unit, unplug the AC power cord and call our toll free customer support line found on the cover of this manual to locate an authorized service center.

If the Laser Optical Pickup Unit is Dirty

If the unit still does not perform properly when it is operated, while referring to the relevant sections and to "Troubleshooting Guide" in this owner’s manual, the laser optical pickup unit may be dirty. Consult your dealer or an Authorized Service Center for inspection and cleaning of the laser optical pickup unit.

IR Signal Check

If the remote control is not working properly, you can use a digital camera (including a cellular phone with built-in camera) to see if it is sending out an infrared signal.

• With a digital camera (including built-in cell phone cameras): Point the Digital Camera towards the remote control infrared diode at the front of the remote control. Press any button on the remote control and look through the camera display. If the infrared pulsating light appears through the camera, the remote control is sending out an IR signal.

• Do not use detergent or abrasive cleaning agents.

Page 59

EnglishEspañol Français

 Cable Channel Designations

If you subscribe to cable TV, the channels are displayed as 1-135. Cable companies often designate channels with letters or letter-number combinations. Please check with your local cable company. The following is a chart of common cable channel designations.

CATV channel

TV Display

CATV channel

TV Display

CATV channel

TV Display

CATV channel

TV Display

CATV channel

TV Display

CATV channel

TV Display

CATV channel

TV Display

5A122334455667788991010111112121313A14B15C16D17E18F19G20H

I22J23K24L25M26N27O28P29Q30R31S32T33U34V35W36W+1

W+743W+844W+945W+1046W+1147W+1248W+1349W+1450W+1551W+16

W+2864W+2965W+3066W+3167W+3268W+3369W+3470W+3571W+3672W+3773W+3874W+3975W+4076W+4177W+4278W+4379W+4480W+4581W+4682W+4783W+48

W+4985W+5086W+5187W+5288W+5389W+5490W+5591W+5692W+5793W+5894A-595A-496A-397A-298A-199W+59

W+65

W+66

W+67

W+68

W+69

W+70

W+71

W+72

106

W+86

127

107

W+87

128

108

W+88

129

109

W+89

130

110

W+90

131

111

W+91

132

112

W+92

133

113

W+93

134

W+73

114

W+94

135

W+1753W+1854W+1955W+2056W+2157W+2258W+2359W+2460W+2561W+2662W+27

W+74

W+75

W+76

W+77

W+78

115

116

117

118

119

W+79

120

W+2 W+339W+440W+541W+6

37 38

W+60

W+61

100

W+80

121

101

W+81

122

102

W+82

123

W+62

103

W+83

124

W+63

104

W+84

125

W+64

W+85

INTRODUCTION

PREPARATION

105

WATCHING TV

126

 General Specifications

TV format: ATSC / NTSC-M TV standard Closed caption system:

§15.122 / FCC (digital CC)

§15.119 / FCC (analog CC)

Channel coverage (ATSC / NTSC):

Terrestrial VHF: 2~13 UHF: 14~69 CATV 2~13, A~W,

W+1~W+94 (analog W+1~W+84),

A-5~A-1, 5A

Tuning system: Channel frequency synthesized tuning system Channel access: Direct access keyboard,

Programmable scan, and up / down

BD/DVD

Discs (playback compatibility):

BD-video, BD-RE/-R, DVD-video, DVD-RW/-R, audio CD, CD-RW/-R

Frequency response: BD / DVD (linear sound): 20 Hz to 20 kHz (sample rate: 48 kHz)

20 Hz to 44 kHz (sample rate: 96 kHz) CD: 20 Hz to 20 kHz

Signal-to-noise ratio (S/N ratio):

CD: 85 dB (JEITA)

Total distortion factor: BD / DVD / CD: 1 KHz 0.007% (JEITA)

 Electrical Specification

Sound Output: 10W, 8Ω x 2

 Other Specifications

Terminals:

Antenna Input: VHF / UHF / CATV 75Ω unbalanced (F-type) Audio Input: RCA jack (L/R) x 8 500mV rms Video Input: RCA jack x 2 1V p-p (75Ω) S-Video Input: Mini DIN 4-pin jack x 2 Y: 1V p-p (75Ω)

C: 286mV p-p (75Ω) Component video Input:

RCA jack x 3 Y: 1V p-p (75Ω)

Pb/Cb: 700mV p-p (75Ω) Pr/Cr: 700mV p-p (75Ω)

HDMI Input: HDMI 19pin x 3 USB Input: USB x 1 Coaxial Digital audio Output:

RCA jack x 1 500mV p-p (75Ω) Audio Output: RCA jack (L/R) x 2 500mV rms

Remote control: Operating temperature:

41°F (5°C) to 104°F (40°C)

Power requirements: 120V~ AC +/- 10%, 60Hz +/- 0.5%

Power consumption (maximum): 282W LCD: 42 inches full HD panel Dimensions: <without stand> <with stand>

W: 40.4 inches (1,026.0mm) 40.4 inches (1,026.0mm) H: 26.2 inches (664.5mm) 28.6 inches (725.0mm) D: 5.4 inches (137.0mm) 12.3 inches

Weight: 58.5 lbs. (26.5kg) 63.8 lbs.

Digital encoded infrared light system

(310.0mm) (28.9kg)

OPTIONAL SETTING

OPERATING BLU-RAY

BLU-RAY SETTING TROUBLESHOOTING

INFORMATION

• Designs and speci cations are subject to change without notice and without our legal obligation.

• If there is a discrepancy between languages, the default language will be English.

Page 60

LIMITED WARRANTY

NINETY (90) DAY LABOR / ONE(1)YEAR PARTS

WARRANTY COVERAGE:

This warranty obligation is limited to the terms as set forth below.

WHO IS COVERED:

This product warranty is issued to the original purchaser or the person receiving the product as a gift against defects in materials and workmanship as based on the date of original purchase (“Warranty Period”) from an Authorized Dealer. The original sales receipt showing the product name and the purchase date from an authorized retailer is considered such proof.

WHAT IS COVERED:

This warranty covers new products if a defect in material or workmanship occurs and a valid claim is received within the Warranty Period. At its option, the company will either (1) repair the product at no charge, using new or refurbished replacement parts, or (2) exchange the product with a product that is new or which has been manufactured from new, or serviceable used parts and is at least functionally equivalent or most comparable to the original product in current inventory, or (3) refund the original purchase price of the product. Replacement products or parts provided under this warranty are covered against defects in materials and workmanship from the date of the replacement or repair for ninety (90) days or for the remaining portion of the original product’s warranty, whichever provides longer coverage for you. When a product or part is exchanged, any replacement item becomes your property and the replaced item becomes company property. When a refund is given, your product becomes company property.

Note: Any product sold and identified as refurbished or renewed

Replacement product can only be sent if all warranty requirements are met. Failure to follow all requirements can result in delay.

WHAT IS NOT COVERED - EXCLUSIONS AND LIMITATIONS:

This Limited Warranty applies only to new company manufac-

to any hardware product or any software, even if packaged or sold with the product, as manufacturers, suppliers, or publishers may provide a separate warranty for their own products packaged with the bundled product.

carries a ninety (90) day limited warranty.

mission, or (d) if any serial number has been removed or defaced, or (e) product, accessories or consumables sold “AS IS” without warranty of any kind by including refurbished product sold “AS IS” by some retailers.

This Limited Warranty does not cover:

• Shipping charges to return defective product.

• Labor charges for installation or setup of the product, adjustment of customer controls on the product, and installation or repair of antenna/signal source systems outside of the product.

• Product repair and/or part replacement because of improper installation or maintenance, connections to improper voltage supply, power line surge, lightning damage, retained images or

tent for extended periods, product cosmetic appearance items due to normal wear and tear, unauthorized repair or other cause not within the control of the company.

• Damage or claims for products not being available for use, or for lost data or lost software.

• Damage from mishandled shipments or transit accidents when returning product.

it to operate in any country other than the country for which it was designed, manufactured, approved and/or authorized, or

• A product used for commercial or institutional purposes (including but not limited to rental purposes).

can be provided.

• Failure to operate per Owner’s Manual.

TO OBTAIN ASSISTANCE…

Contact the Customer Care Center at:

1-866-321-3927

REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE REMEDY FOR THE CONSUMER, WITH THE ISSUING COMPANY NOT LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THIS PRODUCT IS LIMITED IN DURATION TO THE DURATION OF THIS WARRANTY.

The company is not liable for any damage to or loss of any programs, data, or other information stored on any media contained within the product, or other additional product or part not covered by this warranty. Recovery or reinstallation of programs, data or other information is not covered under this Limited Warranty.

This warranty does not apply (a) to damage caused by accident, abuse, misuse, neglect, misapplication, or non-supplied product, (b) to damage caused by service performed by anyone other than company approved Authorized Service Location, (c) to a product

FUNAI CORPORATION, Inc. 19900 Van Ness Avenue, Torrance, CA 90501

Some states do not allow the exclusions or limitation of incidental or consequential damages, or allow limitations on how long an implied warranty lasts, so the above limitations or exclusions may not apply to you.

Printed in USA
