Sylvania LD195SL8 A, LD195SL8 User Manual

LD195SL8 A

NEED HELP?

PLEASE CALL TOLL FREE!

1-800-968-3429

OR VISIT OUR WEB SITE AT

www.sylvania-ce.com

INTRODUCTION

19” Digital LCD TV

built-in DVD Player

Owner’s Manual

LD195SL8

WATCHING TVPREPARATION INITIAL SETTING OPTIONAL SETTING

TO RECEIVE DIGITAL/ANALOG SIGNAL, YOU MUST CONNECT ANTENNA.

OPERATING DVD

DVD SETTING TROUBLESHOOTING INFORMATION

NTRODUCTION

The model and serial numbers of this unit may be found on the cabinet. You should record and retain those numbers for future reference.

Model No.:

Serial No.:

Precautions5

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS

TO RAIN OR MOISTURE.

APPARATUS SHALL NOT BE EXPOSED TO DRIPPING OR SPLASHING AND NO OBJECTS

FILLED WITH LIQUIDS, SUCH AS VASES, SHALL BE PLACED ON THE APPARATUS.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC

SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The caution marking is located on the rear or bottom of the cabinet.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the apparatus’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the apparatus.

Important Safety Instructions

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in

accordance with the manufacture’s instructions.

8. Do not install near any heat sources such as radiators,

heat registers, stoves, or other apparatus (including ampli ers) that produce heat.

9. Do not defeat the safety purpose of the polarized or

grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not  t into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or

pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories speci ed by the

manufacturer.

12. Use only with the cart, stand, tripod, bracket,

or table speci ed by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when

unused for long periods of time.

14. Refer all servicing to quali ed service personnel.

Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

FCC WARNING

This apparatus may generate or use radio frequency energy. Changes or modifications to this apparatus may cause harmful interference unless the modifications are expressly approved in the manual. The user could lose the authority to operate this apparatus if an unauthorized change or modification is made.

RADIO-TV INTERFERENCE

This apparatus has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This apparatus generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this apparatus does cause harmful interference to radio or television reception, which can be determined by turning the apparatus off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

1) Reorient or relocate the receiving antenna.

2) Increase the separation between the apparatus and receiver.

3) Connect the apparatus into an outlet on a circuit different from that to which the receiver is connected.

4) Consult the dealer or an experienced radio/TV technician for help.

This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

This apparatus should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided. Make sure to leave a space of 2.8 inches (7cm) or more around this apparatus.

Disconnect the mains plug to shut off when find trouble or not in use. The mains plug shall remain readily operable.

CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type. WARNING: Batteries (battery pack or battery installed) shall not be exposed to excessive heat such as sunshine, fire or the like.

LAMP IN LCD CONTAINS MERCURY, DISPOSE ACCORDING TO LOCAL, STATE OR FEDERAL LAW.

WARNING: To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the instructions.

LASER SAFETY

This apparatus employs a laser. Only a qualified service person should remove the cover or attempt to service this apparatus, due to possible eye injury.

CAUTION: Use of controls or adjustments or performance of procedures other than those specified herein may result in

CAUTION: Visible and invisible laser radiation when open and interlock defeated. Do not stare into beam. LOCATION:

IMPORTANT COPYRIGHT INFORMATION

Unauthorized copying, broadcasting, public performance and lending of discs are prohibited. This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.

TO AVOID THE HAZARDS OF ELECTRICAL SHOCK AND FIRE

Do not handle the power cord with wet hands.

• Do not remove this unit cabinet. Touching parts inside the cabinet could result in electric shock and/or damage to this

• unit. For service and adjustment inside the cabinet, call a qualified dealer or an authorized service center. Do not pull on the power cord when disconnecting it from an AC outlet. Grasp it by the plug.

• Do not put your fingers or objects into the unit.

•

LOCATION AND HANDLING

The openings should not be blocked by placing the unit on a bed, sofa, carpet, rug, or other similar surface.

• Do not install the unit near or over a radiator or heat register.

• Do not install the unit in direct sunlight, near strong magnetic fields, or in a place subject to dust or strong vibration.

• Avoid a place with drastic temperature changes.

• Install the unit in a horizontal and stable position. Do not place anything directly on top or bottom of the unit.

• Depending on your external devices, noise or disturbance of the picture and/or sound may be generated if the unit is placed too close to them. In this case, please ensure enough space between the external devices and the unit.

•

Depending on the environment, the temperature of this unit may increase slightly. This is not a malfunction.

DEW CONDENSATION WARNING

•

Dew condensation may form inside the unit in the following conditions. If so, do not use this unit at least for a few hours until its inside gets dry.

- The unit is moved from a cold place to a warm place.

- Under conditions of high humidity.

- After heating a cold room.

NOTE ABOUT RECYCLING

This unit’s packaging materials are recyclable and can be reused. Please dispose of any materials in accordance

• with your local recycling regulations. Batteries should never be thrown away or incinerated but disposed of in accordance with your local

• regulations concerning chemical wastes.

hazardous radiation exposure.

Inside, near the deck mechanism.

INTRODUCTION

INITIAL SETTING

WATCHING TVPREPARATION

OPTIONAL SETTING DVD SETTING TROUBLESHOOTING INFORMATIONOPERATING DVD

NTRODUCTION

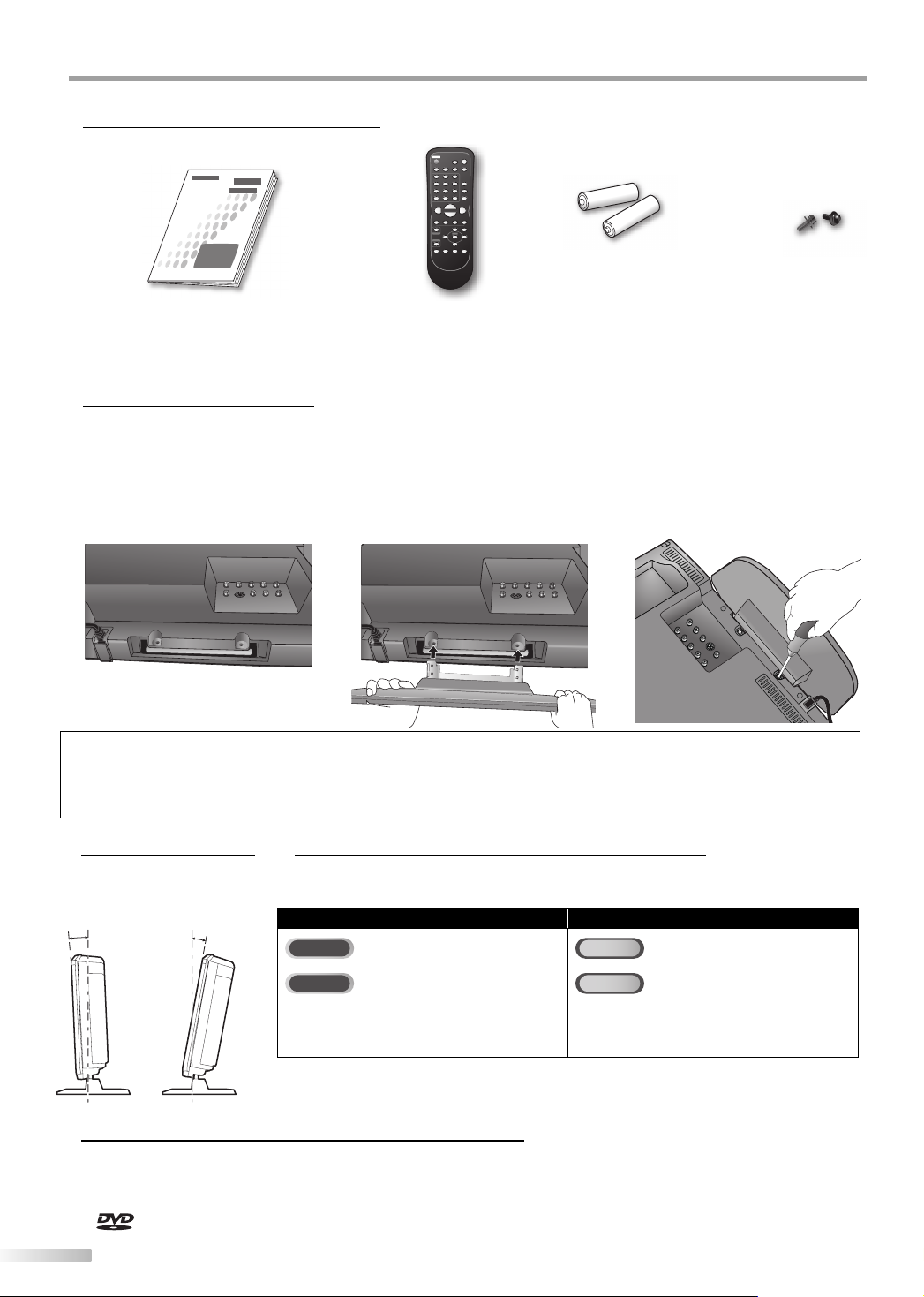

Supplied Accessories5

owner’s manual

(1EMN23020)

• If you need to replace these accessories, please refer to the part No. with the illustrations and call our toll free customer support line found on the cover of this manual.

• Depending on your antenna system, you may need different types of combiners (mixers) or separators (splitters). Contact your local electronics store for these items.

Attaching the Stand

You must attach the stand to the unit to display upright. Be sure the front and rear of the stand match the proper direction.

remote control

(NF605UD)

batteries

(AA x 2)

Phillips pan screw for attaching the stand x 2

(FPH34140)

Turn the main unit over and place

it onto a table which has a soft cloth draped over it. Make sure not to damage the screen.

Note:

• When attaching the stand, ensure that all screws are tightly fastened. If the stand is not properly attached, it could cause the unit to fall, resulting in injuries as well as damage to the unit.

• Make sure to use a table which can support the weight of this unit and is larger than this unit.

• Make sure the table is in a stable location.

Symbols Used in this Manual

You can adjust the stand to change the angle of the TV (-3° to 8°).

-3°

8°

5Tilt Stand

The following is the description for the symbols used in this manual. Description refers to:

DTV

• If neither symbol appears under the function heading, operation is applicable to both.

Insert the stand all the way to the

main unit slowly. Make sure not to put the AC cord between the stand and the unit.

TV FUNCTIONS

: Analog TV operation : Digital TV operation

Drive Phillips pan screws in the 2

threaded holes with a screwdriver tightly.

DVD FUNCTIONS

DVD

: Playback of DVD-video

: Playback of audio CD

• If neither of symbol appears under the function heading, operation is applicable to both.

Trademark Information

Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories.

•

Product that have earned ENERGY STAR® are designed to protect the environment through superior energy efficiency.

•

is a trademark of DVD Format/Logo Licensing Corporation.

INTRODUCTION

Features5

• DTV/TV/CATV

- You can use your remote control to select channels which are broadcast in digital format and conventional analog format. Also, cable subscribers can access their cable TV channels.

• Information Display (DTV only)

- You can display the title, contents and other information of the current DTV program on the TV screen.

• Auto Channel Scan

- This unit automatically scans and memorizes channels available in your area, eliminating difficult setup procedures.

• V-chip

- This feature allows you to block children’s access to inappropriate programs.

• Closed Caption Decoder

- Built-in closed caption decoder displays text for closed caption supported programs.

• MTS/SAP Tuner

- Audio can be selected from the remote control.

• Auto Shut Off Function

- If there is no signal input from the antenna terminal and no operation for 15 minutes, the unit will turn itself off automatically.

• Sleep Timer

- This feature will automatically turned off the power of the unit at a specific time.

• Choices for On-screen Language

- Select your on-screen language: English, Spanish or French.

• Stereo Sound Function

• PLL Frequency Synthesized Tuning

- Provides free and easy channel selection and lets you tune directly to any channel using the channel number buttons on the remote control.

• PC Input

• Component Video Input

• S-video Input

• AV Input

• Digital Audio Coaxial Output

DVD

• Dolby Digital Sound

- Enjoy Dolby Digital multi-channel surround sound when you connect the unit to your Dolby Digital decoder.

• Still / Fast / Slow / Step Playback

- Various playback modes are available including still pictures, fast forward/reverse, slow motion and step frames.

• DVD Menus in a Desired Language

- You can display DVD menus in a desired language, if available on a DVD-video.

• Auto Power Off

- If there is no operation for 20 minutes, the unit will turn itself off automatically.

• Parental Lock

- Block the viewing of DVD-video unsuitable for children.

• Resume Playback

- Lets you resume playback from the point at which playback was stopped.

• Bit Rate Indication

• DRC (dynamic range control)

- You can control the range of sound volume.

¨ Accessing from [MODE] button

During playback

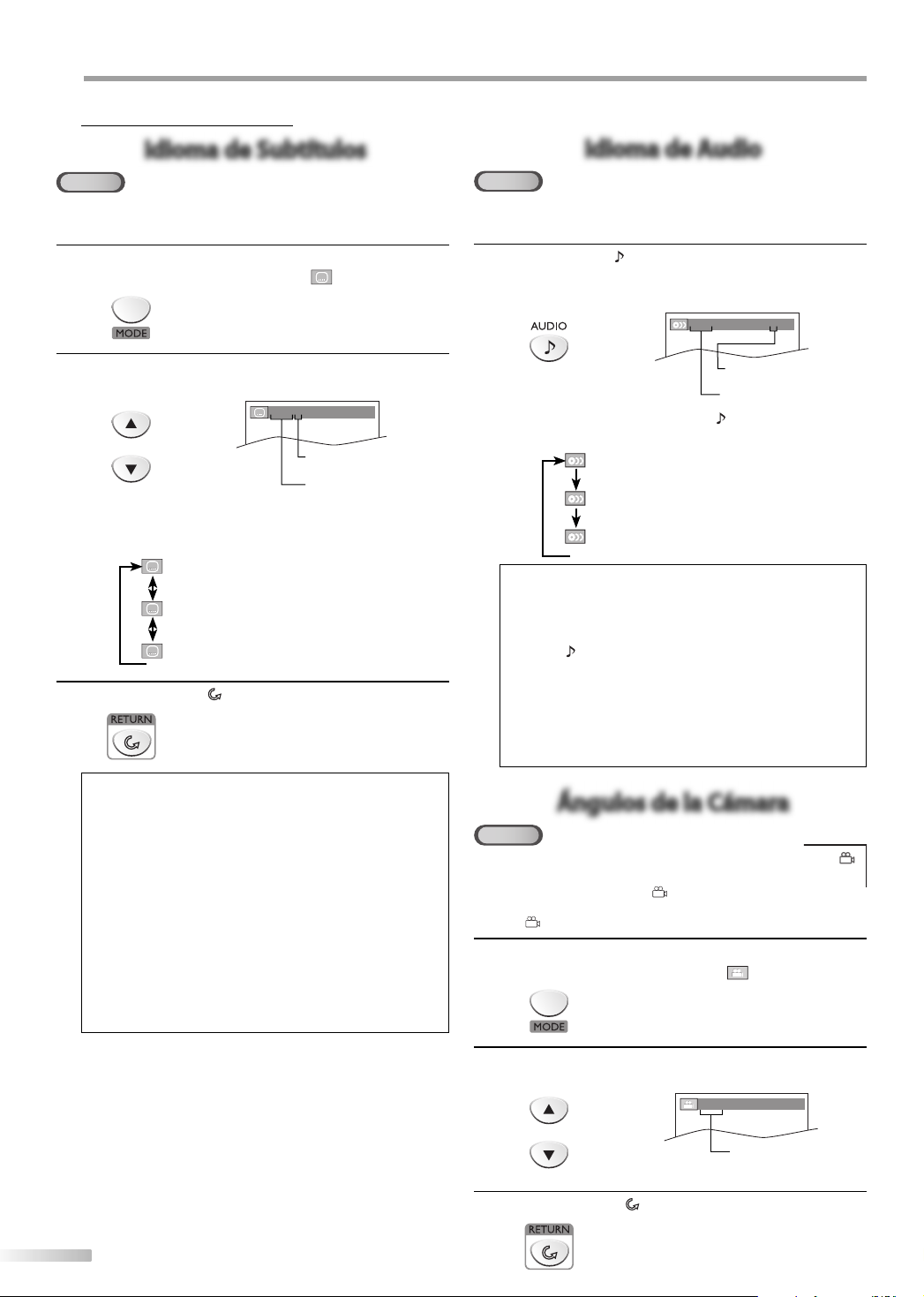

• Subtitles in a Desired Language

- You can select a desired language for displaying subtitle, if that language is available on a DVD-video.

• Selecting a Camera Angle

- You can select the desired camera angle, if a DVD contains sequences recorded from different angles.

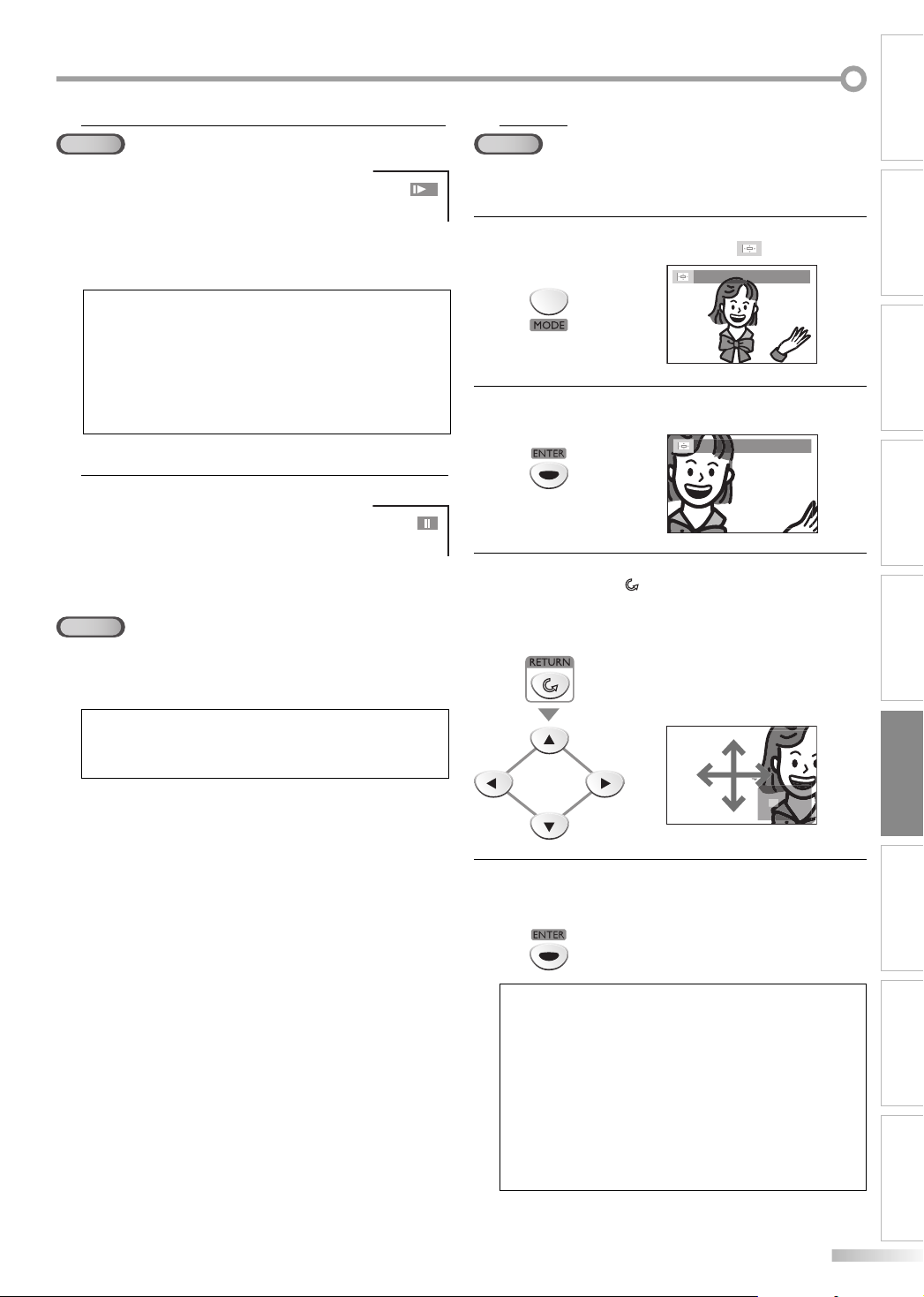

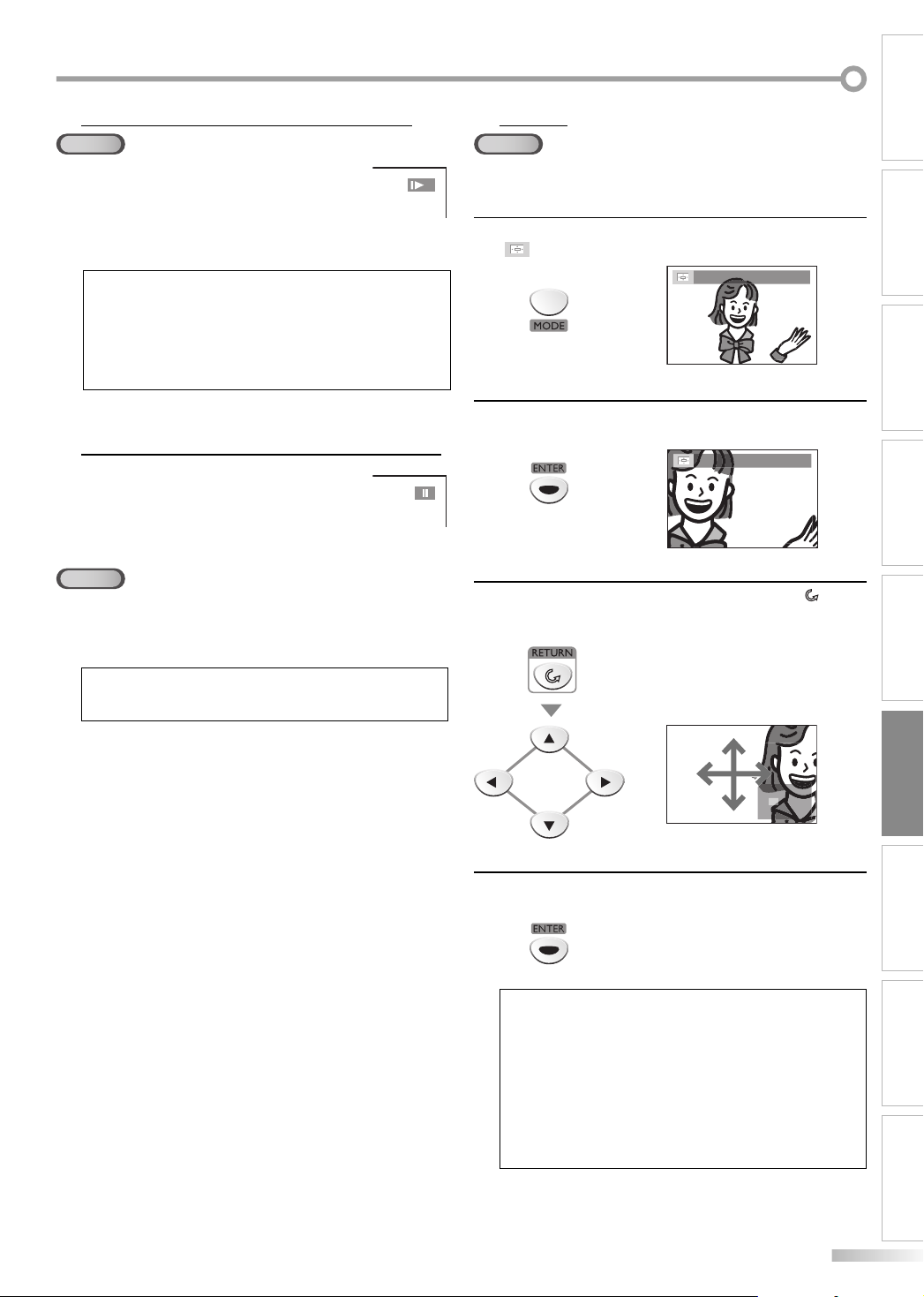

• Zoom

- Allows you to enlarge the size of picture image.

• Black Level Adjustment

• Virtual Surround

• Search

- chapter search / title search / track search / time search

• Marker

- The part on the disc designated by user can be called back.

• Repeat

- chapter / title / track / all / A-B

In stop mode

• Program Playback for audio CD

- You can program the order of tracks to play them back in designated order.

• Random Playback for audio CD

- This unit can shuffle the order of tracks to play them back in randomly.

¨ Accessing from [AUDIO ] button

During playback

• Choices for Audio Language and Stereo Sound Function

- Select your desired languages or stereo sound function

when different options are available on your disc.

INITIAL SETTING

WATCHING TVPREPARATION

OPTIONAL SETTING DVD SETTING TROUBLESHOOTING INFORMATIONOPERATING DVD

NTRODUCTION

Contents5

INTRODUCTION

Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Supplied Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Attaching the Stand . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Tilt Stand . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Trademark Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Symbols Used in this Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

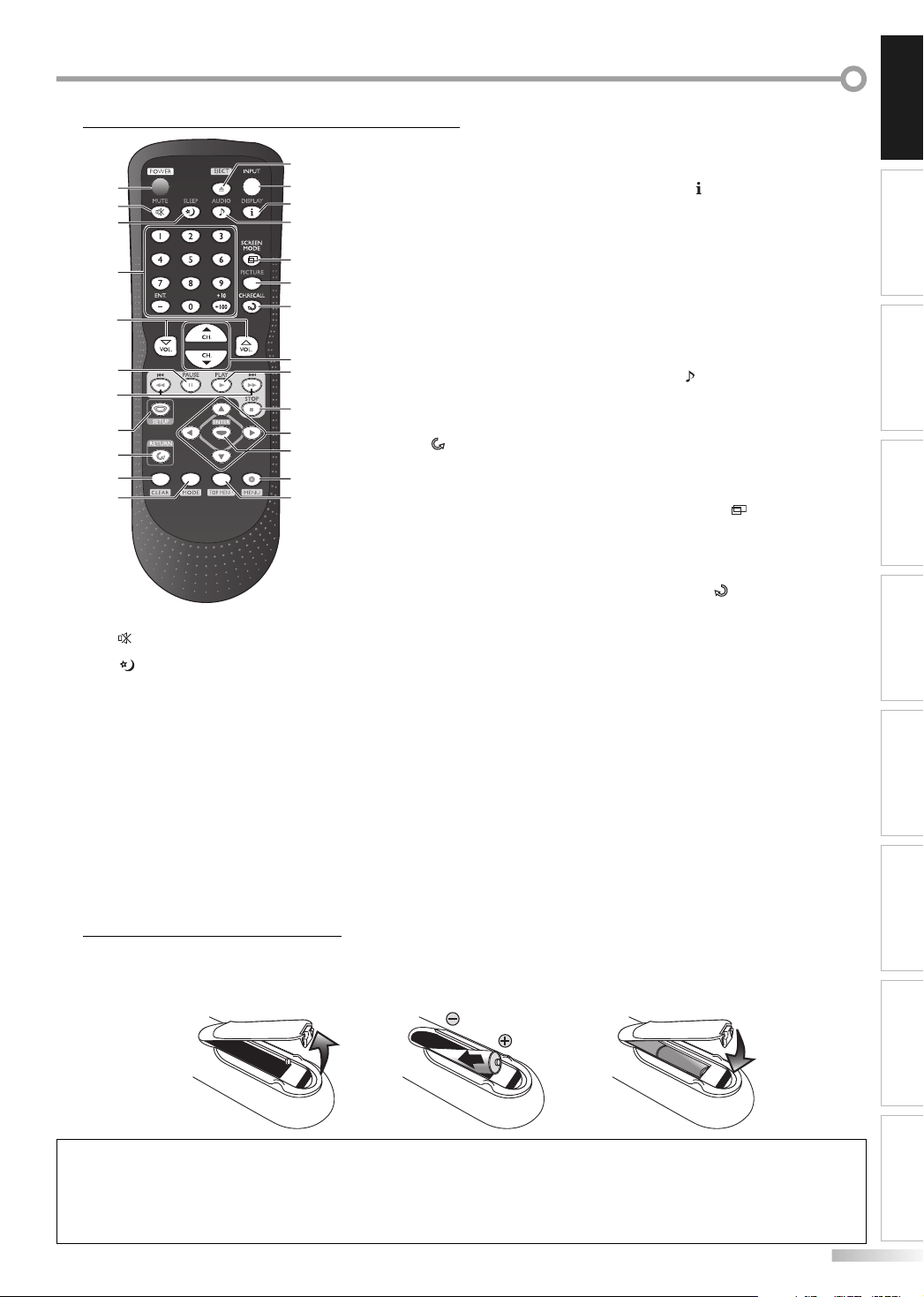

Buttons on the Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Installing the Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

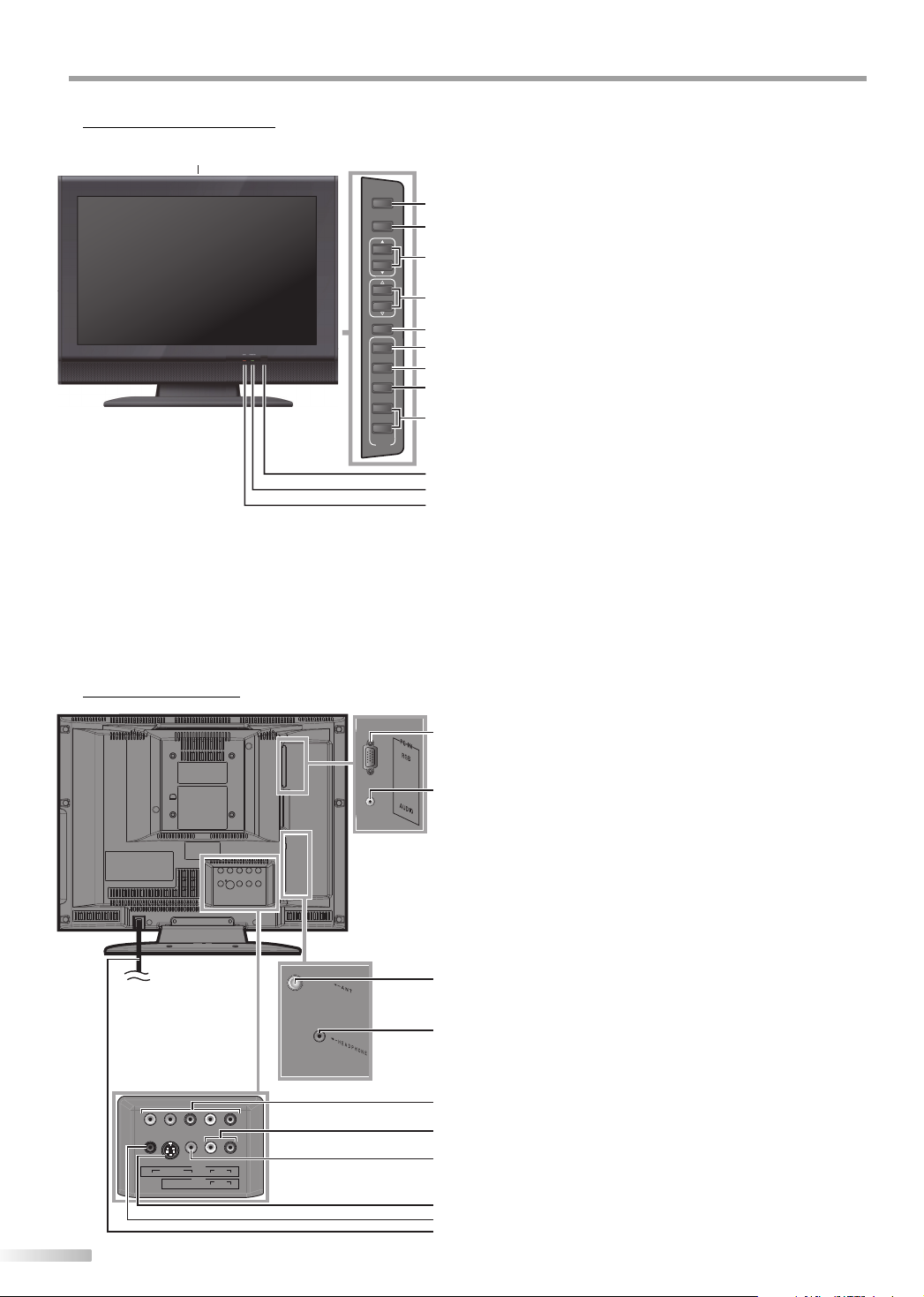

Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

PREPARATION

Basic Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

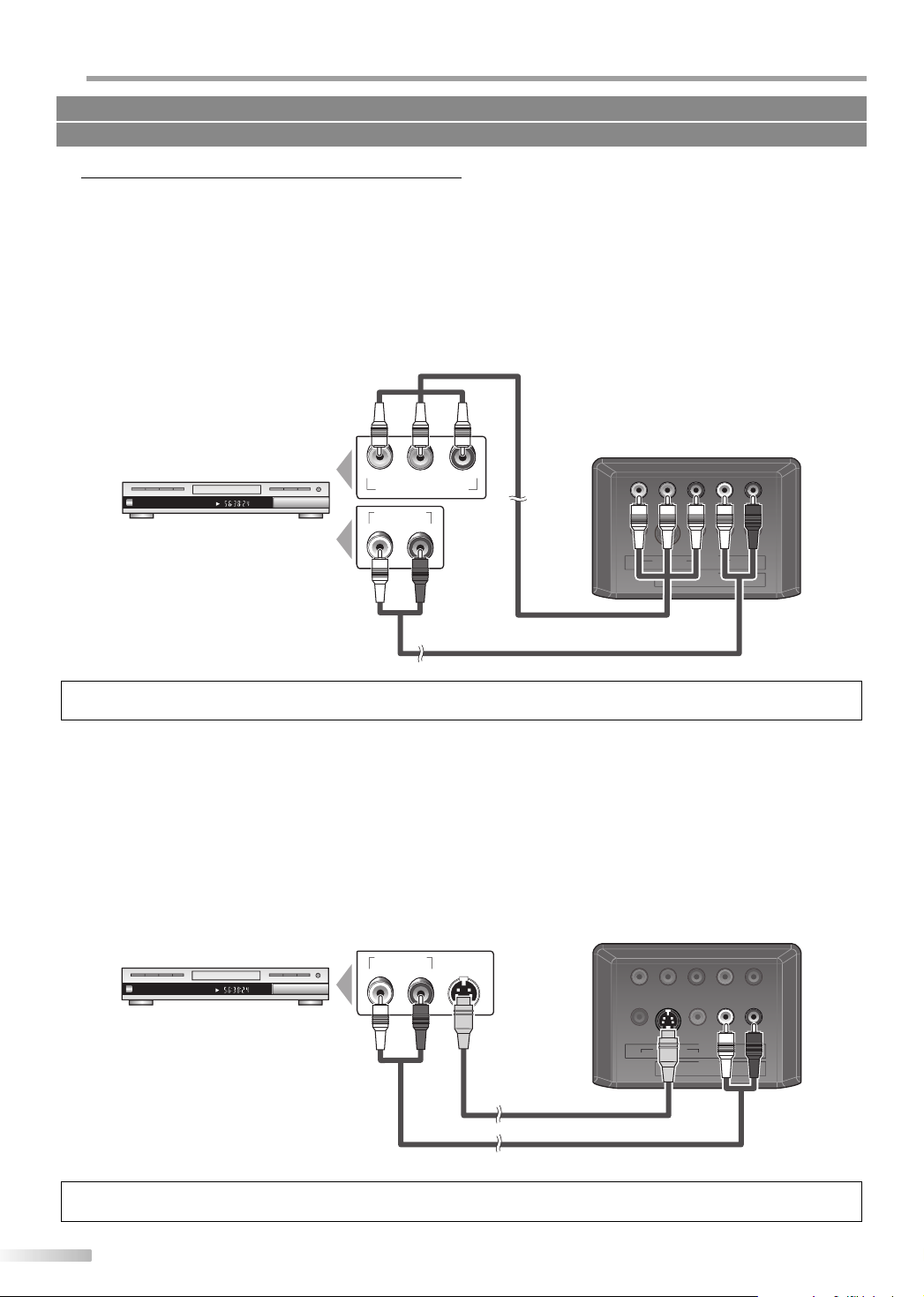

External Device Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

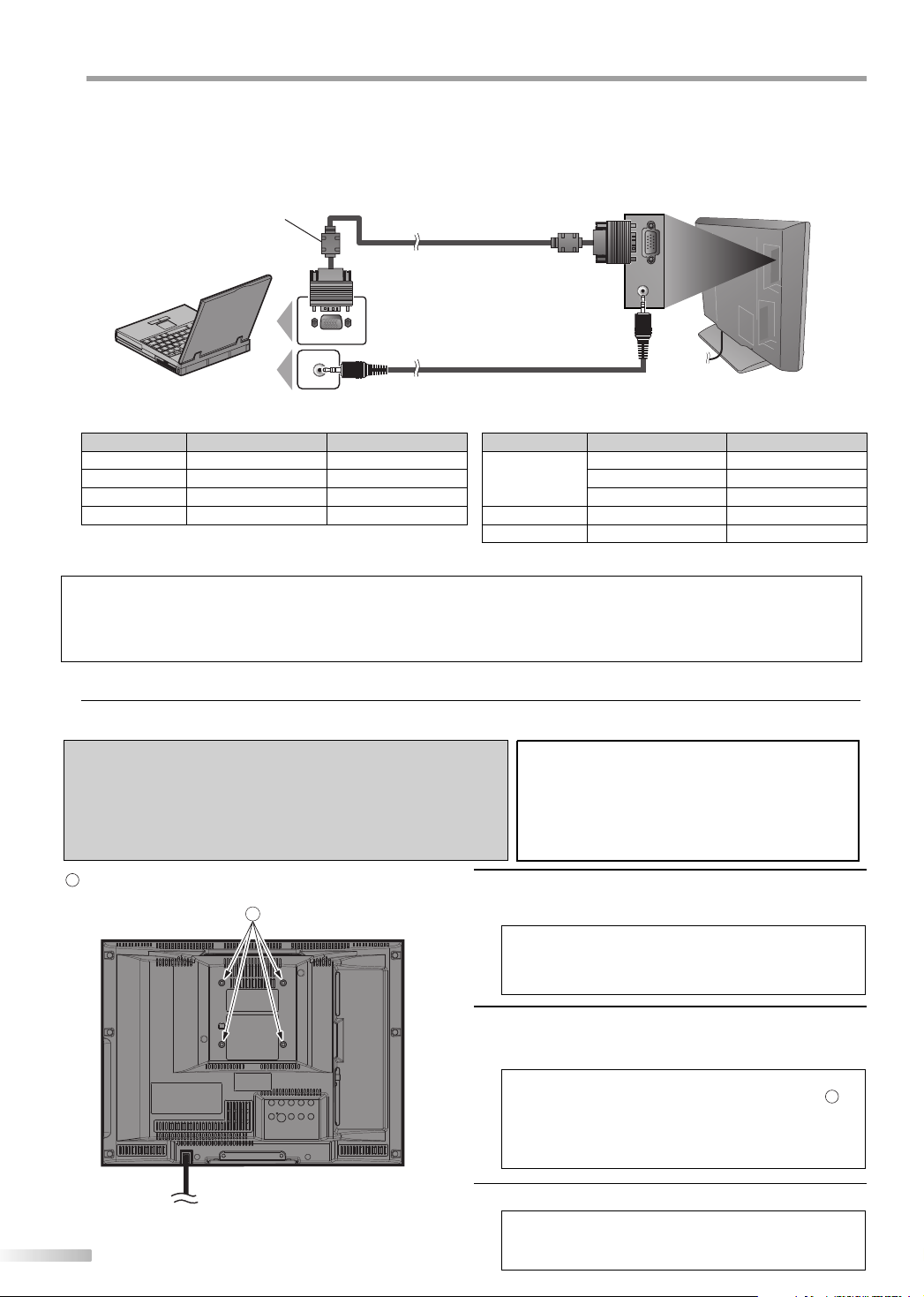

Attaching a Wall Mount Bracket (sold separately) . . . . . . . . . . . . . . . . . . . 12

TV Functions

INITIAL SETTING

Initial Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Main Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Auto Channel Scan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Language Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

WATCHING TV

Channel Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Volume Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Switching Each Input Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Switching Audio Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Sleep Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Screen Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

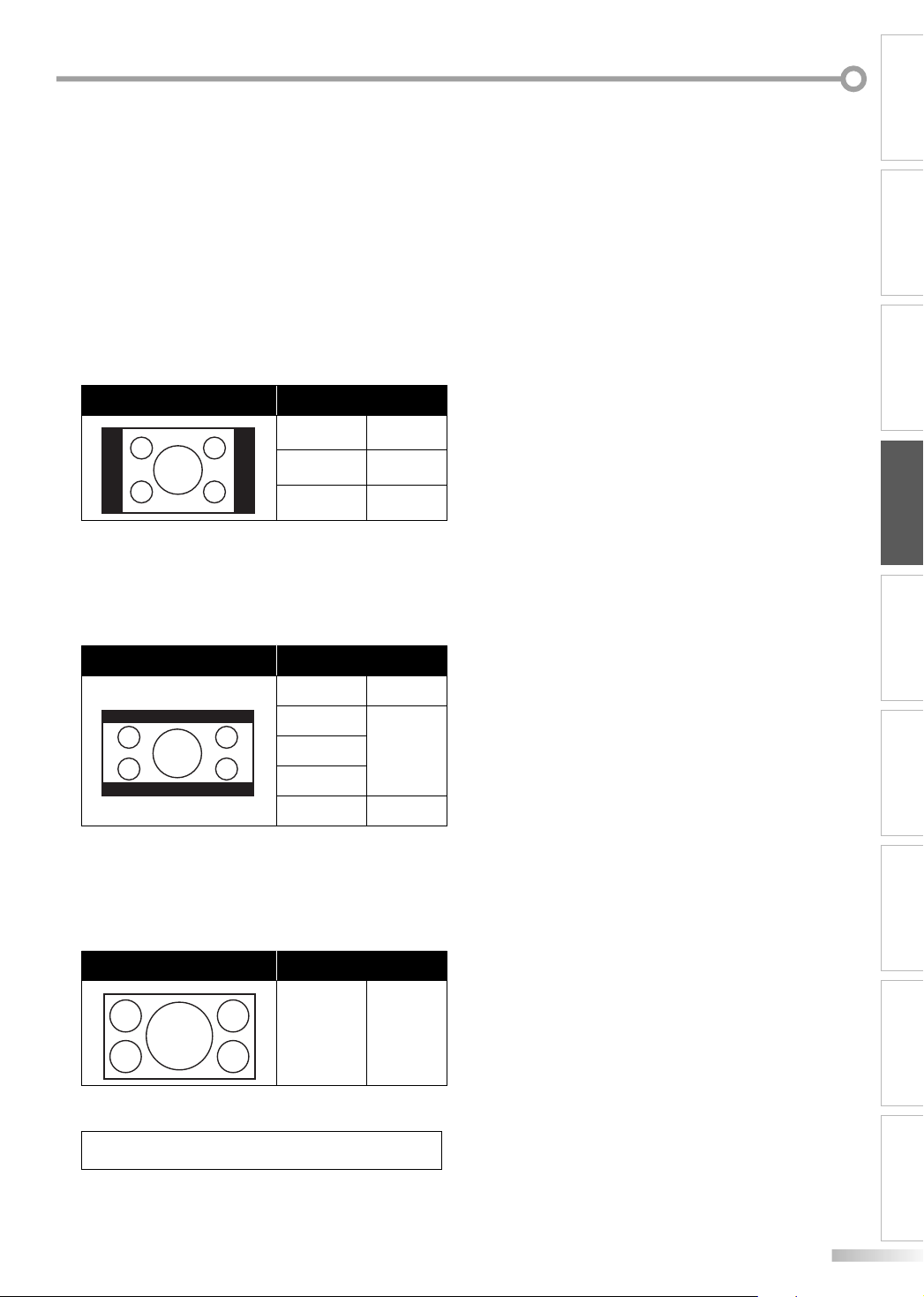

TV Screen Display Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

OPTIONAL SETTING

Channel Add/Delete . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Picture Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Closed Caption. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

DTV Closed Caption. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

DTVCC Style . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Back Light Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Color Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

V-chip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

PC Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

DVD Functions

OPERATING DVD

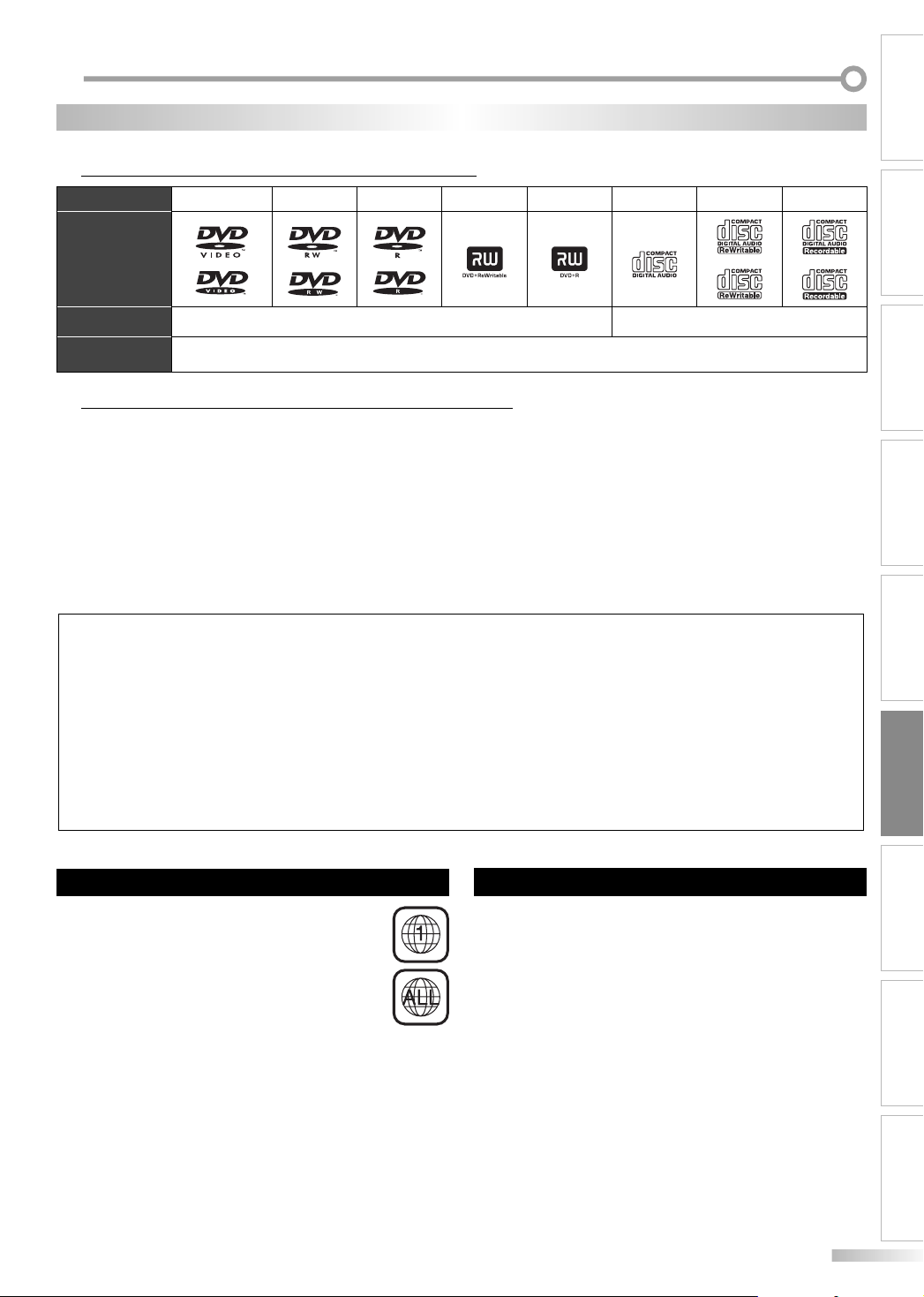

Playable Media . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Unplayable Media . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

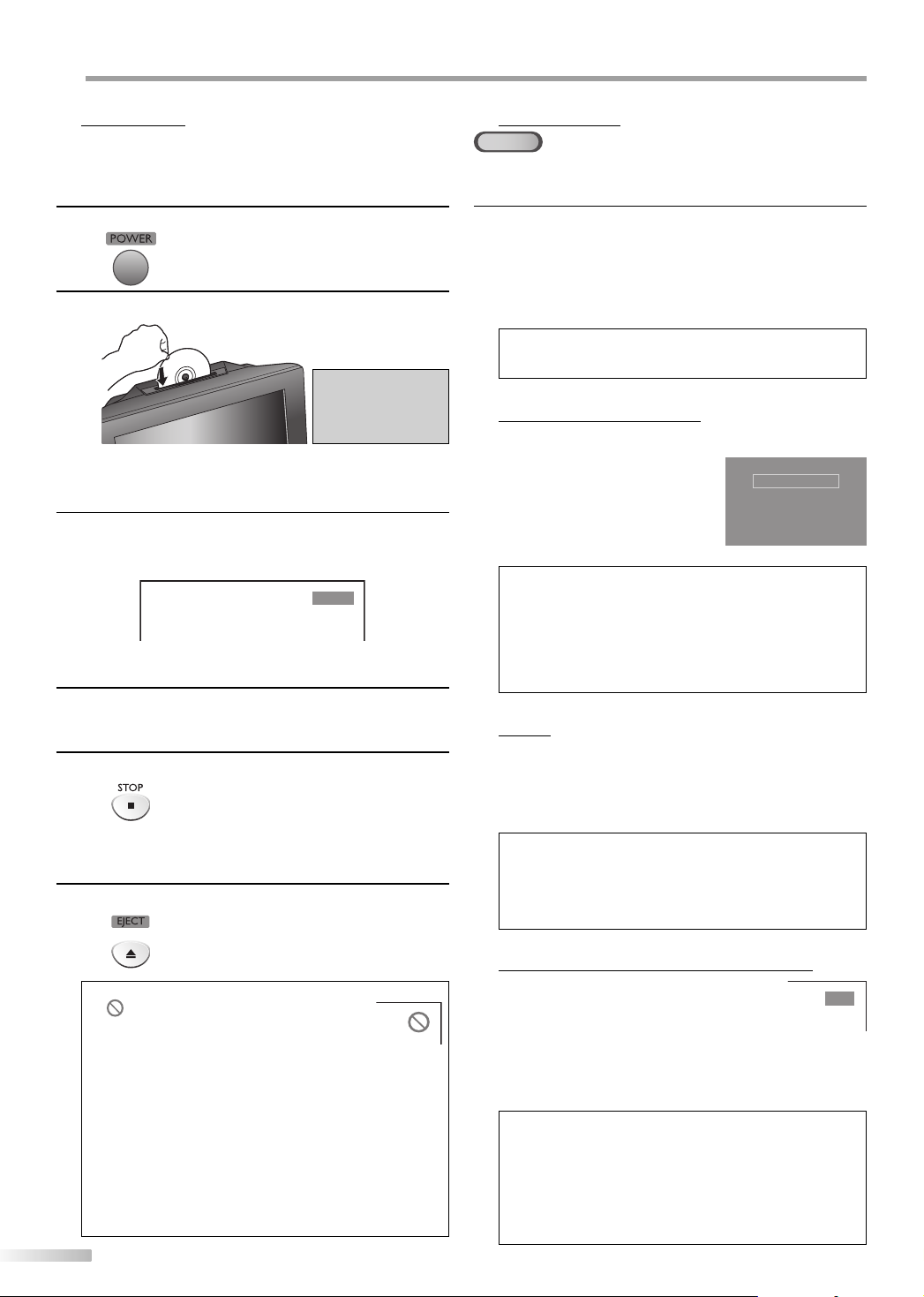

Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Disc Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Resume Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Skip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Fast Forward / Fast Reverse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Slow Forward / Slow Reverse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Paused and Step-by-step Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Zoom . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Search Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Repeat Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Repeat A-B Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Random Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

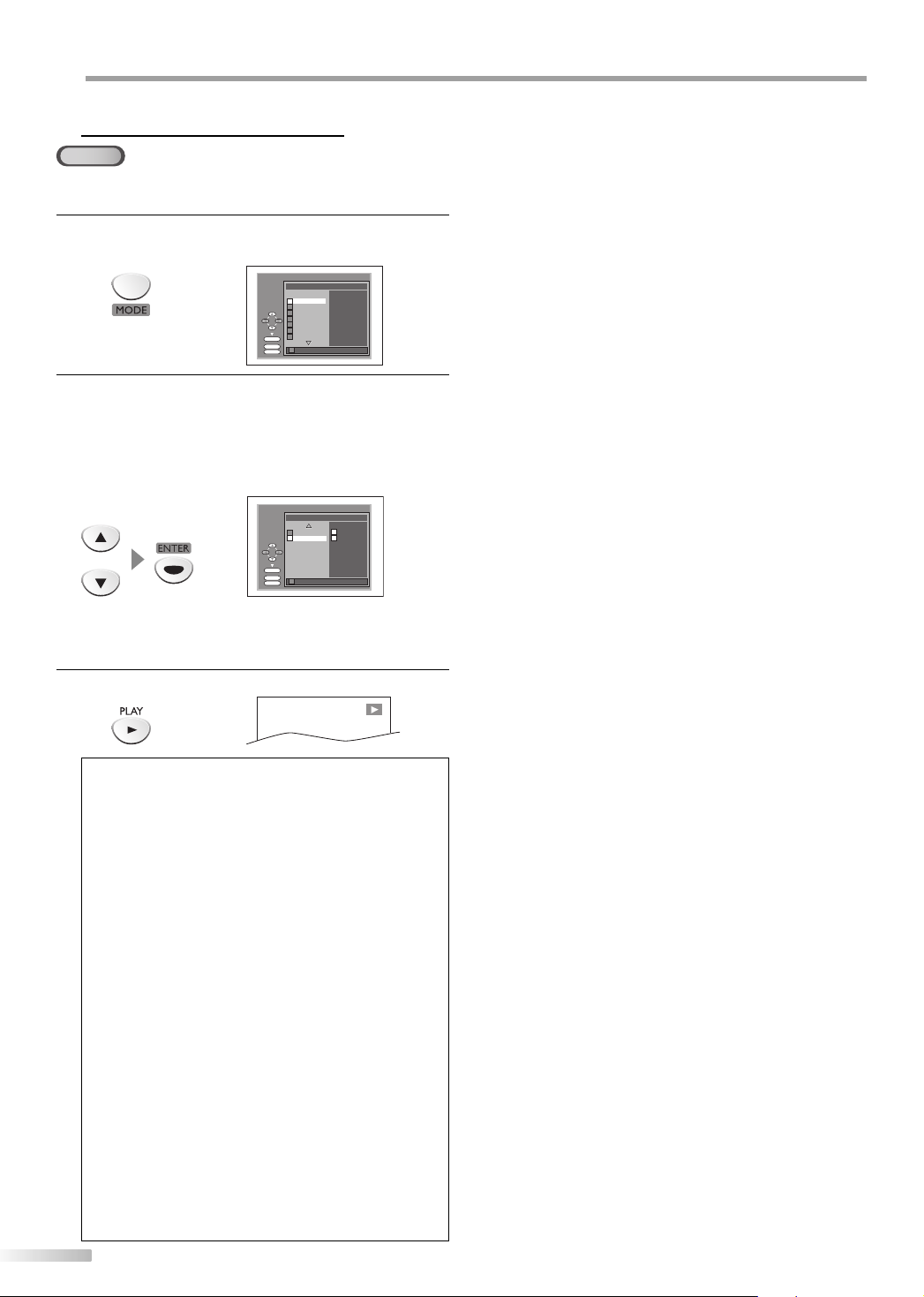

Programmed Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

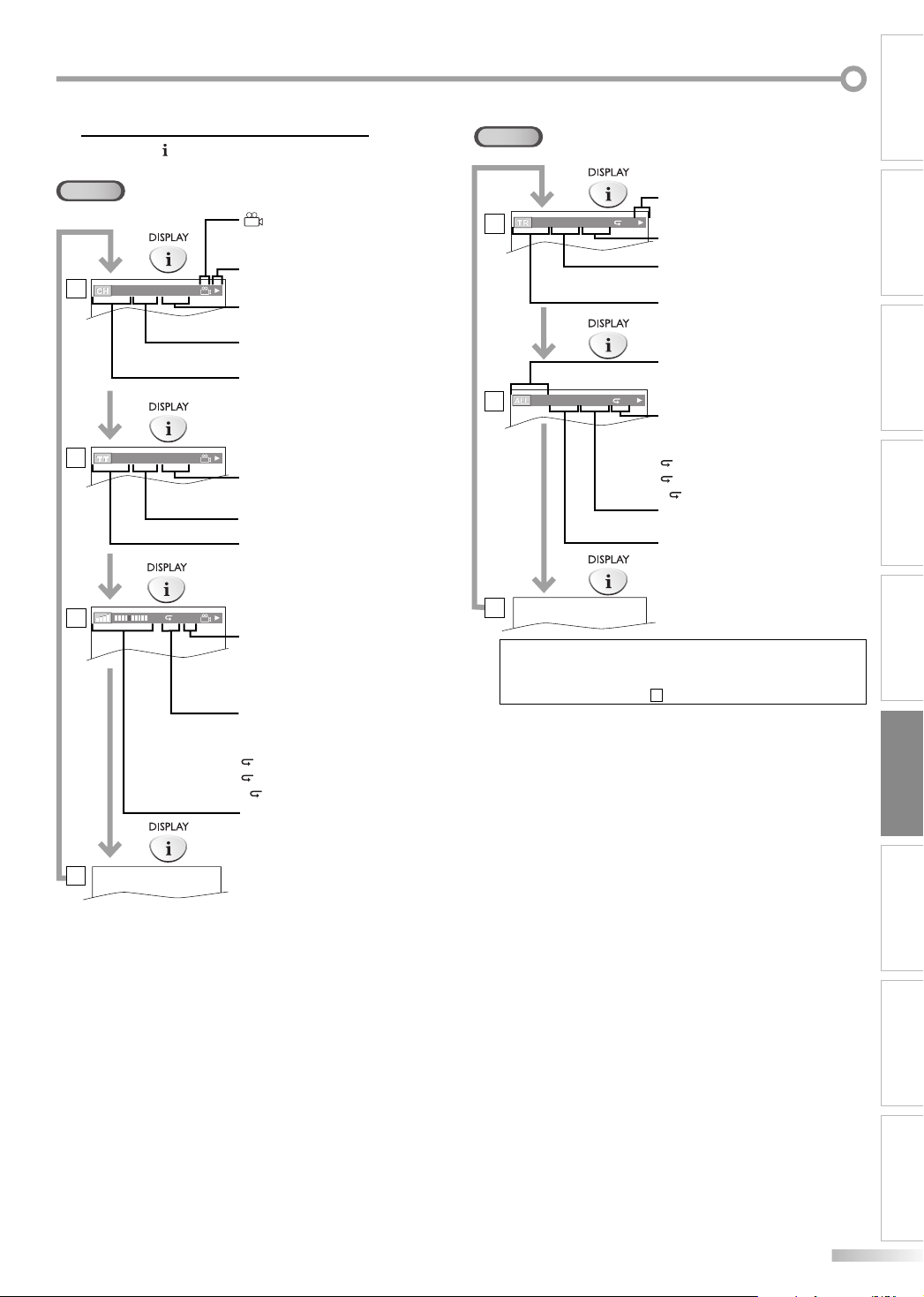

On-screen Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Special Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

DVD SETTING

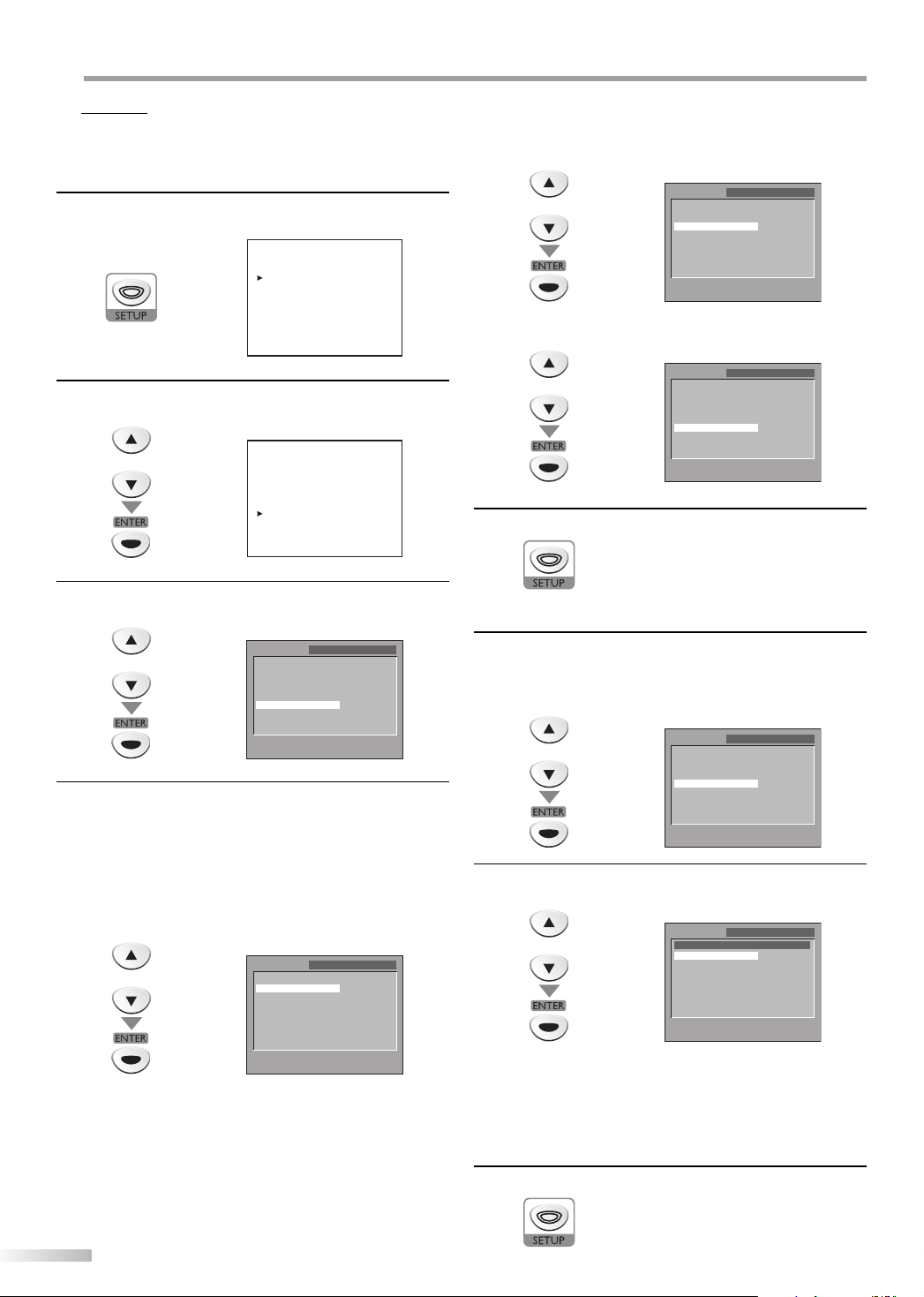

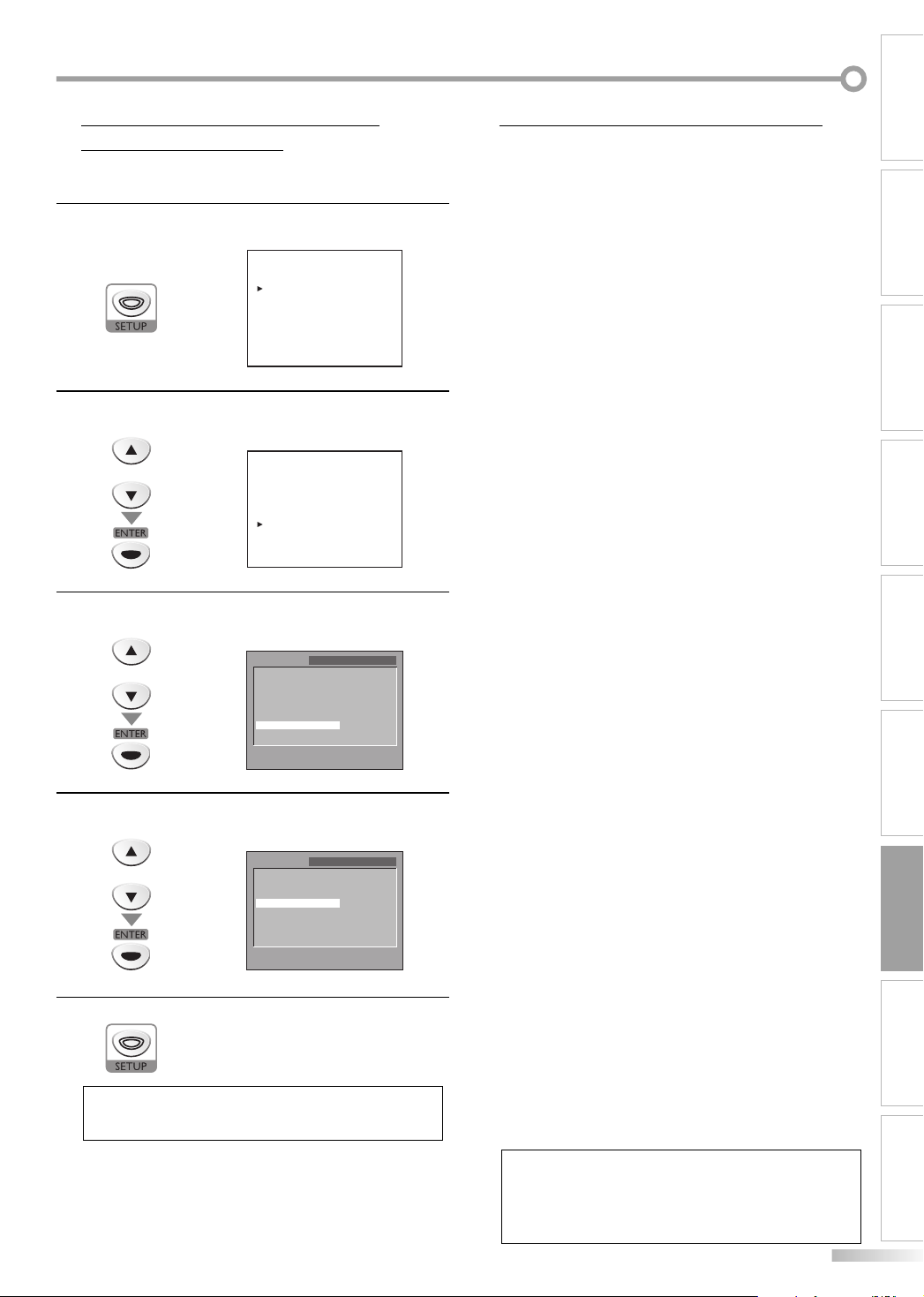

DVD Language Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

DVD Audio Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

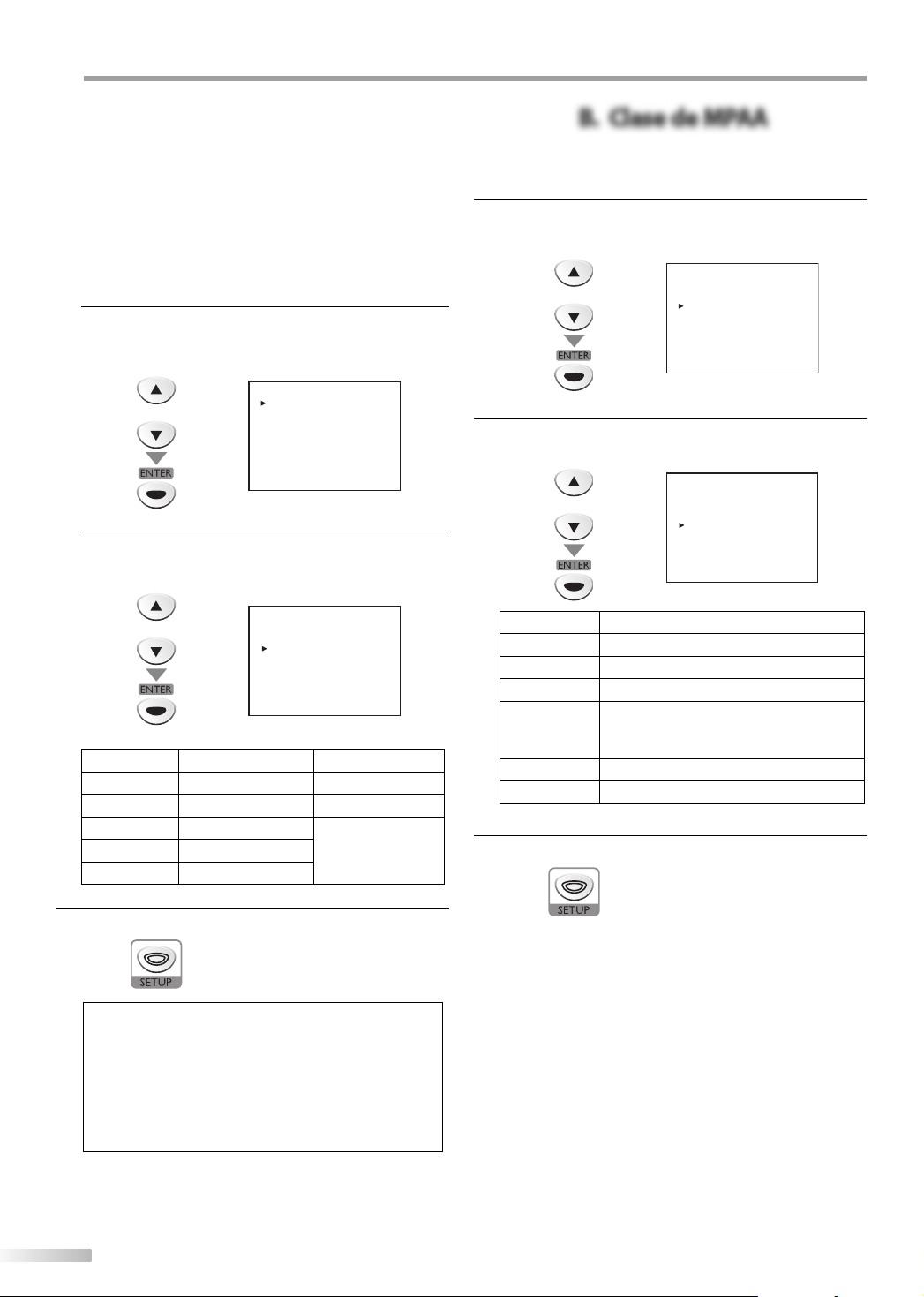

Parental Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Others . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Reset to the Default Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Language Code List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

TROUBLESHOOTING

Troubleshooting Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

FAQ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

INFORMATION

Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

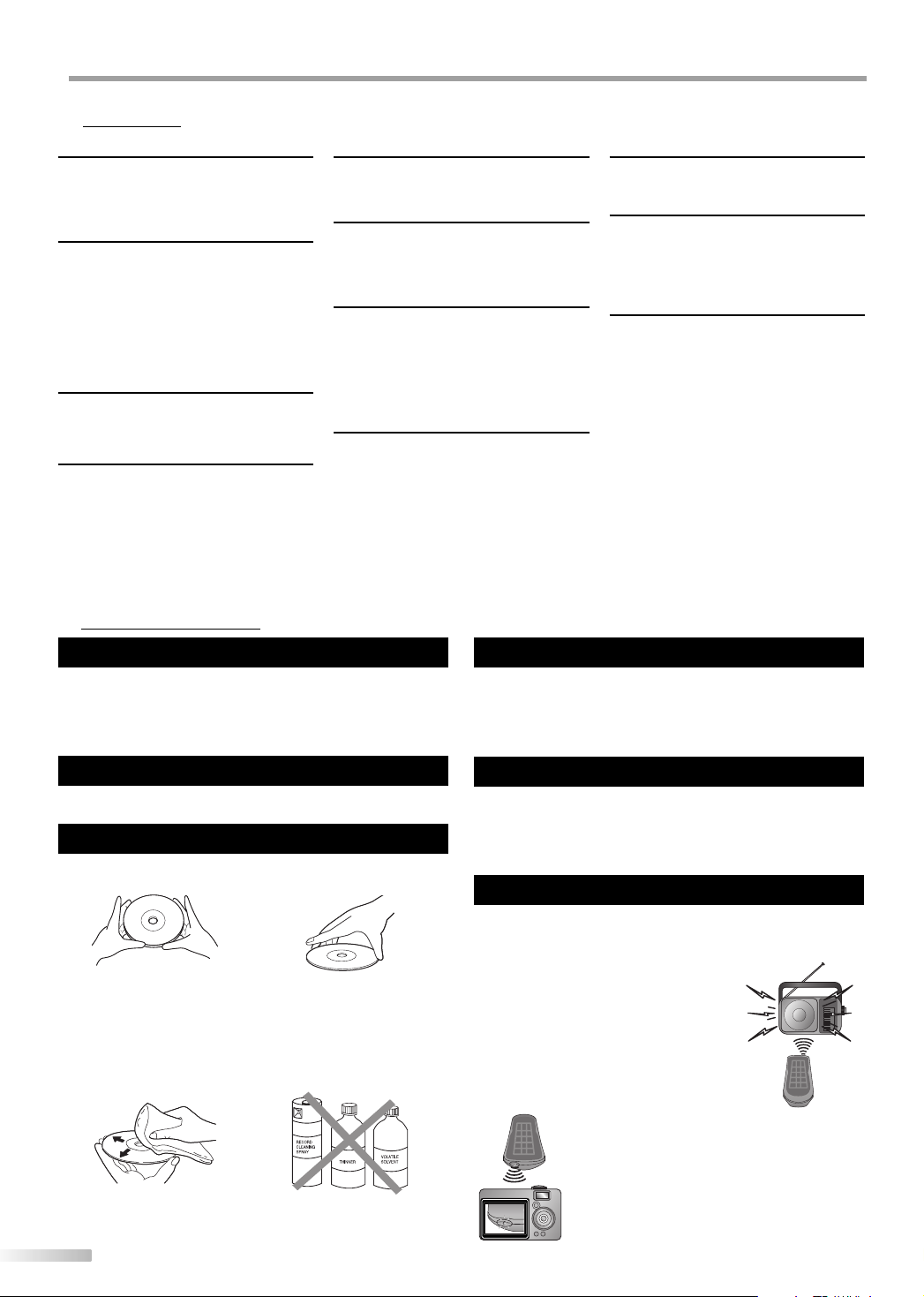

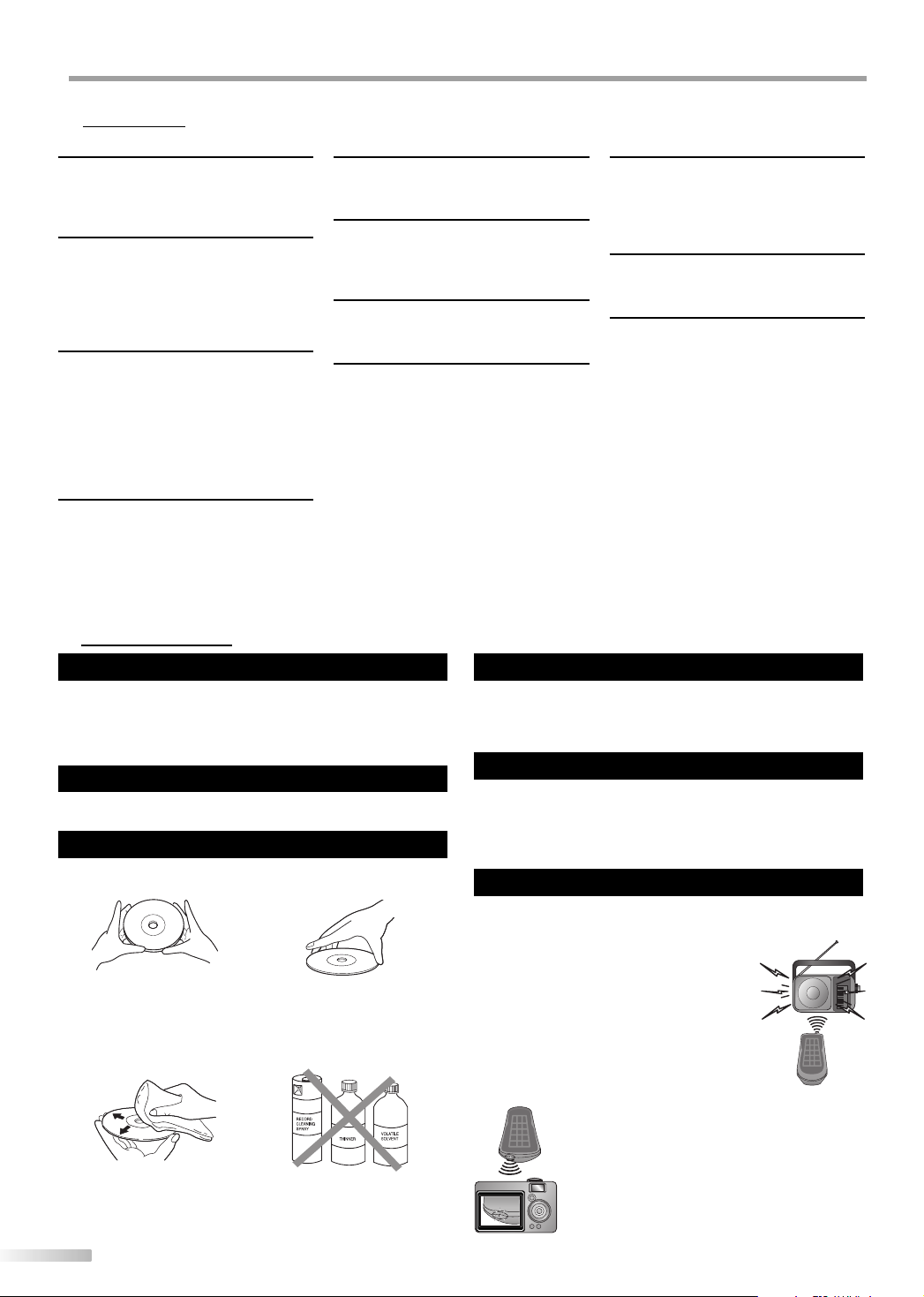

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Cable Channel Designations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

General Speci cations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Electrical Speci cation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Other Speci cations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back cover

any storage medium, in any form or for any purpose without the express prior written consent of Funai. Furthermore, any unauthorized commercial distribution of this manual or any revision hereto is strictly prohibited.

Information in this document is subject to change without notice. Funai reserves the right to change the content herein without the obligation to notify any person or organization of such changes.

with the design is a registered trademark of Funai Electric Co., Ltd and may not be used in any way without the express written consent of Funai. All other trademarks used herein remain the exclusive property of their respective owners. Nothing contained in this manual should be construed as granting, by implication or otherwise, any license or right to use any of the trademarks displayed herein. Misuse of any trademarks or any other content in this manual is strictly prohibited. Funai shall aggressively enforce its intellectual property rights to the fullest extent of the law.

Buttons on the Remote Control5

1 2 3

10 11

1. POWER (p. 13) Press to turn the unit on and off.

2. MUTE

Press to turn the sound on and off.

3. SLEEP (p. 16) Press to activate the sleep timer.

4. Number buttons (p. 15)

• Press to select channels.

• Press to select chapter, title (DVD), or track

-/ENT.

• Press to shift the minor channel from the

+10/+100

•

(p. 15)

(CD) directly.

major channel.

Press to select 100 or higher channels. (CATV)

Press to search if there are minor channels on

the currently selected major channel. (DTV)

13 14 15

19 20

22 23

24 25

5. VOL. X/Y (p. 15)

Press to adjust the volume.

6. PAUSE F (p. 31) Press to pause disc playback.

7. SKIP H / G (p. 30)

Press to skip forward or backward

• chapters, titles (DVD) or tracks (CD).

REV E (p. 30)

•

Press and hold to begin slow reverse playback during the pause mode (DVD) and search backward through a disc (DVD, CD).

FWD D (p. 30)

•

Press and hold to begin slow forward

playback during the pause mode (DVD) and search forward through a disc (DVD, CD).

8. SETUP (p. 13 / p. 38)

Press to display the main menu.

9. RETURN (p. 21)

Press to return to the previous menu

operation.

10. CLEAR (p. 32)

• Press to clear the numbers entered incorrectly.

• Press to cancel the point A for A-B repeat (DVD, CD).

• Press to remove the track number in program input (CD).

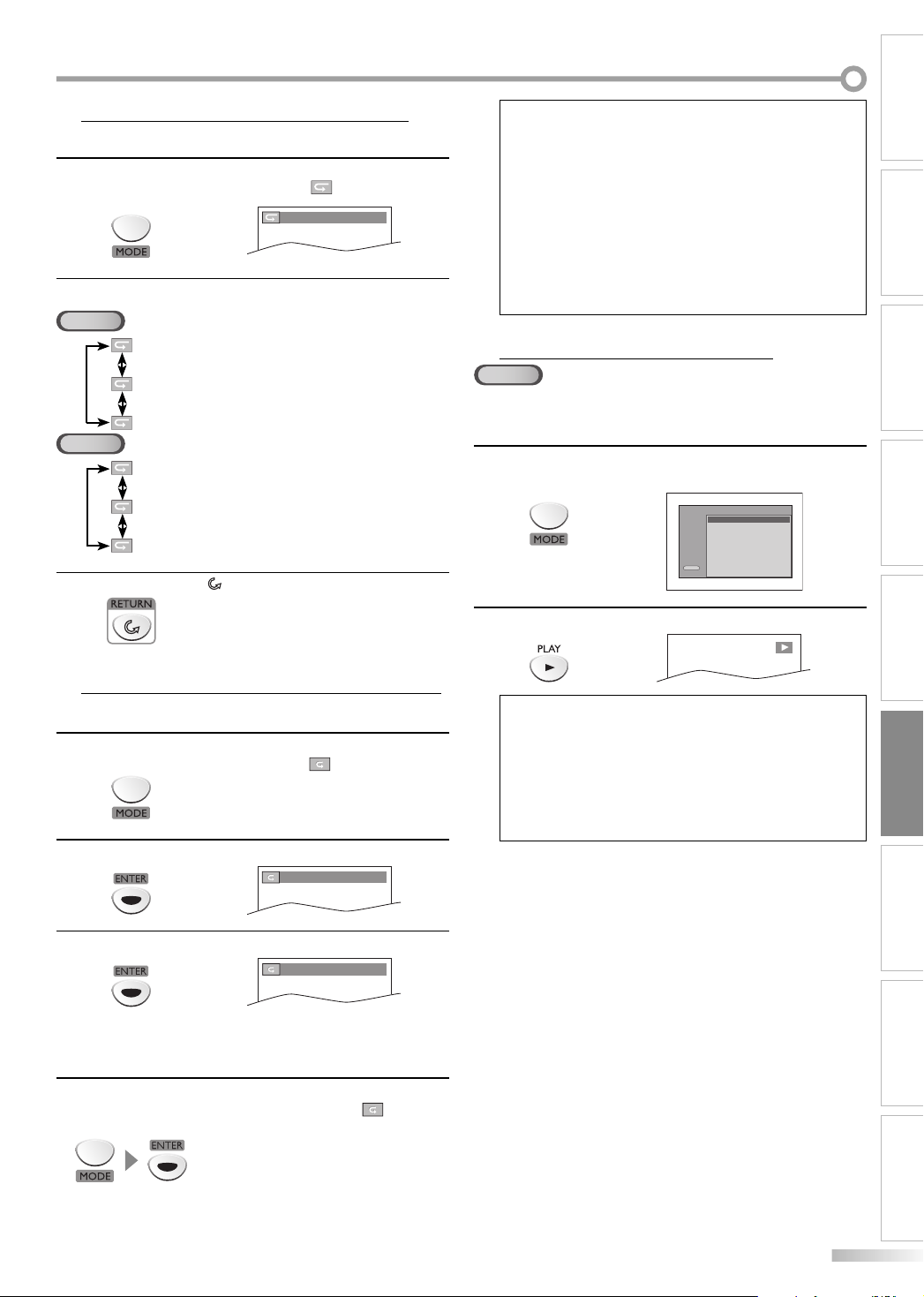

11. MODE (p. 5)

• Press to arrange the playing order or playback randomly (CD).

•

Press to set the black level (DVD) and

the virtual surround (DVD, CD) on or off.

• Press to change the camera angle to see the sequence being played back from different angle (DVD).

• Press to search chapter, title (DVD), time (DVD, CD) or track (CD).

• Press to set the marker (DVD, CD).

• Press to repeat playback chapter, title (DVD), track, disc (CD) repeatedly or between designated point A and B (DVD, CD).

• Press to magnify the part of picture (2x and 4x : DVD).

• Press to select the subtitles on a disc (DVD).

12. EJECT

Press to eject the disc.

13. INPUT (p. 15)

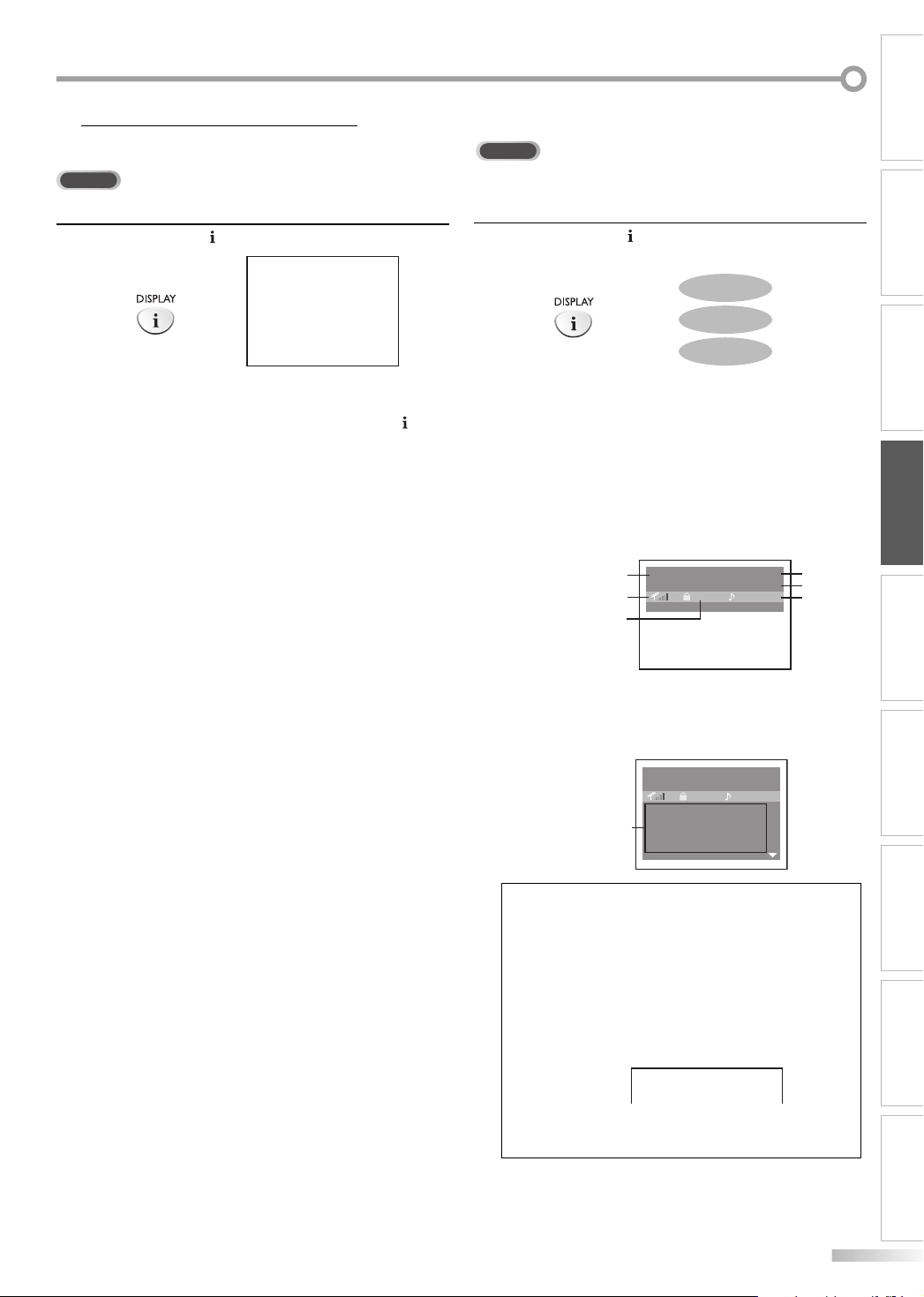

14. DISPLAY (p. 17 / p. 35)

Digital Mode (DTV)

• Press to display the channel number

Analog Mode (TV)

• Press to display the channel number. External Input Mode

• Press to display the currently selected

DVD Mode

• Press to display the current status of

15. AUDIO (p. 16 / p. 36) Digital Mode (DTV)

Analog Mode (TV)

DVD Mode

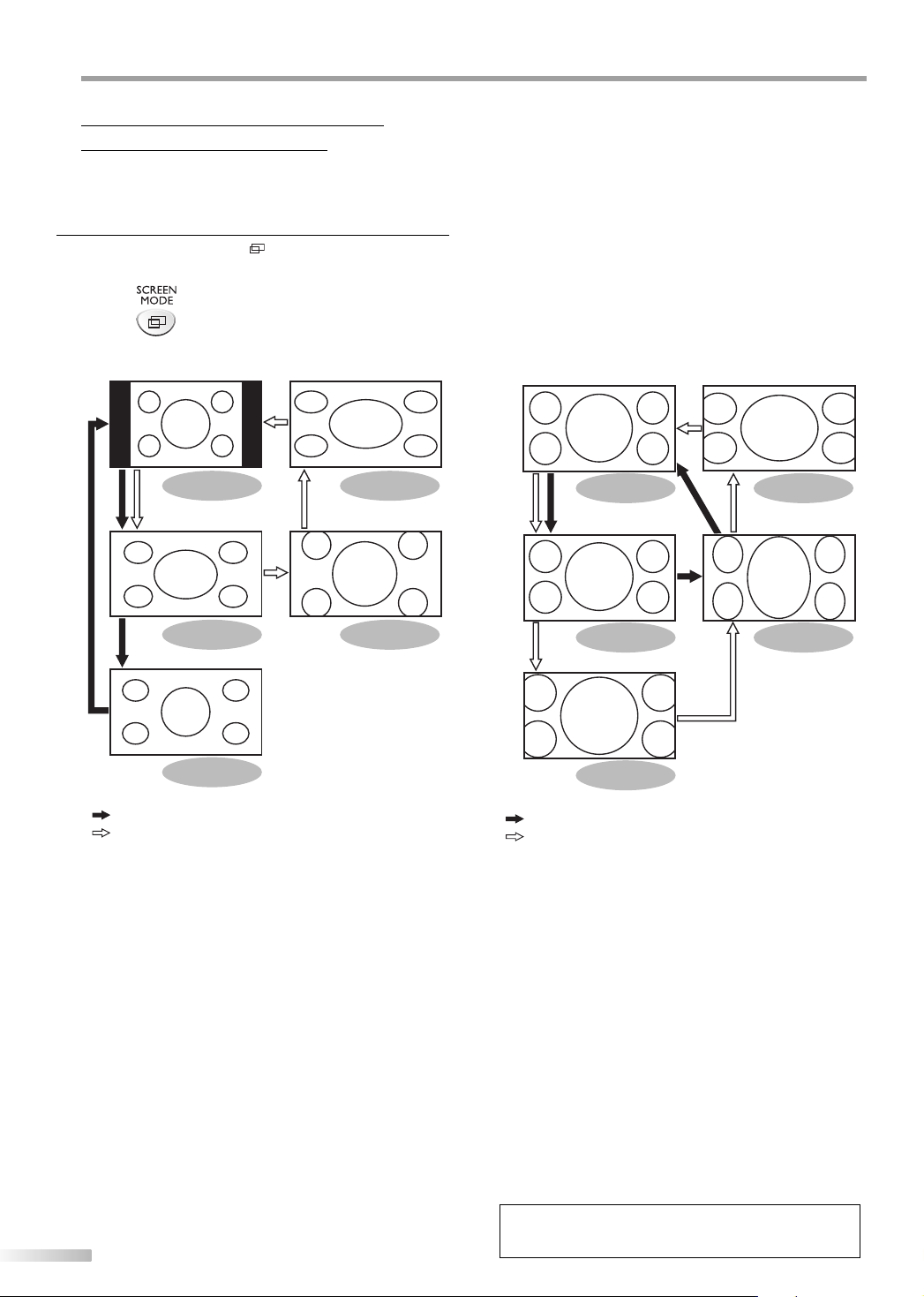

16. SCREEN MODE (p. 18) Press to select aspect ratio available for

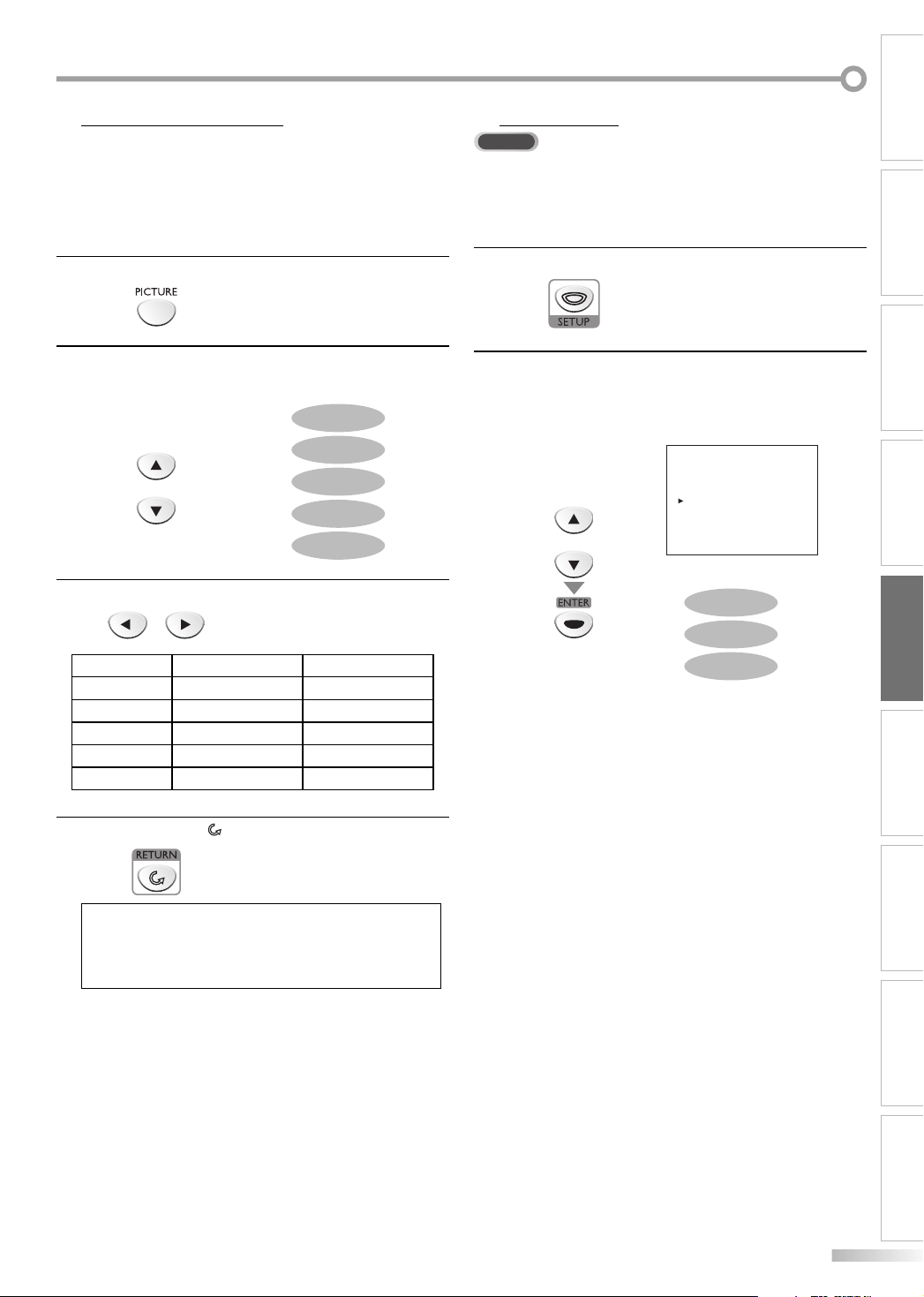

17. PICTURE (p. 21) Press to adjust the picture quality.

18. CH. RECALL (p. 15) Press to return to the previously viewed

19. CH. K/L (p. 15) Press to select channels.

20. PLAY B (p. 30) Press to begin disc playback.

21. STOP C (p. 30) Press to stop disc playback.

22. s / B / K / L (p. 13) Press to move left/ right/ up/ down

23. ENTER (p. 13)

Press to confirm your selection.

24. MENU (p. 30) Press to display the menu on a disc.

25. TOP MENU (p. 30) Press to display the top menu on a disc

(p. 30)

Press to switch the input modes.

and the program information.

external input mode.

the disc.

• Press to select the audio language.

• Press to select the audio mode.

• Press to select the audio language (DVD), or sound mode (CD).

the TV screen.

channel.

through the items.

(DVD).

INTRODUCTION

INITIAL SETTING

WATCHING TVPREPARATION

OPTIONAL SETTING DVD SETTING TROUBLESHOOTING INFORMATIONOPERATING DVD

Installing the Batteries

Install the batteries (AA x 2) matching the polarity indicated inside battery compartment of the remote control.

21 3

Battery Precautions:

• Be sure to follow the correct polarity as indicated in the battery compartment. Reversed batteries may cause damage to the device.

• Do not mix different types of batteries together (e.g., Alkaline and Carbon-Zinc) or old batteries with fresh ones.

• If the device is not to be used for a long period of time, remove the batteries to prevent damage or injury from possible battery leakage.

• Do not try to recharge batteries; they can overheat and rupture.

NTRODUCTION

Control Panel5

side of the unit

POWER

INPUT SELECT

CHANNEL

VOLUME

SETUP

EJECT

PLAY

STOP

H/E

SKIP/SEARCH

G/D

DVD

1. POWER (p. 13)

Press to turn the unit on and off.

2. INPUT SELECT (p. 15)

Press to switch the input modes.

3. CHANNEL K / L (p. 15)

5 6

Press to select channels or move up/down through the main menu items.

4. VOLUME X / Y (p. 15)

Press to adjust the volume.

5. SETUP (p. 13)

Press to display the main menu.

6. EJECT

Press to eject the disc.

7. PLAY B (p. 30)

Press to begin disc playback.

8. STOP C (p. 30)

Press to stop disc playback.

9. SKIP H / G (p. 30)

Press to skip forward or backward chapters, titles (DVD) or tracks (CD).

10 11 12

SEARCH E / D buttons (p. 30) Press and hold to begin slow forward or slow reverse playback during the pause mode (DVD) and search forward or backward through a disc (DVD, CD).

10. infrared sensor window

Receives infrared rays transmitted from the remote control.

11. power on indicator

Lights up when power is on.

12. DVD indicator

Lights up when the disc is inserted.

13. disc loading slot (p. 30)

Insert the disc with label facing forward.

(p. 30)

Rear Panel5

1. PC input jack (p. 12)

VGA cable connection for PC.

2. audio input jack for PC connection (p. 12) Mini-plug audio cable connection for PC.

3. antenna input jack (p. 9) RF coaxial cable connection for your antenna or

cable /satellite box.

4. headphone jack

Headphone connection for personal listening.

5. component video and audio input jack (p. 10) RCA component video and RCA audio connection for

external devices.

6. audio input jack (p. 10)

RCA audio connection for external devices.

7. video input jack (p. 11) RCA video connection for external devices.

8. S-video input jack (p. 10)

S-video connection for external devices.

9. coaxial digital audio output jack (p. 11) Coaxial digital audio connection for a decoder or an

VIDEO 2

AUDIOCOMPONENT

PrPbY

VIDEO 1

AUDIO

VIDEOS-VIDEO

COAXIAL

audio receiver.

10. AC power cord

Connect to a standard AC outlet to supply power to

9 10

this unit.

REPARATION

Cables not included.

Please purchase the necessary cables at your local store.

Basic Connection

This section describes how to connect the unit to an antenna, cable/satellite box, etc.

Note:

• Be sure your antenna or other device is connected properly before plugging in the power cord.

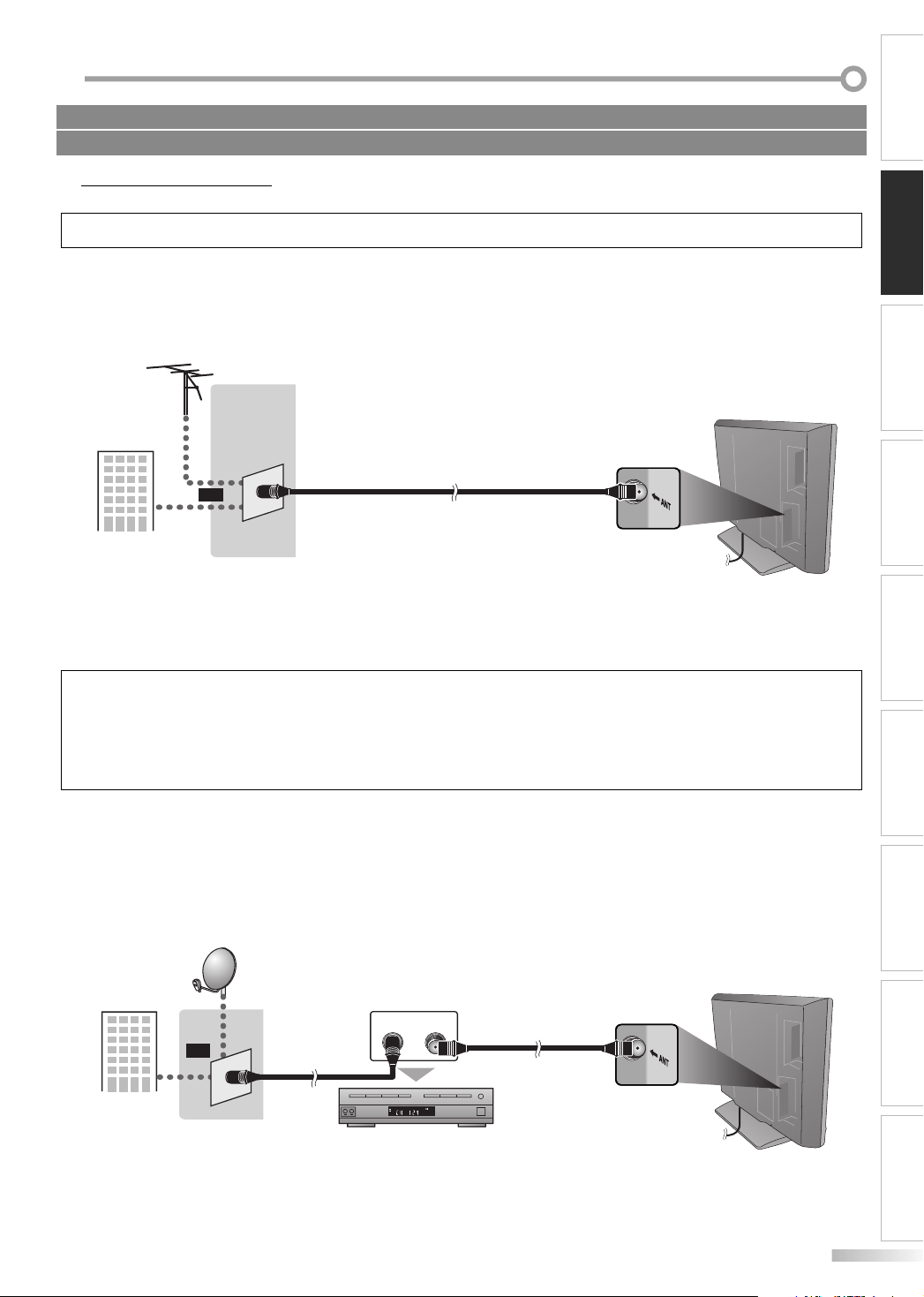

[Antenna Connection]

Connect the RF coaxial cable on your home outlet to the antenna input jack of this unit.

e.g.)

VHF / UHF

antenna

PREPARATION

rear of this unit

RF coaxial cable

cable TV

company

Once connections are completed, turn on the unit and begin initial setup.

Channel scanning is necessary for the unit to memorize all available channels in your area. (Refer to “Initial Setup” on page 13.)

Note:

• For your safety and to avoid damage to this unit, please unplug the RF coaxial cable from the antenna input jack before moving the unit.

• If you use an antenna to receive analog TV, it should also work for DTV reception. Outdoor or attic antennas will be more effective than settop versions.

• To switch your reception source easily between antenna and cable, install an antenna selector.

• If you connect to the cable system directly, contact the CATV installer.

[Connection to Cable Box or Satellite Box]

Use an RF coaxial cable to connect the antenna input jack of the unit to the antenna output jack of the cable/satellite box.

e.g.)

satellite dish

rear of this unit

ANT OUTANT IN

RF coaxial cable

WATCHING TVINITIAL SETTING OPTIONAL SETTING

OPERATING DVDINTRODUCTION

DVD SETTING TROUBLESHOOTING INFORMATION

cable TV

company

cable/satellite box

* Required cables and connecting methods differ depending on the cable/satellite box.

For more information, please contact your cable/satellite provider.

STEREO PCM

REPARATION

(red)

(blue)

(green)

Cables not included.

Please purchase the necessary cables at your local store.

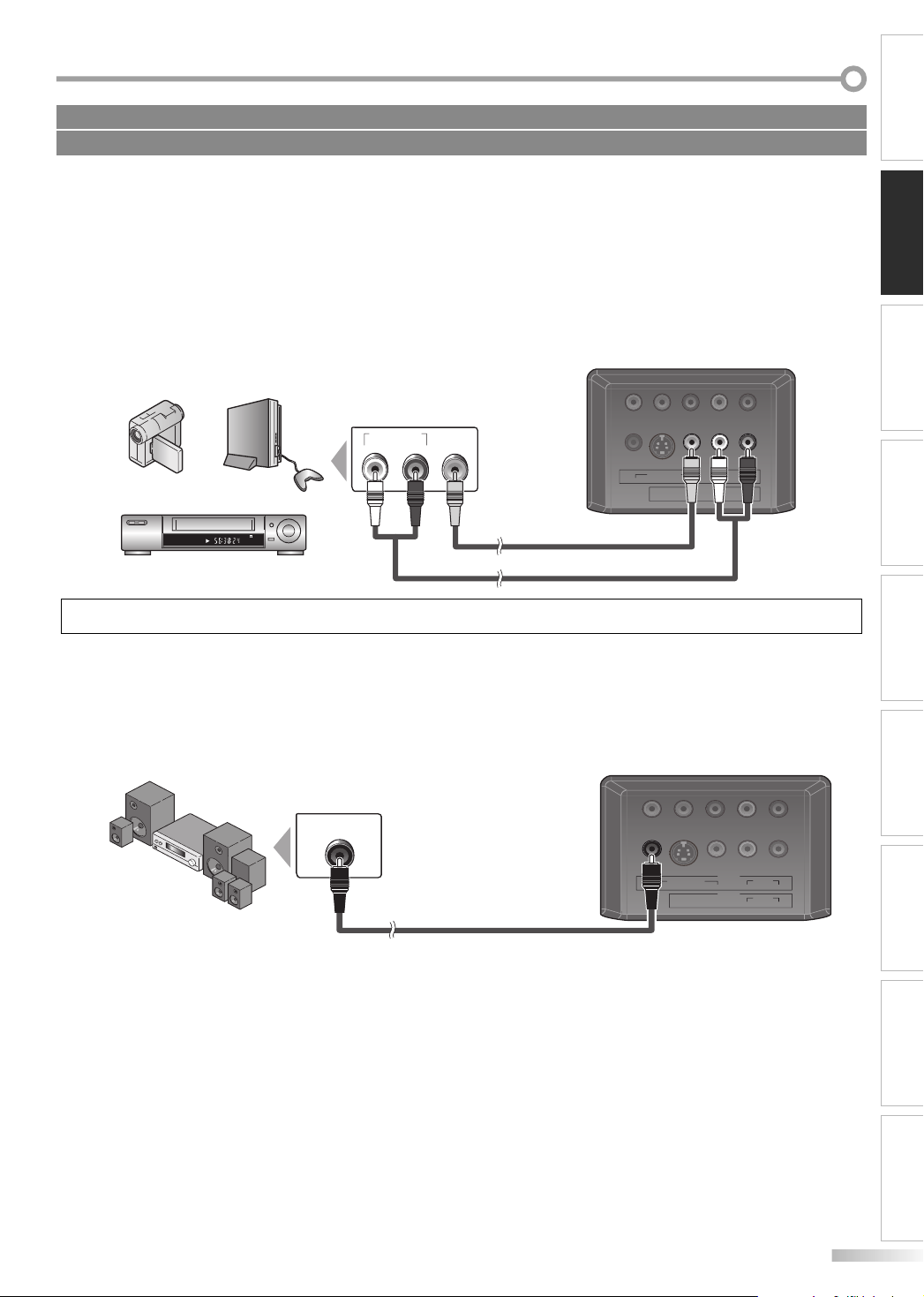

External Device Connection

[Component Video Connection]

RCA component video connection offers better picture quality for video devices connected to the unit. Use an RCA component video cable to connect the unit to external video devices equipped with component video output jacks. If you connect to the unit’s component video input jacks, connect an RCA audio cable to the audio L/R jacks of VIDEO2.

e.g.)

RCA component video cable

(red)(blue)(green)

rear of this unit

Pb/Cb Pr/CrY

TITLE 5 CHAPTER 15 REPEAT A-B

DVD player with the component video output jacks

COMPONENT VIDEO OUT

AUDIO OUT

(green)

COAXIAL

(blue)

(red)(blue)(green)

(red)

VIDEOS-VIDEO

VIDEO 2

PrPbY

VIDEO 1

AUDIOCOMPONENT

AUDIO

RCA audio cable

Note:

• This unit accepts 480i / 480p / 720p / 1080i video signals.

[S-video Connection]

S-video connection offers good picture quality for video devices connected to the unit. Use an S-video cable to connect the unit to external video devices equipped with S-video output jack. If you connect to the unit’s S-video input jack, connect an RCA audio cable to the audio L/R jacks of VIDEO1.

e.g.)

rear of this unit

S-VIDEO

OUT

VIDEO 2

AUDIOCOMPONENT

PrPbY

VIDEO 1

AUDIO

COAXIAL

VIDEOS-VIDEO

S-video cable

RCA audio cable

TITLE 5 CHAPTER 15 REPEAT A-B

DVD player with the S-video output jack

AUDIO OUT

Note:

• If you connect to the S-video input jack and the video input jack at the same time, the S-video connection will have priority.

Cables not included.

Please purchase the necessary cables at your local store.

[Video Connection]

RCA video connection offers standard picture quality for video devices connected to the unit. Use an RCA video cable to connect the unit to external video devices equipped with video output jack.

If you connect to the unit’s video input jack, connect an RCA audio cable to the audio L/R jacks of VIDEO1. When the audio jack of the video device is monaural, connect an RCA audio cable to the audio L input jack.

e.g.)

rear of this unit

PREPARATION

camcorder video game

STEREO

STAND-BY

VCR

AUDIO OUT

VIDEO

OUT

VIDEO 2

AUDIOCOMPONENT

PrPbY

VIDEO 1

AUDIO

COAXIAL

VIDEOS-VIDEO

RCA video cable

RCA audio cable

Note:

• If you connect to the S-video input jack and the video input jack at the same time, the S-video connection will have priority.

[Digital Audio Output Connection (for digital broadcasting only)] If you connect this unit to an external digital audio device, you can enjoy multi-channel audio like 5.1ch digital broadcasting sound. Use a digital audio coaxial cable to connect the unit to external digital audio devices.

e.g.)

rear of this unit

DIGITAL AUDIO

COAXIAL IN

VIDEO 2

AUDIOCOMPONENT

Dolby Digital

decoder

digital audio coaxial cable

COAXIAL

PrPbY

VIDEO 1

VIDEOS-VIDEO

AUDIO

WATCHING TVINITIAL SETTING OPTIONAL SETTING

OPERATING DVDINTRODUCTION

DVD SETTING TROUBLESHOOTING INFORMATION

REPARATION

[PC Connection]

This unit is equipped with a PC input jack. If you connect this unit to your PC, you can use this unit as a computer monitor.

e.g.)

VGA cable should be with ferrite core.

personal computer

The following signals can be displayed:

Format Resolution V. Frequency Format Resolution V. Frequency

VGA 640 x 480 60Hz WXGA 1280 x 720 60Hz

SVGA 800 x 600 60Hz 1280 x 768 60Hz

WVGA 848 x 480 60Hz 1360 x 768 60Hz

XGA 1024 x 768 60Hz BOIS 720 x 400 70Hz

Other formats or non-standard signals will not be displayed correctly.

VGA cable

mini-plug audio cable

WXGA+ 1440 x 900 60Hz

rear of this unit

Note:

• Please purchase the VGA cable that has a ferrite core.

• The following operations may reduce noise.

- Attach a ferrite core to the AC power cord of your PC.

- Unplug the AC power cord and use the built-in battery of your PC.

Attaching a Wall Mount Bracket (sold separately)

The following is a description of the method for attaching a wall mount to this unit. When performing this operation, refer to the manual accompanying the wall mount kit.

# CAUTION

• Any damage caused by incorrectly attempting to mount this unit is

not covered under the terms of the manufacturers warranty.

• This unit may be used only with VM1b manufactured by SANUS SYSTEMS.

• Use with other wall mounts may result in instability causing possible injury.

* 1 indicates the position of the screw holes on this unit.

rear of this unit

You need the following wall mount kit for this unit.

Flat panel TV wall mount

Model number: VM1b

For more information, please visit SANUS SYSTEMS website at www.sanus.com

Spread a thick and soft cloth over a table. Place the

main unit face down onto it. Make sure not to damage the screen.

Note:

• Make sure to use a table which can support the weight of this unit and is larger than this unit.

• Make sure the table is in a stable location.

Attach the monitor mount to this unit using the

M4 screws included with the wall mount kit.

Note:

• Only use the screw holes indicated by 1 for mounting this unit.

• For instructions on how to attach the monitor mount, refer to the manual accompanying the wall mount kit.

Attach this unit to the wall.

Note:

• Refer to the manual accompanying the wall mount kit when

securing this unit to the wall.

NITIAL SETTING

These operations are accessible by remote control. Some may also be accessible by controls on the main unit.

TV Functions

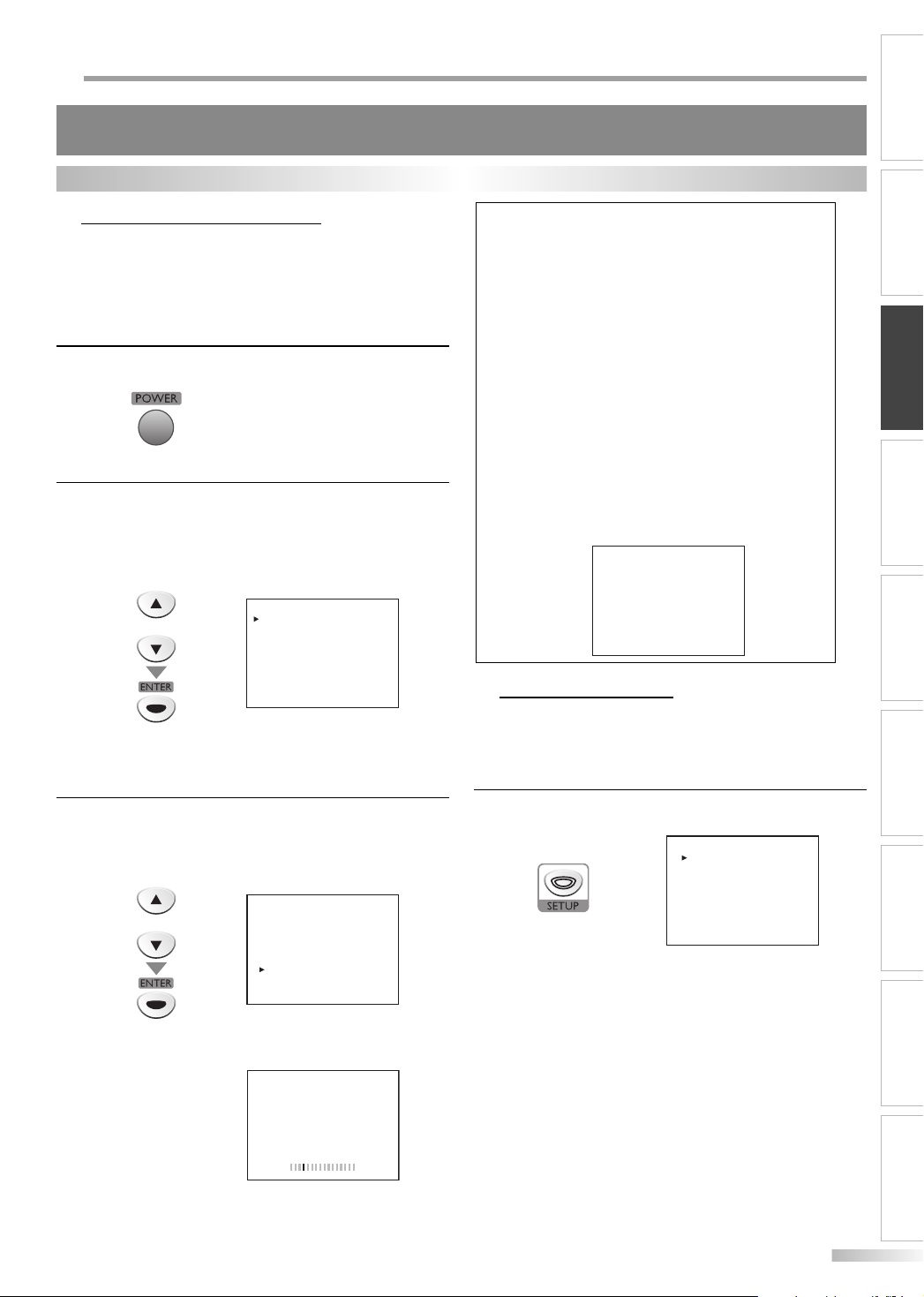

Initial Setup

This section will guide you through the unit’s initial setting which includes selecting a language for your on-screen menu and auto channel scan, which automatically scans and memorizes viewable channels.

Before you begin:

Make sure if the unit is connected to antenna or cables.

After making all the necessary connections,

press [POWER] to turn on the unit.

• This operation may take a few moments.

Use [Cursor K / L] to select the on-screen language

from the choices on the right side of the TV screen. (ENGLISH / ESPAÑOL / FRANÇAIS)

SELECT LANGUAGE SELECCIONE EL IDIOMA CHOISIR LA LANGUE

SELECT : K,

SELECCIONE : K,

CHOIX : K,

• “INITIAL SETUP“ menu on step 3 will be displayed in

the selected language after you press [ENTER].

, L , L , L

ENGLISH ESPAÑOL FRANÇAIS

SET

AJUSTE

VALIDER

ENTER

Note:

• If you connect the cable system directly, contact the CATV installer.

• If you press [POWER] or [SETUP] during auto channel scan, this setting will be canceled.

• The initial auto channel scan function can be executed for either TV/DTV or CATV only once. If you want to scan both TV/DTV and CATV, you need to select “CHANNEL SETUP” in the main menu to scan and memorize other channels after initial presetting is completed. (Refer to page 14.)

• You can cancel or exit the initial auto channel scan menu by pressing [SETUP].

• When no channel can be received by auto channel scan, “NO TV SIGNALS” is displayed on the TV screen.

• If there is no signal input from the antenna terminal and no operation for several seconds after you turn on the unit, “HELPFUL HINTS” appears. Follow the instructions listed on the TV screen.

- HELPFUL HINTS -

1. PLEASE CHECK TO SEE IF THE ANTENNA / CABLE / SATELLITE IS PROPERLY CONNECTED.

2. DID YOU PERFORM “AUTO PRESET CH”?

3. PLEASE REFER TO FRONT PAGE OF THE OWNER’S MANUAL OR REAR PANEL FOR SUPPORT LINE INFORMATION.

Main Menu

This section describes the overview of the main menu displayed when you press [SETUP]. For more details, see the reference page for each item. The main menu consists of the function setting items below.

INITIAL SETTING

WATCHING TV OPTIONAL SETTING DVD SETTING TROUBLESHOOTING INFORMATIONOPERATING DVDINTRODUCTION PREPARATION

Use [Cursor K / L] to select “AUTO PRESET CH(TV/DTV)”

for TV channels or “AUTO PRESET CH(CATV)“ for CATV channels, then press [ENTER].

- INITIAL SETUP -

PLEASE CONNECT ANTENNA OR CABLE OR SATELLITE TO THIS UNIT.

AUTO PRESET CH (TV/DTV) AUTO PRESET CH (CATV)

• Scanning and memorizing of channels start automatically.

AUTO PRESET CH(TV/DTV)

• When the scanning and memorizing of channels are completed, the lowest memorized channel will be displayed.

Press [SETUP]. e.g.) digital TV mode

- TV SETUP CHANNEL SETUP V-CHIP SETUP LANGUAGE [ENGLISH] CAPTION [OFF] BACK LIGHT [BRIGHT] COLOR TEMP. [NORMAL] DTVCC

CHANNEL SETUP

You can automatically scan the viewable channels and

remove the undesired channels. (Refer to “Auto Channel Scan” on page 14.)

V-CHIP SETUP

You can set the viewing limitations. (Refer to “V-chip” on page 25.)

LANGUAGE

You can change the language (English, Spanish,

French) displayed on the main menu.

(Refer to “Language Selection” on page 14.)

CAPTION

You can change the display format for closed caption,

which displays the dialogue of a TV program or other information across the TV screen.

(Refer to “Closed Caption” on page 21.)

NITIAL SETTING

BACK LIGHT

You can set the desired brightness mode. (Refer to “Back Light Setting” on page 24.)

COLOR TEMP.

You can adjust color temperature. (Refer to “Color Temperature” on page 24.)

DTVCC

In addition to the basic closed caption described

on page 21, DTV has its own closed caption called DTVCC.

(Refer to “DTV Closed Caption” on page 22.)

PC SETTING

You can adjust the position, stability and clarity of the

PC screen. This menu will appear only in PC mode, and can only be set when the unit detects the PC input signal. (Refer to “PC Settings” on page 28.)

Auto Channel Scan

If you switch wires (e.g., between antenna and C ATV) or if you move the unit to a di erent area after the initial setting, or if you restore the DTV channel you deleted, you will need to perform auto channel scan.

Before you begin:

Make sure if the unit is connected to antenna or cables.

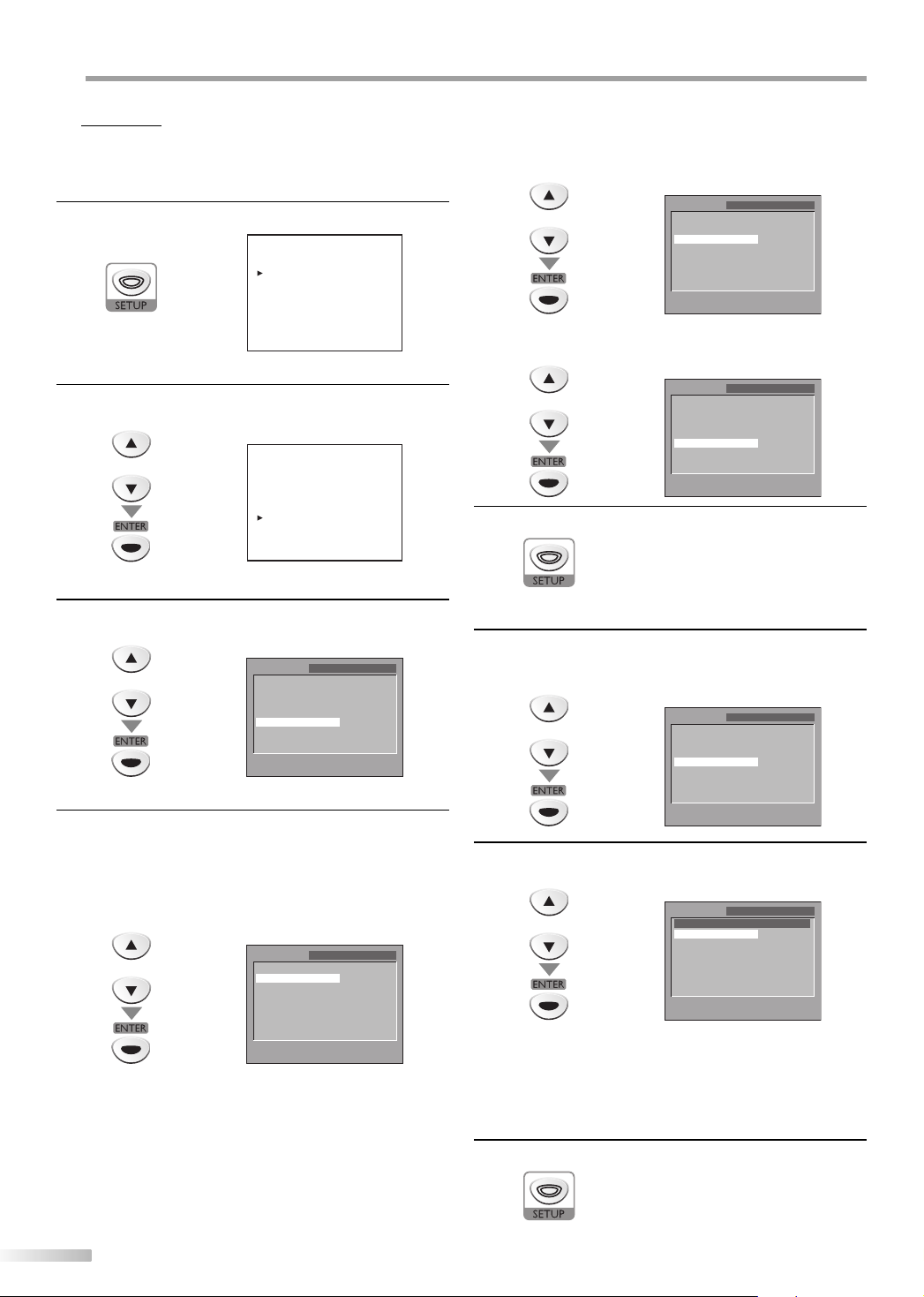

Press [SETUP] to display the main menu.

Use [Cursor K / L] to select “CHANNEL SETUP”,

then press [ENTER].

e.g.) digital TV mode

- TV SETUP CHANNEL SETUP

Use [Cursor K / L] to select your desired preset type,

then press [ENTER].

e.g.) digital TV mode

V-CHIP SETUP LANGUAGE [ENGLISH] CAPTION [OFF] BACK LIGHT [BRIGHT] COLOR TEMP. [NORMAL] DTVCC

- CHANNEL SETUP -

ADD/DELETE(DTV) AUTO PRESET CH(DTV) AUTO PRESET CH(TV/DTV) AUTO PRESET CH(CATV) ! CATV takes approx. 50min.

• Scanning and memorizing the channels automatically start.

e.g.) digital TV mode

D25

AUTO PRESET CH(DTV)

• When the scanning and memorizing are completed, the lowest memorized channel will be displayed.

• When you selected “AUTO PRESET CH(TV/DTV)”, the lowest memorized analog channel will be displayed when the scanning and memorizing are completed. If there is no analog channel, the lowest memorized digital channel will be displayed.

Note:

• After setting “Auto Channel Scan”, using [CH. K / L] on the

remote control skips unavailable programs automatically.

•

If you connect the cable system directly, contact the CATV

installer.

•

If you press [POWER] or [SETUP] during auto channel scan,

the setting will be canceled.

•

When no channel can be received by auto channel scan,

“NO TV SIGNALS” will be displayed on the TV screen.

•

Channel settings will be saved even if the power fails. If you have Spanish or French menus and need English,

•

press [SETUP]. Use [Cursor K / L] to select “IDIOMA” or “LANGAGE”. Press [ENTER] repeatedly to select “ENGLISH”. Press [SETUP] to exit the main menu.

•

With regard only to the digital channel, even after the

scanning is completed if you unplug the AC power cord before turning off the unit by pressing [POWER], the channel setting may be lost.

Language Selection

You can choose English, Spanish or French as your on-screen language.

Press [SETUP] to display the main menu.

Use [Cursor K / L] to select “LANGUAGE”,

then press [ENTER] repeatedly to change the setting. e.g.) digital TV mode

- TV SETUP CHANNEL SETUP V-CHIP SETUP LANGUAGE [ENGLISH] CAPTION [OFF] BACK LIGHT [BRIGHT]

COLOR TEMP. [NORMAL] DTVCC

• When aerial antenna is connected, select “AUTO PRESET CH(TV)”, “AUTO PRESET CH(DTV)” or “AUTO PRESET CH(TV/DTV)”.

• When connected to CATV, select “AUTO PRESET CH (CATV)”.

Press [SETUP] to exit.

ENGLISH

ESPAÑOL

FRANÇAIS

ATCHING TV

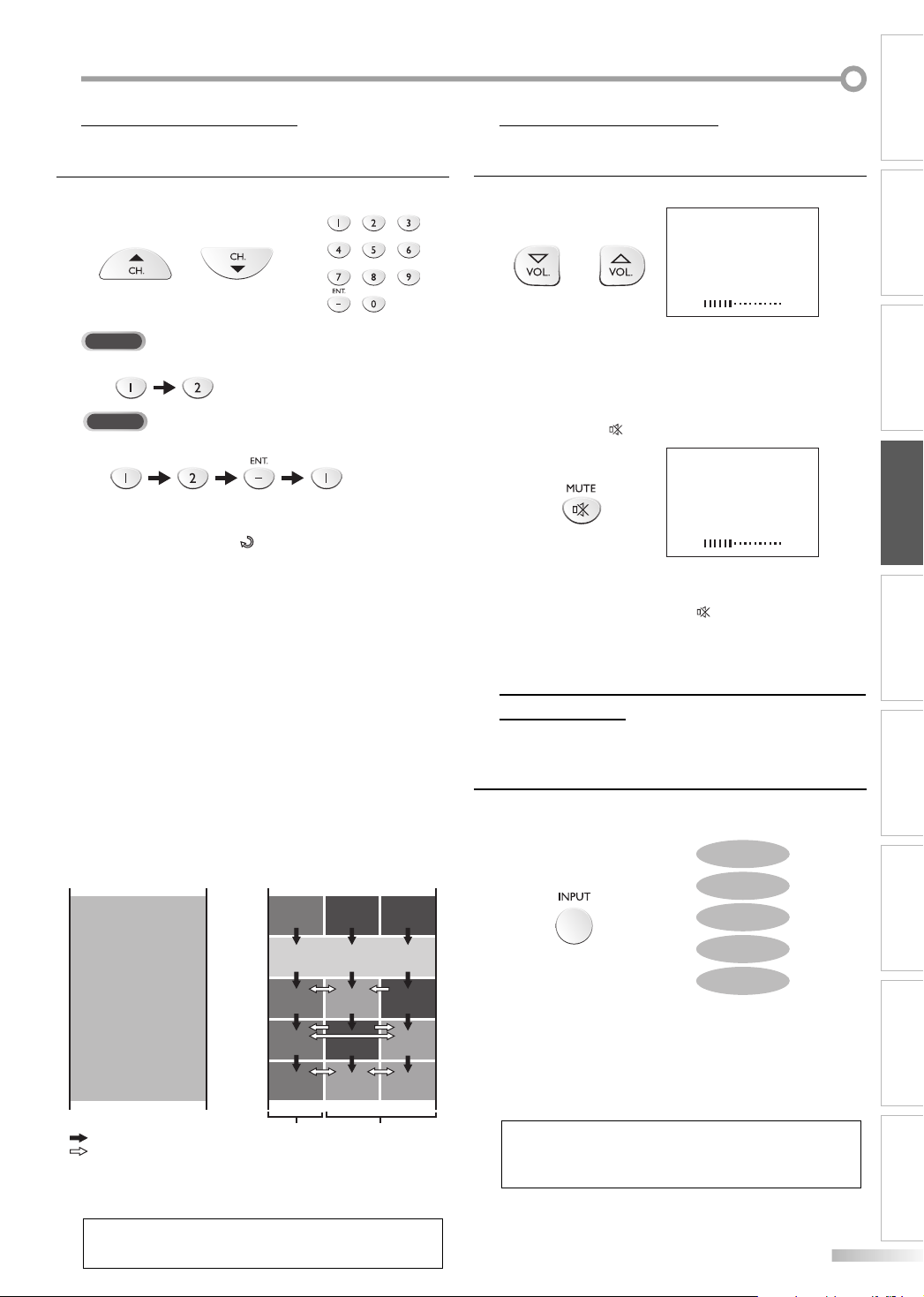

Channel Selection

5 Volume Adjustment

Select channels by using [CH. K / L] or [the Number buttons].

Use

[CH. K / L] or [the Number buttons] to select the

memorized channels.

Using [the Number buttons]

- When selecting analog channel 12

DTV

- When selecting digital channel 12-1

• Be sure to press [–/ENT.] before entering the minor channel number.

• Press [CH. RECALL viewed channel.

• When you select a channel larger than 100, press [+100] first. Then use [the Number buttons] to press the lower 2-digit numbers.

• Only [the Number buttons] can be used to select the non-memorized channels.

About digital TV broadcasting:

With its high definition broadcast, digital broadcasting far surpasses analog broadcasting in both its picture and sound quality.

What is the minor channel?

By using high compression technology, digital broadcasting offers a service that enables multiple signals to send simultaneously. Therefore, you can select more than one program per major channel since digital broadcasting technology distinguishes between multiple channels broadcast by a single network.

NTSC (analog mode)

CH4

: change automatically : change manually by using [CH. K/L]

Although, you cannot watch the high definition TV (HDTV) program, the unit converts the HDTV signal down to the standard definition TV signal.

] to return to the previously

[Air Time]

18:00

18:30

19:00

19:30

20:00

20:30

ATSC (digital mode)

CH4

(high denition TV)

CH4

major channel

No signal No signal

CH4

CH4-1

No signal

CH4-1CH4 CH4-2

minor channel

No signal

CH4-2

This section describes how to adjust the volume. The mute function, which turns the sound off and on, is also described.

Use

[VOL. X / Y] to adjust the audio volume

VOLUME 20

• The volume bar will be displayed at the bottom of the TV screen when adjusting the volume.

• The volume bar will automatically disappear in a few seconds.

Press [MUTE ] to turn off and on the sound.

MUTE 20

• “MUTE” is displayed on the TV screen.

Press [MUTE ] again or use [VOL. X / Y] to recover the original volume.

Switching Each Input Mode

You can easily switch with the remote control to the DTV (ATSC) and TV (NTSC) or to access external devices when they are connected to the unit.

Press [INPUT] repeatedly to cycle through the input modes.

• To use the video or S-video input jack on the unit, select “VIDEO1”.

• To use the component video input jacks on the unit, select “VIDEO2”.

• To use the PC input jack on the unit, select “PC”.

Note:

• When you switch the analog mode to the digital mode, it may take a while until the digital channel selection is completed. “NOW SCANNING“ is displayed while switching the modes.

ANALOG MODE

DIGITAL MODE

VIDEO1

VIDEO2

Note:

• “NO SIGNAL” will appear on the TV screen after the minor channel broadcast is over.

PREPARATION

INITIAL SETTING

WATCHING TV

OPTIONAL SETTING DVD SETTING TROUBLESHOOTING INFORMATIONOPERATING DVDINTRODUCTION

ATCHING TV

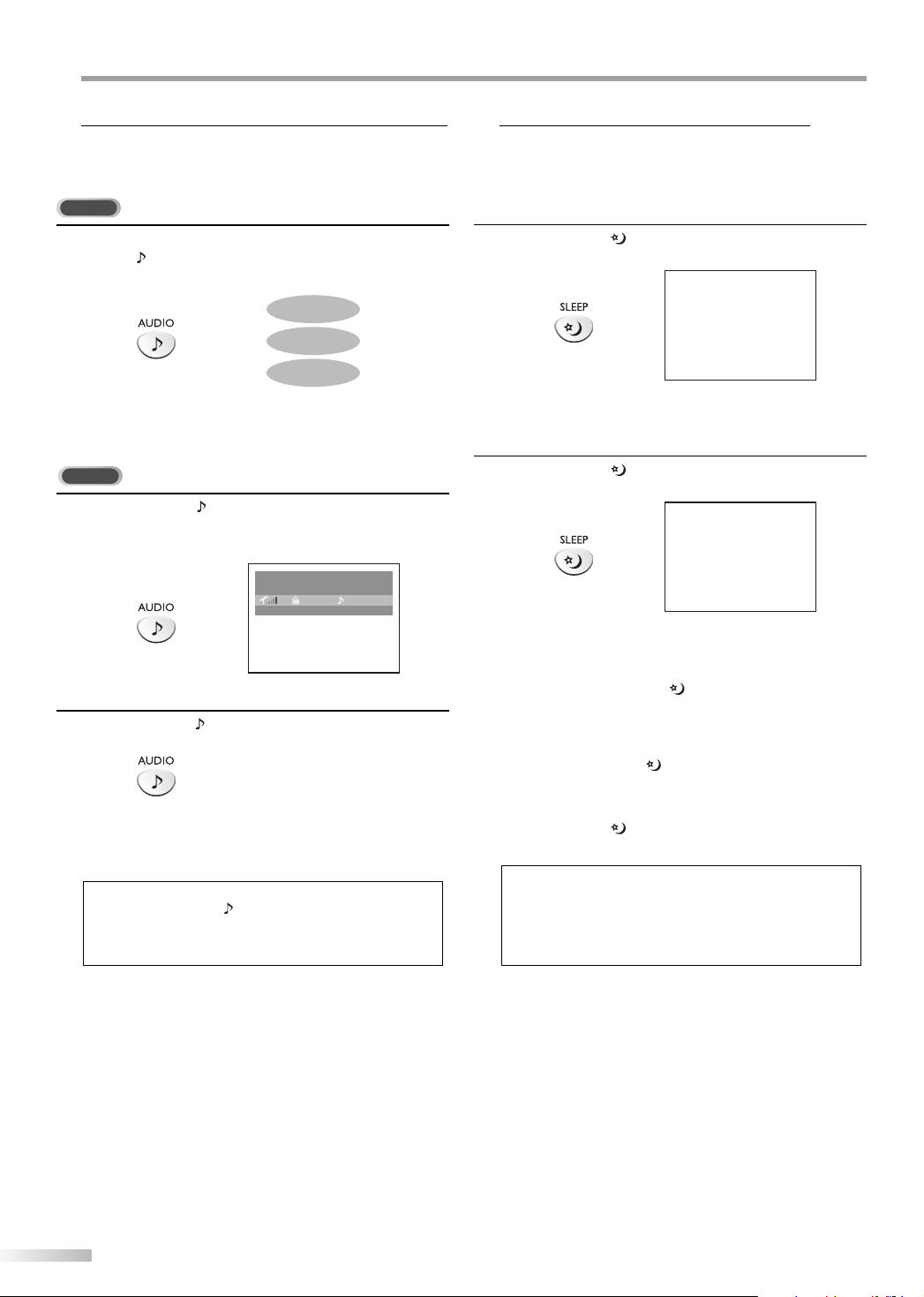

Switching Audio Mode

5 Sleep Timer

This section describes how to switch the audio in the analog mode and how to switch the audio language in the digital mode.

The sleep timer can be set to automatically turn o the unit after an incremental period of time.

While receiving an MTS broadcast, press [AUDIO ] repeatedly to cycle through the available audio channel.

MAIN

SAP

MAIN : Outputs main-audio SAP : Outputs second audio program MONO : Outputs mono-audio

DTV

Press [AUDIO ] to display the currently selected

language and the number of available languages.

Press [AUDIO ] repeatedly to cycle through the

available audio languages.

• Available languages differ depending on the broadcast. “OTHER” is displayed when the audio language cannot be acquired, or the acquired languages are other than English, Spanish or French.

MONO

A Day of Memories

75 TV-PG ENGLISH 1/2

25-03

KABC

Note:

• Pressing [AUDIO ] does not control external audio devices.

• The information display will automatically disappear in a few seconds.

Press [SLEEP ] to set the sleep timer.

• Sleep timer display appears on the TV screen.

Press [SLEEP ] repeatedly to change the amount of

time until shut off.

• You can set your unit to turn off after a set period of time (from 30 to 120 minutes).

• Each press of [SLEEP minutes.

• After setup, the sleep timer display can be called up for checking by pressing [SLEEP ].

To Cancel the Sleep Timer

Press [SLEEP displayed on the TV screen.

] repeatedly until “SLEEP OFF“ is

] will increase the time by 30

SLEEP OFF

SLEEP 120MIN.

Note:

• The sleep timer display will automatically disappear in a few seconds.

• When you disconnect the unit from the AC outlet or when a power failure occurs, the sleep timer setting will be canceled.

Screen Information

You can display the currently selected channel or other information such as the audio mode on the TV screen.

In the analog mode, the current channel number is displayed.

DTV

In the digital mode, the detailed broadcasting information for the current channel such as program title, program guides are displayed.

PREPARATION

Press [DISPLAY ].

• The current channel number is displayed at the topright corner of the TV screen.

• To clear the display, press [DISPLAY ] again.

CH 25

Press [DISPLAY ] repeatedly to cycle through the available display modes.

OFF

Broadcasting Information

The following information is displayed.

1 program title 2 signal quality indicator 3 program rating 4 channel number 5 broadcast station 6 audio language

(Refer to “Switching Audio Mode” on page 16.)

Program Guide

The program guide added to broadcasting information is displayed.

BROADCASTING INFORMATION

PROGRAM GUIDE

A Day of Memories

75 TV-PG ENGLISH 1/2

25-03

KABC

4 5 6

INITIAL SETTING

WATCHING TV

OPTIONAL SETTING DVD SETTING TROUBLESHOOTING INFORMATIONOPERATING DVDINTRODUCTION

program guide

A Day of Memories

75 TV-PG ENGLISH 1/2

A quarter-century ago, which may now qualify as the good old days of newspapering, run-of-paper sales accounted for 80 percent of the industry’s advertising revenues.

25-03

KABC

Note:

• When the program guide consists of more than 6 lines, use

[Cursor K / L] to scroll.

• “No description provided.” is displayed when the program guide is not provided.

• While the program guide is displayed, the closed caption function is interrupted.

• In external input mode, the following screen is displayed; e.g.) When an external device is connected to VIDEO1 input

jack.

VIDEO 1

• The information display will automatically disappear in a few seconds when the closed caption is on.

ATCHING TV

TV Screen Display Mode

3-5 types of display modes can be selected when the unit receives 4:3 or 16:9 video signal or an external device is connected to the unit. There are 3 types of display modes according to PC input signals.

Press [SCREEN MODE ] repeatedly to switch the TV aspect ratio.

For 4:3 video signal

SIDEBAR

(

analog / external input mode

FULL

WIDE

(digital mode)

: digital mode : analog / external input mode

SIDEBAR

Select to display a 4:3 picture at its original size. The black bars appear on the left and right sides of the screen.

FULL

Select to display a 4:3 picture to fill the screen.

¾available in the analog / external input mode only

MOVIE

Select to reduce the black bars on top and bottom.

WIDE

Digital mode:

Select to display a 4:3 picture to fill the screen and shrink “FULL” picture horizontally.

Analog / external input mode:

Select to display a 4:3 picture to fill the screen and stretch “FULL” picture horizontally.

WIDE

MOVIE

For 16:9 video signal

)

FULL

SIDE CUT

EXPAND

MOVIE

ZOOM

: digital mode : analo

/ external input mode

FULL

Select to display a 16:9 picture to fill the screen.

SIDE CUT

Select to display a 16:9 picture to fill the screen and stretch “FULL” picture horizontally. The left and right sides of the picture will be cropped out.

¾available in the analog / external input mode only

ZOOM

Select to enlarge a 16:9 picture without distorting the aspect ratio.

MOVIE

Select to reduce the black bars on top and bottom.

EXPAND

Select to reduce the black bars on the left and right sides.

¾available in the analog / external input mode only

Note:

• You may not switch the display mode depending on the program.

PREPARATION

For PC input signal

Type of display Resolution

640 x 480 VGA

800 x 600 SVGA

1,024 x 768 XGA

Display a vertically stretched picture without distorting the aspect ratio. The black bars appear on the left and right sides of the screen.

Type of display Resolution

848 x 480 WVGA

1,280 x 720

WXGA1,280 x 768

1,360 x 768

720 x 400 BIOS

Display a horizontally stretched picture without distorting the aspect ratio. The black bars appear on the top and bottom sides of the screen.

INITIAL SETTING

WATCHING TV

OPTIONAL SETTING DVD SETTING TROUBLESHOOTING INFORMATIONOPERATING DVDINTRODUCTION

Type of display Resolution

1,440 x 900

Display a picture in its original size.

Note:

• You can change the screen resolution on your PC.

WXGA+

PTIONAL SETTING

Channel Add/Delete

The channel add/delete function lets you add the channel that was not added by auto channel scan due to the reception status at the initial setting. You can also delete the unnecessar y channels.

Press [SETUP] to display the main menu.

Use [Cursor K / L] to select “CHANNEL SETUP”,

then press [ENTER]. e.g.) digital TV mode

- TV SETUP -

Use [Cursor K / L] to select “ADD/DELETE(DTV)” or

“ADD/DELETE”, then press [ENTER].

e.g.) digital TV mode

CHANNEL SETUP V-CHIP SETUP LANGUAGE [ENGLISH] CAPTION [OFF] BACK LIGHT [BRIGHT] COLOR TEMP. [NORMAL] DTVCC

- CHANNEL SETUP -

ADD/DELETE(DTV) AUTO PRESET CH(DTV) AUTO PRESET CH(TV/DTV) AUTO PRESET CH(CATV) ! CATV takes approx. 50min.

Press [SETUP] to exit.

Note:

• ”ADD/DELETE(DTV)” or “ADD/DELETE” menu will disappear automatically in a few seconds.

• In the digital mode (DTV), you can add or delete channels only for major channel.

• Once you delete a DTV channel, you cannot recover the channel without performing auto channel scan again. (Refer to “Auto Channel Scan” on page 14.)

• By using [CH. K / L], you can select the memorized channels only.

Select the channel you want to add or delete.

(Refer to “Channel Selection“ on page 15.)

e.g.) digital TV mode

ADD/DELETE : DTV

Use [Cursor s / B] to select “ADD” or “DELETE”.

• To add or delete another channels, repeat steps 4 to 5.

• Color of channel number displayed at the right top of the TV screen indicates;

- Blue: The selected channel will be added.

- Red: The selected channel will be deleted.

D25

Picture Adjustment

You can adjust brightness, contrast, color, tint and sharpness.

Closed Caption

You can view closed captioning (cc) for TV programs, movies and news. Closed caption refer to text of dialogue or descriptions displayed on-screen for the hearing impaired.

Press [PICTURE] to adjust the picture quality.

Use [Cursor K / L] to select the picture quality type

you want to adjust.

BRIGHTNESS

CONTRAST

Use [Cursor s / B] to adjust the quality.

COLOR

TINT

SHARPNESS

Cursor s Cursor B

BRIGHTNESS

CONTRAST

COLOR

TINT

SHARPNESS

Press [RETURN

to decrease brightness to increase brightness

to decrease contrast to increase contrast

to decrease color to brighten color

to add red to add green

to make soft to make clear

] to exit.

Note:

• The picture adjustment setting display will automatically disappear in a few seconds.

• In PC mode, you can select only “BRIGHTNESS“ or “CONTRAST“.

Press [SETUP] to display the main menu.

Use [Cursor K / L] to select “CAPTION”, then press

[ENTER] repeatedly to change the setting.

e.g.) digital TV mode

- TV SETUP CHANNEL SETUP V-CHIP SETUP LANGUAGE [ENGLISH] CAPTION [OFF] BACK LIGHT [BRIGHT] COLOR TEMP. [NORMAL]

DTVCC

OFF

CAPTION1 - 4

Caption Mode

CAPTION1 and TEXT1;

are the primary caption and text services.

The captioning or text is displayed in the same language as the program’s dialogue

(up to 4 lines of script on the TV screen, where it does

not obstruct relevant parts of the picture).

CAPTION3 and TEXT3;

serve as the preferred data channels. The captioning or text is often a secondary language.

CAPTION2, CAPTION4, TEXT2 and TEXT4;

are rarely available and broadcasters use them

only in special conditions, such as when “CAPTION1” and “CAPTION3” or “TEXT1” and “TEXT3” are not available.

• There are 3 display modes according to programs:

Paint-on mode: Displays input characters on the TV

Pop-on mode: Once characters are stored in

Roll-up mode: Displays the characters continuously

screen immediately.

memory, they are displayed all at once.

by scrolling (max. 4 lines).

TEXT1 - 4

INITIAL SETTING

OPTIONAL SETTING

DVD SETTING TROUBLESHOOTING INFORMATIONOPERATING DVDINTRODUCTION WATCHING TVPREPARATION

PTIONAL SETTING

DTV Closed Caption

DTV

In addition to the basic closed caption described on page 21, DTV has its own closed caption called DTVCC. Use this menu to change the settings for DTVCC.

Press [SETUP] to exit.

Note:

• To show the closed caption on your TV screen, broadcast signal must contain the closed caption data.

• Not all T V programs and commercials have the closed caption or all types of the closed caption.

• Captions and texts may not match the T V voice exactly.

• Changing channels may delay the closed caption for a few seconds.

• Adjusting or muting the volume may delay the closed caption for a few seconds.

• Abbreviations, symbols and other grammatical shortcuts may be used in order to keep pace with the on-screen action. This is not a problem with the unit.

• The caption or text characters will not be displayed while the main menu or functions display is shown.

• If a black box appears on the TV screen, this means that the closed caption is set to the text mode. To clear the box, select “CAPTION1”, “CAPTION2”, “CAPTION3”, “CAPTION4” or “OFF”.

• If the unit receives poor quality television signals, the captions may contain errors, or there might be no captions at all. Some possible causes of poor quality signals are:

- Automobile ignition noise

- Electric motor noise

- Weak signal reception

- Multiplex signal reception (ghosts or screen flutter)

• The unit retains the closed caption setting if the power fails.

• When the unit receives a special effects playback signal (I.e.,Search, Slow and Still) from a VCR’s video output channel (CH3 or CH4), the unit may not display the correct caption or text.

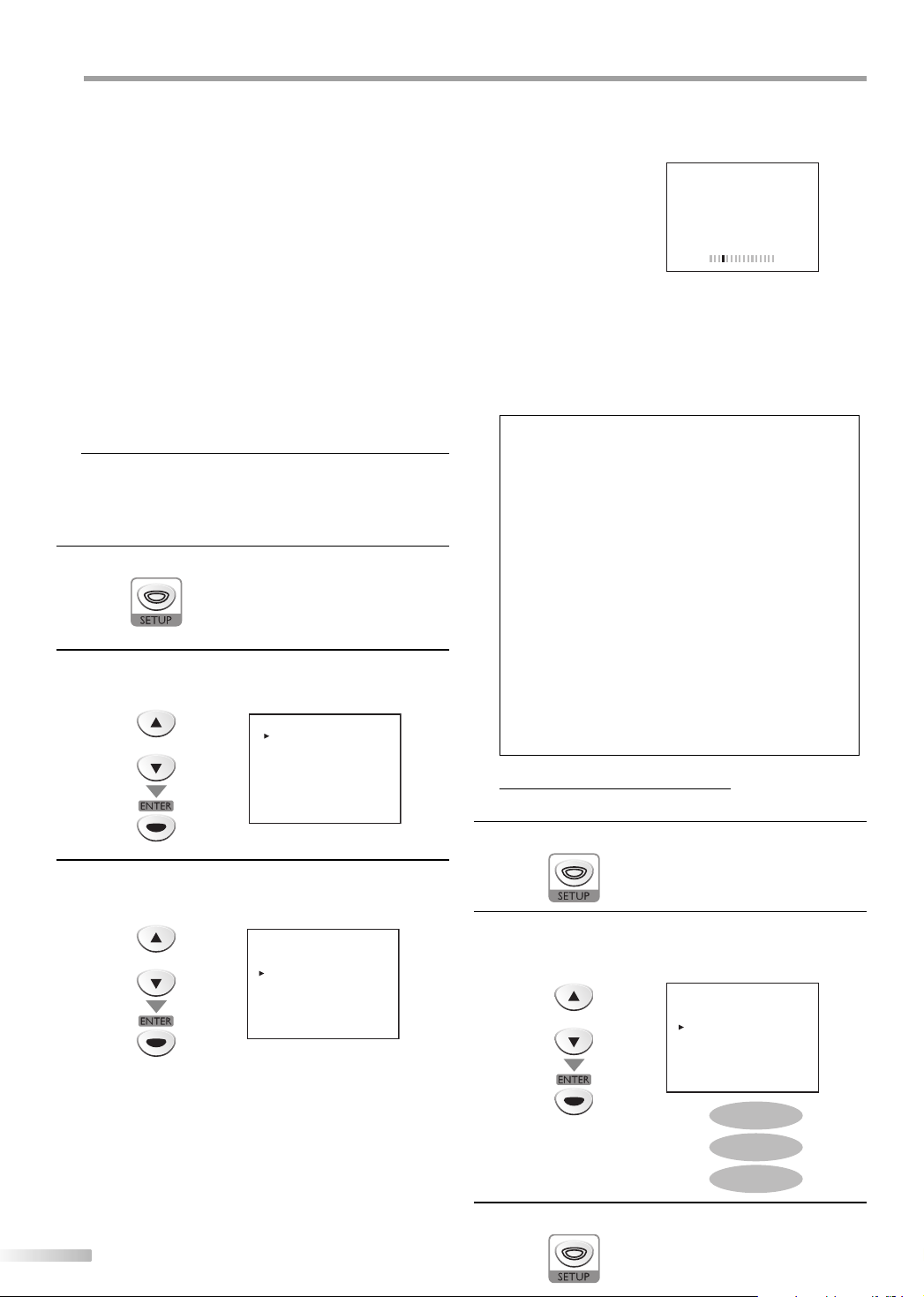

Press [SETUP] to display the main menu.

Use [Cursor K / L] to select “DTVCC“, then press

[ENTER].

e.g.) digital TV mode

- TV SETUP CHANNEL SETUP

Use [Cursor K / L] to select “CAPTION SERVICE“,

V-CHIP SETUP LANGUAGE [ENGLISH] CAPTION [OFF] BACK LIGHT [BRIGHT] COLOR TEMP. [NORMAL] DTVCC

then press [ENTER] repeatedly to change the setting.

- DTVCC -

CAPTION SERVICE

OFF

SERVICE1 - 6

CAPTION SERVICE [OFF] USER SETTING [OFF] CAPTION SIZE [SMALL] FONT STYLE [STYLE1/8] CHARACTER EDGE [NONE] FORE OPACITY [SOLID] FORE COLOR [WHITE] BACK OPACITY [SOLID] BACK COLOR [BLACK]

Select if you do not want DTVCC. This is the default.

Select one of these before changing any other item in “CAPTION” menu. Choose “SERVICE1/6” under normal circumstances.

Press [SETUP] to exit.

Note:

• “CAPTION SERVICE” that you can switch differs depending on the broadcast description.

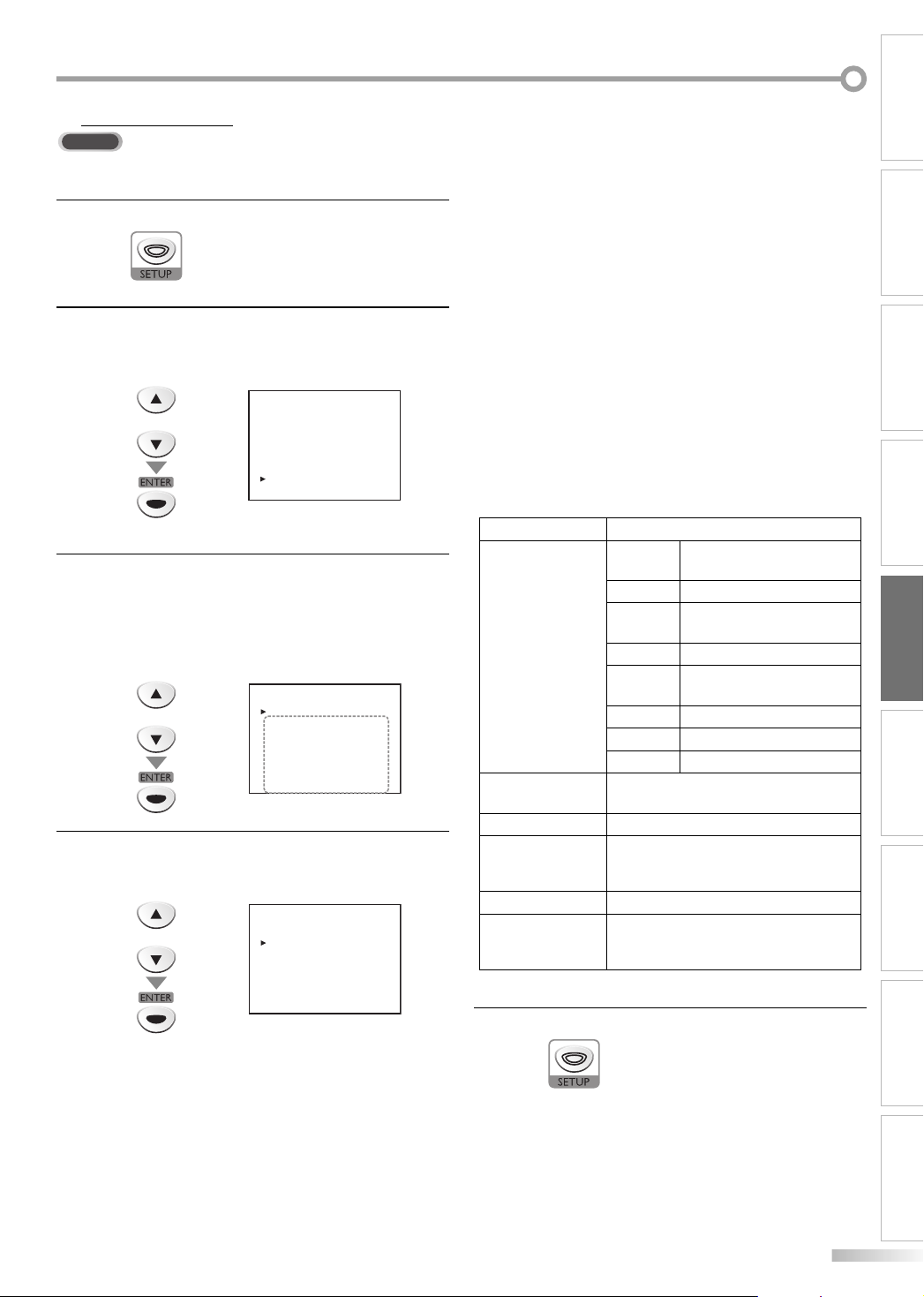

DTVCC Style

DTV

You can change the DTVCC style such as font, color or size, etc.

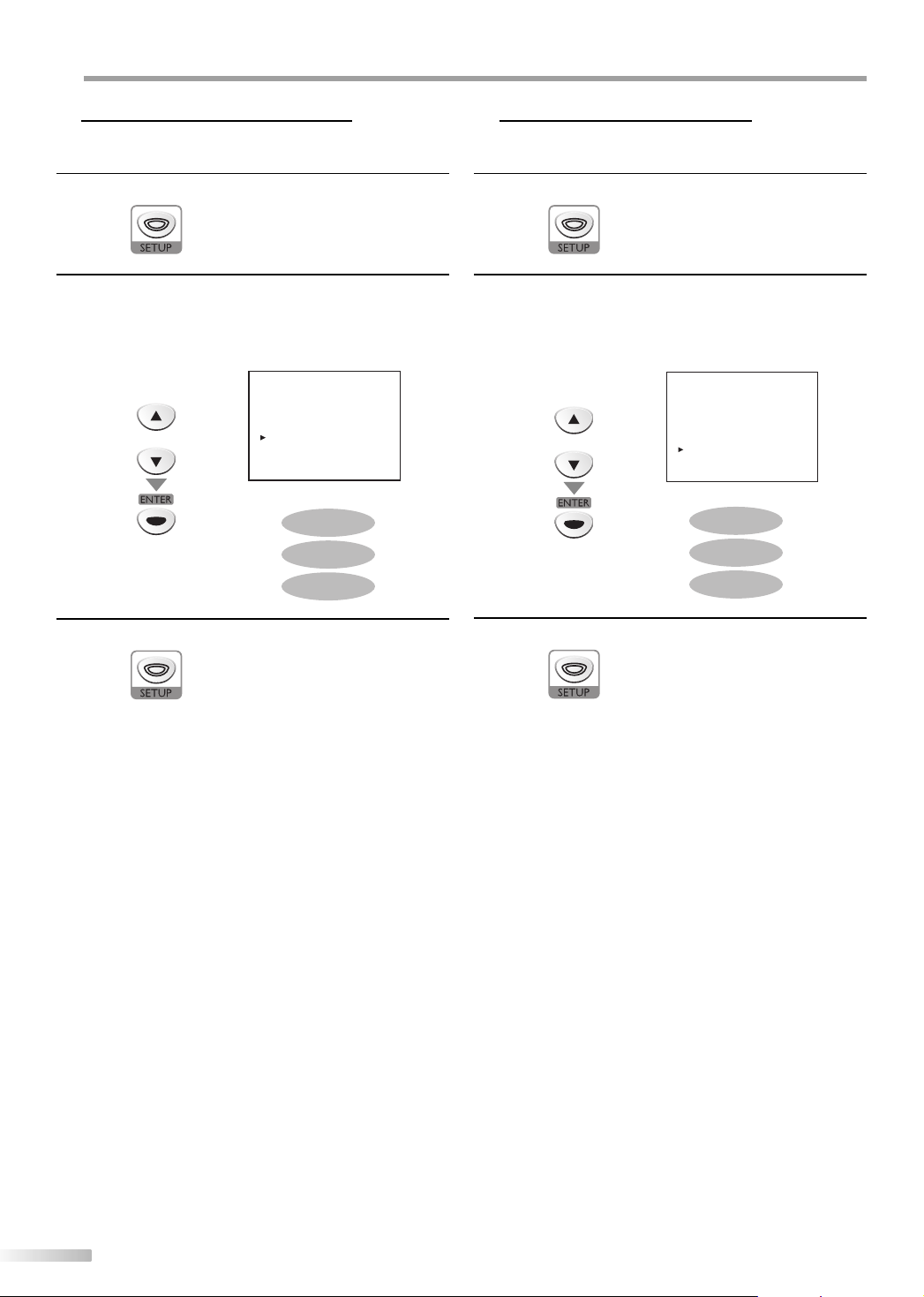

Press [SETUP] to display the main menu.

Use [Cursor K / L] to select “DTVCC“,

then press [ENTER].

e.g.) digital TV mode

- TV SETUP CHANNEL SETUP

Use [Cursor K / L] to select “USER SETTING“,

V-CHIP SETUP LANGUAGE [ENGLISH] CAPTION [OFF] BACK LIGHT [BRIGHT] COLOR TEMP. [NORMAL] DTVCC

then press [ENTER] repeatedly to set to “ON”.

• Items in the dotted box are available only when “USER SETTING“ is “ON“.

- DTVCC -

Use [Cursor K / L] to select an item, then press

CAPTION SERVICE [SERVICE1/6] USER SETTING [ON] CAPTION SIZE [SMALL] FONT STYLE [STYLE1/8] CHARACTER EDGE [NONE] FORE OPACITY [SOLID] FORE COLOR [WHITE] BACK OPACITY [SOLID] BACK COLOR [BLACK]

[ENTER] repeatedly to change the setting for the item.

- DTVCC -

CAPTION SERVICE [SERVICE1/6] USER SETTING [ON] CAPTION SIZE [SMALL] FONT STYLE [STYLE1/8] CHARACTER EDGE [NONE] FORE OPACITY [SOLID] FORE COLOR [WHITE] BACK OPACITY [SOLID] BACK COLOR [BLACK]

CAPTION SIZE

Closed captioning font size can be changed as below.

FONT STYLE

Font style of the displayed caption can be switched as

below.

CHARACTER EDGE

Edge type of the displayed caption can be switched

as below.

FORE COLOR, BACK COLOR

Font and background color of the displayed caption

can be switched as below.

FORE OPACITY, BACK OPACITY

Text and background opacity of the displayed caption

can be switched as below.

CAPTION SIZE SMALL, MIDDLE, LARGE

STYLE1/8

STYLE2/8 Monospaced with serifs

STYLE3/8

FONT STYLE

CHARACTER EDGE

FORE OPACITY SOLID, TRANSLUCENT, FLASH

FORE COLOR

BACK OPACITY SOLID, TRANSLUCENT, FLASH

BACK COLOR

Press [SETUP] to exit.

STYLE4/8 Monospaced with serifs

STYLE5/8

STYLE6/8 Casual font type STYLE7/8 Cursive font type STYLE8/8 Small capitals NONE, RAISED, DEPRESSED, UNIFORM,

SHADOW LEFT, SHADOW RIGHT

WHITE, BLACK, RED, GREEN, BLUE, YELLOW, MAGENTA, CYAN, TRANSPARENT

BLACK, RED, GREEN, BLUE, YELLOW, MAGENTA, CYAN, TRANSPARENT, WHITE

Proportional font used in the menu screen

Proportionally spaced with serifs

Proportionally spaced without serifs

INITIAL SETTING

OPTIONAL SETTING

DVD SETTING TROUBLESHOOTING INFORMATIONOPERATING DVDINTRODUCTION WATCHING TVPREPARATION

PTIONAL SETTING

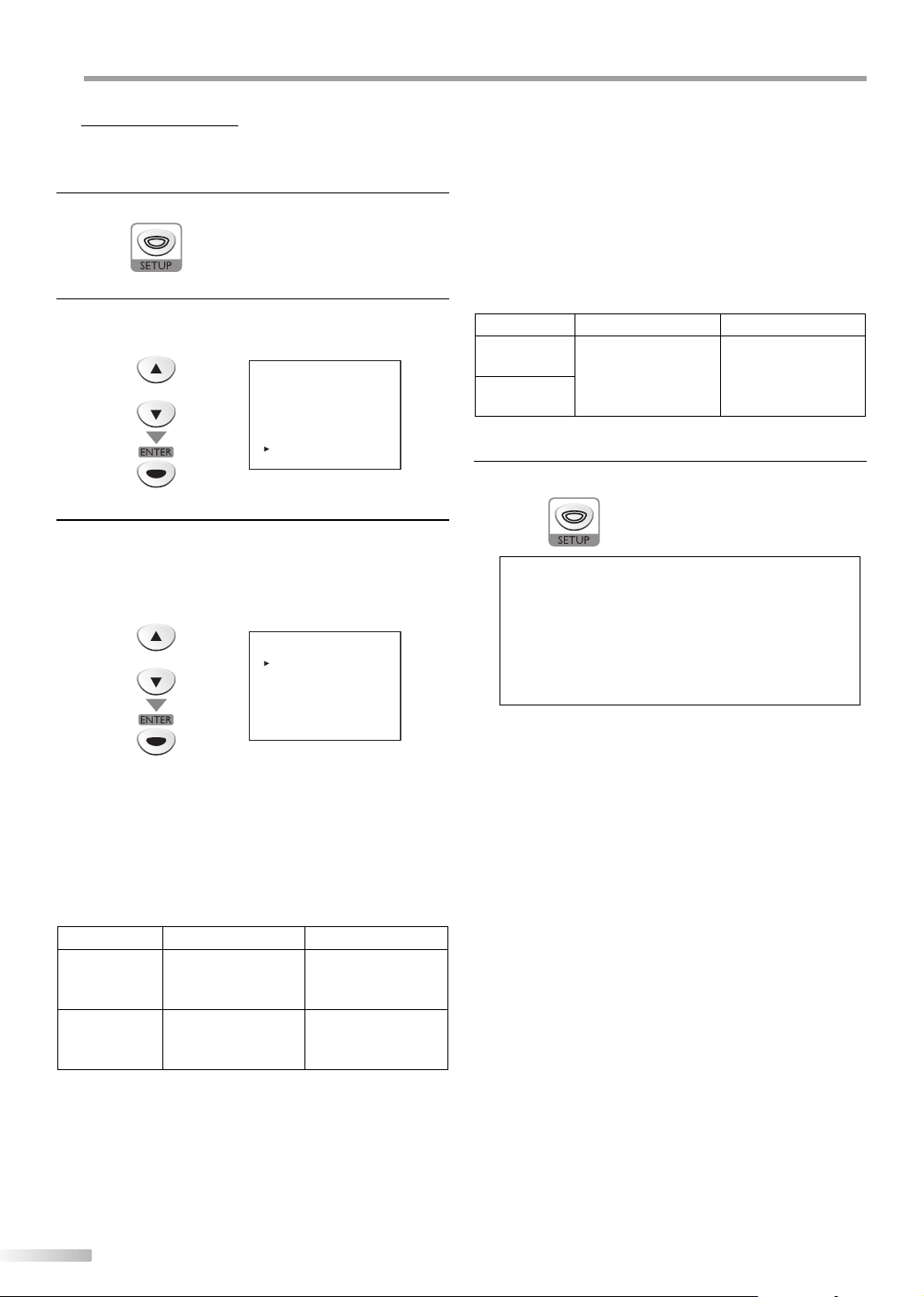

Back Light Setting

5 Color Temperature

You can set the desired brightness mode.

You can adjust color temperature of the TV screen.

Press [SETUP] to display the main menu.

Use [Cursor K / L] to select “BACK LIGHT”,

then press [ENTER] repeatedly to change the setting.

e.g.) digital TV mode

- TV SETUP CHANNEL SETUP V-CHIP SETUP LANGUAGE [ENGLISH] CAPTION [OFF]

BACK LIGHT [BRIGHT] COLOR TEMP. [NORMAL] DTVCC

BRIGHT

NORMAL

Press [SETUP] to exit.

DARK

Press [SETUP] to display the main menu.

Use [Cursor K / L] to select “COLOR TEMP.”,

then press [ENTER] repeatedly to change the setting.

e.g.) digital TV mode

- TV SETUP CHANNEL SETUP V-CHIP SETUP LANGUAGE [ENGLISH] CAPTION [OFF]

BACK LIGHT [BRIGHT] COLOR TEMP. [NORMAL] DTVCC

NORMAL

COOL

Press [SETUP] to exit.

WAR M

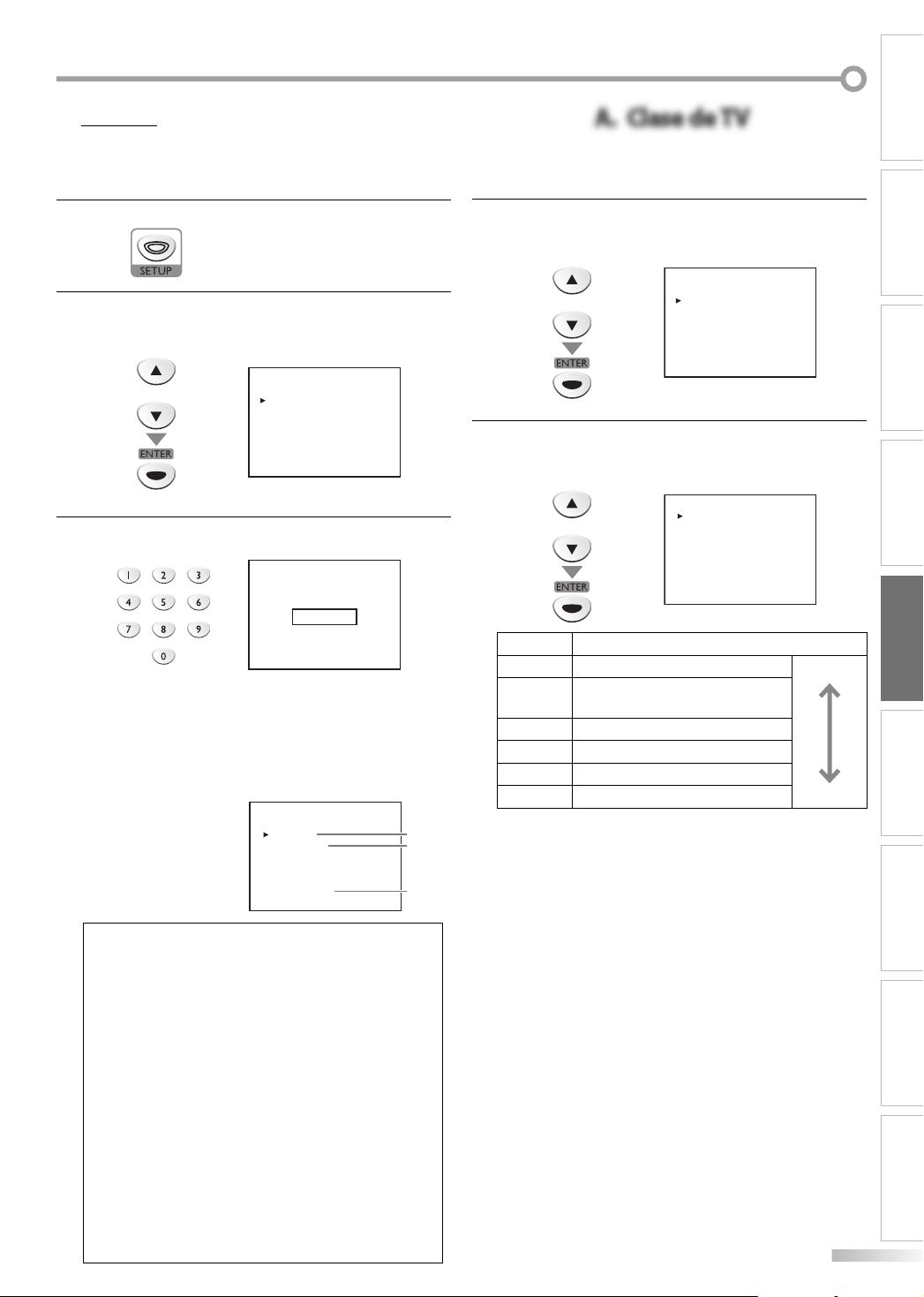

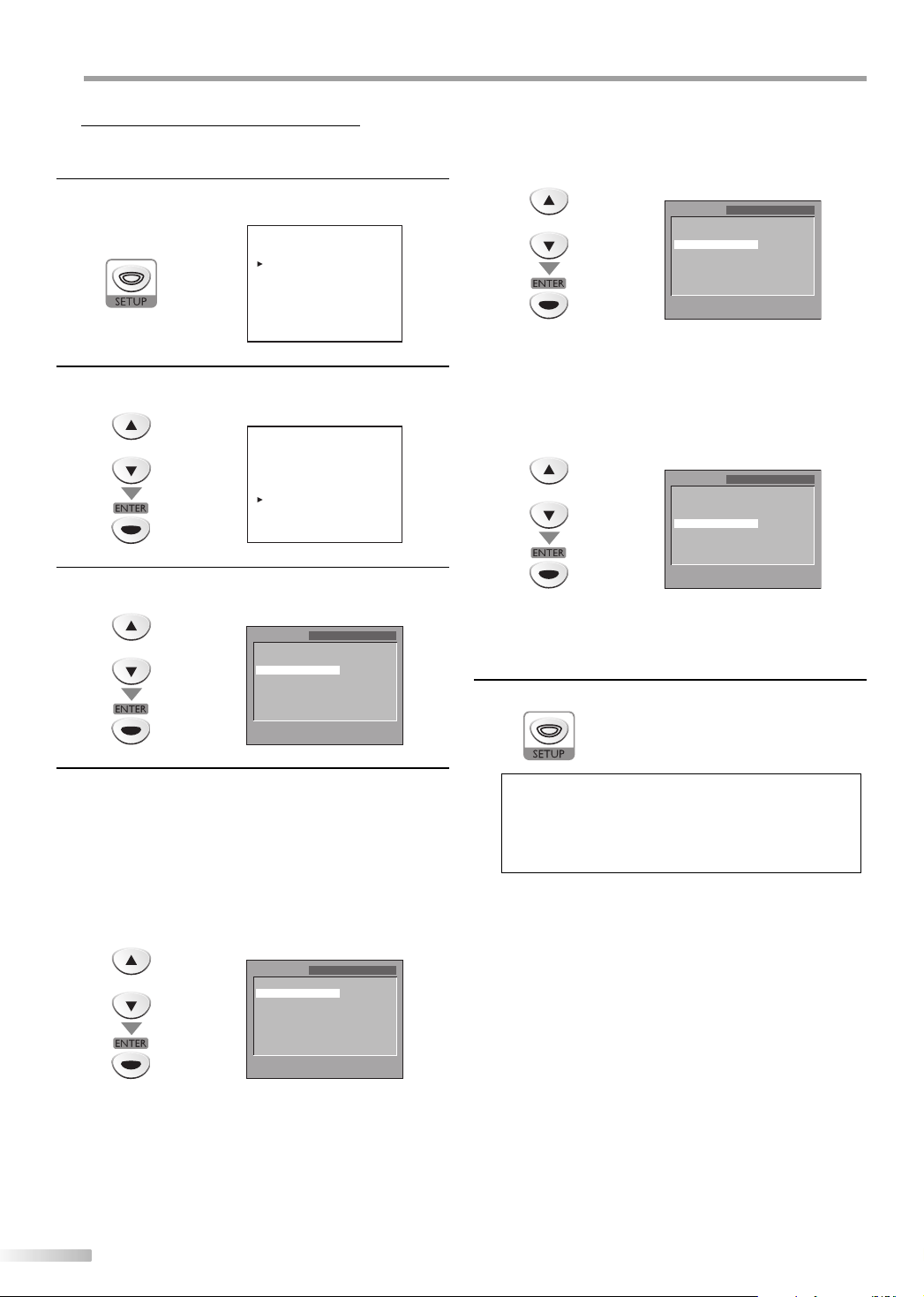

V-chip

5 A. TV RatingA. TV Rating

V-chip reads the ratings for programs, then denies access to the programs which exceed the rating level you set. With this function, you can block certain programming inappropriate for children.

Press [SETUP] to display the main menu.

Use [Cursor K / L] to select “V-CHIP SETUP“,

then press [ENTER]. e.g.) digital TV mode

- TV SETUP CHANNEL SETUP

Use [the Number buttons] to enter the 4-digit

V-CHIP SETUP LANGUAGE [ENGLISH] CAPTION [OFF] BACK LIGHT [BRIGHT] COLOR TEMP. [NORMAL] DTV CC

numbers for your password.

PASSWORD

- - -

• When you have not set up your password, enter 0000.

• When the password is correct, the following “V-CHIP SETUP” menu is displayed.

See the following description for setting each item. e.g.) digital TV mode

...

“A. TV Rating” D page 25

...

“B. MPAA Rating” D page 26

...

“C. Change Password”

D page 27

- V - CHIP SETUP -

TV RATING MPAA RATING CANADIAN ENGLISH RATING CANADIAN FRENCH RATING DOWNLOADABLE RATING CHANGE PASSWORD

Use [Cursor K / L] to select “TV RATING”, then press

[ENTER]. e.g.) digital TV mode

- V - CHIP SETUP -

Use [Cursor K / L ] to select the desired rating, then

TV RATING MPAA RATING CANADIAN ENGLISH RATING CANADIAN FRENCH RATING DOWNLOADABLE RATING CHANGE PASSWORD

INITIAL SETTING

press [ENTER] repeatedly to switch between “VIEW” and “BLOCK”.

Rating Category

TV-Y Appropriate for all children lower

TV-Y7

TV-G General audience TV-PG Parental guidance suggested TV-14 TV-MA Mature audience only higher

A B

Appropriate for all children 7 and older

Unsuitable for children under 14

TV-Y [VIEW] TV-Y7 ( ) [VIEW] TV-G [VIEW] TV-PG ( ) [VIEW] TV-14 ( ) [VIEW] TV-MA ( ) [VIEW]

OPTIONAL SETTING

DVD SETTING TROUBLESHOOTING INFORMATIONOPERATING DVDINTRODUCTION WATCHING TVPREPARATION

Note:

• “DOWNLOADABLE RATING“ will be available when the unit receives a digital broadcast using the new rating system.

• When you select a rating and set it to “BLOCK”, the higher ratings will be blocked automatically. The lower ratings will be available for viewing.

• When you set the highest rating to “VIEW”, all ratings turn to “VIEW” automatically.

• If the “PROTECTED PROGRAM” message appears during your TV viewing, change to a channel that is not blocked. Then, you can access “V-CHIP SETUP” menu and change the setting to allow all TV viewing.

• To block any inappropriate programming, set your limits in both “TV RATING” and “MPAA RATING”.

• The V-chip setting will be retained after a power failure (except the access code reverts to 0000).

• The Canadian rating systems on this unit are based on CEA-766-A and the Canadian Ratio-Television and Telecommunications Commission (CRTC) policy.

PTIONAL SETTING

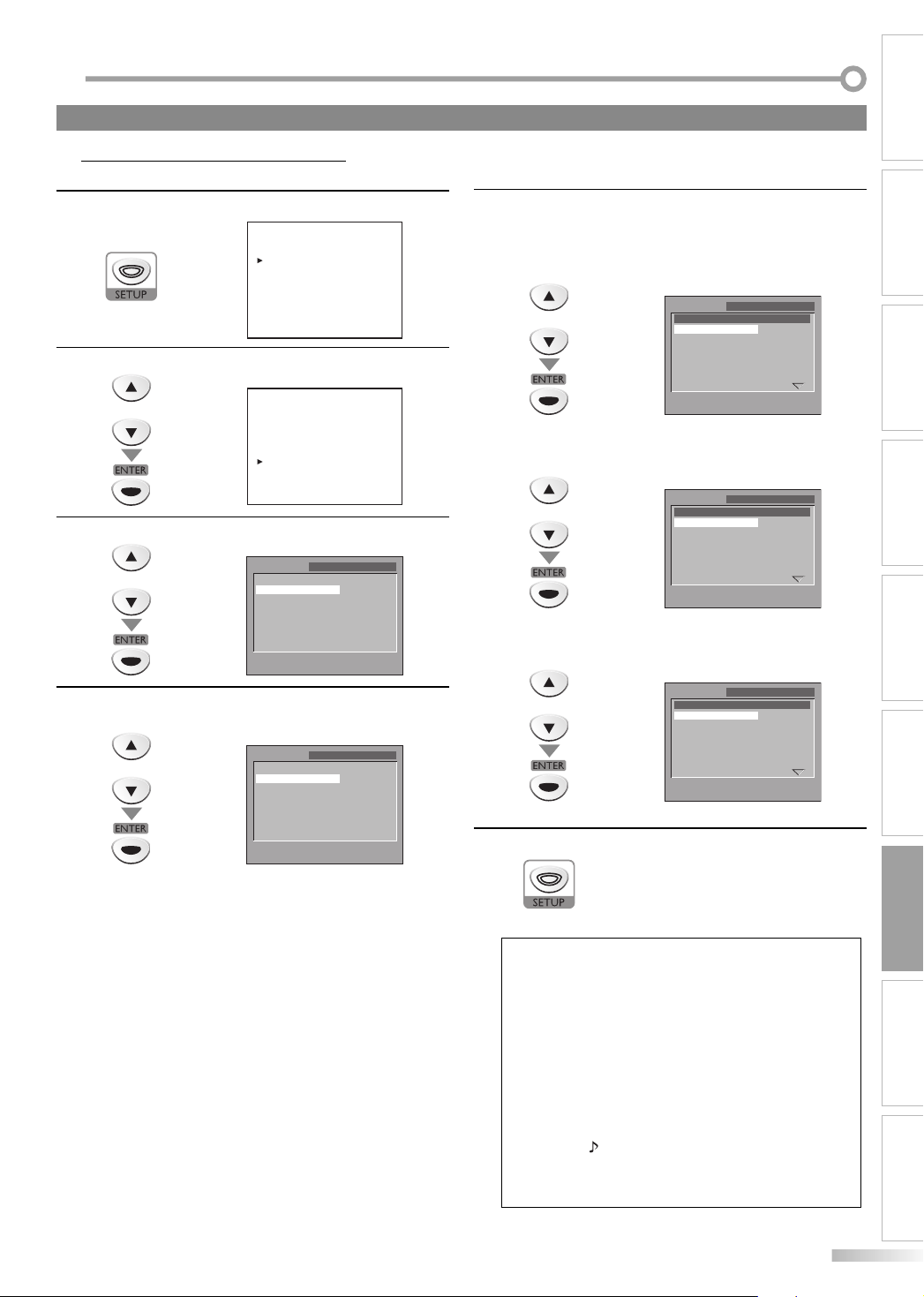

To Set the Sub Ratings

As for TV-Y7, TV-PG, TV-14 or TV-MA, you can further set the sub ratings to block specific elements of programming. To set the sub ratings, follow the steps below.

Use [Cursor K / L ] to select the desired main

rating, then press [ENTER] twice to show its sub ratings.

B. MPAA RatingB. MPAA Rating

MPAA Rating is the rating system created by MPAA (Motion Picture Association of America).

Use [Cursor K / L] to select “MPAA RATING”,

then press [ENTER]. e.g.) digital TV mode

- V - CHIP SETUP -

TV RATING MPAA RATING

CANADIAN ENGLISH RATING CANADIAN FRENCH RATING DOWNLOADABLE RATING CHANGE PASSWORD

Use [Cursor K / L ], then press [ENTER] repeatedly

TV-Y [VIEW] TV-Y7 (DLSV) [VIEW] TV-G [VIEW] TV-PG (DLSV) [BLOCK] TV-14 (DLSV) [BLOCK] TV-MA (DLSV) [BLOCK]

to change the setting.

e.g.) TV-PG

TV-PG [BLOCK]

Sub Rating Category Rating FV Fantasy Violence TV-Y7 D Suggestive Dialogue TV-PG, TV-14 L Coarse Language S Sexual Situation V Violence

D [BLOCK] L [BLOCK] S [BLOCK] V [BLOCK]

TV-PG TV-14 TV-MA

Use [Cursor K / L], then press [ENTER] repeatedly to

change the setting.

Rating Category G PG PG-13

NC-17 X

Press [SETUP] to exit.

General audience

Parental guidance suggested

Unsuitable for children under 13

Restricted; under 17 requires accompanying parent or adult guardian

No one under 17 admitted

Mature audience only

G [VIEW] PG [VIEW] PG-13 [VIEW] R [BLOCK] NC-17 [BLOCK] X [BLOCK]

Press [SETUP] to exit.

Note:

• Blocked sub ratings will appear beside the main rating category in “TV RATING” menu.

• You cannot block a sub rating (D, L, S or V) if the main rating is set to “VIEW”.

• Changing the category to “BLOCK” or “VIEW” automatically changes all its sub ratings to the same (“BLOCK” or “VIEW”).

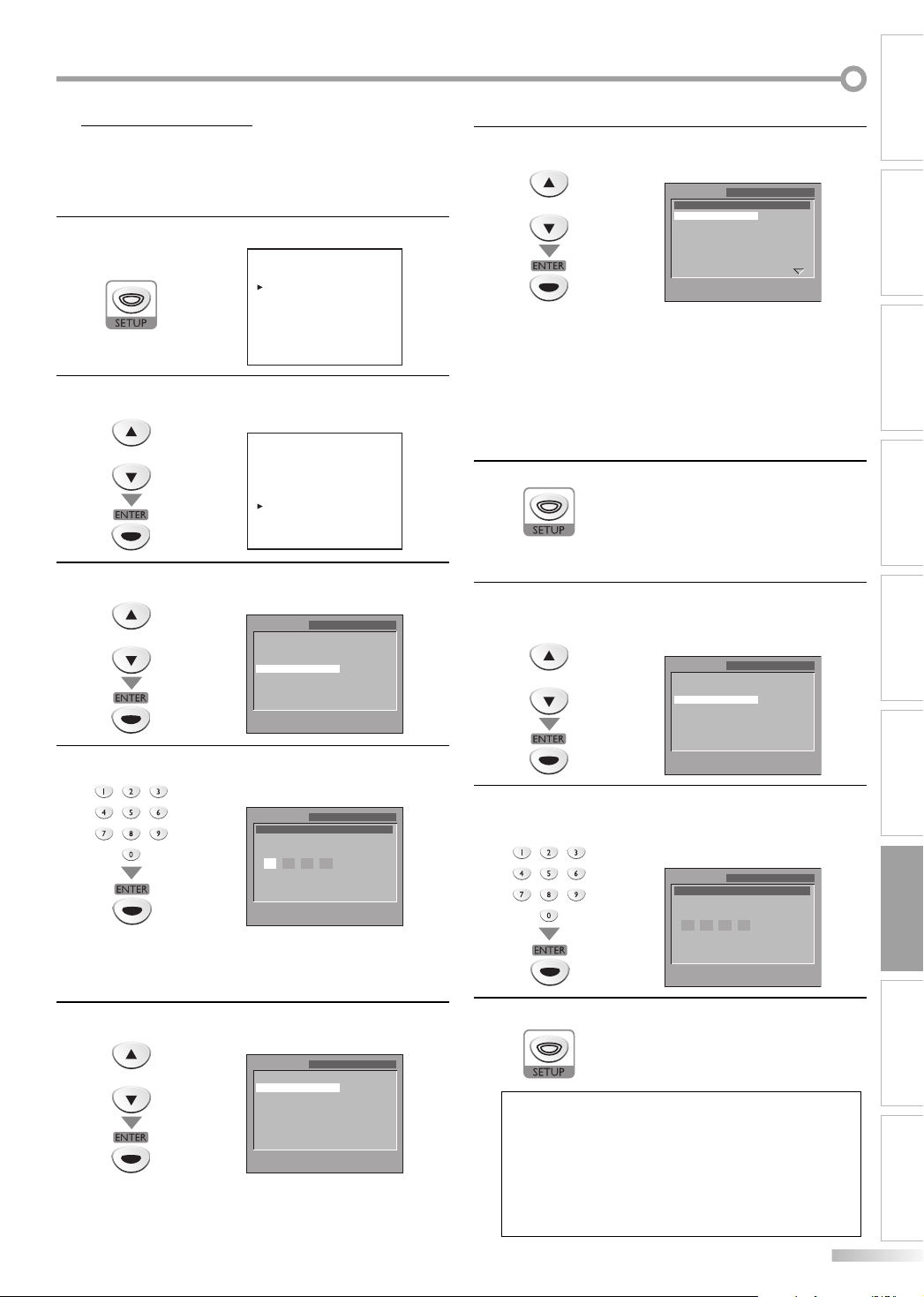

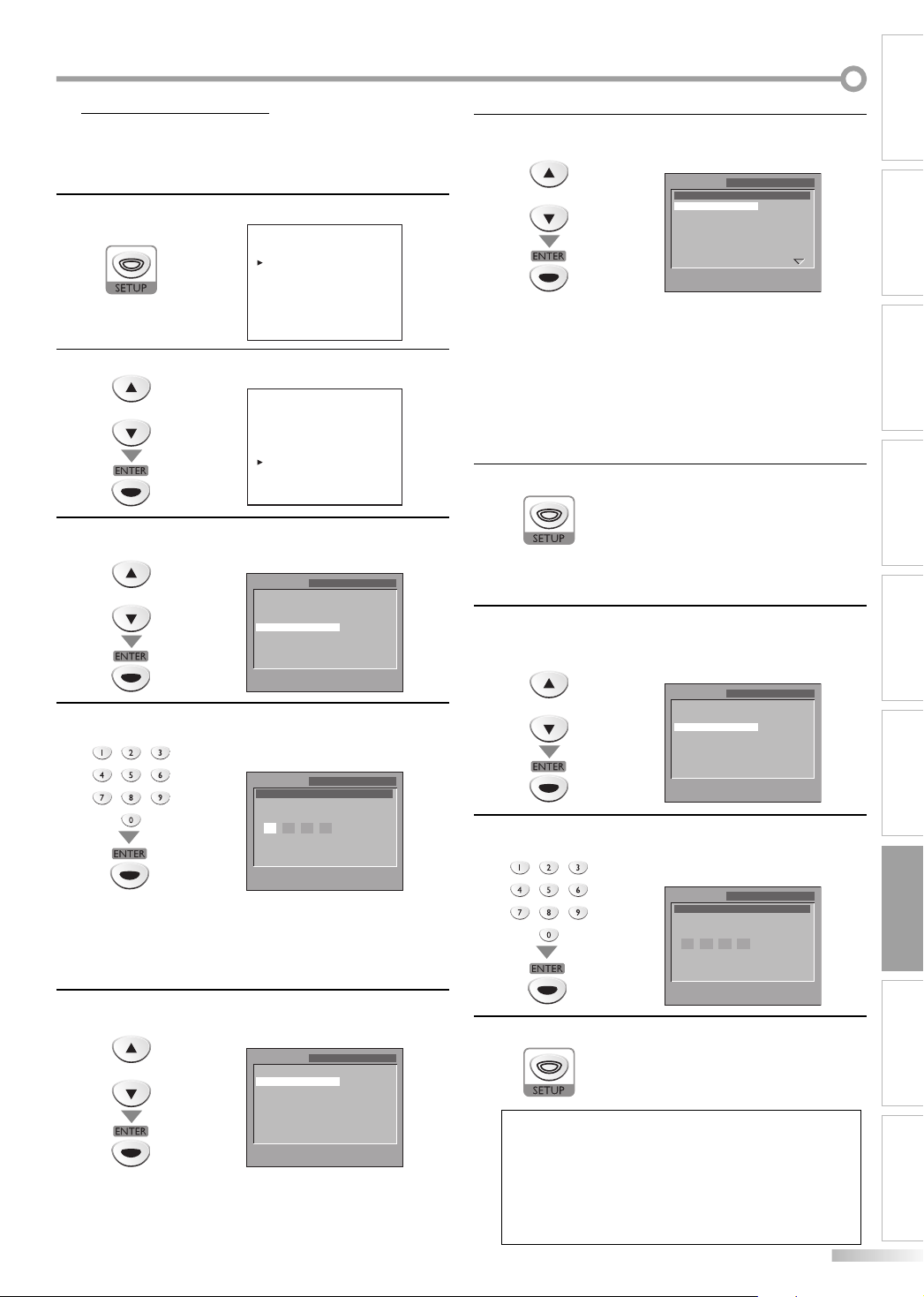

C. Change PasswordC. Change Password

Although the default code “0000” is supplied with the unit, you can set your own password.

Use [Cursor K / L] to select “CHANGE PASSWORD”,

then press [ENTER]. e.g.) digital TV mode

- V - CHIP SETUP -

TV RATING

MPAA RATING CANADIAN ENGLISH RATING CANADIAN FRENCH RATING DOWNLOADABLE RATING CHANGE PASSWORD

INITIAL SETTING

Use [the Number buttons] on the remote control to

enter the new 4-digit password.

• Enter password again in “CONFIRM PASSWORD” space.

NEW PASSWORD

_ _ _ _

CONFIRM PASSWORD

_ _ _ _

Press [SETUP] to exit.

Note:

• Make sure new password and confirm password must be exactly the same. If they are different, the space is cleared for reentering.

• Your password will be erased and return to the default (0000) when a power failure occurs. If you forget the password, unplug the power cord for 10 seconds to restore the password to 0000.

OPTIONAL SETTING

DVD SETTING TROUBLESHOOTING INFORMATIONOPERATING DVDINTRODUCTION WATCHING TVPREPARATION

PTIONAL SETTING

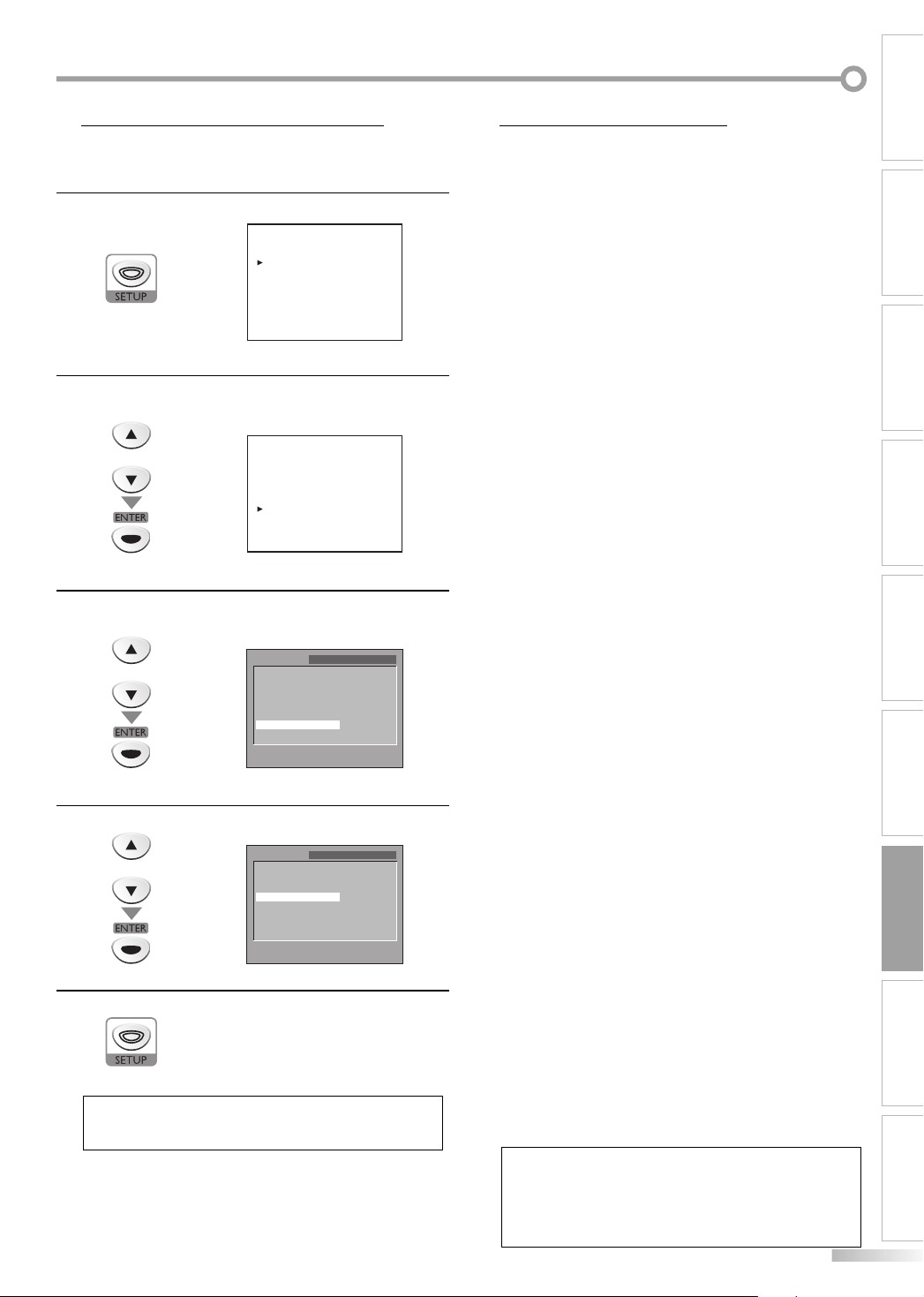

PC Settings

This function lets you adjust the PC screen position, clock and phase during PC input.

Press [SETUP] to display the main menu.

Use [Cursor K / L] to select “PC SETTING”,

then press [ENTER]. e.g.) PC mode

- TV SETUP -

Adjust the setting.

CHANNEL SETUP V-CHIP SETUP LANGUAGE [ENGLISH] CAPTION [OFF] BACK LIGHT [BRIGHT] COLOR TEMP. [NORMAL] PC SETTING

AUTO ADJUSTMENT

Use [Cursor K / L] to select “AUTO ADJUSTMENT”, then press [ENTER].

- PC SETTING -

AUTO ADJUSTMENT

HORIZONTAL POSITION [ 15] VERTICAL POSITION [ CLOCK [ PHASE [ 0]

CLOCK, PHASE

Use [Cursor K / L] to select an item,

then use [Cursor

] to adjust the “CLOCK” setting

to stabilize the PC screen and the “Phase” setting to improve the clarity of the PC screen.

Cursor s Cursor B

CLOCK PHASE

to decrease setting value to increase setting value

Press [SETUP] to exit.

Note:

• Adjust the “PHASE” setting after the “CLOCK” setting has been properly adjusted.

• You may not obtain an appropriate screen with auto adjustment for some signals. In this case, adjust the settings manually.

• The setting range of the horizontal/vertical position is ±30, but the limit value differs depending on PC input signal.

15]

The horizontal/vertical position, clock and phase of

• the PC screen are automatically adjusted in a few seconds.

HORIZONTAL POSITION, VERTICAL POSITION

Use [Cursor K / L] to select an item, then use [Cursor

] to adjust the PC screen position.

Cursor s Cursor B

HORIZONTAL POSITION

VERTICAL POSITION

to move PC screen left to move PC screen right

to move PC screen down to move PC screen up

PERATING DVD

Playable Media

DVD Functions

Media Type

Logo

Recorded

Signal

Media Size 5inches (12 cm)

Unplayable Media

NEVER play back the following discs. Otherwise, malfunction may result!

3inch (8 cm) disc, DVD-RAM, DVD-audio, CD-i, photo CD, video CD, DVD with region codes other than 1 or ALL, DTS-CD, DVD-ROM for personal computers, CD-ROM for personal computers, the discs with labels, scratches, stains, blemishes, etc., HD DVD, Blu-ray disc, CD-RW/-R with MP3 files.

On the following disc, the sound MAY NOT be heard.

super audio CD

Any other discs without compatibility indications

DVD-VIDEO DVD-RW DVD-R

digital video (MPEG2) digital audio

DVD+RW

DVD+R CD-DA CD-RW CD-R

Note:

• Unfinalized discs cannot be played back.

• For DVD-RW/R, discs recorded in the VR (video recording) format cannot be played back. Only the finalized video format discs can be played back.

• Some discs cannot be played back because of incompatible recording conditions, characteristics of the recorder or special properties of discs.

• Only the sound recorded on the normal CD layer can be delivered. The sound recorded on the high density super audio CD layer cannot be delivered.

• Do not use a single CD adaptor which makes 3 inch (8 cm) to 5 inch (12 cm) disc.

• You can play back discs which bear the marks listed in “Playable Media”. If you use non-standardized discs, this unit may not play them back. Even if they are played back, the sound or video quality will be compromised.

• If the recorded portion of the disc is too small (less than 2-3/16 inches (55 mm) across), it may not play back properly.

INITIAL SETTING

OPTIONAL SETTING

OPERATING DVD

Region Codes

This unit has been designed to play back DVD with region 1. DVD must be labeled for ALL regions or for region 1 in order to play back on the unit. You cannot play back DVD that are labeled for other regions. Look for the symbols on your DVD. If these region symbols are not on your DVD, you cannot play back the DVD in this unit.

The number inside the globe refers to region of the world. A DVD labeled for a specific region can only be played

back on the unit with the same region code.

Color Systems

DVD is recorded in different color systems throughout the world. The most common color system is NTSC (which is used primarily in the United States and Canada).

This unit uses NTSC, so DVD you play back must be recorded in the NTSC system. You cannot play back DVD recorded in PAL color systems.

DVD SETTINGINTRODUCTION WATCHING TVPREPARATION

TROUBLESHOOTING INFORMATION

+ 67 hidden pages
