SERVICE MANUAL

42″ COLOR LCD TELEVISION

LC420SS8

IMPORTANT SAFETY NOTICE

Proper service and repair is important to the safe, reliable operation of all
Funai Equipment. The service procedures recommended by Funai and
described in this service manual are effective methods of performing
service operations. Some of these service special tools should be used
when and as recommended.

It is important to note that this service manual contains various CAUTIONS
and NOTICES which should be carefully read in order to minimize the risk
of personal injury to service personnel. The possibility exists that improper
service methods may damage the equipment. It also is important to
understand that these CAUTIONS and NOTICES ARE NOT EXHAUSTIVE.
Funai could not possibly know, evaluate and advice the service trade of all
conceivable ways in which service might be done or of the possible
hazardous consequences of each way. Consequently, Funai has not
undertaken any such broad evaluation. Accordingly, a servicer who uses a
service procedure or tool which is not recommended by Funai must first
use all precautions thoroughly so that neither his safety nor the safe
operation of the equipment will be jeopardized by the service method
selected.

TABLE OF CONTENTS

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

Important Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

Standard Notes for Servicing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

Cabinet Disassembly Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1

Electrical Adjustment Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1

How to initialize the LCD Television . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1

Block Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1

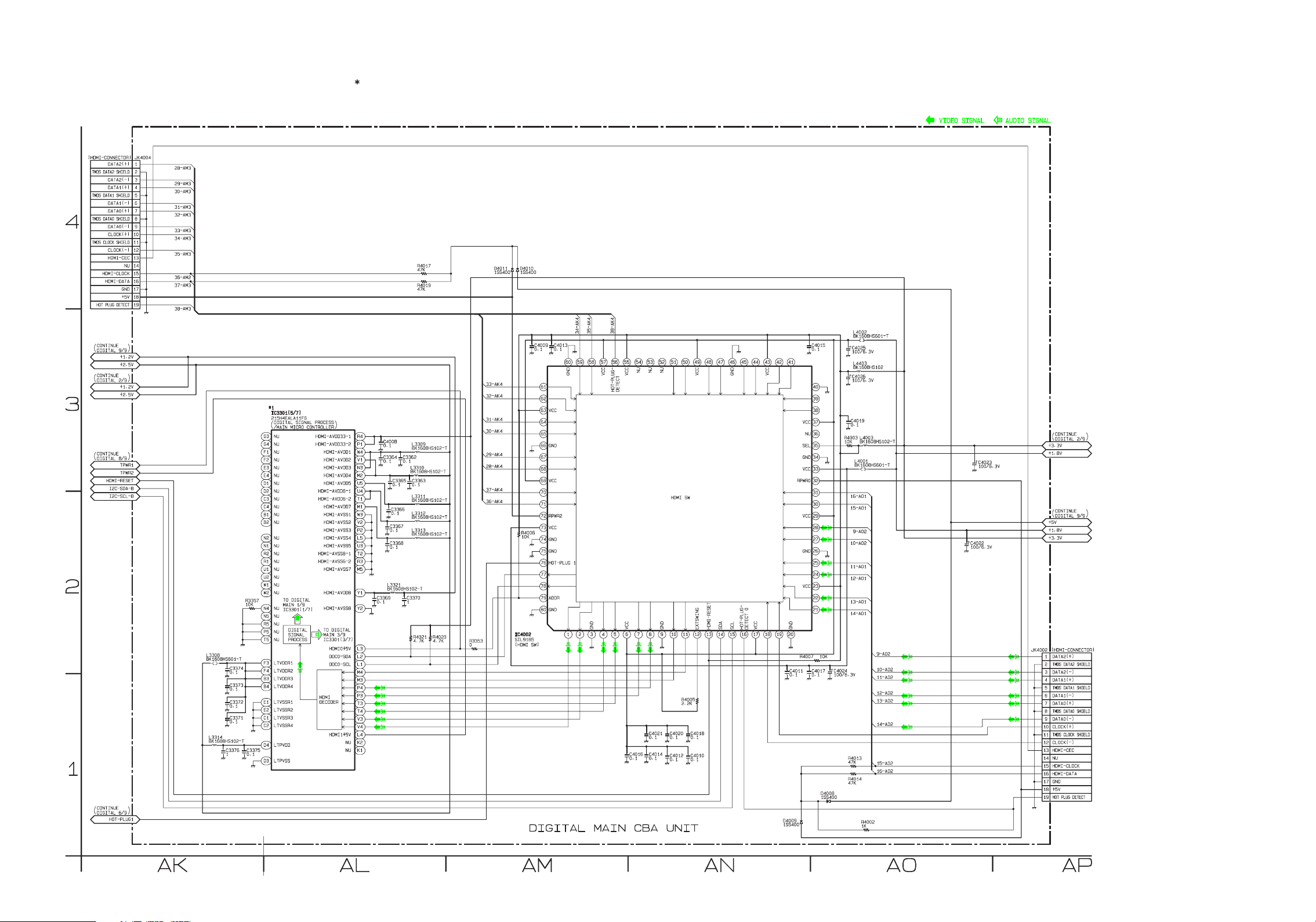

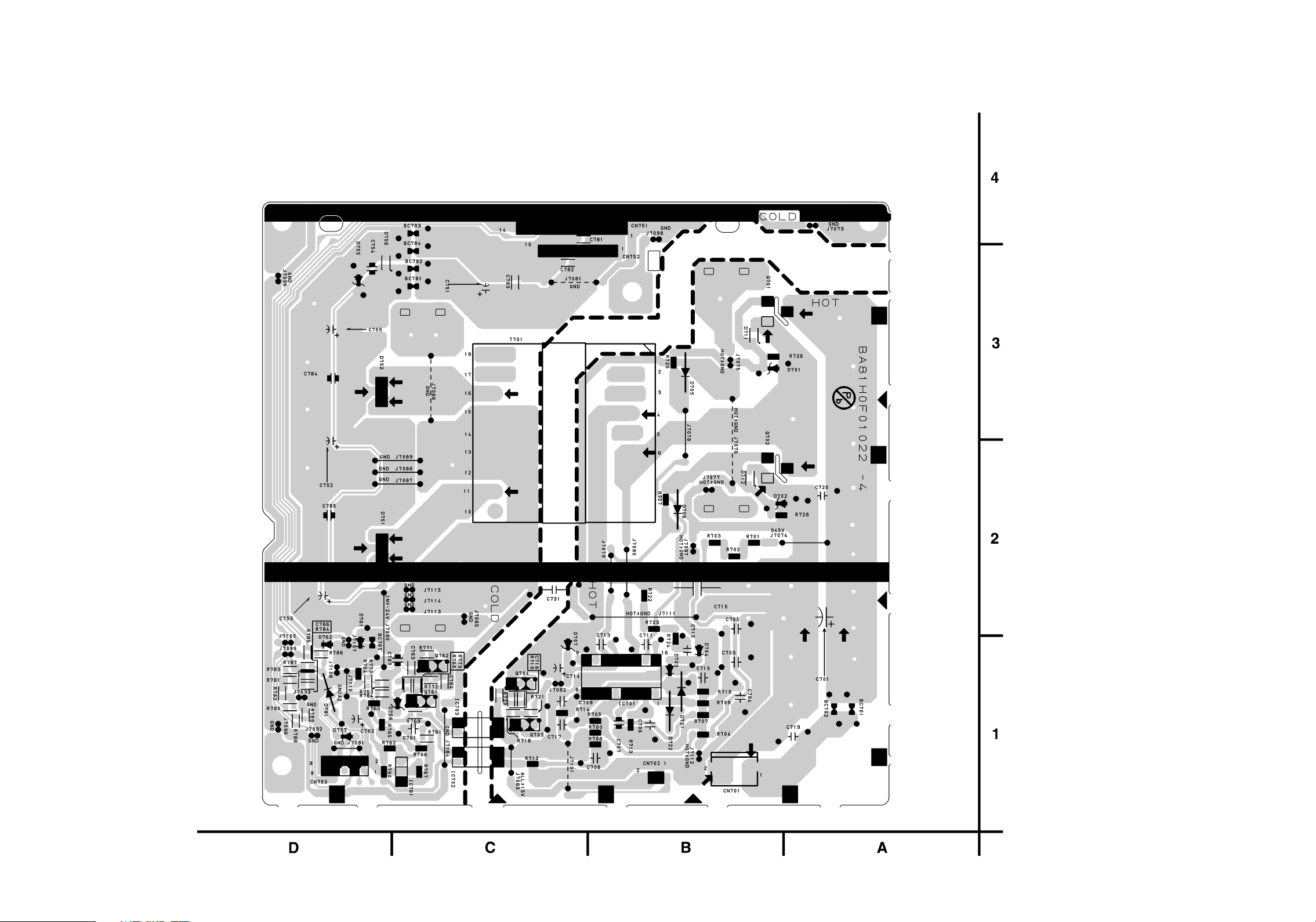

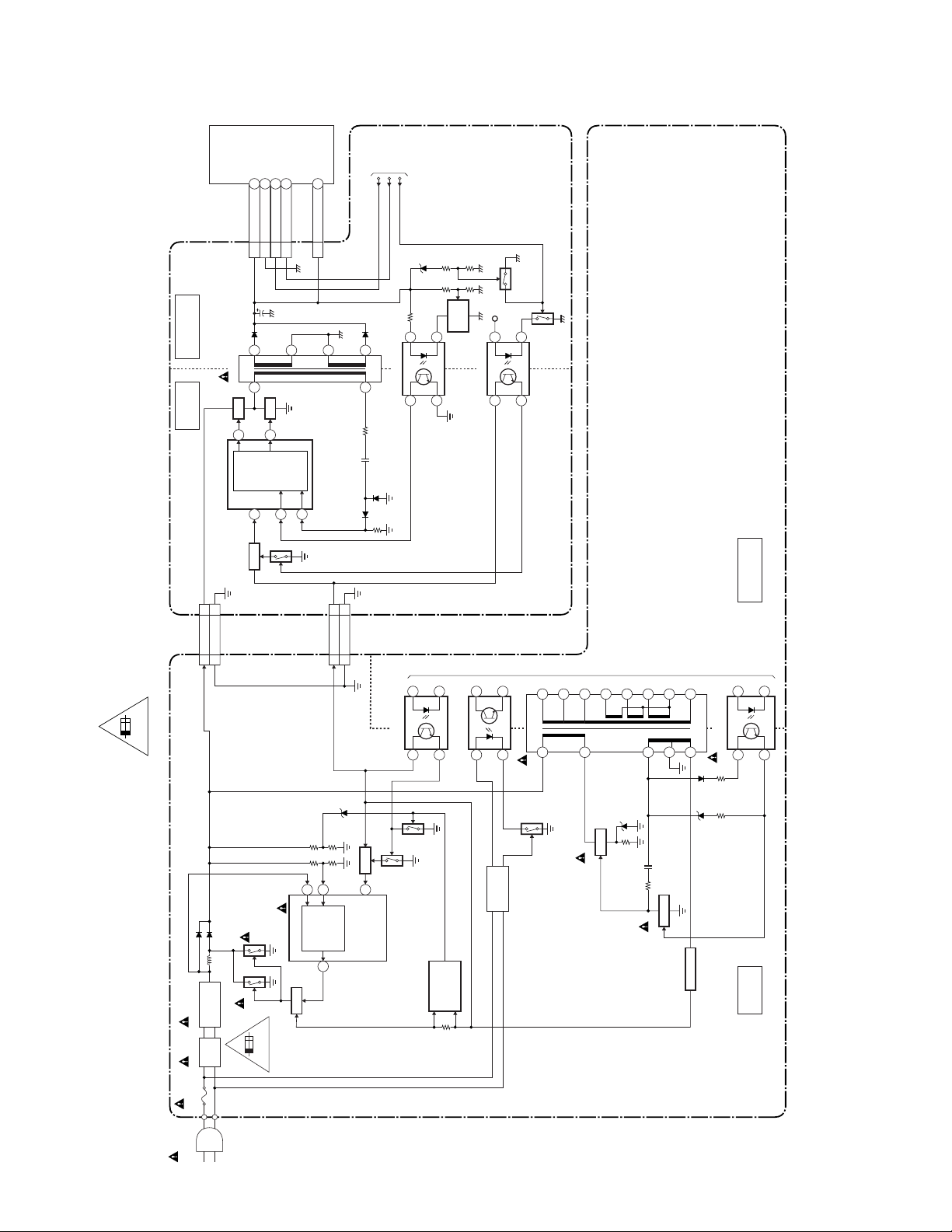

Schematic Diagrams / CBA’s and Test Points. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-1

Waveforms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-1

Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-1

Exploded Views. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-1

Mechanical Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-1

Electrical Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-1

The LCD panel is manufactured to provide many years of useful life.
Occasionally a few non active pixels may appear as a tiny spec of color.
This is not to be considered a defect in the LCD screen.

SPECIFICATIONS

< TUNER / NTSC >

ANT. Input ---------------------- 75 ohm Unbal., F type

Description Condition Unit Nominal Limit

1. AFT Pull-In Range --- MHz ±2.3 ±2.1
20

20
23

2. Syncronizing Sens.

TV.ch.4
CA.ch.31
CA.ch.87

dBµ
dBµ
dBµ

---

---

---

< TUNER / ATSC >

Description Condition Unit Nominal Limit

1. Received Freq. Range (-28dBm) --- kHz --- ±100

2. ATSC Dynamic Range (min / max)

ch.4
ch.10
ch.41

dBm
dBm
dBm

---

---

---

-76/+6

-76/+6

-76/+6

< LCD PANEL >

Description Condition Unit Nominal Limit

1. Native Pixel Resolusion

2. Brightness (w / filter) --- cd/m

3. Viewing Angle

Horizontal

Vert ical

Horizontal

Vert ical

pixels
pixels

°
°

1920
1080

2

500 ---

---

---

---

---

-89 to +89

-89 to +89

< VIDEO >

Description Condition Unit Nominal Limit

1. Over Scan

2. Color Temperature

3. Resolution (composite video)

Horizontal

Vert ical

--­x
y

Horizontal

Vert ical

%
%

°K 12000

line
line

5±5
5±5

0.272

0.278
720

480

---

---

--­±10%
±10%

---

---

1-1 A81H1SP

< AUDIO >

All items are measured across 8 Ω load at speaker output terminal with L.P.F. / Video1 Input.

Description Condition Unit Nominal Limit

1. Audio Output Power 10% THD: Lch/Rch W 10.0/10.0 9.0/9.0

2. Audio Distortion 500mW: Lch/Rch % 0.5/0.5 2.0/2.0

-

3. Audio Freq. Response (NTSC)

Note: Nominal specifications represent the design specifications. All units should be able to approximate these.

Some will exceed and some may drop slightly below these specifications. Limit specifications represent
the absolute worst condition that still might be considered acceptable. In no case should a unit fail to meet
limit specifications.

6dB: Lch

-

6dB: Rch

Hz
Hz

20 to 10 k
20 to 10 k

---

---

1-2 A81H1SP

IMPORTANT SAFETY PRECAUTIONS

Prior to shipment from the factory, our products are strictly inspected for recognized product safety and electrical
codes of the countries in which they are to be sold. However, in order to maintain such compliance, it is equally
important to implement the following precautions when a set is being serviced.

Safety Precautions for LCD TV
Circuit

1. Before returning an instrument to the

customer, always make a safety check of the

entire instrument, including, but not limited to, the
following items:

a. Be sure that no built-in protective devices are

defective and have been defeated during
servicing. (1) Protective shields are provided
on this chassis to protect both the technician
and the customer. Correctly replace all missing
protective shields, including any removed for
servicing convenience. (2) When reinstalling
the chassis and/or other assembly in the
cabinet, be sure to put back in place all
protective devices, including but not limited to,
nonmetallic control knobs, insulating
fishpapers, adjustment and compartment
covers/shields, and isolation resistor/capacitor
networks. Do not operate this instrument or

permit it to be operated without all
protective devices correctly installed and
functioning. Servicers who defeat safety
features or fail to perform safety checks
may be liable for any resulting damage.

b. Be sure that there are no cabinet openings

through which an adult or child might be able to
insert their fingers and contact a hazardous
voltage. Such openings include, but are not
limited to, (1) spacing between the Liquid
Crystal Panel and the cabinet mask, (2)
excessively wide cabinet ventilation slots, and
(3) an improperly fitted and/or incorrectly
secured cabinet back cover.

c. Antenna Cold Check - With the instrument AC

plug removed from any AC source, connect an
electrical jumper across the two AC plug
prongs. Place the instrument AC switch in the
on position. Connect one lead of an ohmmeter
to the AC plug prongs tied together and touch
the other ohmmeter lead in turn to each tuner
antenna input exposed terminal screw and, if
applicable, to the coaxial connector. If the
measured resistance is less than 1.0 megohm
or greater than 5.2 megohm, an abnormality
exists that must be corrected before the
instrument is returned to the customer. Repeat
this test with the instrument AC switch in the off
position.

d. Leakage Current Hot Check - With the

instrument completely reassembled, plug the
AC line cord directly into a 120 V AC outlet. (Do
not use an isolation transformer during this
test.) Use a leakage current tester or a
metering system that complies with American
National Standards Institute (ANSI) C101.1
Leakage Current for Appliances and
Underwriters Laboratories (UL) 1410, (50.7).
With the instrument AC switch first in the on
position and then in the off position, measure
from a known earth ground (metal water pipe,
conduit, etc.) to all exposed metal parts of the
instrument (antennas, handle brackets, metal
cabinet, screw heads, metallic overlays, control
shafts, etc.), especially any exposed metal
parts that offer an electrical return path to the
chassis. Any current measured must not
exceed 0.5 milli-ampere. Reverse the
instrument power cord plug in the outlet and
repeat the test.

READING SHOULD
NOT BE ABOVE 0.5 mA

LEAKAGE

DEVICE

BEING

TESTED

TEST ALL EXPOSED
METAL SURFACES

ALSO TEST WITH
PLUG REVERSED
USING AC
ADAPTER PLUG
AS REQUIRED

ANY MEASUREMENTS NOT WITHIN THE
LIMITS SPECIFIED HEREIN INDICATE A
POTENTIAL SHOCK HAZARD THAT MUST
BE ELIMINATED BEFORE RETURNING THE
INSTRUMENT TO THE CUSTOMER OR
BEFORE CONNECTING THE ANTENNA OR
ACCESSORIES.

2. Read and comply with all caution and safety-

related notes on or inside the receiver cabinet, on
the receiver chassis, or on the Liquid Crystal
Panel.

CURRENT

TESTER

+

EARTH
GROUND

_

2-1 LTVN_ISP

3. Design Alteration Warning - Do not alter or add
to the mechanical or electrical design of this TV
receiver. Design alterations and additions,
including, but not limited to circuit modifications
and the addition of items such as auxiliary audio
and/or video output connections, might alter the
safety characteristics of this receiver and create a
hazard to the user. Any design alterations or
additions will void the manufacturer's warranty and
may make you, the servicer, responsible for
personal injury or property damage resulting
therefrom.

4. Hot Chassis Warning ­a. Some TV receiver chassis are electrically

connected directly to one conductor of the AC
power cord and maybe safety-serviced without
an isolation transformer only if the AC power
plug is inserted so that the chassis is
connected to the ground side of the AC power
source. To confirm that the AC power plug is
inserted correctly, with an AC voltmeter,
measure between the chassis and a known
earth ground. If a voltage reading in excess of

1.0 V is obtained, remove and reinsert the AC
power plug in the opposite polarity and again
measure the voltage potential between the
chassis and a known earth ground.

b. Some TV receiver chassis normally have 85V

AC(RMS) between chassis and earth ground
regardless of the AC plug polarity. This chassis
can be safety-serviced only with an isolation
transformer inserted in the power line between
the receiver and the AC power source, for both
personnel and test equipment protection.

c. Some TV receiver chassis have a secondary

ground system in addition to the main chassis
ground. This secondary ground system is not
isolated from the AC power line. The two
ground systems are electrically separated by
insulation material that must not be defeated or
altered.

5. Observe original lead dress. Take extra care to
assure correct lead dress in the following areas: a.
near sharp edges, b. near thermally hot parts-be
sure that leads and components do not touch
thermally hot parts, c. the AC supply, d. high
voltage, and, e. antenna wiring. Always inspect in
all areas for pinched, out of place, or frayed wiring.
Check AC power cord for damage.

6. Components, parts, and/or wiring that appear to
have overheated or are otherwise damaged
should be replaced with components, parts, or
wiring that meet original specifications.
Additionally, determine the cause of overheating
and/or damage and, if necessary, take corrective
action to remove any potential safety hazard.

7. Product Safety Notice - Some electrical and
mechanical parts have special safety-related
characteristics which are often not evident from
visual inspection, nor can the protection they give
necessarily be obtained by replacing them with
components rated for higher voltage, wattage, etc.
Parts that have special safety characteristics are
identified by a # on schematics and in parts lists.
Use of a substitute replacement that does not
have the same safety characteristics as the
recommended replacement part might create
shock, fire, and/or other hazards. The product's
safety is under review continuously and new
instructions are issued whenever appropriate.
Prior to shipment from the factory, our products
are strictly inspected to confirm they comply with
the recognized product safety and electrical codes
of the countries in which they are to be sold.
However, in order to maintain such compliance, it
is equally important to implement the following
precautions when a set is being serviced.

2-2 LTVN_ISP

Precautions during Servicing

A. Parts identified by the # symbol are critical for

safety.
Replace only with part number specified.

B. In addition to safety, other parts and assemblies

are specified for conformance with regulations
applying to spurious radiation. These must also be
replaced only with specified replacements.
Examples: RF converters, RF cables, noise
blocking capacitors, and noise blocking filters, etc.

C. Use specified internal wiring. Note especially:

1) Wires covered with PVC tubing

2) Double insulated wires

3) High voltage leads

D. Use specified insulating materials for hazardous

live parts. Note especially:

1) Insulation Tape

2) PVC tubing

3) Spacers

4) Insulators for transistors.

E. When replacing AC primary side components

(transformers, power cord, etc.), wrap ends of
wires securely about the terminals before
soldering.

F. Observe that the wires do not contact heat

producing parts (heat sinks, oxide metal film
resistors, fusible resistors, etc.)

G. Check that replaced wires do not contact sharp

edged or pointed parts.

H. When a power cord has been replaced, check that

5~6 kg of force in any direction will not loosen it.

I. Also check areas surrounding repaired locations.
J. Use care that foreign objects (screws, solder

droplets, etc.) do not remain inside the set.

K. When connecting or disconnecting the internal

connectors, first, disconnect the AC plug from the
AC supply outlet.

L. When installing parts or assembling the cabinet

parts, be sure to use the proper screws and
tighten certainly.

2-3 LTVN_ISP

Safety Check after Servicing

Examine the area surrounding the repaired location for damage or deterioration. Observe that screws, parts and
wires have been returned to original positions. Afterwards, perform the following tests and confirm the specified
values in order to verify compliance with safety standards.

1. Clearance Distance

When replacing primary circuit components, confirm
specified clearance distance (d) and (d') between
soldered terminals, and between terminals and
surrounding metallic parts. (See Fig. 1)

Table 1: Ratings for selected area

Chassis or Secondary Conductor

Primary Circuit

AC Line Voltage Region

110 to 130 V

Note: This table is unofficial and for reference only. Be

sure to confirm the precise values.

U.S.A. or

Canada

Clearance

Distance (d), (d’)

≥ 3.2 mm

(0.126 inches)

2. Leakage Current Test

Confirm the specified (or lower) leakage current
between B (earth ground, power cord plug prongs) and
externally exposed accessible parts (RF terminals,
antenna terminals, video and audio input and output
terminals, microphone jacks, earphone jacks, etc.) is
lower than or equal to the specified value in the table
below.

Measuring Method: (Power ON)

Insert load Z between B (earth ground, power cord plug
prongs) and exposed accessible parts. Use an AC
voltmeter to measure across both terminals of load Z.
See Fig. 2 and following table.

d' d

Fig. 1

Exposed Accessible Part

Z

AC Voltmeter
(High Impedance)

Earth Ground

B

Power Cord Plug Prongs

Fig. 2

Table 2: Leakage current ratings for selected areas

AC Line Voltage Region Load Z Leakage Current (i) Earth Ground (B) to:

110 to 130 V

Note: This table is unofficial and for reference only. Be sure to confirm the precise values.

U.S.A. or

Canada

0.15 µF CAP. & 1.5 kΩ

RES. Connected in parallel

2-4 LTVN_ISP

i ≤ 0.5 mA rms

Exposed accessible

parts

STANDARD NOTES FOR SERVICING

Circuit Board Indications

1. The output pin of the 3 pin Regulator ICs is
indicated as shown.

Top View

Out

2. For other ICs, pin 1 and every fifth pin are
indicated as shown.

Pin 1

3. The 1st pin of every male connector is indicated as
shown.

Pin 1

Input

In

Bottom View

5

10

Pb (Lead) Free Solder

Pb free mark will be found on PCBs which use Pb
free solder. (Refer to figure.) For PCBs with Pb free
mark, be sure to use Pb free solder. For PCBs
without Pb free mark, use standard solder.

Pb free mark

How to Remove / Install Flat Pack-IC

1. Removal

With Hot-Air Flat Pack-IC Desoldering Machine:

1. Prepare the hot-air flat pack-IC desoldering
machine, then apply hot air to the Flat Pack-IC
(about 5 to 6 seconds). (Fig. S-1-1)

Fig. S-1-1

2. Remove the flat pack-IC with tweezers while
applying the hot air.

3. Bottom of the flat pack-IC is fixed with glue to the
CBA; when removing entire flat pack-IC, first apply
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)

4. Release the flat pack-IC from the CBA using
tweezers. (Fig. S-1-6)

CAUTION:

1. The Flat Pack-IC shape may differ by models. Use
an appropriate hot-air flat pack-IC desoldering
machine, whose shape matches that of the Flat
Pack-IC.

2. Do not supply hot air to the chip parts around the
flat pack-IC for over 6 seconds because damage
to the chip parts may occur. Put masking tape
around the flat pack-IC to protect other parts from
damage. (Fig. S-1-2)

3-1 TVN_SN

3. The flat pack-IC on the CBA is affixed with glue, so
be careful not to break or damage the foil of each
pin or the solder lands under the IC when
removing it.

With Soldering Iron:

1. Using desoldering braid, remove the solder from
all pins of the flat pack-IC. When you use solder
flux which is applied to all pins of the flat pack-IC,
you can remove it easily. (Fig. S-1-3)

CBA

Masking
Tape

Tweezers

Hot-air
Flat Pack-IC
Desoldering
Machine

Flat Pack-IC

Fig. S-1-2

Flat Pack-IC

Desoldering Braid

Soldering Iron

Fig. S-1-3

2. Lift each lead of the flat pack-IC upward one by
one, using a sharp pin or wire to which solder will
not adhere (iron wire). When heating the pins, use
a fine tip soldering iron or a hot air desoldering
machine. (Fig. S-1-4)

Sharp
Pin

Fine Tip
Soldering Iron

3. Bottom of the flat pack-IC is fixed with glue to the
CBA; when removing entire flat pack-IC, first apply
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)

4. Release the flat pack-IC from the CBA using
tweezers. (Fig. S-1-6)

Fig. S-1-4

3-2 TVN_SN

With Iron Wire:

1. Using desoldering braid, remove the solder from
all pins of the flat pack-IC. When you use solder
flux which is applied to all pins of the flat pack-IC,
you can remove it easily. (Fig. S-1-3)

2. Affix the wire to a workbench or solid mounting
point, as shown in Fig. S-1-5.

3. While heating the pins using a fine tip soldering
iron or hot air blower, pull up the wire as the solder
melts so as to lift the IC leads from the CBA
contact pads as shown in Fig. S-1-5.

4. Bottom of the flat pack-IC is fixed with glue to the
CBA; when removing entire flat pack-IC, first apply
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)

5. Release the flat pack-IC from the CBA using
tweezers. (Fig. S-1-6)

Note: When using a soldering iron, care must be

taken to ensure that the flat pack-IC is not
being held by glue. When the flat pack-IC is
removed from the CBA, handle it gently
because it may be damaged if force is applied.

Hot Air Blower

2. Installation

1. Using desoldering braid, remove the solder from
the foil of each pin of the flat pack-IC on the CBA
so you can install a replacement flat pack-IC more
easily.

2. The “●” mark on the flat pack-IC indicates pin 1.
(See Fig. S-1-7.) Be sure this mark matches the 1
on the PCB when positioning for installation. Then
presolder the four corners of the flat pack-IC. (See
Fig. S-1-8.)

3. Solder all pins of the flat pack-IC. Be sure that
none of the pins have solder bridges.

Example :

Pin 1 of the Flat Pack-IC
is indicated by a " " mark.

Fig. S-1-7

To Solid
Mounting Point

CBA

Tweezers

Iron Wire

Soldering Iron

Fig. S-1-5

Fine Tip
Soldering Iron

Flat Pack-IC

or

Presolder

Flat Pack-IC

CBA

Fig. S-1-8

Fig. S-1-6

3-3 TVN_SN

Instructions for Handling Semi­conductors

Electrostatic breakdown of the semi-conductors may
occur due to a potential difference caused by
electrostatic charge during unpacking or repair work.

1. Ground for Human Body

Be sure to wear a grounding band (1 MΩ) that is
properly grounded to remove any static electricity that
may be charged on the body.

2. Ground for Workbench

Be sure to place a conductive sheet or copper plate
with proper grounding (1 MΩ) on the workbench or
other surface, where the semi-conductors are to be
placed. Because the static electricity charge on
clothing will not escape through the body grounding
band, be careful to avoid contacting semi-conductors
with your clothing.

<Incorrect>

<Correct>

1MΩ

CBA

Grounding Band

1MΩ

CBA

Conductive Sheet or
Copper Plate

3-4 TVN_SN

CABINET DISASSEMBLY INSTRUCTIONS

1. Disassembly Flowchart

This flowchart indicates the disassembly steps for the
cabinet parts, and the CBA in order to gain access to
item(s) to be serviced. When reassembling, follow the
steps in reverse order. Bend, route and dress the
cables as they were.

[1] Stand Base

[8] Jack CBA

[18] Speaker(s)

[5] Jack Holder(D)

[6] Shield Box

[7] Digital Main
CBA Unit

[2] Stand Cover

[3] Rear Cabinet

[9] Power Supply
CBA

[10] PCB Holder

[11] Stand Shaft
(L,R)

[12] Chassis

Bracket (L,R)

[13] LCD
Module Assembly

[19] Front Cabinet

[14] Function CBA

[17] Side Jack CBA

[4] Inverter Power
CBA

[15] Junction CBA

[16] IR Sensor
CBA

2. Disassembly Method

Removal

Step/

Loc.

Part

No.

[1] Stand Base D1 4(S-1), 4(S-2) ---

Stand

[2]

Cover
Rear

[3]

Cabinet

Inverter

[4]

Power CBAD2D5

Jack

[5]

Holder(D)

[6] Shield Box D2 5(S-10), 2(S-11), (N-1) ---

Digital Main

[7]

CBA UnitD2D5

[8] Jack CBA

Remove/*Unhook/

Fig.

No.

Unlock/Release/

Unplug/Unclamp/

Note

Desolder

D1 --------------- ---

D1 6(S-3), 2(S-4), 11(S-5) ---

5(S-6), *CN701,
*CN702, *CN751,
*CN752, *CN753

D2 (S-7), 2(S-8), 2(S-9) ---

*CN200, *CN201,
*CN202, *CN203,
*CN3707, *CN4201

D3D55(S-12), *CL7002A,

*CN7002

---

---

---

Removal

Step/

Loc.

No.

Part

Remove/*Unhook/

Fig.

No.

Unlock/Release/

Unplug/Unclamp/

Note

Desolder

[9]

Power
Supply
CBA

D3D58(S-13), *CN204,

*CN801, *CN802

---

[10] PCB Holder D3 4(S-14) ---

Stand Shaft

[11]

(L, R)

D4 4(S-15) ---

Chassis

[12]

Bracket

D4 6(S-16) ---

(L, R)
LCD

[13]

Module

D4 13(S-17) ---

Assembly

[14]

[15]

[16]

[17]

Function
CBA

Junction
CBA

IR Sensor
CBA

Side Jack
CBA

D4

3(S-18), *CL106B ---

D5
D4

*CL101A ---

D5
D4

2(S-19) ---

D5
D4

2(S-20) ---

D5

[18] Speaker(s) D4 8(S-21) ---

Front

[19]

↓

(1)

Cabinet

↓

(2)

D4 --------------- ---

↓

(3)

↓

(4)

↓

(5)

Note:

(1) Order of steps in procedure. When reassembling,

follow the steps in reverse order. These numbers
are also used as the Identification (location) No. of
parts in figures.

(2) Parts to be removed or installed.
(3) Fig. No. showing procedure of part location
(4) Identification of parts to be removed, unhooked,

unlocked, released, unplugged, unclamped, or
desoldered.
N = Nut, L = Locking Tab, S = Screw,
CN = Connector
* = Unhook, Unlock, Release, Unplug, or Desolder
e.g. 2(S-2) = two Screws (S-2),
2(L-2) = two Locking Tabs (L-2)

(5) Refer to the following "Reference Notes in the

Table."

4-1 A81H1DC

(S-5)

(S-5)

(S-3)

(S-4)

(S-3)

[3] Rear Cabinet

[2] Stand Cover

(S-5)

(S-5)

(S-5)

(S-2)

(S-1)

(S-4)

(S-5)

(S-3)

(S-5)

(S-3)

(S-1)

(S-2)

[1] Stand Base

Fig. D1

4-2 A81H1DC

(S-6)

[4] Inverter Power CBA

[7] Digital Main
CBA Unit

(S-6)

(S-11)

(N-1)

(S-8)

(S-7)

(S-10)

(S-9)

[6] Shield Box

[5] Jack Holder(D)

Fig. D2

4-3 A81H1DC

(S-14)

(S-14)

[10] PCB Holder

[8] Jack CBA

(S-14)

(S-12)

(S-13)

(S-14)

(S-13)

[9] Power Supply CBA

(S-13)

Fig. D3

4-4 A81H1DC

[19] Front Cabinet

[17] Side Jack CBA

[13] LCD Module
Assembly

(S-20)

[16] IR Sensor
CBA

[18] Speaker

(S-17)

(S-19)

(S-17)

(S-21)

[15] Junction
CBA

(S-18)

[14] Function CBA

[18] Speaker

(S-17)

(S-17)(S-17)

(S-21)

(S-17)

(S-17)

(S-17)

(S-16)

[12] Chassis
Bracket (L)

[12] Chassis
Bracket (R)

(S-16)

[11] Stand Shaft (L)

[11] Stand Shaft (R)

(S-15)

(S-17)

(S-16)

(S-15)

Fig. D4

4-5 A81H1DC

TV Cable Wiring Diagram

To LCD Module
Assembly

Inverter Power CBA

CN751
CN752

CN701

CN702

CN500

CN501

CN206

CN753

CN200

Digital Main CBA Unit

CN4201 CN3707

CN3701

CN3705CN3702CN3601

CN201 CN202 CN203

Side Jack
CBA

CL7002B

Jack CBA

CN7001

Power Supply
CBA

Junction CBA

IR Sensor CBA

CL101A

CN100
CL101B

CL106A

CN801

CL7002A

CN802

CN204

To Speaker

Function CBA

CL106B

Fig. D5

4-6 A81H1DC

ELECTRICAL ADJUSTMENT INSTRUCTIONS

General Note: “CBA” is abbreviation for
“Circuit Board Assembly.”

Note: Electrical adjustments are required after

replacing circuit components and certain
mechanical parts. It is important to perform
these adjustments only after all repairs and
replacements have been completed.
Also, do not attempt these adjustments unless
the proper equipment is available.

Test Equipment Required

1. DC Voltmeter

2. NTSC Pattern Generator (Color Bar W/White
Window, Red Color, Dot Pattern, Gray Scale,
Monoscope, Multi-Burst)

3. Remote control unit

4. Color Analyzer

How to make the Service remote
control unit:

Cut “A” portion of the attached remote control unit as
shown in Fig. 1.

How to set up the service mode:

Service mode:

1. Use the service remote control unit.

2. Turn the power on.

3. Press the service button on the service remote
control unit. The following screen appears.

"*" differs depending on the models.

Ver :

***********************

Boot

Push 0 key

System

Push 0 key

Pic Ver :

***********************
***********************

Picture :

Push 0 key

Submicon Ver :

******

service button

A

Fig. 1

5-1 A81H1EA

1. Purity Check Mode

This mode cycles through full-screen displays of red,
green, blue, and white to check for non-active pixels.

1. Enter the Service mode.

2. Each time pressing [7] button on the service
remote control unit, the display changes as
follows.

Purity Check Mode

White mode

[7] button

The following adjustment normally are not attempted in
the field. Only when replacing the LCD Panel then adjust
as a preparation.

2. White Balance Adjustment

Purpose: To mix red, green and blue beams correctly

for pure white.
Symptom of Misadjustment: White becomes bluish

or reddish.

Tes t Po int

Screen

Adj. Point Mode Input

White Purity

[CH. o/p]

buttons

[VIDEO1]

C/D

(APL 70%)

or

(APL 25%)

[7] button

Red mode

[7] button

Green mode

[7] button

Blue mode

Note:

When entering this mode, the default setting is White mode.

M. EQ. Spec.

Pattern Generator,

Color analyzer

x= 0.272 ± 0.005
y= 0.278 ± 0.005

Figure

It carries out in a darkroom.

Perpendicularity

L = 3 cm

INPUT: WHITE 70%, 25%

Color Analyzer

1. Operate the unit for more than 20 minutes.

2. Input the White Purity.

INPUT SIGNAL

25%=25IRE

70%=70IRE

3. Set the color analyzer to the CHROMA mode and
bring the optical receptor to the center on the
LCD-Panel surface after zero point calibration as
shown above.
Note: The optical receptor must be set
perpendicularly to the LCD Panel surface.

4. Enter the Service mode. Press [VOL. n] button on
the service remote control unit and select “C/D”
mode.

5-2 A81H1EA

5. [CUTOFF]
Press [3] button to select “COB” for Blue Cutoff
adjustment. Press [1] button to select “COR” for
Red Cutoff adjustment.

[DRIVE]

Press [6] button to select “DB” for Blue Drive
adjustment. Press [4] button to select “DR” for Red
Drive adjustment.

6. In each color mode, press [CH. o / p] buttons to
adjust the values of color.

7. Adjust Cutoff and Drive so that the color
temperature becomes 12000K (x

0.278 ±0.005).

=

0.272 / y

=

5-3 A81H1EA

HOW TO INITIALIZE THE LCD TELEVISION

How to initialize the LCD television:

1. Turn the power on.

2. To enter the service mode, press the service
button on the service remote control unit. (Refer to
page 5-1.)

- To cancel the service mode, press [POWER]

button on the remote control unit.

3. Press [INFO] button on the remote control unit to
initialize the LCD television.

4. "INITIALIZED" will appear in the upper right of the
screen. "INITIALIZED" color will change to green
from red when initialzing is complete.

6-1 A81H1INT

BLOCK DIAGRAMS

System Control Block Diagram

KEY SWITCH

CL106B

KEY-IN-1 22

CL106ACL101A

KEY-IN-1 99

LED1 77

CL101B

CN100

KEY-IN-1 33

LED1 55

CN204

CN200

FUNCTION CBA

LED2 66

LED2 66

CN202

+3.3V

REMOTE

SENSOR

D101

POWER

TO AUDIO-2

BLOCK

AMP-STBY

AMP-MUTE

DIAGRAM

RS101

JUNCTION

IR SENSOR CBA

CBA

P-ON-H2

221133

CN753

P-ON-H2

CN206

CN200

TO POWER SUPPLY-1

BACKLIGHT-ADJ

BLOCK DIAGRAM

BACKLIGHT-SW

BACKLIGHT-ADJ

1515

BACKLIGHT-SW

1313

INVERTER POWER CBAPOWER SUPPLY CBA

(MEMORY)

SCL

IC3202

(MAIN MICRO CONTROLLER)

IC3301

SDA

657

A14

B14

I2C-SCL-A

I2C-SDA-A

BACKLIGHT-ADJ

BACKLIGHT-SW

J2

J1

AMP-MUTE

AG25

WPWP

D17

SCL

IC3501 (VIDEO ADC)

37

AUDIO-SW1

AUDIO-SW2

AUDIO-SW3

V27

V28

V29

SDA

RESETRESET

38

35

AJ27

AUDIO-SW4

AUDIO-SW5

W29

W30

SCL

IC3809 (TONE CONTROL)

25

AUDIO-MUTE

AH25

SDA

26

X-IN

AK24

X-OUT

AK23

IC3001 (MTS/SAP AUDIO SIGNAL PROCESS)

RESET

C6

SCL

SDA

27

24

AE26

AD26

I2C-SCL-B

I2C-SDA-B

SCL

SDA

IC4002 (HDMI SW)

15

14

MAIN-TXD

MAIN-RXD

B15

A15

RESETRESET

13

AH26

D102

STANDBY

REMOTE 22

REMOTE 1010

1414

IC3101 (SUB MICRO CONTROLLER)

KEY-IN-1

CN3701

3

KEY-IN-1 66

LED1 66

CN3702

323117

LED1

LED2 55

LED2

REMOTE 1616

AMP-STBY 1515

27

REMOTE

AMP-STBY

AMP-MUTE

TO POWER SUPPLY-2

PROTECT6

46

PROTECT6

BLOCK DIAGRAM

P-ON-H1

26

P-ON-H1

P-ON-H2 1414

CN3701

25

P-ON-H2

BACKLIGHT-ADJ

BACKLIGHT-SW

12

BACKLIGHT-SW

X3101

4MHz

22

X-IN

OSC

23

X-OUT

IC3102

+3.3V

54

RESET

19

RESET

AUDIO-SW2

AUDIO-SW3

AUDIO-SW1

TO AUDIO-1

AUDIO-SW4

AUDIO-SW5

BLOCK DIAGRAM

X3301

AUDIO-MUTE

TO AUDIO-2

BLOCK DIAGRAM

54.1MHz

OSC

IC3302

45

RESET

+3.3V

Q3401

41

RESET

LEV. SHIFTER

Q3402

LEV. SHIFTER

15

14

SUB-TXD

SUB-RXD

DIGITAL MAIN CBA UNIT

7-1

A81H1BLS

Video Input Select Block Diagram

TO LCD

DRIVE

BLOCK

DIAGRAM

VIDEO SIGNAL

VIDEO-IN2

VIDEO-IN1

S-VIDEO-Y-IN2

S-VIDEO-Y-IN1

S-VIDEO-C-IN2

S-VIDEO-C-IN1

CSC

ADC MUX

CLAMP

MUX

IC3501(VIDEO ADC)

9

6

11252227201815

DVI-DATA(0-23)

43-50,

55-62,

76-83

OUTPUT

FORMATTING

DVI-V-SYNC

DVI-H-SYNC

717068

DVI-V-SYNC

PC-V-SYNC

14

DVI-CLOCK

DVI-CLOCK

DVI-H-SYNC

PC-H-SYNC

13

DIGITAL MAIN CBA UNIT

WF1WF3

WF2

CN3707CN7001

VIDEO-IN2 5
363432

BUFFER

Q7104

CL7002ACL7002B

VIDEO-IN2 5
513

7

18

S-VIDEO-C-IN2

S-VIDEO-Y-IN2 9

VIDEO-IN1 21

S-VIDEO-C-IN1

202322

BUFFER

Q7103

1

S-VIDEO-C-IN2

S-VIDEO-Y-IN2 3

19

S-VIDEO-Y-IN1

COMPONENT-Y-IN135COMPONENT-Pb-IN134COMPONENT-Pr-IN1
678

33

COMPONENT-Y-IN239COMPONENT-Pb-IN240COMPONENT-Pr-IN2
213

Q7102

38

BUFFER

WF6

WF5WF4

BUFFER

Q7101

Q7105

BUFFER

Q7106

BUFFER

JACK CBA

SDA

SCL

IC3701 (MEMORY)

5

6

JK7502

VIDEO-IN2

CY

JK7503

S-VIDEO-IN2

CY

SIDE JACK CBA

JK7002

VIDEO-IN1

JK7001

S-VIDEO-IN1

JK7003

COMPONENT

-Y-IN1

COMPONENT

-Pb-IN1

COMPONENT

-Pr-IN1

JK7005

COMPONENT

-Y-IN2

COMPONENT

-Pb-IN2

COMPONENT

-Pr-IN2

PC-R

JK3701

123

PC-G

PC-B

PC-V-SYNC

PC-H-SYNC

141312

PC-IN

15

7-2 A81H1BLVIS

Audio-1 Block Diagram

AUDIO SIGNAL

30

L-CH

OFFSET

CANCEL

75uS

DE-EMPH

L+R

FILTER

MATRIX AGC

L-R

29

R-CH

OFFSET

CANCEL

WIDE BAND

EXPAND

WIDE BAND

RMS DET

WIDE BAND

FILTER

(L-R)/SAP

SW

FILTER

SPECTRAL

dBX

SAP OUT

FILTER

EXPAND

DE-EMPH

SPECTRAL

RMS DET

SPECTRAL

FILTER

Q3006

BUFFER

Q3005

BUFFER

Q3811

TUNER

SELPCHDMI

(INPUT SELECT)

IC3801

121315

AUDIO(L)

BUFFER

3

1

SW CTL

TO

AUDIO-2

BLOCK

DIAGRAM

AUDIO(R)

BUFFER

Q3810

3

109 11

TUNER

SELPCHDMI

(INPUT SELECT)

IC3802

121315

JK4005

PC-

SW CTL

1

JK4006

AUDIO-IN

109 11

HDMI-

AUDIO(L)-IN

TO SYSTEM

AUDIO-SW1

AUDIO-SW2

Q3807

Q3808

HDMI-

AUDIO(R)-IN

CONTROL

BLOCK

DIAGRAM

AUDIO-SW4

AUDIO-SW3

Q3809

AUDIO-SW5

DIGITAL MAIN CBA UNITJACK CBASIDE JACK CBA

IC3001(MTS/SAP AUDIO SIGNAL PROCESS)

STEREO

FILTER

SIF/BB

SW

INPUT

VCA

SIF

DEMOD

213

FILTER

CF3001

SIF

OFFSET

CANCEL

SAP

SAP

DEMOD

FILTER

WF7

(L-CH)

AUDIO1

IC7001

(INPUT SELECT)

JK7002

CN3707

CN7001

COMP1

124

12 29SEL-AUDIO(R)

14 27SEL-AUDIO(L)

3

AUDIO2

COMP2

5

15 26AUDIO-SW5

16 25AUDIO-SW4

(R-CH)

AUDIO1

COMP1

12

JK7004

13

COMP2

15

11

AUDIO2

14

SW CTL

Q7001

9 10

JK7006

Q7002

77AUDIO(L)-IN2

CL7002B CL7002A

JK7502

99AUDIO(R)-IN2

TU3001(TUNER UNIT)

AUDIO(L)

-IN1

7-3

AUDIO(R)

-IN1

COMPONENT-

AUDIO(L)-IN1

COMPONENT-

AUDIO(R)-IN1

COMPONENT-

AUDIO(L)-IN2

COMPONENT-

AUDIO(R)-IN2

AUDIO(L)

-IN2

AUDIO(R)

-IN2

A81H1BLA1

Audio-2 Block Diagram

SP901

SPEAKER

L-CH

SP902

SPEAKER

CLN801

CLN802

2SP(L)-

1SP(L)+

1SP(R)+

CN801

CN802

AUDIO SIGNAL

9,10

13,14

35,36

R-CH

2SP(R)-

31,32

TO SYSTEM

CONTROL

BLOCK

DIAGRAM

JK7008

AUDIO(L)

-OUT

AUDIO(R)

-OUT

DIGITAL-

JK7007

AUDIO-OUT

(COAXIAL)

IC800 (AUDIO POWER AMP)

IC3809

(TONE CONTROL)

IC3803

(OP AMP)

PWM1 DRIVER1

LPF1

1

10 10AUDIO(L)

CN3702 CN202

23

TONE

1

3

AC27

88AUDIO(R)

CONTROL

215

AC28

DRIVER2

PWM2

LPF2

44

19

TONE

CONTROL

2

7

6

AB28

AB27

21 22

SHUTDOWN

MUTE CONTROL

AMP-STBY

AMP-MUTE

Q800

IC3805

(OP AMP)

POWER SUPPLY CBA

1

3

AB29

2

AB30

7

5

AA28

6

AA27

15 26AUDIO(R)-OUT

13 28AUDIO(L)-OUT

CN3707 CN7001

Q3802

31 10SPDIF-OUT

MUTE-ON

Q3804

MUTE-ON

Q3803

BUFFER

A5

Q3805

DRIVE

AUDIO-MUTE

(DIGITAL SIGNAL PROCESS)

IC3301

(AUDIO ADC)

IC3803

1

AUDIO(L)

12 A4

A2

A3

11

10

AUDIO

ADC

TO AUDIO-1

BLOCK

D6

15

DIAGRAM

AUDIO

AUDIO

DAC

DIGITAL

7-4

SIGNAL

PROCESS

2

AUDIO(R)

DTV/HDMI

-AUDIO SIGNAL

TO LCD DRIVE

BLOCK DIAGRAM

TO SYSTEM

CONTROL

BLOCK DIAGRAM

DIGITAL MAIN CBA UNIT JACK CBA

A81H1BLA2

LCD Drive Block Diagram

LCD MODULE

VIDEO SIGNAL AUDIO SIGNAL

IC4201(LVDS TRANSMITTER)

TX1O-DATA0(+)7TX1O-DATA0(-)6TX1O-DATA1(+)9TX1O-DATA1(-)8TX1O-DATA2(+)11TX1O-DATA2(-)10TX1O-DATA3(+)17TX1O-DATA3(-)16TX1O-CLOCK(+)

CN4201

495046474445383941

3-10

R DATA(0-7)

A12,A13,B12,

B13,C12,C13,

D12,D13

TX1O-CLOCK(-)

TX1E-DATA0(+)21TX1E-DATA0(-)20TX1E-DATA1(+)23TX1E-DATA1(-)22TX1E-DATA2(+)25TX1E-DATA2(-)24TX1E-DATA3(+)31TX1E-DATA3(-)30TX1E-CLOCK(+)

14

13

363733343132262728

42

TTL

PARALLELTOLVD S

1,2,

93-96,

99,100

G DATA(0-7)

A8,A11,B9,

B11,C9,C11,

D9,D11

VIDEO

DECODER

/OSD

85-92

B DATA(0-7)

A6,A7,B7,

B8,C7,C8,

D7,D8

TX1E-CLOCK(-)

28

27

29

54

55

A10

B10

DVI-V-SYNC

DVI-H-SYNC

PLL

11

D10

DVI-CLOCK

AUDIO

DECODER

IC3203 (FLASH MEMORY)

DTV/HDMI

-AUDIO SIGNAL

TO AUDIO-2

BLOCK DIAGRAM

DATA(0-7)

29-32,

41-44

DATA(0-7)

AG3,AH1-AH3,

AJ1-AJ3,AK2

IC3204 (SDRAM)

B1,B9,C2,C8,

G27,G28,H27,

DATA(0-15)

D1,D3,D7,D9,

F1,F9,G2,G8,

H1,H3,H7,H9

DATA(0-15)

H28,J27-J30,

K28-K30,L27,

L28,M27-M29

ADDRESS(0-15)

L1-L3,M2,M3,

M7,M8,N2,N3,

N7,N8,P2,P3,

P7,P8,R2

ADDRESS(0-15)

C27-C30,

D27-D30,

E27-E30,

F27-F30

IC3301(DIGITAL SIGNAL PROCESS)

Y3,Y4,AA1-AA4,

AB1-AB4,AC1,AC2,

DVI-DATA(0-23)

DVI-V-SYNC

DVI-H-SYNC

DVI-CLOCK

AC4

AD1

AD2

AD3,AD4,AE1-AE4,

AF1-AF4,AG1,AG2

DVI-V-SYNC

DVI-H-SYNC

DVI-CLOCK

TO VIDEO

AH20

AG15

VIDEO-IN2

S-VIDEO-C-IN2

S-VIDEO-Y-IN2

INPUT SELECT

BLOCK DIAGRAM

ADC

MATRIX VIDEO

AJ19

AK21

AH10

VIDEO-IN1

S-VIDEO-C-IN1

AH14

AG21

BUFFER

Q3003

S-VIDEO-Y-IN1

4

VIDEO

TU3001 (TUNER UNIT)

TU-SCL

TU-SDA

AH6

AG6

14

15

TU-SCL

TU-SDA

DEMOD.

AK20

21

DTV-IF(+)

AK19

20

DTV-IF(-)

DIGITAL

SIGNAL

PROCESS

IC4002(HDMI SW)

TMDS-D0(+)

JK4002

P3

78541

222125242827191831

TMDS-D0(-)

TMDS-D1(+)

TMDS-D1(-)

TMDS-D2(+)

TMDS-D2(-)

TMDS-CLK(+)

TMDS-CLK(-)

79461

3

DDC DATA

101216

T3

P4

30

DDC CLK

15

HDMI

DECODER

T4

V4

V3

M3

M4

2

101177

HDMI

SW

626165646867595870

TMDS-D0(+)

TMDS-D0(-)

TMDS-D1(+)

JK4004

79461

SDA

SCL

L2

L1

78

TMDS-D1(-)

TMDS-D2(+)

TMDS-D2(-)

TMDS-CLK(+)

TMDS-CLK(-)

3

101216

DDC DATA

DDC CLK

DIGITAL MAIN CBA UNIT

71

15

7-5

HDMI-IN1

HDMI-IN2

A81H1BLLCD

Power Supply-1 Block Diagram

TO SYSTEM

CONTROL

BLOCK

LCD MODULE

INV+24V1-5

GND6-10

BACKLIGHT-SW12BACKLIGHT-ADJ

13

CN751

NOTE:

The voltage for parts in hot circuit is measured using

hot GND as a common terminal.

COLD

HOT

HIGH-VOLTAGE

IC701

(

)

RESONANT CONTROL

Q701

T701

11

6

SW

Q702

15

HIGH-

VCC

12

SW

11

VOLTAGE

RESONANT

CONTROL

5

CN752

14

6

INV+24V1-5

13

DIAGRAM

P-ON-H2

BACKLIGHT-SW

BACKLIGHT-ADJ

4 16

IC702

(FEEDBACK)

Q762

+13V

SHUNT

1

4

REG.

2

3

IC761

1

2

Q761

IC703

(ISOLATOR)

4

3

POWER SUPPLY CBA

Q704

SW

Q703

1

2

CN701

For continued protection against risk of fire,

replace only with same type 8A, 250V fuse.

+345V1

HOT-GND2

CAUTION ! :

ATTENTION : Utiliser un fusible de rechange de même type de 8A, 250V.

CN500

8A 250V

(PFC)

Q503

IC500

D500

BRIDGE

RECTIFIER

Q502

Q500,

Q501

DRIVE

1

POWER

CN702

CN501

FACOTOR

3 5

2

1

AL+15V1

HOT-GND2

SW

Q504

2

VCC

CORRECTION

IC502

Q506

Q505

(FEEDBACK)

INVERTER POWER CBA

CONTINUE

POWER SUPPLY-2

BLOCK DIAGRAM

4

(FEEDBACK)

1

(AL+15V)

3

2

BRIDGE

RECTIFIER

D517 - D520

T601

Q509

1

(FEEDBACK)

2

4

3

9

7

Q601

6

SW CTL

Q602

16

IC600

8

+15V REG.

12

13

14

151110

4

2

SW

Q600

HOT COLD

1

2

IC503

4

3

OVER

CURRRENT

PROTECTOR

Q508

LINE

FILTER

L501,L502

F500

8A/250V

CAUTION !

Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit.

If Main Fuse (F500) is blown , check to see that all components in the power supply

circuit are not defective before you connect the AC plug to the AC power supply.

Otherwise it may cause some components in the power supply circuit to fail.

AC600

AC CORD

8A/250V

7-6

A81H1BLP1

Power Supply-2 Block Diagram

+13V

INVERTER POWER CBA

NOTE:

The voltage for parts in hot circuit is measured using

hot GND as a common terminal.

+13V
66

CN206 CN753

TO SYSTEM

P-ON-H1

CN3702

P-ON-H1

22 22

CN202

CONTROL

BLOCK DIAGRAM

PROTECT6

CN3705

CN203

PROTECT6

23 23

AL+3.3V

VT+33V

P-ON+9V

LCD+12V

+5V

+3.3V

+2.5V

+1.2V

+3.3V REG.

IC3602

CN3601

AL+3.3V

+6V

VT+33V

88

44

20 20

CN201

+2.7V

10 10

+4V

12,13 12,13

+3V

14 14

IC3604

LCD+12V

P-ON+9V

16 16

21,22 21,22

+1.8V

+5V REG.

IC3603

P-ON+6V

17,18 17,18

SW+6V

Q200,Q201

+2.5V REG.

+1.2V REG.

+1.8V REG.

IC3601

IC3605

CN3701

+6V

+3V11 11

+2.7V

99

77

CN200

P-ON+6V

P-ON+9V

AMP+13V

P-ON+3.3V

1

IC502

(FEEDBACK)

4

HOT COLD

+3.3V REG.

IC290

+9V REG.

+3.3V REG.

IC220

Q250

SW+13V

Q240,Q241,

Q242,Q243

POWER SUPPLY CBA DIGITAL MAIN CBA UNIT

SW+5V

Q220,Q221,

Q222

4

(FEEDBACK)

3

1

2

T601

2

IC503

3

IC210,Q210,

9

4

SW+12V

Q211,Q212

16

Q650

SHUNT

15

14

11

10

2

7

13

12

6

8

1

IC600

(FEEDBACK)

4

REG.

2

IC650

3

HOT CIRCUIT. BE CAREFUL.

7-7

CONTINUE

POWER SUPPLY-1

BLOCK DIAGRAM

A81H1BLP2

SCHEMATIC DIAGRAMS / CBA’S AND TEST POINTS

Standard Notes

WARNING

Many electrical and mechanical parts in this chassis
have special characteristics. These characteristics
often pass unnoticed and the protection afforded by
them cannot necessarily be obtained by using
replacement components rated for higher voltage,
wattage, etc. Replacement parts that have these
special safety characteristics are identified in this
manual and its supplements; electrical components
having such features are identified by the mark “#” in
the schematic diagram and the parts list. Before
replacing any of these components, read the parts list
in this manual carefully. The use of substitute
replacement parts that do not have the same safety
characteristics as specified in the parts list may create
shock, fire, or other hazards.

Notes:

1. Do not use the part number shown on these
drawings for ordering. The correct part number is
shown in the parts list, and may be slightly
different or amended since these drawings were
prepared.

2. All resistance values are indicated in ohms
(K = 10

3. Resistor wattages are 1/4W or 1/6W unless
otherwise specified.

4. All capacitance values are indicated in µF
(P = 10

5. All voltages are DC voltages unless otherwise
specified.

3

, M = 106).

-6

µF).

8-1 A81H1_SC

LIST OF CAUTION, NOTES, AND SYMBOLS USED IN THE SCHEMATIC DIAGRAMS ON
THE FOLLOWING PAGES:

1. CAUTION:

CAUTION: FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH SAME

TYPE_A,_V FUSE.

ATTENTION: UTILISER UN FUSIBLE DE RECHANGE DE MÊME TYPE DE_A,_V.

2. CAUTION:

Fixed Voltage (or Auto voltage selectable) power supply circuit is used in this unit.
If Main Fuse (F500) is blown, first check to see that all components in the power supply circuit are not
defective before you connect the AC plug to the AC power supply. Otherwise it may cause some components
in the power supply circuit to fail.

3. Note:

1. Do not use the part number shown on the drawings for ordering. The correct part number is shown in the
parts list, and may be slightly different or amended since the drawings were prepared.

2. To maintain original function and reliability of repaired units, use only original replacement parts which are
listed with their part numbers in the parts list section of the service manual.

4. Voltage indications on the schematics are as shown below:

Plug the TV power cord into a standard AC outlet.:

2

(Unit: Volt)

1

5.0 5.0

3

Power on mode

5. How to read converged lines

1-D3
Distinction Area

Line Number
(1 to 3 digits)

Examples:

1. "1-D3" means that line number "1" goes to the line number
"1" of the area "D3".

2. "1-B1" means that line number "1" goes to the line number
"1" of the area "B1".

6. Test Point Information

: Indicates a test point with a jumper wire across a hole in the PCB.
: Used to indicate a test point with a component lead on foil side.
: Used to indicate a test point with no test pin.
: Used to indicate a test point with a test pin.

Voltage

Indicates that the voltage
is not consistent here.

3

2

1

AREA D3

1-B1

AREA B1

1-D3

ABCD

8-2 A81H1_SC

Power Supply 1/3 Schematic Diagram

NOTE:

The voltage for parts in hot circuit is measured using
hot GND as a common terminal.

CAUTION !

Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit.
If Main Fuse (F500) is blown , check to see that all components in the power supply
circuit are not defective before you connect the AC plug to the AC power supply.
Otherwise it may cause some components in the power supply circuit to fail.

8A 250V

CAUTION ! :

ATTENTION : Utiliser un fusible de rechange de même type de 8A, 250V.

For continued protection against risk of fire,
replace only with same type 8A, 250V fuse.

8-3

A81H1SCP1

Power Supply 2/3 Schematic Diagram

CN200

10
20
30
40

53.3

63.3

72.6
80

97.0
10 0
11 3.2
12 0
13 3.5
14 3.2
15 3.6

CN201

10.9

22.7

30
4 32.9
50
6 12.3
70

87.0

90
10 2.6
11 0
12 3.9
13 3.9
14 3.2
15 0
16 9.1
17 5.6
18 5.6
19 0
20 3.3
21 12.3
22 12.3
23 0

Pin No. Voltage

Pin No. Voltage

VOLTAGE CHART

8-4

A81H1SCP2

Power Supply 3/3 Schematic Diagram

CN202

10

20

30

43.3

50.9

63.3

70

8---

90
10 --­11 0
12 3.3
13 5.1
14 3.6
15 0.1
16 3.3
17 0
18 3.6
19 0
20 3.6
21 0
22 3.1
23 2.7

CN203

10

20

30

40

50

60

70

80

90
10 0
11 0
12 0
13 0
14 0
15 0
16 0
17 0
18 0
19 0
20 0
21 0
22 0
23 3.1

Pin No. Voltage

Pin No. Voltage

VOLTAGE CHART

8-5

A81H1SCP3

Jack & Side Jack Schematic Diagram

CN7001

10

23.9

30

40

50

64.0

70

80

90
10 1.5
11 0
12 4.1
13 0
14 4.1
15 0
16 3.3
17 0
18 9.1
19 0
20 3.9
21 2.8
22 4.0
23 0
24 0
25 0
26 0
27 0
28 0
29 0
30 0
31 0
32 4.0
33 2.8
34 0
35 0
36 4.0
37 0
38 0
39 0
40 3.8

Pin No. Voltage

8-6

VOLTAGE CHART

A81H1SCJ

Inverter Power Schematic Diagram

NOTE:

The voltage for parts in hot circuit is measured using
hot GND as a common terminal.

8-7

A81H1SCINV

Function Schematic Diagram

8-8

A81H1SCF

IR Sensor & Junction Schematic Diagram

8-9

A81H1SCIR

Digital Main 1/9 Schematic Diagram

1 NOTE:

The order of pins shown in this diagram is different from that of actual IC3301.
IC3301 is divided into seven and shown as IC3301 (1/7) ~ IC3301 (7/7) in this Digital Main Schematic Diagram Section.

8-10

A81H1SCD1

Digital Main 2/9 Schematic Diagram

1 NOTE:

The order of pins shown in this diagram is different from that of actual IC3301.
IC3301 is divided into seven and shown as IC3301 (1/7) ~ IC3301 (7/7) in this Digital Main Schematic Diagram Section.

8-11

A81H1SCD2

Digital Main 3/9 Schematic Diagram

1 NOTE:

The order of pins shown in this diagram is different from that of actual IC3301.
IC3301 is divided into seven and shown as IC3301 (1/7) ~ IC3301 (7/7) in this Digital Main Schematic Diagram Section.

8-12

A81H1SCD3

Digital Main 4/9 Schematic Diagram

8-13

A81H1SCD4

Digital Main 5/9 Schematic Diagram

8-14

A81H1SCD5

Digital Main 6/9 Schematic Diagram

1 NOTE:

The order of pins shown in this diagram is different from that of actual IC3301.
IC3301 is divided into seven and shown as IC3301 (1/7) ~ IC3301 (7/7) in this Digital Main Schematic Diagram Section.

8-15

A81H1SCD6

Digital Main 7/9 Schematic Diagram

1 NOTE:

The order of pins shown in this diagram is different from that of actual IC3301.
IC3301 is divided into seven and shown as IC3301 (1/7) ~ IC3301 (7/7) in this Digital Main Schematic Diagram Section.

8-16

A81H1SCD7

Digital Main 8/9 Schematic Diagram

1 NOTE:

The order of pins shown in this diagram is different from that of actual IC3301.
IC3301 is divided into seven and shown as IC3301 (1/7) ~ IC3301 (7/7) in this Digital Main Schematic Diagram Section.

8-17

A81H1SCD8

Digital Main 9/9 Schematic Diagram

1 NOTE:

The order of pins shown in this diagram is different from that of actual IC3301.
IC3301 is divided into seven and shown as IC3301 (1/7) ~ IC3301 (7/7) in this Digital Main Schematic Diagram Section.

8-18

A81H1SCD9

Power Supply CBA Top View

NOTE:

The voltage for parts in hot circuit is measured using
hot GND as a common terminal.

Because a hot chassis ground is present in the power
supply circuit, an isolation transformer must be used.
Also, in order to have the ability to increase the input
slowly,when troubleshooting this type power supply
circuit, a variable isolation transformer is required.

CAUTION !

Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit.
If Main Fuse (F500) is blown , check to see that all components in the power supply
circuit are not defective before you connect the AC plug to the AC power supply.
Otherwise it may cause some components in the power supply circuit to fail.

8A 250V

CAUTION ! :

ATTENTION : Utiliser un fusible de rechange de même type de 8A, 250V.

For continued protection against risk of fire,
replace only with same type 8A, 250V fuse.

8-19

BA81H0F01012-1

Power Supply CBA Bottom View

Because a hot chassis ground is present in the power
supply circuit, an isolation transformer must be used.
Also, in order to have the ability to increase the input
slowly,when troubleshooting this type power supply
circuit, a variable isolation transformer is required.

CAUTION !

Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit.
If Main Fuse (F500) is blown , check to see that all components in the power supply
circuit are not defective before you connect the AC plug to the AC power supply.
Otherwise it may cause some components in the power supply circuit to fail.

NOTE:

The voltage for parts in hot circuit is measured using
hot GND as a common terminal.

8A 250V

CAUTION ! :

ATTENTION : Utiliser un fusible de rechange de même type de 8A, 250V.

For continued protection against risk of fire,
replace only with same type 8A, 250V fuse.

8-20

BA81H0F01012-1

Jack CBA Top View

8-21

BA81H0F01022-1

Jack CBA Bottom View

WF4

PIN 2 OF
CN7001

PIN 6 OF
CN7001

WF5

PIN 1 OF
CN7001

PIN 7 OF
CN7001

WF6

PIN 3 OF
CN7001

PIN 8 OF
CN7001

WF7

PIN 12 OF
CN7001

PIN 14 OF
CN7001

WF1

PIN 20 OF
CN7001

PIN 36 OF
CN7001

WF2

PIN 22 OF
CN7001

PIN 32 OF
CN7001

WF3

PIN 23 OF
CN7001

PIN 34 OF
CN7001

8-22

BA81H0F01022-1

Inverter Power CBA Top View

Because a hot chassis ground is present in the power
supply circuit, an isolation transformer must be used.
Also, in order to have the ability to increase the input
slowly,when troubleshooting this type power supply
circuit, a variable isolation transformer is required.

NOTE:

The voltage for parts in hot circuit is measured using
hot GND as a common terminal.

8-23

BA81H0F01022-4

Inverter Power CBA Bottom View

Because a hot chassis ground is present in the power
supply circuit, an isolation transformer must be used.
Also, in order to have the ability to increase the input
slowly,when troubleshooting this type power supply
circuit, a variable isolation transformer is required.

NOTE:

The voltage for parts in hot circuit is measured using
hot GND as a common terminal.

8-24

BA81H0F01022-4

Function CBA Top View

Junction CBA Top & Bottom View

BA81H0F01012-4

Function CBA Bottom View

BA81H0F01012-2

8-25

IR Sensor CBA Top View

Side Jack CBA Top View

IR Sensor CBA Bottom View

Side Jack CBA Bottom View

BA81H0F01022-3

BA81H0F01012-3

8-26

WAVEFORMS

WF1 ~ WF7 = Waveforms to be observed at

Waveform check points.
(Shown in Schematic Diagram.)

Input: NTSC Color Bar Signal (with 1kHz Audio Signal)

WF1

Pin 20 of CN7001 (CVBS1)
Pin 36 of CN7001 (CVBS2)

CVBS 0.2V 20µs

WF2

Pin 22 of CN7001 (S1-Y)
Pin 32 of CN7001 (S2-Y)

S-VIDEO-Y 0.2V

20µs

WF5

Pin 7 of CN7001 (COMP1-Pb)
Pin 1 of CN7001 (COMP2-Pb)

VIDEO-Pb 0.2V 20µs

WF6

Pin 8 of CN7001 (COMP1-Pr)
Pin 3 of CN7001 (COMP2-Pr)

VIDEO-Pr 0.2V 20µs

WF3

Pin 23 of CN7001 (S1-C)
Pin 34 of CN7001 (S2-C)

S-VIDEO-C 0.2V

WF4

Pin 6 of CN7001 (COMP1-Y)
Pin 2 of CN7001 (COMP2-Y)

20µs

WF7

Pin 14 of CN7001 (JACK-SEL-L)
Pin 12 of CN7001 (JACK-SEL-R)

AUDIO 1V 0.5ms

VIDEO-Y 0.2V 20µs

A81H1WF9-1

NUNUNUNUNU

132547689

CN4201

TX1O-DATA0(-)

TX1O-DATA2(+)

TX1O-DATA2(-)

TX1O-DATA0(+)

TX1O-DATA1(-)

TX1O-DATA1(+)

TX1O-CLOCK(-)

TX1O-CLOCK(+)

GND

TX1O-DATA3(-)

GND

101312111415171619182120222324

TX1O-DATA3(+)NUNU

WIRING DIAGRAM

LCD

MODULE

TX1E-DATA0(-)

TX1E-DATA0(+)

TX1E-DATA1(-)

TX1E-DATA1(+)

TX1E-DATA2(-)

TX1E-DATA2(+)

GND

TX1E-CLOCK(+)

GND

TX1E-DATA3(-)

TX1E-DATA3(+)

V-COMNUGND

GND

GND

GND

LCD+12V

LCD+12V

TX1E-CLOCK(-)

25

282726

2930323134333635373839

LCD+12V41LCD+12V

40

132547689

CN3702

GNDNUNU

LED3(NU)

LED2

LED1

132547689

CN202

GND

1325476

CN201

PROTECT2

132547689

CN3601

POWER SUPPLY CBA

GND

11

REMOTE

10
9
8
7
6
5

CN204

4
3
2
1

AL+3.3V
NU
NU
LED2
LED1
NU
KEY-IN1
NU
GND

10131211141517161918212022

GND

AUDIO(L)

AUDIO(R)

GND

NU

AMP-MUTE

AMP-STBY

REMOTE

NU

10131211141517161918212022

GND

VT+33V

GND

PROTECT1

LCD-12V(NU)

11

10
9
8
7
6
5

CN100

CL101B

4
3

JUNCTION CBA

2
1

GNDNUGNDNUGND

8

9

101312

11

GND

+2.7V

GND

+6V

GND

10131211141517161918212022

1
2
3
4
5
6
7
8
9

10
11

23

P-ON-H1

PROTECT3

23

141517161918212022

+4V

+3V

GND

P-ON+9V

+4V

1

GND

2

REMOTE

3

AL+3.3V

4

NU

5

NU

6

LED2

7

LED1

CL101A

8

NU

9

KEY-IN1

IR SENSOR CBA

NU

10

GND

11

132547689

CN3705

GNDNUGND

GND

132547689

CN203

P-ON+6V

P-ON+6V

GND

AL+3.3V

LCD+12V

LCD+12V

4
3
2

CL106A

1

GNDNUGNDNUGND

132547689

CN200

23

NUNUNU

GND

132547689

23

CN3701

4

GND

3

NU
KEY-IN1

2

CL106B

AL+3.3V

1

FUNCTION CBA

1013121114

NU

10131211141517161918212022

15

17161918212022

GND

GNDNUGNDNUGNDNUNUNUNUNUPROTECT6

NU

1013121114

+3V

+2.7V

AC CORD

AC600

GND

+6V

GND

GND

1013121114

SP(L)+

CN801

1

CLN801

SP901

SPEAKER

GNDNUKEY-IN1

BACKLIGHT-SW

SP(L)-

2

L-CH

15

P-ON-H2

BACKLIGHT-ADJ

15

23

TU3001 TUNER UNIT

23

SP(R)+

SP(R)-

CN802

SP902

1

2

CLN802

SPEAKER

R-CH

HDMI-

CONNECTOR-2

HDMI-

CONNECTOR-1

D-SUB

CONNECTOR

DIGITAL MAIN CBA UNIT

132

CN206

CN753

CN751

54768

BACKLIGHT-ADJ

P-ON-H2

BACKLIGHT-SW

PROTECT3

PROTECT1(NU)

INVERTER

POWER CBA

INV+24V

INV+24V

INV+24V

INV+24V

+13VNUGND

GND

132547689

INV+24V

132547689

GND

GND

9

GND

GND

1

2

CN500

CN501

+345V

HOT-GND

1

2

CN701

CN702

-IN1

-IN1

VIDEO

AUDIO(L)

NU

GND

BACKLIGHT-ADJNUBACKLIGHT-SW

1013121114

2

1

HOT-GND

AL+15V

1

2

-IN1

-OUT

AUDIO(L)

AUDIO(R)

AUDIO(R)

INV+24V

INV+24V

INV+24V

INV+24V

CN752

132547689

-OUT

INV+24V

DIGITAL

-AUDIO-OUT

GND

GND

CN3707

403839363734353332

COMPONENT-Pb-IN2

COMPONENT-Y-IN2

COMPONENT-Pr-IN2

GND

GND

-Y-IN1

COMPONENT

GND

10

COMPONENT-Y-IN1

-Pb-IN1

COMPONENT

132547689

CN7001

-IN1

S-VIDEO

GND

GND

3128293027

SPDIF-OUT

COMPONENT-Pb-IN1

COMPONENT-Pr-IN1

GND

101312111415171619182120222324

-Pr-IN1

COMPONENT

COMPONENT

-AUDIO(L)-IN1

GND

GND

SEL-AUDIO(R)

COMPONENT

-AUDIO(R)-IN1

SEL-AUDIO(L)

COMPONENT

262425222320211918

AUDIO-SW5

AUDIO-SW4

P-ON+9V

JACK

CBA

-Y-IN2

-Pb-IN2

COMPONENT

P-ON+9V

GND

VIDEO-IN1

S-VIDEO-SW-IN1

-Pr-IN2

COMPONENT

COMPONENT

17

S-VIDEO-Y-IN1

S-VIDEO-C-IN1

GND

COMPONENT

-AUDIO(L)-IN2

-AUDIO(R)-IN2

1613141512

GND

25

11910

AUDIO(R)-OUT

AUDIO(L)-OUT

GNDNUGND

GND

282726

2930323134333635373839

132547689

CL7002A

S-VIDEO-C-IN2

S-VIDEO-SW-IN2

S-VIDEO-Y-IN2

GND

132547689

CL7002B

-IN2
VIDEO

S-VIDEO

S-VIDEO-Y-IN2

S-VIDEO-SW-IN2

VIDEO-IN2

GND

AUDIO(L)-IN2

SIDE

-IN2

AUDIO(L)

7856432

S-VIDEO-C-IN2

GND

VIDEO-IN2

1013121114

GND

GND

AUDIO(R)-IN2NUNU

1013121114

JACK

CBA

-IN2

-IN2

AUDIO(R)

GNDNUNU

NU

NU

1

NU

40

A81H1WI10-1

Cabinet

EXPLODED VIEWS

A21

A23

A1

A22

SP902

CLN802

A3

A13

A11

L4

Function CBA

A7

IR Sensor
CBA

L4

Junction
CBA

LCD-1

L5

See Electrical Parts List
for parts with this mark.

SP901

L4

B6

Side Jack CBA

CLN801

B23

L4

L1

L1

L11

B2

B9

Power Supply CBA

L11

L1

L11

L9

B20

L11

L1

L1

L1

B4

Inverter Power
CBA

CLN501

L3

CLN752

L12

L11

L11

B16

L3

B1

L3

B17

B19

L11

B8

L9

CLN751

B18

L12

Digital Main
CBA Unit

L12

L12

B18

L3

L12

Jack CBA

L12

B17

CLN370

L19

Digital Main
CBA Unit Parts

L3

L15

L3

L2

CLN420

B3

L2

B22

L3

A4

A12

L3

L2

B5

L4

L6

L8

L3

L2

L7

L6

B7

A12

L2

A12

A10

L4

L2

L6

L20

L6

L20

L2

L6

S5

A6

A9

B7

L6

A12

L12

AC600

11-1 A81H1CEX

Packing

S12

LCD Unit Assembly

Packing Tape

S4

S2

Packing Tape

X1

Tape

X2
X9
X3
X4
L6
Tape
X5

Some Ref. Numbers are
not in sequence.

Packing Tape

S3

Packing Tape

S13

S3

Packing Tape

Stand Assembly

S6

PP Band

FRONT

S5

11-2 A81H1PEX

MECHANICAL PARTS LIST

PRODUCT SAFETY NOTE: Products marked with a

# have special characteristics important to safety.
Before replacing any of these components, read
carefully the product safety notice in this service
manual. Don't degrade the safety of the product
through improper servicing.

NOTE: Parts that are not assigned part numbers
(---------) are not available.

Ref. No. Description Part No.

A1 FRONT CABINET A81H1UH 1EM021813
A3 CONTROL PLATE A81H0UH 1EM322723
A4 REAR CABINET A81H1UH 1EM021814
A6# RATING LABEL A81H1UH ---------­A7 FUNCTION KNOB A81H0UH 1EM121947
A9 STAND COVER A81H0UH 1EM021739
A10 REAR COVER A7260JH 1EM322484
A11 LED LENS A7260JH 1EM221523
A12 STAND RUBBER FOOT L5001CB 1EM423855
A13 SENSOR LENS A7260JH 1EM221522
A21 POP LABEL A81H1UH ---------­A22 PUNCHING SHEET A81H0UH 1EM021740
A23 ENERGY STAR LABEL A81H0UH ---------­B1 CHASSIS BRACKET(L) A81H0UH 1EM121905
B2 CHASSIS BRACKET(R) A81H0UH 1EM121906
B3 SHIELD BOX A81H0UH 1EM122153
B4 PCB HOLDER A81H0UH 1EM121904
B5 JACK HOLDER(D) A81H1UH 1EM221636
B6 JACK HOLDER(S) A81H0UH 1EM221578
B7 STAND BASE A81H0UH 1EM221581
B8 STAND SHAFT(L) A81H0UH 1EM221579
B9 STAND SHAFT(R) A81H0UH 1EM221580
B20 GASKET A71F0UH 1EM424393
B22 GRAND TAPE A81H0UH 1EM425137
B23 GRAND TAPE (TR-19) A71F0UH 1EM424512
CLN370 WIRE ASSEMBLY 101 40PIN UL2896 WX1A81H0-101
CLN420 WIRE ASSEMBLY 201 36PIN AWG32 WX1A81H0-201
CLN501 WIRE ASSEMBLY 302 2PIN AWG24 WX1A81H0-302
CLN751 WIRE ASSEMBLY 304 14PIN AWG24 WX1A81H0-304
CLN752 WIRE ASSEMBLY 305 10PIN AWG24 WX1A81H0-305
CLN801 WIRE ASSEMBLY 306 2PIN AWG22 WX1A81H0-306
CLN802 WIRE ASSEMBLY 307 2PIN AWG22 WX1A81H0-307
L1 ASSEMBLY SCREW A81H0UH 1EM424524
L2 SCREW P-TIGHT M4X14 BIND HEAD+BLK GBHP4140
L3 SCREW S-TIGHT M3X8 BIND HEAD+ GBJS3080
L4 SCREW P-TIGHT M3X10 BIND HEAD+ GBJP3100
L5 SCREW P-TIGHT M3*10 WASHERHEAD+ GCJP3100
L6 DOUBLE SEMS SCREW M4X10 + BLK FPH34100
L7 SCREW B-TIGHT 3X10 BIND HEAD+ BLK GBHB3100
L8 SCREW S-TIGHT M3X8 BIND HEAD+ GBHS3080
L9 DOUBLE SEMS SCREW M5X10 BLACK

L11 SCREW SEMS M4X8 PAN HEAD + FPJ34080
L15 NUT 3/8-32UNEF 0EM401451A
L19 HEX SCREW #4-40 7MM 1EM422042
L20 SCREW S-TIGHT 3X8 WASHER HEAD+BLAC GCHS3080
LCD-1 LCD 42V TFT LC420WU5-SLA2 UDPULCDGS003
SP901 SPEAKER MAGNETIC YDP613-1FN DSD0811EFU01
SP902 SPEAKER MAGNETIC YDP613-1FN DSD0811EFU01

M5X10

FPH35100

Ref. No. Description Part No.

PACKING

S2 STYROFORM TOP A81H0UH 1EM021800
S3 STYROFORM BOTTOM A81H0UH 1EM021801
S4 SET BAG A81H0UH 1EM322766
S5 SERIAL NO. LABEL L9750UA ---------­S6 STAND BAG A81H0UH 1EM424649
S12 CARTON(U) A81H1UH 1EM322741
S13 CARTON(L) A81H0UH 1EM322725

ACCESSORIES

X1 BAG POLYETHYLENE 235X365XT0.03 0EM408420A
X2# OWNERS MANUAL A81H1UH 1EMN22312
X3 REMOTE CONTROL NF020UD NF020UD NF020UD
X4 DRY BATTERY(SUNRISE) R6SSE/2S XB0M451MS002
X5 SCREW BAG A81N0UH 1EM424596
X9 QUICK SETUP GUIDE A81H1UH 1EMN22313

20070911 12-1 A81H1CA

ELECTRICAL PARTS LIST

PRODUCT SAFETY NOTE: Products marked with a

# have special characteristics important to safety.
Before replacing any of these components, read
carefully the product safety notice in this service
manual. Don't degrade the safety of the product
through improper servicing.

NOTES:

1. Parts that are not assigned part numbers (---------)
are not available.

2. Tolerance of Capacitors and Resistors are noted
with the following symbols.

C.....±0.25% D.....±0.5% F.....±1%

G.....±2% J......±5% K.....±10%

M.....±20% N.....±30% Z.....+80/-20%

Compatibility between the DIGITAL MAIN CBA
UNIT and the POWER SUPPLY CBA

For both DIGITAL MAIN CBA UNIT and POWER SUPPLY
CBA, two different types of connecters, either Type A(Serial
Number below 'J37713000') or Type B(Serial Number over
'J37713001'), are being used for this model.
Consequently, there are pairing compatibilities between
Type A and Type B when repairing these units. Refer to the
correlation table below and make sure to confirm the serial
number of the unit.

TYPE

DIGITAL

MAIN CBA

UNIT

A 1ESA14707 1ESA14710 J3TWA23TG001 below J37713000

B 1ESA20892 1ESA20888 JCTWA23TG004 over J37713001

POWER

SUPPLY CBA

Part No.

(CN201, CN202,

CN203)

SERIAL

NUMBER

Type A

DIGITAL MAIN CBA UNIT (1ESA14707)

CN3601 CN3702 CN3705

POWER SUPPLY CBA (1ESA14710)

CN201 CN202 CN203

Type B

DIGITAL MAIN CBA UNIT (1ESA20892)

CN3601 CN3702 CN3705

POWER SUPPLY CBA (1ESA20888)

CN201 CN202 CN203

DIGITAL MAIN CBA UNIT

Ref. No. Description Part No.

DIGITAL MAIN CBA UNIT 1ESA14707 or

1ESA20892

MMA CBA

Ref. No. Description Part No.

MMA CBA
Consists of the following:

POWER SUPPLY CBA
FUNCTION CBA
IR SENSOR CBA
JUNCTION CBA

POWER SUPPLY CBA

Ref. No. Description Part No.

POWER SUPPLY CBA
Consists of the following:

CAPACITORS

C203 ELECTROLYTIC CAP. 100µF/10V M CE1AMASDL101

C204 ELECTROLYTIC CAP. 1000µF/10V M CE1AMASDL102

C205 ELECTROLYTIC CAP. 1µF/50V M CE1JMASDL1R0

C210 CERAMIC CAP.(AX) F Z 0.01µF/25V CCA1EZTFZ103

C211 ELECTROLYTIC CAP. 1000µF/16V M CE1CMASDL102

C220 ELECTROLYTIC CAP. 220µF/25V M CE1EMASDL221

C221 ELECTROLYTIC CAP. 100µF/10V M CE1AMASDL101

C231 ELECTROLYTIC CAP. 1µF/50V M CE1JMASDL1R0

C250 ELECTROLYTIC CAP. 100µF/16V M CE1CMASDL101

C251 ELECTROLYTIC CAP. 100µF/16V M CE1CMASDL101

C290 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104

C292 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104

C293 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104

C294 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104

C295 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104

C296 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104

C297 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104

C298 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104

C299 CAP ELE STD-85 4700µF 6.3V SL CE0KMZNDL472

C300 CAP ELE STD-85 4700µF 6.3V SL CE0KMZNDL472

C301 ELECTROLYTIC CAP. 2200µF/16V M CE1CMZNDL222

C500 ELECTROLYTIC CAPACITOR 100µF/400V CA2H101NC230

C501# CERAMIC CAP. B K 2200pF/500V CCD2JKP0B222

C502# METALIZED FILM CAP. 1µF/630V K CT2K105DT037

C503 ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100

C504 CERAMIC CAP.(AX) B K 0.1µF/50V CA1J104TU011

C505 CERAMIC CAP.(AX) B K 0.022µF/50V CA1J223TU011

C507 ELECTROLYTIC CAP. 22µF/25V M CE1EMASDL220

C508 CERAMIC CAP.(AX) F Z 0.01µF/25V CCA1EZTFZ103

C509 CERAMIC CAP.(AX) CH J 680pF/50V CA1J681TU008

C510# TF CAP. 1µF/50V CT1J105MS045

C511 CERAMIC CAP(AX) CH J 33pF/50V CA1J330TU008

C512 FILM CAP.(P) 0.1µF/50V J CMA1JJS00104

C513 CERAMIC CAP.(AX) F Z 0.01µF/25V CCA1EZTFZ103

C515 CERAMIC CAP. B K 0.01µF/500V CCD2JKP0B103

C517 CERAMIC CAP. B K 0.01µF/500V CCD2JKP0B103

C518# METALIZED FILM CAP. 0.22µF/250V CT2E224MS037

C519# METALIZED FILM CAP. 0.22µF/250V CT2E224MS037

C520# METALIZED FILM CAP. 1µF/250V CT2E105MS037

C523 SAFETY CAP. 1000pF/250V KX CA2E102MR050

C524 CERAMIC CAP. BN 680pF/2KV CCD3DKA0B681

1ESA14710 or
1ESA20888

----------

----------

----------

----------

----------

20070911 13-1 A81H1EL

Ref. No. Description Part No.

C525 CERAMIC CAP.(AX) B K 1000pF/50V CCA1JKT0B102

C526 SAFETY CAP. 1000pF/250V KX CA2E102MR050

C527 SAFETY CAP. 1000pF/250V KX CA2E102MR050

C528 SAFETY CAP. 2200pF/250V KX CA2E222MR050

C529 METALIZED FILM CAP. 0.1µF/250V CT2E104MS037

C530 CERAMIC CAP.(AX) B K 0.01µF/50V CA1J103TU011

C531 CHIP CERAMIC CAP.(1608) B K 1000pF/50V CHD1JK30B102

C532 CERAMIC CAP. B K 2200pF/500V CCD2JKP0B222

C600 CERAMIC CAP. BN 1000pF/2KV CCD3DKA0B102

C603 STACKED FILM CAP. 0. 0.15µF/50V J CMA1JJS00154

C604 FILM CAP.(P) 0.033µF/50V J CMA1JJS00333

C605 CAP METALIZED FILM 2.2µF 50V CT1J225MS045

C606 CERAMIC CAP.(AX) F Z 0.01µF/25V CCA1EZTFZ103

C607 ELECTROLYTIC CAP. 100µF/25V M CE1EMASDL101

C608 ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100

C609# PP CAP. 0.0033µF/1.6KV J CT3C332MS039

C610 ELECTROLYTIC CAP. 100µF/35V M CE1GMASDL101

C653 ELECTROLYTIC CAP 3300µF/25V M CE1EMZNDL332

C654 ELECTROLYTIC CAP 3300µF/25V M CE1EMZNDL332

C655 ELECTROLYTIC CAP. 100µF/50V M CE1JMASDL101

C656 ELECTROLYTIC CAP. 4700µF/10V M P=7.5 CE1AMZNDL472

C657 ELECTROLYTIC CAP. 4700µF/10V M P=7.5 CE1AMZNDL472

C658 ELECTROLYTIC CAP. 4700µF/10V M P=7.5 CE1AMZNDL472

C659 ELECTROLYTIC CAP. 4700µF/10V M P=7.5 CE1AMZNDL472

C664 ELECTROLYTIC CAP. 4700µF/10V M P=7.5 CE1AMZNDL472

C668 ELECTROLYTIC CAP. 4700µF/10V M P=7.5 CE1AMZNDL472

C669 ELECTROLYTIC CAP. 4700µF/10V M P=7.5 CE1AMZNDL472

C671 ELECTROLYTIC CAP. 4700µF/10V M P=7.5 CE1AMZNDL472

C674 PCB JUMPER D0.6-P5.0 JW5.0T

C675 FILM CAP.(P) 0.1µF/50V J CMA1JJS00104

C800 CHIP CERAMIC CAP. (1608) B K 1µF/16V CHD1CK30B105

C801 CHIP CERAMIC CAP. (1608) B K 1µF/16V CHD1CK30B105

C802 ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100

C803 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104

C804 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104

C805 ELECTROLYTIC CAP. 3.3µF/50V M CE1JMASDL3R3

C806 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104

C807 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104

C808 ELECTROLYTIC CAP. 1000µF/25V M CE1EMZNDL102

C809 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104

C810 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104

C811 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104

C812 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104

C813 ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100

C814 CERAMIC CAP.(AX) B K 0.1µF/50V CA1J104TU011

C815 CERAMIC CAP.(AX) B K 0.1µF/50V CA1J104TU011

C817 CHIP CERAMIC CAP.(2125) B K 4.7µF/16V CHE1CK30B475

C818 CERAMIC CAP.(AX) B K 0.1µF/50V CA1J104TU011

C819 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104

C820 CHIP CERAMIC CAP. (1608) B K 1µF/16V CHD1CK30B105

C821 CHIP CERAMIC CAP. (1608) B K 1µF/16V CHD1CK30B105

C822 CERAMIC CAP.(AX) B K 0.1µF/50V CA1J104TU011

C823 CHIP CERAMIC CAP.(2125) B K 4.7µF/16V CHE1CK30B475

C826 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104

C827 ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100

C828 ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100

C829 CHIP CERAMIC CAP. (1608) B K 1µF/16V CHD1CK30B105

C830 CHIP CERAMIC CAP. (1608) B K 1µF/16V CHD1CK30B105

CONNECTORS

CN200 CONNECTOR PRINT MES C/15/S/

CN201 CONNECTOR 23P Refer to page 13-1

CN202 CONNECTOR 23P Refer to page 13-1

127301115K2

JCTWA15TG004

Ref. No. Description Part No.

CN203 CONNECTOR 23P Refer to page 13-1

CN204 242 SERIES CONNECTOR 224202111W1 J322C11TG001

CN206 TWG CONNECTOR 09P TWG-P09P-A1 J3TWA09TG001

CN500 WIRE ASSEMBLY 303 2PIN AWG18 WX1A81H0-303

CN501 CONNECTOR PRINT OSU

CN801 CONNECTOR BASE 2P(EH) B 2B-EH-

CN802 CONNECTOR BASE 2P(EH) B 2B-EH-

008283021200000S+

A(LF)(SN)

A(LF)(SN)

J383C02UG004

J3EHC02JG010

J3EHC02JG010

DIODES

D110 ZENER DIODE MTZJT-7710B QDTB00MTZJ10

D200 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133

D201 ZENER DIODE MTZJT-775.1B QDTB0MTZJ5R1

D202 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133

D210 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133

D220 ZENER DIODE MTZJT-775.6B QDTB0MTZJ5R6

D221 PCB JUMPER D0.6-P10.0 JW10.0T

D222 ZENER DIODE MTZJT-7715B QDTB00MTZJ15

D223 DIODE FR104-B NDLZ000FR104

D224 ZENER DIODE MTZJT-773.9B QDTB0MTZJ3R9

D225 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133

D227 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133

D231 ZENER DIODE MTZJT-7733B QDTB00MTZJ33

D233 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133

D240 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133

D241 ZENER DIODE MTZJT-7716B QDTB00MTZJ16

D243 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133

D250 ZENER DIODE MTZJT-7710B QDTB00MTZJ10

D251 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133

D291 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133

D500# DIODE BRIDGE D10XB60-7000 QDWZ0D10XB60

D503# ZENER DIODE MTZJT-7727B QDTB00MTZJ27

D504 SCHOTTKY BARRIER DIODE ERA81-004Q QDLZRA81004Q

D505 DIODE 1N5406 NDLZ001N5406

D506# FAST RECOVERY DIODE YG972S6R QDLZYG972S6R

D507 SCHOTTKY BARRIER DIODE ERA81-004Q QDLZRA81004Q

D508# ZENER DIODE MTZJT-7727B QDTB00MTZJ27

D509 SCHOTTKY BARRIER DIODE ERA81-004Q QDLZRA81004Q

D510 ZENER DIODE MTZJT-7727B QDTB00MTZJ27

D511 SCHOTTKY BARRIER DIODE ERA81-004Q QDLZRA81004Q

D512 ZENER DIODE MTZJT-7724B QDTB00MTZJ24

D514 RECTIFIER DIODE 1N4005 NDQZ001N4005

D516 ZENER DIODE MTZJT-7727B QDTB00MTZJ27

D517 RECTIFIER DIODE 1N4005 NDQZ001N4005

D518 RECTIFIER DIODE 1N4005 NDQZ001N4005

D519 RECTIFIER DIODE 1N4005 NDQZ001N4005

D520 RECTIFIER DIODE 1N4005 NDQZ001N4005

D521 ZENER DIODE MTZJT-7733B QDTB00MTZJ33

D522 ZENER DIODE MTZJT-7733B QDTB00MTZJ33

D523 ZENER DIODE MTZJT-7733B QDTB00MTZJ33

D550 PCB JUMPER D0.6-P5.0 JW5.0T

D600 ZENER DIODE MTZJT-7727B QDTB00MTZJ27

D601 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133

D602 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133

D604 DIODE FR104-B NDLZ000FR104

D606 ZENER DIODE MTZJT-7715B QDTB00MTZJ15

D607 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133

D608# DIODE 05NU42 QDTZ005NU42Q

D609 ZENER DIODE MTZJT-775.6B QDTB0MTZJ5R6

D610 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133

D611 ZENER DIODE MTZJT-7727B QDTB00MTZJ27

D612 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133

D614 ZENER DIODE MTZJT-7736B QDTB00MTZJ36

20070911 13-2 A81H1EL

Ref. No. Description Part No.

D615 ZENER DIODE MTZJT-7720B QDTB00MTZJ20

D616 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133

D650 SCHOTTKY BARRIER DIODE ERC84-009 QDLZERC84009

D651 SCHOTTKY BARRIER DIODE ERC81-004 QDPZERC81004

D652 SCHOTTKY BARRIER DIODE ERC81-004 QDPZERC81004

D654 SCHOTTKY BARRIER DIODE ERC81-004 QDPZERC81004

D655 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133

D659 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133

D661 CHIP ZENER DIODE CMZ22(TE12L Q) QD1Z00CMZ22Q

D664 SCHOTTKY BARRIER DIODE ERC81-004 QDPZERC81004

D665 SCHOTTKY BARRIER DIODE ERC81-004 QDPZERC81004

D666 SCHOTTKY BARRIER DIODE ERC81-004 QDPZERC81004

D667 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133

D668 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133

D669 DIODE 1N5406 NDLZ001N5406

D670 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133

D671 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133

D672 SCHOTTKY BARRIER DIODE ERC84-009 QDLZERC84009

D673 DIODE FR104-B NDLZ000FR104

D674 SCHOTTKY BARRIER DIODE ERC81-004 QDPZERC81004

D675 SCHOTTKY BARRIER DIODE ERC81-004 QDPZERC81004

D676 PCB JUMPER D0.6-P20.0 JW20.0T

D678 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133

D680 CHIP ZENER DIODE CRZ47(TE85L Q) QD1Z00CRZ47Q

ICS

IC210 IC SHUNT REGULATOR KIA431-AT/P NSZBA0TJY036

IC220 IC LD1117V NSZBA0SSS046

IC290 REGULATOR IC(3.5V) PQ035ZN1HZPH QSZBA0TSH078

IC500# IC PFC UC2853ADTR SOIC 8 NSZBA0TTY257

IC502# PHOTO COUPLER LTV817MBF NPEBLTV817MF

IC503# PHOTO COUPLER LTV817MBF NPEBLTV817MF

IC600# PHOTO COUPLER LTV817MBF NPEBLTV817MF

IC650# IC SHUNT REGULATOR KIA431-AT/P NSZBA0TJY036

IC800 IC POWER AMP BD5422EFS-E2 QSZBA0TRM113

COILS

L290 CHOKE COIL 22µH-K LLBD00PKV021

L501# FILTER LLBG00ZY2015 LLBG00ZY2015

L502# FILTER LLBG00ZY2015 LLBG00ZY2015

L503 CIOL TOROIDAL HKBS-14D100-9810WRPF LLET0Z0BF003

L800 COIL RADIAL LHLP10NB330M 33µH LLF3300TU003

L801 COIL RADIAL LHLP10NB330M 33µH LLF3300TU003

L802 COIL RADIAL LHLP10NB330M 33µH LLF3300TU003

L803 COIL RADIAL LHLP10NB330M 33µH LLF3300TU003

L804 INDUCTOR 22µH-K-5FT LLARKBSTU220

TRANSISTORS

Q200 TRANSISTOR KTC3199-GR-AT/P NQS4KTC3199P

Q201 PNP TRANSISTOR POWER 2SA1887(F) QQWZ2SA1887F

Q210 TRANSISTOR KTC3199-GR-AT/P NQS4KTC3199P

Q211 TRANSISTOR KTA1267-GR-AT/P NQS1KTA1267P

Q212 TRANSISTOR(PB FREE) KTC2026-Y/P NQEYKTC2026P

Q220 TRANSISTOR(PB FREE) KTC2026-Y/P NQEYKTC2026P

Q221 TRANSISTOR KTC3199-GR-AT/P NQS4KTC3199P

Q222 TRANSISTOR KTA1267-GR-AT/P NQS1KTA1267P

Q240 TRANSISTOR 2SC2120-Y(TE2 F T) QQSY2SC2120F

Q241 PNP TRANSISTOR POWER 2SA1887(F) QQWZ2SA1887F

Q242 TRANSISTOR 2SC2120-Y(TE2 F T) QQSY2SC2120F

Q243 TRANSISTOR KTA1267-GR-AT/P NQS1KTA1267P

Q250 TRANSISTOR 2SD400(E) QQUE002SD400

Q500# TRANSISTOR KTD1347-C-AT/P NQSCKTD1347P

Q501 TRANSISTOR KTB985-C-AT/P NQSC0KTB985P

Q502# FET MOS 2SK3561(Q) IDSS100UA QFWZ2SK3561Q

Q503# FET MOS 2SK3561(Q) IDSS100UA QFWZ2SK3561Q

Ref. No. Description Part No.

Q504# TRANSISTOR 2SA950-Y(TE2 F T) QQSY02SA950F

Q505 TRANSISTOR KTC3199-GR-AT/P NQS4KTC3199P

Q506 TRANSISTOR KTC3199-GR-AT/P NQS4KTC3199P

Q508 TRANSISTOR KTA1267-GR-AT/P NQS1KTA1267P

Q509 TRANSISTOR KTC3199-GR-AT/P NQS4KTC3199P

Q600# MOS FET 2SK3798(Q) QFWZ2SK3798Q

Q601# TRANSISTOR 2SC2120-Y(TE2 F T) QQSY2SC2120F

Q602 TRANSISTOR 2SC2120-Y(TE2 F T) QQSY2SC2120F

Q650 TRANSISTOR KTC3199-GR-AT/P NQS4KTC3199P

Q800 TRANSISTOR KTC3199-GR-AT/P NQS4KTC3199P

RESISTORS

R204 METAL OXIDE FILM RES. 2W J 1 Ω RN021R0DP004

R205 CARBON RES. 1/4W J 10k Ω RCX4JATZ0103

R206 CARBON RES. 1/4W J 330 Ω RCX4JATZ0331

R207 CARBON RES. 1/4W J 2.7k Ω RCX4JATZ0272

R208 CHIP RES. 1/10W F 3.3k Ω RRXAFR5H3301

R209 CHIP RES. 1/10W F 680 Ω RRXAFR5H6800

R210 CHIP RES. 1/10W F 560 Ω RRXAFR5H5600

R211 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103

R212 CARBON RES. 1/4W J 15k Ω RCX4JATZ0153

R213 CHIP RES. 1/10W J 22k Ω RRXAJR5Z0223

R214 CHIP RES. 1/10W J 22k Ω RRXAJR5Z0223

R215 CHIP RES. 1/10W J 6.8k Ω RRXAJR5Z0682

R216 CHIP RES. 1/10W J 1.8k Ω RRXAJR5Z0182

R217 CARBON RES. 1/4W J 3.3k Ω RCX4JATZ0332

R218 CARBON RES. 1/4W J 100 Ω RCX4JATZ0101

R219 CHIP RES. 1/10W F 8.2k Ω RRXAFR5H8201

R220 RES METALIZED FILM T 1/4W F 1.00k Ω RDC1001HH003

R221 CHIP RES. 1/10W F 620 Ω RRXAFR5H6200

R222 CARBON RES. 1/4W J 2.7k Ω RCX4JATZ0272

R223 CARBON RES. 1/4W J 2.7k Ω RCX4JATZ0272

R224 CARBON RES. 1/4W J 4.7k Ω RCX4JATZ0472

R225 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104

R226 CARBON RES. 1/4W J 10k Ω RCX4JATZ0103

R227 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103

R233 CARBON RES. 1/4W J 820 Ω RCX4JATZ0821

R234 CHIP RES. 1/10W F 2.2k Ω RRXAFR5H2201

R235 CARBON RES. 1/4W J 27k Ω RCX4JATZ0273

R236 CARBON RES. 1/4W J 3.3k Ω RCX4JATZ0332

R237 METAL OXIDE FILM RES. 2W J 1 Ω RN021R0DP004

R240 CARBON RES. 1/4W J 4.7k Ω RCX4JATZ0472

R241 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103

R242 CHIP RES. 1/10W J 3.3k Ω RRXAJR5Z0332

R243 CARBON RES. 1/4W J 1k Ω RCX4JATZ0102

R244 METAL OXIDE FILM RES. 2W J 0.27 Ω RN02R27DP004

R245 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103

R246 CARBON RES. 1/4W J 100 Ω RCX4JATZ0101

R247 CARBON RES. 1/4W J 150 Ω RCX4JATZ0151

R248 CARBON RES. 1/4W J 150 Ω RCX4JATZ0151

R249 CHIP RES. 1/10W J 47k Ω RRXAJR5Z0473

R250 CHIP RES. 1/10W J 4.7k Ω RRXAJR5Z0472

R251 METAL OXIDE FILM RES. 1W J 3.9 Ω RN013R9DP003

R253 CARBON RES. 1/4W J 1k Ω RCX4JATZ0102

R254 CARBON RES. 1/4W J 6.8k Ω RCX4JATZ0682

R255 CHIP RES. 1/10W J 3.3k Ω RRXAJR5Z0332

R256 CHIP RES. 1/10W J 47 Ω RRXAJR5Z0470

R257 CARBON RES. 1/4W J 3.3k Ω RCX4JATZ0332

R292 CHIP RES. 1/10W J 4.7k Ω RRXAJR5Z0472

R293 CHIP RES. 1/10W J 1k Ω RRXAJR5Z0102

R294 CHIP RES. 1/10W J 1k Ω RRXAJR5Z0102

R500# RES CEMENT 5W J 0.33 Ω RW05R33KA050

R501# RES CEMENT 5W J 0.39 Ω RW05R39KA050

20070911 13-3 A81H1EL

Ref. No. Description Part No.

R502 CARBON RES. 1/4W J 220k Ω RCX4JATZ0224

R503 CARBON RES. 1/4W J 220k Ω RCX4JATZ0224

R504 CARBON RES. 1/4W J 56k Ω RCX4JATZ0563

R506 CARBON RES. 1/4W J 22 Ω RCX4JATZ0220

R507 CARBON RES. 1/4W J 15 Ω RCX4JATZ0150

R508 CARBON RES. 1/4W J 220k Ω RCX4JATZ0224

R509 CARBON RES. 1/4W J 15 Ω RCX4JATZ0150

R510 CARBON RES. 1/4W J 22 Ω RCX4JATZ0220

R512 CARBON RES. 1/4W J 10k Ω RCX4JATZ0103

R513 CARBON RES. 1/4W J 10k Ω RCX4JATZ0103

R514 CARBON RES. 1/4W J 10k Ω RCX4JATZ0103

R515 CARBON RES. 1/4W J 4.7k Ω RCX4JATZ0472

R516 CARBON RES. 1/4W J 10k Ω RCX4JATZ0103

R517 CARBON RES. 1/4W J 10 Ω RCX4JATZ0100

R518 CARBON RES. 1/4W J 10 Ω RCX4JATZ0100

R519 CARBON RES. 1/4W J 27k Ω RCX4JATZ0273

R520 CARBON RES. 1/4W J 56k Ω RCX4JATZ0563

R521 CARBON RES. 1/4W J 180 Ω RCX4JATZ0181

R522 RES METALIZED FILM T 1/4W F 3.92k Ω RDC3921HH003

R523 PCB JUMPER D0.6-P5.0 JW5.0T

R524 CARBON RES. 1/4W J 10k Ω RCX4JATZ0103

R525 RES METALIZED FILM T 1/4W F 100k Ω RDC1003HH003

R526 RES METALIZED FILM T 1/4W F 100k Ω RDC1003HH003

R527 RES METALIZED FILM T 1/4W F 100k Ω RDC1003HH003

R528 RES METALIZED FILM T 1/4W F 27.4k Ω RDC2742HH003

R529 PCB JUMPER D0.6-P5.0 JW5.0T

R530 RES METALIZED FILM 1/4W F 274k Ω RDC2743HH001

R531 RES METALIZED FILM 1/4W F 274k Ω RDC2743HH001

R532 RES METALIZED FILM 1/4W F 332k Ω RDC3323HH001

R533 RES METALIZED FILM 1/4W F 274k Ω RDC2743HH001

R534 RES METALIZED FILM T 1/4W F 10.0k Ω RDC1002HH003

R537 RES METALIZED FILM T 1/4W F 100k Ω RDC1003HH003

R539 CARBON RES. 1/4W J 2.2k Ω RCX4JATZ0222

R540 CARBON RES. 1/4W J 2.2k Ω RCX4JATZ0222

R541 CARBON RES. 1/4W J 2.2 Ω RCX4JATZ02R2

R542 CARBON RES. 1/4W J 1k Ω RCX4JATZ0102

R543 CARBON RES. 1/4W J 220k Ω RCX4JATZ0224

R544# SOLID RES.(UL) 1/2W 3.3M Ω RSX2335KE010

R545 SOLID RES.(UL) 1/2W 8.2M Ω RSX2825KE010

R546 CARBON RES. 1/4W J 220k Ω RCX4JATZ0224

R547 CARBON RES. 1/4W J 27k Ω RCX4JATZ0273

R548 CARBON RES. 1/4W J 100k Ω RCX4JATZ0104

R549 CARBON RES. 1/4W J 100k Ω RCX4JATZ0104

R550 CARBON RES. 1/4W J 100k Ω RCX4JATZ0104

R551 CARBON RES. 1/4W J 100k Ω RCX4JATZ0104

R553 CARBON RES. 1/4W J 2.7k Ω RCX4JATZ0272

R558 CARBON RES. 1/4W J 1k Ω RCX4JATZ0102

R559 CARBON RES. 1/4W J 47k Ω RCX4JATZ0473

R600 RES CEMENT 5W J 1.0 Ω RW051R0KA050

R603 CARBON RES. 1/4W J 150 Ω RCX4JATZ0151

R604 CARBON RES. 1/4W J 220 Ω RCX4JATZ0221

R605 CARBON RES. 1/4W J 2.2k Ω RCX4JATZ0222

R606 CARBON RES. 1/4W J 470k Ω RCX4JATZ0474

R607 CARBON RES. 1/4W J 470k Ω RCX4JATZ0474

R608 CARBON RES. 1/4W J 470k Ω RCX4JATZ0474

R609 CARBON RES. 1/4W J 470k Ω RCX4JATZ0474

R610 CARBON RES. 1/4W J 220 Ω RCX4JATZ0221

R611 CARBON RES. 1/4W J 470 Ω RCX4JATZ0471

R612 CARBON RES. 1/4W J 180 Ω RCX4JATZ0181

R613 CARBON RES. 1/4W J 100 Ω RCX4JATZ0101

R614 CARBON RES. 1/4W J 2.2k Ω RCX4JATZ0222

R615 METAL OXIDE FILM RES. 1W J 10 Ω RN01100DP003

R616 METAL OXIDE FILM RES. 2W J 100k Ω RN02104DP004

Ref. No. Description Part No.

R617 METAL OXIDE FILM RES. 2W J 100k Ω RN02104DP004

R650 RES METALIZED FILM T 1/4W F 2.21k Ω RDC2211HH003

R651 RES METALIZED FILM T 1/4W F 1.00k Ω RDC1001HH003

R652 RES METALIZED FILM T 1/4W F 332 Ω RDC3320HH003

R653 RES METALIZED FILM T 1/4W F 2.21k Ω RDC2211HH003

R654 RES METALIZED FILM T 1/4W F 2.21k Ω RDC2211HH003

R655 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000

R656 CHIP RES. 1/10W J 3.3k Ω RRXAJR5Z0332

R657 CHIP RES. 1/10W J 15k Ω RRXAJR5Z0153

R662 CHIP RES. 1/10W J 2.2k Ω RRXAJR5Z0222

R663 CHIP RES. 1/10W J 3.3k Ω RRXAJR5Z0332

R665 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103

R666 CHIP RES. 1/10W J 4.7k Ω RRXAJR5Z0472

R672 CARBON RES. 1/4W J 2.2k Ω RCX4JATZ0222

R673 CARBON RES. 1/4W J 1k Ω RCX4JATZ0102

R674 CARBON RES. 1/4W J 39k Ω RCX4JATZ0393

R800 CHIP RES. 1/10W F 100k Ω RRXAFR5H1003

R801 CHIP RES. 1/10W J 390k Ω RRXAJR5Z0394

R802 CHIP RES. 1/10W J 22k Ω RRXAJR5Z0223

R803 CHIP RES. 1/10W F 51.0 k Ω RRXAFR5H5102

R804 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103

R805 CHIP RES. 1/10W F 51.0 k Ω RRXAFR5H5102

R807 CHIP RES. 1/10W J 270k Ω RRXAJR5Z0274

R808 CHIP RES. 1/10W F 100k Ω RRXAFR5H1003

R809 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103

R810 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000

R811 CHIP RES. 1/10W J 100 Ω RRXAJR5Z0101

MISCELLANEOUS

AC600# AC CORD LP-11W&PT218P-K90A&S WAC0172LW020

B16 HEAT SINK EAI ASSEMBLY A81H0UH 1EM424642

B17 HEAT SINK EAJ ASSEMBLY A81H0UH 1EM424644

B18 HEAT SINK EAK ASSEMBLY A81H0UH 1EM424646

B19 HEAT SINK EAL ASSEMBLY A81H0UH 1EM424648

BC502 BEAD INDUCTOR FBR07HA121TB-00 LLBF00ZTU021

BC503 BEAD INDUCTOR FBR07HA121TB-00 LLBF00ZTU021

BC504 BEAD INDUCTOR FBR07HA121TB-00 LLBF00ZTU021

BC505 BEAD INDUCTOR FBR07HA121TB-00 LLBF00ZTU021

BC506 PCB JUMPER D0.6-P5.0 JW5.0T

BC507 PCB JUMPER D0.6-P5.0 JW5.0T

BC508 BEAD INDUCTOR FBR07HA121TB-00 LLBF00ZTU021

BC509 BEAD INDUCTOR FBR07HA121TB-00 LLBF00ZTU021

BC600 PCB JUMPER D0.6-P5.0 JW5.0T

BC601 PCB JUMPER D0.6-P5.0 JW5.0T

BC602 PCB JUMPER D0.6-P5.0 JW5.0T

BC603 PCB JUMPER D0.6-P5.0 JW5.0T

F500# FUSE 8A/250V(PB FREE) 0215008.MXP PBGZ20BAG022

FC600 CORE FERRITE TOROIDAL HF40T18X10X10 XL04018TE001

FH500 HOLDER FUSE CNT41-0014 1790424

FH501 HOLDER FUSE CNT41-0014 1790424

J115 CARBON RES. 1/4W J 1k Ω RCX4JATZ0102

JS211 PCB JUMPER D0.6-P5.0 JW5.0T

JP200 PCB JUMPER D0.6-P5.0 JW5.0T

JP201 PCB JUMPER D0.6-P25.0 JW25.0T

JP202 PCB JUMPER D0.6-P10.0 JW10.0T

JP212 PCB JUMPER D0.6-P5.0 JW5.0T

JP511 PCB JUMPER D0.6-P5.0 JW5.0T

JP600 PCB JUMPER D0.6-P7.5 JW7.5T

JP601 PCB JUMPER D0.6-P7.5 JW7.5T

JP801 PCB JUMPER D0.6-P12.5 JW12.5T

L12 SCREW B-TIGHT D3X8 BIND HEAD+ GBJB3080

SA500# SURGE ABSORBER 470V+-10PER NVQZ10D471KB

SA502 SURGE ABSORBER 470V+-10PER NVQZ10D471KB

20070911 13-4 A81H1EL

Ref. No. Description Part No.

SA503 SURGE ABSORBER RA-452MS-V7-Y PDVAEA0DC452

SA504 PCB JUMPER D0.6-P7.5 JW7.5T

T600# TRANS POWER 7736 LTT3PC0KT033

TM601 EYELET TYPE D-1 0VM406868

TM602 EYELET TYPE D-1 0VM406868

TP500 PCB JUMPER D0.6-P10.0 JW10.0T

TP501 PCB JUMPER D0.6-P10.0 JW10.0T

TP650 PCB JUMPER D0.6-P10.0 JW10.0T

FUNCTION CBA

Ref. No. Description Part No.

FUNCTION CBA
Consists of the following:

----------

CAPACITORS

C118 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104

C119 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104

RESISTORS

R120 CARBON RES. 1/4W J 10k Ω RCX4JATZ0103

R121 PCB JUMPER D0.6-P5.0 JW5.0T

R124 CHIP RES. 1/10W J 1.5k Ω RRXAJR5Z0152

R125 CHIP RES. 1/10W J 1.5k Ω RRXAJR5Z0152

R126 CHIP RES. 1/10W J 2.2k Ω RRXAJR5Z0222

R127 CHIP RES. 1/10W J 2.7k Ω RRXAJR5Z0272

R128 CHIP RES. 1/10W J 4.7k Ω RRXAJR5Z0472

R129 CHIP RES. 1/10W J 6.8k Ω RRXAJR5Z0682

SWITCHES

SW101 TACT SWITCH SKQSAB SST0101AL038

SW102 TACT SWITCH SKQSAB SST0101AL038

SW103 TACT SWITCH SKQSAB SST0101AL038

SW104 TACT SWITCH SKQSAB SST0101AL038

SW105 TACT SWITCH SKQSAB SST0101AL038

SW106 TACT SWITCH SKQSAB SST0101AL038

SW107 TACT SWITCH SKQSAB SST0101AL038

MISCELLANEOUS

BC102 PCB JUMPER D0.6-P5.0 JW5.0T

IR SENSOR CBA

Ref. No. Description Part No.

IR SENSOR CBA
Consists of the following:

CAPACITORS

C102 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104

C103 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104

C104 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104

C105 CHIP CERAMIC CAP. F Z 0.01µF/50V CHD1JZ30F103

C107 ELECTROLYTIC CAP. 47µF/16V M H7 CE1CMASSL470

DIODES

D101 LED 333GT/E NPHZ00333GTE

D102 LED L-53HT NP4Z000L53HT

RESISTORS

R107 CHIP RES. 1/10W J 10 Ω RRXAJR5Z0100

R108 CHIP RES. 1/10W J 220 Ω RRXAJR5Z0221

R109 CARBON RES. 1/4W J 1k Ω RCX4JATZ0102

R110 CHIP RES. 1/10W J 3.3k Ω RRXAJR5Z0332

R111 CHIP RES. 1/10W J 100 Ω RRXAJR5Z0101

R112 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000

R113 PCB JUMPER D0.6-P5.0 JW5.0T

MISCELLANEOUS

BC100 PCB JUMPER D0.6-P5.0 JW5.0T

CL101 WIRE ASSEMBLY 003 11PIN AWG26 WX1A81H0-003

CL106 WIRE ASSEMBLY 004 4PIN AWG26 WX1A81H0-004

----------

Ref. No. Description Part No.

RS101 PHOTO LINK MODULE KSM-712TH2E USESJRSKK044

JUNCTION CBA

Ref. No. Description Part No.

JUNCTION CBA
Consists of the following:

----------

CONNECTOR

CN100 242 SERIES CONNECTOR TUC-P11X-B1 WHT STJCTUB11TG002

JACK ASSEMBLY

Ref. No. Description Part No.

JACK ASSEMBLY
Consists of the following:

JACK CBA
INVERTER POWER CBA
SIDE JACK CBA

JACK CBA

Ref. No. Description Part No.

JACK CBA
Consists of the following:

CAPACITORS

C7001 ELECTROLYTIC CAP. 100µF/10V M H7 CE1AMASSL101

C7002 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104

C7003 ELECTROLYTIC CAP. 100µF/10V M H7 CE1AMASSL101

C7040 ELECTROLYTIC CAP. 4.7µF/25V M H7 CE1EMASSL4R7

C7041 ELECTROLYTIC CAP. 4.7µF/25V M H7 CE1EMASSL4R7

C7042 CHIP CERAMIC CAP. CH J 12pF/50V CHD1JJ3CH120

C7043 CHIP CERAMIC CAP.(1608) CH J 100pF/50V CHD1JJ3CH101

C7044 CHIP CERAMIC CAP.(1608) CH J 100pF/50V CHD1JJ3CH101

C7045 ELECTROLYTIC CAP. 4.7µF/25V M H7 CE1EMASSL4R7

C7046 ELECTROLYTIC CAP. 4.7µF/25V M H7 CE1EMASSL4R7

C7047 CHIP CERAMIC CAP. CH J 12pF/50V CHD1JJ3CH120

C7048 CHIP CERAMIC CAP. CH J 12pF/50V CHD1JJ3CH120

C7049 CHIP CERAMIC CAP. CH J 12pF/50V CHD1JJ3CH120

C7050 ELECTROLYTIC CAP. 4.7µF/25V M H7 CE1EMASSL4R7

C7051 ELECTROLYTIC CAP. 4.7µF/25V M H7 CE1EMASSL4R7

C7052 CHIP CERAMIC CAP. CH J 12pF/50V CHD1JJ3CH120

C7053 CHIP CERAMIC CAP. CH J 12pF/50V CHD1JJ3CH120

C7054 CHIP CERAMIC CAP. CH J 12pF/50V CHD1JJ3CH120

C7055 ELECTROLYTIC CAP. 47µF/16V M H7 CE1CMASSL470

C7056 CHIP CERAMIC CAP.(1608) CH J 100pF/50V CHD1JJ3CH101

C7061 CHIP CERAMIC CAP.(1608) CH J 100pF/50V CHD1JJ3CH101

C7062 CHIP CERAMIC CAP.(1608) CH J 100pF/50V CHD1JJ3CH101

C7063 CHIP CERAMIC CAP.(1608) CH J 100pF/50V CHD1JJ3CH101

C7064 CHIP CERAMIC CAP.(1608) CH J 100pF/50V CHD1JJ3CH101

C7065 CHIP CERAMIC CAP.(1608) CH J 100pF/50V CHD1JJ3CH101

C7066 CHIP CERAMIC CAP.(1608) CH J 100pF/50V CHD1JJ3CH101

C7091 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000

C7092 CHIP CERAMIC CAP. B K 220pF/50V CHD1JK30B221

C7093 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000

C7094 CHIP CERAMIC CAP. B K 220pF/50V CHD1JK30B221

C7101 ELECTROLYTIC CAP. 4.7µF/25V M H7 CE1EMASSL4R7

C7102 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104

C7103 ELECTROLYTIC CAP. 4.7µF/25V M H7 CE1EMASSL4R7

C7104 CHIP CERAMIC CAP.(1608) CH J 100pF/50V CHD1JJ3CH101

C7105 CHIP CERAMIC CAP.(1608) CH J 100pF/50V CHD1JJ3CH101

C7106 CHIP CERAMIC CAP.(1608) CH J 100pF/50V CHD1JJ3CH101

C7107 CHIP CERAMIC CAP.(1608) CH J 100pF/50V CHD1JJ3CH101

C7108 CHIP CERAMIC CAP.(1608) CH J 100pF/50V CHD1JJ3CH101

C7201 ELECTROLYTIC CAP. 47µF/10V M H7 CE1AMASSL470

1ESA14714

----------

----------

----------

----------

20070911 13-5 A81H1EL

Ref. No. Description Part No.

C7202 ELECTROLYTIC CAP. 47µF/10V M H7 CE1AMASSL470

C7203 ELECTROLYTIC CAP. 47µF/10V M H7 CE1AMASSL470

C7204 ELECTROLYTIC CAP. 47µF/10V M H7 CE1AMASSL470

C7205 ELECTROLYTIC CAP. 47µF/10V M H7 CE1AMASSL470

C7206 ELECTROLYTIC CAP. 47µF/10V M H7 CE1AMASSL470

C7211 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104

C7213 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104

C7215 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104

C7216 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104

CONNECTOR

CN7001 FMN CONNECTOR TOP 40P 40FMN-BTRK-

A(LF)(SN)

JCFNG40JG020

DIODES

D7001 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133

D7002 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133

IC

IC7001 IC SWITCHING TC4052BF(ELNF) QSZBA0TTS162

TRANSISTORS

Q7001 TRANSISTOR KTC3199-GR-AT/P NQS4KTC3199P

Q7002 TRANSISTOR KTC3199-GR-AT/P NQS4KTC3199P

Q7101 TRANSISTOR KTC3199-GR-AT/P NQS4KTC3199P

Q7102 TRANSISTOR KTC3199-GR-AT/P NQS4KTC3199P

Q7103 TRANSISTOR KTC3199-GR-AT/P NQS4KTC3199P

Q7104 TRANSISTOR KTC3199-GR-AT/P NQS4KTC3199P

Q7105 TRANSISTOR KTC3199-GR-AT/P NQS4KTC3199P

Q7106 TRANSISTOR KTC3199-GR-AT/P NQS4KTC3199P

RESISTORS

R7000 PCB JUMPER D0.6-P5.0 JW5.0T

R7001 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103

R7002 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103

R7003 CHIP RES. 1/10W J 22k Ω RRXAJR5Z0223

R7004 CARBON RES. 1/4W J 22k Ω RCX4JATZ0223

R7005 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104

R7006 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104

R7007 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104

R7008 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104

R7009 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104

R7010 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104

R7011 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104

R7012 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104

R7013 CARBON RES. 1/4W J 100k Ω RCX4JATZ0104

R7014 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104

R7015 CARBON RES. 1/4W J 100k Ω RCX4JATZ0104

R7016 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104

R7017 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104

R7018 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104

R7019 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104

R7020 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104

R7021 CHIP RES. 1/10W J 100 Ω RRXAJR5Z0101

R7022 CHIP RES. 1/10W J 100 Ω RRXAJR5Z0101

R7031 PCB JUMPER D0.6-P5.0 JW5.0T

R7032 PCB JUMPER D0.6-P5.0 JW5.0T

R7040 CHIP RES. 1/10W J 47k Ω RRXAJR5Z0473

R7041 CHIP RES. 1/10W J 24k Ω RRXAJR5Z0243

R7043 CHIP RES. 1/10W J 47k Ω RRXAJR5Z0473

R7044 CHIP RES. 1/10W J 24k Ω RRXAJR5Z0243

R7047 CHIP RES.(1608) 1/10W F 75 Ω RRXAFR5H75R0

R7048 CHIP RES. 1/10W J 100 Ω RRXAJR5Z0101

R7049 CHIP RES. 1/10W J 75 Ω RRXAJR5Z0750

R7051 CHIP RES. 1/10W J 75 Ω RRXAJR5Z0750

R7052 CHIP RES. 1/10W J 47k Ω RRXAJR5Z0473

R7053 CHIP RES. 1/10W J 24k Ω RRXAJR5Z0243

Ref. No. Description Part No.

R7054 CHIP RES. 1/10W J 47k Ω RRXAJR5Z0473

R7055 CHIP RES. 1/10W J 24k Ω RRXAJR5Z0243

R7056 CARBON RES. 1/4W J 100 Ω RCX4JATZ0101

R7057 CHIP RES.(1608) 1/10W F 75 Ω RRXAFR5H75R0

R7058 CHIP RES. 1/10W J 100 Ω RRXAJR5Z0101

R7059 CHIP RES.(1608) 1/10W F 75 Ω RRXAFR5H75R0

R7061 CHIP RES.(1608) 1/10W F 75 Ω RRXAFR5H75R0

R7062 CHIP RES. 1/10W J 47k Ω RRXAJR5Z0473

R7063 CHIP RES. 1/10W J 24k Ω RRXAJR5Z0243

R7064 CHIP RES. 1/10W J 47k Ω RRXAJR5Z0473

R7065 CHIP RES. 1/10W J 24k Ω RRXAJR5Z0243

R7066 CHIP RES. 1/10W J 100 Ω RRXAJR5Z0101

R7067 CHIP RES.(1608) 1/10W F 75 Ω RRXAFR5H75R0

R7068 CHIP RES. 1/10W J 100 Ω RRXAJR5Z0101

R7069 CHIP RES.(1608) 1/10W F 75 Ω RRXAFR5H75R0

R7071 CHIP RES.(1608) 1/10W F 75 Ω RRXAFR5H75R0

R7072 CHIP RES. 1/10W J 75 Ω RRXAJR5Z0750

R7081 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000

R7082 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000

R7083 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000

R7084 PCB JUMPER D0.6-P5.0 JW5.0T

R7085 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000

R7086 PCB JUMPER D0.6-P5.0 JW5.0T

R7087 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000

R7091 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000

R7093 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000

R7094 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000

R7096 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000

R7101 CHIP RES. 1/10W J 18k Ω RRXAJR5Z0183

R7102 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103

R7103 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103

R7104 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103

R7105 CHIP RES. 1/10W J 47k Ω RRXAJR5Z0473

R7106 CHIP RES. 1/10W J 24k Ω RRXAJR5Z0243

R7107 CHIP RES. 1/10W J 47k Ω RRXAJR5Z0473

R7108 CHIP RES. 1/10W J 24k Ω RRXAJR5Z0243

R7113 CHIP RES. 1/10W J 100 Ω RRXAJR5Z0101

R7201 CARBON RES. 1/4W J 680 Ω RCX4JATZ0681

R7202 CHIP CERAMIC CAP.(1608) CH J 100pF/50V CHD1JJ3CH101

R7203 CHIP RES. 1/10W J 39k Ω RRXAJR5Z0393

R7204 CHIP RES. 1/10W J 33k Ω RRXAJR5Z0333

R7206 CARBON RES. 1/4W J 680 Ω RCX4JATZ0681

R7207 CHIP CERAMIC CAP.(1608) CH J 100pF/50V CHD1JJ3CH101

R7208 CHIP RES. 1/10W J 39k Ω RRXAJR5Z0393

R7209 CHIP RES. 1/10W J 33k Ω RRXAJR5Z0333

R7211 CARBON RES. 1/4W J 680 Ω RCX4JATZ0681

R7212 CHIP CERAMIC CAP.(1608) CH J 100pF/50V CHD1JJ3CH101

R7213 CHIP RES. 1/10W J 39k Ω RRXAJR5Z0393

R7214 CHIP RES. 1/10W J 33k Ω RRXAJR5Z0333

R7216 CARBON RES. 1/4W J 680 Ω RCX4JATZ0681

R7217 CHIP CERAMIC CAP.(1608) CH J 100pF/50V CHD1JJ3CH101

R7218 CHIP RES. 1/10W J 39k Ω RRXAJR5Z0393

R7219 CHIP RES. 1/10W J 33k Ω RRXAJR5Z0333

R7221 CARBON RES. 1/4W J 680 Ω RCX4JATZ0681

R7222 CHIP CERAMIC CAP.(1608) CH J 100pF/50V CHD1JJ3CH101

R7223 CHIP RES. 1/10W J 39k Ω RRXAJR5Z0393

R7224 CHIP RES. 1/10W J 33k Ω RRXAJR5Z0333

R7226 CARBON RES. 1/4W J 680 Ω RCX4JATZ0681

R7227 CHIP CERAMIC CAP.(1608) CH J 100pF/50V CHD1JJ3CH101

R7228 CHIP RES. 1/10W J 39k Ω RRXAJR5Z0393

R7229 CHIP RES. 1/10W J 33k Ω RRXAJR5Z0333

MISCELLANEOUS

20070911 13-6 A81H1EL

Ref. No. Description Part No.

CL7002 WIRE ASSEMBLY 005 14PIN AWG26 WX1A81H0-005

JK7001 JACK SW DIN PCB S YKF51-5379V JYEJ040JC002

JK7002 JACK SW RCA PCB S RCA-347HDT-02 JYRJ030YUQ01

JK7003 JACK RCA PCB S 03 RCA-347HT-03 JXRJ030YUQ01

JK7004 JACK SW RCA PCB S RCA-228H(2)NI-01 JYRJ020YUQ02

JK7005 JACK RCA PCB S 03 RCA-347HT-03 JXRJ030YUQ01

JK7006 JACK SW RCA PCB S RCA-228H(2)NI-01 JYRJ020YUQ02

JK7007 JACK RCA PCB S AV-4B-70HH JXRJ010SNJ06

JK7008 JACK SW RCA PCB S RCA-228H(2)NI-01 JYRJ020YUQ02

JS7002 PCB JUMPER D0.6-P7.5 JW7.5T

INVERTER POWER CBA

Ref. No. Description Part No.

INVERTER POWER CBA
Consists of the following:

CAPACITORS

C701 ELECTROLYTIC CAPACITOR 150µF/400V CA2H151NC229

C703 CAP METALIZED FILM 2.2µF 50V CT1J225MS045

C706 FILM CAP. 0.33µF/50V J CMA1JJS00334

C707 CERAMIC CAP.(AX) CH J 470pF/50V CA1J471TU008

C709 FILM CAP.(P) 0.01µF/50V J CMA1JJS00103

C710 FILM CAP. 0.33µF/50V J CMA1JJS00334

C711 FILM CAP.(P) 0.1µF/50V J CMA1JJS00104

C712 CERAMIC CAP. B K 220pF/500V CCD2JKP0B221

C713 FILM CAP.(P) 0.1µF/50V J CMA1JJS00104

C714 ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100

C715 P.P.CAPACITOR 0.022µF/630V J CT2K223MS086

C717 FILM CAP.(P) 0.0047µF/50V J CMA1JJS00472

C718 CHIP CERAMIC CAP. F Z 0.01µF/50V CHD1JZ30F103

C731 SAFETY CAP. 1000pF/250V KX CA2E102MR050

C751 CAP ELE STD-85 4700µF/35V SL CE1GMZNDL472

C752 CAP ELE STD-85 4700µF/35V SL CE1GMZNDL472

C753 CAP ELE STD-85 4700µF/35V SL CE1GMZNDL472

C754 CERAMIC CAP.(AX) F Z 0.1µF/50V CCA1JZTFZ104

C755 CAP ELE STD-85 4700µF/35V SL CE1GMZNDL472

C761 MYLAR CAP. 0.22µF/50V J CMA1JJS00224

C763 CHIP CERAMIC CAP. F Z 0.01µF/50V CHD1JZ30F103

C764 CHIP CERAMIC CAP. F Z 0.01µF/50V CHD1JZ30F103

C786 CHIP CERAMIC CAP. (1608) B K 1µF/16V CHD1CK30B105

CONNECTORS

CN701 CONNECTOR B2P3-VH(LF)(SN) J3VH020JG001

CN702 CONNECTOR PRINT OSU

CN751 CONNECTOR PRINT OSU B14B-PH-K-

CN752 PH CONNECTOR TOP 10P B10B-PH-K-

CN753 BOARD CONNECTOR 09P(PB FREE)

008283021200000S+

S(LF)(SN)

S(LF)(SN)

127301109K2

DIODES

D703 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133

D704 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133

D705 SCHOTTKY BARRIER DIODE ERA81-004Q QDLZRA81004Q

D706 SCHOTTKY BARRIER DIODE ERA81-004Q QDLZRA81004Q

D711 CHIP ZENER DIODE CRZ27(TE85L Q) QD1Z00CRZ27Q

D712 CHIP ZENER DIODE CRZ36(TE85L Q) QD1Z00CRZ36Q

D751 DIODE SCHOTTKY YG802C10R QDQZYG802C10

D752 DIODE SCHOTTKY YG802C10R QDQZYG802C10

D756 CHIP ZENER DIODE CRZ30(TE85L Q) QD1Z00CRZ30Q

D757 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133

D758 ZENER DIODE MTZJT-7727B QDTB00MTZJ27

D781 SCHOTTKY BARRIER DIODE ERA81-004Q QDLZRA81004Q

ICS

----------

J383C02UG004

J3PHC14JG029

J3PHC10JG029

JCTWA09TG004

Ref. No. Description Part No.

IC701# IC HIGH-VOLTAGE RESONANT CONTR

IC702# PHOTO COUPLER LTV817MBF NPEBLTV817MF

IC703# PHOTO COUPLER LTV817MBF NPEBLTV817MF

IC761 IC SHUNT REGULATOR KIA431-AT/P NSZBA0TJY036

L6599N

NSZBA0SSS312

TRANSISTORS

Q701# FET MOS 2SK3561(Q) IDSS100UA QFWZ2SK3561Q

Q702# FET MOS 2SK3561(Q) IDSS100UA QFWZ2SK3561Q

Q703 TRANSISTOR KTA1267-GR-AT/P NQS1KTA1267P

Q704 TRANSISTOR KTC3199-GR-AT/P NQS4KTC3199P

Q761 TRANSISTOR KTC3199-GR-AT/P NQS4KTC3199P

Q762 TRANSISTOR KTC3199-GR-AT/P NQS4KTC3199P

RESISTORS

R701 RES MATALIZED FILM 1/4W F 562k Ω RDC5623HH001

R702 RES MATALIZED FILM 1/4W F 562k Ω RDC5623HH001

R703 RES MATALIZED FILM 1/4W F 562k Ω RDC5623HH001

R704 RES MATALIZED FILM 1/4W F 562k Ω RDC5623HH001

R705 CARBON RES. 1/4W J 10 Ω RCX4JATZ0100

R706 RES METALIZED FILM T 1/4W F 12.1k Ω RDC1212HH003

R707 CARBON RES. 1/4W J 2.7k Ω RCX4JATZ0272

R708 RES METALIZED FILM T 1/4W F 15.0k Ω RDC1502HH003

R709 CARBON RES. 1/4W J 39 Ω RCX4JATZ0390

R712 CARBON RES. 1/4W J 3.3k Ω RCX4JATZ0332

R713 CARBON RES. 1/4W J 1M Ω RCX4JATZ0105

R714 CARBON RES. 1/4W J 10k Ω RCX4JATZ0103

R715 RES METALIZED FILM T 1/4W F 75.0 Ω RDC75R0HH003

R718 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103

R719 CHIP RES. 1/10W J 22k Ω RRXAJR5Z0223

R720 CHIP RES. 1/10W J 47k Ω RRXAJR5Z0473

R721 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103

R722 CARBON RES. 1/4W J 39 Ω RCX4JATZ0390

R723 CARBON RES. 1/4W J 39 Ω RCX4JATZ0390

R724 CARBON RES. 1/4W J 39 Ω RCX4JATZ0390

R725 CARBON RES. 1/4W J 56 Ω RCX4JATZ0560

R726 CARBON RES. 1/4W J 100k Ω RCX4JATZ0104

R727 CARBON RES. 1/4W J 56 Ω RCX4JATZ0560

R728 CARBON RES. 1/4W J 100k Ω RCX4JATZ0104

R753 CHIP RES. 1/10W J 22k Ω RRXAJR5Z0223

R754 CARBON RES. 1/4W J 2.2k Ω RCX4JATZ0222

R760 CARBON RES. 1/4W J 5.6k Ω RCX4JATZ0562

R761 CHIP RES. 1/10W J 47k Ω RRXAJR5Z0473

R762 CARBON RES. 1/4W J 1k Ω RCX4JATZ0102

R763 PCB JUMPER D0.6-P5.0 JW5.0T

R764 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103

R765 RES METALIZED FILM T 1/4W F 9.09k Ω RDC9091HH003

R766 PCB JUMPER D0.6-P5.0 JW5.0T

R767 RES METALIZED FILM T 1/4W F 2.21k Ω RDC2211HH003

R768 CHIP RES. 1/10W J 2.7k Ω RRXAJR5Z0272

R769 CHIP RES. 1/10W J 2.7k Ω RRXAJR5Z0272

R770 CHIP RES. 1/10W J 22k Ω RRXAJR5Z0223

R771 CHIP RES. 1/10W J 47k Ω RRXAJR5Z0473

R772 CHIP RES. 1/10W J 3.3k Ω RRXAJR5Z0332

R773 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103

R784 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104

R785 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000

R787 CHIP RES. 1/10W J 1k Ω RRXAJR5Z0102

MISCELLANEOUS

B17 HEAT SINK EAJ ASSEMBLY A81H0UH 1EM424644

B18 HEAT SINK EAK ASSEMBLY A81H0UH 1EM424646

BC701 BEAD INDUCTOR FBR07HA121TB-00 LLBF00ZTU021

BC781 BEAD INDUCTOR FBR07HA121TB-00 LLBF00ZTU021

BC782 BEAD INDUCTOR FBR07HA121TB-00 LLBF00ZTU021

BC783 BEAD INDUCTOR FBR07HA121TB-00 LLBF00ZTU021

20070911 13-7 A81H1EL

Ref. No. Description Part No.

BC784 BEAD INDUCTOR FBR07HA121TB-00 LLBF00ZTU021

BC785 PCB JUMPER D0.6-P5.0 JW5.0T

L12 SCREW B-TIGHT D3X8 BIND HEAD+ GBJB3080

T701# TRANS POWER ETS42LZ196AD LTT4PC0MS004

SIDE JACK CBA

Ref. No. Description Part No.

SIDE JACK CBA
Consists of the following:

RESISTORS

R7501 CHIP RES. 1/10W J 75 Ω RRXAJR5Z0750

R7502 CHIP RES. 1/10W J 75 Ω RRXAJR5Z0750

R7503 CHIP RES. 1/10W J 75 Ω RRXAJR5Z0750

MISCELLANEOUS

JK7502 JACK SW RCA PCB S RCA-347HDT-02 JYRJ030YUQ01

JK7503 JACK SW DIN PCB S YKF51-5379V JYEJ040JC002

----------

20070911 13-8 A81H1EL
