SERVICE MANUAL

26″ COLOR LCD TELEVISION

LC260SS8

Page 2

IMPORTANT SAFETY NOTICE

Proper service and repair is important to the safe, reliable operation of all Funai Equipment. The service procedures recommended by Funai and described in this service manual are effective methods of performing service operations. Some of these service special tools should be used when and as recommended.

It is important to note that this service manual contains various CAUTIONS and NOTICES which should be carefully read in order to minimize the risk of personal injury to service personnel. The possibility exists that improper service methods may damage the equipment. It also is important to understand that these CAUTIONS and NOTICES ARE NOT EXHAUSTIVE. Funai could not possibly know, evaluate and advice the service trade of all conceivable ways in which service might be done or of the possible hazardous consequences of each way. Consequently, Funai has not undertaken any such broad evaluation. Accordingly, a servicer who uses a service procedure or tool which is not recommended by Funai must first use all precautions thoroughly so that neither his safety nor the safe operation of the equipment will be jeopardized by the service method selected.

TABLE OF CONTENTS

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

Important Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

Standard Notes for Servicing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

Cabinet Disassembly Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1

Electrical Adjustment Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1

How to initialize the LCD Television . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1

Block Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1

Schematic Diagrams / CBA’s and Test Points. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-1

Waveforms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-1

Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-1

Exploded Views. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-1

Mechanical Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-1

Electrical Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-1

The LCD panel is manufactured to provide many years of useful life. Occasionally a few non active pixels may appear as a tiny spec of color. This is not to be considered a defect in the LCD screen.

Page 3

SPECIFICATIONS

< TUNER / NTSC >

ANT. Input ---------------------- 75 ohm Unbal., F type

Description Condition Unit Nominal Limit

1. AFT Pull-in Range --- MHz ±2.3 ±2.1 20

20 23

2. Syncronizing Sens.

ch.4 ch.10 ch.41

dBµ dBµ dBµ

---

< TUNER / ATSC >

Description Condition Unit Nominal Limit

1. Received Freq. Range (-28dBm) --- kHz --- ±100

2. ATSC Dynamic Range (min / max)

ch.4 ch.10 ch.41

dBm dBm dBm

---

-76/0

-74/+4

< LCD PANEL >

Description Condition Unit Nominal Limit

1. Native Pixel Resolusion

2. Brightness (w / filter) --- cd/m

3. Viewing Angle

Horizontal

Vert ical

Horizontal

Vert ical

pixels pixels

° °

1366

768

320 ---

---

-80 to 80

-75 to 75

< VIDEO >

Description Condition Unit Nominal Limit

1. Over Scan

2. Color Temperature

3. Resolution (composite video)

Horizontal

Vert ical

--x y

Horizontal

Vert ical

% %

°K 12000

line line

5 5

0.272

0.278 400

350

---

--±10% ±10%

---

1-1 A71A0SP

Page 4

< AUDIO >

All items are measured across 8 Ω load at speaker output terminal with L.P.F. / Video1 Input.

Description Condition Unit Nominal Limit

1. Audio Output Power 10% THD: Lch/Rch W 10.0/10.0 9.0/9.0

2. Audio Distortion 500mW: Lch/Rch % 0.5/0.5 2.0/2.0

3. Audio Freq. Response (NTSC)

Note: Nominal specifications represent the design specifications. All units should be able to approximate these.

Some will exceed and some may drop slightly below these specifications. Limit specifications represent the absolute worst condition that still might be considered acceptable. In no case should a unit fail to meet limit specifications.

6dB: Lch

6dB: Rch

Hz Hz

---

1-2 A71A0SP

Page 5

IMPORTANT SAFETY PRECAUTIONS

Prior to shipment from the factory, our products are strictly inspected for recognized product safety and electrical codes of the countries in which they are to be sold. However, in order to maintain such compliance, it is equally important to implement the following precautions when a set is being serviced.

Safety Precautions for LCD TV Circuit

1. Before returning an instrument to the

customer, always make a safety check of the

entire instrument, including, but not limited to, the following items:

a. Be sure that no built-in protective devices are

defective and have been defeated during servicing. (1) Protective shields are provided on this chassis to protect both the technician and the customer. Correctly replace all missing protective shields, including any removed for servicing convenience. (2) When reinstalling the chassis and/or other assembly in the cabinet, be sure to put back in place all protective devices, including but not limited to, nonmetallic control knobs, insulating fishpapers, adjustment and compartment covers/shields, and isolation resistor/capacitor networks. Do not operate this instrument or

permit it to be operated without all protective devices correctly installed and functioning. Servicers who defeat safety features or fail to perform safety checks may be liable for any resulting damage.

b. Be sure that there are no cabinet openings

through which an adult or child might be able to insert their fingers and contact a hazardous voltage. Such openings include, but are not limited to, (1) spacing between the Liquid Crystal Panel and the cabinet mask, (2) excessively wide cabinet ventilation slots, and (3) an improperly fitted and/or incorrectly secured cabinet back cover.

c. Antenna Cold Check - With the instrument AC

plug removed from any AC source, connect an electrical jumper across the two AC plug prongs. Place the instrument AC switch in the on position. Connect one lead of an ohmmeter to the AC plug prongs tied together and touch the other ohmmeter lead in turn to each tuner antenna input exposed terminal screw and, if applicable, to the coaxial connector. If the measured resistance is less than 1.0 megohm or greater than 5.2 megohm, an abnormality exists that must be corrected before the instrument is returned to the customer. Repeat this test with the instrument AC switch in the off position.

d. Leakage Current Hot Check - With the

instrument completely reassembled, plug the AC line cord directly into a 120 V AC outlet. (Do not use an isolation transformer during this test.) Use a leakage current tester or a metering system that complies with American National Standards Institute (ANSI) C101.1 Leakage Current for Appliances and Underwriters Laboratories (UL) 1410, (50.7). With the instrument AC switch first in the on position and then in the off position, measure from a known earth ground (metal water pipe, conduit, etc.) to all exposed metal parts of the instrument (antennas, handle brackets, metal cabinet, screw heads, metallic overlays, control shafts, etc.), especially any exposed metal parts that offer an electrical return path to the chassis. Any current measured must not exceed 0.5 milli-ampere. Reverse the instrument power cord plug in the outlet and repeat the test.

READING SHOULD NOT BE ABOVE 0.5 mA

LEAKAGE

DEVICE

BEING

TESTED

TEST ALL EXPOSED METAL SURFACES

ALSO TEST WITH PLUG REVERSED USING AC ADAPTER PLUG AS REQUIRED

ANY MEASUREMENTS NOT WITHIN THE LIMITS SPECIFIED HEREIN INDICATE A POTENTIAL SHOCK HAZARD THAT MUST BE ELIMINATED BEFORE RETURNING THE INSTRUMENT TO THE CUSTOMER OR BEFORE CONNECTING THE ANTENNA OR ACCESSORIES.

2. Read and comply with all caution and safety-

related notes on or inside the receiver cabinet, on the receiver chassis, or on the Liquid Crystal Panel.

CURRENT

TESTER

EARTH GROUND

2-1 LTVN_ISP

Page 6

3. Design Alteration Warning - Do not alter or add to the mechanical or electrical design of this TV receiver. Design alterations and additions, including, but not limited to circuit modifications and the addition of items such as auxiliary audio and/or video output connections, might alter the safety characteristics of this receiver and create a hazard to the user. Any design alterations or additions will void the manufacturer's warranty and may make you, the servicer, responsible for personal injury or property damage resulting therefrom.

4. Hot Chassis Warning a. Some TV receiver chassis are electrically

connected directly to one conductor of the AC power cord and maybe safety-serviced without an isolation transformer only if the AC power plug is inserted so that the chassis is connected to the ground side of the AC power source. To confirm that the AC power plug is inserted correctly, with an AC voltmeter, measure between the chassis and a known earth ground. If a voltage reading in excess of

1.0 V is obtained, remove and reinsert the AC power plug in the opposite polarity and again measure the voltage potential between the chassis and a known earth ground.

b. Some TV receiver chassis normally have 85V

AC(RMS) between chassis and earth ground regardless of the AC plug polarity. This chassis can be safety-serviced only with an isolation transformer inserted in the power line between the receiver and the AC power source, for both personnel and test equipment protection.

c. Some TV receiver chassis have a secondary

ground system in addition to the main chassis ground. This secondary ground system is not isolated from the AC power line. The two ground systems are electrically separated by insulation material that must not be defeated or altered.

5. Observe original lead dress. Take extra care to assure correct lead dress in the following areas: a. near sharp edges, b. near thermally hot parts-be sure that leads and components do not touch thermally hot parts, c. the AC supply, d. high voltage, and, e. antenna wiring. Always inspect in all areas for pinched, out of place, or frayed wiring. Check AC power cord for damage.

6. Components, parts, and/or wiring that appear to have overheated or are otherwise damaged should be replaced with components, parts, or wiring that meet original specifications. Additionally, determine the cause of overheating and/or damage and, if necessary, take corrective action to remove any potential safety hazard.

7. Product Safety Notice - Some electrical and mechanical parts have special safety-related characteristics which are often not evident from visual inspection, nor can the protection they give necessarily be obtained by replacing them with components rated for higher voltage, wattage, etc. Parts that have special safety characteristics are identified by a # on schematics and in parts lists. Use of a substitute replacement that does not have the same safety characteristics as the recommended replacement part might create shock, fire, and/or other hazards. The product's safety is under review continuously and new instructions are issued whenever appropriate. Prior to shipment from the factory, our products are strictly inspected to confirm they comply with the recognized product safety and electrical codes of the countries in which they are to be sold. However, in order to maintain such compliance, it is equally important to implement the following precautions when a set is being serviced.

2-2 LTVN_ISP

Page 7

Precautions during Servicing

A. Parts identified by the # symbol are critical for

safety. Replace only with part number specified.

B. In addition to safety, other parts and assemblies

are specified for conformance with regulations applying to spurious radiation. These must also be replaced only with specified replacements. Examples: RF converters, RF cables, noise blocking capacitors, and noise blocking filters, etc.

C. Use specified internal wiring. Note especially:

1) Wires covered with PVC tubing

2) Double insulated wires

3) High voltage leads

D. Use specified insulating materials for hazardous

live parts. Note especially:

1) Insulation Tape

2) PVC tubing

3) Spacers

4) Insulators for transistors.

E. When replacing AC primary side components

(transformers, power cord, etc.), wrap ends of wires securely about the terminals before soldering.

F. Observe that the wires do not contact heat

producing parts (heat sinks, oxide metal film resistors, fusible resistors, etc.)

G. Check that replaced wires do not contact sharp

edged or pointed parts.

H. When a power cord has been replaced, check that

5~6 kg of force in any direction will not loosen it.

I. Also check areas surrounding repaired locations. J. Use care that foreign objects (screws, solder

droplets, etc.) do not remain inside the set.

K. When connecting or disconnecting the internal

connectors, first, disconnect the AC plug from the AC supply outlet.

L. When installing parts or assembling the cabinet

parts, be sure to use the proper screws and tighten certainly.

2-3 LTVN_ISP

Page 8

Safety Check after Servicing

Examine the area surrounding the repaired location for damage or deterioration. Observe that screws, parts and wires have been returned to original positions. Afterwards, perform the following tests and confirm the specified values in order to verify compliance with safety standards.

1. Clearance Distance

When replacing primary circuit components, confirm specified clearance distance (d) and (d') between soldered terminals, and between terminals and surrounding metallic parts. (See Fig. 1)

Table 1: Ratings for selected area

Chassis or Secondary Conductor

Primary Circuit

AC Line Voltage Region

110 to 130 V

Note: This table is unofficial and for reference only. Be

sure to confirm the precise values.

U.S.A. or

Canada

Clearance

Distance (d), (d’)

≥ 3.2 mm

(0.126 inches)

2. Leakage Current Test

Confirm the specified (or lower) leakage current between B (earth ground, power cord plug prongs) and externally exposed accessible parts (RF terminals, antenna terminals, video and audio input and output terminals, microphone jacks, earphone jacks, etc.) is lower than or equal to the specified value in the table below.

Measuring Method: (Power ON)

Insert load Z between B (earth ground, power cord plug prongs) and exposed accessible parts. Use an AC voltmeter to measure across both terminals of load Z. See Fig. 2 and following table.

d' d

Fig. 1

Exposed Accessible Part

AC Voltmeter (High Impedance)

Earth Ground

Power Cord Plug Prongs

Fig. 2

Table 2: Leakage current ratings for selected areas

AC Line Voltage Region Load Z Leakage Current (i) Earth Ground (B) to:

110 to 130 V

Note: This table is unofficial and for reference only. Be sure to confirm the precise values.

U.S.A. or

Canada

0.15 µF CAP. & 1.5 kΩ

RES. Connected in parallel

2-4 LTVN_ISP

i ≤ 0.5 mA rms

Exposed accessible

parts

Page 9

STANDARD NOTES FOR SERVICING

Circuit Board Indications

1. The output pin of the 3 pin Regulator ICs is indicated as shown.

Top View

Out

2. For other ICs, pin 1 and every fifth pin are indicated as shown.

Pin 1

3. The 1st pin of every male connector is indicated as shown.

Pin 1

Input

Bottom View

Pb (Lead) Free Solder

Pb free mark will be found on PCBs which use Pb free solder. (Refer to figure.) For PCBs with Pb free mark, be sure to use Pb free solder. For PCBs without Pb free mark, use standard solder.

Pb free mark

How to Remove / Install Flat Pack-IC

1. Removal

With Hot-Air Flat Pack-IC Desoldering Machine:

1. Prepare the hot-air flat pack-IC desoldering machine, then apply hot air to the Flat Pack-IC (about 5 to 6 seconds). (Fig. S-1-1)

Fig. S-1-1

2. Remove the flat pack-IC with tweezers while applying the hot air.

3. Bottom of the flat pack-IC is fixed with glue to the CBA; when removing entire flat pack-IC, first apply soldering iron to center of the flat pack-IC and heat up. Then remove (glue will be melted). (Fig. S-1-6)

4. Release the flat pack-IC from the CBA using tweezers. (Fig. S-1-6)

CAUTION:

1. The Flat Pack-IC shape may differ by models. Use an appropriate hot-air flat pack-IC desoldering machine, whose shape matches that of the Flat Pack-IC.

2. Do not supply hot air to the chip parts around the flat pack-IC for over 6 seconds because damage to the chip parts may occur. Put masking tape around the flat pack-IC to protect other parts from damage. (Fig. S-1-2)

3-1 TVN_SN

Page 10

3. The flat pack-IC on the CBA is affixed with glue, so be careful not to break or damage the foil of each pin or the solder lands under the IC when removing it.

With Soldering Iron:

1. Using desoldering braid, remove the solder from all pins of the flat pack-IC. When you use solder flux which is applied to all pins of the flat pack-IC, you can remove it easily. (Fig. S-1-3)

CBA

Masking Tape

Tweezers

Hot-air Flat Pack-IC Desoldering Machine

Flat Pack-IC

Fig. S-1-2

Flat Pack-IC

Desoldering Braid

Soldering Iron

Fig. S-1-3

2. Lift each lead of the flat pack-IC upward one by one, using a sharp pin or wire to which solder will not adhere (iron wire). When heating the pins, use a fine tip soldering iron or a hot air desoldering machine. (Fig. S-1-4)

Sharp Pin

Fine Tip Soldering Iron

4. Release the flat pack-IC from the CBA using tweezers. (Fig. S-1-6)

Fig. S-1-4

3-2 TVN_SN

Page 11

With Iron Wire:

1. Using desoldering braid, remove the solder from all pins of the flat pack-IC. When you use solder flux which is applied to all pins of the flat pack-IC, you can remove it easily. (Fig. S-1-3)

2. Affix the wire to a workbench or solid mounting point, as shown in Fig. S-1-5.

3. While heating the pins using a fine tip soldering iron or hot air blower, pull up the wire as the solder melts so as to lift the IC leads from the CBA contact pads as shown in Fig. S-1-5.

4. Bottom of the flat pack-IC is fixed with glue to the CBA; when removing entire flat pack-IC, first apply soldering iron to center of the flat pack-IC and heat up. Then remove (glue will be melted). (Fig. S-1-6)

5. Release the flat pack-IC from the CBA using tweezers. (Fig. S-1-6)

Note: When using a soldering iron, care must be

taken to ensure that the flat pack-IC is not being held by glue. When the flat pack-IC is removed from the CBA, handle it gently because it may be damaged if force is applied.

Hot Air Blower

2. Installation

1. Using desoldering braid, remove the solder from the foil of each pin of the flat pack-IC on the CBA so you can install a replacement flat pack-IC more easily.

2. The “●” mark on the flat pack-IC indicates pin 1. (See Fig. S-1-7.) Be sure this mark matches the 1 on the PCB when positioning for installation. Then presolder the four corners of the flat pack-IC. (See Fig. S-1-8.)

3. Solder all pins of the flat pack-IC. Be sure that none of the pins have solder bridges.

Example :

Pin 1 of the Flat Pack-IC is indicated by a " " mark.

Fig. S-1-7

To Solid Mounting Point

CBA

Tweezers

Iron Wire

Soldering Iron

Fig. S-1-5

Fine Tip Soldering Iron

Flat Pack-IC

Presolder

Flat Pack-IC

CBA

Fig. S-1-8

Fig. S-1-6

3-3 TVN_SN

Page 12

Instructions for Handling Semiconductors

Electrostatic breakdown of the semi-conductors may occur due to a potential difference caused by electrostatic charge during unpacking or repair work.

1. Ground for Human Body

Be sure to wear a grounding band (1 MΩ) that is properly grounded to remove any static electricity that may be charged on the body.

2. Ground for Workbench

Be sure to place a conductive sheet or copper plate with proper grounding (1 MΩ) on the workbench or other surface, where the semi-conductors are to be placed. Because the static electricity charge on clothing will not escape through the body grounding band, be careful to avoid contacting semi-conductors with your clothing.

1MΩ

CBA

Grounding Band

1MΩ

CBA

Conductive Sheet or Copper Plate

3-4 TVN_SN

Page 13

CABINET DISASSEMBLY INSTRUCTIONS

1. Disassembly Flowchart

This flowchart indicates the disassembly steps for the cabinet parts, and the CBA in order to gain access to item(s) to be serviced. When reassembling, follow the steps in reverse order. Bend, route and dress the cables as they were.

[18] Speaker(s)

[17] IR Sensor CBA

[7] Jack Holder(D)

[8] Shield Box

[9] Digital Sub CBA

[10] Digital Main CBA Unit

[13] Inverter CBA

[4] Rear Cabinet

[5] Chassis Bracket

[14] PCB Holder

[15] LCD Module

[19] Front Cabinet

[16] Function CBA

[1] Stand Base Plate

[2] Stand Hinge[11] Jack Holder(A)

[3] Stand Cover[12] Jack CBA

[6] Power Supply CBA

2. Disassembly Method

Removal

Step/

Loc.

Part

No.

Stand Base

[1]

Plate Stand

[2]

Hinge Stand

[3]

Cover Rear

[4]

Cabinet Chassis

[5]

Bracket

Power

[6]

Supply CBA

Jack

[7]

Holder(D)

[8] Shield Box D2 4(S-11), *CN3001 ---

Digital Sub

[9]

CBA

Remove/*Unhook/

Fig.

No.

Unlock/Release/

Unplug/Unclamp/

Note

Desolder

D1 4(S-1), 6(S-2), 5(S-3) ---

D1 --------------- ---

D1 11(S-4), 4(S-5) ---

D2 8(S-6) ---

4(S-7), *CN101B,

*CN501, *CN801,

*CN802, *CN3010, *CN3014

(S-8), 2(S-9), 2(S-10),

(N-1), Earth Plate

*CN1, *A, *B, *C, *D ---

---

Removal

Step/

Loc.

No.

Part

Remove/*Unhook/

Fig.

No.

Unlock/Release/

Unplug/Unclamp/

Note

Desolder

Digital Main

[10]

CBA UnitD2D5 Jack

[11]

Holder(A)

[12] Jack CBA

Inverter

[13]

CBA

*CN3002, *CN3007, *CN3018

---

D3 (S-12) ---

5(S-13) ---

D5 D3

5(S-14), *CN553 ---

[14] PCB Holder D3 8(S-15), 8(S-16) ---

LCD

[15]

[16]

[17]

Module Function

CBA IR Sensor

CBA

D3 --------------- ---

3(S-17) ---

D5 D4

2(S-18) ---

[18] Speaker(s) D4 8(S-19) ---

Front

[19]

↓

(1)

Cabinet

↓

(2)

D4 --------------- ---

↓

(3)

↓

(4)

↓

(5)

Note:

(1) Order of steps in procedure. When reassembling,

follow the steps in reverse order. These numbers are also used as the Identification (location) No. of parts in figures.

(2) Parts to be removed or installed. (3) Fig. No. showing procedure of part location (4) Identification of parts to be removed, unhooked,

unlocked, released, unplugged, unclamped, or desoldered. N = Nut, L = Locking Tab, S = Screw, CN = Connector * = Unhook, Unlock, Release, Unplug, or Desolder e.g. 2(S-2) = two Screws (S-2), 2(L-2) = two Locking Tabs (L-2)

(5) Refer to the following "Reference Notes in the

Table."

4-1 A71A0DC

Page 14

[4] Rear Cabinet

(S-4)

(S-5)

(S-4)

(S-1)

[3] Stand Cover

[2] Stand Hinge

[1] Stand Base Plate

(S-3)

(S-2)

(S-3)

(S-2)

Fig. D1

4-2 A71A0DC

Page 15

[10] Digital Main CBA Unit

[7] Jack Holder(D)

[6] Power Supply CBA

(S-7)

Earth Plate

(S-7)

[9] Digital Sub CBA

(N-1)

(S-10)

(S-9) (S-8)

(S-11)

[8] Shield Box

(S-6)

[5] Chassis Bracket

Fig. D2

4-3 A71A0DC

Page 16

(S-16)

(S-15)

(S-16)

[11] Jack Holder (A)

[12] Jack CBA

(S-15)

(S-12)

[15] LCD Module

[14] PCB Holder

(S-15)

(S-16)

(S-15)

(S-16)

(S-15)

[13] Inverter CBA

(S-13)

(S-14)

Fig. D3

4-4 A71A0DC

Page 17

[19] Front Cabinet

[17] IR Sensor CBA

(S-18)

[16] Function CBA

[18] Speaker

(S-19)

[18] Speaker

(S-19)

(S-17)

Fig. D4

4-5 A71A0DC

Page 18

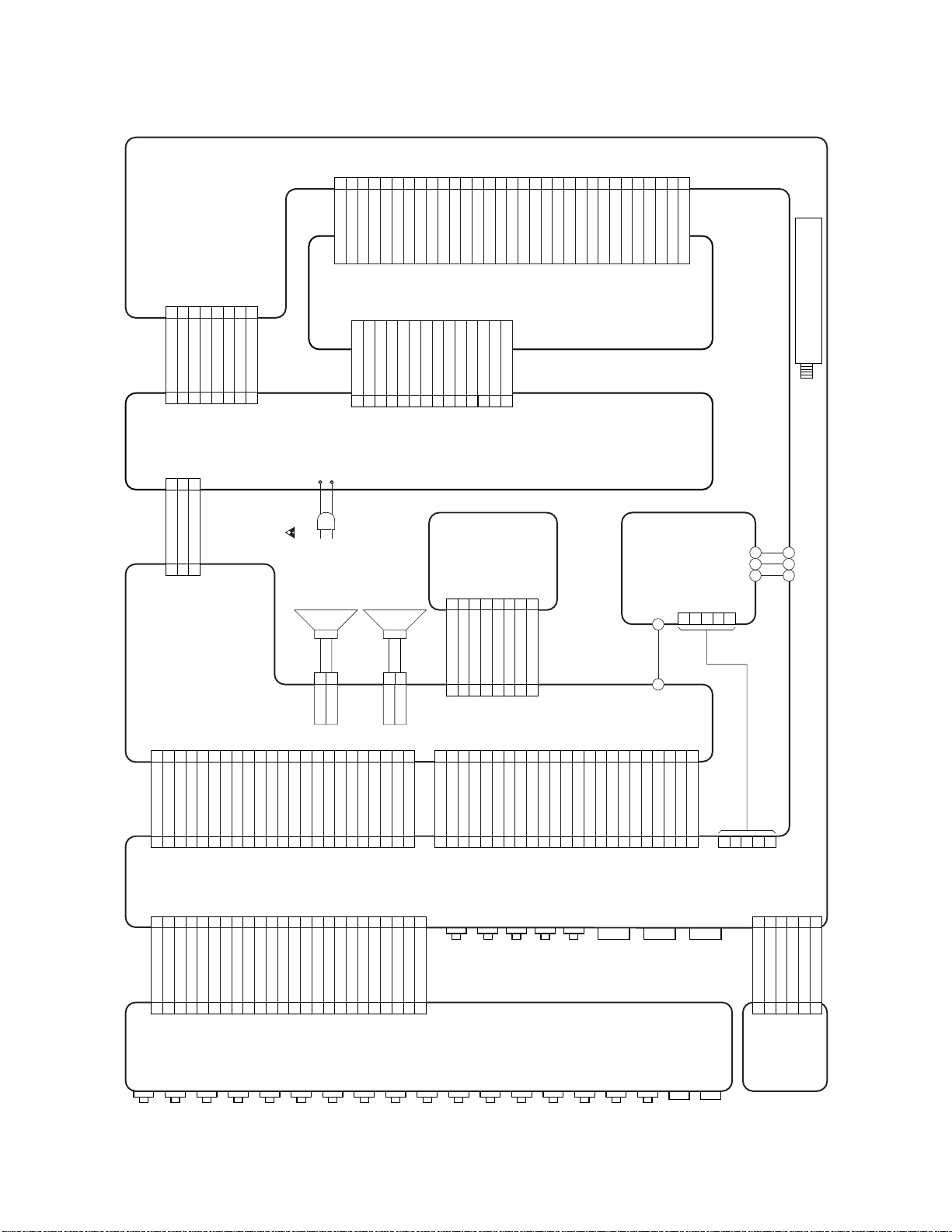

TV Cable Wiring Diagram

Function CBA

CN102

Inverter CBA

Jack CBA

CN7501

To LCD Module

Digital Main CBA Unit

To LCD Module

CL552A

CN553

CN501

AC CORD

IR Sensor CBA

CN001

CN3002

CN3001

CN3010 CN3014

CN301 CN302

CN601

CN3007

CN3011

CN3018

Power Supply CBA

CN101B

CN801

CN802

Digital Sub CBA

CN1

ABC

To Speaker

Fig. D5

4-6 A71A0DC

Page 19

ELECTRICAL ADJUSTMENT INSTRUCTIONS

General Note: “CBA” is abbreviation for “Circuit Board Assembly.”

Note: Electrical adjustments are required after

replacing circuit components and certain mechanical parts. It is important to perform these adjustments only after all repairs and replacements have been completed. Also, do not attempt these adjustments unless the proper equipment is available.

Test Equipment Required

1. DC Voltmeter

2. NTSC Pattern Generator (Color Bar W/White Window, Red Color, Dot Pattern, Gray Scale, Monoscope, Multi-Burst)

3. Remote control unit

4. Color Analyzer

How to make the Service remote control unit:

Cut “A” portion of the attached remote control unit as shown in Fig. 1.

How to set up the service mode:

Service mode:

1. Use the service remote control unit.

2. Turn the power on.

3. Press the service button on the service remote control unit. The following screen appears.

"*" differs depending on the models.

Ver :

***********************

Boot

Push 0 key

System

Push 0 key

Pic Ver :

*********************** ***********************

Picture :

Push 0 key

Submicon Ver :

******

service button

Fig. 1

5-1 A71A0EA

Page 20

1. Purity Check Mode

This mode cycles through full-screen displays of red, green, blue, and white to check for non-active pixels.

1. Enter the Service mode.

2. Each time pressing [7] button on the service remote control unit, the display changes as follows.

Purity Check Mode

Red mode

[7] button

The following adjustment normally are not attempted in the field. Only when replacing the LCD Panel then adjust as a preparation.

2. White Balance Adjustment

Purpose: To mix red, green and blue beams correctly

for pure white. Symptom of Misadjustment: White becomes bluish

or reddish.

Tes t Po int

Screen

Adj. Point Mode Input

White Purity

[CH. o/p]

buttons

[RF/VIDEO1, 2]

C/D

(APL 70%)

(APL 32%)

[7] button

Green mode

[7] button

Blue mode

[7] button

White mode

Note:

When entering this mode, the default setting is White mode.

M. EQ. Spec.

Pattern Generator,

Color analyzer

x= 0.272 ± 0.005 y= 0.278 ± 0.005

Figure

It carries out in a darkroom.

Perpendicularity

L = 3 cm

INPUT: WHITE 70%, 32%

Color Analyzer

1. Operate the unit for more than 20 minutes.

2. Input the White Purity.

INPUT SIGNAL

32%=32IRE

70%=70IRE

3. Set the color analyzer to the CHROMA mode and bring the optical receptor to the center on the LCD-Panel surface after zero point calibration as shown above. Note: The optical receptor must be set perpendicularly to the LCD Panel surface.

4. Enter the Service mode. Press [VOL. n] button on the remote control unit and select “C/D” mode.

5-2 A71A0EA

Page 21

5. [CUTOFF] Press [3] button to select “COB” for Blue Cutoff adjustment. Press [1] button to select “COR” for Red Cutoff adjustment.

[DRIVE]

Press [6] button to select “DB” for Blue Drive adjustment. Press [4] button to select “DR” for Red Drive adjustment.

6. In each color mode, press [CH. o / p] buttons to adjust the values of color.

7. Adjust Cutoff and Drive so that the color temperature becomes 12000K (x

0.278 ±0.005).

0.272 / y

5-3 A71A0EA

Page 22

HOW TO INITIALIZE THE LCD TELEVISION

How to initialize the LCD television:

1. Turn the power on.

2. To enter the service mode, press the service button on the service remote control unit. (Refer to page 5-1.)

- To cancel the service mode, press [POWER]

button on the remote control unit.

3. Press [INFO] button on the remote control unit to initialize the LCD television.

4. "INITIALIZED" will appear in the upper right of the screen. "INITIALIZED" color will change to green from red when initialzing is complete.

6-1 A71F0INT

Page 23

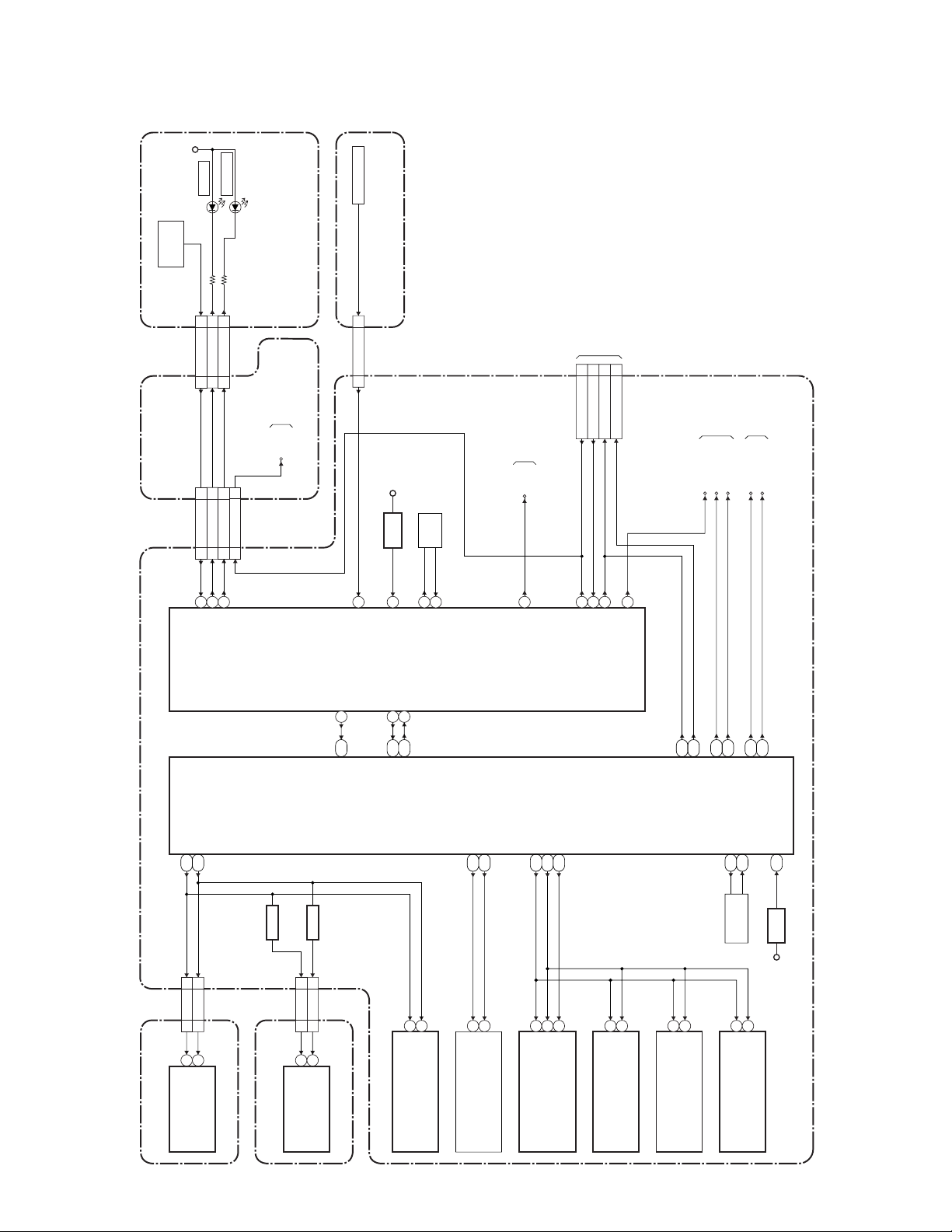

BLOCK DIAGRAMS

System Control Block Diagram

AL+3.3V

STANDBY

REMOTE

RCV891

SENSOR

POWER

D102

D101

IR SENSOR CBA

KEY SWITCH

FUNCTION CBA

IC3006

(SUB MICRO CONTROLLER)

IC3015

(MAIN MICRO CONTROLLER)

CN001

LED266

REMOTE22

LED177

CN101B

CN302

LED219 19

REMOTE88

LED1

CN3014

173132

LED2

LED1 18 18

REMOTE

SCL

SDA

AF16

AE16

TO POWER SUPPLY

P-ON-H22

BLOCK DIAGRAM

P-ON-H

CN102

POWER SUPPLY

BLOCK DIAGRAM

(CL552A)

457

CN3001

EEPROM-WP

AD21

PROTECT1

P-ON-H

PROTECT1

BACKLIGHT-ON

BACKLIGHT-PWM

AMP-STBY

B26

BACKLIGHT-ON

TO AUDIO-2

AMP-STBY

AE21

BACKLIGHT-PWM

BLOCK

DIAGRAM

AMP-MUTE

B24

C24

AMP-MUTE

AUDIO-MUTE AUDIO-MUTE

XOUT

XIN

B18

A18

TO AUDIO-1

BLOCK

DIAGRAM

AUDIO-SEL2

AUDIO-SEL1

AUDIO-SEL2

AUDIO-SEL1

DIGITAL MAIN CBA UNIT

RESET

AD5

KEY-IN1KEY-IN1 3 4

CN3002

TO DIGITAL

SIGNAL PROCESS

BLOCK DIAGRAM

POWER SUPPLY CBA

POWER-KEYPOWER-KEY

E25

+3.3V

4MHz

OSC

RESET

X3002

IC3001

19RESET

TXD1

RXD1TXD

AF17

AD16

RXD

XOUT

XIN

I2C-CLK-TUNER

I2C-DATA-TUNER

V-COM

SCL2

F24

SDA2

F26

CN3014

SCL44

CN302

SCL

IC802

(TONE CONTROL)

Q3025

SDA66

SDA

POWER SUPPLY CBA

IC7001

BUFFER

(VIDEO/AUDIO SELECTOR)

Q3026

CN3018

SCL111 14

CN7501

SCL

BUFFER

SDA112 13

SDA

25.14MHz

OSC

SCL2

IC3009

SDA2

RESET

+3.3V

A71A0BLS

X3005

SCL

SDA

JACK CBA

IC3026

(MTS/SAP AUDIO SIGNAL PROCESS)

SCL

SDA

TU3001 (TUNER UNIT)

5WP7

SCL2

SDA2

IC3017 (MEMORY)

IC3014 (DIGITAL SIGNAL PROCESS)

SCL2

SDA2

IC3023 (HDMI INTERFACE)

SCL2

SDA2

IC3004 (GAMMA CORRECTION)

7-1

Page 24

Video Block Diagram

TO DIGITAL

SIGNAL

PROCESS

BLOCK

DIAGRAM

AUDIO SIGNAL

S-VIDEO-Y

S-VIDEO-C

VIDEO SIGNAL

IC3014 (DIGITAL SIGNAL PROCESS)

DVI DATA

43-50,

55-62,

CSC FORMAT

A/D

MUX CLAMP

(0-23)

76-83

CONVERTER

201815

TO DIGITAL

SIGNAL PROCESS

BLOCK DIAGRAM

HDMI-BCLK

HDMI-LRCLK

HDMI-ADATA

ADC-OSCLK

X3006

28.322MHz

OSC

868584

HDMI

1.3

AUDIO

CORE1

CODEC

X-IN

X-OUT

SDA

SCL

IC3024 (HDMI MEMORY)

SCL

IC3025 (HDMI MEMORY)

IIC

IC3023 (HDMI INTERFACE)

I/F

HDMI

1.3

CORE0

63626766717059

110

144

MATRIX

XOR

MASK

MUX

IIC

I/F

44434847525140

WF1WF2WF3

IC7001

(VIDEO SELECTOR)

JACK CBA DIGITAL MAIN CBA UNIT

2416172220

VIDEO VIDEO

S-VIDEO-Y9

CN7501 CN3018

2426182022

56 28

S-VIDEO-C8

VIDEO-Y3

4102

BUFFER

DATA 2(-)

CLOCK(+)

BUFFER

Q3014

JK3002

CLOCK(-)

Q3015

79461

DATA 0(+)

HDMI-DATA

HDMI-CLOCK

DATA 0(-)

DATA 1(-)

DATA 1(+)

HDMI-IN1

DATA 2(+)

DATA 2(-)

CLOCK(+)

CLOCK(-)

BUFFER

Q3006

SDA

SCL

IC3029 (MEMORY)

4034383236

JK3005

RED

BLUE

GREEN

D-SUB

DATA

CLOCK

VIDEO-Pb5

VIDEO-Pr6

WF4WF5WF6

VIDEO

SELECTOR

Q3005

JK3001

79461

DATA 0(+)

HDMI-DATA

HDMI-CLOCK

DATA 0(-)

DATA 1(-)

DATA 1(+)

HDMI-IN2

DATA 2(+)

JK7702

JK7706

VIDEO-IN1

VIDEO-IN2

3 4

JK7701

S-VIDEO

-IN1

3 4

JK7705

S-VIDEO

-IN2

JK7711

VIDEO-Y-IN1

VIDEO-Pb-IN1

VIDEO-Pr-IN1

JK7713

VIDEO-Y-IN2

VIDEO-Pb-IN2

VIDEO-Pr-IN2

7-2 A71A0BLV

Page 25

Audio-1 Block Diagram

AUDIO SIGNAL

(AUDIO A/D CONVERTER)

IC3021

DIGITAL

SIGNAL

PROCESS

ADC-LRCLK

ADC-BCLK

111015

A/D

CONVERTER

BLOCK

DIAGRAM

ADC-OSCLK

ADC-DATA

SYSTEM CONTROL

BLOCK DIAGRAM

AUDIO-SEL1

AUDIO-SEL2

DIGITAL MAIN CBA UNIT

CN3018CN7501

WF7

IC3027

(INPUT SELECT)

121514

AUDIO(L)14 11

AUDIO(R)15 10

PC-AUDIO(L)17 8

PC-AUDIO(R)18 7

109

SW CTL

125

Q3023

Q3008

BUFFER

(L-CH)

Q3007

BUFFER

(R-CH)

IC7001

(AUDIO SELECTOR)

JK7702

AUDIO(L)

AUDIO

-IN1

SELECTOR

AUDIO(R)

-IN1

JK7706

AUDIO(L)

-IN2

AUDIO(R)

-IN2

AUDIO

545250

JK7712

COMPONENT

AUDIO(L)

-IN1

SELECTOR

JK7714

COMPONENT

AUDIO(R)

-IN1

COMPONENT

AUDIO(L)

-IN2

COMPONENT

AUDIO(R)

7-3

-IN2

JK7501

JACK CBA

AUDIO-IN

IC3026

(MTS/SAP AUDIO

MTS/SAP

SIGNAL PROCESS)

SAW

FL3006 Q3022

TU3001

(TUNER UNIT)

AUDIO SIGNAL

PROCESS

FILTER

SIF

BUFFER

Q3016

JK3003

Q3017

HDMI

AUDIO(L)-IN

BUFFER

HDMI

AUDIO(R)-IN

A71A0BLA1

Page 26

Audio-2 Block Diagram

SP802

SPEAKER

L-CH

SP801

SPEAKER

R-CH

AUDIO SIGNAL

CLN802

CN802

(AUDIO POWER AMP)

IC801

(TONE CONTROL)

IC802

SP-P(L) 1

SP-N(L) 2

353632

DRIVE

PWMPWMTONE CONTROL

CLN801

CN801

SP-P(R) 1

PWM DRIVE

TONE CONTROL PWM

SP-N(R) 2

143113

21 22

SHUT DOWN

MUTE CONTROL

POWER SUPPLY CBA

Q802

SYSTEM CONTROL

BLOCK DIAGRAM

IC3020

(OP AMP)

CN302

AUDIO(L)-OUT14 14

AUDIO(R)-OUT16 16

AMP-STBY99

AMP-MUTE10 10

CN3014

Q3027

BUFFER

Q3028

BUFFER

5 7

AUDIO(L)

AUDIO(R)

TO DIGITAL

SIGNAL PROCESS

BLOCK DIAGRAM

Q3032

BUFFER

JK3003

Q3029

AUDIO(L)

-OUT

MUTE-ON

Q3033

BUFFER

Q3030

AUDIO(R)

-OUT

MUTE-ON

AUDIO-MUTE

AMP-STBY

AMP-MUTE

Q3031

DRIVE

DIGITAL MAIN CBA UNIT

7-4

A71A0BLA2

Page 27

Digital Signal Process Block Diagram

LCD MODULE

AUDIO SIGNAL

CN3007

VIDEO SIGNAL

(GAMMA CORRECTION)

IC3004

(LVDS TRANSMITTER)

IC3005

IX-TX0(+)4

IX-TX0(-)3

IX-TX1(+)8

IX-TX1(-)7

IX-TX2(+)12

IX-TX2(-)11

IX-TX3(+)20

IX-TX3(-)19

575659586362676665

LVD S

GAMMA

CORR.

LVDS

1920171814

474845464142373839

2-4,6-8,

10-12,14-16,

TTL

PARALLELTOSERIAL

18-20,22-24,

50-52,54-56

159101213

CONVERT.

DIGITAL

AUDIO-OUT

(COAXIAL)

V-COM

IX-CLK(+)16

IX-CLK(-)15

IX-

JK3004

BUFFER

Q3018

DIGITAL MAIN CBA UNIT

Q3001

DRIVE

DATA(0-7)

41-44

29-32,

(SDRAM)

IC3016

B1,B9,C2,C8,

DATA(0-15)

ADDESS(0-12)

H1,H3,H7,H9

F1,F9,G2,G8,

M2,M3,M7,M8,

N2,N3,N7,N8,

D1,D3,D7,D9,

P2,P3,P7,P8,R2

TO VIDEO

BLOCK DIAGRAM

ADC-OSCLK

HDMI-BCLK

HDMI-LRCLK

TO AUDIO-1

BLOCK DIAGRAM

ADC-DATA

ADC-BCLK

ADC-OSCLK

ADC-LRCLK

HDMI-ADATA

PLL

(FLASH MEMORY)

IC3018

V-COM

BLOCK DIAGRAM

TO SYSTEM CONTROL

AD6-9,

(DIGITAL SIGNAL PROCESS)

IC3015

AD11-14,

AE6-9,

AE11-14,

TU3001

AF5-8

AF12-15

AF9

H-SYNC

MPEG

DECODER

DEMODU

-LATOR

A15

A16

SAW

FILTER

IF1

IF2

(TUNER UNIT)

AD10

V-SYNC

IF-AGC IF-AGC

AF11

CLOCK

A13

BUFFER

Q3019

VIDEO

(ANALOG)

D3,E2,

A/D

CONVERTER

ANALOG

C11

VIDEO

S-VIDEO-Y

E3,F1,

F2,G1,

H2,H3

DIGITAL

SIGNAL

PROCESS

B16

S-VIDEO-C

TO VIDEO

BLOCK

DIAGRAM

T24-26,U24,

U26,V24-26,

W24,W26,Y24-26

H24,H25,J26,

H1,J1-3,

K1-3,L1-3,

K24-26,L25,L26,

M24-26,N24,

P24-26,R24

M1,M2,

P1-3,R1-3,

T1-3,U1-3

(0-23)

DVI DATA

IC3019 (MEMORY)

AE1

AD1

CLK

A3A2B3

652

CLK

AD2

D-IN

D-OUT

AD3

AE2

AF2

A25

AUDIO

AE3

INTERFACE

A21

AUDIO(L)

TO AUDIO-2

BLOCK

A22

AUDIO(R)

DIAGRAM

7-5

A71A0BLD

Page 28

Power Supply Block Diagram

NOTE:

The voltage for parts in hot circuit is measured using

hot GND as a common terminal.

TO SYSTEM

CONTROL

BLOCK

DIAGRAM

AMP+13V

P-ON+9V

P-ON-H

Q644

Q641

Q637

SW +5V

Q650,Q651

Q801

+9V REG

For continued protection against risk of fire,

replace only with same type 4 A, 125V fuse.

SW +13V

Q639,Q640

CAUTION ! :

ATTENTION : Utiliser un fusible de rechange de même type de 4A, 125V.

4A/125V

Q652

Q638

DIGITAL

SUB CBA

CN675

Q635

Q1,Q2,Q3

Q636

IC637

JS632

DIGITAL

MAIN CBA

REG

+3.3V

UNIT

Q632

JS611

CN301

Q643

DIGITAL

MAIN CBA

UNIT

(CN3010)

10-12

+4V

+15V 18

+35V 20

+2.5V 14

AL+3.3V 4

P-ON+9V 8

P-ON+5V 6,7

+5V/+12V-LCD 2,3

AL+3.3V

1~5

+24V

CN553

POWER SUPPLY CBA

Q633

COLDCOLDCOLD

LCD

ERR 11

MODULE

BACKLIGHT-ON

BACKLIGHT-PWM

Q553

TO SYSTEM

CONTROL

P-ON-H 4

CL552A

PROTECT1 5

Q555

Q552

Q551

BLOCK

DIAGRAM

BACKLIGHT-ON

Q554

(CN3001)

BACKLIGHT-PWM

T601

CN601CN501

HOT-GND 33

ACL 11

BRIDGE

RECTIFIER

D502 - D505

LINE

FILTER

L502

LINE

FILTER

CAUTION !

Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit.

If Main Fuse (F501) is blown , check to see that all components in the power supply

circuit are not defective before you connect the AC plug to the AC power supply.

Otherwise it may cause some components in the power supply circuit to fail.

L503

HOT CIRCUIT. BE CAREFUL.

F501

4A/125V

4A 125V

SWITCHING

Q601

T501

12346

IC603

REG

SHUNT

Q631

3 2

HOT

CONTROL

Q602

SWITCHING

REG

SHUNT

IC501

IC509

(POWER

CONTROLLER)

2537

POWER

3 2

CONTROL

D557

IC510

3 2

Q502

Q503

INVERTER CBA

COLD

HOT

AC501

AC CORD

7-6

Q501

A71A0BLP

Page 29

SCHEMATIC DIAGRAMS / CBA’S AND TEST POINTS

Standard Notes

WARNING

Many electrical and mechanical parts in this chassis have special characteristics. These characteristics often pass unnoticed and the protection afforded by them cannot necessarily be obtained by using replacement components rated for higher voltage, wattage, etc. Replacement parts that have these special safety characteristics are identified in this manual and its supplements; electrical components having such features are identified by the mark “#” in the schematic diagram and the parts list. Before replacing any of these components, read the parts list in this manual carefully. The use of substitute replacement parts that do not have the same safety characteristics as specified in the parts list may create shock, fire, or other hazards.

Notes:

1. Do not use the part number shown on these drawings for ordering. The correct part number is shown in the parts list, and may be slightly different or amended since these drawings were prepared.

2. All resistance values are indicated in ohms (K = 10

3. Resistor wattages are 1/4W or 1/6W unless otherwise specified.

4. All capacitance values are indicated in µF (P = 10

5. All voltages are DC voltages unless otherwise specified.

, M = 106).

-6

µF).

8-1 A71F0_SC

Page 30

LIST OF CAUTION, NOTES, AND SYMBOLS USED IN THE SCHEMATIC DIAGRAMS ON THE FOLLOWING PAGES:

1. CAUTION:

CAUTION: FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH SAME

TYPE_A,_V FUSE.

ATTENTION: UTILISER UN FUSIBLE DE RECHANGE DE MÊME TYPE DE_A,_V.

2. CAUTION:

Fixed Voltage (or Auto voltage selectable) power supply circuit is used in this unit. If Main Fuse (F501) is blown, first check to see that all components in the power supply circuit are not defective before you connect the AC plug to the AC power supply. Otherwise it may cause some components in the power supply circuit to fail.

3. Note:

1. Do not use the part number shown on the drawings for ordering. The correct part number is shown in the parts list, and may be slightly different or amended since the drawings were prepared.

2. To maintain original function and reliability of repaired units, use only original replacement parts which are listed with their part numbers in the parts list section of the service manual.

4. Voltage indications on the schematics are as shown below:

Plug the TV power cord into a standard AC outlet.:

(Unit: Volt)

5.0 5.0

Power on mode

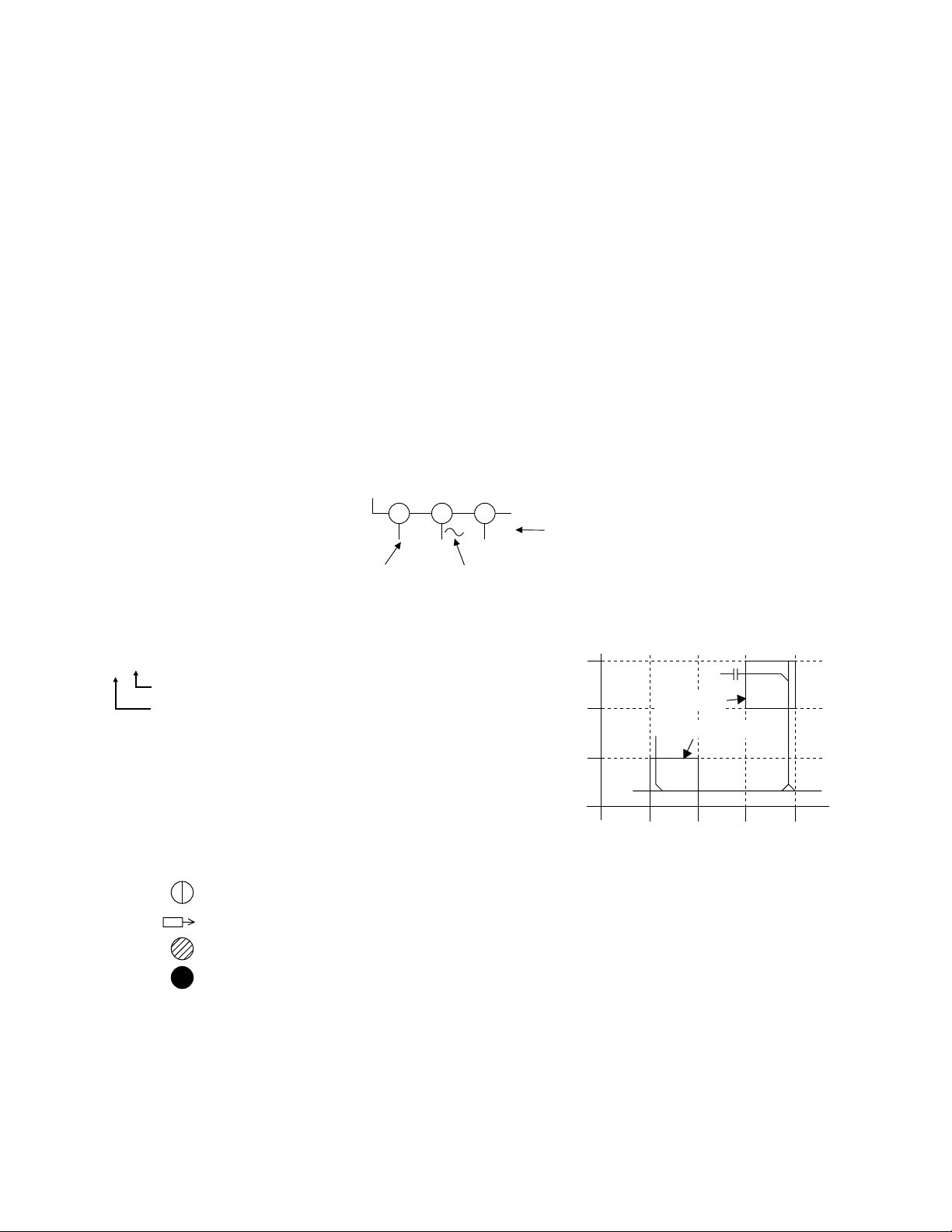

5. How to read converged lines

1-D3 Distinction Area

Line Number (1 to 3 digits)

Examples:

1. "1-D3" means that line number "1" goes to the line number "1" of the area "D3".

2. "1-B1" means that line number "1" goes to the line number "1" of the area "B1".

6. Test Point Information

: Indicates a test point with a jumper wire across a hole in the PCB. : Used to indicate a test point with a component lead on foil side. : Used to indicate a test point with no test pin. : Used to indicate a test point with a test pin.

Voltage

Indicates that the voltage is not consistent here.

AREA D3

1-B1

AREA B1

1-D3

ABCD

8-2 A71F0_SC

Page 31

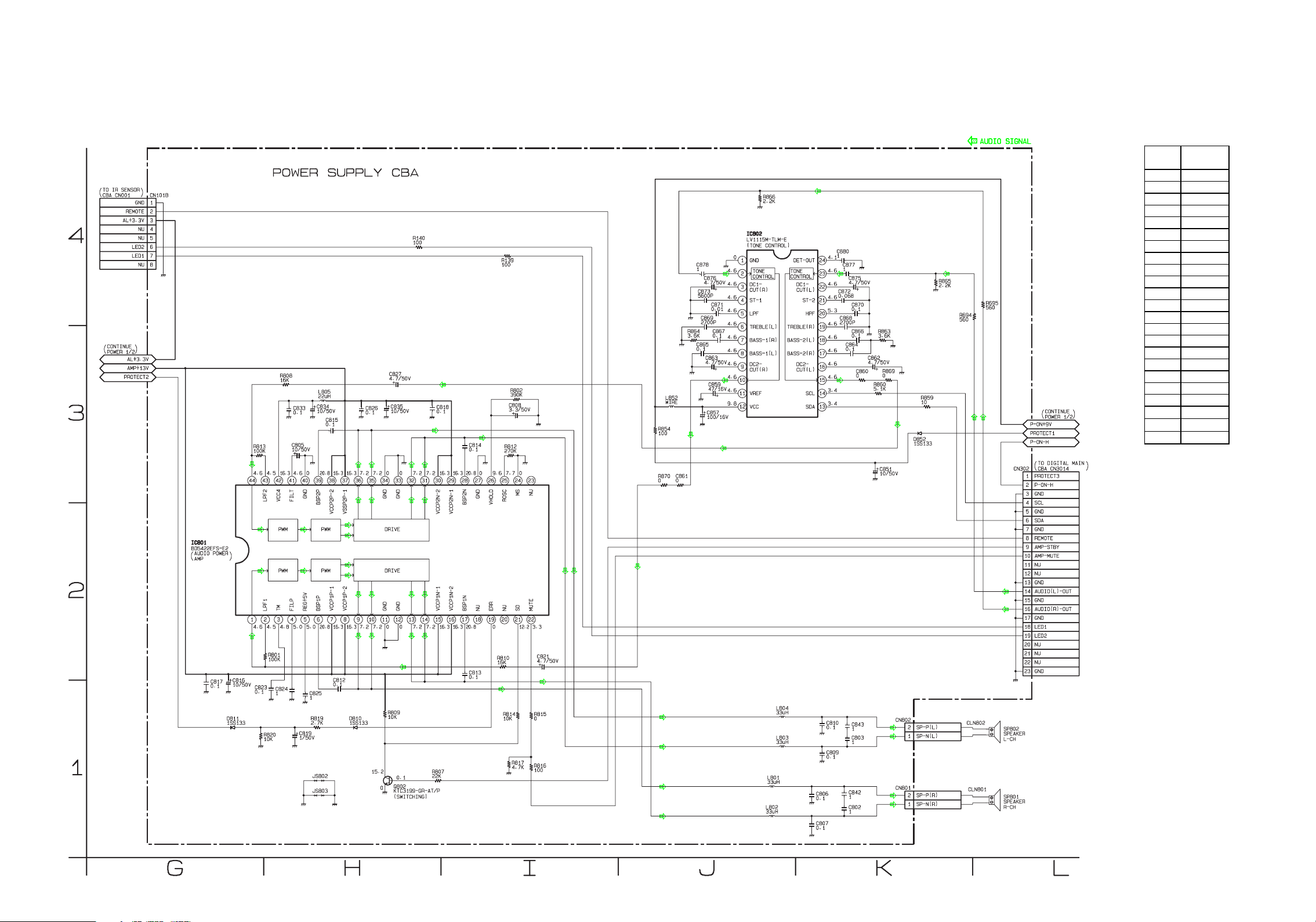

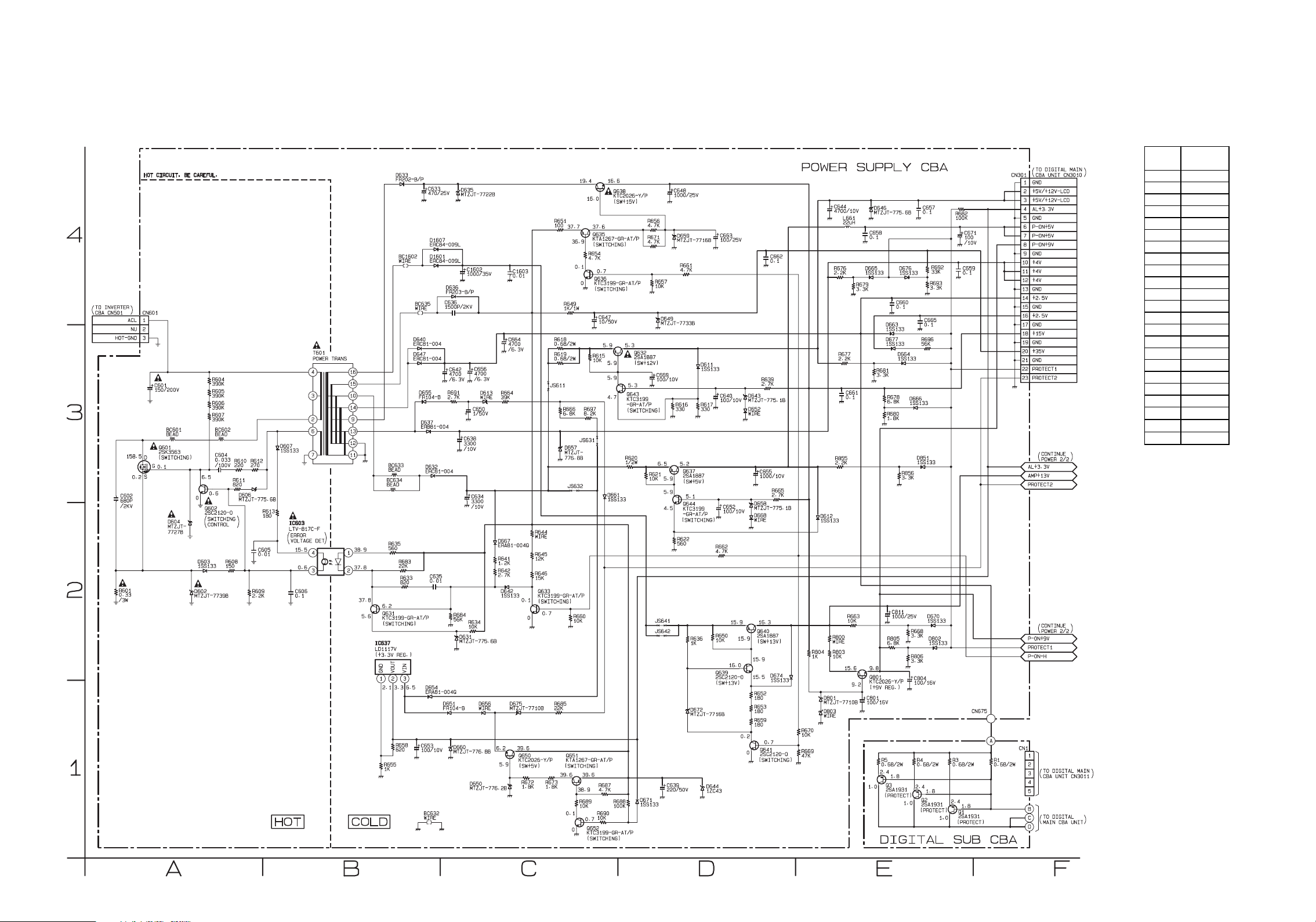

Power Supply 1/2 & Digital Sub Schematic Diagram

NOTE:

The voltage for parts in hot circuit is measured using hot GND as a common terminal.

CN301

25.3

35.3

43.4 50

65.1

75.1

89.2

90 10 5.1 11 5.1 12 5.1 13 0 14 3.2 15 0 16 2.4 17 0 18 16.0 19 0 20 32.8

21 0

22 2.8

23 0

VOLTAGE CHART

Pin No. Voltage

8-3

A71A0SCP1

Page 32

Power Supply 2/2 Schematic Diagram

NOTE:

The voltage for parts in hot circuit is measured using hot GND as a common terminal.

CN302

1---

23.1

43.5

63.5

83.4

90.1 10 0 11 --12 --13 0 14 6.4 15 0 16 6.4 17 0 18 3.3 19 0.8 20 ---

21 ---

22 ---

23 0

VOLTAGE CHART

Pin No. Voltage

8-4

A71A0SCP2

Page 33

Inverter Schematic Diagram

NOTE:

The voltage for parts in hot circuit is measured using hot GND as a common terminal.

CL552A

23.5

33.4

43.1

52.7

6--7--80

VOLTAGE CHART

Pin No. Voltage

CAUTION !

Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit. If Main Fuse (F501) is blown , check to see that all components in the power supply circuit are not defective before you connect the AC plug to the AC power supply. Otherwise it may cause some components in the power supply circuit to fail.

4A/125V

CAUTION ! :

ATTENTION : Utiliser un fusible de rechange de même type de 4A, 125V.

For continued protection against risk of fire, replace only with same type 4 A, 125V fuse.

8-5

A71A0SCINV

Page 34

Jack Schematic Diagram

CN7501

12.6

32.3

52.3

60 70 80

90 10 0 11 5.0 12 5.0 13 0 14 2.5 15 2.5 16 0 17 2.5 18 2.5 19 0 20 --21 0 22 5.0 23 0 24 9.1

VOLTAGE CHART

Pin No. Voltage

8-6

A71A0SCJ

Page 35

Function Schematic Diagram

CN102

1---

2---

33.4

43.4

5---

VOLTAGE CHART

Pin No. Voltage

8-7

A71A0SCF

Page 36

IR Sensor Schematic Diagram

8-8

A71A0SCIR

Page 37

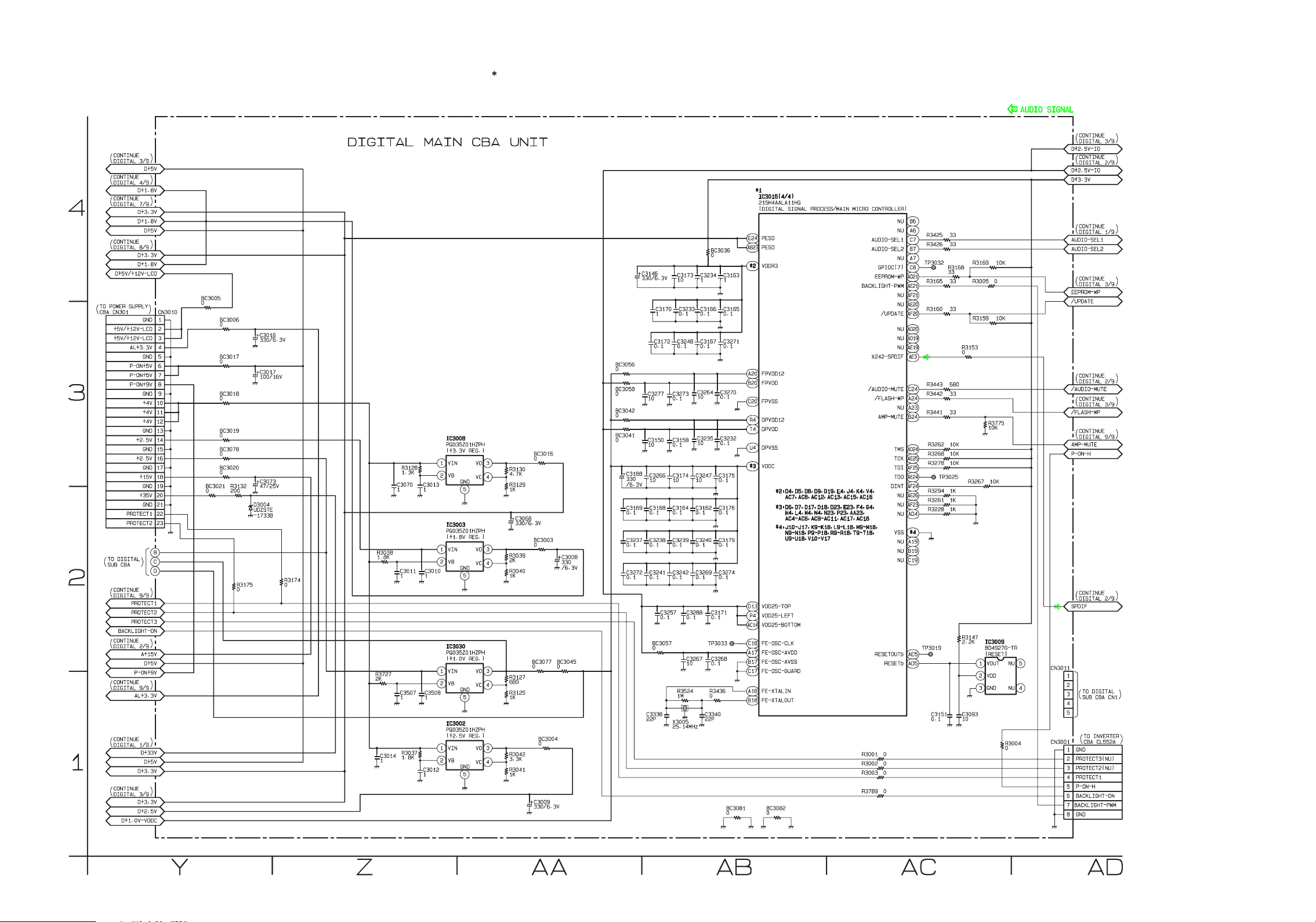

Digital Main 1/9 Schematic Diagram

8-9

A71A0SCD1

Page 38

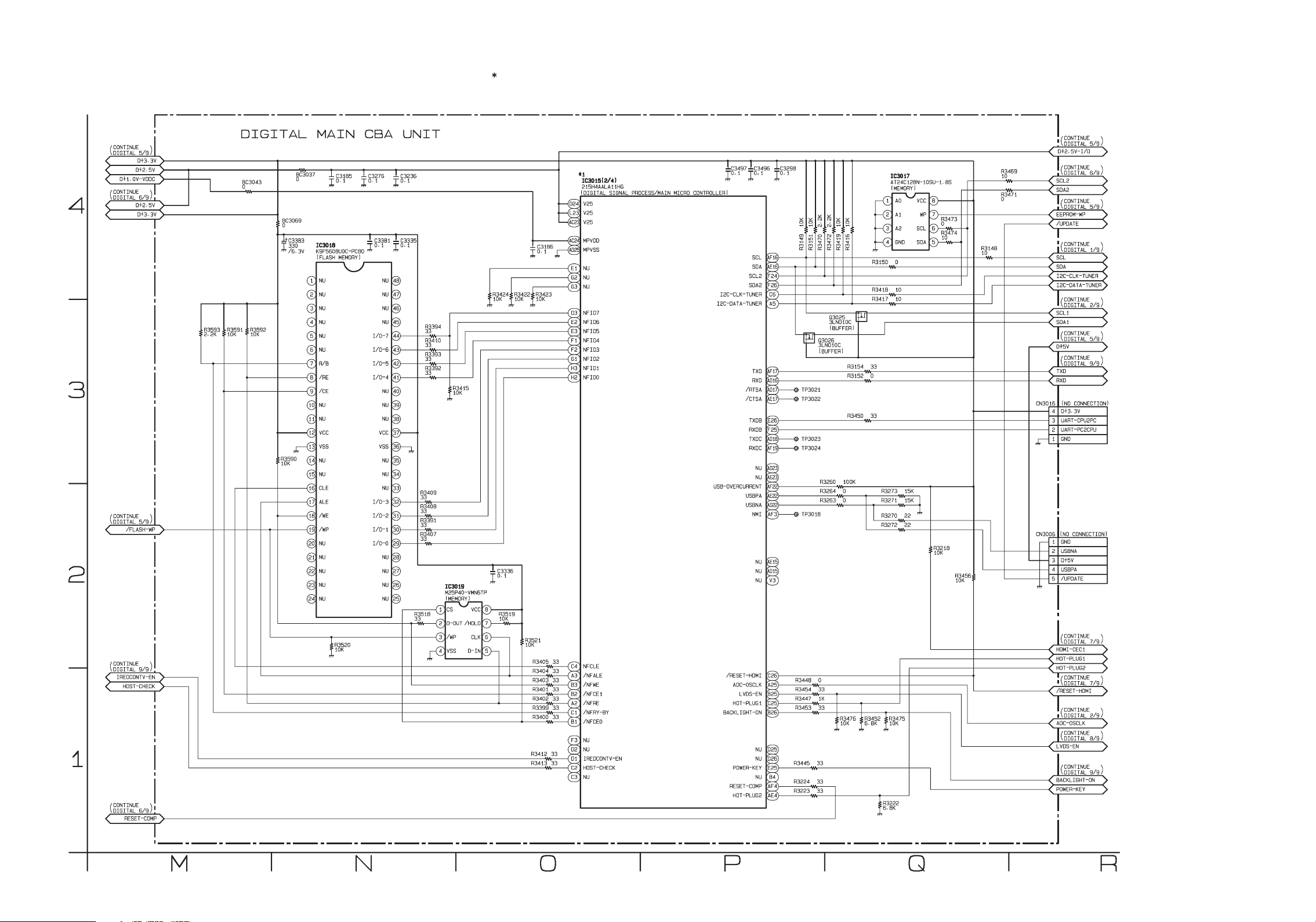

Digital Main 2/9 Schematic Diagram

1 NOTE:

The order of pins shown in this diagram is different from that of actual IC3015. IC3015 is divided into four and shown as IC3015 (1/4) ~ IC3015 (4/4) in this Digital Main Schematic Diagram Section.

8-10

A71A0SCD2

Page 39

Digital Main 3/9 Schematic Diagram

1 NOTE:

The order of pins shown in this diagram is different from that of actual IC3015. IC3015 is divided into four and shown as IC3015 (1/4) ~ IC3015 (4/4) in this Digital Main Schematic Diagram Section.

8-11

A71A0SCD3

Page 40

Digital Main 4/9 Schematic Diagram

1 NOTE:

The order of pins shown in this diagram is different from that of actual IC3015. IC3015 is divided into four and shown as IC3015 (1/4) ~ IC3015 (4/4) in this Digital Main Schematic Diagram Section.

8-12

A71A0SCD4

Page 41

Digital Main 5/9 Schematic Diagram

1 NOTE:

The order of pins shown in this diagram is different from that of actual IC3015. IC3015 is divided into four and shown as IC3015 (1/4) ~ IC3015 (4/4) in this Digital Main Schematic Diagram Section.

8-13

A71A0SCD5

Page 42

Digital Main 6/9 Schematic Diagram

8-14

A71A0SCD6

Page 43

Digital Main 7/9 Schematic Diagram

8-15

A71A0SCD7

Page 44

Digital Main 8/9 Schematic Diagram

8-16

A71A0SCD8

Page 45

Digital Main 9/9 Schematic Diagram

8-17

A71A0SCD9

Page 46

Power Supply CBA Top View

NOTE:

The voltage for parts in hot circuit is measured using hot GND as a common terminal.

Because a hot chassis ground is present in the power supply circuit, an isolation transformer must be used. Also, in order to have the ability to increase the input slowly,when troubleshooting this type power supply circuit, a variable isolation transformer is required.

8-18

BA71F0F01023-1

Page 47

Power Supply CBA Bottom View

NOTE:

The voltage for parts in hot circuit is measured using hot GND as a common terminal.

8-19

BA71F0F01023-1

Page 48

Inverter CBA Top View

CAUTION !

4A/125V

NOTE:

The voltage for parts in hot circuit is measured using hot GND as a common terminal.

CAUTION ! :

ATTENTION : Utiliser un fusible de rechange de même type de 4A, 125V.

For continued protection against risk of fire, replace only with same type 4 A, 125V fuse.

8-20

BA71A0F01042

Page 49

Inverter CBA Bottom View

CAUTION !

4A/125V

NOTE:

The voltage for parts in hot circuit is measured using hot GND as a common terminal.

CAUTION ! :

ATTENTION : Utiliser un fusible de rechange de même type de 4A, 125V.

For continued protection against risk of fire, replace only with same type 4 A, 125V fuse.

8-21

BA71A0F01042

Page 50

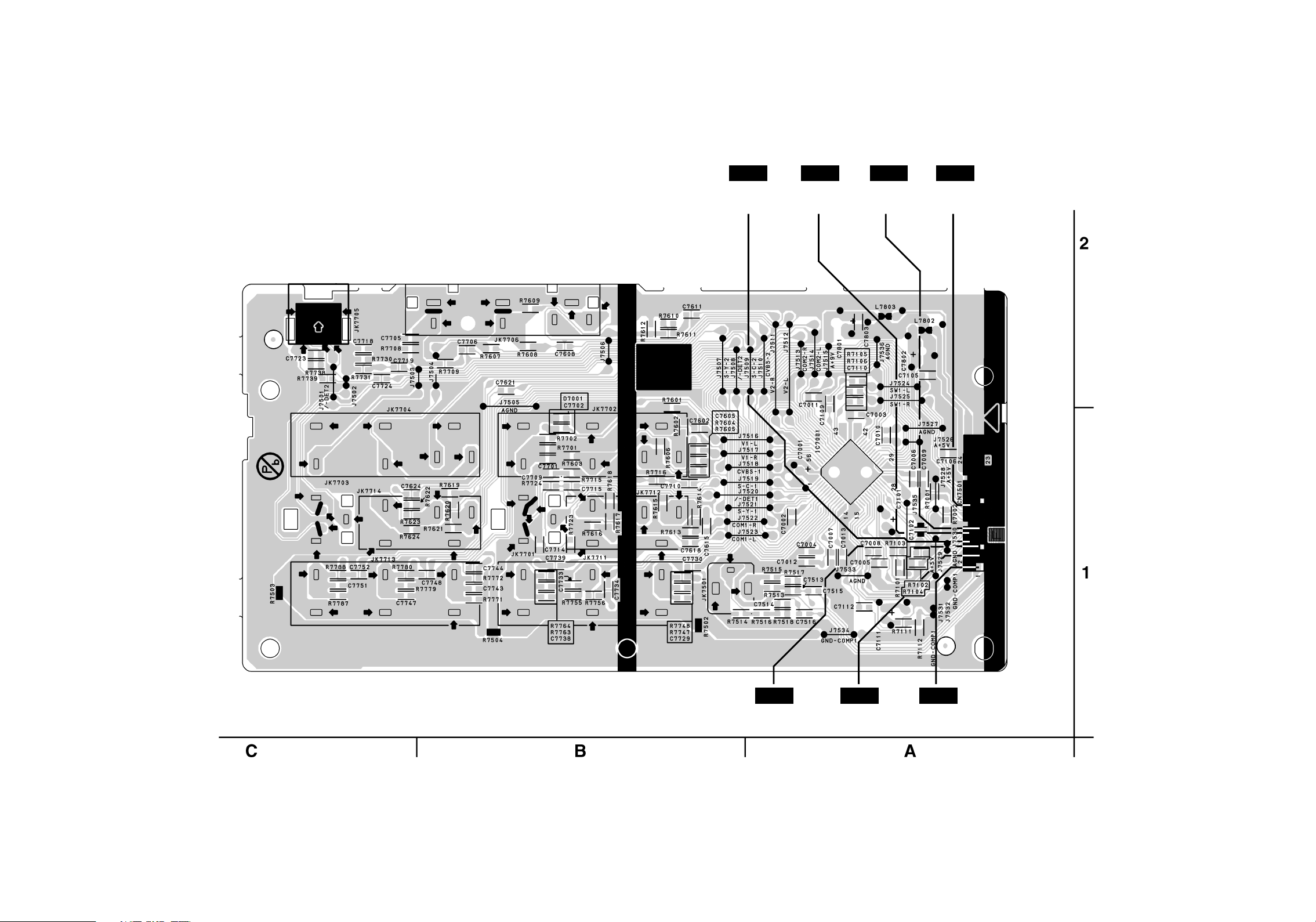

Jack CBA Top View

8-22

BA71F0F01023-4

Page 51

Jack CBA Bottom View

WF6

PIN 6 OF CN7501

WF3

PIN 8 OF CN7501

WF2

PIN 9 OF CN7501

WF7

PIN 14 OF CN7501

8-23

WF5

PIN 5 OF CN7501

WF4

PIN 3 OF CN7501

WF1

PIN1 OF CN7501

BA71F0F01023-4

Page 52

Function CBA Top View

Function CBA Bottom View

8-24

BA71F0F01023-2

Page 53

IR Sensor CBA Top View

Digital Sub CBA Top & Bottom View

IR Sensor CBA Bottom View

BA71F0F01051

BA71F0F01023-3

8-25

Page 54

WAVEFORMS

WF1 ~ WF7 = Waveforms to be observed at

Waveform check points. (Shown in Schematic Diagram.)

Input: NTSC Color Bar Signal (with 1kHz Audio Signal)

WF1

WF2

Pin 1 of CN7501

CVBS 0.2V 20µs

Pin 9 of CN7501

S-VIDEO-Y 0.2V

20µs

WF5

WF6

Pin 5 of CN7501

VIDEO-Pb 0.2V 20µs

Pin 6 of CN7501

VIDEO-Pr 0.2V 20µs

WF3

WF4

Pin 8 of CN7501

S-VIDEO-C 0.2V

Pin 3 of CN7501

VIDEO-Y 0.2V 20µs

20µs

WF7

Pin 14 of CN7501

AUDIO 1V 0.5ms

A71F0WF9-1

Page 55

CN3001

GND

CL552A

PROTECT2(NU)

PROTECT3(NU)

PROTECT1

P-ON-H72BACKLIGHT-PWM

BACKLIGHT-ON

GND

WIRING DIAGRAM

CN3007

23456

GND

+24V

CN553

IX-TX0(-)

IX-TX0(+)

+24V

GND

+24V

789

IX-TX1(-)

+24V

GND

513

GND10GND

IX-TX1(+)

GND

IX-TX2(-)

GND

GND14GND

IX-TX2(+)

ERR

BACKLIGHT-ONNUBACKLIGHT-PWM

IX-CLK(-)

GND18GND

IX-CLK(+)

IX-TX3(-)

IX-TX3(+)

GND

D+5V/+12V-LCD23D+5V/+12V-LCD

242526

D+5V/+12V-LCD

GND

VCOM

GND

30NU31

LCD MODULE

TU3001 TUNER UNIT

CN501

ACLNUHOT-GND

CN601

POWER SUPPLY CBA

513

CN301CN3010

GND

AL+3.3V

GND

+5V/+12V-LCD

P-ON+5V

513

+5V/+12V-LCD

CN3018

132547689

AC CORD

AC501

SP802

SPEAKER

L-CH

CN802

SP-P(L)

P-ON+5V

P-ON+9V

+4V

GND

+4V

10131211141517161918212022

+4V

GND

+2.5V

GND

CLN802

SP-N(L)

172220

+2.5V

GND

172220

SP801

+15V

SPEAKER

R-CH

CN801

GND

+35V

CLN801

SP-P(R)

GND

PROTECT1

SP-N(R)

PROTECT2

CN001

CN101B

CN302

PROTECT3

CN3014

IR SENSOR

13245

GND

REMOTE

AL+3.3V

513

SCL

GND

P-ON-H

GND

513

CBA

NU6LED2

624

SDA

GND

LED1 8NU

REMOTENUAMP-STBY

AMP-MUTENUGND

141012

GND

AUDIO(L)-OUT

141012

CN675

172220

AUDIO(R)-OUT

LED2

GND

LED1NUNU

172220

INVERTER CBA

B C D

DIGITAL SUB CBA

132

GND

13245

CN3011

CN3002

13245

DIGITAL MAIN CBA UNIT

CN1

P-ON+9V

GND

232120

CN7501

COMPONENT

-Y-IN1

COMPONENT

-Pb-IN1

GNDNUGND

D+5V

PC-AUDIO(R)

PC-AUDIO(L)

COMPONENT

-Pr-IN1

GND

AUDIO(R)

161113

-Y-IN2

COMPONENT

AUDIO(L)

GND

-Pb-IN2

GND

SDA1

SCL1

S-VIDEO-Y

COMPONENT

-Pr-IN2 COMPONENT-

VIDEO-Pr

S-VIDEO-C

GND

VIDEO-Pb

724

AUDIO(L)-IN1

COMPONENT-

AUDIO(R)-IN1

GND

GND24VIDEO

VIDEO-Y

153

COMPONENT-

AUDIO(L)-IN2

COMPONENT-

DIGITAL

AUDIO OUT

(COAXIAL)

VIDEO-IN1

AUDIO(R)-IN2

HDMI-

AUDIO(L)-IN

AUDIO(L)

-IN1

HDMI-

AUDIO(R)-IN

AUDIO(R)

-IN1

AUDIO(L)

-OUT

VIDEO-IN2

AUDIO(R)

-OUT

AUDIO(L)

-IN2

D-SUB

CONNECTOR

AUDIO(R)

-IN2

HDMI-

CONNECTOR-1

S-VIDEO

-IN1

PC-AUDIO-IN

HDMI-

CONNECTOR-2

JACK CBA

S-VIDEO

-IN2

GND

CN102

AL+3.3V

KEY-IN1

KEY-IN2

FUNCTION

CBA

A71A0WI10-1

NU6NU

15324

Page 56

Cabinet

EXPLODED VIEWS

SP801

CLN801

A22

A21

A13

B16

IR Sensor CBA

A11

CLN101

CLN102

CLN802

B16

SP802

LCD1

L11

CL3007

CL7501

Digital Main CBA Unit

Jack CBA

B28

B16

L19 L18

B16

L21

B16

L21

L13

L21

A10

L13

L21

A14

See Electrical Parts List for parts with this mark.

Function CBA

Inverter CBA

L11

B33

B40

Power Supply

CBA

L11

B32

A12

L12

A12

L12

A12

L15

L11

B33

Digital Sub CBA

L16

AC501

11-1 A71A0CEX

B41

B10

L16

B11

L11

Page 57

Packing

Some Ref. Numbers are not in sequence.

Packing Tape

Tape

Packing Tape

FRONT

11-2 A71A0PEX

Page 58

MECHANICAL PARTS LIST

PRODUCT SAFETY NOTE: Products marked with a

# have special characteristics important to safety. Before replacing any of these components, read carefully the product safety notice in this service manual. Don't degrade the safety of the product through improper servicing.

NOTE: Parts that are not assigned part numbers (---------) are not available.

Ref. No. Description Part No.

A1 FRONT CABINET A71A0UH 1EM021683 A3 CONTROL PLATE A71F0UH 1EM322471 A4 REAR CABINET A71A0UH 1EM021684 A6# RATING LABEL A71A0UH ---------A7 FUNCTION KNOB A71F0UH 1EM121822 A9 STAND COVER A71F0UH 1EM021618A A10 REAR COVER A7260JH 1EM322484 A11 LED LENS A71F0UH 1EM322469 A12 STAND RUBBER FOOT L5001CB 1EM423855 A13 SENSOR LENS A71F0UH 1EM322470 A14 JACK PLATE A71F0UH 1EM221551 A21 POP LABEL A71F0UH ---------A22 PUNCHING SHEET A71A0UH 1EM021764 B2 PCB HOLDER A71A0UH 1EM021687 B3 SHIELD BOX A71F0UH 1EM121832 B4 CHASSIS BRACKET 26V A71A0UH 1EM121855 B5 JACK HOLDER(A) A71F0UH 1EM221530 B6 JACK HOLDER(D) A71F0UH 1EM221535 B7 STAND BASE PLATE A71F0UH 1EM121808A B8 STAND HINGE A71F0UH 1EM221532A B16 CLOTH(12X125XT 0.5) L0101JB 0EM408489 B28 EARTH PLATE A71A0UH 1EM424585 B32 GRAND TAPE (TR-19) A71F0UH 1EM424512 B33 RUBBER CUSHION (10X10X13) A71F0UH 1EM424527 B41 CLOTH(15X10XT0.5) L9700UA 0EM405038 CL3007 WIRE ASSEMBLY 31PIN LVDS 31PIN / 110MM WX1A71A0-110 CL7501 WIRE ASSEMBLY 101 24PIN / 475MM WX1A71A0-101 CLN101 WIRE ASSEMBLY 003 8PIN / 360MM / AWG26 WX1A71A0-003 CLN102 WIRE ASSEMBLY 002 6PIN / 780MM / AWG26 WX1A71A0-002 CLN801 WIRE ASSEMBLY 006 2PIN / 420MM / AWG22 WX1A71A0-006 CLN802 WIRE ASSEMBLY 005 2PIN / 250MM / AWG22 WX1A71A0-005 L1 SCREW P-TIGHT 4X14 BIND HEAD GBJP4140 L3 SCREW P-TIGHT M3X12 DISH HEAD+ GDJP3120 L4 SCREW P-TIGHT 3X10 BIND HEAD+ GBJP3100 L7 SCREW B-TIGHT 3X10 BIND HEAD+ BLK GBHB3100 L9 SCREW S-TIGHT M3X6 BIND HEAD+ GBJS3060 L11 DOUBLE SEMS SCREW M4X6 M4X6 FPJ34060 L12 DOUBLE SEMS SCREW M4X9 + BLACK

L13 DOUBLE SEMS SCREW M4X10 + BLK FPH34100 L15 NUT 3/8-32UNEF 0EM401451A L16 ASSEMBLED SCREW ( D9 M3X6 ) A71F0UH 1EM424392 L18 SCREW S-TIGHT M3X8 BIND HEAD+ GBHS3080 L19 HEX SCREW #4-40 7MM 1EM422042 L21 SCREW P-TIGHT M4X18 BIND HEAD+ GBHP4180 LCD1 LCD 26V TFT V260B1-L01 TLCD100CME14 SP801 SPEAKER MAGNETIC YDP613-1FN DSD0811EFU01 SP802 SPEAKER MAGNETIC YDP613-1FN DSD0811EFU01

L0130UA

0EM408146A

Ref. No. Description Part No.

PACKING

S1 CARTON A71A0UH 1EM322543 S2 STYROFOAM TOP A71A0UH 1EM021686 S3 STYROFOAM BOTTOM A71A0UH 1EM021685 S4 SET BAG L4300UA 1EM321546 S5 SERIAL NO. LABEL L9750UA ---------S6 STAND SHEET L5001CB 1EM423856

ACCESSORIES

X1 BAG POLYETHYLENE 235X365XT0.03 0EM408420A X2# OWNERS MANUAL A71A0UH 1EMN22136 X3 REMOTE CONTROL NF015UD 170/

X4 DRY BATTERY(SUNRISE) R6SSE/2S XB0M451MS002 X9 QUICK SETUP GUIDE A71F0UH 1EMN22176

ECNLC501/NF015UD

NF015UD

20070620 12-1 A71A0CA

Page 59

ELECTRICAL PARTS LIST

PRODUCT SAFETY NOTE: Products marked with a

NOTES:

1. Parts that are not assigned part numbers (---------) are not available.

2. Tolerance of Capacitors and Resistors are noted with the following symbols.

C.....±0.25% D.....±0.5% F.....±1%

G.....±2% J......±5% K.....±10%

M.....±20% N.....±30% Z.....+80/-20%

DIGITAL MAIN CBA UNIT

Ref. No. Description Part No.

DIGITAL MAIN CBA UNIT 1ESA14541

MPS CBA

Ref. No. Description Part No.

MPS CBA Consists of the following

POWER SUPPLY CBA(MPS-1) FUNCTION CBA(MPS-2) IR SENSOR CBA(MPS-3) JACK CBA(MPS-4)

POWER SUPPLY CBA

Ref. No. Description Part No.

POWER SUPPLY CBA(MPS-1) Consists of the following:

CAPACITORS

C601# ALMINIUM ELECTROLYTIC CAP 150µF/200V CA2D151NC236 C602 CERAMIC CAP. R K 680pF/2KV(HR) CCD3DKA0R681 C604 POLYESTER FILM CAP. (PB FREE) 0.033µF/

C605 CERAMIC CAP.(AX) B K 0.01µF/50V CA1J103TU011 C606 FILM CAP.(P) 0.1µF/50V J CMA1JJS00104 C633 ELECTROLYTIC CAP. 470µF/25V M CE1EMASDL471 C634 ELECTROLYTIC CAP 3300µF/10V CE1AMZNDL332 C635 CERAMIC CAP.(AX) B K 0.01µF/50V CA1J103TU011 C636 CERAMIC CAP. R K 1500pF/2KV(HR) CCD3DKA0R152 C638 ELECTROLYTIC CAP 3300µF/10V CE1AMZNDL332 C639 ELECTROLYTIC CAP. 220µF/50V M CE1JMASDL221 C640 ELECTROLYTIC CAP. 100µF/10V M CE1AMASDL101 C642 CAP ELE STD-85 4700µF 6.3V SL CE0KMZNDL472 C644 ELECTROLYTIC CAP. 4700µF/10V M P=7.5 CE1AMZNDL472 C647 ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100 C648 ELECTROLYTIC CAP. 1000µF/25V M CE1EMZNDL102 C650 ELECTROLYTIC CAP. 1µF/50V M CE1JMASDL1R0 C652 ELECTROLYTIC CAP. 100µF/10V M CE1AMASDL101 C653 ELECTROLYTIC CAP. 100µF/10V M CE1AMASDL101 C655 ELECTROLYTIC CAP. 1000µF/10V M CE1AMASDL102 C656 CAP ELE STD-85 4700µF 6.3V SL CE0KMZNDL472

100V J

1ESA14544

----------

CA2A333DT018

Ref. No. Description Part No.

C657 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104 C658 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104 C659 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104 C660 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104 C661 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104 C662 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104 C663 ELECTROLYTIC CAP. 100µF/25V M CE1EMASDL101 C664 CAP ELE STD-85 4700µF 6.3V SL CE0KMZNDL472 C665 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104 C669 ELECTROLYTIC CAP. 100µF/10V M CE1AMASDL101 C671 ELECTROLYTIC CAP. 100µF/10V M CE1AMASDL101 C801 ELECTROLYTIC CAP. 100µF/16V M CA1C101SP085 C802 CHIP CERAMIC CAP. (1608) B K 1µF/16V CHD1CK30B105 C803 CHIP CERAMIC CAP. (1608) B K 1µF/16V CHD1CK30B105 C804 ELECTROLYTIC CAP. 100µF/16V M CA1C101SP085 C805 ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100 C806 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104 C807 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104 C808 ELECTROLYTIC CAP. 3.3µF/50V M CE1JMASDL3R3 C809 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104 C810 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104 C811 ELECTROLYTIC CAP. 1000µF/25V M CE1EMZNDL102 C812 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104 C813 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104 C814 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104 C815 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104 C816 ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100 C817 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104 C818 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104 C819 ELECTROLYTIC CAP. 1µF/50V M CE1JMASDL1R0 C821 ELECTROLYTIC CAP. 4.7µF/50V M CE1JMASDL4R7 C823 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104 C824 CHIP CERAMIC CAP. (1608) B K 1µF/16V CHD1CK30B105 C825 CHIP CERAMIC CAP. (1608) B K 1µF/16V CHD1CK30B105 C826 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104 C827 ELECTROLYTIC CAP. 4.7µF/50V M CE1JMASDL4R7 C833 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104 C834 ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100 C835 ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100 C842 CHIP CERAMIC CAP. (1608) B K 1µF/16V CHD1CK30B105 C843 CHIP CERAMIC CAP. (1608) B K 1µF/16V CHD1CK30B105 C851 ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100 C857 ELECTROLYTIC CAP. 100µF/16V M CA1C101SP085 C859 ELECTROLYTIC CAP. 47µF/25V M CA1E470SP085 C860 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 C861 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 C862 ELECTROLYTIC CAP. 4.7µF/50V M CE1JMASDL4R7 C863 ELECTROLYTIC CAP. 4.7µF/50V M CE1JMASDL4R7 C864 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104 C865 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104 C866 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104 C867 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104 C868 CHIP CERAMIC CAP.(1608) B K 2700pF/50V CHD1JK30B272 C869 CHIP CERAMIC CAP.(1608) B K 2700pF/50V CHD1JK30B272 C870 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104 C871 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103 C872 CHIP CERAMIC CAP. B K 0.068µF/50V CHD1JK30B683 C873 CHIP CERAMIC CAP.(1608) B K 5600pF/50V CHD1JK30B562 C875 ELECTROLYTIC CAP. 4.7µF/50V M CE1JMASDL4R7 C876 ELECTROLYTIC CAP. 4.7µF/50V M CE1JMASDL4R7

20070620 13-1 A71A0EL

Page 60

Ref. No. Description Part No.

C877 CHIP CERAMIC CAP. (1608) B K 1µF/16V CHD1CK30B105 C878 CHIP CERAMIC CAP. (1608) B K 1µF/16V CHD1CK30B105 C880 CHIP CERAMIC CAP. (1608) B K 1µF/16V CHD1CK30B105 C1602 ALUMINUM ELECTROLYTIC CAP 1000µF/35V MCE1GMZNTM102

C1603 CERAMIC CAP.(AX) B K 0.01µF/50V CA1J103TU011

CONNECTORS

CN101B PH CONNECTOR TOP 8P B8B-PH-K-S

CN301 TWG CONNECTOR 23P TWG-P23P-A1 J3TWA23TG001 CN302 TWG CONNECTOR 23P TWG-P23P-A1 J3TWA23TG001 CN601 WIRE ASSEMBLY 004 3PIN / 160MM / AWG18 WX1A71A0-004 CN675 TERMINAL PRINTBORD PIN RT-01T-1.0B(LF) JTEA001JG003 CN801 CONNECTOR BASE 2P(EH) B 2B-EH-

CN802 CONNECTOR BASE 2P(EH) B 2B-EH-

(LF)(SN)

A(LF)(SN)

J3PHC08JG029

J3EHC02JG010

DIODES

D602# ZENER DIODE MTZJT-7739B QDTB00MTZJ39 D603 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D604# ZENER DIODE MTZJT-7727B QDTB00MTZJ27 D606 ZENER DIODE MTZJT-775.6B QDTB0MTZJ5R6 D607 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D611 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D612 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D613 PCB JUMPER D0.6-P5.0 JW5.0T D631 ZENER DIODE MTZJT-775.6B QDTB0MTZJ5R6 D632 SCHOTTKY BARRIER DIODE ERC81-004 QDPZERC81004 D633 RECTIFIER DIODE FR202-B/P NDQZ000FR202 D635 ZENER DIODE MTZJT-7722B QDTB00MTZJ22 D636 RECTIFIER DIODE FR202-B/P NDQZ000FR202 D637 SCHOTTKY BARRIER DIODE ERB81-004 AERB81004*** D640 SCHOTTKY BARRIER DIODE ERC81-004 QDPZERC81004 D642 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D643 ZENER DIODE MTZJT-775.1B QDTB0MTZJ5R1 D644 DIODE 1ZC43(Q) QDLZ001ZC43Q D646 ZENER DIODE MTZJT-775.6B QDTB0MTZJ5R6 D647 SCHOTTKY BARRIER DIODE ERC81-004 QDPZERC81004 D649 ZENER DIODE MTZJT-7733B QDTB00MTZJ33 D650 ZENER DIODE MTZJT-776.2B QDTB0MTZJ6R2 D651 DIODE FR104-B NDLZ000FR104 D652 PCB JUMPER D0.6-P5.0 JW5.0T D654 SCHOTTKY BARRIER DIODE ERA81-004Q QDLZRA81004Q D655 DIODE FR104-B NDLZ000FR104 D656 PCB JUMPER D0.6-P5.0 JW5.0T D657 ZENER DIODE MTZJT-776.8B QDTB0MTZJ6R8 D658 ZENER DIODE MTZJT-775.1B QDTB0MTZJ5R1 D659 ZENER DIODE MTZJT-7716B QDTB00MTZJ16 D660 ZENER DIODE MTZJT-776.8B QDTB0MTZJ6R8 D661 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D663 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D664 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D665 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D666 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D667 SCHOTTKY BARRIER DIODE ERA81-004Q QDLZRA81004Q D668 PCB JUMPER D0.6-P5.0 JW5.0T D670 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D671 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D672 ZENER DIODE MTZJT-7716B QDTB00MTZJ16 D674 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D675 ZENER DIODE MTZJT-7710B QDTB00MTZJ10 D676 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D677 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D801 ZENER DIODE MTZJT-7710B QDTB00MTZJ10

Ref. No. Description Part No.

D802 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D803 PCB JUMPER D0.6-P5.0 JW5.0T D810 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D811 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D851 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D852 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1601 DIODE SCHOTTKY ERC84-009L QD4ZERC84009 D1607 DIODE SCHOTTKY ERC84-009L QD4ZERC84009

ICS

IC603# PHOTOCOUPLER LTV-817C-F NPEC0LTV817F IC637 IC LD1117V NSZBA0SSS046 IC801 IC POWER AMP BD5422EFS-E2 QSZBA0TRM113 IC802 IC SURROUND PROCESSOR LV1115M-TLM-E

MFP24S

QSZBA0TSY050

COILS

L661 CHOKE COIL 22µH-K LLBD00PKV021 L801 COIL RADIAL LHLP10NB330M 33µH LLF3300TU003 L802 COIL RADIAL LHLP10NB330M 33µH LLF3300TU003 L803 COIL RADIAL LHLP10NB330M 33µH LLF3300TU003 L804 COIL RADIAL LHLP10NB330M 33µH LLF3300TU003 L805 INDUCTOR 22µH-K-5FT LLARKBSTU220 L852 PCB JUMPER D0.6-P5.0 JW5.0T

TRANSISTORS

Q601# FET MOS 2SK3563(Q) QFWZ2SK3563Q Q602# TRANSISTOR 2SC2120-O(TE2 F T) QQS02SC2120F Q631 TRANSISTOR KTC3199-GR-AT/P NQS4KTC3199P Q632# PNP TRANSISTOR POWER 2SA1887(F) QQWZ2SA1887F Q633 TRANSISTOR KTC3199-GR-AT/P NQS4KTC3199P Q635 TRANSISTOR KTA1267-GR-AT/P NQS1KTA1267P Q636 TRANSISTOR KTC3199-GR-AT/P NQS4KTC3199P Q637 PNP TRANSISTOR POWER 2SA1887(F) QQWZ2SA1887F Q638# TRANSISTOR(PB FREE) KTC2026-Y/P NQEYKTC2026P Q639 TRANSISTOR 2SC2120-O(TE2 F T) QQS02SC2120F Q640 PNP TRANSISTOR POWER 2SA1887(F) QQWZ2SA1887F Q641 TRANSISTOR 2SC2120-O(TE2 F T) QQS02SC2120F Q643 TRANSISTOR KTC3199-GR-AT/P NQS4KTC3199P Q644 TRANSISTOR KTC3199-GR-AT/P NQS4KTC3199P Q650 TRANSISTOR(PB FREE) KTC2026-Y/P NQEYKTC2026P Q651 TRANSISTOR KTA1267-GR-AT/P NQS1KTA1267P Q652 TRANSISTOR KTC3199-GR-AT/P NQS4KTC3199P Q801 TRANSISTOR(PB FREE) KTC2026-Y/P NQEYKTC2026P Q802 TRANSISTOR KTC3199-GR-AT/P NQS4KTC3199P

RESISTORS

R139 CHIP RES. 1/10W J 100 Ω RRXAJR5Z0101 R140 CHIP RES. 1/10W J 100 Ω RRXAJR5Z0101 R601# METAL RES. 3W J 0.33 Ω RN03JZPZ0R33 R604 CARBON RES. 1/4W J 390k Ω RCX4JATZ0394 R605 CARBON RES. 1/4W J 390k Ω RCX4JATZ0394 R606 CARBON RES. 1/4W J 390k Ω RCX4JATZ0394 R607 CARBON RES. 1/4W J 390k Ω RCX4JATZ0394 R608 PCB JUMPER D0.6-P5.0 JW5.0T R609 CARBON RES. 1/4W J 2.2k Ω RCX4JATZ0222 R610 CARBON RES. 1/4W J 220 Ω RCX4JATZ0221 R611 CARBON RES. 1/4W J 820 Ω RCX4JATZ0821 R612 CARBON RES. 1/4W J 270 Ω RCX4JATZ0271 R613 CARBON RES. 1/4W J 180 Ω RCX4JATZ0181 R615 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R616 CARBON RES. 1/4W J 330 Ω RCX4JATZ0331 R617 CARBON RES. 1/4W J 330 Ω RCX4JATZ0331 R618 METAL OXIDE FILM RES. 2W J 0.68 Ω RN02R68DP004 R619 METAL OXIDE FILM RES. 2W J 0.68 Ω RN02R68DP004 R620 METAL OXIDE FILM RES. 2W J 1 Ω RN021R0DP004 R621 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103

20070620 13-2 A71A0EL

Page 61

Ref. No. Description Part No.

R622 CARBON RES. 1/4W J 560 Ω RCX4JATZ0561 R633 CARBON RES. 1/4W J 820 Ω RCX4JATZ0821 R634 CARBON RES. 1/4W J 10k Ω RCX4JATZ0103 R635 CARBON RES. 1/4W J 560 Ω RCX4JATZ0561 R636 CARBON RES. 1/4W J 1k Ω RCX4JATZ0102 R639 CHIP RES. 1/10W J 2.7k Ω RRXAJR5Z0272 R641 CARBON RES. 1/4W J 1.2k Ω RCX4JATZ0122 R642 CARBON RES. 1/4W J 2.7k Ω RCX4JATZ0272 R644 PCB JUMPER D0.6-P5.0 JW5.0T R645 CARBON RES. 1/4W J 12k Ω RCX4JATZ0123 R646 CARBON RES. 1/4W J 15k Ω RCX4JATZ0153 R649 METAL OXIDE FILM RES. 1W J 1k Ω RN01102ZU001 R650 CARBON RES. 1/4W J 10k Ω RCX4JATZ0103 R651 CARBON RES. 1/4W J 100 Ω RCX4JATZ0101 R652 CARBON RES. 1/4W J 180 Ω RCX4JATZ0181 R653 CARBON RES. 1/4W J 180 Ω RCX4JATZ0181 R654 CARBON RES. 1/4W J 4.7k Ω RCX4JATZ0472 R655 CHIP RES. 1/10W F 1.0k Ω RRXAFR5H1001 R656 CARBON RES. 1/4W J 4.7k Ω RCX4JATZ0472 R657 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R658 CHIP RES. 1/10W F 620 Ω RRXAFR5H6200 R659 CARBON RES. 1/4W J 180 Ω RCX4JATZ0181 R660 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R661 CARBON RES. 1/4W J 4.7k Ω RCX4JATZ0472 R662 CARBON RES. 1/4W J 4.7k Ω RCX4JATZ0472 R663 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R664 CHIP RES. 1/10W F 39k Ω RRXAFR5H3902 R665 CHIP RES. 1/10W J 2.7k Ω RRXAJR5Z0272 R666 CHIP RES. 1/10W F 6.8k Ω RRXAFR5Z6801 R668 CHIP RES. 1/10W J 3.3k Ω RRXAJR5Z0332 R669 CHIP RES. 1/10W J 47k Ω RRXAJR5Z0473 R670 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R671 CARBON RES. 1/4W J 4.7k Ω RCX4JATZ0472 R672 CARBON RES. 1/4W J 1.8k Ω RCX4JATZ0182 R673 CARBON RES. 1/4W J 1.8k Ω RCX4JATZ0182 R676 CHIP RES. 1/10W J 2.2k Ω RRXAJR5Z0222 R677 CHIP RES. 1/10W J 2.2k Ω RRXAJR5Z0222 R678 CHIP RES. 1/10W J 6.8k Ω RRXAJR5Z0682 R679 CHIP RES. 1/10W J 3.3k Ω RRXAJR5Z0332 R680 CHIP RES. 1/10W J 1.8k Ω RRXAJR5Z0182 R681 CHIP RES. 1/10W J 3.3k Ω RRXAJR5Z0332 R682 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104 R683 CARBON RES. 1/4W J 22k Ω RCX4JATZ0223 R684 CHIP RES. 1/10W J 56k Ω RRXAJR5Z0563 R685 CHIP RES. 1/10W J 22k Ω RRXAJR5Z0223 R687 CARBON RES. 1/4W J 4.7k Ω RCX4JATZ0472 R688 CARBON RES. 1/4W J 100k Ω RCX4JATZ0104 R689 CARBON RES. 1/4W J 10k Ω RCX4JATZ0103 R690 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R691 CARBON RES. 1/4W J 2.7k Ω RCX4JATZ0272 R692 CARBON RES. 1/4W J 33k Ω RCX4JATZ0333 R693 CHIP RES. 1/10W J 3.3k Ω RRXAJR5Z0332 R694 CARBON RES. 1/4W J 560 Ω RCX4JATZ0561 R695 CARBON RES. 1/4W J 560 Ω RCX4JATZ0561 R696 CHIP RES. 1/10W J 56k Ω RRXAJR5Z0563 R697 CHIP RES. 1/10W F 8.2k Ω RRXAFR5H8201 R800 PCB JUMPER D0.6-P12.5 JW12.5T R801 CHIP RES. 1/10W F 100k Ω RRXAFR5H1003 R802 CHIP RES. 1/10W J 390k Ω RRXAJR5Z0394 R803 CARBON RES. 1/4W J 10 Ω RCX4JATZ0100 R804 CARBON RES. 1/4W J 1k Ω RCX4JATZ0102 R805 CARBON RES. 1/4W J 6.8k Ω RCX4JATZ0682 R806 CHIP RES. 1/10W J 3.3k Ω RRXAJR5Z0332

Ref. No. Description Part No.

R807 CHIP RES. 1/10W J 22k Ω RRXAJR5Z0223 R808 CHIP RES. 1/10W F 16.0 k Ω RRXAFR5H1602 R809 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R810 CHIP RES. 1/10W F 16.0 k Ω RRXAFR5H1602 R812 CHIP RES. 1/10W J 270k Ω RRXAJR5Z0274 R813 CHIP RES. 1/10W F 100k Ω RRXAFR5H1003 R814 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R815 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 R816 CHIP RES. 1/10W J 100 Ω RRXAJR5Z0101 R817 CHIP RES. 1/10W J 4.7k Ω RRXAJR5Z0472 R819 CHIP RES. 1/10W J 2.7k Ω RRXAJR5Z0272 R820 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R854 CARBON RES. 1/4W J 100 Ω RCX4JATZ0101 R855 CHIP RES. 1/10W J 2.2k Ω RRXAJR5Z0222 R856 CARBON RES. 1/4W J 3.3k Ω RCX4JATZ0332 R859 CHIP RES. 1/10W J 10 Ω RRXAJR5Z0100 R860 CHIP RES. 1/10W J 5.1k Ω RRXAJR5Z0512 R863 CHIP RES. 1/10W J 3.6k Ω RRXAJR5Z0362 R864 CHIP RES. 1/10W J 3.6k Ω RRXAJR5Z0362 R865 CHIP RES. 1/10W J 2.2k Ω RRXAJR5Z0222 R866 CHIP RES. 1/10W J 2.2k Ω RRXAJR5Z0222 R869 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 R870 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000

MISCELLANEOUS

B10 HEAT SINK PKH ASSEMBLY L3201UB 1EM420648 B11 HEAT SINK PKP ASSEMBLY L4200EA 1EM420855 BC601 BEADS INDUCTOR FBR07HA121SB-00 LLBF00STU030 BC602 BEADS INDUCTOR FBR07HA121SB-00 LLBF00STU030 BC632 PCB JUMPER D0.6-P5.0 JW5.0T BC633 BEADS INDUCTOR FBR07HA121SB-00 LLBF00STU030 BC634 BEADS INDUCTOR FBR07HA121SB-00 LLBF00STU030 BC635 PCB JUMPER D0.6-P5.0 JW5.0T BC1602 PCB JUMPER D0.6-P5.0 JW5.0T JS611 PCB JUMPER D0.6-P5.0 JW5.0T JS631 PCB JUMPER D0.6-P15.0 JW15.0T JS632 PCB JUMPER D0.6-P15.0 JW15.0T JS641 PCB JUMPER D0.6-P5.0 JW5.0T JS642 PCB JUMPER D0.6-P5.0 JW5.0T JS802 PCB JUMPER D0.6-P5.0 JW5.0T JS803 PCB JUMPER D0.6-P5.0 JW5.0T JS1601 PCB JUMPER D0.6-P12.5 JW12.5T L6 SCREW B-TIGHT D3X8 BIND HEAD+ GBJB3080 T601# TRANS POWER 7711 LTT3PC0KT025

FUNCTION CBA

Ref. No. Description Part No.

FUNCTION CBA(MPS-2) Consists of the following:

CAPACITOR

C108 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104

CONNECTOR

CN102 CONNECTOR PRINT OSU S6B-PH-K-

S(LF)(SN)

DIODE

D108 ZENER DIODE MTZJT-775.6B QDTB0MTZJ5R6

RESISTORS

R118 PCB JUMPER D0.6-P5.0 JW5.0T R119 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R120 CHIP RES. 1/10W J 6.8k Ω RRXAJR5Z0682 R121 CHIP RES. 1/10W J 4.7k Ω RRXAJR5Z0472 R122 CHIP RES. 1/10W J 2.7k Ω RRXAJR5Z0272 R123 CHIP RES. 1/10W J 2.2k Ω RRXAJR5Z0222

----------

J3PHC06JG030

20070620 13-3 A71A0EL

Page 62

Ref. No. Description Part No.

R124 CHIP RES. 1/10W J 1.5k Ω RRXAJR5Z0152 R125 CARBON RES. 1/4W J 220 Ω RCX4JATZ0221 R126 CHIP RES. 1/10W J 1.5k Ω RRXAJR5Z0152

SWITCHES

SW108 TACT SWITCH SKQSAB SST0101AL038 SW109 TACT SWITCH SKQSAB SST0101AL038 SW110 TACT SWITCH SKQSAB SST0101AL038 SW111 TACT SWITCH SKQSAB SST0101AL038 SW112 TACT SWITCH SKQSAB SST0101AL038 SW113 TACT SWITCH SKQSAB SST0101AL038 SW114 TACT SWITCH SKQSAB SST0101AL038

MISCELLANEOUS

BC102 PCB JUMPER D0.6-P5.0 JW5.0T JS101 PCB JUMPER D0.6-P5.0 JW5.0T JS103 PCB JUMPER D0.6-P5.0 JW5.0T

IR SENSOR CBA

Ref. No. Description Part No.

IR SENSOR CBA(MPS-3) Consists of the following:

----------

CAPACITORS

C101 ELECTROLYTIC CAP. 47µF/16V M H7 CE1CMAVSL470 C102 CHIP CERAMIC CAP. F Z 0.01µF/50V CHD1JZ30F103 C105 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104 C106 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104 C107 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104

CONNECTOR

CN001 PH CONNECTOR SIDE 8P S8B-PH-K-

S(LF)(SN)

J3PHC08JG030

DIODES

D101 LED 333HT/E-K NPHK00333HTE D102 LED 333GT/E NPHZ00333GTE

RESISTORS

R101 CHIP RES. 1/10W J 100 Ω RRXAJR5Z0101 R102 CHIP RES. 1/10W J 3.3k Ω RRXAJR5Z0332 R103 CHIP RES. 1/10W J 220 Ω RRXAJR5Z0221 R104 CHIP RES. 1/10W J 220 Ω RRXAJR5Z0221 R105 CARBON RES. 1/4W J 1k Ω RCX4JATZ0102

MISCELLANEOUS

BC101 PCB JUMPER D0.6-P5.0 JW5.0T RCV891 PHOTO LINK MODULE KSM-712TH2E USESJRSKK044

JACK CBA

Ref. No. Description Part No.

JACK CBA(MPS-4) Consists of the following:

CAPACITORS

C7001 ELECTROLYTIC CAP. 47µF/16V M H7 CE1CMAVSL470 C7002 CHIP CERAMIC CAP.(2125) F Z 10µF/10V CHE1AZ30F106 C7003 CHIP CERAMIC CAP.(2125) F Z 10µF/10V CHE1AZ30F106 C7004 CHIP CERAMIC CAP. F Z 0.47µF/16V CHD1CZ30F474 C7005 CHIP CERAMIC CAP. F Z 0.47µF/16V CHD1CZ30F474 C7006 CHIP CERAMIC CAP. F Z 0.47µF/16V CHD1CZ30F474 C7007 CHIP CERAMIC CAP. F Z 0.47µF/16V CHD1CZ30F474 C7008 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104 C7009 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104 C7010 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104 C7012 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104 C7013 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104 C7101 ELECTROLYTIC CAP. 220µF/6.3V M H7 CE0KMAVSL221 C7102 CERAMIC CAP.(AX) B K 1000pF/50V CCA1JKT0B102

----------

Ref. No. Description Part No.

C7109 CHIP CERAMIC CAP. F Z 4.7µF/16V(2012) CHE1CZ30F475 C7110 CHIP CERAMIC CAP. F Z 4.7µF/16V(2012) CHE1CZ30F475 C7111 ELECTROLYTIC CAP. 220µF/6.3V M H7 CE0KMAVSL221 C7515 CHIP CERAMIC CAP. F Z 4.7µF/16V(2012) CHE1CZ30F475 C7516 CHIP CERAMIC CAP. F Z 4.7µF/16V(2012) CHE1CZ30F475 C7602 CHIP CERAMIC CAP. F Z 4.7µF/16V(2012) CHE1CZ30F475 C7605 CHIP CERAMIC CAP. F Z 4.7µF/16V(2012) CHE1CZ30F475 C7608 CHIP CERAMIC CAP. F Z 4.7µF/16V(2012) CHE1CZ30F475 C7611 CHIP CERAMIC CAP. F Z 4.7µF/16V(2012) CHE1CZ30F475 C7615 CHIP CERAMIC CAP. F Z 4.7µF/16V(2012) CHE1CZ30F475 C7618 CHIP CERAMIC CAP. F Z 4.7µF/16V(2012) CHE1CZ30F475 C7621 CHIP CERAMIC CAP. F Z 4.7µF/16V(2012) CHE1CZ30F475 C7624 CHIP CERAMIC CAP. F Z 4.7µF/16V(2012) CHE1CZ30F475 C7701 CHIP CERAMIC CAP.(1608) CH J 100pF/50V CHD1JJ3CH101 C7702 CHIP CERAMIC CAP. F Z 0.47µF/16V CHD1CZ30F474 C7705 CHIP CERAMIC CAP.(1608) CH J 100pF/50V CHD1JJ3CH101 C7706 CHIP CERAMIC CAP. F Z 0.47µF/16V CHD1CZ30F474 C7709 CHIP CERAMIC CAP.(1608) CH J 100pF/50V CHD1JJ3CH101 C7710 CHIP CERAMIC CAP. F Z 0.47µF/16V CHD1CZ30F474 C7714 CHIP CERAMIC CAP.(1608) CH J 100pF/50V CHD1JJ3CH101 C7715 CHIP CERAMIC CAP.(1608) B K 0.047µF/50V CHD1JK30B473 C7718 CHIP CERAMIC CAP.(1608) CH J 100pF/50V CHD1JJ3CH101 C7719 CHIP CERAMIC CAP. F Z 0.47µF/16V CHD1CZ30F474 C7723 CHIP CERAMIC CAP.(1608) CH J 100pF/50V CHD1JJ3CH101 C7724 CHIP CERAMIC CAP.(1608) B K 0.047µF/50V CHD1JK30B473 C7729 CHIP CERAMIC CAP. CH J 39pF/50V CHD1JJ3CH390 C7730 CHIP CERAMIC CAP. F Z 0.47µF/16V CHD1CZ30F474 C7733 CHIP CERAMIC CAP. CH J 39pF/50V CHD1JJ3CH390 C7734 CHIP CERAMIC CAP. F Z 0.47µF/16V CHD1CZ30F474 C7738 CHIP CERAMIC CAP. CH J 39pF/50V CHD1JJ3CH390 C7739 CHIP CERAMIC CAP. F Z 0.47µF/16V CHD1CZ30F474 C7743 CHIP CERAMIC CAP. CH J 39pF/50V CHD1JJ3CH390 C7744 CHIP CERAMIC CAP. F Z 0.47µF/16V CHD1CZ30F474 C7747 CHIP CERAMIC CAP. CH J 39pF/50V CHD1JJ3CH390 C7748 CHIP CERAMIC CAP. F Z 0.47µF/16V CHD1CZ30F474 C7751 CHIP CERAMIC CAP. CH J 39pF/50V CHD1JJ3CH390 C7752 CHIP CERAMIC CAP. F Z 0.47µF/16V CHD1CZ30F474 C7801 ELECTROLYTIC CAP. 100µF/16V M H7 CE1CMAVSL101 C7802 ELECTROLYTIC CAP. 100µF/16V M H7 CE1CMAVSL101

CONNECTOR

CN7501 FMN CONNECTOR TOP 24P 24FMN-BTK-

A(LF)(SN)

JCFNG24JG019

IC7001 IC VIDEO ANALOG INTERFACE R2A11011FP

QFP 56PIN

QSZBA0RHT066

COILS

L7802 PCB JUMPER D0.6-P5.0 JW5.0T L7803 PCB JUMPER D0.6-P5.0 JW5.0T

RESISTORS

R7001 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R7002 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R7101 CHIP RES. 1/10W J 75 Ω RRXAJR5Z0750 R7102 CHIP RES. 1/10W J 75 Ω RRXAJR5Z0750 R7103 CHIP RES. 1/10W J 75 Ω RRXAJR5Z0750 R7104 CHIP RES. 1/10W J 75 Ω RRXAJR5Z0750 R7105 CHIP RES.(1608) 1/10W 0 Ω RRXAJR5Z0000 R7106 CHIP RES.(1608) 1/10W 0 Ω RRXAJR5Z0000 R7111 CHIP RES. 1/10W J 75 Ω RRXAJR5Z0750 R7112 CHIP RES. 1/10W J 75 Ω RRXAJR5Z0750 R7502 PCB JUMPER D0.6-P5.0 JW5.0T R7503 PCB JUMPER D0.6-P5.0 JW5.0T R7504 PCB JUMPER D0.6-P5.0 JW5.0T R7515 CHIP RES. 1/10W J 18k Ω RRXAJR5Z0183

20070620 13-4 A71A0EL

Page 63

Ref. No. Description Part No.

R7516 CHIP RES. 1/10W J 18k Ω RRXAJR5Z0183 R7517 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104 R7518 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104 R7601 CHIP RES. 1/10W J 43k Ω RRXAJR5Z0433 R7602 CHIP RES. 1/10W J 27k Ω RRXAJR5Z0273 R7604 CHIP RES. 1/10W J 43k Ω RRXAJR5Z0433 R7605 CHIP RES. 1/10W J 27k Ω RRXAJR5Z0273 R7607 CHIP RES. 1/10W J 43k Ω RRXAJR5Z0433 R7608 CHIP RES. 1/10W J 27k Ω RRXAJR5Z0273 R7610 CHIP RES. 1/10W J 43k Ω RRXAJR5Z0433 R7611 CHIP RES. 1/10W J 27k Ω RRXAJR5Z0273 R7613 CHIP RES. 1/10W J 43k Ω RRXAJR5Z0433 R7614 CHIP RES. 1/10W J 27k Ω RRXAJR5Z0273 R7616 CHIP RES. 1/10W J 43k Ω RRXAJR5Z0433 R7617 CHIP RES. 1/10W J 27k Ω RRXAJR5Z0273 R7619 CHIP RES. 1/10W J 43k Ω RRXAJR5Z0433 R7620 CHIP RES. 1/10W J 27k Ω RRXAJR5Z0273 R7622 CHIP RES. 1/10W J 43k Ω RRXAJR5Z0433 R7623 CHIP RES. 1/10W J 27k Ω RRXAJR5Z0273 R7701 CHIP RES. 1/10W J 75 Ω RRXAJR5Z0750 R7702 CHIP RES. 1/10W J 100 Ω RRXAJR5Z0101 R7708 CHIP RES. 1/10W J 75 Ω RRXAJR5Z0750 R7709 CHIP RES. 1/10W J 100 Ω RRXAJR5Z0101 R7715 CHIP RES. 1/10W J 75 Ω RRXAJR5Z0750 R7716 CHIP RES. 1/10W J 100 Ω RRXAJR5Z0101 R7723 CHIP RES. 1/10W J 75 Ω RRXAJR5Z0750 R7724 CHIP RES. 1/10W J 100 Ω RRXAJR5Z0101 R7730 CHIP RES. 1/10W J 75 Ω RRXAJR5Z0750 R7731 CHIP RES. 1/10W J 100 Ω RRXAJR5Z0101 R7738 CHIP RES. 1/10W J 75 Ω RRXAJR5Z0750 R7739 CHIP RES. 1/10W J 100 Ω RRXAJR5Z0101 R7747 CHIP RES.(1608) 1/10W F 75 Ω RRXAFR5H75R0 R7748 CHIP RES. 1/10W J 100 Ω RRXAJR5Z0101 R7755 CHIP RES.(1608) 1/10W F 75 Ω RRXAFR5H75R0 R7756 CHIP RES. 1/10W J 100 Ω RRXAJR5Z0101 R7763 CHIP RES.(1608) 1/10W F 75 Ω RRXAFR5H75R0 R7764 CHIP RES. 1/10W J 100 Ω RRXAJR5Z0101 R7771 CHIP RES.(1608) 1/10W F 75 Ω RRXAFR5H75R0 R7772 CHIP RES. 1/10W J 100 Ω RRXAJR5Z0101 R7779 CHIP RES.(1608) 1/10W F 75 Ω RRXAFR5H75R0 R7780 CHIP RES. 1/10W J 100 Ω RRXAJR5Z0101 R7787 CHIP RES.(1608) 1/10W F 75 Ω RRXAFR5H75R0 R7788 CHIP RES. 1/10W J 100 Ω RRXAJR5Z0101

MISCELLANEOUS

JK7501 JACK HPEP SML PCB S PJ-358H JXSJ020YUQ01 JK7701 JACK SW DIN PCB S YKF51-5379V JYEJ040JC002 JK7702 JACK SW RCA PCB S RCA-347HDT-02 JYRJ030YUQ01 JK7705 JACK SW DIN PCB L DIN-435C JYEL040YUQ02 JK7706 JACK SW RCA PCB L 05 RCA-340NI-01 JYRL030YUQ14 JK7711 JACK RCA PCB S 03 RCA-347HT-03 JXRJ030YUQ01 JK7712 JACK SW RCA PCB S RCA-228H(2)NI-01 JYRJ020YUQ02 JK7713 JACK RCA PCB S 03 RCA-347HT-03 JXRJ030YUQ01 JK7714 JACK SW RCA PCB S RCA-228H(2)NI-01 JYRJ020YUQ02

INVERTER CBA

Ref. No. Description Part No.

INVERTER CBA Consists of the following:

CAPACITORS

C502 CERAMIC CAP. B K 0.01µF/500V CCD2JKP0B103 C503# SAFETY CAP. E M 1000pF/250V CCG2EMP0E102 C504# METALIZED FILM CAP. 0.47µF/250V CT2E474MS037

1ESA14547

Ref. No. Description Part No.

C505# METALIZED FILM CAP. 0.47µF/250V CT2E474MS037 C506 CERAMIC CAP. B K 0.01µF/500V CCD2JKP0B103 C507# SAFETY CAP. E M 1000pF/250V CCG2EMP0E102 C509# ALUMINUM ELECTROLYTIC CAP 470µF/200V MCA2D471NC190

C510 FILM CAP.(P) 0.022µF/50V J CMA1JJS00223 C511 CERAMIC CAP.(AX) B J 390pF/50V CCA1JJT0B391 C512 CERAMIC CAP.(AX) B J 100pF/50V CCA1JJT0B101 C513 CERAMIC CAP.(AX) F Z 0.1µF/50V CCA1JZTFZ104 C514 ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100 C515 PCB JUMPER D0.6-P5.0 JW5.0T C516 P.P. CAPACITOR 0.022µF/630V J CBP2KKD00223 C517 CERAMIC CAP. BN 560pF/2KV CCD3DKA0B561 C519# SAFETY CAP. E M 1000pF/250V CCG2EMP0E102 C520 FILM CAP.(P) 0.022µF/50V J CMA1JJS00223 C521 CERAMIC CAP.(AX) B K 0.01µF/50V CA1J103TU011 C551 CERAMIC CAP.(AX) F Z 0.01µF/25V CCA1EZTFZ103 C555 CERAMIC CAP. B K 1000pF/500V CCD2JKS0B102 C556 FILM CAP.(P) 0.01µF/50V J CMA1JJS00103 C558# CAP ELE STD-85 4700µF/35V SL CE1GMZNDL472 C560 ELECTROLYTIC CAP. 0.1µF/50V M CE1JMASDL0R1 C561 CAP ELE STD-85 4700µF/35V SL CE1GMZNDL472

CONNECTORS

CN501 CONNECTOR B2P3-VH(LF)(SN) J3VH020JG001 CN553 WIRE ASSEMBLY 14PIN / 120MM / AWG WX1A71A0-007

DIODES

D502# DIODE 1N5406 NDLZ001N5406 D503# DIODE 1N5406 NDLZ001N5406 D504# DIODE 1N5406 NDLZ001N5406 D505# DIODE 1N5406 NDLZ001N5406 D507 DIODE 1ZC30(Q) QDLZ001ZC30Q D509 DIODE FR154 NDLZ000FR154 D510 SCHOTTKY BARRIER DIODE ERA81-004Q QDLZRA81004Q D511 FAST RECOVERY DIODE CA201-4 QDWZ00CA2014 D512 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D513 ZENER DIODE MTZJT-7718B QDTB00MTZJ18 D514 DIODE 1ZC33(Q) QDLZ001ZC33Q D552# SCHOTTKY BARRIER DIODE ERC84-009 QDLZERC84009 D553# SCHOTTKY BARRIER DIODE ERC84-009 QDLZERC84009 D554 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D555# SCHOTTKY BARRIER DIODE ERC84-009 QDLZERC84009 D556 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D557 IC SHUNT REGULATOR KIA431-AT/P NSZBA0TJY036 D558# SCHOTTKY BARRIER DIODE ERC84-009 QDLZERC84009 D559 DIODE 1ZC30(Q) QDLZ001ZC30Q D560 ZENER DIODE MTZJT-7727B QDTB00MTZJ27 D563 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D564 ZENER DIODE MTZJT-775.1B QDTB0MTZJ5R1

ICS

IC501 IC UCC28600DR SOIC 8PIN NSZAA0TTY017 IC509# PHOTOCOUPLER LTV-817B-F NPEB0LTV817F IC510# PHOTOCOUPLER LTV-817B-F NPEB0LTV817F

COILS

L502# LINE FILTER MS036 LLBG00ZY2009 L503# LINE FILTER MS036 LLBG00ZY2009

TRANSISTORS

Q501# FET MOS 2SK3561(Q) IDSS100UA QFWZ2SK3561Q Q502 TRANSISTOR KTC3199-GR-AT/P NQS4KTC3199P Q503 TRANSISTOR KTA1267-GR-AT/P NQS1KTA1267P Q551 TRANSISTOR KTC3199-GR-AT/P NQS4KTC3199P Q552 TRANSISTOR KTC3199-GR-AT/P NQS4KTC3199P Q553 TRANSISTOR KTC3199-GR-AT/P NQS4KTC3199P

20070620 13-5 A71A0EL

Page 64

Ref. No. Description Part No.

Q554 TRANSISTOR KTC3199-GR-AT/P NQS4KTC3199P Q555 TRANSISTOR KTA1267-GR-AT/P NQS1KTA1267P

RESISTORS

R501# CEMENT RESISTOR 5W J 0.47 Ω RW05R47PAK10 R503# CARBON RES. 1/2W J 3.3M Ω RCX2335DP001 R505# METAL OXIDE FILM RES. 2W J 0.2 Ω RN02R20ZU001 R506 CARBON RES. 1/4W J 10k Ω RCX4JATZ0103 R507 CARBON RES. 1/4W J 1k Ω RCX4JATZ0102 R509 PCB JUMPER D0.6-P5.0 JW5.0T R510# CARBON RES. 1/4W J 120k Ω RCX4JATZ0124 R511 CARBON RES. 1/4W J 120k Ω RCX4JATZ0124 R512 CARBON RES. 1/4W J 120k Ω RCX4JATZ0124 R513 CARBON RES. 1/4W J 22 Ω RCX4JATZ0220 R514 CARBON RES. 1/4W J 22 Ω RCX4JATZ0220 R515 CARBON RES. 1/4W J 220k Ω RCX4JATZ0224 R516 CARBON RES. 1/4W J 27k Ω RCX4JATZ0273 R517# CARBON RES. 1/4W J 560k Ω RCX4JATZ0564 R518 CARBON RES. 1/4W J 560k Ω RCX4JATZ0564 R519 CARBON RES. 1/4W J 560k Ω RCX4JATZ0564 R521 CARBON RES. 1/4W J 330k Ω RCX4JATZ0334 R522 METAL RESISTOR 2W J 18k Ω RN02183ZU001 R523 PCB JUMPER D0.6-P5.0 JW5.0T R524 METAL RESISTOR 2W J 18k Ω RN02183ZU001 R525 CARBON RES. 1/4W J 1k Ω RCX4JATZ0102 R526 CARBON RES. 1/4W J 2.2k Ω RCX4JATZ0222 R527 CARBON RES. 1/4W J 10k Ω RCX4JATZ0103 R528 PCB JUMPER D0.6-P5.0 JW5.0T R530 PCB JUMPER D0.6-P5.0 JW5.0T R535 PCB JUMPER D0.6-P5.0 JW5.0T R551 CARBON RES. 1/4W J 5.6k Ω RCX4JATZ0562 R553 CARBON RES. 1/4W J 2.2k Ω RCX4JATZ0222 R554 CARBON RES. 1/4W J 22k Ω RCX4JATZ0223 R555 CARBON RES. 1/4W J 820 Ω RCX4JATZ0821 R556 PCB JUMPER D0.6-P5.0 JW5.0T R557 CARBON RES. 1/4W G 2.2k Ω RCX4GATZ0222 R558 CARBON RES. 1/4W G 6.8k Ω RCX4GATZ0682 R559 CARBON RES. 1/4W G 6.8k Ω RCX4GATZ0682 R560 CARBON RES. 1/4W G 5.6k Ω RCX4GATZ0562 R561 CARBON RES. 1/4W J 1k Ω RCX4JATZ0102 R562 CARBON RES. 1/4W J 3.3k Ω RCX4JATZ0332 R563 CARBON RES. 1/4W J 240k Ω RCX4JATZ0244 R564 CARBON RES. 1/4W J 2.7k Ω RCX4JATZ0272 R565 CARBON RES. 1/4W J 10k Ω RCX4JATZ0103 R566 METAL OXIDE FILM RES. 2W J 1.5k Ω RN02152DP004 R567 METAL OXIDE FILM RES. 2W J 1.5k Ω RN02152DP004 R568 CARBON RES. 1/4W J 5.6k Ω RCX4JATZ0562 R571 CARBON RES. 1/4W J 22k Ω RCX4JATZ0223 R572 CARBON RES. 1/4W J 3.3k Ω RCX4JATZ0332 R573 CARBON RES. 1/4W J 47k Ω RCX4JATZ0473 R574 CARBON RES. 1/4W J 6.8k Ω RCX4JATZ0682 R575 CARBON RES. 1/4W J 1k Ω RCX4JATZ0102 R576 CARBON RES. 1/4W J 100 Ω RCX4JATZ0101

MISCELLANEOUS

AC501# AC CORD UL 1855MM BLACK WAC0182LW007 B40 HEAT SINK PMN ASSEMBLY A71A0UH 1EM424514 BC501 BEADS INDUCTOR FBR07HA121SB-00 LLBF00STU030 BC502 BEADS INDUCTOR FBR07HA121SB-00 LLBF00STU030 BC552 BEADS INDUCTOR FBR07HA121SB-00 LLBF00STU030 BC553 BEADS INDUCTOR FBR07HA121SB-00 LLBF00STU030 CL552A WIRE ASSEMBLY 001 8PIN / 90MM / AWG26 WX1A71A0-001 F501# FUSE STC4A125V U/CT PAGE20CW3402 FH501 FUSE HOLDER MSF-015 LF (B110) XH01Z00LY002

Ref. No. Description Part No.

FC501 CORE FERRITE TOROIDAL HF40T18X10X10 XL04018TE001 FH502 FUSE HOLDER MSF-015 LF (B110) XH01Z00LY002 GP501# GAP. FNR-G3.10D FAZ000LD6005 JS501 PCB JUMPER D0.6-P10.0 JW10.0T JS504 PCB JUMPER D0.6-P5.0 JW5.0T JS506 PCB JUMPER D0.6-P5.0 JW5.0T JS553 PCB JUMPER D0.6-P10.0 JW10.0T JS554 PCB JUMPER D0.6-P10.0 JW10.0T L6 SCREW B-TIGHT D3X8 BIND HEAD+ GBJB3080 SA502# SURGE ABSORBER 470V+-10PER NVQZ10D471KB T501# TRANS POWER 7728 LTT3PC0KT032

DIGITAL SUB CBA

Ref. No. Description Part No.

DIGITAL SUB CBA Consists of the following:

CONNECTOR

CN1 ANGLE PIN HEADER IMSA6029B105Z003PT1 JTED005ER045

TRANSISTORS

Q1 TRANSISTOR 2SA1931(Q) QQZZ2SA1931Q Q2 TRANSISTOR 2SA1931(Q) QQZZ2SA1931Q Q3 TRANSISTOR 2SA1931(Q) QQZZ2SA1931Q

RESISTORS

R1 METAL OXIDE FILM RES. 2W J 0.68 Ω RN02R68DP004 R3 METAL OXIDE FILM RES. 2W J 0.68 Ω RN02R68DP004 R4 METAL OXIDE FILM RES. 2W J 0.68 Ω RN02R68DP004 R5 METAL OXIDE FILM RES. 2W J 0.68 Ω RN02R68DP004

MISCELLANEOUS

A WIRE ASSEMBLY 301 1PIN/100MM/AWG20/

B LEAD WIRE 1P 60MM 1P/60MM/AWG20/RED WX3201DAFF06 C LEAD WIRE 1P 50MM 1P/50MM/AWG20/

D LEAD WIRE 1P 50MM 1P/50MM/AWG20/

YEL

ORANGE

1ESA14901

WX1A71F0-301

WX3301DAFF05

20070620 13-6 A71A0EL

Page 65

All rights reserved. No part of this manual may be reproduced, copied, transmitted, disseminated, transcribed, downloaded or stored in any storage medium, in any form or for any purpose without the express prior written consent of Funai. Furthermore, any unauthorized commercial distribution of this manual or any revision hereto is strictly prohibited.

Information in this document is subject to change without notice. Funai reserves the right to change the content herein without the obligation to notify any person or organization of such changes.

with the design is a registered trademark of Funai Electric Co., Ltd and may not be used in any way without the express written consent of Funai. All other trademarks used herein remain the exclusive property of their respective owners. Nothing contained in this manual should be construed as granting, by implication or otherwise, any license or right to use any of the trademarks displayed herein. Misuse of any trademarks or any other content in this manual is strictly prohibited. Funai shall aggressively enforce its intellectual property rights to the fullest extent of the law.

LC260SS8

A71A0UH

2007-07-20

Sylvania LC260SS8 Schematic

Specifications and Main Features

Frequently Asked Questions

User Manual

SPECIFICATIONS

IMPORTANT SAFETY PRECAUTIONS

STANDARD NOTES FOR SERVICING

CABINET DISASSEMBLY INSTRUCTIONS

ELECTRICAL ADJUSTMENT INSTRUCTIONS

HOW TO INITIALIZE THE LCD TELEVISION

BLOCK DIAGRAMS

SCHEMATIC DIAGRAMS / CBA’S AND TEST POINTS

WAVEFORMS

WIRING DIAGRAM

EXPLODED VIEWS

MECHANICAL PARTS LIST

ELECTRICAL PARTS LIST
