Sylvania LC195SSX, LC225SSX User Manual

LC225SSX LC195SSX

Owner’s Manual Guide d’utilisation Manual del Usuario

EnglishEspañol Français

NEED HELP?

BESOIN D’AIDE ?

¿NECESITA AYUDA?

PLEASE CALL TOLL FREE!

APPELEZ NOTRE NUMÉRO GRATUIT !

¡LLAME POR FAVOR SIN COSTO!

1-866-321-3927

OR VISIT OUR WEB SITE AT

OU VISITEZ NOTRE SITE WEB À L’ADRESSE

Ó VISITE NUESTRO SITIO WEB EN

www.sylvaniaconsumerelectronics.com

MODEL NUMBER SERIAL NUMBER

HIGH-DEFINITION TELEVISION

TO RECEIVE DIGITAL/ANALOG SIGNAL, YOU MUST CONNECT ANTENNA.

POUR RECEVOIR LE SIGNAL NUMÉRIQUE /ANALOGIQUE, VOUS DEVEZ CONNECTER L’ANTENNE.

PARA RECIBIR LA SEÑAL DIGITAL/ ANALÓGICA, DEBE CONECTAR LA ANTENA.

The model and serial numbers of this unit may be found on the cabinet. You should record and retain those numbers for future reference.

Model No.:

Serial No.:

Precautions5

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS

TO RAIN OR MOISTURE.

APPARATUS SHALL NOT BE EXPOSED TO DRIPPING OR SPLASHING AND NO OBJECTS

FILLED WITH LIQUIDS, SUCH AS VASES, SHALL BE PLACED ON THE APPARATUS.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC

SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The caution marking is located on the rear or bottom of the cabinet.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the apparatus’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the apparatus.

Important Safety Instructions

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in

accordance with the manufacture’s instructions.

8. Do not install near any heat sources such as radiators,

heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or

grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or

pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the

manufacturer.

12. Use only with the cart, stand, tripod, bracket,

or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when

unused for long periods of time.

14. Refer all servicing to qualified service personnel.

Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

Do not place the unit on the furniture that is capable of being tilted by a child and an adult leaning, pulling, standing or climbing on it. A falling unit can cause serious injury or even death.

FCC WARNING

This apparatus may generate or use radio frequency energy. Changes or modifications to this apparatus may cause harmful interference unless the modifications are expressly approved in the manual. The user could lose the authority to operate this apparatus if an unauthorized change or modification is made.

RADIO-TV INTERFERENCE

This apparatus has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This apparatus generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this apparatus does cause harmful interference to radio or television reception, which can be determined by turning the apparatus off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

1) Reorient or relocate the receiving antenna.

2) Increase the separation between the apparatus and receiver.

3) Connect the apparatus into an outlet on a circuit different from that to which the receiver is connected.

4) Consult the dealer or an experienced radio/TV technician for help.

This Class B digital apparatus complies with Canadian ICES-003.

EnglishEspañol Français

This apparatus should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided. Make sure to leave a space of 2.8 inches (7cm) or more around this apparatus.

Disconnect the mains plug to shut off when find trouble or not in use. The mains plug shall remain readily operable.

CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type. WARNING: Batteries (battery pack or battery installed) shall not be exposed to excessive heat such as sunshine, fire or the like.

LAMP IN LCD CONTAINS MERCURY, DISPOSE ACCORDING TO LOCAL, STATE OR FEDERAL LAW.

WARNING: To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the instructions.

TO AVOID THE HAZARDS OF ELECTRICAL SHOCK AND FIRE

Do not handle the AC power cord with wet hands.

• Do not remove this unit’s cabinet. Touching parts inside the cabinet could result in electric shock and/or damage to

• this unit. For service and adjustment inside the cabinet, call a qualified dealer or an authorized service center. Do not pull on the AC power cord when disconnecting it from an AC outlet. Grasp it by the plug.

• Do not put your fingers or objects into the unit.

•

LOCATION AND HANDLING

The openings should not be blocked by placing the unit on a bed, sofa, carpet, rug, or other similar surface.

• Do not install the unit near or over a radiator or heat register.

• Do not install the unit in direct sunlight, near strong magnetic fields, or in a place subject to dust or strong vibration.

• Avoid a place with drastic temperature changes.

• Install the unit in a horizontal and stable position. Do not place anything directly on top or bottom of the unit.

• Depending on your external devices, noise or disturbance of the picture and/or sound may be generated if the unit is placed too close to them. In this case, please ensure enough space between the external devices and the unit. Depending on the environment, the temperature of this unit may increase slightly. This is not a malfunction.

•

NOTE ABOUT RECYCLING

This unit’s packaging materials are recyclable and can be reused.

• Please dispose of any materials in accordance with your local recycling regulations. Batteries should never be thrown away or incinerated but disposed of in accordance with your

• local regulations concerning chemical wastes.

Trademark Information

HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI

• Licensing LLC.

Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby

• Laboratories.

Products that have earned ENERGY STAR® are designed to protect the environment through superior energy efficiency.

•

NTRODUCTION

screw holes



Supplied Accessories5

owner’s manual (1EMN24319)

If you need to replace these accessories, please refer to the part No. with the illustrations and call our toll free

• customer support line found on the cover of this manual.

Attaching the Stand

You must attach the stand to the unit to have it as a table top unit. Be sure the front and rear of the stand match the proper direction.

Spread a thick and soft cloth over a

table as shown below. Place the main unit face down onto it. Make sure not to damage the screen.

quick start guide (1EMN24604)

remote control (NF015UD)

Align the 2 stand hooks with the two

hooks under the bottom of the main unit (shown by arrow the stand in the direction as shown by arrow mounting holes are aligned. Make sure not to put the AC power cord between the stand and the unit.

until it stops and the 4

➁

), then slide

➀

batteries (AA x 2)

Phillips pan screw for attaching the stand x 3 (FPH34120)

Drive Phillips pan screws in the 3

threaded holes at the bottom of the stand until they are tight.



fron

t side

To remove the stand from this unit

Unscrew the Phillips pan screws indicated by above “➂”screw holes. After the screws are removed pull the stand up toward the rear of the unit. Be careful not to drop the stand when you remove it.

Note:

• When attaching the stand, ensure that all screws are tightly fastened. If the stand is not properly attached, it could cause the unit to fall, resulting in injuries as well as damage to the unit.

• Make sure to use a table which can support the weight of this unit and is larger than this unit.

• Make sure the table is in a stable location.

Symbols Used in this Manual

The following is the description for the symbols used in this manual. Description refers to:

: Analog TV operation



DTV

: Digital TV operation

• If neither symbol appears under the function heading, operation is applicable to both.

EnglishEspañol Français

INTRODUCTION PREPARATION

Features5

DTV/TV/CATV

•

You can use your remote control to select

channels which are broadcast in digital format and conventional analog format. Also, cable subscribers can access their cable TV channels.

Information Display (DTV only)

•

You can display the title, contents and other

information of the current DTV program on the TV screen.

Autoscan

•

This unit automatically scans and memorizes

channels available in your area, eliminating difficult setup procedures.

Child Lock

•

This feature allows you to block children’s access to

inappropriate programs.

Closed Caption Decoder

•

Built-in closed caption decoder displays text for

closed caption supported programs.

MTS/SAP Tuner

•

Audio can be selected from the remote control.

Auto Shut Off Function

•

If there is no signal input from the antenna terminal

and no operation for 15 minutes, the unit will turn off automatically.

Sleep Timer

•

This feature will automatically turn off the power of

the unit at a specific time.

Choices for On-screen Language

•

Select your on-screen language:

English, Spanish or French.

Stereo Sound Function

• PLL Frequency Synthesized Tuning

•

Provides free and easy channel selection and lets

you tune directly to any channel using the number buttons on the remote control.

Various Adjustment for Picture and Sound

•

Customizes image quality to suitable for your room

and sets the sound as your preference.

HDMI Input

• Component Video Input

• PC Input

• S-video Input

• AV Input

• Digital Audio Output

• Headphone Audio Output

•

Contents5

Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Trademark Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

INTRODUCTION

Supplied Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Attaching the Stand . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Symbols Used in this Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Terminals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Remote Control Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Installing the Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

PREPARATION

Antenna Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Connection to Cable Receiver or Satellite Box . . . . . . . . . . . 8

External Device Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Plug In the AC Power Cord . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Initial Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

WATCHING TV

Channel Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Volume Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Sleep Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

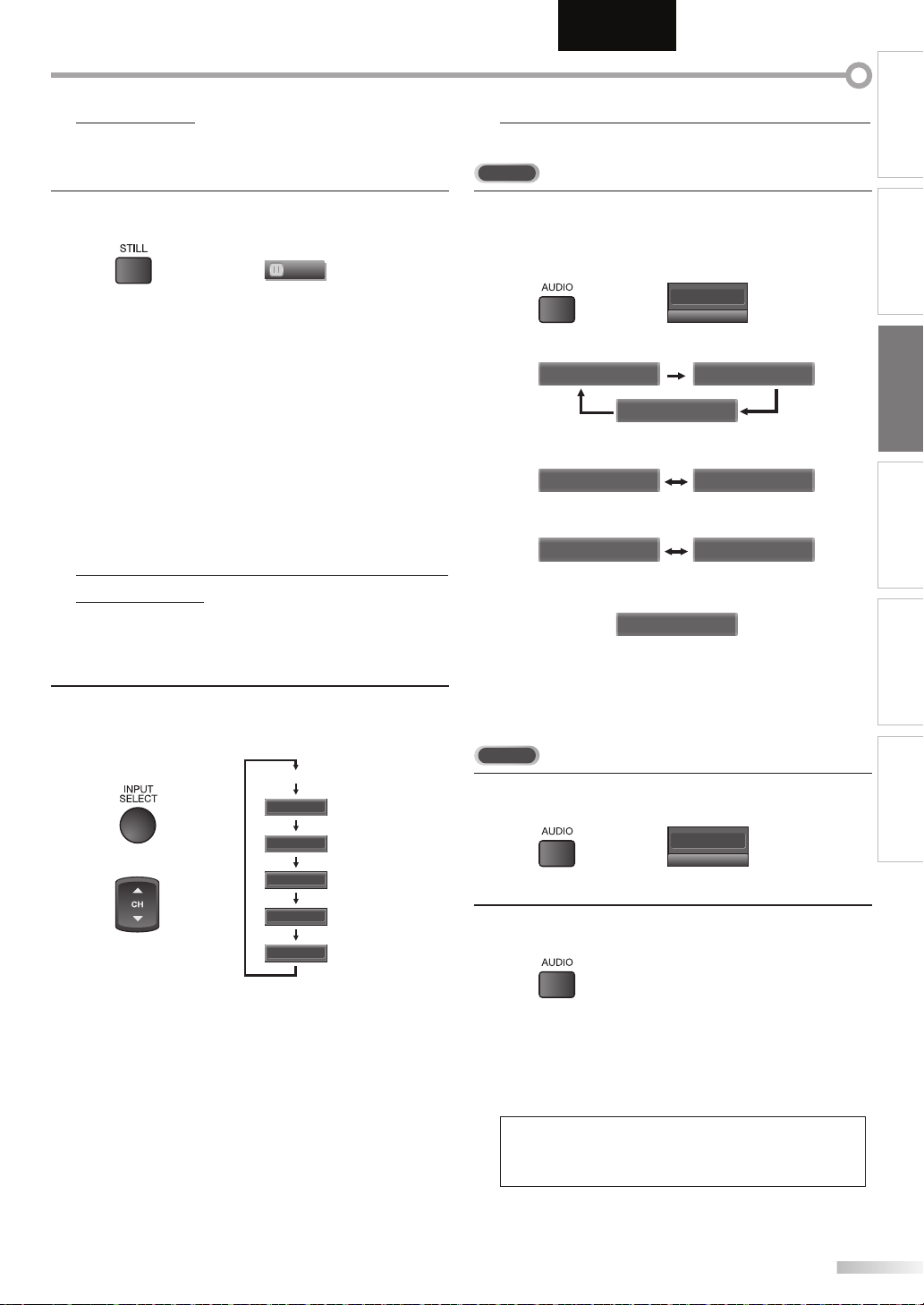

Still Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Switching Each Input Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Switching Audio Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

TV Screen Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

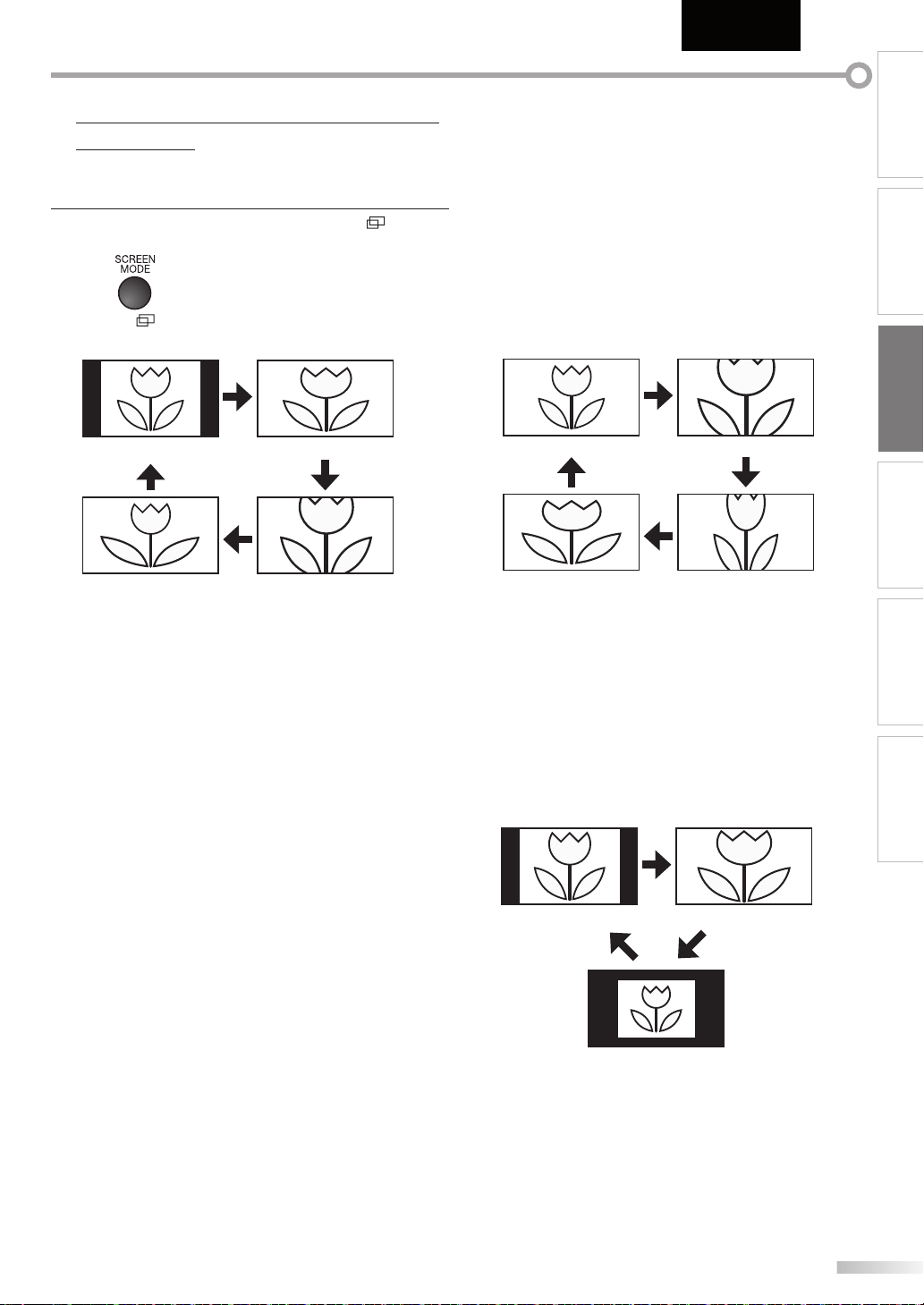

TV Screen Display Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

OPTIONAL SETTING

Main Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

Autoscan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

Channel List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Manual Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Antenna Confirmation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

Language Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

Picture Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

Sound Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

Closed Caption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

Child Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

PC Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30

Energy Saving Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

Current Software Info . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32

TROUBLESHOOTING

FAQ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

Troubleshooting Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

INFORMATION

Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36

Cable Channel Designations . . . . . . . . . . . . . . . . . . . . . . . . . . .37

General Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37

Electrical Specification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37

Other Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37

WATCHING TV

OPTIONAL SETTING TROUBLESHOOTING

INFORMATION

Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38

any storage medium, in any form or for any purpose without the express prior written consent of Funai. Furthermore, any unauthorized commercial distribution of this manual or any revision hereto is strictly prohibited.

Information in this document is subject to change without notice. Funai reserves the right to change the content herein without the obligation to notify any person or organization of such changes.

with the design is a registered trademark of Funai Electric Co., Ltd and may not be used in any way without the express written consent of Funai. All other trademarks used herein remain the exclusive property of their respective owners. Nothing contained in this manual should be construed as granting, by implication or otherwise, any license or right to use any of the trademarks displayed herein. Misuse of any trademarks or any other content in this manual is strictly prohibited. Funai shall aggressively enforce its intellectual property rights to the fullest extent of the law.

NTRODUCTION

HDMI 2

HEAD PHONE

Control Panel5

VOL

SETUP

1. y (power) (p. 13)

Press to turn the unit on and off.

2. CH K / L (p. 14 / p. 15)

Press to select channels or move up (K) / down (L) through the main menu items.

3. SETUP (p. 13)

Press to display the main menu.

4. VOL

Press to adjust the volume or move right ( (

(p. 14)

) through the main menu items.

) / left

5. STAND BY indicator

Lights up red when power is off.

6. POWER ON indicator

5 6

STAND BY

POWER ON

13 24

Lights up green when power is on.

7. infrared sensor window

Receives infrared rays transmitted from the remote control.

Termi na ls5

14 15

17 18

Note:

service terminal (service use only)

• Use this terminal only when a software update is necessary.

• User should not connect any devices to the service terminal such as digital camera, keyboard, mouse, etc. (because these will not work).

• The software update is, in most cases, handled by an authorized service person or in some circumstances the user may be asked to do the software upgrade themselves.

HDMI 2

HEAD PHONE

[Side Panel]

8. HDMI 2 input jack (p. 8 / p. 9)

HDMI connection from HDMI device.

9. S-video input jack (p. 10)

S-video cable connection from an external device.

10. video input jack (p. 11)

RCA video cable connection from an external device.

11. audio input jack (p. 10 / p. 11)

RCA audio cable connection from an external device.

12. headphone jack

Headphone connection for personal listening.

[Rear Panel]

13. antenna input jack (p. 8)

coaxial cable connection for your antenna or cable

TV signal.

14. AC power cord (p. 12)

Connect to a standard AC outlet to supply power to

this unit.

15. PC input jack (p. 12)

VGA cable connection for PC.

16. HDMI 1 input jack (p. 8 / p. 9)

HDMI connection for HDMI or DVI device.

17. component video and audio input jack

RCA component video cable and RCA audio cable connection from an external device.

18. digital audio output jack (p. 11)

Coaxial digital cable connection for a decoder or an audio receiver.

19. audio input jack for PC connection (p. 12)

Mini-plug audio cable connection for PC.

20. audio input jack for HDMI 1 (p. 9)

RCA audio cable connection from a DVI device. (For HDMI 1 input jack only)

(p. 8 / p. 10)

Remote Control Function5

CH RETURN

1. POWER (p. 13) Press to turn the unit on and off.

2. Number buttons (p. 14)

• Press to select channels.

(hyphen)

• Press to shift the subchannel from the main channel.

3. SETUP (p. 13) Press to display the main menu.

/ B / K / L (p. 13)

Press to move left / right / up / down through the

items.

5. ENTER (p. 13) Press to decide the command of setting when the

main menu is displayed.

EnglishEspañol Français

6. BACK (p. 16) Press to return to the previous menu operation.

7. CH RETURN (p. 14) Press to return to previously viewed channel.

8. VOL. X/Y (p. 14) Press to adjust the volume.

9. MUTE Press to turn the sound on and off.

10. INPUT SELECT (p. 15) Press to access connected external devices

like a BD/DVD recorder.

11. SLEEP (p. 14) Press to activate the sleep timer.

12. AUDIO (p. 15) Digital mode (DTV)

• Press to select the audio language.

Analog mode (TV)

• Press to select the audio mode.

13. STILL (p. 15) Press to pause screen image.

14. SCREEN MODE

Press to select aspect ratio available for the TV screen.

15. INFO (p. 16) Digital mode (DTV)

• Press to display the channel information, signal type

Analog mode (TV)

• Press to display the channel number, signal type and

External input mode

• Press to display the external input mode, signal type

16. CH K/L (p. 14 / p. 15) P

When using a universal remote control to operate this unit.

• Make sure the component code on your universal remote control is set to our brand. Refer to the manual accompanying your remote control for more details.

• We do not guarantee 100% interoperability with all universal remote controls.

(p. 14)

(p. 17)

and TV setting.

TV setting.

and TV setting.

ress to select channels and the external input mode.

INTRODUCTION PREPARATION

WATCHING TV

OPTIONAL SETTING TROUBLESHOOTING

INFORMATION

Installing the Batteries

Install the batteries (AA x 2) matching the polarity indicated inside battery compartment of the remote control.

Battery Precautions:

• Be sure to follow the correct polarity as indicated in the battery compartment. Reversed batteries may cause damage to the device.

• Do not mix different types of batteries together (e.g., Alkaline and Carbon-Zinc, or rechargeable batteries like ni-cad, ni-mh, etc) or old batteries with fresh ones.

• If the device is not to be used for a long period of time, remove the batteries to prevent damage or injury from possible battery leakage.

• Do not try to recharge batteries; they can overheat and rupture.

REPARATION

HDMI 2

(red)

(blue)

(green)

(red)

(blue)

(green)

No supplied cables are used in this connection:

Please purchase the necessary cables at your local store. High Speed HDMI cable (also known as HDMI category 2 cable) is recommended for the better compatibility.

Before you connect... Be sure your antenna or other device is connected properly before plugging in the AC power cord.

Antenna Connection

Connect the RF coaxial cable on your home outlet to the antenna input jack of this unit.

e.g.)

VHF / UHF

rear of this unit

antenna

RF coaxial cable

cable TV signal

Once connections are completed, turn on the unit and begin initial setup. Channel scanning is necessary for the unit

to memorize all available channels in your area. (Refer to “Initial Setup” on page 13.)

Note:

• If you have any question about the DTV’s antenna, visit www.antennaweb.org for further information.

• Depending on your antenna system, you may need different types of combiners (mixers) or separators (splitters). Contact your local electronics store for these items.

• For your safety and to avoid damage to this unit, please unplug the RF coaxial cable from the antenna input jack before moving the unit.

• If you use an antenna to receive analog TV, it should also work for DTV reception. Outdoor or attic antennas will be more effective than settop versions.

• To switch your reception source easily between antenna and cable, install an antenna selector.

• If you connect to the cable system directly, contact the CATV installer.

Connection to Cable Receiver or Satellite Box

Use an HDMI or an RCA component video cable to connect the HDMI or the component video input jack of the unit to the HDMI or the component video output jack of the cable receiver / satellite box. If you connect to the unit’s component Video Input jack, connect RCA audio cables to the Audio L/R jacks below the Component Video connector.

(green)(green)

HDMI cable

COMPONENT VIDEO OUT

(blue)(blue)

Pr/CrPb/CbY

(red)(red)

side or rear of this unit

HDMI 2

e.g.)

satellite dish

HDMI OUT

AUDIO OUT

ANT IN

RF coaxial cable

cable TV signal

including PPV

STEREO PCM

cable receiver / satellite box

(green)

(blue)

(red)

RCA component video cable and RCA audio cable

You can also connect this unit to the cable receiver or satellite box other than the HDMI or the component video

output jack because they might have different output jacks. Required cables and connecting methods of the cable receiver / satellite box, or the availability channel for the

clear QAM may differ depending on the cable / satellite provider. For more information, please contact your cable / satellite provider.

HDMI 2

STEREO PCM

DVI OUT

AUDIO OUT

No supplied cables are used in this connection:

Please purchase the necessary cables at your local store. High Speed HDMI cable (also known as HDMI category 2 cable) is recommended for the better compatibility.

External Device Connection

[HDMI Connection]

HDMI connection offers the highest picture quality. HDMI (High-Definition Multimedia Interface) transports high definition video and multi-channel digital audio through a single cable.

e.g.)

EnglishEspañol Français

INTRODUCTION

PREPARATION

WATCHING TV

side or rear of this unit

TITLE 5 CHAPTER 15 REPEAT A-B

BD/DVD recorder with the HDMI output jack

HDMI OUT

HDMI cable

HDMI 2

Note:

• This unit accepts 480i / 480p / 720p / 1080i video signals, and 32kHz / 44.1kHz / 48kHz audio signals.

• This unit accepts only 2 channel audio signal (LPCM).

• You need to select “PCM” for the digital audio output of the device you connected or check the HDMI audio setting. There may be no audio output if you select “Bitstream”, etc.

• This unit only accepts signals in compliance with EIA861.

[HDMI-DVI Connection]

Use an HDMI-DVI conversion cable to connect the unit to external video devices equipped with DVI output jack.

e.g.)

HDMI-DVI conversion cable

To HDMI1

input jack only

rear of this unit

OPTIONAL SETTING TROUBLESHOOTING

INFORMATION

cable receiver or satellite box with the DVI output jack

Note:

• This unit accepts 480i / 480p / 720p / 1080i video signals.

• HDMI-DVI connection requires separate RCA audio connections as well.

• Audio signals are converted from digital to analog for this connection.

• DVI does not display 480i image that is not in compliance with EIA/CEA-861/861B.

RCA audio cable

REPARATION

(green)

(blue)

(red)

No supplied cables are used in this connection:

Please purchase the necessary cables at your local store.

[Component Video Connection]

RCA component video connection offers better picture quality for video devices connected to the unit. If you connect to the unit’s component Video Input jack, connect RCA audio cables to the Audio L/R jacks below the Component Video connector.

e.g.)

(red)(blue)(green)

Pr/CrPb/CbY

(green)

(blue)

RCA component

video cable

(red)

TITLE 5 CHAPTER 15 REPEAT A-B

BD/DVD recorder with the component video output jack

COMPONENT VIDEO OUT

AUDIO OUT

RCA audio cable

Note:

rear of this unit

• This unit accepts 480i / 480p / 720p / 1080i video signals.

[S-video Connection]

S-video connection offers good picture quality for video devices connected to the unit. If you connect to the unit’s S-Video Input jack, connect RCA audio cables to the Audio L/R jacks below the Video connector.

e.g.)

TITLE 5 CHAPTER 15 REPEAT A-B

AUDIO OUT

S-VIDEO

OUT

S-video cable

side of this unit

BD/DVD recorder with the S-video output jack

RCA audio cable

Note:

• If you connect to the S-video input jack and the video input jack at the same time, the S-video connection will have priority.

No supplied cables are used in this connection:

Please purchase the necessary cables at your local store.

EnglishEspañol Français

INTRODUCTION

[Video Connection]

RCA video connection offers standard picture quality for video devices connected to the unit. If you connect to the unit’s Video Input jack, connect RCA audio cables to the Audio L/R jacks below the Video connector. When the audio jack of the video device is monaural, connect an RCA audio cable to the Audio L input jack.

e.g.)

camcorder video game

AUDIO OUT

STEREO

STAND-BY

VCR

VIDEO

OUT

RCA audio cable

RCA video cable

side of this unit

Note:

• If you connect to the S-video input jack and the video input jack at the same time, the S-video connection will have priority.

[Audio Output Connection (for digital broadcasting only)]

If you connect this unit to an external digital audio device, you can enjoy multi-channel audio like 5.1ch digital broadcasting sound. Use a digital audio coaxial cable to connect the unit to external digital audio devices.

PREPARATION

WATCHING TV

OPTIONAL SETTING TROUBLESHOOTING

INFORMATION

e.g.)

Dolby Digital

decoder

DIGITAL AUDIO

COAXIAL IN

rear of this unit

digital audio coaxial cable

REPARATION

No supplied cables are used in this connection:

Please purchase the necessary cables at your local store.

[PC Connection]

This unit is equipped with a PC input jack. If you connect this unit to your PC, you can use this unit as a PC monitor. Use an VGA cable for this connection and it requires stereo mini plug audio cable as well.

e.g.)

rear of this unit

VGA cable should be with ferrite core.

personal computer

stereo mini plug audio cable

The following signals can be displayed:

Format Resolution Refresh rate Format Resolution Refresh rate

VGA 640 x 480 60Hz

SVGA 800 x 600 60Hz

XGA 1,024 x 768 60Hz

Other formats or non-standard signals will not be displayed correctly.

VGA cable

1,280 x 768 60Hz

WXGA

1,360 x 768 60Hz

Note:

• Please purchase the VGA cable that has a ferrite core.

• The following operations may reduce noise.

- Attach a ferrite core to the AC power cord of your PC.

- Unplug the AC power cord and use the built-in battery of your PC.

Plug In the AC Power Cord

Make sure that the AC power cord must be plugged to an AC outlet after all the necessary connections are completed.

rear of this unit

AC power cord

AC outlet

Caution:

• Do not connect the AC power cord to a power supply outside the indicated voltage of this unit (AC 120V). Connecting the AC power cord to a power supply outside of this range may result in fire or electrical shocks.

Note:

• Each time you plugged in the AC power cord, any operations will not be performed for a few seconds. This is not a malfunction.

These operations are accessible by remote control. Some may also be accessible by controls on the main unit.

Initial Setup

This section will guide you through the unit’s initial setting which includes selecting a language for your on-screen menu and autoscan, which automatically scans and memorizes viewable channels.

Before you begin:

Make sure the unit is connected to antenna or cable.

After making all the necessary connections,

Use [Cursor s / B] to select the desired location setting,

then press [ENTER].

Initial Setup

Select “Retail” or “Home” for your location.

press [POWER] to turn on the unit.

Select Enter

This operation may take a few moments.

•

Use [Cursor K / L] to select the on-screen language

from the choices on the right side of the TV screen. (English / Español / Français)

Initial Setup

Select the language for setup display.

Elija el idioma de ajuste.

Sélectionner langue écran config.

English

Español

Français

Select ”Retail”, the unit will be set up with predefined

• setting for retail displays. In this setting, the power consumption may possibly exceed the limited requirement of the ENERGY STAR® qualification.

Select ”Home”, the unit is set to maximize the energy

• efficiency for home setting and it can be adjusted through a choice of picture and sound quality according to your preference.

When the initial setup is completed, the lowest

• memorized channel with the confirmation message of the location setting will be displayed on the TV screen.

Note:

Select Skip

•

“Initial Setup” menu on step 3 will be displayed in the

ENTER

Enter

SETUP

selected language after you press [ENTER].

Use [Cursor K / L] to select “Antenna” for TV channels

or “Cable” for CATV channels, then press [ENTER].

Initial Setup

Make sure the antenna is connected to“ANT. IN” jack.

Select the destination of “ANT. IN” jack.

Antenna

“Autoscan” will begin.

•

Cable

ENTER

Select Skip

Initial Setup

Now the system is scanning for channels,please wait. Autoscan will take up to 20 minutes to complete.

Analog channels 0ch

Digital channels 0ch

ANT.IN

SETUPBACK

BackEnter

SETUP

Skip

Antenna Cable Skip

• If you connect the cable system directly, contact the CATV installer.

• If you press [POWER] or [SETUP] during autoscan, this setting will be canceled.

• The initial autoscan function can be executed for either “Antenna” or “Cable” only once. When you change the connection (Antenna / Cable), set autoscan again. (Refer to page 18.)

• If there is no signal input from the antenna terminal and no operation for several seconds after you turn on the unit, “Helpful Hints” appears. Follow the instructions listed on the TV screen.

Initial Setup

No channel is registered.

Try Autoscan again?

Verify that you have a cable connected to the

on the back of the TV, the channel installation process

searches this connection. If you are using a cable or satellite

box, please confirm the input which you have connected the

box and press the “INPUT SELECT” key on the remote control to

select the appropriate source input.

"ANT. IN" jack

Enter

SETUP

ENTER

Select Skip

• You must set ”Home” in step 4. Otherwise, the settings of picture and sound quality you adjusted will not be memorized after you turn off the unit.

After an initial setup is completed...

If you want to scan the channels automatically again,

• refer to “Autoscan” on page 18.

You can add the desired channels unmemorized by

• “Autoscan”. Refer to “Manual Register” on page 19.

If you want to change to another language, refer to

• “Language Selection” on page 20.

•

If you want to change the location setting, refer to “Location” on page 31.

Retry Later

EnglishEspañol Français

INTRODUCTION

PREPARATION

HomeRetail

ENTER

WATCHING TV

OPTIONAL SETTING TROUBLESHOOTING

INFORMATION

ATCHING TV

Channel Selection

Select channels by using [CH K / L] or [the Number buttons].

To select the memorized channels, use [CH K / L] or

•

[the Number buttons]. To select the non-memorized channels, use

•

[the Number buttons].

To Use [the Number buttons]

When selecting channel 11

DTV

When selecting digital channel 11-1 Be sure to press [-] before entering the subchannel number.

Press [CH RETURN] to return to the previously

• channel.

About digital TV broadcasting:

With its high definition broadcast, digital broadcasting far surpasses analog broadcasting in both its picture and sound quality. Not all digital TV broadcasts are high definition (HD). To confirm whether your watching TV program is in HD, refer to the program guide, contact your cable / satellite provider or local TV stations.

NTSC

(analog mode)

(Soccer)

CH4

(Soccer)

CH4

Air time

6:00pm

6:30pm

CH4-1

(Soccer)

ATSC

(digital mode)

(Soccer)

CH4-1

main channel

(News)

CH4-2

CH4-3

(Tennis)

Volume Adjustment

This section describes how to adjust the volume. The mute function, which turns the sound off and on, is also described.

Use [VOL. X / Y] to adjust the audio volume.

Volume 30

The volume bar will be displayed at the bottom of the TV screen when adjusting the volume.

•

The volume bar will automatically disappear in a few seconds.

Press [MUTE

] to turn off and on the sound.

Mute

“Mute” is displayed on the TV screen for a few seconds.

Press [MUTE ] again or [VOL. X / Y] to recover the original volume.

Sleep Timer

The sleep timer can be set to automatically turn off the unit after an incremental period of time.

Press [SLEEP] to set the sleep timer.

Sleep

Off

Sleep timer display appears on the TV screen.

main channel

CH4-1

main channel

(Soccer)

CH4-1

main channel

can be changed by using

(Soccer)

CH4-2

subchannel

CH4

(Soccer)

7:00pm

7:30pm

8:00pm

What is the subchannel?

By using high compression technology, digital broadcasting offers a service that enables multiple signals to send simultaneously. Therefore, you can select more than one program per main channel since digital broadcasting technology distinguishes between multiple channels broadcast by a single network.

Note:

• “No Signal” will appear on the TV screen after the subchannel broadcast is over.

• “Audio only program“ message will appear on the TV screen, when you receive only sound signal.

subchannelsubchannel

(News)

[CH K / L]

Press [SLEEP] repeatedly to change the amount of time

until shut off.

Sleep

120min.

You can set your unit to turn off after a set period of time (from 30 to 120 minutes).

Each press of [SLEEP] will increase the time by 30

• minutes. After setup, the sleep timer display can be called up

• for checking by pressing [SLEEP].

To cancel the sleep timer

Press [SLEEP] repeatedly until “Sleep Off” is displayed on the TV screen.

Note:

• The sleep timer display will automatically disappear in a few seconds.

• When you disconnect the unit from the AC outlet or when a power failure occurs, the sleep timer setting will be canceled.

Still Mode

You can pause the image shown on the TV screen.

Press

You can easily switch with the remote control to the DTV (ATSC) and TV (NTSC) or to access external devices when they are connected to the unit.

[STILL] to pause the image shown on the TV

screen.

Still

The sound output will not be paused.

• If no signal is detected or protected signal is received

• during still mode, the image remains paused and the sound output will be muted. The still function will be released after 5 minutes.

•

To cancel still mode, press any button except [POWER].

Switching Each Input Mode

Press [INPUT SELECT] or [CH K] repeatedly to cycle through the input modes.

DTV/TV channel

Video

Component

HDMI1

HDMI2

EnglishEspañol Français

Switching Audio Mode

This section describes how to switch the audio in the analog mode and how to switch the audio language in the digital mode.

Press [AUDIO] to display the currently selected audio mode. While receiving an MTS broadcast, press repeatedly to cycle through the available audio channel.

When all audio are available

When stereo and monaural audio are available

When SAP and monaural audio are available

When only monaural audio is available

STEREO : Outputs stereo-audio SAP : Outputs second audio program MONO : Outputs mono-audio

DTV

Press [AUDIO] to display the currently selected

language and the number of available languages.

Press [AUDIO] repeatedly to cycle through the

available audio languages.

SAP / STEREO SAP / MONO

SAP / STEREO

MONO / STEREO MONO / STEREO

SAP / MONO SAP / MONO

(cannot be switched)

SAP / STEREO

MONO

11-1

English 1/3

INTRODUCTION

PREPARATION WATCHING TV

OPTIONAL SETTING TROUBLESHOOTING

INFORMATION

Pressing [CH L] reverses the direction of the input

• modes.

Available languages differ depending on the

• broadcast. “Other” is displayed when the audio language cannot be acquired, or the acquired languages are other than English, Spanish or French.

Note:

• [AUDIO] does not control external audio devices.

• The information display will automatically disappear in a few seconds.

ATCHING TV

11-1

English 1/2

TV: TV-14

Rating

1080i

16:9

16:9HDHD

A Day of Memories

KABC

A quarter-century ago,which may now qualify as the good old days of newspapering,run-of-paper sales accounted for 80 percent of the industry's advertising revenues. Department stores and supermarket were

1 2

5 6, 7, 8

9 10

TV Screen Information

You can display the currently selected channel or other information such as the audio mode on the TV screen.

In the analog mode, the current channel number and the audio mode are displayed.

DTV

In the digital mode, the detailed broadcasting information for the current channel such as program title, program guides are displayed.

Press [INFO].

SAP / STEREO

480i

The current channel number, audio mode, type of

• resolutions for video signal, TV aspect ratio, CC and TV program rating are displayed on the top-right corner of the TV screen. To clear the display, press [INFO] again. You can also

• press [BACK].

TV-PG DLSV

4:3

Press [INFO] to display the details of the currently selected program.

Broadcasting information

The following information is displayed.

1 program title 2 program guide

(The program guide added to broadcasting information is displayed to a maximum of 4 lines.)

3 broadcast station 4 channel number 5 audio language

(Refer to “Switching Audio Mode” on page 15.)

6 effective scanning lines and scan mode 7 digital TV format 8 program aspect ratio 9 CC (not available if closed caption is set to “Off”) 10 child lock rating

Note:

• When the program guide consists of more than 4 lines, use

[Cursor K/ L] to scroll.

• “No description provided.” is displayed when the program guide is not provided.

• While the program guide is displayed, the closed caption function is interrupted.

• In external input mode, the following screen is displayed; e.g.) When an external device is connected to VIDEO input

jack.

Video

480iSDSD

480i

TV-PG DLSV

• The information display will automatically disappear in 1 minute.

TV Screen Display Mode

4 types of display modes can be selected when the broadcasting station is sending 4:3 or 16:9 video signal. And 3 types of display modes can be selected for PC input signal.

Press [SCREEN MODE ] repeatedly to switch the TV aspect ratio.

For 4:3 video signal

EnglishEspañol Français

INTRODUCTION

PREPARATION WATCHING TV

For 16:9 video signal

Sidebar Full

Wide Cinema

Sidebar

Display a 4:3 picture at its original size. Sidebars appear on both edges of the screen.

Full

Display a 4:3 picture at a 16:9 size; the picture is stretched horizontally to fill the screen.

Cinema

Display a 4:3 picture at a 16:9 size; the picture is stretched horizontally and vertically to fill the screen. This crops out the top and bottom of the picture.

Wide

Display the picture with its center at the original size and the edges stretched horizontally to fill the screen.

Full

Expand

Zoom

Cinema

Full

Display a 16:9 picture at its original size.

Zoom

Display a 16:9 picture at its maximum size without changing its horizontal and vertical ratio.

Cinema

Display a vertically stretched picture.

Expand

Display a horizontally stretched picture.

For PC input signal

Normal Full

OPTIONAL SETTING TROUBLESHOOTING

INFORMATION

Dot By Dot

Normal

Display a proportionately stretched picture. Sidebars appear on both edges of the screen.

Full

Display a picture that is stretched out of proportion to fill the screen.

Dot By Dot

Display a picture in its original size.

PTIONAL SETTING

Main Menu

This section describes the overview of the main menu displayed when you press [SETUP]. For more details, see the reference page for each item. The main menu consists of the function setting items below.

Press [SETUP].


You can adjust the picture quality. (Refer to “Picture Adjustment” on page 21.)

SOUND

You can adjust the sound quality. (Refer to “Sound Adjustment” on page 22.)

CHANNEL

•

You can automatically scan the viewable channels. (Refer to “Autoscan” on page 18.)

•

You can skip the undesired channels when selecting the channels using [CH K / L]. (Refer to “Channel List” on page 19.)

•

You can add the channels that were not scanned by the autoscan. (Refer to “Manual Register” on page 19.)

DETAIL

•

You can change the display format for closed caption, which displays the dialogue of a TV program or other information across the TV screen. (Refer to “Closed Caption” on page 23.)

•

You can set the viewing limitations. (Refer to ‘‘Child Lock” on page 26.)

•

You can adjust the position, stability and clarity of the PC screen. (Refer to “PC Settings” on page 30.)

•

You can select the energy saving mode. (Refer to “Energy Saving Mode” on page 31.)

•

When you adjust the desired “PICTURE” and “SOUND” mode, you must switch the setting from “Retail” to “Home”. (Refer to “Location” on page 31.)

•

You can confirm the version of the software currently used in this unit. (Refer to ”Current Software Info” on page 32.)

LANGUAGE

You can change the language (English, Spanish, French) displayed on the main menu. (Refer to “Language Selection” on page 20.)

Autoscan

If you switch wires (e.g., between antenna and CATV) or if you move the unit to a different area after the initial setting, or if you restore the DTV channel you deleted, you will need to perform autoscan.

Before you begin: Make sure the unit is connected to antenna or cable.

Press [SETUP] to display the main menu.

Use [Cursor K / L] to select “CHANNEL” , then press

[ENTER].

Use [Cursor K / L] to select “Autoscan”, then press

[ENTER].

Channel

Autoscan Channel List Manual Register Antenna

Use [Cursor K / L] to select an appropriate option, then press [ENTER].

Autoscan

Autoscan will rescan all channels. Autoscan will take up to 20 minutes to complete.

Select the destination of "ANT.IN" jack.

Antenna

Cable

When aerial antenna is connected, select “Antenna”.

• When connected to CATV, select “Cable”.

• “Autoscan” will begin.

•

When the scanning and memorizing are completed,

•

Now the system is scanning for Channels,please wait Autoscan will take up to 20 minutes to complete.

75%

Analog channels 10ch

Digital channels 6ch

SETUP

Exit

Back Antenna Cable

ANT.IN

the lowest memorized channel will be displayed.

Note:

• After setting “Autoscan”, using [CH K / L] on the remote

control skips unavailable programs automatically.

• If you connect the cable system directly, contact the CATV installer.

• If you press [POWER] or [SETUP] during autoscan, the setting will be canceled.

• Even if “Autoscan“ is completed, the channel setting will be lost if the AC power cord is unplugged before turning off the unit by pressing [POWER].

• The PIN Code will be required once you set a PIN Code in the “Child Lock“ (Refer to page 26).

• If you want to change your PIN Code, follow the instruction of “New PIN Code” (Refer to page 29).

Channel List

The channels selected here can be skipped when selecting the channels using [CH K / L]. Those channels can still be selected with [the Number buttons].

Press [SETUP] to display the main menu.

Manual Register

This function lets you add the channels that were not added by the autoscan due to the receptible condition at the initial setting.

Press [SETUP] to display the main menu.

EnglishEspañol Français

INTRODUCTION

PREPARATION

Use [Cursor K / L] to select “CHANNEL”, then press

[ENTER].

Use [Cursor K / L] to select “Channel List”, then press

[ENTER].

Channel

Autoscan Channel List Manual Register Antenna

Use [Cursor K / L] to select the channel you want to

remove, then press [ENTER].

Channel List

Highlight channels for Ch Up/Down key selection.

ENTER

The channel display for the removed channel

•

Ch Select Watch/Skip Back

darkens. You will not be able to select the channel again using [CH K / L]. To reactivate a removed channel, use [Cursor K / L] and

•

press [ENTER]. The registered channels are highlighted. When you remove a main channel, its subchannels

• are removed as well.

Note:

• The channel with the “DTV” indicated on the display is ATSC. Otherwise the channel is NTSC.

Press [SETUP] to exit.

DTV 6

DTV 8

DTV 48

DTV 67

BACK

Use [Cursor K / L] to select “CHANNEL”, then press

[ENTER].

WATCHING TV

OPTIONAL SETTING

Use [Cursor K / L] to select “Manual Register”, then

press [ENTER].

Use [the Number buttons] to enter the number of the

channel you want to add, then press [ENTER].

Channel

Autoscan Channel List Manual Register Antenna

TROUBLESHOOTING

INFORMATION

Manual Register

For analog channels, select a channel to register using number keys.

For digital channels, you must perform Autoscan function.

Ch Change

Press [SETUP] to exit.

Note:

• If setup completes successfully, “Added to the channel list” is displayed.

• If external input is used, it is not possible to register the channel and “Unavailable” will be displayed on the TV screen.

• By using [CH K / L], you can select the memorized channels only.

BACK

Back

PTIONAL SETTING

Antenna Confirmation

DTV

This function lets you check the digital signal strength of each channel.

Language Selection

You can choose English, Spanish, or French as your on-screen language.

Press [SETUP] to display the main menu.

Use [Cursor K / L] to select “CHANNEL”, then press

[ENTER].

Use [Cursor K / L] to select “Antenna”, then press

[ENTER].

Channel

Autoscan Channel List Manual Register Antenna

Use [the Number buttons] or [CH

K / L

] to select the

channel for which you want to check the digital signal strength.

Press [SETUP] to display the main menu.

Use [Cursor K / L] to select “LANGUAGE”, then press

[ENTER].

Use [Cursor K / L] to select “English”, “Español” or

“Français”, then press [ENTER].

Language

Select the language for setup display.

Elija el idioma de ajuste.

Sélectionner langue écran config.

Press [SETUP] to exit.

English

Español

Français

If the channel is set to analog channel or external

• input, you cannot confirm the antenna condition.

Press [SETUP] to exit.

Antenna

Current50 50 Max

11-1

Back

Ch Change

Note:

• If you need the English menus instead of the Spanish or

French menus, press [SETUP]. Use [Cursor K / L] to select “IDIOMA” or “LANGUE”, then press [ENTER]. Use [Cursor K / L] to select “English”, then press [ENTER]. Press [SETUP] to exit the main menu.

Video

Antenna

Indicator is available for digital broadcasting only.

Ch Change

Back

Picture Adjustment

You can adjust brightness, contrast, color, tint, sharpness and color temperature.

EnglishEspañol Français

INTRODUCTION

Before you begin: You must set ”Home” in ”Location” (Refer to page 31).

Otherwise, the settings you adjusted will not be memorized after you turn off the unit.

Press [SETUP] to display the main menu.

Use [Cursor K / L] to select “PICTURE”, then press

[ENTER].

Use [Cursor K / L] to select the item you want to adjust,

then press [ENTER].


Adjust the picture quality.


Picture Mode

Brightness Contrast Color Tint Sharpness Color Temperature

Personal

Normal

Picture Mode

Use [Cursor K / L] to select the desired setting, then press [ENTER]. (‘‘Personal“, ‘‘Standard“, ‘‘Sports“, ‘‘Movie“ and ‘‘Game“)


Picture Mode

Brightness Contrast Color Tint Sharpness Color Temperature

Personal

Standard Sports Movie Game

Brightness

Contrast

Color

30 60 36

0 0

Tint

Sharpness

Color Temperature

Brightness, Contrast, Color, Tint, Sharpness, Color Temperature

Use [Cursor K / L] to select the desired setting, then use [Cursor

Brightness 30

Adjust

Contrast

Adjust Move

Color

Adjust Move

Tint

Adjust Move

Color Temp. Normal

Adjust Move

Press [SETUP] to exit.

] to adjust.

Cursor

to decrease

ENTER

Move

Enter

0Sharpness

ENTER

Enter

ENTER

Enter

ENTER

Enter

ENTER

Enter

ENTER

Enter

brightness

to decrease contrast

to decrease color intensity

to add red to add green

to soften to sharpen

to add warm colors

Cursor

to increase brightness

to increase contrast

to increase color intensity

to add cool colors

PREPARATION

WATCHING TV

OPTIONAL SETTING

TROUBLESHOOTING

INFORMATION

Note:

• To cancel picture adjustment, press [SETUP].

• Only the “Personal” setting can be adjusted.

PTIONAL SETTING

Sound Adjustment

You can adjust the sound mode, equalizer and some other sound functions.

Before you begin: You must set ”Home” in ”Location” (Refer to page 31).

Otherwise, the settings you adjusted will not be memorized after you turn off the unit.

Press [SETUP] to display the main menu.

Use [Cursor K / L] to select “SOUND”, then press

[ENTER].

Use [Cursor K / L] to select the sound type you want to

adjust, then press [ENTER].

Adjust the following items.

Sound

Sound Mode Equalizer TV Speakers

Standard

Ext. Amp

TV Speakers

Select the audio output from the unit’s speakers, or not. If your amplifier compatible with the CEC function is connected to this unit using an HDMI cable, some part of the sound operations such as volume up can access synchronized by using this unit’s remote control.

Use [Cursor K / L] to select the desired option, then press [ENTER].

TV Speakers

"On":

Sound will be output from the TV speakers.

"Off":

Sound will not be output from the TV speakers.

"Ext. Amp":

Operation is possible by connecting to the HDMI-CEC compatible amp with a HDMI cable. For details look in the user manual.

Off

Ext. Amp

Press [SETUP] to exit.

The sound will be output from the unit’s speakers.

The sound will not be output from the unit’s speakers.

This function allows you to control audio output from CEC-compatible devices with the unit’s remote control.

Off

Ext. Amp

Sound Mode

Use [Cursor K / L] to select the desired setting, then press [ENTER]. (“Personal “, “Standard “, “Movie “, “Music“ and “News “)

Sound

Sound Mode

Equalizer TV Speakers

Equalizer

Adjust tonal quality for each frequencies. Use [Cursor s / and use [Cursor K / L] to adjust the level, then press [ENTER].

] to select the specific frequency

Equalizer

120Hz0500Hz01.5kHz05kHz010kHz

Personal

Standard

Movie Music News

Note:

• To cancel sound adjustment, press [SETUP].

• We do not guarantee 100% interoperability with other brands of CEC compliant devices.

Closed Caption

A. Caption Service

You can view closed captioning (CC) for TV programs, movies and news. Closed caption refers to text of dialogue or descriptions displayed onscreen.

Press [SETUP] to display the main menu.

A. Caption Service

Use [Cursor K / L] to select “Caption Service”, then

press [ENTER].

Closed Caption

Caption Service Digital Caption Service Caption Style

EnglishEspañol Français

INTRODUCTION

PREPARATION

Off Off

Use [Cursor K / L] to select “DETAIL”, then press

[ENTER].

Use [Cursor K / L] to select “Closed Caption”, then

press [ENTER].

Detail

Closed Caption Child Lock PC Settings Energy Saving Mode Location Current Software Info

See the following description for setting each item.

Closed Caption

Caption Service Digital Caption Service Caption Style

Off Off

...

“A. Caption Service”

...

“B. Digital Caption Service”

...

“C. Caption Style”.

D page 23

D page 24

Use [Cursor K / L] to select the desired closed caption,

WATCHING TV

then press [ENTER].

Closed Caption

Caption Service Off

Digital Caption Service Caption Style

CC1

OPTIONAL SETTING

CC2 CC3 CC4 Text1 Text2 Text3 Text4

Caption mode

TROUBLESHOOTING

On Home

CC1 and Text1;

are the primary caption and text services. The captioning or text is displayed in the same language as the program’s dialogue (up to 4 lines of script on the TV screen, where it does not obstruct relevant parts of the picture).

CC3 and Text3;

serve as the preferred data channels.

A B C

The captioning or text is often a secondary language.

CC2, CC4, Text2 and Text4;

are rarely available and broadcasters use them only in special conditions, such as when “CC1” and “CC3” or “Text1” and “Text3” are not available.

There are 3 display modes according to programs:

•

Paint-on mode:

Displays input characters on the TV screen immediately.

Pop-on mode:

Once characters are stored in memory, they are displayed all at once.

Roll-up mode:

Displays the characters continuously by scrolling (max. 4 lines).

INFORMATION

Press [SETUP] to exit.

PTIONAL SETTING

B. Digital Caption Service

C. Caption Style

B. Digital Caption Service

DTV

In addition to the basic closed caption described on page 23, DTV has its own closed caption called digital caption service. Use this menu to change the settings for digital caption service.

Use [Cursor

L] to select “Digital Caption Service”,

then press [ENTER].

Closed Caption

Use [Cursor

Caption Service Digital Caption Service Caption Style

L] to select the desired digital caption

Off Off

service, then press [ENTER].

Closed Caption

Off

Service 1~6

Press [SETUP] to exit.

Closed Caption

Caption Service

Digital Caption Service

Caption Style

Select if you do not want digital caption service. This is the default.

Select one of these before changing any other item in “Closed Caption” menu. Choose “Service1” under normal circumstances.

Off

Service1 Service2 Service3 Service4 Service5 Service6

C. Caption Style

DTV

You can change the caption style such as font, color or size, etc.

Use [Cursor

L] to select “Caption Style”, then press

[ENTER].

Closed Caption

Caption Service Digital Caption Service Caption Style

Use [Cursor

L] to select “User Setting”, then press

[ENTER].

Caption Style

User Setting Font Style Font Size Font Color Font Opacity Background Color Background Opacity Edge Color

Use [Cursor

L] to select “On”, then press [ENTER].

Edge Type

Caption Style

User Setting

Font Style Font Size Font Color Font Opacity Background Color Background Opacity Edge Color Edge Type

Off Off

Off

Font0

Middle White

Solid Black Solid Black None

Off

Note:

• “Digital Caption Service” that you can switch differs depending on the broadcast description.

Use [Cursor

[ENTER]. Then use [Cursor

L] to select an item, then press

L] to select the desired

setting and press [ENTER].

Picture display

ABCDEFGHIJKL

Edge

(Edge Color and Edge Type) Font (Font Style, Font Size, Font Color and Font Opacity or Transparency)

Background (Background Color and Background Opacity or Transparency)

The setting description for each item is shown on the

• next page. Review your setting choice made on the next page

• by looking in the upper right corner of the displayed setting box (not all selections show the differences selected).

EnglishEspañol Français

FONT7

INTRODUCTION

Font Style

Closed Captioning font style can be changed as below.

Caption Style

User Setting

Font Style

Font Size Font Color Font Opacity Background Color Background Opacity Edge Color Edge Type

Closed Caption

Font0

Font6

FONT7

Font Size

Font size of the displayed caption can be switched as below.

Caption Style

User Setting Font Style

Font Size

Font Color Font Opacity Background Color Background Opacity Edge Color Edge Type

Closed Caption

Large

Middle

Small

Font Color

Font color of the displayed caption can be switched as below.

Caption Style

User Setting Font Style Font Size

Font Color

Font Opacity Background Color Background Opacity Edge Color Edge Type

Closed Caption

White

Black Red Green Blue Yellow Magenta Cyan

Edge Color

Edge color of the displayed caption can be switched as below.

Caption Style

User Setting Font Style Font Size Font Color Font Opacity Background Color Background Opacity

Edge Color

Edge Type

Closed Caption

Edge Type

Edge type of the displayed caption can be switched as below.

Press [SETUP] to exit.

Caption Style

User Setting Font Style Font Size Font Color Font Opacity Background Color

Background Opacity

Edge Color

Edge Type

Closed Caption

White

Black

Red Green Blue Yell ow Magenta Cyan

None

Raised Depressed Uniform L.Shadow R.Shadow

PREPARATION

WATCHING TV

OPTIONAL SETTING

TROUBLESHOOTING

Font Opacity

Font opacity of the displayed caption can be switched as below.

Caption Style

User Setting Font Style Font Size Font Color

Font Opacity

Background Color Background Opacity Edge Color Edge Type

Closed Caption

Solid

Flash Translucent Transparent

Background Color

Background color of the displayed caption can be switched as below.

Caption Style

User Setting Font Style Font Size Font Color Font Opacity

Background Color

Background Opacity Edge Color Edge Type

Closed Caption

White

Black

Red Green Blue Yellow Magenta Cyan

Background Opacity

Background opacity of the displayed caption can be switched as below.

Caption Style

User Setting Font Style Font Size Font Color Font Opacity Background Color

Background Opacity

Edge Color Edge Type

Closed Caption

Solid

Flash Translucent Transparent

Note:

• To show the closed caption on your TV screen, broadcast signal must contain the closed caption data.

• Not all TV programs and commercials have the closed caption or all types of the closed caption.

• Captions and texts may not match the TV voice exactly.

• Changing channels may delay the closed caption for a few seconds.

• Adjusting or muting the volume may delay the closed caption for a few seconds.

• Abbreviations, symbols and other grammatical shortcuts may be used in order to keep pace with the on-screen action. This is not a malfunction.

• The caption or text characters will not be displayed while the main menu or functions display is shown.

• If a black box appears on the TV screen, this means that the closed caption is set to the text mode. To clear the box, select “CC1”, “CC2”, “CC3”, “CC4” or “Off”.

• If the unit receives poor quality television signals, the captions may contain errors, or there might be no captions at all. Some possible causes of poor quality signals are:

- Automobile ignition noise

- Electric motor noise

- Weak signal reception

- Multiplex signal reception (ghosts or screen flutter)

• The unit retains the closed caption setting if the power fails.

• Closed caption will not be displayed when you are using an HDMI connection.

• When the unit receives special effects playback signal (i.e., Search, Slow and Still) from a VCR’s video output channel (CH3 or CH4), the unit may not display the correct caption or text.

INFORMATION

PTIONAL SETTING

Child Lock

Child lock reads the ratings for programs, then denies access to the programs which exceed the rating level you set. With this function, you can block certain programs inappropriate for children and any channels or external input modes can be invisible.

Press [SETUP] to display the main menu.

Use [Cursor

L] to select “DETAIL”, then press

[ENTER].

Use [Cursor K / L] to select “Child Lock”, then press

[ENTER].

Detail

Closed Caption Child Lock PC Settings Energy Saving Mode Location Current Software Info

Use [the Number buttons] to enter the 4-digit

numbers for your PIN Code.

Child Lock

Enter password.

On Home

See the following description for setting each item.

Child Lock

Channel Lock MPAA Rating TV Rating Canadian English Rating Canadian French Rating Downloadable Rating Clear Downloadable Rating New Password

A B C

...

“A. Channel Lock”

...

“B. MPAA Rating”

...

“C. TV Rating”.

...

“D. New PIN Code”

D page 27

D page 28

D page 29

Note:

• When you select a rating and set it to “Block”, the higher ratings will be blocked automatically. The lower ratings will be available for viewing.

• When you set the highest rating to “View”, all ratings turn to “View” automatically.

• To block any inappropriate programs, set your limits in “MPAA Rating”, “TV Rating” and “Downloadable Rating”.

• The child lock setting will be retained after a power failure (except the access code reverts to 0000).

• If the rating is blocked, will appear.

• “Downloadable Rating” will be available when the unit receives a digital broadcast using the new rating system.

• If the broadcasting signal does not have the Downloadable Rating information, “Downloadable Rating is currently not available.” will appear. This message will also appear when you try to access “Downloadable Rating” after you have cleared the Downloadable Rating information, and the new information has not been downloaded since.

• The Canadian rating systems on this unit based on CEA-766-A and the Canadian Radio-Television and

----

Telecommunications Commission (CRTC) policy.

PIN Code

When you have not set up your PIN Code, enter 0000.

• When the PIN Code is correct, “Child Lock” menu is

• displayed.

BACK

Back

EnglishEspañol Français

A. Channel Lock

B. MPAA Rating

INTRODUCTION

A. Channel Lock

Particular channels or external input modes can be invisible in this function.

Use [Cursor K / L] to select “Channel Lock”, then press

[ENTER].

Child Lock

Cannel Lock MPAA Rating TV Rating Canadian English Rating Canadian French Rating Downloadable Rating Clear Downloadable Rating New Password

Use [Cursor K / L] to select the desired rating, then

press [ENTER] repeatedly to switch between “View” and “Block”.

Channel Lock

Video Component HDMI 1 HDMI 2 PC

11.1 DTV

11.2 DTV

ENTER

Press [SETUP] to exit.

Select View/Block Back

B. MPAA Rating

MPAA Rating is the rating system created by MPAA (Motion Picture Association of America).

PREPARATION

Use [Cursor K / L] to select “MPAA Rating”, then press

[ENTER].

Child Lock

Cannel Lock MPAA Rating TV Rating Canadian English Rating Canadian French Rating Downloadable Rating Clear Downloadable Rating New Password

Use [Cursor K / L] to select the desired rating, then

press [ENTER] repeatedly to switch between “View” and “Block”.

MPAA Rating

X NC-17 R PG-13 PG G

BACK

Rating Category X Mature audience only NC-17 No one under 17 admitted

Restricted; under 17 requires accompanying parent or adult guardian

PG-13 Unsuitable for children under 13 PG Parental guidance suggested G General audience NR No rating

ENTER

Select View/Block Back

WATCHING TV

OPTIONAL SETTING

BACK

TROUBLESHOOTING

INFORMATION

Press [SETUP] to exit.

PTIONAL SETTING

C. TV Rating

Use [Cursor K / L] to select “TV Rating”, then press

[ENTER].

Child Lock

Cannel Lock MPAA Rating TV Rating Canadian English Rating Canadian French Rating Downloadable Rating Clear Downloadable Rating New Password

Use [Cursor K / L / s

] to select the desired rating,

then press [ENTER] repeatedly to switch between “View” and “Block”.

TV Rating

TV-MA TV-14 TV-PG TV-G TV-Y7 TV-Y

ENTER

Press [SETUP] to exit.

Select View/Block Back

To set the sub ratings

As for TV-MA, TV-14, TV-PG, or TV-Y7, you can further set the sub ratings to block specific elements of programming. To set the sub ratings, follow the step below.

V S L D

BACK

Rating Category TV-MA Mature audience only higher TV-14 Unsuitable for children under 14 TV-PG Parental guidance suggested TV-G General audience

TV-Y7

Appropriate for all children 7 and older

TV-Y Appropriate for all children lower

Sub Rating Category Rating

FV Fantasy Violence TV-Y7 V Violence S Sexual Situation L Coarse Language

TV-PG TV-14 TV-MA

D Suggestive Dialogue TV-PG, TV-14

Note:

• Blocked sub rating will appear beside the main rating category in “TV Rating” menu.

• You cannot block a sub rating (D, L, S or V) if the main rating is set to “View”.

• Changing the category to “Block” or “View” automatically changes all its sub ratings to the same (“Block” or “View”).

Use [Cursor K / L /

] to select the desired rating,

then press [ENTER] repeatedly to switch between “View” and “Block”.

TV Rating

V S L D

FV TV-MA TV-14 TV-PG TV-G TV-Y7 TV-Y

ENTER

Select View/Block Back

BACK

D. New PIN Code

Although the default code “0000” is supplied with the unit, you can set your own PIN Code.

EnglishEspañol Français

INTRODUCTION

Use [Cursor K / L] to select “New Password”, then press

[ENTER].

Child Lock

Channel Lock MPAA Rating TV Rating Canadian English Rating Canadian French Rating Downloadable Rating Clear Downloadable Rating New Password

Press [the Number buttons] to enter the new 4-digit

PIN Code.

Enter PIN Code again in “Confirm password.” entry

• field.

New Password

Enter password.

Confirm password.

----

PIN Code

Press [SETUP] to exit.

PREPARATION

WATCHING TV

OPTIONAL SETTING

BACK

Back

TROUBLESHOOTING

Note:

• Make sure new PIN Code and confirm PIN Code must be exactly the same. If they are different, the space is cleared for reentering.

• Your PIN Code will be erased and return to the default (0000) when a power failure occurs. If you forget the PIN Code, unplug the AC power cord for 10 seconds to restore the PIN Code to 0000.

INFORMATION

PTIONAL SETTING

PC Settings

This function lets you adjust the PC screen position, clock and phase during PC input.

Press [SETUP] to display the main menu.

Use [Cursor

L] to select “DETAIL”, then press

[ENTER].

Use [Cursor

L] to select “PC Settings”, then press

[ENTER].

Detail

Closed Caption Child Lock PC Settings Energy Saving Mode Location Current Software Info

Use [Cursor K / L] to select the setting you want to

adjust, then press [ENTER].

PC Settings

Auto Adjustment

Horizontal Position Vertical Position Clock Phase

On Home

Horizontal Position

Vertical Position

Clock

0 0 0 0

Phase

Adjust the setting.

Auto Adjustment

Use [Cursor K / L] to select “Adjust”, then press [ENTER].

Auto Adjustment

To automatically synchronize the phase and clock on the TV and PC.

The horizontal/vertical position, clock and phase of

•

Cancel Adjust

the PC screen are automatically adjusted.

Horizontal Position, Vertical Position

Use [Cursor

H. Position

Adjust Move

V. Position

Adjust Move

] to adjust.

Cursor

to move PC

ENTER

Enter

ENTER

Enter

screen left

to move PC

screen down

Cursor

to move PC screen right

to move PC screen up

Clock, Phase

Use [Cursor the PC screen and “Phase” setting to improve the clarity of the PC screen.

Clock

Adjust Move

Phase

Adjust

{

] to adjust “Clock” setting to stabilize

Cursor

ENTER

Enter

to decrease setting value

ENTER

Move

Enter

Cursor

to increase setting value

Press [SETUP] to exit.

Note:

• You may not obtain an appropriate screen with “Auto Adjustment” for some signals. In this case, adjust the settings manually.

• Adjust “Phase” setting after “Clock” setting has been properly adjusted.

+ 85 hidden pages
