Page 1

X11SSZ-TLN4F

Проконсультироваться и купить данное оборудование вы можете в компании «АНД-Системс»

адрес: 125480, г.Москва, ул.Туристская, д.33/1; site: https://andpro.ru тел: +7 (495) 545-4870 email: info@andpro.ru

При обращении используйте промокод AND-PDF и получите скидку.

X11SSZ-QF

X11SSZ-F

USER’S MANUAL

Revision 1.0

Page 2

The information in this User’s Manual has been carefully reviewed and is believed to be accurate. The vendor assumes no responsibility for any inaccuracies that may be contained in this document, and makes no commitment to update or to keep current the information in this manual, or to notify any person or organization of the updates. Please Note:

For the most up-to-date version of this manual, please see our website at www.supermicro.com.

Super Micro Computer, Inc. ("Supermicro") reserves the right to make changes to the product described in this manual at any time and without notice. This product, including software and documentation, is the property of Supermicro and/ or its licensors, and is supplied only under a license. Any use or reproduction of this product is not allowed, except as expressly permitted by the terms of said license.

IN NO EVENT WILL Super Micro Computer, Inc. BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL, SPECULATIVE OR CONSEQUENTIAL DAMAGES ARISING FROM THE USE OR INABILITY TO USE THIS PRODUCT OR DOCUMENTATION, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. IN PARTICULAR, SUPER MICRO COMPUTER, INC. SHALL NOT HAVE LIABILITY FOR ANY HARDWARE, SOFTWARE, OR DATA STORED OR USED WITH THE PRODUCT, INCLUDING THE COSTS OF REPAIRING, REPLACING, INTEGRATING, INSTALLING OR RECOVERING SUCH HARDWARE, SOFTWARE, OR DATA.

Any disputes arising between manufacturer and customer shall be governed by the laws of Santa Clara County in the State of California, USA. The State of California, County of Santa Clara shall be the exclusive venue for the resolution of any such disputes. Supermicro's total liability for all claims will not exceed the price paid for the hardware product.

FCC Statement: This equipment has been tested and found to comply with the limits for a Class A digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the manufacturer’s instruction manual, may cause harmful interference with radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case you will be required to correct the interference at your own expense.

California Best Management Practices Regulations for Perchlorate Materials: This Perchlorate warning applies only to products containing CR (Manganese Dioxide) Lithium coin cells. “Perchlorate Material-special handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate”.

WARNING: Handling of lead solder materials used in this product may expose you to lead, a chemical known to the State of California to cause birth defects and other reproductive harm.

The products sold by Supermicro are not intended for and will not be used in life support systems, medical equipment, nuclear facilities or systems, aircraft, aircraft devices, aircraft/emergency communication devices or other critical

systems whose failure to perform be reasonably expected to result in signicant injury or loss of life or catastrophic

property damage. Accordingly, Supermicro disclaims any and all liability, and should buyer use or sell such products for use in such ultra-hazardous applications, it does so entirely at its own risk. Furthermore, buyer agrees to fully indemnify, defend and hold Supermicro harmless for and against any and all claims, demands, actions, litigation, and proceedings of any kind arising out of or related to such ultra-hazardous use or sale.

Manual Revision 1.0

Release Date: November 09, 2015

Unless you request and receive written permission from Super Micro Computer, Inc., you may not copy any part of this

document. Information in this document is subject to change without notice. Other products and companies referred

to herein are trademarks or registered trademarks of their respective companies or mark holders.

Printed in the United States of America

Page 3

Preface

About This Manual

This manual is written for system integrators, IT technicians and knowledgeable end users. It provides information for the installation and use of the X11SSZ-TLN4F/QF/F motherboard.

About This Motherboard

The X11SSZ series comes in different model variations with different CPU support. The X11SSZ-TLN4F/F supports Intel® Xeon E3-1200 v5 series, 6th Generation Core i7/i5/i3, Pentium, and Celeron processors in an LGA1151 socket, while the X11SSZ-QF supports Intel 6th Generation Core i7/i5/i3, Pentium, and Celeron processors in an LGA1151 socket. The X11SSZ-TLN4F/F features the C236 chipset and support for ECC and Non-ECC DDR4 UDIMM memory, while the X11SSZ-QF features the Q170 chipset and support for Non-ECC only. The X11SSZ series motherboards include the PCI Express 3.0 interface, four SATA 3.0 ports, IPMI 2.0, 12V DC power source, GPU add-on card power connector, dual 10GbE LAN option, HD Graphic outputs, and a combination of USB 2.0 and 3.0 ports. The motherboards also provide security-enhancing technologies such as Intel Software Guard Extensions (Intel SGX), Intel vPro, and Intel Trusted Execution Technology (TXT). The X11SSZ-TLN4F/ QF/F offers exceptional system performance for entry server, data storage, network security, embedded applications, and cloud computing platforms.

Please note that this motherboard is intended to be installed and serviced by professional technicians only. For processor/memory updates, please refer to our website at http://www. supermicro.com/products/.

Conventions Used in the Manual

Special attention should be given to the following symbols for proper installation and to prevent

damage done to the components or injury to yourself:

Warning! Indicates important information given to prevent equipment/property damage

or personal injury.

Warning! Indicates high voltage may be encountered when performing a procedure.

Important: Important information given to ensure proper system installation or to

relay safety precautions.

Note: Additional Information given to differentiate various models or provides information for correct system setup.

Page 4

X11SSZ-TLN4F/QF/F User's Manual

Contacting Supermicro

Headquarters

Address: Super Micro Computer, Inc.

980 Rock Ave.

San Jose, CA 95131 U.S.A.

Tel: +1 (408) 503-8000

Fax: +1 (408) 503-8008

Email: marketing@supermicro.com (General Information)

support@supermicro.com (Technical Support)

Website: www.supermicro.com

Europe

Address: Super Micro Computer B.V.

Het Sterrenbeeld 28, 5215 ML

's-Hertogenbosch, The Netherlands

Tel: +31 (0) 73-6400390

Fax: +31 (0) 73-6416525

Email: sales@supermicro.nl (General Information)

support@supermicro.nl (Technical Support)

rma@supermicro.nl (Customer Support)

Website: www.supermicro.nl

Asia-Pacic

Address: Super Micro Computer, Inc.

3F, No. 150, Jian 1st Rd.

Zhonghe Dist., New Taipei City 235

Taiwan (R.O.C)

Tel: +886-(2) 8226-3990

Fax: +886-(2) 8226-3992

Email: support@supermicro.com.tw

Website: www.supermicro.com.tw

Page 5

Preface

Table of Contents

Chapter 1 Introduction

1.1 Checklist ...............................................................................................................................8

Quick Reference ...............................................................................................................11

Quick Reference Table ......................................................................................................12

Motherboard Features .......................................................................................................14

1.2 Processor and Chipset Overview .......................................................................................18

1.3 Special Features ................................................................................................................18

Recovery from AC Power Loss .........................................................................................19

1.4 System Health Monitoring ..................................................................................................19

Onboard Voltage Monitors ................................................................................................19

Fan Status Monitor with Firmware Control .......................................................................19

Environmental Temperature Control .................................................................................19

System Resource Alert......................................................................................................19

1.5 ACPI Features ....................................................................................................................20

1.6 Power Supply .....................................................................................................................20

Chapter 2 Installation

2.1 Static-Sensitive Devices .....................................................................................................21

Precautions .......................................................................................................................21

Unpacking .........................................................................................................................21

2.2 Motherboard Installation .....................................................................................................22

Tools Needed ....................................................................................................................22

Location of Mounting Holes ..............................................................................................22

Installing the Motherboard.................................................................................................23

2.3 Processor and Heatsink Installation ...................................................................................24

Installing the LGA1151 Processor .....................................................................................24

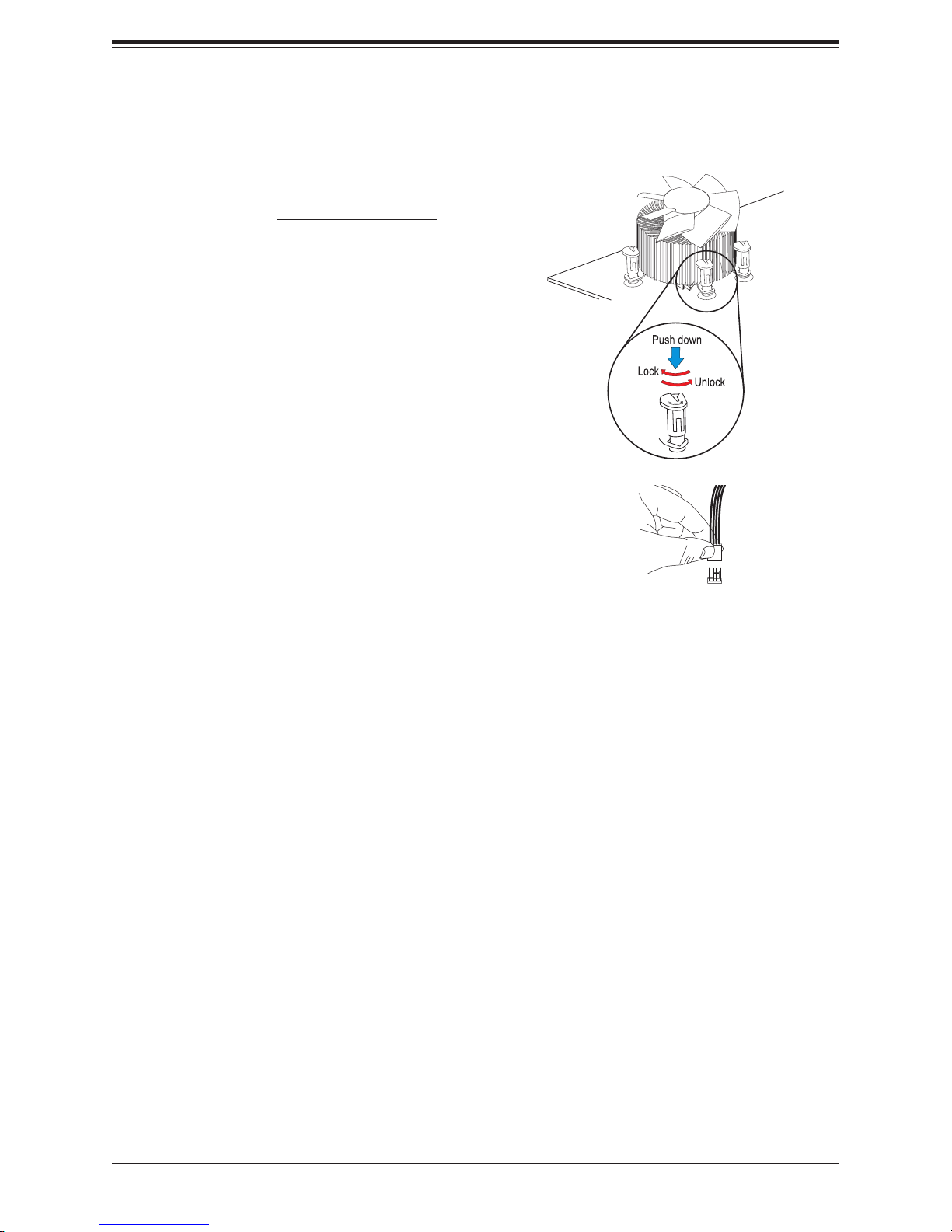

Installing an Active CPU Heatsink with Fan .....................................................................27

Removing the Heatsink .....................................................................................................29

2.4 Memory Support and Installation .......................................................................................30

Memory Support ................................................................................................................30

DIMM Module Population Conguration ...........................................................................30

DIMM Module Population Sequence ................................................................................30

DIMM Installation ..............................................................................................................31

DIMM Removal .................................................................................................................31

Page 6

X11SSZ-TLN4F/QF/F User's Manual

2.5 Rear I/O Ports ....................................................................................................................32

2.6 Front Control Panel ............................................................................................................36

2.7 Connectors .........................................................................................................................40

Power Connections ...........................................................................................................40

Headers .............................................................................................................................43

2.8 Jumper Settings .................................................................................................................52

How Jumpers Work ...........................................................................................................52

2.9 LED Indicators ....................................................................................................................56

Chapter 3 Troubleshooting

3.1 Troubleshooting Procedures ..............................................................................................59

Before Power On ..............................................................................................................59

No Power ..........................................................................................................................59

No Video ...........................................................................................................................60

System Boot Failure .......................................................................................................60

Memory Errors ..................................................................................................................60

Losing the System's Setup Conguration .........................................................................61

When the System Becomes Unstable ..............................................................................61

3.2 Technical Support Procedures ...........................................................................................63

3.3 Frequently Asked Questions ..............................................................................................64

3.4 Battery Removal and Installation .......................................................................................65

Battery Removal ................................................................................................................65

Proper Battery Disposal ....................................................................................................65

Battery Installation .............................................................................................................65

3.5 Returning Merchandise for Service ....................................................................................66

Chapter 4 BIOS

4.1 Introduction .........................................................................................................................67

Starting the Setup Utility ...................................................................................................67

4.2 Main Setup .........................................................................................................................68

4.3 Advanced Setup Congurations .........................................................................................70

4.4 Event Logs .........................................................................................................................95

4.5 IPMI ....................................................................................................................................97

4.6 Security .............................................................................................................................100

4.7 Boot ..................................................................................................................................103

4.8 Save & Exit .......................................................................................................................106

Page 7

Preface

Appendix A BIOS Codes

Appendix B Software Installation

B.1 Installing Software Programs ...........................................................................................11 0

B.2 SuperDoctor® 5 .................................................................................................................111

Appendix C Standardized Warning Statements

Battery Handling ..............................................................................................................112

Product Disposal .............................................................................................................114

Appendix D UEFI BIOS Recovery

Page 8

X11SSZ-TLN4F/QF/F User's Manual

Chapter 1

Introduction

Congratulations on purchasing your computer motherboard from an acknowledged leader in the industry. Supermicro boards are designed with the utmost attention to detail to provide you with the highest standards in quality and performance.

Please check that the following items have all been included with your motherboard. If anything listed here is damaged or missing, contact your retailer. The following items are included in the retail box:

1.1 Checklist

Main Parts List (Included in Retail Box)

Description Part Number Quantity

Supermicro Motherboard X11SSZ-TLN4F/QF/F 1

57.5CM SATA FLAT S-S PBF CBL-0044L 4

Quick Reference Guide MNL-1744-QRG 1

I/O Shield MCP-260-00093-0N 1

Important Links

For your system to work properly, please follow the links below to download all necessary drivers/utilities and the user’s manual for your server.

• Supermicro product manuals: http://www.supermicro.com/support/manuals/

• Product drivers and utilities: ftp://ftp.supermicro.com

• Product safety info: http://www.supermicro.com/about/policies/safety_information.cfm

• If you have any questions, please contact our support team at: support@supermicro.com

This manual may be periodically updated without notice. Please check the Supermicro website

for possible updates to the manual revision level.

Page 9

Figure 1-1. X11SSZ-TLN4F Motherboard Image

Chapter 1: Introduction

Note 1: LAN ports 3/4 are only available on X11SSZ-TLN4F.

Note 2: All graphics shown in this manual were based upon the latest PCB revision

available at the time of publication of the manual. The motherboard you received may or may not look exactly the same as the graphics shown in this manual.

Page 10

X11SSZ-TLN4F/QF/F User's Manual

COM1

COM2

AUDIO FP

JPAC1

USB8/9

USB6/7

JSPDIF_OUT1

PCH SLOT4 PCI-E 3.0 X4(IN X8)

JI2C2

JI2C1

JPB1

JD1

SP1

Figure 1-2. X11SSZ-TLN4F/QF/F Motherboard Layout

(not drawn to scale)

LED1

JUIDB1

JSMB1

JWD1

JBR1

BT1

JVRM2

JIPMB1

JVRM1

CPU SLOT6 PCI-E 3.0 X16

JVR1

LED3

PCH SLOT7 PCI-E 3.0 X4(IN X8)

JPG1

MAC CODE

LED2

MAC CODE

DP1/DP2

VGA/DVI

X11SSZ-F

REV: 1.10 DESIGNED IN USA

CPU Socket LGA1151

JPL3 JPL2 JPL1

LAN3/4

USB2/3(3.0)

LAN1/2

FAN4

IPMI_LAN USB0/1

JPW2

JPW1

JL1

I-SATA0

USB4/5

J18

I-SATA3

JBT1

I-SATA2

I-SATA1

JSD1

FANB

BAR CODE

Intel C236

JTPM1

JPWR1

I-SGPIO1

FANA

S/N CODE

USB10/11(3.0)

BIOS LICENSE

JGPIO1

LED4

JPI2C1

J15

DIMMB2

DIMMA1

DIMMA2

USB12

JPME2

JBR3

FAN3

JF1

JBR2

FAN2

DIMMB1

FAN1

Note 1: LAN ports 3/4 are only available on X11SSZ-TLN4F.

Note 2: Components not documented are for internal testing only.

Page 11

Quick Reference

Chapter 1: Introduction

AUDIO FP

JPAC1

COM1

SLOT4

COM2

JPB1

JWD1

JD1

SLOT6 SLOT7

USB8/9

SP1 BT1

USB6/7

USB4/5

JL1 J18

I-SATA3

JBT1

I-SATA2

I-SATA1

I-SATA0

JSPDIF_OUT

AUDIO FP

JSPDIF_OUT1

JPAC1

COM1

COM2

USB8/9

USB6/7

USB4/5

JL1

J18

I-SATA3

JBT1

I-SATA2

I-SATA1

JSD1

I-SATA0

JVRM1

JVRM2

JIPMB1

JSMB1

JI2C1

JI2C2

JD1

JI2C1

JPB1

Intel C236

JTPM1

JWD1

JSMB1

JBR1

BT1

JVRM2

JIPMB1

I-SGPIO1

PCH SLOT4 PCI-E 3.0 X4(IN X8)

SP1

FANB

LED3

JVRM1

CPU SLOT6 PCI-E 3.0 X16

JVR1

JPWR1

JPG1

JUIDB1

LED1

LED2

LED3

JPG1

MAC CODE

BAR CODE

S/N CODE

USB10/11(3.0)

FANA

LED1

DP1/DP2

JUIDB1

DP1/DP2

LED2

PCH SLOT7 PCI-E 3.0 X4(IN X8)

MAC CODE

BIOS LICENSE

JGPIO1

JF1

LED4

VGA/DVI

X11SSZ-F

REV: 1.10 DESIGNED IN USA

CPU Socket LGA1151

JBR3

FAN3

JPME2

JBR2

LAN3/4

JPL3 JPL2 JPL1

USB12

LAN3/4

DIMMA1

FAN2

LAN1/2

DIMMA2

USB2/3 (3.0)

IPMI_LAN

USB0/1 (2.0)

USB2/3(3.0)

IPMI_LAN USB0/1

JPW2

FAN4

JPW1

DIMMB2

DIMMB1

JPW2 JPL3

JPL2

JPL1

FAN4

JPW1

DIMMA1 DIMMA2 DIMMB1 DIMMB2

JPI2C1

J15

FAN1

JSD1

FANB

JPWR1

JTPM1

I-SGPIO1

Notes:

• See Chapter 2 for detailed information on jumpers, I/O ports, and JF1 front panel connec-

tions.

• " " indicates the location of Pin 1.

• Jumpers/LED indicators not indicated are used for testing only.

• Use only the correct type of onboard CMOS battery as specied by the manufacturer. Do

not install the onboard battery upside down to avoid possible explosion.

LED4

JGPIO1

USB10/11 (3.0)

FANA

JF1

FAN3

JPME2

USB12

FAN2

Page 12

X11SSZ-TLN4F/QF/F User's Manual

Quick Reference Table

Jumper Description Default Setting

JBT1 CMOS Clear Open (Normal)

JI2C1/JI2C2 SMB to PCI-E Slots Enable/Disable Pins 2-3 (Disabled)

JPAC1 Front Panel Audio Enable Pins 1-2 (Enabled)

JPB1 BMC Enabled Pins 1-2 (Enabled)

JPG1 VGA Enable/Disable Pins 1-2 (Enabled)

JPL1/JPL2 LAN1/2 Enable/Disable Pins 1-2 (Enabled)

JPL3 (TLN4F only) LAN3/4 Enable/Disable Pins 1-2 (Enabled)

JPME2 Manufacturing Mode Pins 1-2 (Normal)

JWD1 Watch Dog Pins 1-2 (Reset)

LED Description Status

LED1 Unit ID LED Blue Solid On: Unit Identied

LED2 Overheat/PWR Fail/Fan Fail LED

LED3 BMC Heartbeat LED Green Blinking: BMC Normal

LED4 Power On LED Green Solid On: System is On/Running

Red Solid On: Overheat

Red Blinking: PWR Fail or Fan Fail

Connector Description

AUDIO FP Audio Front panel Header

BT1 Onboard Battery

COM1/COM2 COM Headers

DP1/DP2 DisplayPorts (Version 1.3)

FAN1 ~ FAN4 System/CPU Fan Headers (FAN1: CPU Fan)

FANA, FANB I/O Fan Headers

IPMI_LAN Dedicated IPMI LAN Port

I-SATA0 ~ I-SATA3 Intel® PCH SATA 3.0 Ports

I-SGPIO1 Serial Link General Purpose I/O Header

J15 4-pin Connector for HDD (to provide power from the motherboard to onboard devices)

J18 Extended CMOS Battery Connector

JD1 Speaker/Buzzer Header (Pins 1-4: Speaker, Pins 3-4: Buzzer)

JF1 Front Panel Control Header

JGPIO1 General Purpose I/O Header

JIPMB1 4-pin BMC External I2C Header

JL1 Chassis Intrusion Header

JPI2C1 Power Supply SMBbus I2C Header

JPW1 24-pin ATX Power Connector

JPW2

8-pin 12V DC power for CPU (Required) or alternative power for special enclosure when the

24-pin ATX power is not in use

Note: Table is continued on the next page.

Page 13

Connector Description

JPWR1

JSD1 SATA DOM Power Connector

JSMB1 PCH SMBus Header

JSPDIF_OUT1 Sony/Phillips Digital Interface Audio Output Header

JTPM1 Trusted Platform Module/Port 80 Connector

JUIDB1 UID Switch

LAN1/LAN2 Gigabit Ethernet (RJ45) Ports

LAN3/LAN4 (TLN4F only) 10 Gigabit Ethernet (RJ45) Ports

SLOT4 PCI-Express 3.0 X4 (IN X8) Slot supported by Intel PCH

SLOT6 PCI-Express 3.0 X16 Slot supported by the CPU

SLOT7 PCI-Express 3.0 X4 (IN X8) Slot supported by Intel PCH

SP1 Internal Speaker/Buzzer

USB0/1 Back panel Universal Serial Bus (USB) 2.0 Port

USB2/3 Back panel Universal Serial Bus (USB) 3.0 Port

USB4/5, 6/7, 8/9 USB 2.0 Headers

USB10/11 USB 3.0 Header

USB12 USB 2.0 Type A Port

VGA/DVI-I Back Panel VGA Port, DVI-I Port

4-pin 12V Power Connector, providing up to 75W for connected devices such as a GPU add-on

card when 24-pin ATC power is not in use

Chapter 1: Introduction

Page 14

X11SSZ-TLN4F/QF/F User's Manual

Motherboard Features

CPU

• X11SSZ-TLN4F/F: Intel® Xeon E3 -1200 v5 series, 6th Generation Core i7/i5/i3, Pentium, and Celeron processors in

an LGA1151 socket

• X11SSZ-QF: Intel® 6th Generation Core i7/i5/i3 series, Pentium, and Celeron processors in an LGA1151 socket

Memory

• X11SSZ-TLN4F/F: Integrated memory controller supports up to 64GB Unbuffered ECC/Non-ECC UDIMM, DDR4-2133MHz,

in four DIMM slots (E3-1200 v5 with ECC only; Core i7/i5 with Non-ECC only; Core i3, Pentium, and Celeron with ECC

or Non-ECC option)

• X11SSZ-QF: Integrated memory controller supports up to 64GB Unbuffered Non-ECC UDIMM, DDR4-2133MHz, in four

DIMM slots

DIMM Size

• 2GB, 4GB, 8GB, 16GB

Note 1: For the latest CPU/memory updates, please refer to our website at http://www.supermicro.com/products/

motherboard.

Chipset

• X11SSZ-TLN4F/F: Intel PCH C236

• X11SSZ-QF: Intel PCH Q170

Expansion Slots

• Two (2) PCI Express 3.0 X4 (IN X8) PCH slots (SLOT4, SLOT7)

• One (1) PCI Express 3.0 X16 CPU slot (SLOT6)

Network

• Intel I219LM Gigabit Ethernet PHY (LAN1): Intel AMT Management Port

• Intel I210-AT Gigabit Ethernet Controller (LAN2): IPMI Shared LAN Port

• Intel X550-BT2 Dual 10GbE Ethernet Controller (LAN3/4, TLN4F SKU Only)

BaseBoard Management Controller (BMC)

• ASpeed AST 2400 Baseboard Controller (BMC) supports IPMI 2.0

• One (1) IPMI_dedicated_LAN located on the rear IO backpanel

Graphics

• Intel HD Graphics (DVI-I, DisplayPort1/DisplayPort2 Version 1.3) with three independent displays

• Graphics controller via ASpeed 2400 BMC (VGA)

Note: The table above is continued on the next page.

Page 15

Chapter 1: Introduction

Motherboard Features

I/O Devices

• Serial (COM) Port • Two (2) serial-port headers

• SATA 3.0 • Four (4) SATA 3.0 ports supported by Intel PCH (I-SATA 0-3)

• Audio Port • One (1) Audio Front Panel header via Realtek ALC888S

USB

• Two (2) USB 2.0 ports on the rear I/O panel (USB 0/1)

• Six (6) USB 2.0 ports with three (3) internal headers (USB 4/5, 6/7, 8/9)

• Two (2) USB 3.0 ports on the rear I/O panel (USB 2/3)

• Two (2) USB 3.0 ports with one (1) internal USB 3.0 header (USB 10/11)

• One (1) Type-A USB 2.0 connector (USB 12)

BIOS

• 128 Mb SPI AMI BIOS

• PnP Support, PCI 3.0, Keyboard/Mouse support, Hardware BIOS virus protect, RTC (Real Time Clock) wakeup, ACPI

5.0 support, SMBIOS 3.0, UEFI 2.3.1

SM Flash UEFI BIOS

Power Management

• ACPI power management

• Power button override mechanism

• Power-on mode for AC power recovery

• Wake-On-Ring

• Wake-On-LAN

• Management Engine (ME)

System Health Monitoring

• Onboard voltage monitoring for +3.3V, 3.3V standby, +5V, +5V standby, +12V, VBAT, CPU, GPU, Memory, PCH Temp.,

System Temp., Memory Temp.

• CPU/system overheat LED and control

• CPU Thermal Trip support

• CPU switching phase voltage regulator

• CPU Thermal Design Power (TDP) support of up to 95W (See Note 1 on next page.)

Fan Control

• Fan status monitoring via BMC

• Dual cooling zone

• Low-noise fan speed control

• Pulse Width Modulation (PWM) fan control

System Management

Note: The table above is continued on the next page.

Page 16

X11SSZ-TLN4F/QF/F User's Manual

Motherboard Features

• Trusted Platform Module (TPM) support

• PECI (Platform Environment Control Interface) 3.1 support

• UID (Unit Identication)/Remote UID

• System resource alert via SuperDoctor® 5

• SuperDoctor® 5, Watch Dog, NMI

• Chassis intrusion header and detection

LED Indicators

• CPU/Overheating

• Fan Failure

• UID/remote UID.

• HDD activity. LAN activity.

Dimensions

• 9.6" (L) x 9.6" (W) (243.84 mm x 243.84 mm)

Note 1: The CPU maximum thermal design power (TDP) is subject to chassis and

heatsink cooling restrictions. For proper thermal management, please check the chas-

sis and heatsink specications for proper CPU TDP sizing.

Note 2: For IPMI conguration instructions, please refer to the Embedded IPMI Conguration User's Guide available at http://www.supermicro.com/support/manuals/.

Note 3: It is strongly recommended that you change BMC log-in information upon initial system power-on. The manufacture default username is ADMIN and the password

is ADMIN. For proper BMC conguration, please refer to http://www.supermicro.com/

products/info/les/IPMI/Best_Practices_BMC_Security.pdf

Page 17

Figure 1-3.

System Block Diagram

Chapter 1: Introduction

PCIe x16 SLOT

Display Port

PCIe x4 in x8 SLOT

4 X SATA-III

2 X USB 3.0 Rear

2 X USB 3.0 Front

2 X USB 2.0 Rear

6 X USB 2.0 Front

1 X USB Type A

Audio Pin Header

PCIe3.0_x16

DVI-I

Digital port B

Digital port C

Digital port D

PCIe3.0_x4

8.0GT/s

PCIe3.0_x4

8.0GT/s

SATA-III

6Gb/s USB3.0 5Gbps USB3.0

5Gbps USB2.0

480Mbps USB2.0

480Mbps

Realtek ALC888S-VD2

GPIO Pin Header

8.0GT/s

DDI B

DDI C

DDI D

PCIE[1~4]

PCIE[13~16]

SATAB[0/1]

SATAA[2/3]

USB3[1/2] USB3[11~12]

USB3[3/4] USB2[13~14]

USB2[1~2]

USB2[3~8]

USB2[9]

AZALIA

IMVP8

INTEL LGA1151

(Socket-H4)

x4 DMI 8GT/s

PCIE[9]

INTEL

PCH-H

PCIE[10]

C236/Q170

PCIE[5~8]

C236 for -TLN4F/F Q170 for -QF

PCIE[11]

SPI

FLASH

SPI 128Mb

SVID

DDR4 (CHA)

2133/1866/1600MHz

DDR4 (CHB)

2133/1866/1600MHz

PCIe3.0_x1

2.5GT/s

PCIe3.0_x1

2.5GT/s

PCIe3.0_x4

8GT/s

PCIe3.0_x1

5.0GT/s

LPC

IMVP8

AST2400

TPM1.2 Header

GLAN1

I219V

GLAN2

I210-AT

LAN3/4 10GbE

X550

DIMMA1

DIMMA2

DIMMB1

DIMMB2

RJ45

TLN4F only

RJ45

VGA

COM1/2 Header

SMBus Pin Header

Note: This is a general block diagram and may not exactly represent the features on

your motherboard. See the previous pages for the actual specications of your motherboard.

Page 18

X11SSZ-TLN4F/QF/F User's Manual

1.2 Processor and Chipset Overview

The Intel PCH C236 chipset in conjunction with the new Intel Xeon E3-1200 v5 series processor, and the Intel Q170 chipset in conjunction with the new Intel 6th Gen. Core i7

series supports the following features:

• Intel Rapid Storage Technology/Rapid Storage Technoogy enterprise

• Intel Smart Response Technology

• Intel

AMT 11.0, TXT, vPro Technologies

• Intel Hyper-Threading, Intel VT-D, VT-x, SR-IOV

• TSX-NI, AES, SGX Technologies

• Intel

Turbo Boost Technology

• DDR4 Memory Support up to 64GB, 2133MHz

• Three independent Graphics Displays with Audio Stream, VP8, VP9, HEVC, OpenGL

4.3/4.4, Intel QuickSynch Video Technologies

1.3 Special Features

This section describes the health monitoring features of the X11SSZ-TLN4F/QF/F motherboard. The motherboard has an onboard System Hardware Monitor chip that supports system health monitoring.

Page 19

Chapter 1: Introduction

Recovery from AC Power Loss

The Basic I/O System (BIOS) provides a setting that determines how the system will respond when AC power is lost and then restored to the system. You can choose for the system to remain powered off (in which case you must press the power switch to turn it back on), or for it to automatically return to the power-on state. See the Advanced BIOS Setup section for this setting. The default setting is Last State.

1.4 System Health Monitoring

This section describes the health monitoring features of the X11SSZ-TLN4F/QF/F motherboard. The motherboard has an onboard Baseboard Management Controller (BMC) chip that supports system health monitoring. Once a voltage becomes unstable, a warning is

given or an error message is sent to the screen. The user can adjust the voltage thresholds to dene the sensitivity of the voltage monitor.

Onboard Voltage Monitors

The onboard voltage monitor will continuously scan crucial voltage levels. Once a voltage becomes unstable, it will give a warning or send an error message to the screen. Users can

adjust the voltage thresholds to dene the sensitivity of the voltage monitor. Real time readings

of these voltage levels are all displayed in BIOS.

Fan Status Monitor with Firmware Control

The system health monitor embedded in the BMC chip can check the RPM status of the cooling fans. The CPU and chassis fans are controlled via lPMI.

Environmental Temperature Control

System Health sensors in the BMC monitor the temperatures and voltage settings of onboard processors and the system in real time via the IPMI interface. Whenever the temperature of

the CPU or the system exceeds a user-dened threshold, system/CPU cooling fans will be

turned on to prevent the CPU or the system from overheating.

Note: To avoid possible system overheating, please be sure to provide adequate air-

ow to your system.

System Resource Alert

This feature is available when used with SuperDoctor 5®. SuperDoctor 5 is used to notify the

user of certain system events. For example, you can congure SuperDoctor 5 to provide you

with warnings when the system temperature, CPU temperatures, voltages and fan speeds

go beyond a predened range.

Page 20

X11SSZ-TLN4F/QF/F User's Manual

1.5 ACPI Features

ACPI stands for Advanced Conguration and Power Interface. The ACPI specication denes a exible and abstract hardware interface that provides a standard way to integrate power

management features throughout a computer system including its hardware, operating system and application software. This enables the system to automatically turn on and off peripherals such as network cards, hard disk drives and printers.

In addition to enabling operating system-directed power management, ACPI also provides a generic system event mechanism for Plug and Play and an operating system-independent

interface for conguration control.

1.6 Power Supply

As with all computer products, a stable power source is necessary for proper and reliable operation. It is even more important for processors that have high CPU clock rates. In areas

where noisy power transmission is present, you may choose to install a line lter to shield

the computer from noise. It is recommended that you also install a power surge protector to help avoid problems caused by power surges.

Note 1: The X11SSZ Series motherboard alternatively supports an 8-pin 12V DC input power supply at JPW2 for embedded applications. The 12V DC input is limited to 30A by design. It provides up to 360W power input to the motherboard. Please keep the onboard power usage within the power limits specied above. Overcurrent power usage may cause damage to the motherboard.

Note 2: Please connect both the 8-pin DC power at JPW2 and JPW1 to make sure the CPU receives enough power for normal operation when using the ATX power supply.

Page 21

Chapter 2: Installation

Chapter 2

Installation

2.1 Static-Sensitive Devices

Electrostatic Discharge (ESD) can damage electronic com ponents. To prevent damage to your motherboard, it is important to handle it very carefully. The following measures are generally

sufcient to protect your equipment from ESD.

Precautions

• Use a grounded wrist strap designed to prevent static discharge.

• Touch a grounded metal object before removing the board from the antistatic bag.

• Handle the board by its edges only; do not touch its components, peripheral chips, memory

modules or gold contacts.

• When handling chips or modules, avoid touching their pins.

• Put the motherboard and peripherals back into their antistatic bags when not in use.

• For grounding purposes, make sure that your chassis provides excellent conductivity be-

tween the power supply, the case, the mounting fasteners and the motherboard.

• Use only the correct type of CMOS onboard battery as specied by the manufacturer. Do

not install the CMOS battery upside down, which may result in a possible explosion.

Unpacking

The motherboard is shipped in antistatic packaging to avoid static damage. When unpacking the motherboard, make sure that the person handling it is static protected.

Page 22

X11SSZ-TLN4F/QF/F User's Manual

2.2 Motherboard Installation

All motherboards have standard mounting holes to t different types of chassis. Make sure

that the locations of all the mounting holes for both the motherboard and the chassis match. Although a chassis may have both plastic and metal mounting fasteners, metal ones are highly recommended because they ground the motherboard to the chassis. Make sure that the metal standoffs click in or are screwed in tightly.

Philips Screwdriver (1)

Tools Needed

AUDIO FP

JSPDIF_OUT1

JPAC1

PCH SLOT4 PCI-E 3.0 X4(IN X8)

COM1

COM2

USB8/9

SP1

USB6/7

USB4/5

JL1

J18

I-SATA3

JI2C2

JD1

JI2C1

JPB1

Philips Screws (8)

LED1

JUIDB1

DP1/DP2

LED2

LED3

JVRM2

JVRM1

JIPMB1

JSMB1

JVR1

JWD1

JBR1

BT1

PCH SLOT7 PCI-E 3.0 X4(IN X8)

CPU SLOT6 PCI-E 3.0 X16

JPG1

MAC CODE

BAR CODE

VGA/DVI

X11SSZ-F

REV: 1.10 DESIGNED IN USA

CPU Socket LGA1151

JPL3 JPL2 JPL1

LAN3/4

Standoffs (8) Only if Needed

USB2/3(3.0)

FAN4

IPMI_LAN USB0/1

LAN1/2

JPW2

JPW1

JSD1

FANB

Intel C236

JTPM1

I-SATA0

JBT1

I-SATA2

I-SATA1

Location of Mounting Holes

Note: 1) To avoid damaging the motherboard and its components, please do not use

a force greater than 8 lb/inch on each mounting screw during motherboard installation.

2) Some components are very close to the mounting holes. Please take precautionary measures to avoid damaging these components when installing the motherboard to the chassis.

I-SGPIO1

JPWR1

S/N CODE

BIOS LICENSE

DIMMB2

DIMMA2

DIMMB1

USB10/11(3.0)

FANA

JGPIO1

LED4

FAN3

JF1

JBR3

JPME2

JBR2

USB12

DIMMA1

FAN2

JPI2C1

J15

FAN1

Page 23

Chapter 2: Installation

Installing the Motherboard

1. Install the I/O shield into the back of the chassis.

2. Locate the mounting holes on the motherboard. See the previous page for the location.

3. Locate the matching mounting holes on the chassis. Align the mounting holes on the motherboard against the mounting holes on the chassis.

4. Install standoffs in the chassis as needed.

5. Install the motherboard into the chassis carefully to avoid damaging other motherboard components.

6. Using the Phillips screwdriver, insert a Phillips head #6 screw into a mounting hole on the motherboard and its matching mounting hole on the chassis.

7. Repeat Step 5 to insert #6 screws into all mounting holes.

8. Make sure that the motherboard is securely placed in the chassis.

Note: Images displayed are for illustration only. Your chassis or components might look different from those shown in this manual.

Page 24

X11SSZ-TLN4F/QF/F User's Manual

2.3 Processor and Heatsink Installation

Warning: When handling the processor package, avoid placing direct pressure on the label

area of the fan.

Important:

• Always connect the power cord last, and always remove it before adding, removing or

changing any hardware components. Make sure that you install the processor into the CPU socket before you install the CPU heatsink.

• If you buy a CPU separately, make sure that you use an Intel-certied multi-directional

heatsink only.

• Make sure to install the motherboard into the chassis before you install the CPU heatsink.

• When receiving a motherboard without a processor pre-installed, make sure that the plastic

CPU socket cap is in place and none of the socket pins are bent; otherwise, contact your retailer immediately.

• Refer to the Supermicro website for updates on CPU support.

Installing the LGA1151 Processor

1. Press the load lever to release the load plate, which covers the CPU socket, from its locking position.

Load Plate

Load Lever

Page 25

Chapter 2: Installation

2. Gently lift the load lever to open the load plate. Remove the plastic cap.

3. Use your thumb and your index nger to hold the CPU at the north center edge and the South center edge of the CPU.

North Center Edge

South Center Edge

4. Align the CPU key that is the semi-circle cutouts against the socket keys. Once it is aligned, carefully lower the CPU straight down into the socket. Do not drop the CPU on the socket. Do not move the CPU horizontally or vertically.

Page 26

X11SSZ-TLN4F/QF/F User's Manual

5. Do not rub the CPU against the surface or against any pins of the socket to avoid damaging the CPU or the socket.

6. With the CPU inside the socket, inspect the four corners of the CPU to make sure that the CPU is properly installed.

7. Use your thumb to gently push the load lever down to the lever lock.

CPU properly

installed

Load lever locked into

place

Note: You can only install the CPU inside the socket in one direction. Make sure that

it is properly inserted into the CPU socket before closing the load plate. If it doesn't close properly, do not force it as it may damage your CPU. Instead, open the load plate again and double-check that the CPU is aligned properly.

Page 27

Installing an Active CPU Heatsink with Fan

Chapter 2: Installation

1. Locate the CPU fan power connector on the motherboard (FAN1: CPU Fan).

2. Position the heatsink so that the heatsink fan wires are closest to the CPU fan power connector and are not interfered with other components.

3. Inspect the CPU fan wires to make sure that the wires are routed through the bottom of the heatsink.

4. Remove the thin layer of the protective

lm from the heatsink.

Important: CPU overheating may oc-

cur if the protective lm is not removed

from the heatsink.

5. Apply the proper amount of thermal grease on the CPU.

Thermal Grease

Heatsink

Fins

Note: If your heatsink came with a ther-

mal pad, please ignore this step.

6. If necessary, rearrange the wires to make sure that the wires are not pinched between the heatsink and the CPU. Also make sure to keep clearance between the

fan wires and the ns of the heatsink.

Page 28

X11SSZ-TLN4F/QF/F User's Manual

7. Align the four heatsink fasteners with the mounting holes on the motherboard. Gently push the pairs of diagonal fasteners (#1 & #2 and #3 & #4) into the mounting holes until you hear a click. Also, make sure to orient each fastener so that the narrow end of the groove is pointing outward.

8. Repeat step 7 to insert all four heatsink fasteners into the mounting holes.

9. Once all four fasteners are securely inserted into the mounting holes, and the heatsink is properly installed on the motherboard, connect the heatsink fan wires to the CPU fan connector.

Page 29

Removing the Heatsink

Note: We do not recommend that

the CPU or the heatsink be removed. However, if you do need to remove the heatsink, please follow the instructions below to remove the heatsink and to prevent damage done to the CPU or other components.

Active Heatsink Removal

1. Unplug the power cord from the power supply.

Chapter 2: Installation

Unplug the

PWR cord

2. Disconnect the heatsink fan wires from the CPU fan header.

3. Use your nger tips to gently press on the fastener cap and turn it counterclockwise to make a 1/4 (900) turn, and pull the fastener upward to loosen it.

4. Repeat step 3 to loosen all fasteners from the mounting holes.

5. With all fasteners loosened, remove the heatsink from the CPU.

Pull Up

Page 30

X11SSZ-TLN4F/QF/F User's Manual

USB10/11(3.0)

AUDIO FP

PCH SLOT4 PCI-E 3.0 X4(IN X8)

CPU SLOT6 PCI-E 3.0 X16

PCH SLOT7 PCI-E 3.0 X4(IN X8)

DP1/DP2

VGA/DVI

LAN3/4

LAN1/2

USB2/3(3.0)

IPMI_LAN

USB0/1

X11SSZ-F

REV: 1.10

MAC CODE

BAR CODE

DESIGNED IN USA

BIOS LICENSE

CPU Socket LGA1151

S/N CODE

Intel

C236

USB8/9

USB6/7

USB4/5

I-SGPIO1

JPW2

SP1

BT1

LED1

LED2

JD1

JBT1

JGPIO1

FAN4

FAN2

FANB

FANA

FAN3

JTPM1

JSPDIF_OUT1

JL1

J18

JI2C2 JI2C1

JPW1

JPME2

JBR2

JBR3

JPL3

JPL2

JPL1

JBR1

JWD1

JPB1

JPG1

JPAC1

COM2

COM1

LED3

JSD1

DIMMA1 DIMMA2

I-SATA1

I-SATA2

I-SATA3

JUIDB1

JIPMB1

JSMB1

JVR1

JVRM1

JVRM2

USB12

JPWR1

2.4 Memory Support and Installation

Note: Check the Supermicro website for recommended memory modules.

Important: Exercise extreme care when installing or removing DIMM modules to pre-

vent any possible damage.

Memory Support

The X11SSZ-TLN4F/F supports up to 64GB of Unbuffered (UDIMM) DDR4 ECC/Non-ECC 2133 MHz in four memory slots. The X11SSZ-QF supports up to 64GB of Unbuffered (UDIMM) DDR4 Non-ECC 2133 MHz in four memory slots. Populating these DIMM modules with a pair of memory modules of the same type and size will result in interleaved memory, which will improve memory performance.

For optimal memory performance, follow the table below when populating memory.

DIMM Module Population Conguration

DIMMA1 DIMMB1 DIMMA2 DIMMB2 Total System Memory

2GB 2GB 2GB 2GB 8GB

4GB 4GB 4GB 4GB 16GB

8GB 8GB 8GB 8GB 32GB

16GB 16GB 16GB 16GB 64GB

Recommended Population (Balanced)

2GB 2GB 4GB

4GB 4GB 8GB

8GB 8GB 16GB

16GB 16GB 32GB

DIMM Module Population Sequence

When installing memory modules, the DIMM slots must be populated in the following order:

DIMMB2, DIMMA2, then DIMMB1, DIMMA1. The blue slots must be populated rst.

DIMMA1

DIMMA2 (Blue Slot)

DIMMB1

DIMMB2 (Blue Slot)

Note: Be sure to use memory modules of the same type and speed on the motherboard.

Mixing of memory modules of different types and speeds is not allowed.

Towards the CPU

DIMMB1 DIMMB2

Towards the edge of the motherboard

Page 31

DIMM Installation

1. Insert DIMM modules in the following order: DIMMB2, DIMMA2, then DIMMB1, DIMMA1. For the system to work properly, please use memory modules of the same type and speed on the motherboard.

2. Push the release tabs outwards on both ends of the DIMM slot to unlock it.

3. Align the key of the DIMM module with the receptive point on the memory slot.

4. Align the notches on both ends of the module against the receptive points on the ends of the slot.

COM1

COM2

JL1

I-SATA0

USB8/9

USB6/7

USB4/5

J18

AUDIO FP

JPAC1

I-SATA3

I-SATA2

I-SATA1

JBT1

JSPDIF_OUT1

JSD1

PCH SLOT4 PCI-E 3.0 X4(IN X8)

JIPMB1

JSMB1

JI2C2

JI2C1

JPB1

JWD1

JBR1

JD1

BT1

SP1

Intel C236

JTPM1

I-SGPIO1

FANB

JVRM2

JVR1

JPWR1

JVRM1

LED1

LED3

PCH SLOT7 PCI-E 3.0 X4(IN X8)

CPU SLOT6 PCI-E 3.0 X16

JPG1

MAC CODE

BAR CODE

S/N CODE

BIOS LICENSE

USB10/11(3.0)

FANA

JGPIO1

Chapter 2: Installation

JUIDB1

DP1/DP2

LED2

MAC CODE

VGA/DVI

X11SSZ-F

REV: 1.10 DESIGNED IN USA

CPU Socket LGA1151

JPME2

JBR3

FAN3

JF1

LED4

LAN1/2

LAN3/4

JPL3

JPL2 JPL1

DIMMA1

DIMMA2

USB12

JBR2

FAN2

USB2/3(3.0)

DIMMB1

IPMI_LAN USB0/1

JPW2

FAN4

JPW1

JPI2C1

J15

DIMMB2

FAN1

5. Use two thumbs together to press the notches on both ends of the module straight down into the slot until the module snaps into place.

6. Press the release tabs to the lock positions to secure the DIMM module into the slot.

DIMM Removal

Reverse the steps above to remove the DIMM modules from the motherboard.

Notches

Release Tabs

Press both notches

straight down into

the memory slot.

Page 32

X11SSZ-TLN4F/QF/F User's Manual

2.5 Rear I/O Ports

See Figure 2-2 below for the locations and descriptions of the various I/O ports on the rear of the motherboard.

LED1

JUIDB1

COM1

COM2

I-SATA0

JL1

USB8/9

USB6/7

USB4/5

J18

I-SATA3

I-SATA2

I-SATA1

AUDIO FP

JPAC1

JSPDIF_OUT1

PCH SLOT4 PCI-E 3.0 X4(IN X8)

JI2C2

JD1

SP1

JBT1

JSD1

FANB

JI2C1

JPB1

JTPM1

Intel C236

LED3

JVRM2

JVRM1

CPU SLOT6 PCI-E 3.0 X16

JIPMB1

JSMB1

JPG1

JVR1

JWD1

JBR1

BT1

I-SGPIO1

JPWR1

MAC CODE

BAR CODE

FANA

DP1/DP2

LED2

PCH SLOT7 PCI-E 3.0 X4(IN X8)

MAC CODE

S/N CODE

BIOS LICENSE

USB10/11(3.0)

JGPIO1

LED4

JF1

VGA/DVI

X11SSZ-F

REV: 1.10

DESIGNED IN USA

CPU Socket LGA1151

JBR3

FAN3

JPME2

USB2/3(3.0)

FAN4

DIMMB2

DIMMB1

IPMI_LAN USB0/1

JPW2

JPW1

JPI2C1

FAN1

J15

LAN1/2

LAN3/4

JPL3

JPL2 JPL1

DIMMA1

DIMMA2

USB12

JBR2

FAN2

Figure 2-2. I/O Port Locations and Denitions

Rear I/O Ports

# Description # Description # Description

1. IPMI_LAN 6. LAN2 (also IPMI Shared LAN Port) 11. DVI-I

2. USB1 7. LAN1 (also AMT Mgmt. Port) 12. DisplayPort2

3. USB0 8. LAN4 (-TLN4F) 13. DisplayPort1

4. USB3 (3.0) 9 LAN3 (-TLN4F)

5. USB2 (3.0) 10. VGA Port

Page 33

Chapter 2: Installation

VGA/DVI-I Port

A VGA port and a DVI-I port are located next to DisplayPorts 1/2 on the I/O back panel. Use these connections for VGA and DVI displays. The VGA connector is on top and the DVI is on the bottom. The VGA port is for AST2400 BMC controller output. The DVI-I is from Intel HD Graphics controller with digital and analog output capabilities.

DP (DisplayPort)

There are two DisplayPorts (Version 1.3) located on the rear I/O back panel. DisplayPort, developed by the VESA consortium, delivers digital display and fast refresh rate. It can connect to virtually any display using a DisplayPort adaptor for devices such as VGA, DVI, or HDMI. The two DP ports provide Intel HD Graphics digital output with resolution up to 4096x2304 at 24bpp at 60Hz Refresh Rate.

COM1

COM2

JL1

I-SATA0

USB8/9

USB6/7

USB4/5

J18

I-SATA3

I-SATA2

I-SATA1

AUDIO FP

JPAC1

JSPDIF_OUT1

PCH SLOT4 PCI-E 3.0 X4(IN X8)

JI2C2

JD1

SP1

JBT1

JSD1

FANB

JI2C1

JPB1

JTPM1

Intel C236

JWD1

JSMB1

JBR1

BT1

JVRM2

JIPMB1

I-SGPIO1

JVR1

JVRM1

JPWR1

LED1

LED2

LED3

PCH SLOT7 PCI-E 3.0 X4(IN X8)

CPU SLOT6 PCI-E 3.0 X16

JPG1

MAC CODE

BAR CODE

S/N CODE

BIOS LICENSE

USB10/11(3.0)

FANA

JGPIO1

JUIDB1

DP1/DP2

MAC CODE

LED4

JF1

X11SSZ-F

REV: 1.10 DESIGNED IN USA

CPU Socket LGA1151

JBR3

FAN3

VGA/DVI

JPME2

1. VGA/DVI Port

USB2/3(3.0)

FAN4

DIMMB1

DIMMB2

IPMI_LAN USB0/1

JPW2

JPW1

JPI2C1

FAN1

J15

LAN1/2

LAN3/4

JPL3

JPL2 JPL1

DIMMA1

DIMMA2

USB12

JBR2

FAN2

2. DP1/DP2

Page 34

X11SSZ-TLN4F/QF/F User's Manual

USB10/11(3.0)

JGPIO1

FAN2

FAN1

FAN3

JPME2

JBR2

JBR3

LED4

DIMMA1

DIMMA2

DIMMB1

DIMMB2

JF1

USB12

USB10/11(3.0)

BAR CODE

BIOS LICENSE

CPU Socket LGA1151

S/N CODE

Intel

C236

USB6/7

USB4/5

I-SGPIO1

SP1

JBT1

JGPIO1

FANB

FANA

FAN3

JTPM1

JL1

J18

JPME2

JBR2

JBR3

LED4

JSD1

JF1

I-SATA1

I-SATA2

I-SATA3

I-SATA0

USB12

JPWR1

Universal Serial Bus (USB) Ports

There are two USB 2.0 port (USB0/1) and two USB 3.0 port (USB2/3) located on the I/O back panel. The motherboard also has three USB 2.0 headers (USB4/5, USB6/7, and USB8/9) and one USB 3.0 header (USB10/11). The USB12 header is Type-A USB. The onboard headers can be used to provide front side USB access with a cable (not included).

Front Panel USB (3.0/2.0)

Pin Denitions

Pin# Denition Pin# Denition

1 VBUS 11 IntA_P2_D+

2 IntA_P1_SSRX- 12 IntA_P2_D-

3 IntA_P1_SSRX+ 13 GND

4 GND 14 IntA_P2_SSTX+

5 IntA_P1_SSTX- 15 IntA_P2_SSTX-

6 IntA_P1_SSTX+ 16 GND

7 GND 17 IntA_P2_SSRX+

8 IntA_P1_D- 18 IntA_P2_SSRX-

9 IntA_P1_D+ 19 VBus

Front Panel USB 2.0 Header

Pin Denitions

Pin# Denition Pin# Denition

1 +5V 2 +5V

3 USB_PN2 4 USB_PN3

5 USB_PP2 6 USB_PP3

7 Ground 8 Ground

9 Key 10 Ground

AUDIO FP

JSPDIF_OUT1

JPAC1

COM1

COM2

USB8/9

USB6/7

USB4/5

JL1

J18

I-SATA3

JBT1

I-SATA2

I-SATA1

JSD1

I-SATA0

PCH SLOT4 PCI-E 3.0 X4(IN X8)

JSMB1

JI2C2

JI2C1

JPB1

JWD1

JD1

SP1

Intel C236

JTPM1

FANB

JBR1

BT1

JVRM2

JIPMB1

I-SGPIO1

JVR1

JPWR1

JVRM1

CPU SLOT6 PCI-E 3.0 X16

FANA

LED3

JPG1

MAC CODE

BAR CODE

S/N CODE

USB10/11(3.0)

LED1

JUIDB1

DP1/DP2

LED2

PCH SLOT7 PCI-E 3.0 X4(IN X8)

MAC CODE

BIOS LICENSE

JGPIO1

LED4

JF1

VGA/DVI

X11SSZ-F

REV: 1.10 DESIGNED IN USA

CPU Socket LGA1151

JBR3

FAN3

JPME2

JBR2

LAN3/4

JPL3

JPL2 JPL1

USB12

USB2/3(3.0)

FAN4

DIMMB2

DIMMB1

IPMI_LAN USB0/1

LAN1/2

DIMMA1

DIMMA2

FAN2

JPW2

JPW1

1. USB0/1

2. USB2/3

3. USB4/5

4. USB6/7

5. USB8/9

6. USB10/11

7. USB12

JPI2C1

J15

FAN1

Page 35

Chapter 2: Installation

Serial Ports

There are two COM headers (COM1, COM2) on the motherboard. Refer to the table below

for pin denitions.

COM Port

Pin Denitions

Pin# Denition Pin# Denition

1 DCD 6 DSR

2 RXD 7 RTS

3 TXD 8 CTS

4 DTR 9 RI

1 5

5 Ground 10 N/A

LAN Ports

There are two 1GbE LAN ports (LAN1/LAN2) and two 10GbE Ethernet ports (LAN3/LAN4 on

-TLN4F only) on the I/O back panel. There is also a dedicated IPMI LAN port on the I/O back

panel. These ports accept RJ45 type cables. Refer to the table below for the pin denitions.

LAN Port

Pin Denition

Pin# Denition Pin# Denition

1 TX_D1+ 5 BI_D3-

2 TX_D1- 6 RX_D2-

3 RX_D2+ 7 BI_D4+

4 BI_D3+ 8 BI_D4-

USB2/3(3.0)

FAN4

DIMMB2

DIMMB1

IPMI_LAN USB0/1

JPW2

JPW1

JPI2C1

FAN1

1. COM1

2. COM2

3. LAN1/2

4. LAN3/4 (-TLN4F)

5. IPMI_LAN

J15

4 3

LED1

JUIDB1

AUDIO FP

COM1

COM2

JL1

I-SATA0

USB8/9

USB6/7

USB4/5

J18

I-SATA3

I-SATA2

I-SATA1

PCH SLOT4 PCI-E 3.0 X4(IN X8)

SP1

JBT1

JSD1

FANB

JI2C2

JD1

JI2C1

JPB1

JTPM1

Intel C236

JSMB1

JWD1

JSPDIF_OUT1

JPAC1

JBR1

BT1

JVRM2

JIPMB1

I-SGPIO1

JVR1

JPWR1

JVRM1

CPU SLOT6 PCI-E 3.0 X16

FANA

LED3

JPG1

MAC CODE

BAR CODE

LED2

PCH SLOT7 PCI-E 3.0 X4(IN X8)

MAC CODE

S/N CODE

BIOS LICENSE

USB10/11(3.0)

JGPIO1

LED4

DP1/DP2

JF1

VGA/DVI

X11SSZ-F

REV: 1.10 DESIGNED IN USA

CPU Socket LGA1151

JBR3

FAN3

JPME2

LAN1/2

LAN3/4

JPL3

JPL2 JPL1

DIMMA1

DIMMA2

USB12

JBR2

FAN2

Page 36

X11SSZ-TLN4F/QF/F User's Manual

1920

2.6 Front Control Panel

JF1 contains header pins for various buttons and indicators that are normally located on a

control panel at the front of the chassis. These connectors are designed specically for use with Supermicro chassis. See the gure below for the descriptions of the front control panel

buttons and LED indicators.

LED1

JUIDB1

COM1

COM2

I-SATA0

JL1

USB8/9

USB6/7

USB4/5

J18

I-SATA3

I-SATA2

I-SATA1

AUDIO FP

JPAC1

JBT1

JSPDIF_OUT1

PCH SLOT4 PCI-E 3.0 X4(IN X8)

JI2C2

JI2C1

JPB1

JD1

SP1

JTPM1

JSD1

FANB

Intel C236

JSMB1

JWD1

JIPMB1

JBR1

BT1

I-SGPIO1

JVRM2

JVR1

JVRM1

JPWR1

LED2

LED3

PCH SLOT7 PCI-E 3.0 X4(IN X8)

CPU SLOT6 PCI-E 3.0 X16

JPG1

MAC CODE

BAR CODE

S/N CODE

BIOS LICENSE

USB10/11(3.0)

FANA

JGPIO1

DP1/DP2

MAC CODE

LED4

FAN3

JF1

VGA/DVI

X11SSZ-F

REV: 1.10 DESIGNED IN USA

CPU Socket LGA1151

JPME2

JBR3

JBR2

USB12

USB2/3(3.0)

FAN4

DIMMB2

DIMMB1

IPMI_LAN USB0/1

JPW2

JPW1

JPI2C1

J15

FAN1

LAN1/2

LAN3/4

JPL3

JPL2 JPL1

DIMMA1

DIMMA2

FAN2

Figure 2-3. JF1 Header Pins

Ground

FP PWRLED

HDD LED

NIC1 Activity LED

NIC2 Activity LED

OH/Fan Fail LED

Power Fail LED

Ground

NMI

3.3V Stby

UID LED

3.3V

Reset

PWR

Reset Button

Power Button

Page 37

Chapter 2: Installation

1920

Power LED

The Power LED connection is located on pins 15 and 16 of JF1. Refer to the table below

for pin denitions.

Power LED

Pin Denitions (JF1)

Pins Denition

15 +3.3V Stby

16 PWR LED

HDD LED

The HDD LED connection is located on pins 13 and 14 of JF1. Attach a cable here to indicate the status of HDD-related activities, including IDE, SATA activities. Refer to the table below

for pin denitions.

HDD LED

Pin Denitions (JF1)

Pins Denition

13 +3.3V Stby

14 HD LED

NIC1/NIC2 (LAN1/LAN2)

The NIC (Network Interface Controller) LED connection for LAN port 1 is located on pins 11 and 12 of JF1, and the LED connection for LAN Port 2 is on Pins 9 and 10. Attach NIC LED cables to NIC1 and NIC2 LED indicators to display network activities. Refer to the table

below for pin denitions.

LAN1/LAN2 LED

Pin Denitions (JF1)

Pins Denition

9/11 +3.3V Stby

10/12 NIC Activity LED

1. PWR LED

2. HDD LED

3. NIC1 Activity LED

4. NIC2 Activity LED

Ground

FP PWRLED

HDD LED

NIC1 Activity LED

NIC2 Activity LED

OH/Fan Fail LED

NMI

3.3V Stby

UID LED

Power Fail LED

Ground

3.3V

Reset

Reset Button

Power Button

PWR

Page 38

X11SSZ-TLN4F/QF/F User's Manual

1920

Reset Button

The Reset Button connection is located on pins 3 and 4 of JF1. Attach it to a hardware reset

switch on the computer case to reset the system. Refer to the table below for pin denitions.

Reset Button

Pin Denitions (JF1)

Pins Denition

3 Reset

4 Ground

Power Button

The Power Button connection is located on pins 1 and 2 of JF1. Momentarily contacting both

pins will power on/off the system. This button can also be congured to function as a suspend

button (with a setting in the BIOS - see Chapter 4). To turn off the power in the suspend

mode, press the button for at least 4 seconds. Refer to the table below for pin denitions.

Power Button

Pin Denitions (JF1)

Pins Denition

1 Signal

2 Ground

Overheat (OH)/Fan Fail

Connect an LED cable to OH/Fan Fail connections on pins 7 and 8 of JF1 to provide warnings

for chassis overheat/fan failure. Refer to the table below for pin denitions.

OH/Fan Fail Indicator

Pin# Denition

Off Normal

On Overheat

Flashing Fan Fail

Pin Denitions

FP PWRLED

HDD LED

NIC1 Activity LED

NIC2 Activity LED

OH/Fan Fail LED

Ground

NMI

3.3V Stby

UID LED

OH/Fan Fail LED

Pin Denitions (JF1)

Pins Denition

7 Vcc/Blue UID LED

8 OH/Fan Fail LED

1. Reset Button

2. PWR Button

3. OH/Fan Fail LED

Power Fail LED

Ground

3.3V

Reset

Reset Button

Power Butt

PWR

Page 39

Chapter 2: Installation

1920

NMI Button

The non-maskable interrupt button header is located on pins 19 and 20 of JF1. Refer to the

table below for pin denitions.

NMI Button

Pin Denitions (JF1)

Pins Denition

19 Control

20 Ground

Power Fail LED

The Power Fail LED connection is located on pins 5 and 6 of JF1. Refer to the table below

for pin denitions.

PWR Fail LED

Pin Denitions (JF1)

Pins Denition

5 3.3V

6 Power Fail

Ground

FP PWRLED

HDD LED

NIC1 Activity LED

NIC2 Activity LED

OH/Fan Fail LED

Power Fail LED

Ground

NMI

3.3V Stby

UID LED

3.3V

Reset

Reset Button

Power Button

PWR

2. Power Fail LED

1. NMI

Page 40

X11SSZ-TLN4F/QF/F User's Manual

2.7 Connectors

Power Connections

Main ATX Power Supply Connector

The primary power supply connector (JPW1) meets the ATX SSI EPS 24-pin specication.

You must also connect the 8-pin (JPW2) 12V DC power connector to your power supply.

ATX Power 24-pin Connector

Pin Denitions

Pin# Denition Pin# Denition

13 +3.3V 1 +3.3V

14 NC 2 +3.3V

15 Ground 3 Ground

16 PS_ON 4 +5V

17 Ground 5 Ground

18 Ground 6 +5V

19 Ground 7 Ground

20 NC 8 PWR_OK

21 +5V 9 5VSB

22 +5V 10 +12V

23 +5V 11 +12V

24 Ground 12 +3.3V

COM1

COM2

JL1

I-SATA0

USB8/9

USB6/7

USB4/5

J18

I-SATA3

I-SATA2

I-SATA1

AUDIO FP

JPAC1

JSPDIF_OUT1

PCH SLOT4 PCI-E 3.0 X4(IN X8)

SP1

JBT1

JSD1

FANB

JI2C2

JD1

JI2C1

JPB1

JTPM1

Required Connection

1. 24-pin ATX Power Connector

LED1

JUIDB1

DP1/DP2

LED2

LED3

JVRM2

JVRM1

JIPMB1

JSMB1

JVR1

JWD1

JBR1

BT1

Intel C236

JPWR1

I-SGPIO1

PCH SLOT7 PCI-E 3.0 X4(IN X8)

CPU SLOT6 PCI-E 3.0 X16

JPG1

MAC CODE

BAR CODE

S/N CODE

BIOS LICENSE

USB10/11(3.0)

FANA

JGPIO1

MAC CODE

LED4

JF1

X11SSZ-F

REV: 1.10 DESIGNED IN USA

CPU Socket LGA1151

JBR3

FAN3

VGA/DVI

JPME2

LAN3/4

JPL3

JPL2 JPL1

USB12

JBR2

FAN2

DIMMA1

LAN1/2

DIMMA2

USB2/3(3.0)

FAN4

DIMMB2

DIMMB1

IPMI_LAN USB0/1

JPW2

JPW1

JPI2C1

FAN1

J15

Page 41

Chapter 2: Installation

8-pin 12V DC Power Connector

JPW2 is an 8-pin 12V DC power input for CPU or alternative single power source for a special

enclosure when the 24-pin ATX power is not in use. Refer to the table below for pin denitions.

Note: Please refer to page 20 for more information on JPW2.

+12V 8-pin Power

Pin Denitions

Pin# Denition

1 - 4 Ground

5 - 8 +12V

Required Connection

4-pin 12V Power Connector

JPWR1 is a 4-pin connector that provides 12V DC power (up to 75W) from the motherboard

for a GPU add-on card or various peripherals. Refer to the table below for pin denitions.

Note: Please keep power usage for JPWR1 within the power limits up to 75W. Overcurrent DC power usage may cause damage to the motherboard.

4-pin Power

AUDIO FP

COM1

COM2

USB8/9

USB6/7

USB4/5

JL1

J18

I-SATA3

I-SATA2

I-SATA1

I-SATA0

JSPDIF_OUT1

JPAC1

PCH SLOT4 PCI-E 3.0 X4(IN X8)

SP1

JBT1

JSD1

FANB

Pin Denitions

Pin# Denition

1 - 2 Ground

3 - 4 +12V

LED1

JUIDB1

DP1/DP2

JF1

X11SSZ-F

REV: 1.10 DESIGNED IN USA

CPU Socket LGA1151

FAN3

VGA/DVI

JBR3

JPME2

LAN3/4

JPL3

JPL2 JPL1

USB12

JBR2

LED2

LED3

JVRM2

JVRM1

PCH SLOT7 PCI-E 3.0 X4(IN X8)

CPU SLOT6 PCI-E 3.0 X16

JIPMB1

JSMB1

JI2C2

JI2C1

BT1

JBR1

I-SGPIO1

JVR1

JPWR1

JPG1

MAC CODE

BAR CODE

S/N CODE

BIOS LICENSE

USB10/11(3.0)

FANA

JGPIO1

LED4

JPB1

JWD1

JD1

Intel C236

JTPM1

USB2/3(3.0)

IPMI_LAN

LAN1/2

USB0/1

JPW2

FAN4

JPW1

DIMMB2

DIMMB1

DIMMA1

DIMMA2

FAN2

JPI2C1

1. 8-pin 12V DC Power Connector

2. 4-pin 12V Power Connector

J15

FAN1

(providing up to 75W)

Page 42

USB10/11(3.0)

PCH SLOT4 PCI-E 3.0 X4(IN X8)

CPU SLOT6 PCI-E 3.0 X16

PCH SLOT7 PCI-E 3.0 X4(IN X8)

LAN3/4

LAN1/2

IPMI_LAN

USB0/1

X11SSZ-F

REV: 1.10

MAC CODE

BAR CODE

DESIGNED IN USA

BIOS LICENSE

CPU Socket LGA1151

S/N CODE

Intel

C236

USB8/9

USB6/7

USB4/5

I-SGPIO1

JPW2

SP1

BT1

LED2

JD1

JBT1

JPI2C1

FAN4

JTPM1

JSPDIF_OUT1

JL1

J18

JI2C2 JI2C1

JPW1

JPL3

JPL2

JPL1

JBR1

JWD1

JPB1

JPG1

JPAC1

COM2

COM1

LED3

JSD1

J15

DIMMA1 DIMMA2

DIMMB1 DIMMB2

I-SATA1

I-SATA2

I-SATA3

JIPMB1

JSMB1

JVR1

JVRM1

JVRM2

JPWR1

X11SSZ-TLN4F/QF/F User's Manual

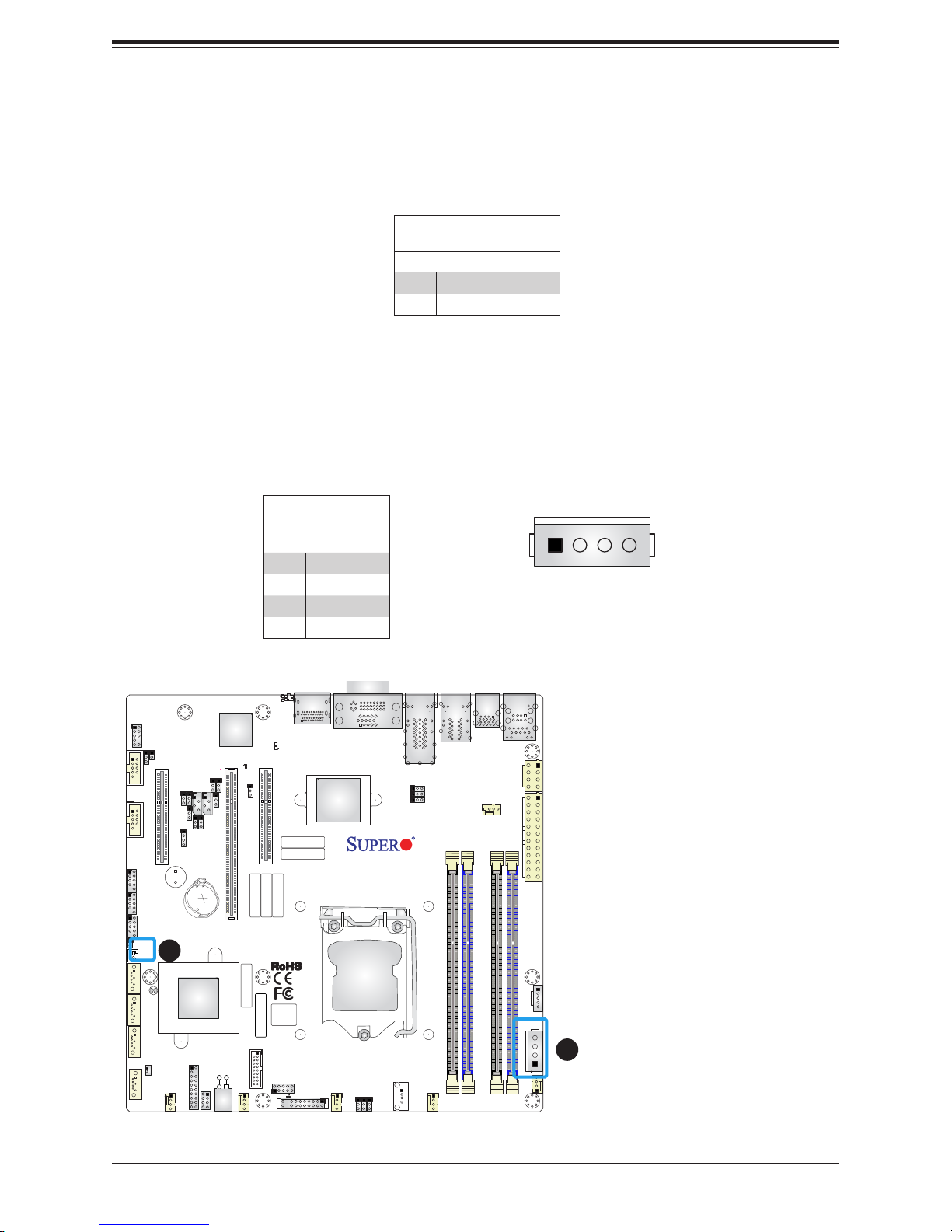

Extended CMOS Battery Connector

J18 is a power connector that provides additional power to maintain the CMOS data with an

external battery. Refer to the table below for pin denitions.

CMOS Battery Connector

Pin Denitions

Pin# Denition

1 VBAT

2 Ground

Required Connection

4-pin HDD Power Connector

J15 is a 4-pin power connector that provides power to onboard HDD devices. Refer to the

table below for pin denitions.

4-pin HDD Power

Pin Denitions

Pin# Denition

1 12V

2 GND

3 GND

4 5V

COM1

COM2

JL1

I-SATA0

AUDIO FP

JPAC1

USB8/9

USB6/7

USB4/5

J18

I-SATA3

I-SATA2

I-SATA1

JBT1

JSPDIF_OUT1

PCH SLOT4 PCI-E 3.0 X4(IN X8)

JI2C2

JI2C1

JPB1

JD1

SP1

JTPM1

JSD1

FANB

Intel C236

JWD1

JSMB1

JIPMB1

JBR1

BT1

I-SGPIO1

JVRM2

JVRM1

JVR1

JPWR1

LED1

LED2

LED3

PCH SLOT7 PCI-E 3.0 X4(IN X8)

CPU SLOT6 PCI-E 3.0 X16

JPG1

MAC CODE

BAR CODE

S/N CODE

BIOS LICENSE

USB10/11(3.0)

FANA

JGPIO1

JUIDB1

DP1/DP2

MAC CODE

LED4

JF1

VGA/DVI

X11SSZ-F

REV: 1.10

DESIGNED IN USA

CPU Socket LGA1151

JBR3

FAN3

JPME2

1. Extended CMOS Battery Connector

USB2/3(3.0)

FAN4

DIMMB2

DIMMB1

IPMI_LAN

USB0/1

JPW2

JPW1

JPI2C1

FAN1

J15

LAN1/2

LAN3/4

JPL3

JPL2 JPL1

DIMMA1

DIMMA2

USB12

JBR2

FAN2

2. 4-pin HDD Power Connector

Page 43

Chapter 2: Installation

Headers

Fan Headers

There are six 4-pin fan headers on the motherboard. Although pins 1-3 of the fan headers are backward compatible with the traditional 3-pin fans, we recommend you use 4-pin fans to take advantage of the fan speed control via Pulse Width Modulation through the BMC. This

allows the fan speeds to be automatically adjusted based on the motherboard temperature.

Fan Header

Pin Denitions

Pin# Denition

1 Ground (Black)

2 +12V (Red)

3 Tachometer

4 PWM Control

Speaker/Buzzer

On the JD1 header, pins 1-4 are for the speaker and pins 3-4 are for the buzzer. If you wish to use an external speaker, connect its cable to pins 1-4.

Speaker Connector

Pin Denitions

Pin Setting Denition

Pins 1-4 Speaker

Pins 3-4 Buzzer

1. FANA

2. FANB

3. FAN1

4. FAN2

5. FAN3

6. FAN4

7. Speaker

COM1

COM2

I-SATA0

JL1

USB8/9

USB6/7

USB4/5

J18

I-SATA3

I-SATA2

I-SATA1

AUDIO FP

JPAC1

JSPDIF_OUT1

PCH SLOT4 PCI-E 3.0 X4(IN X8)

SP1

JBT1

JSD1

FANB

JI2C2

JD1

JI2C1

JPB1

JTPM1

Intel C236

JWD1

JSMB1

JBR1

BT1

JIPMB1

I-SGPIO1

JVRM2

JVRM1

JVR1

JPWR1

LED1

LED2

LED3

PCH SLOT7 PCI-E 3.0 X4(IN X8)

CPU SLOT6 PCI-E 3.0 X16

JPG1

MAC CODE

BAR CODE

S/N CODE

BIOS LICENSE

USB10/11(3.0)

FANA

JGPIO1

JUIDB1

DP1/DP2

MAC CODE

LED4

JF1

X11SSZ-F

REV: 1.10 DESIGNED IN USA

CPU Socket LGA1151

FAN3

VGA/DVI

JBR3

JPME2

USB2/3(3.0)

FAN4

DIMMB2

DIMMB1

IPMI_LAN USB0/1

JPW2

JPW1

JPI2C1

FAN1

J15

LAN1/2

LAN3/4

JPL3

JPL2 JPL1

USB12

JBR2

DIMMA1

DIMMA2

FAN2

Page 44

USB10/11(3.0)

BAR CODE

BIOS LICENSE

CPU Socket LGA1151

S/N CODE

I-SGPIO1

JGPIO1

FANA

FAN3

JPME2

JBR2

JBR3

LED4

JF1

JPWR1

X11SSZ-F

REV: 1.10

MAC CODE

DESIGNED IN USA

BIOS LICENSE

CPU Socket LGA1151

JGPIO1

FAN2

FAN3

JPME2

JBR2

JBR3

DIMMA1

DIMMA2

USB12

X11SSZ-TLN4F/QF/F User's Manual

SGPIO Header

The I-SGPIO1 (Serial General Purpose Input/Output) header is used to communicate with the enclosure management chip on the backplane via the PCH SATA controller.

General Purpose I/O Header

SGPIO Header

Pin Denitions

Pin# Denition Pin# Denition

1 NC 2 NC

3 Ground 4 DATA Out

5 Load 6 Ground

7 Clock 8 NC

NC = No Connection

8 7

The JGPIO1 (General Purpose Input/Output) header is a general purpose via Intel PCH.

Refer to the table below for pin denitions.

JGPIO Header

Pin Denitions

Pin# Port Denition PCH Pin Mapping

1 +3.3V +3.3V

2 Ground Ground

3 GP0 GPP_E0

4 GP1 GPP_F1

5 GP2 GPP_E1

6 GP3 GPP_F2

7 GP4 GPP_E2

8 GP5 GPP_F3

9 GP6 GPP_F0

10 GP7 GPP_F4

LED1

JUIDB1

AUDIO FP

JSPDIF_OUT1

JVRM2

PCH SLOT4 PCI-E 3.0 X4(IN X8)

JIPMB1

JSMB1

JI2C2

JI2C1

JVR1

JPB1

JWD1

JBR1

JD1

BT1

SP1

Intel C236

JTPM1

I-SGPIO1

FANB

JPWR1

JVRM1

CPU SLOT6 PCI-E 3.0 X16

FANA

JPAC1

COM1

COM2

USB8/9

USB6/7

USB4/5

JL1

J18

I-SATA3

JBT1

I-SATA2

I-SATA1

JSD1

I-SATA0

LED3

JPG1

MAC CODE

BAR CODE

S/N CODE

MAC CODE

USB10/11(3.0)

DP1/DP2

LED2

PCH SLOT7 PCI-E 3.0 X4(IN X8)

MAC CODE

BIOS LICENSE

JGPIO1

JF1

LED4

VGA/DVI

X11SSZ-F

REV: 1.10

DESIGNED IN USA

CPU Socket LGA1151

JPME2

JBR3

JBR2

FAN3

LAN1/2

LAN3/4

JPL3

JPL2 JPL1

DIMMA1

DIMMA2

USB12

FAN2

USB2/3(3.0)

FAN4

DIMMB2

DIMMB1

IPMI_LAN USB0/1

JPW2

JPW1

JPI2C1

FAN1

J15

1. I-SGPIO1

2. JGPIO1

Page 45

USB10/11(3.0)

X11SSZ-F

REV: 1.10

MAC CODE

BAR CODE

DESIGNED IN USA

BIOS LICENSE

CPU Socket LGA1151

S/N CODE

Intel C236

I-SGPIO1

BT1

JGPIO1

FANA

FAN3

JTPM1

JPME2

JBR2

JBR3

LED4

JF1

USB12

JPWR1

Chapter 2: Installation

TPM Header

The JTPM1 header is used to connect a Trusted Platform Module (TPM). A TPM is a security device that enhances system performance as well as data security by offering encryption and authentication to installed hard drives. It enables the motherboard to deny access if the TPM associated with the hard drive is not installed in the system. Refer to the table below

for pin denitions.

Trusted Platform Module Header

Pin Denitions

Pin# Denition Pin# Denition

1 LCLK 2 GND

3 LFRAME# 4 No Pin

5 LRESET# 6 +5V (X)

7 LAD3 8 LAD2

9 3.3V 10 LAD1

11 LAD0 12 GND

13 SMB_CLK4 (X) 14 SMB_DAT4 (X)

15 P3V3_STBY 16 SERIRQ

17 GND 18 GND

19 P3V3_STBY 20 LDRQ# (X)

COM1

COM2

I-SATA0

JL1

AUDIO FP

JPAC1

USB8/9

USB6/7

USB4/5

J18

I-SATA3

I-SATA2

I-SATA1

JSPDIF_OUT1

JBT1

JSD1

JVRM2

JI2C2

JD1

JI2C1

JPB1

Intel C236

JSMB1

JWD1

JVRM1

JIPMB1

JVR1

JBR1

BT1

PCH SLOT4 PCI-E 3.0 X4(IN X8)

SP1

JTPM1

JPWR1

I-SGPIO1

FANB

LED1

JUIDB1

DP1/DP2

LED2

PCH SLOT7 PCI-E 3.0 X4(IN X8)

JPG1

MAC CODE

S/N CODE

BIOS LICENSE

USB10/11(3.0)

JGPIO1

JF1

LED4

FAN3

LED3

CPU SLOT6 PCI-E 3.0 X16

BAR CODE

FANA

VGA/DVI

X11SSZ-F

REV: 1.10

DESIGNED IN USA

CPU Socket LGA1151

USB12

JPME2

JBR3

JBR2

LAN1/2

LAN3/4

JPL3

JPL2 JPL1

DIMMA1

DIMMA2

FAN2

USB2/3(3.0)

FAN4

DIMMB2

DIMMB1

IPMI_LAN USB0/1

JPW2

JPW1

JPI2C1

FAN1

1. TPM Header

J15

Page 46

X11SSZ-TLN4F/QF/F User's Manual

Audio Front Panel Header

A 10-pin audio header located on the motherboard allows you to use the onboard sound chip (Realtek ALC888S-VD2) for audio function. Connect an audio cable to the this header to use

this feature. Refer to the table below for pin denitions. The pitch of each pin is 2.54mm.

High Denition Front Panel Pin Denitions

Pin# Denition

1 MC_L

2 AUD_GND

3 MC_R

4 FP_Audio-Detect

5 Line_2_R

6 SENSE1_RETURN

7 AUD_GND

8 Key

9 Line_2_L

10 SENSE_RETURN

SPDIF_OUT

The SPDIF Out is used for digital audio. You will need the approriate cable to use these

features. Refer to the table below for pin denitions.

SPDIF_Out

Pin Denitions

Pins Denition

1 SPDIF Out

2 Ground

LED1

JUIDB1

AUDIO FP

COM1

COM2

JL1

I-SATA0

USB8/9

USB6/7

USB4/5

J18

JPAC1

I-SATA3

I-SATA2

I-SATA1

JSPDIF_OUT1

PCH SLOT4 PCI-E 3.0 X4(IN X8)

JI2C2

SP1

JBT1

JSD1

FANB

JSMB1

JI2C1

JPB1

JWD1

JD1

BT1

Intel C236

JTPM1

JIPMB1

JBR1

I-SGPIO1

JVRM2

JVRM1

JVR1

JPWR1

LED3

CPU SLOT6 PCI-E 3.0 X16

JPG1

MAC CODE

BAR CODE

FANA

DP1/DP2

LED2

PCH SLOT7 PCI-E 3.0 X4(IN X8)

MAC CODE

S/N CODE

BIOS LICENSE

USB10/11(3.0)

JGPIO1

LED4

JF1

VGA/DVI

X11SSZ-F

REV: 1.10

DESIGNED IN USA

CPU Socket LGA1151

JBR3

FAN3

JPME2

USB2/3(3.0)

DIMMB1

FAN4

DIMMB2

IPMI_LAN

USB0/1

JPW2

JPW1

JPI2C1

FAN1

J15

LAN1/2

LAN3/4

JPL3

JPL2 JPL1

DIMMA1

DIMMA2

USB12

JBR2

FAN2

1. Audio Header

2. SPDIF Out

Page 47

Chapter 2: Installation

Chassis Intrusion

A Chassis Intrusion header is located at JL1 on the motherboard. Attach the appropriate cable

from the chassis to the header for notication if the chassis is opened.

Chassis Intrusion

Pin Denitions

Pins Denition

1 Intrusion Input

2 Ground

Internal Speaker/Buzzer

The Internal Speaker/Buzzer (SP1) is used to provide audible indications for various beep

codes. Refer to the table below for pin denitions.

Internal Buzzer

Pin Denitions

Pin# Denition

1 Pos (+) Beep In

2 Neg (-) Alarm Speaker

COM1

COM2

JL1

I-SATA0

USB8/9

USB6/7

USB4/5

J18

I-SATA3

I-SATA2

AUDIO FP

JPAC1

I-SATA1

JSPDIF_OUT1

PCH SLOT4 PCI-E 3.0 X4(IN X8)

JI2C2

JD1

SP1

JBT1

JSD1

FANB

JI2C1

JPB1

JTPM1

Intel C236

1. Chassis Intrusion

LED1

JUIDB1

DP1/DP2

LED2

LED3

JVRM2

JVRM1

JIPMB1

JSMB1

JVR1

JWD1

JBR1

BT1

PCH SLOT7 PCI-E 3.0 X4(IN X8)

CPU SLOT6 PCI-E 3.0 X16

JPG1

MAC CODE

VGA/DVI

X11SSZ-F

REV: 1.10 DESIGNED IN USA

CPU Socket LGA1151

LAN3/4

JPL3

JPL2 JPL1

LAN1/2

USB2/3(3.0)

FAN4

IPMI_LAN USB0/1

JPW2

JPW1

BAR CODE

S/N CODE

I-SGPIO1

JPWR1

BIOS LICENSE

DIMMB1

DIMMA1

USB10/11(3.0)

FANA

JGPIO1

FAN3

JF1

LED4

USB12

JPME2

JBR3

JBR2

DIMMA2

FAN2

DIMMB2

JPI2C1

FAN1

J15

2. Internal Speaker

Page 48

X11SSZ-TLN4F/QF/F User's Manual

Power SMB (I2C) Header

Power System Management Bus (I2C) header at JPI2C1 monitors the power supply, fan and

system temperatures. Refer to the table below for pin denitions.

Power SMB Header

Pin Denitions

Pin# Denition

1 Clock

2 Data

3 Power Fail

4 Ground

5 +3.3V

4-pin External BMC I2C Header

A System Management Bus header for IPMI 2.0 is located at JIPMB1. Connect a cable to this header to use the IPMB I2C connection on your system. Refer to the table below for pin

denitions.

External I2C Header

Pin Denitions

Pin# Denition

1 Data

2 Ground

3 Clock

4 No Connection

COM1

COM2

JL1

I-SATA0

AUDIO FP

JPAC1

USB8/9

USB6/7

USB4/5

J18

I-SATA3

I-SATA2

I-SATA1

JBT1

JSPDIF_OUT1

PCH SLOT4 PCI-E 3.0 X4(IN X8)

JI2C2

JI2C1

JPB1

JD1

SP1

JTPM1

JSD1

FANB

Intel C236

LED1

JUIDB1

DP1/DP2

LED2

LED3

JVRM2

JVRM1

JIPMB1

JSMB1

JVR1

JWD1

JBR1

BT1

JPWR1

I-SGPIO1

PCH SLOT7 PCI-E 3.0 X4(IN X8)

CPU SLOT6 PCI-E 3.0 X16

JPG1

MAC CODE

BAR CODE

S/N CODE

BIOS LICENSE

USB10/11(3.0)

FANA

JGPIO1

MAC CODE

LED4

JF1

VGA/DVI

X11SSZ-F

REV: 1.10 DESIGNED IN USA

CPU Socket LGA1151

JBR3

FAN3

JPME2

LAN3/4

JPL3

JPL2 JPL1

USB12

JBR2

FAN2

DIMMA1

DIMMA2

LAN1/2

USB2/3(3.0)

FAN4

DIMMB2

DIMMB1

IPMI_LAN USB0/1

JPW2

JPW1

JPI2C1

FAN1

J15

1. Power I2C SMB Header

2. External BMC Header

Page 49

Chapter 2: Installation

USB10/11(3.0)

BAR CODE

S/N CODE

Intel C236

I-SGPIO1

JBT1

JTPM1

JSD1

I-SATA1

JPWR1

System Management Bus Header

A System Management Bus header for additional slave devices or sensors is located at

JSMB1. Refer to the table below for pin denitions.

SMBus Header

Pin Denitions

Pin# Denition

1 Data

2 Ground

3 Clock

Disk-On-Module Power Connector

The Disk-On-Module (DOM) power connector at JSD1 provides 5V power to a solid-state DOM storage device connected to one of the SATA ports. Refer to the table below for pin

denitions.

DOM Power

Pin Denitions

Pin# Denition

1 5V

2 Ground

3 Ground

COM1

COM2

JL1

I-SATA0

USB8/9

USB6/7

USB4/5

J18

I-SATA3

I-SATA2

I-SATA1

AUDIO FP

JSPDIF_OUT1

JPAC1

PCH SLOT4 PCI-E 3.0 X4(IN X8)

SP1

JBT1

JSD1

FANB

1. SMBus Header

LED1

JUIDB1

DP1/DP2

JVRM2

JVRM1

JIPMB1

JSMB1

JI2C2

JI2C1

JVR1

JPB1

JWD1

JBR1

JD1

BT1

Intel C236

JTPM1

JPWR1

I-SGPIO1

LED2

LED3

PCH SLOT7 PCI-E 3.0 X4(IN X8)

CPU SLOT6 PCI-E 3.0 X16

JPG1

MAC CODE

BAR CODE

S/N CODE

BIOS LICENSE

USB10/11(3.0)

FANA

JGPIO1

MAC CODE

LED4

JF1

VGA/DVI

X11SSZ-F

REV: 1.10 DESIGNED IN USA

CPU Socket LGA1151

JBR3

FAN3

JPME2

LAN3/4

JPL3

JPL2 JPL1

USB12

JBR2

FAN2

DIMMA1

LAN1/2

DIMMA2

USB2/3(3.0)

FAN4

DIMMB2

DIMMB1

IPMI_LAN USB0/1

JPW2

JPW1

JPI2C1

FAN1

J15

2. DOM Power Connector

Page 50

X11SSZ-TLN4F/QF/F User's Manual

SATA Ports

The X11SSZ-TLN4F/QF/F has four SATA 3.0 ports that are supported by the Intel PCH C236 (-TLN4F/F) or Q170 (-QF) chipset. In addition, I-SATA0 has built-in power pins to support Supermicro's SATA DOM (Disk-On-Module) solutions. Refer to the table below for

pin denition.

SATA 3.0 Port

Pin Denitions

Pin# Signal

1 Ground

2 SATA_TXP

3 SATA_TXN

4 Ground

5 SATA_RXN

6 SATA_RXP

7 Ground

1. I-SATA0

LED1

JUIDB1

AUDIO FP

JSPDIF_OUT1

JPAC1

PCH SLOT4 PCI-E 3.0 X4(IN X8)

JSMB1

JI2C2

I-SATA3

I-SATA2

I-SATA1

JI2C1

JPB1

JWD1

JD1

BT1

SP1

Intel

JBT1

C236

JTPM1

JSD1

FANB

COM1

COM2

USB8/9

USB6/7

USB4/5

JL1

J18

I-SATA0

JIPMB1

JBR1

I-SGPIO1

JVRM2

JVR1

JVRM1

JPWR1

LED3

CPU SLOT6 PCI-E 3.0 X16

JPG1

MAC CODE

BAR CODE

FANA

LED2

PCH SLOT7 PCI-E 3.0 X4(IN X8)

MAC CODE

S/N CODE

BIOS LICENSE

USB10/11(3.0)

JGPIO1

LED4

DP1/DP2

JF1

VGA/DVI

X11SSZ-F

REV: 1.10 DESIGNED IN USA

CPU Socket LGA1151

JBR3

FAN3

JPME2

USB2/3(3.0)

FAN4

DIMMB2

DIMMB1

IPMI_LAN USB0/1

JPW2

JPW1

JPI2C1

FAN1

J15

LAN1/2

LAN3/4

JPL3

JPL2 JPL1

DIMMA1

DIMMA2

USB12

JBR2

FAN2

2. I-SATA1

3. I-SATA2

4. I-SATA3

Page 51

Chapter 2: Installation

Unit Identier Switch/UID LED Indicator

A Unit Identier (UID) switch and an LED Indicator are located on the motherboard. The UID

switch is located at JUIDB1, which is next to the DP port on the back panel. The UID LED (LED1) is located next to the UID switch. When you press the UID switch, the UID LED will be turned on. Press the UID switch again to turn off the LED indicator. The UID Indicator

provides easy identication of a system unit that may be in need of service.

Note: UID can also be triggered via IPMI on the motherboard. For more information on IPMI, please refer to the IPMI User's Guide posted on our website at http://www. supermicro.com.

COM1

COM2

JL1

I-SATA0

USB8/9

USB6/7

USB4/5

J18

I-SATA3

I-SATA2

I-SATA1

AUDIO FP

JPAC1

JSPDIF_OUT1

PCH SLOT4 PCI-E 3.0 X4(IN X8)

JI2C2

JD1

SP1

JBT1

JSD1

FANB

UID Switch

Pin Denitions

Pin# Denition

1 Ground

2 Ground

3 Button In

4 Button In

LED3

JVRM2

JVRM1

CPU SLOT6 PCI-E 3.0 X16

JIPMB1

JSMB1

JI2C1

JVR1

JPWR1

JPG1

MAC CODE

BAR CODE

S/N CODE

USB10/11(3.0)

FANA

JPB1

JTPM1

Intel C236

JWD1

JBR1

BT1

I-SGPIO1

LED1

JUIDB1

DP1/DP2

LED2

PCH SLOT7 PCI-E 3.0 X4(IN X8)

MAC CODE

BIOS LICENSE

JGPIO1

JF1

LED4

VGA/DVI

X11SSZ-F

REV: 1.10 DESIGNED IN USA

CPU Socket LGA1151

JBR3

FAN3

JPME2

UID LED

Pin Denitions

Color Status

Blue: On Unit Identied

1. UID Switch

2. UID LED

USB2/3(3.0)

FAN4

DIMMB1

DIMMB2

IPMI_LAN USB0/1

JPW2

JPW1

JPI2C1

FAN1

J15

LAN1/2

LAN3/4

JPL3

JPL2 JPL1

DIMMA1

DIMMA2

USB12

JBR2

FAN2

Page 52

X11SSZ-TLN4F/QF/F User's Manual

2.8 Jumper Settings

How Jumpers Work

To modify the operation of the motherboard, jumpers can be used to choose between optional

settings. Jumpers create shorts between two pins to change the function of the connector.

Pin 1 is identied with a square solder pad on the printed circuit board. See the diagram at right for an example of jumping pins 1 and 2. Refer to the motherboard layout page for jumper locations.

Note: On two-pin jumpers, "Closed" means the jumper is on and "Open" means the jumper is off the pins.

Connector

Pins

Jumper

Setting

3 2 1

CMOS Clear

JBT1 is used to clear CMOS, which will also clear any passwords. Instead of pins, this jumper

consists of contact pads to prevent accidentally clearing the contents of CMOS.

To Clear CMOS:

1. First power down the system and unplug the power cord(s).

2. Remove the cover of the chassis to access the motherboard.

3. Remove the onboard battery and the external CMOS battery installed on J18.

4. Short the CMOS pads with a metal object such as a small screwdriver for at least four seconds.

5. Remove the screwdriver (or shorting device).

6. Install the batteries, the cover, reconnect the power cord(s), and power on the system.

Note: Clearing CMOS will also clear all passwords.

Do not use the PW_ON connector to clear CMOS.

JBT1 contact pads

Page 53

Chapter 2: Installation

VGA Enable/Disable

JPG1 allows you to enable or disable the VGA port using the onboard graphics controller. The default setting is Enabled.

VGA Enable/Disable

Jumper Settings

Jumper Setting Denition

Pins 1-2 Enabled

Pins 2-3 Disabled

LAN Port Enable/Disable

Change the setting of jumpers JPL1 for LAN1, JPL2 for LAN2, and JPL3 for LAN3/4 to enable

or disable the LAN ports. The default setting is Enabled.

COM1

COM2

I-SATA0

JL1

USB8/9

USB6/7

USB4/5

J18

I-SATA2

AUDIO FP

JPAC1

I-SATA3

JBT1

I-SATA1

JSPDIF_OUT1

PCH SLOT4 PCI-E 3.0 X4(IN X8)

JI2C2

JI2C1

JPB1

JD1

SP1

JTPM1

JSD1

FANB

Intel C236

JWD1

JSMB1

BT1

JIPMB1

JBR1

I-SGPIO1

JVRM2

JVR1

JPWR1

JVRM1

LED1

LED2

LED3

PCH SLOT7 PCI-E 3.0 X4(IN X8)

CPU SLOT6 PCI-E 3.0 X16

JPG1

MAC CODE

BAR CODE

S/N CODE

BIOS LICENSE

USB10/11(3.0)

FANA

JGPIO1

JUIDB1

DP1/DP2

MAC CODE

LED4

LAN Port Enable/Disable

Jumper Settings

Jumper Setting Denition

Pins 1-2 Enabled

Pins 2-3 Disabled

VGA/DVI

LAN3/4

JPL3

JPL2 JPL1

X11SSZ-F

REV: 1.10

DESIGNED IN USA

CPU Socket LGA1151

USB12

JPME2

JBR3

JBR2

FAN3

JF1

1. VGA Enable/Disable

2. LAN Port Enable/Disable

USB2/3(3.0)

FAN4

DIMMB2

DIMMB1

IPMI_LAN

USB0/1

JPW2

JPW1

JPI2C1

FAN1

J15

LAN1/2

DIMMA1

DIMMA2

FAN2

Page 54

X11SSZ-TLN4F/QF/F User's Manual

Watch Dog

JWD1 controls the Watch Dog function. Watch Dog is a monitor that can reboot the system when a software application hangs. Jumping pins 1-2 will cause Watch Dog to reset the system if an application hangs. Jumping pins 2-3 will generate a non-maskable interrupt signal for the application that hangs. Watch Dog must also be enabled in BIOS. The default setting is Reset.

Note: When Watch Dog is enabled, the user needs to write their own application software to disable it.

Watch Dog

Jumper Settings

Jumper Setting Denition

Pins 1-2 Reset

Pins 2-3 NMI

Open Disabled

Manufacturing Mode Select

JPME2 allows you to bypass SPI ash security and force the system to use the Manufacturing Mode, which will allow you to ash the system rmware from a host server to modify system settings. Refer to the table below for jumper settings.

Manufacturing Mode

Jumper Settings

Jumper Setting Denition

Pins 1-2 Normal (Default)

Pins 2-3 Manufacturing Mode

LED1

COM1

COM2

JL1

I-SATA0

AUDIO FP

USB8/9

USB6/7

USB4/5

J18

I-SATA3

I-SATA2

I-SATA1

JPAC1

JBT1

JSPDIF_OUT1

PCH SLOT4 PCI-E 3.0 X4(IN X8)

JI2C2

JI2C1

JPB1

JD1

SP1

JTPM1

JSD1

FANB

Intel C236

JWD1

JSMB1

BT1

JIPMB1

JBR1

I-SGPIO1

JVRM2

JVR1

JPWR1

JVRM1

LED2

LED3

PCH SLOT7 PCI-E 3.0 X4(IN X8)

CPU SLOT6 PCI-E 3.0 X16

JPG1

MAC CODE

BAR CODE

S/N CODE

BIOS LICENSE

USB10/11(3.0)

FANA

JGPIO1

JUIDB1

DP1/DP2

MAC CODE

LED4

FAN3

JF1

VGA/DVI

X11SSZ-F

REV: 1.10 DESIGNED IN USA

CPU Socket LGA1151

JPME2

JBR3

JBR2

USB12

USB2/3(3.0)

FAN4

DIMMB2

DIMMB1

IPMI_LAN USB0/1

JPW2

JPW1

JPI2C1

FAN1

J15

LAN1/2

LAN3/4

JPL3

JPL2 JPL1

DIMMA1

DIMMA2

FAN2

1. Watch Dog

2. ME Manufacturing

Page 55

Chapter 2: Installation

SMBus to PCI-E Slots

Use jumpers JI2C1 and JI2C2 to enable PCI-E SMB (System Management Bus) support to

improve system management for the onboard PCI-E slot.

SMBus to PCI-E Slots

Jumper Settings

Jumper Setting Denition

Pins 1-2 Enabled

Pins 2-3 Disabled (Default)

BMC Enabled

JPB1 allows you to enable or disable the BMC (Baseboard Management Control) chip and

the onboard IPMI connection for debugging purpose only. This jumper is used together with

the IPMI settings in the BIOS. After the BMC is disabled, IPMI health monitoring and remote management functions are no longer supported.

Note: Please aways keep BMC enabled to make sure the platform operates reliably with the health monitor.

BMC Enable

Jumper Settings

Jumper Setting Denition

Pins 1-2 Enabled (Default)

Pins 2-3 Disabled

1. SMBus to PCI-E Slots

LED1

COM1

COM2

I-SATA0

JL1

USB8/9

USB6/7

USB4/5

J18

I-SATA2

AUDIO FP

JPAC1

I-SATA3

JBT1

I-SATA1

JSPDIF_OUT1

PCH SLOT4 PCI-E 3.0 X4(IN X8)

JI2C2

JI2C1

JPB1

JD1

SP1

JTPM1

JSD1

FANB

Intel C236

JWD1

JSMB1

BT1

JIPMB1

JBR1

I-SGPIO1

JVRM2

JVRM1

JVR1

JPWR1

LED2

LED3

PCH SLOT7 PCI-E 3.0 X4(IN X8)

CPU SLOT6 PCI-E 3.0 X16

JPG1

MAC CODE

BAR CODE

S/N CODE

BIOS LICENSE

USB10/11(3.0)

FANA

JGPIO1

JUIDB1

DP1/DP2

MAC CODE

LED4

FAN3

JF1

VGA/DVI

X11SSZ-F

REV: 1.10

DESIGNED IN USA

CPU Socket LGA1151

JPME2

JBR3

JBR2

USB12

USB2/3(3.0)

FAN4

DIMMB2

DIMMB1

IPMI_LAN

USB0/1

JPW2

JPW1

JPI2C1

FAN1

J15

LAN1/2

LAN3/4

JPL3

JPL2 JPL1

DIMMA1

DIMMA2

FAN2

2. BMC Enabled

Page 56

X11SSZ-TLN4F/QF/F User's Manual

2.9 LED Indicators

LAN1/2/3/4 LEDs

There are two 1GbE LAN ports (LAN1/2), and the -TLN4F version has two additional 10GbE LAN ports (LAN3/4). Each port has two LED indicators. The Activity LED is yellow and indicates connection and activity. The Link LED may be green, amber, or off to indicate the speed of the connection. Refer to the tables below for more information.

Activity LED

LED Color Status/Denition

Off No Connection

Yellow Flashing Active

LED Color Status/Denition

Off No Connection or 10Mbps

Amber 1Gbps

Link LED

Green 100Mbps (10Gbps for 10GbE port)

Link LED

Activity LED

Dedicated IPMI LAN LEDs

A dedicated IPMI LAN is also included on the motherboard. The amber LED on the right of the IPMI LAN port indicates activity, while the left LED indicates the speed of the connection. Refer to the table below for more information.

IPMI LAN LEDs

Color Status Denition

Link LED

Activity LED

Off Off

Green:

Solid

Amber

Blinking

Link/Speed

(Left)

Activity

(Right)

Connection

100 Mb/s

Active

1. LAN1/2 LED

LED1

JUIDB1

2. LAN3/4 LED

3. Dedicated IPMI LAN LED

COM1

COM2

USB8/9

USB6/7

USB4/5

JL1

J18

I-SATA3

I-SATA2

I-SATA1

I-SATA0

AUDIO FP

JSPDIF_OUT1

JPAC1

PCH SLOT4 PCI-E 3.0 X4(IN X8)

SP1

JBT1

JSD1

FANB

DP1/DP2

JF1

VGA/DVI

X11SSZ-F

REV: 1.10 DESIGNED IN USA

CPU Socket LGA1151

JBR3

FAN3

JPME2

LAN3/4

JPL3

JPL2 JPL1

USB12

JBR2

LED2

LED3

JVRM2

JVRM1

PCH SLOT7 PCI-E 3.0 X4(IN X8)

CPU SLOT6 PCI-E 3.0 X16

JIPMB1

JSMB1

JI2C2

JI2C1

JPB1

JWD1

JD1

Intel C236

JTPM1

JPG1

JVR1

JBR1

BT1

JPWR1

I-SGPIO1

MAC CODE

BAR CODE

FANA

MAC CODE

S/N CODE

USB10/11(3.0)

MAC CODE

BIOS LICENSE

JGPIO1

LED4

USB2/3(3.0)

DIMMB1

FAN4

DIMMB2

IPMI_LAN USB0/1

JPW2

JPW1

JPI2C1

FAN1

J15

LAN1/2

DIMMA1

DIMMA2

FAN2

Page 57

Chapter 2: Installation

Unit ID LED

A rear UID LED indicator at LED1 is located next to the I/O back panel. This UID indicator

provides easy identication of a system unit that may be in need of service. Refer to the

table for the LED status.

UID LED

LED Indicator

LED Color Denition

Blue: On Unit Identied

Overheat/PWR Fail/Fan Fail LED

A Overheat/PWR/Fail/ Fan Fail LED is located at LED2. Refer to the table below for the LED status.

COM1

COM2

I-SATA0

JL1

USB8/9

USB6/7

USB4/5

J18

I-SATA2

AUDIO FP

JPAC1

I-SATA3

JBT1

I-SATA1

JSPDIF_OUT1

PCH SLOT4 PCI-E 3.0 X4(IN X8)

JI2C2

JI2C1

JPB1

JD1

SP1

JTPM1

JSD1

FANB

Intel C236

JWD1

JSMB1

BT1

JIPMB1

JBR1

I-SGPIO1

JVRM2

JVRM1

JVR1

JPWR1

LED1

LED2

LED3

PCH SLOT7 PCI-E 3.0 X4(IN X8)

CPU SLOT6 PCI-E 3.0 X16

JPG1

MAC CODE

BAR CODE

S/N CODE

BIOS LICENSE

USB10/11(3.0)

FANA

JGPIO1

Overheat/PWR Fail/Fan Fail

LED Indicator

LED Color Denition

Solid Overheat

Blinking PWR Fail or Fan Fail

JUIDB1

DP1/DP2

MAC CODE

LED4

JF1

VGA/DVI

X11SSZ-F

REV: 1.10

DESIGNED IN USA

CPU Socket LGA1151

JBR3

FAN3

JPME2

LAN1/2

LAN3/4

JPL3

JPL2 JPL1

DIMMA1

DIMMA2

USB12

JBR2

FAN2

USB2/3(3.0)

FAN4

DIMMB2

DIMMB1

IPMI_LAN

USB0/1

JPW2

JPW1

JPI2C1

FAN1

1. UID LED

2. Overheat/PWR Fail/Fan Fail LED

J15

Page 58

X11SSZ-TLN4F/QF/F User's Manual

BMC Heartbeat LED

LED3 is the BMC heartbeat LED. When the LED is blinking green, BMC is functioning normally. Refer to the table below for the LED status.

Onboard Power LED Indicator

LED Color Denition

Green:

Blinking

BMC Normal

Onboard Power LED

LED4 is an Onboard Power LED. When this LED is lit, it means power is present on the motherboard. In suspend mode, this LED will blink on and off. Be sure to turn off the system and unplug the power cord(s) before removing or installing components.

Onboard Power LED Indicator

LED Color Denition

System Off

Off

Green System On

(power cable not

connected)

COM1

COM2

JL1

I-SATA0

USB8/9

USB6/7

USB4/5

J18

I-SATA3

I-SATA2

I-SATA1

AUDIO FP

JPAC1

JSPDIF_OUT1

PCH SLOT4 PCI-E 3.0 X4(IN X8)

SP1

JBT1

JSD1

FANB

JI2C2

JD1

JI2C1

JPB1

JTPM1

Intel C236

JWD1

JSMB1

BT1

JIPMB1

JBR1

I-SGPIO1

JVRM2

JVRM1

JVR1

JPWR1

LED1

LED2

LED3

PCH SLOT7 PCI-E 3.0 X4(IN X8)

CPU SLOT6 PCI-E 3.0 X16

JPG1

MAC CODE

BAR CODE

S/N CODE

BIOS LICENSE

USB10/11(3.0)

FANA

JGPIO1

JUIDB1

DP1/DP2

MAC CODE

LED4

JF1

VGA/DVI

X11SSZ-F

REV: 1.10 DESIGNED IN USA

CPU Socket LGA1151

JBR3

FAN3

JPME2

1. BMC Heartbeat LED

2. Power On LED

USB2/3(3.0)

FAN4

DIMMB1

DIMMB2

IPMI_LAN USB0/1

JPW2

JPW1

JPI2C1

FAN1

J15

LAN1/2

LAN3/4

JPL3

JPL2 JPL1

DIMMA1

DIMMA2

USB12

JBR2

FAN2

Page 59

Chapter 3: Troubleshooting

Chapter 3

Troubleshooting

3.1 Troubleshooting Procedures

Use the following procedures to troubleshoot your system. If you have followed all of the procedures below and still need assistance, refer to the ‘Technical Support Procedures’ and/ or ‘Returning Merchandise for Service’ section(s) in this chapter. Always disconnect the AC power cord before adding, changing or installing any non hot-swap hardware components.

Before Power On

1. Check that the power LED on the motherboard is on.

2. Make sure that the power connector is connected to your power supply.

3. Make sure that no short circuits exist between the motherboard and chassis.

4. Disconnect all cables from the motherboard, including those for the keyboard and mouse.

5. Remove all add-on cards.

6. Install a CPU, a heatsink*, and connect the internal speaker and the power LED to the

motherboard. Check all jumper settings as well. (Make sure that the heatsink is fully

seated.)

7. Use the correct type of onboard CMOS battery (CR2032) as recommended by the manufacturer. To avoid possible explosion, do not install the CMOS battery upside down.

No Power

1. Make sure that no short circuits exist between the motherboard and the chassis.

2. Verify that all jumpers are set to their default positions.

3. Check that the 115V/230V switch on the power supply is properly set.

4. Turn the power switch on and off to test the system.

5. The battery on your motherboard may be old. Check to verify that it still supplies ~3VDC. If it does not, replace it with a new one.

Page 60

X11SSZ-TLN4F/QF/F User's Manual

No Video

1. If the power is on but you have no video, remove all the add-on cards and cables.

2. Use the speaker to determine if any beep codes exist. Refer to Appendix A for details on beep codes.

3. CPU integrated graphic (DVI, DP1/2) might have to be enabled in the BIOS setup.

Note: If you are a system integrator, VAR or OEM, a POST diagnostics card is recommended. For I/O port 80h codes, refer to Appendix B.

System Boot Failure

If the system does not display POST (Power-On-Self-Test) or does not respond after the power is turned on, check the following:

1. Check for any error beep from the motherboard speaker.

• If there is no error beep, try to turn on the system without DIMM modules installed. If there

is still no error beep, replace the motherboard.

• If there are error beeps, clear the CMOS settings by unplugging the power cord and

contacting both pads on the CMOS Clear Jumper (JBT1). Refer to chapter 2.

2. Remove all components from the motherboard, especially the DIMM modules. Make sure that system power is on and that memory error beeps are activated.

3. Turn on the system with only one DIMM module installed. If the system boots, check for bad DIMM modules or slots by following the Memory Errors Troubleshooting procedure in this Chapter.

Memory Errors

1. Make sure that ECC memory is used for the Xeon E3-1200 v5 series processor and Non-ECC mrmory is used for the Core i7/i5 processor.

2. Conrm that you are using the correct memory. Also, it is recommended that you use the same memory type and speed for all DIMMs in the system. See Section 2.4 for memory details.

3. Check for bad DIMM modules or slots by swapping modules between slots and noting the results.

4. Check the power supply voltage 115V/230V switch.

Page 61

Chapter 3: Troubleshooting

Losing the System's Setup Conguration

1. Make sure that you are using a high quality power supply. A poor quality power supply may cause the system to lose the CMOS setup information. Refer to Section 1.6 for details on recommended power supplies.

2. The battery on your motherboard may be old. Check to verify that it still supplies ~3VDC. If it does not, replace it with a new one.

3. If the above steps do not x the setup conguration problem, contact your vendor for repairs.

When the System Becomes Unstable

A. If the system becomes unstable during or after OS installation, check the following:

1. CPU/BIOS support: Make sure that your CPU is supported and that you have the latest BIOS installed in your system.

2. Memory support: Make sure that the memory modules are supported by testing the modules using memtest86 or a similar utility.

Note: Refer to the product page on our website at http:\\www.supermicro.com for memory and CPU support and updates.

3. HDD support: Make sure that all hard disk drives (HDDs) work properly. Replace the bad HDDs with good ones.

4. System cooling: Check the system cooling to make sure that all heatsink fans and CPU/ system fans, etc., work properly. Check the hardware monitoring settings in the IPMI to make sure that the CPU and system temperatures are within the normal range. Also check the front panel Overheat LED and make sure that it is not on.

5. Adequate power supply: Make sure that the power supply provides adequate power to the system. Make sure that all power connectors are connected. Please refer to our website for more information on the minimum power requirements.

6. Proper software support: Make sure that the correct drivers are used.

B. If the system becomes unstable before or during OS installation, check the following:

1. Source of installation: Make sure that the devices used for installation are working properly, including boot devices such as CD/DVD and CD/DVD-ROM.

2. Cable connection: Check to make sure that all cables are connected and working properly.

Page 62

X11SSZ-TLN4F/QF/F User's Manual

3. Using the minimum conguration for troubleshooting: Remove all unnecessary

components (starting with add-on cards rst), and use the minimum conguration (but

with a CPU and a memory module installed) to identify the trouble areas. Refer to the steps listed in Section A above for proper troubleshooting procedures.

4. Identifying bad components by isolating them: If necessary, remove a component in question from the chassis, and test it in isolation to make sure that it works properly. Replace a bad component with a good one.

5. Check and change one component at a time instead of changing several items at the same time. This will help isolate and identify the problem.

6. To nd out if a component is good, swap this component with a new one to see if the system will work properly. If so, then the old component is bad. You can also install the component in question in another system. If the new system works, the component is good and the old system has problems.

Page 63

Chapter 3: Troubleshooting

3.2 Technical Support Procedures

Before contacting Technical Support, please take the following steps. Also, note that as a

motherboard manufacturer, we do not sell directly to end-users, so it is best to rst check with

your distributor or reseller for troubleshooting services. They should know of any possible

problem(s) with the specic system conguration that was sold to you.

1. Please review the ‘Troubleshooting Procedures’ and 'Frequently Asked Questions' (FAQs) sections in this chapter or see the FAQs on our website before contacting Technical Support.

2. BIOS upgrades can be downloaded from our website. Note: Not all BIOS can be

ashed depending on the modications to the boot block code.

3. If you still cannot resolve the problem, include the following information when contacting us for technical support:

• Motherboard model and PCB revision number

• BIOS release date/version (this can be seen on the initial display when your system rst

boots up)

• System conguration

An example of a Technical Support form is posted on our website.

Distributors: For immediate assistance, please have your account number ready when contacting our technical support department by e-mail.

Page 64

X11SSZ-TLN4F/QF/F User's Manual

3.3 Frequently Asked Questions

Question: What type of memory does my motherboard support?

Answer: The X11SSZ-TLN4F motherboard supports up to 64GB Unbuffered ECC/Non-

ECC UDIMM, DDR4-2133MHz, in four DIMM slots. The X11SSZ-QF supports up to 64GB Unbuffered Non-ECC UDIMM, DDR4-2133MHz, in four DIMM slots. See Section 2.4 for details on installing memory.

Question: How do I update my BIOS?

Answer: It is recommended that you do not upgrade your BIOS if you are not experiencing

any problems with your system. Updated BIOS les are located on our website at http://www.

supermicro.com. Please check our BIOS warning message and the information on how to

update your BIOS on our website. Select your motherboard model and download the BIOS

le to your computer. Also, check the current BIOS revision to make sure that it is newer than your BIOS before downloading. You can choose from the zip le and the .exe le. If you choose the zip BIOS le, please unzip the BIOS le onto a bootable USB device. Run the batch le using the format AMI.BAT lename.rom from your bootable USB device to ash the

BIOS. Then, your system will automatically reboot.

Question: Why can't I turn off the power using the momentary power on/off switch?

Answer: The instant power off function is controlled in BIOS by the Power Button Mode

setting. When the On/Off feature is enabled, the motherboard will have instant off capabilities as long as the BIOS has control of the system. When the Standby or Suspend feature is

enabled or when the BIOS is not in control such as during memory count (the rst screen

that appears when the system is turned on), the momentary on/off switch must be held for more than four seconds to shut down the system. This feature is required to implement the ACPI features on the motherboard.

Page 65

Chapter 3: Troubleshooting

3.4 Battery Removal and Installation

Battery Removal

To remove the onboard battery, follow the steps below:

1. Power off your system and unplug your power cable.

2. Locate the onboard battery as shown below.

3. Using a tool such as a pen or a small screwdriver, push the battery lock outwards to unlock it. Once unlocked, the battery will pop out from the holder.

4. Remove the battery.

Proper Battery Disposal

Please handle used batteries carefully. Do not damage the battery in any way; a damaged battery may release hazardous materials into the environment. Do not discard a used battery

in the garbage or a public landll. Please comply with the regulations set up by your local

hazardous waste management agency to dispose of your used battery properly.

Battery Installation

1. To install an onboard battery, follow the steps 1 & 2 above and continue below:

2. Identify the battery's polarity. The positive (+) side should be facing up.

3. Insert the battery into the battery holder and push it down until you hear a click to ensure that the battery is securely locked.

Important: When replacing a battery, be sure to only replace it with the same type.

Page 66

X11SSZ-TLN4F/QF/F User's Manual

3.5 Returning Merchandise for Service

A receipt or copy of your invoice marked with the date of purchase is required before any warranty service will be rendered. You can obtain service by calling your vendor for a Returned Merchandise Authorization (RMA) number. When returning to the manufacturer, the RMA number should be prominently displayed on the outside of the shipping carton and mailed prepaid or hand-carried. Shipping and handling charges will be applied for all orders that must be mailed when service is complete.

For faster service, RMA authorizations may be requested online (http://www.supermicro.com/

support/rma/).

This warranty only covers normal consumer use and does not cover damages incurred in shipping or from failure due to the alteration, misuse, abuse or improper maintenance of products.

During the warranty period, contact your distributor rst for any product problems.

Page 67

Chapter 4: BIOS

Chapter 4

BIOS

4.1 Introduction

This chapter describes the AMIBIOS™ Setup utility for the X11SSZ-TLN4F/QF/F motherboard.

The BIOS is stored on a chip and can be easily upgraded using a ash program.

Note: Due to periodic changes to the BIOS, some settings may have been added or deleted and might not yet be recorded in this manual. Please refer to the Manual

Download area of our website for any changes to BIOS that may not be reected in

this manual.

Starting the Setup Utility

To enter the BIOS Setup Utility, hit the <Delete> key while the system is booting-up. (In most cases, the <Delete> key is used to invoke the BIOS setup screen. There are a few cases when other keys are used, such as <F1>, <F2>, etc.) Each main BIOS menu option is described in this manual.

The Main BIOS screen has two main frames. The left frame displays all the options that can

be congured. “Grayed-out” options cannot be congured. The right frame displays the key

legend. Above the key legend is an area reserved for a text message. When an option is selected in the left frame, it is highlighted in white. Often a text message will accompany it. (Note that BIOS has default text messages built in. We retain the option to include, omit, or change any of these text messages.) Settings printed in Bold are the default values.

A " " indicates a submenu. Highlighting such an item and pressing the <Enter> key will open the list of settings within that submenu.

The BIOS setup utility uses a key-based navigation system called hot keys. Most of these hot keys (<F1>, <F10>, <Enter>, <ESC>, <Arrow> keys, etc.) can be used at any time during the setup navigation process.

Page 68

X11SSZ-TLN4F/QF/F User's Manual

4.2 Main Setup

When you rst enter the AMI BIOS setup utility, you will enter the Main setup screen. You can

always return to the Main setup screen by selecting the Main tab on the top of the screen. The Main BIOS setup screen is shown below. The following Main menu items will be displayed:

System Date/System Time

Use this option to change the system date and time. Highlight System Date or System Time using the arrow keys. Enter new values using the keyboard. Press the <Tab> key or the arrow

keys to move between elds. The date must be entered in Day MM/DD/YYYY format. The

time is entered in HH:MM:SS format.

Note: The time is in the 24-hour format. For example, 5:30 P.M. appears as 17:30:00. The date's default value is 01/01/2015 after RTC reset.

Supermicro X11SSZ-TLN4F

BIOS Version

This item displays the version of the BIOS ROM used in the system.

Build Date

This item displays the date when the version of the BIOS ROM used in the system was built.

Page 69

Memory Information

Total Memory

This item displays the total size of memory available in the system.

Memory Speed

This item displays the memory speed.

Chapter 4: BIOS

Page 70

X11SSZ-TLN4F/QF/F User's Manual

4.3 Advanced Setup Congurations

Use the arrow keys to select Boot Setup and press <Enter> to access the submenu items.

Warning: Take caution when changing the Advanced settings. An incorrect value, a very high DRAM frequency, or an incorrect DRAM timing setting may make the system unstable. When this occurs, revert to the default to the manufacture default settings.

Boot Feature

Quiet Boot

Use this feature to select the screen display between the POST messages and the OEM logo upon bootup. Select Disabled to display the POST messages. Select Enabled to display the OEM logo instead of the normal POST messages. The options are Enabled and Disabled.

AddOn ROM Display Mode

Use this feature to set the display mode for the Option ROM. Select Keep Current to display the current AddOn ROM setting. Select Force BIOS to use the Option ROM display set by the system BIOS. The options are Force BIOS and Keep Current.

Bootup NumLock State

Use this feature to set the Power-on state for the <Numlock> key. The options are Off and On.

Page 71

Chapter 4: BIOS

Wait For 'F1' If Error

Use this feature to force the system to wait until the 'F1' key is pressed if an error occurs. The options are Disabled and Enabled.

INT19 (Interrupt 19) Trap Response

Interrupt 19 is the software interrupt that handles the boot disk function. When this item is set to Immediate, the ROM BIOS of the host adaptors will "capture" Interrupt 19 at bootup immediately and allow the drives that are attached to these host adaptors to function as bootable disks. If this item is set to Postponed, the ROM BIOS of the host adaptors will not capture Interrupt 19 immediately and allow the drives attached to these adaptors to function as bootable devices at bootup. The options are Immediate and Postponed.

Re-try Boot

If this item is enabled, the BIOS will automatically reboot the system from a specied boot

device after its initial boot failure. The options are Disabled, Legacy Boot, and EFI Boot.

Power Conguration

Watch Dog Function

If enabled, the Watch Dog Timer will allow the system to reset or generate NMI based on

jumper settings when it is expired for more than 5 minutes. The options are Enabled and

Disabled.

Power Button Function

This feature controls how the system shuts down when the power button is pressed. Select 4_Seconds_Override for the user to power off the system after pressing and holding the power button for 4 seconds or longer. Select Instant Off to instantly power off the system as soon as the user presses the power button. The options are 4 Seconds Override and Instant Off.

Restore on AC Power Loss

Use this feature to set the power state after a power outage. Select Stay-Off for the system power to remain off after a power loss. Select Power-On for the system power to be turned on after a power loss. Select Last State to allow the system to resume its last power state before a power loss. The options are Power On, Stay Off and Last State.

Page 72

X11SSZ-TLN4F/QF/F User's Manual

CPU Conguration

The following CPU information will display:

• Intel® Core™ i5-6500 CPU @ 3.2GHz

• CPU Signature

• Microcode Patch

• Max CPU Speed

• Min CPU Speed

• CPU Speed

• Processor Cores

• Hyper Threading Technology

• Intel VT-x Technology

• Intel SMX Technology

• 64-bit

• EIST Technology

• CPU C3 State

• CPU C6 State

• CPU C7 State

• L1 Data Cache

• L1 Code Cache

• L2 Cache

• L3 Cache

• L4 Cache

Hyper-threading (Available when supported by the CPU)

Select Enabled to support Intel Hyper-threading Technology to enhance CPU performance. The options are Enabled and Disabled.

Page 73

Chapter 4: BIOS

Active Processor Cores

This feature determines how many CPU cores will be activated for each CPU. When all is selected, all cores in the CPU will be activated. (Please refer to Intel's website for more information.) The options are All and 1, 2, and 3.

Intel® Virtualization Technology

Select Enable to use Intel Virtualization Technology so that I/O device assignments will be reported directly to the VMM (Virtual Memory Management) through the DMAR ACPI Tables. This feature offers fully-protected I/O resource-sharing across the Intel platforms, providing the user with greater reliability, security and availability in networking and data-sharing. The settings are Disabled and Enabled.

Hardware Prefetcher (Available when supported by the CPU)

If set to Enabled, the hardware prefetcher will prefetch streams of data and instructions from the main memory to the L2 cache to improve CPU performance. The options are Disabled and Enabled.

Adjacent Cache Line Prefetch (Available when supported by the CPU)

The CPU prefetches the cache line for 64 bytes if this feature is set to Disabled. The CPU prefetches both cache lines for 128 bytes as comprised if this feature is set to Enabled.

CPU AES

Select Enabled to enable Intel CPU Advanced Encryption Standard (AES) Instructions for CPU to enhance data integrity. The options are Enabled and Disabled.

Boot Performance Mode

This feature allows the user to select the performance state that the BIOS will set before the operating system handoff. The options are Power Saving, Max Non-Turbo Performance and Turbo Performance.

HardWare P-States (HWP)

Use this feature to enable or disable hardware P-States support. The options are Disabled and Enabled.

Intel® SpeedStep™

Intel SpeedStep Technology allows the system to automatically adjust processor voltage and

core frequency to reduce power consumption and heat dissipation. The options are Disabled and Enabled.

Turbo Mode

Select Enabled for processor cores to run faster than the frequency specied by the

manufacturer. The options are Disabled and Enabled.

Page 74

X11SSZ-TLN4F/QF/F User's Manual

Package Power Limit MSR Lock

Select Enabled to lock the package power limit for the model specic registers. The options

are Disabled and Enabled.

Power Limit 1 Override

Select Enabled to support average power limit (PL1) override. The default setting is Disabled.

If the item above is set to Enabled, the next two items will be available for user

conguration:

Power Limit 1

Use this item to congure the value for Power Limit 1. The value is in milli watts and the step

size is 125mW. Use the number keys on your keyboard to enter the value. Enter 0 to use the manufacture default setting.

Power Limit 1 Window

Use this feature to indicate the time window over which the TDP value should be maintained. The default value is 0. The options are 0, 1, 2 ,3, 4, 5, 6, 7, 8, 10, 12, 14, 16, 20, 24, 28, 32, 40, 48, 56, 64, 80, 96, 112, and 128.

Power Limit 2 Override

Select Enabled to support rapid power limit (PL2) override. The default setting is Enabled.

Power Limit 2

Use this item to congure the value for Power Limit 2. The value is in milliwatts and the step

size is 125mW. Use the number keys on your keyboard to enter the value. Enter 0 to use the manufacture default setting. If the value is 0, the BIOS will set PL2 as 1.25* TDP.

1-Core Ratio Limit Override

This increases (multiplies) 1 clock speed in the CPU core in relation to the bus speed when one CPU core is active. Press "+" or "-" on your keyboard to change the value. Enter 0 to use the manufacture default setting.

2-Core Ratio Limit Override

This increases (multiplies) 2 clock speeds in the CPU core in relation to the bus speed when two CPU cores are active. Press "+" or "-" on your keyboard to change the value. Enter 0 to use the manufacture default setting.

3-Core Ratio Limit Override

This increases (multiplies) 3 clock speeds in the CPU core in relation to the bus speed when three CPU cores are active. Press "+" or "-" on your keyboard to change the value. Enter 0 to use the manufacture default setting.

Page 75

Chapter 4: BIOS

4-Core Ratio Limit Override

This increases (multiplies) 4 clock speeds in the CPU core in relation to the bus speed when three CPU cores are active. Press "+" or "-" on your keyboard to change the value. Enter 0 to use the manufacture default setting.

CPU C-States

Use this feature to enable the C-State of the CPU. The options are Disabled and Enabled.

Enhanced C-States

Use this feature to enable the enhanced C-State of the CPU. The options are Disabled and

Enabled.

C-State Auto Demotion

Use this feature to prevent unnecessary excursions into the C-states to improve latency. The options are Disabled, C1, C3, and C1 and C3.

C-State Un-Demotion

This feature allows the user to enable or disable the un-demotion of C-State. The options are Disabled, C1, C3, and C1 and C3

Package C-State Demotion

Use this feature to enable or disable the Package C-State demotion. The options are Disabled and Enabled.

Package C-State Un-Demotion

Use this feature to enable or disable the Package C-State un-demotion. The options are

Disabled and Enabled.

C-State Pre-Wake

This feature allows the user to enable or disable the C-State Pre-Wake. The options are Disabled and Enabled.

Package C-State Limit

Use this feature to set the Package C-State limit. The options are C0/C1, C2, C3, C6, C7, C7s, C8, and AUTO.

CPU Thermal Conguration

CPU DTS

Select Enabled for the ACPI thermal management to use the DTS SMM mechanism to obtain CPU temperature values. Select Disabled for EC to report the CPU temperature values. The options are Disabled and Enabled.

Page 76

X11SSZ-TLN4F/QF/F User's Manual

ACPI 3.0 T-States

Select Enabled to support CPU throttling by the operating system to reduce power consumption. The options are Enabled and Disabled.

Chipset Conguration

Warning: Setting the wrong values in the following features may cause the system to malfunction.

System Agent (SA) Conguration

The following System Agent information will display:

• System Agent Bridge Name

• SA PCIe Code Version

• VT-d

VT-d

Select Enabled to enable Intel Virtualization Technology support for Direct I/O VT-d by reporting the I/O device assignments to VMM through the DMAR ACPI Tables. This feature offers fully-protected I/O resource-sharing across the Intel platforms, providing the user with greater reliability, security and availability in networking and data-sharing. The options are

Enabled and Disabled.

SW Guard Extensions (SGX)

Use this feature is to enable or disable the Intel Software Guard Extensions (SGX). SGX is a set of CPU instructions that increases software security. The options are Disabled, Enabled, and Software Controlled.

PRMRR Size

The BIOS must reserve a contiguous region of Processor Reserved Memory (PRM) in the Processor Reserved Memory Range Register (PRMRR). The options are Auto, 32MB, 64MB, and 128MB.

Page 77

Chapter 4: BIOS

Graphics Conguration

Primary Display

Use this feature to select the graphics device to be used as the primary display. The options are Auto, IGFX, PEG, and PCIE.

Primary PEG

This feature allows the user to select the primary PCI Express Graphics (PEG) slot. The default setting is CPU SLOT6 PCI-E 3.0 X16.

Primary PCIE (PCI-Express Graphics)

This feature allows the user to specify which graphics card to be used as the primary graphics card. The options are Auto, PCH SLOT4 PCI-E 3.0 X4 (IN X8), Onboard, and PCH SLOT7 PCI-E 3.0 X4 (INX8).

Internal Graphics

Select Auto to keep an internal graphics device installed on an expansion slot supported by the CPU to be automatically enabled. The options are Auto, Disabled, and Enabled.

DMI/OPI Conguration

The following DMI information will display:

• DMI

DMI VC1 Control

Use this feature to enable or disable DMI Virtual Channel 1. The options are Enabled and

Disabled.

DMI VCm Control

Use this feature to enable or disable the DMI Virtual Channel map. The options are Enabled and Disabled.

CPU DMI Link ASPM Control

Use this feature to set the ASPM (Active State Power Management) state on the SA (System Agent) side of the DMI Link. The options are Disabled and L1.

DMI Extended Sync Control

Use this feature to enable or disable the DMI extended synchronization. The options are Disabled and Enabled.

Page 78

X11SSZ-TLN4F/QF/F User's Manual

DMI De-Emphasis Control

Use this feature to congure the De-emphasis control on DMI. The options are -6dB and

-3.5dB.

PEG Port Conguration

CPU SLOT6 PCI-E 3.0 X16

SLOT6 Max Link Speed

This feature allows the user to select PCI-E support for the device installed on SLOT6. The options are Auto, Gen1, Gen2, and Gen3.

SLOT6 Max Payload Size

Use this feature to select the PEG0 maximum payload size. The options are Auto, 128 TLP, and 256 TLP.

SLOT6 Power Limit Value

Use this feature to set the upper limit on the power supplied by the PCIE slot. Press "+" or "-" on your keyboard to change this value. The default setting is 75.

SLOT6 Power Limit Scale

Use this feature to select the scale used for the slot power limit value. The options are

1.0x, 0.1x, 0.01x, and 0.001x.

Program PCIe ASPM After OPROM

PCIe ASPM, the Active State Power Management for PCI-Express slots, is a power management protocol used to manage power consumption of serial-link devices installed on PCI-Exp slots during a prolonged off-peak time. If this item is set to Enabled, PCI-E ASPM will be programmed after OPROM. If this item is set to Disabled, the PCI-E ASPM will be programmed before OPROM. The options are Disabled and Enabled.

Memory Conguration

The following memory information will display:

• Memory RC Version

• Memory Frequency

• Total Memory

• VDD

• DIMMA1

Page 79

Chapter 4: BIOS

• DIMMA2

• DIMMB1

• DIMMB2

• Memory Timings (tCL-tRCD-tRP-tRAS)

Maximum Memory Frequency

Use this feature to set the maximum memory frequency for onboard memory modules. The options are Auto, 1067, 1200, 1333, 1400, 1600, 1800, 1867, 2000, 2133, 2200, and 2400.

Max TOLUD

This feature sets the maximum TOLUD value, which species the "Top of Low Usable

DRAM" memory space to be used by internal graphics devices, GTT Stolen Memory, and TSEG, respectively, if these devices are enabled. The options are Dynamic, 1 GB, 1.25 GB, 1.5 GB, 1.75 GB, 2 GB, 2.25 GB, 2.5 GB, 2.75 GB, 3 GB, 3.25 GB, and 3.5 GB.

Energy Performance Gain

Use this feature to enable or disable the energy performance gain. The options are Disabled and Enabled.

Memory Scrambler

Select Enabled to enable memory scrambler support. The options are Disabled and

Enabled.

Fast Boot

Use this feature to enable or disable fast path through the memory reference code. The options are Enabled and Disabled.

REFRESH_2X_MODE

Use this feature to select the refresh mode. The options are Disabled, 1-Enabled for WARM or HOT, and 2-Enabled HOT only.

Closed Loop Thermal Management

Use this feature to monitor the power consumption and temperature of the system to predict a thermal trend. The options are Disabled and Enabled.

GT - Power Management Control

The following GT - Power Management Control information will display:

• GT Info

Page 80

X11SSZ-TLN4F/QF/F User's Manual

RC6 (Render Standby)

Select Enabled to enable render standby support. The options are Disabled and Enabled.

PCH-IO Conguration

The following PCH-IO information will display:

• Intel PCH RC Version

• Intel PCH SKU Name

• Intel PCH Rev ID

PCI Express Conguration

PCH DMI Link ASPM Control

Use this feature to set the ASPM (Active State Power Management) state on the SA (System Agent) side of the DMI Link. The options are Disabled and Enabled.

Peer Memory Write Enable

Use this feature to enable or disable peer memory write. The options are Disabled or Enabled.

PCH SLOT4 PCI-E 3.0 X4 (IN X8)

SLOT4 ASPM

Use this item to set the Active State Power Management (ASPM) level for a PCI-E device. Select Auto for the system BIOS to automatically set the ASPM level based on the system

conguration. Select Disabled to disable ASPM support. The options are Disabled, L0s,

L1, L0s & L1, and Auto.

SLOT4 L1 Substates

Use this feature to congure the PCI Express L1 Substates. The options are Disabled,

L1.1, L1.2, and L1.1 & L1.2

SLOT4 PCIe Speed

Use this feature to select the PCI Express port speed. The options are Auto, Gen1, Gen2, and Gen3.

SLOT4 Detect Non-Compliance Device

Select Enabled for the AMI BIOS to automatically detect a PCI-E device that is not compliant with the PCI-E standards. The options are Disabled and Enabled.

Page 81

Chapter 4: BIOS

PCH SLOT7 PCI-E 3.0 X4 (IN X8)

SLOT7 ASPM

Use this item to set the Active State Power Management (ASPM) level for a PCI-E device. Select Auto for the system BIOS to automatically set the ASPM level based on the system

conguration. Select Disabled to disable ASPM support. The options are Disabled, L0s,

L1, L0s & L1, and Auto.

SLOT7 L1 Substates

Use this feature to set the PCI Express L1 Substates. The options are Disabled, L1.1, L1.2, and L1.1 & L1.2

SLOT7 PCIe Speed

Use this feature to select the PCI Express port speed. The options are Auto, Gen1, Gen2, and Gen3.

SLOT7 Detect Non-Compliance Device

Select Enabled for the AMI BIOS to automatically detect a PCI-E device that is not compliant with the PCI-E standards. The options are Disabled and Enabled.

Port 61h Bit-4 Emulation

Select Enabled to enable the emulation of Port 61h bit-4 toggling in SMM (System Management Mode). The options are Disabled and Enabled.

PCIe PLL SSC

Enable this feature to reduce EMI interference by down spreading the clock 0.5%. Disable this feature to centralize the clock without spreading. The options are Disabled and Enabled.

SATA Conguration

When this submenu is selected, the AMI BIOS automatically detects the presence of the SATA devices that are supported by the Intel PCH chip and displays the following items:

SATA Controller(s)

This item enables or disables the onboard SATA controller supported by the Intel PCH chip. The options are Enabled and Disabled.

SATA Mode Selection

Use this item to select the mode for the installed SATA drives. The options are AHCI and RAID.

Page 82

X11SSZ-TLN4F/QF/F User's Manual

SATA Frozen

Use this item to enable the HDD Security Frozen Mode. The options are Enabled and Disabled.

*If the item above "SATA Mode Selection" is set to RAID, the following items will display:

SATA RAID Option ROM/UEFI Driver

Select UEFI to load the EFI drvier for system boot. Select Legacy to load a legacy driver for system boot. The options are Legacy ROM and UEFI Driver.

Serial ATA Port 0 ~ Port 3

This item displays the information detected on the installed SATA drive on the particular SATA port.

• Model number of drive and capacity

• Software Preserve Support

Port 0 ~ Port 3 Hot Plug

This feature designates the SATA port specied for hot plugging. Set this item to Enabled

for hot-plugging support, which will allow the user to replace a SATA disk drive without shutting down the system. The options are Disabled and Enabled.

Port 0 ~ Port 3 Spin Up Device

On an edge detect from 0 to 1, set this item to allow the PCH to initialize the device. The options are Enabled and Disabled.

Port 0 ~ Port 3 SATA Device Type

Use this item to specify if the SATA port specied by the user should be connected to a Solid

State drive or a Hard Disk Drive. The options are Hard Disk Drive and Solid State Drive.

PCIe/PCI/PnP Conguration

The following information will display:

• PCI Bus Driver Version

• PCI Devices Common Settings:

PCI PERR/SERR Support

Select Enabled to allow a PCI device to generate a PERR/SERR number for a PCI Bus Signal Error Event. The options are Enabled and Disabled.

Page 83

Chapter 4: BIOS

Above 4G Decoding (Available if the system supports 64-bit PCI decoding)

Select Enabled to decode a PCI device that supports 64-bit in the space above 4G Address. The options are Enabled and Disabled.

SR-IOV Support

Use this feature to enable or disable Single Root IO Virtualization Support. The options are Enabled and Disabled.

PCH SLOT4 PCI-E 3.0 X4 (IN X8)

Use this feature to select which rmware type to be loaded for the add-on card in this slot.

The options are Disabled, Legacy, and EFI.

CPU SLOT6 PCI-E 3.0 X16

Use this feature to select which rmware type to be loaded for the add-on card in this slot.

The options are Disabled, Legacy, and EFI.

PCH SLOT7 PCI-E 3.0 X4 (IN X8)

Use this feature to select which rmware type to be loaded for the add-on card in this slot.

The options are Disabled, Legacy, and EFI.

Onboard LAN Option ROM Type

Select Enabled to enable Option ROM support to boot the computer using a network device

specied by the user. The options are Legacy and EFI.

Onboard LAN1 Option ROM

Use this option to select the type of device installed in LAN Port1 used for system boot. The default setting for LAN1 Option ROM is PXE.

Onboard LAN2 Option ROM

Use this option to select the type of device installed in LAN Port2 used for system boot. The default setting for LAN2 Option ROM is Disabled.

Onboard LAN3 Option ROM

Use this option to select the type of device installed in LAN Port3 used for system boot. The default setting for LAN3 Option ROM is Disabled.

Onboard LAN4 Option ROM

Use this option to select the type of device installed in LAN Port4 used for system boot. The default setting for LAN4 Option ROM is Disabled.

Onboard Video Option ROM

Use this feature to select which rmware type to be loaded for the onboard video controller.

The options are Disabled, Legacy, and EFI.

Page 84

X11SSZ-TLN4F/QF/F User's Manual

Network Stack

Select Enabled to enable PXE (Preboot Execution Environment) or UEFI (Unied Extensible

Firmware Interface) for network stack support. The options are Enabled and Disabled.

IPv4 PXE Support

Select Enabled to enable IPv4 PXE boot support. The options are Enabled and Disabled.

IPv6 PXE Support

Select Enabled to enable IPv6 PXE boot support. The options are Enabled and Disabled.

PXE boot wait time

Use this option to specify the wait time to press the ESC key to abort the PXE boot. Press "+" or "-" on your keyboard to change the value. The default setting is 0.

Media detect count

Use this option to specify the number of times media will be checked. Press "+" or "-" on your keyboard to change the value. The default setting is 1.

Super IO Conguration

Super IO Chip AST2400

Serial Port 1

Serial Port 1 Conguration

This submenu allows the user the congure settings of Serial Port 1.

Serial Port 1

Select Enabled to enable the selected onboard serial port. The options are Enabled and Disabled.

Device Settings

This item displays the status of a serial part specied by the user.

Serial Port 1 Change Settings

This feature species the base I/O port address and the Interrupt Request address of a serial port specied by the user. Select Auto to allow the BIOS to automatically assign the

base I/O and IRQ address.

The options for Serial Port 1 are Auto, (IO=3F8h; IRQ=4;), (IO=3F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;), (IO=2F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;), (IO=3E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;), and (IO=2E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;).

Page 85

Chapter 4: BIOS

Serial Port 2

Serial Port 2 Conguration

This submenu allows the user the congure settings of Serial Port 2.

Serial Port 2

Select Enabled to enable the selected onboard serial port. The options are Enabled and Disabled.

Device Settings

This item displays the status of a serial part specied by the user.

Serial Port 2 Change Settings

This feature species the base I/O port address and the Interrupt Request address of a serial port specied by the user. Select Auto to allow the BIOS to automatically assign the

base I/O and IRQ address.

The options for Serial Port 2 are Auto, (IO=2F8h; IRQ=3;), (IO=3F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;), (IO=2F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;), (IO=3E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;), and (IO=2E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;).

PCH-FW Conguration

The following rmware information will display:

• ME FW Version

• ME Firmware Mode

• ME Firmware Type

• ME Firmware SKU

ME FW Image Re-Flash

Use this feature to update the Mangement Engine rmware. The options are Enabled and

Disabled.

AMT Conguration

Intel AMT

Select Enabled to use Intel AMT (Active Management Technology) to enhance system performance. The options are Enabled and Disabled.

Page 86

X11SSZ-TLN4F/QF/F User's Manual

BIOS Hotkey Pressed

Select Enabled to use the BIOS Hotkey feature to enter the Active Mangement Technology setup after POST. The options are Enabled and Disabled.

WatchDog

Select Enabled to allow AMT to reset or power down the system if the operating system or BIOS hangs or crashes. The options are Disabled and Enabled.

OS Timer / BIOS Timer

These options appear if Watch Dog Timer (above) is enabled. This is a timed delay in seconds, before a system power down or reset after a BIOS or operating system failure is detected. Directly enter the value in seconds.

Serial Port Console Redirection

COM1 Console Redirection

Console Redirection

Select Enabled to enable console redirection support for a serial port specied by the user.

The options are Enabled and Disabled.

*If the item above is set to Enabled, the following items will become available for user's

conguration:

COM1 Console Redirection Settings

This feature allows the user to specify how the host computer will exchange data with the client computer, which is the remote computer used by the user.

COM1 Terminal Type

This feature allows the user to select the target terminal emulation type for Console Redirection. Select VT100 to use the ASCII Character set. Select VT100+ to add color and function key support. Select ANSI to use the Extended ASCII Character Set. Select VT-UTF8 to use UTF8 encoding to map Unicode characters into one or more bytes. The options are VT100, VT100+, VT-UTF8, and ANSI.

COM1 Bits Per second

Use this feature to set the transmission speed for a serial port used in Console Redirection. Make sure that the same speed is used in the host computer and the client computer. A lower transmission speed may be required for long and busy lines. The options are 9600, 19200, 38400, 57600 and 115200 (bits per second).

Page 87

Chapter 4: BIOS

COM1 Data Bits

Use this feature to set the data transmission size for Console Redirection. The options are 7 and 8.

COM1 Parity

A parity bit can be sent along with regular data bits to detect data transmission errors. Select Even if the parity bit is set to 0, and the number of 1's in data bits is even. Select Odd if the parity bit is set to 0, and the number of 1's in data bits is odd. Select None if you do not want to send a parity bit with your data bits in transmission. Select Mark to add a mark as a parity bit to be sent along with the data bits. Select Space to add a Space as a parity bit to be sent with your data bits. The options are None, Even, Odd, Mark and Space.

COM1 Stop Bits

A stop bit indicates the end of a serial data packet. Select 1 Stop Bit for standard serial data communication. Select 2 Stop Bits if slower devices are used. The options are 1 and 2.

COM1 Flow Control

Use this feature to set the ow control for Console Redirection to prevent data loss caused by buffer overow. Send a "Stop" signal to stop sending data when the receiving buffer is full.

Send a "Start" signal to start sending data when the receiving buffer is empty. The options are None and Hardware RTS/CTS.

COM1 VT-UTF8 Combo Key Support

Select Enabled to enable VT-UTF8 Combination Key support for ANSI/VT100 terminals. The options are Disabled and Enabled.

COM1 Recorder Mode

Select Enabled to capture the data displayed on a terminal and send it as text messages to a remote server. The options are Disabled and Enabled.

COM1 Resolution 100x31

Select Enabled for extended-terminal resolution support. The options are Disabled and

Enabled.

COM1 Legacy OS Redirection Resolution

Use this feature to select the number of rows and columns used in Console Redirection for legacy OS support. The options are 80x24 and 80x25.

COM1 Putty KeyPad

This feature selects the settings for Function Keys and KeyPad used for Putty, which is a terminal emulator designed for the Windows OS. The options are VT100, LINUX, XTERMR6, SC0, ESCN, and VT400.

Page 88

X11SSZ-TLN4F/QF/F User's Manual

COM1 Redirection After BIOS POST

Use this feature to enable or disable legacy console redirection after BIOS POST. When set to Bootloader, legacy console redirection is disabled before booting the OS. When set to Always Enable, legacy console redirection remains enabled when booting the OS. The options are

Always Enable and BootLoader.

SOL/COM2 Console Redirection

Select Enabled to use the SOL port for Console Redirection. The options are Disabled and Enabled.

*If the item above is set to Enabled, the following items will become available for user's

conguration:

SOL/COM2 Console Redirection Settings

Use this feature to specify how the host computer will exchange data with the client computer, which is the remote computer used by the user.

COM2 Terminal Type

Use this feature to select the target terminal emulation type for Console Redirection. Select VT100 to use the ASCII Character set. Select VT100+ to add color and function key support. Select ANSI to use the Extended ASCII Character Set. Select VT-UTF8 to use UTF8 encoding to map Unicode characters into one or more bytes. The options are ANSI, VT100, VT100+, and VT-UTF8.

COM2 Bits Per second

COM2 Data Bits

Use this feature to set the data transmission size for Console Redirection. The options are 7 and 8.

COM2 Parity

Page 89

Chapter 4: BIOS

COM2 Stop Bits

A stop bit indicates the end of a serial data packet. Select 1 Stop Bit for standard serial data communication. Select 2 Stop Bits if slower devices are used. The options are 1 and 2.

COM2 Flow Control

Use this feature to set the ow control for Console Redirection to prevent data loss caused by buffer overow. Send a "Stop" signal to stop sending data when the receiving buffer is full.

Send a "Start" signal to start sending data when the receiving buffer is empty. The options are None and Hardware RTS/CTS.

COM2 VT-UTF8 Combo Key Support

Select Enabled to enable VT-UTF8 Combination Key support for ANSI/VT100 terminals. The options are Disabled and Enabled.

COM2 Recorder Mode

Select Enabled to capture the data displayed on a terminal and send it as text messages to a remote server. The options are Disabled and Enabled.

COM2 Resolution 100x31

Select Enabled for extended-terminal resolution support. The options are Disabled and

Enabled.

COM2 Legacy OS Redirection Resolution

Use this feature to select the number of rows and columns used in Console Redirection for legacy OS support. The options are 80x24 and 80x25.

COM2 Putty KeyPad

This feature selects Function Keys and KeyPad settings for Putty, which is a terminal emulator designed for the Windows OS. The options are VT100, LINUX, XTERMR6, SCO, ESCN, and VT400.

COM2 Redirection After BIOS POST

Use this feature to enable or disable legacy Console Redirection after BIOS POST. When set to Bootloader, legacy Console Redirection is disabled before booting the OS. When set to Always Enable, legacy Console Redirection remains enabled when booting the OS. The options are Always Enable and BootLoader.

EMS (Emergency Management Services) Console Redirection

Select Enabled to use a COM port selected by the user for EMS Console Redirection. The options are Enabled and Disabled.

*If the item above set to Enabled, the following items will become available for user's

conguration:

Page 90

X11SSZ-TLN4F/QF/F User's Manual

EMS Console Redirection Settings

This feature allows the user to specify how the host computer will exchange data with the client computer, which is the remote computer used by the user.

Out-of-Band Mgmt Port

The feature selects a serial port in a client server to be used by the Microsoft Windows Emergency Management Services (EMS) to communicate with a remote host server. The options are COM1 and SOL/COM2.

Terminal Type

Use this feature to select the target terminal emulation type for Console Redirection. Select VT100 to use the ASCII character set. Select VT100+ to add color and function key support. Select ANSI to use the extended ASCII character set. Select VT-UTF8 to use UTF8 encoding to map Unicode characters into one or more bytes. The options are VT100, VT100+, VT-

UTF8, and ANSI.

Bits per second

This item sets the transmission speed for a serial port used in Console Redirection. Make sure that the same speed is used in the host computer and the client computer. A lower transmission speed may be required for long and busy lines. The options are 9600, 19200, 57600, and 115200 (bits per second).

Flow Control

Use this item to set the ow control for Console Redirection to prevent data loss caused by buffer overow. Send a "Stop" signal to stop sending data when the receiving buffer is full.

Send a "Start" signal to start sending data when the receiving buffer is empty. The options are None, Hardware RTS/CTS, and Software Xon/Xoff.

Data Bits

Parity

Stop Bits

ACPI Settings

ACPI Sleep State

This feature selects the ACPI Sleep State that the system will enter into when the suspend button is activated. The options are Suspend Disabled and S3 (Suspend to RAM).

Page 91

Chapter 4: BIOS

High Precision Event Timer

Select Enabled to activate the High Performance Event Timer (HPET) that produces periodic interrupts at a much higher frequency than a Real-time Clock (RTC) does in synchronizing multimedia streams, providing smooth playback and reducing the dependency on other timestamp calculation devices, such as an x86 RDTSC Instruction embedded in the CPU. The High Performance Event Timer is used to replace the 8254 Programmable Interval Timer. The options are Disabled and Enabled.

WHEA Support

Select Enabled to support the Windows Hardware Error Architecture (WHEA) platform and provide a common infrastructure for the system to handle hardware errors within the Windows OS environment to reduce system crashes and to enhance system recovery and health monitoring. The options are Enabled and Disabled.

Trusted Computing

Security Device Support

If this feature and the TPM jumper on the motherboard are both set to Enabled, onbaord

security devices will be enabled for TPM (Trusted Platform Module) support to enhance data integrity and network security. Please reboot the system for a change on this setting to take effect. The options are Disabled and Enabled.

TPM State

This feature changes the TPM State. The options are Disabled and Enabled. Note: The system will restart to change the TPM State.

Pending operation

Use this item to schedule a TPM-related operation to be performed by a security device for system data integrity. Your system will reboot to carry out a pending TPM operation. The options are None and TPM Clear.

Device Select

Use this feature to select the TPM version. TPM 1.2 will restrict support to TPM 1.2 devices. TPM 2.0 will restrict support for TPM 2.0 devices. Select Auto to enable support for both versions. The default setting is Auto.

The following are informational status messages that indicate the current TPM State:

TPM Enabled Status

TPM Active Status

TPM Owner Status

Page 92

X11SSZ-TLN4F/QF/F User's Manual

TXT Support

Intel TXT (Trusted Execution Technology) helps protect against software-based attacks and

ensures protection, condentiality and integrity of data stored or created on the system. Use

this feature to enable or disable TXT Support. The options are Disabled and Enabled.

iSCSi Conguration

iSCSI Initiator Name

This feature allows the user to enter the unique name of the iSCSI Initiator in IQN format.

Once the name of the iSCSI Initiator is entered into the system, congure the proper settings

for the following items.

Add an Attempt

Delete Attempts

Change Attempt Order

Intel® Ethernet Controller X550 - 00:25:90:XX:XX:XX

NIC Conguration

Link Speed

Use this feature to specify the port speed used for the selected boot protocol. The options are Auto Negotiated, 10 Mbps Half, 10 Mbps Full, 100 Mbps Half, and 100 Mbps Full.

Wake On LAN

Select Enabled for Wake_On_LAN support, which will allow the system to "wake up" when an onboard LAN device receives an incoming signal. The default option is N/A.

Blink LEDs

Use this feature to identify the physical network port by blinking the associated LED. Use the keyboard to select a value.

UEFI Driver

This item displays the UEFI driver version.

Adapter PBA

This item displays the Processor Bus Adapter (PBA) model number. The PBA number is a nine digit number (i.e., 010B00-000) located near the serial number.

Page 93

Chapter 4: BIOS

Device Name

This item displays the adapter device name.

Chip Type

This item displays the network adapter chipset name.

PCI Device ID

This item displays the device ID number.

PCI Address

This item displays the PCI address for this computer. PCI addresses are 3 two-digit hexadecimal numbers.

Link Status

This item displays the connection status.

MAC Address

This item displays the MAC address for this computer. Mac addresses are 6 two-digit hexadecimal numbers.

Virtual MAC Address

This item displays the Virtual MAC address for this computer. Mac addresses are 6 two-digit hexadecimal numbers.

Intel® Ethernet Controller X550 - 00:25:90:XX:XX:XX

NIC Conguration

Link Speed

Use this feature to specify the port speed used for the selected boot protocol. The options are Auto Negotiated, 10 Mbps Half, 10 Mbps Full, 100 Mbps Half, and 100 Mbps Full.

Wake On LAN

Select Enabled for Wake_On_LAN support, which will allow the system to "wake up" when an onboard LAN device receives an incoming signal. The options are Disabled and

Enabled.

Blink LEDs

Use this feature to identify the physical network port by blinking the associated LED. Use the keyboard to select a value.

UEFI Driver

This item displays the UEFI driver version.

Page 94

X11SSZ-TLN4F/QF/F User's Manual

Adapter PBA

This item displays the Processor Bus Adapter (PBA) model number. The PBA number is a nine digit number (i.e., 010B00-000) located near the serial number.

Device Name

This item displays the adapter device name.

Chip Type

This item displays the network adapter chipset name.

PCI Device ID

This item displays the device ID number.

PCI Address

This item displays the PCI address for this computer. PCI addresses are 3 two-digit hexadecimal numbers.

Link Status

This item displays the connection status.

MAC Address

This item displays the MAC address for this computer. Mac addresses are 6 two-digit hexadecimal numbers.

Page 95

4.4 Event Logs

Use this feature to congure Event Log settings.

Chapter 4: BIOS

Change SMBIOS Event Log Settings

Enabling/Disabling Options

SMBIOS Event Log

Change this item to enable or disable all features of the SMBIOS Event Logging during system boot. The options are Enabled and Disabled.

Erasing Settings

Erase Event Log

If No is selected, data stored in the event log will not be erased. Select Yes, Next Reset, data in the event log will be erased upon next system reboot. Select Yes, Every Reset, data in the event log will be erased upon every system reboot. The options are No, Yes, Next reset, and Yes, Every reset.

When Log is Full

Select Erase Immediately for all messages to be automatically erased from the event log when the event log memory is full. The options are Do Nothing and Erase Immediately.

Page 96

X11SSZ-TLN4F/QF/F User's Manual

SMBIOS Event Long Standard Settings

Log System Boot Event

This option toggles the System Boot Event logging to enabled or disabled. The options are Disabled and Enabled.

MECI

The Multiple Event Count Increment (MECI) counter counts the number of occurences that a duplicate event must happen before the MECI counter is incremented. This is a numeric value. The default value is 1.

METW

The Multiple Event Time Window (METW) denes number of minutes must pass between

duplicate log events before MECI is incremented. This is in minutes, from 0 to 99. The default value is 60.

Note: After making changes on a setting, be sure to reboot the system for the changes to take effect.

View SMBIOS Event Log

This section displays the contents of the SMBIOS Event Log.

Page 97

Chapter 4: BIOS

4.5 IPMI

Use this feature to congure Intelligent Platform Management Interface (IPMI) settings.

BMC Firmware Revision

This item indicates the IPMI rmware revision used in your system.

IPMI STATUS (Baseboard Management Controller)

This item indicates the status of the IPMI rmware installed in your system.

System Event Log

Enabling/Disabling Options

SEL Components

Select Enabled for all system event logging at bootup. The options are Enabled and Disabled.

Erasing Settings

Page 98

X11SSZ-TLN4F/QF/F User's Manual

Erase SEL

Select Yes, On next reset to erase all system event logs upon next system reboot. Select Yes, On every reset to erase all system event logs upon each system reboot. Select No to keep all system event logs after each system reboot. The options are No, Yes, On next reset, and Yes, On every reset.

When SEL is Full

This feature allows the user to decide what the BIOS should do when the system event log is full. Select Erase Immediately to erase all events in the log when the system event log is full. The options are Do Nothing and Erase Immediately.

Note: After making changes on a setting, be sure to reboot the system for the changes to take effect.

BMC Network Conguration

BMC Network Conguration

*The BMC network information is only valid when the IPMI Function is enabled.*

IPMI LAN Selection

This item displays the IPMI LAN setting. The default setting is Failover.

IPMI Network Link Status

This item displays the IPMI Network Link status. The default setting is Shared LAN.

Update IPMI LAN Conguration

Select Yes for the BIOS to implement all IP/MAC address changes at the next system boot. The options are No and Yes

Conguration Address Source

This feature allows the user to select the source of the IP address for this computer. If Static is selected, you will need to know the IP address of this computer and enter it to the system

manually in the eld. If DHCP is selected, the BIOS will search for a DHCP (Dynamic Host Conguration Protocol) server in the network that is attached to and request the next available

IP address for this computer. The options are DHCP and Static. The following items are assigned IP addresses automatically if DHCP is selected.

Station IP Address

This item displays the Station IP address for this computer. This should be in decimal and in dotted quad form (i.e., 192.168.10.253).

Page 99

Chapter 4: BIOS

Subnet Mask

This item displays the sub-network that this computer belongs to. The value of each threedigit number separated by dots should not exceed 255.

Station MAC Address

This item displays the Station MAC address for this computer. Mac addresses are 6 two-digit hexadecimal numbers.

Gateway IP Address

This item displays the Gateway IP address for this computer. This should be in decimal and in dotted quad form (i.e., 172.31.0.1).

IPMI Function Support

Use this feature to enable IPMI support. The options are Enabled and Disabled. When Disabled, the system powers on quickly by removing BIOS support for extended IPMI features. The Disable option is for applications that require faster power on time wthout using Supermicro Update Manager (SUM) or extended IPMI features. The BMC network

conguration in the BIOS setup is also invalid when IPMI Function Support is disabled.

The general BMC function and motherboard health monitor such as fan control are still functioning even when this option is disabled.

Page 100

X11SSZ-TLN4F/QF/F User's Manual

4.6 Security

This menu allows the user to congure the following security settings for the system.

Password Check

Select Setup for the system to check for a password at Setup. Select Always for the system to check for a password at bootup or upon entering the BIOS Setup utility. The options are

Setup and Always.

Administrator Password

Press Enter to create a new or change an existing Administrator password.

User Password

Press Enter to create a new or change an existing User password.

Secure Boot Menu

This section displays the contents of the following secure boot features:

• System Mode

• Secure Boot

• Vendor Keys

100
