Supermicro X11SSH-TF operation manual

X11SSH-CTF/TF

USER’S MANUAL

Revision 1.0

The information in this User’s Manual has been carefully reviewed and is believed to be accurate. The vendor assumes
no responsibility for any inaccuracies that may be contained in this document, and makes no commitment to update
or to keep current the information in this manual, or to notify any person or organization of the updates. Please Note:

For the most up-to-date version of this manual, please see our website at www.supermicro.com.

Super Micro Computer, Inc. ("Supermicro") reserves the right to make changes to the product described in this manual
at any time and without notice. This product, including software and documentation, is the property of Supermicro and/
or its licensors, and is supplied only under a license. Any use or reproduction of this product is not allowed, except
as expressly permitted by the terms of said license.

IN NO EVENT WILL Super Micro Computer, Inc. BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL,
SPECULATIVE OR CONSEQUENTIAL DAMAGES ARISING FROM THE USE OR INABILITY TO USE THIS PRODUCT
OR DOCUMENTATION, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. IN PARTICULAR, SUPER
MICRO COMPUTER, INC. SHALL NOT HAVE LIABILITY FOR ANY HARDWARE, SOFTWARE, OR DATA STORED
OR USED WITH THE PRODUCT, INCLUDING THE COSTS OF REPAIRING, REPLACING, INTEGRATING,
INSTALLING OR RECOVERING SUCH HARDWARE, SOFTWARE, OR DATA.

Any disputes arising between manufacturer and customer shall be governed by the laws of Santa Clara County in the
State of California, USA. The State of California, County of Santa Clara shall be the exclusive venue for the resolution
of any such disputes. Supermicro's total liability for all claims will not exceed the price paid for the hardware product.

FCC Statement: This equipment has been tested and found to comply with the limits for a Class A digital device
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the manufacturer’s instruction manual,
may cause harmful interference with radio communications. Operation of this equipment in a residential area is likely
to cause harmful interference, in which case you will be required to correct the interference at your own expense.

California Best Management Practices Regulations for Perchlorate Materials: This Perchlorate warning applies only
to products containing CR (Manganese Dioxide) Lithium coin cells. “Perchlorate Material-special handling may apply.
See www.dtsc.ca.gov/hazardouswaste/perchlorate”.

WARNING: Handling of lead solder materials used in this product may expose you to lead, a
chemical known to the State of California to cause birth defects and other reproductive harm.

The products sold by Supermicro are not intended for and will not be used in life support systems, medical equipment,
nuclear facilities or systems, aircraft, aircraft devices, aircraft/emergency communication devices or other critical

systems whose failure to perform be reasonably expected to result in signicant injury or loss of life or catastrophic

property damage. Accordingly, Supermicro disclaims any and all liability, and should buyer use or sell such products
for use in such ultra-hazardous applications, it does so entirely at its own risk. Furthermore, buyer agrees to fully
indemnify, defend and hold Supermicro harmless for and against any and all claims, demands, actions, litigation, and
proceedings of any kind arising out of or related to such ultra-hazardous use or sale.

Manual Revision 1.0

Release Date: February 17, 2016

Unless you request and receive written permission from Super Micro Computer, Inc., you may not copy any part of this

document. Information in this document is subject to change without notice. Other products and companies referred

to herein are trademarks or registered trademarks of their respective companies or mark holders.

Copyright © 2016 by Super Micro Computer, Inc.
All rights reserved.

Printed in the United States of America

Preface

Preface

About This Manual

This manual is written for system integrators, IT technicians and knowledgeable end users.
It provides information for the installation and use of the X11SSH-CTF/TF motherboard.

About This Motherboard

The Super X11SSH-CTF/TF motherboard supports an Intel E3-1200 v5, 6th Gen Core i3,
Pentium, and Celeron series processor in an LGA 1151 (H4) socket. With support of the
Intel C236 chipset, this motherboard offers such features as eight SAS 3.0 ports (available
on X11SSH-CTF), dual 10GbE ports, two SuperDOM connectors, DDR4 memory, Intel
Node Manager, and Trusted Platform Module (TPM). This motherboard provides great
performance and is ideal for cost-effective, general purpose server platforms. Please note
that this motherboard is intended to be installed and serviced by professional technicians
only. For processor/memory updates, please refer to our website at http://www.supermicro.
com/products/.

Conventions Used in the Manual

Special attention should be given to the following symbols for proper installation and to prevent

damage done to the components or injury to yourself:

Warning! Indicates important information given to prevent equipment/property damage

or personal injury.

Warning! Indicates high voltage may be encountered when performing a procedure.

Important: Important information given to ensure proper system installation or to

relay safety precautions.

Note: Additional Information given to differentiate various models or provides infor­mation for correct system setup.

3

X11SSH-CTF/TF User's Manual

Contacting Supermicro

Headquarters

Address: Super Micro Computer, Inc.

980 Rock Ave.

San Jose, CA 95131 U.S.A.

Tel: [phone]

Fax: [phone]

Email: [e-mail] (General Information)

[e-mail] (Technical Support)

Website: www.supermicro.com

Europe

Address: Super Micro Computer B.V.

Het Sterrenbeeld 28, 5215 ML

's-Hertogenbosch, The Netherlands

Tel: [phone]

Fax: [phone]

Email: [e-mail] (General Information)

[e-mail] (Technical Support)

[e-mail] (Customer Support)

Website: www.supermicro.nl

Asia-Pacic

Address: Super Micro Computer, Inc.

3F, No. 150, Jian 1st Rd.

Zhonghe Dist., New Taipei City 235

Taiwan (R.O.C)

Tel: [phone]

Fax: [phone]

Email: [e-mail]

Website: www.supermicro.com.tw

4

Preface

Table of Contents

Chapter 1 Introduction

1.1 Checklist ...............................................................................................................................8

Quick Reference ...............................................................................................................12

Quick Reference Table ......................................................................................................13

Motherboard Features .......................................................................................................15

1.2 Processor and Chipset Overview .......................................................................................19

1.3 Special Features ................................................................................................................19

Recovery from AC Power Loss .........................................................................................19

1.4 System Health Monitoring ..................................................................................................20

Onboard Voltage Monitors ................................................................................................20

Fan Status Monitor with Firmware Control .......................................................................20

Environmental Temperature Control .................................................................................20

System Resource Alert......................................................................................................20

1.5 ACPI Features ....................................................................................................................21

1.6 Power Supply .....................................................................................................................21

1.7 Super I/O ............................................................................................................................21

1.8 Advanced Power Management ..........................................................................................22

Intel® Intelligent Power Node Manager (IPNM).................................................................22

Management Engine (ME) ................................................................................................22

Chapter 2 Installation

2.1 Static-Sensitive Devices .....................................................................................................23

Precautions .......................................................................................................................23

Unpacking .........................................................................................................................23

2.2 Motherboard Installation .....................................................................................................24

Tools Needed ....................................................................................................................24

Location of Mounting Holes ..............................................................................................24

Installing the Motherboard.................................................................................................25

2.3 Processor and Heatsink Installation ...................................................................................26

Installing the LGA1151 Processor .....................................................................................26

Installing an Active CPU Heatsink with Fan .....................................................................29

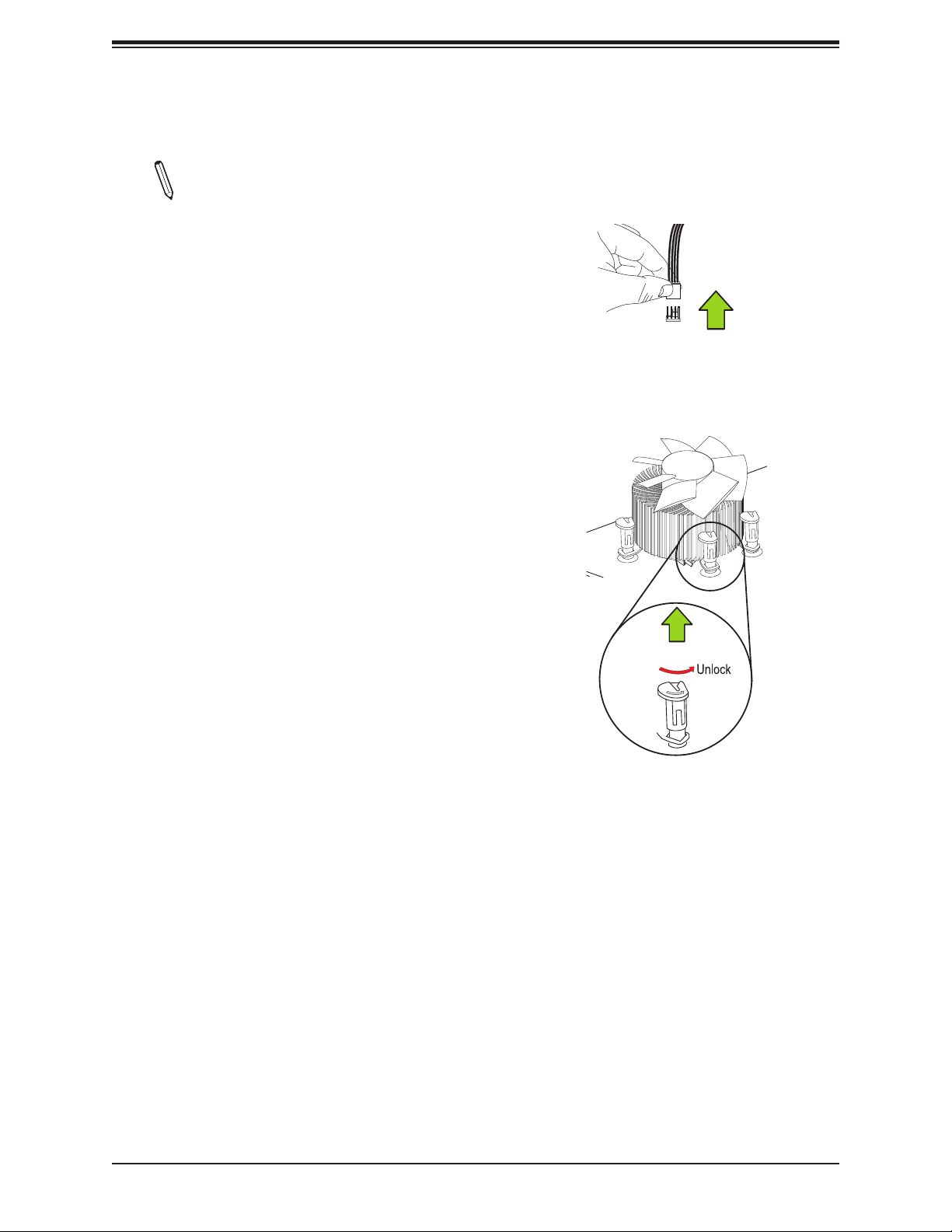

Removing the Heatsink .....................................................................................................31

5

X11SSH-CTF/TF User's Manual

2.4 Memory Support and Installation .......................................................................................32

Memory Support ................................................................................................................32

DIMM Module Population Conguration ...........................................................................32

DIMM Module Population Sequence ................................................................................32

DIMM Installation ..............................................................................................................33

DIMM Removal .................................................................................................................33

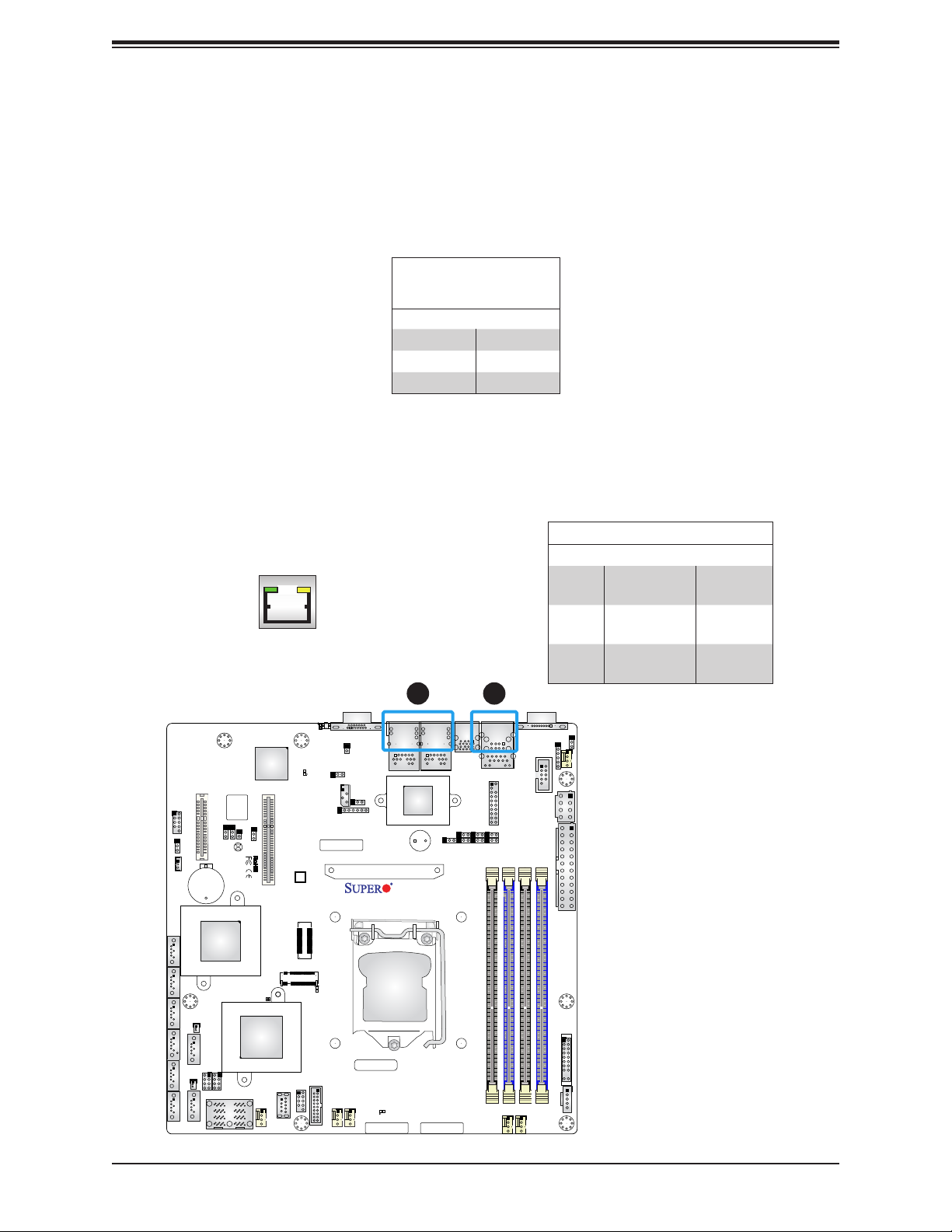

2.5 Rear I/O Ports ....................................................................................................................34

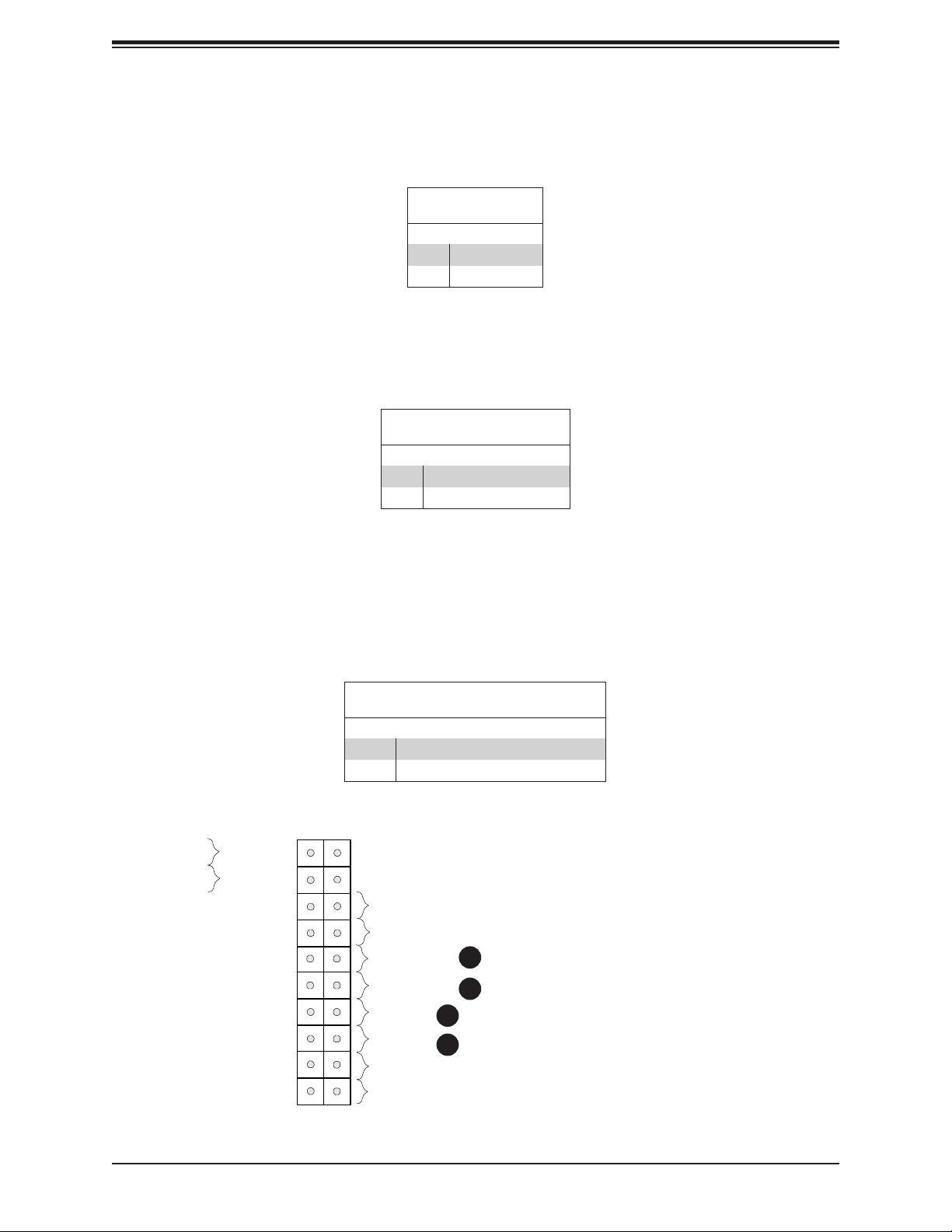

2.6 Front Control Panel ............................................................................................................38

2.7 Connectors .........................................................................................................................42

Power Connections ...........................................................................................................42

Headers .............................................................................................................................44

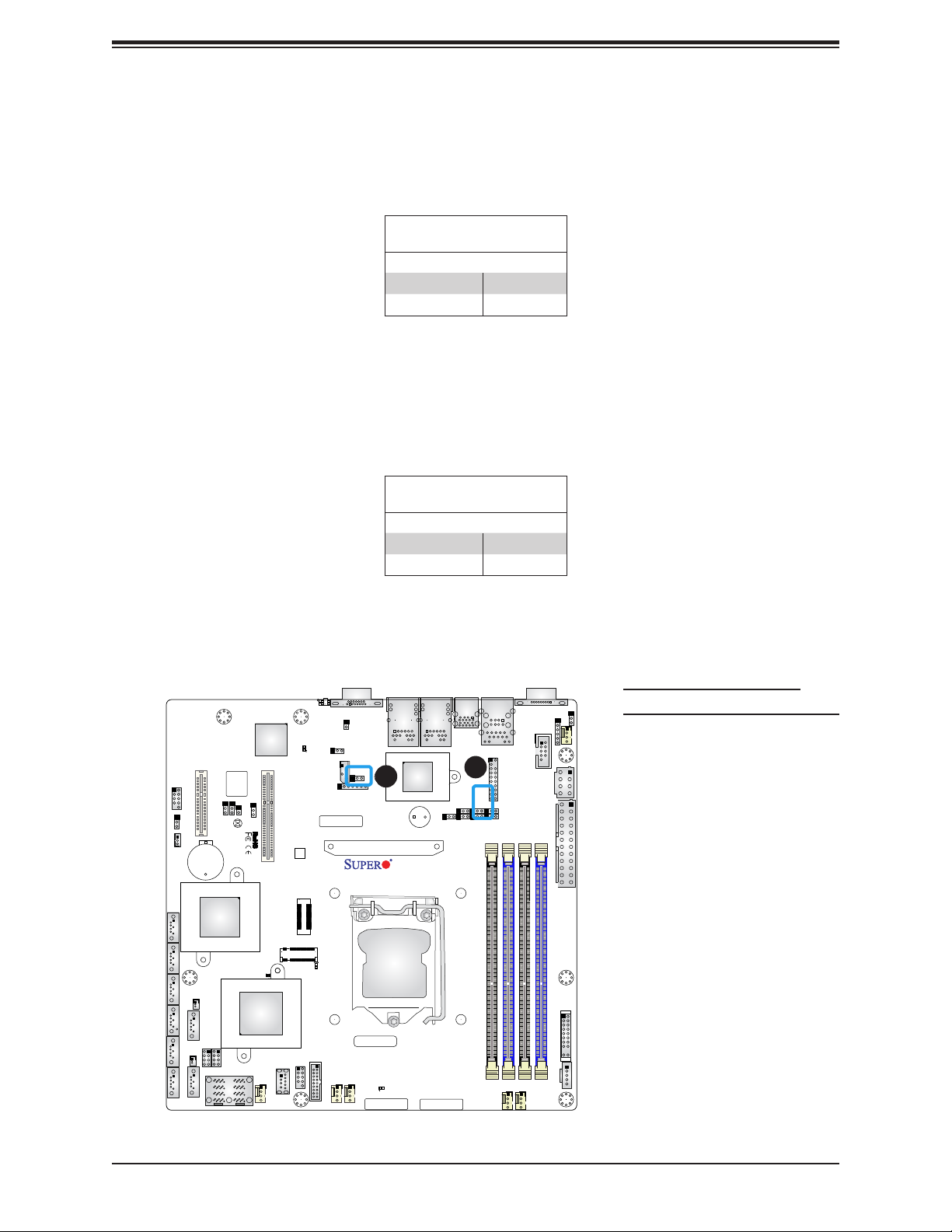

2.8 Jumper Settings .................................................................................................................52

How Jumpers Work ...........................................................................................................52

2.9 LED Indicators ....................................................................................................................59

Chapter 3 Troubleshooting

3.1 Troubleshooting Procedures ..............................................................................................63

Before Power On ..............................................................................................................63

No Power ..........................................................................................................................63

No Video ...........................................................................................................................64

System Boot Failure .......................................................................................................64

Memory Errors ..................................................................................................................64

Losing the System's Setup Conguration .........................................................................65

When the System Becomes Unstable ..............................................................................65

3.2 Technical Support Procedures ...........................................................................................67

3.3 Frequently Asked Questions ..............................................................................................68

3.4 Battery Removal and Installation .......................................................................................69

Battery Removal ................................................................................................................69

Proper Battery Disposal ....................................................................................................69

Battery Installation .............................................................................................................69

3.5 Returning Merchandise for Service ....................................................................................70

6

Preface

Chapter 4 BIOS

4.1 Introduction .........................................................................................................................71

Starting the Setup Utility ...................................................................................................71

4.2 Main Setup .........................................................................................................................72

4.3 Advanced Setup Congurations .........................................................................................74

4.4 Event Logs .......................................................................................................................100

4.5 IPMI ..................................................................................................................................102

4.6 Security .............................................................................................................................105

4.7 Boot ..................................................................................................................................108

4.8 Save & Exit .......................................................................................................................110

Appendix A BIOS Codes

Appendix B Software Installation

B.1 Installing Software Programs ...........................................................................................11 4

B.2 SuperDoctor® 5 .................................................................................................................115

Appendix C Standardized Warning Statements

Battery Handling ..............................................................................................................116

Product Disposal .............................................................................................................118

Appendix D UEFI BIOS Recovery

7

X11SSH-CTF/TF User's Manual

Chapter 1

Introduction

Congratulations on purchasing your computer motherboard from an industry leader. Supermicro
boards are designed to provide you with the highest standards in quality and performance.

In additon to the motherboard and chassis, several important parts that are included with the
system are listed below. If anything listed is damaged or missing, please contact your retailer.

1.1 Checklist

Main Parts List

Description Part Number Quantity

Supermicro Motherboard X11SSH-CTF/TF 1

SATA Cables CBL-0044L 6

I/O Shield MCP-260-00042-0N 1

Important Links

For your system to work properly, please follow the links below to download all necessary
drivers/utilities and the user’s manual for your server.

• Supermicro product manuals: http://www.supermicro.com/support/manuals/

• Product drivers and utilities: ftp://ftp.supermicro.com

• Product safety info: http://www.supermicro.com/about/policies/safety_information.cfm

• If you have any questions, please contact our support team at: [e-mail]

This manual may be periodically updated without notice. Please check the Supermicro website

for possible updates to the manual revision level.

8

Figure 1-1. X11SSH-TF Motherboard Image

Chapter 1: Introduction

Note: All graphics shown in this manual were based upon the latest PCB revision
available at the time of publication of the manual. The motherboard you received may
or may not look exactly the same as the graphics shown in this manual.

9

X11SSH-CTF/TF User's Manual

Figure 1-2. X11SSH-CTF Motherboard Image

10

Chapter 1: Introduction

USB2/3

JWD1

JSTBY1

BT1

I-SATA7

Figure 1-3. X11SSH-CTF/TF Motherboard Layout

PCH SLOT4 PCI-E 3.0 X2 (IN X4)

CPU SLOT6 PCI-E 3.0 X8

JPB1

JPS1

MEGERAC

LICENSE

JPSAS1

JBT1

JL1

LEDBMC

MH8

(not drawn to scale)

LE1

JUIDB1

VGA

JOH1

JPME2

JIPMB1

JPTG1

JD1

SAS CODE

X11SSH-TF

LAN2

X550

SP1

REV:1.01
DESIGNED IN USA

CPU Socket LGA1151

LAN1

JVR1

USB6/7
(3.0)

JVRM2

JVRM1

IPMI_LAN
USB0/1

JPG1

JBR1

JI2C1

JTPM1

JI2C2

COM1

COM2

JPWR2

JPWR1

J2

JPCK1

FAN5

Intel
PCH

I-SATA6

I-SGPIO2

JSAS1

PRESS FIT

LEDS1

LSI3008

(-CTF only)

USB8(3.0)

FANA

I-SATA5

JSD2

I-SATA4

I-SATA1

I-SGPIO1

I-SATA3

JSD1

I-SATA0

I-SATA2

USB4/5

J24

LE3

USB9/10(3.0)

FAN4

FAN3

BAR CODE

LEDPWR

MAC CODE

IPMI CODE

DIMMA2

DIMMB1

DIMMA1

DIMMB2

FAN2

JF1

JPI2C1

FAN1

Note: Components not documented are for internal testing only.

11

X11SSH-CTF/TF User's Manual

Quick Reference

SLOT4

USB2/3

JWD1

JBT1

JSTBY1

BT1

SLOT6

I-SATA7

I-SATA6

J24

LE3

LEDS1

(-CTF Only)

I-SATA5

JSD2

I-SATA4
I-SATA1

I-SATA3

JSD1

I-SATA2

JPSAS1

(-CTF Only)

JPS1

(-CTF Only)

USB2/3

JWD1

JSTBY1

BT1

I-SATA7

I-SATA6

I-SATA5

I-SATA4

I-SATA3

JSD1

I-SATA2

I-SATA0

I-SGPIO1

JIMPB1

JL1

JPB1

PCH SLOT4 PCI-E 3.0 X2 (IN X4)

MEGERAC

LICENSE

JPS1

JL1

JPSAS1

JPB1

JBT1

Intel
PCH

LEDS1

JSD2
I-SATA1

I-SATA0

I-SGPIO2

I-SGPIO2

I-SGPIO1

JSAS1

LSI3008

(-CTF only)

PRESS FIT

JSAS1

FANA

FANA

JPME2

JUIDB1

LE1

LEDBMC

LE1

LEDBMC

CPU SLOT6 PCI-E 3.0 X8

MH8

USB4/5

USB8(3.0)

FAN4 FAN3

USB9/10 (3.0)

USB4/5

USB8 (3.0)

JOH1

JUIDB1

JOH1

JIPMB1

JD1

SAS CODE

J24

LE3

USB9/10(3.0)

FAN4

JPTG1

VGA

VGA

JPME2

JPTG1

X11SSH-TF

CPU Socket LGA1151

BAR CODE

LEDPWR

MAC CODE

FAN3

LEDPWR

JD1

LAN2

LAN2

X550

SP1

REV:1.01
DESIGNED IN USA

IPMI CODE

USB6/7 (3.0)

LAN1

USB6/7
(3.0)

LAN1

JVRM2

JVRM1

JVR1

DIMMA2

DIMMA1

IPMI_LAN

USB0/1

IPMI_LAN
USB0/1

JTPM1

JPG1

JI2C1

JBR1

DIMMB2

DIMMB1

FAN2

FAN2 FAN1

JI2C2

JTPM1

COM1

COM2

JPWR2

FAN1

COM1

JPWR1

JPI2C1

JPCK1

JPCK1

J2

JF1

FAN5

FAN5

COM2

JPWR2

JVRM1
JPG1

JI2C2
JI2C1

JBR1
JVRM2
SP1

JPWR1

DIMMA1
DIMMA2
DIMMB1

DIMMB2

JF1

JPI2C1

Notes:

• See Chapter 2 for detailed information on jumpers, I/O ports, and JF1 front panel con-

nections.

• " " indicates the location of Pin 1.

• Jumpers/LED indicators not indicated are used for testing only.

• Use only the correct type of onboard CMOS battery as specied by the manufacturer. Do

not install the onboard battery upside down to avoid possible explosion.

12

Chapter 1: Introduction

Quick Reference Table

Jumper Description Default Setting

JBR1 BIOS Recovery Pins 1-2 (Normal)

JBT1 CMOS Clear Open (Normal)

JI2C1/JI2C2 SMB to PCI-E Slots Enable/Disable Pins 2-3 (Disabled) (Default)

JPB1 BMC Enabled Pins 1-2 (Enabled)

JPCK1 LANCONF Flash Pins 2-3 (Disabled) (Default)

JPG1 VGA Enable/Disable Pins 1-2 (Enabled)

JPME2 Manufacturing Mode Pins 1-2 (Normal)

JPS1 SAS 3.0 Enable/Disable (X11SSH-CTF only) Pins 1-2 (Enabled)

JPSAS1 SAS HDD Enable/Disable (X11SSH-CTF only) Pins 1-2 (Enabled) (Default)

JPTG1 10Gb LAN Enable/Disable Pins 1-2 (Enabled)

JVRM1 VRM SMB Clock (to BMC or PCH) Pins 1-2 (BMC, Normal)

JVRM2 VRM SMB Data (to BMC or PCH) Pins 1-2 (BMC, Normal)

JWD1 Watch Dog Pins 1-2 (Reset)

LED Description Status

LEDBMC BMC Heartbeat LED Blinking Green: BMC Normal

LEDPWR Onboard Power LED Solid Green: Power On

LEDS1 SAS Activity LED (X11SSH-CTF only) Blinking Green: SAS Active, Red: SAS Error

LE1 UID LED Solid Blue: Unit Identied

LE3 M.2 LED Blinking Green: Active

Connector Description

BT1 Onboard Battery

COM1/COM2 COM Port/COM Header

FAN1 ~ FAN5, FANA System/CPU Fan Headers (FAN1: CPU Fan)

IPMI_LAN Dedicated IPMI LAN Port

I-SATA0 ~ I-SATA7 Intel® PCH SATA 3.0 Ports

I-SGPIO1/I-SGPIO2 Serial Link General Purpose I/O Headers

J24 M.2 PCI-E 3.0 X4 Slot

JD1 Power LED/Speaker Header (Pins 1-3: Power LED, Pins 4-7: Speaker)

JF1 Front Control Panel Header

JIPMB1 4-pin BMC External I2C Header (for an IPMI Card)

JL1 Chassis Intrusion Header

JOH1 Overheat LED Header

JPI2C1 Power Supply SMBbus I2C Header

JPWR1 24-pin ATX Power Connector

JPWR2 12V 8-pin Processor Power Connectors

JSAS1 Eight SAS 3.0 Ports (X11SSH-CTF only)

Note: Table is continued on the next page.

13

X11SSH-CTF/TF User's Manual

Connector Description

JSD1/JSD2 SATA DOM Power Connectors

JSTBY1 Standby Power Header

JTPM1 Trusted Platform Module/Port 80 Connector

JUIDB1 UID Switch

LAN1/LAN2 LAN (RJ45) Ports

SLOT4 PCH PCI-E 3.0 X2 (IN X4) Slot

SLOT6 CPU PCI-E 3.0 X8 Slot

SP1 Internal Speaker/Buzzer

USB0/1 Back panel Universal Serial Bus (USB) 2.0 Port

USB2/3, USB4/5 Front Accessible USB 2.0 Headers

USB6/7 Back panel USB 3.0 Port

USB8 USB Type A Header

USB9/10 Front Accessible USB 3.0 Header

VGA VGA Port

14

Chapter 1: Introduction

Motherboard Features

Motherboard Features

CPU

• Single Intel® E3-1200 v5, 6th Gen Core i3, Pentium, and Celeron series processor in an LGA1151 socket

Memory

• Integrated memory controller supports up to 64 GB of DDR4 ECC UDIMM 2133MHz memory in four DIMM slots.

DIMM Size

• 4GB, 8GB, 16GB at 1.2V

Note 1: Memory speed support depends on the processors used in the system.

Note 2: For the latest CPU/memory updates, please refer to our website at http://www.supermicro.com/products/

motherboard.

Chipset

• Intel® PCH C236

Expansion Slots

• One (1) PCI Express 3.0 X2 (IN X4) slot (PCH Slot4)

• One (1) PCI Express 3.0 X8 slot (CPU Slot6)

Network

• Intel® X550 10G Ethernet Network Controller

BaseBoard Management Controller (BMC)

• ASpeed AST 2400 Baseboard Controller (BMC) supports IPMI 2.0

• One (1) Dedicated IPMI LAN located on the rear IO back panel

Graphics

• Graphics controller via ASpeed 2400 BMC

• Intel IGD

I/O Devices

• Serial (COM) Port

• SATA 3.0 • Eight (8) SATA 3.0 ports supported by Intel PCH (I-SATA 0-7)

• One (1) Fast UART 16550 port on the I/O back panel

• One (1) serial-port header

• RAID (PCH) • RAID 0, 1, 5, 10

• SAS 3.0 (X11SSH-CTF only) • Eight (8) SAS 3.0 connections via LSI3008 with two mini-SAS HD (SAS 0-7)

• RAID (LSI3008) • RAID 0, 1, 10

Note: The table above is continued on the next page.

15

X11SSH-CTF/TF User's Manual

Motherboard Features

Peripheral Devices

• Two (2) USB 2.0 ports on the rear I/O panel (USB 0/1)

• Two (2) internal USB 2.0 headers with two (2) USB connections on the motherboard for front access (USB 2/3, 4/5)

• Two (2) USB 3.0 ports on the rear I/O panel (USB 6/7)

• One (1) internal USB 3.0 header with two (2) USB connections on the motherboard for front access (USB 9/10)

• One (1) Type-A USB 3.0 connector for front access (USB 8)

BIOS

• 128 Mb SPI AMI BIOS

• ACPI 4.0a, SMBIOS 2.7, BIOS rescue hot-key, Plug-and-Play (PnP), SPI dual/quad speed support, Riser card auto

detection support, RTC (Real TIme Clock) wakeup, Dual-Boot Block

Power Management

• Power button override mechanism

• Power-on mode for AC power recovery

• Wake-on-LAN

• Intel® Intelligent Power Node Manager 3.0 (available when the Supermicro Power Manager [SPM] is installed and a

special power supply is used. See the note on page 21.)

• Management Engine (ME)

• ACPI Power Mangement

®

SM Flash UEFI BIOS

System Health Monitoring

• Onboard voltage monitoring for +3.3V, +5V, +3.3V standby, +5V standby, +/-12V, VBAT, HT, Memory, PCH Temp., System

Temp., Memory Temp.

• CPU switch phase voltage regulator

• CPU Thermal Trip support

• Status monitor for speed control

• Status monitor for on/off control

• CPU Thermal Design Power (TDP) support of up to 80W (See Note 1 on next page.)

Fan Control

• Fan status monitoring via IPMI connections

• Dual cooling zone

• Low-noise fan speed control

• Pulse Width Modulation (PWM) fan control

System Management

• Trusted Platform Module (TPM) support

• PECI (Platform Environment Control Interface) 2.0 support

• UID (Unit Identication)/Remote UID

• System resource alert via SuperDoctor® 5

• SuperDoctor® 5, Watch Dog, NMI

• Chassis intrusion header and detection

Note: The table above is continued on the next page.

16

LED Indicators

• CPU/System Overheating

• Fan Failure

• Power/Suspend state Indicator

• UID/Remote UID

• HDD activity

• LAN activity

Dimensions

• 9.6" (L) x 9.6" (W) (243.84 mm x 243.84 mm)

Note 1: The CPU maximum thermal design power (TDP) is subject to chassis and

heatsink cooling restrictions. For proper thermal management, please check the chas-

sis and heatsink specications for proper CPU TDP sizing.

Chapter 1: Introduction

Motherboard Features

Note 2: For IPMI conguration instructions, please refer to the Embedded IPMI Con-

guration User's Guide available at http://www.supermicro.com/support/manuals/.

Note 3: It is strongly recommended that you change BMC log-in information upon ini­tial system power-on. The manufacture default username is ADMIN and the password

is ADMIN. For proper BMC conguration, please refer to http://www.supermicro.com/

products/info/les/IPMI/Best_Practices_BMC_Security.pdf

17

X11SSH-CTF/TF User's Manual

Available on the X11SSH-CTF

MINI SAS HD

MINI SAS HD

LSI SAS3008

PCIe3.0 x8SLOT6

Figure 1-4.

System Block Diagram

IMVP 8

3 PHASE

for Vcore

PCI-E X8 Gen3

PCI-E X8 Gen3

2 PHASE

80W

GT

CPU
LGA1151

DMI3

DMI3 x4

#A-0

#A-1

DDRIV

#B-0

2133

#B-1

RJ45

DDR3

BMC Boot Flash

RJ45

RJ45

LAN3

RTL8211E-VB-CG

SPI

VGA CONN

Temp Sensor

EMC1402-1 *2 at diff SMBUS

RGRMII

BMC

AST2400

COM1
Connector

LAN 10G

X550-AT2

RMII/NCSI

PCI-E X4 Gen3

5

4

3

2

1

USB 3.0

USB

PCI-E X1 Gen2

USB 2.0

SPI

LPC

COM2
Header

SYSTEM POWER

FRONT PANEL

PCH C236

TPM HEADER

Debug Card

FAN SPEED

CTRL

MUX

BIOS

PCI-E X2 Gen3

PCI-E X4 Gen3

SPI

SPI

6.0 Gb/S

USB 2.0

1

0

2

1

M.2 SSD

5

4

3

2

SATA

6

5

4

3

USB

SLOT4PCIe3.0 x2 (IN x4)

7

6

Note: This is a general block diagram and may not exactly represent the features on

your motherboard. See the previous pages for the actual specications of your moth­erboard.

18

Chapter 1: Introduction

1.2 Processor and Chipset Overview

Built upon the functionality and capability of the Intel E3-1200 v5 series processors (Socket
LGA 1151) and the Intel C236 PCH, the X11SSH-CTF/TF motherboard offers maximum I/O

expendability, energy efciency, and data reliability in a 14-nm process architecture, and

is optimized for embedded storage solutions, networking applications, or cloud-computing
platforms.

The Intel E3-1200 V5 and PCH C236 platform supports the following features:

• ACPI Power Management Logic Support, Rev. 4.0a

• Intel® Turbo Boost Technology 2.0 Power Monitoring/Power Control, Turbo Time Parameter

(TAU), and Platform Power Control

• Congurable TDP (cTDP) and Lower-Power Mode

• Adaptive Thermal Management/Monitoring

• PCI-E 3.0, SATA 3.0 w/transfer rates of up to 6 Gb/s, xHCI USB w/SuperSpeed 3.0

• System Management Bus (SMBus) Specication, Version 2.0

• Integrated Sensor Hub (ISH)The BMC supports remote management, virtualization, and

the security package for enterprise platforms

• Intel Trusted Execution Technology (Intel TXT)

• Intel Rapid Storage Technology

• Intel Virtualization Technology for Directed I/O (Intel VT-d)

1.3 Special Features

This section describes the health monitoring features of the X11SSH-CTF/TF motherboard.
The motherboard has an onboard System Hardware Monitor chip that supports system health
monitoring.

Recovery from AC Power Loss

The Basic I/O System (BIOS) provides a setting that determines how the system will respond
when AC power is lost and then restored to the system. You can choose for the system to
remain powered off (in which case you must press the power switch to turn it back on), or
for it to automatically return to the power-on state. See the Advanced BIOS Setup section
for this setting. The default setting is Last State.

19

X11SSH-CTF/TF User's Manual

1.4 System Health Monitoring

This section describes the health monitoring features of the X11SSH-CTF/TF motherboard.
The motherboard has an onboard Baseboard Management Controller (BMC) chip that
supports system health monitoring. Once a voltage becomes unstable, a warning is given or

an error message is sent to the screen. The user can adjust the voltage thresholds to dene

the sensitivity of the voltage monitor.

Onboard Voltage Monitors

The onboard voltage monitor will continuously scan crucial voltage levels. Once a voltage
becomes unstable, it will give a warning or send an error message to the screen. Users can

adjust the voltage thresholds to dene the sensitivity of the voltage monitor. Real time readings

of these voltage levels are all displayed in BIOS.

Fan Status Monitor with Firmware Control

The system health monitor embedded in the BMC chip can check the RPM status of the
cooling fans. The CPU and chassis fans are controlled via lPMI.

Environmental Temperature Control

System Health sensors in the BMC monitor the temperatures and voltage settings of onboard
processors and the system in real time via the IPMI interface. Whenever the temperature of

the CPU or the system exceeds a user-dened threshold, system/CPU cooling fans will be

turned on to prevent the CPU or the system from overheating.

Note: To avoid possible system overheating, please be sure to provide adequate air-

ow to your system.

System Resource Alert

This feature is available when used with SuperDoctor 5®. SuperDoctor 5 is used to notify the

user of certain system events. For example, you can congure SuperDoctor 5 to provide you

with warnings when the system temperature, CPU temperatures, voltages and fan speeds

go beyond a predened range.

20

Chapter 1: Introduction

1.5 ACPI Features

ACPI stands for Advanced Conguration and Power Interface. The ACPI specication denes
a exible and abstract hardware interface that provides a standard way to integrate power

management features throughout a computer system including its hardware, operating system
and application software. This enables the system to automatically turn on and off peripherals
such as network cards, hard disk drives and printers.

In addition to enabling operating system-directed power management, ACPI also provides a
generic system event mechanism for Plug and Play and an operating system-independent

interface for conguration control. ACPI leverages the Plug and Play BIOS data structures

while providing a processor architecture-independent implementation that is compatible with
Windows 8/R2, and Windows 2012/R2 operating systems.

1.6 Power Supply

As with all computer products, a stable power source is necessary for proper and reliable
operation. It is even more important for processors that have high CPU clock rates. In areas

where noisy power transmission is present, you may choose to install a line lter to shield

the computer from noise. It is recommended that you also install a power surge protector to
help avoid problems caused by power surges.

1.7 Super I/O

The Super I/O (Winbond® W83527 chip) includes a data separator, write pre-compensation
circuitry, decode logic, data rate selection, a clock generator, drive interface control logic and
interrupt and DMA logic. The wide range of functions integrated onto the Super I/O greatly

reduces the number of components required for interfacing with oppy disk drives.

The Super I/O provides two high-speed, 16550 compatible serial communication ports
(UARTs), one of which supports serial infrared communication. Each UART includes a 16-byte
send/receive FIFO, a programmable baud rate generator, complete modem control capability
and a processor interrupt system. Both UARTs provide legacy speed with baud rate of up to

115.2 Kbps as well as an advanced speed with baud rates of 250 K, 500 K, or 1 Mb/s, which
support higher speed modems.

The Super I/O provides functions that comply with ACPI (Advanced Conguration and Power

Interface), which includes support of legacy and ACPI power management through a SMI
or SCI function pin. It also features auto power management to reduce power consumption.

The IRQs, DMAs and I/O space resources of the Super I/O can be exibly adjusted to meet

ISA PnP requirements, which support ACPI and APM (Advanced Power Management).

21

X11SSH-CTF/TF User's Manual

1.8 Advanced Power Management

The following new advanced power management features are supported by the motherboard.

Intel® Intelligent Power Node Manager (IPNM)

Available when the Supermicro Power Manager (SPM) is installed, Intel's Intelligent Power
Node Manager (IPNM) provides your system with real-time thermal control and power

management for maximum energy efciency. Although IPNM Specication Version 2.0/3.0

is supported by the BMC (Baseboard Management Controller), your system must also have

IPNM-compatible Management Engine (ME) rmware installed to use this feature.

Note: Support for IPNM 2.0/3.0 support is dependent on the power supply used in
the system.

Management Engine (ME)

The Management Engine, which is an ARC controller embedded in the IOH (I/O Hub), provides
Server Platform Services (SPS) to your system. The services provided by SPS are different
from those provided by the ME on client platforms.

22

Chapter 2: Installation

Chapter 2

Installation

2.1 Static-Sensitive Devices

Electrostatic Discharge (ESD) can damage electronic com ponents. To prevent damage to your
motherboard, it is important to handle it very carefully. The following measures are generally

sufcient to protect your equipment from ESD.

Precautions

• Use a grounded wrist strap designed to prevent static discharge.

• Touch a grounded metal object before removing the board from the antistatic bag.

• Handle the board by its edges only; do not touch its components, peripheral chips, memory

modules or gold contacts.

• When handling chips or modules, avoid touching their pins.

• Put the motherboard and peripherals back into their antistatic bags when not in use.

• For grounding purposes, make sure that your chassis provides excellent conductivity be-

tween the power supply, the case, the mounting fasteners and the motherboard.

• Use only the correct type of CMOS onboard battery as specied by the manufacturer. Do

not install the CMOS battery upside down, which may result in a possible explosion.

Unpacking

The motherboard is shipped in antistatic packaging to avoid static damage. When unpacking
the motherboard, make sure that the person handling it is static protected.

23

X11SSH-CTF/TF User's Manual

2.2 Motherboard Installation

All motherboards have standard mounting holes to t different types of chassis. Make sure

that the locations of all the mounting holes for both the motherboard and the chassis match.
Although a chassis may have both plastic and metal mounting fasteners, metal ones are
highly recommended because they ground the motherboard to the chassis. Make sure that
the metal standoffs click in or are screwed in tightly.

Philips
Screwdriver
(1)

Tools Needed

USB2/3

JWD1

JSTBY1

BT1

I-SATA7

I-SATA6

I-SATA5

JSD2

I-SATA4

I-SATA1

I-SATA3

JSD1

I-SATA0

I-SATA2

PCH SLOT4 PCI-E 3.0 X2 (IN X4)

MEGERAC

LICENSE

JPS1

JL1

JPSAS1

JPB1

JBT1

Intel
PCH

LEDS1

LSI3008

(-CTF only)

I-SGPIO2

I-SGPIO1

JSAS1

PRESS FIT

USB8(3.0)

FANA

Philips Screws
(7)

LE1

JUIDB1

LEDBMC

MH8

USB4/5

JIPMB1

JD1

SAS CODE

J24

LE3

USB9/10(3.0)

FAN4

CPU SLOT6 PCI-E 3.0 X8

VGA

JOH1

JPME2

JPTG1

X11SSH-TF

CPU Socket LGA1151

BAR CODE

LEDPWR

MAC CODE

FAN3

LAN1

LAN2

X550

SP1

REV:1.01
DESIGNED IN USA

IPMI CODE

JVR1

USB6/7
(3.0)

JVRM2

JVRM1

DIMMA1

DIMMA2

DIMMB1

IPMI_LAN
USB0/1

JPG1

JBR1

DIMMB2

Standoffs (7)
Only if Needed

COM1

COM2

JTPM1

JPWR2

JI2C2

JI2C1

FAN2

JPWR1

JPI2C1

FAN1

J2

JPCK1

FAN5

JF1

Location of Mounting Holes

Note: 1) To avoid damaging the motherboard and its components, please do not use

a force greater than 8 lb/inch on each mounting screw during motherboard installation.

2) Some components are very close to the mounting holes. Please take precautionary
measures to avoid damaging these components when installing the motherboard to
the chassis.

24

Chapter 2: Installation

Installing the Motherboard

1. Install the I/O shield into the back of the chassis.

2. Locate the mounting holes on the motherboard. See the previous page for the location.

3. Locate the matching mounting holes on the chassis. Align the mounting holes on the
motherboard against the mounting holes on the chassis.

4. Install standoffs in the chassis as needed.

5. Install the motherboard into the chassis carefully to avoid damaging other motherboard
components.

6. Using the Phillips screwdriver, insert a Phillips head #6 screw into a mounting hole on
the motherboard and its matching mounting hole on the chassis.

7. Repeat Step 5 to insert #6 screws into all mounting holes.

8. Make sure that the motherboard is securely placed in the chassis.

Note: Images displayed are for illustration only. Your chassis or components might
look different from those shown in this manual.

25

X11SSH-CTF/TF User's Manual

2.3 Processor and Heatsink Installation

Warning: When handling the processor package, avoid placing direct pressure on the label

area of the fan.

Important:

• Always connect the power cord last, and always remove it before adding, removing or

changing any hardware components. Make sure that you install the processor into the
CPU socket before you install the CPU heatsink.

• If you buy a CPU separately, make sure that you use an Intel-certied multi-directional

heatsink only.

• Make sure to install the motherboard into the chassis before you install the CPU heatsink.

• When receiving a motherboard without a processor pre-installed, make sure that the plastic

CPU socket cap is in place and none of the socket pins are bent; otherwise, contact your
retailer immediately.

• Refer to the Supermicro website for updates on CPU support.

Installing the LGA1151 Processor

1. Press the load lever to release the load plate, which covers the CPU socket, from its

locking position.

Load Plate

Load Lever

26

Chapter 2: Installation

2. Gently lift the load lever to open the load plate. Remove the plastic cap.

3. Use your thumb and your index nger to hold the CPU at the north center edge and the
South center edge of the CPU.

North Center Edge

South Center Edge

4. Align the CPU key that is the semi-circle cutouts against the socket keys. Once it is
aligned, carefully lower the CPU straight down into the socket. (Do not drop the CPU on
the socket. Do not move the CPU horizontally or vertically.

27

X11SSH-CTF/TF User's Manual

5. Do not rub the CPU against the surface or against any pins of the socket to avoid

damaging the CPU or the socket.

6. With the CPU inside the socket, inspect the four corners of the CPU to make sure that
the CPU is properly installed.

7. Use your thumb to gently push the load lever down to the lever lock.

CPU properly

installed

Load lever locked into

place

Note: You can only install the CPU inside the socket in one direction. Make sure that

it is properly inserted into the CPU socket before closing the load plate. If it doesn't
close properly, do not force it as it may damage your CPU. Instead, open the load
plate again and double-check that the CPU is aligned properly.

28

Installing an Active CPU
Heatsink with Fan

Chapter 2: Installation

1. Locate the CPU fan power connector on
the motherboard (FAN1: CPU Fan).

2. Position the heatsink so that the heatsink
fan wires are closest to the CPU fan
power connector and are not interfered
with other components.

3. Inspect the CPU fan wires to make sure
that the wires are routed through the
bottom of the heatsink.

4. Remove the thin layer of the protective

lm from the heatsink.

Important: CPU overheating may oc-

cur if the protective lm is not removed

from the heatsink.

5. Apply the proper amount of thermal
grease on the CPU.

Thermal Grease

Heatsink

Fins

Note: If your heatsink came with a ther-

mal pad, please ignore this step.

6. If necessary, rearrange the wires to
make sure that the wires are not pinched
between the heatsink and the CPU. Also
make sure to keep clearance between the

fan wires and the ns of the heatsink.

29

X11SSH-CTF/TF User's Manual

7. Align the four heatsink fasteners with
the mounting holes on the motherboard.
Gently push the pairs of diagonal
fasteners (#1 & #2, and #3 & #4) into
the mounting holes until you hear a click.
Also, make sure to orient each fastener
so that the narrow end of the groove is
pointing outward.

8. Repeat step 7 to insert all four heatsink
fasteners into the mounting holes.

9. Once all four fasteners are securely
inserted into the mounting holes, and
the heatsink is properly installed on the
motherboard, connect the heatsink fan
wires to the CPU fan connector.

30

Removing the Heatsink

Note: We do not recommend that

the CPU or the heatsink be removed.
However, if you do need to remove the
heatsink, please follow the instructions
below to remove the heatsink and to
prevent damage done to the CPU or
other components.

Active Heatsink Removal

1. Unplug the power cord from the power
supply.

Chapter 2: Installation

Unplug the

PWR cord

2. Disconnect the heatsink fan wires from
the CPU fan header.

3. Use your nger tips to gently press on the
fastener cap and turn it counterclockwise
to make a 1/4 (900) turn and pull the
fastener upward to loosen it.

4. Repeat step 3 to loosen all fasteners from
the mounting holes.

5. With all fasteners loosened, remove the
heatsink from the CPU.

Pull Up

31

X11SSH-CTF/TF User's Manual

2.4 Memory Support and Installation

Note: Check the Supermicro website for recommended memory modules.

Important: Exercise extreme care when installing or removing DIMM modules to pre-

vent any possible damage.

Memory Support

The X11SSH-CTF/TF supports up to 64 GB of DDR4 ECC UDIMM 2133MHz memory in four
DIMM slots. Populating these DIMM modules with a pair of memory modules of the same
type and size will result in interleaved memory, which will improve memory performance.

DIMM Module Population Conguration

For optimal memory performance, follow the table below when populating memory.

Recommended Population (Balanced)

DIMMA1 DIMMB1 DIMMA2 DIMMB2 Total System Memory

2GB 2GB 4GB

2GB 2GB 2GB 2GB 8GB

4GB 4GB 8GB

4GB 4GB 4GB 4GB 16GB

8GB 8GB 16GB

8GB 8GB 8GB 8GB 32GB

16GB 16GB 32GB

16GB 16GB 16GB 16GB 64GB

DIMM Module Population Sequence

When installing memory modules, the DIMM slots must be populated in the following order:

DIMMB2, DIMMA2, then DIMMB1, DIMMA1. The blue slots must be populated rst.

Towards the CPU

DIMMA1

DIMMA2 (Blue Slot)

DIMMB1

DIMMB2 (Blue Slot)

Towards the edge of the motherboard

Note: Be sure to use memory modules of the same type and speed on the motherboard.
Mixing of memory modules of different types and speeds is not allowed.

32

DIMM Installation

1. Insert DIMM modules in the following
order: DIMMB2, DIMMA2, then DIMMB1,
DIMMA1. For the system to work properly,
please use memory modules of the same
type and speed on the motherboard.

2. Push the release tabs outwards on both
ends of the DIMM slot to unlock it.

3. Align the key of the DIMM module with the
receptive point on the memory slot.

4. Align the notches on both ends of the
module against the receptive points on the
ends of the slot.

USB2/3

JWD1

JSTBY1

BT1

I-SATA7

I-SATA6

I-SATA5

I-SATA4

I-SATA3

JSD1

I-SATA2

PCH SLOT4 PCI-E 3.0 X2 (IN X4)

MEGERAC

LICENSE

JPS1

JL1

JPSAS1

JPB1

JBT1

Intel
PCH

LEDS1

JSD2

LSI3008

I-SATA1

(-CTF only)

I-SGPIO2

I-SGPIO1

JSAS1

I-SATA0

PRESS FIT

CPU SLOT6 PCI-E 3.0 X8

USB8(3.0)

FANA

Chapter 2: Installation

LE1

JUIDB1

VGA

JOH1

JPME2

LEDBMC

JIPMB1

JPTG1

JD1

SAS CODE

MH8

X11SSH-TF

CPU Socket LGA1151

J24

LE3

BAR CODE

USB9/10(3.0)

USB4/5

MAC CODE

FAN4

FAN3

LEDPWR

LAN1

LAN2

X550

SP1

REV:1.01
DESIGNED IN USA

IPMI CODE

USB6/7
(3.0)

JVRM2

JPG1

JVRM1

JBR1

JVR1

DIMMB2

DIMMA2

DIMMB1

DIMMA1

IPMI_LAN
USB0/1

JPCK1

COM1

J2

FAN5

COM2

JTPM1

JPWR2

JI2C2

JI2C1

JPWR1

JF1

JPI2C1

FAN1

FAN2

5. Use two thumbs together to press the
notches on both ends of the module
straight down into the slot until the module
snaps into place.

6. Press the release tabs to the lock positions
to secure the DIMM module into the slot.

DIMM Removal

Reverse the steps above to remove the DIMM
modules from the motherboard.

Notches

Release Tabs

Press both notches

straight down into

the memory slot.

33

X11SSH-CTF/TF User's Manual

2.5 Rear I/O Ports

See Figure 2-2 below for the locations and descriptions of the various I/O ports on the rear
of the motherboard.

LE1

USB2/3

JSTBY1

I-SATA7

JWD1

BT1

I-SATA6

I-SATA5

I-SATA4

I-SATA3

JSD1

I-SATA2

PCH SLOT4 PCI-E 3.0 X2 (IN X4)

MEGERAC

LICENSE

JPS1

JL1

JPSAS1

JPB1

JBT1

Intel
PCH

LEDS1

JSD2

LSI3008

I-SATA1

(-CTF only)

I-SGPIO2

I-SGPIO1

JSAS1

I-SATA0

PRESS FIT

FANA

LEDBMC

CPU SLOT6 PCI-E 3.0 X8

MH8

USB4/5

USB8(3.0)

JUIDB1

JIPMB1

JD1

SAS CODE

J24

LE3

USB9/10(3.0)

FAN4

VGA

JOH1

JPME2

JPTG1

X11SSH-TF

CPU Socket LGA1151

BAR CODE

LEDPWR

MAC CODE

FAN3

LAN1

LAN2

X550

SP1

REV:1.01
DESIGNED IN USA

IPMI CODE

JVR1

USB6/7
(3.0)

DIMMA1

JVRM2

JVRM1

DIMMA2

JPG1

JBR1

DIMMB2

DIMMB1

IPMI_LAN
USB0/1

JI2C1

FAN2

JTPM1

JI2C2

FAN1

COM1

COM2

JPWR2

JPWR1

JPI2C1

JPCK1

J2

FAN5

JF1

Figure 2-2. I/O Port Locations and Denitions

2

5

1

3

6

87

4

Rear I/O Ports

# Description # Description

1. COM Port 6. USB6 (3.0)

2. IPMI Dedicated LAN 7. LAN1

3 USB1 8 LAN2

4 USB0 9 VGA Port

5. USB7 (3,.0)

9

34

Chapter 2: Installation

VGA Port

The onboard VGA port is located next to LAN Ports 1/2 on the I/O back panel. Use this
connection for VGA display.

LAN Ports

Two LAN ports (LAN1 and LAN2) are located on the I/O back panel. There is also a dedicated
IPMI LAN port on the I/O back panel. These ports accept RJ45 type cables. See the table

below for the pin denitions.

LAN Port

Pin Denition

Pin# Denition Pin# Denition

1 TRCT2 13 IETCT

2 TRD2+ 14 IET+

3 TRD2- 15 IET-

4 TRD3+ 16

5 TRD3- 17 L1-GRE-

6 TRCT3 18 L1-GRE+

7 TRCT1 19 L2-YEL-

8 TRD1+ 20 COMMON

9 TRD1- 21 L2-GRE-

10 TRD4+ 22 CG1

11 TRD4- 23 CG2

12 TRCT4

USB2/3

JSTBY1

BT1

I-SATA7

JWD1

I-SATA6

I-SATA5

I-SATA4

I-SATA3

JSD1

I-SATA2

PCH SLOT4 PCI-E 3.0 X2 (IN X4)

MEGERAC

LICENSE

JPS1

JL1

JPSAS1

JPB1

JBT1

Intel
PCH

LEDS1

JSD2

LSI3008

I-SATA1

(-CTF only)

I-SGPIO2

I-SGPIO1

JSAS1

I-SATA0

PRESS FIT

FANA

LE1

LEDBMC

CPU SLOT6 PCI-E 3.0 X8

MH8

USB4/5

USB8(3.0)

JUIDB1

JIPMB1

JD1

SAS CODE

J24

LE3

USB9/10(3.0)

FAN4

1

VGA

JOH1

JPME2

JPTG1

X11SSH-TF

CPU Socket LGA1151

BAR CODE

LEDPWR

MAC CODE

FAN3

2

3

LAN1

LAN2

X550

SP1

REV:1.01
DESIGNED IN USA

IPMI CODE

JVR1

USB6/7
(3.0)

DIMMA1

JVRM2

JVRM1

DIMMA2

JPG1

JBR1

DIMMB2

DIMMB1

IPMI_LAN
USB0/1

JI2C1

FAN2

JTPM1

JI2C2

FAN1

COM1

COM2

JPWR2

JPWR1

JPI2C1

1. VGA Port

JPCK1

J2

FAN5

2. LAN1

3. LAN2

JF1

35

X11SSH-CTF/TF User's Manual

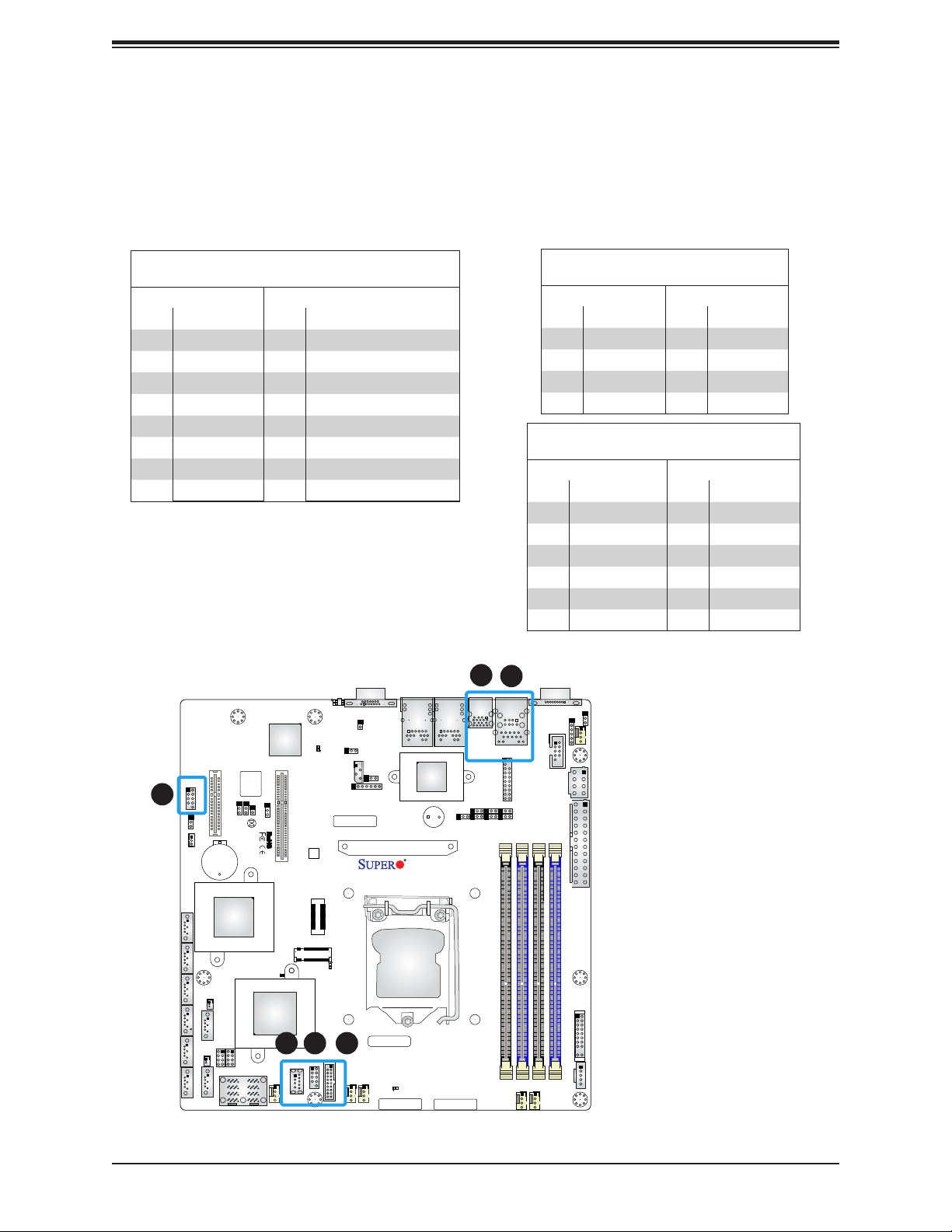

Universal Serial Bus (USB) Ports

There is one USB 2.0 port (USB0/1) and one USB 3.0 port (USB6/7) located on the I/O back
panel. The motherboard also has two front access USB 2.0 headers (USB2/3 and USB4/5)
and one front access USB 3.0 header (USB9/10). The USB8 header is USB Type A. The
onboard headers can be used to provide front side USB access with a cable (not included).

Back Panel USB (3.0)

Pin Denitions

Pin# Denition Pin# Denition

A1 VBUS B1 Power

A2 D- B2 USB 2.0 Differential Pair

A3 D+ B3

A4 Ground B4 Ground of PWR Return

A5 StdA_SSRX- B5 SuperSpeed Receiver

A6 StdA_SSRX+ B6 Differential Pair

A7 GND_DRAIN B7 Ground for Signal Return

A8 StdA_SSTX- B8 SuperSpeed Transmitter

A9 StdA_SSTX+ B9 Differential Pair
