TSG
-
1G (All Grooved Surfaces)
TSG-1F (All Flat Surfaces)
TSG
-
2G (All Grooved Surfaces)
THE
SANDWICH
“PANINI”
GRILL
OPERATION MANUAL
TSG-2F (All Flat Surfaces)
CECILWARE CORPORATION
43-05 20th Avenue • Long Island City, NY 11105
Tel: 800-935-2211 • Fax: 718-932-7860
3/29/00
GENERAL SPECIFICATIONS
MODEL SURFACES GRIDDLE
AREA
TSG-1G Grooved 14 ½” x l0" 15"x 12 ½”x 7" 120/60/1 13Amps
TSG-1F Flat 14 ½” x l0" 15"x 12 ½”x 7" 120/60/1 13 Amps
TSG-2G Grooved 19 ¾” x 11" 20 ¼”x l2 ½”x 7" 230/60/1 7 Amps
TSG-2F Flat 19 ¾” x 11" 20 ¼”x l2 ½”x 7" 230/60/1 7 Amps
DIMENSIONS
(W x D x H)
ELECTRICAL NEMA PLUG
TYPE
5-15P 53 lbs.
1800 Watts
6-15P 53 Ibs.
1800 Watts
6-15P 69 Ibs.
3450 Watts
6-15P 69 Ibs.
3450 Watts
SHIP WEIGHT
INSTALLATION
1. SETTING UP THE GRILL
The grill must be placed on a table or work area suitable for its overall dimension. Make sure workspace is
properly ventilated and free from combustible material.
2. ELECTRICAL CONNECTIONS
The grill is equipped with its own power supply cord.

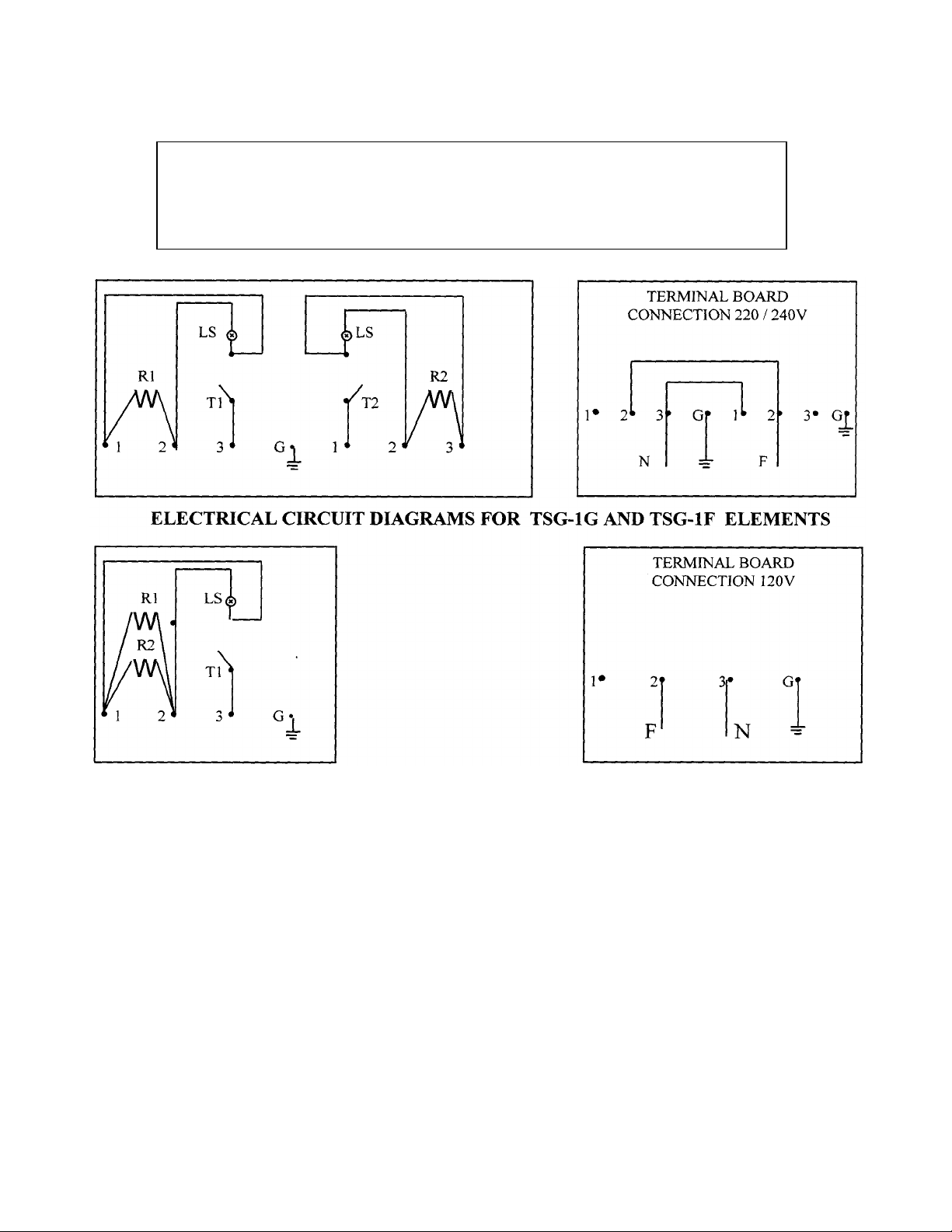

ELECTRICAL CIRCUIT DIAGRAMS FOR TSG-2G AND TSG-2F BOTTOM ELEMENTS
Rl -R2 -R3 -R4 = RESISTORS
LS = PILOT LAMP
T1-T2 = THERMOSTATS
Ml-3 = TERMINALS
ELECTRICAL CIRCUIT DIAGRAMS FOR TSG-2G AND TSG-2F TOP ELEMENTS
Rl -R2 -R3 -R4
LS
T1-T2
= RESISTORS
= PILOT LAMP
= THERMOSTATS
3. USE OF GRILL
Prior to using grill make sure all the protective vinyl coating has been removed from stainless steel body.
Make sure thermostat is in the off position. Plug unit into proper outlet. Turning thermostat knob in a
"clockwise" direction will turn unit on and start heating process. Pilot Light will go out when grill surfaces
have reached proper temperature. It is normal for grill surfaces to smoke when first using unit. Smoke will
disappear in 15 - 20 minutes. Place items to be cooked on grill surface and carefully lower top onto food. Do
not force. Cooking time will vary dependent on density of items cooke d.
4. GENERAL CLEANING
A brush has been included for the cleaning of the grill. Cleaning is easiest when grill is hot. Never pour
cold liquids on hot grill surface. This will cause grill plate to crack.

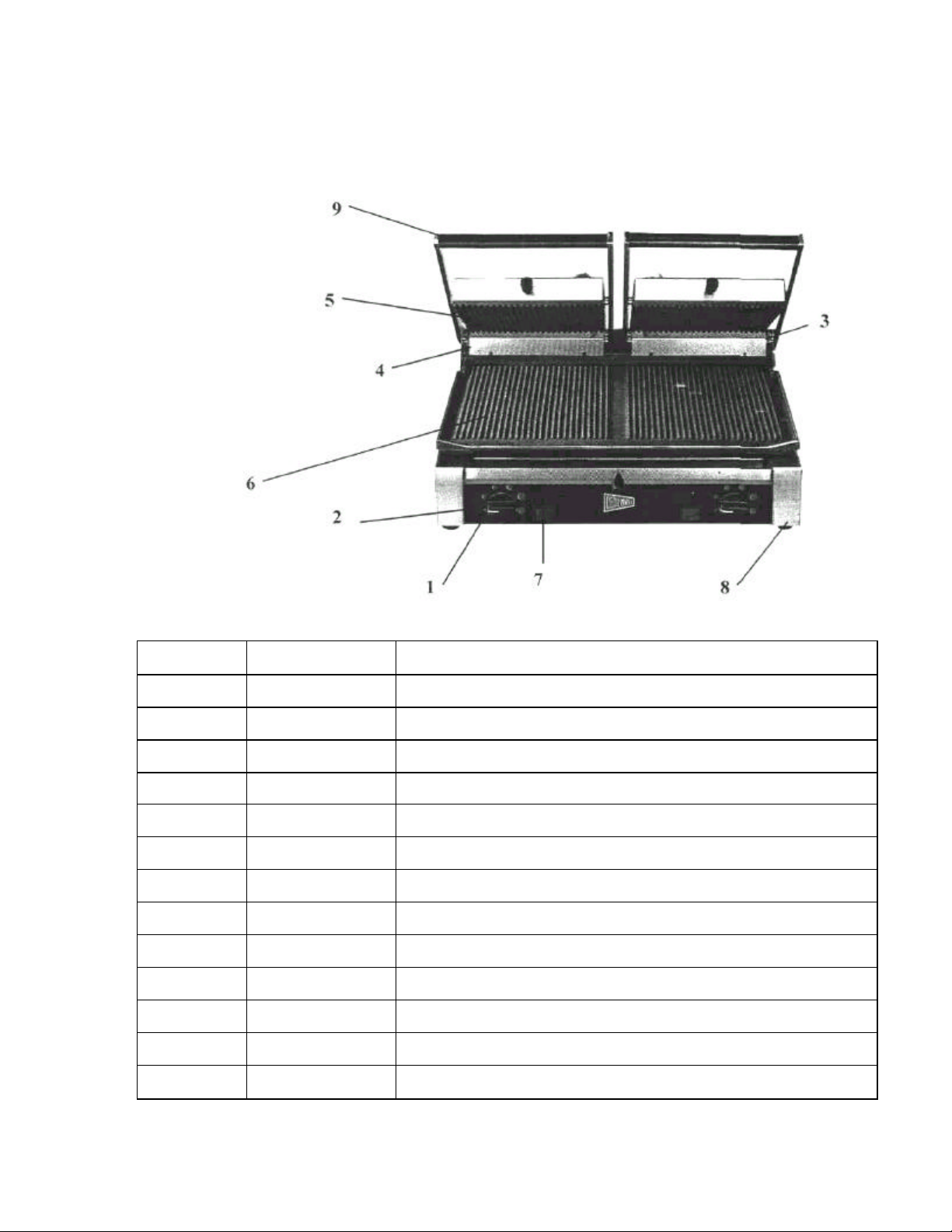

SPARE PARTS LIST FOR SANDWICH GRILLS
ITEM# PART# DESCRIPTION
1 01500 Thermostat - All TSG's
2 01501 Thermostat Knob - All TSG's
3 01502 Right Lifting Spring - All TSG's
4 01503 Left Lifting Spring - All TSG's
5 01504 Upper Element - 120V - TSG-1 (Only)
5 01506 Upper Element - 230V - TSG-2 (Only)
6 01505 Lower Element - 120V - TSG-1 (Only)
6 01512 Lower Element - 230V - TSG-2 (Only)
7 01507 Pilot Light-All TSG's
8 01508 Feet-All TSG's
9 01509 Top Plate Handle - TSG -1 (Only) (Long)
9 01511 Top Plate Handle - TSG -2 (Only) (Short)
Not Shown 01510 Terminal Block - All TSG's
