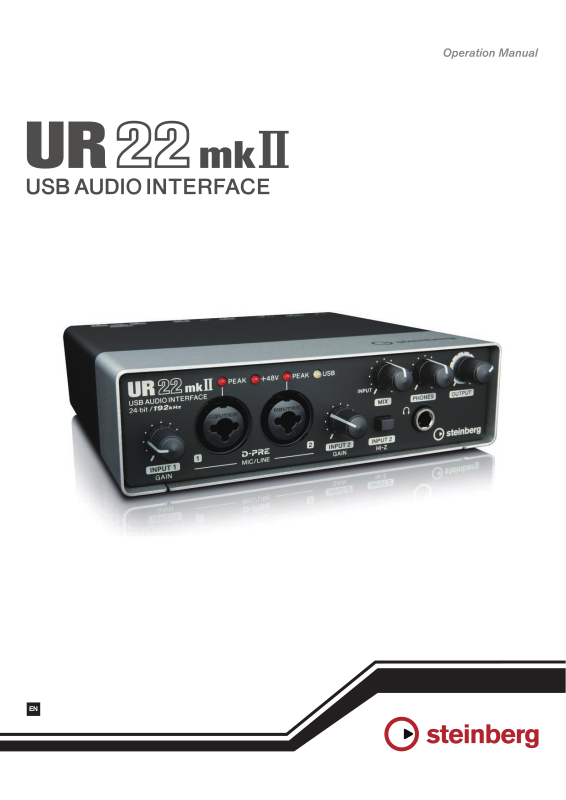

Steinberg UR22MKII User manual

Contents

Message from the Development Team..2

Panel Controls and Terminals ...............3

Front Panel......................................................3

Rear Panel ......................................................5

Software ..........................................................7

Using the UR22mkII ..............................10

Connections..................................................10

Configuring Audio Driver Settings on the DAW

Software ........................................................12

Recording/Playback .....................................12

Using the UR22mkII with connected MIDI

device ...........................................................15

Troubleshooting....................................16

Appendix................................................19

Block Diagrams ............................................19

Message from the Development Team

Thank you for choosing the UR22mkII USB Audio Interface.

Since the introduction of the MR816CSX and MR816X in 2008, the Steinberg audio interface lineup has expanded to cover a wide range of applications with the UR824 and UR28M released in 2011, the UR22 in 2013, the UR44 and UR12 in 2014, and the UR242 in

2015. The UR22, a model that was adopted by a broad spectrum of users, has now been refined, updated, and released as the UR22mkII.

As implied by the “mkII” designation, the UR22mkII is an evolved descendant of the UR22. The most prominent new features are iOS support and a loopback function. The extensive adoption of mobile recording by today’s creators meant that iOS support would be essential, but hardware limitations in the original UR22 design made it impossible to offer that functionality as a simple update. That was an issue we were determined to resolve, and now with this new release the entire UR series supports the three major platform: Windows, Mac, and iOS. In addition to USB bus power it is now possible to use a USB mobile battery, allowing high-quality recording even where reliable mains power is not available. Loopback has been included in response to the growing need for easy distribution of high-quality audio content via the Internet. The UR22mkII provides loopback functionality that, like other UR series models, allows a convenient distribution environment to be set up quickly and easily.

Of course the basics have not been overlooked, and the refinements do not end with the new features mentioned above. The UR22mkII has gone through the same rigorous testing and tuning for optimum audio quality as all new models, ensuring that it delivers solid, punchy lows with detailed midrange and extended, open highs. We are confident that the sublime balance with which our D-PRE microphone preamplifiers capture the entire audio spectrum will contribute to smoother, more enjoyable mixing and production as well. Detailed adjustments have also been applied to ensure that the sound delivered to the monitor speakers is faithful to the musical nuances of each recorded source.

The UR22mkII was developed to bring a popular model to the forefront of cutting edge production trends. We are dedicated to giving our users the tools they need when they need them, and are determined to stay at the forefront. Our greatest satisfaction is knowing that we contribute to the creative output of our users, wherever they are and whatever their artistic goals might be.

The Steinberg Hardware

Development Team

UR22mkII Operation Manual

Panel Controls and Terminals

XLR-type (balanced)

Phone-type (balanced)

Phone-type (unbalanced)

Front Panel

Panel Controls and Terminals

1 [INPUT 1 GAIN] knob

Adjusts the input signal level of the [MIC/LINE 1] jack.

2 [MIC/LINE 1/2] jacks

For connection to a microphone or digital instrument. This jack can be connected to both XLR-type and phone-type (balanced/unbalanced) plugs type is set to the optimum level for microphone connection and phone type is for line connection.

Plug types

. The XLR-

3 [PEAK] indicator

Lights up according to the input signal. Lights up when the input signal is 3 dB below the clipping level.

5 [USB] indicator

Lights up when the power is turned on. This flashes continuously if a connected computer or iPad does not recognize the device, or if the power supply voltage falls below the standard level.

6 [INPUT 2 GAIN] knob

Adjusts the input signal level of the [MIC/LINE 2] jack.

7 [INPUT 2 HI-Z] switch

Switches the input impedance (on O/off N). Turn this switch on when connecting high impedance instruments, such as an electric guitar or electric bass, directly to the [MIC/LINE 2] jack. When you turn this switch on, use an unbalanced phone plug for connection between the instruments and the [MIC/LINE 2] jack. If you use a balanced phone plug, this device will not work correctly.

CAUTION

To protect your speaker system, leave the monitor speakers turned off when turning the [INPUT 2 HI-Z] switch on/off. It’s also a good idea to turn all output level controls down to their minimum. Neglect of these precautions may result in loud noise bursts that may damage your equipment, your ears, or both.

HINT

Setting optimum recording levels

Adjust the gain knobs so that the [PEAK] indicator flashes briefly at the loudest input volume.

4 [+48V] indicator

Lights up when the [+48V] switch (phantom power) is turned on.

NOTICE

Do not connect or disconnect any cables while turning on the [INPUT 2 HI-Z] switch. Doing so can damage the connected device and/or the unit itself.

UR22mkII Operation Manual 3

8 [MIX] knob

Adjusts the signal level balance between the input signal to the [MIC/LINE 1/2] jacks and the signal from an application, such as DAW software. Both of the signals to the [MIC/LINE 1/2] jacks are mixed as a mono signal. Operation of this control knob does not affect the signal sent to a computer.

HINT

Using the Mix knob

Turn the [MIX] knob to the [DAW] side if the input volume is high and to the [INPUT] side if the input volume is low. When the knob is turned fully to the [DAW] side, only the input sound from DAW can be heard.

9 [PHONES] knob

Adjusts the output signal level of the [PHONES] jack. Operation of this control knob is independent from that of the [OUTPUT] knob.

) [PHONES ] jack

For connection to a set of stereo headphones.

Panel Controls and Terminals

! [OUTPUT] knob

Adjusts the output signal level of the [LINE OUTPUT] jacks.

UR22mkII Operation Manual 4

Rear Panel

Panel Controls and Terminals

1 [5V DC] port

For connecting a USB power adapter or USB mobile battery. Use a Micro USB B connector for connection. Use a power supply when connecting the UR22mkII to a device that does not supply sufficient bus power, such as an iPad. (The UR22mkII does not include a USB power adapter or USB mobile battery.)

NOTICE

• Read the safety precautions for the USB power adapter or USB mobile battery that you use.

• Use a USB power adapter or USB mobile battery that can supply power in compliance with USB standards with a 5-pin micro USB plug.

Output voltage: 4.8 V to 5.2 V Output current: 0.5 A or greater

HINT

Using the [5V DC] port

Even when the UR22mkII is connected to a computer, you can supply power via the [5V DC] port by external power supply if the [POWER SOURCE] switch is set to the [5V DC] side. Using an external power supply can help to prevent noise and other audio degradation caused by drawing power from the USB terminal of a computer.

2 [POWER SOURCE] switch

For selecting the port for supplying power to the UR22mkII.To supply bus power via the [USB2.0] terminal, set this switch to the [USB2.0] side. To supply power via the [5V DC] port, set this switch to the [5V DC] side. When using an iPad, set this switch to the [5V DC] side. Even if you set the power supply to [5V DC], the power to the UR22mkII will not come on unless it is connected to a computer or an iPad by the [USB 2.0] terminal.

3 [USB2.0] terminal

For connection to a computer or an iPad.

NOTICE

Be sure to observe the following points when connecting the device to the computer’s USB interface. Failing to do so may result in the computer freezing or shutting down, as well as corruption or even loss of data. If the device or computer does freeze, restart the application or computer.

• Use an AB type USB cable. USB 3.0 cables are not supported.

• Be sure to wake the computer from sleep/suspended/standby mode before connecting it to the UR22mkII with a USB cable.

• Before connecting/disconnecting the USB cable, quit all open software applications on the computer.

• Before connecting or disconnecting the USB cable from the [USB2.0] terminal, be sure to set all output level controls to the minimum.

• Do not connect/disconnect the USB cable in rapid succession. Wait at least six seconds between connecting/disconnecting the USB cable.

4 [MIDI OUT] jack

For connection to the MIDI IN jack of the MIDI device. Transmits MIDI signals from the computer.

5 [MIDI IN] jack

For connection to the MIDI OUT jack of the MIDI device. Receives and inputs MIDI signals to the computer.

NOTE

When using a USB mobile battery, if the power of a computer or iPad connected to the [USB 2.0] terminal is off, the power supplied via the [5V DC] port is also stopped to prevent wasteful consumption of the battery.

UR22mkII Operation Manual 5

6 [+48V] switch

Turns on and off the phantom power. When you turn this switch on, phantom power will be supplied to the XLR jack connected to the [MIC/LINE 1/2] jacks. Only turn this switch on/off after connecting a phantom powered condenser microphone to the device. Always turn the phantom power switch to OFF when it is not required.

NOTICE

When using phantom power, observe the following to prevent noise and possible damage to UR22mkII or connected equipment.

• Do not connect or disconnect any devices while the phantom power switch is turned to ON.

• Set all output level controls to the minimum before turning the phantom power switch to ON or OFF.

• When connecting devices not requiring phantom power to the [MIC/LINE 1/2] jacks, make sure to turn the phantom power switch to OFF.

NOTE

When the phantom power switch is turned on and off, all inputs/outputs will be muted for a few seconds.

Panel Controls and Terminals

7 [LINE OUTPUT 2/R 1/L] jacks

For connecting to monitor speakers or external devices with line level signals. These jacks can be connected to phone-type (balanced/unbalanced).

UR22mkII Operation Manual 6
