User’s Manual Pub. 0300309-01 Rev. A

ii Micro800™ 32-Channel 24 V Sink/Source Discrete Output Modules

User’s Manual Pub. 0300309-01 Rev. A

Important Notes

1. Please read all the information in this owner’s guide before installing the

product.

2. The information in this owner's guide applies to hardware Series A and

firmware version 1.1 or later.

3. This guide assumes that the reader has a full working knowledge of the

relevant processor.

Notice

The products and services described in this owner's guide are useful in a wide variety of applications. Therefore, the user and others responsible for applying the products and services described herein are responsible for determining their acceptability for each application. While efforts have been made to provide accurate information within this owner's guide, Spectrum Controls, Inc. assumes no responsibility for the accuracy, completeness, or usefulness of the information herein.

Under no circumstances will Spectrum Controls, Inc. be responsible or liable for any damages or losses, including indirect or consequential damages or losses, arising out of either the use of any information within this owner's guide or the use of any product or service referenced herein.

No patent liability is assumed by Spectrum Controls, Inc. with respect to the use of any of the information, products, circuits, programming, or services referenced herein.

The information in this owner's guide is subject to change without notice.

Limited Warranty

Spectrum Controls, Inc. warrants that its products are free from defects in material and workmanship under normal use and service, as described in Spectrum Controls, Inc.’s literature covering this product, for a period of 1 year. The obligations of Spectrum Controls, Inc. under this warranty are limited to replacing or repairing, at its option, at its factory or facility, any product which shall, in the applicable period after shipment, be returned to the Spectrum Controls, Inc. facility, transportation charges prepaid, and which after examination is determined, to the satisfaction of Spectrum Controls, Inc. to be thus defective.

This warranty shall not apply to any such equipment which shall have been repaired or altered except by Spectrum Controls, Inc. or which shall have been subject to misuse, neglect, or accident. In no case shall the liability of Spectrum Controls, Inc. exceed the purchase price. The aforementioned provisions do not extend the original warranty period of any product which has either been repaired or replaced by Spectrum Controls, Inc.

Micro800™ 32-Channel 24 V Sink/Source Discrete Output Modules iii

User’s Manual Pub. 0300309-01 Rev. A

Table of Contents

IMPORTANT NOTES ......................................................................................................................................................... II

CHAPTER 1 MODULE OVERVIEW ..................................................................................................................... 1-1

GENERAL DESCRIPTION .............................................................................................................................. 1-1

OUTPUT SPECIFICATIONS ............................................................................................................................ 1-3

HARDWARE FEATURES ............................................................................................................................... 1-6

1.3.1 LED Blink Codes ......................................................................................................................................... 1-6

1.3.2 1.1 LED Operation ..................................................................................................................................... 1-6

SYSTEM OVERVIEW AND MODULE OPERATION .............................................................................................. 1-7

CHAPTER 2 INSTALLATION AND WIRING .......................................................................................................... 2-1

COMPLIANCE TO EUROPEAN UNION DIRECTIVES ............................................................................................. 2-1

2.1.1 EMC Directive ............................................................................................................................................ 2-1

GENERAL CONSIDERATIONS ........................................................................................................................ 2-2

2.2.1 Hazardous Location Considerations .......................................................................................................... 2-2

2.2.2 Prevent Electrostatic Discharge ................................................................................................................ 2-2

2.2.3 Remove Power .......................................................................................................................................... 2-3

2.2.4 Selecting a Location .................................................................................................................................. 2-3

MOUNTING ............................................................................................................................................. 2-3

2.3.1 Minimum Spacing ..................................................................................................................................... 2-4

2.3.2 Parts List ................................................................................................................................................... 2-4

2.3.3 Module Description ................................................................................................................................... 2-4

2.3.4 Insert Module Next to the Controller ........................................................................................................ 2-5

CHAPTER 3 CONFIGURING THE 2085-OX32-SC USING CCW .............................................................................. 3-1

SYSTEM INTRODUCTION ............................................................................................................................. 3-1

2085-OX32-SC AOP .............................................................................................................................. 3-2

2085-OX32-SC TAB ON CCW .................................................................................................................. 3-5

SOFTWARE VERSIONING ............................................................................................................................ 3-8

3.4.1 Software Updates ..................................................................................................................................... 3-8

3.4.2 Startup and Factory Default Conditions .................................................................................................... 3-8

PLC INTERFACES....................................................................................................................................... 3-9

3.5.2 Connection Types and Assembly Sizes ...................................................................................................... 3-9

3.5.3 Output Variable Table ............................................................................................................................... 3-9

MODULE ERROR ..................................................................................................................................... 3-10

3.6.1 Module Specific Hardware Errors ........................................................................................................... 3-10

3.6.2 Module Specific Configuration Errors ..................................................................................................... 3-11

3.6.3 Communication Errors ............................................................................................................................ 3-12

APPENDIX A MANUALLY IMPORTING AN AOP ................................................................................................. A-1

INDEX .............................................................................................................................................................. I-1

iv Micro800™ 32-Channel 24 V Sink/Source Discrete Output Modules

User’s Manual Pub. 0300309-01 Rev. A

Preface

Read this preface to familiarize yourself with the rest of the manual. This preface covers the following topics:

• Who should use this manual

• How to use this manual

• Related documentation

• Technical support

• Documentation

• Conventions used in this manual

Who Should Use This Manual

Use this manual if you are responsible for designing, installing, programming, or troubleshooting control systems that use the Micro800™ 32-Point 24 V Sink/Source Discrete Output Modules.

NOTE

Before you access any equipment or begin to install any IO modules, review all safety material and warnings in the Micro830, Micro850, and Micro870 Programmable Controllers User Manual. Be sure to review the warnings provided in this document before you start installing a module in a system.

How to Use This Manual

As much as possible, we organized this manual to explain, in a task-by-task manner, how to install, configure, program, operate, and troubleshoot a control system using the Micro800™ 32-Point 24 V Sink/Source Discrete Output Modules.

Chapter 1 Module Overview

This chapter covers the following topics:

• General description

• Output specifications

• Data formats

• Hardware features

• System overview and module operation

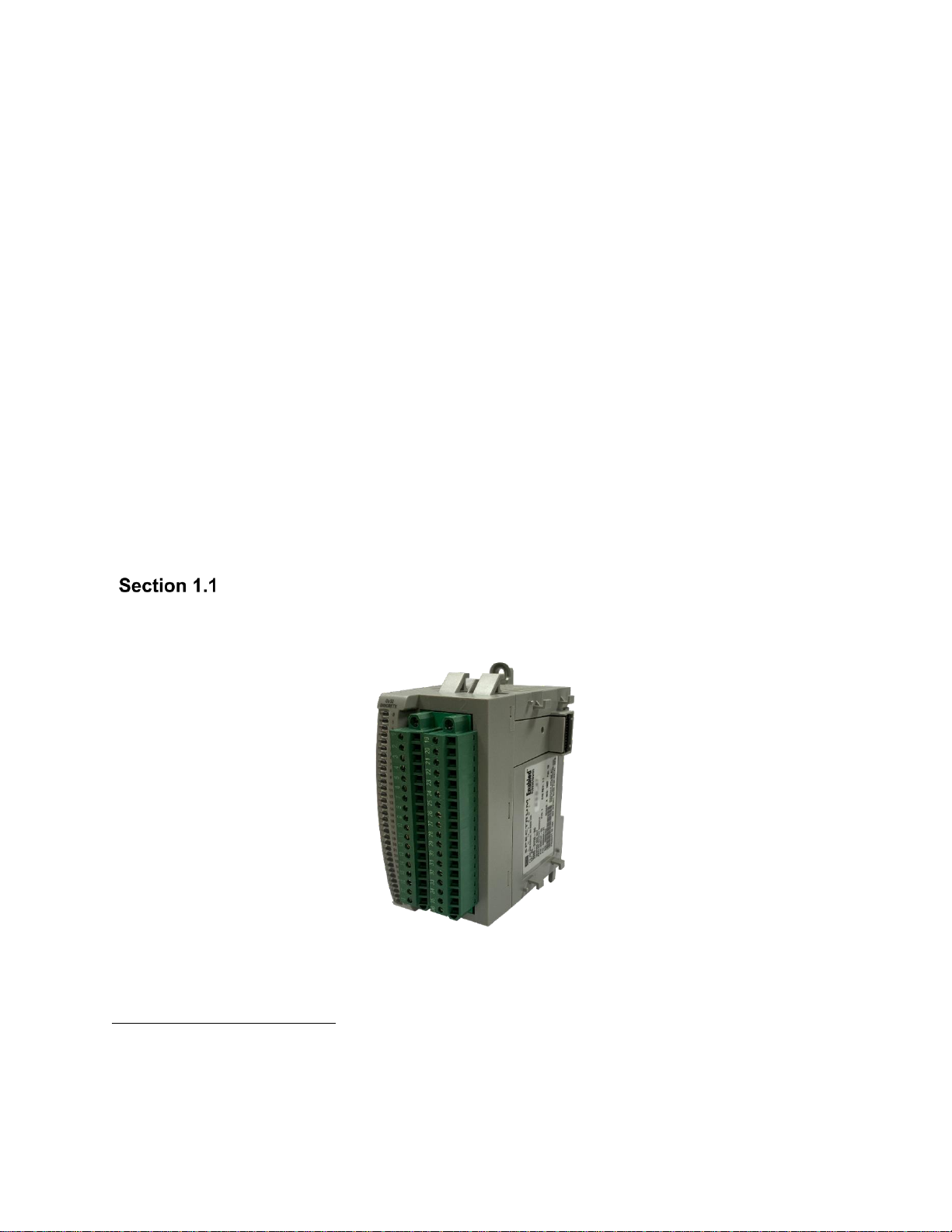

The Micro800™ 2085-OX132-SC is a 32-Point, 12/24 VDC digital source or sink output module designed to expand the local I/O capability of Rockwell Automation Micro850 and Micro870 Systems over its Expansion I/O buses. The minimum system requirement in which an Expansion I/O Module can be installed is a Micro850 or Micro870 Controller and a controller power supply. The number of 2085-OX32-SC modules that can be installed with a Micro850/870 PLC is based on the current controller firmware revision and CCW software revision.

General Description

X refers to the 2085-OB32-SC (source) or a 2085-OV32-SC (sink) I/O module where information covers

both modules. Where differentiation is needed, the modules are referred to by name.

1-2 Chapter 1: Module Overview

User’s Manual Pub. 0300309-01 Rev. A

The discrete module supports:

• 32 Discrete Sink Output Channels (applies to 2085-OV32-SC)

• 32 Discrete Source Output Channels (applies to 2085-OB32-SC).

Both discrete modules control discrete outputs based on commanded outputs from a controller. The controller monitors to see if any of the 32 output channels is to be activated:

• If a channel is determined to be commanded to be ON, the 2085-OB32-

SC module provides for an electronic switch to close between the channel output control pin and the +24 VDC POWER pin on the terminal block.

Chapter 1: Module Overview 1-3

User’s Manual Pub. 0300309-01 Rev. A

• For the 2085-OV32-SC, the switch close is between the channel output

pin and the GROUND return pin on the terminal block. The state of each output channel is displayed on the front panel LEDs. All outputs have fault tolerance and ESD protection to avoid damage to circuitry

on the board. The modules use 50 VAC working Reinforced Insulation between the output channels and the backplane, and between the output and the Chassis GND. 50 V working Basic Insulation is provided for group-to-group isolation.

Each output channel can be directly controlled via Rockwell-provided Connected Component Workbench (CCW) software for Micro850 and Micro870 family controllers once the controller is in run mode. Pre-channel configuration is not required.

The module is tested before shipping. After installation, during startup, devices begin operation in a useable condition without a requirement for pre-channel configuration. The module begins operation with all outputs off. The module normally requires no further user intervention. However, if the module experiences a hard fault condition, you may need to cycle power or pull the module from the rack.

Output Specifications

The 2085-OX32-SC modules have the following output specifications:

Table 1-1. Output/Performance/Environmental Requirements

Output Description

Value

Operating Temperature

-20 ºC to 65 ºC (-4 ºF to 149 ºF)

Storage/Non-Operating Temperature

-40 ºC to 85 ºC (-40 ºF to 185 ºF)

Operating Humidity

5% to 95%, non-condensing

Storage/Non-Operating Humidity

5% to 85%, non-condensing

Vibration/Operating

10 Hz to 500 Hz, 2 G, 0.030 max peak-to-peak

Operating Shock

25 G, peak acceleration, 11 ms pulse, half sine

Storage/Non-Operating Shock

25 G peak acceleration, (35 G for panel mount), 11 ms pulse, half sine

Pollution Level

Meets Pollution Degree 2 requirements.

Outputs per module

12/24 VDC customer supply voltage

10.5 VDC minimum, 30 VDC maximum

ON-state voltage

10 VDC minimum ON under all conditions

24 VDC nominal under all conditions

30 VDC maximum

ON-State Voltage Drop

Less than 0.5 VDC maximum

ON-state current

1 mA minimum at 10 VDC

0.5 A maximum steady state (8 A per channel group)

1-4 Chapter 1: Module Overview

User’s Manual Pub. 0300309-01 Rev. A

Output Description

Value

Off-state leakage current

Less than 0.5 mA per channel.

Turn on/off time, maximum (backplane to screw)

3 ms

Surge current

2 A for 25 ms, repeatable every 2 seconds

10 A maximum per channel group

Reverse voltage protection

Yes, group protection

Inductive kickback protection

Yes. Diode across load to protect against load coil back EMF.

Output to backplane isolation

50 VAC working Reinforced isolation tested at 2 kVDC for 1 minute

Group-to-Group isolation

50 VAC working Basic isolation tested at 1300 VDC for 1 minute.

Output to Chasis GND isolation

50 V working Reinforced isolation tested at 2 kVDC for 1 minute.

Power Requirements

Bus +5 VDC (4.75 V to 5.4 V)

70 mA maximum

Bus +24 VDC (19.9 V to 26.4 V)

55 mA maximum

Heat Dissipation

OB32: 5.5 W maximum (at full load) OV32: 4 W maximum (at full load)

Inrush current

Less than 150 mA at 5 V Less than 400 mA at 24 V

RoHS

Meets European RoHS component standards (January 2015 and earlier).

REACH

Meets European REACH 7 requirements.

Wire Installation

Wire size

#16 to #28 AWG

Wire Strip Length

0.375 in.

Recommended Tightening Torque:

0.25 N-m (2.2 lb-in) (Use hand tool to tighten; see warning on page 2-7 regarding risk of over-tightening.)

Module Dimensions H×D×W

(With RTBs installed, RTB extends the total depth approximately 2 mm from 87 mm to 89 mm.)

110 mm × 89 mm × 51 mm. (4.33 in × 3.54 in × 2.00 in) 90 mm × 89 mm × 44.5 mm (excluding mounting feet, DIN rail latches, or the plastic that

extends into the adjacent module once installed). (3.54 in × 3.5 in × 1.75 in)

Table 1-2. EMC Specification Table

Environmental Tests

Test Level Limits

Radiated Emissions

(Enclosure) Class A, 30 MHz – 1 GHz

Conducted Emissions

Group 1, Class A (AC Mains), 150 kHz – 30 MHz

Chapter 1: Module Overview 1-5

User’s Manual Pub. 0300309-01 Rev. A

Environmental Tests

Test Level Limits

ESD immunity (Performance Criteria B)

6 kV Indirect (Coupling Plate) 6 kV Contact Discharge (to points of initial contact)

8 kV Air Discharge (to points of initial contact)

Radiated RF immunity (Performance Criteria A)

10 V/M with 200 Hz sine-wave 50% Pulse 100% AM at 900 and at 1890 MHz

10 V/M with 1 kHz sine-wave 80% AM from 80…2000 MHz

10 V/M with 1 kHz sine-wave 80% AM from 2000…6000 MHz

EFT/B immunity (Performance Criteria B)

Signal Ports: ± 2 kV at 5 kHz for 5 minutes, Criteria B

Power Ports: ± 2 kV at 5 kHz for 5 minutes, Criteria B

Surge transient immunity (Performance Criteria B)

Signal Ports: ± 2 kV line-earth {CM} at 42 Ω

Power Ports ±2 kV CM at 12 Ω

±1 kV DM at 2 Ω

Conducted RF immunity (Performance Criteria A)

10 V RMS with 1 kHz sine wave 80% AM from 150 kHz…80 MHz on signal and power ports

Magnetic Field (Performance Criteria A)

30 Arms/m

AC Mains Voltage Dips, Interruptions and Variations

Follow the 61000-4-11.

Table 1-3. Safety Test Specification Table

Safety Tests

Industry Standards

UL Safety

UL 61010-2-201 Safety Requirements for Electrical Equipment for Measurement, Control, and Laboratory Use–Part 2-201: Particular Requirements for Control Equipment (NRAQ, NRAQ7) cUL CAN/CSA C22.2 No. 61010-1-12 (Safety Requirements for Electrical Equipment for Measurement, Control, and Laboratory Use–Part 1: General Requirements)

UL Hazardous Locations

ULH ANSI/ISA–12.12.01–2007 Nonincendive Electrical Equipment for Use in Class I, Division 2 Hazardous (Classified) Locations (NRAG) cULH CSA C22.2 No. 213-M1987–Non-incendive Electrical Equipment for use in Class I Division 2 Hazardous Locations–March 1987 (NRAG7) Temp code T4 or better, Pollution degree 2, gas groups a, b, c, and d.

1-6 Chapter 1: Module Overview

User’s Manual Pub. 0300309-01 Rev. A

Safety Tests

Industry Standards

CE EMC Directive

IEC 61131-2 Programmable Controllers: Third Edition 2007-02, Clause 8 IEC 61000-6-2: Generic Industrial Immunity IEC 61000-6-4: Generic Industrial Emissions

Hardware Features

Channels are all outputs. To actively control the state of the outputs, you must set up a program within the PLC and transition the Controller to Run mode.

1.3.1 LED Blink Codes

The firmware uses the following LED blink codes to show the state of the outputs. All 32 LEDs are yellow.

1.3.2 1.1 LED Operation

Once the PLC is in Run mode, any module channel that is set to the ON state, shows a solid yellow LED for that channel. If the output is set to the OFF state, the LED for that channel will be off.

Table 1-4 LED Blink Codes

Indicator

Name and Description

Resolution

OFF

Power-up, Major Hardware Fault, or the channel is commanded to OFF.

The module is just powering up and not initialized yet or there is a major hardware fault causing the module to be held in reset by the PLC. LED control is not possible for this condition and will remain off. If the module has already successfully entered run mode than the channel may just be OFF.

There are three likely conditions when the channel LED is OFF:

• The module is just powering up

and not initialized yet.

• The output channel is set to

disabled (off) by the user when the controller is in Run mode with no fault occurring.

• There is a major hardware fault

that is causing the module to be held in reset by the controller. LED control is not possible for this condition and will remain off. Once this happens, the controller transitions to Program mode and the module is not transmitting output(s) as a device protection.

If a fault occurs, try to power cycle the entire system to clear the fault indications shown on the controller and CCW program. If you cannot clear the fault, the module will have to be replaced.

Chapter 1: Module Overview 1-7

User’s Manual Pub. 0300309-01 Rev. A

Indicator

Name and Description

Resolution

Sweeping

Program/Offline Mode

Each LED is turned on and off sequentially in a sweeping pattern indicating that the module is in Program mode. Outputs are disabled.

Set the controller to RUN mode. This will also be seen during power-on

while it is initializing.

Run Mode

Channel LED will be solid yellow if the corresponding channel is commanded to be ON.

Module is initialized, and no hardware fault has been detected. Module is in Run mode and channel is ON.

Serial Number Invalid or Corrupted

The MCU flash memory may be corrupted.

Serial number must be programmed. Please return the module to Spectrum Controls, Inc. for reprogramming

Hardware Fault

Blinking all channel LEDs for three times. You see this when the CCW program is trying to connect to the module but the 2085ECR is not installed properly.

Power off to reinstall the 2085-ECR properly. Try to power-cycle the whole system and clear the fault indications on PLC and CCW. If unsuccessful, the module must be replaced.

System Overview and Module Operation

The 2085-OX32-SC modules are expected to operate indefinitely. They do not require periodic maintenance or calibration. The 24 VDC field power supply must be present to allow for outputs from the module channels.

The module communicates to the controller through the bus interface. The module also receives 5 and 24 VDC through the bus interface.

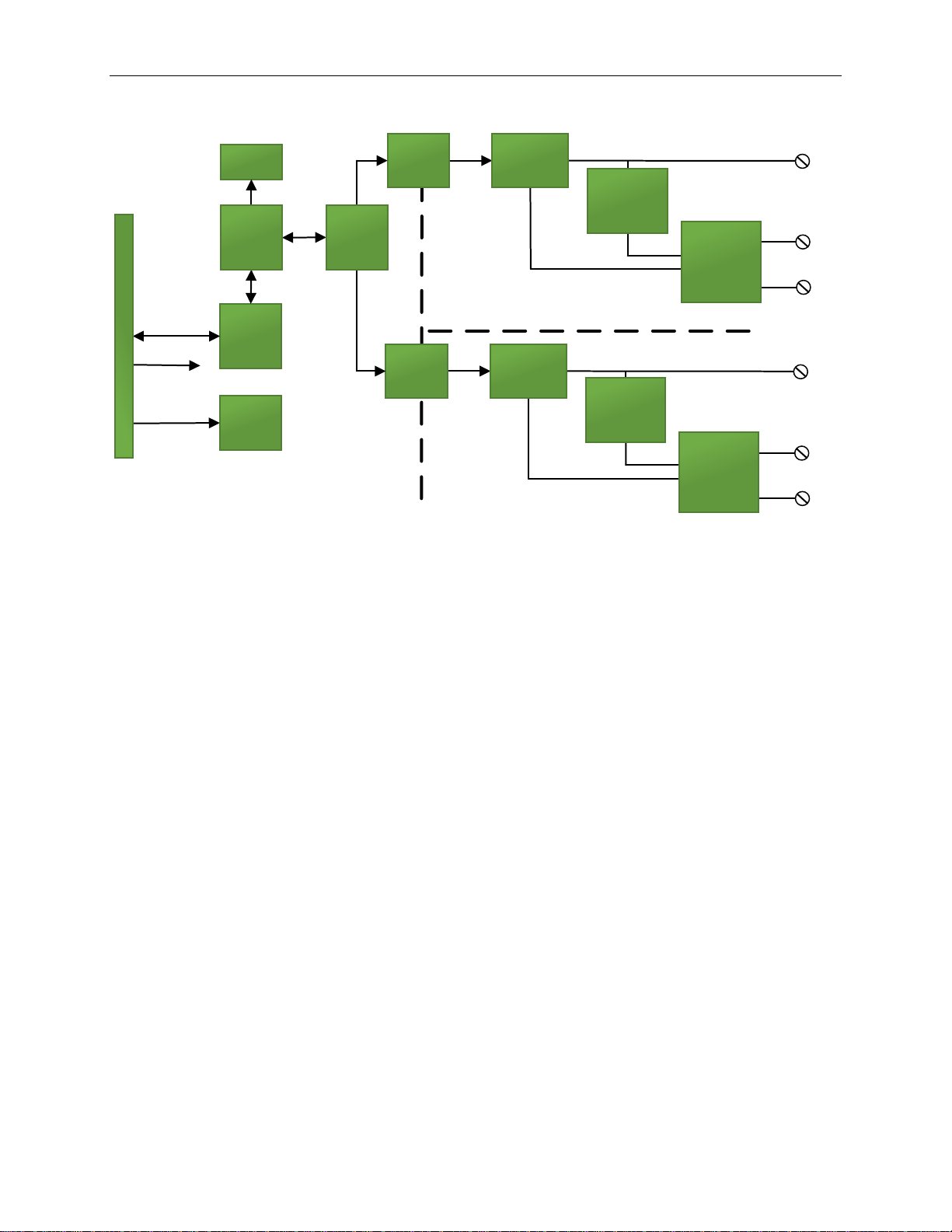

Block diagram:

1-8 Chapter 1: Module Overview

User’s Manual Pub. 0300309-01 Rev. A

Module

Power Supply

OUT-x

POWER 0

GND 0

Backplane

ASIC

Backplane

Communication

. .

x16

channels

50VAC

Working

Reinforced

Isolation

5V DC

24V DC

(used by backplane circuitry)

Status

Indicators

RTB pins

2085 Backplane

Isolation

x16

50VAC Working Basic

Isolation Between

Channel Groups

Output

Circuitry

x16

OUT-x

. .

x16

channels

Isolation

x16

Output

Circuitry

x16

POWER 1

GND 1

Channel Group 0

Channel Group 1

Transient and

Reverse Voltage

Protection

Inductive

Kickback

Suppression

x16

Inductive

Kickback

Suppression

x16

Transient and

Reverse

Voltage

Protection

FPGA

Processor

User’s Manual Pub. 0300309-01 Rev. A

Chapter 2 Installation and Wiring

This chapter will cover:

• Compliance to European union directives

• Power requirements

• General considerations

• Mounting

Compliance to European Union Directives

This product is approved for installation within the European Union and EEA regions. It has been designed and tested to meet the following directives.

2.1.1 EMC Directive

The 2085-OX32-SC modules are tested to meet Council Directive 2014/30/EU Electromagnetic Compatibility (EMC) and the following standards, in whole or in part, documented in a technical construction file:

• EN 61131-2 Programable Controllers Part 2: Equipment requirements and

tests

• EN 61000-6-2 Electromagnetic compatibility (EMC) – Part 6-2: Generic

standards – Immunity standard for industrial environments

• EN 61000-6-4 Electromagnetic compatibility (EMC)–Part 6-4: Generic

standards–Emission standard for industrial environments

WARNING

The backplane power and each field power of the device shall only be supplied by Isolated Secondary Limited Energy Low Voltage sources.

The module receives power through the bus interface from the +5 VDC (4.75 V to 5.4 V)/±24 VDC (19.9 V to 26.4 V) system power supply, and a 24 VDC field power supply. Both must be present for the module to operate.

Backplane current ratings: + 5 V rail is 70 mA maximum at 5 VDC; +24 V rail is 55 mA maximum at 24 VDC. Power rating for OB32 is 5.5 Watts maximum (at full load); for OV32 is 4 Watts max. (at full load):

5 VDC

24 VDC

70 mA

55 mA

The maximum voltage to be provided by the user power supply is 30 VDC. The minimum voltage provided by the user power supply is 10.5 VDC. 12/24 VDC

2-2 Chapter 2: Installation and Wiring

User’s Manual Pub. 0300309-01 Rev. A

from the user is provided to the module on terminal block pins marked PWR0 and PWR1, and GND0 and GND1. Two pins for each power line are provided. These pins are not connected, they are isolated from each other for group isolation.

General Considerations

The 2085-OX32-SC modules are suitable for use in an industrial environment when installed in accordance with these instructions. Specifically, this equipment is intended for use in clean, dry environments (Pollution degree 22).

2.2.1 Hazardous Location Considerations

This equipment is suitable for use in Class I, Division 2, Groups A, B, C, D or non-hazardous locations only. The following WARNING statement applies to use in hazardous locations.

WARNING

EXPLOSION HAZARD

• Substitution of components may impair suitability for Class I,

Division 2; Class II, Division 2. Do not replace components or disconnect equipment unless power has been switched off or the area is known to be non-hazardous.

• Do not connect or disconnect components unless power has been

switched off or the area is known to be non-hazardous.

• This product must be installed in an enclosure.

• All wiring must comply with N.E.C. article 501-4(b), 502-4(b), or

503-3(b), as appropriate for Class I, Class II, and Class III equipment.

2.2.2 Prevent Electrostatic Discharge

WARNING

Electrostatic discharge can damage integrated circuits or semiconductors if you touch the module card bus connector pins or the terminal block on the output module. Follow these guidelines when you handle the module:

• Touch a grounded object to discharge static potential.

• Wear an approved wrist-strap grounding device.

• Do not touch the bus connector or connector pins.

• Do not touch circuit components inside the module.

• If available, use a static-safe work station.

• When it is not in use, keep the module(s) in a static-shield bag.

Pollution Degree 2 is an environment where, normally, only non-conductive pollution occurs except that occasionally

a temporary conductivity caused by condensation is expected.

Chapter 2: Installation and Wiring 2-3

User’s Manual Pub. 0300309-01 Rev. A

2.2.3 Remove Power

WARNING

This module is not designed to be hot-swapped and may be damaged if added or removed while power is applied. Remove power before removing or inserting this module.

When you remove or insert a module with power applied, an electrical arc may occur. An electrical arc can cause personal injury or property damage by:

• Sending an erroneous signal to your system’s field devices,

causing unintended machine motion.

• Causing an explosion in a hazardous environment.

• Causing an electrical arc. Electrical arcing causes excessive wear

to contacts on both the module and its mating connector and may lead to premature failure.

2.2.4 Selecting a Location

Reducing Noise

Most applications require installation in an industrial enclosure to reduce the effects of electrical interference. Group your modules to minimize adverse effects from radiated electrical noise and heat. Consider the following conditions when selecting a location for the analog module. Position the module:

• Away from sources of electrical noise such as hard-contact switches,

relays, and AC motor drives. In addition, route wiring away from any high-voltage I/O wiring.

Mounting

WARNING

Keeping module free of debris and avoiding overheating:

• Do not remove protective debris strip until after the module and

all other equipment near the module is mounted and the wiring is complete.

• Once wiring is complete, and the module is free of debris,

carefully remove protective strip.

• Failure to remove strip before operating can cause overheating.

2-4 Chapter 2: Installation and Wiring

User’s Manual Pub. 0300309-01 Rev. A

2.3.1 Minimum Spacing

Maintain spacing from enclosure walls, wire ways, adjacent equipment, etc. Allow 50.8 mm (2 in.) of space on all sides for adequate ventilation, as shown:

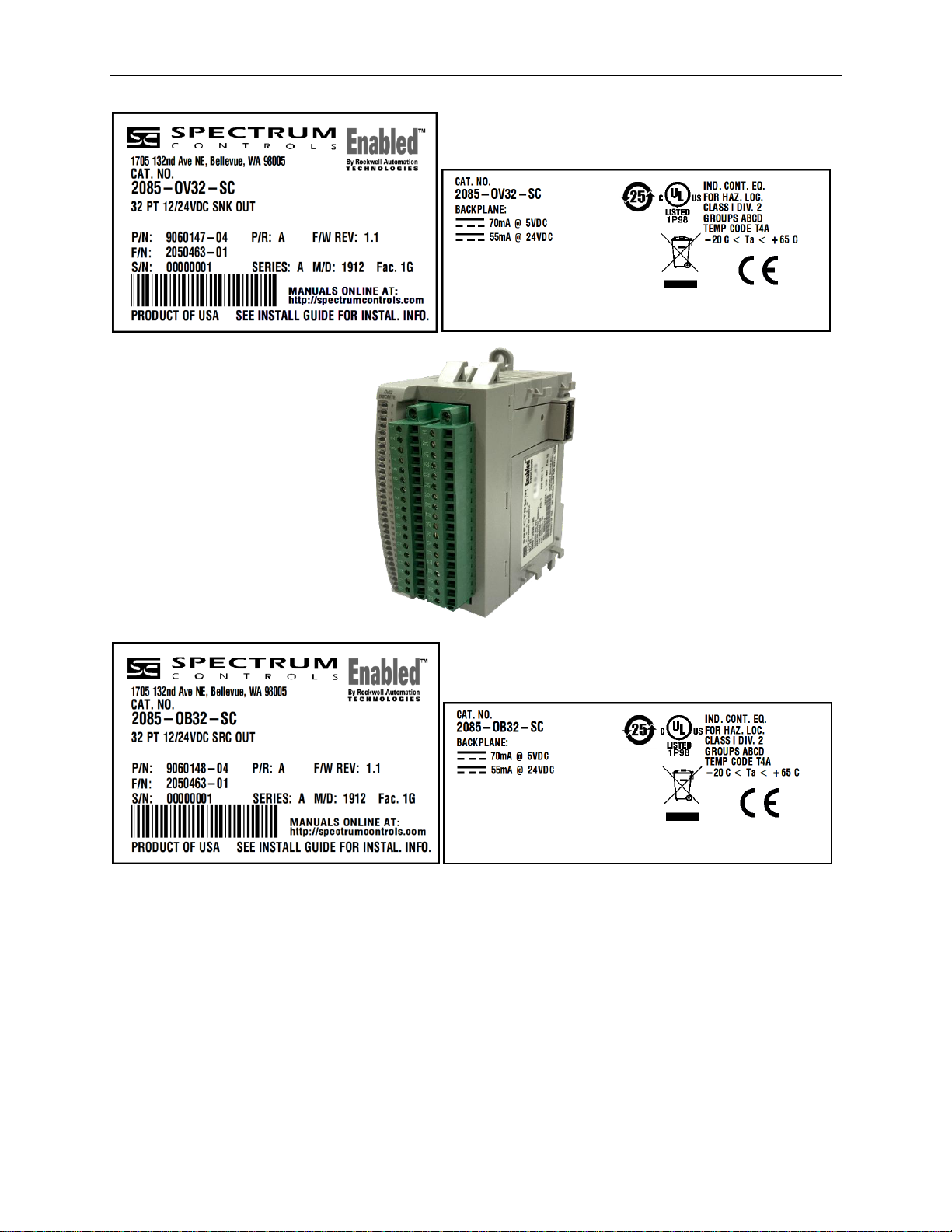

2.3.2 Parts List

Your package contains one Micro800 Expansion I/O 2085-OX32-SC Module and one Quick Start Guide.

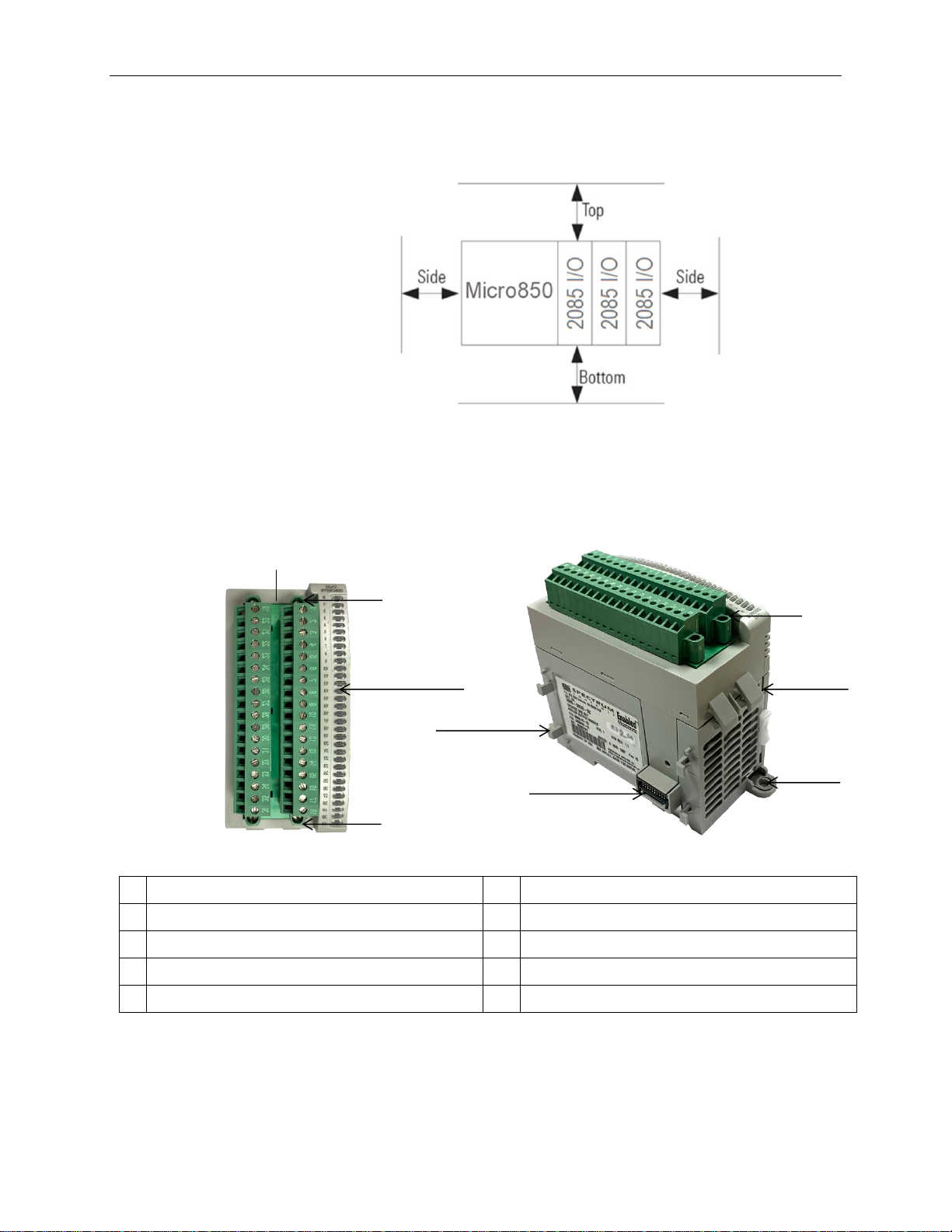

2.3.3 Module Description

Description

Mounting screw hole/mounting foot

DIN rail mounting latch

Removable Terminal Block (RTB)

I/O Status LEDs

RTB hold down screws

Bus Connector (2, Right and Left)

Module interconnect latch

Chapter 2: Installation and Wiring 2-5

User’s Manual Pub. 0300309-01 Rev. A

You can choose to wire the expansion I/O module before installing it next to the controller or wire it once the module is secured in place.

Place the module next to the controller against the panel where you are mounting it. Make sure the controller and module are spaced properly.

NOTE

• This equipment is considered Group 1, Class A industrial

equipment according to IEC/CISPR 11. Without appropriate precautions, there may be difficulties with electromagnetic compatibility in residential and other environments due to conducted and radiated disturbance.

• Be careful when stripping wires. Wire fragments that fall into the

controller could cause damage. Once wiring is complete, make sure the controller is free of all metal fragments before removing the protective debris strip.

• Do not wire more than 2 conductors on any single terminal.

• If you insert or remove the expansion I/O module while power is

on, an electrical arc can occur. This could cause an explosion in hazardous location installations. Be sure that power is removed or the area is nonhazardous before proceeding.

2.3.4 Insert Module Next to the Controller

Follow the instructions to insert and secure the expansion I/O module to the controller:

NOTE

The module expansion may only be mounted horizontally.

NOTE

For environments with greater vibration and shock concerns, use the panel mounting method, instead of DIN rail mounting.

2-6 Chapter 2: Installation and Wiring

User’s Manual Pub. 0300309-01 Rev. A

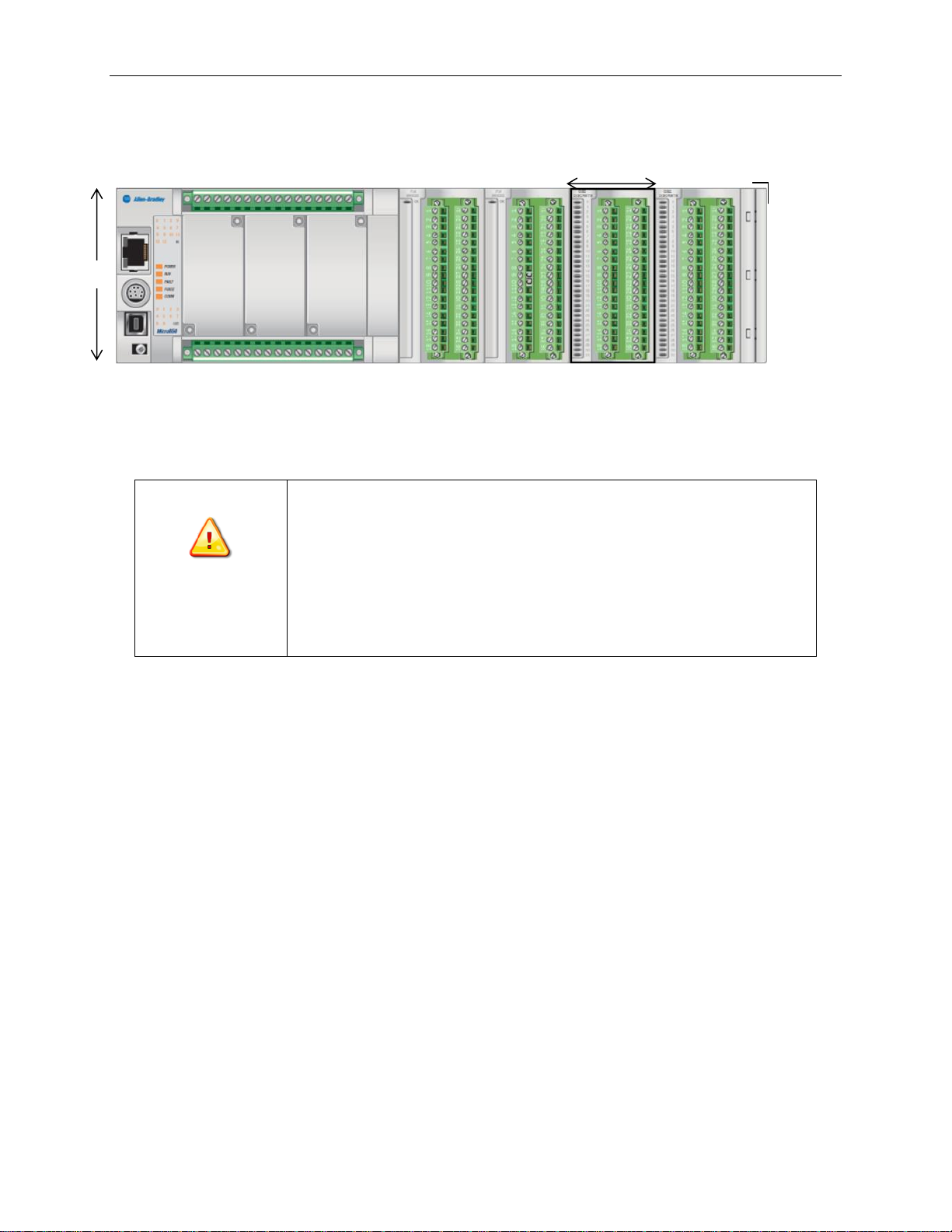

Mounting Dimensions and DIN Rail Mounting

You can install the module on DIN rails of dimension 35 mm × 7.5 mm × 1 mm (EN 50 022-35×7.5), or on a panel.

WARNING

Hazard of intermittent grounding. This product is grounded through the DIN rail to chassis ground. To

assure proper grounding, use zinc-plated, yellow-chromate steel DIN rail. Using other DIN rail materials such as aluminum or plastic, that can corrode, oxidize, or are poor conductors, may result in improper or intermittent grounding.

Use the correct DIN rail type, and secure DIN rail to mounting surface approximately every 200 mm (7.8 in.) and use end-anchors appropriately.

1. Before mounting the module on a DIN rail, use a flat-bladed screwdriver

in the DIN rail latch and pry it downwards until it is in the unlatched

position.

2. Hook the top of the DIN rail mounting area of the module onto the DIN

rail, and then press the bottom until the module snaps onto the DIN rail.

3. Push the DIN rail latch back into the latched position. Use DIN rail end

anchors for vibration or shock environments.

Panel Mounting

The preferred mounting method is to use two M4 (#8) screws per module. Hole spacing tolerance is ±0.4 mm (0.016 in.). For mounting dimensions, refer to the Micro830, Micro850, and Micro870 Programmable Controllers User Manual 2080-UM002:

1. Place the module next to the controller against the panel where you are

mounting the module.

2. Marking drilling holes through the mounting screw holes and mounting

feet, and then remove the module.

3. Drill the holes at the markings.

44.5 mm (1.75 in.)

90 mm (3.54 in.)

Micro850 Controller

Bus terminator

2085-OB32-SC

2085-OV32-SC

Chapter 2: Installation and Wiring 2-7

User’s Manual Pub. 0300309-01 Rev. A

4. Replace the module and mount it. Leave the protective debris strip in

place until you are finished wiring the module, and any other devices.

Wiring Diagram

WARNING

Hazard of damage to the terminal connector.

The Spectrum Controls RTB hold down and terminal screws must be tightened by hand using the guidelines. They must not be tightened using a power tool. Use a screwdriver of 0.8 × 2 mm and tighten to no more than

0.25 N-m (2.2 lb-in) torque. Failure to follow these guidelines may result in damage to your connector.

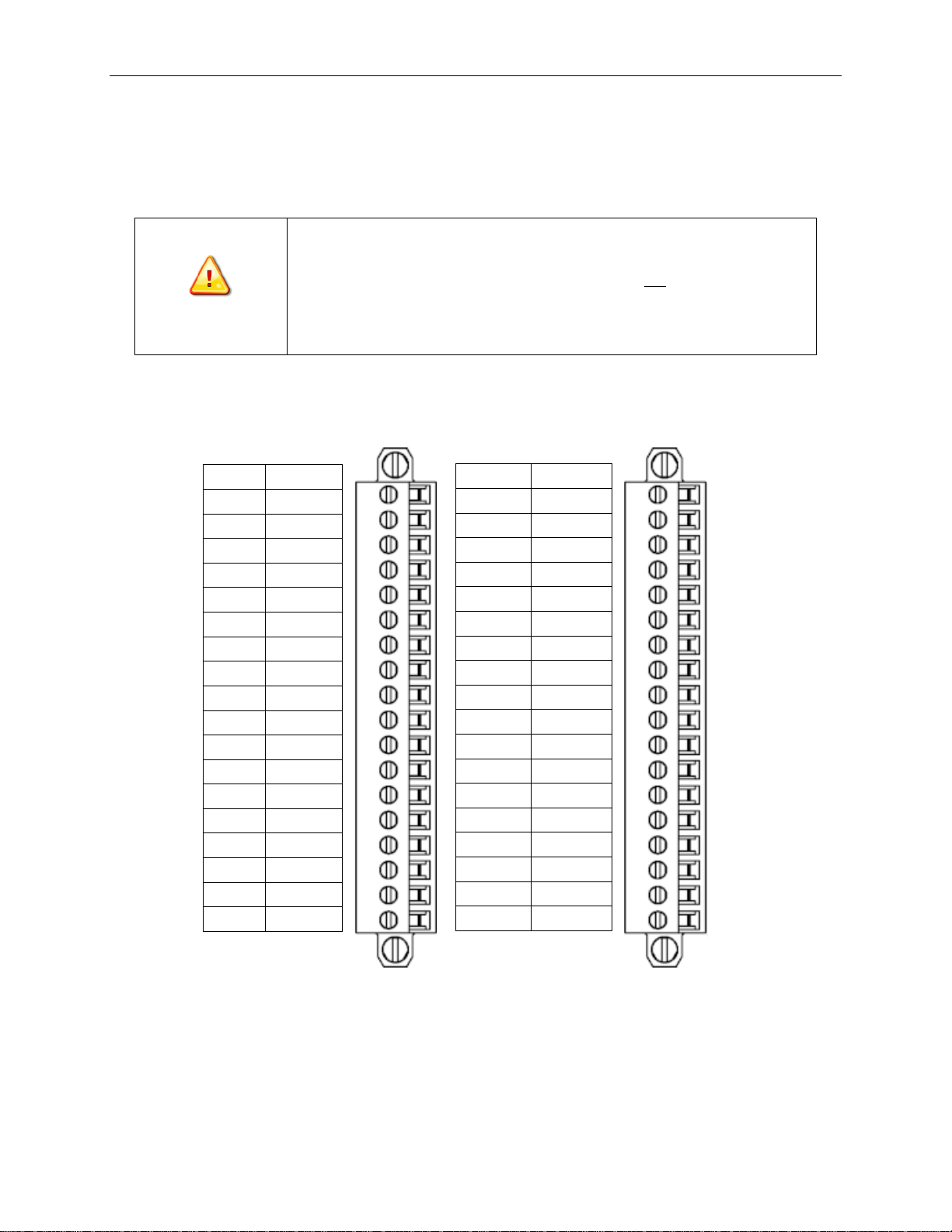

Wire the module using the following images, which explain the layout of the double-row, 36-pin terminal block, and the two, 24 VDC field power terminal pins for the Micro800 Expansion I/O 2085-OX32-SC modules:

RTB1#

Name

Out-0

Out-1

Out-2

Out-3

Out-4

Out-5

Out-6

Out-7

GND0

GND1

Out-16

Out-17

Out-18

Out-19

Out-20

Out-21

Out-22

Out-23

RTB2#

Name

Out-8

Out-9

Out-10

Out-11

Out-12

Out-13

Out-14

Out-15

PWR0

PWR1

Out-24

Out-25

Out-26

Out-27

Out-28

Out-29

Out-30

Out-31

2-8 Chapter 2: Installation and Wiring

User’s Manual Pub. 0300309-01 Rev. A

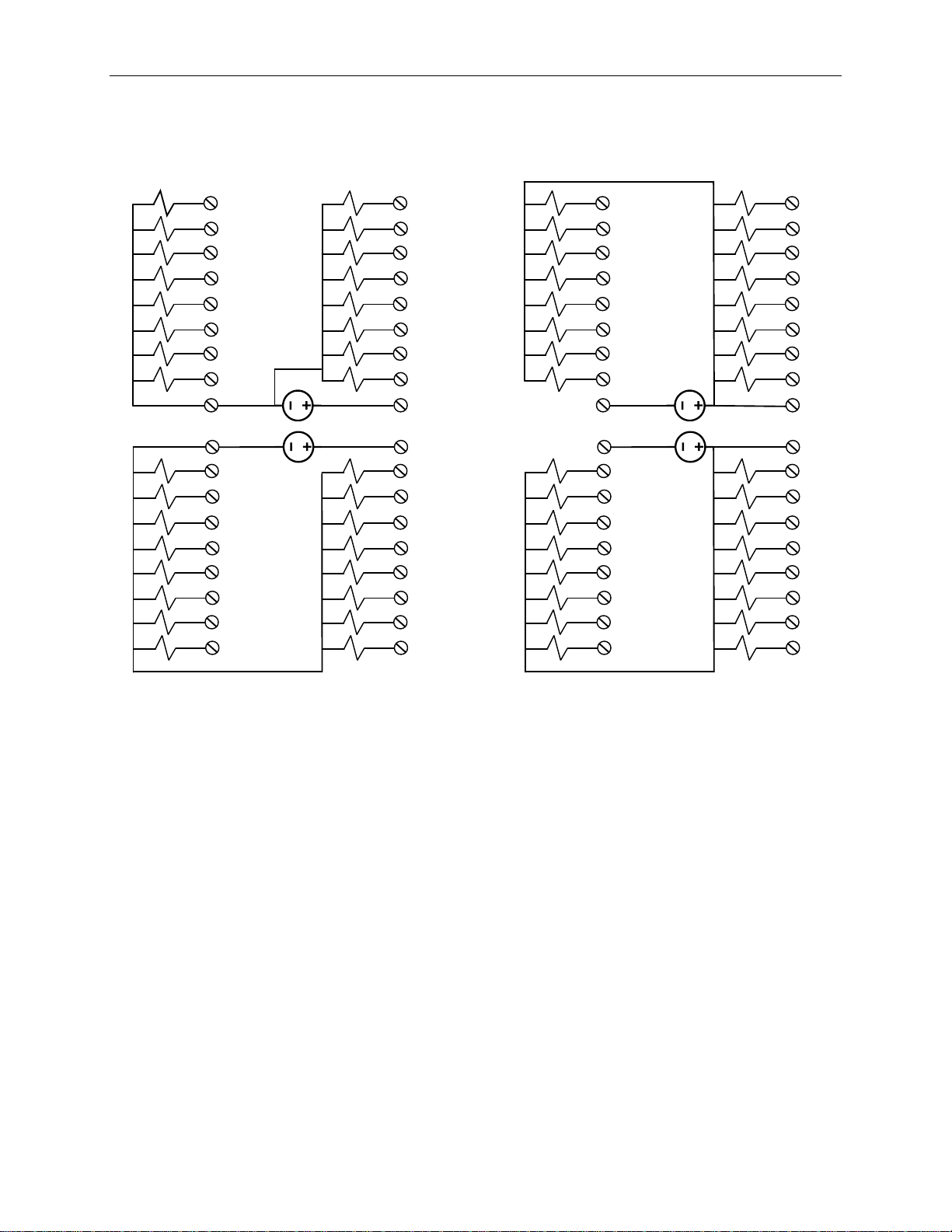

Example wiring diagrams showing the channel loads are shown below.

P1: OUT-0

P2: OUT-1 P3: OUT-2

P4: OUT-3

P5: OUT-4

P6: OUT-5 P7: OUT-6

P8: OUT-7

P9: GND 0

P10: GND 1

P11: OUT-16

P12: OUT-17

P13: OUT-18

P14: OUT-19

P15: OUT-20

P16: OUT-21

P17: OUT-22

P18: OUT-23

Group 0

Group 1

P19: OUT-8

P20: OUT-9 P21: OUT-10

P22: OUT-11

P23: OUT-12

P24: OUT-13 P25: OUT-14

P26: OUT-15

P27: PWR 0

P28: PWR 1

P29: OUT-24

P30: OUT-25

P31: OUT-26

P32: OUT-27

P33: OUT-28

P34: OUT-29

P35: OUT-30

P36: OUT-31

12/24V DC

SUPPLY

12/24V DC

SUPPLY

2085-OB32-SC (Sourcing)

Group 0

Group 1

12/24V DC

SUPPLY

12/24V DC

SUPPLY

P1: OUT-0

P2: OUT-1

P3: OUT-2

P4: OUT-3

P5: OUT-4

P6: OUT-5

P7: OUT-6

P8: OUT-7

P9: GND 0

P10: GND 1

P11: OUT-16

P12: OUT-17

P13: OUT-18

P14: OUT-19

P15: OUT-20

P16: OUT-21

P17: OUT-22

P18: OUT-23

P19: OUT-8

P20: OUT-9 P21: OUT-10

P22: OUT-11

P23: OUT-12

P24: OUT-13 P25: OUT-14

P26: OUT-15

P27: PWR 0

P28: PWR 1

P29: OUT-24

P30: OUT-25

P31: OUT-26

P32: OUT-27 P33: OUT-28

P34: OUT-29

P35: OUT-30

P36: OUT-31

2085-OV32-SC (Sinking)

Terminal Block 1 Terminal Block 2 Terminal Block 1 Terminal Block 2

User’s Manual Pub. 0300309-01 Rev. A

Chapter 3

Configuring the 2085-OX32-SC

Using CCW

This chapter covers the following subjects:

• How to use Connected Components Workbench (CCW) and, optionally,

ModuleConfigConverter.exe software to configure the Module.

• Analog Data and Status settings.

• Data Links settings.

• Setting configuration parameters and associated values.

System Introduction

You use CCW software (v 9.00.00 and above) to configure the 2085-OX32-SC Expansion I/O Modules. Your controller firmware must be at v. 9.011 and above as well. Starting from CCW version 11.00.00 and later, the software provides a module-specific Add-On Profile (AOP) to operate the module. The process for manually importing AOP to CCW is no longer required.

The Micro800 Controller (Bus master) subsystem is located at the left end of the bus. This subsystem is comprised of:

• Micro800 Controller.

• Micro800 Expansion I/O Modules.

• 2085-ECR Bus Terminator.

Optional:

• 2080-PS120-240VAC Power Supply (separate module or built-in the main

controller).

• 2080 Expansion Modules.

• 2085-EP24VDC Expansion Power Supply for Micro870 Controller with

more than four Micro800 Expansion I/O Modules installed.

3-2 Chapter 3: Configuring the Micro800 Expansion I/O 2085-OX32-SC Using CCW

User’s Manual Pub. 0300309-01 Rev. A

2085-OX32SC AOP

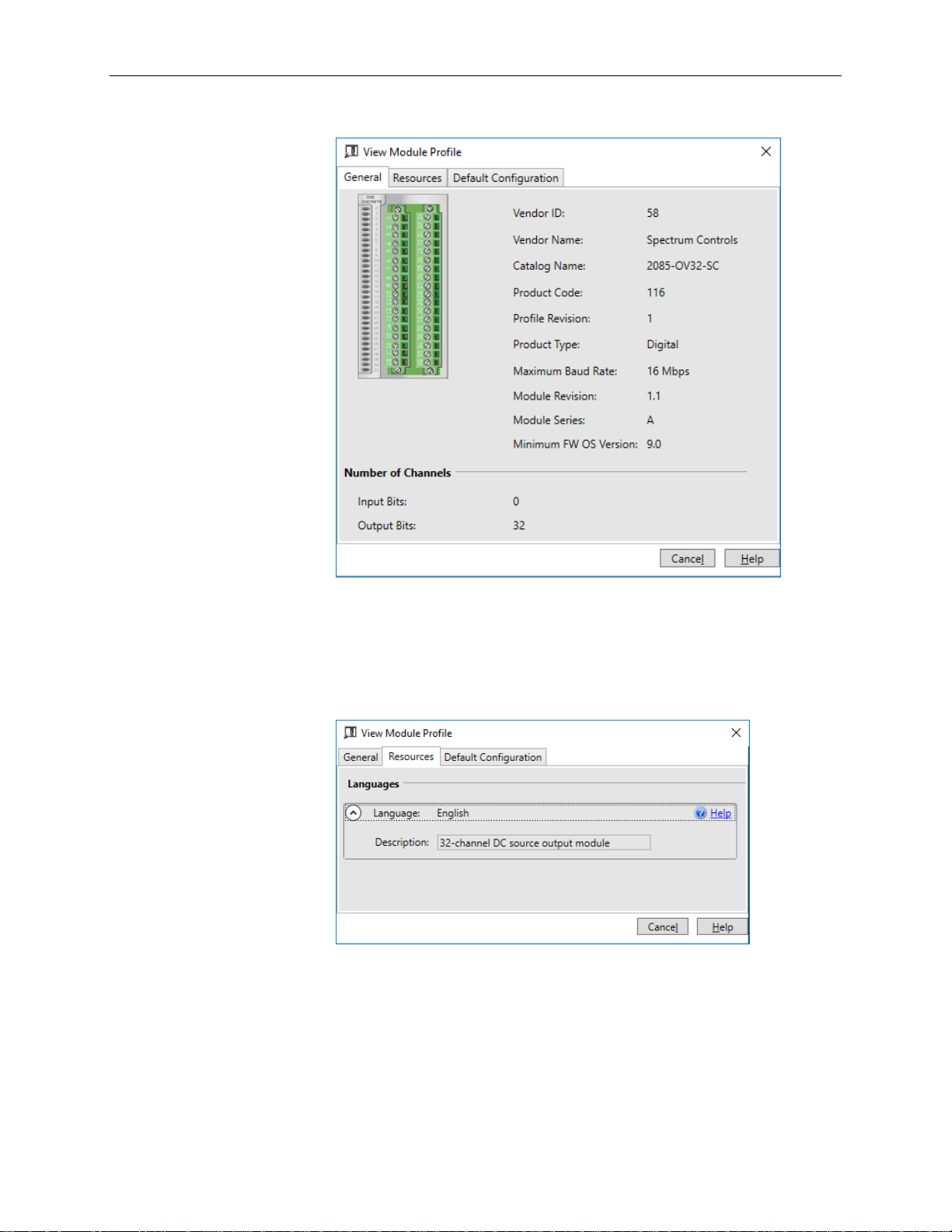

You use the module’s AOP to operate your module. The AOP is available in the CCW software. If not available, or a newer revision is released, see Appendix A about how to manually import a module AOP to CCW.

To view information about the AOP:

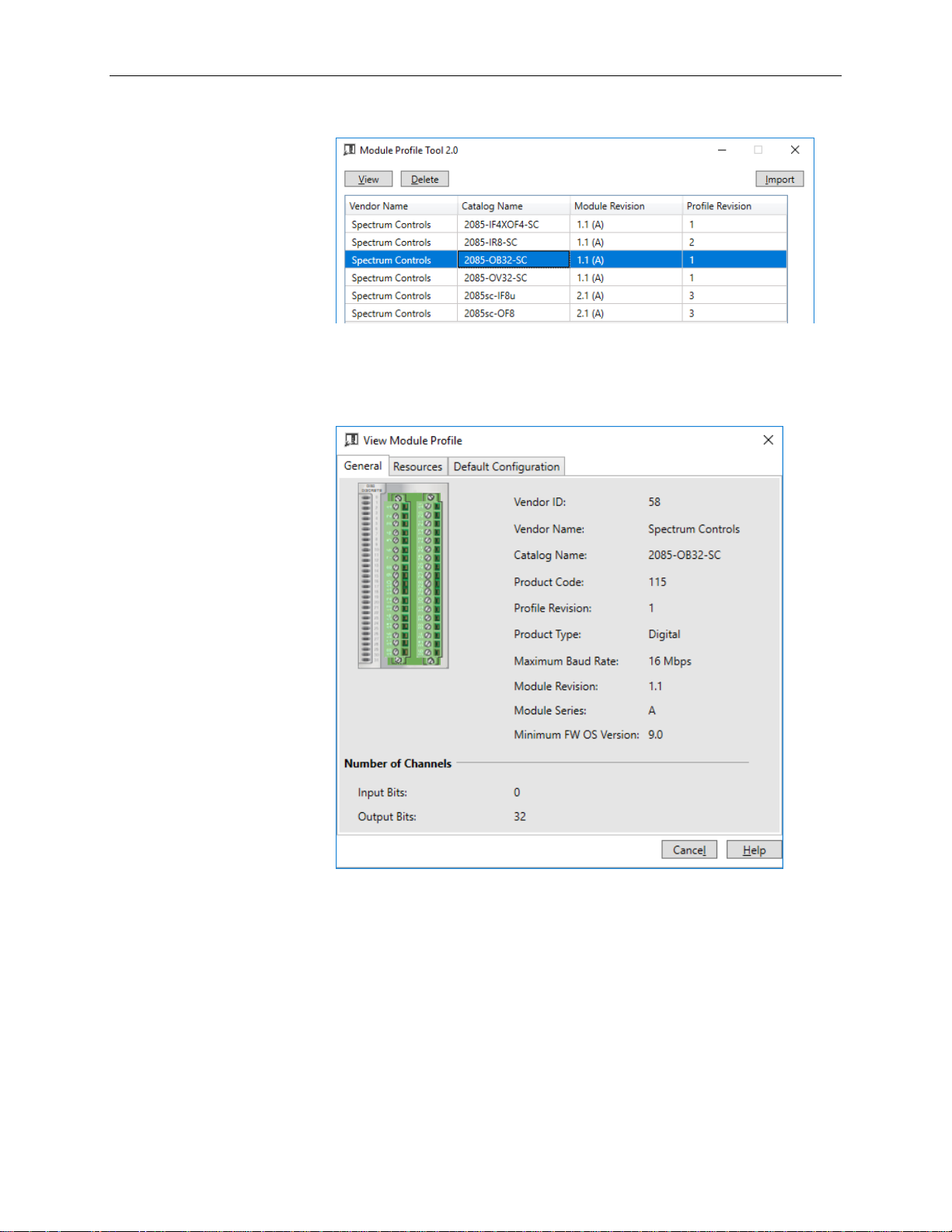

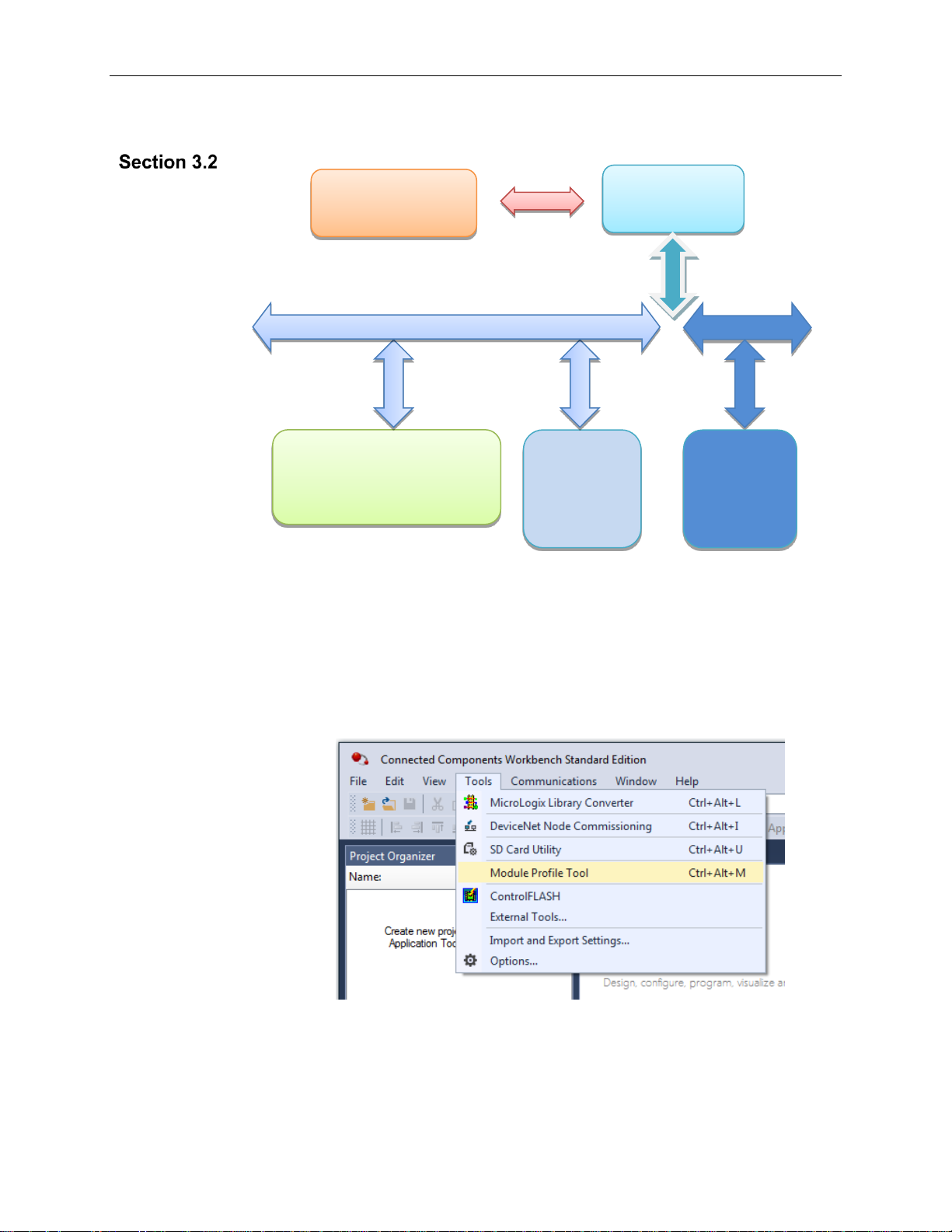

1. Use RA’s Module Profile Tool 2.0. This tool may be launched from

within CCW by selecting the Module Profile Tool option from the

CCW Tools menu:

2. When prompted by Windows User Account Control, to confirm that you

wish to run the program, click Yes button.

If necessary, confirm with the Windows operating system that you wish

to run the software.

Micro800-OB32/OV32-SC

32-Point

Discrete Output Module

Micro850/870

Controller

Micro800

Expansion

I/O

Modules

PC Workstation

with CCW

2080

Expansion

I/O

Modules

Micro800 Expansion I/O Module Backplane

2080

Expansion

I/O module

Backplane

USB/Ethernet

Connection

Chapter 3: Configuring the Micro800 Expansion I/O 2085-OX32-SC Using CCW 3-3

User’s Manual Pub. 0300309-01 Rev. A

The Module Profile Tool dialog appears:

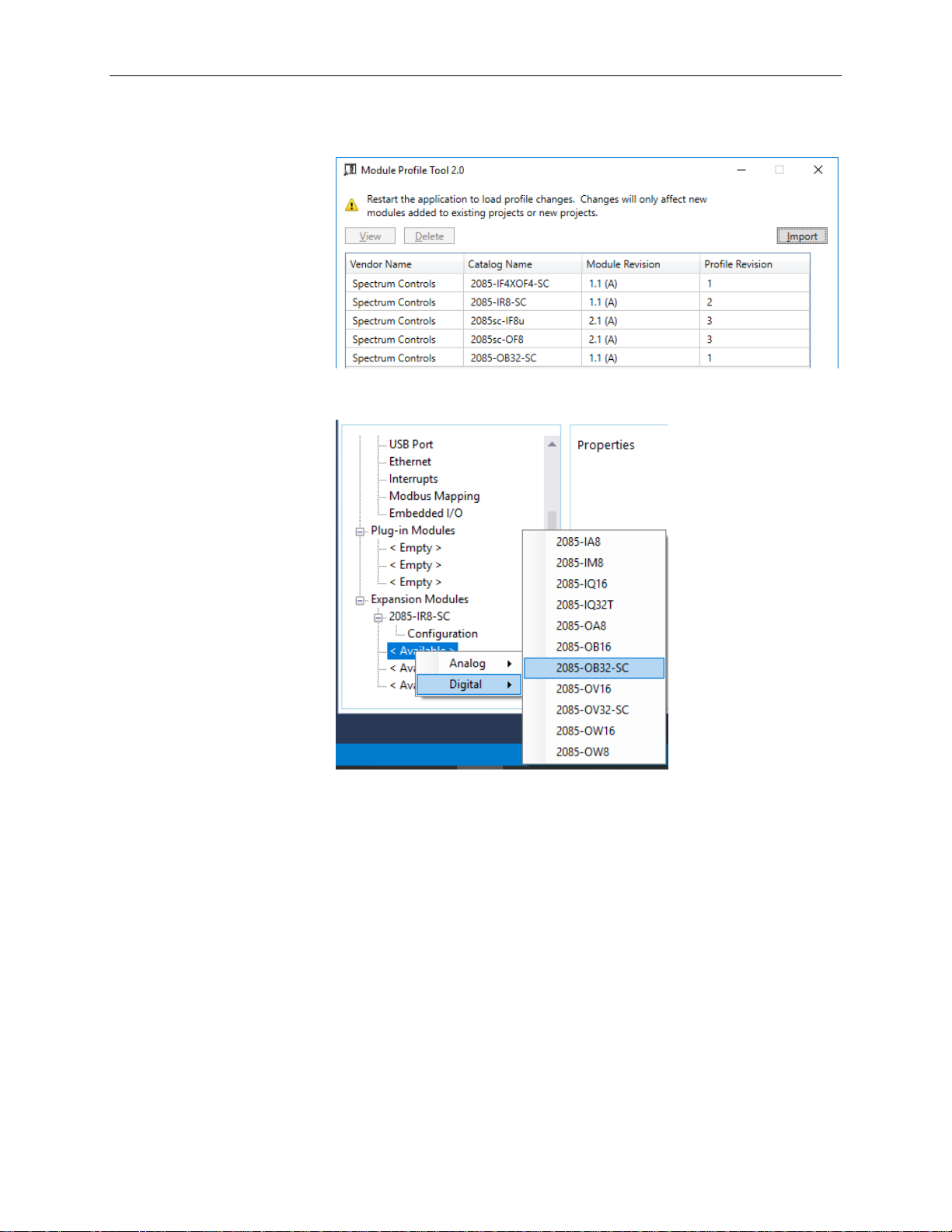

3. Select the row showing the module catalog name (either 2085-OB32-SC

or 2085-OV32-SC), and then click the View button.

The View Module Profile window appears:

2085-OB32-SC:

3-4 Chapter 3: Configuring the Micro800 Expansion I/O 2085-OX32-SC Using CCW

User’s Manual Pub. 0300309-01 Rev. A

2085-OV32-SC

The first tab of the window provides the module identity information.

This information is described in greater detail in Module Identity, later

in this section.

4. To view software language availability, module description, and a help

file for the module, click the Resources tab.

The Resources tab appears:

The window lists the language chosen for the module, and the module

description. You may also use this tab to access the help file provided for

the module.

Chapter 3: Configuring the Micro800 Expansion I/O 2085-OX32-SC Using CCW 3-5

User’s Manual Pub. 0300309-01 Rev. A

NOTE

You can directly control channel output through the CCW output variable or your own ladder program. No default configuration is required. The modules do NOT use the third-party, MCC tool for configuration.

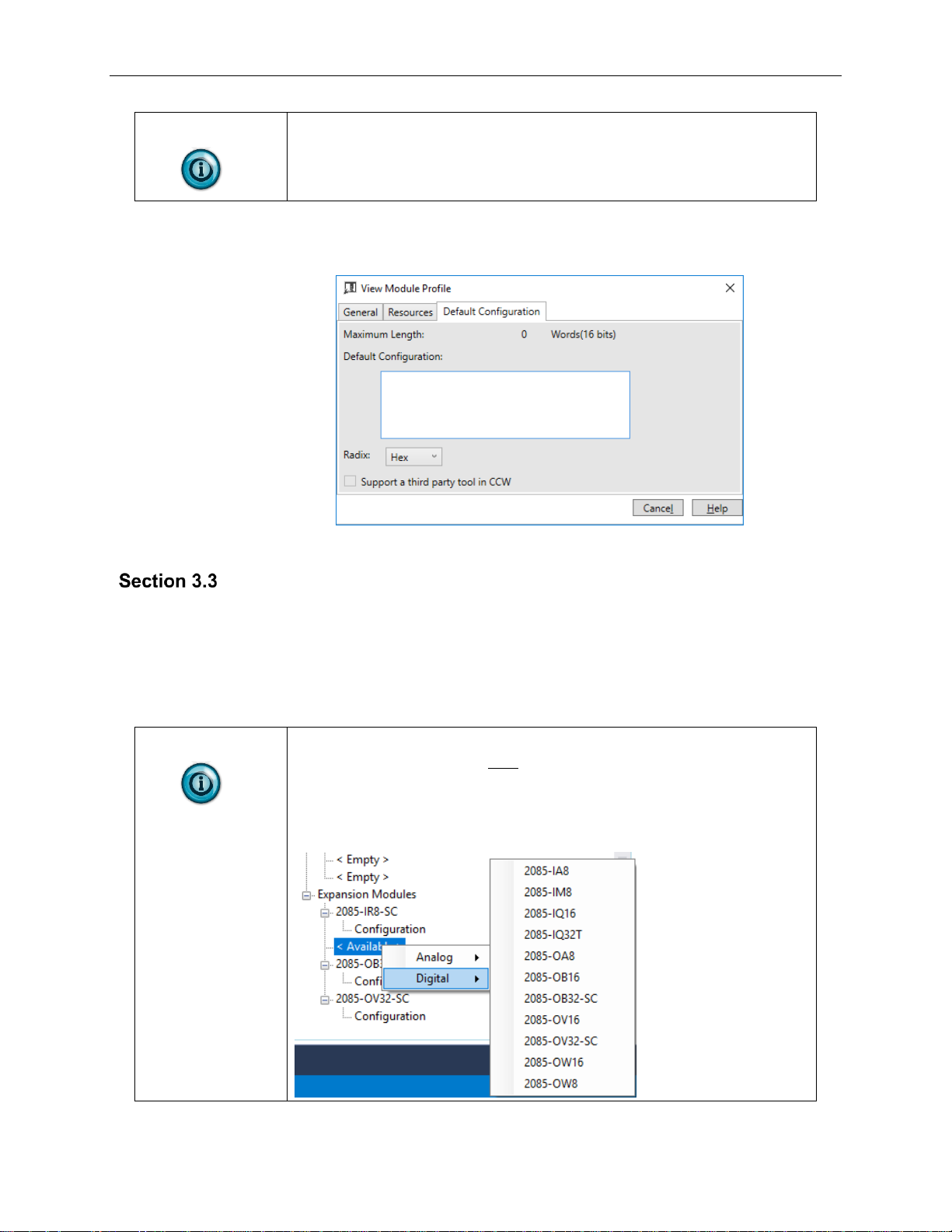

5. To view default configuration information, click the Default

Configuration tab:

The modules do not use the third-party, MCC tool for configuration.

2085-OX32-SC Tab on CCW

Before you start, if needed, install the latest version of Rockwell Automation’s

Connected Components Workbench (CCW) Standard Edition.

NOTE

Using the Module Profile Tool to import the 2085-OX32-SC AOP into CCW software is necessary only if you are using a CCW version earlier than 11.00.00. For information on manually importing an AOP file, see Appendix A. For Version 11.00.00 and later, the modules are already available as a selection from the CCW Expansion Modules drop-down menu:

3-6 Chapter 3: Configuring the Micro800 Expansion I/O 2085-OX32-SC Using CCW

User’s Manual Pub. 0300309-01 Rev. A

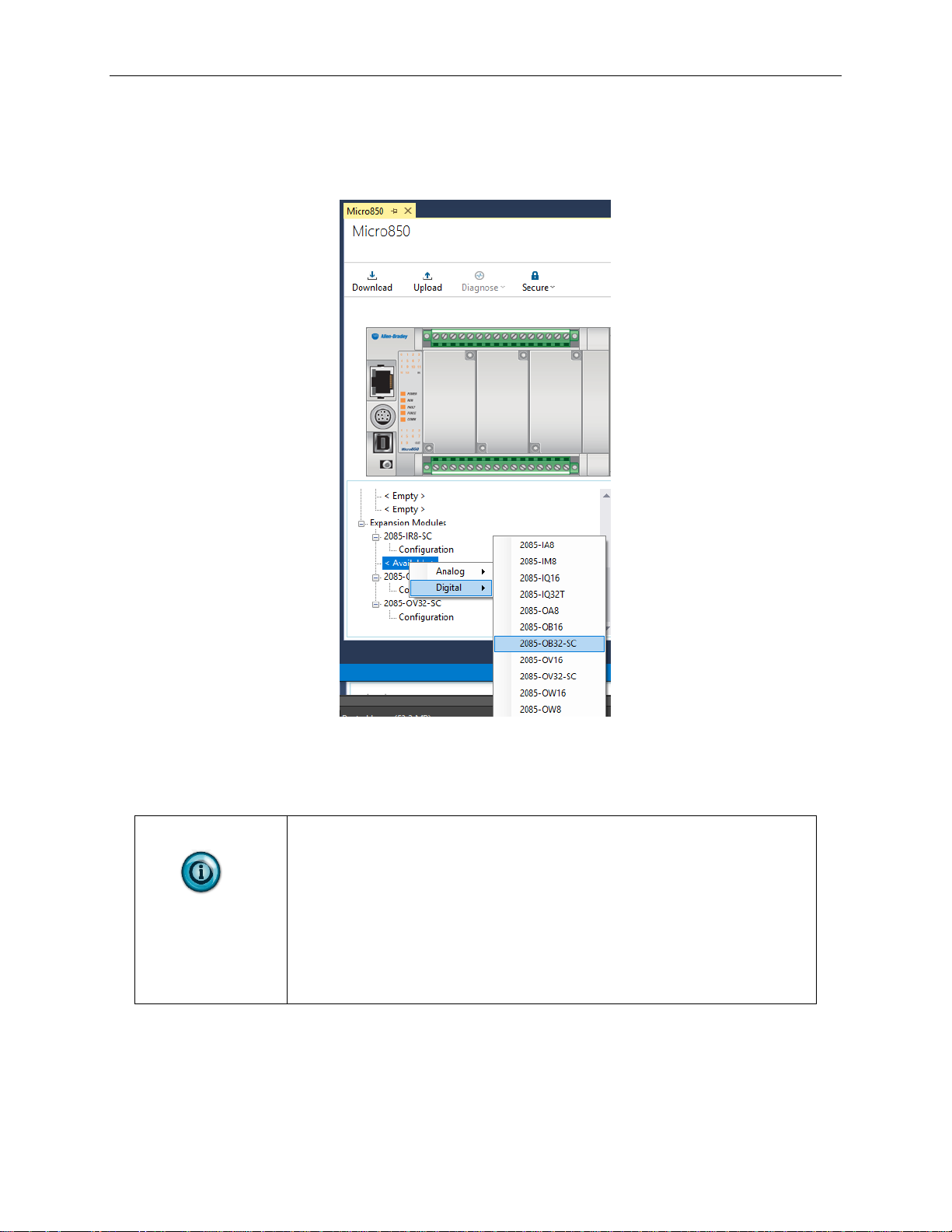

To add the module(s) to your project, and see the module variables on the CCW tab:

1. From your CCW project, load the module AOP to a first Available slot

from the Expansion Modules drop-down list:

2. Once the module AOP is loaded, to view the associated variables, click

the Module Catalog Name option.

The same variables can also be found on the CCW Global Variables Tab.

NOTE

Discrete output states can be written to Global Variables _IO_Xx_DO_yy, where x represents the expansion slot number 1…3 for Micro850

controller and slot number 1…8 for Micro870 controller and yy represents the channel number 00…31.

Discrete output states can be read from Global Variables _IO_Xx_ST_yy, where x represents the expansion slot number 1…3 for Micro850

controller and slot number 1…8 for Micro870 controller and yy represents

the channel number 00…31. Additional information is provided in the

next section of this manual.

Chapter 3: Configuring the Micro800 Expansion I/O 2085-OX32-SC Using CCW 3-7

User’s Manual Pub. 0300309-01 Rev. A

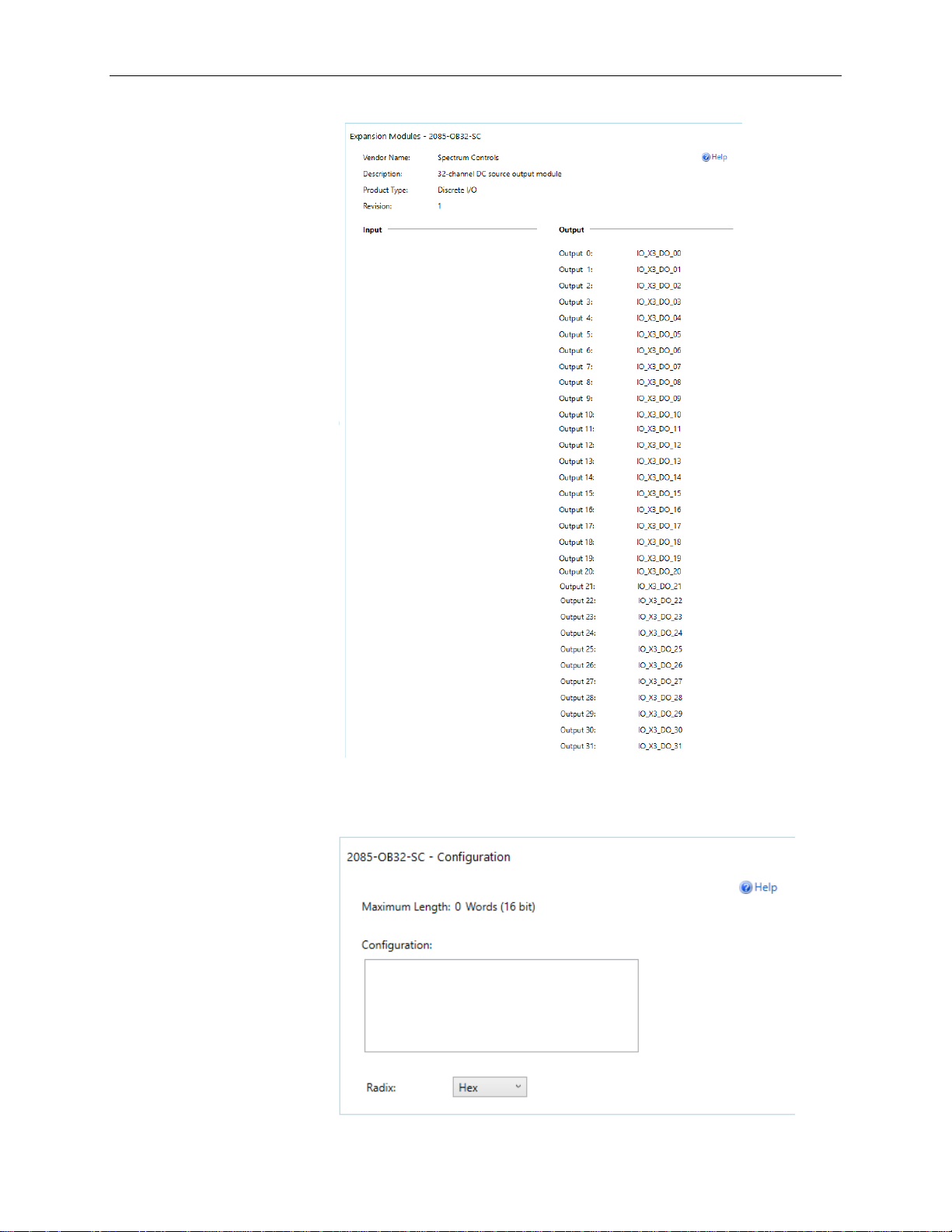

3. To view the configuration tab, click the Configuration option. This

option is NOT editable for discrete modules. If you try to enter

information, the frame turns red to indicate an error:

3-8 Chapter 3: Configuring the Micro800 Expansion I/O 2085-OX32-SC Using CCW

User’s Manual Pub. 0300309-01 Rev. A

Software Versioning

The software version tracks major and minor revisions for end users. The shipped software version begins at version 1.1. Once released, the major revision is typically incremented if new features are

introduced to the product. Otherwise only the minor revision is incremented.

3.4.1 Software Updates

In-field updating of the software by the end user is not supported.

3.4.2 Startup and Factory Default Conditions

During startup, all outputs are OFF until valid communications with the Controller has been established and the Controller has been placed in Run mode.

There is no input data communication and no signal outputting before the controller goes into Run mode. All channels are OFF if the module in not in Run mode. User output controls are only loaded or re-loaded when Run mode is detected. With the controller in Run mode, and no-fault state in the module, the module sets the appropriate output channel to the state specified in the output variables where 1=ON, and 0=OFF as Boolean data type control. If a hardware fault is detected, all outputs are turned OFF, and the status variables indicate the last module and channel status.

Chapter 3: Configuring the Micro800 Expansion I/O 2085-OX32-SC Using CCW 3-9

User’s Manual Pub. 0300309-01 Rev. A

PLC Interfaces

The 2085 platform stores the following values in the Vendor ID, Product_Type, Product_Code, Series_Rev, and Mod_Features arrays:

Parameter

OV32-SC

OB32-SC

Vendor ID

58 (Spectrum Controls)

Product Type

7 (Discrete)

Product Code

116

115

Series Rev

A A Module Catalog String

2085-OV32-SC

2085-OB32-SC

3.5.1 Connection Types and Assembly Sizes

The size of each assembly is listed in the table below. Each word takes 2 bytes:

Table

Size (words)

Notes

Configuration

Module does not require a configuration

Input

Output

3.5.2 Output Variable Table

The read-only status variable is located on the CCW Global Variables tab in visual checkbox format, and in _IO_Xx_ST_yy string format, where:

• x represents the expansion slot number 1…3 for the Micro850 controller

and slot number 1…8 for the Micro870 controller

• yy represents the generic number from 00 to 47.

Channel Status (CCW Var: _IO_Xx_ST_31:00)

Channel status variable is a replica of the reading from FPGA responses. Whenever any channel control is enabled by the user during RUN mode, the corresponding channel status variable is also checked as enabled.

Module Status (CCW Var: _IO_Xx_ST_47:32)

The module status variables used in this range are reserved for indicating different module behaviors as listed below:

CCW Var Index

Bit

Name

Description

_IO_Xx_ST_32

FPGA

FPGA Fault

When enabled, indicates there is a module communication failure over to the FPGA chip. This is a hardware fault.

_IO_Xx_ST_33

Module Power Brownout

When enabled, indicates there is a power supply failure to the module microprocessor and FPGA. This is a hardware fault.

_IO_Xx_ST_39:34

7:2

Not Used

Variables marked as Not Used remain disabled.

3-10 Chapter 3: Configuring the Micro800 Expansion I/O 2085-OX32-SC Using CCW

User’s Manual Pub. 0300309-01 Rev. A

CCW Var Index

Bit

Name

Description

_IO_Xx_ST_40

Invalid Serial Number Data

The stored serial number checksum is corrupt or invalid. The module must be factory calibrated before it will operate

normally.

_IO_Xx_ST_46:41

14:9

Not Used

Variables marked as Not Used remain disabled.

_IO_Xx_ST_47

Module Fault

If one of the above three status variables is set to enabled, this variable will be enabled as a global Module Fault. All channel outputs will be turned off for safety.

Channel Control (CCW Var: _IO_Xx_DO_31:00)

You use the Channel control variable to enable or disable each channel output. The variable is located on the CCW Global Variables tab in visual checkbox

format and in _IO_Xx_DO_yy string format, where:

• x represents the expansion slot number 1…3 for Micro850 controller and

slot number 1…8 for Micro870 controller

• yy represents the channel number 00…31.

Module Error

The module notifies the host PLC of critical and non-critical errors. The Micro850 or Micro870 PLCs can generate a series of 0xF2xy errors specifically for the installed module.

If any of the following faults occur, refer to the Configuration table to use appropriate values:

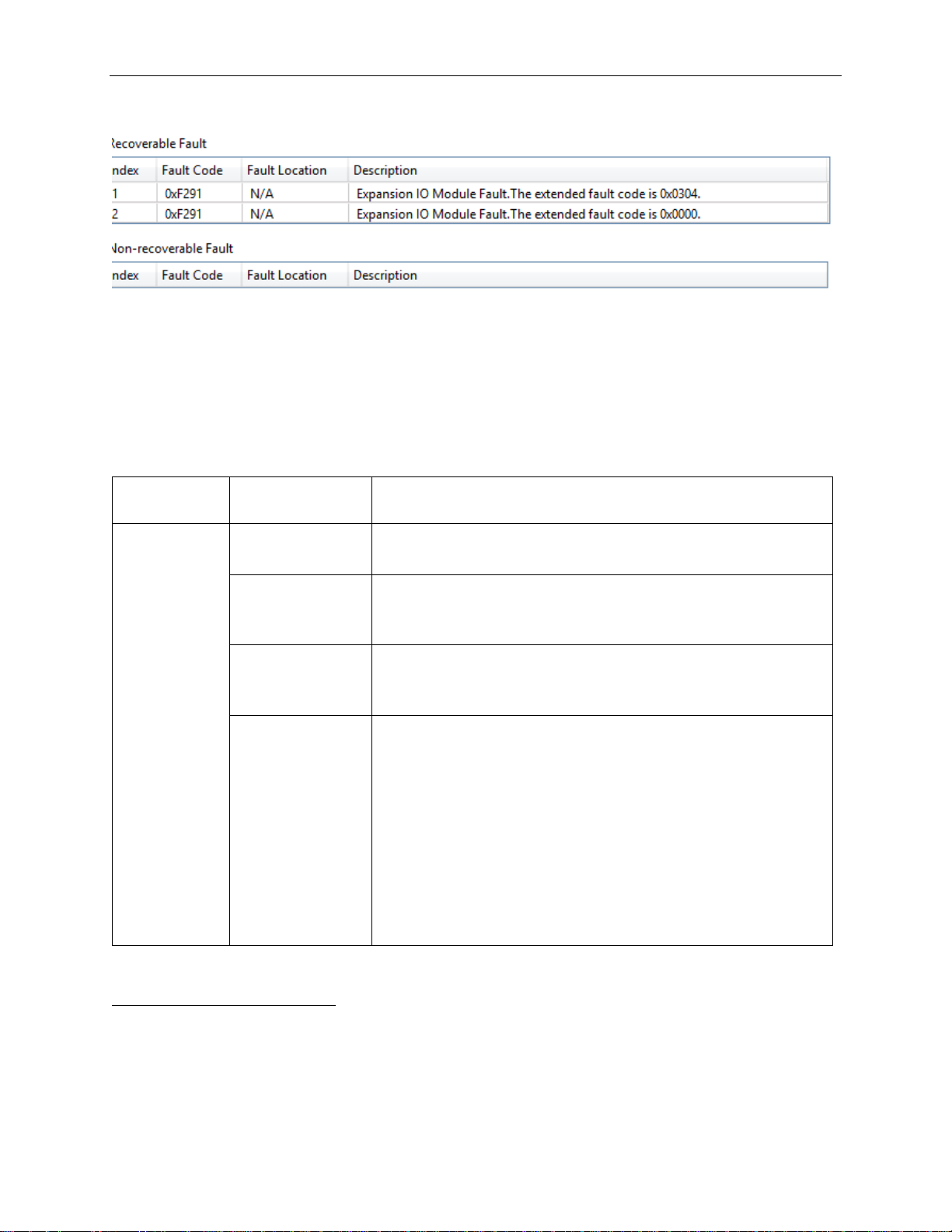

3.6.1 Module Specific Hardware Errors

If you attempt to trigger or cause a hardware error, the CCW software generates a high-level hardware fault with an extended code for details. The connection status is faulted and disconnected. The follow table contains some examples of module-specific hardware faults that can be detected and shown in CCW:

Fault Code

Extended Fault Code

Error Description

0×F29z*3 0×301

MCU board power brownout

0×302

FPGA communications error

The extended fault code is only available when connecting with the Micro850 Series A & B PLCs and Micro870 Series A PLC with its PLC firmware revision

11.011 and above. The extended fault code will show as 0×0000 if connecting with the Micro850 Series A PLC and its PLC firmware revision 10.011 and under.

z indicates the slot number of the expansion I/O. If z=0, then the slot number cannot be identified

Chapter 3: Configuring the Micro800 Expansion I/O 2085-OX32-SC Using CCW 3-11

User’s Manual Pub. 0300309-01 Rev. A

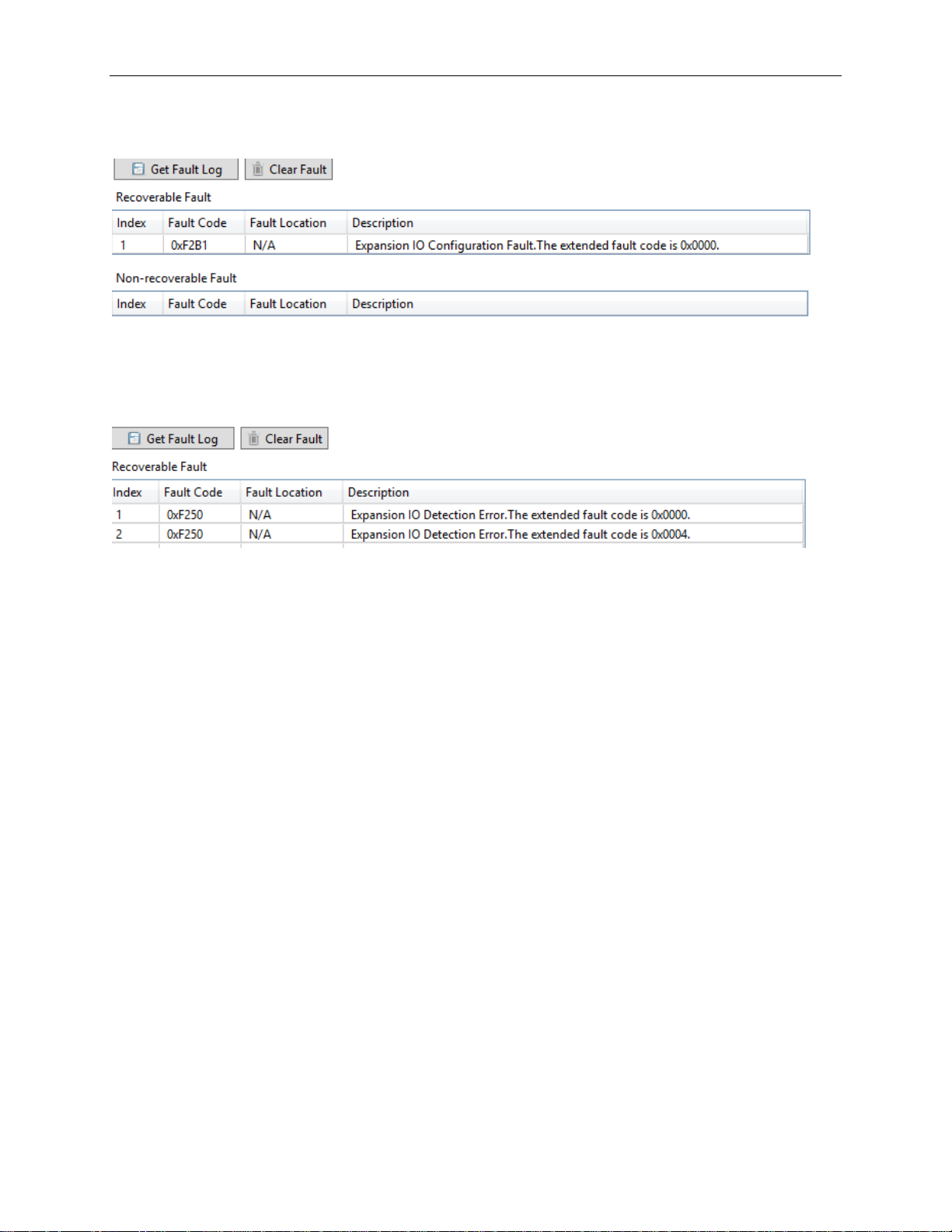

The following example shows module hardware errors in CCW version 12:

3.6.2 Module Specific Configuration Errors

If you attempt to set the fields in the configuration file to invalid (unsupported) values, the module generates a non-critical error:

• The CCW connection status is faulted

• The module is disconnected as Offline mode

If any of the following faults has happened, look up the Configuration Table to use appropriate values:

Fault Code

Extended Fault Code

Error Description

0×F2Bz4

0×400

General Channel Configuration Error

No additional information

0×410 – 0×417

Configuration error on Invalid Connection Method

Connection Method selection error. Valid selections are 2-wire, 3-wire with compensation, and 4-wire.

0×430 – 0×437

Invalid Process Alarm and Latching

The selected Process Alarm option is out of the valid selectable range.

0×440 – 0×447

Invalid Process Alarm Value

Check the Process Alarm Low Value and Process Alarm High Value for legal ranges. If the module receives any of the following illegal data, this error is detected:

PALV greater than or equal to PAHV PAHV greater than Input Type High Limit PALV less than Input Type Low Limit

PALV is the Process Alarm Low Value PAHV is the Process Alarm High Value

The extended configuration fault code is not available and will be displayed as

z indicates the slot number of the expansion I/O. If z=0, then the slot number cannot be identified.

3-12 Chapter 3: Configuring the Micro800 Expansion I/O 2085-OX32-SC Using CCW

User’s Manual Pub. 0300309-01 Rev. A

0×0000 in Micro850 Series A & B PLCs and Micro870 Series A PLC.

3.6.3 Communication Errors

If there is communication error between PLC and module, the following error will be displayed in CCW:

Technical Assistance

Note that your module contains electronic components which are susceptible to damage from electrostatic discharge (ESD). An electrostatic charge can accumulate on the surface of ordinary plastic wrapping or cushioning material. In

the unlikely event that the module should need to be returned to Spectrum Controls, please ensure that the unit is enclosed in approved ESD packaging (such as static-shielding / metalized bag or black conductive container).

Spectrum Controls reserves the right to void the warranty on any unit that is improperly packaged for shipment.

RMA (Return Merchandise Authorization) form required for all product returns. For further information or assistance, please contact your local distributor, or call

the Spectrum Controls Technical Support at: For Rockwell Automation Compatible I/O Products:

• USA 440-646-6900

• United Kingdom 01908 635230

• Australia 1800-809-929

• Mexico 001-888-365-8677

• Brazil (55) 11 3618 8800

• Europe +49 211 41553 63

or send an email to

support@spectrumcontrols.com

Declaration of Conformity

Available upon request.

User’s Manual Pub. 0300309-01 Rev. A

Appendix A Manually Importing an AOP

This appendix explains how to manually import an AOP rampp file into CCW software.

1. Download the latest module AOP from Spectrum Controls website,

https://www.spectrumcontrols.com, and save the file to a local folder on

your computer (normally the Downloads folder).

2. Run CCW.

3. From the Tools menu, select the Module Profile Tool option:

4. When prompted by Windows User Account Control, to confirm that you

wish to run the program, click Yes button.

The Module Profile Tool 2.0 window appears:

5. Click the Import button.

6. An Open dialog appears. Navigate to the provided .rampp file location,

and click the file you downloaded:

7. Click Open to import the file.

A-2 Appendix A: Manually Importing an AOP

User’s Manual Pub. 0300309-01 Rev. A

8. The program loads the .rampp file and informs you that you need to

restart the CCW program.

9. After the program restarts, create a new project or reload your project.

Select an Available slot from the Expansion Modules drop-down list:

The newly imported module is now available as a selection from the

Expansion Modules list.

User’s Manual Pub. 0300309-01 Rev. A

Index

2085-OX32-SC AOP

import 3-5 Add On Profile (AOP) 3-2 AOP

manual importation A-1 Assembly sizes 3-9 Block diagram 1-7 CCW tab 3-5 Configuration option 3-7 Connection types 3-9 Declaration of Conformity 3-12 Default Configuration tab 3-5 Electrostatic Discharge

prevent 2-2 EMC Directive 2-1 Environmental

specifications 1-4 Expansion Modules

drop-down list 3-6 Factory default

on startup 3-8 Hardware

specifications 1-3 Hardware Features 1-6 Hazardous Location 2-2 Installation and Wiring 2-1 LED

indicator information 1-6 Minimum spacing 2-4 Module

configuration errors 3-10

description 2-4

mounting 2-3

overview 1-1 Module Catalog Name 3-6 Mounting

DIN rail 2-6

module 2-3

panel 2-6 Noise 2-3 Parts List 2-4 PLC

interfaces 3-9 Power

remove 2-3 Power Requirements 2-1 Remove Power 2-3 Safety Test

specifications 1-5 Software

updating 3-8 Specifications

environmental 1-4

hardware 1-3

safety test 1-5 System

description 1-1 Technical Assistance 3-12 Technical support

contact information, v Version

Software 3-8 View Module Profile window 3-3 Wiring Diagram 2-7

I-2 Index

User’s Manual Pub. 0300309-01 Rev. A

notice. The Encompass logo and Micro800 are trademarks of Rockwell Automation.

Corporate Headquarters

Spectrum Controls Inc. 1705 132nd Ave NE, Bellevue, WA 98005 Fax: 425-641-9473

Tel: 425-746-9481

Web Site: www.spectrumcontrols.com

E-mail: spectrum@spectrumcontrols.com

Spectrum Controls Micro800 Series User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Important Notes

Chapter 1 Module Overview

1.3.1 LED Blink Codes

1.3.2 1.1 LED Operation

Chapter 2 Installation and Wiring

2.1.1 EMC Directive

2.2.1 Hazardous Location Considerations

2.2.2 Prevent Electrostatic Discharge

2.2.3 Remove Power

2.2.4 Selecting a Location

Reducing Noise

2.3.1 Minimum Spacing

2.3.2 Parts List

2.3.3 Module Description

2.3.4 Insert Module Next to the Controller

Mounting Dimensions and DIN Rail Mounting

Panel Mounting

Wiring Diagram

3.4.1 Software Updates

3.4.2 Startup and Factory Default Conditions

3.5.1 Connection Types and Assembly Sizes

3.5.2 Output Variable Table

Channel Status (CCW Var: _IO_Xx_ST_31:00)

Module Status (CCW Var: _IO_Xx_ST_47:32)

Channel Control (CCW Var: _IO_Xx_DO_31:00)

3.6.1 Module Specific Hardware Errors

3.6.2 Module Specific Configuration Errors

3.6.3 Communication Errors

Appendix A Manually Importing an AOP

Index
