Micro800™ 4 Ch Universal Thermistor Input Module
(Catalog Number 2080sc-NTC)
Table of Contents
Controller.Micro830.Micro830.Main ................................................. 20
Environnements dangereux .................................................................... 28

For More Information

PLC sample projects and documentation are available on our website at
http://www.spectrumcontrols.com
Micro800™ 4 Ch Universal Thermistor Input Module 2
ATTENTION
This equipment is intended for use in a Pollution Degree 2 industrial environment, in overvoltage Category II applications (as defined in IEC publication 60664-1), at altitudes up to 2000 meters (6562 feet) without derating.
This equipment is considered Group 1, Class A industrial equipment according to IEC/CISPR Publication 11. Without appropriate precautions, there may be potential difficulties ensuring electromagnetic compatibility in other environments due to conducted as well as radiated disturbance.
This equipment is supplied as open-type equipment. It must be mounted within an enclosure that is suitably designed for those specific environmental conditions that will be present and appropriately designed to prevent personal injury resulting from accessibility to live parts. The enclosure must have suitable flame-retardant properties to prevent or minimize the spread of flame, complying with a flame spread rating of 5 VA, V2, V1, V0 (or equivalent) if non-metallic. The interior of the enclosure must be accessible only by the use of a tool. Subsequent sections of this publication may contain additional information regarding specific enclosure type ratings that are required to comply with certain product safety certifications.
In addition to this publication, see:
Industrial Automation Wiring and Grounding
Guidelines, Allen-Bradley publication 1770-
4.1, for additional installation requirements.
NEMA Standards publication 250 and IEC
publication 60529, as applicable, for explanations of the degrees of protection provided by different types of enclosure.
Environment and Enclosure
Publication 0100198-01 Rev. A
Micro800™ 4 Ch Universal Thermistor Input Module 3
WARNING
Electrostatic discharge can damage integrated circuits or semiconductors if you touch bus connector pins. Follow these guidelines when you handle the module:
Touch a grounded object to discharge static
potential.
Wear an approved wrist-strap grounding
device.
Do not touch connectors or pins on
component boards.
Do not touch circuit components inside the
module.
If available, use a static-safe work station. When not in use, keep the module in its
static-shield box.
WARNING
To comply with the CE Low Voltage Directive (LVD), all connected I/O must be powered from a source compliant with the following: Safety Extra Low Voltage (SELV) or Protected Extra Low Voltage (PELV).

Prevent Electrostatic Discharge

Publication 0100198-01 Rev. A
Micro800™ 4 Ch Universal Thermistor Input Module 4
WARNING
This equipment is considered Group 1, Class
A industrial equipment according to IEC/CISPR 11. Without appropriate precautions, there may be difficulties with electromagnetic compatibility in residential and other environments due to conducted and radiated disturbance.
Be careful when stripping wires. Wire
fragments that fall into the controller could cause damage. Once wiring is complete, make sure the controller is free of all metal fragments before removing the protective debris strip.
Do not wire more than 2 conductors on any
single terminal.
If you insert or remove the plug-in module
while power is on, an electrical arc can occur. This could cause an explosion in hazardous location installations. Be sure that power is removed or the area is nonhazardous before proceeding.
Cable length should be less than 10 meters
(30 feet).
Do not insert or remove the plug-in module
while power is applied; otherwise, permanent damage to equipment may occur.

Parts List

Your package contains one Micro800 Universal Thermistor Input Plug-in Module and one Quick Start guide.
You can choose to wire the plug-in before inserting it onto the controller, or wire it once the module is secured in place.
Publication 0100198-01 Rev. A
Micro800™ 4 Ch Universal Thermistor Input Module 5

Insert Module into Controller

Follow the instructions to insert and secure the plug-in module to the controller.
1. Position the plug-in module with the terminal block facing the front of the controller as shown.
2. Snap the module into the module bay.
3. Using a screwdriver, tighten the 10…12 mm (0.39…0.47 in.) M3 self-tapping screw to torque specifications.
Publication 0100198-01 Rev. A
Micro800™ 4 Ch Universal Thermistor Input Module 6
IN +2
IN -2
IRET2
IN +3
IN -3
IRET3
IN +0
IN -0
IRET0
IN +1
IN -1
IRET1
2-wire Thermistor
ATTENTION
IRET0 to IRET3 are reserved for a later date.

Wire the Module

Use the wiring diagram below to wire the module.
Publication 0100198-01 Rev. A
Micro800™ 4 Ch Universal Thermistor Input Module 7
Register
Data
Type
Comments
S1_CFG_Trigger
INT
Transition from 0 to non­zero to trigger new config.
S1_CFG_CH_n_Params[0]
INT
Configuration Bits
S1_CFG_CH_n_Params[1]
INT
Maximum Range (default
19016)
Degrees C x100 or ohms div 10 Default: 19016
S1_CFG_CH_n_Params[2]
INT
Minimum Range
Degrees C x100 or ohms div 10 Default: 0
S1_CFG_CH_n_String[0]
STRING
-COEFF-A for Steinhart­Hart Equation
-BETA for BETA Equation
S1_CFG_CH_n_String[1]
STRING
-COEFF-B for Steinhart­Hart Equation
-Resistance @25C for BETA Equation
S1_CFG_CH_n_String[2]
STRING
-COEFF-C for Steinhart­Hart Equation
Ignored for BETA Equation

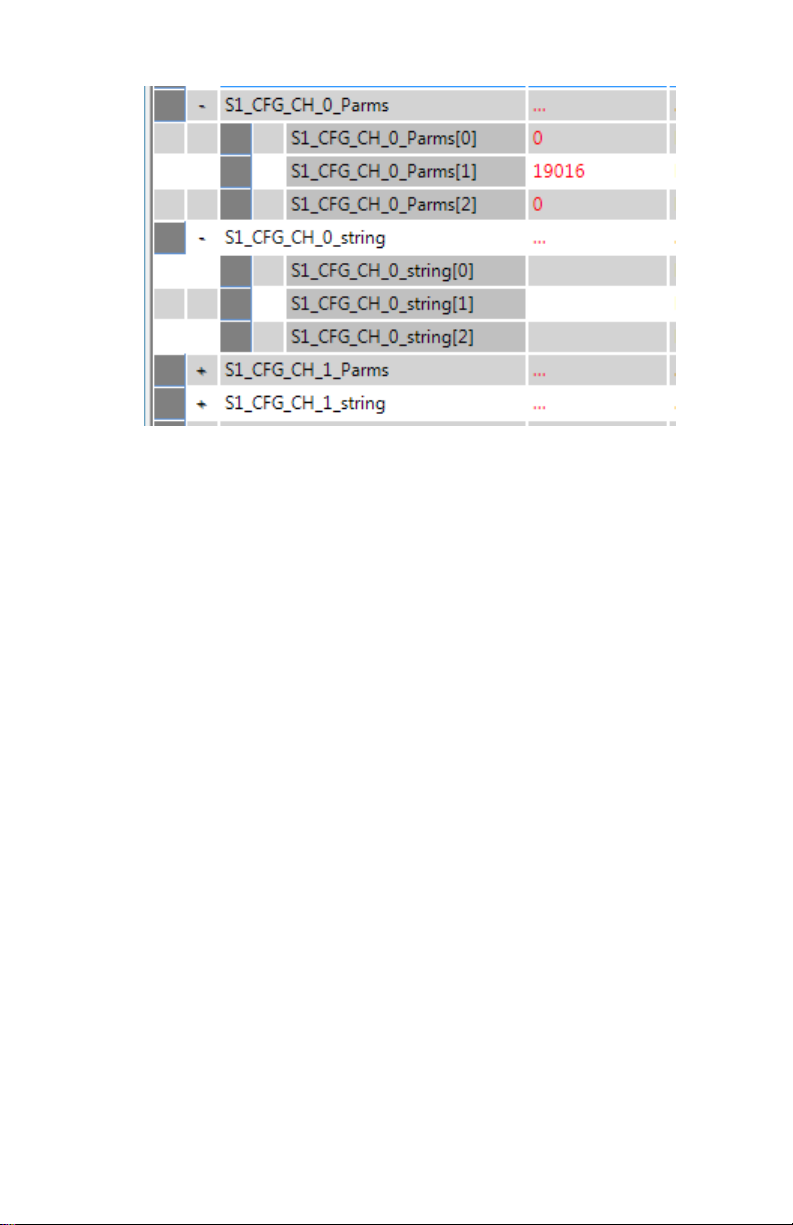

Configuration Tags

This table shows the tags in the sample ladder program for configuration. Details are described in the sub-sections that follow.
Publication 0100198-01 Rev. A
Micro800™ 4 Ch Universal Thermistor Input Module 8
New Config Trigger (S1_CFG_Trigger)
This register is used as a trigger to the module that the configuration needs to be applied. You first modify all of the configuration parameters, and then trigger the new configuration.
To trigger, the register must first be set to zero for a minimum of 300 ms. A non-zero value is then placed into the register to initiate the trigger. The non-zero value should remain for a minimum of 300 ms before setting the register back to zero. Only a transition from 0 to non-zero will cause a new configuration event.
These time delays are used to ensure the module has enough time to detect the transition. It is not a hard requirement. It may be possible to trigger a new configuration below these minimum values but this is not guaranteed.
Configuration Bits (S1_CFG_CH_n_Params[0])
The table below describes this register. The default value of the configuration data is represented by zeros.
A configuration error will be set if any of the values marked <unused> are passed.
Publication 0100198-01 Rev. A
Micro800™ 4 Ch Universal Thermistor Input Module 9
Bits
15
14
13
12
11
10 9 8 7 6 5 4 3 2 1 0
MSB
LSB
7 6 5 4 3 2 1 0 7 6 5 4 3 2 1
0
Ch0
Config.
2x Bytes
Channel
Enable
Enable Disable
0 1
Filter Frequency
17 Hz (default) 4 Hz 60 Hz 240 Hz 470 Hz <unused>
0 0 0 0 1 1
0 0 1 1 0 x
0 1 0 1 0 x
Data Format
1
EU X1 EU X10 Raw/Proportional <unused>
0 0 1 1
0 1 0 1
Linearization Equation
Resistance
0 0 Steinhart-Hart
0 1 Raw Proportional
1 0 <unused>
1 1
Unused
x x x x x x x x
Ch1
Config.
2x Bytes
Data structure the same as channel 0 above
Ch2
Config.
2x Bytes
Data structure the same as channel 0 above
Ch3
Config.
2x Bytes
Data structure the same as channel 0 above
1
See Data Format

Configuring the Module

The 2080sc-NTC is configured using 8 SINT configuration registers. The following table describes the module configuration registers. The default value of the configuration is represented by zeroes (0).
A configuration error will be set if any of the values marked <unused> are passed.
(Configuration Assembly)
Publication 0100198-01 Rev. A
Micro800™ 4 Ch Universal Thermistor Input Module 10

Data Format

EU x1 This displays the measured readings in their natural integer form. Due to
the measurement range and 16-bit data size, the highest resolution that can be displayed for resistance is 10 ohms. Temperatures will have two decimal places of resolution.
For resistance, it will be in the range from 0 to 32767 which represents resistance in ohms divided by ten (0 to 327.67 k ohms).
For temperature, it will display in the range from +32767 to -32768 (+327.67 degrees C to -327.68 degrees C). The displayed values are clipped at the user-defined Maximum and Minimum parameters (defined below).
EU x10 This display format is the same as EU x1 but divided by 10. Raw Proportional The Raw Proportional Data Format uses the Maximum and Minimum
user-defined values as its end points and scale relative to them. The Maximum Range is represented by +32767 while the Minimum Range is
-32768 to give a full 16-bit span. The output shall be scaled relative to those two user-defined values.
When Equation is set to Resistance, you enter appropriate resistance values for the Maximum and Minimum parameters. For the other Equation settings, you enter appropriate temperature values for the Maximum and Minimum parameters.
Equation BETA If the Equation is set to BETA, the COEFF-A/BETA string contains the
BETA parameter. The COEFF-B/R@25C string contains the resistance at 25˚ C.
COEFF-C string will be ignored.
Publication 0100198-01 Rev. A
Micro800™ 4 Ch Universal Thermistor Input Module 11
Temperature in Kelvin is determined by the following formula:

B = User-supplied BETA parameter R0 = User-supplied resistance at room temperature (T0). T0 = (constant) Room temperature (25˚ C) in Kelvin (298.15). R = Measured resistance.
After solving for T, it is then converted to Celsius: T - 273.15 Steinhart-Hart If the Equation is set to Steinhart-Hart, all three COEFF strings are used. The module uses the following formula to determine temperature:
   󰇛󰇜 󰇛󰇛󰇜󰇜
A, B, C = Coefficients from thermistor specification. R = Measured resistance T = Temperature in Kelvin.
The final result is then converted to degrees Celsius: T - 273.15 The above formula images were copied from Wikipedia:
http://en.wikipedia.org/wiki/Thermistor
Resistance If the Equation is set to Resistance, all COEFF strings are ignored and
only the actual measured resistance is displayed.
Maximum Range (S1_CFG_CH_n_Params[1]) Minimum Range (S1_CFG_CH_n_Params[2])
Since this module provides general purpose measurements, it is necessary to know the maximum and minimum displayed values to allow for status processing of over and under range as well as Raw Proportional. The thermistor type will determine what the optimal displayed values are. The displayed reading shall be clipped to these values. By default, Maximum Range is set to 19016, Minimum Range is set to 0.
Publication 0100198-01 Rev. A
Micro800™ 4 Ch Universal Thermistor Input Module 12
The value is a signed, 16-bit integer. It represents temperature in degrees Celsius multiplied by 100 when the Equation is not set to Resistance.
If the Equation is set to Resistance, the values represent ohms divided by 10.
The Maximum cannot be not be equal to, or less than, the Minimum. An invalid configuration is set in that case.
This format allows for temperature spans from +327.67C to -327.68C. Setting extreme values does not guarantee measurement within that range.
Negative Resistance values are not valid. Temperature example: Enter 8000 for 80.00C as the Maximum. Enter -2000 for -20.00C as the Minimum. Resistance example: Enter 10000 for 100 K ohms as the Maximum. Enter 1 for 10 ohms as the Minimum. Resistance spans are from 0 to 327,670 ohms. String Parameters (COEFF-A/BETA, COEFF-B/R@25C, C) These string parameters are ignored when the Equation is set to
Resistance. COEFF-A serves as the parameter for BETA when Equation is set to
BETA. COEFF-B serves as the parameter for R@25C when Equation is set to
BETA. Due to the limitation of CCW, it is not possible to use a raw floating point
data type in the configuration. Instead, strings are used. The strings are in standard IEEE 754 floating point format.
The Steinhart-Hart coefficients presented in the thermistor datasheet are entered here. In the case of a BETA configured thermistor, only COEFF­A/BETA and COEFF-B/R at 25C are used.
Publication 0100198-01 Rev. A
Micro800™ 4 Ch Universal Thermistor Input Module 13
The size of the string may be up to 16 characters. It is not necessary to terminate with NULL.
A valid floating point number string is formed by a succession of:
An optional plus or minus sign. A sequence of numeric digits, optionally containing a single
decimal-point character.
An optional exponent part, which itself consists on an 'e' or 'E'
character followed by an optional sign and a sequence of digits.
There shall be no characters following the floating point string (including white space). All characters in the string must be valid.
The following are examples of acceptable entries:
1234
-1234
1234.456
-123.45
0.1234E-03
-23.062E+12 (E or e may be used)
Invalid strings are rejected and an invalid configuration bit is set in MOD_STATUS register.
The following are invalid examples:
a1234 Alpha character. 1234 Space after digit. 0 . 2 Space between characters.
0.123-E03 invalid expression. Correct entry is 0.123E-03

Adding the NTC to CCW

The 2080sc-NTC is configured for CCW (Connected Components Workbench) using the PLUGIN_READ and PLUGIN_WRITE instructions for generic plug-in modules.
The configuration, input data, and status structures discussed in the sections above, are stored at different memory locations in the module.
Publication 0100198-01 Rev. A
Micro800™ 4 Ch Universal Thermistor Input Module 14
Parameter
Offset
(Dec)
Comments
Default
MOD_ID_LO
0
Module ID
195
MOD_ID_HI 1 0
VENDOR_ID_LO
2
Vendor ID
58
VENDOR_ID_HI
3
0
PRODUCT_TYPE_LO
4 10
PRODUCT_TYPE_HI
5 0
PRODUCT_CODE_LO
6 80
PRODUCT_CODE_HI
7 0
MOD_REV_LO
8
Minor revision, 1­255
1
MOD_REV_HI
9
Major revision, 1­127
1
MOD_IRQ_STATUS
10
0: parity, 1: RA only, 2: user­defined, 3-7: reserved
0
CONTROLLER_STATUS
11
Read-only, written by controller
0
MOD_NUM_INPUT
12
Number of Input channels
4
MOD_NUM_OUTPUT
13
Number of Output channels
0
MOD_CONF_DATA_OFFSET
14
Starting address of configuration data
80
MOD_FEATURE
15
Module feature register
32
MOD_STATUS
16
Module status register
0
MODE_MODE_CONTROL
17
Module mode control register
RESERVED
18 to 23
Returns value of zero when read
MOD_INPUT_OFFSET
24
Starting address offset of Input Registers
32
The following table lists the memory location offset for each parameter which is used when configuring the PLUGIN_READ, WRITE, and INFO instructions.
Parameter Offset for Module Block (0x00 [0] to 0x1F [31])
Publication 0100198-01 Rev. A
Micro800™ 4 Ch Universal Thermistor Input Module 15
Parameter
Offset
(Dec)
Comments
Default
MOD_OUTPUT_OFFSET
25
Starting address offset of Output Registers
48
MOD_INPUT_LATCH
26
Writing with 0xA5 to this register will trigger input latch
MOD_OUTPUT_APPLY
27
Writing with 0xA5 to this register will trigger output latch
0
MOD_INTERRUPT_CONF
28
Writing to this register will enable/disable module interrupt to controller
0
MOD_GC_DATA_LENGTH_LB
29
Low byte of the generic configuration data length
218
MOD_GC_DATA_LENGTH_HB
30
High byte of the generic configuration data length
0
RESERVED
31
Reserved
Parameter
Value
Vendor ID
58
Module ID
195
Product Type
10
Product Code
80
Module Rev.
1.1
Input Size (words)
4
Output Size
0
Configuration Registers (words)
109
Module ID
The Micro800™ 4 Ch Universal Thermistor Input Module is available in only one
configuration: 2080-sc-NTC. The module uses the following parameters:
Publication 0100198-01 Rev. A
Micro800™ 4 Ch Universal Thermistor Input Module 16
Bit Number
Description
Notes
0 to 1
These 2 bits define module operation mode:
0: Idle: Module is ready to RUN, and I/O is off. 2: Error: Error happens and I/O is off. 3: Busy: Module is busy, cannot go to RUN,
and I/O is off. See Notes.
3 is not supported
2
This bit defines module user interrupt mode: 0: User Interrupt is disabled. 1: User Interrupt is enabled. See Notes.
Always 0. 1 is not supported.
3
Reserved
4
SW Error
Trigger condition. The Watchdog timer is triggered.
5
ADC Error
Trigger condition. The ADC communication has stopped, or the ADC has not sampled data for a long period of time.
7
Configuration Error
Wrong bits set in channel configuration.
Register
Address
Comments
Input Data Ch 0
32
Channel 0 through Channel 3 (Signed 16-bit
INT)
Input Data Ch 1
34
Input Data Ch 2
36
Input Data Ch 3
38
RESERVED
40
RESERVED
41 to 47
Module Error Register (MOD_STATUS)
The Micro800™ 4 Ch Universal Thermistor Input Module is available in only one
configuration: 2080-sc-NTC. The module uses the following parameters:
Input Block (0x20 [32] to 0x2F [47])
Publication 0100198-01 Rev. A
Micro800™ 4 Ch Universal Thermistor Input Module 17
Register
Address
Comments
RESERVED
0x30 [48] to 0x3F [63]
Output words are not used on this module but the block space is reserved
Register
Address
Comments
OC_STATUS
49
Open circuit status. See Open Circuit Status Register (OC_STATUS) information below.
UO_STATUS
50
Under/Over Range Status. See information below.
SW_BUILD
51
Enumeration of build based on major/minor version. (0 to 255). This value is written by the module CPU.
FPGA_VER_MAJOR
52
Major revision of FPGA code. This value is hard-coded by the FPGA and not written by module CPU.
FPGA_VER_MINOR
53
Minor revision of FPGA code. This value is hard-coded by the FPGA and not written by module CPU.
LED_CODE
54
Internal register for module use only.
RESERVED
55
RESERVED
71 to 79
Word/Bit
7 6 5 4 3 2 1
0
N/A
N/A
N/A
N/A
OC3
OC2
OC1
OC0
Output Block (0x30 [48] to 0x3F [63])
Status Block (0x40 [64] to 0x4F [79])
Open Circuit Status Register (S1_STS_CHAN_OC)
When an open circuit is detected, the open circuit bit is set for the channel and the input data is set to user Maximum.
Bit 0 for channel 0 open wire. Bit 1 for channel 1 open wire. Bit 2 for channel 2 open wire. Bit 3 for channel 3 open wire. Bit 4-7 are not used.
Publication 0100198-01 Rev. A
Micro800™ 4 Ch Universal Thermistor Input Module 18
Word/Bit
7 6 5 4 3 2 1
0
O3
O2
O1
O0
U3
U2
U1
U0
Register
Byte
Address
Size
(Bytes)
Data Type
Comments
S1_CFG_Trigger (new Config Trigger)
80-81 2 INT
Transition from 0 to non-zero to trigger new configuration
S1_CFG_CH_n_Params[0] (CH 0 Configuration Bits)
82-83 2 INT
Configuration Bits
S1_CFG_CH_n_Params[1] (Ch 0 Maximum Range)
84-85 2 INT
Maximum Range (default
19016) Degrees C x 100 or ohms div 10 Default: 19016
S1_CFG_CH_n_Params[2] (CH 0 Minimum Range)
86-87 2 INT
Minimum Range
Degrees C x 100 or ohms div 10 Default: 0
Under/Over Range Status Register (S1_STS_CHAN_OU) These status bits are dependent on the setting of the Maximum and
Minimum user values. If the displayed value is greater than Maximum, the ‘O’ bit shall be set for
the channel.
If the displayed value is less than Minimum, the ‘U’ bit shall be set for the
channel.
Bit 0 is for channel 0 under range indication. Bit 1 is for channel 1 under range indication. Bit 2 is for channel 2 under range indication. Bit 3 is for channel 3 under range indication. Bit 4 is for channel 0 over range indication. Bit 5 is for channel 1 over range indication. Bit 6 is for channel 2 over range indication. Bit 7 is for channel 3 over range indication.
Configuration Block (0x50 [80] to 0x129 [297])
Publication 0100198-01 Rev. A
Micro800™ 4 Ch Universal Thermistor Input Module 19
Register
Byte
Address
Size
(Bytes)
Data Type
Comments
S1_CFG_CH_n_String[0] (CH0 COEFF-A/BETA)
88-103
16
STRING
-COEFF-A for Steinhart-Hart Equation
-BETA for BETA Equation
S1_CFG_CH_n_String[1] (CH0 COEFF-B/R@25C)
104-119
16
STRING
-COEFF-B for Steinhart-Hart Equation
-Resistance @25C for BETA Equation
S1_CFG_CH_n_String[2] (CH0 COEFF-C)
120-135
16
STRING
-COEFF-C for Steinhart-Hart Equation
Ignored for BETA Equation
See above
136-189
54
-
Channel 1 Config Block
See above
190-243
54
-
Channel 1 Config Block
See above
244-297
54
-
Channel 1 Config Block
Publication 0100198-01 Rev. A
Micro800™ 4 Ch Universal Thermistor Input Module 20
Analog Data (S1_Input_CH_n) These registers display the current analog reading. The following sample program, written in structured text, demonstrates
how to configure the module in CCW.

Controller.Micro830.Micro830.Main

(*********************************************) (* FIRST TIME *) (*********************************************) FirstScanTimer(true, T#1ms); IF (FirstScanTimer.Q = FALSE) THEN FirstScan := FALSE; CfgTimerEnable := FALSE; CfgEnableWrite := FALSE; S1_CFG_Trigger := 1; previous_trigger := 0;
ReadModInfo(true, Slot_ID); tmp_result := ANY_TO_DINT( ReadModInfo.ModRevision ); S1_STS_REV_MOD_0_MAJOR := ANY_TO_USINT( SHR( tmp_result, 8) ); S1_STS_REV_MOD_1_MINOR := ANY_TO_USINT( tmp_result );
(* Make sure it's cleared on the module *) raw_config_array[0] := 0; (* Low byte *) raw_config_array[1] := 0; (* High byte *) END_IF;
DelayTimer(CfgTimerEnable, CFG_DELAY_TIME);
IF CfgTimerEnable = FALSE THEN CfgTimerEnable := TRUE; END_IF;
(*********************************************) (* CONFIGURATION *) (*********************************************) IF (S1_CFG_Trigger = 0 AND previous_trigger <> 0 AND DelayTimer.Q = TRUE AND WriteConfig.Sts = 1) THEN
CfgEnableWrite := TRUE; previous_trigger := 0; CfgTimerEnable := FALSE; (* Reset timer *) (* Make sure it's cleared on the module *) raw_config_array[0] := 0; (* Low byte *) raw_config_array[1] := 0; (* High byte *)
ELSIF (S1_CFG_Trigger <> 0 AND previous_trigger = 0) THEN
CfgEnableWrite := TRUE; previous_trigger := 1; S1_CFG_Trigger := 0; CfgTimerEnable := FALSE; (* Reset timer *)
raw_config_array[0] := 255; (* Low byte *) raw_config_array[1] := 255; (* High byte *)
idx := 2;
Publication 0100198-01 Rev. A
Micro800™ 4 Ch Universal Thermistor Input Module 21
(* Translate channel configurations. *) FOR chan_idx := 0 TO 3 BY 1 DO (* Copy the 3 word parameters. *) FOR i := 0 TO 2 BY 1 DO CASE chan_idx OF 0: tmp_result := ANY_TO_DINT(S1_CFG_CH_0_Parms[i]); 1: tmp_result := ANY_TO_DINT(S1_CFG_CH_1_Parms[i]); 2: tmp_result := ANY_TO_DINT(S1_CFG_CH_2_Parms[i]); 3: tmp_result := ANY_TO_DINT(S1_CFG_CH_3_Parms[i]); END_CASE; raw_config_array[idx] := ANY_TO_USINT(tmp_result); (* Low byte *) tmp_result := SHR(tmp_result, 8); raw_config_array[idx+1] := ANY_TO_USINT(tmp_result); (* High byte *) idx := idx + 2; (* Skip to next word offset *) END_FOR;
(* Copy the 3 string parameters. *) FOR i := 0 TO 2 BY 1 DO CASE chan_idx OF 0: tmp_string := S1_CFG_CH_0_string[i]; 1: tmp_string := S1_CFG_CH_1_string[i]; 2: tmp_string := S1_CFG_CH_2_string[i]; 3: tmp_string := S1_CFG_CH_3_string[i]; END_CASE;
(* Transfer the string into the config array *) (* Only 16 chars will fit into chan config. *) FOR str_idx := 1 TO 16 BY 1 DO raw_config_array[idx] := ANY_TO_USINT(ASCII(tmp_string, str_idx)); idx := idx + 1; END_FOR; END_FOR; END_FOR; ELSIF (S1_CFG_Trigger = 0 AND previous_trigger = 0 AND DelayTimer.Q = TRUE AND WriteConfig.Sts = 1) THEN
CfgEnableWrite := FALSE; CfgTimerEnable := FALSE; (* Reset timer *) END_IF;
(* Override the config write for an amount of time defined by STARTUP_TIME *) (* This is a one-time startup event *)
WriteConfig(CfgEnableWrite, Slot_ID, OFFSET_CFG, CFG_N_BYTES, raw_config_array);
(*********************************************) (* INPUTS *) (*********************************************) WriteInputLatch(true, Slot_ID, OFFSET_INP_LATCH, 1, InputLatch_val); ReadInputs(true, Slot_ID, OFFSET_INPUT, INPUT_N_BYTES, raw_input_array); idx := 0;
FOR i := 0 TO 3 BY 1 DO
Publication 0100198-01 Rev. A
Micro800™ 4 Ch Universal Thermistor Input Module 22
Input Specifications
Values
Inputs per module
4 NTC thermistor input channels, 2-wire only
Input ranges
Resistance (250 Ω-250 kΩ) Thermistor (derived from resistance
measurement)
Accuracy
Resistance: 1% Temperature: ± 0.5°C
Temperature Repeatability (at 25ºC) Note: Resistance Repeatability may be added at a later date.
4 Hz filter
17 Hz filter
60, 240 and 470 Hz filters1
± 0.25° C
± 0.5° C
± 1° C
1
tmp_result := ANY_TO_DINT(raw_input_array[idx+1]); tmp_result := SHL(tmp_result, 8); tmp_result := tmp_result + ANY_TO_DINT(raw_input_array[idx]); CASE i OF 0: S1_Input_CH_0 := ANY_TO_INT(tmp_result); 1: S1_Input_CH_1 := ANY_TO_INT(tmp_result); 2: S1_Input_CH_2 := ANY_TO_INT(tmp_result); 3: S1_Input_CH_3 := ANY_TO_INT(tmp_result); END_CASE; idx := idx +2; END_FOR;
(*********************************************) (* STATUS *) (*********************************************) ReadStatus(true, Slot_ID, OFFSET_STATUS, STATUS_N_BYTES, raw_status_array); S1_STS_CHAN_OC := raw_status_array[0]; S1_STS_CHAN_OU := raw_status_array[1]; S1_STS_REV_MOD_2_BUILD := raw_status_array[2]; S1_STS_REV_FPGA_0_MAJOR := raw_status_array[3]; S1_STS_REV_FPGA_1_MINOR := raw_status_array[4]; S1_STS_LED := raw_status_array[5];
The sample project above can be downloaded from our website at
http://www.spectrumcontrols.com/downloads.htm

Electrical Specifications

These filters do not reject 50/60 Hz. Repeatability for these filters is strongly dependent
on how much 50/60Hz noise is in the system.
Publication 0100198-01 Rev. A
Micro800™ 4 Ch Universal Thermistor Input Module 23
Input Specifications
Values
CMRR
< 1% reading error with 10 Vp-p input; 50 Hz and 60 Hz for 4 Hz and 16 Hz
filters
NMRR
No NMRR requirement for this module
Crosstalk
-70 dB maximum
Output Source Voltage
2.5 V @ 25°C, ±3% from -20°C to 65°C Input protection
Voltage Mode 24 VDC continuous.
Power source
3.3 VDC, 26 mA from backplane, and 24 VDC, 10 mA from backplane.
Channel to Channel Isolation
None Inrush current
<500 mA at 3.3V, <500 mA at 24V
Fusing
2.7 Ω 1/10W resistor on 24 VDC input,
0.47 Ω 1/10W resistor on 3.3 VDC input
Fault detection
Over/under range for all types, open circuit in voltage, resistance ranges shown as over-range
Input filters
4 Hz, 17 Hz, 60 Hz, 470 Hz
Wire size
#16 to #30 AWG
Operating temperature
-20º C to 65º C (-4º F to 149º F) Storage temperature
-45º C to 85º C (-49º F to 185º F)
Operating humidity
5% to 95% (non-condensing)
Agency approvals / evaluations
UL/cUL 508 & Hazloc (Class I, Div 2, Groups ABCD) and CE, RohS/WEEE
Manufacturing
RoHS and REACH compliant
Dimensions
58.4 mm x 29.3 mm x 25.0 mm
Publication 0100198-01 Rev. A
Micro800™ 4 Ch Universal Thermistor Input Module 24
Environmental
Tests
Industry Standards
Test Level Limits
Temperature (Operating) (Performance Criteria A)
IEC60068-2-1: (Test Ad, Operating Cold),
IEC60068-2-2: (Test Bd, Operating Dry Heat),
IEC60068-2-14: (Test Nb, Operating Thermal Shock)
-20° C to 65° C (-4° F to 149° F)
Temperature (Non-operating)
(Performance Criteria B)
IEC60068-2-1: (Test Ab, Unpackaged
Non-operating Cold), IEC60068-2-2: (Test Bb, Unpackaged
Non-operating Dry Heat),
IEC60068-2-14: (Test Na, Unpackaged
Non-operating Thermal Shock)
-40° C to 85°C (-40° F to 185° F)
Operating Altitude
2000 meters (6561 feet)
Not tested
Humidity (Operating) (Performance Criteria A)
IEC60068-2-30: (Test Db, Unpackaged
Damp Heat):
5 to 95% non­condensing
Vibration (Operating) (Performance Criteria A)
IEC60068-2-6: (Test Fc, Operating)
5 g @ 10 to 500 Hz,
0.030 in. max. peak­to-peak
Shock (Operating) (Performance Criteria A)
IEC60068-2-27: (Test Ea, Unpackaged Shock)
30 g,11 ms half-sine (3 mutually perpendicular axes)
Shock (Non­operating) (Performance Criteria B)
IEC60068-2-27: (Test Ea, Unpackaged Shock)
50 g, 11 ms half-sine (3 mutually perpendicular axes)
Radiated Emissions
CSIPR 11; Group 1, Class A FCC 47 CFR part 15 Class A
(Enclosure) Class A, 30 MHz – 1 GHz

Environmental Specifications

Publication 0100198-01 Rev. A
Micro800™ 4 Ch Universal Thermistor Input Module 25
Environmental
Tests
Industry Standards
Test Level Limits
Conducted Emissions
IEC 61000-6-4:2007 FCC 47 CFR part 15 Class A
Group 1, Class A (AC Mains), 150 kHz – 30 MHz
ESD immunity (Performance
Criteria B)
IEC 61000-4-2
6 kV Indirect (Coupling Plate)
6 kV Contact Discharge ( to points of initial contact)
8 kV Air Discharge (to points of initial contact)
Radiated RF immunity
(Performance Criteria A)
IEC 61000-4-3: Level 3
10 V/M with 1 kHz sine-wave 80% AM from 80…2000 MHz
10 V/M with 200 Hz sine-wave 50% Pulse 100% AM @900 MHz
10 V/M with 200 Hz sine-wave 50% Pulse 100% AM @1890 MHz
1 V/M with 1 kHz sine-wave 80% AM
from 2000…2700
MHz (3 V/M goal)
Publication 0100198-01 Rev. A
Micro800™ 4 Ch Universal Thermistor Input Module 26
Environmental
Tests
Industry Standards
Test Level Limits
EFT/B immunity (Performance
Criteria B)
IEC 61000-4-4
Signal Ports: ± 3 kV @ 5 kHz for 5
minutes, Criteria B (Marine?) ± 2 kV @ 5 kHz for 5 minutes, Criteria A (Marine?)
± 2 kV @ 5 kHz for 5 minutes, Criteria B (standard)
Power Ports: ± 2 kV @ 5 kHz for 5
minutes, Criteria A (Marine?)
± 2 kV @ 5 kHz for 5 minutes, Criteria B (standard)
Surge transient immunity
(Performance Criteria B)
IEC 61000-4-5
Signal Ports: ± 2 kV line-earth
{CM}@ 2Ω on
shielded ports Power Ports ± 2 kV CM @ 12 Ω
± 1 kV DM @ 2 Ω
Conducted RF immunity
(Performance Criteria A)
IEC 61000-4-6
10 V rms with 1 kHz sine wave 80% AM from 150 kHz…80 MHz on signal and power ports
Magnetic Field (Performance
Criteria A)
IEC 61000-4-8
30 A rms/m
AC Mains Voltage Dips, Interruptions and Variations
IEC 61000-4-11
Follow the 61000-4-
11.
Environmental Tests
Industry Standards
Test Level Limits
Publication 0100198-01 Rev. A
Micro800™ 4 Ch Universal Thermistor Input Module 27
Safety Tests
Industry Standards
Test Level Limits
UL Safety
UL 508 Industrial Control Equipment Seventeenth Edition Dated January 28 1999, with revisions through July 11, 2005 (ANSI/UL 508-2005) (NRAQ, NRAQ7)
cUL CSA C22.2 No. 142 -M1987 Process Control Equipment May 1987
UL Safety
UL
Hazardous
Locations
ULH ANSI/ISA–12.12.01–2007 Nonincendive Electrical Equipment for Use in Class I, Division 2 Hazardous (Classified) Locations T4 or better
cULH CSA C22.2 No. 213-M1987 - Non­incendive Electrical Equipment for use in Class I Division 2 Hazardous Locations ­March 1987
UL Hazardous
Locations
CE Low Voltage
Directive
IEC 61131-2 Programmable Controllers Part 2: Equipment Requirements and Tests; Second Edition 2003-02, Section 11-14
CE Low Voltage
Directive
WARNING
EXPLOSION HAZARD
Substitution of components may impair
suitability for Class I, Division 2.
Do not replace components or disconnect
equipment unless power has been switched off or the area is known to be non-hazardous.
Do not disconnect equipment while the
circuit is live or unless the area is known to be free of ignitable concentrations.
This product must be installed in an
enclosure which can only be opened with the use of a tool.
All wiring must comply with N.E.C. article
501-4(b).
Hazardous Location Considerations
This equipment is suitable for use in Class I, Division 2, Groups A, B, C, D or non-hazardous locations only. The following WARNING statement applies to use in hazardous locations.
Publication 0100198-01 Rev. A
Micro800™ 4 Ch Universal Thermistor Input Module 28
MISE EN GARDE
DANGER D’EXPLOSION
La substitution de composants peut
rendre cet équipement impropre à une utilisation en environnement de Classe 1, Division 2.
Ne pas remplacer de composants ou
déconnecter l'équipement sans s'être assuré que l'alimentation est coupée
ou que il n’y ait pas de danger d’explosion.
Ne pas déconnecter l'équipement tandis
que le circuit est sous tension ou si la zone est connue pour ne pas avoir de produits inflammables.
Ce produit doit être installé dans une
armoire Ce produit doit être installe dans une armoire qui ne peut être ouverte qu'avec l'utilisation d'un outil
Tout le cablage doit agreer la norme
N.E.C. article 501-4(b).

Environnements dangereux

Cet équipement est conçu pour être utilisé dans des environnements de Classe I, Division 2, Groupes A, B, C, D ou non dangereux. La mise en
garde suivante s’applique à une utilisation dans des environnements
dangereux.
Publication 0100198-01 Rev. A
Micro800™ 4 Ch Universal Thermistor Input Module 29
Publication 0100198-01 Rev. A
Micro800™ 4 Ch Universal Thermistor Input Module 30
For Technical Support USA 440-646-6900
United Kingdom 01908 635230 Australia 1800-809-929 Mexico 001-888-365-8677 Brazil (55) 11 3618 8800 Europe (49) 2104 960 630
1705 132nd Ave NE Bellevue, WA 98005 USA Tel: 425-746-9481 Fax: 425-641-9473 Email: spectrum@spectrumcontrols.com Web: www.spectrumcontrols.com
Micro800 is a trademark of Rockwell Automation.
Publication 2080sc-NTC Install Guide – April 2013 © 2013 Spectrum Controls, Inc. Printed in the USA.
Publication 0100198-01 Rev. A
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
