Sony MKS-2015, MKS-2017, MKS-2010 User Manual
Multi Format Switcher System
MFS-2000 System
(With MKS-2010/MKS-2015/MKS-2017 Control Panel)
User’s Guide [English]
1st Edition (Revised 1)
Software Version 2.00 and Later
NOTICE TO USERS
® 2004 Sony Corporation. All rights reserved.
This manual or the software described herein, in whole or in
part, may not be reproduced, translated or reduced to any
machine readable form without prior written approval from
Sony Corporation.
SONY CORPORATION PROVIDES NO WARRANTY WITH
REGARD TO THIS MANUAL, THE SOFTWARE OR OTHER
INFORMATION CONTAINED HEREIN AND HEREBY
EXPRESSLY DISCLAIMS ANY IMPLIED WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR
PURPOSE WITH REGARD TO THIS MANUAL, THE
SOFTWARE OR SUCH OTHER INFORMATION. IN NO
EVENT SHALL SONY CORPORATION BE LIABLE FOR
ANY INCIDENTAL, CONSEQUENTIAL OR SPECIAL
DAMAGES, WHETHER BASED ON TORT, CONTRACT, OR
OTHERWISE, ARISING OUT OF OR IN CONNECTION
WITH THIS MANUAL, THE SOFTWARE OR OTHER
INFORMATION CONTAINED HEREIN OR THE USE
THEREOF.
Sony Corporation reserves the right to make any modification
to this manual or the information contained herein at any time
without notice.
The software described herein may also be governed by the
terms of a separate user license agreement.
2
Table of Contents
Chapter 1 Overview
Introduction .................................................7
System Features .........................................7
Options......................................................... 8
Chapter 2 Names and Functions of
Parts

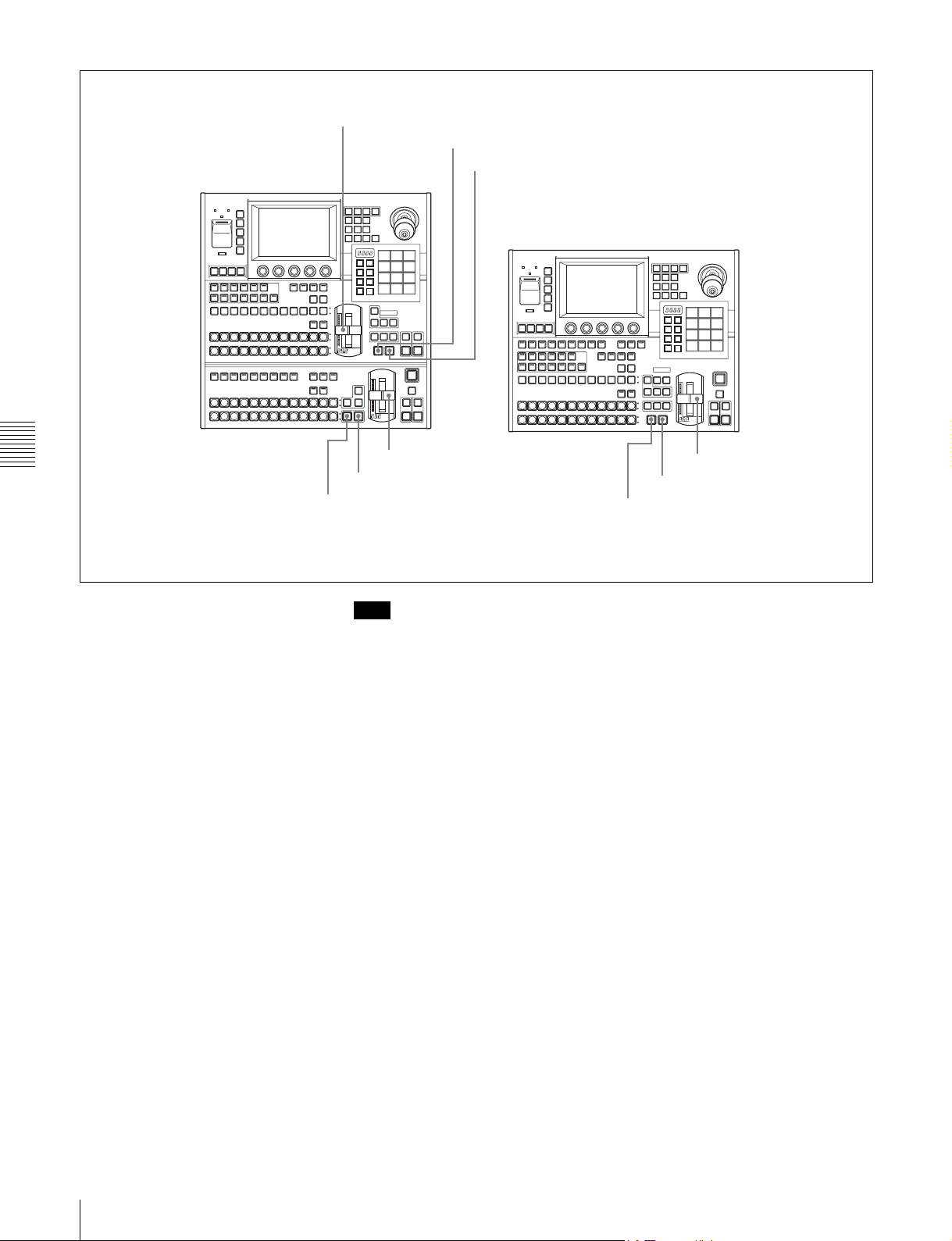

Control Panel Types ...................................9

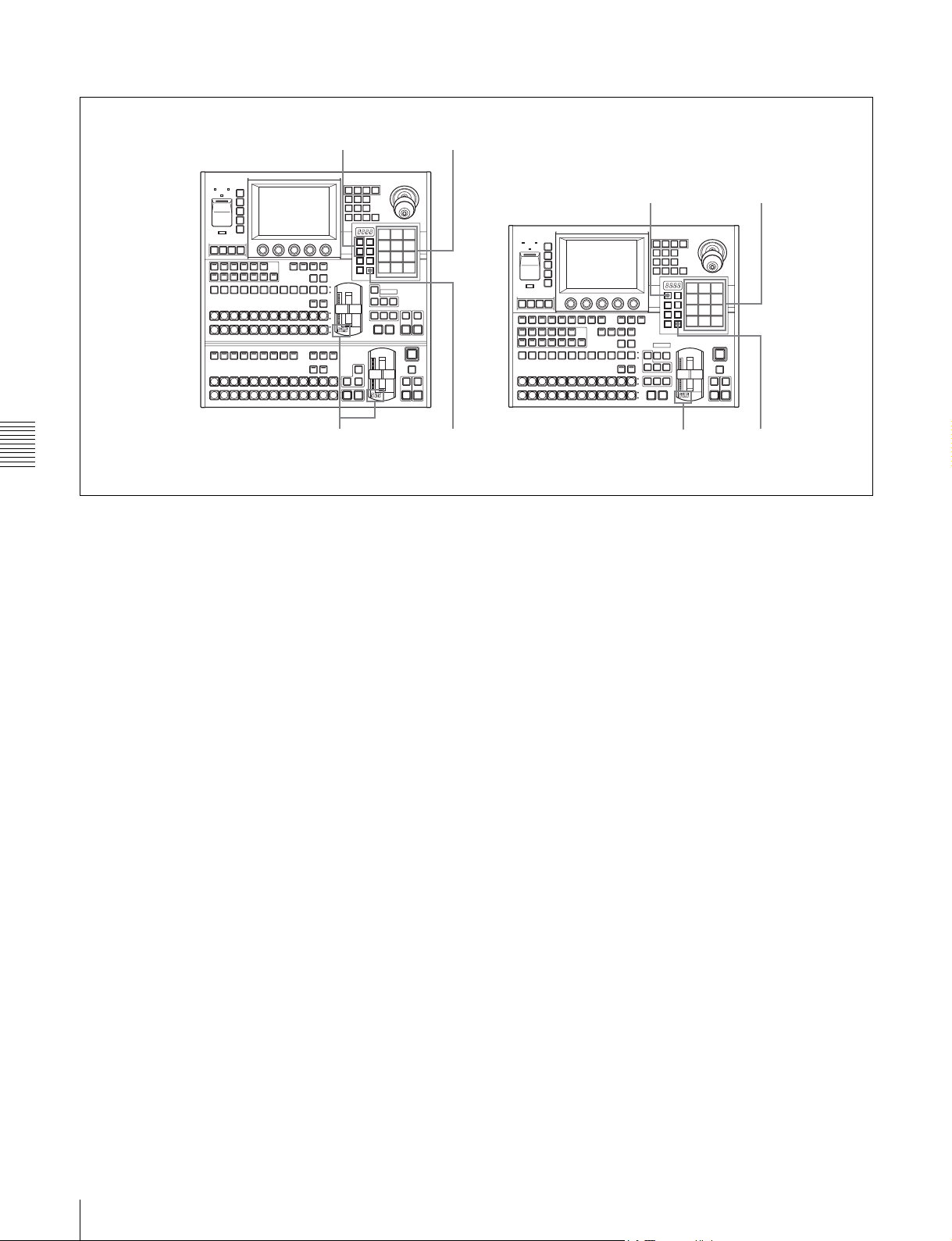

Control Panel Configuration .................... 11
M/E Cross-Point Control Block ..................12
PGM/PST Cross-Point Control Block.........14
AUX Bus Control Block ............................. 15
M/E Transition Control Block.....................16
PGM/PST Transition Control Block ...........17
M/E Key Transition Control Block............. 18
Downstream Key/Fade to Black Control
Block.......................................................18
Flexi Pad Control Block.............................. 19
Effect/Wipe Control Block..........................20
Utility Control Block................................... 22
Macro Control Block................................... 23
Menu Control Block....................................23
Power Indicators, “Memory Stick” Slot, USB
Connector................................................23
“Memory Sticks” .......................................24
Usable “Memory Sticks”............................. 24
Handling “Memory Sticks”......................... 24
Chapter 3 Using Menus
Accessing Menus...................................... 25
Accessing Menus From the Top Menu .......25
Accessing Menus by Double Clicking ........26
Accessing Menus by Single Clicking..........28

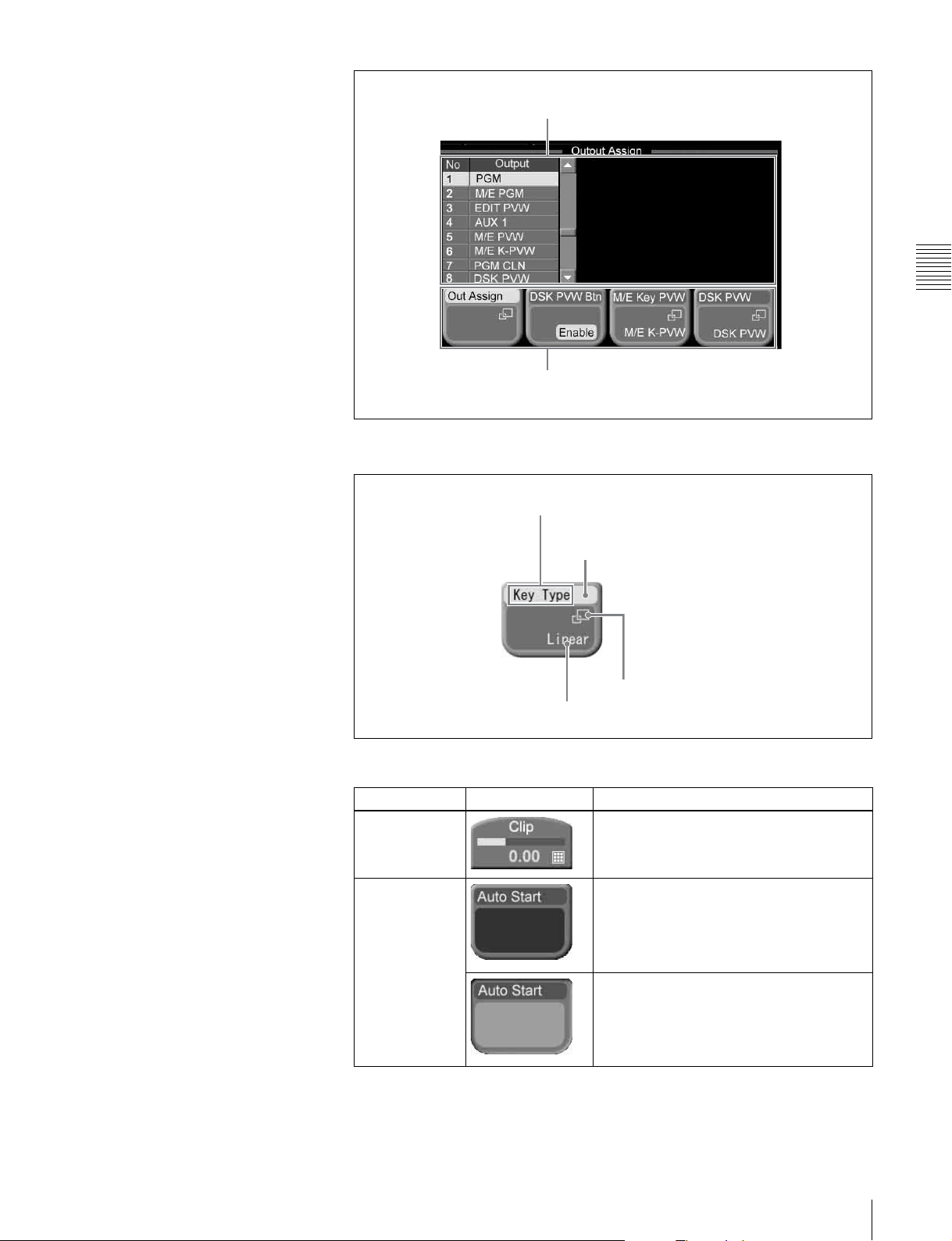

Interpreting Menu Screens....................... 29
Basic Screen ................................................29

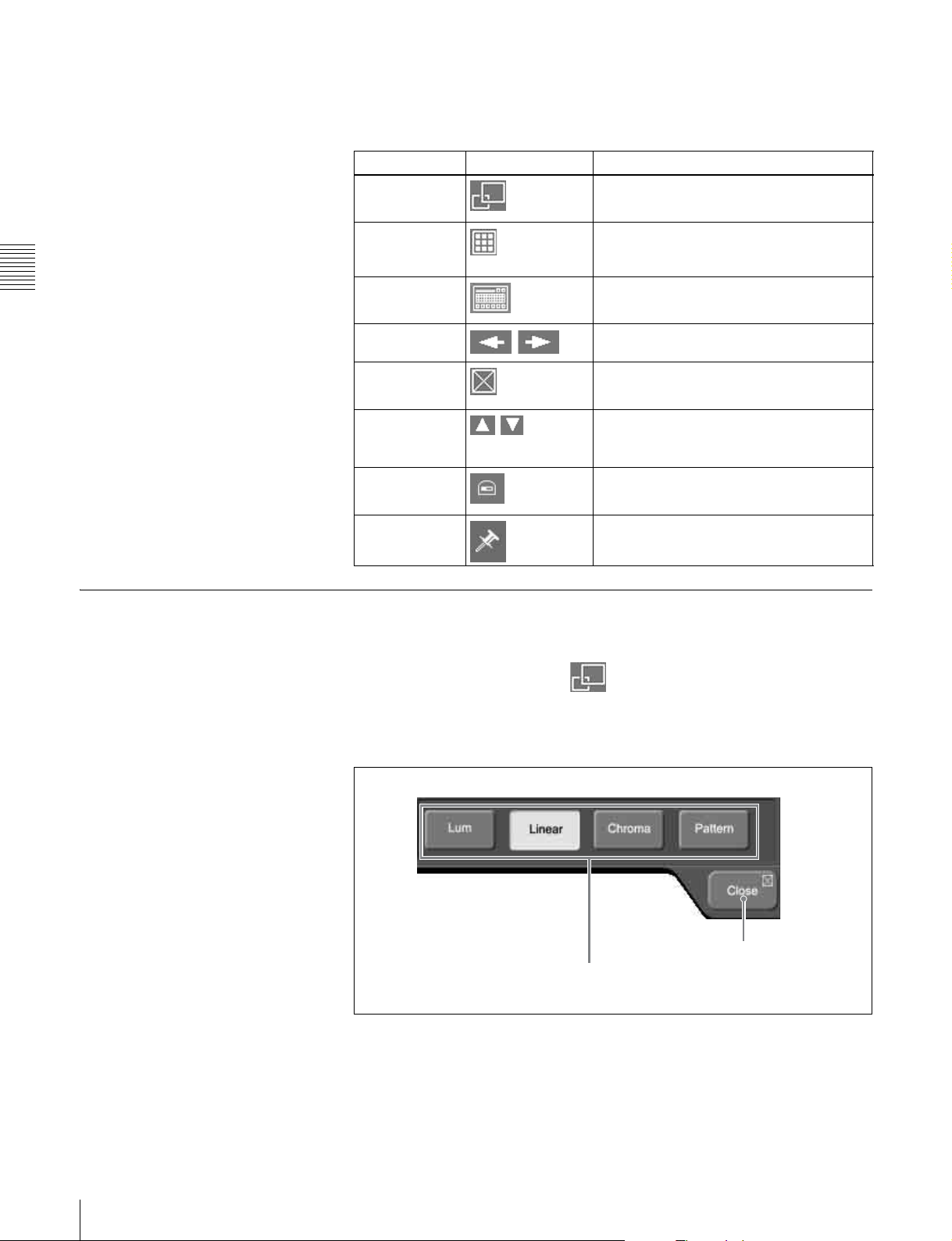

Popup Windows ..........................................32
Basic Menu Operations ............................39
Selecting Menus ..........................................39
Selecting Functions ..................................... 40

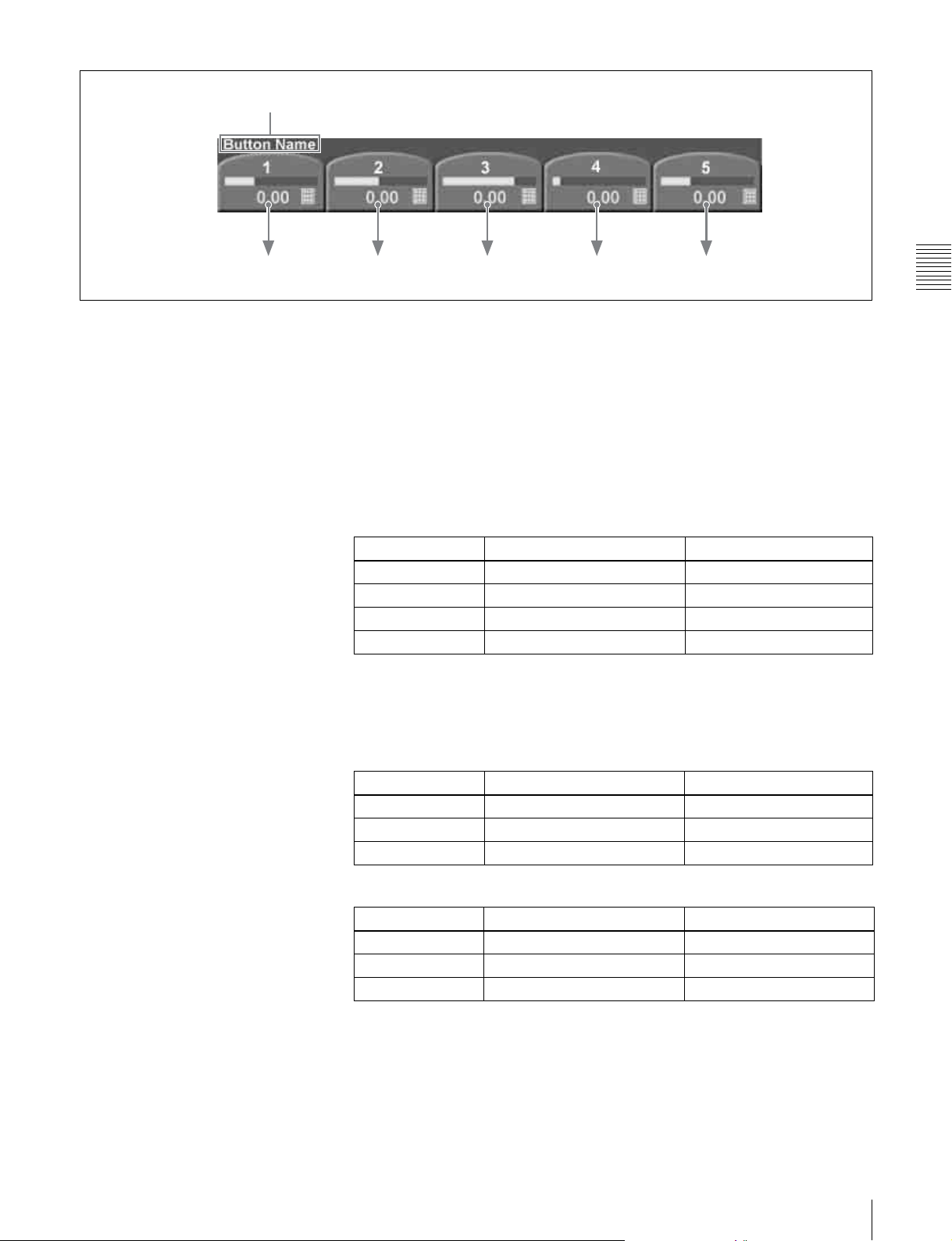

Setting Parameters.......................................40
Exiting the Menu System.......................... 42
Chapter 4 Basics of Video Switching
Basic Operations (1): Video Switching on
the M/E Bank ......................................... 44
Basic Operations (2): Video Switching on
the PGM/PST Bank — For 1.5 M/E
Systems ................................................. 47
Chapter 5 Basic Operations
Selecting Video ......................................... 49
Flow of Operations......................................49
Selecting Video in the M/E Cross-Point
Control Block .........................................50
Selecting Video in the PGM/PST Cross-Point
Control Block .........................................51
Selecting Video in the AUX Bus Control
Block.......................................................51
Selecting Transition Types ......................53
Flow of Operations......................................53
Selecting the Transition Type and the Next
Transition................................................54
Selecting Effects ....................................... 56
Flow of Operations......................................56
Selecting Effects With the Flexi Pad Control
Block.......................................................57
Selecting Effects From Menus ....................58
Effect Types ................................................60
Selecting Channels ......................................61
Changing the Position and Size of Effect
Patterns .................................................63
Flow of Operations......................................63
Changing Pattern Position and Size With the
Joystick ...................................................64
Changing Pattern Size and Position From
Menus .....................................................64

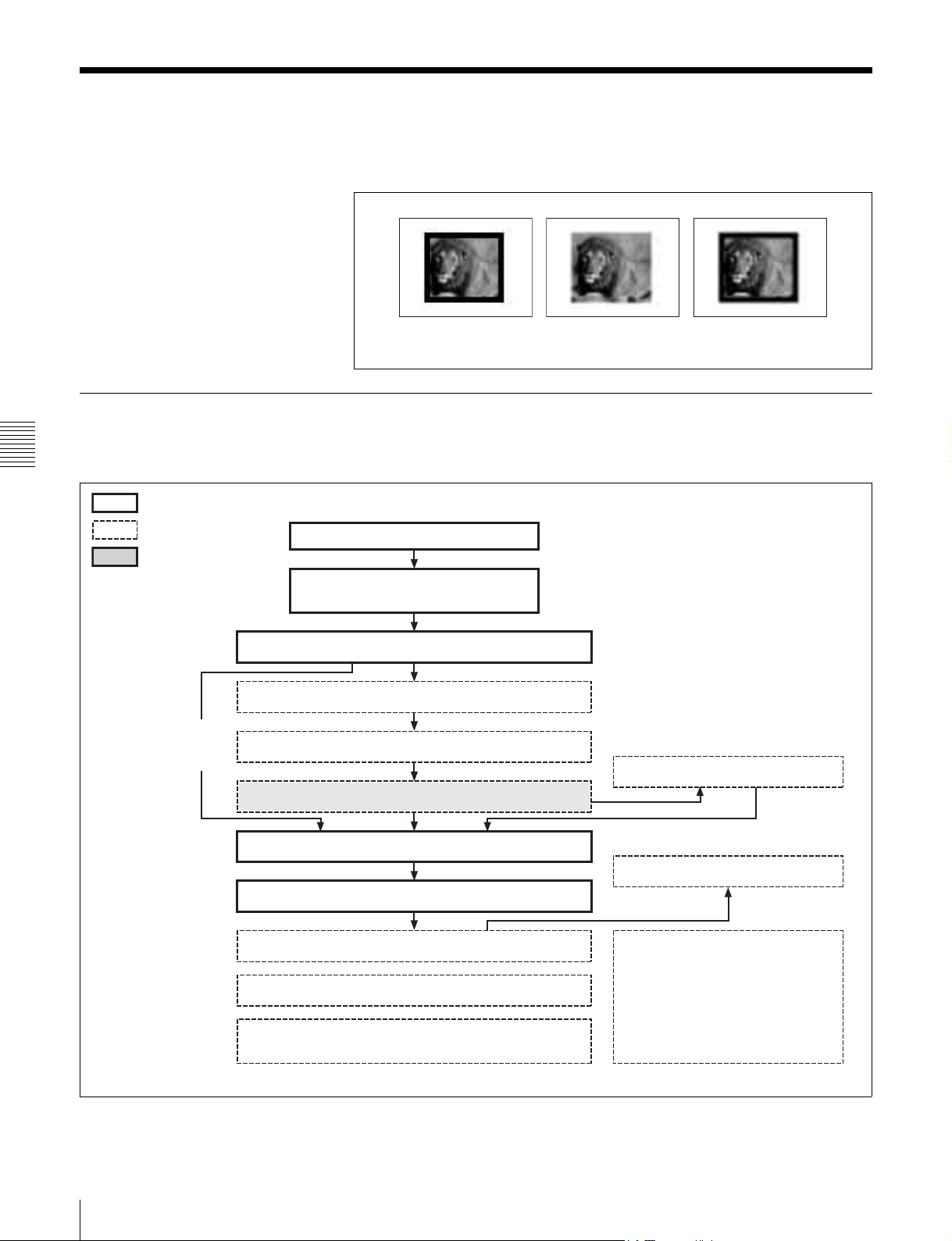

Modifying Video Borders.......................... 66
Flow of Operations......................................66
Adding Borders to Video ............................67
Softening Video Edges (Soft Edge/Soft
Border)....................................................68
Preparing Transitions ............................... 69
Flow of Operations......................................69
Setting Transition Rates ..............................69
Selecting Effect Directions..........................71
Executing Transitions............................... 73
3Table of Contents
Flow of Operations......................................73
Executing Transitions.................................. 73

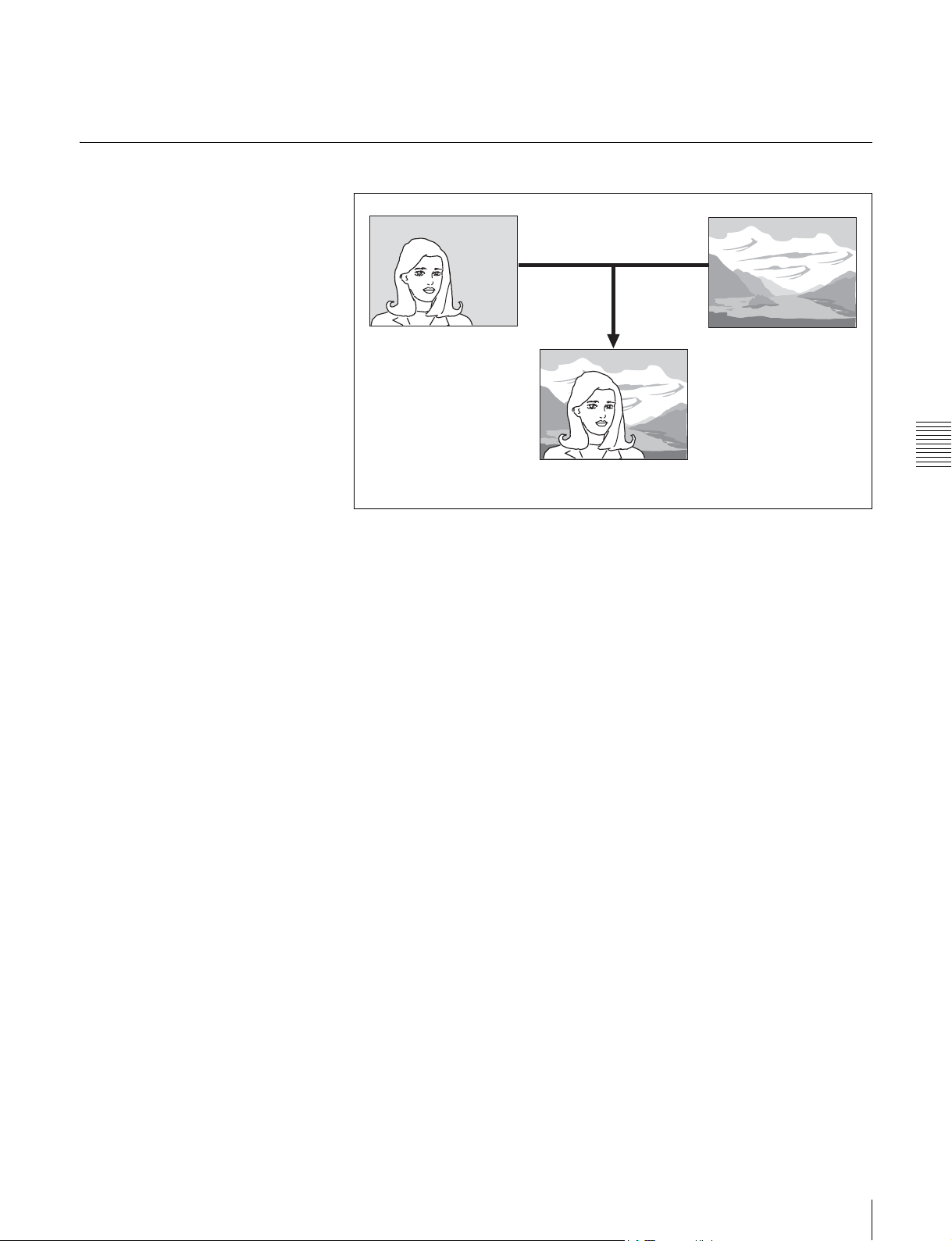

Composing Video With Keys ................... 76
Flow of Operations......................................76
M/E Keys and Downstream Keys ...............77
Inserting Text With a Luminance Key or
Linear Key ..............................................77
Composing Video With Chroma Keys........81
Composing Video With Pattern Keys .........82
Adding Borders to Keys.............................. 83
Masking Part of a Key................................. 84
Moving a Key Over or Under .....................85
Inserting and Deleting Keys Only............... 86
Using Internally Generated Signals......... 88
Flow of Operations......................................88

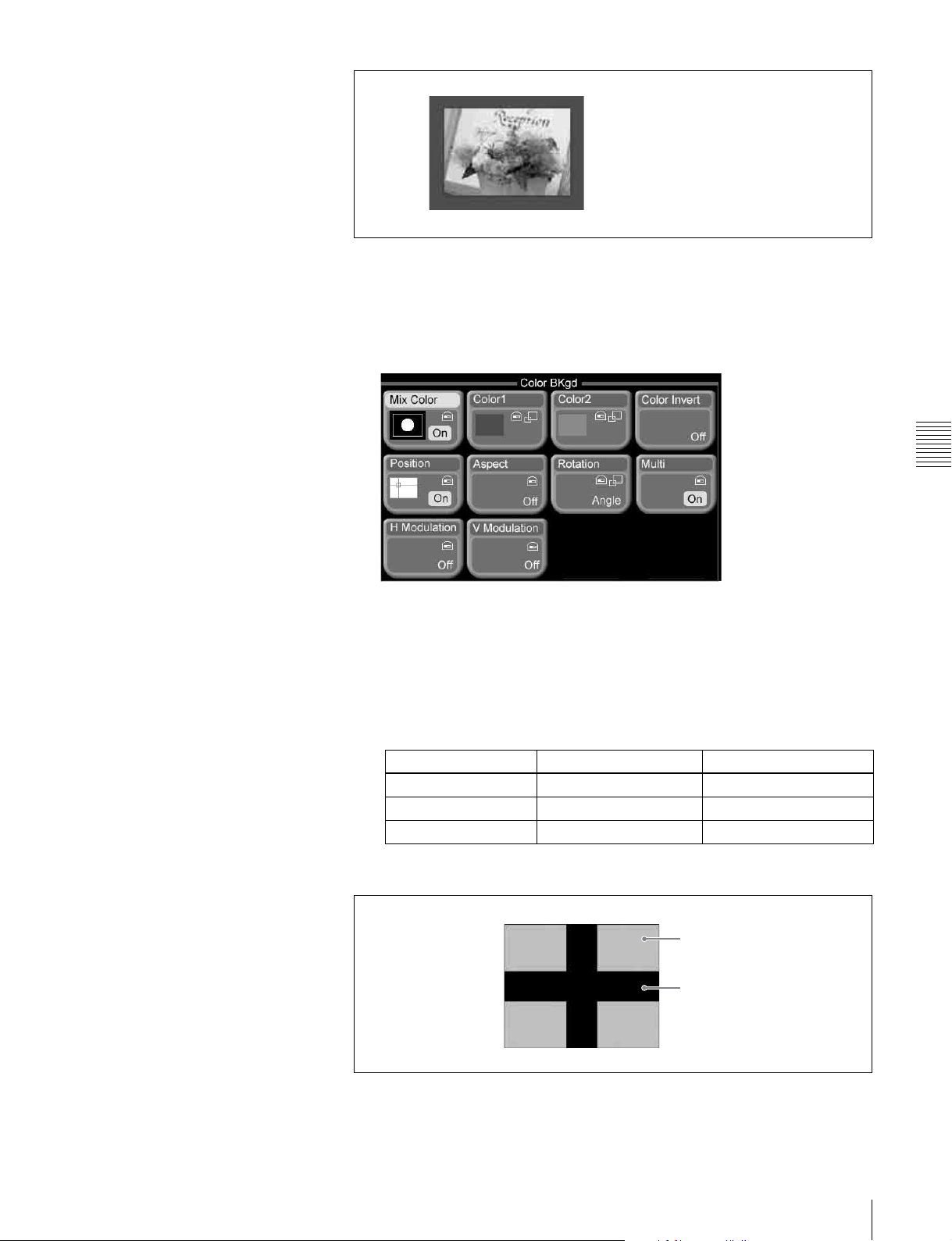

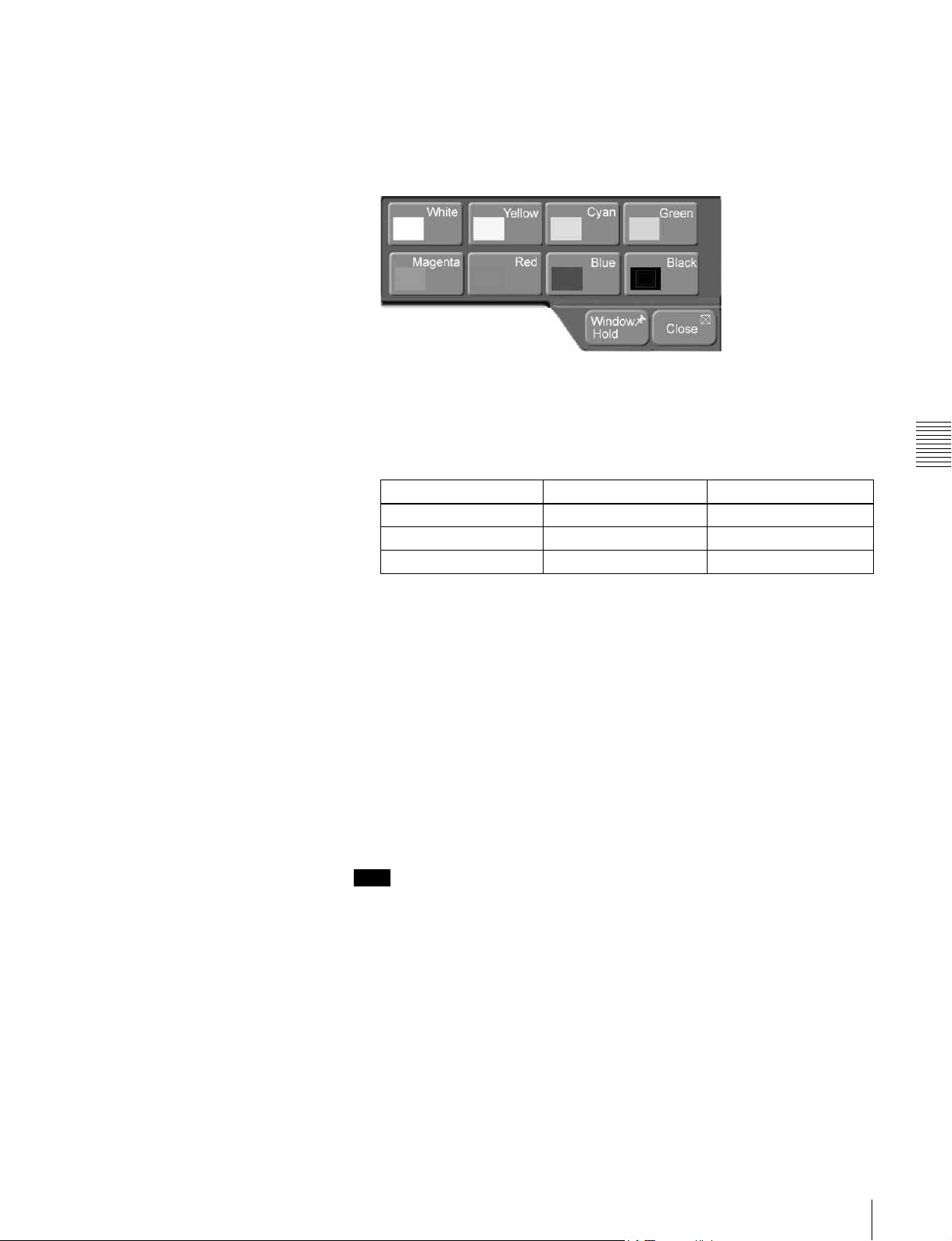

Using a Color Background.......................... 88
Fading the Video to Black ........................93
Flow of Operations......................................93

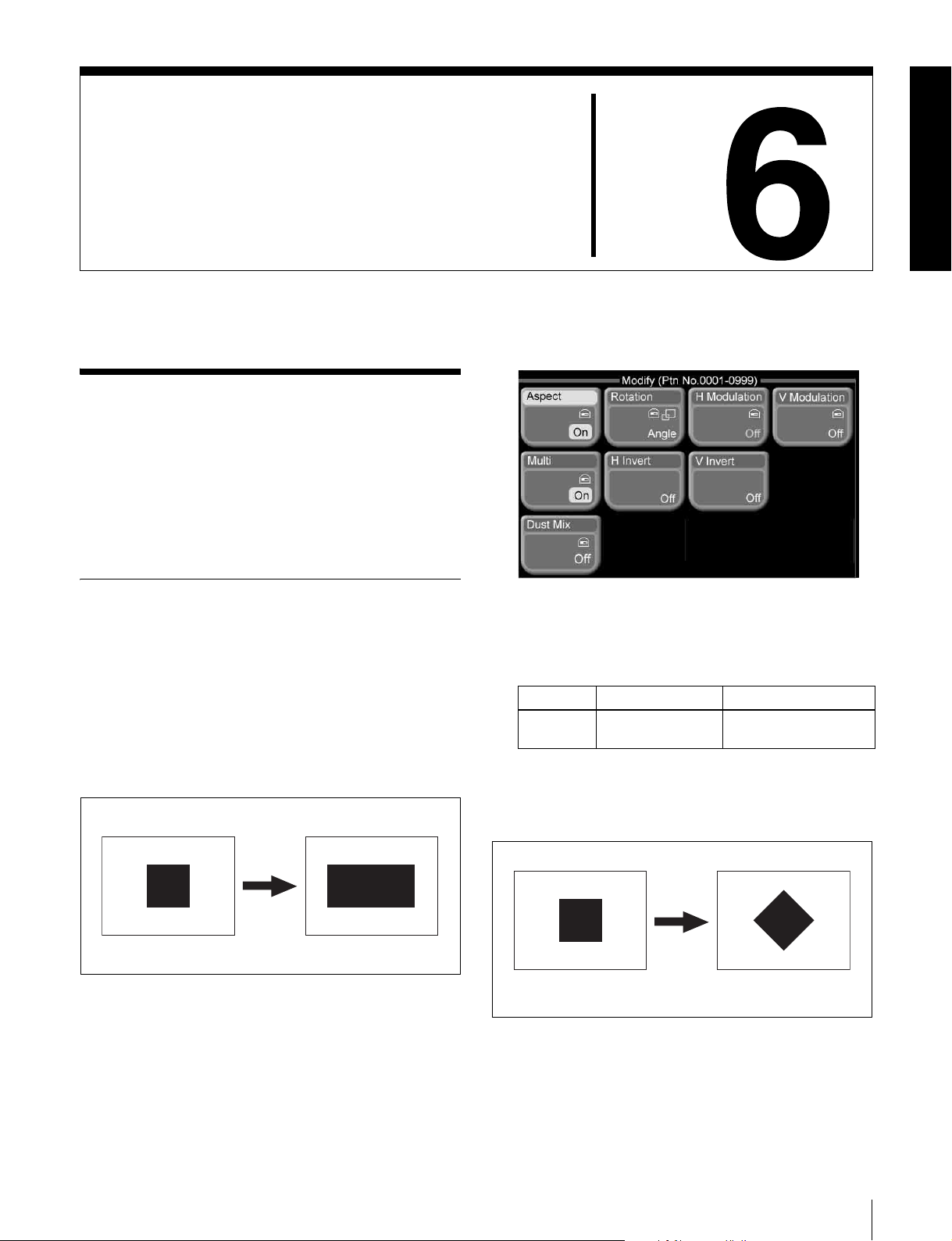

Chapter 6 Advanced Operations
Advanced Effect Operations .................... 95
Transforming Effect Patterns ......................95

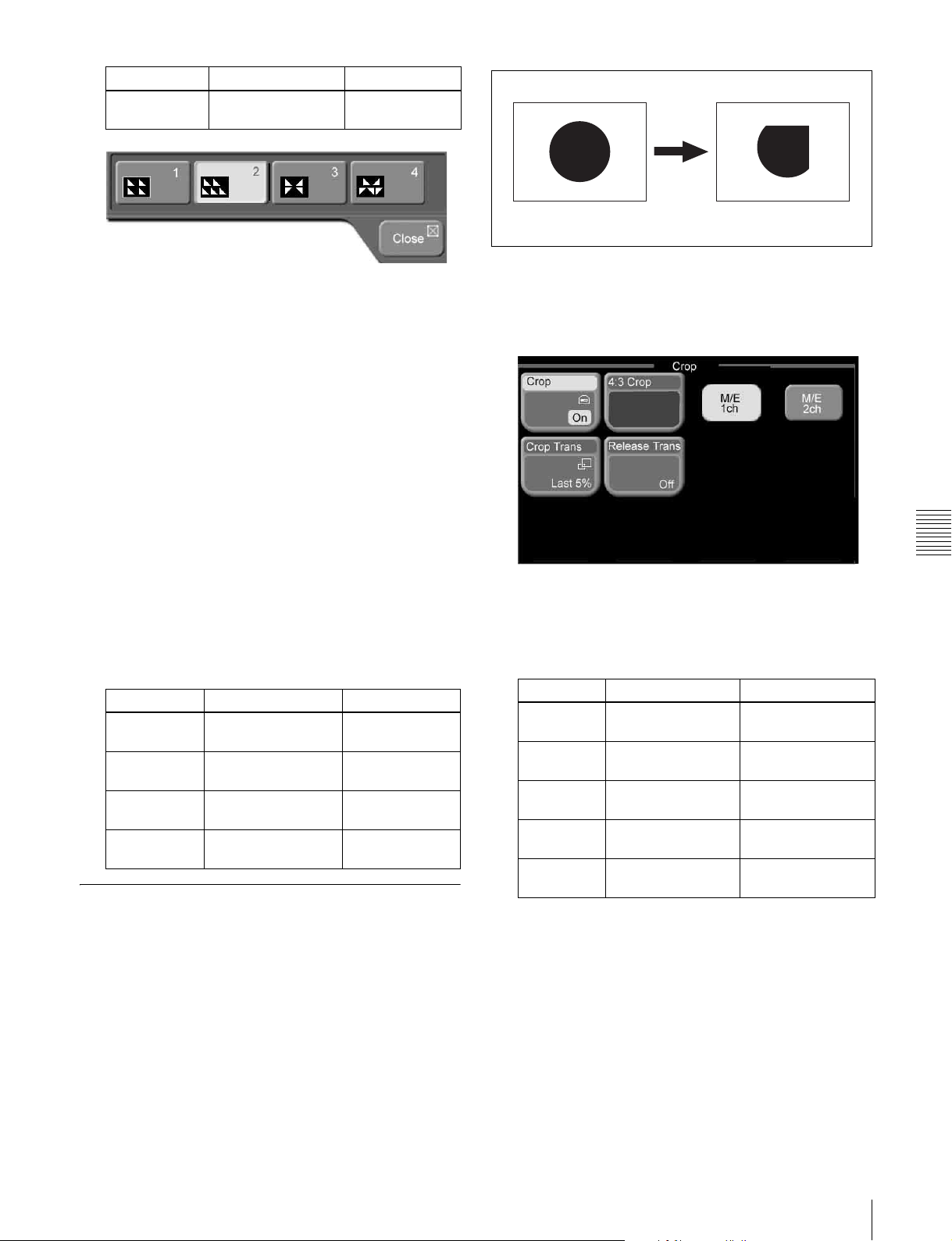

Cropping Effects .........................................97
Adding Beveled Edges to Video .................98

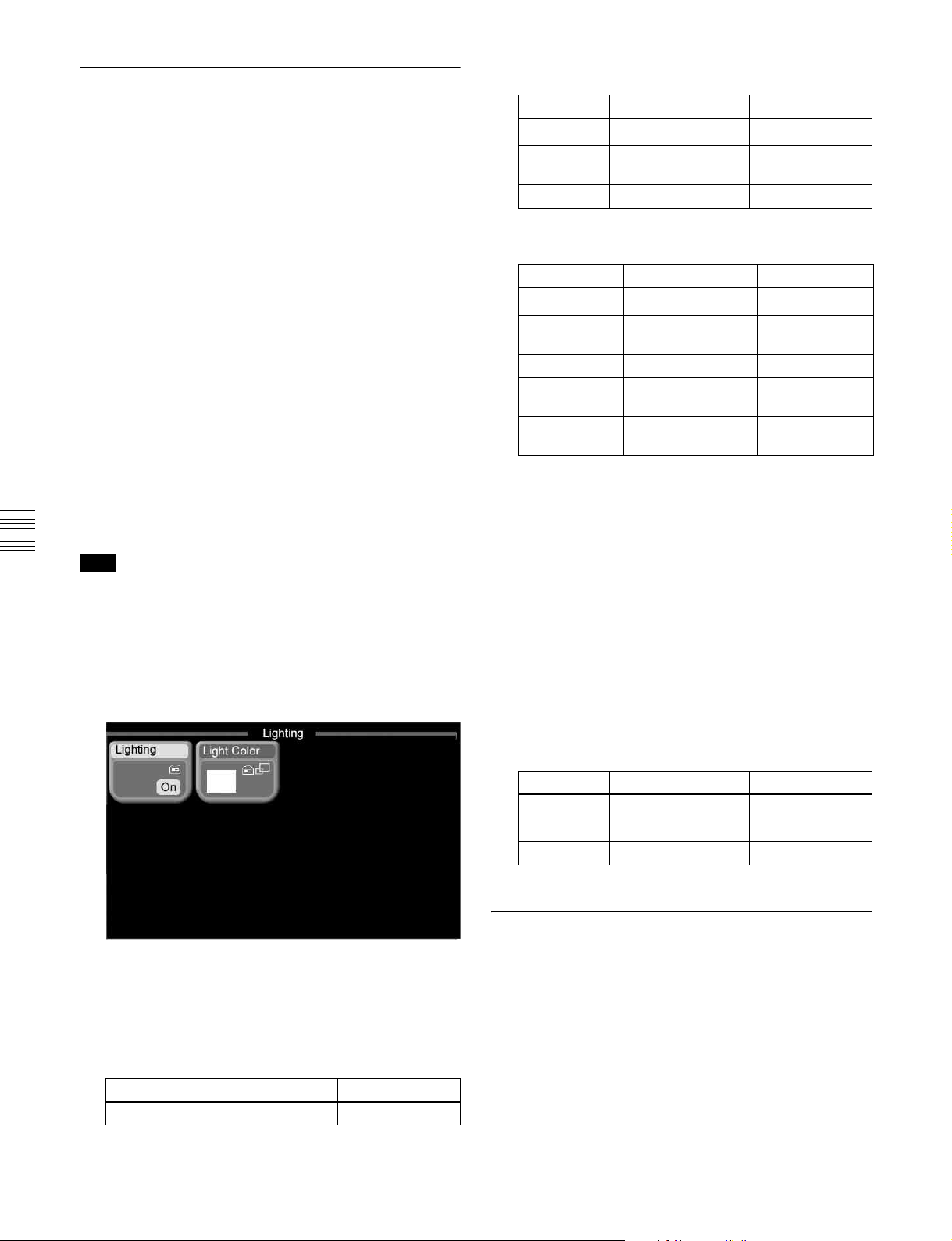

Adding Lighting ........................................100
Adding Afterimages (Trail)....................... 100
Adding Shadows Around Effects.............. 102
Composing a Video border Color From Two
Colors....................................................102
Using Pattern Specific Transformations ...103
Saving, Recalling, and Deleting Effect
Snapshots..............................................103
Advanced Key Operations .....................104
Processing Key Signals .............................104
Adjusting Key Borders..............................105
Adjusting Chroma Keys ............................106
Transforming the Pattern of a Pattern Key109
Setting Key Mask Shapes and Positions ... 109
Using the Show Key Function ..................110
Using Key Memory................................... 110
Color Correction...................................... 111
Selecting the Color Correction Signal....... 111
Output of Color Correction Results ..........111
Flow of Color Correction Operations........111
CCR Menu.................................................111
Input Video Processing .............................112
Primary Color Correction..........................113
Secondary Color Correction......................114
RGB Clip...................................................115
Luminance Processing...............................115
Spot Color Adjustment..............................117
Output Video Processing...........................118
YUV Clip ..................................................118
Frame Memory......................................... 119
Overview ...................................................119
Flow of Frame Memory Operations..........119
Preparations...............................................120
Selecting Input Signals for Frame Memory ....
120
Freezing Images and Saving Them to Memory
120
Recalling Freeze Images Saved in Frame
Memory ................................................122
Managing Image Files ...............................122
Snapshots................................................ 124
What are Snapshots? .................................124
Saving Snapshots.......................................125
Recalling Snapshots ..................................126
Deleting Snapshots ....................................126
Macros...................................................... 127
What Are Macros?.....................................127
Creating a New Macro ..............................127
Recalling a Macro Register and Executing a
Macro....................................................129
Editing a Macro .........................................131
Saving a Macro..........................................132
Deleting a Macro .......................................132
Using Macro Attachment ..........................132
Safe Title .................................................. 134
Copying.................................................... 135
Copy Operation Targets ............................135
Using Buttons to Copy Key Settings.........135
Chapter 7 File Operations
Overview .................................................. 137
Batch Operating on Data Files............... 137
Saving All Data at Once............................137
Loading All Data at Once..........................138
Deleting All Data at Once .........................138
Batch Operating on Data Files of Selected
Categories ........................................... 139
Saving the Data of Selected Categories ....139
Loading the Data of Selected Categories ..139
Deleting the Data of Selected Categories..140
Operating on Individual Data Files ........ 140
Loading Data Files ....................................140
4 Table of Contents
Saving Data Files ......................................141
Deleting Data Files....................................142
Renaming Data Files .................................142
Copying Data Files....................................143
Common Operations – Selecting the Frame
Memory Category and the Target Media ...
144
Chapter 8 External Device
Operations
Control From Editing Systems ..............145
Overview ...................................................145
Controllable Functions ..............................145
Preparations............................................... 145
Controlling External Devices .................146
Overview ...................................................146
Manual VTR/Disk Recorder/Extended VTR
Operations.............................................146
Checking VTR, Disk Recorder, and Extended
VTR Information ..................................147
Disk Recorder/Extended VTR File Operations
149
Simple Connection to MKS-8080/8082 AUX
Bus Remote Panel ..............................151
Panel Maintenance (Panel Menu)..............164
System Adjustments (System Adjust Menu)...
165
System Reset and Memory Initialization
(Initialize Menu) ...................................165
Input Signal Setup (Input/Output Menu)...166
Output Signal Setup (Input/Output Menu) 167
Utility Settings (Utility Menu) ..................170
Key Setup (Key Menu)..............................173
Settings Relating to Video Switching
(Transition Menu).................................174
Macro Execution Mode Settings (Macro
Menu)....................................................175
GPI Input/Output Setup (GPI Menu) ........176
Tally Setup (System Tally Menu) .............182
External Device Connection Port Setup
(Device Menu)......................................187
Index......................................................... 193
Chapter 9 System Settings
Basic Settings .........................................153
Format Settings (Format Menu)................ 153
Setting the Startup Mode (Startup Mode
Menu)....................................................154
Output Signal Assignment (Output Assign
Menu)....................................................155
Assigning Signals to Cross-Point Buttons
(Operation Menu) .................................156
Saving Setup (Startup Mode Menu)..........160
Installing Software ..................................161
Displaying Version Information (Version
Information Menu) ...............................161
Displaying Detail Information (Detail
Information Menu) ...............................161
Manually Installing Software (Manual Install
Menu)....................................................161
Entering an Installation Key (License Menu) .
162
Other Settings .........................................164
Setting the Date and Time (Date/Time Menu)
164
5Table of Contents
6 Table of Contents
Overview
Chapter
Introduction
This manual is the User’s Guide for the MFS-2000 Multi
Format Switcher system.
The MFS-2000 system is comprised of the MFS-2000
Multi Format Switcher Processor, the main unit, and
optional system devices such as control panels and system
boards.
In place of the official device names, this manual refers to
the devices in the system by the names shown in the
following table.
Official device name Name used in this manual
MFS-2000 Multi Format
Switcher Processor
MKS-2010 1 M/E Control
Panel
MKS-2015 1.5 M/E Control
Panel
MKS-2017 1.5 M/E Wide
Control Panel
MKS-2470 DME Board Set DME or DME option
DCU-8000 Device Control Unit
(MKS-8700)
DCU-2000 Device Control Unit
(MKS-2700)
a) The term “1.5 M/E system” refers to systems using either the 1.5 M/E
panel or the 1.5 M/E wide panel.
Switcher or processor
Control panel or 1 M/E
panel
Control panel or 1.5 M/E
a)
panel
Control panel or 1.5 M/E
wide panel
DCU or MKS-8700
DCU or MKS-2700
a)
System Features
The MFS-2000 system is a compact multi-format switcher
system supporting numerous HD and SD signal formats.
The principal features of this system are as follows.
Multi-format support
Support for the 480i/59.94 and 576i/50 formats is standard.
The optional BZS-2000M Switcher Upgrade Software can
be installed to provide support for the following formats.
• 1080i/50, 59.94
• 1080PsF/23.976, 24, 25, 29.97
• 720p/59.94
State of the art special effects
In its standard configuration, the system supports a wide
variety of effect patterns, including advanced wipes.
Installation of the optional MKS-2470 DME Board Set
makes a further array of advanced effects available, such
as flip tumble, page turn, and 2ch P in P (two-channel
picture-in-picture).
Comprehensive keying capabilities
The system is equipped with two keyers and two
downstream keyers. All keyers support chroma keying and
special key transitions, independent of background
transitions (“independent key transitions”).
Optimal for use in live broadcast
environment
Compact and lightweight
Both control panels and processor are compact and
lightweight, designed for use where space is limited. This
is the optimal system for use in small-scale outdoor
broadcast vans and editing suites.
7 Introduction / System Features
Outstanding ease of use
Buttons and other controls on the control panels are
Chapter 1 Overview
grouped in easy to understand functional blocks,
facilitating the quick decisions that must be made in a live
broadcast environment.
The menu control block features a 6.5-type color LCD
touch panel, for quick menu operation.
Options
The following options are available for the MFS-2000
system.
Selection of optimal control panel
Any of the following three control panels can be selected
for the optimal match to the intended applications and
working environment.
•MKS-2010
•MKS-2015
•MKS-2017
See page 10 for the principal differences between these
control panels.
• MKS-2010 1 M/E Control Panel
• MKS-2015 1.5 M/E Control Panel
• MKS-2017 1.5 M/E Wide Control Panel
• MKS-2110M Input/Output Connector Board
• MKS-2470 DME Board Set
• MKS-2440 Frame Memory Board Set
• MKS-2420M Color Corrector Board
• BZS-2000M Switcher Upgrade Software
• BZS-2470M DME Upgrade Software
• BZS-2440M Frame Memory Upgrade Software
• HK-PSU02 Power Supply Unit (for MFS-2000)
• HK-PSU11 Power Supply Unit (for control panels)
For more information about the above options, refer to the
MFS-2000-C Operation Manual supplied with the MFS2000 Multi Format Switcher Processor.
• MKS-2700 Device Control Unit
• MKS-8700 Device Control Unit
For more information about the above options, refer to the
DCU-2000 or DCU-8000 Operation Manual supplied
with the DCU-2000 or DCU-8000 Device Control Unit
Pack.
• MKS-2050 Editing Keyboard
• MKS-8050 Editing Keyboard
• BZS-8050 Editing Control Software
For more information about the above options, refer to the
MKS-2050/8050 Operation Manual supplied with the
MKS-2050/8050 Editing Keyboard and the BZS-8050
User’s Guide.
• MKS-8080 AUX Bus Remote Panel
• MKS-8082 AUX Bus Remote Panel
For more information about the above options, refer to the
MKS-8080/8082 Operation Guide or Operation Manual
supplied with the MKS-8080/8082 AUX Bus Remote
Panel.
Note that the MKS-8080/8082 Operation Manual is
supplied as a PDF file unlike the MKS-8080/8082
Operation Guide. For more information about the MKS8080/8082 Operation Manual, contact the Sony dealer
from whom you purchased the MKS-8080/8082.
8 Options
Names and Functions of
Control Panel Types

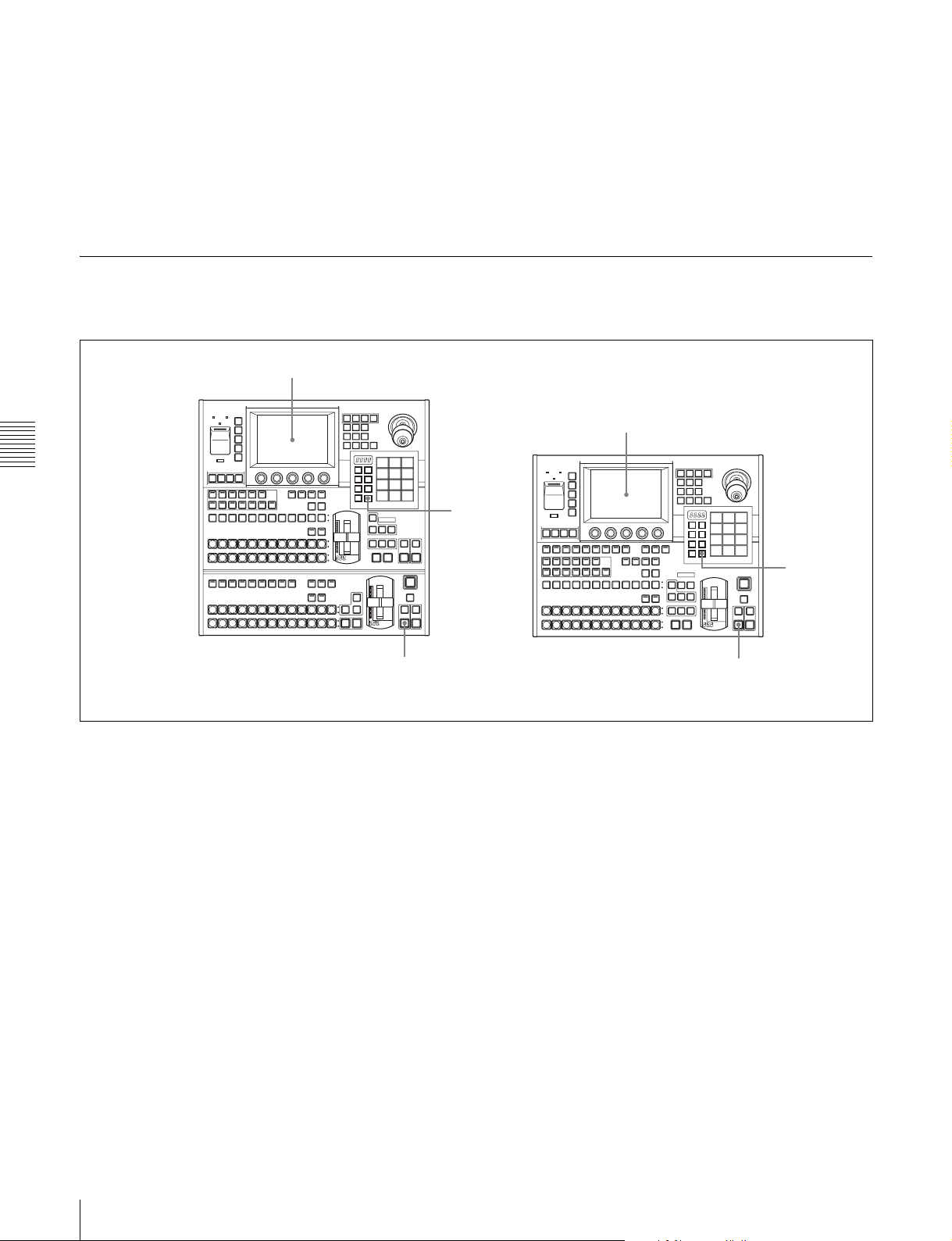

In this system, you can use any one of the three control
panels shown on the following page. This manual refers to
these control panels by the names shown in parentheses ( )
in the figure on that page.
Parts
Chapter
9Control Panel Types
MENU
A POWER
B
TOP/
SHUT
DOWN
REG
FILE
SET
UP
DIAG
Chapter 2 Names and Functions of Parts
SAFE
EDIT
GPI
TITLE
AUX DELEGATION
AUX2 AUX3 AUX4
AUX1
KEY1
KEY2 DSK1 DSK2 CCR1 CCR2
AUX
BLACK
M/E
BLACK
A
BLACK
B
DEVICE/UTILITY
DEV1 JOGDEV2 PLAY STOP
PGM/PST
BLACK
PGM
BLACK
PST
EDIT
PVW
ALL
STOP
SRC
UTIL
FRAME
MEM
START
CUE
TC
XP/KY
KEY
BUS
HOLD
M/E PGM
XPT
HOLD
MACRO
PRE
SHTL
MCRO
XPT
HOLD
EFFECT
M/E
M/E
MENUP/P
1CH
2CH
TRAIL/
BVLD
LIGHT
SHDW
EDGE
BORD SOFT CROP
N/R REV POS
CTR
7 8 9
EFF/
M/E
WIPE
5 6
4
SNAP
PP/
SHOT
ALL
1 2 3
STORE
FRAMES
TRANSITION TYPE
MCRO
BANK
TRANS
SEL
RATE
KEY
PRIOR
BKGD KEY1 KEY2
NEXT TRANSITION
MIX EFF
TRANSITION TYPE
PST
COLOR
MIX
WIPE
MIX
AUTO
CUT
TRANS
FRAMES
SHIFT
COLOR
BKGD
SHIFT
COLOR
BKGD
COLOR
BKGD
POST
ATTCH
MCRO
ENBL
SHIFT
COLOR
M/E
BKGD
COLOR
M/E
BKGD
AUTO
TRANS
10
OVER OV ER
EFF
AUTO
DISS
TRNS
PST
KEY1
KEY2
COLOR
ON
ON
MIX
AUTO
AUTO
CUT
TRANS
TRANS
KEY2
KEY1
FTB
DSK
PVW
DSK2
DSK1
ON
ON
AUTO
AUTO
TRANS
TRANS
DSK1 DSK2
A POWER
B
SAFE
EDIT
GPI
TITLE
DEVICE/UTILITY
DEV1 JOGDEV2 PLAY STOP
AUX DELEGATION
AUX2 AUX3 AUX4
AUX1
KEY1
KEY2 DSK1 DSK2 CCR1 CCR2
AUX
BLACK
M/E
BLACK
A
BLACK
B
MENU
TOP/
SHUT
DOWN
REG
FILE
SET
UP
DIAG
START
ALL
CUE
TC
STOP
EDIT
UTIL
PVW
FRAME
MEM
MACRO
PRE
SHTL
MCRO
SRC
XP/KY
KEY
BUS
HOLD
M/E PGM
XPT
HOLD
EFFECT
M/E
M/E
MENU
1CH
2CH
TRAIL/
BVLD
LIGHT
SHDW
EDGE
BORD SOFT CROP
N/R REV POS
CTR
7 8 9
EFF
M/E
ALL
ATTCH
ENBL
KEY
PRIOR
BKGD KEY1 KEY2
NEXT TRANSITION
MIX EFF
TRANSITION TYPE
AUTO
TRANS
OVER OV ER
KEY1
ON
STORE
BANK
SEL
KEY2
ON
PST
COLOR
MIX
CUT
POST
MCRO
SHIFT
COLOR
BKGD
SHIFT
COLOR
BKGD
COLOR
BKGD
SNAP
SHOT
MCRO
TRANS
RATE
FRAMES
5 6
4
1 2 3
AUTO
10
TRNS
EFF
DISS
FTB
DSK
PVW
DSK1
ON
AUTO
TRANS
DSK1 DSK2
DSK2
ON
AUTO
TRANS
MKS-2015 Control Panel (1.5 M/E panel) MKS-2010 Control Panel (1 M/E panel)
MENU
APOWER
B
TOP/
SHUT
DOWN
REG
FILE
SET
UP
DIAG
SAFE
EDIT GPI
TITLE
AUX
BLACK
M/E
BLACK
A
BLACK
B
PGM/PST
BLACK
PGM
BLACK
PST
AUX DELEGATION
AUX1
KEY1
DEVICE/UTILITY
DEV1 JOGDEV2 PLAY STOP
EDIT
AUX2 AUX3 AUX4
PVW
KEY2 DSK1 DSK2 CCR1 CCR2
ALL
STOP
MKS-2017 Wide Control Panel (1.5 M/E wide panel)
Principal differences
The principal differences between the three control panels
are as follows.
Control panel PGM/PST cross-
point control
block, PGM/PST
transition control
block
1 M/E panel No 12 per row
1.5 M/E panel Yes
1.5 M/E wide
Ye s
panel
Number of crosspoint buttons
12 per row
20 per row
a)
a)
EFFECT
M/E
M/E
MENUP/P
1CH
2CH
TRAIL/
BVLD
LIGHT
SHDW
EDGE
BORD SOFT CROP
N/R REV POS
CTR
7 8 9
EFF
M/E
/WIPE
5 6
4
SNAP
PP/
SHOT
ALL
1 2 3
STORE
FRAMES
TRANSITION TYPE
MCRO
BANK
TRANS
SEL
RATE
KEY
PRIOR
BKGD KEY1 KEY2
NEXT TRANSITION
MIX EFF
PST
COLOR
MIX
WIPE
MIX
AUTO
CUT
TRANS
FRAMES
10
OVER OV ER
TRANSITION TYPE
AUTO
TRANS
EFF
AUTO
DISS
TRNS
PST
KEY1
KEY2
COLOR
ON
ON
MIX
AUTO
AUTO
CUT
TRANS
TRANS
KEY1
KEY2
FTB
DSK
PVW
DSK2
DSK1
ON
ON
AUTO
AUTO
TRANS
TRANS
DSK1 DSK2
SRC
UTIL
FRAME
MEM
START
CUE
TC
XP/KY
KEY
SHIFT
BUS
HOLD
M/E PGM
COLOR
BKGD
XPT
SHIFT
HOLD
COLOR
BKGD
COLOR
BKGD
MACRO
PRE
POST
SHTL
ATTCH
MCRO
MCRO
ENBL
XPT
SHIFT
HOLD
COLOR
M/E
BKGD
COLOR
M/E
BKGD
b) The 1.5 M/E panel and the 1.5 M/E wide panel differ in the number of
cross-point buttons. They are identical in all other respects.
Operation button positions
The positions of some operation buttons on the 1 M/E
panel are different from the positions of the buttons with
the same functions on the 1.5 M/E panel and 1.5 M/E wide
panel. This manual explains how to operate using the 1.5
M/E panel, but figures are also provided for the 1 M/E
panel when the buttons employed are in different
positions.
10 Control Panel Types
Control Panel Configuration
1.5 M/E panel and 1.5 M/E wide panel
The sole difference between these control panels is the
number of cross-point buttons per row. Most of the
illustrations in this manual show the configuration of the
1.5 M/E panel.
Power Indicators, “Memory Stick” Slot, USB Connector (page 23)
Menu Control Block (page 23)
Utility Control Block (page 22)
See the pages in parentheses ( ) for the functions of the
illustrated parts.
Flexi Pad Control Block (page 19)
Effect/Wipe Control Block (page 20)
Chapter 2 Names and Functions of Parts
Macro Control Block (page 23)
M/E Cross-Point Control Block (page 12)
AUX Bus Control Block (page 15)
MENU
A POWER
B
TOP/
SHUT
DOWN
REG
FILE
SET
UP
DIAG
SAFE
EDIT
GPI
TITLE
AUX DELEGATION
AUX2 AUX3 AUX4
AUX1
KEY1
KEY2 DSK1 DSK2 CCR1 CCR2
AUX
BLACK
M/E
BLACK
A
BLACK
B
DEVICE/UTILITY
DEV1 JOGDEV2 PLAY STOP
PGM/PST
BLACK
PGM
BLACK
PST
EDIT
UTIL
PVW
ALL
CUE
STOP
SRC
XP/KY
KEY
HOLD
M/E PGM
XPT
HOLD
MACRO
PRE
MCRO
XPT
HOLD
COLOR
COLOR
BKGD
COLOR
BKGD
MCRO
COLOR
BKGD
COLOR
BKGD
SHIFT
BKGD
SHIFT
FRAMES
POST
ATTCH
ENBL
SHIFT
M/E
TRANSITION TYPE
M/E
TRANS
BUS
FRAME
MEM
START
SHTL
TC
PGM/PST Cross-Point Control Block (page 14)
PGM/PST Transition Control Block (page 17)
EFFECT
M/E
M/E
1CH
2CH
BVLD
LIGHT
EDGE
BORD SOFT CROP
N/R REV POS
M/E
PP/
ALL
STORE
BANK
SEL
PST
COLOR
MIX
WIPE
MIX
AUTO
CUT
MENUP/P
TRAIL/
SHDW
CTR
7 8 9
EFF/
WIPE
SNAP
SHOT
MCRO
TRANS
RATE
4
1 2 3
10
KEY
PRIOR
OVER OVER
BKGD KEY1 KEY2
NEXT TRANSITION
MIX EFF
TRANSITION TYPE
AUTO
TRANS
FRAMES
5 6
EFF
AUTO
DISS
TRNS
PST
KEY1
KEY2
COLOR
ON
ON
MIX
AUTO
TRANS
KEY1
FTB
DSK
PVW
DSK1
ON
AUTO
TRANS
DSK1 DSK2
AUTO
TRANS
KEY2
DSK2
ON
AUTO
TRANS
CUT
Downstream Key/Fade to
Black Control Block (page 18)
M/E Key Transition Control Block (page 18)
M/E Transition Control Block (page 16)
11Control Panel Configuration
1 M/E panel
See the pages in parentheses ( ) for the functions of the
illustrated parts.
Chapter 2 Names and Functions of Parts
Power Indicators, “Memory Stick” Slot, USB Connector (page 23)
Menu Control Block (page 23)
Flexi Pad Control Block (page 19)
Effect/Wipe Control Block (page 20)
MCRO
COLOR
COLOR
BKGD
COLOR
BKGD
POST
SHIFT
BKGD
SHIFT
ATTCH
ENBL
KEY
PRIOR
BKGD KEY1 KEY2
NEXT TRANSITION
MIX EFF
TRANSITION TYPE
EFFECT
M/E
1CH
BVLD
EDGE
BORD SOFT CROP
N/R REV POS
OVER OVER
KEY1
ON
AUTO
TRANS
M/E
MENU
2CH
TRAIL/
LIGHT
SHDW
CTR
7 8 9
EFF
M/E
4 5 6
SNAP
ALL
SHOT
STORE
1 2 3
MCRO
BANK
TRANS
SEL
RATE
EFF
AUTO
10
DISS
TRNS
Macro Control
Block (page 23)
KEY2
ON
PST
COLOR
MIX
CUT
FRAMES
FTB
DSK
PVW
DSK1
ON
AUTO
TRANS
DSK1 DSK2
DSK2
ON
AUTO
TRANS
A POWER
B
SAFE
EDIT
GPI
TITLE
DEVICE/UTILITY
DEV1 JOGDEV2 PLAY STOP
AUX DELEGATION
AUX2 AUX3 AUX4
AUX1
KEY1
KEY2 DSK1 DSK2 CCR1 CCR2
AUX
BLACK
M/E
BLACK
A
BLACK
B
MENU
TOP/
SHUT
DOWN
REG
FILE
SET
UP
DIAG
ALL
START
CUE
STOP
EDIT
PVW
SHTL
TC
UTIL
FRAME
MEM
MACRO
PRE
MCRO
SRC
XP/KY
KEY
BUS
HOLD
M/E PGM
XPT
HOLD
M/E Cross-Point Control Block (page 12)
M/E Transition Control Block (page 16)
AUX Bus Control Block (page 15)
Utility Control Block (page 22)
M/E Cross-Point Control Block
Use the M/E (mix/effect) cross-point control block to
select the video signals to be used as the video background.
Downstream Key/Fade to Black Control Block (page 18)
12 Control Panel Configuration
Background A row
1 Cross-point button rows
2 XPT HOLD button
3 SHIFT button
M/E
BLACK
A
BLACK
B
Background B row
a Cross-point button rows
Select background video by pressing the corresponding
button.
The buttons in the background A row select the
background video which is output before the start of a
transition (A bus video). Pressing a button selects the
signal assigned to that button (input signals to the IN1 to
IN16 connectors
1)
of the processor, or signals which the
processor generates internally). The button lights in red
(high tally) if the selected signal is being output to the
program video (final output video). Otherwise it lights in
amber (low tally).
1) The MKS-2110M Input/Output Connector Board must be installed to use
the IN9 to IN16 connectors.
The buttons in the background B row select the
background video which is output after a transition (B bus
video). The button lights in red (high tally) if the selected
signal is being output to the program video. It lights in
amber (low tally) if the selected signal is not being output
to the program video.
In addition to the operating mode described above (flipflop mode), you can also select bus fixed mode. In bus
fixed mode, the signal selected on the background A row
is always output when the fader lever is at the top, and the
signal selected on the background B row is always output
when the fader lever is at the bottom.
XPT
SHIFT
HOLD
COLOR
BKGD
COLOR
BKGD
4 Tally indicators
selects the same signal as the fifth button from left in the B
row.
You can use the Xpt Assign menu to freely change the
assignment of signals to cross-point buttons.
For details, see “Assigning Signals to Cross-Point Buttons
(Operation Menu)” (page 156).
Cross-point button numbers
On the 1 M/E panel and the 1.5 M/E panel, there are 12
cross-point buttons in each row. On the 1.5 M/E wide
panel, there are 20 cross-point buttons in each row. These
buttons are numbered 1 to 12 or 1 to 20 from the left side
of the panel. Pressing the [SHIFT] button 3 to turn the
shift function on makes more cross-point button numbers
available: numbers 13 to 24, or 21 to 40. This manual
refers to the buttons available when the shift function is on
as “shift side buttons,” and to the buttons available when
the shift function is off as “non-shift side buttons.”
See page 156 for more information about cross-point
button numbers.
b XPT (cross-point) HOLD button
By pressing this button to turn it on (it lights in amber), you
can recall a snapshot while retaining the current crosspoint button selection state. (The cross-point selection
information in the snapshot is ignored.)
Chapter 2 Names and Functions of Parts
For more information about bus fixed mode, see “Setting
the Bus Toggle On or Off” (page 174).
The buttons in the A row and the B row select the same
signals. For example, the fifth button from left in the A row
c SHIFT button
Press this button, turning it on, to use the cross-point
buttons as shift side buttons. Press it again, turning it off,
to use the cross-point buttons as non-shift side buttons.
13Control Panel Configuration
Note
This button does not light and does not function when you
are using the rightmost buttons in the cross-point button
rows (the 12th or 20th buttons) as [SHIFT] button.
For more information about operations to use the
rightmost buttons as [SHIFT] buttons, see “To use the
rightmost buttons in cross-point button rows as [SHIFT]
buttons (shift mode selection)” (page 158).
d Tally indicators
Currently not used.
Chapter 2 Names and Functions of Parts
PGM/PST Cross-Point Control Block
Use the PGM/PST (program/preset) cross-point control
block to select the video signals to be used as the
background in program video (final output video).
1 Cross-point button rows
PGM row
PGM/PST
BLACK
PGM
BLACK
PST
PST row
This control block is found only on the 1.5 M/E and 1.5 M/
E wide panels.
2 XPT HOLD button
3 SHIFT button
XPT
SHIFT
HOLD
COLOR
M/E
BKGD
COLOR
M/E
BKGD
M/E buttons
4 Tally indicator
a Cross-point button rows
The buttons in the PGM (program) row select the
background video which is output before the start of a
transition. The buttons in the PST (preset) row select the
background video after the end of a transition.
The signals selectable with the cross-point buttons are the
same as the signals selectable with the corresponding
buttons in the M/E cross-point control block (see page 12).
The meaning of the colors in which buttons light and
button numbers are also the same. The [M/E] buttons at the
right edge of each cross-point button row are reentry
buttons. They allow you to import video created in the M/
E block and use it as background video in the PGM/PST
block.
b XPT (cross-point) HOLD button
By pressing this button to turn it on (it lights in amber), you
can recall a snapshot while retaining the current crosspoint button selection state. (The cross-point selection
information in the snapshot is ignored.)
14 Control Panel Configuration
c SHIFT button
Press this button, turning it on, to use the cross-point
buttons as shift side buttons. Press it again, turning it off,
to use the cross-point buttons as non-shift side buttons
Note
This button does not light and does not function when you
are using the rightmost buttons in the cross-point button
rows (the 12th or 20th buttons) as [SHIFT] button.
For more information about operations to use the
rightmost buttons as [SHIFT] buttons, see “To use the
rightmost buttons in cross-point button rows as [SHIFT]
buttons (shift mode selection)” (page 158).
d Tally indicator
Currently not used.
AUX Bus Control Block
Use this block to select key signals and to select the signals
to which a variety of functions are applied.
1 AUX delegation buttons
AUX DELEGATION
EDIT
AUX2 AUX3 AUX4
AUX1
PVW
UTIL
2 SRC BUS button
3 KEY button
4 XP/KY HOLD button
SRC
BUS
KEY
XP/KY
HOLD
Chapter 2 Names and Functions of Parts
5 SHIFT button
SHIFT
KEY1
KEY2 DSK1 DSK2 CCR1 CCR2
AUX
BLACK
6 Cross-point button row
a AUX delegation buttons
By pressing one of the following buttons, lighting it, you
select the bus to which the cross-point button row 6 is
assigned. Signals selected in the cross-point button row are
output to the bus selected here.
The buses selectable by the various buttons are as follows.
AUX1 to 4: AUX1 to AUX4 buses
EDIT PVW: EDIT PVW (edit preview) bus
UTIL: Utility bus
KEY1: Key1 bus or Key1 Source bus. (The state of the
[SRC BUS] button 2 determines which of the two
buses is selected.)
KEY2: Key2 bus or Key2 Source bus. (The state of the
[SRC BUS] button 2 determines which of the two
buses is selected.)
DSK1: DSK1 (downstream key 1) bus or DSK1 Source
(downstream key 1 source) bus. (The state of the
[SRC BUS] button 2 determines which of the two
buses is selected.)
DSK2: DSK2 (downstream key 2) bus or DSK2 Source
(downstream key 2 source) bus. (The state of the
[SRC BUS] button 2 determines which of the two
buses is selected.)
CCR1 and CCR2: CCR1 (color correction 1) or CCR2
bus
FRAME MEM: Frame Memory Video bus, or Frame
Memory Key bus. (The state of the [SRC BUS] button
2 determines which of the two buses is selected.)
FRAME
MEM
M/E PGM
COLOR
BKGD
Buttons which target two buses ([KEY1], [KEY2],
[DSK1], [DSK2], and [FRAME MEM]) light in red if
signals on either of the buses are being output to program
video.
b SRC (source) BUS button
When an AUX delegation button which targets two buses
([KEY1], [KEY2], [DSK1], [DSK2], and [FRAME
MEM]) is turned on, the bus which is actually selected is
determined by whether this button is on (lit) or off (not lit).
AUX delegation
button
KEY1 Key1 bus Key1 Source bus
KEY2 Key2 bus Key2 Source bus
DSK1 DSK1 bus DSK1 Source bus
DSK2 DSK2 bus DSK2 Source bus
FRAME MEM Frame Memory
SRC BUS button
off
Video bus
SRC BUS button
on
Frame Memory
Key bus
c KEY button
In the following cases, you can select the key signal in the
cross-point button row by pressing this button to turn it on.
• When the AUX delegation button [AUX1], [AUX2],
[AUX3] or [AUX4] is lit.
• When the AUX delegation button [KEY1], [KEY2],
[DSK1], [DSK2], or [FRAME MEM] is lit with the
[SRS BUS] button being on.
The button lights in red (high tally) if signals on the
selected bus are being output to the program video (final
output video). Otherwise it lights in amber (low tally).
d XP/KY (cross-point/key) HOLD button
By pressing this button to turn it on (it lights in amber), you
can recall a snapshot while retaining the current crosspoint selection state (cross-point hold), for buses other
15Control Panel Configuration
than key buses. For key buses, you can select any of the
following three options as the operating mode when a
snapshot is recalled with this button on.
• Cross-point hold (retain the current cross-point selection
state)
• Key disable (retain the current key settings)
• Key disable, plus retention of the current key on/off
Chapter 2 Names and Functions of Parts
states
See “Setting the key bus cross-point hold mode” (page
173) for more information about how to set the operating
mode.
f Cross-point button row
These buttons select the signals to be output to the bus
selected with the AUX delegation buttons.
The signals which can be selected with each cross-point
button are the same as the signals selected by the
corresponding buttons in the M/E cross-point control
block (see page 12). Button numbers and the meaning of
the colors in which the buttons light are the same as those
of the buttons in the M/E cross-point control block.
However, the cross-point button row in the AUX bus
control block contains an [M/E] button and a [PGM]
button, which are not present in the M/E cross-point button
rows. The [M/E] button selects the M/E program video,
e SHIFT button
Press this button, turning it on, to use the cross-point
and the [PGM] button selects the program video (final
output video).
buttons as shift side buttons. Press this button again,
turning it off, to use the cross-point buttons as non-shift
side buttons.
M/E Transition Control Block
Use this block to control transitions in M/E (mix/effect)
program video.
1 Transition execution section
2 Next transition selection buttons
KEY
PRIOR
BKGD KEY1 KEY2
NEXT TRANSITION
MIX EFF
TRANSITION TYPE
FRAMES
M/E transition control
block on 1.5 M/E panel
and 1.5 M/E wide panel
3 OVER indicators
OVER OVER
COLOR
AUTO
CUT
TRANS
PST
MIX
4 Transition type
selection buttons
KEY
PRIOR
BKGD KEY1 KEY2
NEXT TRANSITION
MIX EFF
TRANSITION TYPE
4 Transition type
selection buttons
2 Next transition
selection buttons
3 OVER indicators
5 KEY1 ON and KEY2
ON buttons
OVER OVER
KEY2
KEY1
ON
ON
PST
COLOR
MIX
AUTO
CUT
TRANS
1 Transition execution
M/E transition control
block on 1 M/E panel
FRAMES
section
16 Control Panel Configuration
a Transition execution section
(This figure shows the transition execution section on the
1.5 M/E and 1.5 M/E wide panels.)
Transition indicator
Fader lever
AUTO
CUT
TRANS
FRAMES
Transition rate display section
Fader lever: Move the lever up and down to execute the
transition.
Transition indicator: Displays the progress of the
transition with 24 LEDs. The number of lit LEDs
increases as the transition proceeds.
Transition rate display section: Displays the specified
transition rate (the time from the start to the end of the
transition, in units of frames).
c OVER indicators
When key 1 and key 2 are inserted, the OVER indicator for
the key on top lights.
d Transition type selection buttons
To select the type of transition, press one of the following
buttons, turning it on.
MIX: In a background transition, the new video overlaps
the current video, finally replacing it. During the
transition, the sum of the output levels of the A bus and
the B bus is maintained at 100%.
In a key transition, the key fades in (for insertion) or
out (for removal).
EFF (effect): A transition using the selected effect pattern
is executed.
See “Selecting Effects” (page 56) for more
information about how to select effects.
PST (preset) COLOR MIX : This is a two-stage mix
(dissolve), comprising two transitions. In the first
transition, a color matte is gradually mixed into the
current video. In the second transition, the new video
is gradually mixed into the color matte.
You can perform both of these operations in a single
transition.
For details, see “Setting a Preset Color Mix” (page
175).
Chapter 2 Names and Functions of Parts
See “Setting Transition Rates” (page 69) for more
information about how to specify transition rates.
AUTO TRANS (transition) button: Press to execute a
transition automatically at the specified transition rate.
The transition begins immediately, and the button
lights in amber. The button goes out when the
transition finishes.
CUT button: Press to execute an instant transition.
b Next transition selection buttons
To specify which part of the video to switch (change) in
the next transition, press one of the following buttons,
turning it on.
BKGD (background): Switches the background video in
the next transition.
KEY1, KEY2: Press the [KEY1] button, turning it on, to
insert key 1 into the background in the next transition,
or to delete it from the background. If key 1 is not
currently inserted, the transition inserts it. If key 1 is
currently inserted, the transition deletes it. The
[KEY2] button works in the same way.
KEY PRIOR (priority): When key 1 and key 2 are
inserted in an overlapping state, the key on top appears
in front on the monitor. By pressing this button,
turning it on, you can reverse the priority of the two
keys in the next transition.
e KEY1 ON and KEY2 ON buttons
Press the corresponding button to instantly insert or delete
key 1 or key 2. The [KEY1 ON] button lights in red when
key 1 is inserted into the program video (final output
video). Otherwise it lights in amber. The [KEY2 ON]
button works in the same way.
PGM/PST Transition Control Block
Use this block to control program transitions.
This control block is provided only on the 1.5 M/E and 1.5
M/E wide panels.
17Control Panel Configuration
1 Transition execution section
panel, where they are located in the M/E transition control
block (see page 16).
KEY1
Chapter 2 Names and Functions of Parts
PST
COLOR
MIX
WIPE
MIX
TRANSITION TYPE
AUTO
CUT
TRANS
FRAMES
AUTO
TRANS
KEY1 KEY2
a KEY1 ON and KEY2 ON buttons
Press the corresponding button to instantly insert or delete
ON
KEY2
ON
AUTO
TRANS
1 KEY1 ON and KEY2 ON buttons
2 AUTO TRANS buttons
key 1 or key 2. The [KEY1 ON] button lights in red when
2 Transition type selection buttons
key 1 is inserted into the program video (final output
video). Otherwise it lights in amber. The [KEY2 ON]
button works in the same way.
a Transition execution section
This works in the same way as the transition execution
section in the M/E transition control block (see page 16).
b AUTO TRANS (transition) buttons
Press the corresponding button to insert or delete key 1 or
key 2 at the specified transition rate. The key fades in
(insert) or fades out (delete). The transition begins as soon
b Transition type selection buttons
To select the type of transition, press one of the following
as the button is pressed, and the button lights in amber. The
button goes out when the transition finishes.
buttons, turning it on.
MIX: In a background transition, the new video overlaps
the current video, finally replacing it. During the
See “Setting Transition Rates” (page 69) for more
information about how to specify transition rates.
transition, the sum of the output levels of the PGM bus
and the PST bus is maintained at 100%.
WIPE: A transition using the selected wipe pattern is
executed, so that the new video wipes away the current
Downstream Key/Fade to Black
Control Block
video.
Use this block to insert and delete downstream keys, and
On how to select a wipe pattern, see “Selecting
to fade to black.
Effects” (page 56).
PST (preset) COLOR MIX: In the first transition, a color
matte is gradually mixed into the current video. In the
second transition, the new video is gradually mixed
into the color matte.
You can perform both of these operations in a single
transition.
For details, see “Setting a Preset Color Mix” (page
175).
M/E Key Transition Control Block
Use this block to insert and delete keys in independent M/
E background video transitions. The transitions are
independent of the transitions performed with the M/E
transition control block (see page 16).
This control block is provided only on the 1.5 M/E and 1.5
M/E wide panels. However, of the four buttons, the [KEY1
ON] and [KEY2 ON] buttons are also found on the 1 M/E
18 Control Panel Configuration
FTB
DSK
PVW
ON
DSK2
ON
AUTO
TRANS
DSK1
AUTO
TRANS
DSK1 DSK2
1 FTB button
2 DSK PVW button
3 DSK independent transition
execution section
a FTB (fade to black) button
Press this button to execute a fade to black at the specified
transition rate. The button lights in amber when pressed. It
lights in red when the fade to black is completed, for as
long as black is output.
See “Setting Transition Rates” (page 69) for more
information about how to specify transition rates.
See “Setting Transition Rates” (page 69) for more
information about how to specify transition rates.
b DSK PVW (downstream key preview) button
You can press this button, turning it on, to temporarily
switch M/E PVW output (1 M/E panel) or PST output (1.5
M/E panel) to DSK PVW output.
Note
Whether or not this switching function is available
depends on a setting made in the Output Assign menu. For
details, see “Switching M/E PVW or PST output to DSK
PVW output” (page 156).
c DSK independent transition execution section
DSK1 ON, DSK2 ON buttons: Press the [DSK1 ON]
button to cut downstream key 1 in or out (insert or
delete it instantly). The button lights in red when the
key is inserted in program video (final output video).
Otherwise it lights in amber. The [DSK2 ON] button
works in the same way.
AUTO TRANS buttons: Press the corresponding button
to insert or delete downstream key 1 or 2 at the
specified transition rate. The key is mixed to fade in
(insert) or out (delete). The transition begins as soon as
the button is pressed, and the button lights in amber.
When the transition finishes, the button goes out.

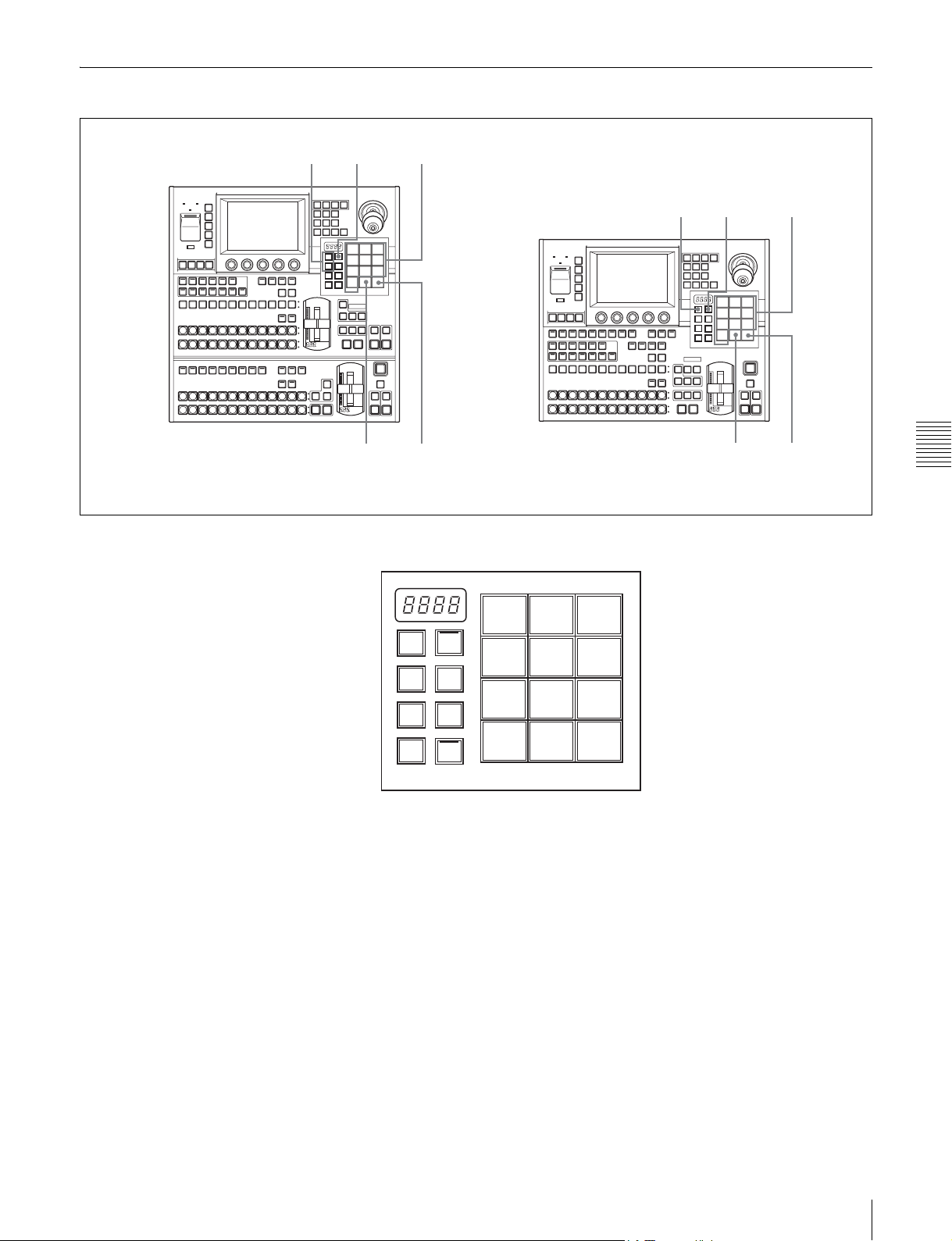

Flexi Pad Control Block
Use the Flexi Pad control block in the following four
operation modes.
• Effect snapshot mode
• Snapshot mode
• Macro mode
• Transition rate input mode
Depending on the operation mode, this control block
allows you to do the following.
In effect snaphot mode:
• Recall, save, and delete effect snapshots
• Recall effect pattern numbers
In snaphot mode:
• Recall, save, and delete snapshots
• Set snapshot attributes
In macro mode:
Recall (execute), save, delete, and edit macros

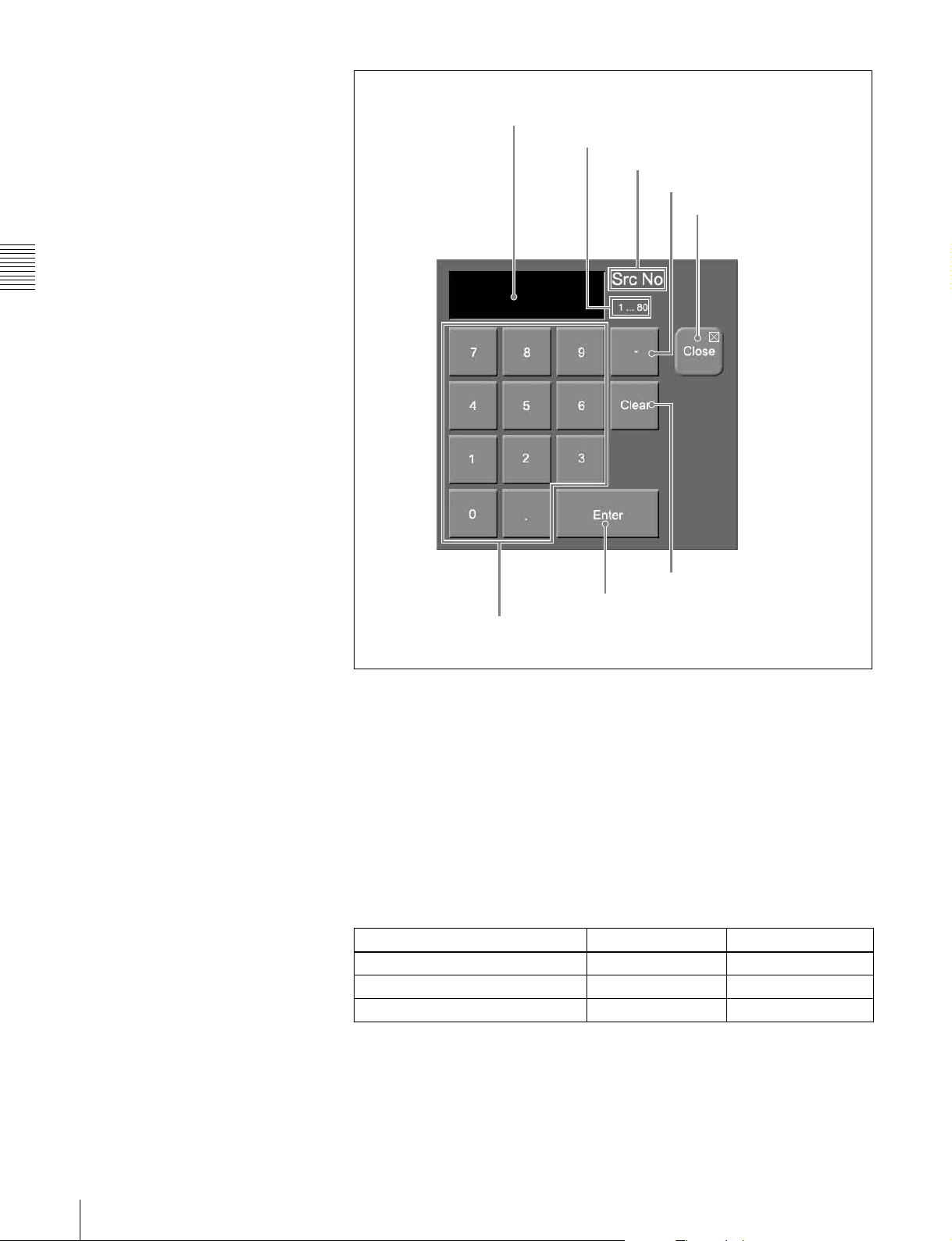

In transition rate input mode:
Enter transition rates
Chapter 2 Names and Functions of Parts
1 Numeric display
M/E
2 Region selection buttons
3 STORE button
4 BANK SEL button
This figure shows the Flexi Pad control block
in transition rate input mode.
PP/
ALL
STORE
BANK
SEL
a Numeric display
Depending on the operation mode, this shows an effect
pattern number, a bank number, a register number, an
event number, an event total, a pause duration, or a
transition rate, in up to four digits.
In effect snapshot mode: Pattern number
In snapshot mode: Bank number and register number
7 8 9
EFF/
WIPE
SNAP
SHOT
MCRO
TRANS
RATE
5 Mode selection buttons
4 5 6
1 2 3
0
6 Memory recall buttons
In transition rate input mode: Transition rate
Macro mode
• In macro recall mode: A bank number and register
number
• In macro edit mode: An event number and an event
total
• In pause duration entry mode: A pause duration
ENTRTC
19Control Panel Configuration
b Region selection buttons
Used in modes other than macro mode.
Select the target function block of the operation. The
button which is on lights in amber.
M/E button: Selects the M/E region.
PP/ALL (PGM/PST/all) button (on 1.5 M/E panel): In
snapshot mode, selects all regions. In transition rate
Chapter 2 Names and Functions of Parts
input mode and effect snapshot mode, selects the
PGM/PST region.
ALL button (on 1 M/E panel): In snapshot mode, selects
all regions. Has no effect in transition rate input mode
and effect snapshot mode.
c STORE button
Used in modes other than transition rate input mode.
This button lights in amber when on, to indicate that you
can save the current snapshot or effect snapshot, enter
macro edit mode, or delete a saved snapshot, effect
snapshot, or macro.
d BANK SEL (selection) button
Used in snapshot mode or macro mode. Has no effect in
other modes.
This button lights in amber when on, to indicate that you
can use the memory recall buttons to specify a snapshot or
macro register bank.
e Mode selection buttons
Select the operation mode of the Flexi Pad control block.
The button currently turned on lights in amber.
EFF/WIPE (effect shapshot): Selects effect snapshot
mode. You can also use this button when selecting
effect patterns.
SNAPSHOT: Selects snapshot mode.
MCRO (macro): Selects macro mode. Lights in amber in
macro recall mode, and lights in red in macro edit
mode.
TRANS RATE: Selects transition rate input mode.
f Memory recall buttons
The configuration of the memory recall buttons changes
according to the operation mode selected with the mode
selection buttons.
In effect snapshot mode: Comprised of the [0] to [9]
buttons, a [PTN NO. (pattern number)] button, and an
[ENTR (enter)] button.
The state and functions of the [0] to [9] buttons and the
[ENTR] button change depending on the state of the
[PTN NO.] button and the [STORE] button.
For details, see “Selecting Effects With the Flexi Pad
Control Block” (page 57).
In snapshot mode: Comprised of the [0] to [9] buttons, an
[EFF DISS (effect dissolve)] button, and an [AUTO
TRNS (transition)] button. The state and functions of
these buttons change depending on the state of the
[BANK SEL] button and the [STORE] button.
For details, see “Saving Snapshots” (page 125).
In macro mode
• In macro recall mode: Comprised of the [0] to [9]
buttons, an [Executed events/Total Events] button,
and a [TAKE] button. The state and functions of the
buttons change depending on the states of the
[BANK SEL] and [STORE] buttons.
• In macro edit mode: Comprised of the [INS (insert)]
button, [MOD (modify)] button, [DEL (delete)]
button, [PAUS (pause)] button, [ALL (select all)]
button, [EXIT] button, [AUTO INS (auto insert)]
button, [STOR/Register Number (Store/register
number)] button, [<< PREV (goto previous event)]
button, and [NEXT >> (goto next event)] button.
• In pause time entry mode: Comprised of the [0] to
[9] buttons, a [CLR (clear)] button, and a [PAUS/
ENTR (pause/enter)] button.
For details, see “Macros” (page 127).
In transition rate input mode: Comprised of the [0] to [9]
buttons, and an [ENTR (enter)] button.
For details, see “Setting Transition Rates” (page 69).
Effect/Wipe Control Block
Use this block to set the direction of effects and wipes. You
can also add modifiers as required.
20 Control Panel Configuration
EFFECT
M/E
1CH
BVLD
EDGE
1 Delegation selection buttons
M/E
2CH
LIGHT
TRAIL/
SHDW
MENUP/P
Chapter 2 Names and Functions of Parts
BORD SOFT CROP
N/R REV POS
3 Effect modifier buttons
CTR
a Delegation selection buttons
Select operation targets.
M/E 1CH (M/E1 channel), M/E 2CH (M/E2 channel)
buttons: Select M/E1 channel or M/E2 channel or
both as the operation target(s).
P/P (PGM/PST) button (on 1.5 M/E panels only):
Selects PGM/PST as the operation target.
MENU button: When this button is on, you can use the
joystick to adjust the lefttmost three parameters
assigned to the knobs in the menu control block.
Notes
• The [M/E 2CH] button does not light and cannot be
selected for effect patterns with numbers lower than
2000.
• When the [SHTL] button or [JOG] button in the utility
control block is on, turning a delegation selection button
on turns the [SHTL] button or [JOG] button off. (The
button pressed later receives priority).
2 Joystick
When the [MENU] button is on, you can use this to adjust
parameters. Operation of the joystick is linked with
operation of the knobs in the menu control block.
Parameter assigned to knob 1: The value increases when
the joystick is moved to the right, and decreases when
the joystick is moved to the left.
Parameter assigned to knob 2: The value increases when
the joystick is moved away from you, and decreases
when the joystick is moved toward you.
Parameter assigned to knob 3: The value increases when
the knob of the joystick is rotated clockwise, and
decreases when it is rotated counterclockwise.
The adjustment range depends on the parameter.
When the [SHTL] button or [JOG] button in the utility
control block is on, the joystick can be used to control jog
and shuttle mode search on devices.
Move the joystick to the right for forward direction search,
and left for reverse direction search.
b Joystick
When one of the [M/E 1CH], [M/E 2CH], and [P/P]
buttons is on, you can use the joystick to adjust the position
of the currently selected effect pattern. For some effect
patterns, the joystick can be used to change their size.
X-axis position: The X value increases when the joystick
is moved to the right, and decreases when the joystick
is moved to the left.
Y-axis position: The Y value increases when the joystick
is moved away from you, and decreases when the
joystick is moved toward you.
Size: The value increases when the knob of the joystick is
rotated clockwise, and decreases when it is rotated
counterclockwise.
c Effect modifier buttons

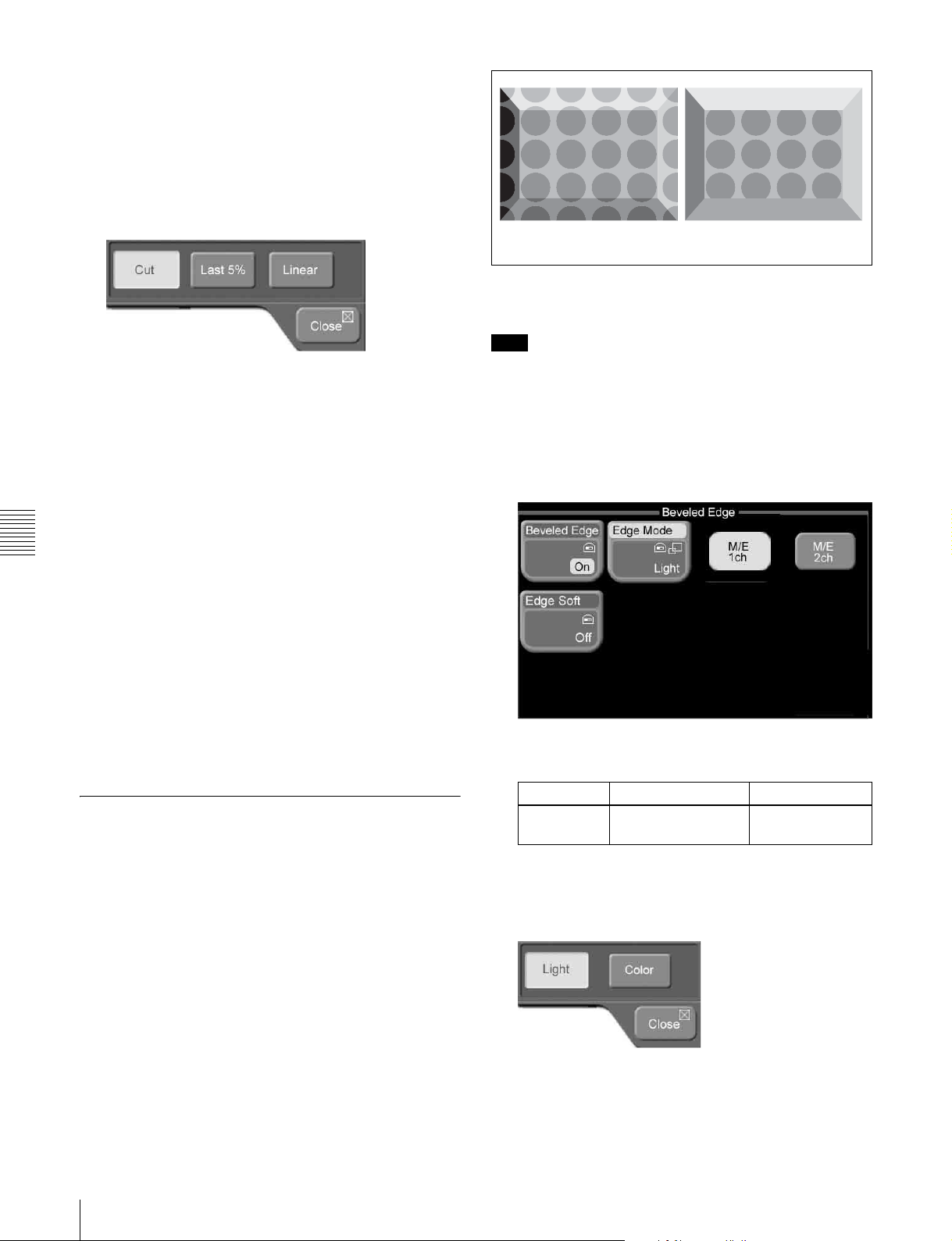

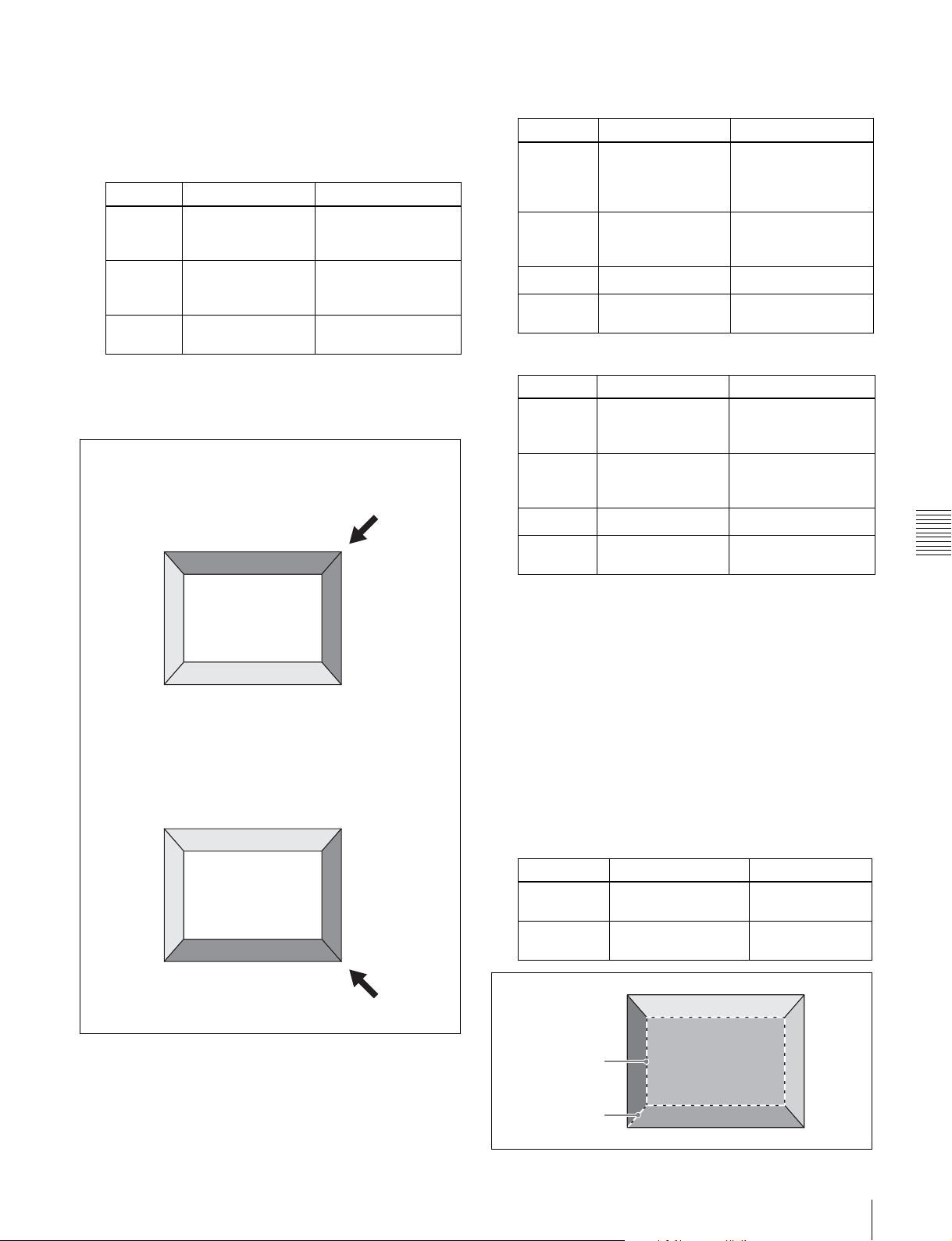

BVLD (beveled) EDGE: When this button is on, you can
add beveled edges to the image. This button lights in
green when beveled edge parameters are assigned to
the knobs in the menu control block, and lights in
amber when no beveled edge parameters are assigned
to the knobs.
LIGHT (lighting): When this button is on, you can add a
lighting effect to the image. This button lights in green
when lighting parameters are assigned to the knobs in
the menu control block, and lights in amber when no
lighting parameters are assigned to the knobs.
TRAIL/SHDW (shadow): When this button is on, you
can add a shadow to the image. This button lights in
green when shadow parameters are assigned to the
knobs in the menu control block, and lights in amber
when no shadow parameters are assigned to the knobs.
21Control Panel Configuration
BORD (border): When this button is on, you can add
borders. The button lights in amber when no border
parameters have been assigned to the knobs in the
menu control block, and lights in green when they
have been assigned.
SOFT (soft edges): When this button is on, you can add
soft edges. The button lights in amber when no soft
Chapter 2 Names and Functions of Parts
edge parameters have been assigned to the knobs in the
menu control block, and lights in green when they
have been assigned.
CROP button: When this button is on, you can perform
cropping. The button lights in amber when no crop
parameters have been assigned to the knobs in the
menu control block, and lights in green when they
have been assigned.
N/R (normal/reverse): When this button is on, it lights in
amber and the transition direction reverses every time
a transition finishes.
REV: When this button is on, it lights in amber and the
transition direction reverses.
POS (position) button: You can turn the positioner on
and use the joystick to move effect patterns in the xaxis and y-axis directions, and to change their size.
CTR (center) button: When the [POS] button is on,
pressing this button returns an effect pattern to the
default position and size.
Utility Control Block
ENABLE/UTILITY
EDIT GPI
DEVICE/UTILITY
DEV1 JOGDEV2 PLAY STOP
SAFE
TITLE
1 ENABLE/UTILITY operation buttons
ALL
STOP
CUE
START
TC
a ENABLE/UTILITY operation buttons
You can assign utility commands to these buttons.
The following utility commands are assigned by default.
EDIT button: Enables and disables the switcher edit
mode.
GPI button: Enables and disables switcher GPI.
SAFE TITLE button: Turns on and off a marker showing
the television reception safe area and a cross marker
showing the center of the screen.
Blank button: No function assignment.
See “Utility Settings (Utility Menu)” (page 170) for more
information about how to assign arbitrary utility
commands to these buttons.
SHTL
2 DEVICE/UTILITY operation buttons
JOG: Turns jog mode on and off.
Note
When a delegation selection button is on, turning the
[SHTL] or [JOG] button on turns the delegation button off.
(The button pressed later receives priority).
See “Utility Settings (Utility Menu)” (page 170) for more
information about how to assign arbitrary utility
commands to these buttons.
b DEVICE/UTILITY operation buttons
You can assign utility commands to these buttons.
The following utility commands are assigned by default.
DEV1/DEV2: Selects the Device1/Device2 as control
target.
PLAY: Plays a tape or disk.
STOP: Stops a tape or disk.
ALL STOP: Stops tapes or disks on all devices.
CUE: Cue up.
START TC: Sets the current timecode as the start point.
SHTL: Turns shuttle mode on and off.
22 Control Panel Configuration
Macro Control Block
Menu Control Block
MACRO
PRE
MCRO
1 PRE MCRO button
POST
MCRO
2 POST MCRO button
ATTCH
ENBL
3 ATTCH ENBL button
a PRE MCRO button
Use this button to set a macro attachment in pre macro
mode.
When you make settings in macro only mode, this button
is used together with the Macro Only Set button, assigned
to one of the buttons in the utility control block.
b POST MCRO button
Use this button to set a macro attachment in post macro
mode.
When you make settings in macro only mode, this button
is used together with the Macro Only Set button, assigned
to one of the buttons in the utility control block.
1 Top menu selection buttons
Menu display
MENU
TOP/
SHUT
DOWN
REG
FILE
SET
UP
DIAG
2 Knobs
a Top menu selection buttons
Select the menu shown in the menu display.
• TOP/SHUTDOWN (top menu/shutdown) button
• REG (register menu) button
• FILE (file menu) button
• SET UP (setup menu) button
• DIAG (diagnostics menu) button
Chapter 2 Names and Functions of Parts
c ATTCH ENBL (attachment enable) button
When this button is on, macro attachments assigned to
buttons on the control panel are enabled.
b Knobs
Use to adjust parameters shown in the menus.
Power Indicators, “Memory Stick” Slot, USB Connector
A POWER B
a Power A and B status indicators
Two power supplies (A and B) can be installed in the
control panel. When the control panel is powered on, the
indicators corresponding to the installed power supplies
light in green.
1 Power A and B status indicators
2 “Memory Stick” status indicator
3 “Memory Stick” slot
4 USB connector
23Control Panel Configuration
Installing a second power supply requires the optional HKPSU11 Power Supply Unit.
b “Memory Stick” status indicator
Lights in red during access to a “Memory Stick.”
“Memory Sticks”
Usable “Memory Sticks”
c “Memory Stick” slot
Chapter 2 Names and Functions of Parts
Insert “Memory Sticks.”
See ““Memory Sticks”” (page 24) for more information
about the usable “Memory Sticks” and their handling.
d USB connector
Devices compatible with the USB 1.1 standard can be
connected. Currently this connector is not used.
The following types of “Memory Stick” can be used with
this system.
• MSH-32/64/128 “Memory Stick”
• MSX-256S/512S/1GS “Memory Stick PRO”
• MSH-M32N/M64N/M128N “Memory Stick Duo”
• MSX-M256S/M512S “Memory Stick PRO Duo”
Notes
• When using a “Memory Stick PRO,” high-rate data
transfer using parallel interface is not supported.
• This system does not support the MagicGate function.
• When using a “Memory Stick Duo,” be sure to use it
with a “Memory Stick Duo Adaptor” (MSAC-M2 or
equivalent). If you insert a “Memory Stick Duo” without
using the adaptor, there is the possibility that the stick
cannot be removed, resulting in a serious accident.
Handling “Memory Sticks”
When using “Memory Sticks,” pay attention to the
following points.
• Do not touch the connector of the “Memory Stick” with
anything, including your finger or metallic objects.
• Do not attach anything other than the supplied label to
the “Memory Stick” labeling position.
• Attach the label so that it does not stick out beyond the
labeling position.
• Carry and store the “Memory Stick” in its case.
• Do not strike, bend, or drop the “Memory Stick.”
• Do not disassemble or modify the “Memory Stick.”
• Do not allow the “Memory Stick” to get wet.
• Do not use or store the “Memory Stick” in a location that
is:
-Extremely hot, such as in a car parked in the sun
-Under direct sunlight
-Very humid or subject to corrosive substances
24 “Memory Sticks”
Using Menus
Accessing Menus
The menus of this switcher enable you to make system settings and settings
related to effects.
To access menus, you can use any of the following three methods.
• Access from the top menu (see next section)
• Access by double clicking (see page 26)
• Access by single clicking (see page 28)
Accessing Menus From the Top Menu
By pressing a top menu selection button in the menu control block (see page
23), you can directly access the menu page for that button. The menus which can
be accessed with top menu selection buttons are as follows.
Menus accessed with top menu selection buttons and their functions
Chapter
Button Menu Function Reference
page
TOP/SHUTDOWN Top/Shutdown Display the top menu, and
REG
FILE
SET UP
DIAG Diagnosis Display error status and
a) The most recently used menu is displayed.
b) Currently not supported.
Register
File
Setup/Diagnosis
a), b)
a)
exit the menu system.
Make register settings. –
Make file settings. Page 137
a)
Make settings related to
setup, and to display of
error status and error
logs.
error logs.
Page 42
Page 153
“Error
Messages”
in the
Appendix
(separate
document)
To access a menu from the top menu, proceed as follows.
25Accessing Menus
Note
The menu illustrations in this manual may differ in appearance from the menus
actually shown in the menu display of the control panel.
1
Press the [TOP/SHUTDOWN] button in the menu control block.
The top menu appears.
Chapter 3 Using Menus
Tip
If you press the [FILE], [SET UP], or [DIAG] button, the page for that
button appears.
2
In the Top Menu area, select a menu.
The second-level menu of the menu selected in the Top Menu area appears
in the Sub Menu area.
3
Select a menu in the Sub Menu area.
If the menu has only two levels, the page for the second-level menu appears.
If the menu has three levels, a popup window appears so that you can select
a third-level menu.
4
Select a menu from the popup window.
The third-level menu appears.

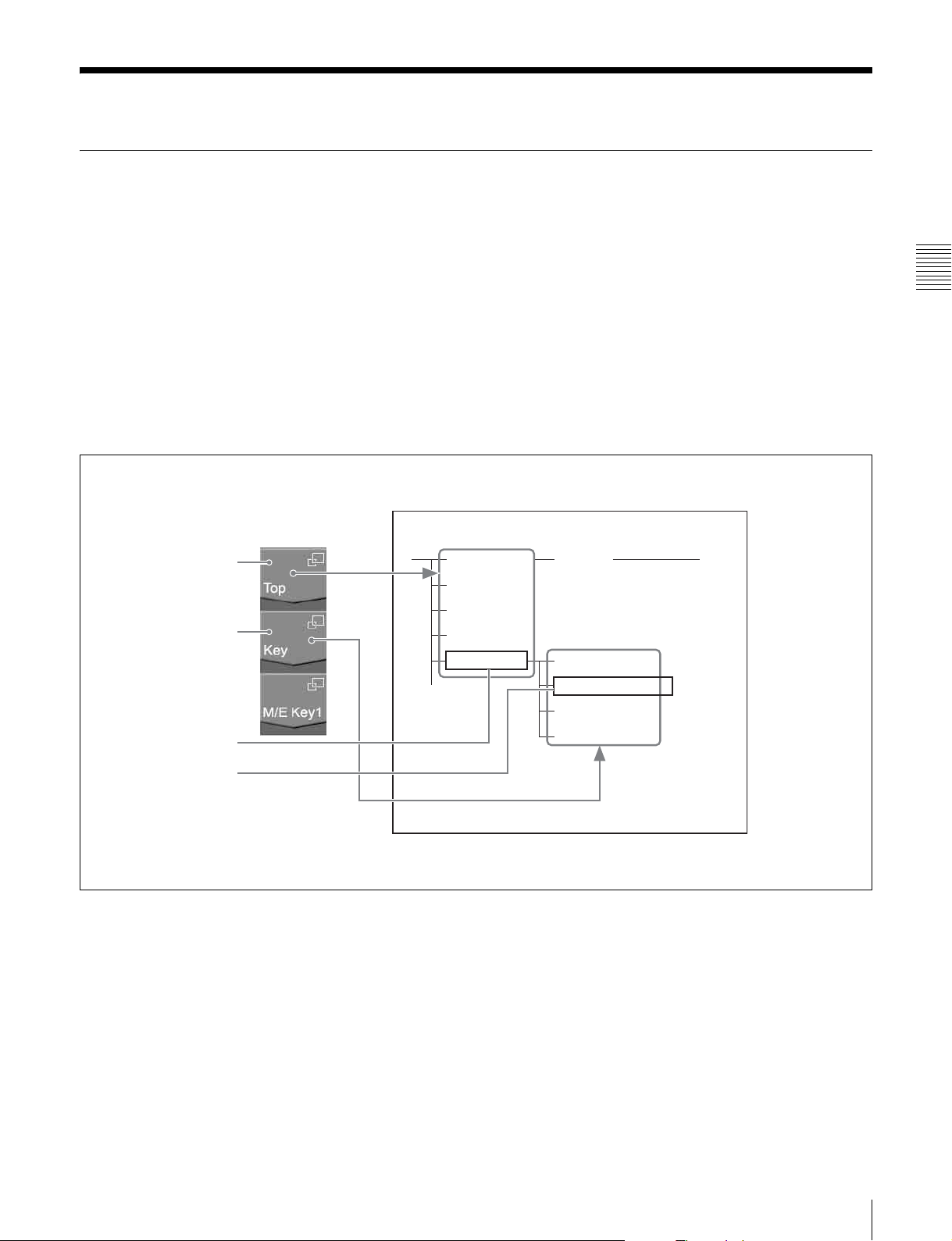

Accessing Menus by Double Clicking
This manual uses the term “double click” to refer to the action of pressing a
button on the control panel twice in rapid succession (comparable to double
clicking a computer mouse button). You can double click many of the buttons
on the control panel except the top menu selection buttons to directly access
menus related to those buttons. The following table shows the buttons which
access menus by double clicking and the accessed menus.
26 Accessing Menus
Tip
The ability to access menus by double clicking is indicated by a horizontal bar
on the face of the button, located over the button name.

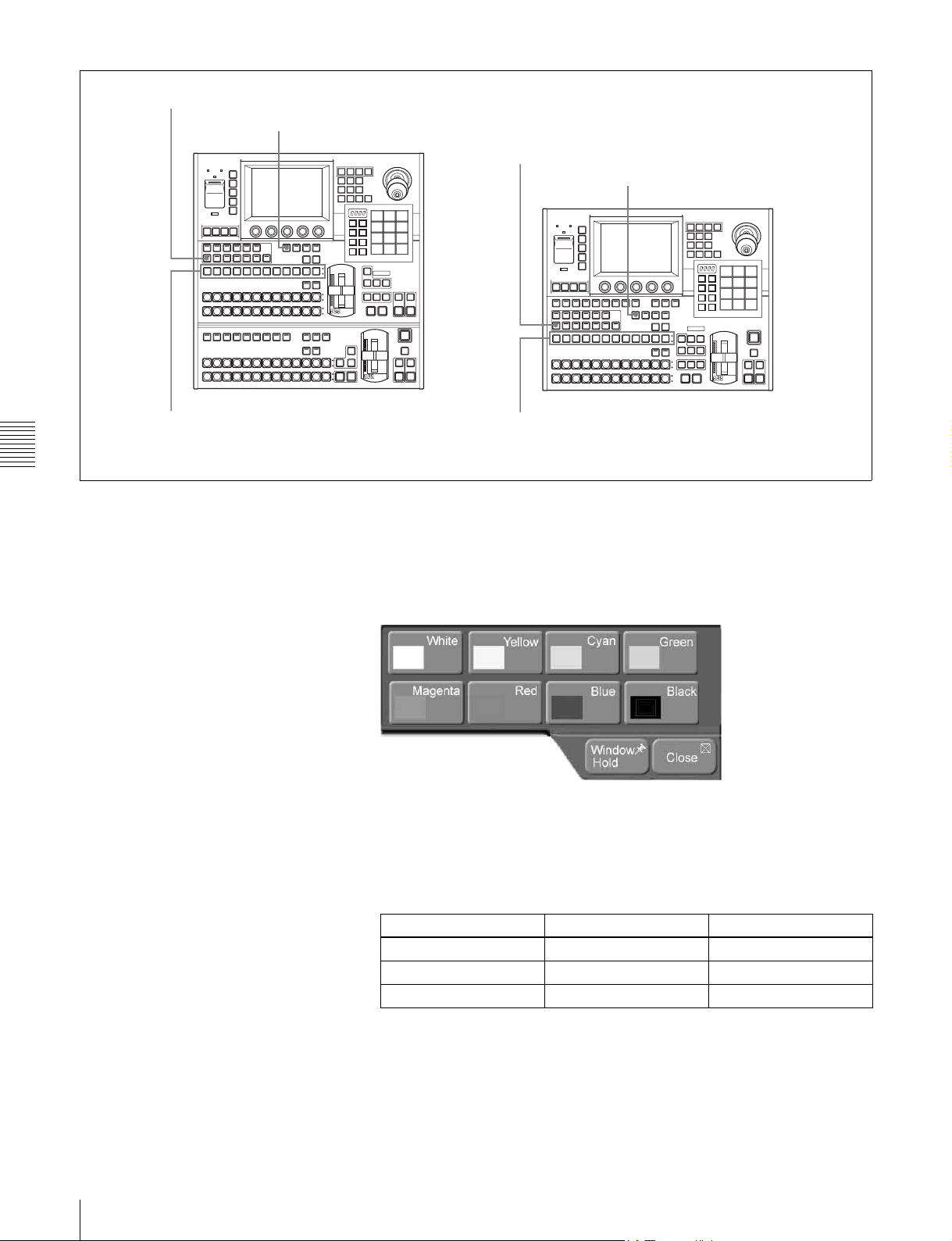

Menus accessed by double clicking
Button
location
M/E cross-point
control block
PGM/PST
cross-point
control block
b)
AUX bus
control block
(cross-point
button rows)
AUX bus
control block
(AUX
delegation
buttons)
Button Menu Referenc
e page
a)
COLOR BKGD
FM1 VIDEO
FM1 KEY
FM2 VIDEO
FM2 KEY
FM3 VIDEO
FM3 KEY
CCR1
CCR2
a)
a)
a)
a)
a)
a)
a)
a)
COLOR BKGD
FM1 VIDEO
FM1 KEY
FM2 VIDEO
FM2 KEY
FM3 VIDEO
FM3 KEY
CCR1
CCR2
a)
a)
a)
a)
a)
a)
a)
a)
COLOR BKGD
FM1 VIDEO
FM1 KEY
FM2 VIDEO
FM2 KEY
FM3 VIDEO
FM3 KEY
CCR1
CCR2
a)
a)
a)
a)
a)
a)
a)
a)
Misc >Color Bkgd Page 88
Frame Memory >Recall Page 122
Frame Memory >Recall
Frame Memory >Recall
Frame Memory >Recall
Frame Memory >Recall
Frame Memory >Recall
CCR >CCR1 >Primary Page 113
CCR >CCR2 >Primary
a)
Misc >Color Bkgd Page 88
Frame Memory >Recall Page 122
Frame Memory >Recall
Frame Memory >Recall
Frame Memory >Recall
Frame Memory >Recall
Frame Memory >Recall
CCR >CCR1 >Primary Page 113
CCR >CCR2 >Primary
a)
Misc >Color Bkgd Page 88
Frame Memory >Recall Page 122
Frame Memory >Recall
Frame Memory >Recall
Frame Memory >Recall
Frame Memory >Recall
Frame Memory >Recall
CCR >CCR1 >Primary Page 113
CCR >CCR2 >Primary
KEY1 Key >M/E Key1 >Main Page 76
KEY2 Key >M/E Key2 >Main
DSK1 Key >DSK1 >Main
DSK2 Key >DSK2 >Main
CCR1 CCR >CCR1 >Primary Page 113
CCR2 CCR >CCR2 >Primary
FRAME MEM Frame Memory >Freeze Page 120
Chapter 3 Using Menus
27Accessing Menus
Menus accessed by double clicking
Button
location
M/E transition
control block
PGM/PST
transition
Chapter 3 Using Menus
control block
Flexi Pad
control block
Effect/Wipe
control block
Utility control
block
Button Menu Referenc
KEY1 Key >M/E Key1 >Main Page 76
KEY2 Key >M/E Key2 >Main
EFF Effect/Wipe >M/E Effect >Main Page 63
PST COLOR MIX Misc >Transition Page 54
WIPE Effect/Wipe >P/P Wipe >Main –
PST COLOR MIX Misc >Transition Page 54
b)
M/E + EFF/WIPE Effect/Wipe >M/E Effect >Main Page 63
PP/ALL + EFF/
b)
WIPE
TRANS RATE Misc >Transition Page 70
M/E 1CH Effect/Wipe >M/E Effect >Main Page 63
M/E 2CH Effect/Wipe >M/E Effect >Main
b)
P/P
Device1
Device2
Device3
Device4
Device5
Device6
c)
c)
c)
c)
c)
c)
Effect/Wipe >P/P Wipe >Main –
Effect/Wipe >P/P Wipe >Main –
Misc >DDR/VTR >TC Status Page 147
Misc >DDR/VTR >TC Status
Misc >DDR/VTR >TC Status
Misc >DDR/VTR >TC Status
Misc >DDR/VTR >TC Status
Misc >DDR/VTR >TC Status
e page
Page 66
Page 71
Page 66
Page 71
Page 66
Page 71
a) Button assigned with Video/Key Pair Assign menu (see page 159).
b) Not found on 1 M/E panel.
c) Button assigned with Utility menu (see page 170).
Accessing Menus by Single Clicking
A menu appears when you single click a parameter adjustment button to turn the
adjustment function on (and the knobs take on the parameters which can be
assigned for the adjustment). The buttons which access menus by single clicking
are the following buttons in the Effect/Wipe control block.
• [BVLD EDGE] button
• [LIGHT] button
• [TRAIL/SHDW] button
• [BORD] button
• [SOFT] button
• [CROP] button
28 Accessing Menus
Interpreting Menu Screens
There are two types of menu screen.
• Basic screen (see next section)
• Popup windows
- General popup windows (see page 32)

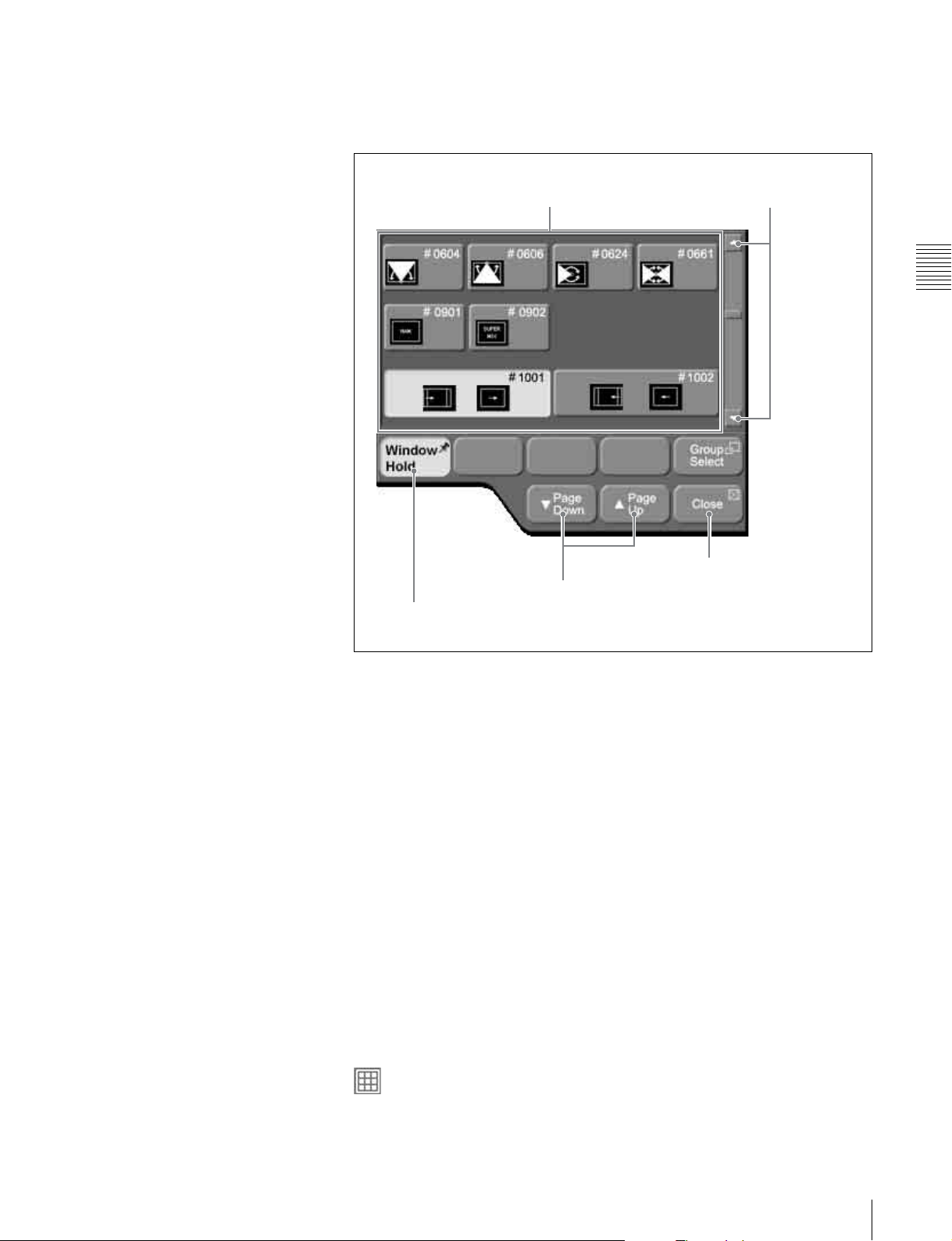

- General popup windows (scrolling type) (see page 33)

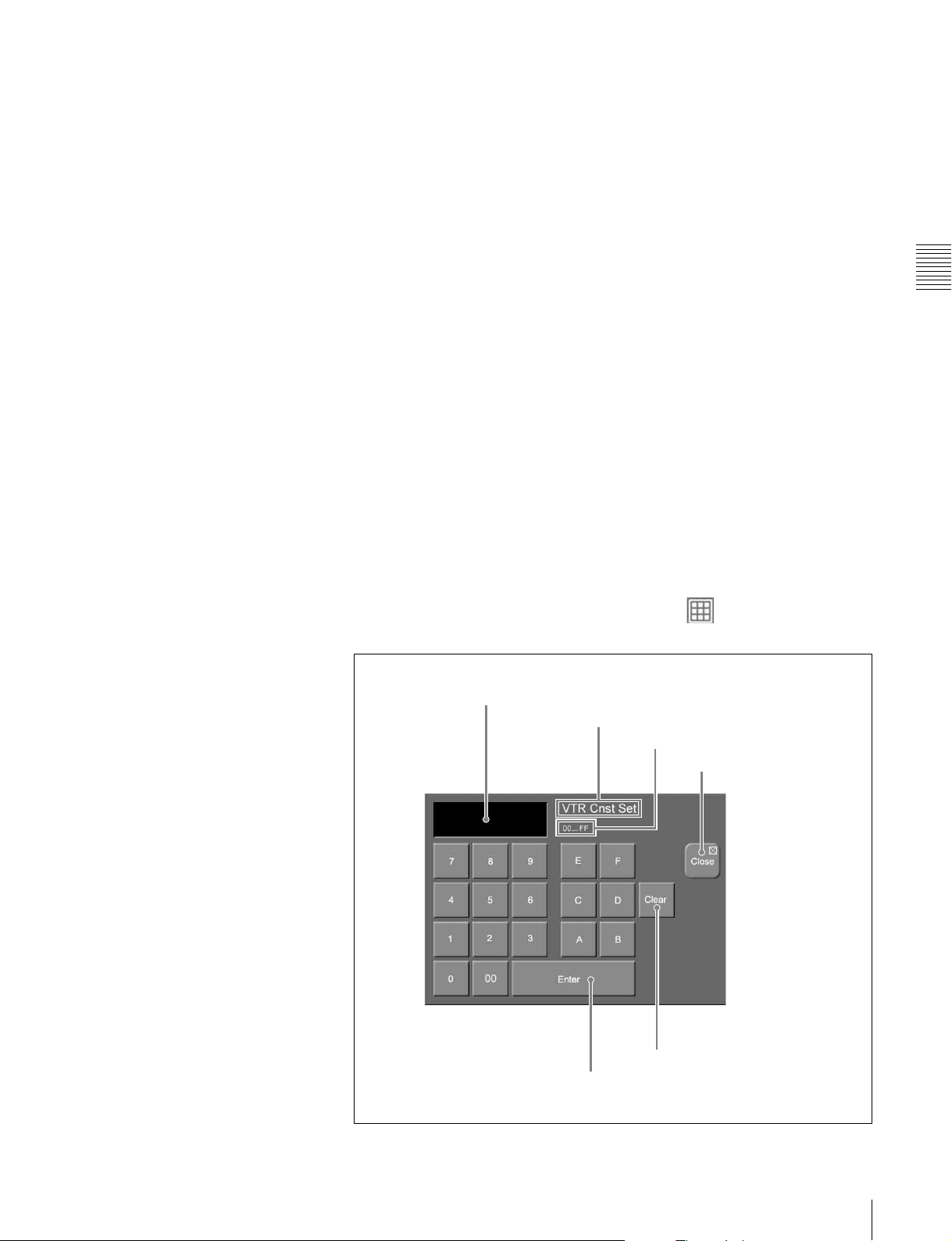

- Numeric keypad window/timecode window (see page 33)
- Hexadecimal keypad window (see page 35)

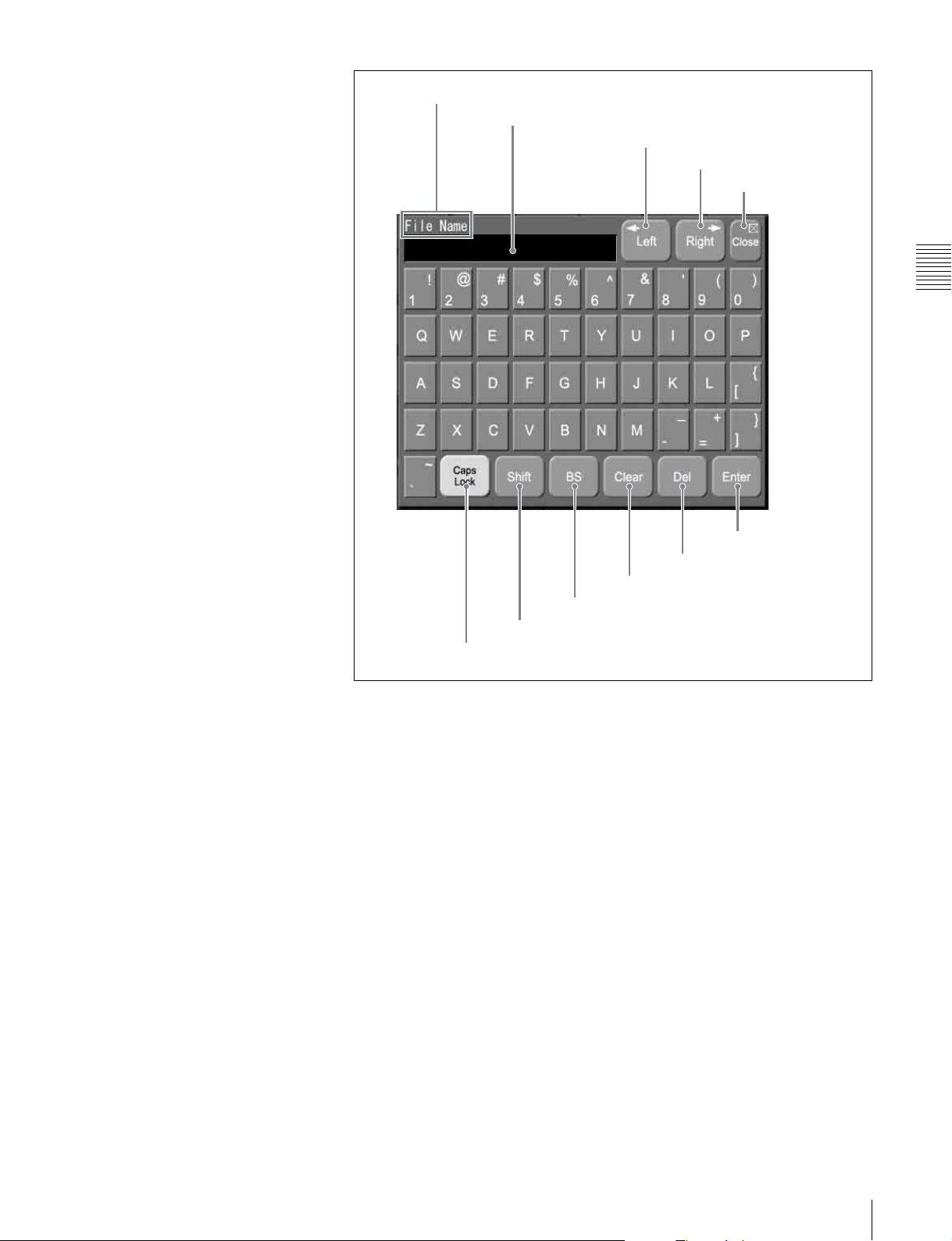

- Keyboard window (see page 36)

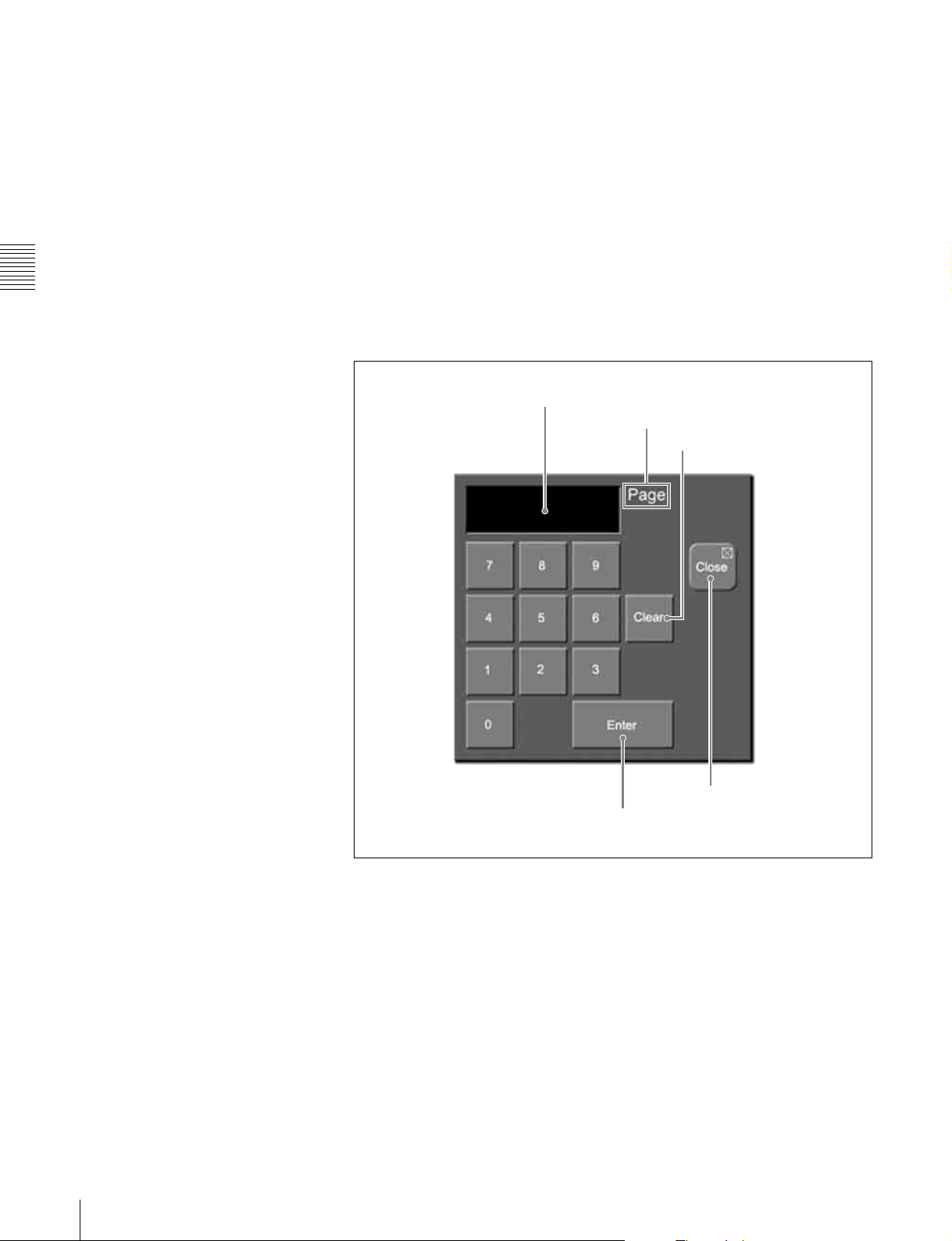

- Page number input window (see page 38)
Basic Screen
1 Menu page number button
Chapter 3 Using Menus
2 Back button
3 Fwd button
4 Menu switch buttons
7 Button area and status area
6 Parameter buttons
5 Menu title buttons
(The figure shows a button
area only.)
a Menu page number button
This shows the menu screen page number.
When you press this button, the page number input window (see page 38)
appears. Enter a page number in that window to display the desired menu.
For details about operation, see “Selecting menus by entering page numbers”
(page 40).
29Interpreting Menu Screens
For details about page numbers, refer to “Menu Tree” in the Appendix
(separate document).
b Back button
Returns to the most recently displayed menu. You can go back up to maximum
of 50 menus.
This button is disabled when the display history has been erased and when you
have backed up through the entire display history.
For details about operation, see “Selecting menus from the display history”
(page 40).
Chapter 3 Using Menus
c Fwd (forward) button
Redisplays the menu that was visible when you last pressed the Back button.
This button is disabled when the display history has been erased, when you have
moved forward through the entire display history, and when the display history
has been updated by displaying a new menu.
For details about operation, see “Selecting menus from the display history”
(page 40).
d Menu switch buttons
You can use the following buttons to switch between the menus when you have
selected a Key menu or an Effect/Wipe menu.
Main Menu button: Displays a menu with frequently used items.
Detail Menu button: Displays a popup window for selecting menus to make
detailed settings.
e Menu title buttons
Except for the Top button, these buttons display the title of the selected of the
selected menu. The upper buttons correspond to upper level menus. In the
example of the previous figure, [Top] is the top menu, [Key] is a first-level
menu, and [M/E Key1] is a second-level menu.
When you press a button, a popup window appears to allow you to select a menu
from the next level.
For details about operation, see “Selecting by navigating the menu tree” (page
39).
30 Interpreting Menu Screens
f Parameter buttons
Parameters adjustable by knobs and their values are shown on the buttons.
When you press one of these buttons, the numeric keypad window (see page 33)
opens so that you can enter a setting value.
g Button area and status area
The button area displays the buttons of the operation target items in the selected
menu.
In the setup menu and other menus, a status area may also be displayed to show
lists for selecting setting values (see following figure).
Loading...
