LBT-VR50XR

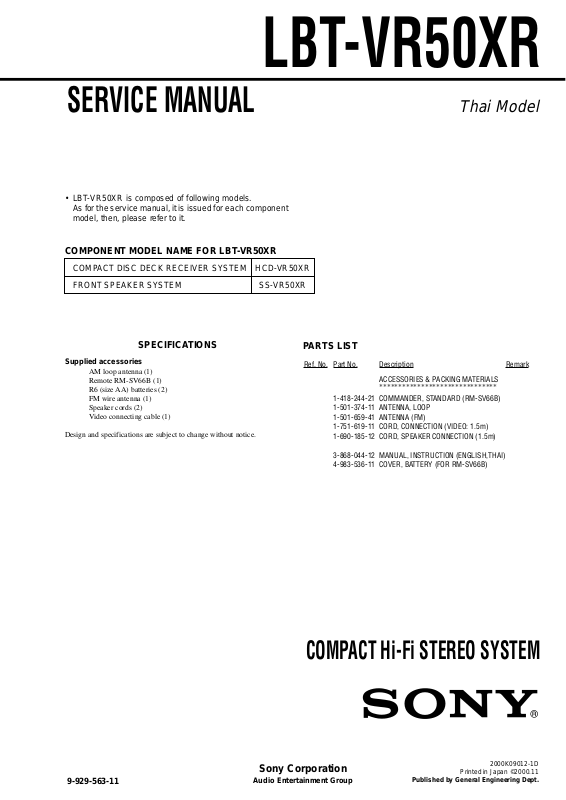

SERVICE MANUAL

• LBT-VR50XR is composed of following models.
As for the service manual, it is issued for each component
model, then, please refer to it.

COMPONENT MODEL NAME FOR LBT-VR50XR

COMPACT DISC DECK RECEIVER SYSTEM HCD-VR50XR
FRONT SPEAKER SYSTEM SS-VR50XR

SPECIFICATIONS

Supplied accessories

AM loop antenna (1)
Remote RM-SV66B (1)
R6 (size AA) batteries (2)
FM wire antenna (1)
Speaker cords (2)
Video connecting cable (1)

Design and specifications are subject to change without notice.

PARTS LIST

Ref. No. Part No. Description Remark

Thai Model

ACCESSORIES & PACKING MATERIALS

*******************************

1-418-244-21 COMMANDER, STANDARD (RM-SV66B)
1-501-374-11 ANTENNA, LOOP
1-501-659-41 ANTENNA (FM)
1-751-619-11 CORD, CONNECTION (VIDEO: 1.5m)
1-690-185-12 CORD, SPEAKER CONNECTION (1.5m)

3-868-044-12 MANUAL, INSTRUCTION (ENGLISH,THAI)
4-983-536-11 COVER, BATTERY (FOR RM-SV66B)

COMPACT Hi-Fi STEREO SYSTEM

9-929-563-11

Sony Corporation

Audio Entertainment Group

Printed in Japan ©2000.11

2000K09012-1D

Published by General Engineering Dept.
