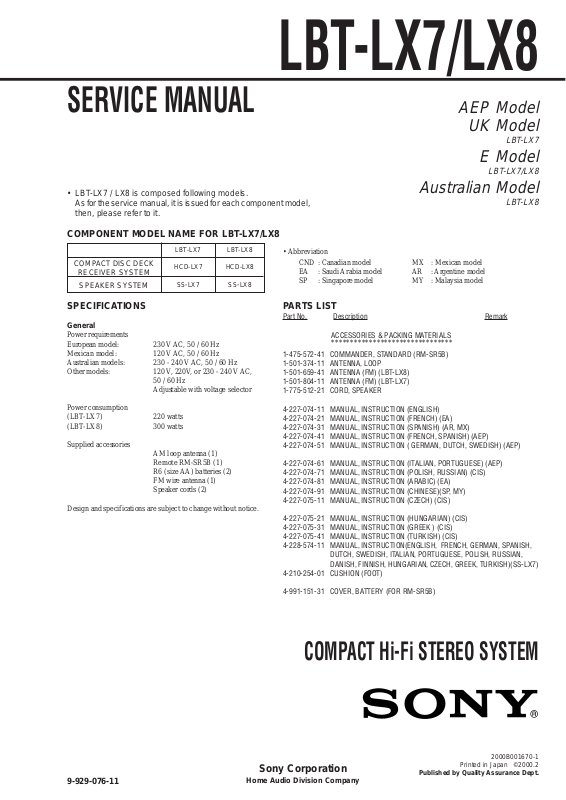

LBT-LX7/LX8
SERVICE MANUAL
•LBT-LX7 / LX8 is composed following models.
As for the service manual, it is issued for each component model, then, please refer to it.
COMPONENT MODEL NAME FOR LBT-LX7/LX8
|
LBT-LX7 |
LBT-LX8 |
• Abbreviation |
||
|
|
|
CND : Canadian model |
||
COMPACT DISC DECK |
HCD-LX7 |
HCD-LX8 |
|||
RECEIVER SYSTEM |
EA |
: Saudi Arabia model |
|||
|
|
||||
SPEAKER SYSTEM |
SS-LX7 |
SS-LX8 |
SP |
: Singapore model |
|
|
|
||||
|
|
|
|
|
|
AEP Model
UK Model
LBT-LX7
E Model
LBT-LX7/LX8
Australian Model
LBT-LX8
MX : Mexican model
AR : Argentine model
MY : Malaysia model
SPECIFICATIONS |
|
PARTS LIST |
|
|
General |
|
Part No. |
Description |
Remark |
|
|
|
|
|
Power requirements |
|
|
ACCESSORIES & PACKING MATERIALS |
|
European model: |
230 V AC, 50 / 60 Hz |
|
******************************** |
|
Mexican model: |
120 V AC, 50 / 60 Hz |
1-475-572-41 |
COMMANDER, STANDARD (RM-SR5B) |
|
Australian models: |
230 - 240 V AC, 50 / 60 Hz |
1-501-374-11 |
ANTENNA, LOOP |
|
Other models: |
120 V, 220V, or 230 - 240 V AC, |
1-501-659-41 |
ANTENNA (FM) (LBT-LX8) |
|
|
50 / 60 Hz |
1-501-804-11 |
ANTENNA (FM) (LBT-LX7) |
|
|
Adjustable with voltage selector |
1-775-512-21 |
CORD, SPEAKER |
|
Power consumption |
|
4-227-074-11 |
MANUAL, INSTRUCTION (ENGLISH) |
|
(LBT-LX7) |
220 watts |
4-227-074-21 |
MANUAL, INSTRUCTION (FRENCH) (EA) |
|
(LBT-LX8) |
300 watts |
4-227-074-31 |
MANUAL, INSTRUCTION (SPANISH) (AR, MX) |
|
Supplied accessories |
|
4-227-074-41 MANUAL, INSTRUCTION (FRENCH, SPANISH) (AEP) |
||
AM loop antenna (1) |
4-227-074-51 |
MANUAL, INSTRUCTION ( GERMAN, DUTCH, SWEDISH) (AEP) |
||
|
|
|
|
|
|
Remote RM-SR5B (1) |
4-227-074-61 |
MANUAL, INSTRUCTION (ITALIAN, PORTUGUESE) (AEP) |
|
|
R6 (size AA) batteries (2) |
4-227-074-71 |
MANUAL, INSTRUCTION (POLISH, RUSSIAN) (CIS) |
|
|
FM wire antenna (1) |
4-227-074-81 |
MANUAL, INSTRUCTION (ARABIC) (EA) |
|
|
Speaker cords (2) |
4-227-074-91 |
MANUAL, INSTRUCTION (CHINESE)(SP, MY) |
|
Design and specifications are subject to change without notice. |
4-227-075-11 MANUAL, INSTRUCTION (CZECH) (CIS) |
|
||
|
|
|
||
|
|
4-227-075-21 MANUAL, INSTRUCTION (HUNGARIAN) (CIS) |
|
|
|
|
4-227-075-31 |
MANUAL, INSTRUCTION (GREEK ) (CIS) |
|
|
|
4-227-075-41 MANUAL, INSTRUCTION (TURKISH) (CIS) |
|
|
|
|
4-228-574-11 |
MANUAL, INSTRUCTION(ENGLISH, FRENCH, GERMAN, SPANISH, |
|
|
|
|
DUTCH, SWEDISH, ITALIAN, PORTUGUESE, POLISH, RUSSIAN, |
|
|
|
|
DANISH, FINNISH, HUNGARIAN, CZECH, GREEK, TURKISH)(SS-LX7) |
|
|
|
4-210-254-01 |
CUSHION (FOOT) |
|
4-991-151-31 COVER, BATTERY (FOR RM-SR5B)
COMPACT Hi-Fi STEREO SYSTEM
Sony Corporation
2000B001670-1 Printed in Japan ©2000.2
Published by Quality Assurance Dept.
9-929-076-11 |
Home Audio Division Company |
