Page 1
3-858-096-11 (1)
Compact
Hi-Fi Stereo System
Operating instructions
EN
F
ES
C
LBT-N455KRW
1996 by Sony Corporation
Page 2
English
EN
WARNING
To prevent fire or shock hazard, do not expose
the unit to rain or moisture.
To avoid electrical shock, do not open the cabinet. Refer servicing to
qualified personnel only.
Do not install the appliance in confined space, such as a bookcase or
built-in cabinet.
Laser component in this product is capable of emitting radiation
exceeding the limit for Class 1.
This appliance is classified as a
CLASS 1 LASER PRODUCT
LUOKAN 1 LASERLAITE
KLASS 1 LASERAPPARAT
INVISIBLE LASER RADIATION WHEN OPEN.
CAUTION
ADVARSEL
VARO!
VARNING
2
ADVARSEL
;
AVOID EXPOSURE TO BEAM.
USYNLIG LASERSTRÅLING VED ÅBNING NÅR
;
SIKKERHEDSAFBRYDERE ER UDE AF FUNKTION.
UNDGÅ UDS ÆTTELSE FOR STRÅLING.
AVATTAESSA JA SUOJALUKITUS OHITETTAESSA
;
DLET ALTTIINA LASERSÄTEIL YLLE.
LASERSTRÅLING NÄR DENNA DEL ÄR OPPNÅD
;
OCH SPÄRREN ÄR URXOPPLAD.
USYNLIG LASERSTRÅLING NÅR DEKSEL ÅPNES
;
UNNGÅ EKSPONERING FOR STRÅLEN.
CLASS 1 LASER product.
The CLASS 1 LASER PRODUCT
MARKING is located on the rear
exterior.
This caution
label is located
inside the unit.
Welcome !
Thank you for purchasing the Sony Hi-Fi Component System. This
series is packed with fun features. Here are just a few:
• DBFB (Dynamic Bass Feedback) system that boosts low frequency
range audio to provide deep, powerful bass sound
• A preset feature, that lets you store and recall up to 30 (40 for
Middle Eastern model) of your favourite radio stations
• A graphic equalizer that lets you adjust the audio quality to match
10 music types
• A loop play function that lets you play a short portion of a track
repeatedly like a sampler on the CD player
• A timer that lets you set the CD player, tape player or radio to turn
on and off whenever you want
• A dual tape deck that lets you record from the radio, CD player or
from the other tape deck and relay play from both decks
• A CD player that lets you play up to 5 CDs in a row
• A music clip feature, that lets you create groups of favourite tracks
from your CDs
• A remote that lets you control the music from your seat
Page 3
Table of
Contents
Chapter 1: Setting Up
Connecting the Stereo 5
Inserting the Batteries 6
Setting the Clock 6
Chapter 2: the CD Player
Playing CDs (normal play) 7
Playing Tracks in Random Order (shuffle play) 8
Playing Tracks in the Desired Order (programme play) 9
Playing Tracks Repeatedly (repeat play) 9
Playing Tracks with Repeating a Specified Portion (loop play) 10
Grouping Tracks (music clip) 10
Chapter 3: the Radio
Listening to the Radio 12

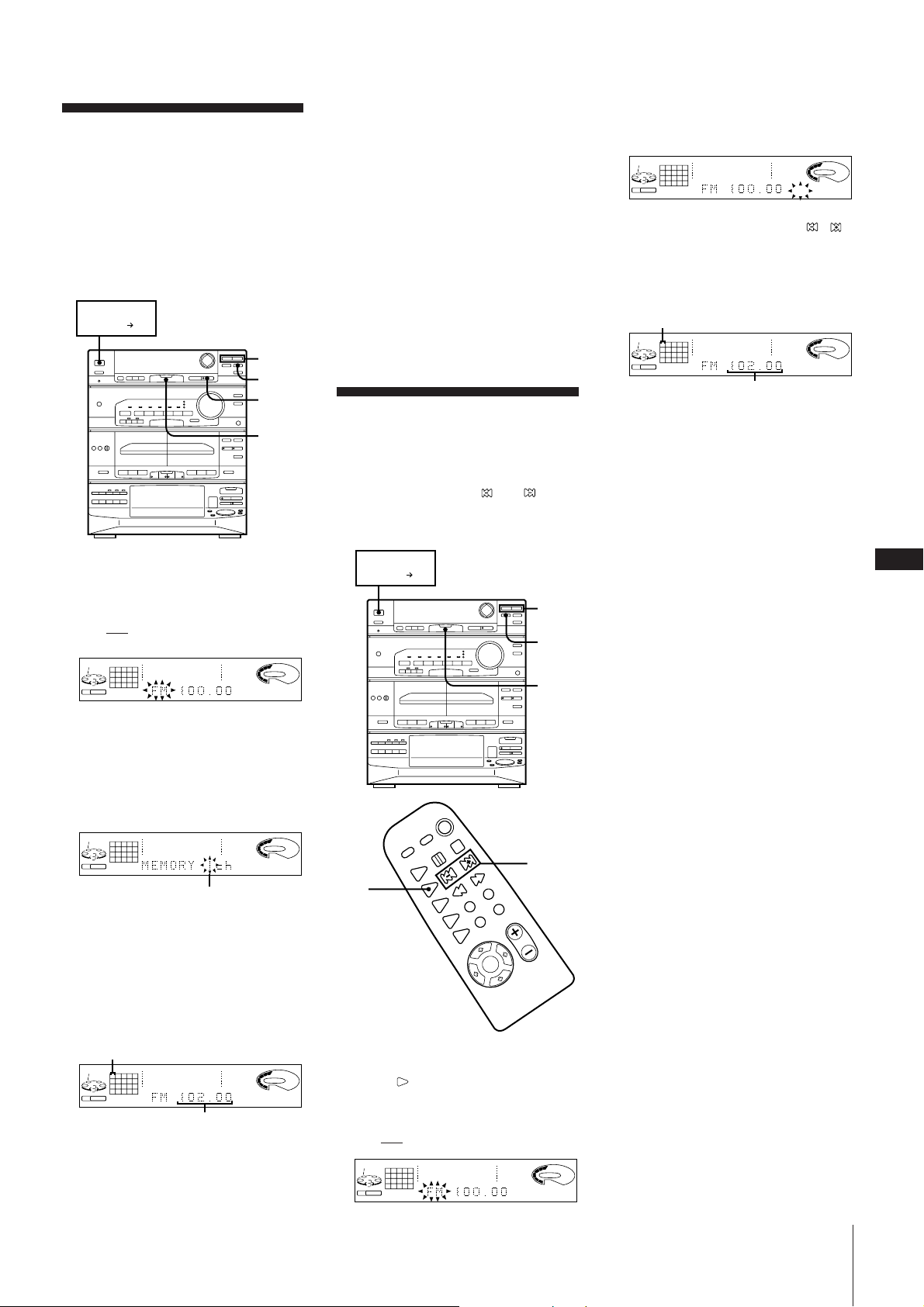

Presetting Radio Stations 13
Playing Preset Radio Stations 13
Chapter 4: the Tape Player

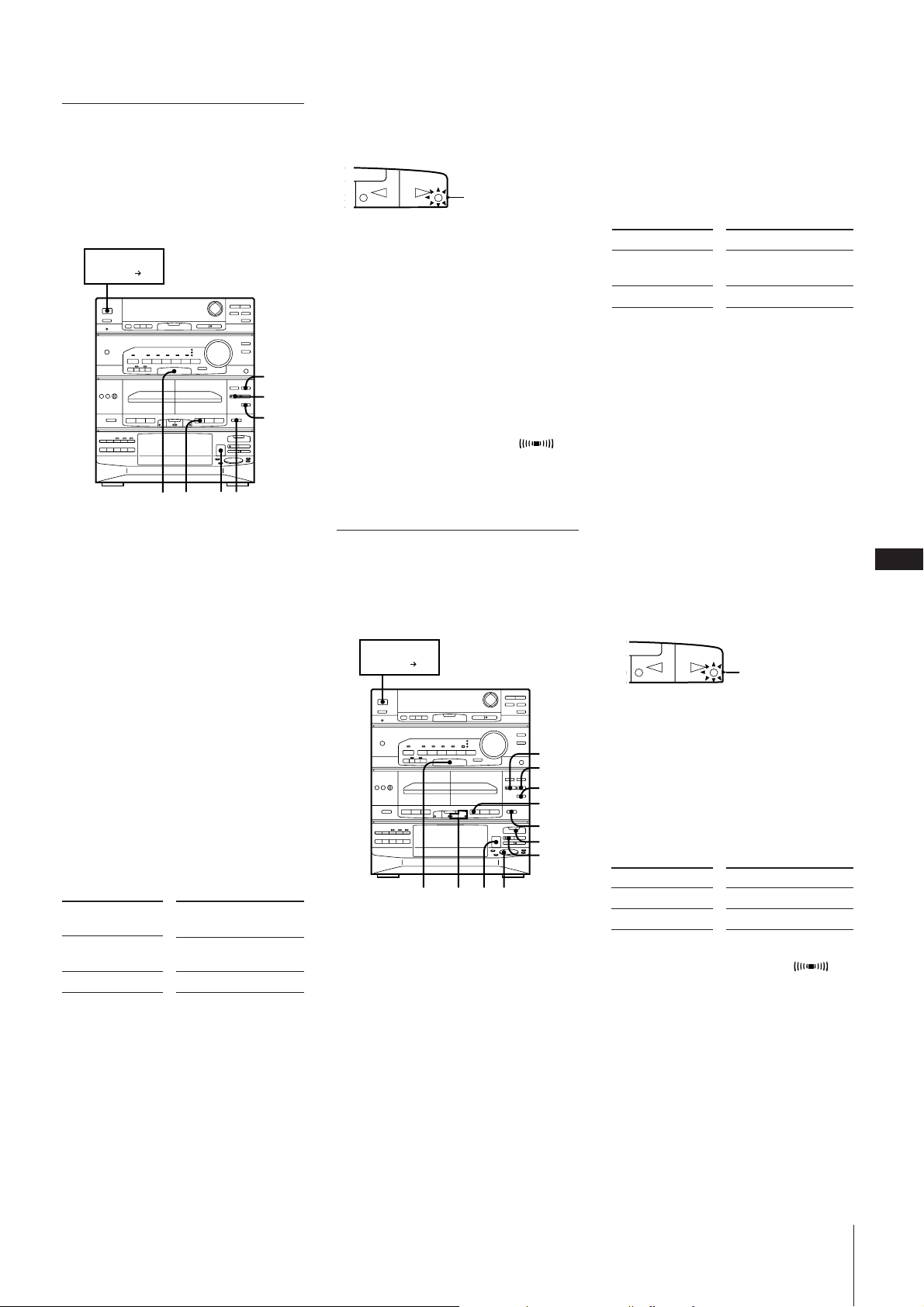

Playing a Tape 14
Recording a CD 14
Recording a CD: Selecting Tape Length ( tape select edit) 16
Recording a CD: Specifying Tape Length (time edit) 16
Recording a CD: Specifying Track Order (programme edit) 17
Recording From the Radio 18
Recording From Another Tape (dubbing) 18
EN
3
Chapter 5: Sound Adjustment

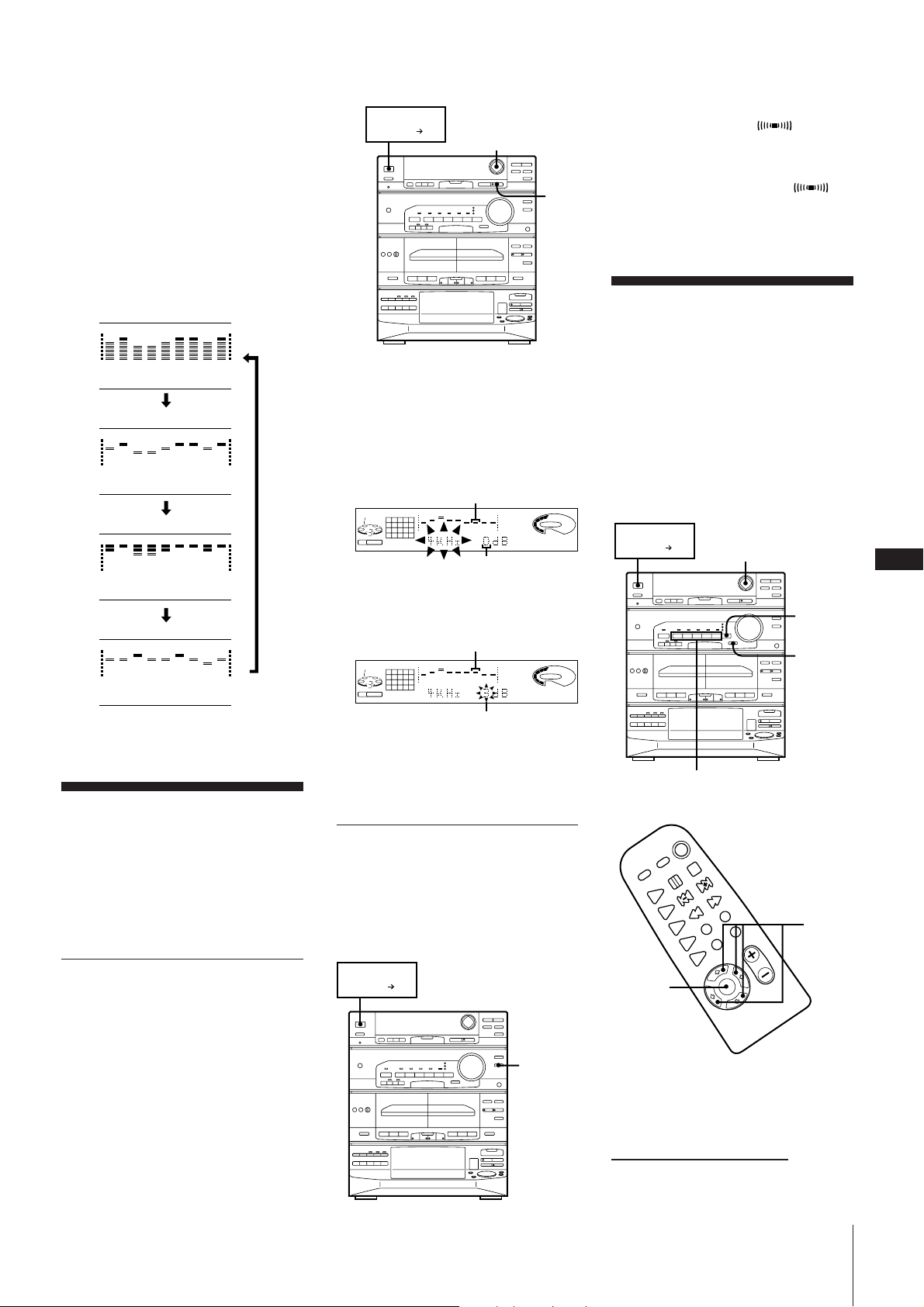

Adjusting the Sound 20
Selecting the Audio Emphasis 20
Adjusting the Audio Emphasis 21
Making Your Personal Audio Emphasis File (personal file) 21
Chapter 6: Additional Features

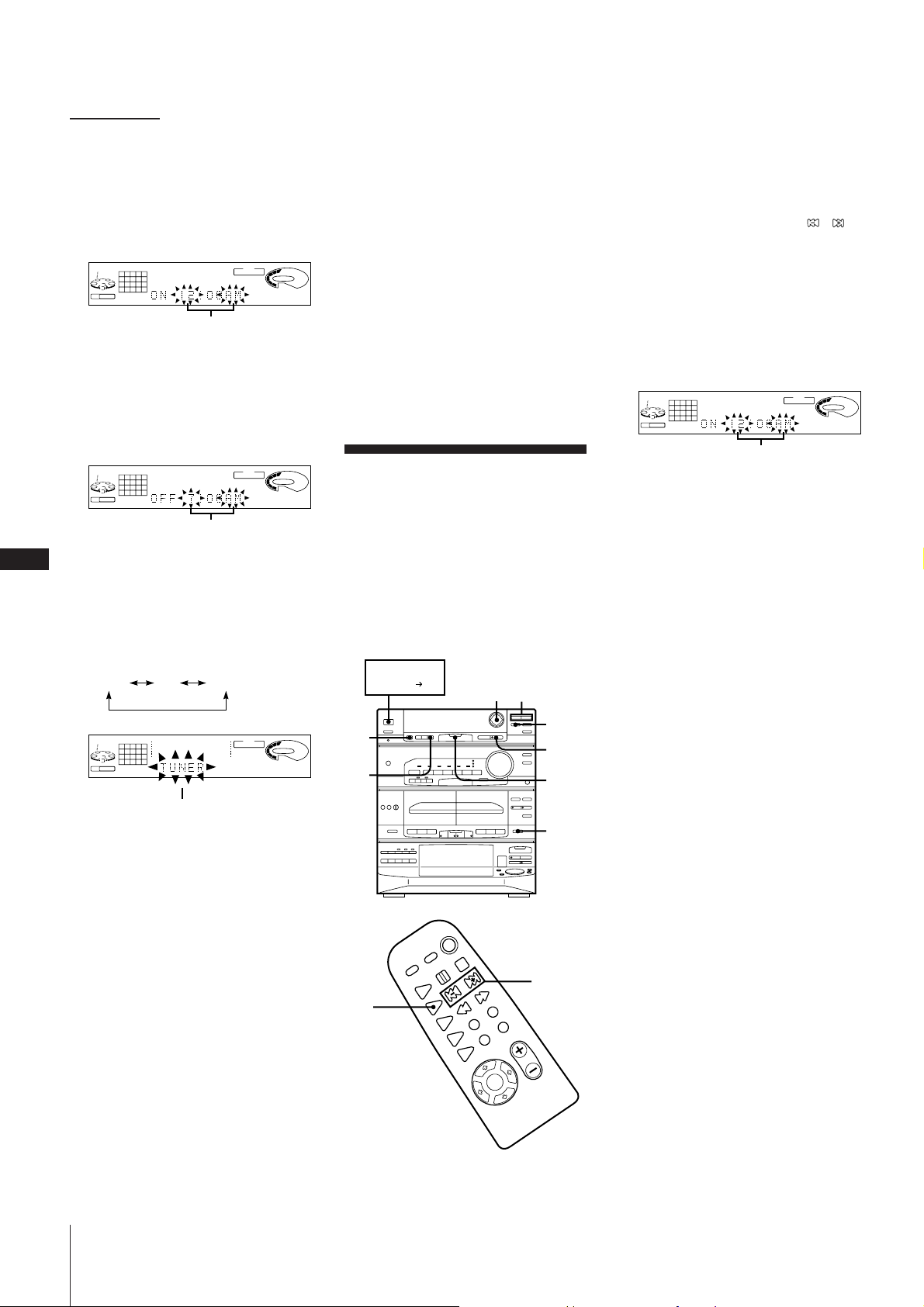

Falling Asleep to Music 23
Waking up to Music 23
Timer-Recording Radio Programme 24
Microphone Mixing 25
Karaoke: Singing Along 25
Connecting Optional Equipment 26
For Your Information
Precautions 27
Troubleshooting Guide 27
Maintenance 28
Specifications 28

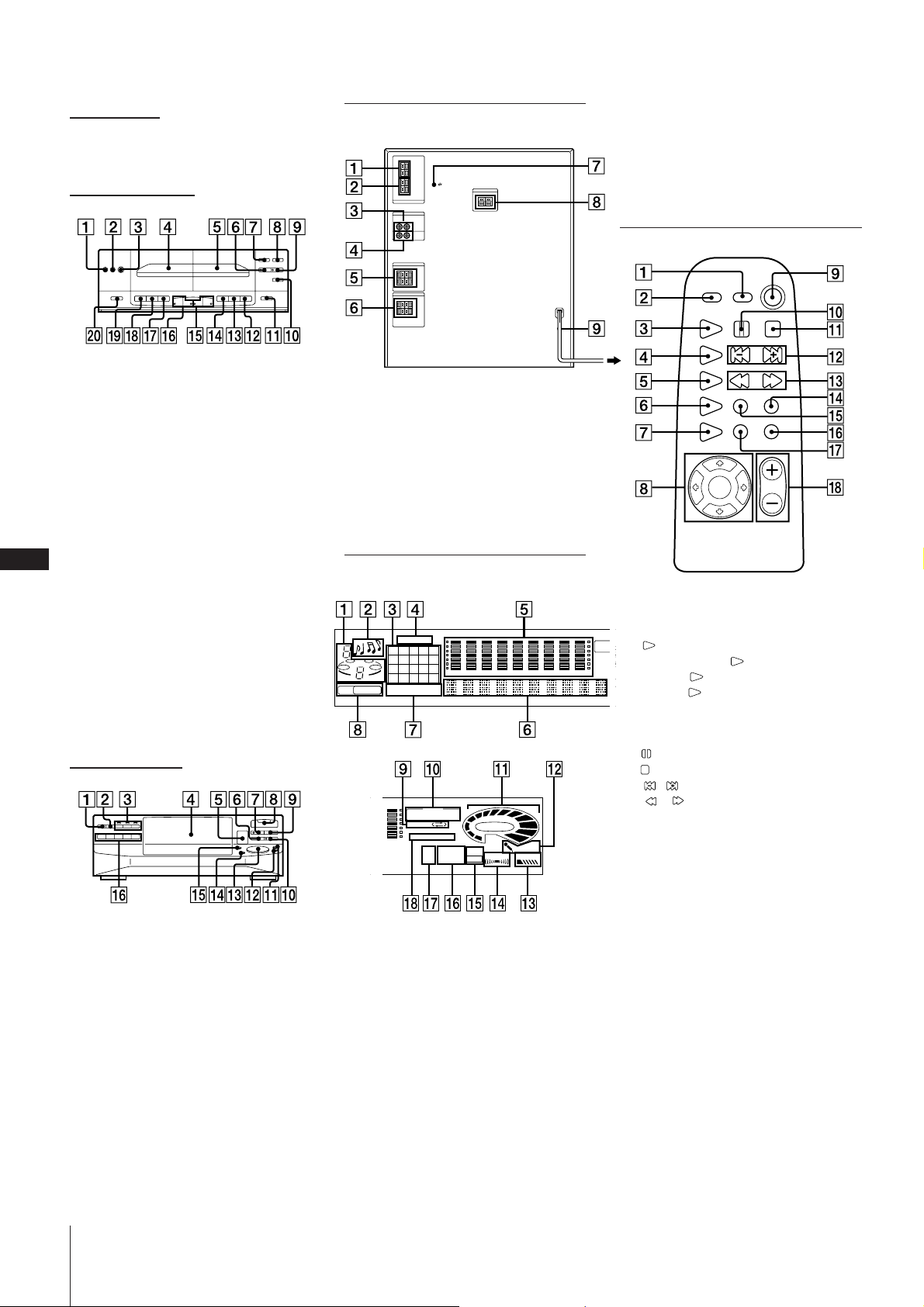

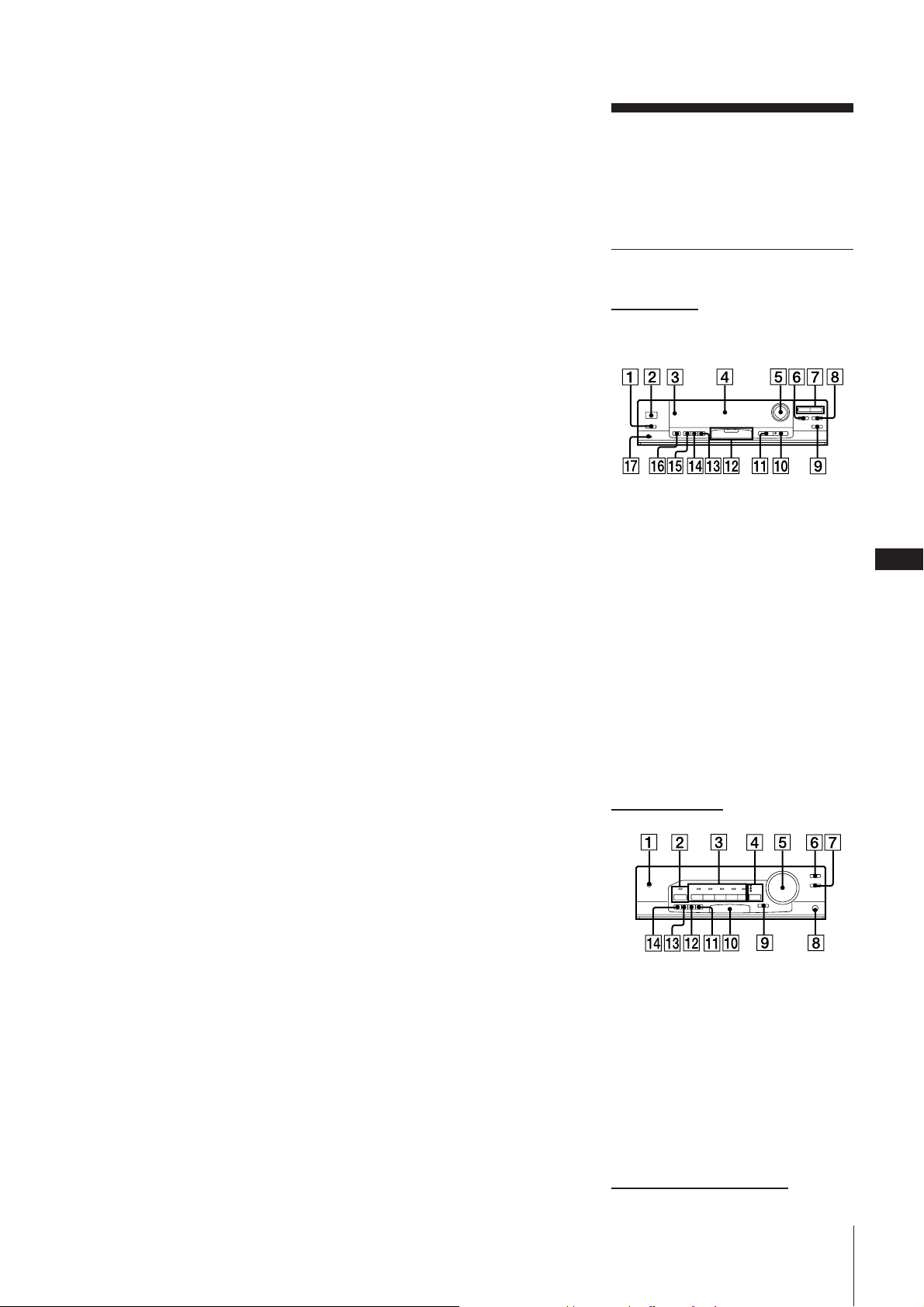

Index to Parts and Controls 29
Index 31
Page 4
Chapter 1:
FM 75
AM
Connecting the Stereo
STEP 3 Connecting the
Aerial
EN
Setting
Up
Connecting the Stereo
Inserting the Batteries
Setting the Clock
4
Use the illustrations below to connect your
stereo.
If you want to connect any optional
components to the stereo, see “Connecting
Optional Equipment” in Chapter 6.
STEP 1 Connecting the
Front Speakers
1 Twist the speaker cable coating and pull
it from the end of the cable.
2 Connect the right speaker to FRONT
SPEAKER R connectors and the left
speaker to FRONT SPEAKER L
connectors.
copper
L
AM loop
aerial
(supplied)
FM wire aerial* (supplied)
*Note: Extend it horizontally
To set up the AM loop aerial
silver
Connect this portion
STEP 2 Connecting a
Super Woofer
Connect the Super Woofer to WOOFER
SYSTEM connectors.
WOOFER SYSTEM
copper
silver
Connect this portion
To improve the FM reception
Connect an outdoor FM aerial to the
FM 75 Ω terminal, using a 75-ohm coaxial
cable.
Important
Ground the external aerial from y terminal
against lightning with the screw clamp. To
prevent a gas explosion, do not connect the
ground wire to a gas pipe.
screw clamp
AM
FM 75
75-ohm coaxial cable
(not supplied)
Ground wire
(not supplied)
Chapter 1: Setting Up
Page 5
AM loop aerial
(supplied)
Right speaker
FM aerial
(supplied)
Left speaker
Super
woofer
STEP 3
STEP 2
STEP 1
STEP 4
EN
to mains
!Do this connection last!
To improve the AM reception
After you connect the AM aerial, connect a
6- to 15- meter (20- to 50- feet) insulated
wire to the AM terminal. Connect the y
terminal to ground.
Important
Ground the external aerial from y terminal
against lightning with the screw clamp. To
prevent a gas explosion, do not connect the
ground wire to a gas pipe.
screw clamp
AM
Insulated wire (not
supplied)
FM 75
STEP 4 Connecting the
Power
Connect the mains lead to a wall outlet
after you have made all the above
connections.
to mains
5
Note
When you turn on the system power for the
first time, the disc tray starts rotating. You
can operate the CD player after the disk
tray stops rotating and “CD NO DISC”
appears in the display.
Ground wire
(not supplied)
Demo mode
The demo mode appears in the display
when you connect the mains lead to a
wall outlet. To deactivate the demo
mode, press DISPLAY/DEMO when the
system power is off.
Chapter 1: Setting Up
Page 6
Inserting the Batteries
Insert two size R6 (AA) batteries in the
supplied remote for remote control.
1 Open the lid.
2 Insert two R6 (size AA) batteries.
Match the + and – to the diagram in the
battery compartment.
3 Close the lid.
Press CLOCK SET.
1
The “AM” and hour indication begin
flashing.
flashing
2 Set the current hour by pressing “ or ”
(CURSOR CONTROL) until the correct
hour appears.
flashing
3 Press ENTER/NEXT.
The minutes indication begins flashing.
EN
Battery life
You can expect the remote to operate for
about six months (using Sony SUM-3 (NS)
batteries) before the batteries run down.
6
When the batteries no longer operate the
remote, replace all the batteries with new
ones.
To avoid battery leakage
If you are not going to use the remote for a
long time, remove the batteries to avoid
damage caused by corrosion from battery
leakage.
Setting the Clock
The built-in clock shows the time in the
display.
1
2,4
3,5
DISPLAY/
DEMO
flashing
4 Set the current minute by pressing “ or
” until the correct minute appears.
flashing
5 Press ENTER/NEXT.
The clock starts running and the upper
dot flashes. Use the time signal to set the
clock accurately. The upper dot flashes
for the first half of a minute (0 to 29
seconds), and the lower dot flashes for
the last half of a minute (30 to 59
seconds).
To check the time
Press DISPLAY/DEMO a few times.
The current time appears for a few seconds.
Chapter 1: Setting Up
To correct the clock setting
Repeat steps 1 to 5.
Page 7
Chapter 2:
the CD
Player
Playing CDs (normal play)
Playing Tracks in Random
Order (shuffle play)
Playing Tracks in the
Desired Order
(programme play)
Playing Tracks Repeatedly
(repeat play)
Playing Tracks with
Repeating a Specified
Portion (loop play)
Grouping Tracks (music
clip)
Playing CDs (normal
play)
After you insert up to five CDs, you can
play all tracks or discs in the original order
consecutively (normal play).
You can also play them in four modes:
normal, shuffle, programme or repeat.
Before you play a CD, decrease the volume
level by turning the VOLUME control
anticlockwise, to prevent damage to the
speakers.
SYSTEM
POWER ON
DISPLAY/
DEMO
1
∏
·
π
AUTO
3
DISC 1-5 JOG dial
5
4
2
4 Press CONTINUE on the unit to choose
whether to play “1 DISC” or “ALL
DISCS”.
Choose
1 DISC
ALL DISCS
11 12 13 14 15
16 17 18 19 20
ALL DISC S
CLIP
To play
Only the CD you have
selected.
All CDs consecutively in
the order. Empty disc
trays are skipped.
CD
21345
10
7689
63 125 250 500 1k 2k 4k 8k 16k
(Hz)
5 Close the front cover.
Play starts automatically from the CD in
the loading position. The disc number
(of which color is orange) appears in the
disc calendar .
Disc number in
playing position
CLIP
Disc number
When AUTO indicator is not lit
Press CD · (or CD on the remote) to
play a CD.
Disc number in
loading position
CD
21345
10
7689
11 12 13 14 15
63 125 250 500 1k 2k 4k 8k 16k
16 17 18 19 20
ALL DISC S
number
(Hz)
Playing timeTrack
VOLUME
Music calendar
VOLUME
EN
7
/
1
1 Press FUNCTION repeatedly until
“CD” appears in the display.
CD is selected.
2 Press § OPEN and place a CD (label
side facing up) on the disc tray in the
loading position.
3 Press DISC SKIP to place up to four
more CDs on the disc tray.
The disc tray rotates so you can insert
other CDs.
/
3
Front
cover
To
Stop play
Pause
Resume play
Go forward to
another track
Go back to a
previous track
Select a particular
CD
Remove or
exchange a CD
*1Remote
*2Turning the JOG dial quickly skips to
the next CD.
*3Auto Music Sensor
Press
π ( *1)
∏ ( *1)
· or ∏ ( *1or *1)
During play or pause,
turn the JOG dial
clockwise*2.
Or press AMS*3 on
the remote.
During play or pause,
turn the JOG dial
anticlockwise*2.
Or press AMS*3 on
the remote.
The corresponding
DISC 1-5 button*4 or
press DISC SKIP
repeatedly
§ OPEN*
5
continue to next page ➔
Chapter 2: the CD Player
Page 8
EN
➔ continued
*4If there is no disc at that number, the
disc tray rotates and plays the next CD.
If there is no disc at that number with
the front cover opened, the disc tray
rotates to the loading position.
*5The disc tray rotates and brings the CD
in the playing position to the loading
position automatically when AUTO is
selected (the AUTO indicator is lit).
To remove or exchange the CD in the
loading position while playing.
Press § OPEN and remove or exchange the
loading position.
Note
After exchanging the CD in the loading
position while playing, the CD in the
loading position which you exchanged is
the next CD to be played when AUTO is
selected.
To play tracks consecutively (nonstop play)
Press and hold down CD · on the CD
player for a second.
To cancel non-stop play
Press π on the CD player.
8
Note
You cannot use this feature when the CD
play mode is SHUFFLE or PROGRAM.
Press CONTINUE so that “SHUFFLE” or
“PROGRAM” disappears from the display.
To locate a particular point in a track
You can locate a particular point in a track
while playing a CD. Use the buttons on the
remote to operate this feature.
To locate a point
While monitoring
the sound
Quickly by
observing the
display during
pause
To check the remaining or total
playing time
Press DISPLAY/DEMO repeatedly.
Each time you press DISPLAY/DEMO
while playing a CD, the display changes as
follows:
Press
(forward) or
(backward) on the
remote and keep
pressing until you find
the point.
(forward) or
(backward) on the
remote and keep
pressing until you find
the point. You will not
hear the sound during
this operation.
Playing time on the current
track
Remaining time on the
current track
Remaining time on the CD (1
DISC play mode) or “PLAY”
indication (ALL DISCS play
mode)
Clock (appears for a few
seconds)
EFFECT (or P FILE) name
appears for a few seconds in
the display
Note
• “- - . - - ” appears in the display when the
remaining time is 100 minutes or more.
When AUTO indicator is lit
• The CD in the loading position starts
playing automatically when you close the
front cover.
• The playing CD comes back to the
loading position when you stop playing
and open the front cover.
• When you exchange the CD while
playing, the exchanged CD is the next CD
to be played and the disc number keeps
flashing.
If you don’t want a CD to function as
described above, press AUTO so that the
AUTO indicator goes off.
One Touch Play feature
Press CD · (or CD on the remote)
when the power is off. You can listen to the
last selected CD without pressing any other
buttons when a CD is in the player.
If you press CD · or DISC 1 – 5 while
another source is selected, the CD player is
selected and play starts automatically.
The music calendar display
This display lights according to the number
of the tracks on the CD. As each track is
played, the corresponding number
disappears.
Tracks numbering more than 20 are not
displayed.
What the orange and red numbers in the
disc calendar indicate
• The orange number in the disc calendar
indicates the disc number in the playing
position. When the CD player is not
playing and the AUTO indicator is not lit,
the CD whose disc number is orange is
the next CD to be played.
• The red number in the disc calendar
indicates the disc number in the loading
position.
You can remove the CD whose disc
number is red while playing.
Playing Tracks in
Random Order
(shuffle play)
You can play all the tracks on a CD or all
CDs in random order.
SYSTEM
POWER ON
1
3
π
JOG dial
DISC 1-5 CONTINUE
2
1 Press FUNCTION repeatedly until
“CD” appears in the display.
2 Press SHUFFLE to choose whether to
play “1 DISC” or “ALL DISCS”.
“ALL DISCS SHUFFLE” or “1 DISC
SHUFFLE” appears in the display.
CD
21345
10
7689
11 12 13 14 15
63 125 250 500 1k 2k 4k 8k 16k
16 17 18 19 20
1 DISC
CLIP
SHUFFLE
VOLUME
(Hz)
3 Press CD · (or CD on the remote).
“ J ” appears and then all the tracks
play in random order.
To skip to the next track, turn the JOG
dial clockwise on the CD player (or
press on the remote).
To replay the current track, turn the JOG
dial anticlockwise on the CD player (or
press on the remote). You cannot
replay the previous track.
Chapter 2: the CD Player
Page 9
To stop playing
Press π (or on the remote).
To cancel shuffle play
Press CONTINUE on the unit.
To select the desired CD
Press DISC 1 – 5 on the unit during “1 DISC
SHUFFLE” play.
Playing Tracks in the
Desired Order
(programme play)
You can programme up to 32 tracks from
all the CDs in the order you want them to
be played.
SYSTEM
POWER ON
5
1
3 Press DISC SKIP repeatedly (or DISC
1 – 5) to choose a CD.
4 Turn the JOG dial (or press / on
the remote) to choose a track.
The chosen track number appears and
the playing time flashes for about 15
seconds in the display.
5 Press PROGRAM or ENTER/NEXT.
The chosen track is programmed and its
number lights up in the music calendar.
If the track number disappears before
you press PROGRAM or ENTER/
NEXT, go back to step 3.
To programme additional tracks from
the same CD, repeat steps 4 and 5.
To programme additional tracks from
another CD, repeat steps 3 to 5.
Note
• If “- - . - - ” appears instead of the total
playing time, this means
–you have programmed a track
number which exceeds 20.
–the total time has exceeded 100
minutes.
6 Press CD · (or CD on the remote).
All the tracks play in the order you
choose.
To change the order of programmed
tracks
Erase the entire programme and create a
new one.
The whole programme is erased also when:
• you select another play mode.
• you change or remove the CDs.
Playing Tracks
Repeatedly (repeat
play)
The repeat play function repeats a single
CD or all CDs in normal, programme, and
shuffle play.
In normal play mode only, the player can
also repeat a single track.
SYSTEM
POWER ON
EN
9
DISC 1-5
3
4
6
CHECK
CLEAR
1
1 Press FUNCTION repeatedly until
“CD” appears in the display.
2 Press PROGRAM.
“PROGRAM” appears in the display.
∏
6
π
2,5
4
To
Check the
programme
Programme a pause
Stop play
Cancel the
programme play
Erase a track from
the end
Erase a specific
track
3
Erase a entire
programme
*1After the last track appears, “CHECK
END” appears in the display.
*2“P” appears in the display and the total
playing time is reset to 0.00.
*3The programme is erased.
Press
CHECK on the
remote repeatedly*
∏*2 ( on the
remote)
π ( on the remote)
CONTINUE*
CLEAR on the remote
in stop mode
CHECK on the
remote repeatedly so
the number of the
track lights up, and
press CLEAR on the
remote
π ( on the remote)
once in stop mode or
twice while playing
1
CD
21345
10
7689
63 125 250 500 1k 2k 4k 8k 16k
REPEAT
CONTINUE
(Hz)
3
Repeating all the tracks
1 Press REPEAT once so that “REPEAT”
lights up in the display.
11 12 13 14 15
16 17 18 19 20
CLIP
2 Press CD · (or CD on the remote).
2
1
VOLUME
continue to next page ➔
CD
63 125 250 500 1k 2k 4k 8k 16k
DISC PROGRAM
CLIP
VOLUME
(Hz)
Chapter 2: the CD Player
Page 10
➔ continued
CLIP
A
2345
7689
10
11 12 13 14 15
16 17 18 19 20
63 125 250 500 1k 2k 4k 8k 16k
(Hz)
CD
VOLUME
RHYTHM
EN
10
To
Repeat all the
tracks on the
current CD
Repeat all the
tracks on all CDs
Repeat only one
track (in normal
play only)
To cancel repeat play
Press REPEAT so that “REPEAT” or
“REPEAT 1” disappears from the display.
Press
CONTINUE repeatedly
until “1 DISC” appears
in the display.
CONTINUE repeatedly
until “ALL DISCS”
appears in the display.
REPEAT repeatedly
until “REPEAT 1”
appears in the display
while playing the track
you want to repeat.
Playing Tracks with
Repeating a
Specified Portion
(loop play)
You can make a sampler sound effect by
playing a short portion of the track
repeatedly (loop play). It is useful for
making original dance music style tapes.
Original music :
Hey, Come on Everybody!
When you make the effect :
Hey, Co Co Co Co Come on Everybody!
SYSTEM
POWER ON
1,3
2
1 Press the LOOP button on the remote.
You can choose the repeating time from
about 0.25 sec. to about 1 sec. for
NORMAL 1 – 5 and RHYTHM 1 – 5. For
more information on NORMAL and
RHYTHM, see “What is the difference
between NORMAL and RHYTHM ?
”for details.
NORMAL1 NORMAL2 NORMAL3
RHYTHM5
RHYTHM4
RHYTHM1RHYTHM2RHYTHM3
You can get the longest repeating time by
selecting NORMAL (RHYTHM) 5, and the
shortest with NORMAL (RHYTHM) 1.
2 Press CD · (or CD on the remote).
The CD player starts playing.
3 Press and hold down the LOOP button
when the portion you want to record is
heard.
What is the difference between
NORMAL and RHYTHM?
The NORMAL differs from RHYTHM in
respect to the restarting point of the music
when the loop effect ends in step 3.
Select the repeating time while the CD
player is in pause or stop mode.
When you play the loop for five seconds.
NORMAL4
NORMAL5
AB
LOOP play
In this case, the song restarts at the point 5
sec. after you started the loop (B).
Group Tracks
(music clip)
The music clip function is an easy way to
create up to 3 arbitrary groups of tracks
from your CDs. For example, you could
store tracks for the morning in CLIP A,
tracks to play for your friends in CLIP B,
and tracks for relaxing in CLIP C.
Once you store one or more tracks in a
music clip(s), the player recalls those tracks
whenever you play the respective disc.
Storing tracks in a clip
SYSTEM
POWER ON
1
23
1 Press FUNCTION repeatedly until
“CD” appears in the display.
NORMAL
2
AA'
LOOP play
In this case, the song restarts at the point
that you started the loop (A).
Chapter 2: the CD Player
2 Play the track you want to store by
turning the JOG dial to select the track
you want.
3 Press a CLIP button (A, B or C).
“CLIP FILE” appears and indicator of
CLIP you stored lights up in the display.
Normal playback continues.

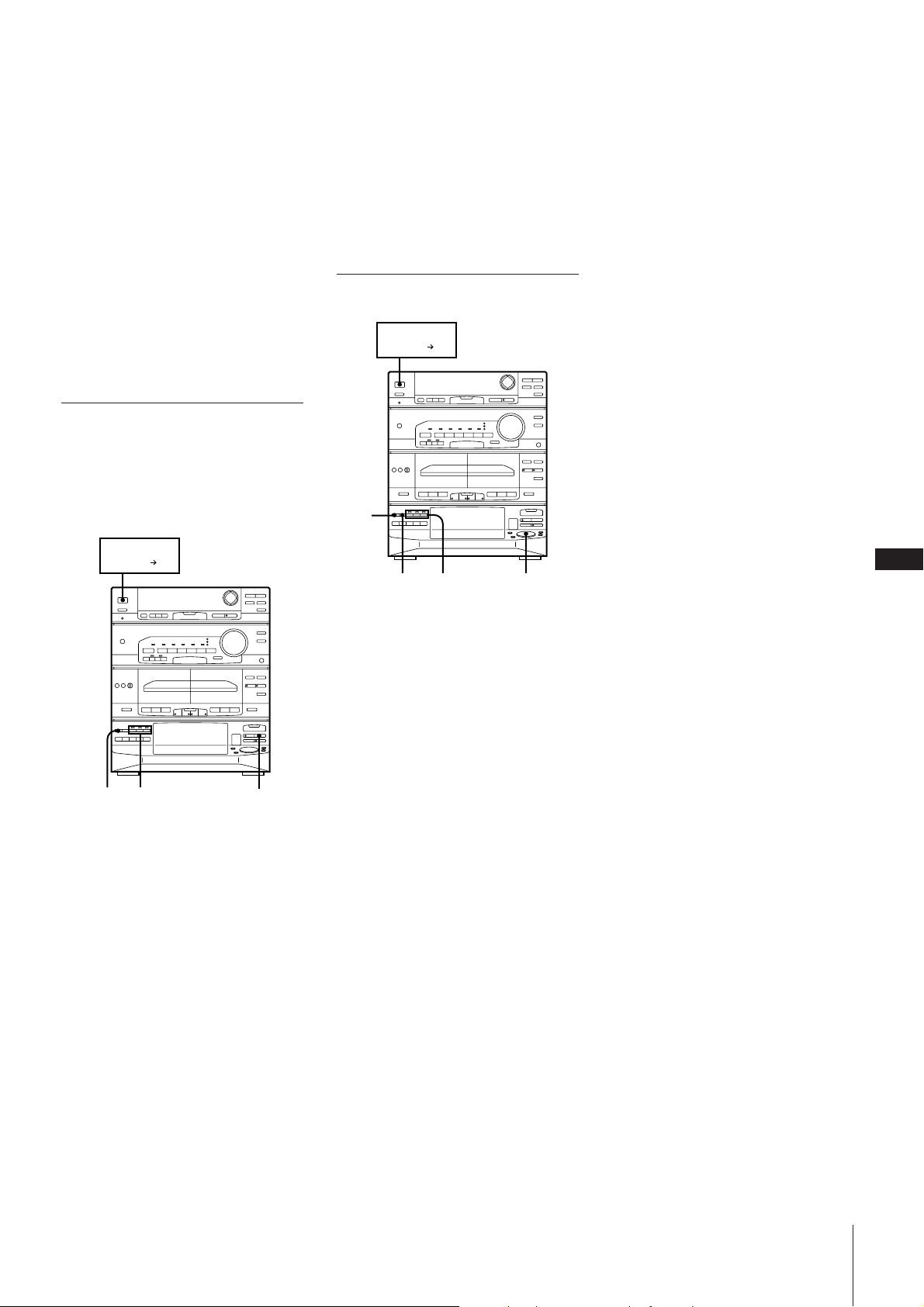

Page 11
4 Repeat steps 2 and 3 to store other
tracks into the same, or a different clip.
If the memory becomes full
Each clip can hold memory tracks from 10
different CDs even if you have removed or
exchanged CDs.
The clip data for the oldest clip is erased to
make room for a new clip.
Note
• In stop mode, music clips cannot store
tracks when “SHUFFLE” or “PROGRAM”
is lit in the display.
• Only tracks numbered 1 - 20 on the disc
can be stored in music clips. The tracks
numbered 21 or more cannot be stored.
Playing tracks in a clip
(clip play)
Clip indicators (A, B or C) light in the
display to let you know when clips are
stored for a disc.
SYSTEM
POWER ON
Note
• In 1 DISC mode, the tracks stored for the
selected disc are played back once, then
clip play is released.
• In ALL DISCS mode, all the tracks stored
for the currently loaded discs are played
back once, then clip play is released.
• You cannot start CLIP play if
“PROGRAM” is displayed.
Erasing tracks from a clip
SYSTEM
POWER ON
CLIP
PLAY
CLIP A, B, CCLIP ERASE JOG dial
EN
11
2
1
1 Press MUSIC CLIP PLAY.
“SELECT A - C” and “PLAY A - C”
appears in the display alternately.
2 Press a CLIP button (A, B, or C) .
“CLIP PLAY” appears in the display
and the selected CLIP indicator lights
up.
The player starts playing tracks from the
selected CLIP.
You can see the tracks in CLIP with
music calendar.
To cancel clip play
Press π on the CD player.
Erasing a track
1 Press CLIP PLAY.
2 Press the CLIP button (A, B, or C) for
the clip containing the tracks you want
to erase.
3 Use the JOG dial to select the track you
want to erase.
4 Press CLIP ERASE while the track you
want to erase is being played .
“ERASE A - C” and “TRACK A - C”
π
appear alternately in the display and the
selected CLIP indicator flashes.
5 Press CLIP button while the indicator is
flashing.
The play stops and the selected track is
erased.
Erasing all the tracks in a CLIP A (B or
C)
1 In stop mode, press CLIP ERASE.
“ERASE A - C” and “ALL A - C” appear
alternately in the display and all CLIP
indicators flash.
2 Press a CLIP button (A, B, or C) to
specify the clip you want to erase.
“PUSH” and the selected CLIP (A, B or
C) appears in the display.
3 Press the CLIP button you have pressed
on step 2 again.
Note
You cannot erase tracks if a CD includes the
tracks you stored, is not in playing position.
Chapter 2: the CD Player
Page 12
Chapter 3:
the
Radio

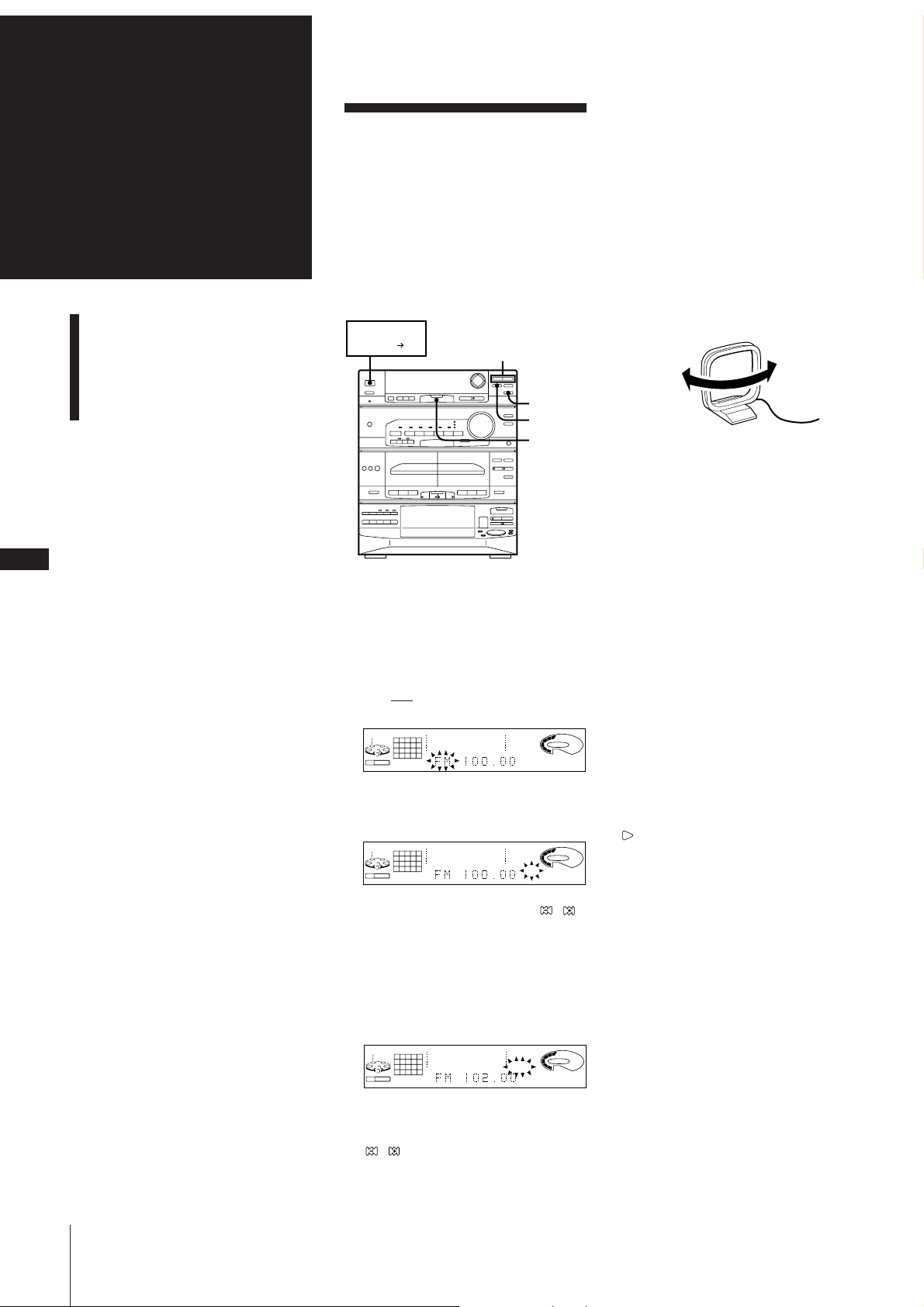

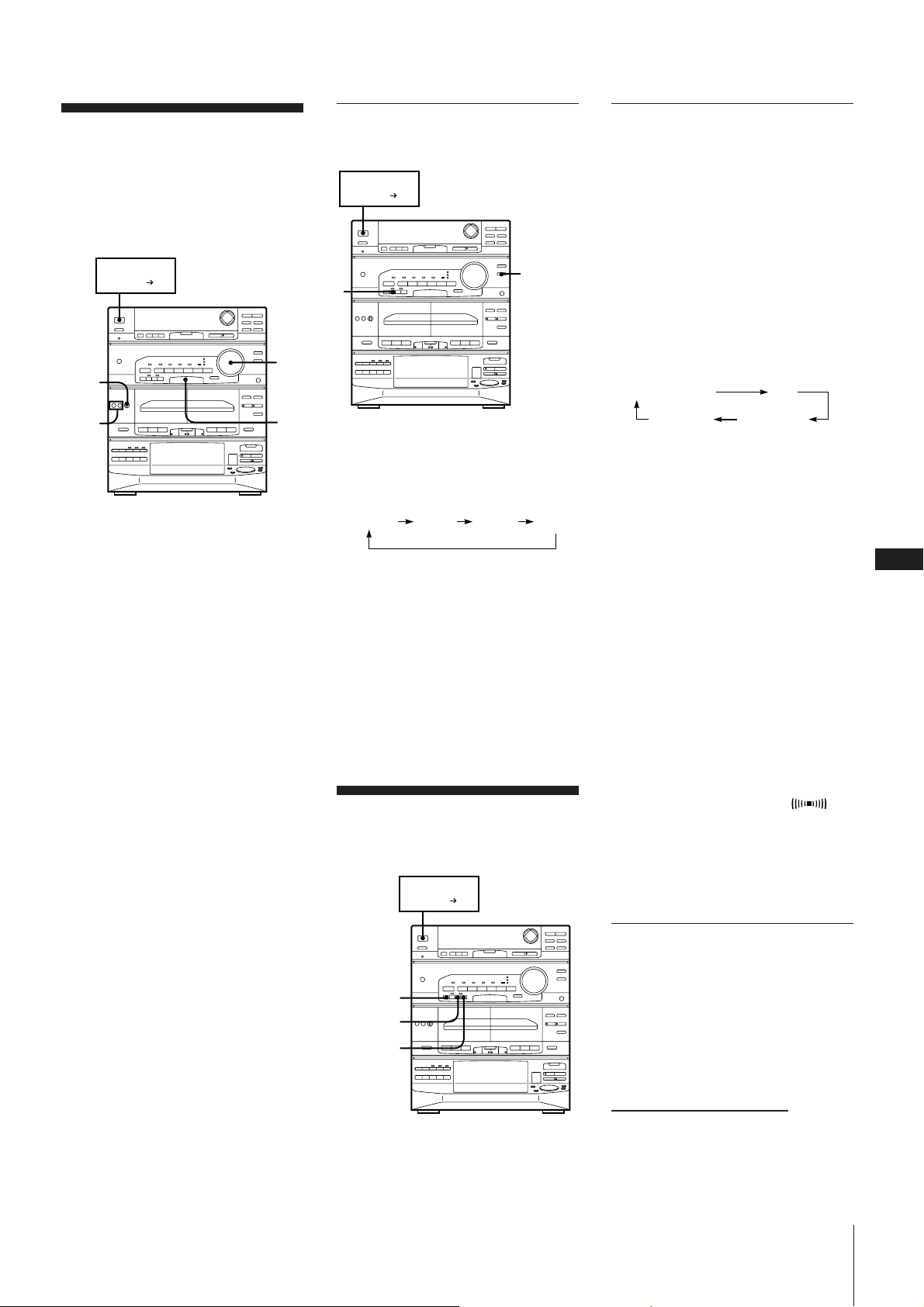

Listening to the Radio
Presetting Radio Stations
Listening to the Radio
When you want to play a radio programme,
you can have the tuner automatically scan
the radio frequencies and tune in the
stations with clear signals. This feature
saves you time in searching for stations
with clear signals.
However, stations with weak signals may
be skipped by automatic tuning. Manually
tune in stations with weak signals.
SYSTEM
POWER ON
3,4
When the desired station is not
tuned in
Automatic tuning may skip the stations
with weak signals and continue scanning
without a stop. In this case, tune in the
station manually.
1 Press TUNING MODE repeatedly until
“MANUAL” appears in the display.
2 Press TUNING +/– buttons repeatedly
until the desired station is tuned in.
To improve AM broadcast reception
Reorient the supplied AM loop aerial for
AM.
EN
12
Playing Preset Radio
Stations
STEREO/
MONO
2
1
1 Press TUNER/BAND repeatedly until
the band you want appears and in the
display.
As you press this button, the band
changes as follows:
FM Z z AM
TUNER
CLIP
63 125 250 500 1k 2k 4k 8k 16k
VOLUME
(Hz)
MANUAL
MHz
2 Press TUNING MODE repeatedly until
“AUTO” appears in the display.
TUNER
63 125 250 500 1k 2k 4k 8k 16k
DISC PROGRAM
CLIP
VOLUME
(Hz)
AUTO
MHz
3 Press TUNING +/– buttons (or /
on the remote).
The tuner starts scanning radio
frequencies, and stops when it finds a
clear station. “TUNED” appears in the
display. “STEREO” also appears if the
FM station tuned in is broadcasting in
stereo.
AM
To change the AM tuning interval
The AM tuning interval is preset to 9 kHz
(10 kHz in some areas) at the factory. If you
need to change the interval, do as follows:
1 Turn on the power.
2 Change the band to AM.
3 Turn off the power.
4 Turn the power back on while pressing
ENTER/NEXT.
After changing the AM tuning interval,
reset the preset AM radio stations. To reset
the interval to the factory setting, follow the
same procedure.
When an FM programme is not received
clearly
Press STEREO/MONO on the unit so that
“MONO” appears in the display. There will
be no stereo effect, but the reception will
improve. Press STEREO/MONO again to
restore the stereo effect.
One Touch Play feature
Press TUNER/BAND (or TUNER/BAND
on the remote) when the power is off or
when you are listening to another sound
source.
You can listen to the last received station
without pressing any other buttons.
Note
When you listen to a sound source other
than the tuner, you can select the tuner by
pressing TUNER/BAND (Automatic
Source Selection).
Chapter 3: the Radio
TUNER
63 125 250 500 1k 2k 4k 8k 16k
DISC PROGRAM
CLIP
(Hz)
TUNED STEREO
MHz
AUTO
4 If you don’t want to listen to the
selected station, press TUNING +/– (or
/ on the remote) buttons to restart
the scan.
VOLUME
Page 13
Pr esetting Radio
Stations
You can store radio frequencies in the
tuner’s memory to tune in your favourite
stations quickly. You can preset up to 20
FM stations and 10 AM stations (20 FM
stations, 10 MW stations and 10 SW stations
for Middle Eastern model) in any order.
SYSTEM
POWER ON
2,4
3
5
1
6 Repeat steps 1 to 5 for each station you
want to store.
To erase a stored station
Store a new station at a previously used
preset station number. It will erase the old
station and replace it with the new station.
If you have trouble storing a station
Make sure “MEMORY” is lit in the display.
If not, press TUNER MEMORY again so
that “MEMORY” appears (for about eight
seconds) in the display, and then proceed
with steps 4 and 5.
Playing Preset Radio
Stations
Once you have preset the stations, use the
TUNING +/– buttons (or and on the
remote) to quickly tune in your favourite
stations.
2 Press TUNING MODE repeatedly so
that “PRESET” appears in the display.
TUNER
CLIP
63 125 250 500 1k 2k 4k 8k 16k
VOLUME
(Hz)
PRESET
MHz
3 Press TUNING +/– buttons (or /
on the remote) to tune in a preset
station.
The station frequency appears and the
system begins receiving the stations.
Preset channel number
TUNER
1
CLIP
63 125 250 500 1k 2k 4k 8k 16k
Station frequency
VOLUME
(Hz)
PRESET
MHz
1 Press TUNER/BAND repeatedly until the
band you want appears in the display.
FM Z z AM
TUNER
CLIP
63 125 250 500 1k 2k 4k 8k 16k
VOLUME
(Hz)
MANUAL
MHz
2 Press TUNING +/– buttons to tune in
the station you want to store.
3 Press TUNER MEMORY.
“MEMORY” appears and the preset
channel number flashes in the display.
TUNER
CLIP
63 125 250 500 1k 2k 4k 8k 16k
(Hz)
TUNED STEREO
VOLUME
MANUAL
Preset channel number
4 Press TUNING +/– buttons to display
the preset channel number you want.
5 Press ENTER/NEXT.
“MEMORY” disappears, and the station
is stored at the preset channel number
you decided on.
SYSTEM
POWER ON
1
EN
13
3
2
1
3
Preset channel number
TUNER
1
CLIP
63 125 250 500 1k 2k 4k 8k 16k
Tuned station frequency
(Hz)
TUNED STEREO
MHz
MANUAL
VOLUME
1 Press TUNER/BAND (or TUNER/
BAND on the remote) repeatedly
until the band you want appears in the
display.
FM Z z AM
TUNER
CLIP
63 125 250 500 1k 2k 4k 8k 16k
(Hz)
MANUAL
MHz
VOLUME
Chapter 3: the Radio
Page 14
EN
14
Chapter 4:
the Tape
Player
Playing a Tape
Recording a CD
Recording a CD: Selecting
Tape Length (tape select
edit)
Recording a CD: Specifying
Tape Length (time edit)
Recording a CD: Specifying
Track Order (programme
edit)
Recording From the Radio
Recording From Another
Tape (dubbing)

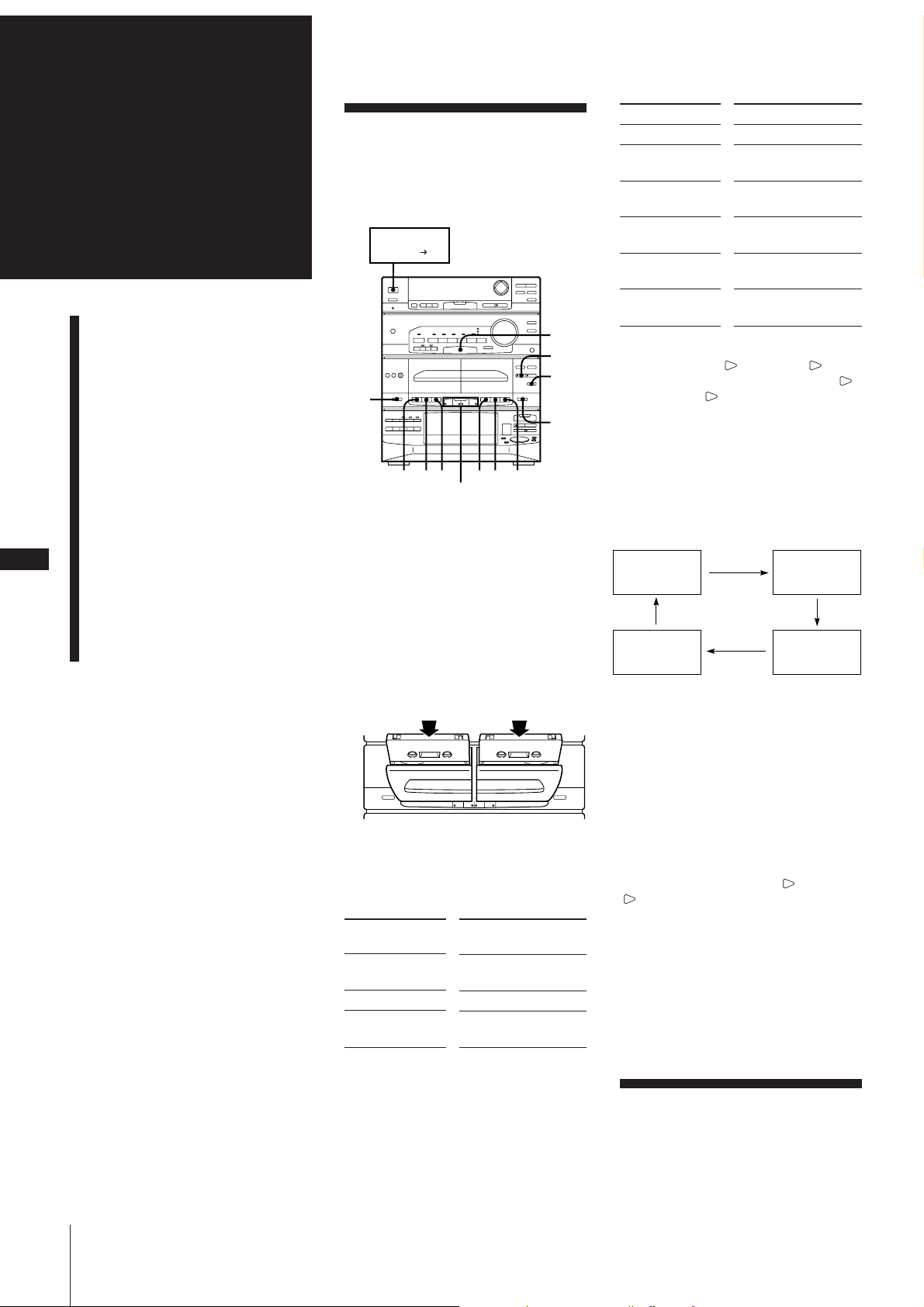

Playing a Tape
You can use TYPE I (normal) and TYPE II
(CrO2) tapes. When you insert a tape, the
deck detects the tape type automatically.
SYSTEM
POWER ON
1
∏
3
2
2
π
ª/·
º
‚
⼹
1 Press FUNCTION repeatedly until
“TAPE” appears in the display.
TAPE is selected.
2 Press § EJECT to open the tape
compartment.
Insert a recorded tape in deck A or B
with the tape side facing down and the
side you want to play facing forward.
Push to close the compartment.
The tape will start playing from the
front side.
To
Stop play
Pause (DECK B
only)
Resume play after
pause
Fast forward
Rewind
Remove the
cassette
To control the remote
1 Press DECK A or DECK B to
play the front side and press DECK
or DECK B again to play the reverse.
2 Press the desired operation button.
To play both decks in succession
(relay play)
Relay play is according to the following
sequence. When the reverse side of the tape
in deck B finishes playing, the sequence
continues four more times.
DECK A
(Front side)
DECK B
(Reverse side)
1 Press § EJECT and insert recorded
tapes in both decks.
2 Press DIRECTION repeatedly until
“RELAY” appears in the display.
3 Press ª or · on either deck. To stop
relay play, press π.
Press
π
∏
∏ or ª or ·
‚ for front side º
for reverse side
º for front side ‚
for reverse side
§ EJECT
DECK A
(Reverse side)
DECK B
(Front side)
Chapter 4: the Tape Player
3 Press DIRECTION to choose single-side,
dual-side, or relay play.
The DIRECTION setting affects both
decks.
To play
One side of the
tape
Both sides*
Both decks in
succession**
* The deck stop automatically after
repeating the sequence five times.
**See “To play both decks in succession
(relay play)”.
Press DIRECTION to
select
A
ß
RELAY
4 Press · (to play the front side) or ª
(to play the reverse side).
The tape starts playing.
To cancel relay
Press DIRECTION repeatedly until “A”
or “ß” appears in the display.
One Touch Play feature
Press ª or · (or DECK A /DECK B
on the remote) when the power is off.
When a tape is in the player, you will
immediately be able to listen to the tape
without pressing any other buttons. If no
tape is inserted, the system will just turn on.
The TAPE player always starts playing
from the front side of the tape when you
operate the remote.
Recording a CD
You can record from a CD to a tape. Use
TYPE I (normal) or TYPE II (CrO2) tapes.
You can not listen to other sources while
recording.
Page 15
Recording a CD
automatically
By using CD SYNCHRO, you can record
from a CD to a tape easily.
Use the buttons on the unit for this
operation.
SYSTEM
POWER ON
5
6
4
π
2
1
3
1 Press FUNCTION repeatedly until
“CD” appears in the display.
2 Press § OPEN and place a CD on the
tray.
Make sure the disc number in the
playing position in the display is the one
you want to record.
The total number of tracks and the
playing time appear in the display.
3 Press § EJECT and insert a blank tape
into deck B with the side you want to
record on facing forward.
Recording starts from the front side of
the tape, unless you change the playing
direction before recording.
Make sure the tabs on the cassette have
not been removed.
4 Select dual or single- sided recording.
To record
One side of the
tape
Both sides*
* Recording always stops at the end of the
reverse side. Be sure to start from the
front side.
Press DIRECTION to
select
A
ß or RELAY
5 Press CD SYNCHRO.
The REC and ∏ (pause) lamps light up
and deck B stands by for recording.
The · lamp lights up and the ª lamp
flashes for a few seconds, then
disappears.
Side in recording
pause mode
If you want to start recording from the
reverse side, press ª so that the ª
lamp lights steadily.
6 Press ∏ to release recording pause.
Recording starts.
After about 10 seconds, the CD starts
playing.
To stop recording
Press π on the tape player.
To record with surround effect
Press SURROUND so that “SUR ”
appears in the display.
The equalizer you have adjusted will not be
recorded.

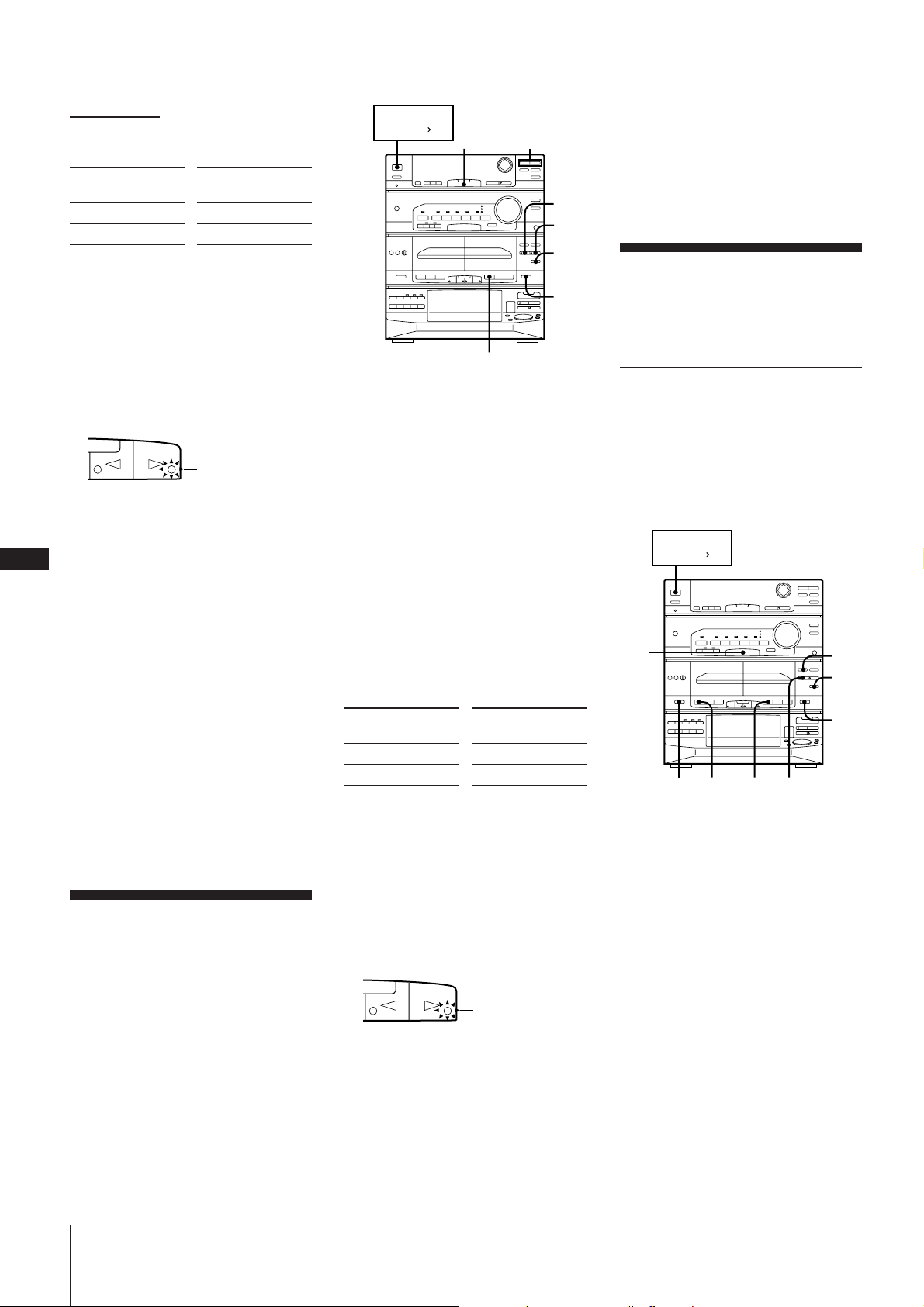

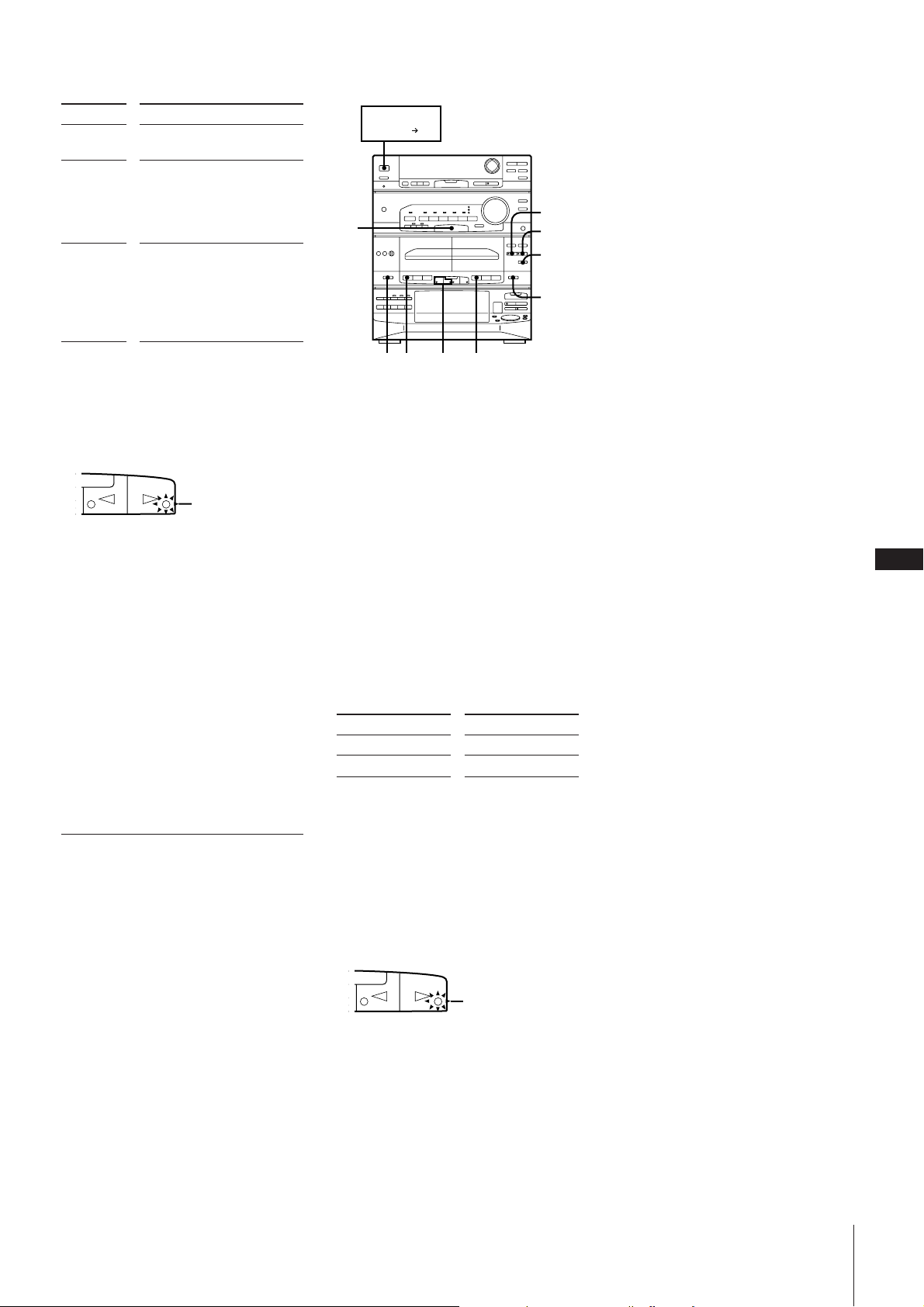

Recording a CD Manually
You can record a CD as you like, for
example, record just the songs you want or
record from the middle of the tape.
SYSTEM
POWER ON
8
7
4
π
3
9
5
ª/·
621
1 Press FUNCTION repeatedly until
“CD” appears in the display.
2 Press § OPEN and place a CD on the
tray.
Make sure the disc number in the
playing position in the display is the one
you want to record.
The total number of tracks and the
playing time appear in the display.
3 Press § EJECT and insert a blank tape
into deck B with the side you want to
record on facing forward.
Recording starts from the front side of
the tape, unless you change the playing
direction before recording.
Make sure the tabs on the cassette have
not been removed.
4 Select dual or single-sided recording.
To record
One side of the
tape
Both sides*
* Recording always stops at the end of the
reverse side. Be sure to start from the
front side.
Set DIRECTION to
A
ß or RELAY
5 If you want to record a specific track of
the CD, press ∏ on the CD player.
The CD player pauses for playing.
If you do not need to choose a track,
skip to step 7.
6 Turn the JOG dial to choose the track
you want to record.
7 Press REC.
The REC and ∏ (pause) lamps light up
and deck B stands by for recording.
The · lamp lights up and the ª lamp
flashes for a few seconds, then
disappears.
Side in recording
pause mode
If you want to start recording from the
reverse side, press ª so that the ª
lamp lights steadily.
8 Press ∏ to release recording pause.
Recording starts.
9 Press CD ·.
The CD player starts playing.
To
Stop recording
Pause recording
To record with the surround effect
Press SURROUND so that “SUR ”
appears in the display.
The equalizer you have adjusted will not be
recorded.
Note
If you want to record specific tracks of the
CD, the “programme edit” feature will
make it easier.
Press
π
∏
EN
15
Chapter 4: the Tape Player
Page 16
EN
16

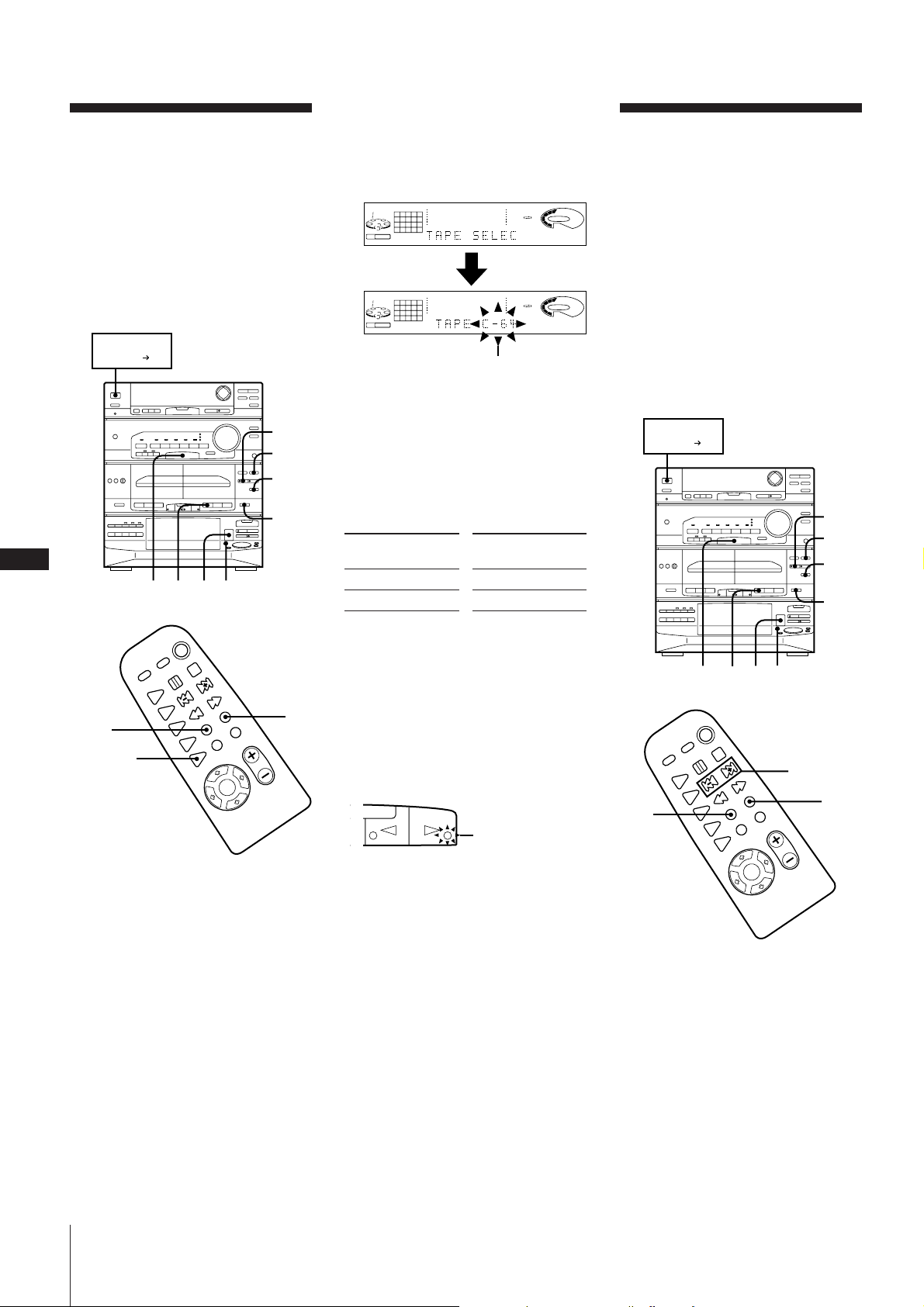

Recording a CD:
Selecting Tape
Length (tape select
edit )
You can have the stereo system select and
indicate the most suitable tape length for
recording each disc automatically.
You cannot use tape select edit for discs
which contain 21 tracks or more.
SYSTEM
POWER ON
7
6
5
4
π
1
CONTINUE
2
Press EDIT on the remote.
3
“TAPE SELECT” appears in the display
and the player divides the selections
automatically.
Then the display changes as follows:
CD
21345
10
7689
11 12 13 14 15
63 125 250 500 1k 2k 4k 8k 16k
16 17 18 19 20
DISC PROGRAM
CLIP
CD
21345
10
7689
11 12 13 14 15
63 125 250 500 1k 2k
16 17 18 19 20
DISC PROGRAM
CLIP
flashing
VOLUME
(Hz)
VOLUME
4 Press § EJECT and insert a blank tape
of the indicated length (or longer) into
deck B with the side you want to record
on facing forward.
Make sure the tabs on the cassette have
not been removed.
5 Select dual or single-sided recording.
To record
One side of the tape
Both sides*
Press DIRECTION
to select
A
ß or RELAY

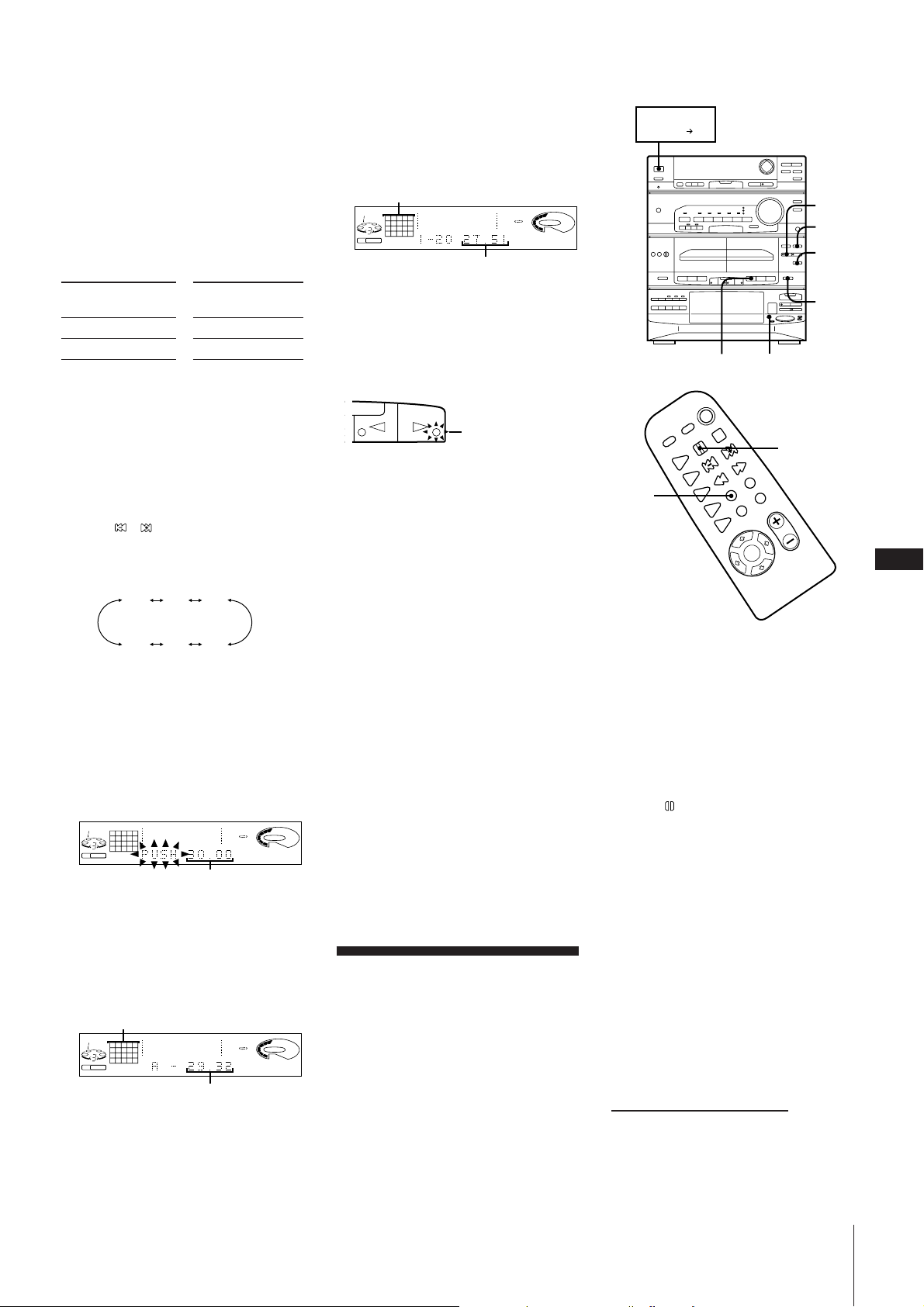

Recording a CD:
Specifying Tape
Length (time edit)
You can have the stereo system create
programmes based on the tape length.
The CD player makes programmes that will
fit the tape length. For example, if you use a
46-minute tape to record a 50-minute CD,
the CD player will automatically choose
tracks that will fit within the 46-minutes,
filling as much of the tape as possible. The
player will not programme those tracks
beyond track number 20.
Use the buttons on both the unit and the
remote to do this operation.
SYSTEM
POWER ON
10
9
4
3
CHECK
1
1 Press FUNCTION repeatedly until
“CD” appears in the display.
2 Press § OPEN and place a CD on the
tray.
Make sure the disc number in the
playing position in the display is the one
you want to record.
The total number of tracks and the
playing time appear in the display.
3
* Recording always stops at the end of the
reverse side. Be sure to start from the
front side.
6 Press CD SYNCHRO.
The REC and ∏ (pause) lamps light up
and deck B stands by for recording.
The · lamp lights up and the ª lamp
flashes for a few seconds, then
disappears.
Side in recording
pause mode
If you want to start recording from the
reverse side, press ª so that the ª
indicator lights steadily.
7 Press ∏ on the tape player to release
recording pause.
Recording starts.
After about 10 seconds, the CD player
starts playing.
To stop recording
Press π on the tape player.
To check the order
Press CHECK on the remote.
To cancel tape select edit
Press CONTINUE on the unit.
CONTINUE
π
12
6
CHECK
1 Press FUNCTION repeatedly until
“CD” appears in the display.
2 Press § OPEN and place a CD on the
tray.
Make sure the disc number in the
playing position in the display is the one
you want to record.
The total number of tracks and the
playing time appear in the display.
5,7,8
Chapter 4: the Tape Player
Page 17
3 Press § EJECT and insert a blank tape
HALF C-46
(23.00)
C-54
(27.00)
C-90
(45.00)
C-74
(37.00)
C-60
(30.00)
into deck B with the side you want to
record on facing forward.
Recording starts from the front side of
the tape, unless you change the playing
direction before recording.
Make sure the tabs on the cassette have
not been removed.
4 Select dual or single-sided recording.
8 When you want to record on both sides,
press EDIT again. The CD player
determines the tracks to be recorded on
side B.
Tracks to be recorded on both sides
CD
21345
10
7689
11 12 13 14 15
63 125 250 500 1k 2k 4k 8k 16k
16 17 18 19 20
DISC PROGRAM
CLIP
(Hz)
Total playing time on side B
VOLUME
SYSTEM
POWER ON
7
6
5
To record
One side of the tape
Both sides*
Press DIRECTION
to select
A
ß or RELAY
* Recording always stops at the end of the
reverse side. Be sure to start from the
front side.
5 Press EDIT twice.
“TIME EDIT” appears then “SELECT”
and “TIME” appear alternately in the
display.
6 Press / on the remote to designate
the tape length or “HALF”.
As you press the button, the display
changes as follows:
Choose “HALF” if you want the CD
player to half of the total playing time of
the CD in original order. You cannot
select “HALF” when recording CDs
with more than 20 tracks.
“PUSH EDIT” and half of the total time
of the tape you selected appears in the
display.
CD
CLIP
2k 4k 8k 16k
VOLUME
(Hz)
Half of the total
time of the tape
7 Press EDIT.
The CD player determines the tracks to
be recorded on side A automatically.
Total time and tracks to be recorded on
side A appears in the display.
Tracks to be recorded on side A
CD
21345
10
76
11
63 125 250 500 1k 2k 4k 8k 16k
DISC PROGRAM
CLIP
Total playing time on side A
VOLUME
(Hz)
9 Press CD SYNCHRO.
The REC and ∏ (pause) lamps light up
and deck B stands by for recording.
The · lamp lights up and the ª lamp
flashes for a few seconds, then
disappears.
Side in recording
pause mode
If you want to start recording from the
reverse side, press ª so that the ª
indicator lights steadily.
10 Press ∏ on the tape player to release
recording pause.
Recording starts. After about 10
seconds, the CD player starts playing.
To stop recording
Press π on the tape player.
To cancel time edit
Press CONTINUE on the unit.
To check the order
Press CHECK on the remote repeatedly.
Each time you press CHECK, the number of
the programmed tracks appear in the
display.
To select the desired tracks
beforehand
You can record certain tracks (up to 20) first
by selecting them before time editing. See
“Playing Tracks in the Desired Order
(programme play)”.
Recording a CD:
Specifying Track
Order (programme
edit)
You can adjust the total recording time to
the tape length while making a programme.
4
CONTINUEπ
2
CHECK
EN
17
1 Following the procedure “Playing
Tracks in the Desired Order
(programme play)”, programme the
tracks you want to record for side A.
Make sure to programme the tracks so
that the total playing time of the side A
does not exceed the tape length of one
side.
2 Press on the remote to pause
recording at the end of the side A.
“P” appears in the display.
The total playing time “0.00” is
displayed.
3 Programme the tracks you want to
record for side B in the same way as you
did for side A.
4 Press § EJECT and insert a blank tape
into deck B with the side you want to
record on facing forward.
Recording will start from the front side
of the tape, unless you have changed the
playing direction before recording.
Make sure the tabs on the cassette have
not been removed.
continue to next page ➔
Chapter 4: the Tape Player
Page 18
EN
18
continued ➔
5 Select dual or single-sided recording.
To record
One side of the tape
Both sides*
* Recording always stops at the end of the
reverse side. Be sure to start from
recording pause.
Press DIRECTION
to select
A
ß or RELAY
6 Press CD SYNCHRO.
The REC and ∏ (pause) lamps light up
and deck B stands by for recording.
The · lamp lights up and the ª lamp
flashes for a few seconds, then
disappears.
Side in recording
pause mode
If you want to start recording from the
reverse side, press ª so that the ª
indicator lights steadily.
7 Press ∏ on the tape player to release
recording pause.
Recording starts.
After 10 seconds, the CD player starts
playing.
To stop recording
Press π on the tape player.
SYSTEM
POWER ON
2
3
6
5
4
1
π
1 Press § EJECT and insert a blank tape
into deck B with the side you want to
record on facing forward.
Recording starts from the front side oh
the tape, unless you change the playing
direction before recording.
Make sure the tabs on the cassette have
not been removed.
2 Press TUNER/BAND several times
until the desired radio band appears.
3 Tune in the radio station you want to
record. (See “Listening to the Radio”, or
“Playing Preset Radio Stations” for
details.)
4 Select dual or single-sided recording.
To reduce noise during MW/SW (AM)
recording
If a whistling noise is heard while
recording, reorient the AM loop aerial for
optimum reception.
Recording From
Another Tape
(dubbing)
Dubbing Another Tape
Automatically
You can record an entire tape onto another
automatically by using high speed dubbing.
Use the buttons on the unit and TYPE I
(normal) or TYPE II (CrO2) tape for
dubbing.
SYSTEM
POWER ON
1
4
3
To check the order
Press CHECK repeatedly.
Each time you press CHECK, the number of
the programmed tracks appear in the
display.
To cancel programme edit
Press CONTINUE.
Recording From the
Radio
You can record from the tuner onto a tape.
Use TYPE I (normal) or TYPE II (CrO2)
tape.
To record
One side of the tape
Both sides*
* Recording always stops at the end of the
reverse side. Be sure to start from the
front side.
Press DIRECTION
to select
A
ß or RELAY
5 Press REC.
The REC and ∏ (pause) lamps light up
and deck B stands by for recording.
The · lamp lights and the ª lamp
flashes for a few seconds, then
disappears.
Side in recording
pause mode
If you want to start recording from the
reverse side, press ª so that the ª
indicator lights steadily.
6 Press ∏ on the tape player to release
recording pause.
Recording starts.
2
2
π
5
π
1 Press FUNCTION repeatedly until
“TAPE” appears in the display.
TAPE is selected.
2 Press § EJECT and insert a recorded
tape in deck A with the side you want to
play facing forward.
Also, insert a blank tape in deck B with
the side you want to record on facing
forward.
Recording and playback will start from
the front side of the tape, unless you
change the playing direction before
recording.
Make sure the tabs on the cassette in
deck B have not been removed.
3 Choose how you want the tape to record
and press DIRECTION repeatedly until
the desired mode appears.
Chapter 4: the Tape Player
To stop recording
Press π on the tape player.
Page 19
Position
A
ß
RELAY
Operation
Dubbing stops at the end of
one side
When the tape in one deck
comes to the end of the front
side, it reverses immediately
regardless of the tape
position in other deck.
When the tape in one deck
reaches its end of the front
side, it stops until the other
tape come to its end, and
then both tapes reverse
together.
SYSTEM
POWER ON
1
5
3
6 Press ª or ·.
The tape on deck A starts playing.
To stop dubbing
Press π on DECK A or DECK B.
Note
Do not use the microphone while dubbing.
4
2
4 Press HIGH SPEED DUBBING.
The REC and ∏ (pause) lamps light and
deck B stands by for recording.
The · lamp lights and the ª lamp
flashes for a few seconds, then
disappears.
Side in recording
pause mode
If you want to start recording from the
reverse side, press ª so that the ª
indicator lights steadily.
5 Press ∏ on the tape player.
The tape player starts dubbing at high
speed.
If you set DIRECTION to ß or
RELAY, recording always stops at the
end of the reverse side.
To stop dubbing
Press π on DECK A or DECK B.
If you select another sound source while
dubbing
Dubbing stops.
Dubbing Another Tape
Manually
When you want to dub only part of the
tape, dub manually at normal speed. Use
the buttons on the unit and TYPE I (normal)
or TYPE II (CrO2) tape for recording.
π
26
π
1 Press FUNCTION repeatedly until
“TAPE” appears in the display.
TAPE is selected.
2 Press § EJECT and insert a recorded
tape in deck A with the side you want to
play facing forward.
Also, insert a blank tape in deck B with
the side you want to record on facing
forward.
Recording and playing will start from
the front side of the tape, unless you
have changed the playing direction
before recording.
Make sure the tabs on the cassette in
deck B have not been removed.
3 Select dual or single-sided recording.
To dub
One side of the tape
Both sides*
* Recording always stops at the edge of the
end of the reverse side. Be sure to start
from the front side.
Set DIRECTION to
A
ß or RELAY
4 Press REC.
The REC and ∏ (pause) lamps light up
and deck B stands by for recording.
The · lamp lights and the ª lamp
flashes for a few seconds, then
disappears.
EN
19
Side in recording
pause mode
If you want to start recording from the
reverse side, press · so that the ª
lamp lights steadily.
5 Press ∏ on the tape player to release
recording pause on deck B.
Recording starts on deck B.
If you set DIRECTION to ß or
RELAY, recording always stops at the
end of the reverse side.
Chapter 4: the Tape Player
Page 20
EN
20

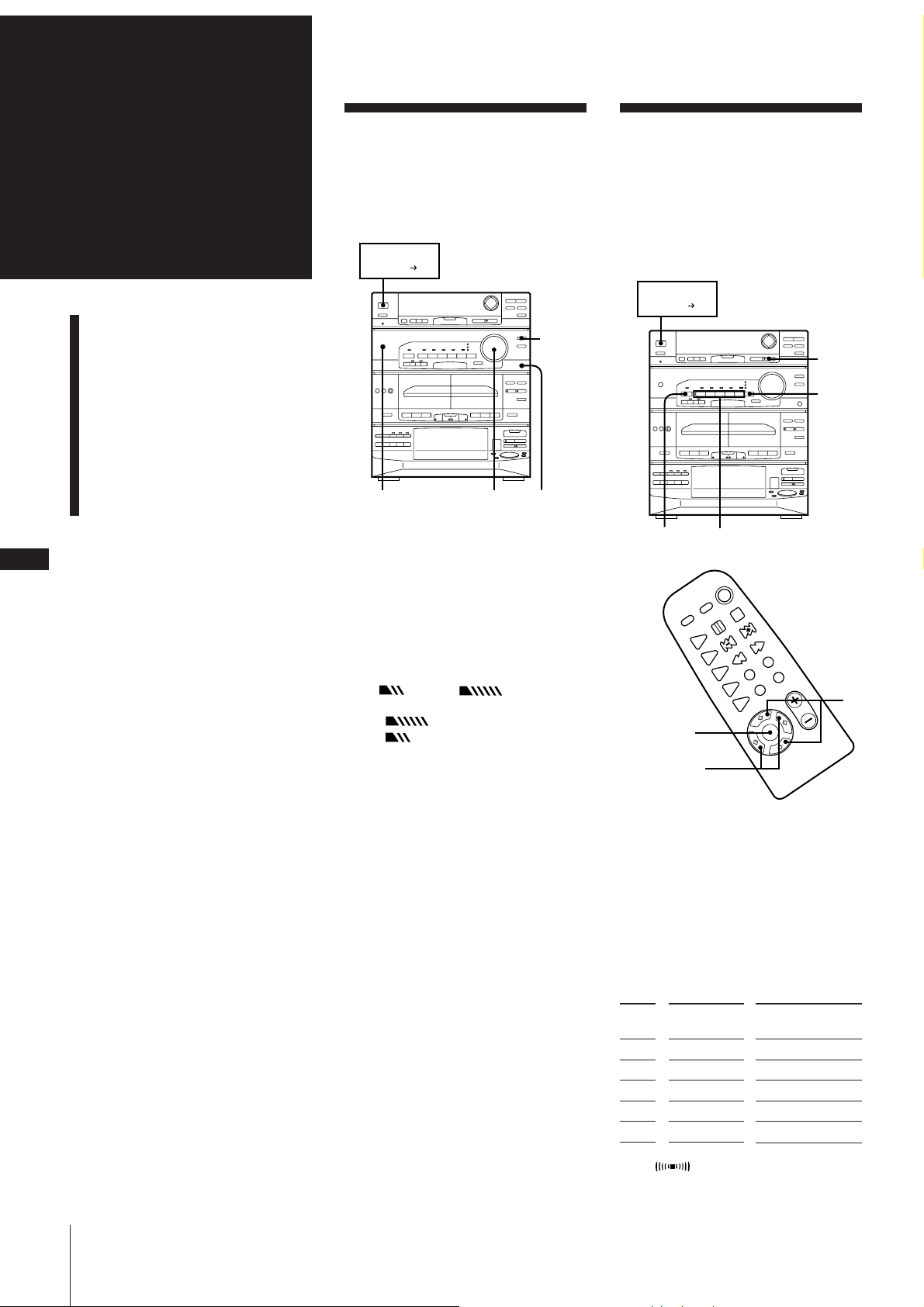

Chapter 5:
Sound
Adjustment
Adjusting the Sound
Selecting the Audio
Emphasis
Adjusting the Audio
Emphasis
Making Your Personal
Audio Emphasis File
(personal file)
Adjusting the Sound
To fully enjoy the sound coming from your
stereo system, make the following audio
adjustments. See the sections following this
one for additional sound adjustments.
SYSTEM
POWER ON
DBFB
VOLUMEPHONES
To adjust the volume
Turn the VOLUME on the unit clockwise/
anticlockwise to increase or decrease the
sound, or press VOL (+/–) on the remote.
SUPER
TWEETER
Selecting the Audio
Emphasis
Your stereo system has been factory set to
five specially recommended audio
emphasis settings. Choose from among
these five preset settings according to the
type of music you are listening to.
SYSTEM
POWER ON
DISPLAY/
DEMO
1
EFFECT
2
To reinforce bass
Press DBFB* repeatedly and choose
DBFB or DBFB .
“DBFB ” is stronger than
“DBFB ”.
* DBFB = Dynamic Bass Feedback
To reinforce treble sound
Press SUPER TWEETER.
To cancel the SUPER TWEETER, press
SUPER TWEETER again.
To cancel the SUPER WOOFER
The SUPER WOOFER is factory preset to
ON. The reinforced bass sound comes from
the supplied super woofer speaker.
To cancel the SUPER WOOFER, set SUPER
WOOFER switch on the front panel to OFF.
Note
• When you use the turntable, adjusting
volume high may cause distortion or
howling . In this case, set SUPER
WOOFER switch off.
To listen through the headphones
Connect the headphones to the PHONES
jack. No sound will come from the
speakers.
MUSIC MENU
ON/OFF
2
1 Press FILE SELECT (or MUSIC MENU
◊/√ on the remote) to select SELECT 5.
The SELECT 5 indicator lights up.
2 Press one of the FILE 1 – 5 buttons on
the unit (or MUSIC MENU ı/∫ on the
remote).
The indicator of the selected preset
setting button lights up.
The effects of preset settings are as
follows:
Press
FILE 1
FILE 2
FILE 3
FILE 4
FILE 5
to get (from
SELECT 5)
ROCK
POPS
JAZZ
CLASSIC
SALSA
To get (from
MORE 5)
GAME
DANCE
PARTY
NIGHT
MOVIE
1
Chapter 5: Sound Adjustment
“SUR ”appears in the display if you
select an effect with surround effects.
Page 21
To cancel the audio emphasis
63 125 250 500 1k 2k 4k 8k 16k
(Hz)
63 125 250 500 1k 2k 4k 8k 16k
(Hz)
63 125 250 500 1k 2k 4k 8k 16k
(Hz)
63 125 250 500 1k 2k 4k 8k 16k
(Hz)
Press EFFECT (or MUSIC MENU ON/OFF
on the remote) once so that the EFFECT
indicator and the selected preset setting
indicator go off.
“EFFECT OFF” appears in the display.
To change the equalizer display
Each time you hold down DISPLAY/
DEMO for a few seconds, the equalizer
display changes to show one of the
following displays:
Spectrum analyzer 1
Spectrum analyzer 2
Spectrum analyzer 3
Graphic equalizer curve
SYSTEM
POWER ON
1,2,3
4
Press one of Z, z, 4 or $ (CURSOR
1
CONTROL).
The frequency range appears and the
level value flashes in the display.
2 Press Z or z to select the frequency
range you want to change.
Frequency range
CD
21345
10
7689
11 12 13 14 15
63 1k 2k 4k 8k 16k
16 17 18 19 20
CLIP
(Hz)
VOLUME
Level value
3 Press 4 or $ to raise or lower the level
of the frequency range.
flashing
CD
21345
10
7689
11 12 13 14 15
63 125 250 500 1k 2k 4k 8k 16k
16 17 18 19 20
CLIP
(Hz)
VOLUME
To turn on the surround effect
Press SURROUND. “SUR ” appears
in the display.
To turn off the surround effect
Press SURROUND so that “SUR ”
disappears from the display.
Making Your
Personal Audio
Emphasis File
(personal file)
You can create a personal file of audio
patterns and store them in the player’s
memory. Later, call up this audio pattern to
play a favourite tape, CD, or radio
programme. You can create up to five
audio files.
SYSTEM
POWER ON
2
FILE
SELECT
3
EN
21
Adjusting the Audio
Emphasis
You can adjust the audio emphasis using
the following two functions:
•Graphic equalizer
•Surround effect
Adjusting the Sound
(graphic equalizer)
This feature lets you adjust the audio
emphasis by raising and lowering the level
of frequency ranges. Before operation, first
select the audio emphasis you want for
your basic sound.
flashing
4 Repeat steps 2 and 3 to adjust other
frequency ranges and press ENTER/
NEXT.
Activating the Sound Field
(Surround)
You can use the surround effect without
connecting the surround speakers. Before
operation, first select the audio emphasis
you want for your basic sound.
SYSTEM
POWER ON
SURROUND
MUSIC
MENU
ON/OFF
Obtain the sound effect you want. (See
1
“Selecting the Audio Emphasis” and
“Adjusting the Audio Emphasis” for
details).
continue to next page ➔
4
MUSIC
MENU
◊/√/ı/∫
Chapter 5: Sound Adjustment

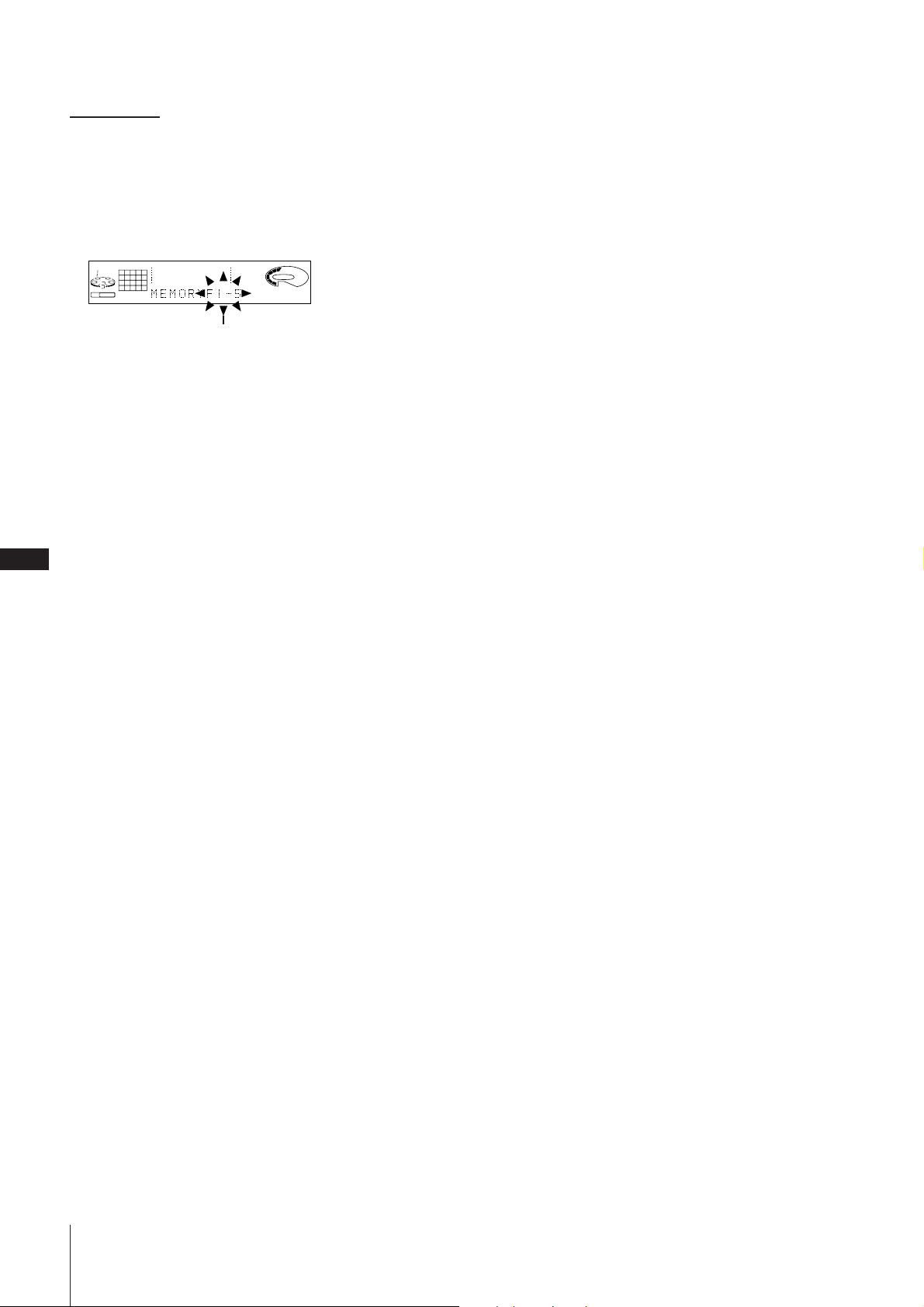

Page 22
EN
22
continued ➔
2 Adjust the sound with the CURSOR
CONTROL (See “Adjusting the Audio
Emphasis” for details).
3 Press EQ MEMORY.
“MEMORY” appears and “F 1 – 5”
flashes in the display.
CD
21345
10
7689
11 12 13 14 15
63 125 250 500 1k 2k
16 17 18 19 20
CLIP
VOLUME
flashing
4 Press one of the FILE 1 – 5 button where
you want the sound effect.
“MEMORY” disappears and the name
of the file you stored appears in the
display.
To call up the personal file
Press FILE SELECT (or MUSIC MENU ◊/√
on the remote) to select P FILE. The P FILE
indicator of lights up. Then press one of the
FILE 1 – 5 buttons (or MUSIC MENU ı/∫
on the remote).
To erase the personal file
Store a new personal file at a previously
used personal file number (FILE 1 – 5) to
erase the old personal file.
Note
If you press SURROUND when you choose
one of the preset settings (SELECT 5 and
MORE 5), the preset setting will be
cancelled automatically.
Chapter 5: Sound Adjustment
Page 23

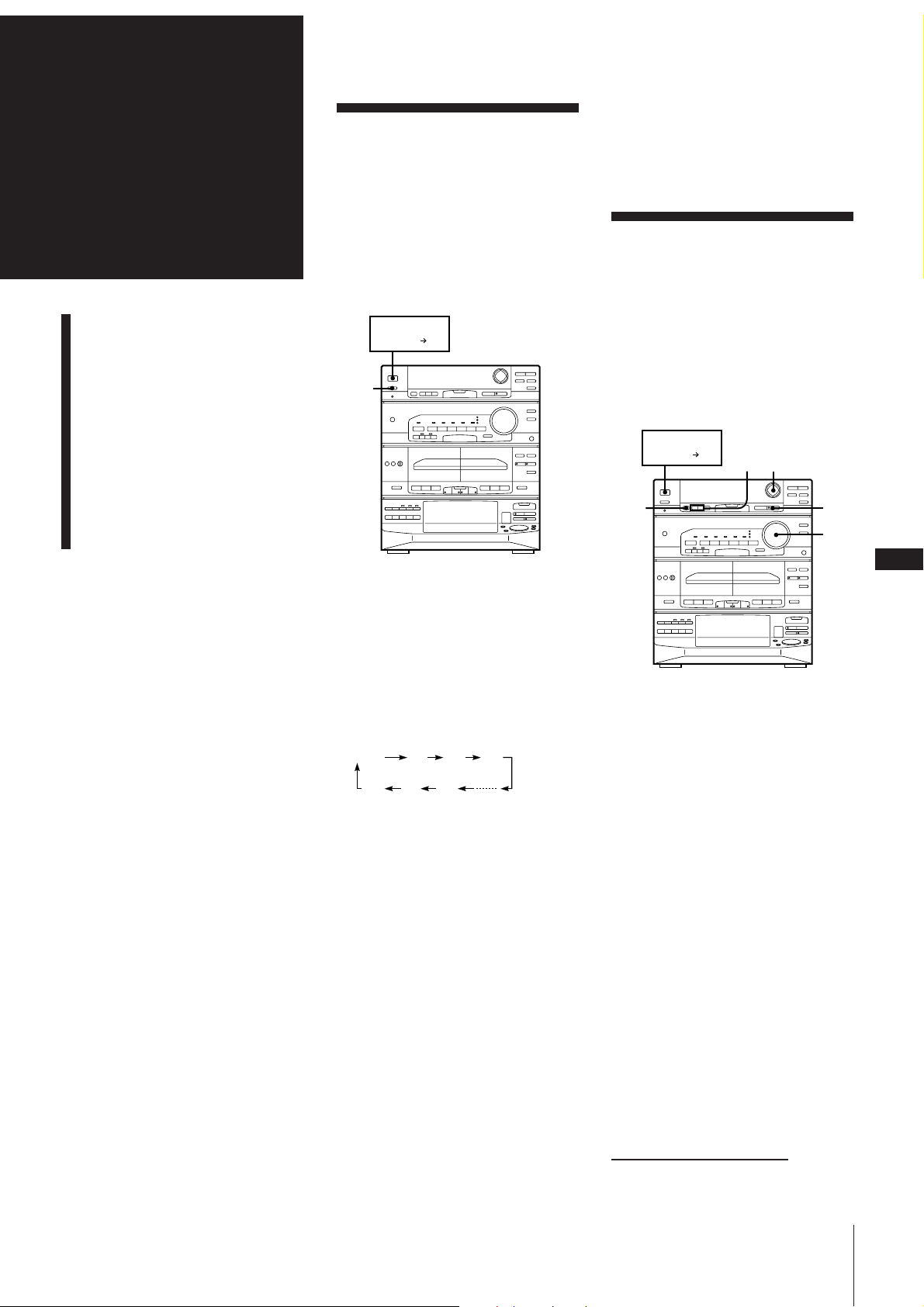

Chapter 6:
Additional
Features
Falling Asleep to Music
Waking Up to Music
Timer-Recording Radio
Programs
Microphone Mixing
Karaoke: Singing Along
Connecting Optional
Equipment
Falling Asleep to
Music
You can set the stereo system to turn off
automatically so you can fall asleep to
music (Sleep timer).
Before setting the sleep timer, make sure
the clock has been set correctly.
You can set the sleep timer even if you have
set the daily or recording timer.
SYSTEM
POWER ON
2
Note
While the sleep timer is turned on, the daily
and recording timer do not work.
Waking Up to Music
You can wake up to music at a preset time.
You only need to set the timer once. When
you select the CD player as the sound
source, you can play a CD in any mode
(normal, shuffle, or progamme). Before
setting the timer, make sure the clock has
been set correctly. You can set the daily
timer even if you have set the sleep or
recording timer.
SYSTEM
POWER ON
3
4 5,6,7
8
2
EN
1 Play your favourite sound source (a
tape, the tuner or a CD).
2 Press SLEEP repeatedly to choose how
long you want the music to play.
“SLEEP” and minutes indication appear
in the display. The power will turn off
after 10 to 90 minutes depending on the
length of time you choose.
AUTO
When you choose AUTO
The power turns off when the current CD
or tape finishes playback (for up to 100
minutes).
The power turns off even when you stop
playing a CD, a tape or pause a tape while
playing.
To cancel the sleep timer
Press SLEEP repeatedly until “OFF”
appears in the display.
To check the remaining time before
the sleep timer turns off the system
Press SLEEP once.
The remaining time (in minutes) is
displayed for several seconds.
To change the remaining time while
the sleep timer is on
Press SLEEP repeatedly to select the
remaining time you desire.
90 80 70
10 20OFF
23
1 Prepare the sound source.
To wake up to the radio
Tune in the preset station you want.
To wake up to a CD
Insert a CD and close the front cover.
Make sure the disc number in the
playing position in the display is the one
you want to play.
If you want to play from a specific
track, follow the procedures for
programmed CD play (See “Playing
Tracks in Desired Order (programme
play)”).
To wake up to a tape
Insert the tape with the side you want to
play facing forward. If you insert the
tapes in both decks, you will hear the
sound from deck B.
2 Turn the VOLUME control to adjust the
volume.
The music will start playing with the
adjusted volume when the preset time
comes.
continue to next page ➔
Chapter 6: Additional Features
Page 24
EN
24
continued ➔
3 Press TIMER SET.
“SELECT TIMER” appears in the
display.
4 Press DAILY 1 or DAILY 2.
“ON” and the timer indication appear
and the hour digits flash in the display.
TIMER
DAILY1
VOLUME
CLIP
flashing
5 Press “ or ” (CURSOR CONTROL) to
set the hour you want the system to turn
on, then press ENTER/NEXT.
Set the minutes in the same way. “OFF”
appears and the hour digits flash in the
display.
TIMER
DAILY1
VOLUME
CLIP
flashing
6 Press “ or ” to set the hour you want
the system to turn off then press
ENTER/NEXT.
Set the minutes in the same way.
7 Press “ or ” to select a sound source.
The display changes as follows:
TUNER CD TAPE
TUNER
CLIP
63 4k 8k 16k
TIMER
DAILY1
(Hz)
VOLUME
To change the timer
Press the desired timer button.
To cancel the timer
1 Press DAILY 1 or DAILY 2 which ever
you have set once.
2 “TIMER OFF” appears in the display.
Notes
•You cannot set DAILY 1 and DAILY 2 at
the same time.
•You cannot set timer if the timer on and
off times are the same.
•When you set the sleep timer, daily timer
does not turn on until the system turns off
by the sleep timer.
•You cannot activate daily timer and
recording timer at the same time.
Timer-Recording
Radio Programmes
You can set the timer to record the radio.
This timer works only once for each setting.
The volume level is automatically set to the
minimum.
Make sure the clock has been set correctly
and preset the station beforehand. (See
“Presetting Radio Stations”).
SYSTEM
POWER ON
4
36,7
2
6,7
5
1
1 Press TUNER/BAND repeatedly until
the band you want appears in the
display.
2 Press TUNING MODE repeatedly until
“PRESET” appears in the display.
3 Press TUNING +/– button (or /
on the remote) to tune in a preset station.
4 Press TIMER SET.
“SELECT TIMER” appears in the
display.
5 Press REC.
“ON” appears and the hour digits and
“AM” flash in the display.
TUNER
1
CLIP
flashing
TIMER
REC
VOLUME
6 Set the hour you want to start recording
by pressing “ and ” ( CURSOR
CONTROL), then press ENTER/NEXT.
Set the minutes in the same way.
“OFF” appears and the hour digits flash
again.
7 Set the hour you want to stop recording
by pressing “ and ” ( CURSOR
CONTROL), then press ENTER/NEXT.
Set the minutes in the same way.
The preset items appear in order in the
display.
8 Insert a tape in deck B with the side you
want to record facing forward.
Recording always starts from the front
side. If necessary select the direction
mode. You can use TYPE I (normal) or
TYPE II (CrO2) tapes.
flashing
8 Press ENTER/NEXT.
The preset items appear in order in the
display.
9 Press SYSTEM POWER to turn off the
system.
The power will turn on at the preset
time and the music will play with the
volume you have adjusted.
At the turn-off time, the power will go
off again.
To change the preset timer settings
Start over from step 1.
To check the preset timer settings
1 Press DAILY 1 or DAILY 2 which ever
you have set once.
2 “TIMER OFF” appears in the display.
3 Press DAILY 1 or DAILY 2 again.
The preset items appear in order in the
display, then “DAILY 1 ON” or “DAILY
2 ON” appears in display.
Chapter 6: Additional Features
1
3
8
9 Press SYSTEM POWER to turn off the
system.
The power will turn on at the preset time
and the recording will start with the
minimum volume level automatically.
At the turn-off time, the power will go
off again.
To cancel the timer settings
Press REC so that “TIMER REC”
disappears from the display. Press REC
again to activate the timer.
To check the timer settings
Press REC twice in succession.
To change the timer settings
Repeat step 1 to 9.
Notes
• The band and station will be recalled as
you have set them, but the recording does
not start if the system power is on.
• You cannot activate recording timer and
daily timer at the same time.
Page 25
Microphone Mixing
You can “mix” sounds by playing one of
the components and singing or speaking
into a microphone (not supplied). The
mixed sounds can then be recorded on a
tape.
SYSTEM
POWER ON
4
1,6
2
3
1 Turn MIC LEVEL to MIN to turn down
the microphone control level.
2 Connect the microphone (not supplied)
into the MIC 1 jack.
When you use two microphones
simultaneously, connect the other one
into the MIC 2 jack.
3 Press one of the function buttons (or
press FUNCTION repeatedly) to select
a sound source and play it.
Echoing the Microphone
Sound
SYSTEM
POWER ON
ECHO
Press ECHO repeatedly to select the level
you want.
As you press the button, the display
changes as follows:
ECHO OFF ECHO 2 ECHO 3ECHO 1
To cancel the echoing
Press ECHO repeatedly until “ECHO OFF”
appears in the display.
Note
The surround effect is cancelled when
ECHO is on. The surround effect does not
automatically return to the previous setting
when ECHO is off. Press SURROUND to
set up the surround effect again.
SURROUND
To Reduce the Vocals
(karaoke pon)
You can minimize the singer’s voice, “vocal
reduction”, so you can sing along with any
stereo CD. When you want to record the
sound of the CD and your voice, operate
steps below, then operate “Microphone
Mixing”.
To reduce the vocals
Press KARAOKE PON/MPX repeatedly
until “h PON” appears.
As you press the button, the indication
changes as follows:
EFFECT name PON
MPX L(left)
The karaoke play sound will be in
monaural. To cancel vocal reduction, press
KARAOKE PON/MPX repeatedly until
“h PON”, “hMPX R” or “hMPX L”
disappears.
Notes on vocal reduction
The singer’s voice may not be reduced
completely for the following reasons:
•Monaural recorded source (Instruments
may also be reduced.)
•Only a few instruments are playing in the
stereo recorded source
•The source has strong echoes or chorus
•The singer’s voice on the source deviates
from the centre
•The voice on the source is singing in high
soprano or tenor
MPX R(right)
EN
25
4 Adjust VOLUME.
If you hear acoustic feedback, move the
microphone away from the speakers or
change the direction of the microphone.
5 Sing or speak into the microphone.
6 Turn MIC LEVEL to adjust the
microphone level.
7 If you want to record mixed sound,
insert a tape in deck B and start
recording.
To record from the microphone only
1 Press FUNCTION repeatedly until
“CD” appears in the display. If a CD is
being played, press π to stop playing.
2 Start recording.
3 Sing or speak into the microphone.
When you finish mixing
Disconnect the microphone and turn the
MIC LEVEL control to MIN.
Karaoke: Singing
Along
SYSTEM
POWER ON
KARAOKE
PON/MPX
˜ DOWN
n UP
Note
When you select “h PON”, the audio
emphasis (SELECT 5 and surround effect)
except DBFB does not activate (the
indicators of EFFECT and “SUR ” go
off). When you want the audio emphasis
back, press EFFECT so that voice reduction
turned off and the previous setting of the
audio emphasis before you press
KARAOKE PON/MPX activates again.
To Sing Along with
Multiplex CDs or Tapes
You can sing along using the microphone
while playing back a multiplex CDs or tape.
On a standard multiplex CDs or tape, a
singer’s voice is recorded on the right
channel and instrumental music is on the
left channel.
continue to next page ➔
Chapter 6: Additional Features
Page 26
continued ➔
Press KARAOKE PON/MPX repeatedly
until “hMPX R” or “hMPX L” appears in
the display (choose right (R) or left (L)/
according to the encoding on your MPX
software).
Then, you can hear the voice through the
microphone and the instruments.
To connect a VCR
1 Connect a VCR or other video
equipment to the VIDEO (AUDIO) IN
jacks.
2 Press FUNCTION repeatedly until
“VIDEO” appears in the display.
The connected sound source comes
through the speakers.
You can also record the VCR sound.
EN
26
To hear both channels (the
instruments and the recorded
singer’s voice)
Press KARAOKE PON/MPX until
“h MPX” disappears from the display and
the effect indicator lights up.
Note
When you select “h MPX”, you cannot
activate the audio emphasis (the indicators
of the audio emphasis except of DBFB go
off.) When you want the audio emphasis
back, press EFFECT so that the previous
setting of the audio emphasis before you
press KARAOKE PON/MPX activates
again.
If you press EFFECT (or MUSIC MENU ON/
OFF on the remote) or recall a sound effect
from one of the FILE 1 – 5 buttons
The karaoke mode is cancelled.
To adjust the key control
Press KEY CONTROL ˜ DOWN or n UP.
You can adjust the key higher or lower in
13 steps (–3.0 to 3.0). Each step is a halftone
(0.5).
To connect a turntable
1 Connect the turntable to the PHONO IN
jacks on the rear panel.
2 Press FUNCTION until “PHONO”
appears in the display.
The turntable sound comes through the
speakers.
You can also record the turntable sound.
Note
When you use the turntable, adjusting the
volume high may cause distortion or
howling. This is often caused by the bass
sound from the speakers which vibrate the
floor and air. That vibration could be
picked up by the needle of the turntable,
and produce the distortion or howling. To
avoid distortion or howling, do the
following:
1 Keep some distance between the
speakers and the turntable.
2 Stop using the surround effect.
3 Install the speakers or the turntable on a
firm and solid place.
4 Set DBFB to “DBFB ” or off.
5 Set SUPER WOOFER switch on the
super woofer speaker off.
Connecting Optional
Equipment
For greater enjoyment of your stereo
system, you can connect other components
to the stereo. You can connect :
• surround speakers to the SURROUND
SPEAKER connectors on the rear panel
• a VCR to the VIDEO (AUDIO) IN jacks
• a turntable to the PHONO IN jacks
• headphones to the PHONES jack on the
front panel
To connect surround speakers
1 Connect surround speakers to the right
and left SURROUND SPEAKER
connectors.
2 Press SURROUND so that
“SUR ” appears in the display.
You can create the atmosphere of a
movie theatre or concert hall.
Chapter 6: Additional Features
Page 27
For Your
Information
Precautions
Troubleshooting Guide
Maintenance
Specifications
Index to Parts and Controls
Index
On operating voltage
Before operating the stereo system, check
that the operating voltage of your stereo
system is identical with the voltage of your
local power supply.
On safety
• The stereo system is not disconnected
from the AC power source (mains) as
long as it is connected to the wall outlet,
even if the system itself has been turned
off.
• Unplug the system from the wall outlet
(mains) if it is not to be used for an
extended period of time. To disconnect
the cord (mains lead), pull it out by the
plug. Do not pull the cord itself.
• Should any solid object or liquid fall into
a component, unplug the stereo system
and have the component checked by
qualified personnel before operating it
any further.
• Should the AC power cord (mains lead)
need to be changed, have it done at a
qualified service shop only.
• As the laser beam used in this unit is
harmful to the eyes, do not attempt to
disassemble the cabinet. Refer servicing to
qualified personnel only.
On installation
• Place the stereo system in a location with
adequate ventilation to prevent heat
buildup in the stereo system.
• Do not install the unit in an inclined
position.
• Do not install the unit in locations where
it is;
– Extremely hot or cold
– Dusty or dirty
– Very humid
– Vibrating
– Subject to direct sunlight
On condensation in the CD player
component
If the system is brought directly from a cold
to a warm one, or is placed in a very damp
room, moisture may condense on the lens
inside any CDs player. Should this occur,
the CD player will not operate. Remove any
CDs and leave the system turned on for
about an hour until the moisture
evaporates.

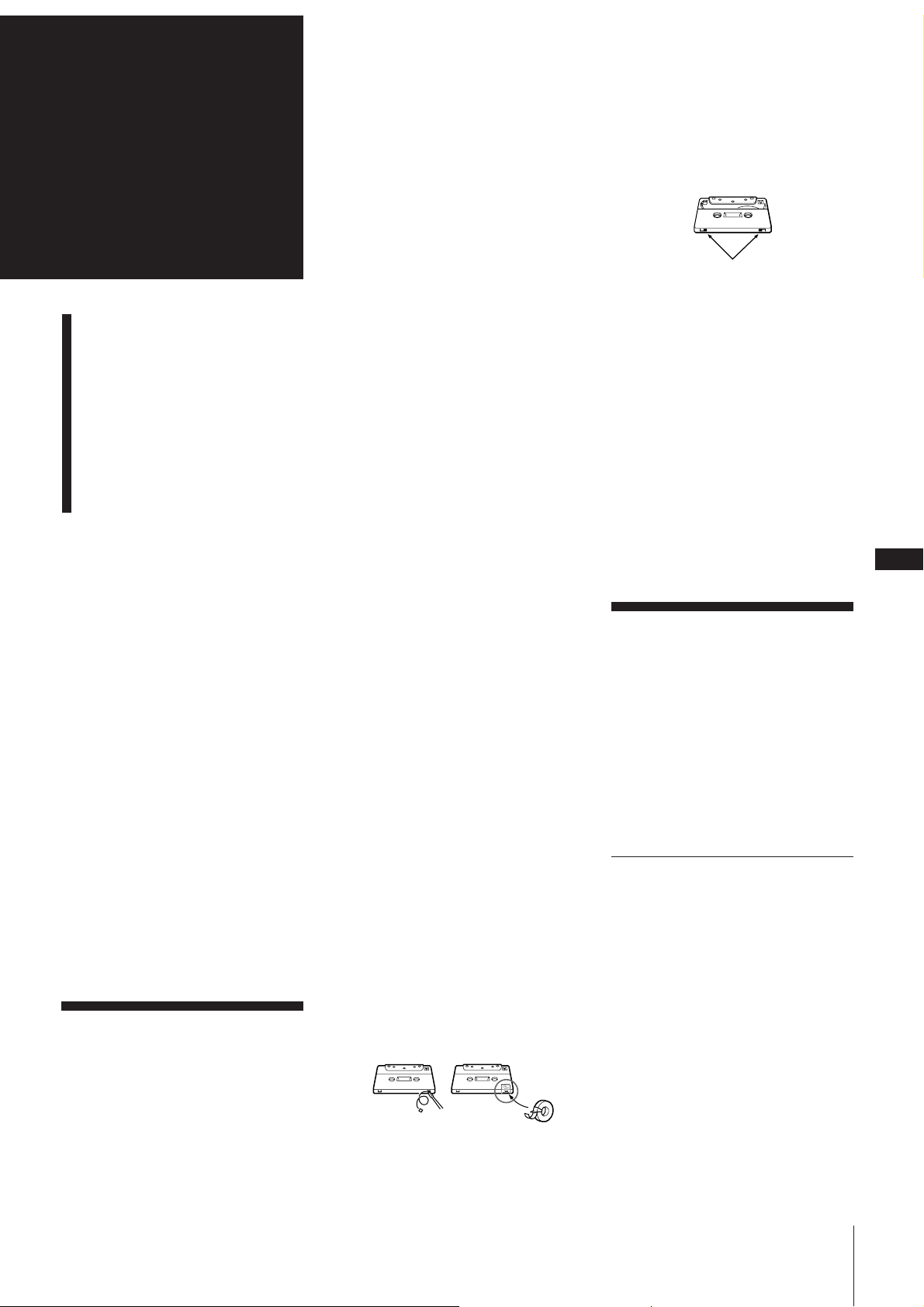

When you are using a type II (CrO2)
cassette, be careful not to cover the detector
slots which allow the tape player to
automatically detect the type of tape.
TYPE II
Detector slots
In case color irregularity is observed
on nearby a TV screen.
With the magnetically shielded type of
speaker system, the speakers can be
installed near a TV set. However, color
irregularity may still be observed on the TV
screen depending on the type of your TV
set.
If color irregularity is observed…
Turn off the TV set once, then turn it on
after 15 to 30 minutes.
If color irregularity is observed
again…
Place the speakers farther away from the
TV set.
EN
27
Troubleshooting
Guide
If you run into any problem using this
stereo system, use the following check list.
First check the following points.
• The mains lead is connected firmly.
• The speakers are connected correctly and
firmly.
Should any problem persist after you have
made the checks below, consult your
nearest Sony dealer.
Tuner
“TUNED” flashes in the display.
➔Adjust the aerial.
Precautions
If you have any questions or problems
concerning your stereo system, please
consult your nearest Sony dealer.
To save a tape permanently
To prevent a tape from being accidentally
recorded over, break off the cassette safety
tab from side A or B as illustrated. If you
later want to reuse the tape for recording,
cover the broken tab with adhesive tape.
“STEREO” flashes in the display.
➔Adjust the aerial.
Severe hum or noise.
➔Adjust the aerial.
➔The signal strength is too weak.
Connect the external aerial.
➔Connect the ground wire.
A stereo FM programme cannot be
received in stereo.
➔Press STEREO/MONO so that
“STEREO” appears.
For Your Information
Page 28
Tape Player
The tape does not record.
➔No tape in the cassette holder.
➔The safety tab has been removed
from the cassette.
➔The tape has reeled to the end.
The tape does not record nor play
back or there is a decrease in sound
level.
➔The heads are dirty. Clean them.
➔Magnetic deposits have built-up on
the record/playback heads.*
There is excessive wow or flutter, or
the sound drops out.
➔The capstans or pinch rollers are
contaminated.*
The tape does not erase completely.
➔Magnetic deposits have built- up on
the record/playback heads.*
General
There is no sound.
➔Rotate the VOLUME clockwise.
➔The headphones are connected.
Disconnect them.
Sound comes from one channel, or is
unbalanced between the left and
right speakers.
➔Check the speaker connections of
the inoperative channel.
The left and right sounds are
reversed.
➔Check the speaker connections and
speaker placement.
There is no bass or the location of
the musical instruments is
apparently imprecise.
➔Check the speaker connection for
proper phasing.

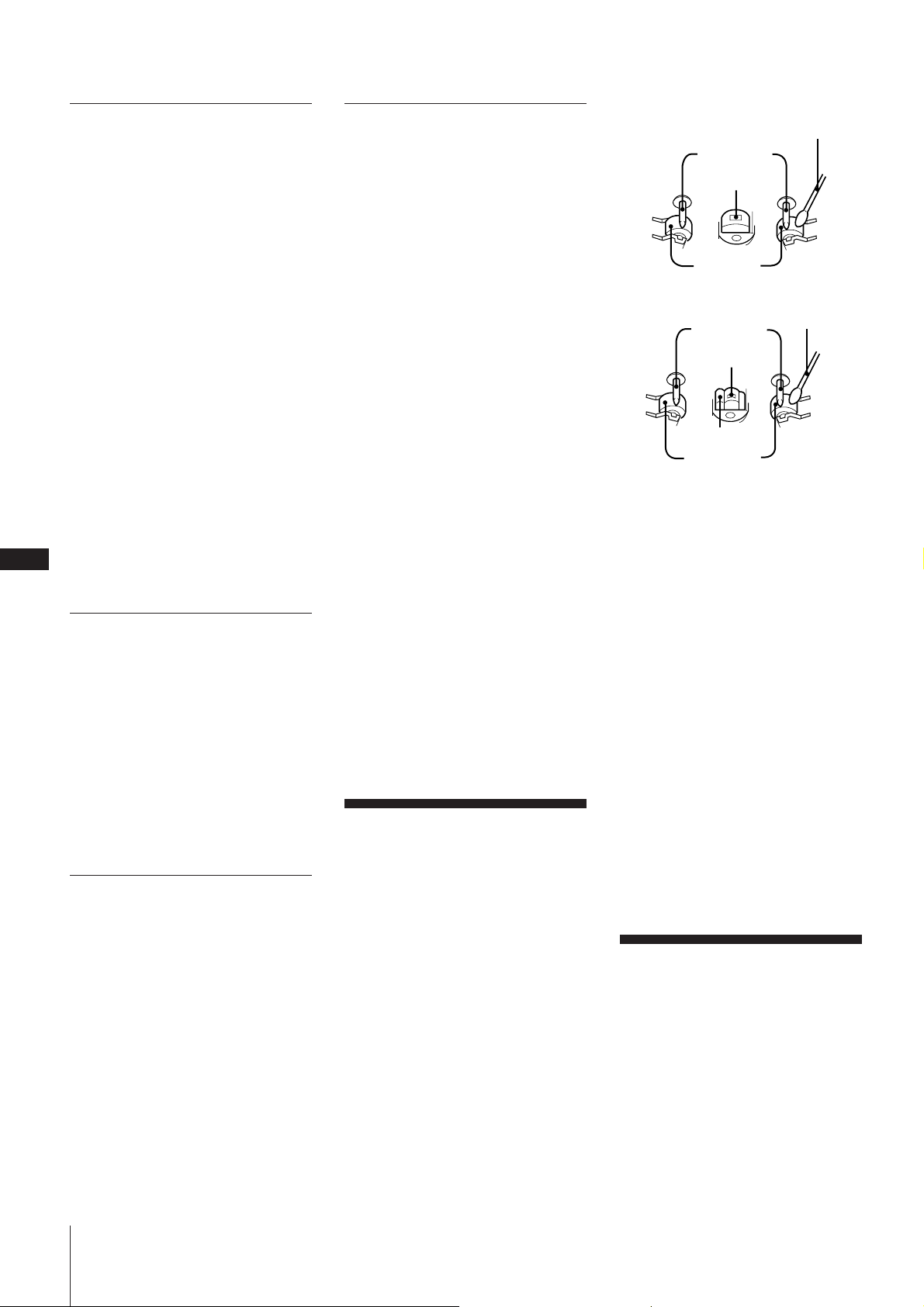

Deck A
Deck B
Capstan
Playback head
Pinch roller
Capstan
Record/playback
head
Erase head
Pinch roller
Cleaning swab
Cleaning swab
EN
28
Noise increases, or the high
frequencies are erased.
➔Magnetic deposits have built-up on
the record/playback heads.*
* See “Maintenance”.
CD Player
The CD will not play.
➔The CD is dirty.
➔The CD is inserted label side down.
➔Moisture condensation has built up.
Leave the system turned on for
about an hour until the moisture
evaporates.
Play does not start from the first
track.
➔The player is in programme or
shuffle mode. Press CONTINUE.
Microphone Mixing/
Karaoke
There is no microphone sound.
➔Turn VOLUME or MIC LEVEL to
adjust the microphone volume.
➔Make sure that the microphone is
connected to the MIC jack correctly.
You hear acoustic feedback when
using the microphone.
➔Turn MIC LEVEL to MIN.
➔Move the microphone away from
the speakers or change the direction
of the microphone.
There is severe hum or noise.
➔The TV, VCR or speakers is too
close to the stereo system. Move the
stereo system away from the TV,
VCR or speakers.
“12:00 AM” flashes in the display.
➔A power interruption occurred.
Set the clock again.
The remote does not function.
➔The batteries have run down.
Replace both batteries.
➔There is an obstacle between the
remote and the system. Remove the
obstacle.
Maintenance
To clean the tape heads and tape
path
Contaminated tape heads cause poor
recording or sound dropout in playback.
We recommend cleaning after every 10
hours of operation.
Open the cassette holder and wipe the
heads, pinch rollers and capstans with a
cleaning swab slightly moistened with
cleaning fluid or alcohol. Wipe the parts
shown below:
Insert a tape after the areas cleaned are
completely dry.
To demagnetize the tape heads
After 20 to 30 hours of use, enough residual
magnetism will have built up on the heads
to begin to cause loss of high frequencies
and hiss. At this time, demagnetize the
heads and all metal parts in the tape path
with a commercially available tape head
demagnetizer. Refer to the instructions of
the demagnetizer.
To clean the cabinet
Use a soft cloth slightly moistened with a
mild detergent solution.
To clean the CD
When a CD is dirty, clean it with a cleaning
cloth. Wipe the CD from the centre out.
Notes on CDs
• Do not use solvents such as benzene,
thinner, commercially available cleaners,
or antistatic spray intended for vinyl LPs.
• If there is a scratch, dirt or fingerprints on
the CD, it may cause a tracking error.
Specifications
CD player section
System Compact disc and
digital audio system
Laser Semiconductor laser
(λ = 780 nm)
Emission duration:
continuous
laser output Max 44.6 µW*
* This output is the value measured at a
distance of 200 mm from the objective
lens surface on the Optical Pick-up Block
with 7 mm aperture.
Wavelength 780 – 790 nm
For Your Information
Page 29
Tuner section
FM stereo, FM/AM superheterodyne tuner
FM tuner section
87.5 – 108.0 MHz
(50 kHz step)
Aerial FM wire aerial
Aerial terminals 75 ohm unbalanced
Intermediate frequency
10.7 MHz
AM tuner section
Tuning range
AM: 531 – 1,602 kHz
(with the AM tuning
interval set at 9 kHz)
530 – 1,710 kHz
(with the AM tuning
interval set at 10 kHz)
Aerial AM loop aerial
External aerial
terminals
Intermediate frequency
450 kHz
Tape player section
Recording system
4-track 2-channel stereo
Frequency response
40 – 13,000 Hz (±3 dB), using
SONY TYPE I cassette
40 – 14,000 Hz (±3 dB), using
SONY TYPE II cassette
Wow and flutter
±0.15% W.Peak (IEC)
0.1% W.RMS (NAB)
±0.2% W.Peak (DIN)
Amplifier section
Peak music power output:
2,000 W (6 Ω, 10% THD)
Continuous RMS power output:
FRONT SPEAKER:
70 W +70 W (6 Ω at 1 kHz, 5%
THD)
WOOFER SYSTEM:
70 W (6 Ω at 50 Hz, 10% THD)
Inputs
PHONO (phono jack):
Sensitivity 3 mV, impedance
47 kilohms
VIDEO (AUDIO) (phono jack):
Sensitivity 250 mV , impedance
47 kilohms
MIC (phone jack):
Sensitivity 1 mV, impedance
10 kilohms
Outputs
PHONES (phone jack):
accept headphones of 8 ohms or more
FRONT SPEAKER: accept impedance of 6
to 16 ohms
SURROUND SPEAKER:
accept impedance of 8 to
16 ohms
SUPER WOOFER:
accept impedance of 6 to
16 ohms
Speaker system
SS-N355
Speaker system
3-way 4 speakers system
Speaker units
Woofer: 30 cm dia., cone type
Mid range: 10 cm dia., cone type
Tweeter: 5 cm dia., cone type
Super tweeter: 5 cm dia., cone type
Nominal impedance
6 ohms
Dimensions
Approx. 350 × 885 × 350 mm
(w/h/d)
Mass Approx. 15 kg (33 lb 1 oz.)
SS-N455W
Speaker system
1-way speaker system
Speaker units
Woofer: 20 cm dia., cone type
Nominal impedance
6 ohms
Dimensions
Approx. 490 × 445 × 390 mm
(w/h/d)
Mass Approx. 28 kg (61 lb 11 oz.)
Rack system
SU-N455W
Supplied accessories
AM loop aerial (1)
Remote RM-SD50 (1)
Sony SUM-3 (NS) batteries (2)
Rack system SU-N455W
FM wire aerial (1)
Speaker cords (3)
General
Power requirements
220 - 240 V AC, 50/60 Hz
Power consumption
270 w
Dimensions
Approx. 355 × 425 × 400 mm
(14 × 16 3/4 × 15 3/4 inches) (w/h/d)
incl. projecting parts and controls
Mass
Approx. 12.5 kg (27 lb 9 oz.)
Design and specifications subject to change
without notice.
Index to Parts and
Controls
Refer to the pages indicated in parentheses
for details on how to use the controls.
Front Panel
Tuner section
Refer to the pages indicated in parentheses
for details on how to use the controls.
1 SLEEP button (23)
2 SYSTEM POWER switch (7)
3 Remote sensor
4 Display window (30)
5 CURSOR CONTROL buttons (6, 21)
6 TUNING MODE button (12)
7 TUNING +/– buttons (12)
8 TUNER MEMORY button (13)
9 STEREO/MONO button (12)
0 ENTER/NEXT button (6, 9, 21)
!¡ DISPLAY/DEMO button (5, 8, 21)
!™ TUNER/BAND button (12, 18, 24)
!£ REC button (24)
!¢ DAILY 2 button (23)
!∞ DAILY 1 button (23)
!§ TIMER SET button (23)
!¶ CLOCK SET button (6)
Amplifier section
1 PHONES jack (20)
2 EFFECT button/indicator (20)
3 FILE 1 – 5 buttons/indicators (20, 21)
4 FILE SELECT button/indicators (20, 21)
5 VOLUME control (7, 20)
6 DBFB button (20)
7 SURROUND (15, 21)
8 SUPER TWEETER button (20)
9 EQ MEMORY button (22)
!º FUNCTION button (7, 14)
!¡ n UP button (26)
!™ ˜ DOWN button (26)
EN
29
continue to next page ➔
For Your Information
Page 30
EN
2
Y
N
T
H
M
T
30
continued ➔
!£ ECHO button (25)
!¢ KARAOKE PON/MPX button (25)
Tape player section
1 MIC 1 jack (25)
2 MIC 2 jack (25)
3 MIC LEVEL control (25)
4 Cassette compartment for DECK A (14)
5 Cassette compartment for DECK B (14)
6 ∏ (pause) button (14)
7 HIGH SPEED DUBBING button (19)
8 CD SYNCHRO button (15)
9 REC (recording) button (15)
0 DIRECTION button (15)
!¡ § EJECT button for DECK B (14)
!™ ‚ (fast rightward) button for DECK B
(14)
!£ º (fast leftward) button for DECK B
(14)
!¢ π STOP button for DECK B (14)
!∞ ª/· (play) button for DECK B (14)
!§ ª/· (play) button for DECK A (14)
!¶ ‚ (fast rightward) button for DECK A
(14)
!• º (fast leftward) button for DECK A
(14)
!ª π STOP button for DECK A (14)
@º § EJECT button for DECK A (14)
CD player section
Rear Panel
1 AM terminal (4)
2 FM 75Ω terminal (4)
3 PHONO IN jacks (26)
4 VIDEO (AUDIO) IN jacks (26)
5 FRONT SPEAKER connectors (4)
6 SURROUND SPEAKER connectors (4)
7 y ground terminal (4)
8 WOOFER SYSTEM connectors (4)
9 AC power cord (5)
Display Window
CD TUNER
21345
7689
10
CLIP
ABC
8k 16k
11 12 13 14 15
16 17 18 19 20
ALL1 DISC S PROGRAM
SHUFFLE
(Hz)
63 125 250 500 1k 2k 4k 8k 16k
REPEAT1
TIMER
DAILY12RECSLEEP
RELAY
DOLBY NR B OFF
TUNED STEREO MONO
STEP
kHz
MHz
AUTO
MANUAL
PRESET
SYNC
REC
VOLUME
SUR12
PONLR
DBFB
MPX
!¢ SUR indication (15, 21)
!∞ SYNC REC indicator (15)
!§ Tuning mode indications (12)
!¶ STEP/frequency waves indication (12)
!• TUNED/STEREO/MONO
indications(12)
Remote
1 SLEEP button (23)
2 LOOP button (10)
3 CD (play) button (7)
DAILY1
RELA
DOLBY
4 TUNER/BAND button (12)
TUNED S
(Hz)
5 DECK A button (14)
S
k
6 DECK B button (14)
7 FUNCTION button (7, 14)
8 MUSIC MENU buttons (20, 21)
9 POWER button (7)
!º (pause) (7)
!¡ (stop) (7)
!™ / buttons (7, 13, 17)
!£ / buttons (7, 8)
!¢ EDIT button (17)
!∞ CHECK button (9, 17)
!§ DISC SKIP button (7)
!¶ CLEAR button (9)
!• VOL (volume) +/– buttons (7, 20)
1 MUSIC CLIP PLAY button (11)
2 MUSIC CLIP ERASE button (11)
3 CLIP A, B, C buttons/indicators (10)
4 Front cover (7)
5 § OPEN button (7)
6 DISC SKIP button (7 )
7 ∏ (pause) button (7)
8 · (play) button (7)
9 π (stop) button (7)
!º AUTO button/indicator (7)
!¡ PROGRAM button (9)
!™ REPEAT button (9)
!£ JOG dial (7)
!¢ SHUFFLE buttons (8)
!∞ CONTINUE button (7)
!§ DISC 1 – 5 buttons (7)
For Your Information
1 Disc calendar (7)
2 Demo mode indications (6)
3 Music calendar (7)
4 CD/TUNER indication (7)
5 Graphic Equalizer indication (21)
6 Multi-display (7, 12, 21)
7 CD play mode indications (8)
8 CLIP indicator (11)
9 Tape direction mode indication (14)
0 Timer indication (24)
!¡ VOLUME indication (7)
!™ KARAOKE h PON/MPX R L
indication (25)
!£ DBFB indication (20)
Page 31
Index
Aerial 4
AMS 7
CD player 7
Clock setting 6
Connecting
the stereo 4
the super woofer 4
optional equipment 26
Display indications 6, 21
Dubbing 19
Grouping tracks (music clip) 11
Inserting batteries 6
Karaoke
to reduce the vocals (karaoke
pon) 25
to sing along with multiplex
tapes 25
to adjust the key control 26
Maintenance 28
Microphone
mixing 25
echoing the microphone sound 25
Music calendar 7
Normal play 7
Parts identification 29
Personal file 21
Playing
a CD (normal play) 7
a tape 14
preset radio stations 13
several CDs 7
tracks in random order
(shuffle play) 8
tracks in desired order
(programme play) 9
tracks repeatedly 9
tracks with repeating a specified
portion (loop play) 10
Radio stations
presetting 13
tuning in 12
Recording
a CD 14
selecting tape length automatically
(tape select edit) 16
specifying tape length (time edit) 16
Recording
a radio programme 18
another tape (dubbing) 18
Relay play 14
Repeating CD tracks 9
Scanning stored stations 13
Shuffle play 8
Sleep timer 23
Sound adjusting 20
Tape player 14
Timer
falling asleep to music 23
waking up to music 23
timer-recording radio
programme 24
Tuner playing 12
EN
31
For Your Information
Page 32
Sony Corporation Printed in Thailand
Loading...
