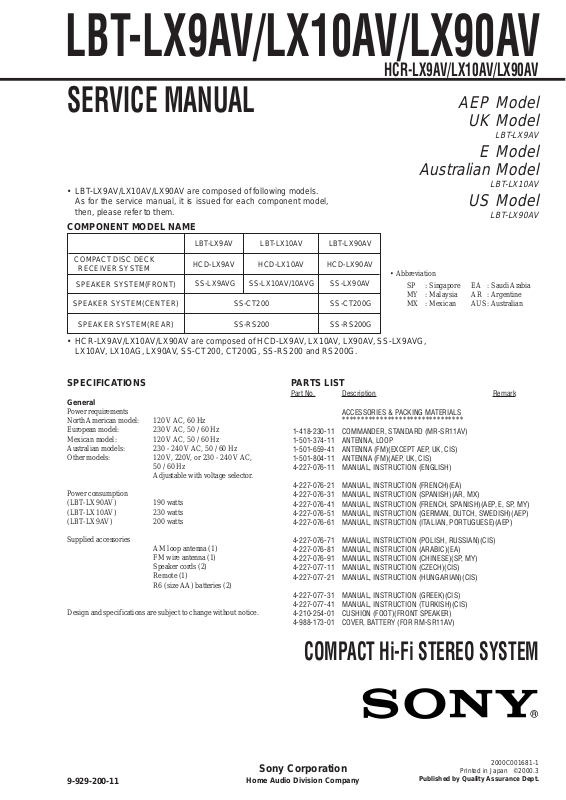

LBT-LX9AV/LX10AV/LX90AV
HCR-LX9AV/LX10AV/LX90AV
SERVICE MANUAL |
AEP Model |
|
|
|
UK Model |
|
LBT-LX9AV |
•LBT-LX9AV/LX10AV/LX90AV are composed of following models. As for the service manual, it is issued for each component model, then, please refer to them.
COMPONENT MODEL NAME
|
LBT-LX9AV |
LBT-LX10AV |
LBT-LX90AV |
|
|
|
|
|
|
COMPACT DISC DECK |
HCD-LX9AV |
HCD-LX10AV |
HCD-LX90AV |
|
RECEIVER SYSTEM |
||||
|
|
|
||
|
|
|
|
|
SPEAKER SYSTEM(FRONT) |
SS-LX9AVG |
SS-LX10AV/10AVG |
SS-LX90AV |
|
|
|
|
|
|
SPEAKER SYSTEM(CENTER) |
SS-CT200 |
SS-CT200G |
||
|
|
|
||
SPEAKER SYSTEM(REAR) |
SS-RS200 |
SS-RS200G |
||
|
|
|
|
|
E Model
Australian Model
LBT-LX10AV
US Model
LBT-LX90AV
• Abbreviation |
|
|
|
SP |
: Singapore |
EA |
: Saudi Arabia |
MY |
: Malaysia |
AR |
: Argentine |
MX |
: Mexican |
AUS : Australian |
|
•HCR-LX9AV/LX10AV/LX90AV are composed of HCD-LX9AV, LX10AV, LX90AV, SS-LX9AVG, LX10AV, LX10AG, LX90AV, SS-CT200, CT200G, SS-RS200 and RS200G.
SPECIFICATIONS |
|
PARTS LIST |
|
|
General |
|
Part No. |
Description |
Remark |
|
|
|
|
|
Power requirements |
|
|
ACCESSORIES & PACKING MATERIALS |
|
North American model: |
120 V AC, 60 Hz |
|
******************************** |
|
European model: |
230 V AC, 50 / 60 Hz |
1-418-230-11 |
COMMANDER, STANDARD (MR-SR11AV) |
|
Mexican model: |
120 V AC, 50 / 60 Hz |
1-501-374-11 |
ANTENNA, LOOP |
|
Australian models: |
230 - 240 V AC, 50 / 60 Hz |
1-501-659-41 |
ANTENNA (FM)(EXCEPT AEP, UK, CIS) |
|
Other models: |
120 V, 220V, or 230 - 240 V AC, |
1-501-804-11 |
ANTENNA (FM)(AEP, UK, CIS) |
|
|
50 / 60 Hz |
4-227-076-11 |
MANUAL, INSTRUCTION (ENGLISH) |
|
|
Adjustable with voltage selector. |
|
|
|
Power consumption |
|
4-227-076-21 |
MANUAL, INSTRUCTION (FRENCH)(EA) |
|
|
4-227-076-31 |
MANUAL, INSTRUCTION (SPANISH)(AR, MX) |
|
|
(LBT-LX90AV) |
190 watts |
4-227-076-41 |
MANUAL, INSTRUCTION (FRENCH, SPANISH)(AEP, E, SP, MY) |
|
(LBT-LX10AV) |
230 watts |
4-227-076-51 |
MANUAL, INSTRUCTION (GERMAN, DUTCH, SWEDISH)(AEP) |
|
(LBT-LX9AV) |
200 watts |
4-227-076-61 |
MANUAL, INSTRUCTION (ITALIAN, PORTUGUESE)(AEP) |
|
Supplied accessories |
AM loop antenna (1) |
4-227-076-71 |
MANUAL, INSTRUCTION (POLISH, RUSSIAN)(CIS) |
|
|
4-227-076-81 |
MANUAL, INSTRUCTION (ARABIC)(EA) |
|
|
|
FM wire antenna (1) |
4-227-076-91 |
MANUAL, INSTRUCTION (CHINESE)(SP, MY) |
|
|
Speaker cords (2) |
4-227-077-11 |
MANUAL, INSTRUCTION (CZECH)(CIS) |
|
|
Remote (1) |
4-227-077-21 |
MANUAL, INSTRUCTION (HUNGARIAN)(CIS) |
|
|
R6 (size AA) batteries (2) |
|
|
|
|
|
4-227-077-31 |
MANUAL, INSTRUCTION (GREEK)(CIS) |
|
Design and specifications are subject to change without notice. |
4-227-077-41 |
MANUAL, INSTRUCTION (TURKISH)(CIS) |
|
|
4-210-254-01 |
CUSHION (FOOT)(FRONT SPEAKER) |
|
||
|
|
4-988-173-01 COVER, BATTERY (FOR RM-SR11AV) |
|
|
COMPACT Hi-Fi STEREO SYSTEM
|
Sony Corporation |
2000C001681-1 |
|
Printed in Japan ©2000.3 |
|
9-929-200-11 |
Home Audio Division Company |
Published by Quality Assurance Dept. |
