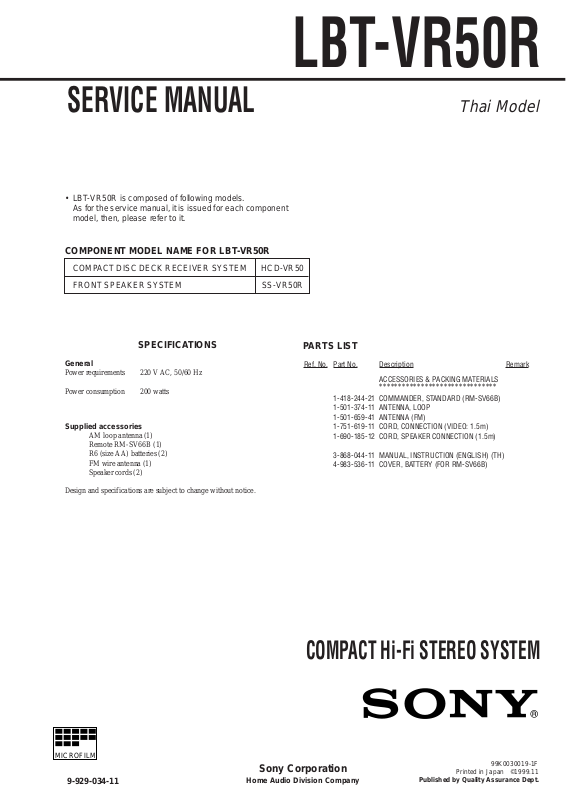

Sony LBT-VR50R Service Manual

COMPONENT MODEL NAME FOR LBT-VR50R

COMPACT DISC DECK RECEIVER SYSTEM HCD-VR50

FRONT SPEAKER SYSTEM SS-VR50R

LBT-VR50R

Thai Model

SERVICE MANUAL

MICROFILM

General

Power requirements 220 V AC, 50/60 Hz

Power consumption 200 watts

ACCESSORIES & PACKING MATERIALS

*******************************

1-418-244-21 COMMANDER, STANDARD (RM-SV66B)

1-501-374-11 ANTENNA, LOOP

1-501-659-41 ANTENNA (FM)

1-751-619-11 CORD, CONNECTION (VIDEO: 1.5m)

1-690-185-12 CORD, SPEAKER CONNECTION (1.5m)

3-868-044-11 MANUAL, INSTRUCTION (ENGLISH) (TH)

4-983-536-11 COVER, BATTERY (FOR RM-SV66B)

PARTS LIST

9-929-034-11

Sony Corporation

Home Audio Division Company

COMPACT Hi-Fi STEREO SYSTEM

99K0030019-1F

Printed in Japan ©1999.11

Published by Quality Assurance Dept.

• LBT-VR50R is composed of following models.

As for the service manual, it is issued for each component

model, then, please refer to it.

Supplied accessories

AM loop antenna (1)

Remote RM-SV66B (1)

R6 (size AA) batteries (2)

FM wire antenna (1)

Speaker cords (2)

Design and specifications are subject to change without notice.

Ref. No. Part No. Description Remark

SPECIFICATIONS
