4-419-001-11(1)
Additional information on this product and
answers to frequently asked questions can be
found at our Customer Support Website.
Puede encontrar más información sobre este
producto y respuestas a las preguntas más
frecuentes en nuestro sitio Web de atención al
cliente.
http://www.sony.net/
US/ES
3D Digital HD Video
Camera Recorder
Please also refer to :
Por favor consulte también:
http://www.sony.net/SonyInfo/Support/
Operating Guide US
Guía de operaciones ES
Printed on 70% or more recycled paper using
VOC (Volatile Organic Compound)-free
vegetable oil based ink.
Impreso en papel reciclado en un 70% o más
utilizando tinta hecha con aceite vegetal exento
de compuesto orgánico volátil (COV).
2012 Sony Corporation
Printed in Japan
HDR-TD20/TD20V
Owner’s Record
The model and serial numbers are located
on the bottom. Record the serial number
in the space provided below. Refer to these
numbers whenever you call upon your Sony
dealer regarding this product.
Model No. HDRSerial No.
Model No. ACSerial No.
WARNING
To reduce fire or shock hazard, do not
expose the unit to rain or moisture.
Do not expose the batteries to
excessive heat such as sunshine, fire or
the like.
This symbol is intended
to alert the user to the
presence of uninsulated
“dangerous voltage” within
the product’s enclosure
that may be of sufficient
magnitude to constitute
a risk of electric shock to
persons.
This symbol is intended
to alert the user to the
presence of important
operating and maintenance
(servicing) instructions in
the literature accompanying
the appliance.
US
2
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS.
DANGER - TO REDUCE THE RISK OF FIRE
OR ELECTRIC SHOCK,
CAREFULLY FOLLOW THESE
INSTRUCTIONS.
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
Clean only with dry cloth.
Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two
blades with one wider than the other. A grounding type plug has two blades and a third grounding prong.
The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your
outlet, consult an electrician for replacement of the obsolete outlet.
Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles,
and the point where they exit from the apparatus.
Only use attachments/accessories specified by the manufacturer.
Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the
apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury
from tip-over.
US
Unplug this apparatus during lightning storms or when unused for long periods of time.
Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate
normally, or has been dropped.
If the shape of the plug does not fit the power outlet, use an attachment plug adaptor of the proper
configuration for the power outlet.
US
3
Representative plug of power supply cord of countries/regions around the
world.
A Type
(American
Type)
B Type
(British Type)
BF Type
(British Type)
B3 Type
(British Type)
C Type
(CEE Type)
SE Type
(CEE Type)
The representative supply voltage and plug type are described in this chart.
Depend on an area, Different type of plug and supply voltage are used.
Attention: Power cord meeting demands from each country shall be used.
or only the United States
F
Use a UL L
isted, 1.5-3 m (5-10 ft.), Type SPT-2 or NISPT-2, AWG no. 18 power supply
cord, rated for 125 V 7 A, with a NEMA 1-15P plug rated for 125 V 15 A.”
Europe
Countries/regions Voltage Frequency (Hz) Plug type
Austria 230 50 C
Belgium 230 50 C
Czech 220 50 C
Denmark 230 50 C
Finland 230 50 C
France 230 50 C
Germany 230 50 C
Greece 220 50 C
Hungary 220 50 C
Iceland 230 50 C
Ireland 230 50 C/BF
Italy 220 50 C
Luxemburg 230 50 C
Netherlands 230 50 C
Norway 230 50 C
Poland 220 50 C
Portugal 230 50 C
Romania 220 50 C
Russia 220 50 C
Slovak 220 50 C
Spain 127/230 50 C
Sweden 230 50 C
Switzerland 230 50 C
UK 240 50 BF
Asia
Countries/regions Voltage Frequency (Hz) Plug type
China 220 50 A
Hong Kong 200/220 50 BF
India 230/240 50 C
Indonesia 127/230 50 C
Japan 100 50/60 A
Korea (rep) 220 60 C
Malaysia 240 50 BF
Philippines 220/230 60 A/C
Singapore 230 50 BF
US
Taiwan 110 60 A
4
O Type
(Ocean Type)
Countries/regions Voltage Frequency (Hz) Plug type
Thailand 220 50 C/BF
Vietnam 220 50 A/C
Oceania
Countries/regions Voltage Frequency (Hz) Plug type
Australia 240 50 O
New Zealand 230/240 50 O
North America
Countries/regions Voltage Frequency (Hz) Plug type
Canada 120 60 A
USA 120 60 A
Central America
Countries/regions Voltage Frequency (Hz) Plug type
Bahamas 120/240 60 A
Costa Rica 110 60 A
Cuba 110/220 60 A/C
Dominican (rep) 110 60 A
El Salvador 110 60 A
Guatemala 120 60 A
Honduras 110 60 A
Jamaica 110 50 A
Mexico 120/127 60 A
Nicaragua 120/240 60 A
Panama 110/220 60 A
South America
Countries/regions Voltage Frequency (Hz) Plug type
Argentina 220 50 C/BF/O
Brazil 127/220 60 A/C
Chile 220 50 C
Colombia 120 60 A
Peru 220 60 A/C
Venezuela 120 60 A
Middle East
Countries/regions Voltage Frequency (Hz) Plug type
Iran 220 50 C/BF
Iraq 220 50 C/BF
Israel 230 50 C
Saudi Arabia 127/220 50 A/C/BF
Turkey 220 50 C
UAE 240 50 C/BF
Africa
Countries/regions Voltage Frequency (Hz) Plug type
Algeria 127/220 50 C
Congo (dem) 220 50 C
Egypt 220 50 C
Ethiopia 220 50 C
Kenya 240 50 C/BF
Nigeria 230 50 C/BF
South Africa 220/230 50 C/BF
Tanzania 230 50 C/BF
Tunisia 220 50 C
US
5
Read this first
Before operating the unit, please read this
manual thoroughly, and retain it for future
reference.
CAUTION
Battery pack
If the battery pack is mishandled, the battery
pack can burst, cause a fire or even chemical
burns. Observe the following cautions.
Do not disassemble.
Do not crush and do not expose the battery
pack to any shock or force such as hammering,
dropping or stepping on it.
Do not short circuit and do not allow metal
objects to come into contact with the battery
terminals.
Do not expose to high temperature above 60°C
(140°F) such as in direct sunlight or in a car
parked in the sun.
Do not incinerate or dispose of in fire.
Do not handle damaged or leaking lithium ion
batteries.
Be sure to charge the battery pack using a
genuine Sony battery charger or a device that
can charge the battery pack.
Keep the battery pack out of the reach of small
children.
Keep the battery pack dry.
Replace only with the same or equivalent type
recommended by Sony.
Dispose of used battery packs promptly as
described in the instructions.
Replace the battery with the specified type
only. Otherwise, fire or injury may result.
AC Adaptor
Do not use the AC Adaptor placed in a
narrow space, such as between a wall and
furniture.
Use the nearby wall outlet (wall socket)
when using the AC Adaptor. Disconnect
the AC Adaptor from the wall outlet (wall
socket) immediately if any malfunction
occurs while using your camcorder.
US
6
Even if your camcorder is turned off, AC
power source (mains) is still supplied to
it while connected to the wall outlet (wall
socket) via the AC Adaptor.
Note on the power cord (mains lead)
The power cord (mains lead) is designed
specifically for use with this camcorder
only, and should not be used with other
electrical equipment.
Excessive sound pressure from earphones
and headphones can cause hearing loss.
For customers in the U.S.A. and CANADA
RECYCLING LITHIUM-ION BATTERIES
Lithium-Ion batteries are
recyclable.
You can help preserve our
environment by returning
your used rechargeable
batteries to the collection and
recycling location nearest you.
For more information
regarding recycling of
rechargeable batteries, call toll
free 1-800-822- 8837, or visit
http://www.rbrc.org/
Caution: Do not handle
damaged or leaking LithiumIon batteries.
Battery pack
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any interference
received, including interference that may
cause undesired operation.
This Class B digital apparatus complies
with Canadian ICES-003.
For the customers in the U.S.A.
UL is an internationally recognized safety
organization.
The UL Mark on the product means it has
been UL Listed.
If you have any questions about this
product, you may call:
Sony Customer Information Center 1-800222-SONY (7669).
The number below is for the FCC related
matters only.
Regulatory Information
Declaration of Conformity
Trade Name: SONY
Model No.: HDR-TD20V
Responsible Party: Sony Electronics Inc.
Address: 16530 Via Esprillo, San Diego,
CA 92127 U.S.A.
Telephone No.: 858-942-2230
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference,
and (2) this device must accept any
interference received, including
interference that may cause undesired
operation.
CAUTION
You are cautioned that any changes or
modifications not expressly approved in
this manual could void your authority to
operate this equipment.
Note
This equipment has been tested and found
to comply with the limits for a Class B
digital device, pursuant to Part 15 of the
FCC Rules.
These limits are designed to provide
reasonable protection against harmful
interference in a residential installation.
This equipment generates, uses, and
can radiate radio frequency energy and,
if not installed and used in accordance
with the instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that
interference will not occur in a particular
installation. If this equipment does cause
harmful interference to radio or television
reception, which can be determined by
turning the equipment off and on, the
user is encouraged to try to correct the
interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the
equipment and receiver.
Connect the equipment into an outlet on
a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/
TV technician for help.
The supplied interface cable must be used
with the equipment in order to comply with
the limits for a digital device pursuant to
Subpart B of Part 15 of FCC Rules.
For the State of California , USA only
Perchlorate Material – special handling may
apply,
See
www.dtsc.ca.gov/hazardouswaste/perchlorate
Perchlorate Material: Lithium battery
contains perchlorate.
For the customers in Canada
This device complies with RSS-310 of
Industry Canada. Operation is subject to
the condition that this device does not
cause harmful interference.
US
7
About language setting
The on-screen displays in each local language
are used for illustrating the operating
procedures. Change the screen language before
sing th
e camcorder if necessary (p. 25).
u
On recording
Before starting to record, test the recording
function to make sure the image and sound are
recorded without any problems.
Compensation for the contents of recordings
cannot be provided, even if recording or
playback is not possible due to a malfunction of
the camcorder, recording media, etc.
TV color systems differ depending on the
country/region. To view your recordings on a
TV, you need an NTSC system-based TV.
Television programs, films, video tapes,
and other materials may be copyrighted.
Unauthorized recording of such materials may
be contrary to the copyright laws.
Viewing 3D movies
Some people may experience discomfort (such as
eye strain, fatigue, or nausea) while watching 3D
video images. Sony recommends that all viewers
take regular breaks while watching 3D video
images. The length and frequency of necessary
breaks will vary from person to person. You
must decide what works best. If you experience
any discomfort, you should stop watching the
3D video images until the discomfort ends;
consult a doctor if you believe necessary. You
should also review the instruction manual of any
other device or media used with this product.
The vision of young children (especially those
under six years old) is still under development.
Consult your doctor (such as a pediatrician or
eye doctor) before allowing young children to
watch 3D video images. Adults should supervise
young children to ensure they follow the
recommendations listed above.
US
8
Notes on use
Do not do any of the following. Otherwise, the
recording media may be damaged, recorded
images may be impossible to play back or may
be lost, or other malfunctions could occur.
ejecting the memory card when the access
lamp (p. 27) is lit or flashing
removing the battery pack or AC Adaptor
from the camcorder, or applying mechanical
shock or vibration to the camcorder when the
(Movie)/ (Photo) lamps (p. 29) or the
access lamp (p. 27) are lit or flashing
When the camcorder is connected to other
devices through a USB connection and the
power of the camcorder is turned on, do not
close the LCD panel. The image data that has
been recorded may be lost.
Use the camcorder in accordance with local
regulations.
LCD Panel
The LCD screen is manufactured using
extremely high-precision technology, so over
99.99% of the pixels are operational for effective
use. However, there may be some tiny black
points and/or bright points (white, red, blue,
or green in color) that appear constantly on the
LCD screen. These points are normal results of
the manufacturing process and do not affect the
recording in any way.
Black points
White, red, blue or green points
About this manual, illustrations and
on-screen displays
In this manual, the and icons indicate
the 3D and 2D sides of the 2D/3D switch,
respectively.
The example images used in this manual for
illustration purposes are captured using a
digital still camera, and therefore may appear
different from images and screen indicators that
actually appear on your camcorder. And, the
illustrations of your camcorder and its screen
indication are exaggerated or simplified for
understandability.
Design and specifications of your camcorder
and accessories are subject to change without
notice.
In this manual, the internal memory of the
camcorder and the memory card are called
“recording media.”
In this manual, the DVD disc recorded with
high definition image quality (HD) is called
AVCHD recording disc.
The model name is shown in this manual when
there is a difference in specification between
models. Confirm the model name on the
bottom of your camcorder.
GPS
HDR-TD20
HDR-TD20V
Learning more about the
camcorder (“Handycam” User
Guide)
“Handycam” User Guide is an on-line
manual. Refer to it for in-depth instructions
on the many functions of the camcorder.
Access the Sony support page.
1
http://www.sony.net/SonyInfo/
Support/
Select your country or region.
2
Search for the model name
3
of your camcorder within the
support page.
Check the model name on the bottom of
your camcorder.
US
9
Table of contents
and indicate the 3D and 2D sides of the 2D/3D switch (p. 29), respectively.
The items you can set differ depending on the position of the switch.
IMPORTANT SAFETY INSTRUCTIONS .. . .. .. . .. . .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. 3
Read this first . .. . .. . .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . 6
Learning more about the camcorder (“Handycam” User Guide) . .. .. . .. . .. .. . .. 9
Parts and controls . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. 13
Enjoy 3D ! .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . 16
Getting started
Supplied Items. .. .. . .. . .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. . 18
Charging the battery pack . .. .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. 19
Charging the battery using your computer . . .. .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. 20
Charging the battery pack abroad . . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. 22
Turning the power on, and setting the date and time . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. 23
Changing the language setting . . .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . 25
Preparing the recording media . .. .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . . 27
Selecting a recording medium . .. .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. . 27
Inserting a memory card . . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. 27
Recording/Playback
Recording . . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. . 29
Recording movies . . .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . . 29
Shooting photos . .. . .. .. . .. . .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . . 30
Zooming . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. 33
Playback . . .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . . 35
Playing movies and photos from a map (HDR-TD20V) .. .. . .. . .. .. . .. . .. .. .. . .. . 37
Operating buttons while playing . .. .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. 38
Advanced operations
Adjusting the depth of 3D movies . . . .. .. . .. .. . .. . .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . 40
Adjusting the depth during recording . .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. 40
Adjusting the depth during playback . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . . 40
Recording people clearly . .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . 41
Recording the selected subject clearly (Face Priority) . .. .. . .. . .. .. .. . .. . .. .. . .. . 41
Recording voices clearly (Closer Voice) .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . . 42
US
10
Capturing smiles automatically (Smile Shutter) .. .. . .. .. . .. . .. .. . .. . .. .. .. . .. . .. . 42
Recording movies in various situations. . .. .. . .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. . 43
Selecting the suitable setting automatically for the recording situation
(Intelligent Auto) . . .. . .. . .. .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . 43
Reducing camera-shake . . . .. .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . . 43
Recording movies in dim places (Video Light) . .. .. . .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. 44
Recording images with the selected image quality . .. .. .. . .. . .. .. . .. . .. .. . .. . .. .. .. . .. . .. 44
Selecting the image quality of movies (Recording mode) . . .. .. .. . .. . .. .. . .. . . 44
Changing the image quality of photos . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . . 45
Using the manual adjustment features . . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. . 46
Shooting images with the iris priority mode . . .. . .. .. . .. . .. .. . .. . .. .. . .. . .. .. .. . .. 46
Shooting images with the Shutter Speed priority mode . .. . .. . .. .. .. . .. . .. .. . 46
Controlling the image settings manually with the MANUAL dial . .. . .. .. .. . . 47
Recording inf
Enjoying a digest of your movies (Highlight Playback) . . . .. .. .. . .. . .. .. . .. . .. .. . .. . .. .. .. 51
Playing images on a TV . .. .. . .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . 54
ormation on your location (GPS) (HDR-TD20V) .. . .. . .. .. . .. . .. .. . .. . .. .. . 48
Obtaining a map of the current location (triangulating priority mode) . . .. . 49
Checking the triangulating status . .. .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. 49
Saving Highlight Playback in HD image quality (
Converting the data format to STD image quality (Highlight Movie) .. . .. . .. 53
Enjoying 5.1ch surround sound. . .. .. .. . .. . .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . . 55
Scenario Save) . . .. . .. .. . 53
Editing
Editing on your camcorder . . .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . 57
Deleting movies and photos . .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. 57
Dividing a movie . . . .. .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. 57
Capturing a photo from a movie . .. .. . .. . .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. 58
Table of contents
Saving movies and photos with a computer
Useful functions available when connecting the camcorder to your computer .. .. 59
For Windows . .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . . 59
For Mac . .. .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . 59
Preparing a computer (Windows) . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. . 60
Step 1 Checking the computer system . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . . 60
Step 2 I
nstalling the built-in “PlayMemories Home” software. . .. .. . .. .. . .. . .. 60
Starting the “PlayMemories Home” software . .. . .. .. . .. . .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . . 63
Downloading the dedicated software for the camcorder . .. .. . .. . .. .. . .. . .. .. . .. . .. .. .. 63
Installing Music Transfer .. .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. . 63
Installing software for a Mac . . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . . 63
US
11
Saving images with an external device
Dubbing guide . .. .. . .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . 64
The devices on which the created disc can be played back . . . .. .. .. . .. . .. .. . .. 65
Creating a disc with the DVD writer or recorder . .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . 66
Creating a high definition image quality (HD) disc with a DVD writer .. . .. .. 66
Creating a standard definition image quality (STD) disc
with a recorder, etc. . . .. . .. .. . .. . .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. . 66
Saving images on an external media device . . . .. .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. . 68
Customizing your camcorder
Using menus .. . .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. . 70
Menu lists . . . .. .. . .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. 72
Others/Index
Troubleshooting . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . . 76
Self-diagnosis display/Warning indicators . .. .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . 78
Recording time of movies/number of recordable photos .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. 80
Expected time of recording and playback with each battery pack .. . .. .. . .. . 80
Expected recording time of movies . .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. 80
Expected number of recordable photos .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. 82
About handling of your camcorder . .. .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . . 83
Specifications .. . .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. 88
END-USER LICENSE AGREEMENT FOR MAP DATA FOR VIDEO CAMERA RECORDER
PRODUCTS (HDR-TD20V) . . .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. 91
Screen indicators . .. .. . .. . .. .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . . 94
Index . . .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. 96
12
US
Parts and controls
Figures in ( ) are reference pages.
Active Interface Shoe
Flash/Video light
Lens (G lens)
Built-in microphone
Remote sensor/Infrared port
Camera recording lamp (74)
The camera recording lamp lights up in red
during recording. The lamp flashes when the
remaining recording media capacity or battery
power is low.
MANUAL dial (47)
MANUAL button (47)
LCD screen/Touch panel (23, 25)
If you rotate the LCD panel 180 degrees, you
can close the LCD panel with the LCD screen
facing out. This is convenient during playback
operations.
Speakers
GPS antenna (HDR-TD20V)
A GPS antenna is located in the LCD panel.
US
13
14
US
(View Images) button
POWER button
LIGHT (Video Light) button (44)
2D/3D DISP (display) button (30)
2D/3D switch (29)
Battery pack (19)
Memory card slot/ access lamp (27)
RESET button
Press RESET using a pointed object.
Press RESET to initialize all the settings
including the clock setting.
(headphones) jack
(microphone) jack (PLUG IN POWER)
(USB) jack (68)
HDMI OUT jack (54)
Power zoom lever (33)
PHOTO button (30)
MODE button (29, 30)
(Movie)/ (Photo) lamp (29, 30)
CHG (charge) lamp (19)
START/STOP button (30)
DC IN jack (19)
A/V Remote Connector (67)
Grip belt
Loop for a shoulder belt
Built-in USB Cable (20, 60, 66)
Tripod receptacle
Attach a tripod (sold separately: the length of
the screw must be less than 5.5 mm (7/32 in.)).
BATT (battery) release lever (21)
To fasten the grip belt
Wireless Remote Commander
PLAY button
STOP button
DISPLAY button (31)
Transmitter
START/STOP button (29)
Power zoom buttons
PAUSE button
VISUAL INDEX button (35)
Displays an Index screen during playback.
////ENTER buttons
When you press any of these buttons, the light
blue frame appears on the LCD screen. Select
a desired button or an item with ///,
then press ENTER to enter.
DATA CODE button (74)
Displays the date and time, camera setting
data, or coordinates (HDR-TD20V) of the
recorded images when you press this button
during playback.
PHOTO button (30)
The on-screen image when you press this
button will be recorded as a still image.
SCAN/SLOW buttons (38)
/ (Previous/Next) buttons (38)
US
15
Enjoy 3D !
Hold your
camcorder:
stably.
horizontally.
firmly.
Shooting (p. 29)
You can shoot your own 3D movies.
To shoot movies that seem three-dimensional and realistic, it is important to
vary the magnification based on the distance from the subject.
Learn the optimum balance between the distance and magnification (p. 34).
16
16
US
US
Playback on a
TV
At home, enjoy your movies on the large
screen of your TV.
(p. 54)
Instant Playback (p. 35)
You can watch your 3D movie in 3D on the LCD screen of your
camcorder without wearing 3D glasses.
Face directly towards the LCD screen from about 30 cm (11 7/8 in.) away
from the screen to watch 3D movies with optimum sense of depth.
Saving 3D movies (p. 68)
You can save 3D movies on an external media device.
US
US
17
17
Getting started
Supplied Items
The numbers in ( ) are the supplied
quantity.
Camcorder (1)
AC Adaptor (1)
Power cord (Mains lead) (1)
HDMI cable (1)
A/V connecting cable (1)
USB Adaptor Cable (1)
USB connection support cable (1)
The USB connection support cable is designed
for use with this camcorder only. Use this cable
when the Built-in USB Cable of the camcorder
(p. 20) is too short for connection.
Wireless Remote Commander (1)
Rechargeable battery pack NP-FV70 (1)
“Operating Guide” (This manual) (1)
Notes
The “PlayMemories Home” (Lite Version)
software and “PlayMemories Home” Help
uide are p
G
p 63).
re-installed in this camcorder (p 60,
18
US
Charging the battery pack
Close the LCD screen and attach
1
the battery pack.
Connect the AC Adaptor () and
2
the power cord (mains lead) () to
your camcorder and the wall outlet
(wall socket).
The CHG (charge) lamp turns on.
The CHG (charge) lamp turns off when the
battery pack is fully charged. Disconnect the
AC Adaptor from the DC IN jack of your
camcorder.
CHG (charge)
lamp
Battery pack
DC plug
Getting started
DC IN jack
Align the mark on the
DC plug with that on the
DC IN jack
To the wall outlet (wall socket)
Notes
You cannot attach any “InfoLITHIUM” battery pack other than the V series to your camcorder.
US
19
Charging the battery using your computer
Turn off your camcorder and connect
the camcorder to a running computer
using the Built-in USB Cable.
Built-in USB Cable
To the wall outlet
(wall socket)
To charge the battery from a wall outlet (wall socket) using the Built-in USB
Cable
You can charge the battery by connecting the Built-in USB Cable to a wall outlet (wall socket)
using an AC-UD10 USB charger/AC Adaptor (sold separately). You cannot use a Sony CPAH2R, CP-AL, or AC-UP100 portable power supply device (sold separately) to charge the
camcorder.
Charging time
Approximate time (min.) required when you fully charge a fully discharged battery pack.
Battery pack
NP-FV50 155 280
NP-FV70 (supplied) 195 545
NP-FV100 390 1,000
The charging times shown in the table above are measured when charging the camcorder at a
temperature of 25 °C (77 °F). It is recommended that you charge the battery in a temperature range of
10 °C to 30 °C (50 °F to 86 °F).
* The charging times are measured without using the USB connection support cable.
AC Adaptor
Charging time
Built-in USB Cable
(when using your computer)
*
20
US
To remove the battery pack
Close the LCD screen. Slide the BATT
(battery) release lever () and remove the
battery pack ().
To use a wall outlet (wall socket) as a power source
Make the same connections as those for charging the battery pack.
Even if the battery pack is attached, the battery pack is not discharged.
Notes on the battery pack
When you remove the battery pack or disconnect the AC Adaptor, turn the camcorder off and make sure
that the
The CHG (charge) lamp flashes during charging under the following conditions:
We do not recommend using an NP-FV30, which only allows short recording and playback times, with
your camcorder.
In the default setting, the power turns off automatically if you leave your camcorder without any
operation for about 2 minutes, to save battery power ([Eco Mode] p. 75).
(Movie)/ (Photo) lamps (p. 29, 30) and the access lamp (p. 27) are turned off.
The battery pack is not attached correctly.
The battery pack is damaged.
The temperature of the battery pack is low.
Remove the battery pack from your camcorder and put it in a warm place.
The temperature of the battery pack is high.
Remove the battery pack from your camcorder and put it in a cool place.
Getting started
Notes on the AC Adaptor
Use the nearby wall outlet (wall socket) when using the AC Adaptor. Disconnect the AC Adaptor from
the wall outlet (wall socket) immediately if any malfunction occurs while using your camcorder.
Do not use the AC Adaptor placed in a narrow space, such as between a wall and furniture.
Do not short-circuit the DC plug of the AC Adaptor or battery terminal with any metallic objects. This
may cause a malfunction.
Disconnect the AC Adaptor from the camcorder, holding both the camcorder and the DC plug.
Recording time, Playing time (80)
Remaining battery indicator (31)
Charging the battery pack abroad (22)
US
21
Charging the battery pack abroad
You can charge the battery pack in any countries/regions using the AC Adaptor supplied with
your camcorder within the AC 100 V - 240 V, 50 Hz/60 Hz range. Do not use an electronic
voltage transformer.
22
US
Turning the power on, and setting the date
and time
Set the date and time, and adjust the lens with [Auto 3D Lens Adjust] to record optimum
3-dimensional movies.
Open the LCD screen of your
1
camcorder and turn the power
on.
You can also turn on the camcorder by
pressing POWER (p. 14).
Select the desired language, then
2
select [Next].
Select the desired geographical
3
area with
/ , then select
[Next].
Touch the button on the
LCD screen.
Getting started
Set [Daylight Savings] or [Summer
4
Time], select the date format and
the date and time.
If you set [Daylight Savings] or [Summer
Time] to [On], the clock advances 1 hour.
When you select the date and time, select
one of the items and adjust the value with
/ .
When you select
setting operation is complete.
, the date and time
US
23
Confirm the notice on continuous
5
use of your camcorder.
Select [Run] and display a subject
6
on the LCD screen.
If you select [Run Later], the [Auto 3D
Lens Adjust] screen will appear when you
turn on the camcorder next time.
When the scale of the indicator
7
exceeds the mark, select [OK].
The camcorder automatically zooms in or
out to adjust the lenses.
Indicator
Notes
If you feel uncomfortable viewing the image in 3D, press 2D/3D DISP and check the image in 2D (p. 30).
If [Could not adjust.] appears, touch [Run Again].
If the 2D/3D switch (p. 29) is set to 2D, the [Auto 3D Lens Adjust] screen does not appear.
24
US
Tips on using [Auto 3D Lens Adjust]
Referring to the following examples, display a subject that will indicate a higher scale on the
LCD screen.
Subjects that indicate a higher scale:
Bright subjects, such as objects outdoors in daylight
Subjects with various colors and shapes
Subjects that indicate a lower scale and result in adjustment failure:
Dark subjects, such as objects viewed at night
Subjects within 1.5 m (4 ft. 11 1/8 in.) away from the camcorder
Plain, non-colorful subjects
Subjects that repeat the same pattern, such as rows of windows on buildings
Moving subjects
Changing the language setting
You can change the on-screen displays to show messages in a specified language.
Select [Setup] [ General Settings] [Language Setting] a desired language.
Getting started
To turn off the power
Close the LCD screen or press the POWER button (p. 14).
To adjust the angle of the LCD panel
First open the LCD panel 90 degrees to the
camcorder (), and then adjust the angle ().
Face directly towards the LCD screen from
about 30 cm (11 7/8 in.) away from the screen to
watch 3D movies with optimum sense of depth.
90 degrees (max.)
180 degrees (max.)
90 degrees to
the camcorder
US
25
To turn off the beep sound
Select [Setup] [ General Settings] [Beep] [Off].
Notes
The recording date, time and condition, and coordinates (HDR-TD20V) are recorded automatically on
the recording media. They are not displayed during recording. However, you can check them as [Data
Code] during playback. To display them, select
Code] [Date/Time].
Once the clock is set, the clock time is automatically adjusted with [Auto Clock ADJ ] and [Auto Area
ADJ] set to [On]. The clock may not be adjusted to the correct time automatically, depending on the
country/region selected for your camcorder. In this case, set [Auto Clock ADJ ] and [Auto Area ADJ] to
[Off] (HDR-TD20V).
[Power On By LCD] (p. 75)
To set the date and time again: [Date & Time Setting] (p. 75)
[Setup] [ Playback Settings] [Data
26
US
Preparing the recording media
The recording media that can be used are displayed on the screen of your camcorder as
following icons.
Default recording medium Alternative recording medium
Internal memory Memory card
Notes
You cannot select a different recording medium for movies and for photos.
Selecting a recording medium
Select [Setup]
[
Media Settings] [Media
Select] the desired medium.
Inserting a memory card
Open the cover, and insert the
memory card until it clicks.
The [Preparing image database file. Please wait.]
screen appears if you insert a new memory card.
Wait until the screen disappears.
Insert the card with the notched edge in the
direction as illustrated.
Getting started
Access lamp
US
27
To eject the memory card
Open the cover and lightly push the memory card in once.
Notes
To ensure stable operation of the memory card, it is recommended to format the memory card with your
rder before the first use (p. 74). Formatting the memory card will erase all the data stored on it and
camco
the data will be irrecoverable. Save your important data on your PC, etc.
If [Failed to create a new Image Database File. It may be possible that there is not enough free space.] is
spl
ayed, format the memory card (p. 74).
di
Confirm the direction of the memory card. If you forcibly insert the memory card in the wrong direction,
the memory card, memory card slot, or image data may be damaged.
When inserting or ejecting the memory card, be careful so that the memory card does not pop out and
drop.
Types of memory card you can use with your camcorder
SD Speed
Class
Capacity
(operation
Described in this
verified)
“Memory Stick PRO Duo”
media (Mark2)
“Memory Stick PRO-HG
— Max. 32 GB
“Memory Stick PRO
Duo” media
Duo” media
SD memory card
SDHC memory card
SDXC memory card
Operation with all memory cards is not assured.
Notes
A MultiMediaCard cannot be used with this camcorder.
Movies recorded on SDXC memory cards cannot be imported to or played back on computers or AV
devices not supporting the exFAT* file system by connecting the camcorder to these devices with the
USB cable. Confirm in advance that the connecting equipment is supporting the exFAT system. If you
connect an equipment not supporting the exFAT system and the format screen appears, do not perform
the format. All the data recorded will be lost.
* The exFAT is a file system that is used for SDXC memory cards.
Class 4 or
faster
Max. 64 GB SD card
Recording/playback/editing media: Screen indicators during recording (95)
Recording time of movies/number of recordable photos (80)
US
28
manual
Recording/Playback
Recording
In the default setting, movies and photos are recorded on the internal recording media.
Movies are recorded in 3D with high definition image quality (HD).
Recording movies
Open the LCD screen and press
1
MODE to turn on the
lamp.
Set the 2D/3D switch to 3D.
2
To record 2D movies, set the 2D/3D switch
to 2D.
Press START/STOP to start
3
recording.
To stop recording, press START/STOP
again.
You can record photos during 2D movie
recording by pressing PHOTO (Dual
Capture).
(Movie)
Recording/Playback
Notes
Do not operate the 2D/3D switch during recording. The camcorder stops recording.
To obtain good 3D movies
Shoot the subject from about 30 cm to 5 m (11 7/8 in. to 16 ft. 4 7/8 in.) away. The optimum
distance varies when you use zooming (p. 34).
US
29
30
US
If you feel uncomfortable with 3D movies
If you feel uncomfortable while viewing 3D
movies on the LCD screen for a long time, press
the 2D/3D DISP button to switch the image
from 3D to 2D.
The image appears in 2D, but the camcorder
continues recording in 3D.
When the screen is switched from 2D to 3D, the
screen becomes darker. This is not a malfunction.
Shooting photos
Set the 2D/3D switch to 2D.
1
Open the LCD screen and press
2
MODE to turn on the
(Photo)
lamp.
Press PHOTO lightly to adjust the
3
focus, then press it fully.
When the focus is adjusted properly,
AE/AF lock indicator appears on the LCD
screen.
Notes
You cannot shoot photos in 3D.
To display items on the LCD screen
Items on the LCD screen disappear if you do not operate the camcorder for a few seconds
after you turn the camcorder on or switch between the movie recording and photo shooting
modes.
Touch anywhere except the buttons on the LCD screen to display information on icons with
functions convenient for recording.
Screen indicators during recording
Described here are icons for both movie recording (3D/2D) and photo recording (2D) modes.
Refer to the page in ( ) for details.
Zoom button (W: Wide/T: Telephoto), START/STOP button (in movie recording mode),
PHOTO button (in photo recording mode)
MENU button (70)
Status detected by Intelligent Auto (43)
Recording status ([STBY]/[REC])
AE/AF (automatic exposure/automatic focus) lock (30)
2D/3D recording mode
GPS triangulating status (48) (HDR-TD20V)
Tracking focus (42)
Zoom, Remaining battery
Counter (hour: minute: second), Capturing a photo, Recording/playback/editing media
(95)
Tracking focus cancel button (42)
Intelligent Auto button (43)
Audio mode (73), Audio Level Display (73)
Approximate number of recordable photos, Aspect ratio (16:9 or 4:3), Photo size (L/M/S)
Recording/Playback
US
31
32
US
Estimated recording remaining time, Recording image quality (HD/STD), Frame rate
(60p/60i/24p) and recording mode (PS/FX/FH/HQ/LP) (44)
View Images button (35)
My Button (you can assign your favorite functions to icons displayed in this area) (73)
To record in mirror mode
Open the LCD panel 90 degrees to the camcorder
(), then rotate it 180 degrees to the lens side
().
A mirror-image of the subject appears on the
LCD screen, but the image will be normal when
recorded.
If white circular spots appear on photos
This is caused by particles (dust, pollen,
etc.) floating close to the lens. When they
are accentuated by the camcorder’s flash,
they appear as white circular spots.
To reduce the white circular spots, light the
room and shoot the subject without a flash.
Notes
If you close the LCD screen while recording movies, the camcorder stops recording.
The maximum continuous recordable times of movies are as follows:
3D recording: about 6 hours 30 minutes
2D recording: about 13 hours
When a movie file exceeds 2 GB, the next movie file is created automatically.
The flash does not work while the
The following states will be indicated if data is still being written onto the recording media after recording
has finished. During this time, do not apply shock or vibration to the camcorder, or remove the battery or
AC Adaptor.
ccess la
mp (p. 27) is lit or flashing
A
The media icon in the upper right of the LCD screen is flashing
When [
recording mode.
Frame Rate] is set to [24p], you cannot record photos while the camcorder is in movie
(Movie) lamp is lit.
The LCD screen of your camcorder can display recording images across the entire screen (full pixel
display). However, this may cause slight trimming of the top, bottom, right, and left edges of images when
played back on a TV which is not compatible with full pixel display. In the case of 2D recording, it is
recommended you record images with [Guide Frame] set to [On] and using the outer frame of the guide
rame (p
. 73) as a guide.
f
Recording time, recordable number of photos (p. 80)
[Media Select] (p. 27)
. 73)
[Flash] (p
lay items on the LCD screen all the time: [Display Setting] (p. 73)
To disp
To change the image size: [
Image Size] (p. 45)
Recordable time, remaining capacity [Media Info] (p. 74)
Zooming
Move the power zoom lever to
magnify or reduce the size of the
image.
W (Wide angle): Wider range of view
T (Telephoto): Close view
You can magnify images as follows.
3D recording: Up to 12 times the original size
(Extended Zoom)
2D recording: Up to 17 times the original size
(Extended Zoom)
Move the power zoom lever slightly for a slower
zoom. Move it further for a faster zoom.
Recording/Playback
US
33
34
US
Optimum distance from the subject to record 3D movies
The distance at which you can obtain good 3D movies varies depending on the zooming level.
Record 3D movies within these ranges.
The zoom scale on the LCD screen Distance from the subject
0 m 5 m
(16 ft.)
Approx. 0.3 m - 5 m (11 7/8 in. - 16 ft. 4 7/8 in.)
Approx. 0.9 m - 8 m (2 ft. 11 1/2 in. - 26 ft. 3 in.)
Approx. 3.6 m - 18 m (11 ft. 9 3/4 in. - 59 ft. 3/4 in.)
Not recommended. The movie will be blurred.
The movie will seem 3-dimensional and realistic.
The movie will seem flat without a sense of depth.
Notes
If the movies appear doubled on the LCD screen, return the zoom to the original level.
ect within 30 cm (11 7/8 in.) away should be recorded in 2D.
A subj
Be sure to keep your finger on the power zoom lever. If you move your finger off the power zoom lever,
the operation sound of the power zoom lever may also be recorded.
You cannot change the zoom speed with the
The minimum possible distance between camcorder and subject while maintaining sharp focus is about 1
/ button on the LCD screen.
cm (about 13/32 in.) for wide angle and about 80 cm (about 31 1/2 in.) for telephoto (2D recording only).
During 2D recording, you can magnify images up to 10 times the original size using optical zooming,
unless [
SteadyShot] is set to [Active].
Further zooming: [Digital Zoom] (2D recording only) (p. 72)
10 m
(32 ft.)
15 m
(50 ft.)
20 m
(65 ft.)
Playback
You can search for recorded images by date and time of recording (Event view), or location of
recording (Map view) (HDR-TD20V).
Set the 2D/3D switch to 3D.
1
To play back 2D movies and photos, set the
2D/3D switch to 2D.
Open the LCD screen and press
2
the
button on the camcorder
to enter the playback mode.
You can enter the playback mode by
selecting
Select / to move the desired
3
event to the center () and then
select it ().
The camcorder displays recorded images as
an event automatically, based on the date
and time.
on the LCD screen (p. 31).
Recording/Playback
Select the image.
4
The camcorder plays from the selected
image to the last image in the event.
To view 3D movies on the LCD screen
Watch 3D movies on the LCD screen from directly in front of the screen, about 30 cm (11 7/8 in.) away.
The 3-dimensional movie will look realistic.
eel discomfort from your eyes, press the 2D/3D DISP button (p. 30) to display the movies in 2D.
If you f
US
35
36
US

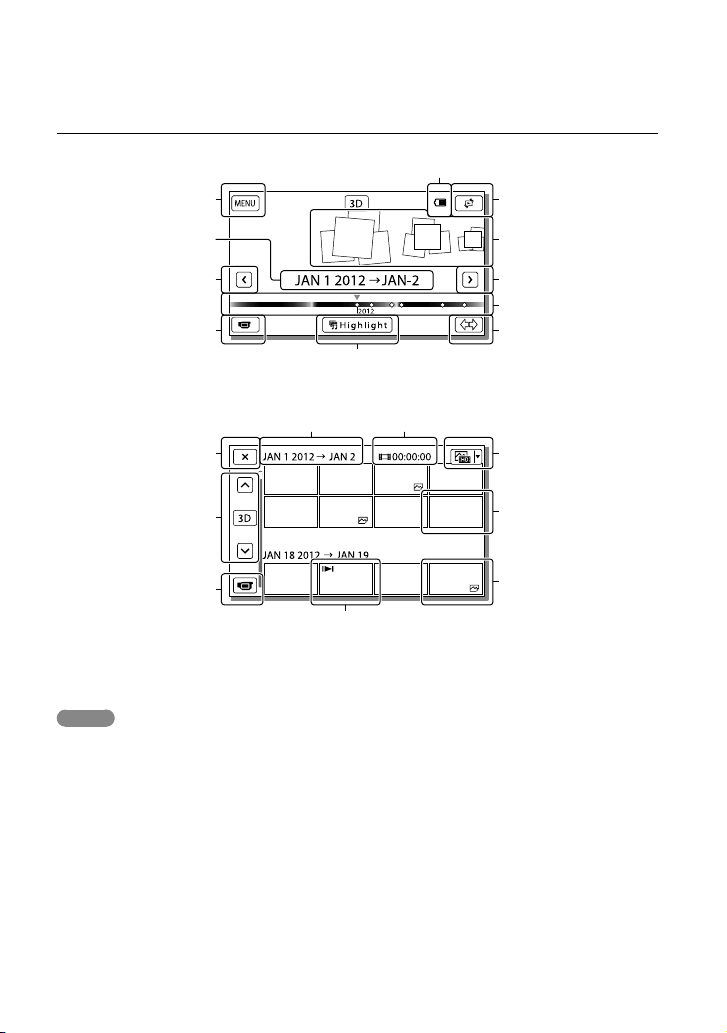

Screen display on the Event View screen
To the MENU screen
Event name
R
emaining battery
To the Map View screen
(HDR-TD20V)
Events
To the previous event
To the next event
Time-line bar
Change to the movie/
photo recording mode
To play back short movies (p
. 51)
Change Event Scale button
Event name Recorded time/number of photos
To go back to the Event
View screen
Previous/next
Change to the movie/
Switch Image Type button
(2D only)
Movie
Photo (2D only)
photo recording mode
Last played image
Reduced-size images which enable you to view many images at the same time on an index screen are
called “thumbnails.”
Notes
To prevent your image data from being lost, save all your recorded images on external media periodically.
. 64)
(p
I
n the default setting, a protected demonstration movie is pre-recorded.
Playing movies and photos from a map (HDR-TD20V)
Switch to the Map View by
1
touching
Select the recording location.
2
Touch the direction on the map in which
you want the map to be scrolled. Keep
touching that point to scroll the map
continuously.
If you change the map scale using
the power zoom lever, the clusters of
thumbnails will change as well.
Select the desired image.
3
[Map View].
When you use the map data for the first time
A message appears asking you to confirm whether you agree with the terms of the license
agreement of the map data. You can use the map data by touching [Yes] on the screen after
eing to the terms of the license agreement (p 91).
agre
You cannot use the map data if you touch [No]. However, when you try to use the map data
for the second time, the same message will appear on the screen, and you can use the map
data by touching [Yes].
Recording/Playback
US
37
38
US
Screen display on the Map View
To the MENU screen
To the movie recording
display
To play back short movies (p. 51)
To the Map View
Previous/next
To the movie/photo
recording display
To the Event View screen
witch Image Type button
S
(2D only)
Operating buttons while playing
Items on the LCD screen disappear if you do not attempt to operate the camcorder for a few
seconds. To display the items again, touch the LCD screen.
While playing a movie
Volume
Delete
Context
To stop
Previous
To fast-reverse
Next
To fast-forward
To pause/play
While viewing photos
Operating buttons while viewing photos will be changed depends on the setting of Switch
Image Type button (p. 36, 38).
(Movie/photo)
Delete
Next
Previous
(photo)
Delete
Context
To play/pause movies
and photos in the order
recorded
Recording/Playback
Previous
As you repeat selecting / during playback, movies are played as fast as about 5 times about 10
times about 30 times about 60 times.
/ during pause to play movies slowly.
Select
To repeat Slideshow, select
[Slideshow Set].
Next
To start/stop Slideshow
To play back images with other devices
You may not be able to play back normally images recorded on your camcorder with other devices. Also,
you may not be able to play back images recorded on other devices with your camcorder.
Standard definition image quality (STD) movies recorded on SD memory cards cannot be played on AV
equipment of other manufacturers.
US
39
Advanced operations
Adjusting the depth
of 3D movies
In the default setting, the camcorder detects
the relative position between a subject
and its background during recording,
and automatically adjusts the parallax
effect accordingly, so that you will feel
comfortable when watching 3-dimensional
movies.
The camcorder detects
the relative position.
The camcorder adjusts
the parallax effect.
Notes
Since the parallax is adjusted automatically, the
3D movies may seem to be shaking from side to
side when played in 2D. To prevent the shaking,
adjust the depth manually before recording.
Adjusting the depth during
recording
Comfortable sense of depth
Comfortable sense of depth
Monitor
Adjust the depth using
2
to move the image into the
foreground, and
to move it
further into the background.
To retain the optimum sense of
depth
Adjust the sense of depth with [Auto] (the
default setting) until the sense of depth
becomes appropriate, then select [Manual].
Adjusting the depth during
playback
Select [3D Depth
1
Adjustment] on the 3D movie
playback screen.
The movie pauses, and the screen used to
adjust the vertical direction appears in 2D
(the doubled image display).
Select / to adjust the
2
vertical direction [Next].
Select [Camera/Mic]
1
[
Camera Settings] [3D
Depth Adjustment] [Manual].
You can also set this item by using the
MANUAL dial (p. 47).
US
40
Recording people
clearly
Select / to adjust the
3
horizontal direction
The screen used to adjust the horizontal
direction appears in 3D.
.
subject clearly (Face
Priority)
Recording the selected
Your camcorder can track a face you select
and adjust the focus, exposure, and skin
tone of the face automatically.
Touch one of the faces targeted.
Advanced operations
is displayed.
Notes
The subject you touched may not be detected,
depending on the surrounding brightness or
hairstyle of the subject.
Make sure to set the [Face Detection] setting to
other than [Off] ([Auto] is the default setting).
Release selectionThe double-lined frame
US
41
To record subjects other than people
(Tracking focus)
Touch the subject you want to record.
Your camcorder adjusts the focus
automatically.
Notes
The frames on the faces do not appear during
3D recording.
If you select [Off],
screen.
[Closer Voice] will not function while an external
microphone is attached to your camcorder.
When you want to record the sound clearly
without any interference, such as when you record
a music concert, set [Closer Voice] to [Off].
appears on the LCD
[Face Detection] (p. 73)
Capturing smiles
automatically (Smile
Shutter)
A photo is recorded automatically when
the camcorder detects the smile of a
person during movie recording (p. 73).
([Dual Capture] is the default setting.)
Recording voices clearly
(Closer Voice)
Your camcorder detects the face of a
person and records the voice clearly. ([On]
is the default setting.)
Select [Camera/Mic]
1
[
Microphone] [Closer
Voice].
Select the desired item.
2
US
42
The camcorder is
The camcorder is
detecting a face.
Notes
When the frame rate and the recording
mode are set to [60i]/[Highest Quality
or [60p]/[60p Quality
the Smile Shutter function while recording
movies. Furthermore, when the frame rate is
set to [24p], you cannot use the Smile Shutter
function, either.
Smiles may not be detected depending on
recording conditions, subject conditions, and
the setting of your camcorder.
detecting a smile
(orange).
]
], you cannot use
[Smile Sensitivity] (p. 73)
Recording movies in
various situations
Selecting the suitable
setting automatically for
the recording situation
(Intelligent Auto)
Your camcorder records movies after
selecting the most suitable setting for the
subjects or the situation automatically.
([On] is the default setting.) When the
camcorder detects a subject, the icons that
correspond to the detected conditions are
displayed.
Select [On] at the
right bottom of the recording screen
of movies or photos.
Face detection:
The camcorder detects faces, and adjusts
the focus, color and exposure.
(Portrait), (Baby)
Scene detection:
The camcorder selects the most effective
setting automatically, depending on the
scene.
(Backlight),
Scene),
(Macro)
Camera-shake detection:
The camcorder detects whether camerashake occurs or not, and makes the
optimum compensation.
(Walk), (Tripod)
(Landscape), (Night
(Spotlight), (Low light),
Sound detection:
The camcorder detects and suppresses the
wind noise so that the voice of a person or
the surrounding sound can be recorded
clearly.
, (Auto Wind NR)
To cancel the Intelligent Auto function, select
[Off].
To record images brighter than those
recorded using the Intelligent Auto
function
Select [Camera/Mic]
Manual Settings] [Low Lux].
[
Notes
The frames on the faces do not appear during
3D recording.
The camcorder may not detect the expected
scene or subject, depending on the recording
conditions.
Reducing camera-shake
In the default setting, the camcorder
compensates for camera-shake in the
vertical and horizontal directions, and also
compensates for circular motion of the
camcorder ([Active]).
Select [Camera/Mic]
1
[
[
Camera Settings]
SteadyShot].
Advanced operations
US
43
Recording images
with the selected
Select the desired recording
2
mode.
Recording movies in dim
places (Video Light)
Press LIGHT.
Flash/Video light
Each time you press the LIGHT button, the
indicator changes as follows.
Off (no indicator) Auto (
) ...
(
Notes
Keep a distance of about 0.3 m to 1.5 m (1
foot to 5 feet) between the camcorder and the
subject.
The video light generates strong light. Do not
use the video light directly in front of the eyes
at close range.
The battery drains quickly while using the video
light.
When you shoot photos, the video light turns
off and will work as a flash.
[Light Bright] (p. 73)
) On
image quality
Selecting the image
quality of movies
(Recording mode)
You can switch the recording mode to
select the movie quality when recording
high definition image quality (HD)
e
s. The recording time (p. 80) or the
movi
type of media device to which the images
can be copied may change, depending on
the recording mode selected. ([Standard
] is the default setting.)
Notes
[3D] is selected for recording 3D movies.
[60p Quality
Frame Rate] is set to [60p].
[
Select [Image Quality/
1
Size] [
Select the desired recording
2
mode.
recorded with the selected recording mode
cannot be copied on that medium.
] can be set only when the
REC Mode].
appears on a medium icon if a movie
44
US
Recording mode and the media
devices to which the images can be
copied
Recording mode
Types of media
3D
PS
*
FX
FH/
HQ/
LP
On this camcorder
Internal recording
media
Memory card
On external devices
External media
(USB storage
devices)
Blu-ray discs
AVCHD recording
discs
* [60p Quality ] can be set only when the
Frame Rate] is set to [60p].
[
— — —
On image quality
The image quality and the bit-rate for each
recording mode can be set as follows.
(“M,” such as in “24M,” means “Mbps.”)
For the high definition image quality (HD)
movies
[3D]: 1920 1080/60i quality, MVC HD
28M (3D)
[60p Quality
AVC HD 28M (PS)
[Highest Quality
1920 1080/24p quality, AVC HD 24M (FX)
[High Quality
1080/24p quality, AVC HD 17M (FH)
[Standard
AVC HD 9M (HQ)
[Long Time
AVC HD 5M (LP)
]: 1920 1080/60p quality,
]: 1920 1080/60i or
]: 1920 1080/60i or 1920
]: 1440 1080/60i quality,
]: 1440 1080/60i quality,
For the standard definition image quality (STD)
movies
[Standard
(HQ)
Standard image quality (STD) is fixed to this
*
value.
]: Standard quality, STD 9M
*
[ Frame Rate](p. 73)
Recording standard definition image quality
(STD) movie: [
Guide for creating discs (p. 64)
/ Setting] (p. 73)
Changing the image
quality of photos
The number of photos you can shoot
differs, depending on the image size
selected.
Select [Image Quality/
1
Size] [
Select the desired image size.
2
Notes
The image size selected with this setting takes
effect for photos taken by the Dual Capture
unct
ion (p. 29).
f
Number of recordable photos (p. 82)
Image Size].
Advanced operations
US
45
Using the manual
adjustment features
Shooting images with
the iris priority mode
Changing IRIS parameter changes the
range that is in focus.
Select [Camera/Mic]
1
[
Manual Settings] [IRIS]
[Manual].
Select / to adjust the iris.
2
F-value
As the F-value becomes smaller, the iris
opens and the background blurs.
To change the atmosphere of image
by the IRIS parameter
Smaller F-value (opening the iris) narrows
the range that is in focus. Larger F-value
(narrowing down the iris) widens the range
that is in focus. Open the iris to blur the
background, or narrow down the iris to
sharpen the whole image.
Notes
Even if you open the IRIS wider (a smaller
F-value) than F3.4 when you set the zoom lever
to the W (Wide angle) side, the IRIS is reset
to F3.4 as you move the zoom lever to the T
(Telephoto) side.
Shooting images with
the Shutter Speed
priority mode
You can express the movement of a moving
subject in various way by adjusting the
shutter speed. When shooting a mountain
stream, for example, a splash of water will
be captured clearly with high speed shutter,
or a trailing image of water with low speed
shutter.
Select [Camera/Mic]
1
[
Manual Settings]
[Shutter Speed] [Manual].
Select / to adjust the
2
shutter speed.
As the value becomes smaller (slower
shutter speed), a trailing image of the
movement of the subject is captured.
Notes
When you record images under a fluorescent
lamp, sodium lamp, or mercury lamp,
horizontal stripes may appear, flicker may
occur, or color may change. In this case, change
the shutter speed according to the power supply
frequency in your region.
46
US
Controlling the image
settings manually with
the MANUAL dial
[Shutter Speed] (p. 72)
[AE Shift] (p. 72)
[White Balance Shift] (p. 72)
You can assign 1 menu item you use often
to the MANUAL dial. Since [3D Depth
Adjustment] is assigned to the MANUAL
dial in the default setting, the operation
below is described as adjusting the 3D
depth using the dial.
Press MANUAL to make the
1
camcorder adjust the depth of
the 3D images.
MANUAL button
MANUAL dial
Pressing MANUAL repeatedly toggles
between enabling and disabling the
manual adjustment.
Rotate the MANUAL dial to
2
adjust the 3D depth.
Items you can control with the
MANUAL dial
3D recording
[3D Depth Adjustment] (p. 40)
[Focus] (p. 72)
[Exposure] (p. 72)
[AE Shift] (p. 72)
[White Balance Shift] (p. 72)
2D recording
[Focus] (p. 72)
[Exposure] (p. 72)
[IRIS] (p. 72)
To assign the menu item to the
MANUAL dial
Press and hold MANUAL down
1
for a few seconds.
Rotate the MANUAL dial and
2
select the item to be assigned.
Select [Reset] to reset the items adjusted
manually to the default settings.
Press MANUAL.
3
The camera data that appear on the
LCD screen will differ, depending on
the recording settings of the camcorder.
The settings will be displayed with the
following icons.
: Automatic
: Exposure is set manually.
: IRIS priority
: Shutter speed priority
Notes
Manual settings will be retained even if you
change the assigned item of the MANUAL dial.
However, if you set [Exposure] after setting
[AE Shift] manually, [Exposure] will override
[AE Shift].
If you set either one of [Exposure], [IRIS], or
[Shutter Speed], the settings of other 2 items
are canceled.
[Data Code] (p. 74)
Advanced operations
US
47
Recording
information on
your location
(HDR-TD20V)
The following features are available if you
use the GPS (Global Positioning System)
function.
ecording location information on
R
mov
ies or photos ([On] is the default
setting.)
(GPS)
GPS triangulating status
Searching for the
satellites
Number of dots
changes
Playing movies and photos by searching
for them from a map (Map View, p. 37)
Displaying a map of your current
location
Triangulating
Triangulating meters Unable to record
Images will be registered using
the location information that was
previously obtained.
Unable to
triangulate
location information
If you do not want to record location
information
Select
[
[Setup]
General Settings] [GPS
Setting] [Off].
48
US
Notes
It may take a while before the camcorder starts
triangulating.
Use the GPS function outdoors and in open
areas, as the radio signals can best be received
in such areas.
The map always displays the north at the top.
Obtaining a map of
the current location
(triangulating priority
mode)
This feature is useful for checking a map of
your current location while traveling.
As the camcorder turns other functions
off to search for satellites, obtaining
triangulating information can take priority.
Select [Setup]
[
General Settings] [Your
Location].
A marker (red) that indicates
your current location
Checking the
triangulating status
The camcorder displays the status of the
GPS signal reception when you are unable
to obtain the triangulating information.
Display your current location
1
(p. 49).
If your current location appears on
the LCD screen, you do not need to
continue this operation.
Select .
2
Satellite map
Satellite icons
Advanced operations
Displays the triangulating
Notes
If you select a certain point on the screen, the
map shows an area with that point at the center.
Select
to the center again.
If the camcorder cannot acquire current
location information, the triangulating
information screen appears (p. 49).
If the location information that was previously
acquired is invalid, the marker does not appear.
To close the current location screen, select
to move your current location back
.
inform
ation (p. 49)
Triangulating
gauge
To close the triangulating information
screen, select
Information for the
location that was
previously obtained.
.
US
49
On the satellite map and
triangulating gauge
The center of the satellite map shows
your current location. You can check the
direction (north/south/east/west) of the
satellites with the satellite icons () that
appear on the satellite map.
When the camcorder succeeds in
triagulating your location, the triangulating
gauge turns to green.
How to check the GPS satellite icons/
triangulating gauge
The color of the GPS satellite icons and the
triangulating gauge change according to the
current status triangulation.
If data on your current location
cannot be obtained
A display that allows you to triangulate the
location again appears. In this case, follow
the instructions that appears on the LCD
screen.
Hints for better reception
Use the GPS function outdoors and in open
areas.
For details on locations or situations where
radio signals cannot be received, refer to the
“Handycam” User Guide.
Rotate the LCD panel to direct the GPS antenna
towards the sky. Do not place your hand on the
GPS antenna.
GPS satellite icons/
triangulating gauge
US
50
/ (black)
/ (gray)
/ (brown)
/ (ocher)
/ (green)
Status
No signal, but orbit
information for the
satellite is available.
Part of the satellite orbit
information has been
obtained.
About a half of the
satellite orbit information
has been obtained.
Most of the satellite orbit
information has been
obtained.
Triangulating is
completed and the
satellite is currently being
used.
Select [Your Location] in the menu to use the
triangulating priority mode (p. 49).
Use GPS Assist Data.
If you import GPS Assist Data from your
computer to your camcorder using the built-in
“PlayMemories Home” software, the time it
takes the camcorder to acquire your location
information can be shortened. Connect the
camcorder to a computer that is connected
to the Internet. The GPS Assist Data will be
updated automatically.
Notes
In the following situations, the current location
of the camcorder shown on the map may be
different from the actual location. The margin
of error can be as wide as several hundred
meters.
When the camcorder receives GPS signals
that have been reflected off the surrounding
buildings
When the GPS signal is too weak
The GPS Assist Data may not function in the
following cases:
When the GPS Assist Data are not updated
for about 30 days or more
When the date and time of the camcorder are
not correctly set
When the camcorder is moved for a long
distance
If you are using a Mac, you cannot import GPS
Assist Data.
Enjoying a digest of
your movies
Playback)
You can enjoy a digest of high definition
image quality (HD) movies and photos,
similar to a short movie.
Set the 2D/3D switch to 3D.
1
To play back 2D movies and photos, set
the 2D/3D switch to 2D.
Press (View Images) (p. 35).
2
Display the desired event at the
3
center of the Event View, and
select [
Volume
adjustment
Context
(Highlight
Highlight].
Advanced operations
To stop
Previous
Next
To pause
US
51
Select the desired operation
4
when the highlight playback
finishes.
A: The camcorder plays the Highlight
Playback scenes again.
: You can save the Highlight
B
Playback scenes in standard definition
image quality (STD).
: You can change the settings for
C
Highlight Playback.
To change the settings for Highlight
Playback
You can change the Highlight Playback
settings by selecting [Highlight Setting]
on the screen after Highlight Playback has
finished.
You can also change the setting by selecting
while the camcorder is playing highlight
scenes.
[Playback Range]
You can set the playback range (starting and
ending date) of the Highlight Playback.
[Theme]
You can select a theme for Highlight Playback.
[Music]
You can select music.
[Audio mix]
The original sound is played back with the
music.
[Length]
You can set the length of the Highlight Playback
segment.
US
52
[Highlight Point]
You can set the points in a movie or photo that
will be used in a Highlight Playback. Play the
desired movie, and select
play the desired photo and select
appears on the movie or photo that is used in a
Highlight Playback.
To erase the points, select
Points].
Notes
Highlight Playback scenes will change each time
you select a Highlight Playback.
The [Playback Range] setting is cleared when
the Highlight Playback stops.
After the music file is transferred to the
camcorder, if you cannot play the music,
the music file may be damaged. Delete the
music file by selecting
Playback Settings] [Empty Music], then
[
transfer the music file again. You can restore the
music data recorded on your camcorder at the
default using “Music Transfer.” For operating
instructions, see “Music Transfer” help.
If the Highlight Playback function was started
from the Map View screen, [Highlight Point]
cannot be set. However, if the Highlight
Playback function was started from the Event
View screen and you set the [Highlight Point],
the point can take effect on the Map View also
(HDR-TD20V).
The audio used for the Highlight Playback will
be converted to 2ch stereo.
When you connect the camcorder to an
external device, such as a TV, and watch
Highlight Playback or Highlight Scenario, these
images do not appear on the LCD screen of the
camcorder.
. Or
.
[Clear All
[Setup]
Adding your desired music: “Music Transfer”
(p. 63)
Saving Highlight
Playback in HD image
quality (
Scenario
Save)
You can save your favorite Highlight
Playback as a “Scenario” with high
definition image quality (HD). Up to 8
scenarios can be saved and these scenarios
can be played on the camcorder only.
Select [Replay] on the screen
1
after a Highlight Playback has
finished.
When the Highlight Playback
2
starts again, select
[
Scenario Save].
To play back a saved scenario
Select
[
scenario, and then select
[Playback Function]
Scenario], select the desired
.
Converting the data
format to STD image
quality (Highlight Movie)
You can convert the data format of
Highlight Playback or Highlight Scenarios
to 2D movies with standard definition
image quality (STD) and save them as a
“Highlight Movie.” Highlight movies can
be used to create DVDs or be uploaded to
the Web.
Select [Save Highlight Movie]
1
on the screen after a Highlight
Playback or Highlight Scenario
playback has finished.
To play back a Highlight Movie
Set the 2D/3D switch to 2D.
1
Select [Playback
2
Function] [Highlight Movie]
and select the desired Highlight
Movie.
To erase a Highlight Movie, select while the
Highlight Movie is playing.
Advanced operations
To erase a saved scenario, select [Erase]/
[Erase All] while playing the scenario.
US
53
Playing images on a
TV
Connection methods and the image quality
viewed on the TV screen differ depending
on what type of TV is connected, and the
connectors used.
Connecting to a 3D TV
Movies recorded in 3D are played back in
3D. Make sure that the 2D/3D switch of the
camcorder is set to 3D.
HDMI Cable (supplied) HDMI IN
Connecting to a high definition TV
When the recording quality is high
definition image quality (HD), the movies
are played back in high definition image
quality (HD). When the recoding quality
is standard definition image quality (STD),
the movies are played back in standard
definition image quality (STD).
HDMI Cable (supplied) HDMI IN
Connecting to a non-high-definition
16:9 (wide) or 4:3 TV
When movies are recorded with high
definition image quality (HD), they are
played back in standard definition image
quality (STD). When movies are recoded
with standard definition image quality
(STD), they are played back in standard
definition image quality (STD).
A/V connecting cable
(supplied)
Switch the input on the TV to the
1
connected jack.
Connect the camcorder to a TV.
2
Play a movie or a photo on the
3
camcorder (p. 35).
Notes
Refer to the instruction manuals of the TV as
well.
Use the supplied AC Adaptor as the power
source (p. 21).
The 3D movies may seem to be shaking
from side to side when played in 2D on a TV.
You can prevent the shaking by setting [3D
Depth Adjustment] (p. 40) to [Manual] before
recording.
When movies are recorded with standard
definition image quality (STD), they are played
back in standard definition image quality (STD)
even on a high definition TV.
Yellow
White
Red
54
US
When you play back standard definition image
quality (STD) movies on a 4:3 TV that is not
compatible with the 16:9 signal, set [
Mode] to [4:3] to record movies with 4:3 aspect
ratio (p. 73).
If you connect your camcorder to the TV using
more than one type of cable to output images,
HDMI output takes priority.
The camcorder does not support the S-Video
output.
Enjoying 5.1ch surround
sound
Wide
You can record Dolby Digital 5.1ch
surround sound with the built-in
microphone. Realistic sound can be enjoyed
when playing a movie on devices that
support 5.1ch surround sound input.
Built-in microphone
Notes
If you try to play back 5.1ch sound with the
speakers on your camcorder, the 5.1ch sound is
automatically converted and output in 2ch.
To enjoy the 5.1ch surround sound of the
movies recorded with high definition image
quality (HD) in 5.1ch sound, you need a device
compatible with 5.1ch surround.
When you connect your camcorder with
the supplied HDMI cable, the sound of high
definition image quality (HD) movies recorded
in 5.1ch sound is automatically output in 5.1ch
sound. The sound of standard definition image
quality (STD) movies is converted to 2ch.
[Audio Mode] (p. 73)
On an HDMI cable
Use an HDMI cable with the HDMI logo.
Use an HDMI mini connector on one end
(for the camcorder), and a plug suitable for
connecting your TV on the other end.
Copyright-protected images are not output
from the HDMI OUT jack of your camcorder.
Some TVs may not function correctly (e.g., no
sound or image) with this connection.
Do not connect the camcorder HDMI OUT
jack to an external device HDMI OUT jack, as
malfunction may result.
HDMI (High Definition Multimedia Interface)
is an interface to send both video/audio signals.
The HDMI OUT jack outputs high quality
images and digital audio.
When your TV is monaural (When
your TV has only one audio input
jack)
Connect the yellow plug of the A/V
connecting cable to the video input jack
and connect the white (left channel) or red
(right channel) plug to the audio input jack
of your TV or VCR.
When connecting to your TV via a
VCR
Connect your camcorder to the LINE
IN input on the VCR using the A/V
connecting cable. Set the input selector on
the VCR to LINE (VIDEO 1, VIDEO 2,
etc.).
Setting the aspect ratio supported by the TV:
[TV Type] (p. 73)
Advanced operations
US
55
Using “BRAVIA” Sync
You can operate your camcorder with
the remote commander of your TV by
connecting your camcorder to a “BRAVIA”
Sync compatible TV launched in 2008 or
later with the HDMI cable.
You can operate the menu of your
camcorder by pressing the SYNC MENU
button of the remote commander of your
TV. You can display the camcorder screens
such as Event View, play selected movies
or display selected photos by pressing up/
down/left/right/enter buttons of the remote
commander of your TV.
There may be some operations you cannot do
with the remote commander.
Set [CTRL FOR HDMI] to [On].
Also set your TV accordingly. Refer to the
instruction manual of the TV for details.
The operation of “BRAVIA” Sync differs
according to each model of BRAVIA. Refer to
the instruction manual of your TV for details.
If you turn off the TV, your camcorder is turned
off simultaneously.
On “Photo TV HD”
This camcorder is compatible with the
“Photo TV HD” standard. “Photo TV
HD” allows for highly-detailed, photo-like
depiction of subtle textures and colors.
By connecting Sony’s Photo TV HDcompatible devices using an HDMI cable
a whole new world of photos can be
enjoyed in breathtaking HD quality.
* The TV will automatically switch to the
appropriate mode when
with the Switch Image Type button.
(photo) is selected
*,
56
US
Editing
Editing on your
camcorder
Notes
Some basic editing operations can be done on
the camcorder. If you want to perform advanced
editing operations, install the “Expanded
Feature” for the built-in “PlayMemories Home”
software.
You cannot restore images once they are
deleted. Save important movies and photos in
advance.
Do not remove the battery pack or the AC
Adaptor from your camcorder while deleting
or dividing the images. It may damage the
recording media.
Do not eject the memory card while deleting or
dividing images from the memory card.
If you delete or divide movies/photos that
are included in saved scenarios (p. 53), the
scenarios will also be deleted.
Deleting movies and
photos
Select [Edit/Copy]
1
[Delete].
Select [Multiple Images].
2
When editing 2D movies, select the type
of image.
Add check marks to the movies
3
or photos to be deleted and
select
.
To delete all movies/photos in the
selected date at one time
1 In step 2, select [All In Event].
2 Select the date you want to delete using
/ , and then select .
To delete a part of a movie
You can divide a movie and delete it.
Release protection: [Protect] (p. 74)
[Format] (p. 74)
Dividing a movie
Select [Divide] on the
1
movie playback screen.
Editing
US
57
Select the point where you want
2
to divide the movie into scenes
using
/ , and then select
.
A B
A: Returns to the beginning of the selected
movie.
B: Adjusts the dividing point with more
precision.
Notes
A slight difference may occur from the point
where you select and the actual dividing point,
as your camcorder selects the dividing point
based on about half-second increments.
Some basic editing operations can be
done on the camcorder. If you want to do
advanced editing operations, use the built-in
“PlayMemories Home” software.
Select the point where you
2
want to capture a photo using
/ , and then select .
A B
A: Returns to the beginning of the selected
movie.
B: Adjusts the capturing point with more
precision.
If the movie was recorded with one of
the following image quality levels, the
image size will be set as shown below.
High definition image quality (HD): 2.1
M (16:9)
Wide aspect ratio (16:9) with standard
definition image quality (STD): 0.2 M
(16:9)
4:3 aspect ratio with standard definition
image quality (STD): VGA 0.3 M (4:3)
Capturing a photo from
a movie
Select [Photo Capture] that
1
appears on the playback screen
of a movie.
US
58
On recording date and time of
captured photos
The recording date and time of captured photos
are the same as the recording date and time of
the movies.
If the movie you are capturing from has no data
code, the recording date and time of the photo
will be the date and time you captured from
the movie.
Saving movies and photos with a computer
Useful functions available when connecting
the camcorder to your computer
For Windows
The built-in “PlayMemories Home” (Lite Version) software allows you to import images in
the camcorder to your computer and play them on the computer easily.
PlaybackImporting images
Use the USB connection support cable when the Built-in USB Cable of the camcorder is too short for
connection with your computer.
To use the “Expanded Feature” upgrade for the “PlayMemories Home” software
On the computer that is connected to the Internet, you can download the “Expanded Feature”
upgrade which allows you to use various expanded functions.
Upload
Saving movies and photos with a computer
Edit
Network services
Save on a disc
Joining image files
DVD (2D)/Blu-ray
For Mac
The built-in “PlayMemories Home” software is not supported with Mac computers.
To import images from the camcorder to your Mac and play them, use the appropriate
software on your Mac. For details, visit the following URL.
http://www.sony.co.jp/imsoft/Mac/
US
59
60
US
Preparing a computer
(Windows)
Step 1 Checking the computer
system
1
OS*
Microsoft Windows XP SP3*2/Windows Vista
3
SP2
*
/Windows 7 SP1
4
*
CPU
Intel Core Duo 1.66 GHz or faster, or Intel
Core 2 Duo 1.66 GHz or faster (Intel Core
2 Duo 2.26 GHz or faster is required when
processing 3D, FX or FH movies, and Intel
Core 2 Duo 2.40 GHz or faster is required
when processing PS movies.)
ver, Intel Pentium III 1 GHz or faster is
Howe
sufficient for the following operations:
Importing the movies and photos to the
computer
Creating a Blu-ray disc/AVCHD
disc/DVD-video (Intel Core Duo 1.66 GHz
or faster is required when creating a DVD
video by converting high definition image
quality (HD) to standard definition image
quality (STD).)
Processing only the movies with standard
definition image quality (STD)
Memory
Windows XP: 512 MB or more (1 GB or
more is recommended)
Windows V
ista/ Windows 7: 1 GB or more
Hard disk
Disk volume required for installation:
Appr
oximately 500 MB (10 GB or more
may be necessary when creating AVCHD
ding discs. 50 GB maximum may be
recor
necessary when creating Blu-ray discs.)
Display
Minimum 1,024 × 768 dots
Others
USB port (this must be provided as standard,
Hi-Speed USB (USB 2.0 compatible)), Blu-ray
disc/DVD burner
Either NTFS or exFAT file system is
recommended as the hard disk file system.
recording
1
*
Standard installation is required. Operation is
not assured if the OS has been upgraded or in a
multi-boot environment.
2
*
64-bit editions and Starter (Edition) are not
supported. Windows Image Mastering API
(IMAPI) Ver.2.0 or newer is required to use disc
creation function, etc.
3
*
Starter (Edition) is not supported.
4
*
Faster processor is recommended.
Notes
Operation with all computer environments is
not assured.
Step 2 Installing the built-in
“PlayMemories Home” software
Turn on the computer.
1
Log on as an Administrator for
installation.
Close all applications running on the
computer before installing the software.
Connect the camcorder to the
2
computer using the Built-in
USB Cable, then select [USB
Connect] on the LCD screen of
the camcorder.
When using Windows 7: The Device Stage
window opens.
When using Windows XP/Windows Vista:
The AutoPlay wizard is displayed.
On Windows 7, select
3
[PlayMemories Home] on
the Device Stage window.
On Windows XP/Windows
Vista, select [Computer] (on
Windows XP, [My Computer])
[PMHOME] [PMHOME.EXE].
Follow the instructions that
4
appear on the computer screen
to continue the installation.
When the installation completes,
“PlayMemories Home” starts up.
If the “PlayMemories Home” software
is already installed on your computer,
register your camcorder with the
“PlayMemories Home” software. Functions
that can be used with this camcorder will
then be available.
If the “PMB (Picture Motion Browser)”
software is installed on your computer, it
will be overwritten by the “PlayMemories
Home” software. In this case, you cannot
use some functions that were available
with “PMB” with this “PlayMemories
Home” software.
Instructions for installing the “Expanded
Feature” upgrade appear on the computer
display. Follow the instructions and install
the expansion files.
The computer has to be connected to the
Internet to install the “Expanded Feature”
upgrade. If you did not install the file the
first time you started the “PlayMemories
Home” software, the instructions appear
again when you select a function of the
software that can be used only when the
“Expanded Feature” upgrade has been
installed.
For details on “PlayMemories Home,”
(“PlayMemories Home” Help
select
Guide) on the software or visit the
PlayMemories Home support page
(http://www.sony.co.jp/pmh-se/).
Notes
Make sure to set [USB LUN Setting] to [Multi]
when you install the “PlayMemories Home”
software.
If the “Device Stage” does not start up when you
are using Windows 7, click [Start], then double
click the camera icon for this camcorder
recording medium icon [PMHOME.EXE].
Operation is not guaranteed if you read or write
video data from or to the camcorder using
software other than the built-in “PlayMemories
Home” software. For the information on the
compatibility of the software you are using,
consult the manufacturer of the software.
To disconnect your camcorder from
the computer
1 Click the icon at the bottom right of
the desktop of the computer [Safely
remove USB Mass Storage Device].
2 Select [Yes] on the camcorder
screen.
3 Disconnect the USB cable.
If you are using Windows 7, the icon may
not appear on the desktop of the computer. In
this case, you can disconnect the camcorder
from your computer without following the
procedures described above.
Notes
Do not format the internal recording media of
the camcorder using a computer. If you do this,
the camcorder will not operate correctly.
Do not insert AVCHD recording discs that have
been created using the built-in “PlayMemories
Home” software to DVD players or recorders,
as these devices do not support the AVCHD
standard. If you do, you may not be able to
remove the disc from these devices.
Saving movies and photos with a computer
US
61
62
US
This camcorder captures high definition footage
in the AVCHD format. Using the enclosed
PC software, high definition footage can be
copied onto DVD media. However, DVD media
containing AVCHD footage should not be used
with DVD based players or recorders, as the
DVD player/recorder may fail to eject the media
and may erase its contents without warning.
When you access the camcorder from the
computer, use the built-in “PlayMemories
Home” software. Do not modify the files or
folders on the camcorder from the computer.
The image files may be damaged or may not be
played back.
Operation is not guaranteed, if you operate the
data on the camcorder from the computer.
The camcorder automatically divides an image
file that exceeds 2 GB and saves the parts as
separate files. All image files may be shown as
separate files on a computer, however, the files
will be handled properly by the import function
and the playback function of the camcorder or
the “PlayMemories Home” software.
Use the built-in “PlayMemories Home” software
when you import long movies or edited images
from the camcorder to a computer. If you use
other software, the images may not be imported
correctly.
When you delete image files, follow the steps
on page 57.
Your computer must support the creation of
Blu-ray discs.
BD-R (unrewritable) and BD-RE (rewritable)
media are available for creating Blu-ray discs.
You cannot add contents to either type of disc
after creating the disc.
To play back a Blu-ray disc that has been
created with a movie that was recorded in 3D
or [60p Quality
] image quality, you need
a device that complies with the AVCHD Ver.
2.0 format.
To create a Blu-ray disc
You can create a Blu-ray disc with a high
definition image quality (HD) movie
previously imported to a computer.
To create a Blu-ray disc, the “BD Add-on
Software” must be installed.
Visit the following URL to install the
software.
http://support.d-imaging.sony.co.jp/
BDUW/
Starting the
Downloading the
“PlayMemories
Home” software
Double-click the “PlayMemories
1
Home” icon on the computer
screen.
The “PlayMemories Home” software
starts up.
Double-click the ““PlayMemories
2
Home” Help Guide” short-cut
icon on the computer screen to
see how to use “PlayMemories
Home.”
dedicated software
for the camcorder
Installing Music Transfer
Music Transfer allows you to change the
music files that have been supplied with
your camcorder to suit your tastes, or to
delete or add music files.
Furthermore, this software can restore the
music files that were supplied with your
camcorder.
To use this software, you must download
it from the following URL and install it on
your computer.
For Windows:
http://www.sony.co.jp/imsoft/Win/
For Mac:
http://www.sony.co.jp/imsoft/Mac/
For details, refer to the “Music Transfer”
help.
Installing software for a Mac
For details on the software for Mac
computers, refer to the following URL.
http://www.sony.co.jp/imsoft/Mac/
Saving movies and photos with a computer
If the icon is not displayed on the
computer screen, click [Start] [All
Programs] [PlayMemories Home]
the desired item.
You can access the URL noted above by clicking
[FOR_MAC.URL] in [PMHOME] while your
camcorder is connected to the computer. When
you connect the camcorder to the computer, set
[USB LUN Setting] to [Multi].
Notes
The software that can be used with your
camcorder will differ, depending on the
countries/regions.
US
63
Saving images with an external device
Dubbing guide
You can save 3D movies and high definition image quality (HD) movies using an external
device. Select the method to be used according to the device.
Movies External devices Connecting cable Page
External media device
Saving images on an external
/
media device with high
definition image quality
(HD).
DVD writer other than
DVDirect Express
Saving images on a DVD disc
with high definition image
quality (HD) or with standard
definition image quality
(STD).
USB Adapter Cable
(supplied)
Built-in USB Cable
68
66
Hard disk recorder, etc.
Saving images on a DVD
disc with standard definition
image quality (STD).
A/V connecting cable
(supplied)
Movies that are recorded with standard definition image quality (STD)
Use the A/V connecting cable to connect the camcorder to an external device in which images
are saved (p. 66).
Notes
Delete the demonstration movie when copying or creating discs. If it is not deleted, the camcorder may
not operate correctly. However, you cannot recover the demonstration movie once you delete it.
Movies recorded with [
saved on external media devices.
REC Mode] (p. 73) set to [60p Quality ] or [Highest Quality ] can be
Dubbing on a computer: the built-in “PlayMemories Home” software (p. 63)
US
64
66
The devices on which the created disc can be played back
DVD disc with high definition image quality (HD)
AVCHD format playback devices, such as a Sony Blu-ray disc player or a PlayStation
DVD disc with standard definition image quality (STD)
Ordinary DVD playback devices, such as a DVD player.
Notes
The AVCHD recording disc can be played back only on AVCHD format compatible devices.
Discs with high definition image quality (HD) images recorded should not be used in DVD players/
recorders. Because DVD players/recorders are not compatible with the AVCHD format, DVD players/
recorders may fail to eject the disc.
Always maintain your PlayStation
PlayStation
3 may not be available in some countries/regions.
3 to use the latest version of the PlayStation3 system software. The
3
Saving images with an external device
US
65
Creating a disc with
the DVD writer or
recorder
Notes
Connect your camcorder to the wall outlet (wall
socket) using the supplied AC Adaptor for this
operation (p. 21)
Refer to the instruction manual supplied with
the device connected.
Sony DVD writer may not be available in some
countries/regions.
Creating a high definition image
quality (HD) disc with a DVD
writer
Use the built-in USB cable to connect your
camcorder to a Sony DVD writer other
than DVDirect Express (sold separately),
etc., which is compatible with high
definition image quality (HD) movies.
Connect a DVD writer to your
1
camcorder with the Built-in USB
Cable.
Select [USB Connect] on the
2
camcorder screen.
If the [USB Select] screen does not
appear, select
Connection] [USB Connect].
[
Record movies on the connected
3
device.
After the operation is completed, select
.
Notes
You cannot save 3D movies.
Always maintain the firmware of the Sony
DVDirect (DVD Writer) to its latest version.
For details, see the following website.
http://sony.storagesupport.com/
[Setup]
Creating a standard definition
image quality (STD) disc with a
recorder, etc.
Connect your camcorder to a disc
recorder, a Sony DVD writer, etc., other
than DVDirect Express, with the A/V
connecting cable. You can copy images
played back on your camcorder on a disc
or video cassette.
Insert the recording medium
1
in the recording device (a disc
recorder, etc.).
If your recording device has an input
selector, set it to the input mode.
66
US
Connect your camcorder to the
2
recording device with the A/V
connecting cable.
A/V
connecting
cable
Input
Red White Yellow
A/V
Remote
Connector
Notes
3D movies are converted to 2D with standard
definition image quality (STD).
You cannot copy images to recorders connected
with an HDMI cable.
Since copying is performed via analog data
transfer, the image quality may deteriorate.
High definition image quality (HD) movies
will be copied with standard definition image
quality (STD).
When you connect a monaural device, connect
the yellow plug of the A/V connecting cable
to the video input jack, and the white (left
channel) or the red (right channel) plug to the
audio input jack on the device.
Copying date and time information: [Data
Code] (p. 74)
Using 4:3 screen size display device: [TV Type]
(p. 74)
Saving images with an external device
Signal flow
Connect your camcorder to the input jacks
of the recording device.
Start playback on your
3
camcorder, and record it on the
recording device.
When dubbing is finished, stop
4
the recording device, and then
your camcorder.
US
67
Saving images on
an external media
device
You can save movies and photos on an
external media device (USB storage
devices), such as an external hard disk
drive. The following functions will be
available after you have saved your images
on an external media device.
You can connect your camcorder and the
external media device, and then play back
images stored on the external media device
. 68).
(p
Y
ou can connect your computer and the
external media device and import images
to your computer using the the built-in
yMemories Home” software (p. 63).
Pla
“
Notes
Connect the AC Adaptor and the power
cord (mains lead) to the DC IN jack of your
camcorder and the wall outlet (wall socket).
Refer to the instruction manual supplied with
the external media device.
Connect your camcorder and the
1
external media device using the
USB Adaptor Cable (supplied).
USB Adaptor Cable
(supplied)
Select [Copy.] on the camcorder
2
screen.
Movies and photos that are stored on
one of the camcorder’s recording media
selected in [Media Select], and that have
not yet been saved on external media
device can be saved on the connected
media device at this time.
This operation is available only when
there are newly recorded images in your
camcorder.
To disconnect the external media device,
select
playback standby mode (either Event View
or Event Index is displayed).
while the camcorder is in the
To play back images in the external
media device on the camcorder
Select [Play without copying.] in step 2 and
select the image you want to view.
You can also view images on a TV connected to
your camcorder (p. 54).
When an external media device is connected,
will appear on the Event View screen.
68
Make sure not to disconnect the USB cable
while [Preparing image database file. Please
wait.] is displayed on the LCD screen.
If [Repair Img. DB F.] is displayed on the
camcorder screen, select
US
.
To delete images in the external
media device
1 Select [Play without copying.] in step 2.
2 Select
[Edit/Copy] [Delete],
and then follow the instructions that
appear on the LCD screen to delete
images.
To save the desired images in the
camcorder to the external media
device
1 Select [Play without copying.] in step 2.
2 Select
[Edit/Copy] [Copy],
and then follow the instructions that
appear on the LCD screen to save images.
If you want to copy images that have not yet
been copied, select
[Direct Copy] while your camcorder is
connected to the external media device.
[Edit/Copy]
To play back high definition image
quality (HD) movies on your
computer
On the “PlayMemories Home” software
(p. 63), select the drive that represents the
external media device connected, and then
play movies.
Notes
You cannot use the following devices as an
external media device.
media devices with a capacity exceeding 2 TB
ordinary disc drive such as CD or DVD drive
media devices connected via a USB hub
media devices with built-in USB hub
card reader
You may not be able to use external media
devices with a code function.
The FAT file system is available for your
camcorder. If the storage medium of the
external device was formatted for the NTFS file
system, etc., format the external media device
using the camcorder before use. The format
screen appears when an external media device
is connected to your camcorder. Make sure that
important data has not previously been saved
on the external media device before you format
it using the camcorder.
Operation is not assured with every device
satisfying requirements for operating.
For details on available external media devices,
go to the Sony support website in your
country/region.
The number of scenes you can save on the
external media device are as follows. However,
even if the external media device has free space,
you cannot save scenes exceeding the following
number.
High definition image quality (HD) movies:
Max. 3,999
Standard definition image quality (STD)
movies: Max. 9,999
Photos: Max. 40,000
The number of scenes may be smaller
depending on the type of images recorded.
If your camcorder does not recognize the
external media device, try the following
operations.
Reconnect the USB Adaptor Cable to your
camcorder.
If the external media device has the AC power
cord (mains lead), connect it to the wall outlet
(wall socket).
You cannot copy images from an external media
device to the internal recording medium on the
camcorder.
Saving images with an external device
US
69
Customizing your camcorder
Using menus
The camcorder has various menu items under each of 6 menu categories.
Shooting Mode (Items for selecting a shooting mode) p. 72
Camera/Mic (Items for customized shooting) p. 72
Image Quality/Size (Items for setting up image quality or size) p. 73
Playback Function (Items for playback) p. 73
Edit/Copy (Items for editing images such as copy or protect) p. 74
Setup (Other setup items) p. 74
Select .
1
Select a category.
2
Select your desired menu item.
3
70
Scrolls the
menu items
up or down
Notes
Select
US
to finish setting the menu or to return to the previous menu screen.
To find a menu item quickly
The [Camera/Mic] and [Setup] menus have
sub-categories. Select the sub-category icon so
that the LCD screen displays the list of menus
in the sub-category selected.
When you cannot select a menu item
Grayed out menu items or settings are not
available.
When you select the grayed out menu item,
your camcorder displays the reason why you
cannot select the menu item or the instruction
of under which condition you can set the
menu item.
Sub-category icons
Customizing your camcorder
US
71
Menu lists
Shooting Mode
Movie ..........................................Records movies.
Photo ........................................... Shoots photos.
Smth Slw REC ...........................Records smooth slow-motion movies.
Golf Shot ....................................Divides 2 seconds of fast movement into frames which are then recorded
Camera/Mic
Manual Settings
White Balance ................. Adjusts the color balance to the brightness of the recording environment.
Spot Meter/Fcs ............... Adjusts the brightness and focus for the selected subject simultaneously.
Spot Meter ....................... Adjusts the brightness of images to a subject you touch on the screen.
Spot Focus ....................... Adjusts the focus on a subject you touch on the screen.
Exposure ...........................Adjusts the brightness of movies and photos. If you select [Manual], adjust
Focus..................................Adjusts the focus manually. If you select [Manual], select
IRIS ...................................... Sharpens the subject with its background blurred or sharpens the whole
Shutter Speed.................Adjusts Shutter Speed. When you shoot a moving subject at a higher
AGC Limit .........................Sets the maximum level of AGC (Auto Gain Control).
AE Shift.............................. Adjusts the exposure. Touch
White Balance Shift ......Adjusts the white balance.
Low Lux ............................. Records bright color images in the dim.
Camera Settings
3D Depth Adjustment ... Adjusts the depth of the image while recording 3D movies.
Auto 3D Lens Adjust ....Automatically corrects the vertical position of the right and left movies to
Scene Selection .............Selects an appropriate recording setting according to the type of scene,
Cinematone.............Adjusts the color of the movie to resemble the atmosphere of films when
Fader .......................... Fades scenes in or out.
Self-Timer ................. Sets the self-timer when your camcorder is in photo recording mode.
Tele Macro........................Focuses on the subject with its background blurred.
SteadyShot ..............Sets the SteadyShot function when recording movies. If you change this
SteadyShot .............. Sets the SteadyShot function when shooting photos.
US
Digital Zoom ................... Sets the maximum zoom level of the digital zoom.
72
as a movie and photos. Keep the subject in the white frame in the center of
the screen when recording.
the brightness (exposure) using
the focus for a nearby subject and
subject.
image.
shutter speed, it appears as if frozen on the image. At a lower shutter
speed, the subject appears as if it is flowing.
is bright, or touch
record 3D movies that can be viewed comfortably, without blurring.
such as night view or beach.
recording.
setting, the setting for the Extended Zoom function will also change
accordingly.
if the subject is black or the light is dim.
/ .
to adjust the focus for a distant
if the subject is white or the backlight
to adjust
Auto Back Light .............. Adjusts the exposure for backlit subjects automatically.
Dial Setting ...................... Assigns a function to the MANUAL dial.
Face
Face Detection ............... Automatically detects faces.
Smile Shutter .................. Automatically takes a shot whenever a smile is detected.
Smile Sensitivity ............Sets the smile detection sensitivity for the Smile Shutter function.
Flash
Flash ................................... Sets how the flash is activated when shooting photos.
Flash Level ....................... Sets the brightness of flash.
Red Eye Reduction ........ Prevents redeye when shooting with flash.
Microphone
Closer Voice ..................... Detects human faces and records the associated voice clearly.
Blt-in Zoom Mic .............Records movies with vivid sound appropriate to the zoom position.
Auto Wind NR ................. Recognizes the recording conditions and reduces the wind noise.
Audio Mode ....................Sets the recording sound format (5.1ch surround/2ch stereo).
Micref Level ..................... Sets the microphone level for recording.
Shooting Assist
My Button ........................Assigns functions to My Buttons.
Guide Frame....................Displays frames as a guide to make sure the subject is horizontal or
vertical.
Display Setting ............... Sets the duration that icons or indicators are displayed on the LCD screen.
Zebra .................................Displays a zebra pattern as a guide for adjusting brightness.
Peaking .............................Displays an image on the screen with its outlines enhanced.
Light Bright .....................Adjusts the brightness of the video light.
Audio Level Display ...... Displays the audio level meter on the LCD screen while recording.
Image Quality/Size
REC Mode ..........................Sets the mode to record movies.
Frame Rate ........................Sets the frame rate to record movies.
/ Setting................. Sets the image quality for recording (high definition image quality (HD)
or standard definition image quality (STD)).
Wide Mode ........................ Sets the horizontal to vertical ratio when recording movies with standard
definition image quality (STD).
x.v.Color .............................. Records a wider range of colors. Set this item when you watch images with
a TV which is compliant with x.v.Color.
Image Size ......................... Sets the photo size.
Playback Function
Event View ................................. Starts playing images from the Event View display.
Map View* ................................. Starts playing the images from the Map View display.
Highlight Movie ......................Starts playing Highlight Playback scenes or Highlight Scenarios saved with
standard definition image quality (STD).
Scenario ...............................Starts playing the scenarios that were saved by Highlight Playback.
Customizing your camcorder
US
73
Edit/Copy
Delete..........................................Deletes movies or photos.
Protect ........................................Protects movies or photos to avoid deleting.
Copy ............................................Copies images.
Direct Copy ............................... Copies images stored in the camcorder to some type of external media
device.
Setup
Media Settings
ts the type of recording media (p. 27).
s the image database file on the recording media (p. 78).
epair
recording.
sts the volume of playback sound (p. 38).
dju
(while the camcorder is connected to the computer) that can be played
with the Highlight Playback scenes.
erts the signal depending on the TV connected (p. 54).
your camcorder to a 3D TV with the HDMI cable.
TV with the HDMI cable.
the camcorder is connected to a “BRAVIA” Sync compatible TV with the
HDMI cable.
connect your camcorder to an external device via USB.
or a USB device.
restricting some USB functions.
US
Media Select ...................Selec
Media Info ........................ Displays information on the recording media.
Format ............................... Deletes and formats all data on the recording media.
Repair Img. DB F. ............ R
File Number ..................... Sets how to assign the file number to photos.
Playback Settings
Data Code ........................Displays information that was recorded automatically at the time of
Volume .............................. A
Download Music ...........Downloads your favorite music files from the computer to your camcorder
Empty Music ...................Deletes all music files.
Connection
TV Type .............................Conv
HDMI 3D Setting ...........Selects the output format of the right and left images when you connect
HDMI Resolution ...........Selects the output image resolution when connecting your camcorder to a
CTRL FOR HDMI .............Sets whether or not the TV’s Remote Commander is to be used when
USB Connect ................... Select this item when no instructions appear on the LCD screen when you
USB Connect Setting ...Sets the connection mode when the camcorder is connected to a computer
USB LUN Setting ............ Sets the camcorder to improve the compatibility of a USB connection by
Disc Burn ..........................Saves images that have not yet been saved onto a disc.
General Settings
Beep ................................... Sets whether the camcorder sounds operation beeps or not.
LCD Brightness .............. Adjusts the brightness of the LCD screen.
Your Location* ................ Displays the current location on a map.
GPS Setting*....................Receives the GPS signal.
REC Lamp ......................... Turns the recording lamp on the front of the camcorder off.
Remote Ctrl .....................Sets the Wireless Remote Commander to be used.
74
Power On By LCD .......... Sets the power so that it turns on automatically when you open the LCD
Language Setting .........S
Battery Info ...................... Displays the approximate remaining battery time.
Eco Mode .........................Sets the LCD screen and the power so that they turn off automatically.
Demo Mode .................... Sets playback of the demonstration movie about the functions of the
Clock Settings
Date & Time Setting ..... Sets the date and time.
Area Setting ....................A
Auto Clock ADJ * ...........Adjusts the clock automatically by acquiring the time from the GPS
Auto Area ADJ* .............. Corrects time differences automatically by acquiring the current location
* HDR-TD20V
screen.
ets the di
splay language (p. 25).
camcorder.
dju
sts for a time difference without stopping the clock (p. 23).
system.
information from the GPS system.
Customizing your camcorder
US
75
Others/Index
Troubleshooting
If you run into any problems using your
camcorder, follow the steps below.
Check the list (p. 76 to 79), and
inspect your camcorder.
Disconnect the power source, attach
the power source again after about 1
minute, and turn the camcorder on.
Press RESET (p. 14) using a pointed
object, and turn the camcorder
on. If you press RESET, all settings,
including the clock setting, are reset.
Contact your Sony dealer or local
authorized Sony service facility.
Your camcorder may be required to initialize or
change the current internal recording medium
of your camcorder, depending on the problem.
In the event of this, the data stored on the
internal memory will be deleted. Be sure to
save the data on the internal memory on other
media (backup) before sending your camcorder
for repair. We will not compensate you for any
loss of internal memory data.
During repair, we may check a minimum
amount of data stored on the internal memory
in order to investigate the problem. However,
your Sony dealer will neither copy nor retain
your data.
See the “Handycam” User Guide (p. 9) for
details on the symptoms of your camcorder, and
“PlayMemories Home” Help Guide (p. 63) on
connecting your camcorder to a computer.
US
76
The power does not turn on.
Attach a charged battery pack to the
camcorder (p. 19).
The plug of the AC Adaptor has been
disconnected from the wall outlet (wall
socket). Connect it to the wall outlet (wall
s
ock
et) (p. 21).
The camcorder does not operate even
when the power is set to on.
It takes a few seconds for your camcorder to
be ready to shoot after the power is turned on.
This is not a malfunction.
Disconnect the AC Adaptor from the wall
outlet (wall socket) or remove the battery
pack, then reconnect it after about 1 minute.
If the functions still do not work, press RESET
(p
. 14) using a pointed object. (If you press
RESET, all settings, including the clock setting,
are reset.)
The temperature of your camcorder is
extremely high. Turn off your camcorder and
leave it for a while in a cool place.
The temperature of your camcorder is
extremely low. Leave your camcorder with
the power of your camcorder on. If your
camcorder still does not work, turn off your
camcorder and take it to a warm place. Leave
the camcorder there for a while, then turn on
your camcorder.
The camcorder gets warm.
Your camcorder may become warm during
operation. This is not a malfunction.
The power abruptly turns off.
Use the AC Adaptor (p. 21).
In the default setting, when about 2 minutes
have elapsed while you do not operate your
camcorder, the camcorder automatically turns
o
hange the setting of [Eco Mode] (p. 75),
ff. C
or turn on the power again.
C
ge the battery pack (p. 19).
har
Pressing START/STOP or PHOTO does not
record images.
The playback screen is displayed. Press MODE
to turn on the
(Movie) or (Photo) lamp
(p. 29).
Your camcorder is recording the image you
have just shot on the recording media. You
cannot make new recording during this
period.
The recording media is full. Delete
unn
ecess
ary images (p. 57).
Total number of movie scenes or photos
exceeds the recordable capacity of your
c
amcorder (p. 80, 82). Delete unnecessary
images (p
. 57).
The camcorder stops operating.
The temperature of your camcorder is
extremely high. Turn off your camcorder and
leave it for a while in a cool place.
The temperature of your camcorder is
extremely low. Turn off your camcorder and
take it to a warm place. Leave the camcorder
there for a while, then turn on the camcorder.
“PlayMemories Home” cannot be installed.
Check the computer environment or
installation procedure required to install
“PlayMemories Home.”
When both the Built-in USB Cable and the
USB jack of the camcorder are connected
to the external devices at the same time,
disconnect one that is not connected to a
computer.
Others/Index
“PlayMemories Home” does not work
correctly.
Quit “PlayMemories Home” and restart your
computer.
The camcorder is not recognized by the
computer.
Disconnect devices from the USB jack of the
computer other than the keyboard, mouse,
and your camcorder.
Disconnect the Built-in USB Cable from the
computer and your camcorder, and restart
the computer, then connect the computer and
your camcorder again in the correct order.
US
77
Self-diagnosis
display/Warning
indicators
If indicators appear on the LCD screen,
check the following.
If the problem persists even after you
have tried to fix a couple of times, contact
your Sony dealer or local authorized Sony
service facility. In this case, when you
contact them, give them all the numbers of
the error code beginning with C or E.
You may hear a melody when some
warning indicators appear on the screen.
C:04:
The battery pack is not an “InfoLITHIUM”
battery pack (V series). Use an
“InfoLITHIUM” battery pack (V series)
(p
. 19).
onnect the DC plug of the AC Adaptor to the
C
D
C IN jack o
C:06:
The battery pack temperature is high. Change
the battery pack or place it in a cool place.
f your camcorder securely (p. 19).
The battery pack temperature is high. Change
the battery pack or place it in a cool place.
Because the temperature of your camcorder
has reached a level where HDMI output
has stopped, no image is displayed on the
connected monitor, etc. Leave the camcorder
until the temperature decreases. However, you
can continue recording on the camcorder.
No memory card is inserted (p. 27).
When the indicator flashes, there are not
enough free spaces for recording images.
D
the memory card after storing the images on
o
The image data base file may be damaged.
Check the data base file by selecting
[Setup] [
Img. DB F.] the recording medium.
The memory card is damaged.
Format the memory card with your camcorder
(p. 74).
Incompatible memory card is inserted (p. 28).
ecessary images (p. 57), or format
elete unn
edia (p. 74).
ther m
Media Settings] [Repair
C:13: / C:32:
Remove the power source. Reconnect it and
operate your camcorder again.
E::
Follow the steps from on page 76.
The battery pack is nearly used up.
US
78
The memory card is write-protected.
Access to the memory card was restricted on
another device.
There is something wrong with the flash.
The amount of lights is not sufficient, so
camera-shake easily occurs. Use the flash.
The camcorder is unsteady, so camera-shake
easily occurs. Hold the camcorder steady with
both hands and record the image. However,
note that the camera-shake warning indicator
does not disappear.
The recording medium is full.
Photos cannot be recorded during processing.
Wait for a while, then record.
When [
Quality
REC Mode] is set to [Highest
] or [60p Quality ], you cannot
capture photos while recording movies.
Furthermore, if [
Frame Rate] is set to
[24p], you cannot record photos while the
camcorder is in movie recording standby
mode.
The distance between your camcorder and the
subject is too short. Widen the distance (p. 34)
or set the zoom to W. Or, select [Manual] in
[3D Depth Adjustment] and adjust the depth
(p. 72).
Others/Index
US
79
Recording time of
movies/number of
recordable photos
“HD” stands for high definition image
quality, and “STD” stands for standard
definition image quality.
Expected time of recording and
playback with each battery pack
Recording time
Approximate time available when you use a
fully charged battery pack.
3D
(unit: minute)
Battery pack
NP-FV50 70 35
NP-FV70
(supplied)
NP-FV100 300 150
Continuous
recording time
150 75
2D
Battery pack
Image quality HD STD HD STD
NP-FV50 105 110 50 55
NP-FV70
(supplied)
NP-FV100 440 470 220 235
Each recording time is measured when the
camcorder is recording high definition image
quality (HD) movies with [
to [Standard
Typical recording time shows the time when
you repeat recording start/stop, switching the
MODE lamp, and zooming.
Times measured when using the camcorder at
°C (77 °F). 10
25
recommended.
US
Continuous
recording time
220 235 110 115
].
°C to 30 °C (50 °F to 86 °F) is
80
Typical recording
(unit: minute)
Typical recording
REC Mode] set
time
time
The recording and playback time will be
shorter when you use your camcorder in low
temperatures.
The recording and playback time will be shorter
depending on the conditions under which you
use your camcorder.
Playing time
Approximate time available when you use a
fully charged battery pack.
3D
(unit: minute)
Battery pack
NP-FV50 110
NP-FV70 (supplied) 235
NP-FV100 470
2D
(unit: minute)
Battery pack
Image quality HD STD
NP-FV50 130 140
NP-FV70 (supplied) 270 290
NP-FV100 535 580
Expected recording time of
movies
Internal memory
High definition image quality (HD) in h (hour) and min
(minute)
Recording mode
Recording time
HDR-TD20 HDR-TD20V
5 h 10 min
(5 h 10 min)
5 h 10 min
(5 h 10 min)
6 h 5 min
(6 h 5 min)
4 h 55 min
(4 h 55 min)
4 h 55 min
(4 h 55 min)
5 h 45 min
(5 h 45 min)
Recording mode
(5.1ch)*
(2ch)*
Recording time
HDR-TD20 HDR-TD20V
8 h 15 min
(8 h 15 min)
14 h 35 min
(11 h 5 min)
25 h 15 min
(20 h 45 min)
26 h 5 min
(21 h 20 min)
7 h 55 min
(7 h 55 min)
13 h 55 min
(10 h 35 min)
24 h
(19 h 45 min)
24 h 50 min
(20 h 20 min)
Standard definition image quality (STD) in h (hour) and
min (minute)
Recording mode
(5.1ch)*
(2ch)*
* You can change the recording sound format with
[Audio Mode] (p. 73).
You can record movies of a maximum of
3,999 scenes with 3D, 3,999 scenes with high
definition image quality (HD), and 9,999 scenes
with standard definition image quality (STD).
The maximum continuous recording times of
movies are as follows.
3D: about 6 hours 30 minutes
2D: about 13 hours
If you want to record up to the maximum
recording time indicated in the table, you need
to delete the demonstration movie on your
camcorder.
Your camcorder uses the VBR (Variable Bit
Rate) format to automatically adjust image
quality to suit the recording scene. This
technology causes fluctuations in the recording
time of the media. Movies containing quickly
moving and complex images are recorded at
a higher bit-rate, and this reduces the overall
recording time.
Recording time
HDR-TD20 HDR-TD20V
15 h 10 min
(13 h 55 min)
15 h 35 min
(14 h 20 min)
14 h 25 min
(13 h 15 min)
14 h 50 min
(13 h 35 min)
Notes
The number in ( ) is the minimum recordable
time.
Memory card
High definition image quality (HD)
(unit: minute)
2 GB 4 GB 8 GB 16 GB 32 GB
8
(8)15(15)35(35)75(75)
8
(8)15(15)35(35)75(75)
10
(10)20(20)40(40)85(85)
10
(10)25(25)60(60)
(5.1ch)*
(2ch)*
25
(15)50(35)
40
(35)85(70)
45
(35)90(75)
105
(80)
180
(150)
185
(155)
Standard definition image quality (STD)
2 GB 4 GB 8 GB 16 GB 32 GB
25
(5.1ch)
(2ch)
* You can change the recording sound format with
(20)50(50)
*
25
(25)55(50)
*
[Audio Mode] (p. 73).
When using a Sony memory card.
Notes
The recordable time may vary depending on
the recording and subject conditions and [REC
Mode] and [
The number in ( ) is the minimum recordable
time.
110
(100)
110
(100)
Frame Rate] (p. 73).
150
(150)
150
(150)
180
(180)
120
245
(120)
(245)
210
430
(160)
(325)
370
740
(300)
(610)
380
770
(310)
(630)
(unit: minute)
220
445
(205)
(410)
225
460
(210)
(420)
Others/Index
US
81
Expected number of recordable
photos
Internal memory
You can record the maximum 40,000
photos.
Memory card
20.4M
2 GB 230
4 GB 465
8 GB 940
16 GB 1850
32 GB 3800
When using a Sony memory card.
The number of recordable photos of memory
card shown is for the maximum image size
of your camcorder. The actual number of
recordable photos is displayed on the LCD
uring recording (p. 95).
creen d
s
The number of recordable photos of memory
card may vary depending on the recording
conditions.
Notes
The unique pixel array of Sony’s ClearVid and
the image processing system of Sony’s BIONZ
allows still image resolution equivalent to the
sizes described.
HQ: Approx. 9 Mbps (average) 1,440 1,080
pixels/16:9
LP: Approx. 5 Mbps (average) 1,440 1,080
pixels/16:9
Standard definition image quality (STD):
HQ: Approx. 9 Mbps (average) 720 480
pixels/16:9, 4:3
The photo recording pixels and the aspect ratio.
Photo recording mode, Dual capture:
6,016×3,384 dots/16:9
4,512×3,384 dots/4:3
4,224×2,376 dots/16:9
2,592×1,944 dots/4:3
1,920 1,080 dots/16:9
640 480 dots/4:3
Capturing a photo from a movie:
1,920 1,080 dots/16:9
640 360 dots/16:9
640 480 dots/4:3
On bit-rate and recording pixels
The bit-rate, pixels and aspect ratio of each
recording mode for movies (movie + audio,
etc.)
3D movie:
Max. 28 Mbps 1,920 1,080 pixels/16:9
High definition image quality (HD):
PS: Max. 28 Mbps 1,920 1,080 pixels/16:9
FX: Max. 24 Mbps 1,920 1,080 pixels/16:9
FH: Approx. 17 Mbps (average) 1,920 1,080
pixels/16:9
US
82
About handling of
your camcorder
On use and care
The camcorder is not dustproofed, dripproofed
or waterproofed.
Do not hold the camcorder by the following
parts.
Shoe cover Built-in USB Cable
Battery pack LCD Screen
Jack cover
Do not aim at the sun. Doing so might cause
your camcorder to malfunction. Take images
of the sun only in low light conditions, such as
at dusk.
Use the camcorder in accordance with local
regulations.
Do not use or store the camcorder and
accessories in the following locations:
Anywhere extremely hot, cold or humid.
Never leave them exposed to temperatures
bov
e 60 °C (140 °F), such as under direct
a
sunlight, near heaters or in a car parked in
the sun. They may malfunction or become
deformed.
Near strong magnetic fields or mechanical
vibration. The camcorder may malfunction.
Near strong radio waves or radiation. The
camcorder may not be able to record properly.
Near tuner devices such as TVs or radio.
Noise may occur.
On a sandy beach or anywhere dusty. If
sand or dust gets in your camcorder, it may
malfunction. Sometimes this malfunction
cannot be repaired.
Near windows or outdoors, where the LCD
screen, or the lens may be exposed to direct
sunlight. This damages the LCD screen.
Operate your camcorder on DC 6.8 V/7.2 V
(battery pack) or DC 8.4 V (AC Adaptor).
For DC or AC operation, use the accessories
recommended in these operating instructions.
Do not let your camcorder get wet, for example,
from rain or sea water. If your camcorder
gets wet, it may malfunction. Sometimes this
malfunction cannot be repaired.
If any solid object or liquid gets inside the
casing, unplug your camcorder and have it
checked by a Sony dealer before operating it
any further.
Avoid rough handling, disassembling,
modifying, physical shock, or impact such
as hammering, dropping or stepping on the
product. Be particularly careful of the lens.
Keep the LCD screen closed when you are not
using your camcorder.
Do not wrap your camcorder with a towel, for
example, and operate it. Doing so might cause
heat to build up inside.
When disconnecting the power cord (mains
lead), pull it by the plug and not the cord.
Do not damage the power cord (mains lead)
such as by placing anything heavy on it.
Do not use a deformed or damaged battery
pack.
Keep metal contacts clean.
If the battery electrolytic liquid has leaked:
Consult your local authorized Sony service
facility.
Wash off any liquid that may have contacted
your skin.
If any liquid gets in your eyes, wash with
plenty of water and consult a doctor.
Others/Index
US
83
When not using your camcorder for a
long time
To keep your camcorder in optimum state for a
long time, turn it on and let it run by recording
and playing back images about once a month.
Use up the battery pack completely before
storing it.
Note on the camcorder/battery pack
temperature
When the temperature of the camcorder
or battery pack becomes extremely high or
extremely low, you may not be able to record
or play back on the camcorder, due to the
protection features of the camcorder being
activated in such situations. In this case, an
indicator appears on the LCD screen.
Notes on charging through the USB
cable
Operation with all computers is not assured.
If you connect the camcorder to a laptop
computer that is not connected to a power
source, the battery of the laptop computer will
continue to use up its charge. Do not leave the
camcorder connected to a computer in this
manner.
Charging with a personally assembled
computer, with a converted computer, or
through a USB hub are not guaranteed.
The camcorder may not function correctly,
depending on the USB device which is used
with the computer.
Moisture condensation
If your camcorder is brought directly from
a cold place to a warm place, moisture may
condense inside your camcorder. This may
cause a malfunction to your camcorder.
If moisture condensation has occurred
Leave your camcorder for about 1 hour without
turning it on.
Note on moisture condensation
Moisture may condense when you bring your
camcorder from a cold place into a warm place
(or vice versa) or when you use your camcorder
in a humid place as follows:
You bring your camcorder from a ski slope
into a place warmed up by a heating device.
You bring your camcorder from an air
conditioned car or room into a hot place
outside.
You use your camcorder after a squall or a
rain.
You use your camcorder in a hot and humid
place.
How to prevent moisture condensation
When you bring your camcorder from a cold
place into a warm place, put your camcorder in
a plastic bag and seal it tightly. Remove the bag
when the air temperature inside the plastic bag
has reached the surrounding temperature (after
about 1 hour).
When the camcorder is connected to
a computer or accessories
Do not try to format the recording media of the
camcorder using a computer. If you do so, your
camcorder may not operate correctly.
When connecting the camcorder to another
device with communication cables, be sure to
insert the connector plug in the correct way.
Pushing the plug forcibly into the terminal
will damage the terminal and may result in a
malfunction of the camcorder.
84
US
When the camcorder is connected to other
devices through a USB connection and the
power of the camcorder is turned on, do not
close the LCD panel. The image data that has
been recorded may be lost.
Notes on optional accessories
We recommend that you use genuine Sony
accessories.
Genuine Sony accessories may not be available
in some countries/regions.
Active Interface Shoe
The Active Interface Shoe supplies power to
accessories such as a video light, a flash, or a
microphone (sold separately). The accessory
can be turned on or off as you open or close
the LCD screen of your camcorder. Refer to
the operating instructions supplied with your
accessory for details.
The Active Interface Shoe has a safety device
for fixing the installed accessory securely. To
connect an accessory, press down and push it to
the end, and then tighten the screw. To remove
an accessory, loosen the screw, and then press
down and pull out the accessory.
When you are recording movies with an
external flash (sold separately) connected to
the accessory shoe, turn off the power of the
external flash to prevent charging noise being
recorded.
You cannot use an external flash (sold
separately) and the built-in flash at the same
time.
When an external microphone (sold separately)
is connected, it takes precedence over the builtin microphone.
On Wireless Remote Commander
Remove the insulation sheet before using the
Wireless Remote Commander.
Insulation sheet
Point the Wireless Remote Commander
towards the remote sensor to operate your
camcorder (p. 13).
When no commands have been sent from the
Wireless Remote Commander within a certain
period, the light blue frame disappears. When
you press any of ///, or ENTER again,
the frame appears at the position where it was
displayed last.
You cannot select some buttons on the LCD
screen using ///.
To change the battery of the Wireless Remote
Commander
While pressing on the tab, inset your fingernail
into the slit to pull out the battery case.
Place a new battery with the + side facing up.
Insert the battery case back into the Wireless
Remote Commander until it clicks.
Tab
WARNING
Battery may explode if mistreated. Do not
recharge, disassemble or dispose of in fire.
When the lithium battery becomes weak, the
operating distance of the Wireless Remote
Commander may shorten, or the Wireless
Remote Commander may not function
properly. In this case, replace the battery with
a Sony CR2025 lithium battery. Use of another
battery may present a risk of fire or explosion.
Others/Index
US
85
LCD screen
Do not apply excessive pressure on the LCD
screen, as it may cause uneven color and other
damage.
If your camcorder is used in a cold place, a
residual image may appear on the LCD screen.
This is not a malfunction.
While using your camcorder, the back of
the LCD screen may heat up. This is not a
malfunction.
On handling the casing
If the casing is soiled, clean the camcorder body
with a soft cloth lightly moistened with water,
and then wipe the casing with a dry soft cloth.
Avoid the following to avoid damage to the
finish:
Using chemicals such as thinner, benzine,
alcohol, chemical cloths, repellent, insecticide
and sunscreen
Handling the camcorder with above
substances on your hands
Leaving the casing in contact with rubber or
vinyl objects for a long period of time
To clean the LCD screen and the flash
If fingerprints or dust make the LCD screen or
the flash dirty, it is recommended that you use a
soft cloth to clean it.
It is recommended that you use [Auto 3D Lens
Adjust] (p. 72) after wiping the lens.
Store in a well-ventilated location subject to
little dirt or dust.
To prevent mold, periodically clean the lens as
described above.
On charging the pre-installed
rechargeable battery
Your camcorder has a pre-installed
rechargeable battery to retain the date,
time, and other settings even when the
LCD screen is closed. The pre-installed
rechargeable battery is always charged
while your camcorder is connected to the
wall outlet (wall socket) via the AC Adaptor
or while the battery pack is attached. The
rechargeable battery will be fully discharged
in about 3 months if you do not use your
camcorder at all. Use your camcorder after
charging the pre-installed rechargeable
battery.
However, even if the pre-installed
rechargeable battery is not charged, the
camcorder operation will not be affected as
long as you are not recording the date.
How to charge the pre-installed
rechargeable battery
About care and storage of the lens
Wipe the surface of the lens clean with a soft
cloth in the following instances:
When there are fingerprints on the lens
surface
In hot or humid locations
When the lens is exposed to salty air such as
at the seaside
US
86
Connect your camcorder to a wall outlet
(wall socket) using the supplied AC
Adaptor, and leave it with the LCD screen
closed for more than 24 hours.
Note on disposal/transfer of the
camcorder
Even if you delete all movies and still
images, or perform [Format] (p. 74), data
on the internal recording media may not
be completely erased. When you transfer
the camcorder, it is recommended that
you select
Settings] [Format] [Empty] to
prevent the recovery of your data. Also,
when you dispose of the camcorder, it is
recommended that you destroy the actual
body of the camcorder.
[Setup] [ Media
Note on disposal/transfer of the
memory card
Even if you delete data in the memory
card or format the memory card on
your camcorder or a computer, you may
not delete data from the memory card
completely. When you give the memory
card to somebody, it is recommended
that you delete data completely using data
deletion software on a computer. Also,
when you dispose of the memory card, it is
recommended that you destroy the actual
body of the memory card.
Others/Index
US
87
Specifications
System
Signal format: NTSC color, EIA standards
HDTV 1080/60i, 1080/60p specification
Movie recording format:
HD:
3D: MPEG-4 MVC/H.264 AVCHD format
Ver.2.0 compatible
2D: MPEG-4 AVC/H.264 AVCHD format
Ver.2.0 compatible
STD: MPEG2-PS
Audio recording system:
Dolby Digital 2ch/5.1ch
Dolby Digital 5.1 Creator
Photo file format:
DCF Ver.2.0 Compatible
Exif Ver.2.3 Compatible
MPF Baseline Compatible
Recording media (Movie/Photo):
Internal memory
GB
64
“M
emory Stick PRO Duo” media
SD card (Class 4 or faster)
The capacity that a user can use:
HDR-TD20V: Approx. 59.6 GB
HDR-TD20: Approx. 62.6 GB*
1
*
1 GB equals 1 billion bytes, 2.8 GB is
used for pre-installed map and another
portion is used for data management
functions. Only pre-installed
demonstration movie may be deleted.
2
*
1 GB equals 1 billion bytes, a portion of
which is used for system management
and/or application files. Only preinstalled demonstration movie may be
deleted.
Image device:
4.6 mm (1/3.91
Recording pixels (photo):
Max. 20 400
(16:9)
Gross: A
Effective (movie, 16:9)
3D: Approx. 3 980 000 pixels
2D: Appr
Effective (photo, 16:9):
Appr
Effective (photo, 4:3):
Appr
US
type) CMOS sensor
000 pixels
pprox. 5 430 000 pixels
ox. 5 020 000 pixels
ox. 5 020 000 pixels
ox. 3 760 000 pixels
3
*
(6 016 3 384)
4
*
:
88
Lens: G lens
3D: 10 (Optical), 12 (Extended Zoom)
2D: 10 (Optical)
5
*
, 120 (Digital)
Zoom)
4
*
, 17 (Extended
F 1.8 - F 3.4
f=3.2 mm - 32.0 mm (5/32 in. - 1 5/16 in.)
When converted to a 35 mm still camera
4
Movie
*
:
3D: 33.4 mm - 400.8 mm (1 3/8 in. 15 7/8 in.) (16:9)
2D: 29.8 mm - 298.0 mm (1 3/16 in. 11 3/4 in.) (16:9)
Photo:
29.8 mm - 298.0
mm (1 3/16 in. - 11 3/4 in.)
(16:9)
Color temperature: [Auto], [One Push], [Indoor]
(3 200
K), [Outdoor] (5 800 K)
Minimum illumination:
6 lx (lux) (in defa
1/60 second)
3 lx (lux) ([L
speed 1/30 second)
3
*
The unique pixel array of Sony’s ClearVid and
1
*
2
the image processing system (BIONZ) allow
still image resolution equivalent to the sizes
described.
4
*
[ SteadyShot] is set to [Standard] or [Off].
5
*
[ SteadyShot] is set to [Active].
ult setting, shutter speed
ow Lux] is set to [On], shutter
Input/Output connectors
A/V Remote Connector: Video and audio output
jack
HDMI OUT jack: HDMI mini connector
USB jack: mini-AB/Type A (Built-in USB)
Headphone jack: Stereo minijack ( 3.5
put jack: Stereo minijack ( 3.5 mm)
MIC in
mm)
LCD screen
Picture: 8.8 cm (3.5 type, aspect ratio 16:9)
Total number of pixels: 1 229 760 (2 562 480)
General
Power requirements: DC 6.8 V/7.2 V (battery
pack) DC 8.4 V (AC Adaptor)
USB Charging: DC 5 V 500 mA/1.5 A
Average power consumption:
During camera recording using LCD screen
at normal brightness:
HD: 3D: 5.1
STD: 3.3 W
Operating temperature: 0 °C to 40 °C (32 °F to
104 °F)
W, 2D: 3.5
W
Storage temperature: ‒20 °C to +60 °C (‒4 °F to
+140 °F)
Dimensions (approx.):
71.5 mm
2 1/2
projecting parts
71.5 mm
2 1/2
the projecting parts, and the supplied
rechargeable battery pack attached
Mass (approx.)
HDR-TD20V:
460 g (1
555 g (1 lb 3.6 oz) including the supplied
rechargeable battery pack
HDR-TD20:
450
545 g (1 lb 3.2 oz) including the supplied
rechargeable battery pack
63.5 mm
in. 5 1/4 in.) (w/h/d) including the
63.5 mm
in. 5 5/8 in.) (w/h/d) including
lb 0.2 oz) main unit only
g (15.9
oz) main unit only
130.5 mm (2 7/8 in.
141.5 mm (2 7/8 in.
AC Adaptor AC-L200C/AC-L200D
Power requirements: AC 100 V - 240 V,
50 Hz/60 Hz
Current consumption: 0.35 A - 0.18 A
Power consumption: 18 W
Output voltage: DC 8.4 V
Operating temperature: 0 °C to 40 °C (32 °F to
104 °F)
ge temperature: ‒20 °C to +60 °C (‒4 °F to
Stora
+140 °F)
Dimension
Mass (a
s (approx.): 48 mm 29 mm
81 mm (1 15/16 in. 1 3/16
(w/h/d) excluding the projecting parts
pprox.): 170 g (6.0 oz) excluding the
power cord (mains lead)
* See the label on the AC Adaptor for other
specifications.
*
in. 3 1/4 in.)
Rechargeable battery pack NP-FV70
Maximum output voltage: DC 8.4 V
Output voltage: DC 6.8 V
Maximum charge voltage: DC 8.4 V
Maximum charge current: 3.0 A
Capacity
Typica
l: 14.0 Wh (2 060 mAh)
Minimum: 13.0 Wh (1 960 mAh)
Type: Li-ion
Others/Index
Design and specifications of your camcorder and
accessories are subject to change without notice.
Manufactured under license from Dolby
Laboratories.
US
89
On trademarks
“Handycam” and are
registered trademarks of Sony Corporation.
“AVCHD,” “AVCHD 3D/Progressive,” “AVCHD”
logotype and “AVCHD 3D/Progressive”
logotype are trademarks of Panasonic
Corporation and Sony Corporation.
“Memory Stick,” “
“
PRO-HG Duo,” “
“MagicGate,” “
Memory Stick” and “MagicGate Memory Stick
Duo” are trademarks or registered trademarks
of Sony Corporation.
“InfoLITHIUM” is a trademark of Sony
Corporation.
“x.v.Color” is a trademark of Sony Corporation.
“BIONZ” is a trademark of Sony Corporation.
Sony Corporation.
“BRAVIA” is a trademark of Sony Corporation.
“DVDirect” is a trademark of Sony
Corporation.
Blu-ray Disc and Blu-ray are trademarks
of the Blu-ray Disc Association.
Dolby and the double-D symbol are trademarks
of Dolby Laboratories.
HDMI, the HDMI logo and High-Definition
Multimedia Interface are trademarks or
registered trademarks of HDMI Licensing LLC
in the United States and other countries.
Microsoft, Windows, Windows Vista, and
DirectX are either registered trademarks or
trademarks of Microsoft Corporation in the
United States and/or other countries.
Mac and Mac OS are registered trademarks of
Apple Inc. in the U.S. and other countries.
Intel, Intel Core, and Pentium are trademarks
or registered trademarks of Intel Corporation
or its subsidiaries in the United States and other
countries.
“
” and “PlayStation” are registered
trademarks of Sony Computer Entertainment
Inc..
Adobe, the Adobe logo, and Adobe Acrobat
are either registered trademarks or trademarks
of Adobe Systems Incorporated in the United
States and/or other countries.
,” “Memory Stick Duo,” “
,” “Memory Stick PRO Duo,”
,” “Memory Stick
,” “MagicGate
is a registered trademark of
NAVTEQ and the NAVTEQ Maps logo are
trademarks of NAVTEQ in the US and other
countries.
SDXC logo is a trademark of SD-3C, LLC.
MultiMediaCard is a trademark of
MultiMediaCard Association.
All other product names mentioned herein may
be the trademarks or registered trademarks of
their respective companies. Furthermore, and
are not mentioned in each case in this manual.
,”
Add further enjoyment with your PlayStation 3
by downloading the application for PlayStation 3
from PlayStation Store (where available.)
The application for PlayStation 3 requires
PlayStation Network account and application
download.
Accessible in areas where the PlayStation Store is
available.
90
US
END-USER LICENSE
AGREEMENT FOR
MAP DATA FOR
VIDEO CAMERA
RECORDER
PRODUCTS
YOU SHOULD CAREFULLY READ THE
FOLLOWING AGREEMENT BEFORE USING THIS
SOFTWARE.
IMPORTANT-READ CAREFULLY: This End-User
License Agreement (“LICENSE”) is a legal agreement
between you and Sony Corporation (“SONY”), the
licensor of the map data included in your video
camera recorder product (“PRODUCT”). Such
map data, including subsequent updates/upgrades,
is referred to herein as the SOFTWARE. This
LICENSE covers only the SOFTWARE. You may
use the SOFTWARE only in connection with your
use of the PRODUCT. By touching the “AGREE”
button appearing on the screen of the PRODUCT in
connection with this License, you agree to be bound
by the terms of this LICENSE. If you do not agree
to the terms of this LICENSE, SONY is unwilling to
license the SOFTWARE to you. In such event, the
SOFTWARE will not be available and you may not
use the SOFTWARE.
SOFTWARE LICENSE
The SOFTWARE is protected by copyright laws
and international copyright treaties, as well as
other intellectual property laws and treaties. The
SOFTWARE is licensed, not sold.
GRANT OF LICENSE
This LICENSE grants you the following rights on a
non-exclusive basis:
SOFTWARE. You may use the SOFTWARE on one
unit of the PRODUCT.
Use. You may use the SOFTWARE for its own use.
DESCRIPTION OF OTHER RIGHTS AND
LIMITATIONS
Restrictions. You may not transfer or distribute
any part of the SOFTWARE in any form for any
purpose except as expressly permitted in this
LICENSE. You may not use the SOFTWARE with
any products, systems or applications other than with
the PRODUCT. Except as otherwise provided in this
LICENSE, you may not use and may not permit any
third party to use the SOFTWARE separated from
the PRODUCT (in whole or in part, including, but
not limited to, reproductions, outputs or extractions
or other works thereof in any form) for the purpose
(HDR-TD20V)
of rental or lease whether with any license fee or not.
Some jurisdictions do not allow the restrictions of
such rights, in such case the above restrictions may
not apply to you.
Limitation on Reverse Engineering, Decompilation
and Disassembly. You may not (i) extract the
SOFTWARE from the PRODUCT, (ii) reproduce,
copy, modify, port, translate, or create derivative
works of the SOFTWARE in whole or in part, or
(iii) reverse engineer, decompile, disassemble the
SOFTWARE by any means whatsoever in whole or in
part for any purpose. Some jurisdictions do not allow
the limitation of such rights, in such case the above
limitation may not apply to you.
Trademarks and Notices: You may not remove, alter,
cover or deface any trademarks or copyright notices
on the SOFTWARE.
Data Files. The SOFTWARE may create data files
automatically for use with the SOFTWARE. Any
such data files will be deemed to be part of the
SOFTWARE.
SOFTWARE Transfer. You may permanently transfer
all of your rights under this LICENSE only as part
of a sale or transfer of the PRODUCT, provided you
retain no copies of the SOFTWARE, transfer all of the
SOFTWARE (including all copies (only if permitted
to copy under “Limitation on Reverse Engineering,
Decompilation and Disassembly” Paragraph above),
component parts, the media and printed materials,
all versions and any upgrades of the SOFTWARE and
this LICENSE), and the recipient agrees to the terms
and conditions of this LICENSE.
Termination. Without prejudice to any other rights,
SONY may terminate this LICENSE if you fail
to comply with the terms and conditions of this
LICENSE. In such event, you must stop using the
SOFTWARE and all of its component parts. The
provisions of this LICENSE “COPYRIGHT,” “HIGH
RISK ACTIVITIES,” “EXCLUSION OF WARRANTY
ON SOFTWARE,” “LIMITATION OF LIABILITY,”
“PROHIBITION ON EXPORT,” “SEVERABILITY,”
and “GOVERNING LAW AND JURISDICTION”
Sections, “Confidentiality” Paragraph of this Section
and this Paragraph shall survive any expiration or
termination of this LICENSE.
Confidentiality. You agree to keep information
contained in the SOFTWARE which is not publicly
known confidential to yourself, and not to disclose
such information to others without SONY’s prior
written approval.
COPYRIGHT
All title and copyright in and to the SOFTWARE
(including but not limited to any map data, images,
photographs, animation, video, audio, music, text and
“applets”, incorporated into the SOFTWARE), and
any copies of the SOFTWARE, are owned by SONY,
licensors and suppliers to SONY and their respective
affiliates (such licensors and suppliers to SONY,
Others/Index
US
91
together with their respective affiliates, are hereinafter
collectively referred to as “SONY’s Licensors”). All
rights not specifically granted under this LICENSE
are reserved by SONY or SONY’s Licensors.
HIGH RISK ACTIVITIES
The SOFTWARE is not fault-tolerant and is not
designed, manufactured or intended for use
in hazardous environments requiring fail-safe
performance, such as in the operation of nuclear
facilities, aircraft navigation or communication
systems, air traffic control, direct life support
machines, or weapons systems, in which the failure of
the SOFTWARE could lead to death, personal injury,
or severe physical or environmental damage (“High
Risk Activities”). SONY, its affiliates, their respective
suppliers and SONY’s Licensors specifically disclaim
any express or implied warranty of fitness for High
Risk Activities.
EXCLUSION OF WARRANTY ON SOFTWARE
You expressly acknowledge and agree that use of the
SOFTWARE is at your sole risk. The SOFTWARE
is provided “AS IS” and without warranty of any
kind and SONY, its affiliates, its and their respective
suppliers and SONY’s Licensors (in this section,
SONY, its affiliates, their respective suppliers and
SONY’s Licensors shall be collectively referred
to as “SONY”) EXPRESSLY DISCLAIMS ALL
WARRANTIES AND CONDITIONS, EXPRESS OR
IMPLIED, ARISING BY LAW OR OTHERWISE,
INCLUDING, BUT NOT LIMITED TO, THE
IMPLIED WARRANTIES AND CONDITIONS
OF QUALITY, NON-INFRINGEMENT,
MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE. SONY DOES NOT
WARRANT THAT THE FUNCTIONS CONTAINED
IN THE SOFTWARE WILL MEET YOUR
REQUIREMENTS, OR THAT THE OPERATION OF
THE SOFTWARE WILL BE UNINTERRUPTED OR
ERROR FREE. SONY DOES NOT WARRANT OR
MAKE ANY REPRESENTATIONS REGARDING
THE USE, INABILITY TO USE OR THE RESULTS
OF THE USE OF THE SOFTWARE IN TERMS OF
ITS CORRECTNESS, ACCURACY, RELIABILITY,
OR OTHERWISE. SOME JURISDICTIONS DO
NOT ALLOW THE EXCLUSION OF IMPLIED
WARRANTIES, IN SUCH CASE THE ABOVE
EXCLUSIONS MAY NOT APPLY TO YOU.
You expressly understand that the data in the
SOFTWARE may contain inaccurate or incomplete
information due to the passage of time, changing
circumstances, sources used and the nature of
collecting comprehensive geographic data, any of
which may lead to incorrect results.
LIMITATION OF LIABILITY
IN THIS SECTION SONY, ITS AFFILIATES, ITS
AND THEIR RESPECTIVE SUPPLIERS AND
SONY’S LICENSORS SHALL BE COLLECTIVELY
REFERRED TO AS “SONY” TO THE MAXIMUM
EXTENT PERMITTED UNDER APPLICABLE
LAW. SONY SHALL NOT BE LIABLE FOR ANY
CLAIM, DEMAND OR ACTION, IRRESPECTIVE
OF THE NATURE OF THE CAUSE OF CLAIM,
DEMAND OR ACTION, ALLEGING ANY LOSS
OR DAMAGES, DIRECT OR INDIRECT, WHICH
MAY RESULT FROM THE USE OR POSSESSION
OF THE SOFTWARE; NOR FOR ANY LOSS
OF PROFIT, REVENUE, CONTRACTS OR
SAVINGS, NOR ANY OTHER DIRECT, INDIRECT,
INCIDENTAL, SPECIAL OR CONSEQUENTIAL
DAMAGES ARISING OUT OF YOUR USE OF
OR INABILITY TO USE THE SOFTWARE,
ANY DEFECT IN THE SOFTWARE, OR THE
BREACH OF THE TERMS AND CONDITIONS,
WHETHER IN AN ACTION IN CONTRACT
OR TORT OR BASED ON A WARRANT Y,
EVEN IF SONY HAS BEEN ADVISED OF THE
POSSIBILITY OF SUCH DAMAGES EXCEPT IN
THE EVENT OF SONY’S GROSS NEGLIGENCE
OR WILLFUL MISCONDUCT, OF DEATH
OR PERSONAL INJURY, AND OF DAMAGES
DUE TO THE DEFECTIVE NATURE OF THE
PRODUCT. IN ANY CASE, SAVE FOR THE
FOREGOING EXCEPTIONS, SONY’S ENTIRE
LIABILITY UNDER ANY PROVISION OF THIS
LICENSE SHALL BE LIMITED TO THE AMOUNT
ACTUALLY PAID ALLOCATABLE TO THE
SOFTWARE. SOME JURISDICTIONS DO NOT
ALLOW THE EXCLUSION OR LIMITATION OF
CONSEQUENTIAL OR INCIDENTAL DAMAGES,
SO THE ABOVE EXCLUSION OR LIMITATION
MAY NOT APPLY TO YOU.
PROHIBITION ON EXPORT
YOU ACKNOWLEDGE THAT THE USE OF THE
SOFTWARE IN SOME COUNTRIES, REGIONS,
AREAS OR FACILITIES, OR THE EXPORT OF
THE PRODUCTS FROM THE COUNTRY WHERE
SUCH PRODUCTS ARE DESIGNED TO BE SOLD,
MAY BE RESTRICTED OR PROHIBITED. YOU
AGREE TO USE THE SOFTWARE OR EXPORT
THE PRODUCTS IN ACCORDANCE WITH THE
APPLICABLE LAWS, ORDINANCES, RULES AND
REGULATIONS OF RELEVANT COUNTRIES,
REGIONS, AREAS AND FACILITIES.
SEVERABILITY
If any part of this LICENSE is held invalid or
unenforceable, the other parts will remain valid.
92
US
GOVERNING LAW AND JURISDICTION
This LICENSE shall be governed by the laws of
Japan without giving effect to its conflict of laws
provisions or the United Nations Convention for
Contracts for the International Sale of Goods, which
is expressly excluded. Any dispute arising out of this
LICENSE shall be subject to the exclusive venue of
the Tokyo District Court, and the parties hereby
consent to the venue and jurisdiction of such court.
THE PARTIES HEREBY WAIVE TRIAL BY JURY
WITH RESPECT TO ANY MATTERS ARISING
UNDER OR RELATING TO THIS LICENSE.
SOME JURISDICTIONS DO NOT ALLOW THE
EXCLUSION OF THE RIGHT OF TRIAL BY JURY,
IN SUCH CASE THE ABOVE EXCLUSION MAY
NOT APPLY TO YOU.
ENTIRE AGREEMENT
These terms and conditions constitute the entire
agreement between SONY and you pertaining to
the subject matter hereof, and supersedes in their
entirety any and all previously existing written or oral
agreements between us with respect to such subject
matter.
GOVERNMENT END USERS
If the SOFTWARE is being acquired by or on
behalf of the United States government or any other
entity seeking or applying rights similar to those
customarily claimed by the United States government,
such SOFTWARE is a “commercial item” as that
term is defined at 48 C.F.R. (“FAR”) 2.101, is
licensed in accordance with this LICENSE, and such
SOFTWARE delivered or otherwise furnished shall be
provided with the following “Notice of Use” and shall
be treated in accordance with such notice:
NOTICE OF USE
CONTRACTOR (MANUFACTURER/
SUPPLIER) NAME: SONY CORPORATION
CONTRACTOR (MANUFACTURER/
SUPPLIER) ADDRESS: 1-7-1 Konan, Minato-
These SOFTWARE are commercial items
as defined in FAR 2.101 and are subject to
the END-USER LICENSE AGREEMENT
FOR MAP DATA FOR VIDEO CAMERA
RECORDER PRODUCTS under which this
If the Contracting Officer, federal government
agency, or any federal official refuses to use the legend
provided herein, the Contracting Officer, federal
government agency, or any federal official must notify
SONY prior to seeking additional or alternative rights
in the Software.
ku, Tokyo, Japan
SOFTWARE was provided.
Copyright and trademark information
1993-2011 NAVTEQ
2012 ZENRIN CO., LTD.
Australia
Hema Maps Pty. Ltd, 2010.
Copyright. Based on data provided under license
from PSMA Australia Limited (www.psma.com.au).
Product incorporates data which is 2010
Telstra Corporation Limited, GM Holden
Limited, Intelematics Australia Pty Ltd, NAVTEQ
International LLC, Sentinel Content Pty Limited and
Continental Pty Ltd.
Austria
Bundesamt für Eich- und Vermessungswesen
Canada
This data includes information taken with permission
from Canadian authorities, including Her Majesty
the Queen in Right of Canada, Queen’s Printer for
Ontario, Canada Post Corporation, GeoBase
The Department of Natural Resources Canada. All
rights reserved.
,
Croatia, Estonia, Latvia, Lithuania, Moldova,
Poland , Slovenia and Ukraine
EuroGeographic
France
source: IGN 2009 - BD TOPO
Germany
Die Grundlagendaten wurden mit Genehmigung der
zustaendigen Behoerden entnommen.
Great Britain
Contains Ordnance Survey data Crown copyright
and database right 2010
Contains Royal Mail data Royal Mail copyright
and database right 2010
Greece
Copyright Geomatics Ltd.
Hungary
Copyright 2003; Top-Map Ltd.
Italy
La Banca Dati Italiana è stata prodotta usando quale
riferimento anche cartografia numerica ed al tratto
prodotta e fornita dalla Regione Toscana.
Others/Index
US
93
Screen indicators
Japan
Jordan
Royal Jordanian Geographic Centre
Mexico
Fuente: INEGI (Instituto Nacional de Estadística y
Geografía.)
Norway
Copyright 2000; Norwegian Mapping Authority
Portugal
Source: IgeoE – Portugal
Spain
Información geográfica propiedad del CNIG
Sweden
Based upon electronic data National Land Survey
Sweden.
Switzerland
Topografische Grundlage: Bundesamt für
Landestopographie.
United States
United States Postal Service 2010. Prices are not
established, controlled or approved by the United
States Postal Service
The following trademarks and registrations are owned
by the USPS: United States Postal Service, USPS,
and ZIP+4.
.
The following indicators appear when you
change the settings. See page 31 and 38
also for the indicators that appear during
recording or playing.
Center
Left
Bottom
Right
Left
Indicator Meaning
MENU button (70)
Self-timer recording (72)
GPS triangulating status
(48)
Video light
Wide Mode (73)
Fader (72)
[Face Detection] set to
[Off] (73)
[Smile Shutter] set to [Off]
(73)
Manual focus (72)
Scene Selection (72)
White Balance (72)
SteadyShot off (72)
White Balance Shift (72)
Tele Macro (72)
x.v.Color (73)
Zebra (73)
Peaking (73)
Cinematone (72)
Destination (75)
94
US
Intelligent Auto (face
detection/scene detection/
camera-shake detection/
sound detection) (43)
3D Depth Adjustment
Center
Indicator Meaning
Slideshow Set
Warning (78)
Playback mode (38)
Right
Indicator Meaning
60i
Recording image quality
(HD/STD), frame rate
(60p/60i/24p) and
recording mode (PS/FX/
FH/HQ/LP) (44)
60min
Remaining battery
Recording/playback/
editing media (27)
0:00:00 Counter (hour:minute:
second)
00Min Estimated recording
remaining time
20.4M
9999
9999
Photo size (45)
Approximate number of
recordable photos and
photo size
Playback folder
100/112 Current playing movie or
photo/Number of total
recorded movies or photos
Connection to the external
media device (68)
2D/3D recording or
playback
Bottom
Indicator Meaning
Micref Level low (73)
[Auto Wind NR] set to
[Off] (73)
[Closer Voice] set to [Off]
(42)
Blt-in Zoom Mic (73)
Audio Mode (73)
Low Lux (72)
EV AE Shift (72)
Shutter Speed (46)
IRIS (46)
Spot Meter/Fcs (72)/Spot
Meter (72)/ Exposure (72)
Intelligent Auto (43)
101-0005
Indicators and their positions are approximate
and may differ from what you actually see.
Some indicators may not appear, depending on
your camcorder model.
Data file name
Protect (74)
Flash (73)/Red Eye
Reduction (73)
Others/Index
US
95
Index
Symbols
2D movies ....................................29
3D Depth Adjustment................40
3D movies ....................................29
5.1ch surround sound ................55
A
Active Interface Shoe ...........13, 85
Auto 3D Lens Adjust ..................25
Auto Wind NR ............................43
AVCHD recording disc ..........9, 45
A/V connecting cable.................54
B
Battery pack .................................19
Beep ..............................................26
“BRAVIA” Sync ...........................56
Built-in USB Cable .....................20
C
Care ..............................................83
Charging the battery pack .........19
Charging the battery pack using
your computer .............................20
Closer Voice ................................42
Computer.....................................60
Connection ..................................54
Creating discs ........................64, 66
D
Data Code ....................................26
Date/Time ....................................26
Delete ...........................................57
Direct Copy ................................. 69
Disc recorder ...............................66
Display items on the LCD
screen ...........................................31
Divide ...........................................57
Dual Capture ...............................29
Dubbing .......................................64
DVD ............................................. 64
DVD writer..................................66
E
Editing ..........................................57
Empty Music ...............................52
Event View ...................................35
Expanded Feature .......................59
External media device ................68
F
Face Priority ................................41
FH .................................................45
Full charge ................................... 20
FX .................................................45
G
GPS ...............................................48
Grip belt .......................................15
H
“Handycam” User Guide .............9
HDMI Cable ................................ 54
Highlight Movie ..........................53
Highlight Playback .....................51
Highlight Setting ........................52
HQ ................................................45
I
Image Size ....................................45
Install ......................................60, 63
Intelligent Auto ...........................43
IRIS ...............................................46
L
Language ........................................8
LCD screen ..................................31
LP ..................................................45
M
Mac ...............................................63
Map View .....................................37
Media Select ................................27
Media Settings .............................27
Memory card ...............................27
“Memory Stick PRO-HG Duo”
media ............................................28
“Memory Stick PRO Duo” media
(Mark2) ........................................28
Menu lists ....................................72
Menus ...........................................70
Moisture condensation ..............84
Movies ..........................................29
Music Transfer ......................52, 63
N
Notes on handling of your
camcorder ....................................83
Number of recordable photos ...82
O
Operating buttons ......................38
P
Photo Capture .............................58
Photos ..........................................30
Playback .......................................35
Playing discs ................................65
Playing scenarios ........................53
“PlayMemories
Home” ............................. 18, 59, 60
“PlayMemories Home” Help
Guide ......................................18, 63
Power on ......................................23
PS .................................................. 45
R
REC Mode ...................................44
Recording ....................................29
Recording and playback time ...80
Recording media.........................27
Recording time of movies..........80
Repair ...........................................76
RESET ..........................................14
S
Saving images on an external
media device................................68
Scenario Save ...............................53
Screen indicators ..................31, 94
SD card ......................................... 28
Self-diagnosis display .................78
96
US
Setting the date and time ...........23
Shutter Speed ..............................46
Smile Shutter ...............................42
Specifications ..............................88
Starting PlayMemories Home ...63
SteadyShot ................................... 43
Summer Time .............................23
Supplied Items .............................18
T
Thumbnails .................................36
Touch panel .................................31
Tracking focus .............................42
Triangulating ...............................48
Triangulating priority mode .....49
Tripod...........................................14
Troubleshooting ..........................76
TV .................................................54
U
USB .........................................20, 60
USB Adaptor Cable ....................68
USB Connect ...............................66
USB connection support
cable .............................................. 18
V
VBR ..............................................81
Video Light ..................................44
W
Wall outlet (wall socket) ............21
Warning indicators .....................78
Wind noise ..................................73
Windows ...................................... 60
Wireless Remote
Commander ..........................15, 85
Y
Your Location ..............................49
Z
Zoom ............................................33
Others/Index
You will find the menu lists
on pages 72 to 75.
US
97
