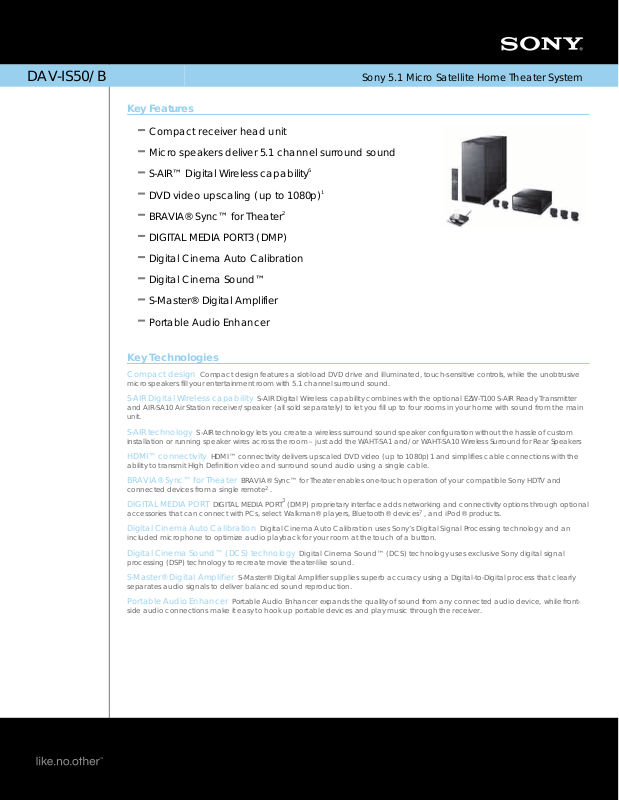

Sony DAV-IS50/B BROCHURE

DAV-IS50/B

Sony 5.1 Micro Satellite Home Theater System

Key Features

Compact receiver head unit

Micro speakers deliver 5.1 channel surround sound

-AIR™ Digital Wireless capability

DVD video upscaling (up to 1080p)

BRAVIA®

Sync

™

for Theater

DIGITAL MEDIA PORT3 (DMP)

Digital Cinema Auto Calibration

Digital Cinema Sound

™

-Master® Digital Amplifier

Portable Audio Enhancer

Key Technologies

Compact design Compact design features a slot-load DVD drive and illuminated, touch-sensitive controls, while the unobtrusive

micro speakers fill your entertainment room with 5.1 channel surround sound.

S-

AIR Digital Wireless capability S-AIR Digital Wireless capability combines with the optional EZW-T100 S-AIR Ready Transmitter

and AIR-SA10 Air Station receiver/speaker (all sold separately) to let you fill up to four rooms in your home with sound from the main unit.

S-

AIR technology S-AIR technology lets you create a wireless surround sound speaker configuration without the hassle of custom

installation or running speaker wires across the room –

just add the WAHT

-SA1 and/or WAHT-SA10 Wireless Surround for Rear Speakers

HDMI™ connectivity HDMI™ connectivity delivers upscaled DVD video (up to 1080p)1 and simplifies cable connections with the

ability to transmit High Definition video and surround sound audio using a single cable.

BRAVIA® Sync

™ for Theater BRAVIA® Sync™

for Theater enables one

-touch operation of your compatible Sony HDTV and

connected devices from a single remote .

DIGITAL MEDIA PORT DIGITAL MEDIA PORT (DMP) proprietary interface adds networking and connectivity options through optional

accessories that can connect with PCs, select Walkman

® players, Bluetooth® devices , and iPod® products.

Digital Cinema Auto Calibration Digital Cinema Auto Calibration uses Sony’s Digital Signal Processing technology and an

included microphone to optimize audio playback for your room at the touch of a button.

Digital Cinema Sound™ (

DCS) technology

Digital Cinema Sound™

(

DCS) technology uses exclusive Sony digital signal

processing (DSP) technology to recreate movie theater-like sound.

S-

Master® Digital Amplifier S-

Master

® Digital Amplifier supplies superb accuracy using a Digital-to-Digital process that clearly

separates audio signals to deliver balanced sound reproduction.

Portable Audio Enhancer Portable Audio Enhancer expands the quality of sound from any connected audio device, while front-

side audio connections make it easy to hook up portable devices and play music through the receiver.

Sony Electronics Inc. • 16530 Via Esprillo • San Diego, CA 92127 • 1.800.222.7669 • www.sony.com

Last Updated: 09/02/2008

DAV-IS50/B

Sony 5.1 Micro Satellite Home Theater System

Please visit the Dealer Network for current

information at www.sony.com/dn

Specifications

DVD, VCD, CD Player

Audio

Surround/Effects: Dolby® Prologic, Dolby

® Prologic II, Dolby® Digital, DTS, AV SYNC (Lip Sync), OMNI-DIRECTIONAL SOUND

Amplifier

General

Function: DVD, FM/AM, SAT/CABLE, TV,

DMPORT

Audio

Digital Amplifier: Yes (S-Master® Digital

Amplifier)

Equalizer:

Bass/Middle/Treble control, Night Mode, AUDIO DRC, Portable Audio Enhancer

Audio Power Output: 450 Watts (RMS)

(Micro Speakers: 50 watts x 5 [Front Left, Front Right, Center, Surround Left, Surround Right]; Subwoofer: 100 watts x

2) <10%THD

Inputs and Outputs

Coaxial Audio Digital Input(s): 1 Component Video (Y/Pb/Pr) Output(s): 1 Composite Video Output(s): 1 Headphone Input(s):

HDMI™ Connection Output(s): 1 (Rear) -

Upscale 720p/1080p for DVD

Optical Audio Input(s): 1 DIGITAL MEDIA PORT (Connector): 1

(Rear)

Power

Power Requirements: AC120V, 60Hz Power Consumption (in Operation): 130W Power Consumption (in Standby): Less

than 0.3W

Tuner

Audio

Station Preset(s): FM20 / AM10 Tuner Type:

AM/FM

Front Speaker

Speaker

Woofer Size(s): 2 way: 12cm / 16cm; active

closed bass reflex

Audio

Impedance: 10 ohm

Weights and Measurements

Dimensions (Approx.): 1 3/4” x 2 3/16” x 1

9/16" (45 x 50 x 40mm)

Weight (Approx.): 2 oz (0.07kg)

Center Speaker

Audio

Impedance: 10 ohm

Weights and Measurements

Dimensions (Approx.): 1 3/4” x 2 3/16” x 1

9/16" (45 x 50 x 40mm)

Weight (Approx.): 2 oz (0.07kg)

Surround Speaker

Audio

Impedance: 10 ohm

Weights and Measurements

Dimensions (Approx.): 1 3/4” x 2 3/16” x 1

9/16" (45 x 50 x /40mm)

Weight (Approx.): 2 oz (0.07kg); 2 oz

(0.07kg)

Subwoofer Speaker

Audio

Impedance: 4 ohm; 4 ohm

Weights and Measurements

Dimensions (Approx.): 7 1/2” x 17 3/4” x

17 3/4" (190 x 450 x 450mm); 7 1/2” x 17 3/4” x 17 3/4" (190 x 450 x 450mm)

Weight (Approx.): 29 lbs, 3 oz (13.5 Kg); 29

lbs, 3 oz (13.5 Kg)

Supplied Accessories

RM-ADP018 Remote TDM-iP50 Cradle for iPod

Optional Accessories

WS-IS10F Speaker Stand EZW-T1000 AIR-SA10

UPC Code:

027242730953

1. HDMI Upscaling requires HDMI connector (sold separately) and compatible HDTV with equivalent display capability. Image quality will vary.

2. BRAVIA® Sync for Theatre feature works with select Sony HDTVs and home theater products. Please refer to owner’s manual for compatibility.

3. Accessory compatible with most iPod players included. Other optional accessories compatible with other music storage devices sold separately.

4. DVD Media/Formats are not universally compatible. Playback depends on recording conditions.

5. Accessory is compatible with most iPod models. Please check for compatibility. Other optional accessories compatible with other music storage devices sold separately.

6. Requires S-AIR transmitter and Air Station, sold separately.

7. Not all Bluetooth enabled devices may communicate with each other due to chipset variations.
