Sony DAV-DZ680, DAV-DZ780 Operating Instructions

4-122-229-11(1)

DVD Home Theatre System

Operating Instructions

DAV-DZ680 / DZ780

WARNING

Caution – The use of optical instruments with this product will increase eye hazard.

Do not install the appliance in a confined space, such as a bookcase or built-in cabinet.

To reduce the risk of fire, do not cover the ventilation opening of the apparatus with newspapers, tablecloths, curtains, etc. Do not place the naked flame sources such as lighted candles on the apparatus.

To reduce the risk of fire or electric shock, do not expose this apparatus to dripping or splashing, and do not place objects filled with liquids, such as vases, on the apparatus.

Do not expose batteries or apparatus with batteryinstalled to excessive heat such as sunshine, fire or the like.

To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the installation instructions.

Excessive sound pressure from earphones and headphones can cause hearing loss.

Indoor use only.

This appliance is classified as a CLASS 1 LASER product. This marking is loca ted on the rear exterior.

recycling of this product, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.

Disposal of waste batteries (applicable in the European Union and other European countries with separate collection systems)

This symbol on the battery or on the packaging indicates that the battery provided with this product shall not be treated as household waste. By ensuring these batteries are disposed of correctly, you will help prevent potentially negative consequences for the environment and human health which could otherwise be caused by inappropriate waste handling of the battery. The recycling of the materials will help to conserve natural resources. In case of products that for safety, performance or data integrity reasons require a permanent connection with an incorporated battery, this battery should be replaced by qualified service staff only. To ensure that the battery will be treated properly, hand over the product at end-of-life to the applicable collection point for the recycling of electrical and electronic equipment. For all other batteries, please view the section on how to remove the battery from the product safely. Hand the battery over to the applicable collection point for the recycling of waste batteries. For more detailed information about recycling of this product or battery, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.

Disposal of Old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems)

This symbol on the product or

this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about

on its packaging indicates that

Notice for customers: the following information is only applicable to equipment sold in countries applying EU directives.

The manufacturer of this product is Sony Corporation, 1-7-1 Konan Minato-ku Tokyo, 108-0075 Japan. The Authorized Representative for EMC and product safety is Sony Deutschland GmbH, Hedelfinger Strasse 61, 70327 Stuttgart, Germany. For any service or guarantee matters please refer to the addresses given in separate service or guarantee documents.

Precautions

On power sources

• The unit is not disconnected from the mains as long as it is connected to the AC outlet, even if the unit itself has been turned off.

• As the main plug is used to disconnect the unit from the mains, connect the unit to an easily accessible AC outlet. Should you notice an abnormality in the unit, disconnect the main plug from the AC outlet immediately.

About These Operating Instructions

• The instructions in these Operating Instructions describe the controls on the remote. You can also use the controls on the unit if they have the same or similar names as those on the remote.

• The Control Menu items may vary depending on the area.

• “DVD” may be used as a general term for a DVD VIDEO, DVD+RW/DVD+R, and DVDRW/DVD-R.

• Measurements are expressed in feet (ft) for North American models.

• The default setting is underlined.

Copyrights

This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.

This system incorporates with Dolby* Digital and Dolby Pro Logic (II) adaptive matrix surround decoder and the DTS** Digital Surround System.

* Manufactured under license from Dolby

Laboratories. Dolby, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories.

** Manufactured under license under U.S. Patent #’s:

5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,487,535 & other U.S. and worldwide patents issued & pending. DTS and DTS Digital Surround are registered trademarks and the DTS logos and Symbol are trademarks of DTS, Inc. © 1996-2008 DTS, Inc. All Rights Reserved.

This system incorporates High-Definition

Multimedia Interface (HDMI

) technology. HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

“DVD-RW,” “DVD-R,” “DVD+RW,” “DVD+R,” “DVD VIDEO,” and the “CD” logos are trademarks.

“BRAVIA” is a trademark of Sony Corporation.

“PLAYSTATION” is a trademark of Sony Computer Entertainment Inc.

“WALKMAN” and “WALKMAN” logo are registered trademarks of Sony Corporation.

DivX® is a video file compression technology, developed by DivX, Inc.

DivX, DivX Certified, and associated logos are trademarks of DivX, Inc. and are used under license.

“S-AIR” and its logo are trademarks of Sony Corporation.

MPEG Layer-3 audio coding technology and patents licensed from Fraunhofer IIS and Thomson.

About MPEG-4 Visual

THIS PRODUCT IS LICENSED UNDER THE MPEG-4 VISUAL PATENT PORTFOLIO LICENSE FOR THE PERSONAL AND NONCOMMERCIAL USE OF A CONSUMER FOR DECODING VIDEO IN COMPLIANCE WITH THE MPEG-4 VISUAL STANDARD (“MPEG-4 VIDEO”) THAT WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL AND NON-COMMERCIAL ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED BY MPEG LA TO PROVIDE MPEG-4 VIDEO. NO LICENSE IS GRANTED OR SHALL BE IMPLIED FOR ANY OTHER USE. ADDITIONAL INFORMATION INCLUDING THAT RELATING TO PROMOTIONAL, INTERNAL AND COMMERCIAL USES AND LICENSING MAY BE OBTAINED FROM MPEG LA, LLC. SEE HTTP:// WWW.MPEGLA.COM

About the S-AIR function

The system is compatible with the S-AIR function, which allows transmission of sound between S-AIR products wirelessly. The following S-AIR products can be used with the system:

• Surround amplifier: You can enjoy surround speaker sound wirelessly.

• S-AIR receiver: You can enjoy system sound in another room.

These S-AIR products can be purchased as an options (the S-AIR product lineup differs depending on the area).

Notes or instructions for the surround amplifier or S-AIR receiver in these Operating Instructions refer only to when the surround amplifier or S-AIR receiver is used. For details on the S-AIR function, see “Using an S-AIR Product” (page 80).

Table of Contents

About These Operating Instructions ....... 3

About the S-AIR function.......................4

Playable Discs......................................... 6

Getting Started

Step 1: Installing the System....... 12

Step 2: Connecting the System... 22 Step 3: Performing the Quick

Setup........................................ 28

Step 4: Selecting the Source....... 31

Step 5: Enjoying Surround

Sound....................................... 32

Disc

Playing a Disc ....................................... 35

Using Play Mode...................................40

Searching/Selecting Disc Contents ....... 43

Playing MP3 Files/JPEG Image Files... 45

Enjoying Video Files ............................ 49

Adjusting the Delay Between the Picture

and Sound ....................................... 51

Restricting Playback of the Disc...........51

Changing the System Settings by Using

the Setup Display............................53

Tuner

Presetting Radio Stations......................61

Listening to the Radio...........................62

Using the Radio Data System (RDS)....63

Control for HDMI/External Audio Device

Using the Control for HDMI Function for

“BRAVIA” Sync ............................64

Playing Back Files of a USB Device ....67

Transferring Songs onto a USB

Device.............................................75

Using a Sony Ericsson Mobile

Phone ..............................................78

Using the DIGITAL MEDIA PORT

Adapter ........................................... 79

Using an S-AIR Product .......................80

Other Operations

Getting Optimal Surround Sound for a

Room .............................................. 86

Calibrating the Appropriate Settings

Automatically................................. 87

Controlling the TV with the Supplied

Remote ........................................... 88

Using the Sound Effect......................... 89

Selecting the Effect to Suit

the Source....................................... 90

Enjoying Multiplex Broadcast

Sound.............................................. 90

Changing the Input Level of the Sound

from Connected Components......... 91

Using the Sleep Timer .......................... 91

Changing the Brightness of the Front

Panel Display.................................. 92

Viewing Information About the Disc ... 92

Returning to the Default Settings ......... 95

Additional Information

Precautions............................................ 96

Notes about the Discs ........................... 97

Troubleshooting.................................... 98

Self-diagnosis Function ...................... 107

Specifications...................................... 108

Glossary.............................................. 109

Playback priority of file types ............ 112

Language Code List ............................ 113

Index to Parts and Control .................. 114

Guide to the Control Menu Display ... 118

Index ................................................... 122

Playable Discs

Type Disc logo Characteristics Icon

DVD VIDEO • DVD VIDEO

• DVD-R/DVD-RW in DVD VIDEO format or video mode

• DVD+R/DVD+RW in DVD VIDEO format

VR (Video Recording) mode

• DVD-R/DVD-RW in VR (Video Recording) mode (except for DVD-R DL)

VIDEO CD • VIDEO CD (Ver. 1.1 and 2.0 discs)

• Super VCD

• CD-R/CD-RW/CD-ROM in video CD format or Super VCD format

Super Audio CD • Super Audio CD

CD • Audio CD

• CD-R/CD-RW in audio CD format

DATA CD – • CD-R/CD-RW/CD-ROM in DATA CD

format, containing MP3 image files MPEG4 video files, and conforming to ISO 9660

, DivX video files, and

Level 1/Level 2, or Joliet

files1), JPEG

(extended format)

DATA DVD – • DVD-ROM/DVD-R/DVD-RW/

DVD+R/DVD+RW in DATA DVD format, containing MP3 files1), JPEG image files2), DivX video files, and MPEG4 video files, and conforming to UDF (Universal Disk Format)

MP3 (MPEG1 Audio Layer 3) is a standard format defined by ISO/MPEG for compresses audio data. MP3 files

must be in MPEG1 Audio Layer 3 format.

JPEG image files must conform to the DCF image file format. (DCF “Design rule for Camera File system”: Image

standards for digital cameras regulated by Japan Electronics and Information Technology Industries Association (JEITA).)

A logical format of files and folders on CD-ROMs, defined by ISO (International Organization for

Standardization).

Notes on discs

This product is designed to playback discs that conform to the Compact Disc (CD) standard. DualDiscs and some of the music discs encoded with copyright protection technologies do not conform to the Compact Disc (CD) standard, therefore, these discs may not be playable by this product.

Example of discs that the system cannot play

The system cannot play the following discs:

• CD-ROM/CD-R/CD-RW other than those recorded in the formats listed on page 6

• CD-ROM recorded in PHOTO CD format

• Data part of CD-Extra

• CD Graphics disc

• DVD Audio

• DATA CD/DATA DVD that does not contain MP3 files, JPEG image files, DivX video files, or MPEG4 video files

• DVD-RAM

•Blu-ray Disc

Also, the system cannot play the following discs:

• A DVD VIDEO with a different region code (page 8)

• A disc that has a non-standard shape (e.g., card, heart)

• A disc with paper or stickers on it

• A disc that has the adhesive of cellophane tape or a sticker still left on it

Note about CD-R/CD-RW/DVD-R/DVD-RW/DVD+R/DVD+RW

In some c ases, CD-R/CD-RW/DVD-R /DVD-RW/DVD+R /DVD+RW cannot be played on this system due to the recording quality or physical condition of the disc, or the characteristics of the recording device and authoring software. The disc will not play if it has not been correctly finalized. For more information, refer to the operating instructions for the recording device. Note that some playback functions may not work with some DVD+RWs/DVD+Rs, even if they have been correctly finalized. In this case, view the disc by normal playback. Also some DATA CDs/DATA DVDs created in Packet Write format cannot be played.

About Multi Session CD

• This system can play a Multi Session CD when an MP3 file is contained in the first session. Any subsequent MP3 files recorded in later sessions can also be played back.

• This system can play a Multi Session CD when a JPEG image file is contained in the first session. Any subsequent JPEG image files recorded in later sessions can also be played back.

• If MP3 files and JPEG image files in music CD format or video CD format are recorded in the first session, only the first session will be played back.

Region code

Your system has a region code printed on the rear of the unit and will only play a DVD labeled with the same region code.

A DVD VIDEO labeled will also play on this system. If you try to play any other DVD VIDEO, the message [Playback prohibited by area limitations.] will appear on the TV screen. Depending on the DVD VIDEO, no region code indication may be given even though playing the DVD VIDEO is prohibited by area restrictions.

ALL

Note about playback operations of a DVD or VIDEO CD

Some playback operations on a DVD or VIDEO CD may be intentionally set by software producers. Since this system will play a DVD or VIDEO CD according to the disc contents the software producers designed, some playback features may not be available. Be sure to read the operating instructions supplied with the DVD or VIDEO CD.

Getting Started

Unpacking

DAV-DZ680

Getting Started

• Front speakers (2)

• Center speaker (1)

• Surround speakers (2)

• Subwoofer (1)

• FM wire antenna (aerial) (1)

• Speaker cords (4, green/ gray/blue/purple)

• Remote commander (remote) (1)

• R6 (size AA) batteries (2)

• Calibration mic (1)

• Foot pads (1 set)

• Bases (2)

• Screws (with washer) (6)

• Operating Instructions

• Quick Setup Guide

For United Kingdom models

• DIGITAL MEDIA PORT adapter (TDM-iP20) (1)

• Operating Instructions for the DIGITAL MEDIA PORT adapter (TDM-iP20)

DAV-DZ780

• Front speakers (2)

Getting Started

• Center speaker (1)

• Surround speakers (2)

• Subwoofer (1)

• FM wire antenna (aerial) (1)

• Speaker cords (2, green/ purple)

• Remote commander (remote) (1)

• R6 (size AA) batteries (2)

• Calibration mic (1)

• Bases (4)

• Screws (with washer) (12)

• Operating Instructions

• Quick Setup Guide

For United Kingdom models

• DIGITAL MEDIA PORT adapter (TDM-iP20) (1)

• Operating Instructions for the DIGITAL MEDIA PORT adapter (TDM-iP20)

• Foot pads (1 set)

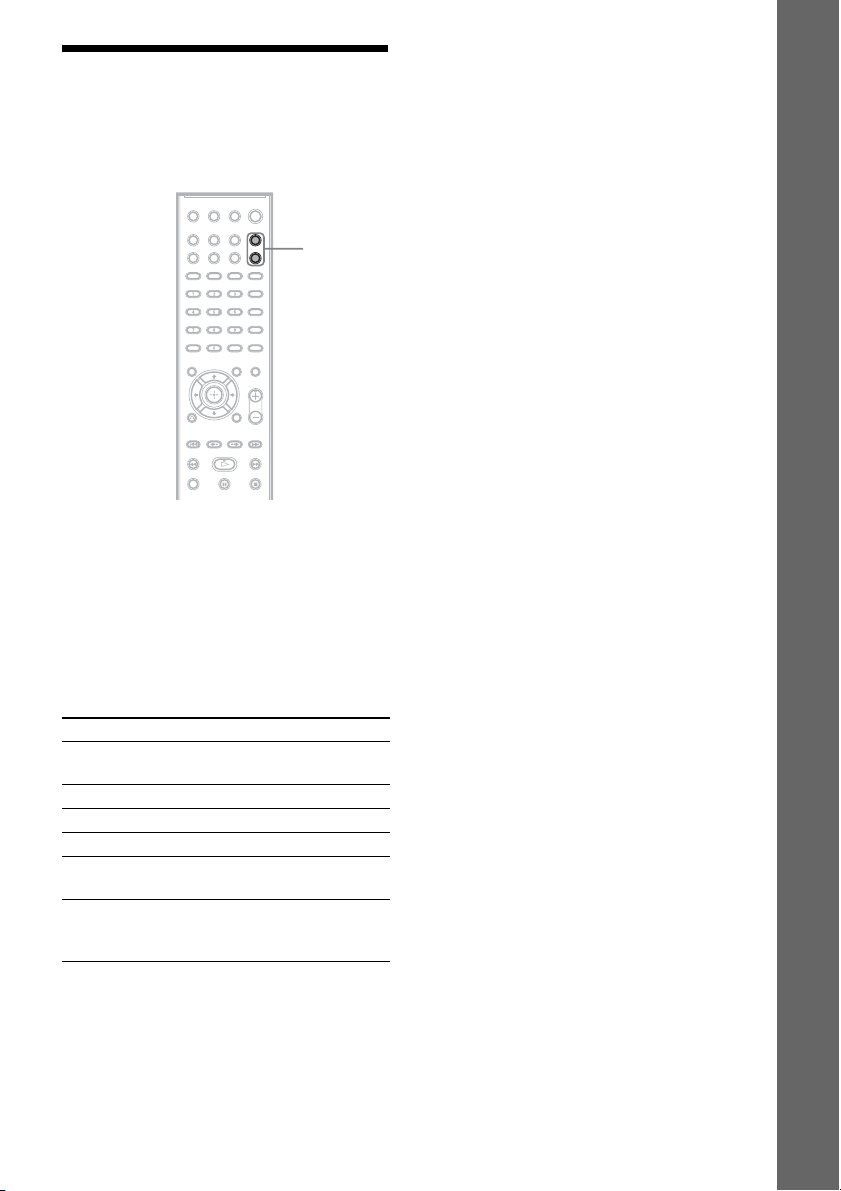

Inserting batteries into the remote

Insert two R6 (size AA) batteries (supplied) by matching the 3 and # ends on the batteries to the markings inside the compartment. To use the remote, point it at the remote sensor on the unit.

Note

• Do not leave the remote in an extremely hot or humid place.

• Do not use a new battery with an old one.

• Do not drop any foreign object into the remote casing, particularly when replacing the batteries.

• Do not expose the remote sensor to direct sunlight or lighting apparatus. Doing so may cause a malfunction.

• If you do not intend to use the remote for an extended period of time, remove the batteries to avoid possible damage from battery leakage and corrosion.

Getting Started

Step 1: Installing the System

Positioning the system

For the best possible surround sound, place all speakers at the same distance from the listening position

Getting Started

(A). The distance can be between 1.0 to 7.0 meters. If you cannot place the center speaker and surround speakers at the same distance as (A), you can move the center speaker up to 1.6 meters closer to the listening position (B), and the surround speakers up to 5.0 meters closer to the listening position (C). The subwoofer can be placed anywhere in the room.

Subwoofer

Front left speaker (L)

Center speaker

Front right speaker (R)

Surround left speaker (L)

Note

• Use caution when placing the speakers and/or speaker stands attached to the speakers on a specially treated (waxed, oiled, polished, etc.) floor, as staining or discoloration may result.

• Do not lean or hang on a speaker, as it may fall down.

Surround right speaker (R)

Attaching the foot pads to the subwoofer

Attach the foot pads (supplied) to the bottom of the subwoofer to stabilize the subwoofer and prevent it from slipping.

Remove the foot pads from the protective cover.

Getting Started

Assembling the speakers

Before connecting the speakers, attach the speaker stand to the speaker. (For the front speakers of DAV-DZ680, and the front and surround speakers of DAV-DZ780)

Use the parts as follows:

DAV-DZ680

Getting Started

• Front speakers (2)

• Bases (2)

• Screws (with washer) (6)

DAV-DZ780

• Front and surround speakers (4)

• Bases (4)

• Screws (with washer) (12)

For details of how to connect the speaker cords to the SPEAKER jacks, see page 22.

Note

• Spread a cloth on the floor to avoid damaging the floor when you assemble the speakers.

• You can use the speaker without the speaker stand by installing it on the wall (page 17).

1 Thread the speaker cord through the top hole in the base.

Speaker

Speaker cord

Top of the base

2 Turn the speaker upside down.

Speaker cord

Speaker

3 Place the base on the bottom of the speaker, then secure the base with three screws

(with washer).

Screws (with washer)

Getting Started

Bottom of the base

Speaker

Fully-assembled illustration

DAV-DZ680

Front left speaker (L): White label

Getting Started

Front right speaker (R): Red label

DAV-DZ780

Front left speaker (L): White label

White

Front right speaker (R): Red label

White

Red

Surround left speaker (L): Blue label

Red

Surround right speaker (R) Gray label

Blue

Gray

Installing the speakers on a wall

Caution

• Contact a screw shop or installer for information regarding the wall material or screws to be used.

• Use screws that are suitable for the wall material and strength. As a plaster board wall is especially fragile, attach the screws securely to a beam. Install the speakers on a vertical and flat wall where reinforcement is applied.

• Sony is not responsible for accidents or damage caused by improper installation, insufficient wall strength or improper screw installation, natural calamity, etc.

Before installing the front speaker of DAV-DZ680 or the front and surround speakers of DAV-DZ780 on a wall, you need to disassemble the speakers. You can install the upper part of a speaker on a wall.

To disassemble the speaker

(Front speakers of DAV-DZ680 or front and surround speakers of DAV-DZ780 only)

1 Pull out the speaker cord from the slot of the rear of the speaker.

Speaker cord

Getting Started

Rear of the speaker

2 Disconnect the speaker cords from the speaker.

Rear of the speaker

3 Remove the screw (pre-installed) at the rear of the speaker.

This screw is used when reassembling the speaker. Be sure not to lose the screw.

Getting Started

Screw

Rear of the speaker

4 Disassemble the speaker by lifting the upper part of the speaker.

Upper part

Lower part

Rear of the speaker

5 Pull out the speaker cord from the bottom of the lower part of the speaker.

The removed speaker cord is used when installing the speaker on a wall.

Lower part of the speaker

Speaker cord

Fully-disassembled illustration

Getting Started

Upper part of the speaker

Lower part of the speaker

Speaker cord

Screw

To install the speakers on a wall

Before installing the speakers on a wall, connect the speaker cord to the speaker. Be sure to match the speaker cords to the appropriate terminals on the speakers: the speaker cord with the color tube to 3, and the speaker cord without the color tube to #.

Color tube Front left speaker (L): White Front right speaker (R): Red Center speaker: Green Surround left speaker (L): Blue Surround right speaker (R): Gray

1 Prepare screws (not supplied) that are suitable for the hole on the back of each speaker.

See the illustrations below.

30 mm (1 3/16 inches)

Getting Started

2 Fasten the screws to the wall.

DAV-DZ680

For the center speaker

8 to 10 mm

/32 to 13/32

(

For the surround speakers

inch

)

4 mm (

/32 inch)

145 mm

/4 inches)

5 mm

(

/32 inch)

10 mm

/32 inch)

(

For the front speakers

8 to 10 mm

/32 to 13/32

(

inch

)

Hole on the back of the speaker

210 mm

inches

)

8 to 10 mm

(

/32 to 13/32

inch

DAV-DZ780

For the center speaker

8 to 10 mm

/32 to 13/32

(

inch

)

For the other speakers

145 mm

/4 inches)

210 mm

inches

8 to 10 mm

/32 to 13/32

)

(

inch

)

3 Hang the speakers on the screws.

5 mm

/32 inch)

(

10 mm

/32 inch)

(

Rear of the speaker

Hole on the back of the speaker

Getting Started

Step 2: Connecting the System

For connecting the system, read the information on the following pages. Do not connect the AC power cord (mains lead) of the unit to a wall outlet (mains) until all the other connections are made.

Note

• When you connect another component with a volume control, turn down the volume of the other components to a

Getting Started

level where sound is not distorted.

Connecting the speakers

The connector of the speaker cords and the color tube are color-coded depending on the type of speaker. Connect the speaker cords to match the color of the SPEAKER jacks of the unit. Be sure to match the speaker cords to the appropriate terminals on the speakers: the speaker cord with the color tube to 3, and the speaker cord without the color tube to #. Do not catch the speaker cord insulation (rubber covering) in the speaker terminals.

To connect speaker cords to the unit

When connecting to the unit, insert the connector until it clicks.

Red (Front right speaker (R))

White (Front left speaker (L))

Purple (Subwoofer)

DIGITAL IN

R E F

O W B

CENTER

COAXIAL

OPTICAL

FRONT R FRONT L SUR R SUR L

I O

DC5V

0.7A MAX

Green (Center speaker)

To connect speaker cords to the speaker

Connector

Color tube

(–)

(+)

COAXIAL 75

EZW-T100

)

TPUT(TO

Blue (Surround left speaker (L))

Gray (Surround right speaker (R))

Rear of the speaker

Connecting the TV

Depending on the jacks on your TV, select the connection method.

B HDMI cable (not supplied)

D Digital coaxial cord (not supplied)

SUR L

SUR R

FRONT R FRONT L

R E

B U S

CENTER

C Digital optical cord (not supplied)

OPTICAL

DIGITAL IN

I O

COAXIAL

DC5V

0.7A MAX

To the digital optical out jack of the TV.

To the digital coaxial out jack of the TV.

To the HDMI IN jack of the TV.

Method 1: SCART (EURO AV) cable (A) connection

This connection sends both video and audio signals.

EZW-T100

A SCART (EURO AV) cable (not supplied)

COAXIAL 75

)

(TO

TPU

To the SCART (EURO AV) jack of the TV.

Getting Started

Method 2: HDMI* cable (B) and SCART (EURO AV) cable (A) connection

If your TV has an HDMI jack, connect to the TV both with an HDMI cable and SCART (EURO AV) cable. Picture quality will be improved compared to using only the SCART (EURO AV) connection. When connecting with the HDMI cable, you need to select the type of output signal (page 30). To view images from the DIGITAL MEDIA PORT adapter, you need to connect to the TV with the SCART (EURO AV) cable. Video signals from the DIGITAL MEDIA PORT adapter are not output via the HDMI OUT jack.

* HDMI (High-Definition Multimedia Interface)

Digital optical cord (C) or digital coaxial cord (D) connection

When the TV has a digital optical or coaxial output jack, you can improve sound quality by connecting with a digital optical or coaxial cord in addition to the SCART (EURO AV) connection.

Note

• The system can accept both digital and analog signals. Digital signals have priority over analog signals. (COAXIAL has priority over OPTICAL.) If the digital signal ceases, the analog signal will be processed after 2 seconds.

• When you connect the system and a TV with the “BRAVIA” Sync function via an HDMI cable, the “BRAVIA” Sync function is enabled. In this case, set [CONTROL FOR HDMI] in [HDMI SETUP] to [ON] (page 55).

Connecting the other components

You can enjoy connected components via the system’s speakers. Portable audio source (not supplied): E USB device (not supplied): F DIGITAL MEDIA PORT adapter: G (TDM-iP20 is supplied with United Kingdom models. You can also use other DIGITAL MEDIA PORT adapters.)

Getting Started

F Connect a USB device (page 67).

E Stereo mini-plug cord (not supplied)

To a portable audio source

EZW-T100 slot (See “Wireless system options”.)

FRONT R FRONT L

DIGITAL IN

O W B

U S

CENTER

COAXIAL

OPTICAL

SUR R SUR L

I O

DC5V

0.7A MAX

EZW-T100

G DIGITAL MEDIA PORT adapter (page 79)

Note

• Connect the DIGITAL MEDIA PORT

adapter so that the V marks are aligned. When disconnecting, pull out while pressing .

COAXIAL 75

TPUT(TO

Wireless system options

By using an S-AIR product (not supplied), you can enjoy wireless performance by transmission from the system. For details, see “Using an S-AIR Product” (page 80) or refer to the operating instructions of the S-AIR product.

If your TV has multiple audio/video inputs

You can enjoy sound with the speakers of the system through the connected TV. Connect the components as follows.

System

VCR, digital satellite receiver, PlayStation, etc.

:Signal flow

Select the component on the TV. For details, refer to the operating instructions of the TV. If the TV does not have multiple audio/video inputs, a switcher will be necessary to receive sound from more than one component.

Getting Started

Connecting the antenna (aerial)

Getting Started

ANTENNA

COAXIAL 75

FM wire antenna (aerial) (supplied)

Note

• Be sure to fully extend the FM wire antenna (aerial).

• After connecting the FM wire antenna (aerial), keep it as horizontal as possible.

• If you have poor FM reception, use a 75-ohm coaxial cable (not supplied) to connect the unit to an outdoor FM antenna (aerial) as shown below.

Outdoor FM antenna (aerial)

Unit

ANTENNA

COAXIAL 75

Connecting the AC power cord (mains lead)

Before connecting the AC power cord (mains lead) of the unit to a wall outlet (mains), connect all the speakers to the unit.

Wall outlet (mains): The shape of the wall outlet (mains) differs depending on the area.

About the demonstration

After connecting the AC power cord (mains lead), the demonstration appears in the front panel display.

Setting the demonstration mode to on/off

1 Press [/1 on the unit.

The system turns on.

2 Press SYSTEM MENU. 3 Press X/x repeatedly until “DEMO” appears in the front panel display, then press or

4 Press X/x to select a setting.

•“DEMO ON”: On.

• “DEMO OFF”: Off.

5 Press .

The setting is made.

6 Press SYSTEM MENU.

The system menu turns off.

• When you purchase the system new, or if the system is at its factory default settings (ex., after performing “COLD

RESET” (page 95)), you can turn off the demonstration simply by pressing [/1 on the remote.

Getting Started

Step 3: Performing the Quick Setup

5 Press X/x to select a language, then

press .

The Setup Display for selecting the aspect ratio of the TV to be connected appears.

Follow the Steps below to make the basic adjustments for using the system. Displayed items vary depending on the area.

Getting Started

C/X/x/c,

1 Turn on the TV. 2 Press [/1.

Note

• Make sure that the function is set to “DVD” (page 31).

3 Switch the input selector on your TV so

that the signal from the system appears on the TV screen.

[Press [ENTER] to run QUICK SETUP.] appears at the bottom of the TV screen. If this message does not appear, recall the Quick Setup display (page 30).

4 Press without inserting a disc.

The Setup Display for selecting the language used in the on-screen display appears.

LANGUAGE SETUP

OSD: MENU: AUDIO: SUBTITLE:

ENGLISH ENGLISH

FRENCH

SPANISH

PORTUGUESE

"/1

DISPLAY

VIDEO SETUP

TV TYPE: LINE: PAUSE MODE:

4:3 LETTER BOX

16:9 16:9

4:3 PAN SCAN

6 Press X/x to select the setting that

matches your TV type, then press .

• [16:9]: For a wide-screen TV or a 4:3 standard TV with a wide-screen mode (page 55)

• [4:3 LETTER BOX] or [4:3 PAN SCAN]: For a 4:3 standard TV (page 55)

The Setup Display for selecting the output method for video signals from the EURO AV T OUTPUT (TO TV) jack on the rear panel of the unit appears.

VIDEO SETUP

TV TYPE:

LINE:

PAUSE MODE:

16:9 VIDEO VIDEO

VIDEO

RGB

VIDEO

7 Press X/x to select the output method

for video signals, then press .

• [VIDEO]: Outputs video signals.

• [RGB]: Outputs RGB signals.

Note

• If your TV does not accept RGB signals, no picture appears on the TV screen even if you select [RGB]. Refer to the operating instructions supplied with your TV.

The Setup Display for the Control for HDMI function appears.

HDMI SETUP

HDMI RESOLUTION: CONTROL FOR HDMI: VOLUME LIMIT: YCBCR/RGB(HDMI): AUDIO(HDMI): JPEG RESOLUTION:

AUTO

(1920x1080p)

OFF OFF

OFF

8 Press X/x to select the setting, then

press .

•[OFF]: The Control for HDMI function is set to off.

• [ON]: The Control for HDMI function (page 64) is set to on.

The Setup Display for selecting the speaker formation appears.

SPEAKER FORMATION

Getting Started

Calibration mic

STANDARD

9 Press C/c to select the speaker

formation image as the speakers are actually positioned, then press .

For details, see “Getting Optimal Surround Sound for a Room” (page 86).

10 Connect the calibration mic (supplied)

to the A.CAL MIC jack on the front panel.

Set up the calibration mic at ear level using a tripod, etc. (not supplied).

The front of each speaker should face the calibration mic, and there should be no obstruction between the speakers and the calibration mic.

11Press C/c to select [YES], then press

[AUTO CALIBRATION] starts. Be quiet during the measurement.

Note

• Loud test sounds are output when [AUTO CALIBRATION] starts. You cannot turn the volume down. Give consideration to children and neighbors.

• Before [AUTO CALIBRATION], install the surround amplifier in the appropr iate location. If you install the surr ound amplifier in an improper location, such as another room, proper measurement will not be obtained.

• The environment of the room in which the system is installed may affect measurements. When the measurements differ considerably from the status of the speaker installation, perform the speaker settings manually by following “Settings for the speakers” (page 58).

12Unplug the calibration mic, press C/c

to select [YES], then press .

Quick Setup is finished. All connections and setup operations are complete.

To quit the Quick Setup

Press DISPLAY in any Step.

To recall the Quick Setup display

1 Press FUNCTION +/– repeatedly until

“DVD” appears in the front panel display.

2 Press DISPLAY while the system is

in stop mode.

The Control Menu display appears on the

Getting Started

TV screen.

3 Press X/x to select [SETUP],

then press .

The options for [SETUP] appear.

94( 99) 1( 1) T 0: 01: 08

CUSTOM

CUSTOM QUICK

DVD VIDEO

4 Press X/x to select [QUICK], then press

The Quick Setup display appears.

Setting the type of video output to match your TV

3 Press X/x to select [SETUP],

then press .

The options for [SETUP] appear.

4 Press X/x to select [CUSTOM], then

press .

The Setup Display appears.

5 Press X/x to select [HDMI SETUP], then

press .

The options for [HDMI SETUP] appear.

6 Press X/x to select [HDMI

RESOLUTION], then press .

7 Press X/x to select the desired setting,

then press .

• [AUTO (1920 outputs the optimal video signal for the connected TV.

• [1920 × 1080i* video signals.

• [1280 720p* video signals.

× 480p]**: The system outputs 720 ×

• [720 480p* video signals.

* i: interlace, p: progressive

** Depending on the area, [720 × 480/576p] may

appear.

× 1080p)]: The system

× 1080i]: The system outputs 1920

× 720p]: The system outputs 1280 ×

Depending on the connection of the TV (page 23), select the type of video output of the system.

To select the type of video signal output from the HDMI OUT jack

When you connect the unit and the TV with an HDMI cable, select the type of video signals output from the HDMI OUT jack. For details, refer also to the operating instructions supplied with the TV/projector, etc.

1 Press FUNCTION +/– repeatedly until

“DVD” appears in the front panel display.

2 Press DISPLAY while the system is

in stop mode.

The Control Menu display appears on the TV screen.

+ 94 hidden pages
