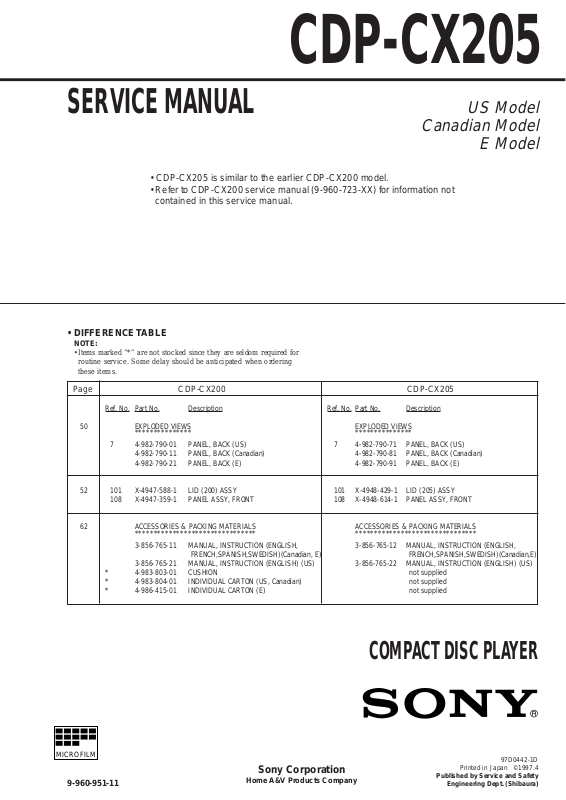

Sony CDP-CX205 service manual
CDP-CX205
SERVICE MANUAL
US Model
Canadian Model
E Model
•CDP-CX205 is similar to the earlier CDP-CX200 model.
•Refer to CDP-CX200 service manual (9-960-723-XX) for information not contained in this service manual.
• DIFFERENCE TABLE
NOTE:
• Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items.
Page |
|
|
CDP-CX200 |
|
|
CDP-CX205 |
|
Ref. No. |
Part No. |
Description |
Ref. No. Part No. |
Description |
|
50 |
|
EXPLODED VIEWS |
|
EXPLODED VIEWS |
||
|
|
*************** |
|
*************** |
||
|
7 |
4-982-790-01 |
PANEL, BACK (US) |
7 |
4-982-790-71 |
PANEL, BACK (US) |
|
|
4-982-790-11 |
PANEL, BACK (Canadian) |
|
4-982-790-81 |
PANEL, BACK (Canadian) |
|
|
4-982-790-21 |
PANEL, BACK (E) |
|
4-982-790-91 |
PANEL, BACK (E) |
|
|
|
|
|
|
|
52 |
101 |
X-4947-588-1 |
LID (200) ASSY |
101 |
X-4948-429-1 |
LID (205) ASSY |
|
108 |
X-4947-359-1 |
PANEL ASSY, FRONT |
108 |
X-4948-614-1 |
PANEL ASSY, FRONT |
|
|
|
|
|
||
62 |
|
ACCESSORIES & PACKING MATERIALS |
|
ACCESSORIES & PACKING MATERIALS |
||
|
|
******************************** |
|
******************************** |
||
|
|
3-856-765-11 |
MANUAL, INSTRUCTION (ENGLISH, |
|
3-856-765-12 |
MANUAL, INSTRUCTION (ENGLISH, |
|
|
|
FRENCH,SPANISH,SWEDISH)(Canadian, E) |
|
|
FRENCH,SPANISH,SWEDISH)(Canadian,E) |
|
|
3-856-765-21 |
MANUAL, INSTRUCTION (ENGLISH) (US) |
|
3-856-765-22 |
MANUAL, INSTRUCTION (ENGLISH) (US) |
|
* |
4-983-803-01 |
CUSHION |
|
|
not supplied |
|
* |
4-983-804-01 |
INDIVIDUAL CARTON (US, Canadian) |
|
|
not supplied |
|
* |
4-986-415-01 |
INDIVIDUAL CARTON (E) |
|
|
not supplied |
|
|
|
|
|
|
|
COMPACT DISC PLAYER
MICROFILM
Sony Corporation
97D0442-1D Printed in Japan ©1997.4
9-960-951-11 |
Home A&V Products Company |
Published by Service and Safety |
|
Engineering Dept. (Shibaura) |
|||
|
