Sonova USA LDR Users Manual
Phonak Audéo™ M
User Guide
Phonak Audéo M-R/RT
This user guide is valid for:
Wireless hearing aids
Phonak Audéo M90-R
Phonak Audéo M90-RT
Phonak Audéo M70-R
Phonak Audéo M70-RT
Phonak Audéo M50-R
Phonak Audéo M50-RT
Phonak Audéo M30-R
Phonak Audéo M30-RT
Non wireless charging accessories
Phonak Charger Case Combi
Phonak Power Pack
Phonak Mini Charger Case
2
2018
2018
2018
2018
2018
2018
2018
2018
2018
2016
2018
Your hearing aid & charger details
If no box is checked and you do not know the
model of your hearing aid or charging accessories,
please ask your hearing care professional.
The hearing aids described in this user guide
contain a built-in and non-removable rechargeable
lithium-ion battery.
Please also read safety information regarding
handling rechargeable hearing aids (chapter 21).
Please ensure to charge and use the hearing aid
within operating temperature range: +5° to +40°
Celsius (41° to 104° Fahrenheit)
Hearing aid models Earpieces
c Audéo M-R (M90/M70/M50/M30) c Dome
c Audéo M-RT (M90/M70/M50/M30) c SlimTip
c cShell
Charging accessories
c Charger Case Combi incl. power supply
c Power Pack
c Mini Charger Case incl. power supply
3
4
Your hearing aids and chargers have been developed by
Phonak – the world leader in hearing solutions based in
Zurich, Switzerland.
These premium products are the result of decades of
research and expertise and are designed to keep you
connected to the beauty of sound! We thank you for
making such a great choice and wish you many years of
listening pleasure.
Please read the user guide carefully to make sure that you
understand and get the best out of your hearing aids. For
more information about features and benets, simply
contact your hearing care professional.
Phonak - life is on
www.phonak.com
5
Contents
Your hearing aid and charger
1. Quick guide
2. Parts of the hearing aid & charger
Using the charger
3. Preparing the charger
4. Charging the hearing aids
Using the hearing aid
5. Left & right hearing aid markings
6. Putting on the hearing aid
7. Removing the hearing aid
8. Multi-function button
9. On/O
10. Connectivity overview
1 1. Initial pairing
12. Phone calls
13. Flight mode
8
10
14
15
23
24
25
26
27
28
29
32
36
6
Further information
14. Operating conditions
15. Care and maintenance
16. Exchanging the earwax protection
17. Service and warranty
18. Compliance information
19. Information and description of symbols
20. Troubleshooting
21. Important safety information
38
39
42
48
50
58
62
66
7
1. Quick guide
Charging your hearing aids
Before using your hearing aid for the rst time, it
is recommended to charge it for 3 hours.
After placing your hearing aid
in the charger, the indicator
light will show the charging
state of the battery until the
hearing aid is fully charged.
When fully charged the
indicator light will be
constantly on, i.e. solid
green light.
Left & right hearing aid markings
Blue marking for
left hearing aid.
Red marking for
right hearing aid.
8

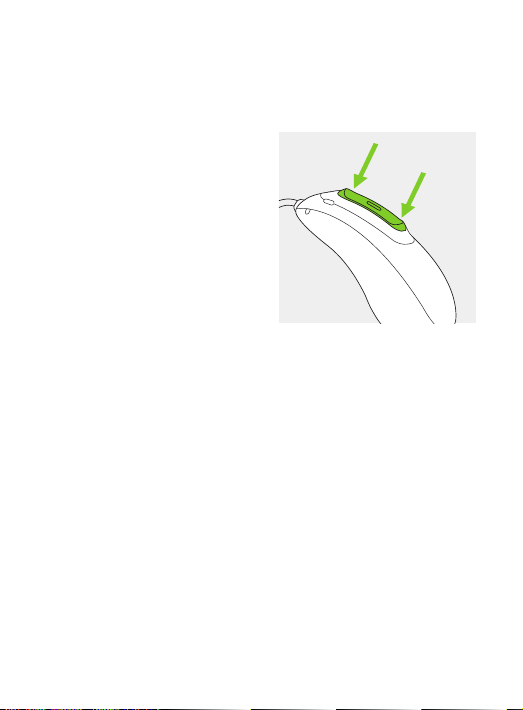

Multi-function button with indicator light
The button has several functions. It
functions as an on/o switch, a
volume control and/or a program
change depending on the hearing aid
programming. This is indicated in
your individual instructions. If paired
with a Bluetooth® enabled phone, a
short press will accept and a long
press will reject an incoming call.

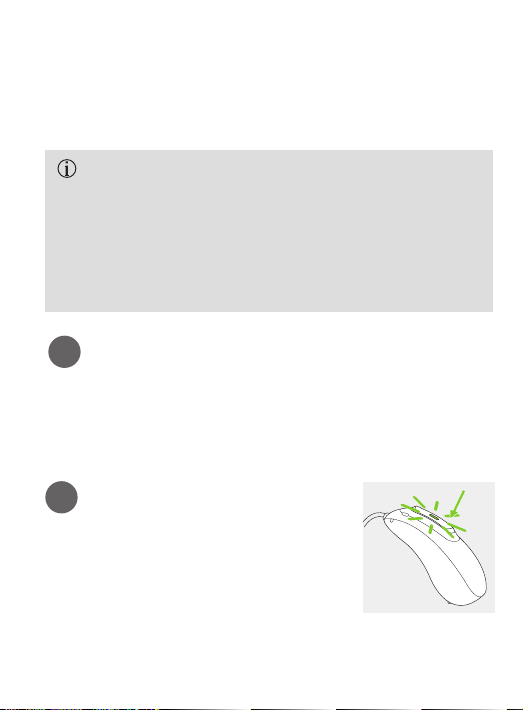

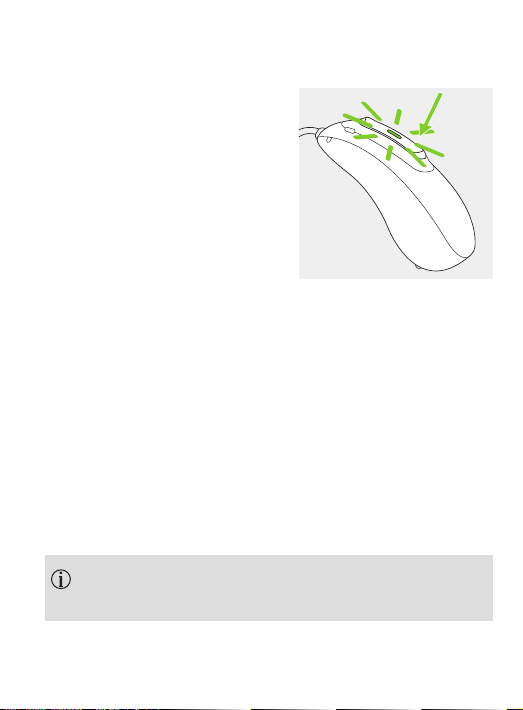

On/O
Firmly press the lower part of the
button for 3 seconds until the
indicator light blinks.
On: indicator light is solid green
O: indicator light is solid red
Enter ight mode
Press the lower part of the button for
7 seconds until the solid orange light
appears. Then release the button.
9
2. Parts of the hearing aid & charger
The following pictures show the hearing aid model and
charger accessories described in this user guide. You can
identify your personal models by:
• checking “Your hearing aid & charger details” on
page 3.
• comparing your hearing aid and charger with the
following models.
Possible earpieces
cShell SlimTip Dome
Audéo M-R/RT
Multi-function button with built-in indicator light
Tube
Anchor (optional)
10
Charging contacts
Speaker
(without earpiece attached)
Charger Case Combi
Cleaning tool
Space for drying capsule
(cover closed)
Hearing aid charging inserts with left/right indicators
Space for drying
capsule (cover open)
Space for earpieces
Drying capsule
(optional)
11
Charger Case Combi with optional Power Pack
Charger Case Combi
Indicator light for power
micro-USB connection
to external power supply
Power Pack
micro-USB connection to external power supply
Battery check button
Indicator light for battery status
and external power
Power Pack lock and release
12
Mini Charger Case
Hearing aid charging inserts
with left/right indicators
USB-C connection
to external power supply
Indicator light for power
13
3. Preparing the charger
Connecting the power supply
c
d
a
a) Plug the larger end of the charging cable into the power
supply.
b) Plug the smaller end into the USB port on the charger.
c) Plug the power supply into a power outlet.
d) The indicator light is green when the charger
is connected to the power supply.
b
d
b
14
4. Charging the hearing aids
Low power: You will hear two beeps when the
battery is low. You will have approximately
60 minutes before you have to charge the hearing
aids (this can vary, depending on the hearing aid
settings).
The hearing aid contains a built-in and non-
removable rechargeable lithium-ion battery.
Before using your hearing aid for the rst time, it
is recommended to charge it for 3 hours.
The hearing aid must be dry before charging,
see chapter 15.
Please ensure to charge and use the hearing aid
within operating temperature range: +5° to +40°
Celsius (41° to 104° Fahrenheit).
15
4.1 Using the Charger Case Combi or Mini Charger
Case
Please refer to chapter 3 for how to set up the charger.
1
Insert the hearing aid into the charging inserts.
Make sure the left and right hearing aid markings match
the left (blue), right (red) indicators next to the charging
inserts. The hearing aids will automatically be muted
when inserted into the charger.
16
17
2
The indicator light will show the charging state of the
battery until the hearing aid is fully charged. When fully
charged the indicator light will remain on, i.e. solid
green light.
The charging process will automatically stop when the
batteries are fully charged, so the hearing aids can be
safely left in the charger. It can take up to 3 hours to
charge the hearing aids. The charger covers can be closed
while charging.
Charging times
Indicator light Charging state Charging times
0 – 10%
11 – 80%
81 – 99%
100% 3 h
18
30 min (30%)
60 min (50%)
90 min (80%)
19
3
Remove the hearing aids from the charging inserts by
1. pulling the hearing aids gently toward yourself and
2. lifting them out of the charger.
The hearing aid switches on automatically when removed
from the charger. The indicator light starts blinking.
The solid green light indicates the hearing aid is ready.
2
1
1
Do not hold the tubes to remove the hearing aids
from the charger as this can damage the tubes.
20
2
4.2 Using the optional Power Pack
Note: The Power Pack is only compatible with the Charger Case Combi.
1
Attach the Power Pack to the
bottom of the Charger Case
Combi and lock it.
2
Plug in the micro-USB and connect to an external power
supply. The Power Pack and hearing aids will be charged at
the same time. While connected to an external power
supply, the Power Pack indicator light will show the
current battery charge status of the Power Pack.
Before using Power Pack for the rst time, it is
recommended to charge it for 3 hours.
The Power Pack contains a built-in and non-
removable rechargeable lithium-ion battery.
21
micro-USB connection to external power source
Indicator light battery
status:
• 0%-29%
•• 30%-59%
••• 60%-100%
Battery check push button
Power Pack lock and release
3
To check the remaining battery capacity of the Power
Pack, press the battery check push button. The indicator
lights will show the status.
Switch o your hearing aids when storing them in
the charger to prevent unwanted discharge of the
Power Pack.
Please ensure to charge the Power Pack within
operating temperature range: +5° to +40° Celsius
(41° to 104° Fahrenheit)
22
5. Left & right hearing aid markings
There is a red or blue marking on the back of the hearing
aid and on the speaker. This will tell you if it is a left or a
right hearing aid.
Blue marking
for left hearing aid.
Red marking
for right hearing aid.
23
6. Putting on the hearing aid
1
Place the hearing aid behind
your ear.
2
Insert the earpiece into your
ear canal.
3
If there is an anchor attached
to the earpiece, tuck it into
the bowl of your ear to secure
your hearing aid.
24
