3
Soltron Shuttle Operating Instructions
04451 / 1
V-60 Shuttle Turbo Plus
VHP 10
4
Identify your tanning device
For contact with customer service, please write down the device number
of your tanning device.
Global Service Division
#1 Walter Kratz Drive
Jonesboro, Arkansas 72401
(800) 793 6534
04537 / 3
5
5

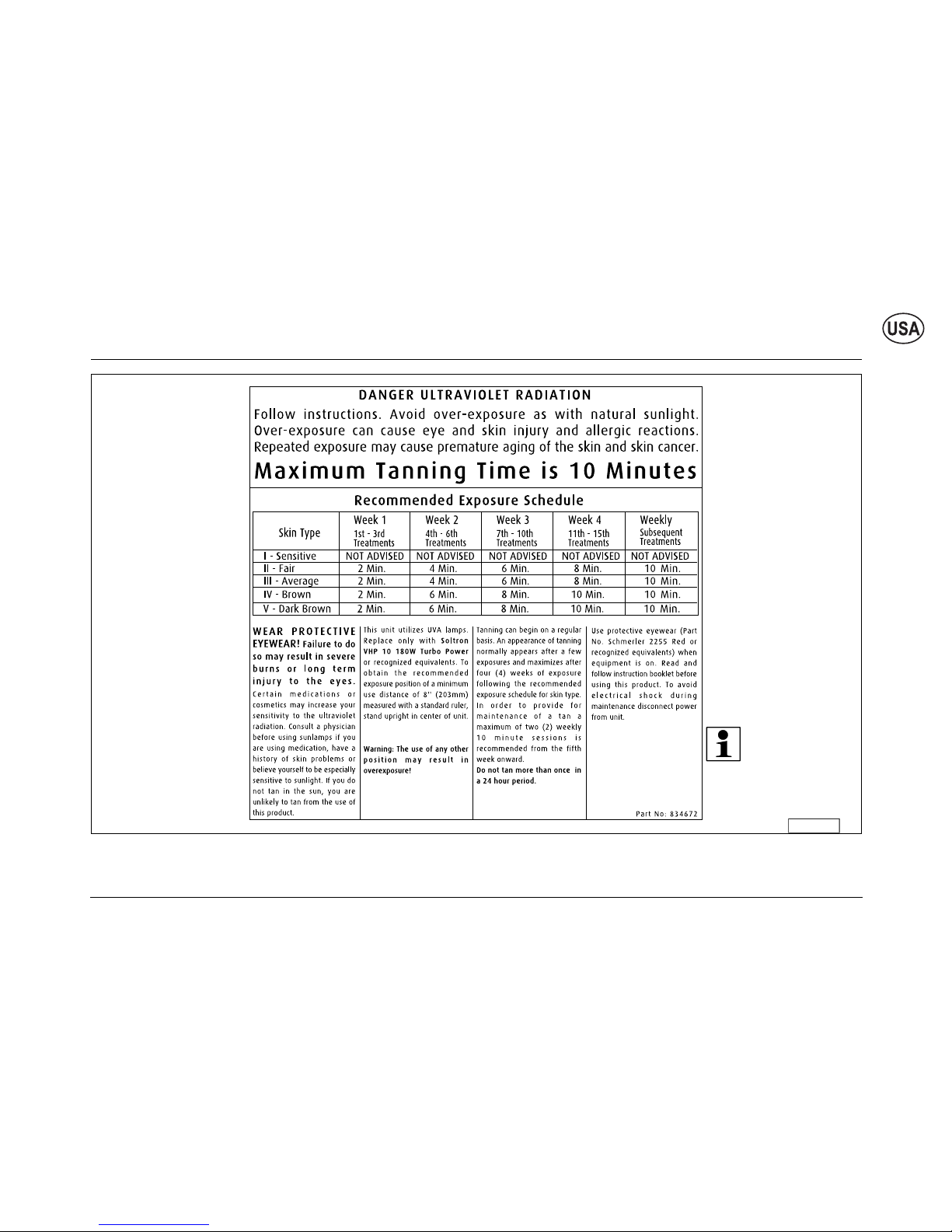

“This product is in conformity with performance standards for sunlamp products under CFR21 Part 1040.”
06432 / 0
Note:
Description of
skin types see
Page 20.
6
Foreword
Foreword
Dear Customer,
The Soltron device you have purchased is a technically advanced and
powerful microcomputer control system. Your device was manufactured
with the greatest care and precision. It went through numerous quality
and safety checks in order to guarantee trouble-free, safe operation. But
you too may make a significant contribution to your long-term satisfaction
with your device. Following the tips and instructions in the instruction
manual will ensure you enjoyment and pleasure with your device.
In case of any questions, we are always at your disposition
1)
.
Your sincerely
Soltron Inc.
• Read and observe the information in this instruction manual. This will
enable you to prevent accidents and provide you with a reliable
device ready for use.
• Always observe the local and federal regulations and legal
requirements as well as the valid environmental protection
regulations.
1) 1-866-243-9861
7
Table Of Contents
Table Of Contents
Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Description of warning signs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Danger of damage to persons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Meaning of symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Export . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Product information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Maintenance and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Environmental protection information . . . . . . . . . . . . . . . . . . . . . . . . 19
General tanning instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Skin types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fold-out page 21
Operating table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Settings during start-up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Terminate tanning session. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Running time of accent lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Regulating surround cooling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Selecting music channel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Adjusting volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Emergency release. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Maintenance
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fold-out page 33
Maintenance, overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Maintenance intervals, installed lamps and order numbers . . . . . . . . 34
Cleaning/replacing UV low-pressure lamps in outer doors . . . . . . . . 39
Cleaning/replacing UV low-pressure lamps in inner doors . . . . . . . . 41
Cleaning/replacing accent lights in outer doors . . . . . . . . . . . . . . . . . 42
Cleaning/replacing lighting of comfort cabin . . . . . . . . . . . . . . . . . . . 44
Replace starter for lighting of comfort cabin . . . . . . . . . . . . . . . . . . . . 45
Cleaning/replacing filter mats in outer doors . . . . . . . . . . . . . . . . . . . 47
Presettings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Changing presettings with the control panel . . . . . . . . . . . . . . . . . . 48
Changing presettings with a hand-held unit . . . . . . . . . . . . . . . . . . . 50
8
Table Of Contents
Table Of Contents
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Timer operation. . . . . . . . . . . . . . . . . . . . see separate manual
Note:
Technical changes are reserved with respect to the illustrations and specifications in this instruction manual.
Reprinting and reproduction, in whole or in part, of this manual is only permitted with our previous written approval and
with specification of the source.
9
Safety notes
Safety notes
Safety notes
Description of warning signs
Danger notes, damage to persons:
Warning notes, damage to persons:
Caution notes, property damage:
CAUTION!
The word “CAUTION” with this label points out that danger for
devices, materials and the environment can be expected
here.
Important information:
Note:
This symbol does not identify safety notes, but states information for a better understanding of the processes.
Type and source of danger, e.g. “DANGER – High
voltage!”
DANGER!
Description of the consequences, e.g. “You can be
killed or injured by an electric shock!”
Countermeasures:
– Disconnect device from power supply before open-
ing.
– Do not reach into the inside or change lamps with the
device switched on.
Type and source of danger, e.g. “Warning – hot
surface!”
WARNING!
Description of the consequences, e.g. “You can burn
your hand (skin, face)!”
Countermeasures:
– Do not touch the lamps and nearby surfaces.
– Wait until lamps and surfaces have cooled down.
10
Intended use / Danger of
damage to persons
Intended use
Intended use
The tanning device is intended exclusively for cosmetic tanning of the human skin:
• This device is used for tanning one adult person at a time.
• The user wears suitable eye protection that blocks UV radiation
during tanning.
Any other use shall be considered improper. The manufacturer cannot be
held liable for damage or injuries resulting from improper use. The
operator bears the sole risk for this.
The proper use also includes compliance with the manufacturer’s instructions, operating and maintenance conditions. The device may only be operated, maintained and repaired by persons familiar with these tasks and
that have been informed of the dangers involved.
Important notes for the studio operator
• As the operator you are responsible for informing users on possible
risks during tanning.
• All danger and safety labels attached to the device must be observed!
Do not remove them!
• No safety equipment (e.g. panel switch) may be removed or deactivated which can impair the safe operation of the device!
• The device may only be operated in proper condition!
Danger of damage to persons
DANGER – High voltage!
DANGER!
You can be killed or injured by an electric shock!
Assembly and electrical connection must comply with
the national and local regulations.
– Assembly, installation, upgrading or repair of the de-
vice may only be carried out by specially trained and
instructed personnel.
Warning – ultraviolet radiation!
WARNING!
Unprotected tanning may result in eye injuries and eye
diseases.
The unprotected eye can become inflamed on the surface, and in certain cases the retina can be damaged
by excessive radiation. Cataracts can form after frequently repeated exposure to radiation.
– Inform users to close their eyes during tanning and
use the included protective goggles that block UV
(Order No. 84592
1)
).
1) Global Service Division – see page 4.
11
Danger of damage to
persons
Danger of damage to persons
Occasionally, persons using the tanning device will experience a slight
reddening of the skin – usually in small patches – after the second or third
session. This redness is often accompanied by an itching sensation. This
may be nothing more than a heat “rash” caused by heat from the lamps
within the device. It should go away within approximately 24 hours and
should not reappear. This rashing can be lessened or prevented by applying moisturizer lotion to the affected area after the tanning session is
completed.
– Follow instructions.
– The time between two tanning sessions must be at least 24 hours!
– Increasing tanning also requires an extension of the exposure time
(= radiation time) or after a certain degree of tanning has been
achieved, a further intensification is not possible. However, the radiation time may not be extended as desired within the scope of the permissible radiation doses! Therefore, only a certain degree of final
tanning dependent on the skin type can be achieved without endangering your health.
– Inform users about proper tanning – see page 19.
Warning – ultraviolet radiation!
WARNING!
As with natural sunlight, overexposure can cause eye
and skin injury and allergic reactions. Repeated exposure may cause premature aging of the skin and skin
cancer. Wear protective eye wear; failure to may result
in severe burns or long-term injury to eyes.
Warning – ultraviolet radiation!
WARNING!
Danger of long-term consequences.
– Nursing infants and small children through age
7 years may not use this device.
– The following applies to minors under the age of
18 years: Only use tanning devices in agreement with
a parent or guardian, or after consulting a physician.
– While there is no immediate clinical evidence of UVA
exposure and its effects upon expectant mothers, it is
strongly advised that expectant mothers be discouraged from using the tanning unit.
12
Danger of damage to
persons
Danger of damage to persons
Warning – risk of infection!
WARNING!
Infections can be transferred through skin contact.
All items/equipment components, with which the user
can come into contact during tanning, must be disinfected after every tanning session.
– Protective goggles
– Handles and control panel
– Base cover
– Comfort cabin
13
Meaning of symbols
Please read and observe ...
Meaning of symbols

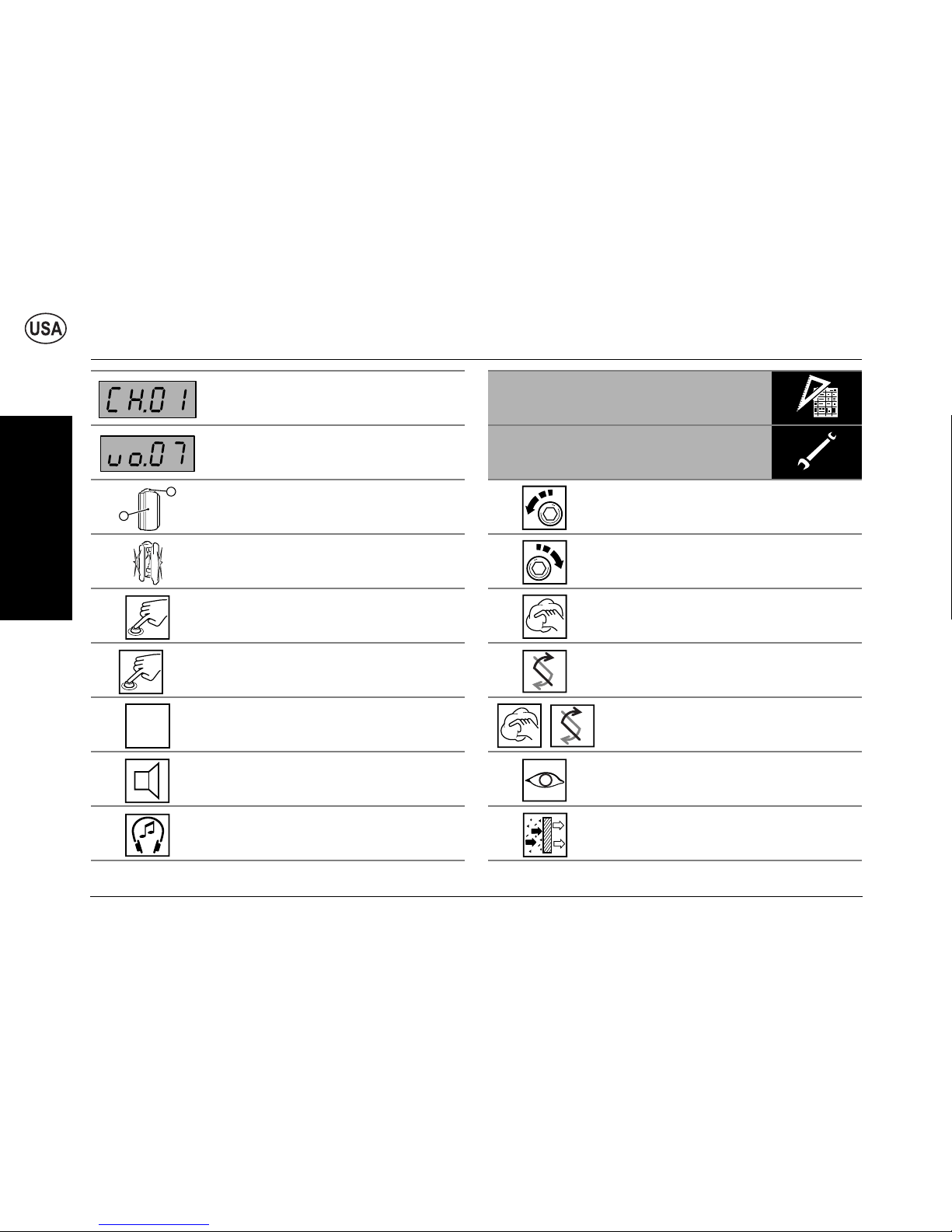

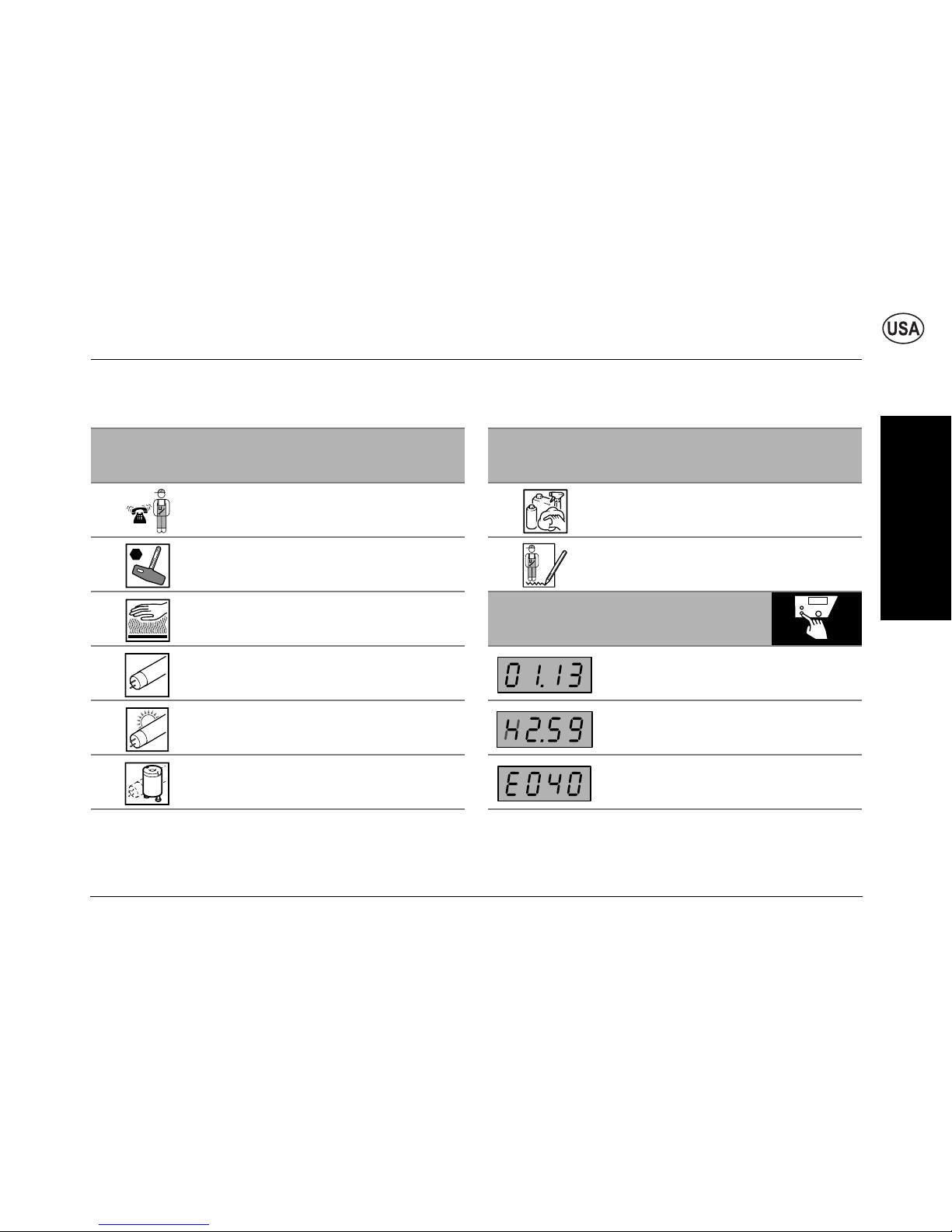

Symbols for Description, Operation and Maintenance
General Symbols
Inform Customer Service
Soltron key
Do not touch, hot surface!
Low-pressure lamp(s)
UV low-pressure lamp(s)
Starter for low-pressure lamp(s)
General Symbols
Cleaning and disinfectant agents
Part/article number (for orders)
Operation
Display of tanning time
Display of run-on time (fan run-on)
Fault display (example)
14
Meaning of symbols
Please read and observe ...

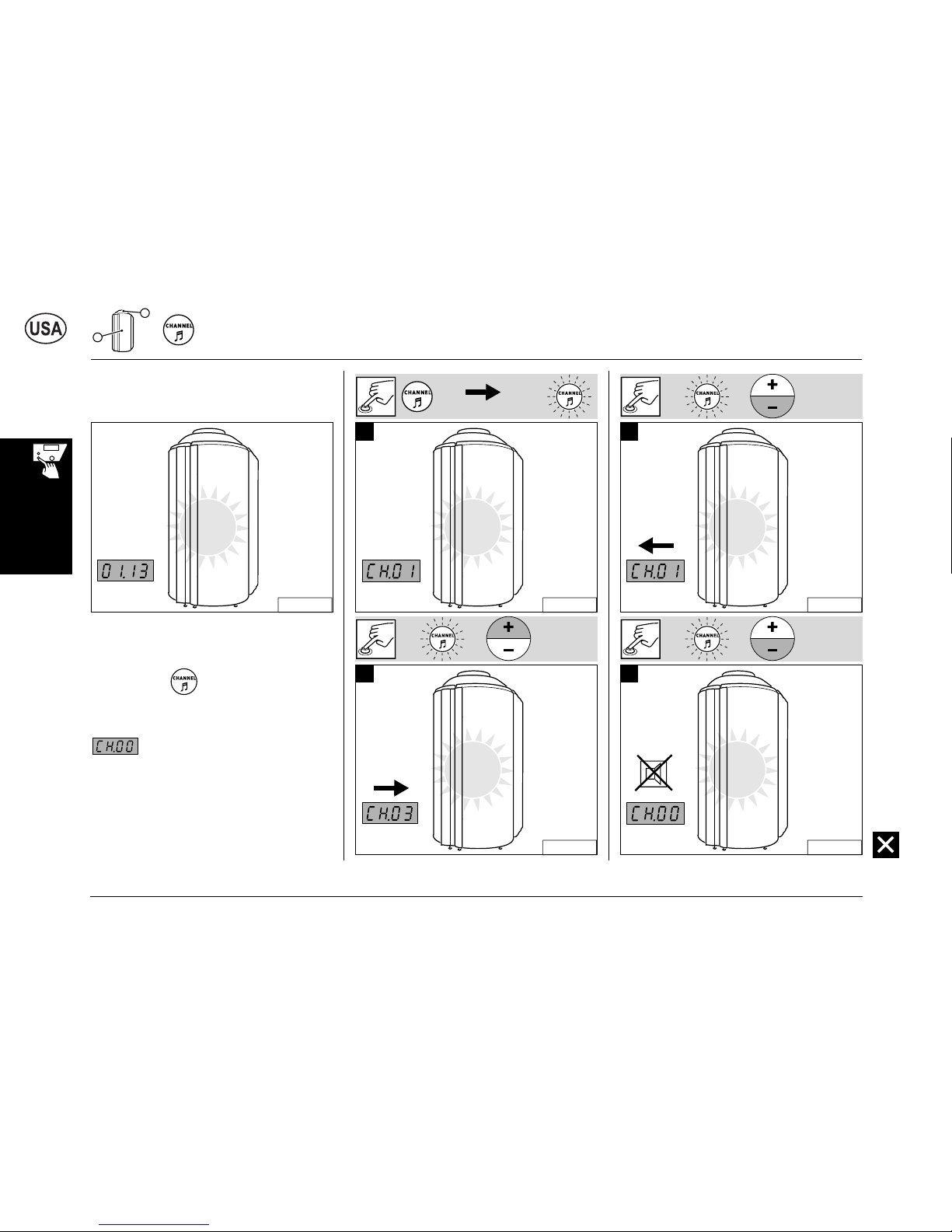

Display of Music Channel 1 (Channel 1)
Factory setting: 1 channel
Customer service can set up to 7 channels
Display when adjusting volume
Description
Accent lights
Press button
Press button for 2 seconds
Duration: 3 minutes
Loudspeaker
Headphone connection
2s
e.g.
0-3 min
Technical data
Maintenance
Unscrew/release screw
Tighten/lock screw
Cleaning
Replacing
Clean or replace depending on soiling
Visual inspection
Filter/filter mat
15
Meaning of symbols
Please read and observe ...
Continuation of work steps
on next page
End of work step
Presettings
Troubleshooting
...
16
Guidelines / Export /
Equipment / Accessories
Please read and observe ...
Guidelines
This device was built according to UL STD 482, certified to CAN/CSA
STD C22.2 2 No. 224.
CAUTION – Air inflow and outflow
Do not change, obstruct or block the air inflow and outflow
area to the device or make any unauthorized changes to the
device. The manufacturer shall bear no liability for damage or
injuries resulting from such actions. See also Page 32.
Export
We would like to point out that the devices are exclusively intended for
use in the US and Canada, and may not be exported to other countries
and operated there! The manufacturer shall assume no liability whatsoever in case of non-observance! We explicitly emphasize that high liability risks may occur for the exporter an/or the operator in case of nonobservance.
Equipment
The equipment of the devices differs depending on the model.
In this instruction manual all standard and optional components/functions
are taken into account which must be observed during operation and/or
when performing maintenance.
The control panel is also affected by the differing equipment: Only those
buttons are visible that can be operated, i.e. the corresponding function
must be part of the equipment of the device.
Accessories
Some accessory parts are taken into account in the maintenance schedule beginning on Page 35, however this does not automatically mean that
your device is provided with this equipment.
An overview of the possible accessories is provided in the sales documentation.
17
Product information /
Maintenance and care
Please read and observe ...
Product information
Acrylic glass panels
The acrylic glass panels for the tanning devices are produced of acrylic
glass developed especially for this application. The acrylics used are characterized by a particularly high UV permeability and resistance, as well as
an easy-care, hygienic surface.
The acrylic glass panels are formed to their shapes for the specific devices in a technically complex production process. Despite state-of-the-art
production know-how, the presence of minor spots, air bubbles or
streaks in the acrylic panels is unavoidable. In addition, hairline cracks
can occur during operation.
These occurrences are material-dependent and are unavoidable in processing, however have no significant effect on the utility value and can
therefore not be recognized as defects.
Maintenance and care
Maintenance and care play a major role in deciding whether the device
meets the requirements placed on it in a satisfactory manner. The compliance with the specified maintenance intervals and the careful conducting of the maintenance and care work are therefore absolutely necessary
– see Page 35 ff.
The current operating hours of the parts requiring maintenance can be
displayed in the Presetting mode – see Page 48 ff.
Remount any protective devices (e.g. filter panels) after completing work.
CAUTION!
Only use original spare parts of the same type or compatible
parts! The use of other parts voids the conformity! Any liability
is excluded in case of damage or injury proven to be the result of the use of non-original spare parts.
Extreme danger! High voltage!
DANGER!
During maintenance work there is a danger of touching
live parts and receiving a fatal electrical shock.
• Disconnect device from power supply before
opening – also see Page 33.
• Do not reach behind covers, do not open the device
and do not replace lamps with the device switched
on.
18
Cleaning
Please read and observe ...
Cleaning
Acrylic glass surfaces
CAUTION!
Do not rub with a dry cloth – danger of scratching!
For fast, hygienic proper cleaning of acrylic glass surfaces,
use exclusively the specially developed fast disinfectant
cleaner Antifect
®
.
Other cleaning agents, especially concentrated disinfectants
or solvents (e.g. Lysoform, ethyl alcohol or other liquids
containing alcohol), may not be used for cleaning.
Failure to observe this voids all warranty claims.
Plastic surfaces
For cleaning the other plastic surfaces, it is best to use warm water and
a leather cloth. Never use aggressive cleaning agents containing alcohol,
e.g. the commercially available Sagrotan, or essential oils. These may
lead, in the long run, to damages not covered by the warranty.
During cleaning a slight discoloration of the leather cloth by the rubber
seals must be expected for production-related reasons.
Note:
Prevent damage to the acrylic glass and plastic surfaces. Remove rings, watches, bracelets etc. before the start of cleaning work.
Base cover
Wipe the base cover with a damp cloth and disinfect with Antifect® after
every use.
02756 / 0
19
Environmental protection
information / …
Please read and observe ...
Environmental protection information
Environmental Declaration – The JK Corporate Group
The JK corporate group is subject to the strict regulations of EC Directive
761/2001 and the standard DIN ISO 14001, and undergoes regular internal and external environment audits performed by trained auditors.
Environmental regulations – disposal of lamps
UV low-pressure lamps contain fluorescent materials and other waste
containing mercury.
According to the national waste disposal laws and in accordance with the
municipal waste regulations, proof must be provided of the proper disposal of UV lamps.
Your local environmental agency will be happy to assist you with the disposal of UV lamps.
General tanning instructions
Who can get a tan?
Anyone who also gets a tan in natural sunlight. Persons with sensitive
skin even tan more pleasantly and with fewer worries, as the radiation
dosage can be exactly defined with tanning devices.
Certain drugs – particularly those that produce photosensitivity – may
cause individuals under the influence of this type drug to experience adverse effects and those people should avoid exposure to UV sources of
all kinds. Doctors will advice people taking these drugs to possible adverse effects.
The speed and intensity with which someone tans are dependent on the
skin type and the individual melanin quantity in the skin. No two individual
skin tones are the same. A tan to one person may be different to another
and treatment length may vary.
What is Melanin?
The brownish pigment produced by special cells in the base layer of your
skin determines the individual's tan. As the skin is exposed to the ultraviolet light, the melanin is activated and combines with protein cells that
rise to the skin's surface, thus producing a tan. The amount of melanin in
your body determines how quickly and dark you tan. The more melanin
produced and exposure time an individual has, the faster and deeper the
individual will tan.
20
General tanning
instructions
Please read and observe ...
Note:
The tan produced by the tanning unit is a deep, rich “Cosmetic”
tan. However, regardless of how dark an individual may tan on
his system, it will not provide adequate protection against overexposure to natural sunlight or UVB tanning systems.
Which tanning times are recommended?
Although there is virtually no reason to worry about sunburn with the UV
tanning method, some consideration should initially be given to individual
skin sensitivity.
Once you have a tan, 1 to 2 tanning sessions per week are usually sufficient to maintain it.
Should you use sun screen?
No! It is recommended to not use sun screens, oils or lotions intended for
outdoor use. Cosmetic sun screens with a sun protection factor (SPF) are
intended to filter out the sun's aggressive rays. However, the light of our
tanning devices only contains extremely small quantities of comparable
rays, making this kind of protection unnecessary. On the contrary, the skin
should be thoroughly cleaned and dried before each sunbath. Many facial
makeups have oil bases and should be removed prior to a session.
Adequate ventilation of the room or booth housing the tanning device is
required for proper and comfortable operation. Your tanning device will
perform best at the ambient temperature of 75 °F to 90 °F.
It is recommended that, following a tanning session, a skin moisturizer be
applied. This promotes a smoother, more even looking tan.
Skin types
For the recommended exposure schedule (see page 5):
Skin type II (Fair):
This is the individual that usually burns easily and severely, tans minimally or lightly and peels.
Skin type III (Average):
Often referred to as “Average” complexion, burns moderately and tans
about average.
Skin type IV (Brown):
This individual burns minimally, tans easily and above average with each
exposure.
Skin type V (Dark Brown):
This individual’s system rarely burns, tans easily and substantially.
Danger of skin injuries and skin diseases!
DANGER!
Although UVA radiation is relatively harmless compared
to natural sunlight, excessive tanning times can lead to
the skin becoming red and to burns.
– Comply with the recommended tanning times,
see Page 5.
21
Operation
Operation
Please open this fold-out page.
Operation
Mandatory reading
Always read and follow all instructions for proper usage prior to allow
anybody using a tanning device. The operating instructions included with
this device must always be followed to prevent possible injuries or to reduce them to a minimum.
Inform users
• to use provided UV-blocking protective eyewear whenever the equipment is energized.
• to follow the exposure schedule in accordance with their skin type.
Failure to do so may result in overexposure.
A tanning system is not a toy. You cannot vary the strength of the lamps
in your unit.
Should you have any questions regarding the proper use of your tanning
system, contact Soltron Inc. at:
1-866-243-9861
8:00 a.m. to 5:00 p.m. (CST)
Note:
When describing the operation, the tanning device is often
shown with the door open. During tanning the door must always be closed.
No proper operation is possible with the door open.
WARNING – ultraviolet radiation!
WARNI NG!
Danger of skin injuries and skin diseases!
– The tanning device may never be used when a filter pa-
nel is missing or damaged, or the timer is defective!
22
04602 / 1
04528 / 0
V-60 Shuttle Turbo Plus
48
48
50
23
Operation
04455 / 1
Accessories
24
Operation
Tanning
Start and end of tanning
The device is started automatically with an internal or external timer and
automatically stopped after the preselected time. The fan continues to
run for approx. 3 minutes (fan delay) to sufficiently cool the device.
Note:
Timer instructions: see separate manual.
Preparation time
Before the UV lamps automatically go on, you have a few minutes to prepare yourself. During the preparation time you can switch on the UV
lamps at any time by pressing the START/STOP button.
– Close the outer door.
– Open the inner doors (comfort cabin).
– Remove your clothes and all jewelry.
– Remove make-up and other cosmetics.
– Remove glasses. Contact lenses can be worn under the protective
goggles.
– Put on the protective goggles.
– Close the inner doors.
– Stand upright in center of the device.
Depending on the controller, the tanning device starts up after a short
time automatically. The tanning device is operating when the UV lamps
are on and the fan is running.
If the device fails to start up when you have closed the door:
– Press START/STOP to start tanning.
04456 / 1
25
Operation

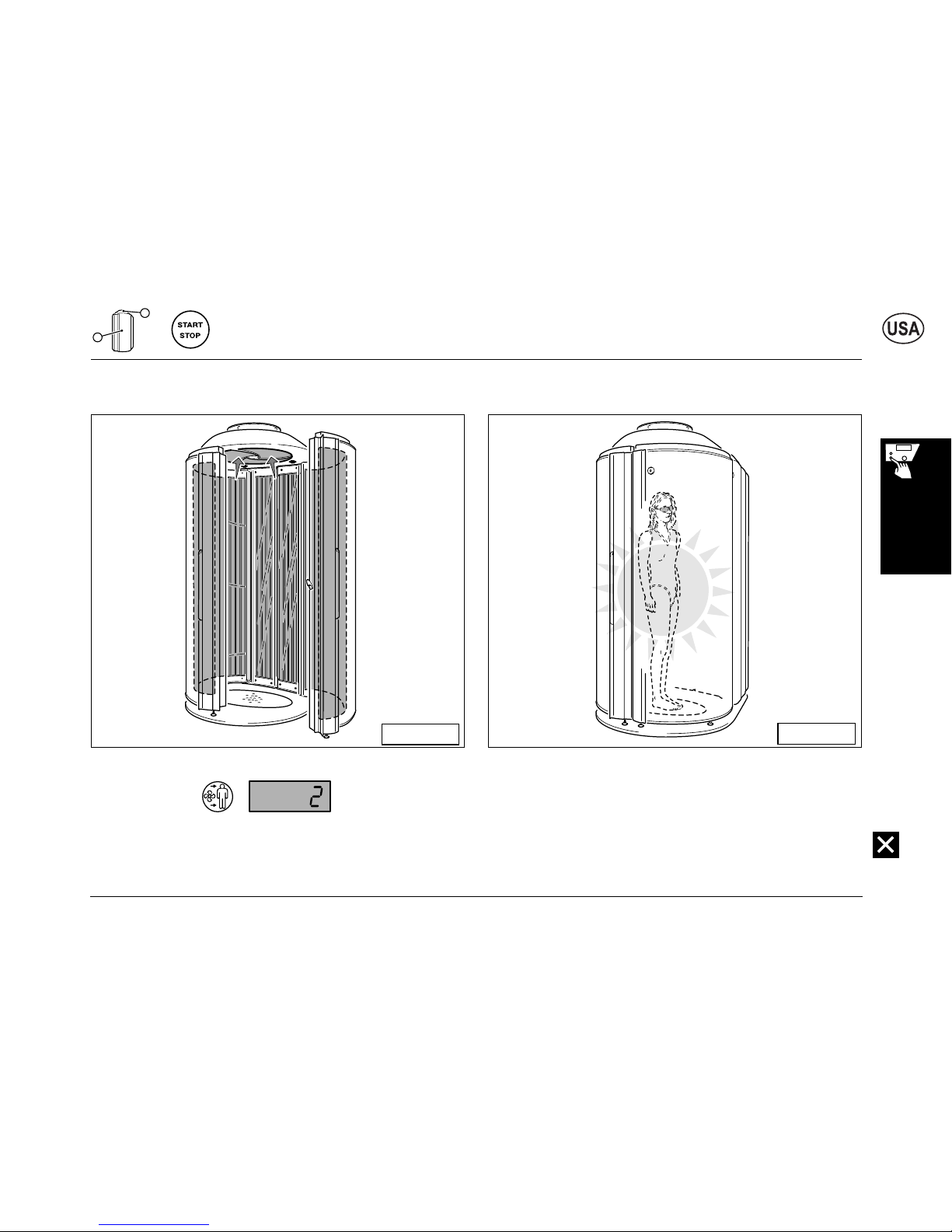

The tanning time can be interrupted during tanning by switching off the
UV lamps:
– Press START/STOP for three (3) seconds to pause or stop tanning.
– Press START/STOP again for three (3) seconds to restart the lamps.
Settings during start-up
04458 / 1
To interrupt tanning session
04456 / 1
26
Operation

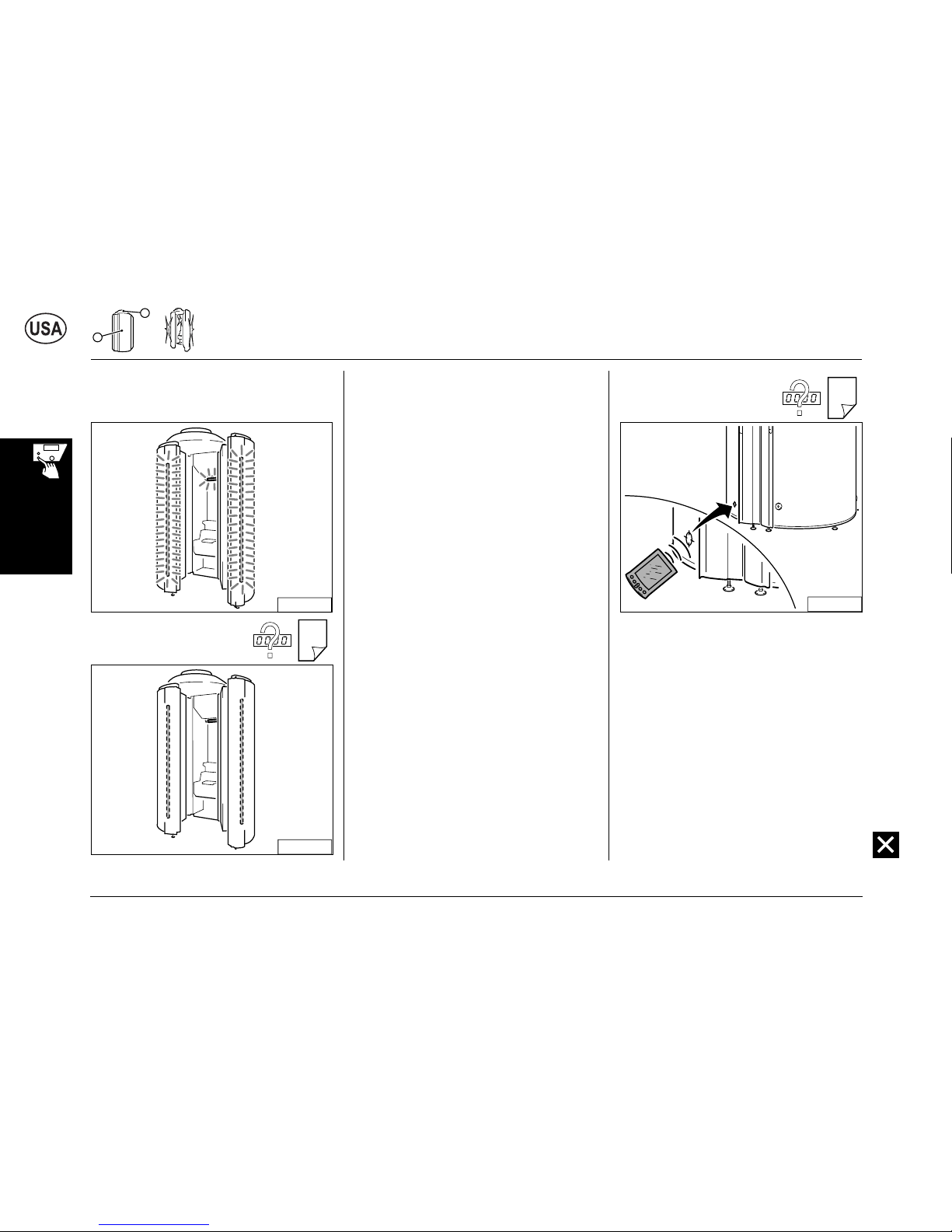

The accent lights are running during and after
the tanning session and are automatically
switched off at the end of the predefined time.
The running time of the accent lights in the
Standby mode can be changed with the presettings – see from Page 48 on.
Running time of accent lights
04459 / 0
48
04460 / 0
50
IR f
unction
IR
IR Function
04518 / 0
27
Operation
Surround cooling – Adjust speed
04461 / 0
– Press button .
– While the button flashes, press the plus or
minus button to change the intensity of the air
stream.
Press to activate.
04461 / 0
1
12
04461 / 0
2
12
04462 / 0
3
12
04463 / 0
4
28
Operation
Channel
04525 / 0
– Press button .
– While the button flashes, press the plus or
minus button to select a channel.
means: no Channel selected, there is
no sound, music is “OFF”.
Press to activate.
04525 / 0
1
21
04525 / 0
2
12
04525 / 0
3
12
04525 / 0
4
29
Operation
Vol ume
04525 / 0
– Press button .
– While the button flashes, press the plus or
minus button to change the volume.
Press to activate.
04525 / 0
1
48
12
04525 / 0
2
21
04525 / 0
3
Loading...
