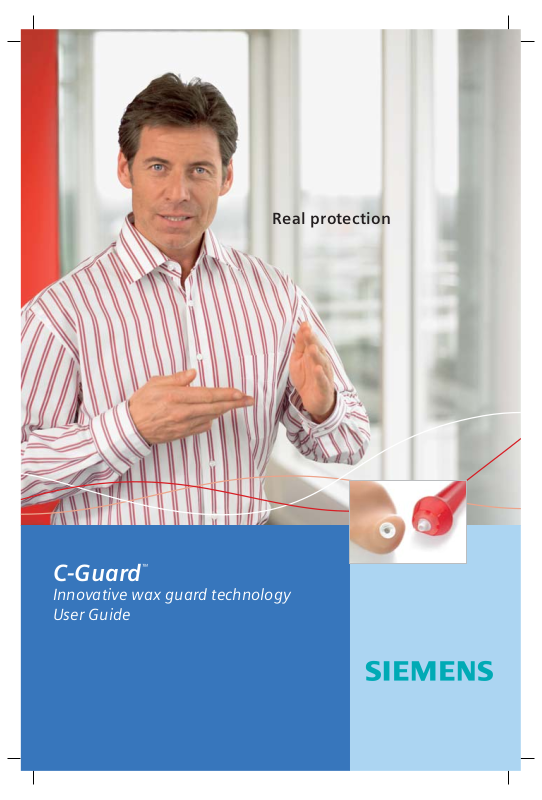

Real protection
C-Guard
™
Innovative wax guard technology
User Guide
Congratulations!
C-Guard –
The next generation wax guard
With C-Guard from Siemens you have received
the next generation of wax protection. The only
wax guard to use the latest in wax proofing tech-
nology, C-Guard effectively seals the sound outlet
with a membrane barrier to protect it from cerumen
and moisture. It works without affecting the hear-
ing instrument response because the membrane
is acoustically transparent.
Easy to maintain, easy to replace
Cerumen that has built up externally on your
C-Guard can be easily removed with a soft tissue.
For best results, it is recommended to change your
C-Guard approximately every three months.
Replacement is very simple. A special tool is enclosed.
Good lighting is all that’s needed to determine if your
C-Guard needs replacing.
membrane
C-Guard
General Precautions:
쐍
Inspect the membrane for integrity daily.
쐍 Clean as necessary with soft tissue.
쐍 Never use brushes or toothpick for cleaning.
쐍 Never use running water or immerse the hearing instrument.
Cleaning
Cerumen on the C-Guard membrane
might affect the sound quality.
Listen for any changes. In case wax has built-up,
it can be easily removed with a soft tissue.
dirty membrane clean membrane
Cleaning Instruction
쐍
Clean the C-Guard using a soft tissue.
쐍 No other tools are required.
쐍 Place a tissue around your finger
and use a gentle back-and-forth cleaning motion.
Precaution:
쐍
Never use pressure or rotating action while cleaning!
Inspection
After cleaning, hold the C-Guard to a light –
if light doesn’t reflect off of the C-Guard, then
a replacement is necessary. It’s that simple.
A replacement is also necessary, if the sound
quality hasn’t improved after cleaning.
o.k. broken
Replacement and Removal Tool Instruction
쐍
A special ergonomic tool was designed
for easy and efficient replacement operation.
쐍 One side for removal. One for replacement.
removal side replacement side
Removal
Removal of the Old C-Guard
1.
Press and turn the removal side of the tool clockwise
into the C-Guard until it stops.
2. This action will puncture the membrane
in the used C-Guard.
3. Gently pull the used C-Guard out of the
hearing instrument.
1. 2. 3.
Replacement
Insertion of the New C-Guard
4.
Using a tool with a new C-Guard in place,
push the large end with attached C-Guard into
the sound outlet of the hearing instrument.
5. Push firmly into place.
6. Remove the tool.
The hearing instrument is now ready for use.
click
4. 5. 6.
With the CE marking, Siemens confirms
compliance with the European Directive 93/42/EEC
concerning medical devices.
Siemens
Audiologische Technik GmbH
Gebbertstrasse 125
91058 Erlangen
Germany
Phone +49 (9131) 308-0
www.hearing-siemens.com
0123
Order No.: A91100-M5100-1279-01-7600
Printed in Germany
1016 9564
032006
Subject to change without prior notice.
