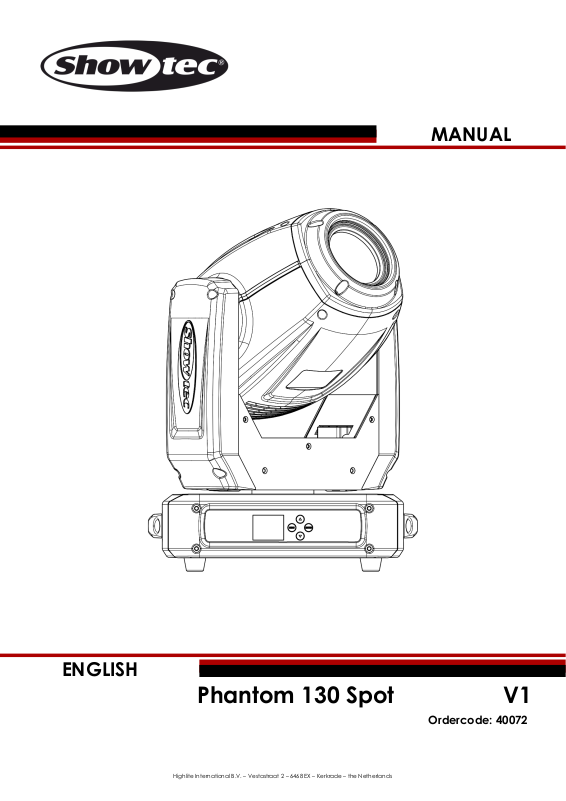

MANUAL
ENGLISH
Phantom 130 Spot |
V1 |
|
Ordercode: 40072 |
Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands
Phantom 130 Spot |
|
Table of contents |
|
Warning ............................................................................................................................................................................... |
2 |
Safety Instructions ......................................................................................................................................................... |
2 |
Operating Determinations .......................................................................................................................................... |
4 |
Rigging ............................................................................................................................................................................ |
4 |
Connection with the mains......................................................................................................................................... |
5 |
Return Procedure.......................................................................................................................................................... |
5 |
Claims.............................................................................................................................................................................. |
5 |
Description of the device................................................................................................................................................. |
6 |
Features .......................................................................................................................................................................... |
6 |
Frontside.......................................................................................................................................................................... |
6 |
Backside ......................................................................................................................................................................... |
7 |
Installation........................................................................................................................................................................... |
7 |
Set Up and Operation ....................................................................................................................................................... |
7 |
Control Modes............................................................................................................................................................... |
8 |
One Phantom (Auto, Manual) ................................................................................................................................ |
8 |
One Phantom (Sound-controlled) ......................................................................................................................... |
8 |
Multiple Phantoms (Master/Slave control) ........................................................................................................... |
8 |
Multiple Phantoms (DMX Control) .......................................................................................................................... |
9 |
Fixture Linking............................................................................................................................................................... |
10 |
Data Cabling............................................................................................................................................................... |
10 |
Control Panel ............................................................................................................................................................... |
11 |
Control Mode .............................................................................................................................................................. |
11 |
DMX Addressing .......................................................................................................................................................... |
11 |
Menu Overview........................................................................................................................................................... |
12 |
Main Menu Options.................................................................................................................................................... |
13 |
DMX Addressing .......................................................................................................................................................... |
13 |
Built-in Programs Mode .............................................................................................................................................. |
14 |
1. DMX Mode ............................................................................................................................................................ |
14 |
2. Slave Mode........................................................................................................................................................... |
14 |
3. Auto Mode............................................................................................................................................................ |
14 |
4. Sound-controlled Mode ..................................................................................................................................... |
14 |
5. Manual Mode ...................................................................................................................................................... |
15 |
Advanced Settings..................................................................................................................................................... |
16 |
System Information ..................................................................................................................................................... |
16 |
DMX Channels............................................................................................................................................................. |
17 |
12 Channels .............................................................................................................................................................. |
17 |
16 Channels .............................................................................................................................................................. |
19 |
Maintenance.................................................................................................................................................................... |
23 |
Replacing the Fuse..................................................................................................................................................... |
23 |
Replacing a Gobo From the Rotating Gobo Wheel ........................................................................................... |
23 |
Glass Gobo Orientation............................................................................................................................................. |
24 |
Rotating Gobo Wheel + Static Gobo Wheel + Color Wheel ............................................................................. |
25 |
Troubleshooting ............................................................................................................................................................... |
26 |
No Light......................................................................................................................................................................... |
26 |
No Response to DMX.................................................................................................................................................. |
26 |
Product Specifications.................................................................................................................................................... |
28 |
Dimensions........................................................................................................................................................................ |
29 |
Ordercode: 40072 |
1 |
|
|
|
|
|
|
Phantom 130 Spot
Warning
Unpacking Instructions
Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure that all parts are present, and have been received in good condition. Notify the dealer immediately and retain packing material for inspection if any parts appear damaged from shipping or the carton itself shows signs of mishandling. Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing.
Your shipment includes:
Showtec Phantom 130 Spot
Pro power cable (1,5 m)
2 x quick lock brackets
User manual
LED Expected Lifespan
LEDs gradually decline in brightness over time. HEAT is the dominant factor that leads to the acceleration of this decline. Packaged in clusters, LEDs exhibit higher operating temperatures than in ideal or singular optimum conditions. For this reason, when all color LEDs are used at their fullest intensity, life of the LEDs is significantly reduced. If improving the lifespan is of higher priority, place care in providing for lower operational temperatures. This may include climatic-environmental and the reduction of overall projection intensity.
Safety Instructions
Every person involved with the installation, operation and maintenance of this device has to:
be qualified
follow the instructions of this manual
Before the initial start-up, please make sure that there is no damage caused by transportation. Should there be any, consult your dealer and do not use the device.
To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to follow the safety instructions and warning notes contained in this manual.
Please consider that damages caused by manual modifications to the device are not subject to warranty.
This device contains no user-serviceable parts. Refer servicing to qualified technicians only.
Ordercode: 40072 |
2 |
|
|
|
|
|
|
Phantom 130 Spot
IMPORTANT:
The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual or any unauthorized modification to the device.
•Never let the power cord come into contact with other cables! Handle the power cord and all connections with the mains with particular caution!
•Never remove warning or informative labels from the unit.
•Never use anything to cover the ground contact.
•Never lift the fixture holding it by the projector-head, as the mechanics may be damaged. Always hold the fixture by the transport handles.
•Never place any material over the lens.
•Never look directly into the light source.
•Never leave any cables lying around.
•Never loosen the screws of the rotating gobo otherwise you risk opening of the ball bearing.
•Do not insert objects into air vents.
•Do not connect this device to a dimmer pack.
•Do not switch the device on and off in short intervals, as this will reduce the device’s life.
•Do not touch the device’s housing bare-handed during its operation (housing becomes very hot). Allow the fixture to cool for at least 5 minutes before handling.
•Do not shake the device. Avoid brute force when installing or operating the device.
•Only use the device indoors, avoid contact with water or other liquids.
•Only operate the fixture after having checked if the housing is firmly closed and all screws are tightly fastened.
•Only operate the device after having familiarized with its functions.
•Avoid flames and do not put close to flammable liquids or gases.
•Always keep the case closed while operating.
•Always allow a free air space of at least 50 cm around the unit for ventilation.
•Always disconnect power from the mains, when device is not used or before cleaning! Only handle the power cord holding it by the plug. Never pull out the plug by tugging the power cord.
•Make sure that the device is not exposed to extreme heat, moisture or dust.
•Make sure that the available voltage is not higher than stated on the rear panel.
•Make sure that the power cord is never crimped or damaged. Check the device and the power cord from time to time.
•If the lens is obviously damaged, it has to be replaced, so that its functions are not impaired due to cracks or deep scratches.
•If device was dropped or struck, disconnect mains power supply immediately. Have a qualified engineer inspect for safety before operating.
•If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your device. Leave the device switched off until it has reached room temperature.
•If your Showtec device fails to work properly, discontinue the use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service.
•For adult use only. Moving head must be installed beyond the reach of children. Never leave the unit running unattended.
•Never attempt to bypass the thermostatic switch or fuses.
•For replacement use fuses of same type and rating only.
•The user is responsible for correct positioning and operating of the Phantom. The manufacturer will not accept liability for damages caused by the misuse or incorrect installation of this device.
•This device falls under protection class I. Therefore it is essential to connect the yellow/green conductor to earth.
•Repairs, servicing and electric connection must be carried out by a qualified technician.
•WARRANTY: Till one year after date of purchase.
Ordercode: 40072 |
3 |
|
|
|
|
|
|
Phantom 130 Spot
Operating Determinations
•This device is not designed for permanent operation. Consistent operation breaks will ensure that the device will serve you for a long time without defects.
•The minimum distance between light output and the illuminated surface must be bigger than 1 meter.
•The maximum ambient temperature ta = 40°C must never be exceeded.
•The relative humidity must not exceed 50 % with an ambient temperature of 40°C.
•If this device is operated in any other way than the one described in this manual, the product may suffer damages and the warranty becomes void.
•Any other operation may lead to dangers like short-circuit, burns, electric shock, crash, etc.
You endanger your own safety and the safety of others!
Rigging
Please follow the European and national guidelines concerning rigging, trussing and all other safety issues.
Do not attempt the installation yourself !
Always let the installation be carried out by an authorized dealer !
Procedure:
•If the Phantom is lowered from the ceiling or high joists, professional trussing systems have to be used.
•Use a clamp to mount the Phantom, with the mounting bracket, to the trussing system.
•The Phantom must never be fixed swinging freely in the room.
•The installation must always be secured with a safety attachment, e.g. an appropriate safety net or safety cable.
•When rigging, derigging or servicing the projector, always make sure, that the area below the installation site is secured and that there are not any unauthorized people around.
The Phantom can be placed on a flat stage floor or mounted to any kind of truss with quick locks and a clamp.
Improper installation can cause serious injuries and/or damage of property!
Ordercode: 40072 |
4 |
|
|
|
|
|
|
Phantom 130 Spot
Connection with the mains
Connect the device to the mains with the power-plug.
Always check if the right color cable is connected to the right place.
International |
EU Cable |
UK Cable |
US Cable |
Pin |
L |
BROWN |
RED |
YELLOW/COPPER |
PHASE |
N |
BLUE |
BLACK |
SILVER |
NEUTRAL |
|
YELLOW/GREEN |
GREEN |
GREEN |
PROTECTIVE GROUND |
Make sure that the device is always properly connected to the earth!
Improper installation can cause serious injuries and/or damage of property!
Return Procedure
Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. Call Highlite 0031-455667723 or mail aftersales@highlite.nl and request an RMA prior to shipping the fixture. Be prepared to provide the model number, serial number and a brief description of the cause for the return. Be sure to properly pack fixture, any shipping damage resulting from inadequate packaging is the customer’s responsibility. Highlite reserves the right to use its own discretion to repair or replace product(s). As a suggestion, proper UPS packing or double-boxing is always a safe method to use.
Note: If you are given an RMA number, please include the following information on a piece of paper inside the box:
01) Your name
02) Your address
03) Your phone number
04) A brief description of the symptoms
Claims
The client has the obligation to check the delivered goods immediately upon delivery for any shortcomings and/or visible defects, or perform this check after our announcement that the goods are at their disposal. Damage incurred in shipping is the responsibility of the shipper; therefore the damage must be reported to the carrier upon receipt of merchandise.
It is the customer's responsibility to report and submit claims with the shipper in the event that a fixture is damaged due to shipping. Transportation damage has to be reported to us within one day after receipt of the delivery.
Any return shipment has to be made post-paid at all times. Return shipments must be accompanied with a letter defining the reason for return shipment. Non-prepaid return shipments will be refused, unless agreed otherwise in writing.
Complaints against us must be prepared in writing or sent by fax within 10 working days after receipt of the invoice. After this period complaints will not be handled anymore.
Complaints will only then be considered if the client has so far complied with all parts of the agreement, regardless of the agreement from which the obligation is resulting.
Ordercode: 40072 |
5 |
|
|
|
|
|
|
Phantom 130 Spot
Description of the device
Features
The Phantom 130 Spot is a moving head with high output and great effects.
•Input voltage: 100-240V AC, 50/60Hz
•Power consumption: 270W
•Light source: 1 x 130W White LED
•Light output: 5200 Lux @ 5 m (at 12°)
•Dimmer: 0-100%
•Strobe: 0-20Hz
•Beam angle: 12° - 21°
•Focus: Motorized focus
•DMX control: via standard DMX controller
•DMX channels: 12, 16 channels
•Built-in automatic programs + built-in sound-activated programs
•Reverse Pan / Tilt movement
•Special: Pan / Tilt movement blackout
•Pan 0º -- 540º, Tilt 0º -- 270º
•Pan/Tilt resolution: 16 bit
•Control: Stand alone, Manual, Sound-controlled, Master/Slave, DMX-512
•Color wheel: 7 dichroic colors + white
•Rotating gobo wheel: 6 metal gobos + 1 glass gobo
Gobo size: Glass gobo: 23,75 mm (gobo size); 21 mm (image diameter); 1,31 mm (gobo thickness)
Metal gobo: 24 mm (gobo size); 20 mm (image diameter); 0,5 mm (gobo thickness)
•Static gobo wheel: 7 gobos
•Color functions: Split colors, Rainbow-flow effect
•Gobo functions: Gobo-flow effect, Gobo shake
•Rotation: Bi-directional
•Prism: 3-facet prism
•Housing: Metal & flame-retardant plastic
•Connection: 3-pin XLR IN/OUT, Pro power connector IN/OUT
•Fuse: F5AL/250V
•Dimensions: 330 x 210 x 460 mm (LxWxH)
•Weight: 13,1 kg
Frontside
Fig. 01
01) 1 x 130W White LED
02) LCD display + control buttons
Ordercode: 40072 |
6 |
|
|
|
|
|
|
Phantom 130 Spot
Backside
Fig. 02
03) 100-240V Pro power connector IN
04) 100-240V Pro power connector OUT
05) Ground/earth connection
06) Fuse F5AL/250V
07) 3-pin DMX signal connector IN
08) 3-pin DMX signal connector OUT
Installation
Remove all packing materials from the Phantom 130 Spot. Check if all foam and plastic padding is removed. Connect all cables.
Do not supply power before the whole system is set up and connected properly. Always disconnect from electric mains power supply before cleaning or servicing. Damages caused by non-observance are not subject to warranty.
Set Up and Operation
Follow the directions below, as they pertain to your preferred operation mode.
Before plugging the unit in, always make sure that the power supply matches the product specification voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa. Connect the device to the main power supply.
Ordercode: 40072 |
7 |
|
|
|
|
|
|
Phantom 130 Spot
Control Modes
There are 5 modes: |
• |
Stand-alone (Auto) |
|
• |
Manual |
|
• |
Sound-controlled |
|
• |
Master/Slave |
|
• |
DMX-512 (12CH, 16CH) |
One Phantom (Auto, Manual)
01) Fasten the effect light to a firm trussing. Leave at least 0,5 meter on all sides for air circulation. 02) Plug the end of the electric mains power cord into a proper electric power supply socket.
03)When the Phantom is not connected with a DMX cable, it functions as a stand-alone device. Please see pages 14-15 for more information about the Auto mode and Manual mode.
One Phantom (Sound-controlled)
01) Fasten the effect light to a firm trussing. Leave at least 0,5 meter on all sides for air circulation. 02) Plug the end of the electric mains power cord into a proper electric power supply socket.
03)Turn on the music. If the device is set to sound-control, then the Phantom will react to the beat of the music. Please see page 14 for more information about the sound-control options.
Multiple Phantoms (Master/Slave control)
01) Fasten the effect light onto firm trussing. Leave at least 0,5 meter on all sides for air circulation. 02) Use a 3-pin XLR cable to connect the Phantom.
The pins: |
01) |
Earth |
|
02) |
Signal - |
03)Signal +
03)Link the units as shown in fig. 03. Connect the first unit's DMX "out" socket with the second unit's "in" socket, using a DMX-signal cable. Repeat this process to link the second, third, and fourth units. You can use the same functions on the master device as described on page 14-15 (Auto mode, Manual mode or Sound-controlled mode). This means that you can set your desired operation mode on the master device and all slave devices will react the same as the master device.
Multiple Phantoms (Master/Slave control)
Fig. 03
Ordercode: 40072 |
8 |
|
|
|
|
|
|
Phantom 130 Spot
Multiple Phantoms (DMX Control)
01) Fasten the effect light to a firm trussing. Leave at least 0,5 meter on all sides for air circulation. 02) Always use a safety cable (ordercode 70140 / 70141).
03) Use a 3-pin XLR cable to connect the Phantoms and other devices.
04)Link the units as shown in fig. 04. Connect the first unit's DMX "out" socket with the second unit's "in" socket, using a DMX signal cable. Repeat this process to link the second, third, and fourth units.
05)Supply electric power: Plug electric mains power cords into each unit's Pro power socket, then plug the other end of the mains power cord into proper electric power supply sockets, starting with the first unit. Do not supply power before the whole system is set up and connected properly.
Multiple Phantoms DMX Set Up
Fig. 04
Note : Link all cables before connecting electric power
Ordercode: 40072 |
9 |
|
|
|
|
|
|
Loading...
