LC-60LE640X

LCD COLOUR TELEVISION

OPERATION MANUAL

ENGLISH

Dear SHARP customer

Thank you for your purchase of the SHARP LCD colour TV product. To ensure safety and many years of trouble-free operation of your product, please read Important safety precautions carefully before using this product.

Contents

ENGLISH

Introduction .................................................................3

Precautions For Daily Use .......................................3

Important safety precautions ...................................3

Supplied accessories ..............................................6

Optional accessories ..............................................6

Preparation .................................................................7

Protection against overturning ................................7

Attaching the stand unit ..........................................8

Connecting the TV ..................................................9

Using the remote control unit ................................10

Inserting the batteries .......................................10

Angle of the remote control unit ........................10

Cautions regarding the remote control unit ....... 10

Part names and functions ........................................11

TV (front view) .......................................................11

TV (rear view) ........................................................12

Remote control unit ..............................................13

Quick guide ...............................................................14

What is the HOME? .............................................. 14

Basic operation ................................................ 14

Initial auto installation ............................................ 16

Checking signal strength and channel strength

(DTV only) ...........................................................16

Watching TV ..............................................................17

Daily operation ...................................................... 17

Turning on/off the power – using the control

panel of the TV ............................................... 17

Turning on/off the power – using the remote

control unit ..................................................... 17

Watching TV (DTV only) ....................................18

CH list ..............................................................18

Programme information (DTV only) ................... 18

Selecting an external video source ...................18

Switching the digital audio format (DTV only) .... 19

Switching the analogue audio format ................ 19

Teletext ................................................................. 20

EPG (DTV only) ..................................................... 22

Useful settings for using EPG ........................... 22

Selecting a programme using EPG

(DTV only) ......................................................23

Timer setup using EPG ....................................25

Cancelling the timer setup ................................25

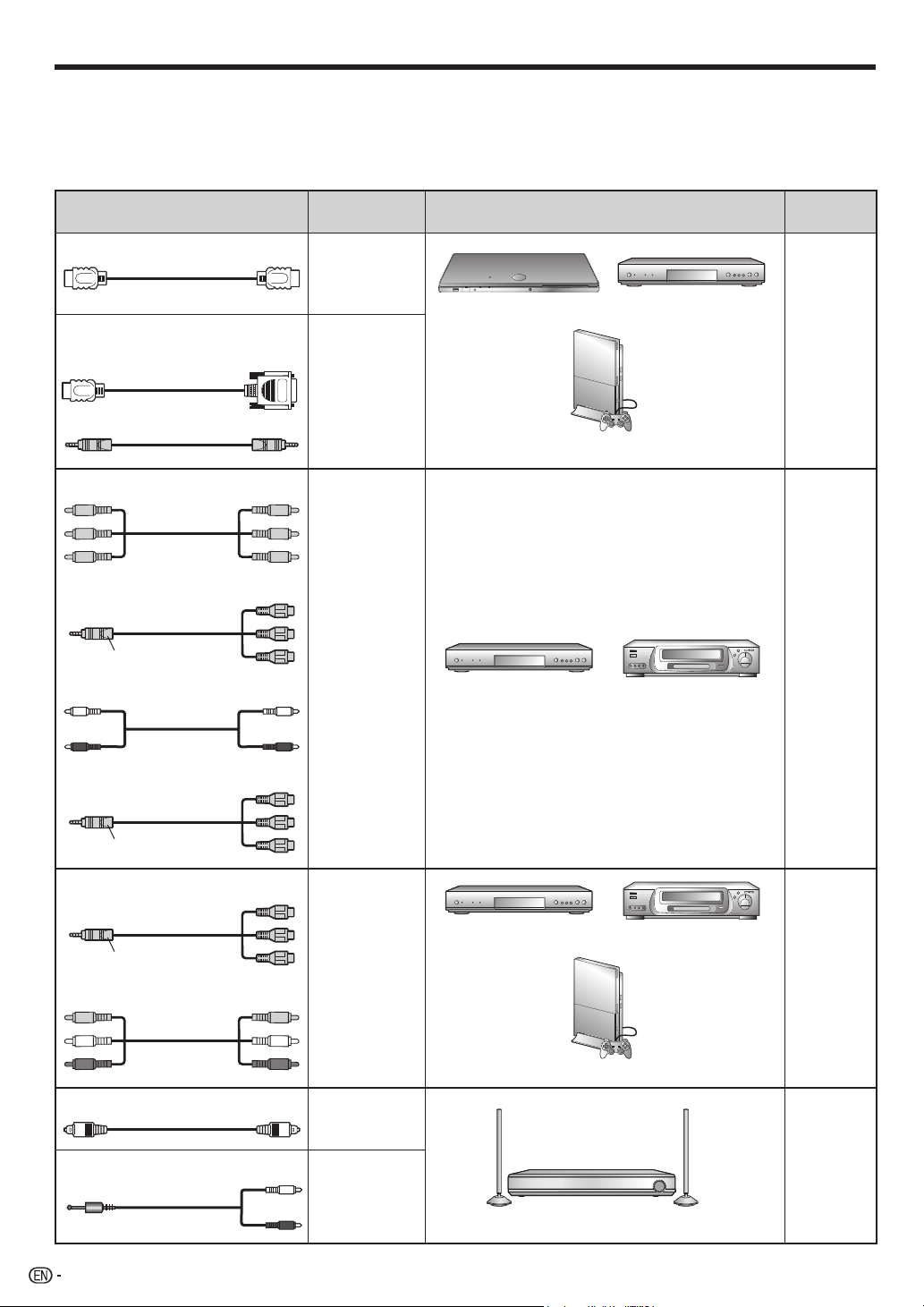

Connecting external devices ................................... 26

Video connections ................................................ 27

HDMI connection .............................................27

Component connection .................................... 28

VIDEO connection ............................................28

Audio connections ................................................29

Speaker/amplifier connection ........................... 29

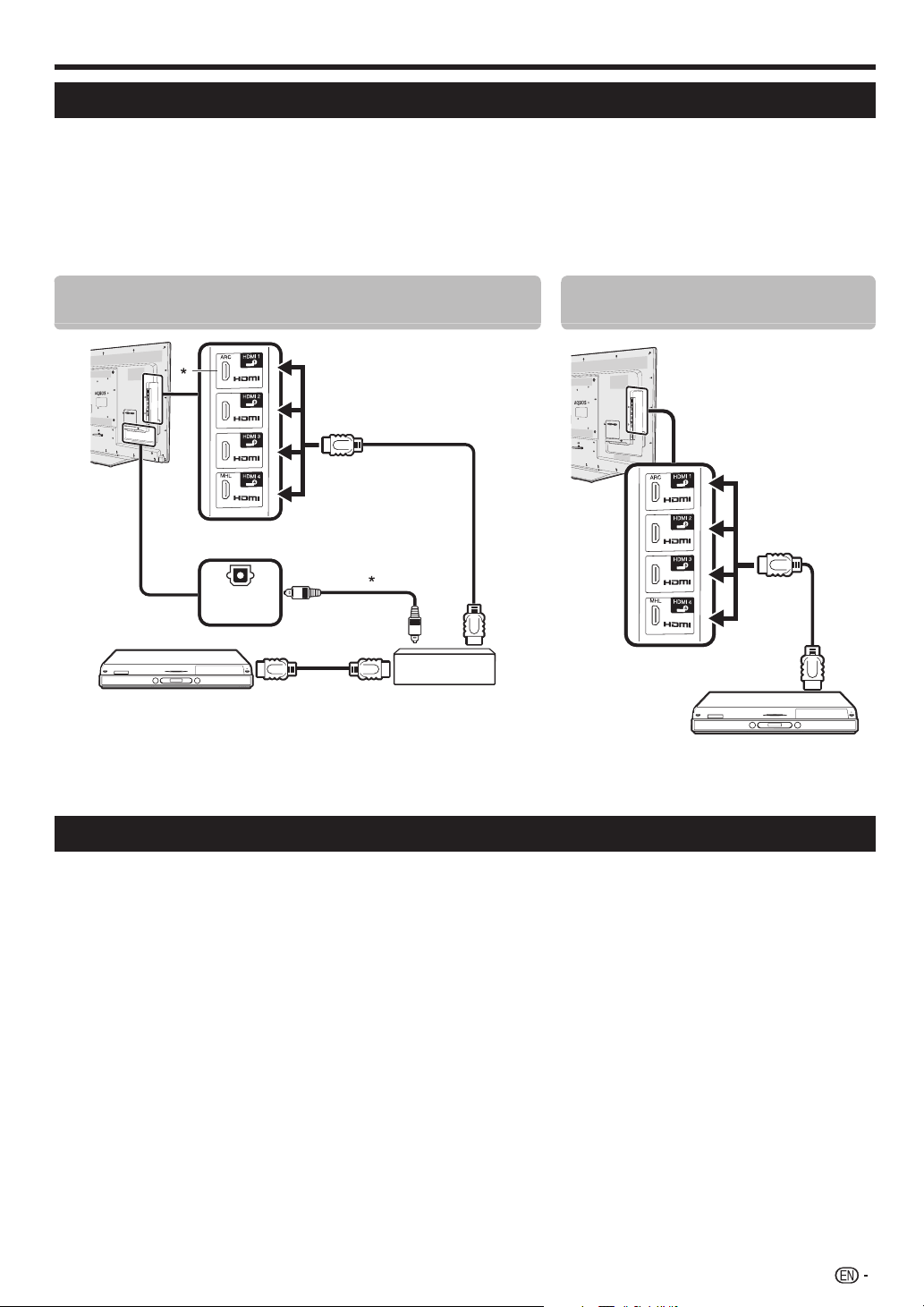

AQUOS LINK .............................................................30

Controlling HDMI devices using AQUOS LINK.......30

AQUOS LINK connection ...................................... 31

Regarding “Select recording device” .....................31

Operating an AQUOS LINK device ........................ 32

Using a Smartphone with the TV ........................... 33

Basic adjustment ...................................................... 35

Picture settings .....................................................35

Audio settings ....................................................... 37

Power save settings .............................................. 39

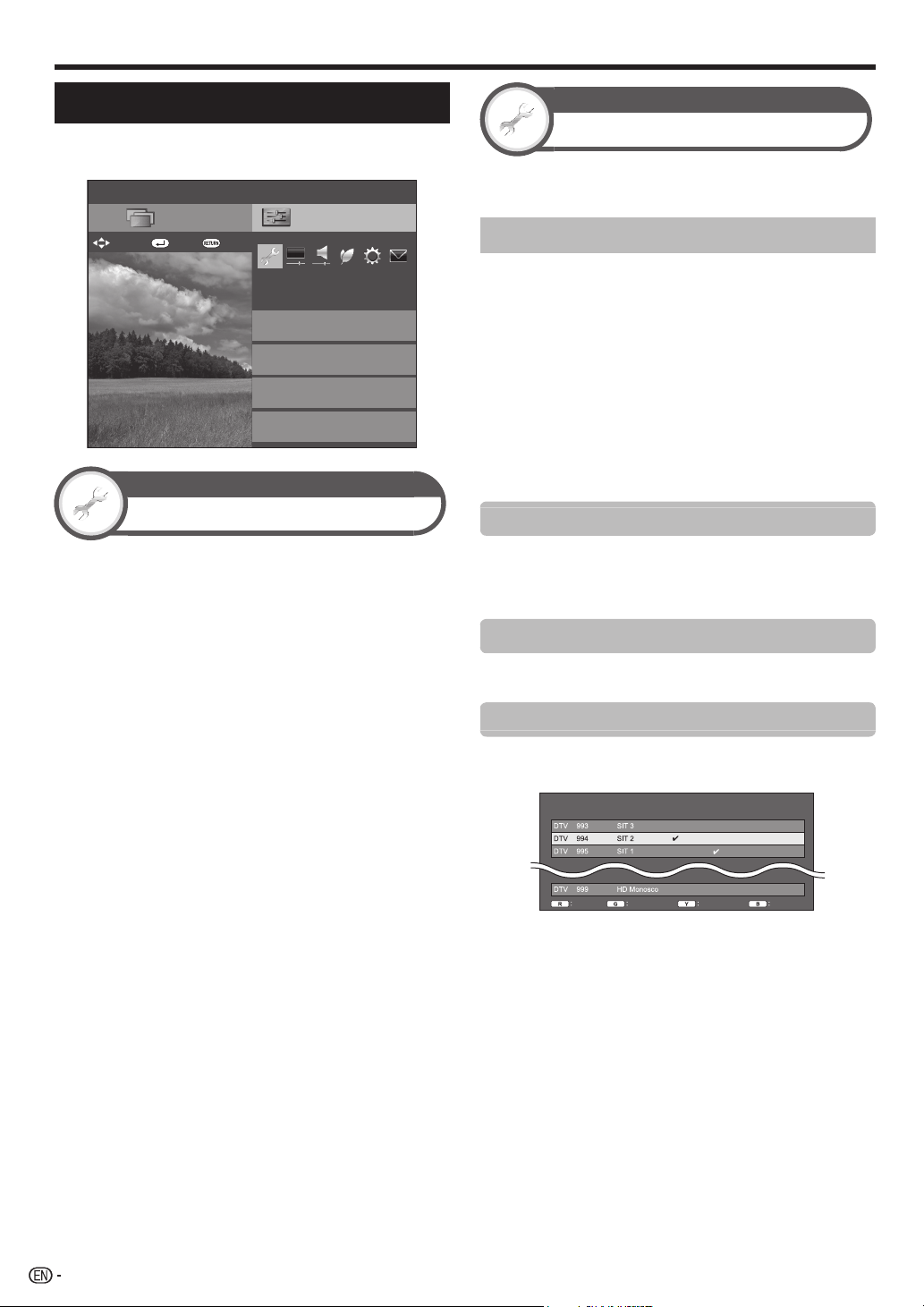

Channel settings ...................................................40

Digital setting (DTV only) ...................................40

Analogue setting ..............................................41

Sort .................................................................. 42

Erase programme ............................................42

Useful viewing functions ..........................................42

TV Start-up time setting ........................................42

Individual setting – Password ................................43

Individual setting – Time ........................................ 43

Individual setting – Language ................................44

Optional features settings .....................................45

Selecting the picture size manually ...................45

Selecting the WSS picture size automatically .... 45

Setting audio input ........................................... 46

Skipping specified inputs .................................. 46

Selecting the HDMI picture size automatically ... 47

Adjusting image position ..................................48

Additional features ................................................ 49

Network function ......................................................49

Playing Back Files from a Portable Device or PC ... 49

Easy share setting ............................................49

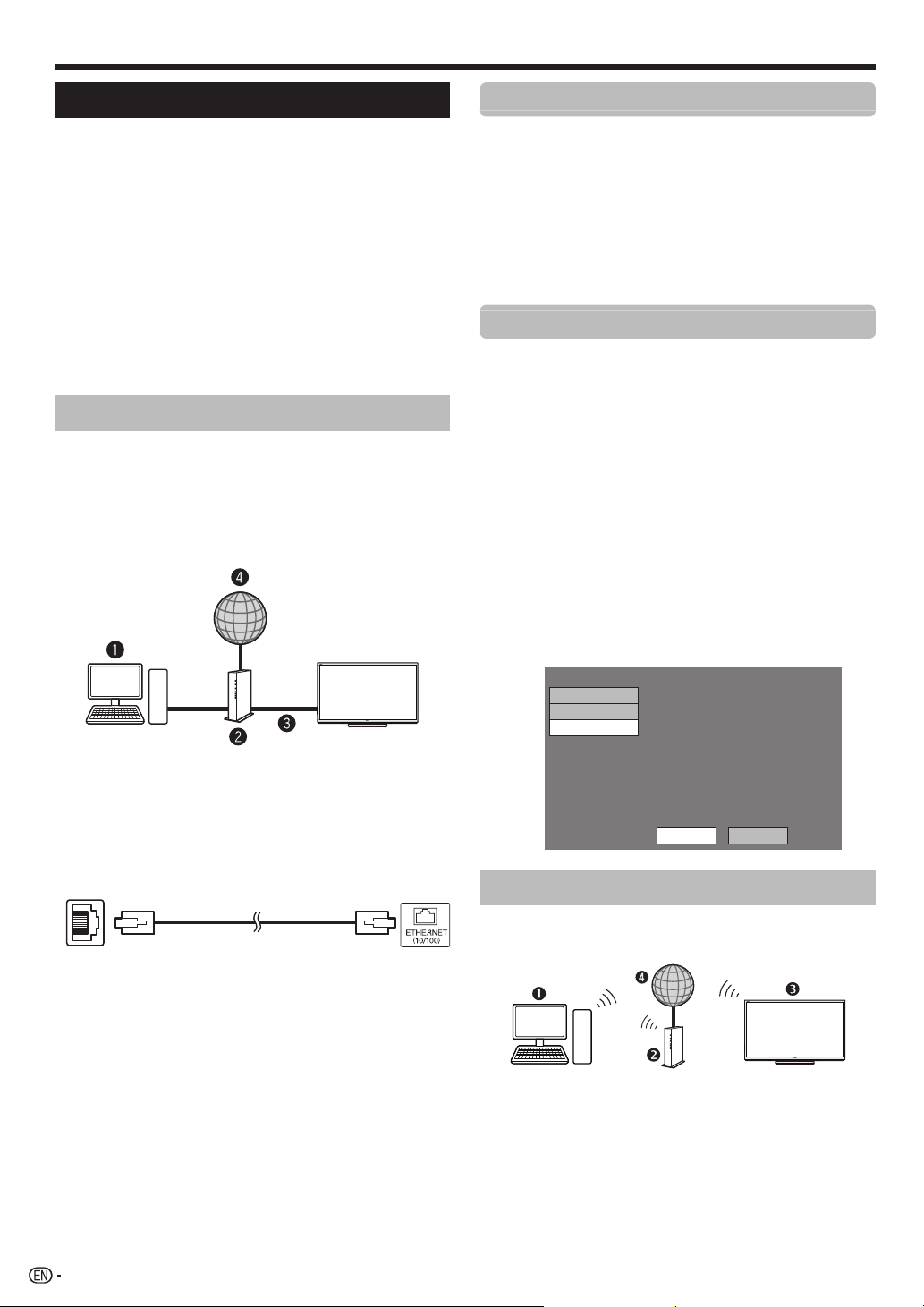

Connecting to the network ....................................50

Wired installation .............................................. 50

Wireless installation .......................................... 50

Specifications (Wireless LAN USB adapter) ...........52

Optional accessories (Wireless LAN USB

adapter) .............................................................. 52

Using AQUOS.NET ...............................................53

Clear browser setting ............................................ 54

About links ............................................................ 54

Other useful features ...............................................56

Using a USB device ..............................................56

Connecting a USB device ................................56

USB storage device registration .......................56

Time shift + (DTV only) .......................................... 57

Time shift recording .......................................... 58

Time shift timer setting .....................................58

Timer list ..........................................................58

Time shift playback ..........................................59

USB media/Home network ................................... 61

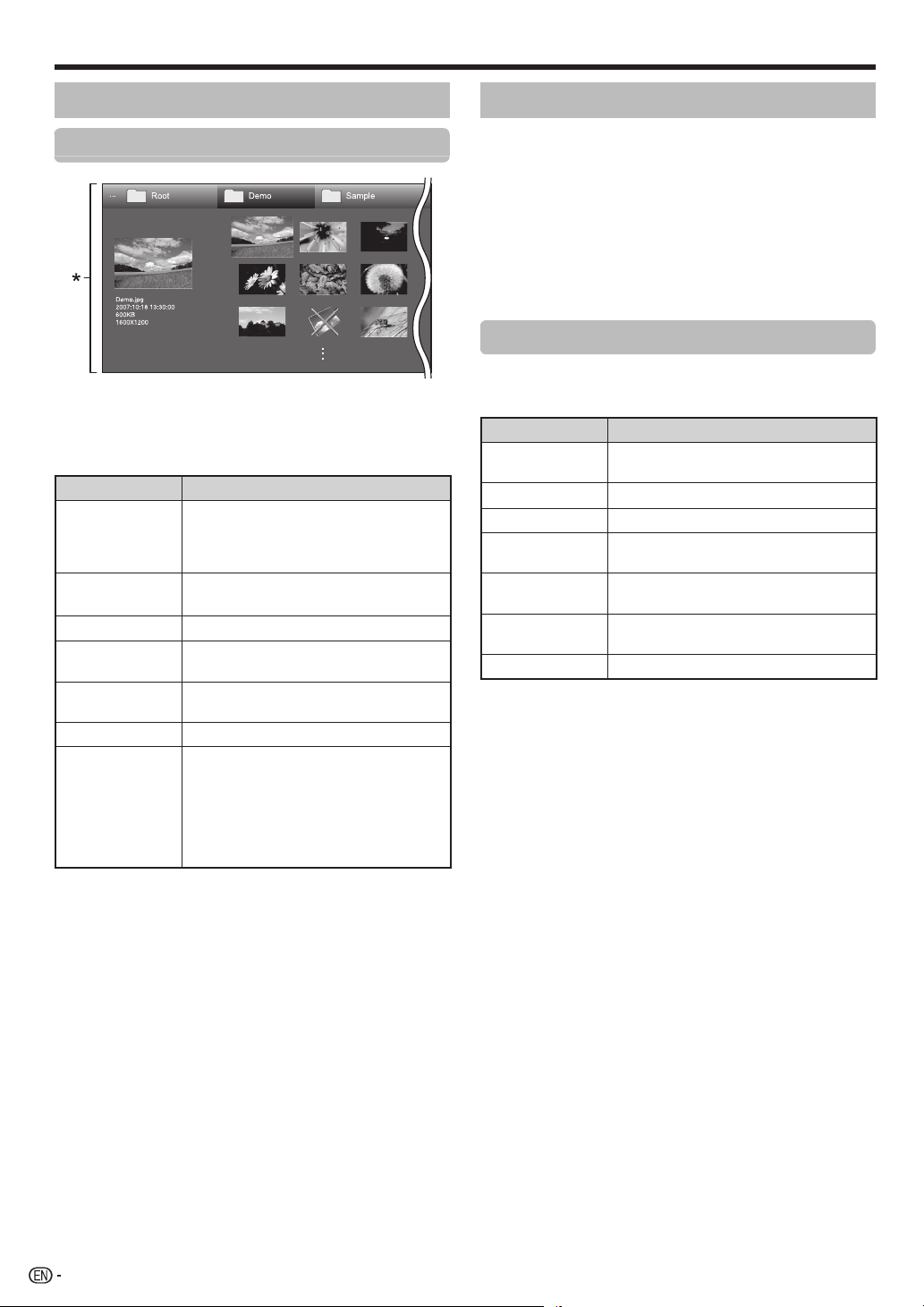

Photo mode .....................................................62

3D mode .......................................................... 62

Music mode ..................................................... 63

Video mode......................................................64

USB device compatibility ......................................65

Home network server compatibility ....................... 65

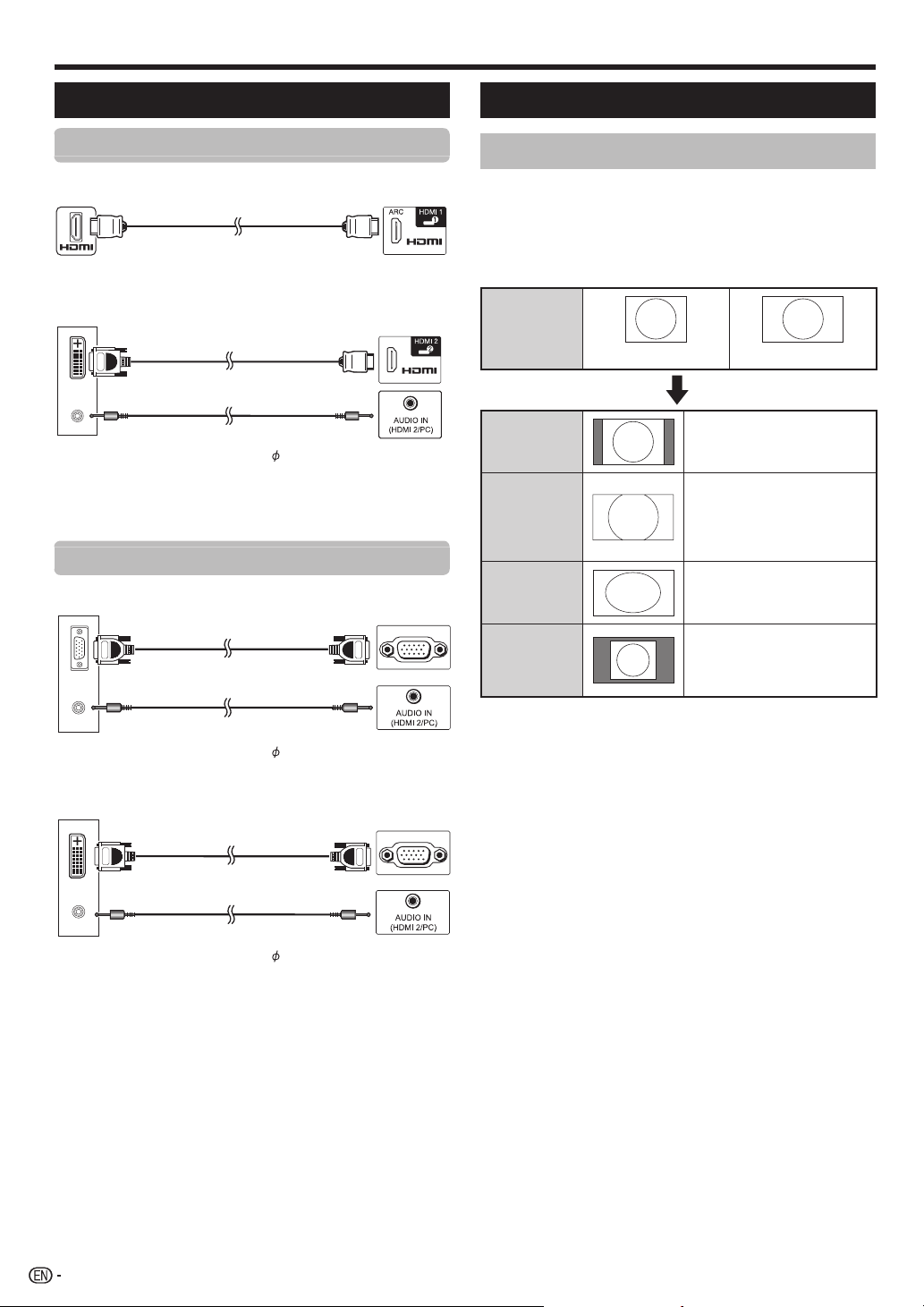

Connecting a PC ....................................................... 66

Connecting a PC ..................................................66

Displaying a PC image on the screen .................... 66

Selecting the picture size .................................. 66

Adjusting the PC image automatically ............... 67

Adjusting the PC image manually ..................... 67

PC control of the TV .............................................68

Command list ................................................... 69

Enjoying 3D image viewing......................................70

Display format for 3D and 2D images ................... 70

Viewing 3D images ............................................... 71

Receiving a 3D image signal that can be

detected automatically ...................................71

Switching 3D to 2D mode ................................ 71

Receiving a 3D image signal that cannot be

detected automatically ...................................71

Watching 2D images in 3D ...............................72

Switching to the previous mode ....................... 72

3D Menu ..........................................................72

Configuring the TV settings to enhance 3D image

viewing ............................................................... 72

3D picture adjustments .................................... 72

3D setup .......................................................... 73

Troubleshooting – 3D Images ................................ 74

Appendix ...................................................................75

Troubleshooting .................................................... 75

Troubleshooting – Digital broadcasting .................. 75

Reset .................................................................... 76

Updating your TV via DVB-T (DTV only) ................. 76

Getting information ...............................................77

Updating your TV via USB/Network ...................... 77

Information on the software licence for this

product ..............................................................78

Software licence ............................................... 78

Specifications .......................................................80

Removing the stand .............................................. 81

Mounting the TV on a wall .....................................82

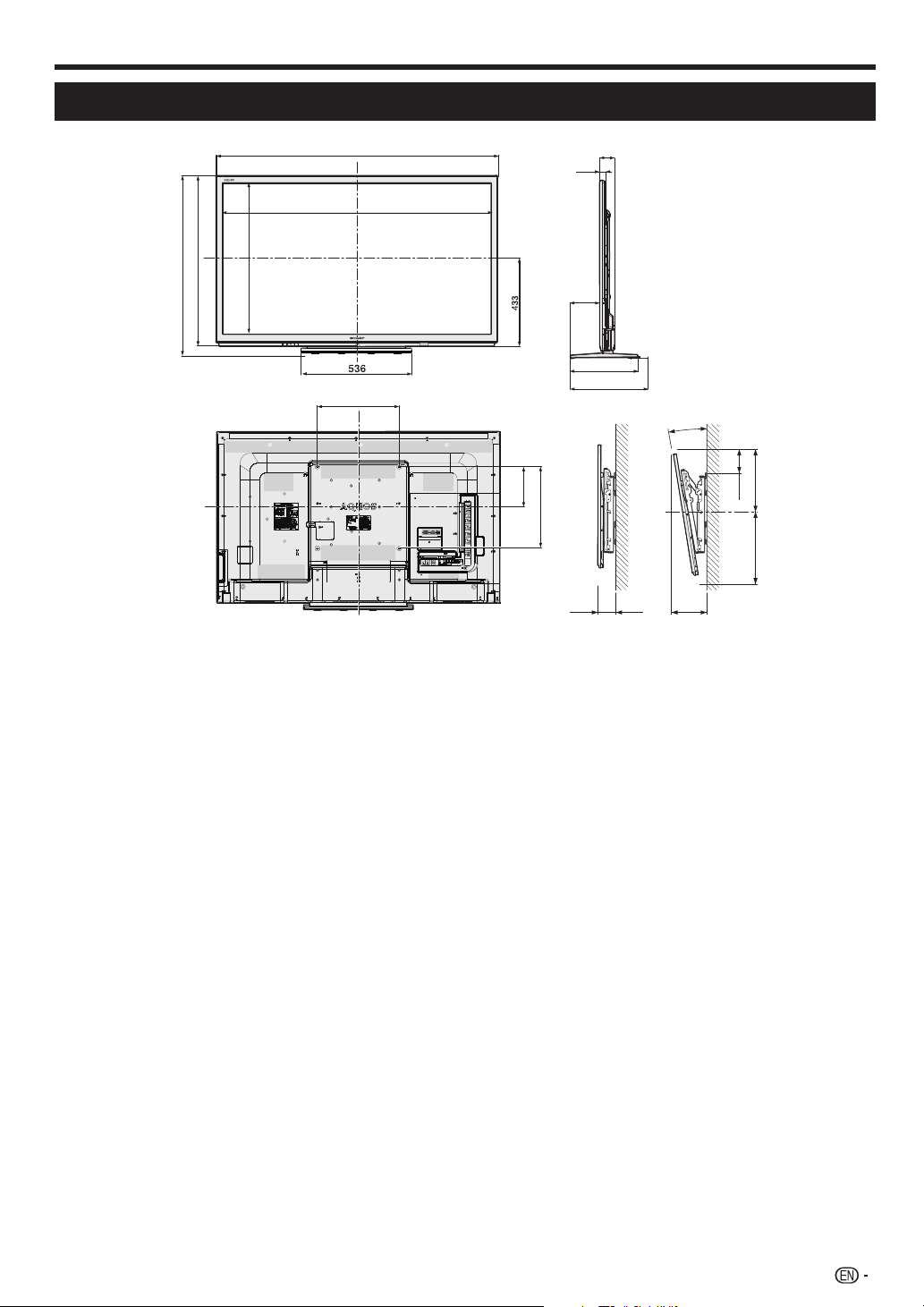

Dimensional drawings ...........................................83

CLEARING THE PASSWORD ...............................84

Introduction

Precautions For Daily Use

Observe the following items

Maintenance of the cabinet

• When cleaning the cabinet, use a soft cloth (made of cotton, floss, etc.) to clean gently.

• Do not use a dry or damp rag mixed with chemicals, as this could cause the ingredients of the cabinet body to deteriorate or crack.

• Be careful not to use an abrasive cloth for cleaning or clean with excessive force, as this could scratch the surface of the cabinet.

• If the cabinet is greatly soiled, clean with a soft cloth (made of cotton, floss, etc.) soaked with a small amount of diluted neutral detergent and wrung out, and then clean with a soft dry cloth.

• Solvents such as benzene or thinner could cause the cabinet to deteriorate, or make its coating come off. Therefore do not use such solvents to clean the cabinet.

• Because plasticizer is included in the plastics, deterioration or the coating peeling off could occur when the cabinet comes into contact with some substances. Therefore keep it away from volatile substances such as insecticide. In addition, do not let it come into contact with objects made of rubber, resin, etc. for a long time.

Maintenance of the LCD panel

• Before cleaning the LCD panel, be sure to turn off the TV set and unplug the power cord from the outlet.

• When cleaning the LCD panel, use a dry and soft cloth (made of cotton, floss, etc.) to clean the surface of the LCD panel gently. For protecting the LCD panel, do not clean with a dirty cloth, detergent, or a dry or damp rag mixed with chemicals, as this could cause peeling of the panel surface.

• Be careful not to clean with an abrasive cloth or with excessive force, as this could cause the panel surface to be scratched.

• If the LCD panel is greatly soiled, clean it gently with a soft cloth (made of cotton, floss, etc.) soaked with a small amount of water (Do not clean with excessive force, so as to avoid the scratch of the panel surface).

• If dust sticks on the surface of the LCD panel, clean the panel with a commercially available cleaning brush (anti-static brush).

Important safety precautions

Caring for the cabinet

• Use a soft cloth (cotton, flannel, etc.) and gently wipe the surface of the cabinet.

• Using a chemical cloth (wet/dry sheet type cloth, etc.) may deform the components of the main unit cabinet or cause cracking.

• Wiping with a hard cloth or using strong force may scratch the surface of the cabinet.

• If the cabinet is very dirty, wipe with a soft cloth (cotton, flannel, etc.) soaked in neutral detergent diluted with water and thoroughly wrung out, and then wipe with a soft dry cloth.

• The cabinet is primarily made of plastic. Avoid using benzene, thinner, and other solvents, as these may deform the cabinet and cause the paint to peel off.

• Do not apply insecticides or other volatile liquids.

• Also, do not allow the cabinet to remain in contact with rubber or vinyl products for a long period of time. Plasticizers inside the plastic may cause the cabinet to deform and cause the paint to peel off.

• When relocating the product placed on a cart, it must be moved with utmost care. Sudden stops, excessive force and uneven floor surface can cause the product to fall from the cart.

Caring for the front panel

• Turn off the main power and unplug the AC cord from the wall outlet before handling.

• Gently wipe the surface of the front panel with a soft cloth (cotton, flannel, etc.).

• To protect the front panel, do not use a dirty cloth, liquid cleaners, or a chemical cloth (wet/dry sheet type cloth, etc.). This may damage the surface of the front panel.

• Wiping with a hard cloth or using strong force may scratch the surface of the front panel.

• Use a soft damp cloth to gently wipe the front panel when it is really dirty (It may scratch the surface of the front panel when wiped strongly).

• If the front panel is dusty, use an anti-static brush, which is commercially available, to clean it.

• Water and moisture — Do not use the product near water, such as bathtub, washbasin, kitchen sink, laundry tub, swimming pool and in a wet basement.

Introduction

• Do not place vases or any other water-filled containers on this product. The water may spill onto the product causing fire or electric shock.

• Stand — Do not place the product on an unstable cart, stand, tripod or table. Doing so can cause the product to fall, resulting in serious personal injuries as well as damage to the product. Use only a cart, stand, tripod, bracket or table recommended by the manufacturer or sold with the product. When mounting the product on a wall, be sure to follow the manufacturer’s instructions. Use only the mounting hardware recommended by the manufacturer.

• Ventilation — The vents and other openings in the cabinet are designed for ventilation. Do not cover or block these vents and openings since insufficient ventilation can cause overheating and/or shorten the life of the product. Do not place the product on a bed, sofa, rug or other similar surface, since they can block ventilation openings. This product is not designed for built-in installation; do not place the product in an enclosed place such as a bookcase or rack, unless proper ventilation is provided or the manufacturer’s instructions are followed.

• In case the product is dropped and the cabinet is damaged, be sure to turn off the power of the product, and unplug the power cord. If you continue to use the product, it may cause fire or electric shock. Contact your dealer.

• Do not open the rear cover of the cabinet to reconstruct the circuits. There exists high voltage within the cabinet and it may cause electric shock and injury. If maintenance is required, contact your dealer.

• The LCD panel used in this product is made of glass. Therefore, it can break when the product is struck forcefully or with a sharp object. If the LCD panel is broken, be careful not to be injured by broken glass.

• Heat sources — Keep the product away from heat sources such as radiators, heaters, stoves and other heat-generating products (including amplifiers).

• To prevent fire, never place any type of candle or naked flames on the top or near the TV set.

• To prevent fire or shock hazard, do not place the AC power cord under the TV set or other heavy items.

• Do not place heavy objects on this product or stand on it. Doing so could cause injury if the product overturns. Take special care near children and pets.

• Unplug the power cord before you move the TV set. If not unplugged beforehand, the power cord may become damaged and cause electric shock.

The LCD panel is a very high technology product with 2,073,600 pixels, giving you fine picture details. Due to the very large number of pixels, occasionally a few non-active pixels may appear on the screen as a fixed point of blue, green or red. This is within product specifications and does not constitute a fault.

Precautions when transporting the TV

• When transporting the TV, never carry it by holding or otherwise putting pressure onto the display. Be sure to always carry the TV by two people holding it with two hands — one hand on each side of the TV.

If a television is not positioned in a sufficiently stable location, it can be potentially hazardous due to falling. Many injuries, particularly to children, can be avoided by taking simple precautions such as:

• Using cabinets or stands recommended by the manufacturer of the television.

• Only using furniture that can safely support the television.

• Ensuring the television is not overhanging the edge of the supporting furniture.

• Not placing the television on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and the television to a suitable support.

• Not standing the televisions on cloth or other materials placed between the television and supporting furniture.

• Educating children about the dangers of climbing on furniture to reach the television or its controls.

• Do not display a still picture for a long time, as this could cause an afterimage to remain.

• Install the product on the place where the AC cord can be unplugged easily from the AC outlet, or from the AC INPUT terminal on the rear of the product.

NOTE

• The above are pictures for reference only; the actual item might be different.

Introduction

3D Glasses

Prevention of accidental ingestion

• Keep the accessory out of the reach of small children. Small children can accidentally swallow these parts. – If a child accidentally swallows any of these parts, seek immediate medical attention.

Do not disassemble

• Do not disassemble or modify the 3D Glasses except when recycling the batteries. Do not modify the 3D Glasses.

Caution for lithium ion polymer rechargeable battery

• Do not expose the 3D Glasses to excessive heat, such as direct sunlight, ﬁre or in an area with high humidity.

Handling the 3D Glasses

• Do not drop, exert pressure on, or step on the 3D Glasses. Doing so may damage the glass section, which may result in the risk of injury.

• Be careful not to trap your ﬁnger in the hinge section of the 3D Glasses. Doing so may result in injury. – Pay special attention when children are using this product.

Using the 3D Glasses

• Use of the 3D Glasses should be limited to a maximum of 3 hours, and in any case no more than one movie.

• Use only the 3D Glasses recommended for this TV.

• Use the 3D Glasses only for the speciﬁed purpose.

• Do not move around while wearing the 3D Glasses. The surrounding area may appear dark, which may result in falling or other accidents that may cause injury.

Viewing 3D images

• If you experience dizziness, nausea, or other discomfort while viewing 3D images, discontinue use and rest your eyes.

• Do not use the 3D Glasses if they are cracked or broken.

Caution regarding rechargeable battery

• Use the supplied USB cable to connect to a USB terminal of a 3D compatible SHARP TV when recharging. Recharging using other devices may lead to battery damage.

Caution regarding the power supply

• Use the USB cable to connect to a USB terminal of a 3D compatible SHARP TV for supplying power. Supplying power using other devices may lead to heat generation or battery damage.

• During a thunderstorm, to avoid getting an electric shock, do not use the 3D Glasses that are power-supplied via USB, and do unplug the USB cable from both the USB terminal on the TV and the USB terminal on the 3D Glasses.

Introduction

Supplied accessories

Remote control unit ( x 1) “AAA” size battery ( x 2)

Pages 10 and 13 Page 10

AV cable ( x 2) Component cable ( x 1)

Yellow

Green

Page 28 Page 28

Stand unit Operation manual ( x 1)

Page 8

Optional accessories

Some of the listed optional accessories may not be available depending on the region. Please check with your nearest Sharp Authorised Dealer for current optional accessories as we may add more optional accessories

from time to time.

No. Part name Part number

1 Wall mount bracket AN-52AG4

AN-3DG10-S

2 3D glasses

AN-3DG20-B

Refer to page 52 for details on sales areas.

No. Part name Part number

KI-OUA004WJN1*

3 Wireless LAN USB adapter

KI-OUA004WJN2*

KI-OUA004WJN3*

KI-OUA004WJN4*

Preparation

Protection against overturning

There is a danger of the product overturning in the case of a disaster or sudden collision. Carry out the following tipresistant measurement for your safety.

Anchoring the TV to the wall or a pillar

1 Affix the TV to the wall or a pillar using

extra strong ties and cup hooks.

View from the top

Wall

Fixing the TV to the table

1 Place the TV on the table. 2 Pull the attached restraining bracket out so that it

is at a 90 degrees angle.

3 Insert commercially available screw in the hole of

the restraining bracket and tighten the screw to secure the TV to the table.

• Use commercially available screw to firmly secure the TV.

CAUTION

• As this product is heavy, use a table that is wide enough to support the product and capable of withstanding the product’s weight. The table should be set where it will not be overturned.

• Be sure to use at least two people when moving the TV.

 Cup hook (commercially available)  Tie (commercially available)

Stand

Screw (commercially available)

Restraining bracket

Preparation

Attaching the stand unit

• Before performing work, spread cushioning over the surface on which you will be laying the TV. This will prevent it from being damaged.

CAUTION

• Attach the stand in the correct direction.

• Be sure to follow the instructions. Incorrect installation

of the stand may result in the TV falling over.

1 Confirm that there are screws with the stand unit.

(Eight long screws and four short screws)

2 Attach the supporting post for the stand unit onto

the base using the long screws with a screwdriver as shown.

Supporting post

4 Attaching the stand cover.

Insert the stand cover.

Insert and tighten four short screws into the holes of the stand cover.

NOTE

• To detach the stand unit, perform the steps in reverse order.

• A screwdriver is not supplied with this product.

Front

3 Insert the stand into the openings on the bottom

of the TV (hold the stand so it will not drop from the edge of the base area).

Soft cushion

Preparation

Connecting the TV

Notes on installing the TV

• Avoid direct sunlight and place the TV in a well-ventilated location.

• Place the TV in a level location.

• Do not turn on the power of the TV before connecting the AC cord.

1 Connect the antenna cable.

 Standard DIN45325 connector (IEC169-2)  Antenna cable (75-ohm coaxial type: commercially

available)

 Room antenna terminal (75-ohm type)

2 Connect external devices.

See pages 26 to 29 for connecting external equipment, such as a VCR and DVD player.

3 Plug the AC cord in to the AC outlet (product

shape varies in some countries).

4 Bundle the cables.

Insert the clip into the hole on the TV.

Bundle the cables.

Cable tie

CAUTION TO PREVENT RISK OF ELECTRIC SHOCK, DO

NOT TOUCH UN-INSULATED PARTS OF ANY CABLES WITH THE AC CORD CONNECTED.

Detach the cable tie on the rear of the TV. Press cable tie clip (1) and pull out cable tie (2) completely to release.

• Place the TV close to the AC outlet, and keep the power plug within reach.

• Disconnect the AC cord from the AC outlet if the TV will not be used for a long period of time.

Cable tie

Preparation

Using the remote control unit

Inserting the batteries

Before using the TV for the first time, insert two supplied “AAA” size batteries. When the batteries become depleted and the remote control unit fails to operate, replace the batteries with new “AAA” size batteries.

1 Open the battery cover. 2 Insert the two supplied “AAA”

size batteries.

• Place batteries with their terminals

corresponding to the (e) and (f) indications in the battery compartment.

CAUTION

Improper use of batteries can result in chemical leakage or explosion. Be sure to follow the instructions below.

• Do not mix batteries of different types. Different types of batteries have different characteristics.

• Do not mix old and new batteries. Mixing old and new batteries can shorten the life of new batteries or cause chemical leakage in old batteries.

• Remove batteries as soon as they have worn out. Chemicals that leak from batteries can cause a rash. If you find any chemical leakage, wipe thoroughly with a cloth.

• The batteries supplied with this product may have a shorter life expectancy due to storage conditions.

• If you will not be using the remote control unit for an extended period of time, remove the batteries from it.

• Batteries shall not be exposed to excessive heat such as sunshine, fire or the like.

3 Close the battery cover.

Angle of the remote control unit

Use the remote control unit by pointing it towards the remote control sensor. Objects between the remote control unit and sensor may prevent proper operation.

Remote control sensor

30°

5 m

30°

* When mounting the TV on the wall.

30°

Cautions regarding the remote control unit

• Do not expose the remote control unit to shock. In addition, do not soak the remote control unit to liquids, and do not place in an area with high humidity.

• Do not install or place the remote control unit under direct sunlight. The heat may cause deformation of the unit.

• The remote control unit may not work properly if the remote control sensor of the TV is under direct sunlight or strong lighting. In such cases, change the angle of the lighting or the TV, or operate the remote control unit closer to the remote control sensor.

Part names and functions

TV (front view)

POWER

INPUT

VOL + /−

3D infrared emitter

POWER

Remote control

sensor

This panel emits infrared signal towards the 3D glasses you wear when viewing 3D images. Do not place anything between the 3D infrared emitter on the TV and the infrared receiver on the 3D glasses. Refer to page 74 for details.

OPC: Optional Picture Control (Page 35)

OPC

sensor

SLEEP

POWER indicator

indicator

SLEEP

timer

OPC

indicator

Part names and functions

TV (rear view)

RS-232C terminal PC terminal

OUTPUT

AUDIO (L / R)

USB 1 port

OUTPUT (Headphones/ AUDIO (L/R))

terminal*

ETHERNET

(10/100) terminal

INPUT 6 (AV IN)

terminal

USB 3 (HDD) port

DIGITAL

AUDIO

OUTPUT

AUDIO IN

(HDMI 2/PC)

(WIRELESS LAN)

AUDIO (L/R) is shared

with AV IN)

USB 2 port (WIRELESS LAN)

HDMI 1 (HDMI/ARC) terminal (INPUT 1)

HDMI 2 (HDMI) terminal (INPUT 2)

HDMI 3 (HDMI) terminal (INPUT 3)

HDMI 4 (HDMI/MHL) terminal (INPUT 4)

INPUT 5 (AV IN) AUDIO (L/R) terminal

INPUT 5 (COMPONENT) terminal

AUDIO IN (HDMI 2/PC)

jack*

DIGITAL AUDIO OUTPUT terminal

Antenna terminal

Refer to page 47 for details.

The HDMI 2 and PC terminals can both use the same audio input terminal (AUDIO IN (HDMI 2/PC)). However, the proper item must be selected in the “Audio select” menu (refer to page 46 for details).

WARNING

• Excessive sound pressure from earphones and headphones can cause hearing loss.

• Do not set the volume at a high level. Hearing experts advise against extended listening at high volume levels.

Part names and functions

Remote control unit

TV INFO

6 7

11 12

13 14 15 16

1 < (Standby/On)

To switch the power on and off (Page 17).

2 EXT MEDIA buttons

AQUOS LINK If external equipment such as a AQUOS BD player is connected via HDMI cables and is AQUOS LINK compatible, you can use these EXT MEDIA buttons. See pages 30 and 33 for details.

TIME SHIFT Press to temporarily record a programme you are watching if you want to interrupt a programme to answer a phone call, for example (Pages 57–60).

3 >

Press to access analogue and digital TV mode.

4 INFO

DTV : Display the programme information (Page 18). ATV : Display the channel information.

5 0–9*

Set the channel (Page 17).

6 A (Flashback)*

Press to return to the previously selected channel or external input.

7 HOME

Display the “HOME” screen to enjoy Internet connection and Home network function and to perform settings for the TV (Page 14).

SLEEP

EXT MEDIA

GUIDE

17 18

22 23 24

25 26 27 28

8 3D

Select between 3D and 2D image viewing (Pages 70 – 74).

9 a/b/c/d (Cursor)

Select a desired item on the setting screen.

? (ENTER)

Execute a command.

10 B

Turn off the On-Screen Display (Page 14).

11 e (Mute)

Mute the sound.

12 Y+/

13 MPX

14 WIDE

15 CONTROL

16 FREEZE/3 (Hold)

17 m (Teletext)

18 [ (Subtitle)

19 b (INPUT SOURCE)*

20 @/k (Reveal hidden teletext)

21 C/v (Top/Bottom/Full)

22 GUIDE/1 (Subpage)

23 CHr/s

24 R/G/Y/B (Colour) buttons

25 DISPLAY

26 #

27 ECO

28 SLEEP

–

Set the volume.

Select a sound multiplex mode (Page 19).

Change a wide image mode (Pages 45, 65 and 66).

Press to display the panel to operate some functions on the screen.

Freeze a motion picture on the screen. Teletext mode: Stop updating teletext pages automatically. Press 3 again to release the hold mode (Page 20).

Select the teletext mode (All TV image, all text image and TV/text image) (Page 20).

Switch subtitle languages on/off (Page 20).

Select an input source (Pages 18, 27, 46, 47, 66 and 67).

Displays the menu screen (Page 14). Teletext mode: Display hidden characters (Page 20).

Menu mode: Return to the previous menu screen (Page 14). Teletext mode: Set the area of magnification (Page 20).

DTV : To display EPG (Electronic Programme Guide) screen (Pages 22–25). ATV : Display the channel list. Teletext mode: Display the teletext subpage directly (Page 20).

TV input mode: Select the channel (Page 17). AQUOS.NET: Select the page (Page 54).

The coloured buttons are correspondingly used to select the coloured items on the screen (e.g., AQUOS LINK, USB media, Home network, teletext).

Display the channel or input information. Reveal/hide the guide display for USB media mode (Pages 62–64).

Select audio/video settings (Page 35).

Select “Energy save” setting (Page 39).

Set the sleep timer.

NOTE

* “0 − 9”, “A”, “b” are used by string input like a mobile

phone.

Quick guide

What is the HOME?

You can easily launch to enjoy Internet connection and Home network function and to perform settings for the TV from this “HOME” screen. By connecting the TV to the internet you can enjoy a variety of broadband content. Internet browsing on a TV behaves differently to a PC (Personal Computer). PC’s have greater web browsing capabilities and memory plus support a wider range of functionalities and add ons – some PC viewing capability may not be possible on a TV. In such cases an application may close or an exclamation mark (“!”) or an error message may be displayed. To maximise the performance of YouTube content it is highly recommended that the user can access the content via the dedicated YouTube application on this TV. Sharp recommends that from time to time you update your TV’s software via the internet or by downloading updates onto a USB. Go to www.sharp.net.au and click on Customer Support, then follow the appropriate links.

Basic operation

Display the HOME screen

Press HOME and the “HOME” screen displays.

MENUMENU

The operation will exit the “HOME” screen if you press B before it is completed.

Select an item

Selecting in the HOME.

Press a/b/c/d to select the desired service or menu, and then press ?.

1 YouTube

You can enjoy YouTube on your AQUOS.

2 AQUOS.NET

By connecting the TV to the Internet (Page 53).

3 CH list (Page 18)

4 USB media (Page 61)

5 TV Menu

Call up the OSD (On-screen Display) to perform settings for the TV. The OSD (On-screen Display) for the settings is called “TV Menu”. The “TV Menu” enables various settings and adjustments.

NOTE:

6 Input change

7 Home network (Page 61)

8 IP Control (Page 68)

9 Network setup (Pages 49 – 51)

You can call up “TV Menu” screen by press @.

5 8

* When displays, you are not connected to USB

devices.

is displayed, check your USB device’s

If connection.

* When

network. If and connection.

displays, you cannot connect to TV’s

is displayed, check your TV’s network settings

Exit the HOME screen

HOME

2 3

LAN

Regarding the instruction on the manual

On this manual, the following expression is often used in order to simplify instructions.

• Go to “HOME” > “TV Menu” > “Setup” > ...

This indicates how to navigate through the HOME screen using a/b/c/d and ? buttons.

Quick guide

Using software keyboard

Use the software keyboard when you need to input text.

Char.Set

Caps

1 Char. Set

Changes character set into the alphabet, numbers, symbols, etc.

2 Caps

Changes characters to capital/lower case.

3 Done

Confirm the entry.

4 Cancel

Abort input and close the software keyboard.

5 R/G/Y/B (Colour) buttons

Selects the coloured items on the screen.

Done

Cancel

Cursor Left Caps Char.Set Cursor Right

6 Input cursor

Press c/d to move the cursor when highlighted.

7 Input field

The text you enter is displayed as you type it in.

8 Character

Input characters by using these buttons.

9 ?

Put a line break.

Clear

Delete

10 Clear

11 Delete

NOTE

• Depend on application, there might has a different software keyboard with above indication.

Using software keyboard (Web browser)

1 Input field

hello

abc

jkl

tuv

Cello Gallo Gekk

def

mno

wxyz

RETURN

EXITENTER

: EXIT: Enter: Select

43556 Hello Aiello Helen

.?!,-'@:/

ghi

pqrs

[ ab ]

Language : English

Input Method : XT9

Move keyboard display

NOTE

• If input method select to “XT9”, a word can be inputted by few numbers with push a button. For example input XT9 : 43556 ABC : 4433555

hello

I 555666

The text you enter is displayed as you type it in.

2 Input candidate

While you are entering text, likely input conversion candidates are displayed based on what you typed in.

• You can also enter text by pressing a/b/c/d on

the remote control unit.

3 0 – 9 keys

Input characters by using these buttons.

4 Shift key

Changes characters to capital/lower case by pressing

on the remote control unit.

EXAMPLE

AB Ab ab

5 (space)

You can input a space by pressing b on the remote control unit.

6 Back space key

Erases the character string by pressing C on the remote control unit.

7 Key guidance

• Select the coloured item on the screen.

R : Language selection G : Changes character set into the alphabet, numbers,

symbol, etc.

Y : Changes the display position of the software

keyboard.

Erases the character string.

• When the cursor is somewhere in a line: the character string to the right of the cursor will be erased.

• When the cursor is at the right end of a line: the entire line will be erased.

If the cursor is at the right end of a line, this erases text one character at a time.

• You can also delete text by pressing C on the remote control unit.

Quick guide

Initial auto installation

When the TV is powered on for the first time after purchase, the initial auto installation wizard appears. Follow the menus and make the necessary settings one after another.

Confirm the following before turning on the power

Is the antenna cable connected?

Is the AC cord plugged in?

1 Press < on the TV.

• The initial auto installation wizard appears.

2 Setting the OSD language.

Press a/b/c/d to select the desired language, and then press ?.

3 Selecting the location of the TV.

Press c/d to select where you will use this TV, and then press ?.

HOME:

• Settings are optimised for normal home viewing and energy efficiency.

• “STANDARD” will be the default value for the “AV mode” setting.

STORE:

• Settings are designed for maximum impact in retail store displays.

• “DYNAMIC (Fixed)” will be the default value for the “AV mode” setting. If the “AV mode” is changed, the TV will automatically switch back to “DYNAMIC (Fixed)” when there is no operation using the TV or remote control unit for 30 minutes.

• The confirmation screen pops up only when selecting “STORE”. Press c

/d to select “Yes” or “No”.

NOTE

• STORE: A demonstration image will be displayed after initial auto installation is completed. If you have chosen “STORE” by mistake, go to “Setup” > “View setting” > “Reset” > select “HOME” again.

4 Setting the country.

Press a/b/c/d to select your country or area, and then press ?.

• This setting screen only appears during the initial auto installation.

NOTE

• DTV concerned menu may not displayed in some

country.

5 Press c/d to select “Digital Search” or “Analogue

Search”, and then press ?.

6 The TV searches for, sorts and stores all the

receivable TV stations according to their settings and the connected antenna.

• To abort the initial auto installation in progress, press C.

NOTE

• If you turn off the power on the TV while performing a channel search in Step 5, the initial auto installation wizard may not appear. The auto installation function allows you to execute the installation again from “Setup” > “View setting” (Page 40).

• The initial auto installation wizard will abort if you leave the TV unattended for 30 minutes before searching for channels in Step 6.

• Selecting menu of "Digital Search" or "Analogue Search" may not be displayed in some country.

Checking signal strength and channel strength (DTV only)

If you install a DTV antenna for the first time or relocate it, you should adjust the alignment of the antenna to receive a good reception while checking the antenna setup screen.

1 Go to “HOME” > “TV Menu” > “Setup” > “View

setting” > “Channel settings” > “Antenna setupDIGITAL”.

Checking signal strength

2 Press a/b to select “Signal strength”, and then

press ?.

Supply voltage

Signal strength

Channel strength

Checking channel strength

CH No. Signal strength

Current Max.

Quality

Current Max.

97 97

99 99

3 Press a/b to select “Channel strength”, and then

press ?.

• You can input a specified frequency band using the 0–9

numeric buttons.

Supply voltage

Signal strength

Channel strength

Frequency

CH No. Signal strength

Current Max.

Quality

Current Max.

97 97

99 99

MHz

4 Position and align the antenna so that the

maximum possible values for “Signal strength” and “Quality” are obtained.

NOTE

• The values of “Signal strength” and “Quality” indicate when to check the appropriate alignment of the antenna.

Supplying power to the antenna (DTV only)

You can supply power to the antenna in order to receive digitally/terrestrially broadcast stations after connecting the antenna cable to the antenna terminal on the rear of

the TV.

1 Go to “HOME” > “TV Menu” > “Setup” > “View

setting” >“Channel settings” > “Antenna setupDIGITAL” >“Supply voltage”.

2 Press c/d to select “On”, and then press ?.

Watching TV

Daily operation

Turning on/off the power – using the control panel of the TV

Turning on/off the power

1 Turn on the power.

Press < on the TV (after a few seconds, an image appears with sound).

• Wait more than five seconds until you press < on the TV after inserting the

power plug.

2 Turn off the power.

Switch it off by pressing < on the TV.

Turning on/off the power – using the remote control unit

Standby mode

EXT MEDIA

TV INFO

1 To standby mode.

If the TV is turn on, you can switch it to standby by pressing < on the remote control unit.

2 Switch on from standby.

From standby, press < on the remote control unit.

NOTE

• If you are not going to use this TV for a long period of time, be sure to remove the AC cord from the AC outlet.

• A small amount of electric power is still consumed even when the TV is in standby mode.

Changing channels

1 Turn on the power.

GUIDE

Operation without a remote control unit

You can operate the menu settings using the TV control panel.

2 Select a programme using 0–9 numeric buttons or CHr/s on the

remote control unit.

NOTE

• You can also select a programme using CHr/s on the TV front panel.

INPUT

TV control panel

buttons

Remote control

buttons

INPUT

CH r/CH s

a/b

Y k/Y ld/c

VOL + /−

Watching TV

TVTVINFO

Watching TV (DTV only)

Press > to change “DTV” or “ATV”.

NOTE

• When watching Digital Radio or Data broadcasting, the image is switched to DTV.

• When watching external video source, the image is switched to ATV or DTV, which was watched lastly.

CH list

You can check the CH list and view detailed information.

1 Press ? to display the CH list. 2 Press a/b to display your desired programme,

and then press ?.

• When you press ?, the TV jumps to the channel.

CH list

ATV DTV

RADIO

DATA

DTV

TV1 SD Moving

TV2 HD ColorBar

TV3 H264 SD-Color Pat…

TV4 H264 HD-Monosco

SD Color Pattern

HD Moving

SD Colour Bar

MPEG SD Moving

:Enter

Link operation

:Programme info.

:Next:Prev.

:Back

001

002

003

004

005

006

007

008

3 Press c/d to switch broadcast or external video

source.

• Press ? to switch broadcast.

• CH list, whose broadcast is watched, is displayed.

NOTE

• When you watch ATV, you can display channel list by GUIDE.

Programme information (DTV only)

Option

Programme info.

While watching DTV you can check the extended programme information on the screen using INFO on the remote control.

001 DTV SD Moving

SD Moving

20:00 - 21:00 HProgramme info.

SD Moving HInput Info.

Video : 576i Audio : STEREO Age : 11 yrs/over Optic. REC : OK

• If there is more information, pressing c/d allows you to go

to the next page or return to the previous page.

• You can cancel this info by pressing INFO again.

NOTE

• When you watch ATV, press INFO to display the channel

information.

Using Info on the menu screen

Go to “HOME” > “TV Menu” > “Setup” > “Option” > “Option for view” > “Programme info.”.

Selecting an external video source

Once the connection is made, press b to display the “INPUT” screen, and then press b or a/b to switch over to the appropriate external source with ?.

CH list

ATV DTV

RADIO

DATA

INPUT

HDMI 1

HDMI 2

NOTE

• You can also select an external video source from “CH list” > “INPUT”.

• Only inputs which are not set for “Input skip” (Page 46) and properly connected inputs can be selected.

• You can select an external video source for an HDMI connections as shown below.

Switchable

Connected terminal Selectable item

HDMI 1 INPUT 1

HDMI 2 INPUT 2

HDMI 3 INPUT 3

HDMI 4 INPUT 4

Watching TV

Switching the digital audio format (DTV only)

If multi sound modes are received, each time you press MPX the mode switches as follows.

Audio (ENG)

L/R LRLR

Audio (ENG)

CH A CH B CH AB

Audio (ENG) MONO

STEREO

CH A

Press c/d to select L or R sound when the STEREO or DUAL MONO screen is displayed.

Audio (ENG)

L/R LRLR

STEREO

NOTE

• The sound mode screen disappears in six seconds.

• Selectable items vary depending on the received broadcasts.

• When the “Audio description setting” menu is set to “On”, the audio description sound is selected depending on the main audio.

Switching the analogue audio format

When receiving a bilingual signal

Each time you press MPX, the mode switches among NICAM CH A, NICAM CH B, NICAM CH AB and MONO.

Bilingual mode

ATV

CH A

ATV

MONO

ATV

CH B

ATV

CH AB

When receiving a monaural signal

Each time you press MPX, the mode switches between NICAM MONO and MONO.

Monaural mode

ATV

MONO

ATV

MONO

In the TV mode of A2 TV broadcasts

When receiving a stereo signal

Each time you press MPX, the mode switches between STEREO and MONO.

Stereo mode

You can switch between multiple audio modes when watching a multiple audio or stereo broadcast programme.

SLEEPSLEE

In the NICAM TV broadcasts

When receiving a stereo signal

Each time you press MPX, the mode switches between NICAM STEREO and MONO.

Stereo mode

ATV

STEREO

ATV

MONO

ATV

STEREO

ATV

MONO

When receiving a bilingual signal

Each time you press MPX, the mode switches among CH A, CH B and CH AB.

Bilingual mode

ATV

CH A

ATV

CH AB

ATV

CH B

When receiving a monaural signal When you press MPX, “MONO” displays.

Monaural mode

ATV

MONO

NOTE

• “BBC1”, “01” and “PAL” are tentative network name, channel and colour system.

Watching TV

Teletext

What is teletext?

Teletext broadcasts pages of information and entertainment to specially equipped TV. Your TV receives teletext signals broadcast by a TV network, and decodes them into graphical format for viewing. News, weather and sports information, stock exchange prices and programme previews are among the many services available.

Turning teletext on/off

1 Select a TV channel or external source providing a

teletext programme.

2 Press m to display the teletext. 3 Press m again to display the teletext on the right

screen and the normal image on the left screen.

• Many stations use the TOP operating system, while some use FLOF (e.g., CNN). Your TV supports both these systems. The pages are divided into topic groups and topics. After switching on the teletext, up to 2,000 pages are stored for fast access.

• If you select a programme with no teletext signal, “No Teletext available” displays.

• The same message displays during other modes if no teletext signal is available.

TELETEXT

• Each time you press m, the screen switches as shown above.

NOTE

• Teletext will not work in 3D mode.

Buttons for teletext operations

Buttons Description

CHr/s

Colour (R/G/Y/B)

Numeric buttons 0–9

k (Reveal hidden teletext)

3 (Freeze/Hold)

[ (Subtitle for

teletext)

1 (Subpage)

v (Top/Bottom/

Full)

Increase or decrease the page number.

Select a group or block of pages displayed in the coloured brackets at the bottom of the screen by pressing the corresponding colour (R/G/Y/B) on the remote control unit.

Directly select any page from 100 to 899 by using the 0–9 numeric buttons.

Reveal or hide hidden information such as an answer to a quiz.

Stop updating teletext pages automatically or release the hold mode.

Display the subtitle or exit the subtitle screen. Subtitles will not be displayed when the service does not contain subtitle information.

Reveal or hide subpages. Selects directly the desired subpage (0-9).

• Move to the previous subpage (R).

• Move to the following subpage (G).

• These two buttons are shown on the screen

by the symbols “e” and “f”.

Switch the Teletext image to Top, Bottom or Full.

Display the top menu.

• The top menu will not be displayed when the service does not support top menus.

TELETEXT

View setting

Text language

If Teletext information does not display correctly, perform the procedure below. Select from among six kinds of language tables: West Europe, East Europe, Greek/Turkish, Cyrillic, Arabic and Farsi. Each table is compatible with the Teletext languages listed below.

1 Go to “HOME” > “TV Menu” > “Setup” > “View

setting” > “Individual setting” > “Text language”.

Text language

Teletext language settings

West Europe

East Europe

Greek/Turkish

Cyrillic

Arabic

Farsi

BackSelect

• West Europe — English, French, Scandinavian, Turkish, German, Spanish, Italian

• East Europe — Polish, French, Scandinavian, Czech, German, Slovenian/Croatian, Italian, Rumanian

• Greek/Turkish — English, French, Scandinavian, Turkish, German, Spanish, Italian, Greek

• Cyrillic — English, Russian, Estonian, Czech, German, Slovenian/Croatian, Ukrainian, Lettish

• Arabic — English, French, Scandinavian, Turkish, German, Hebrew, Italian, Arabic

• Farsi — English, French, Scandinavian, Turkish, German, Hebrew, Italian, Farsi

NOTE

• Teletext can be displayed only when it is sent by a network. Not used to convert between languages.

Watching TV

View setting

Initial teletext page (DTV only)

If you set the language of the initial page (this page is displayed for the first time after pressing m) for teletext in DTV mode, it will start from the selected language page.

1 Go to “HOME” > “TV Menu” > “Setup” > “View

setting” > “Individual setting” > “Initial teletext page”.

2 Press a/b/c/d to select the desired language,

and then press ?.

NOTE

• This function is available for teletext in DTV mode. This is not available for teletext in ATV or external input mode.

• If the initial teletext page of the selected language in this function is not included in a received broadcast, the default initial page will be displayed.

View setting

MHEG-5 (EPG) (DTV only)

This function is set to enable MHEG-5 in DTV mode.

Go to “HOME” > “TV Menu” > “Setup” > “View setting” > “Individual setting” > “MHEG-5 (EPG)”.

Item

Enable

Disable

NOTE

• This function is only displayed for models for the New Zealand market. This function is not displayed for models for the other market than “New Zealand”.

• When the country setting is set to “New Zealand” in the initial auto installation, this function is available. When the country setting is set to countries other than “New Zealand”, then this item is greyed out and cannot be selected.

• The MHEG-5 is not displayed when there is no MHEG-5 information on broadcast in setting this function to “Enable”.

• When this function is set to “Enable”, subtitles may not be displayed. If this occurs, set to “Disable” and then display of subtitles will be possible.

MHEG-5 is displayed during DTV mode.

MHEG-5 is not displayed during DTV mode.

Watching TV

EPG (DTV only)

EPG is a programme list that is displayed on the screen. With the EPG, you can check the schedule of DTV/ RADIO/DATA, view detailed information about them, tune to an event currently on-air.

Useful settings for using EPG

Basic setting

View setting

EPG

If you want to use the EPG for digital stations, select “Yes”. The EPG data must be automatically captured while the TV is in standby mode. After setting to “Yes”, it may take some time to turn off the power using the remote control unit or the TV due to the data capture process.

Go to “HOME” > “TV Menu” > “Setup” > “View setting” > “Individual setting” > “Standby search” > “EPG”.

Selecting EPG to “Yes” will result in higher power consumption*.

Selecting EPG to “No” will save power consumption.

NOTE

* Approximately 36W for 15–30 minutes (depending on number

of channels tuned) after power off from remote control.

• EPG data will not update if the TV is turned off from the power switch at the TV front panel.

• “EPG” cannot be selected when the country setting is set to “New Zealand”.

EPG display settings

Option

Display range setup

Option

Genre icon setup

You can grey out or place a mark on desired genres and smoothly search for programmes you frequently watch.

1 Go to “HOME” > “TV Menu” > “Setup” > “Option”

> “EPG setup” > “Genre icon setup”.

2 Press a/b to select the desired genre, and then

press ?.

Genre icon list

Genre icon list for Australia

Icon Genre Icon Genre

Movie Current affairs

News

Entertainment Infotainment

Sport Special

Children’s Comedy

Music Drama

Arts/Culture Documentary

Genre icon list except Australia

Icon Genre Icon Genre

Movie/Drama

News/Current affairs

Show/Game show

Sports

Children’s/Youth programmes

Education/ Information

Music/Ballet/ Dance

Arts/Culture (without music)

Social/Political issues/Economics

Education/ Science/Factual topics

Leisure hobbies

The “Display range setup” allows you to select three types of time spans for display on the screen.

Go to “HOME” > “TV Menu” > “Setup” > “Option” > “EPG setup” > “Display range setup”.

Item

Mode 1 (Wide angle)

Mode 2 (Zoom)

Mode 3 (Vertical angle)

Displays six hours of programme information.

Displays three hours of programme information.

Changes to the EPG display format with a vertical time span.

NOTE

• “Display range setup” cannot be selected when the country setting is set to “New Zealand”.

3 Press a/b to select a level to pick out or search

for programmes you want to watch (“Standard”, “Light”, “Remark”).

Watching TV

Selecting a programme using EPG (DTV only)

Basic operation

EPG

Display the EPG screen

EPG [DTV-TV]

Press GUIDE.

GUIDE

Display the EPG screen

1 Press c/d to select the time span you want to

search.

• Continue to press d to display programmes in the next

time span.

2 Press a/b to select the desired programme.

• If a or b are displayed on the left of the services, continue to press a/b to display next or previous screen.

Close the EPG screen

Press GUIDE again.

[Fri] 1/4 20:00Today [Sat]2 [Sun]3 [Mon]4 [Tue]5 [Wed]6 [Thu]7 [Fri]8

001

TV1 SD Moving

20:00 - 21:00

TV1

TV2

TV3

TV4

SD Color Pattern

HD Moving

SD Color Bar

MPEG SD Moving 008

: Select : Enter : Back : Exit Programme info. Search by genre Search by date Timer list

20 21 22 23 0 1

001

SD Moving

SD Moving SD Moving

HD ColorBar

002

003

H264 SD-Color P...

004

H264 HD-Monosco

005

006

007

GUIDE

HD ColorBar

H264 SD-Color Pattern

H264 HD-Monosco

HD ColorBar

H264 SD-Color Pattern

H264 HD-Monosco

NOTE

• You can also display the EPG screen from “HOME” > “TV Menu” > “EPG” > “EPG”.

• The time displayed on the EPG is information sent by the TV station.

• When the country setting is set to “New Zealand”, the EPG screen and operation differ due to the use of MHEG-5 EPG. The EPG screen and operation vary depending on the broadcasts.

• When the country setting is set to “New Zealand”, the EPG function is not available when MHEG-5 EPG is not broadcasted.

• MHEG-5 EPG may not be displayed properly in the 3D mode. If so, cancel the 3D mode and then MHEG-5 EPG will be available.

• The MHEG-5 EPG function is not available for models for the market other than New Zealand.

Selecting a programme

3 Check programme information

1 Press a/b/c/d to select the programme you

want to check.

2 Press R.

Programme information

EPG [DTV-TV]

001

TV1 SD Moving

20:00 – 21:00

TV1

TV2

TV3

TV4

SD Color Pattern

HD Moving

SD Color Bar

MPEG SD Moving 008

: Select : Enter : Back : Exit

Programme Info.

Back to EPG

20 21 22 23 0 1

001

SD Moving

HD ColorBar

002

003

H264 SD-Color P...

004

H264 HD-Monosco

005

006

007

SD Moving SD Moving

HD ColorBar

H264 SD-Color Pattern

H264 HD-Monosco

GUIDE

HD ColorBar

H264 SD-Color Pattern

H264 HD-Monosco

3 Press ? to tune to the selected programme.

NOTE

• When the country setting is set to “New Zealand”, this function is not available due to the use of MHEG-5 EPG.

[Fri] 1/4 20:00Today [Sat]2 [Sun]3 [Mon]4 [Tue]5 [Wed]6 [Thu]7 [Fri]8

Watching TV

4 Search a programme in a category

1 Press G. 2 Press a/b to select the desired genre, and then press ?. 3 Press a/b to select a programme you want to watch, and then press ?.

EPG [DTV-TV] [Fri] 1/4 20:00

Search by genre

Movie

News

Entertainment

Sports

Children’s

Music

Arts/Culture

Current affairs

Education/Information

Infotainment

Special

Comedy

Drama

Documentary

: Select : Enter : Back : Exit

Today [Sat]2 [Sun]3 [Mon]4 [Tue]5 [Wed]6 [Thu]7 [Fri]8

[Today] 1 12-0

GUIDE

[Sat] 2 0-12 [Sat] 2 12-0 [Sun] 3 0-12

Found no programme by the genre.

Select other time by c d

Back to EPG

NOTE

• The genre information depends on the broadcasts.

• You can also display the EPG screen from “HOME” > “TV Menu” > “EPG” > “Search by genre”.

• When the country setting is set to “New Zealand”, this function is not available due to the use of MHEG-5 EPG.

5 Search for a programme by date/time

1 Press Y. 2 Press c/d to select the desired time span and then press ?.

EPG [DTV-TV]

Search by time

TV1

TV2

TV3

TV4

SD Color Pattern

HD Moving

SD Color Bar

MPEG SD Moving 008

0 – 6 6 – 12 12 – 18 18 – 0

: Select time

001

SD Moving

HD ColorBar

002

003

H264 SD-Color P...

004

H264 HD-Monosco

005

006

007

: Enter

6 7 8 9 10 11

SD Moving SD Moving

HD ColorBar

H264 SD-Color Pattern

H264 HD-Monosco

Today

Back to EPG

Enter Prev.

HD ColorBar

H264 SD-Color Pattern

H264 HD-Monosco

[Fri] 1/4 20:00Today [Sat]2 [Sun]3 [Mon]4 [Tue]5 [Wed]6 [Thu]7 [Fri]8

Next Prev.

: Select : Enter : Back : Exit

GUIDE

3 Press a/b to select the desired programme, and then press ?.

NOTE

• When you select a programme outside of the current time span, the timer setting screen displays (Page 25).

• You can also display the EPG screen from “HOME” > “TV Menu” > “EPG” > “Search by date”.

• When the country setting is set to “New Zealand”, this function is not available due to the use of MHEG-5 EPG.

6 Display the timer list for TV programmes

Press B.

• Refer to page 25 for the timer setup.

Watching TV

Timer setup using EPG

You can switch to a programme at a set time.

1 Press GUIDE. 2 Press a/b/c/d to select the programme you

want to set, and then press ?.

Programme info.

Back to EPG

Watch

Time shift

3 Press c/d to select “Watch” or “Time shift”, and

then press ?.

• If you select “No”, the TV returns to the EPG screen.

4 Press c/d to select “Yes”, and then press ?.

• The selected TV programme is marked with an icon.

5 Press ? to select “Back”.

NOTE

• You cannot select “Time shift” when the registered USB storage device is not connected to the USB port.

• Only one time shift timer setting can be set.

• A combined total of 16 timer settings (“Watch” and “Time shift”) can be set.

Cancelling the timer setup

Press GUIDE.

1 2 Press a/b/c/d to select the programme with

timer setup, and then press ?.

3 Press c/d to select “Cancel”, and then press ?. 4 Press c/d to select “Yes”, and then press ?.

Cancelling using B button on the remote control unit

1 Press GUIDE. 2 Press B to display the timer setup list. 3 Press a/b to select the programme you want to

cancel timer setup, and then press ?.

4 Press c/d to select “Cancel”, and then press ?. 5 Press c/d to select “Yes”, and then press ?.

Connecting external devices

Before connecting ...

• Be sure to turn off the TV and any devices before making any connections.

• Firmly connect a cable to a terminal or terminals.

• Carefully read the operation manual of each external device for possible connection types. This also helps you get the best possible audiovisual quality to maximise the potential of the TV and the connected device.

• Refer to page 66 for connecting a PC to the TV.

Connection cable

(Connection code)

HDMI cable

DVI/HDMI cable/3.5 mm stereo minijack cable

Component cable

Image quality/

Audio quality

Excellent in both

image quality

and audio

quality

Good image

quality

Connectable devices

Reproduction devices such as a DVD player

Game console

Reference

page

Component cable (Supplied)

Green

Audio cable

AV cable (Supplied)

Yellow

AV cable (Supplied)

Yellow

AV cable

Optical audio cable

Average in both

image quality

and audio

quality

Average in both

image quality

and audio

quality

Excellent in

audio quality

28, 46

Reproduction devices such as a DVD player

28, 46

Game console

Stereo conversion cable

Average in

audio quality

Audio equipment

Connecting external devices

Video connections

HDMI connection

Example of connectable devices

DVD player/recorder

Blu-ray player/recorder

Game console

The HDMI connections permit digital video and audio transmission via a connection cable from a player/ recorder. The digital picture and sound data are transmitted without data compression and therefore lose none of their quality. Analogue/digital conversion is no longer necessary in the connected devices, which also would result in quality losses.

DVI/HDMI conversion

Using a DVI/HDMI cable, the digital video signals of a DVD can also be played via the compatible HDMI connection. The sound must be fed in additionally.

• When connecting a DVI/HDMI cable to the HDMI terminal, the image may not come in clearly.

• Both HDMI and DVI use the same HDCP copy protection method.

When using the HDMI 2 terminal

You must set the audio signal input source depending on the type of HDMI cable connected (refer to page 46 for details).

HDMI-certified cable

1 Press b to select “HDMI2” from the

“INPUT” menu, and then press ?.

2 Go to “HOME” > “TV Menu” > “Setup” >

“Option” > “Terminal setting” > “Audio select” > select “HDMI”.

DVI/HDMI cable

1 Press b to select “HDMI2” from the

“INPUT” menu, and then press

2 Go to “HOME” > “TV Menu” > “Setup” >

“Option” > “Terminal setting” > “Audio select” > select “HDMI + Analogue”.

NOTE

• If a connected HDMI device is AQUOS LINK compatible, you can take advantage of versatile functions (Pages 30–33).

• Video noise may occur depending on the type of HDMI cable used. Make sure to use a certified HDMI cable.

• When playing the HDMI image, the best possible format for the picture will be detected and set automatically.

• An ARC (Audio Return Channel) compatible audio receiver must be connected to the HDMI 1 terminal with an ARCcompatible cable.

• All HDMI terminals support 3D image signals.

Supported video signal

576i, 576p, 480i, 480p, 1080i, 720p, 1080p See page 67 for PC signal compatibility.

 3.5 mm stereo minijack cable (commercially available)

 DVI/HDMI cable (commercially available)  HDMI-certified cable (commercially available)

Connecting external devices

YPB

Component connection

(

CB)

CR)

Example of connectable devices

VCR

DVD player/recorder

You will enjoy accurate colour reproduction and high quality images through the INPUT 5 terminal when connecting a DVD player/recorder or other device.

AUDIO-L (White)

AUDIO (L/R) is shared

with AV IN)

 Component cable (commercially available)  Audio cable (commercially available)

NOTE

• Please see Input select on page 46.

VIDEO connection

Example of connectable devices

VCR

DVD player/recorder

Game console

Camcorder

You can use the INPUT 5 or INPUT 6 terminal when connecting to a game console, camcorder, a DVD player/recorder or other device.

(Yellow)

(Green)

AUDIO-R (Red)

R (Red)

PB (Blue)

Y (Green)

(Yellow)

AUDIO (L/R) is shared

with AV IN)

(Yellow)

 AV cable (supplied accessory)  AV cable (commercially available)

NOTE

• When use INPUT 5, please see Input select on page 46.

VIDEO (Yellow)

AUDIO-L (White)

AUDIO-R (Red)

AUDIO-L (White)

VIDEO (Yellow)

Connecting external devices

Audio connections

Speaker/amplifier connection

Connect an amplifier with external speakers as shown below.

Connecting an amplifier with digital/ analogue audio inputs

OUTPUT

AUDIO (L / R)

DIGITAL

AUDIO

OUTPUT

NOTE

• If the image is not in sync with the audio, check the settings of the connected surround system.

After connecting

Digital audio output setting

After connecting an amplifier with digital audio input and external speakers as shown, you should set an audio output format compatible with the programme you are watching or the device connected.

Go to “HOME” > “TV Menu” > “Setup” > “Option” > “Terminal setting” > “Digital audio output” > select “PCM” or “Bitstream”.

NOTE

• When set to “Bitstream”, Dolby Digital is output when the Dolby

Digital or Dolby Digital Plus audio formats are received. When set to “PCM”, PCM is output no matter what audio formats are received.

• When set to “Bitstream”, HE-AAC audio formats can be output

as Dolby Digital.

 Optical audio cable (for digital audio) (commercially

available)

 Stereo conversion cable (for analogue audio)

(commercially available)

* This terminal is also used for headphones. Reduce the

volume before using headphones. Overwhelming sound may damage your hearing.

Notice

When connecting an optical audio cable to the DIGITAL AUDIO OUTPUT terminal, check the direction carefully, and insert it straight in while aligning the bottom side. Forcing it could cause damage to the terminal.

(*1)

Turn the flat surface aligning the jack shape and insert it straightly.

(*2)

Do not insert upside-down. Do not twist when inserting.

(Drawing from a side view)

Do not insert sideways.

AQUOS LINK

Controlling HDMI devices using AQUOS LINK

What is AQUOS LINK?

Using the HDMI CEC protocol, with AQUOS LINK you can interactively operate compatible system devices (AV amplifier, DVD player/recorder, Blu-ray player/recorder) using a single remote control unit. By connecting AQUOS LINK-compatible devices with HDMI-certified cables to the TV, you can control a recorder or AV amplifier using the remote control of the TV.

NOTE

• Check the availability of AQUOS LINK-compatible AQUOS BD Players and AQUOS LINK-compatible audio systems in your country.

• AQUOS LINK does not work while using time shift functions.

What you can do with AQUOS LINK

One touch play



When the TV is in standby mode, it will automatically turn on and play back the image from the HDMI source.

 Operating title list of external devices

You can also call up the external player’s top menu or AQUOS BD player’s/AQUOS recorder’s title list provided that the devices support AQUOS LINK.

 Controlling the AQUOS LINK-

compatible audio system

You can adjust the volume and select the sound mode of the AQUOS LINK-compatible audio system.

 Multiple control of HDMI devices

You can select which HDMI device to operate using the “Link operation” menu.

 Single remote control operation

AQUOS LINK automatically recognises connected HDMI devices and you can control the TV and the devices as if using a universal remote control unit.

NOTE

• When you use AQUOS LINK, make sure to use a certified HDMI cable.

• Point the remote control unit toward the TV, not to the connected HDMI device.

• Video noise may occur depending on the type of HDMI cable used. Make sure to use a certified HDMI cable.

• Up to three HDMI recording devices, one AV amplifier and three players can be connected using this system.

• These operations affect the HDMI device selected as the current external source. If the device does not operate, turn on the device and select the appropriate external source using b.

• When you insert/remove HDMI cables or change connections, turn on all connected HDMI devices before turning on the TV. Confirm that picture and audio are correctly displayed/output by selecting “HDMI1”, “HDMI2”, “HDMI3” or “HDMI4” from the “INPUT” menu.

AQUOS LINK

AQUOS LINK connection

First connect the AQUOS AUDIO speaker system or an AQUOS BD player/AQUOS recorder that supports the HDMI CEC protocol.

NOTE

• Refer to the operation manual of the device to be connected for further details.

• After unplugging connection cables or changing the connection pattern, turn on the power of the TV after all relevant devices’ power have been turned on. Change the external input source by pressing b, select the appropriate external source and verify the audiovisual output.

• The four buttons (G, I, V, H) connected by a green line are used for time shift operations for the time shift function.

Connecting an AQUOS BD player/AQUOS recorder via the AQUOS AUDIO speaker system

DIGITAL

AUDIO

OUTPUT

AQUOS BD player/AQUOS recorder AQUOS AUDIO speaker system

 HDMI-certified cable

(commercially available)

The ARC (Audio Return Channel) function works only when using the HDMI1 terminal

When you use an audio system compatible with the ARC function of the TV, you do not need to connect an optical audio cable to the TV.

 Optical audio cable

(commercially available)

Connecting an AQUOS BD player/AQUOS recorder only

AQUOS BD player/AQUOS recorder

Regarding “Select recording device”

Select the device for recording from connected devices.

NOTE

• This function enables you to select either the USB storage device for time shift use or the HDMI device with CEC protocol.

1 Go to “HOME” > “TV Menu” > “Setup” > “View setting” > “Select recording device”. 2 Select the device for recording using the REC E on the remote control unit.

• Select “USB storage” when using the REC E for time shift recording.

• Select “HDMI device” when using the REC E for recording to the HDMI device.

3 Press RETURN to end the operation.

AQUOS LINK

Operating an AQUOS LINK device

AQUOS LINK allows you to operate the HDMI-connected device with a single remote control unit.

EXT MEDIA

Use the following procedure to start recording.

Check the following items before recording.

• Make sure the antenna cable is connected properly.

• Check if the recording media (HDD, DVD, etc.) has enough capacity for recording a programme.

• Select the equipment for recording in Selecting Recorder.

1 After you selected recording media (HDD, DVD,

etc.) in the menu, please make sure the recording

Use the following procedure to start playback.

1 Press I to start playback of a title.

• See the section Top menu/title list if you want to start

playback using the list of the titles in the AQUOS BD player/AQUOS recorder.

menu in the ready condition.

2 Press REC E to start recording. 3 Press REC STOP H to stop recording.

2 Press J to fast forward.

Press G to reverse. Press H to stop. Press F to pause. Press Kto skip to previous chapter. Press Lto skip to next chapter. Press SOURCE to turn the HDMI-connected

device on/off.

AQUOS LINK menu

Go to “HOME” > “TV Menu” > “Link operation” > select the menu you want to set.

Link Operation Description Note

Recorder power on/off

Top menu/title list

Setup menu

Media change

Recorder EPG

Change audio output device

Sound mode change

Model select

AQUOS LINK setup

This function is for turning of the CEC-compatible recorder on/off. Every time you press ? in “Recorder power on/off”, the CEC-compatible recorder will be turned on/off.

This section explains how to play back a title in the AQUOS BD player/AQUOS recorder. Press @ to hide the menu screen to operate a/b/c/d buttons. Select the title with a/b/c/d, and then press I.

You can call up the menu of an HDMI CEC-compatible external device (player, recorder, etc.) using the “Setup menu” function.

If your recorder has multiple storage media, select the media type here. Select the desired medium, such as DVD recorder or HDD. The media type changes every time you press ?.

You can call up the CEC-compatible recorder’s EPG and preset timer recordings using the TV’s remote control. Select the programme to record.

You can choose to listen to the TV sound only from the AQUOS TV speaker system.

You can manually change the AQUOS AUDIO speaker system’s sound mode. The sound mode changes every time you press ?.

If multiple HDMI devices are connected in a daisy chain, you can specify which device to control here. The HDMI device changes every time you press ?.

See page 33 for details.

• Refer to the operation manual of the recorder for details.

• The linked recorder now powers on and the TV automatically selects the appropriate external input source.

• The title list data from the connected AQUOS BD player/AQUOS recorder displays.

• If a connected device does not have this function or the device is in a status where the menu cannot be displayed (recording, entering standby, etc.), this function may not be available.

• The external input source switches and the recorder’s EPG is displayed.

• You can use a/b/c/d, C, B and the coloured buttons.

• Refer to the operation manual of the recorder for details.

• Refer to the operation manual of the AQUOS AUDIO speaker system for details.

AQUOS LINK

AQUOS LINK control Set to “On” to enable HDMI CEC functions.

Auto power on

Selecting recorder

Selecting channel key

Audio return channel

If this is activated, the one touch play function is enabled. While the TV is in standby mode, it automatically turns on and plays back the image from the HDMI source.

Here, you can select a recorder for the recording from several connected recorders.

This function allows you to select the channel of the connected HDMI device using the TV’s remote control unit. Press a/b to select the input source of the connected HDMI device you want to control using the TV’s remote control unit, and then press ?. Press c/d to select “On”, and then press ?.

If this function is set to “Auto”, the TV can send audio data for video content shown on the TV to a connected audio device with just one ARC-compatible cable. Using this function eliminates the need to use a separate digital or analogue audio cable.

• The factory default for this item is “Off”.

• If you have connected the AQUOS AUDIO speaker system between the TV and an AQUOS recorder, the external source’s indication changes (e.g., from “HDMI1” to “HDMI1 (Sub)”).

• The ARC (Audio Return Channel) function works only when using the HDMI1 terminal.

Connection for using “Audio return channel”

• You need to use ARC-compatible cables/devices and connect to the HDMI1 terminal to activate this function. The connection

method is the same as Connecting an AQUOS BD player/AQUOS recorder via the AQUOS AUDIO speaker system (Page 31).

Using a Smartphone with the TV

This function enables you to connect the TV to a smartphone that supports Mobile High-Definition Link (MHL) using an MHL-compatible cable. To connect the TV to your MHL-compatible smartphone, be sure to use an MHL-compatible cable (commercially available).

• You can view pictures and video on a large screen.

• You can play back music files.

MHL-compatible cable

Back panel vertical inputs

NOTE

• An MHL-compatible portable device is required to use this function. Connect the device to the HDMI 4 terminal.

AQUOS LINK

Auto power on

When an MHL-compatible device is connected to the TV, the TV turns on automatically.

• This function operates when “AQUOS LINK control” is set to “On”. (See page 33.)

Auto input selection

When an MHL-compatible device is connected while the TV is on, the input mode is selected automatically.

• This function operates when “AQUOS LINK control” is set to “On”. (See page 33.)

Operation Using the Remote Control

The remote control of the TV can be used to operate a portable device.

• a/b/c/d, ?, B, 0-9, etc.

• The operations vary depending on the connected equipment and content being viewed.

Basic adjustment

Picture settings

Go to “HOME” > “TV Menu” > “Setup” > “Picture”.

Item

Setup

AV mode

OPC

Backlight

Contrast

[ +32]


[STANDARD]

[Off ]

+40

CH list

: Select

:Back:Enter

NOTE

• After selecting a menu such as “AV mode”, “OPC”, “Backlight”, “Contrast”, “Brightness”, “Colour”, “Tint” and “Sharpness”, you can adjust while viewing more of the screen area by pressing ? to make the menu smaller.

• For resetting all adjustment items to factory preset values, press a/b to select “Reset”, press ?, press a/b to select “Yes”, and then press ?.


AV mode

“AV mode” gives you several viewing options to choose from to best match the system environment, which can vary due to factors like room-brightness, type of programme watched or the type of image input from external equipment.

Press a/b to select the desired mode, and then press ?.

• You can also switch the mode on the “Picture” and “Audio”

menu screen by pressing #.

The TV automatically sets the appropriate

AUTO

STANDARD

MOVIE

GAME

PC*

USER

DYNAMIC

DYNAMIC (Fixed)

STANDARD (3D)

MOVIE (3D)

GAME (3D)

selection from the “AV mode” menu depending on the lighting conditions and the type of programme watched.

For a highly defined image in a normally bright room.

For viewing a movie in a darkened room.

For playing of video games.

For PC.

Allows you to customise settings as desired. You can set the mode for each input source.

For a clear-cut image emphasising high contrast for sports viewing.

For a clear-cut image emphasising high contrast for sports viewing (the “Picture” and “Audio” settings cannot be adjusted).

Refer to page 72 for details.

NOTE

“PC” is available only when selecting “HDMI1”, “HDMI2”, “HDMI3”, “HDMI4” or “PC” from the “INPUT” menu.

• You can select a different “AV mode” item for each input mode (for example, select “STANDARD” for TV input and “DYNAMIC” for VIDEO input).

• If you select “AUTO”, some selections in the “AV mode” menu may not be automatically set.


OPC

Automatically adjusts the brightness of the screen.

Item

Off

The brightness is fixed at the value set in “Backlight”.

Automatically adjusts.

Displays the OPC effect on the screen

On:Display

while adjusting the brightness of the screen.

NOTE

• When set to “On”, the TV senses the surrounding light and automatically adjusts the backlight brightness. Make sure no object obstructs the OPC sensor, which could affect its ability to sense surrounding light.

• When “Backlight” is adjusted, “OPC” is set to “Off”.


Picture adjustments

Adjusts the picture to your preference with the following picture settings.

Adjustment items

Selectable

items

Backlight

Contrast

Brightness

Colour

Tint

Sharpness

c (Cursor) d (Cursor)

The screen dims

The screen brightens

For less contrast For more contrast

For less brightness For more brightness

For less colour intensity

Skin tones become purplish

For more colour intensity

Skin tones become greenish

For less sharpness For more sharpness

Basic adjustment


Advanced

This TV provides various advanced functions for optimising the picture quality.

Go to “HOME” > “TV Menu” > “Setup” > “Picture” > “Advanced”.

C.M.S.-hue

This function adjusts the hue of a selected colour using a six-colour adjustment system.

C.M.S.-saturation

This function increases or decreases the saturation of a selected colour using a six-colour adjustment system.

C.M.S.-value

This function adjusts the brightness of a selected colour using a six-colour adjustment system.

Colour temp.

Adjusts the colour temperature to give the best white image.

Item

High

Mid-High

Middle

Mid-Low

Low

10 point setting*

R/G/B Gain (LO), R/G/B Gain (HI)

* “10 point setting” is available only when selecting

“STANDARD”, “MOVIE”, “STANDARD (3D)”, or “MOVIE (3D)” from the “AV mode” menu.

White with bluish tone.

Intermediate tone between “High” and “Middle”.

Natural tone.

Intermediate tone between “Middle” and “Low”.

White with reddish tone.

Finely adjusts each colour temperature between 1 to 10 points.

Adjusts the white balance by changing the value of each item.

NOTE

• This effect is greater on fast moving images.

• This function will have no effect in the following cases.

1) The type of signal received is a PC signal.

2) An OSD is being displayed.

3) Teletext is activated.

• If images appear blurred, set to “Off”.

Gamma adjustment

Selects the tone difference of the brightness and darkness of the image according to the type of programme watched from a maximum of e 2 to a minimum of f 2.

Film mode

Automatically detects a film-based source (originally encoded at 24 or 25 frames per second, depending on the vertical frequency), analyses it and then recreates each still film frame for high-definition picture quality.

Item

Advanced

Standard

Off

Adjust effect to reduce judder from ﬁlm contents. Select a desired level of judder reduction from 0 to +10.

Detects, analyses, converts ﬁlm source.

Normal viewing mode.

NOTE

• Film mode is not selectable depending on the input signal type.

Active contrast

Automatically adjusts the contrast of an image according to the scene.

DNR (Digital Noise Reduction)

“DNR” produces a clearer image (“Auto”, “High”, “Middle”, “Low”, “Off”).

NOTE

• This function may not be available depending on the input signal type.

AQUOMOTION

“AQUOMOTION” technologies provide superior solutions for digital display picture quality removing motion blur (“AquoMotion 200/240”, “High”, “Low”, “Off”).

Basic adjustment

Range of OPC

The brightness level range of the OPC sensor’s automatic adjustments can be set according to your preferences. The adjustment range of the OPC sensor can be set to a maximum of e 16 and a minimum of f 16.

NOTE

• This function is available only when the “OPC” setting is set to “On” or “On:Display”.

• The maximum setting cannot be set to a smaller number than the minimum setting.

• The minimum setting cannot be set to a bigger number than the maximum setting.

• The maximum and minimum settings cannot be set to the same number.

• Depending on the brightness of the surrounding light, the OPC sensor might not operate if the adjustment range is small.

Audio settings

Go to “HOME” > “TV Menu” > “Setup” > “Audio”.

Setup

Auto volume

Treble

Bass

Balance

L30

Audio

STANDARD

[Off]

R30

: Select

CH list

:Back:Enter

Audio

Auto volume

Different sound sources sometimes do not have the same volume level, such as a programme and its commercial breaks. This function reduces this problem by equalising levels.

Item

High

Strongly reduces the volume gaps among different sound sources.

Middle

Low

Off

Slightly reduces the volume gaps among different sound sources.

Does not adjust the volume gaps.

Audio

Audio adjustment

You can adjust the sound quality to your preference with the following settings.

Item

Treble

Bass

Balance

NOTE

• For resetting all adjustment items to factory preset values,

press a/b to select “Reset”, press ?, press a/b to select “Yes”, and then press ?.

c (Cursor) d (Cursor)

For weaker treble For stronger treble

For weaker bass For stronger bass

Decrease audio from the right speaker

Decrease audio from the left speaker

Basic adjustment

Audio

Surround

This function produces a surround effect from the speakers.

Item

Reproducing lifelike experience of

3D Stadium

3D Hall

3D Movie

3D Standard

SRS TS HD

Off

excitements such that live sports or concert performances in a stadium create.

Reproduces a concert hall experience with realistic live surround sound based on reverberant sounds measured in a concert hall.

Reproduces a movie theater experience with realistic live surround sound based on reverberant sounds measured in a movie theater.

Creates three-dimensional surround sound with detailed control of the signal phase.

SRS TruSurround HD™ creates a high quality surround sound experience, when watching DVD movies and TV programmes broadcast in surround sound.

Outputs normal sound.

Audio

Audio description setting (DTV only)

This function allows you to enable output of audio description if the TV receives a signal including audio description.

NOTE

• When the “Audio description” is set to “On”, the audio description sound is superimposed on the main audio when you select a broadcast compatible with audio description.

•

If you do not clearly hear the sound for the visually impaired, go to “HOME” > “TV Menu” > “Setup” > “Audio” > “Audio description setting” > “Mix level”, and select the upper level to turn up the volume.

• This function is available only for DTV broadcasts. This “Audio description setting” menu is not displayed for the ATV or the external inputs.

• The audio description sound is superimposed on the main audio only when the sound is output on the speaker sound output, headphone sound output and sound for audio out output. The sound is not output on the digital audio output and the HDMI sound output.

• This function is not available for the AQUOS Audio speaker system.

• This function does not work during time shift playback.

Audio

Bass enhancer

This function allows you to enjoy bass-enhanced sound.

Audio

Clear voice

This function emphasises speech against background noise for greater clarity.

Basic adjustment

Power save settings

Go to “HOME” > “TV Menu” > “Setup” > “ECO”.

Setup

ECO

ECO picture control

Energy save

No signal off

No operation off

[On]

[Off]

[Disable]

: Select

CH list

:Back:Enter

NOTE

• You can also select “ECO” by pressing ECO.

ECO

ECO picture control

This function automatically detects the image source and decreases the power consumption while keeping the brightness of the image unchanged.

NOTE

• This function does not work when “AV mode” is set to “DYNAMIC (Fixed)”, “DYNAMIC” or “AUTO”.

• This function does not work when “Energy save” is set to “Standard” or “Advanced”.

• This function is greyed out in 3D mode.

ECO

No signal off

When set to “Enable”, the TV will automatically enter standby mode if there is no signal input for 15 minutes.

NOTE

• Even if a TV programme finishes, this function may not operate because of interference from other TV stations or other signals.

ECO

No operation off

You can set the TV to automatically power off when no TV operation is performed for 30 minutes or 3 hours.

NOTE

• “Disable” is the factory preset value.

ECO

Sleep timer

Allows you to set a time when the TV automatically enters standby mode. You can set the time span for entering standby mode after selecting “Change”.

NOTE

• Select “Off” to cancel the sleep timer.

• When the time has been set, countdown automatically starts.

• Five minutes before the preset of time expires, the remaining time displays each minute.

ECO

Energy save

This function enables you to reduce the backlight brightness in order to decrease the power consumption and increase the backlight life span as shown in the following table.

Item

Standard

Advanced

Off

When “Energy save” is set to “Standard” or “Advanced”, “Energy save” status icons appear in the “Picture” menu and channel information windows.

NOTE

• This function does not work when “AV mode” is set to “DYNAMIC (Fixed)”.

Reduces the backlight brightness.

Reduces the backlight brightness more than “Standard”.

The backlight brightness is the same value of your settings in the selected “AV mode”.

Basic adjustment

Channel settings

Go to “HOME” > “TV Menu” > “Setup” > “View setting”.

Setup

View setting

Auto installation

Channel settings

Network setup

Select recording device

[USB storage]

: Select

CH list

:Back:Enter

View setting

Auto installation

The TV automatically detects and stores all available services in your area. This function also allows you to perform the channel setting and reconfigure the settings after the initial auto installation has been completed.

1 Go to “HOME” > “TV Menu” > “Setup” > “View

setting” > “Auto installation”.

2 If you have already set the password, enter it here.

• See page 43 for setting a password.

3 Press c/d to select “Yes”, and then press ?. 4 Press a/b/c/d to select the desired language,

and then press ?.

• You do not need to do anything during the auto search.

5 Press c/d to select “Digital Search” or “Analogue

Search”, and then press ?.

• When the country setting is set to “Australia”, only “Digital Search” is available.

NOTE

• You cannot set the HOME/STORE setting and the country setting in “Auto installation” in the “Setup” menu. If you want to reconfigure those settings, automatically execute initial auto installation after executing “Reset” from the “Setup” menu.

• The current country setting is displayed on the screen.

• In the setting of some country, selecting of “Digital Search” or “Analogue Search” may not be shown.

View setting

Programme setup

You can run the auto search procedure again at any time by accessing the “Setup” menu and “Programme setup”. Channels can be tuned automatically or manually.

Digital setting (DTV only)

You can reconfigure the DTV channel settings automatically or manually.

Go to “HOME” > “TV Menu” > “Setup” > “View setting” > “Channel settings” > “Programme setup”.

2 If you have already set the password, enter it here.

• See page 43 for setting a password.

3 The “Digital setting” screen displays, and then

press ?.

4 Press a/b to select the desired menu item, and

then press ?.

5 Press c/d to select “Yes”, and then press ?.

Additional search

Use this menu to add new services automatically after “Auto installation” has been completed.

• Start searching channels after selecting the colour system and sound system.

Manual search

Add new services within a specified frequency band.

• Enter the frequency using 0–9 numeric buttons.

Manual adjust

Configure various settings for each service using the Colour (R/G/Y/B) buttons.

Service

Service no.

Lock

Lock CH skip Old LCN

name

CH skip SortDelete

1 Press a/b to select the desired service. 2 Press the Colour button on the remote control

unit corresponding with the item you want to reconfigure.

• The mark indicates the operation is set to on. Each

time the Colour button is pressed, you can switch the corresponding operation on/off.

Basic adjustment

Buttons for “Manual adjust” operation

Lock

When the service is locked, you must enter your password whenever you tune to the service.

CH skip

Services with a  mark are passed over when pressing

CHr/s on the TV or remote control unit.

Delete

The selected service is deleted. If you want to watch the service you deleted once again, perform “Auto installation”, “Additional search”, or “Manual search”.

Sort

The item position of services can be sorted.

Press a/b to select the service whose item position you want to move, and then press ?.

Press a/b to move it to the desired position, and then press ?.

Repeat steps 1 and 2 until all desired service items are sorted.

Press R button.

Press G button.

Press Y button.

Press B button.

Analogue setting

Go to “HOME” > “TV Menu” > “Setup” > “View

setting” > “Channel setting” > “Programme setup”.

2 If you have already set the password, enter it here.

• See page 43 for setting a password.

3 The “Analogue setting” screen displays, and then

press ?.

4 Repeat steps 4 and 5 in Digital setting.

NOTE

• The “Analogue setting” menu is available only for watching TV in ATV mode.

Additional search

Use this menu to add new services automatically after “Analogue Search” in the “Auto installation” menu has been completed.

• Start searching channels after selecting the colour system and sound system.

Manual adjust

You can reconfigure the analogue TV channels settings automatically or manually.

After selecting “Yes” on the screen, press a/b/ c/d to select the channel you want to set and

then press ?.

Programme Setup “Manual adjust” menu

You can select one of the following settings.

You can add a new channel within a specified frequency band.

Item

Store

Cancel

Search the next channel.

Memorise the current display channel.

Return to the previous screen (the search result will not be stored).

Fine

You can adjust the frequency to the desired position.

1 You can set by directly entering the frequency

number of the channel with 0–9 numeric buttons.

EXAMPLE

• 179.25 MHz: Press 1 > 7 > 9 > 2 > 5.

• 49.25 MHz: Press 4 > 9 > 2 > 5 > ?.

NOTE

• Adjust while checking the background picture as a reference.

• When setting a frequency on the “Fine” screen, the last figure of the frequency needs to be “0” or “5”.

Colour sys.

Select the optimum colour system to receive (“Auto”, “PAL”, “SECAM”, “NTSC3.58”).

Sound sys.

Select the optimum sound systems (broadcasting systems) to receive (“B/G”, “D/K”, “I”, “M”).

NOTE

• Check the sound system if the sound output were not correct.

Basic adjustment

Useful viewing functions

Label

When a TV channel sends its network name, the “Auto installation” detects the information and assigns a name to it. However, you can change channel names individually.

Select each character of the new name for the channel with using the software keyboard (see page 15).

NOTE

• The name can be five characters or less. Select “Cancel” to set the channel name.

Skip

Channels with “Skip” set to “On” are passed over when using CHr/s even if selected while watching the image from the TV.

Lock

You can block the viewing of any channel.

NOTE

• See page 43 for setting a password.

• When “Lock” is set to “On” for a channel, “Child lock has been activated” displays, and the image and sound of the channel are blocked.

• When pressing C while “Child lock has been activated” displays, the password input window will display. Inputting the correct password unlocks the “Password” temporarily until the power is turned off.

TV Start-up time setting

View setting

Quick start

You can reduce the TV’s start-up time after turning on the power with the remote control unit.

Go to “HOME” > “TV Menu” > “Setup” > “View setting” > “Quick start”.

Item

Auto (Time shift)

Off

NOTE

• You cannot select “Off” in the “Quick start” menu while time shift is activated. Follow the on-screen instructions to change the “Quick start” settings.

• If you want to clear the playable data, go to “HOME” > “TV Menu” > “Setup” > “View setting” > “Time shift setting” > “Clear the Time shift memory” (Page 59).

The TV quickly starts up from standby. 36W or more of power consumption is required during standby.

The “Quick start” mode will automatically turn on and off depending on the time shift status. If playable data exists on the USB storage device registered for time shift, “Quick start” will be automatically set to the same status as “On”.

Power consumption is small during standby.

Sort

Channel positions can be sorted freely.

1 Press c/d to select “Yes”, and then press ?. 2 Press a/b/c/d to select the channel you want

to move, and then press ?.

3 Press a/b/c/d to move it to the desired

position, and then press ?.

4 Repeat steps 2 and 3 until all desired channels are

sorted.

Erase programme

Channels can be erased individually.

1 Press c/d to select “Yes”, and then press ?. 2 Press a/b/c/d to select the channel you want

to erase, and then press ?.

• A message window pops up.

3 Press c/d to select “Yes”, and then press ?

to erase the selected channel. All the subsequent channels move up.

4 Repeat steps 2 and 3 until all desired channels are

erased.

Useful viewing functions

Individual setting – Password

View setting

Password

Allows you to use a password to protect certain settings from being accidentally changed.

Go to “HOME” > “TV Menu” > “Setup” > “View setting” > “Individual setting” > “Password”

Setting a password

1 If you already set the password, enter it here. 2 Press c/d to select “Yes”, and then press ?. 3 Enter the four-digit number as a password using

0–9 numeric buttons.

Password

Setting Password. You can change or

clear Password

Yes No

Enter your new password.

Use 4 digits

Enter the password again to confirm

4 Enter the same four-digit number as in step 3 to

confirm.

5 Press ?.

NOTE

• To view a locked channel, you must enter the password (see page 42 for locking channels password). When you select a locked channel, a password prompt message pops up. Press C to display the password input window.

Deleting the password

Allows you to reset your password.

1 Enter the password. 2 Press c/d to select “No”, and then press

3 Press c/d to select “Yes”, and then press ?.

Password

Delete password?

Yes N o

NOTE

• As a precautionary measure, make a note of your password on page 84, cut it out and keep it in a safe place that children cannot reach.

• This function is only available for TV input mode.

• To relock a channel which has been temporarily unlocked by inputting the correct password, turn power off and then on

again.

View setting

Parental rating (DTV only)

This function allows DTV services to be restricted. It prevents children from watching violent or sexual scenes that may be harmful.

1 Go to “HOME” > “TV Menu” > “Setup” > “View

setting” >“Individual setting” > “Parental rating”.

• Repeat steps 1 to 5 in Setting a password to the left.

Selected item Description

No block

age xx years

General and above (G)

Parental guidance and above (PG)

Mature and above (M)

Mature adult and above (MA)

Adult violence and above (AV)

Restricted and above (R)

Cancel the blocking.

Select desired age to block. (Example) If age 14 is selected, programmes rated for ages of 15 or more are blocked.

Content is not offensive to most viewers.

Content is such that parents may not want their children to view the programme.

Mature audience only. This programme is specifically designed to be viewed by adults and therefore may be unsuitable for children under 15.

Mature adult only. This programme is specifically designed to be viewed by adults and therefore may be unsuitable for children under 15.

Not for children under age 15. Strong elements of sex and/or violence.

Not for children under age 18. Strong elements of sex and/or violence.

Individual setting – Time

View setting

Clock setup

Go to “HOME” > “TV Menu” > “Setup” > “View setting” > “Individual setting” > “Clock setup”.

Time adjustment

This function allows you to set the clock manually. Input the current time difference between your area and GMT (Greenwich Mean Time).

Useful viewing functions

Example of time difference with GMT

Local GMT off set

Canberra Sydney

Singapore Kuala Lumpur

Bangkok Jakarta

New Delhi

Cairo

+10:00

+8:00

+7:00

+5:30

+2:00

NOTE

• If you select “No”, the TV will try to get the time for the broadcast.

Time display

This function allows you to display the clock time in the lower-right corner of the screen.

Item

On (half-hourly)

Off

Displays the clock time.

Displays the clock time in 30-minute increments.

Hides the clock time.

NOTE

• Time information is available when channel time information including the teletext information is obtained in the “TV” mode.

Time format

You can select the time format (either “24HR” or “AM/ PM”) for the clock time.

NOTE

• The displayed time may differ depending on the programmes because of the programme information.

Clock type

You can select the clock type (either “Digital” or “Analogue”).

View setting

Time zone (DTV only)

This function enables you to select your local time zone.

Go to “HOME” > “TV Menu” > “Setup” > “View setting” >“Individual setting” > “Time zone”.

NOTE

• This function lets you select the right time zone in case the time displayed in the EPG does not match the local time of your area.

• When the country setting is set to “Australia” or “Indonesia”, this function is available. When the country setting is set to “another country”, this function is not available.

• Time zone differ depending on the selected country.

• When the manual clock is set up with “Time adjustment”, this function is not available.

Individual setting – Language

View setting

Digital audio language (DTV only)

Set up to three preferred multi audio languages to display if the audio languages are available.

Go to “HOME” > “TV Menu” > “Setup” > “View setting” > “Individual setting” > “Digital audio language”.

Switching the multi audio languages

Each time you press MPX on the remote control unit, the audio language switches.

NOTE

• This function depends on audio language information from broadcasters.

• If audio for the selected language is not included in a received broadcast, audio will not be output for that language.

View setting

Subtitle (DTV only)

Set up to two preferred subtitle languages (including subtitles for the hearing impaired) to display if subtitles are available.

Go to “HOME” > “TV Menu” > “Setup” > “View setting” > “Individual setting” > “Subtitle”.

Selectable items

1st language

2nd language

For hearing impaired

Switching subtitle languages

Each time you press [ on the remote control unit, the subtitle switches.

Off 1st language

2nd language

Set “For hearing impaired” to “Yes”

Subtitles for the hearing impaired have priority over each of the subtitle language settings (e.g., “1st language”, “2nd language”, etc.).

EXAMPLE

1st language

(For hearing impaired)

1st language

NOTE

• Subtitles will not be displayed when the programme does not contain subtitle information.

• Subtitles may not be displayed in 3D mode.

View setting

Language

You can select an OSD language. Refer to the OSD language column in the specification table for the

selectable languages (Page 80).

Go to “HOME” > “TV Menu” > “Setup” > “View setting” > “Language”.

Useful viewing functions

Optional features settings

Go to “HOME” > “TV Menu” > “Setup” > “Option”.

: Select

CH list

:Back:Enter

Setup

Option

Option for view

3D setup

Terminal setting

Colour system

[Auto]

Selecting the picture size manually

Option

Wide mode

You can select the picture size. Selectable picture size varies with the type of signal received.

1 Go to “HOME” > “TV Menu” > “Setup” > “Option”

> “Option for view” > “Wide mode”.

• You can also select an item by pressing WIDE on the

remote control unit.

• The menu lists the “Wide mode” options selectable for the type of video signal currently received.

2 Press a/b to select the desired item.

• As you toggle the options, each is immediately reflected on the screen. There is no need to press ?.

Basically, if you set “WSS” to “On” in the “Option” menu, the optimum “Wide mode” is automatically chosen for every broadcast or programme played using a VCR or DVD player/recorder.

NOTE

• Even if you select your desired “Wide mode” manually, the TV may automatically switch to the optimum “Wide mode” depending on the signal received when “WSS” is set to “On”.

Item (for SD [Standard-Definition] signals)

Normal

Zoom 14:9

Panorama

Full

Cinema 16:9

Cinema 14:9

Item (for HD [High-Definition] signals)

Full

Underscan

Dot by Dot

Keeps the original aspect ratio in a full screen display.

For 14:9 letterbox pictures. A thin side bar appears on each side, and you may also see bars on the top and bottom with some programmes.

In this mode, the picture is stretched toward each side of the screen. The picture may appear similar to “Full” depending on broadcast signals.

For 16:9 squeeze pictures.

For 16:9 letterbox pictures. Bars may appear on the top and bottom with some programmes.

For 14:9 letterbox pictures. Bars may appear on the top and bottom with some programmes.

Displays with an overscan image. Crops all sides of screen.

Displays with an underscan image only when receiving a 720p signal. Displays with the High-Definition image adjusted optimally. Noise may appear on the edge of the screen with some programmes.

Displays an image with the same number of pixels on the screen when receiving 1080i/1080p signals only.

NOTE

• “Zoom 14:9” and “Cinema 14:9” will appear only for TV mode.

• Some items do not appear depending on the type of received signal.

• You may not be able to change the wide mode while in 3D mode.

• Refer to page 66 for PC signals.

Selecting the WSS picture size automatically

Option

WSS

The “WSS” allows the TV to switch automatically among the different picture size.

Go to “HOME” > “TV Menu” > “Setup” > “Option” > “WSS”.

NOTE

• Use “Wide mode” if an image does not switch to the appropriate picture size. When the broadcast signal contains no “WSS” information, the function will not work even if enabled.

• This function is available for 3D images converted from 2D images or normal 2D images.

Useful viewing functions

Option

4:3 mode

The “WSS” signal has 4:3 auto-switching that allows you to select between “Normal” and “Full”.

Go to “HOME” > “TV Menu” > “Setup” > “Option” > “4:3 mode”.

Item

Full

Normal

Wide image without side bars.

Normal range keeping 4:3 or 16:9 aspect ratio.

WSS signal 4:3 screen

4:3 mode “Normal” 4:3 mode “Full”

Setting audio input

Option

Skipping specified inputs

Option

Input skip

This setting allows you to skip the inputs on the input source selection operation.

Go to “HOME” > “TV Menu” > “Setup” > “Option” > “Terminal setting” > “Input skip”.

Option

Input select

For setting the signal type of external equipment.

Go to “HOME” > “TV Menu” > “Setup” > “Option” > “Terminal setting” > “Input select”.

Input source Selectable item

Input 5

COMPONENT, VIDEO

Audio select

When using the PC terminal or HDMI2 terminal, you must select which terminal uses the AUDIO IN jack for analogue audio input.

Go to “HOME” > “TV Menu” > “Setup” > “Option” > “Terminal setting” > “Audio select”.

When selecting “HDMI2” from the “INPUT” menu

Item

HDMI

HDMI + Analogue

When selecting “PC” from the “INPUT” menu

Video

Video +Audio

When connecting devices (including a PC) with a HDMI cable to the HDMI2 terminal.

When connecting devices (including a PC) with a DVI/HDMI cable to the HDMI2 terminal and inputting analogue audio signals from the AUDIO IN jack.

Item

When connecting devices with AV cable to the PC terminal, display images without audio.

When connecting a PC to the PC terminal, and inputting analogue audio signals from the AUDIO IN jack.

Useful viewing functions

Option

Input label

You can label each input source with a custom description.

1 Press b to select the desired input source from

the “INPUT” menu, and then press ?.

2 Go to “HOME” > “TV Menu” > “Setup” > “Option”

> “Terminal setting” > “Input label”.

3 Press ? to display the software keyboard and

select each character of the new name for the input source (page 15).

4 Repeat the above until the name is fully spelt out,

and then press @.

• The label can be six characters or less.

• When you want to set an input source name of less than six characters, select “Cancel”.

CH list

ATV DTV

INPUT

Switchable

HDMI 2

Option

Headphone/Audio out select

You can select which device is used for outputting audio.

Go to “HOME” > “TV Menu” > “Setup” > “Option” > “Terminal setting” > “Headphone/Audio out select”.

Item

Headphone

Audio out

Regarding the headphone jack

• Use headphones with a stereo mini plug (

• Be sure to unplug headphones from the jack when they are not in use.

• The speakers do not output volume when headphones are plugged in.

• The “Audio” menu cannot be operated when headphones are plugged in.

• You can set the volume to different levels for each input source.

Volume display when headphones are plugged in

Output audio through headphones.

Output audio through an A/V receiver or surround audio controller.

3.5 mm).

NOTE

• You cannot change labels if the input source is “TV”, “USB media” or “Home network”.

Selecting the HDMI picture size automatically

Option

HDMI auto view

This function allows you to automatically change to the appropriate picture size when viewing an HDMI signal using the HDMI1, 2, 3 and 4 terminals.

1 Press b to select the input source (“HDMI1”,

“HDMI2”, “HDMI3” or “HDMI4”) connected to your HDMI device, and then press ?.

2 Go to “HOME” > “TV Menu” > “Setup” > “Option”

> “Terminal setting” > “HDMI auto view”.

Item

Enable/Disable

NOTE

• Refer to your external equipment operation manual for the above settings.

• When connecting a DVI-HDMI conversion adaptor/cable to the HDMI terminal, the image may not come in clearly.

Set whether or not to use “Wide mode” based on signal recognition, including an HDMI signal.

CAUTION

• This terminal is also used for headphones. Reduce the volume before using headphones. Overwhelming sound may damage your hearing.

NOTE

• If you select “Audio out” when a cable is inserted in the AUDIO IN terminal, the TV speakers are muted.

• When you select “Audio out”, you can adjust the TV sound volume with the Yl/k buttons on the TV or the remote control unit.

Useful viewing functions

Option

Headphone out setting

You can select the headphone/speaker audio output when using the headphones.

Go to “HOME” > “TV Menu” > “Setup” > “Option” > “Terminal setting” > “Headphone out setting”.

Item

Headphone

Dual

NOTE

• This function does not work when “Change audio output device” (Page 32) is set to “By AQUOS audio SP” or “Headphone/Audio out select” is set to “Audio out”.

• Regarding the volume adjustment when “Dual” is set:

− Adjust the speaker volume with the Y +/– on the

remote control unit.

− Adjust the headphone volume with the Y +/– on the

TV.

− The headphone volume is not muted even by pressing

e (Mute) on the remote control unit.

• When not using the headphones:

− Audio outputs from the speakers regardless of the

settings.

Audio output from headphones only.

Audio output from headphones and speakers.

Option

Adjusting image position

Option

Position

For adjusting a picture’s horizontal and vertical position.

Go to “HOME” > “TV Menu” > “Setup” > “Option” > “Screen effect” > “Position”.

Item

H-Pos.

V-Pos.

NOTE

• For resetting all adjustment items to the factory preset values,

press a/b to select “Reset”, and then press ?.

• Adjustments are stored separately for each input source.

• Depending on the input signal type, “Wide mode” setting or “Video mode” for the USB media mode, a position setting may not be available.

• Images may not be displayed properly depending on the settings and/or signals.

• This function is available for 3D images converted from 2D images or normal 2D images.

Centres the image by moving it to the left or right.

Centres the image by moving it up or down.

Colour system

You can change the colour system to one that is compatible with the image on the screen.

Go to “HOME” > “TV Menu” > “Setup” > “Option” > “Colour system”.

NOTE

• The factory preset value is “Auto”.

• If “Auto” is selected, the colour system for each channel is automatically set. If an image does not display clearly, select

another colour system (e.g., “PAL”, “SECAM”).

Option

Channel selecting effect

This function shows a screen effect when choosing or changing channels.

Go to “HOME” > “TV Menu” > “Setup” > “Option” > “Screen effect” > “Channel selecting effect”.

Option

Programme title display (DTV only)

This function allows you to display programme information such as the title and airtime by tuning a channel.

Go to “HOME” > “TV Menu” > “Setup” > “Option” > “Screen effect” > “Programme title display”.

NOTE

• This function is available only when the DTV mode is selected.

Useful viewing functions

Network function

Additional features

Option

Game play time

This function allows you to display the elapsed time on the screen when “AV mode” is set to “GAME”.

Go to “HOME” > “TV Menu” > “Setup” > “Option” > “Game play time”.

Item

Under connecting a game console to

Off

the TV, the elapsed time is displayed in 30-minute increments after you start playing a game.

Hides the time.

NOTE

• This function is displayed in the external input mode.

• This function is reset after performing the following operations:

1.When toggling the input.

2. When changing “AV mode”.

Option

Key lock

This function allows you to lock the buttons on the TV or remote control unit in order to prohibit children from changing the channel or volume.

Go to “HOME” > “TV Menu” > “Setup” > “Option” > “Key lock”.

Item

Off

RC control lock

Button control lock

NOTE

• You cannot set both “RC control lock” and “Button control lock” at the same time.

Cancelling the lock

Press @ on the TV and set to “Off” to cancel the “RC control lock”. Press @ on the remote control unit and set to “Off” to cancel the “Button control lock”.

NOTE

• See page 17 for the functions of the TV control panel buttons.

• To cancel “Button control lock”, use the remote control.

Unlocks the buttons.

Locks all buttons on the remote control unit.

Locks the buttons on the TV except the power switch.

Playing Back Files from a Portable Device or PC

With the remote playback function, you can use your portable device to playback pictures, video and music on the home network server.

• The TV has obtained DLNA’s Digital Media Renderer (DMR) certification.

• To use the remote playback function, your portable device or PC must be a DLNA Certified Digital Media Controller.

• Please ensure that the TV and portable device or PC are in the same network environment, and set portable device as the server of TV.

For the network setting of TV, please refer to pages 49 – 51.

Easy share setting

Go to “HOME” > “TV Menu” > “Setup” >

“View setting” > “Network setup” > “Easy share setting”.

2 Press a/b to select the item to be adjusted, and

then press ? to set.

Set easy share permission

Before this function can be used, you need to set the TV to the status of being able to receive contents.

Item

Off

Time out setting

This sets the time until the TV returns automatically to TV mode after remote playback ends.

10 sec./60 sec.

NOTE

• This function may not work while an Internet application is being used.

• Due to reasons including network environment, it may take some time for the TV to start playing after the dragging operation.

• If the wireless signals are too complicated, or multiple wireless access points are available, operations may not be performed properly due to signal interference.

• Some file formats may not match. For the file formats supported by this function, please see Home network server compatibility on page 65.

Receiving and playing contents from portable device or PC are allowed.

Receiving contents from portable device or PC is not allowed.

Item

When the set time has elapsed after remote playback ends, the TV returns automatically to TV mode.

Select this to manually switch the TV after remote playback ends.

Network function

Connecting to the network

To enjoy internet services, you need to connect the TV to a router with a high speed connection to the internet. You can also connect the TV to your Home network server through a router or access point. The TV connection to the router can either be wired or wireless.

NOTE

• If you choose a wired connection to the router, you need an ETHERNET cable (commercially available).

• If you do not have a broadband internet connection, consult the store where you purchased your TV or ask your internet service provider or telephone company.

• An ETHERNET and wireless connection cannot be used at the same time. Use only one of the connection types.

• A stable connection speed is required to play back streaming content, otherwise you may not be able to watch normally.

Wired installation

Use an ETHERNET cable to connect the ETHERNET terminal on the TV to your broadcast router as shown below. This is recommended when enjoying services which require stable connection speeds, such as streaming media.

Wired connection overview

 PC (home network server)  Router (commercially available)  ETHERNET cable (commercially available)  Network

How to connect

Router ETHERNET terminal

LAN

 ETHERNET cable (commercially available)

When using Easy setup function

Refer to “How to connect”.

3 Go to “HOME” > “TV Menu” > “Setup” >

“View setting” > “Network setup” > “LAN setting” > “Easy setup”.

4 Press c/d to select “Yes”, and then press ? . 5 Press a/b to select “Wired”, and then press ? . 6 Please input according to direction of a screen,

and finally input “Complete”.

When using Manual setup function

Refer to “How to connect”.

3 Go to “HOME” > “TV Menu” > “Setup” >

“View setting” > “Network setup” > “LAN setting” > “Manual setup” > select “Yes” > “Connection type”.

4 Press c/d to select “Wired”, and then press ?. 5 Select “OK” to confirm.

• The wired connection will be automatically established.

• If you have failed to connect to the internet in the above operation, an error message will appear. In this case, press b to return to the normal TV screen and check

the relevant settings.

NOTE

• To change the settings manually, go to “HOME” > “Network setup” > “IP setup” and follow the on-screen

instructions and the operation manual of the router.

Connection type Wireless setup IP setup

Wireless installation

Use the wireless LAN USB adapter (optional accessory).

Wireless connection overview

Setting Ethernet info.

IP address Netmask Gateway DNS MAC address

Change

[Current setup]

: Auto : Auto : Auto : Auto : xx:xx:xx:xx:xx:xx

Initialize

1 Switch on the router (commercially available).

Refer to the router’s operation manual for switching on.

2 Connect the ETHERNET terminal on the TV

to the router (commercially available) with an ETHERNET cable (commercially available).

 PC (home network server)  Wireless LAN router/access point  Wireless LAN USB adapter (optional accessory)  Network

Network function

NOTE

• When using the SHARP wireless LAN USB adapter (optional accessory), try to provide as much free space around the device for best performance.

• A wireless LAN connection and performance cannot be guaranteed for all residential environments. In the following cases, the wireless LAN signal may be poor or drop, or the connection speed may become slower.

fWhen used in buildings made with concrete, reinforced

steel, or metal

fWhen placed near objects that obstruct the signal fWhen used with other wireless devices that emit the same

frequency

fWhen used in the vicinity of microwave ovens and other

devices that emit a magnetic field, electrostatic charge, or electromagnetic interference

• Make sure the firewalls in your network allows access to the TV wireless connection.

• Operations cannot be guaranteed when used with access points that do not have Wi-Fi® certification.

• A wireless LAN access point is required to connect the TV to the Internet using a wireless LAN. See the operation manual of your access point for setup.

• A stable connection speed is required to play back streaming content. Use an ETHERNET connection if the wireless LAN speed is unstable.

• Before transferring to a third party or disposal, be sure to initialise the wireless LAN settings.

How to connect

OUTPUT

AUDIO (L / R)

(WIRELESS LAN)

1 Switch on your router before starting the network

installation.

2 Connect the wireless LAN USB adapter (optional

accessory) to the USB 2 (WIRELESS LAN) port on the rear of the TV.

When using Easy setup function

Refer to “How to connect”.

3 Go to “HOME” > “TV Menu” > “Setup” >

“View setting” > “Network setup” > “LAN setting” > “Easy setup”.

4 Press c/d to select “Yes”, and then press ? . 5 Press a/b to select “Wireless”, and then press

? .

6 Please input according to direction of a screen,

and finally input “Complete”.

When using Manual setup function

Refer to “How to connect”.

3 Go to “HOME” > “TV Menu” > “Setup” >

“View setting” > “Network setup” > “LAN setting” > “Manual setup” > select “Yes” > “Connection type”.

4 Press c/d to select “Wireless”, and then press

5 Select “OK” to confirm. 6 Press a/b to select “Wireless setup”, and then

press ?.

7 Press c/d to select “Change”, and then press

8 Press a/b to select “WPS push button”, and

then press ?.

WPS push button

WPS PIN code

Selecting wireless network

Registering wireless network

• To establish the connection manually, select “WPS PIN code”. Follow the on-screen instructions and the operation manual of the router/access point.

9 Select “Next” to proceed.

Press the WPS button on the router/access point. When you press the WPS button, a progress bar will appear on the display. Wait until the connection is established.

Select “OK” when the connection details are displayed.

• If you have failed to connect to the internet in the above operation, an error message will appear. In this case, press b to return to the normal TV screen and check the relevant settings.

NOTE

• To connect your TV to the internet, you must have a broadband internet connection.

• There is no need to enter the security key for subsequent connections to the wireless network.

• If your access point is set to a stealth mode (that prevents detection by other devices), you may not be able to establish a connection. In this case, disable the stealth mode on the access point.

• If you want to change the IP settings manually, go to “HOME” > “Network setup” > “IP setup” and follow the on-screen instructions and the operation manual of the router.

• See page 52 to check the wireless LAN USB adapter specifications.

Network function

Specifications (Wireless LAN USB adapter)

Product name 802.11n Dual Band WLAN adapter

Standard IEEE 802.11a/b/g/n

Host interface USB

Frequency band

Security Static WEP (64/128 bit, key index 1 only)

Modulation DBPSK@1 Mbps

Transmit power and sensitivity

Current Consumption (5V DC) Tx: 2.2 W (Typical)

Weight 13 g

Dimensions

Operating temperature

Tx output power: (Typical)

Rx sensitivity: (Typical)

2.4 GHz

5 GHz (5150f5250 MHz, 5250f5350 MHz)

5 GHz (5470f5725 MHz, 5725f5850 MHz)

2412f2484 MHz 5150f5850 MHz

WPA-PSK (TKIP) WPA2-PSK (AES)

DQPSK@2 Mbps CCK@5.5/11 Mbps BPSK@6/9 Mbps QPSK@12/18 Mbps 16-QAM@24 Mbps 64-QAM@48/54 Mbps and above, Rx up to 300 Mbps

11b 17 e/f 1.5 dBm 11g 14 e/f 1.5 dBm 11n 13 e/f 1.5 dBm

11a 14 e/f 1.5 dBm 11n 13 e/f 1.5 dBm

11a 13 e/f 1.5 dBm 11n 13 e/f 1.5 dBm

f84 dBm@11 Mbps f72 dBm@54 Mbps f64 dBm@64-QAM, 20 MHz channel spacing f61 dBm@64-QAM, 40 MHz channel spacing

Rx: 1.4 W (Typical)

20.0 (W) g73.3 (D) g 8.0 (H) mm

0 °C to e 40 °C

NOTE

• The optional wireless LAN USB adapter has received the following certifications.

f Wi-Fi CERTIFIED™ (certification program from the Wi-Fi Alliance®) f Wi-Fi Protected Setup™ (certification program from the Wi-Fi Alliance®)

• When there is significant interference in the 2.4 GHz frequency (such as from other wireless LAN devices, Bluetooth® devices,

2.4 GHz cordless telephones, and microwave ovens), it is recommended that you use a wireless LAN access point that supports IEEE802.11a/n (5 GHz) and set the access point to transmit at 5 GHz. For setup details, see the operation manual of your access point.

• Before transferring to a third party or disposal, be sure to initialise the wireless LAN settings.

• Wireless LAN USB adapter is Peripheral Device for TV and supports WEP64, WEP128, TKIP and AES encryptions.

Optional accessories (Wireless LAN USB adapter)

The optional wireless LAN USB adapters vary by model available for purchase depending on the sales area. See the following table.

KI-OUA004WJN1

KI-OUA004WJN2

KI-OUA004WJN3

KI-OUA004WJN4 Nigeria

Indonesia, Malaysia, Philippines, Singapore, Thailand, Vietnam, Australia, New Zealand, India, Taiwan, UAE, Saudi Arabia

Morocco, Egypt, Kenya, South Africa, Bahrain, Kuwait, Oman, Qatar, Jordan, Lebanon, Ghana, Cambodia, Bangladesh, Brunei, Papua New Guinea, Mauritius, Maldives, Kazakhstan, Georgia, Angola, Myanmar, Sri Lanka, Laos

Algeria, Senegal, Niger, Benin, Burkina Faso, Mali, Mozambique, Madagascar, Zambia, Nepal, Tanzania, Fiji Islands

Network function

Using AQUOS.NET

By connecting the TV to the Internet, you can enjoy a variety of broadband content.

1 Press HOME to display the “HOME” screen. 2 Press a/b/c/d to select “AQUOS.NET” service,

and then press ?.

HOME

• If “ ” is displayed, check your TV’s network settings and connection.

3 The screen for AQUOS.NET is displayed.

Example : The image shown below, which is only for

explanation, is subject to change.

5 Press a/b/c/d to select a function, and then

press ?.

Selected item Description

Go back to the previous page.

Go to the next page.

Refresh the page. Interrupt a page while it is loading.

Display the bookmarks list.

Display the AQUOS ADVANTAGE LIVE.

Display the Browser menu.

Display the cursor.

LAN

Add the current page to your bookmarks.

6 Press a/b/c/d to select the “address bar”, and

then press ?.

Example : The image shown below, which is only for

explanation, is subject to change.

http://xxxxxxx/xx/

NOTE

• Additional applications will be available in the future.

• The delivery speed of applications varies depending on the network speed. Check the web site of the provider for details on application setup and other information.

4 Press B to display navigation bar.

http://xxxxxxx/xx/

Address bar

7 The screen for Enter address is displayed.

Enter address

Input history

Select

Address

Back

8 The software keyboard will pops up when you

press ?. After using the software keyboard to input the “URL”, press ?, select

and press ? again.

Network function

Clear browser setting

You can clear browser setting, which includes cookies, bookmarks and caches. Go to “HOME” > “TV Menu” > “Setup” > “View setting” > “Clear browser setting”.

NOTE

• Password input is required when executing “Clear browser setting” if Password is set.

CAUTION

• If you exercise this operation, browser setting will be completely initialised. If there is important information take notes before executing.

About links

• Web pages on the Internet often include “links” that allow you to jump to other web pages (or sites).

• “Links” can take various forms, including words or images, but they always work in the same way letting you jump to the link destination when you select them.

• You can jump from a “link” to the corresponding link destination.

CAUTION

• If the power is cut due to a power failure or the TV being unplugged while you are using the Internet, information such as bookmarks or cookies may not be saved correctly.

NOTE

To users who access the Internet from a PC:

• When you access the Internet from this TV, the procedures may not be the same as regular browser-based access on a PC.

• You cannot download files nor install programs.

• Video and audio cannot be played, and text or images may not be displayed correctly.

Network function

DISCLAIMERS

This Sharp device facilitates the access to content and services provided by third parties. The content and services accessible via this device belong to and may be proprietary to third parties. Therefore, any use of such third party content and services must be in accordance with any authorization or terms of use provided by such content or service provider. Sharp shall not be liable to you or any third party for your failure to abide by such authorization or terms of use. Unless otherwise specifically authorized by the applicable content or service provider, all third party content and services provided are for personal and non-commercial use; you may not modify, copy, distribute, transmit, display, perform, reproduce, upload, publish, license, create derivative works from, transfer or sell in any manner or medium any content or services available via this device.

Sharp is not responsible, nor liable, for customer service-related issues related to the third party content or services. Any questions, comments or service-related inquiries relating to the third party content or service should be made directly to the applicable content or service provider.

You may not be able to access content or services from the device for a variety of reasons which may be unrelated to the device itself, including, but not limited to, power failure, other Internet connection, or failure to configure your device properly. Sharp, its directors, officers, employees, agents, contractors and affiliates shall not be liable to you or any third party with respect to such failures or maintenance outages, regardless of cause or whether or not it could have been avoided.

ALL THIRD PARTY CONTENT OR SERVICES ACCESSIBLE VIA THIS DEVICE IS PROVIDED TO YOU ON AN “AS-IS” AND “AS AVAILABLE” BASIS AND SHARP AND ITS AFFILIATES MAKE NO WARRANTY OR REPRESENTATION OF ANY KIND TO YOU, EITHER EXPRESS OR IMPLIED, INCLUDING, WITHOUT LIMITATION, ANY WARRANTIES OF MERCHANTABILITY, NON-INFRINGEMENT, FITNESS FOR A PARTICULAR PURPOSE OR ANY WARRANTIES OF SUITABILITY, AVAILABILITY, ACCURACY, COMPLETENESS, SECURITY, TITLE, USEFULNESS, LACK OF NEGLIGENCE OR ERROR-FREE OR UNINTERRUPTED OPERATION OR USE OF THE CONTENT OR SERVICES PROVIDED TO YOU OR THAT THE CONTENT OR SERVICES WILL MEET YOUR REQUIREMENTS OR EXPECTATIONS.

SHARP IS NOT AN AGENT OF AND ASSUMES NO RESPONSIBILITY FOR THE ACTS OR OMISSIONS OF THIRD PARTY CONTENT OR SERVICE PROVIDERS, NOR ANY ASPECT OF THE CONTENT OR SERVICE RELATED TO SUCH THIRD PARTY PROVIDERS.

IN NO EVENT WILL SHARP AND/OR ITS AFFILIATES BE LIABLE TO YOU OR ANY THIRD PARTY FOR ANY DIRECT, INDIRECT, SPECIAL, INCIDENTAL, PUNITIVE, CONSEQUENTIAL OR OTHER DAMAGES, WHETHER THE THEORY OF LIABILITY IS BASED ON CONTRACT, TORT, NEGLIGENCE, BREACH OF WARRANTY, STRICT LIABILITY OR OTHERWISE AND WHETHER OR NOT SHARP AND/OR ITS AFFILIATES HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

• This product contains fonts provided by Monotype Imaging Inc.

• Monotype® is a trademark of Monotype Imaging Inc. registered in the United States Patent and Trademark Office and may be registered in certain jurisdictions.

• Tioga™ is a trademark of Monotype Imaging Inc. and may be registered in certain jurisdictions.

• Letter Gothic™ is a trademark of The Monotype Corp. and may be registered in certain jurisdictions.

• iType® is a trademark of Monotype Imaging Inc. registered in the United States Patent and Trademark Office and may be registered in certain jurisdictions.

• This product contains the iType® font engine from Monotype Imaging Inc.

http://www.espial.com

Other useful features

Using a USB device

The TV provides you some functions using a USB device. You can select which function to use after inserting a USB device in the USB port, and the TV starts the settings for each function.

USB usage

Storage device for time shift

USB media to enjoy photos, music and videos

Connecting a USB device

Connect a USB device to the TV as shown below.

NOTE

• Some USB devices may not work properly for this function.

• Directly connect the USB storage device for time shift to the USB port.

• Do not connect and disconnect a USB device from the TV repeatedl

For time shift

You need to complete the following procedure to use the USB storage device for time shift. After selecting “Time shift +”, the TV starts initialising the USB storage device. Follow the screen prompt to complete the setting.

1 Press c/d to select “Yes”, and then press ?.

• Reconfirm use of the USB storage device for time shift.

NOTE

• When you have inserted two or more USB storage devices in the ports, an error message appears. Insert only one USB storage device for time shift.

• You can also set the USB storage device to be used for time shift in the “Device registration” menu (Page 60).

• At least 1 GB is required for a USB storage device for time shift.

• A USB HDD cannot be used as a USB storage device for time shift.

2 Press c/d to select “Yes”, and then press ?.

• The TV starts initialising the USB storage device.

• Delete the data in the USB storage device.

NOTE

• Do not disconnect the USB storage device when the TV is recognising the memory for time shift.

3 Select “OK”.

Press ?.

NOTE

• If an error message is displayed on the screen, follow the screen prompts and remove the USB storage device.

Go to Time shift + on page 57.

For USB media

USB storage device registration

It is necessary to first perform USB storage device registration for USB storage devices used for time shift.

Directly connect only one USB storage device to the USB port while registering the USB storage device (when two or more USB storage devices are connected, USB storage device registration is not available).

• The screen prompt pops up.

When the USB storage device is connected to the TV

• All the data on the USB storage device is deleted after USB storage device registration.

NOTE

• In order to use time shift, it is necessary to change the “Quick start” setting to “Auto (Time shift)” or “On”.

• Only one USB storage device for time shift can be registered on the TV. Two or more USB storage devices for time shift cannot be used at the same time.

• If a registered USB storage device is inserted, a screen prompt will not be displayed.

After selecting “USB media”, the TV switches to the USB media.

Go to USB media/Home network on page 61.

NOTE

• Depending on the USB device, the TV may not be able to recognise the contained data.

• Use only alphanumeric characters for naming files.

• File names over 80 characters (may vary depending on the character set) may not be displayed.

• Do not disconnect a USB device or memory card from the TV while transferring files, using the slide show function, when a screen is switching to another or before you exit “USB media” from the “INPUT” menu.

Other useful features

INFO

SLEEP

Disconnecting the USB device

When you disconnect the USB device, be sure to the following steps.

For time shift

Go to “HOME” > “TV Menu” > “Setup” > “View setting” > “Time shift setting” > “Device removal”.

NOTE

• This menu item cannot be selected when a USB storage device for time shift is not registered.

• The USB storage device registration for time shift is cancelled in the following cases:

− When the USB storage device is removed.

− When another USB storage device is registered for time

shift; only one USB device can be registered for time shift.

For USB media

Press B on the remote control unit while the “Photo”, “Music”, “Video” folder or a sub-folder is selected.

Time shift + (DTV only)

This function enables you to pause the digital TV or satellite programme you are watching and start watching it again from the paused scene.

CAUTION

• Do not unplug the AC cord or turn off the MAIN POWER switch during time shift timer setting or time shift recording.

• When the AC cord is unplugged and the MAIN POWER switch is turned off:

− The time shift timer setting is cancelled.

− Recorded data is deleted.

• Time shift recording may be automatically stopped when signal reception is poor.

• Only this TV can playback the programme recorded on the USB storage device connected to this TV. The programmes cannot playback on other TV or PC.

SHARP corporation bears no responsibility regarding compensation for content when recording cannot does not take place, loss of recorded data or other direct or indirect damages related to these matters. Please be forewarned.

Buttons for time shift operation

Remote control unit

EXT MEDIA

TV INFO

Control panel

Buttons Description

Start recording the programme you are watching.

REC E

• You cannot playback the recorded programme until approximately three

seconds after pressing REC E to start recording.

REC STOP H

Stop recording.

Playback the recorded programme.

Stop the programme in playback and go back to the real time broadcast (live).

Pause the programme in playback (time

shift recording continues).

• This function is released in 15 minutes.

Reverse (each time you press this button, the reverse speed changes in three levels).

Fast forward (each time you press this

button, the fast forward speed changes in three levels).

Jump backward to the previous chapter point*.

Jump forward to the next chapter point*.

Playback will resume after jumping

backward by the time interval you set in “Jump time setting” (Page 59).

Playback will resume after jumping forward

by the time interval you set in “Jump time setting” (Page 59).

* Chapter points are fixed at 10 minute increments.

NOTE

• Refer to Regarding “Select recording device” (Page 31)

• Instead of pressing buttons on the remote control unit, most of the operations shown to the left are also available on the screen with the control panel. You can call up this control panel by pressing CONTROL on the remote control unit or select “Control (Time shift)” from “HOME” > “TV Menu” > “Setup” > “Option” > “Option for view”.

• The “Audio description setting” menu does not work during time shift playback.

• When the amount of memory used for time shift reaches “Full” and the blue point is around the left edge of the bar (see  and  in the Counter section on page 59), you cannot operate some functions (F (Pause), S (Reverse), K(Jumping backward to the previous chapter point), a (Jumping backward by the time interval you set in “Jump time setting”)).

• Time shift recording stops if no operation detected for three hours.

• When recording operations are not stopped manually, recording will automatically stop after six hours.

• To release time shift, press REC STOP H, change the DTV/ SAT channel or change “INPUT”.

• Some functions do not work during time shift.

• As time shift is not actually a recording function, recorded data will be reset when the MAIN POWER switch is turned off or when the AC cord is unplugged.

• Time shift does not start automatically, but starts only when REC E is pressed or when a time shift timer setting is

started.

• The PIN is required when you use the buttons such as S, J, K, L, a, b, if you set the PIN and any options for “Parental rating” except “None” are selected.

• Do not disconnect the USB storage device used for time shift during time shift operation.

Other useful features

Time shift recording

You can record the programme you are watching to the registered USB storage device.

Starting time shift recording

Press REC E.

• The TV starts time shift recording.

NOTE

• You can also operate from the control panel by pressing

CONTROL.

• You cannot switch the channel or the input source during time shift recording.

• Time shift + overwrites existing data when a new

recording starts.

• The TV starts overwriting data in order from the oldest recorded data when the memory for the USB storage device is full. Use a high capacity USB storage device when you want to record longer programmes.

• During time shift recording, the TV cannot display photos or play music from the internet, Home network, or USB storage devices.

• You cannot record programmes that have a copy control signal that prohibits recording (they can only be watched on the TV).

Completing time shift recording

1 Press REC STOP H.

• The screen prompt pops up.

2 Press c/d to select “Yes”, and then press ?.

• Time shift recording has completed.

NOTE

• You can also operate from the control panel by pressing

CONTROL.

Time shift timer setting

EPG timer setup

You can select the programme you want to record and set the timer setting with EPG (Pages 22 to 25).

Manual timer setting

“Manual timer setting” enables you to set date, recording start/stop time and channel.

1 Press GUIDE. 2 Press B to display the timer list. 3 Press B again to display the “Manual timer

setting” screen.

4 Set date, recording start/stop time and channel. 5 Press c/d to select “Time shift”, and then press

• A confirmation screen will be displayed for the timer setting.

6 Press c/d to select “Yes”, and then press ?.

NOTE

• When the country setting is set to “New Zealand”, you may not display a Timer list screen in the above mentioned procedure. You can display the Timer list screen from “HOME” > “TV Menu” > “EPG” > “Timer list”.

Manual clock setting

When the TV cannot receive the time via digital broadcast, perform “Manual timer setting” after setting the clock.

Go to “HOME” > “TV Menu” > “View setting” > “Individual setting” > “Clock setup” > “Time adjustment”.

NOTE

• You cannot set the manual clock setting during time shift recording.

You can set the time shift timer setting for programmes you want to record.

NOTE

• To prevent the first part of the programme from being cut, start recording the programme a few seconds earlier than time set to start recording.

• When recording/viewing timer settings are set continuously for multiple programmes, schedule the recording of the previous programme to end earlier than the end of the programme itself. Recording/viewing timer setting of the next programme will start after that.

• A message will be displayed when the scheduled time overlaps with an existing schedule. Make changes in accordance with the on-screen instructions.

• It is not possible to newly schedule a recording that overlaps with a timer setting that is currently running (recording). When urgent setting of a schedule is desired, stop recording before scheduling.

• Only one time shift timer setting can be set.

• A combined total of 16 timer settings (“Watch” and “Time shift”) can be set.

Timer list

A list of programmes scheduled for recording can be displayed.

1 Press GUIDE. 2 Press B to display the timer list.

NOTE

Other useful features

Time shift playback

Playback recorded scenes of the programme being recorded.

Press d during time shift recording.

• The last recorded programme can be replayed after the end of recording.

• Press H to return the scene that is broadcasting.

NOTE

• You can also operate from the control panel by pressing

CONTROL.

• Time shift playback may take a few moments to start.

• Time shift playback will stop and the TV will return to normal broadcasting when a programme is fast-forwarded to a scene that is near to the scene currently being broadcast. The timing at which it returns depends on the speed of fastforwarding.

Display information regarding time shift

Channel display

Channel information displays by pressing INFO on the remote control unit.

Audio (ENG) STEREO Video Subtitle Off

Time shift playback available

>> New information

 The recording icon shows up when REC E is pressed

and the TV is recording the programme.

View setting

Clear the Time shift memory

You can clear the time shift memory.

Go to “HOME” > “TV Menu” > “Setup” > “View setting” > “Time shift setting” > “Clear the Time shift memory”.

NOTE

• If you perform this menu during selecting “Auto (Time shift)” in the “Quick start” menu, “Quick start” will be automatically set to the same status as “Off”.

View setting

Auto input selection

You can choose whether or not to switch the input source automatically when receiving an AQUOS LINK compatible signal on the TV during time shift operations.

Go to “HOME” > “TV Menu” > “Setup” > “View setting” > “Time shift setting” > “Auto input selection”.

Item

Enable

Disable

Release time shift when receiving an AQUOS LINK compatible signal. Switch input source automatically.

Time shift continues to work. The TV does not switch input source automatically even when receiving an AQUOS LINK compatible signal.

View setting

 The status icon shows up depending on what is shown

on the screen.

 This icon is displayed when the TV has playable time

shift memory. Press d to playback the contents of the time shift memory.

Counter

The counter displays when you set “On” in “Display the Time shift memory” (Go to “HOME” > “TV Menu” > “Setup” > “Option” > “Time shift setting”).

Time shift Memory used:

 The grey bar shows how much memory is in use.

 This blue point shows how much time has progressed.

 “FULL” shows up when the grey bar reaches the right

edge. The TV starts overwriting the previously recorded data.

NOTE

• You can also call up the information above by pressing

CONTROL on the remote control unit or select “Control (Time shift)” from “HOME” > “TV Menu” > “Setup” > “Option” > “Option for view”.

Jump time setting

You can set the time interval for playback to resume after jumping backwards/forward.

Go to “HOME” > “TV Menu” > “Setup” > “View setting” >”Time shift setting” > “Jump time setting”.

• A time interval from 10 seconds to 99 minutes 50 seconds can be selected.

NOTE

• You can use the time interval you set using the a or b

buttons on the control panel.

Other useful features

View setting

Device registration

You need to perform this function to register the USB storage device for the time shift.

Go to “HOME” > “TV Menu” > “Setup” > “View setting” >“Time shift setting” > “Device registration”.

• Refer to For time shift (Page 57) for registering a USB

storage device.

NOTE

• Only one USB storage device can be registered for time shift. Remove all USB storage devices except the one used for time shift.

• At least 1 GB is required for a USB storage device for time shift.

• A USB HDD cannot be used as a USB storage device for time shift.

• Some USB storage devices, such as ones which have multiple drives, etc., cannot be used for time shift.

View setting

Device check

You can manually check the condition of a USB storage device to be used for time shifting.

Go to “HOME” > “TV Menu” > “Setup” > “View setting” > “Time shift setting” > “Device check” > select “Yes”.

NOTE

• This menu item cannot be selected when a USB storage device for time shift is not registered.

Other useful features

USB media/Home network

In both modes, you can enjoy viewing photos, listening to music and watching videos from external USB devices (USB Memory, USB card reader (Mass Storage Class), USB HDD) or Home network server.

NOTE

• To connect a Home network server, refer to Network function (Pages 49 – 51).

• Some USB devices may not work properly for this function.

• The corresponding file format is different between “USB media” and “Home network”.

• “Wide mode” is fixed during “Photo mode”. During “Video mode”, you can select “Auto” or “Original”.

• Depending on the Home network server, the TV may not be able to recognise the contained data.

• Use only alphanumeric characters for naming files.

• Do not disconnect a Home network server from the TV while transferring files, using the slide show function, when a screen is switching to another or before you exit “Home network” from the “INPUT” menu.

Selecting the mode

Common operation

Select “USB media” or “Home network” from the “HOME” screen to enter this mode.

Other operation

• You can select the mode from “INPUT” menu.

• USB media Select the USB media mode option on the screen when a USB device is connected to the TV.

Selecting modes and drives/servers

1 Press B.

USB media mode (Example)

USB1-1

USB3-2

Press a/b to select “Select USB drive”, and then press ?.

• The available selections are “Select USB drive” and “Folder display setting”.

Press a/b/c/d to select the USB drive where you want to find your files, and then press ?.

• You can select from “All” or “Folder” for the type of folder directory in the “Folder display setting”.

Home network mode (Example)

Server1

Server2

Press a/b to select the server where you want to find your files, and then press ?.

• Press Y to search for servers.

USB1-2 USB2 USB3-1

USB3-3

2 Press c/d to select “Photo mode”, “Music

mode” or “Video mode”, and then press ?.

NOTE

• The explanations for the buttons that can be used in each mode are the explanations when using USB media mode.

Some operations may differ in Home network mode. Follow the on-screen instructions during operations.

• You do not need to select the drive/server in step 1 when there is only one drive in the connected USB device or there is only one Home network server connected to the TV.

• 16 is the maximum number of drives that can be displayed in USB media mode.

• 10 is the maximum number of servers that can be displayed in Home network mode.

• You cannot enter these modes when there is no server connected to the TV in Home network mode.

Other useful features

Photo mode

Viewing thumbnails

* This screen image is for the USB media mode. It may be

slightly different in the Home network mode.

Buttons for thumbnail operations (When using USB media mode)

Buttons Description

When selecting a folder icon: Enter this

a/b/c/d (Cursor)

R button

G button

Y button

B button

* The mode selected in “Folder display setting”.

NOTE

• When there are invalid photo files, the g mark will be

displayed for the file.

• The 3D mode icon appears on the thumbnails of 3D images. If you do not switch to 3D mode for the 3D images, they will be displayed in 2D.

• You can see the file name, shooting date, file size and pixel size of the selected photo on the left of the screen (shooting date is only available in the EXIF file format).

directory. When selecting a photo thumbnail: Enlarge the photo.

Select a desired item.

Return to the previous operation.

Select/deselect items ( mark appears on the selected items).

All*: Select BGM for the slide show. Folder*: Move to the parent folder.

Start the slide show.

Display “USB media menu”.

• 3D display

• Select slide show interval

• Select slide show BGM

• Set all slide show image

• Reset all slide show image

• USB device removal

3D mode

You can view photos in 3D mode.

1 Press B to display the “USB media menu” screen. 2 Press a/b to select “3D display”, and then press

• See pages 70 to 74 for details on the 3D function.

NOTE

• In 3D mode, you cannot rotate the photos.

• You can select “3D display” from “USB media menu” only when the thumbnails screen for the photo mode in USB

media mode is displayed on the screen.

Viewing enlarged photos

Buttons for enlarged photo display operation (When using USB media mode)

Buttons Description

c/d (Cursor)

R button

G button

B button

DISPLAY

NOTE

• Rotating photos only applies to the temporarily selected item and this setting is not saved.

Go to the previous/next photo in the same directory.

Return to the thumbnail selection screen.

Switch between 2D and 3D modes.

Rotate the photo by 90 degrees to the left.

Rotate the photo by 90 degrees to the right.

Display “USB media menu”.

• USB device removal

Reveal the guide display.

Other useful features

Slide show

Selecting the BGM

Setup the slide show BGM from “Select slide show BGM” by pressing B when selecting photo thumbnails. This function is available only for the USB media mode.

Slide show

Buttons for slide show operation (When using USB media mode)

Buttons Description

DISPLAY

B button

NOTE

• The selected BGMs are played repeatedly.

• The slide show continues until you press C.

• Depending on the photo, the slide show interval per photo may be longer than the interval selected in the settings.

Return to the previous operation.

Switch between 2D and 3D modes.

Reveal/hide the guide display.

Display the “USB media menu”.

• Select slide show interval

• USB device removal

Buttons for slide show BGM select operation

Buttons Description

a/b/c/d (Cursor)

R button

G button

Y button

B button

* The mode selected in “Folder display setting”.

NOTE

• Slide show BGM will be reset in the cases below.

• Select “Reset all BGM” by pressing B during selecting music

files.

• Go back to the top menu.

• Change the “INPUT”.

• When there are invalid music files, the g mark will be

displayed for the file.

• The displayed play time may differ slightly from the actual play time depending on the files.

When selecting a music file: Play music.

Select a desired item.

When music is stopped: Return to the previous operation. When music is being played: Stop music.

Select/deselect items ( mark appears on the selected items).

All*: Stop music. Folder*: Move to the parent folder.

Play/pause music.

Display “USB media menu”.

• Set all BGM

• Reset all BGM

• USB device removal

Music mode

* This screen image is for the USB media mode. It may be

slightly different in the Home network mode.

Buttons for music mode (When using USB media mode)

Buttons Description

a/b/c/d (Cursor)

R button

G button

Y button

B button

* The mode selected in “Folder display setting”.

NOTE

• When there are invalid music files, the g mark will be

displayed for the file.

• The displayed play time may differ slightly from the actual play time depending on the files.

When selecting a music file: Play music.

Select a desired item.

When music is stopped: Return to the previous operation. When music is being played: Stop music.

Select/deselect items ( mark appears on the selected items).

All*: Stop music. Folder*: Move to the parent folder.

Play/pause music.

Display “USB media menu”.

• Set all auto play

• Reset all auto play

• USB device removal

Other useful features

Video mode

16 Files 8 Files 15 Files 15 Files 10 Files

Buttons for file selecting operations (When using USB media mode)

Buttons Description

When selecting a folder icon: Enter this

a/b/c/d (Cursor)

R button

G button

Y button

B button

* The mode selected in “Folder display setting”.

Viewing a video

Valentines.Day.2010.720p.700MB.ShAaNiG.com.mkv

directory. When selecting a video file: Play the video.

Select a desired item.

Return to the previous operation.

Select/deselect items ( mark appears on the selected items).

All*: Folder*: Move to the parent folder.

Play from the beginning.

Display the “USB media menu”.

• Set all auto play

• Reset all auto play

• USB device removal

Buttons Description

R button

G button

Y button

Go back to the file selection screen.

Switch between 2D and 3D modes.

Start playback from the previously stopped scene.*

Stop a video.

Display the USB control panel.

Display “USB media menu”.

• Title (edition)

B button

• Chapter

• Show video information

• USB device removal

Jump to scenes at 10% increments

0–9

(0%–90%).

• Limited to files without chapters.

DISPLAY

This function is available only for the USB media mode.

Control panel

Reveal/hide the guide display.

Press CONTROL and the control panel displays and operations for video playback will be available.*

* This screen image is for the USB media

mode. It may be slightly different in the Home network mode.

Video without chapters: Press one time to return to the previous playback point.* Press two times to

return to the previous file. Video with chapters: Press one time to return to the previous chapter. Press two times to return to the previous file.

Video without chapters: Press one time to advance to the next playback point.* Press two times to display the next file. Video with chapters: Press one time to return to the next chapter. Press two times to return to the next file.

Tool

PLAY

Audio

Title

Resume

jump

[

Valentines.Day.2010.720p.700MB.ShAaNiG.com.mkv

Previous/Next

Resume jump Control (USB media)

REW/FWD Play/Pause

Stop

1 : 04 : 30/2 : 04 : 39

Back

USB media menu 10% Jump

0 9–

* This screen image is for the USB media mode. It may be

slightly different in the Home network mode.

Buttons for playing mode (When using USB media mode)

Buttons Description

When video is being played: Pause the

a (Cursor)

b (Cursor)

c/d (Cursor)

video. When video is paused: Play the video.

Go to the beginning of a file by pressing

a once and the previous file by pressing a twice.

Go to the next file.

Reverse/fast forward a video.

NOTE

* During playback of a file without chapters, playback points

are set automatically. Playback points are set at intervals of a one-tenth of playback time.

• The key guide is shown when playback is resumed.

• You can also display the control panel by selecting “Control (USB media)” or “Control (Home network)” from “Option” > “Option for view”.

• Reverse/fast forward continues from one file to another during continuous playback in the USB media mode. Jump forward/ back may not be available depending on the files in the Home network mode.

Other useful features

Selecting the picture size for video mode

You can select the picture size in “Video mode”.

1 Select “Video mode”.

• Refer to Selecting modes and drives/servers on

page 61.

2 Press WIDE.

• The “Wide mode” menu displays.

3 Press WIDE or a/b to select the desired item.

• As you toggle the options, each is immediately reflected

on the screen. There is no need to press ?.

EXAMPLE

Item

Auto

Original

Full

Keeps the original aspect ratio in an enlarged screen display.

Keeps the original aspect ratio and size.

An image fully fills the screen.

View setting

DivX(R) setup

This is the function to confirm your registration code. You need to register the code at www.divx.com.

Go to “HOME” > “TV Menu” > “Setup” > “View setting” > “DivX(R) setup”.

DivX(R) VOD registration

You can find your registration code on this menu. You need to register the TV at www.divx.com before playing the DivX content.

DivX(R) VOD deregistration

You can find your deregistration code on this menu. You need to deregister the TV at www.divx.com to release the registration.

USB device compatibility

USB device

File system

Photo file format

Music file format

Subtitle file format

File

extension

.avi AVI

.mkv MKV

.asf

.wmv

.mp4 .mov

.mpg

.mpeg

NOTE

•

Progressive format jpeg files are not supported.

•

Files in USB 1.1 devices may not be played properly.

•

Operation using USB hubs is not guaranteed.

•

Some video file formats may not be played depending on the file.

•

Files may not be playable depending on the bitrate.

•

Some USB devices may not work properly depending on the file system.

USB memory, USB card reader (Mass Storage class), USB HDD

FAT/FAT32/NTFS

JPEG (.jpg) (DCF2.0 compliant), MP (.mpo) (CIPA DC-007)

3 (.mp3)

• M Bitrate: 32 k, 40 k, 48 k, 56 k, 64 k, 80 k, 96 k, 112 k, 128 k, 160 k, 192 k, 224 k, 256 k, 320 kbps Sampling frequency: 32 k, 44.1 k, 48 kHz

•

FLAC (.flac) Bitrate: 128kbps ~ 2304kbps Sampling frequency: 8 k, 16 k, 22.05 k, 24 k, 32 k, 44.1 k, 48 k, 88.2 k, 96 kHz

SRT/SUB/ASS/SSA/SMI

Video file format

Container Video Audio

ASF

MP4

DivX 3.11/4.x/5.1/6.0

XviD

H.264

MPEG4

Motion Jpeg

DivX 3.11/4.x/5.1/6.0

XviD

H.264

MPEG4

DivX 3.11/4.x/5.1/6.0

XviD

MPEG4

VC-1

Windows Media Video V9

H.264

MPEG4

Motion Jpeg

MPEG2 MPEG1

MP3

Dolby Digital

LPCM

ADPCM

MP3

Dolby Digital

LPCM

ADPCM

MP3

Dolby Digital

LPCM

WMA

MP3

AAC Dolby Digital Dolby Digital

Plus

Dolby Digital

MPEG LPCM

Home network server compatibility

Photo file format

Music file format

Video file format

NOTE

• Progressive format jpeg files are not supported.

• Some video file formats may not be played depending on the file and server.

JPEG

LPCM, MP3

MPEG2-PS, MPEG2-TS, WMV, ASF, MP4, MOV, AVI

Connecting a PC

HDMI connection

PC HDMI 1, 2, 3 or 4 terminals

 HDMI-certified cable

PC HDMI 2 terminal*

 DVI/HDMI cable

* When using the HDMI 2 terminal, you must select the proper item

in the “Audio select” menu depending on the type of HDMI cable connected (refer to page 46 for details).

Analogue connection

PC PC terminal*

 3.5 mm stereo minijack

cable

Displaying a PC image on the screen

Selecting the picture size

You can select the picture size.

1 Press WIDE.

• The “Wide mode” menu displays.

2 Press WIDE or a/b to select the desired item.

EXAMPLE

Input signal

1024g768 1360g768

Normal

Cinema

Full

Keeps the original aspect ratio in a full screen display.

For viewing wide screen programmes. The top and bottom of the image is slightly cropped (only 1024g768 signals).

An image fully fills the screen.

 RGB cable

PC PC terminal*

 3.5 mm stereo minijack

cable

 DVI/RGB conversion cable

* When using the PC terminal, you must select “Video + Audio” in the

“Audio select” menu (refer to page 46 for details).

NOTE

• Refer to page 67 for a list of PC signals compatible with the TV.

 3.5 mm stereo minijack

cable

Detects the resolution of the

Dot by Dot

signal and displays an image with the same number of pixels on the screen.

NOTE

• You can also select an item from “HOME” > “TV Menu” > “Setup” > “Option” > “Option for view” > “Wide mode”.

• Connect the PC before making adjustments.

• Selectable picture size may vary with input signal type.

• You may not be able to change the wide mode while in 3D mode.

• Refer to page 45 for AV signals. HDMI: 480i/480p/576i/576p/720p/1080i/1080p ANALOGUE RGB: 576p/720p (50 Hz)/1080i

• The PC terminal is not compatible with 480i/576i/1080p signals.

Connecting a PC

Adjusting the PC image automatically

Option

Auto sync.

This function enables the screen to be automatically adjusted to its best possible condition when the analogue terminals of the TV and PC are connected with a commercially available DVI/RGB conversion cable, etc.

1 Press b to select “PC” from the “INPUT” menu,

and then press ?.

2 Go to “HOME” > “TV Menu” > “Setup” > “Option”

> “Terminal setting” > “PC signal setting” > “Auto sync.”.

NOTE

• When “Auto sync.” is successful, “Auto Sync completed successfully” displays. If not, “Auto sync.” failed.

• Auto Sync. is likely to succeed when an input PC image has wide vertical stripes (e.g. pattern with high contrast stripes, or cross-hatched). It may fail when an input PC image is solid (low contrast).

• “Auto sync.” may fail even if “Auto Sync completed successfully” displays.

• “Auto sync.” may fail if the PC image has low resolution, has unclear (black) edges, or is moved while executing “Auto sync.”.

• Be sure to connect the PC to the TV and switch it on before starting “Auto sync.”.

• “Auto sync.” can be executed only when inputting analogue signals through the PC terminal.

• This function is available for 3D images converted from 2D images or normal 2D images.

Adjusting the PC image manually

Option

Fine sync.

Ordinarily you can easily adjust the picture as necessary to change image position using “Auto sync.”. In some cases, however, manual adjustment is needed to optimise the image.

1 Press b to select “PC” from the “INPUT” menu,

and then press ?.

2 Go to “HOME” > “TV Menu” > “Setup” > “Option”

> “Terminal setting” > “PC signal setting” > “Fine sync.”.

3 Press a/b to select the specific adjustment item. 4 Press c/d to adjust the item to the desired

position.

Item

H-Pos.

V-Pos.

Clock

Phase

NOTE

• For resetting all adjustment items to the factory preset values,

press a/b to select “Reset”, and then press ?.

• “Clock” and “Phase” in the “Fine sync.” menu can be adjusted only when inputting analogue signals through the PC terminal.

• Images may not be displayed properly depending on the settings and/or input signals.

• This function is available for 3D images converted from 2D images or normal 2D images.

Centres the image by moving it to the left or right.

Centres the image by moving it up or down.

Adjusts when the image flickers with vertical stripes.

Adjusts when characters have low contrast or when the image flickers.

PC compatibility chart

Resolution

VGA 640 x 480 31.5 kHz 60 Hz

SVGA 800 x 600 37.9 kHz 60 Hz

XGA 1,024 x 768 48.4 kHz 60 Hz

WXGA 1,360 x 768 47.7 kHz 60 Hz

SXGA 1,280 x 1,024 64.0 kHz 60 Hz

SXGA+ 1,400 x 1,050 65.3 kHz 60 Hz

UXGA 1,600 x 1,200 75.0 kHz 60 Hz

1080p 1,920 x 1,080 67.5 kHz 60 Hz

VGA, SVGA, XGA, WXGA, SXGA, SXGA+ and UXGA are registered trademarks of International Business Machines Corporation.

Horizontal

frequency

Vertical

frequency

Analogue

(D-Sub)





Digital (HDMI) VESA standard

NOTE

• This TV has only limited PC compatibility, correct operation can only be guaranteed if the video card conforms exactly to the VESA 60 Hz standard. Any variations from this standard will result in picture distortions.

Connecting a PC

PC control of the TV

• When a programme is set, the TV can be controlled from the PC using the RS-232C or IP. The input signal (PC/video) can be selected, the volume can be adjusted and various other adjustments and settings can be made, enabling automatic programmed playing.

• Use an RS-232C serial control cable (cross type), ETHERNET cable (commercially available) or wireless LAN USB adapter for the connections.

NOTE

• This PC control should be used by a person who is accustomed to using PCs.

Communication conditions for IP

LAN

ETHERNET cable

(commercially available)

Connect to the TV with the following settings made for IP on the PC.

IP protocol

Host IP address

Service

TCP port#

When you set your ID and password on the TV menu, you need to enter them as soon as you connect to the TV.

NOTE

• The connection will be cut off when there has been no communication for 3 minutes.

View setting

TCP/IP

Set the IP address on the TV menu.

None (do not select Telnet or SSH).

Set a port number on the TV menu (Control port).

IP Control setup

1 Go to “HOME” > “TV Menu” > “Setup” > “View

setting” > “Network setup” > “IP Control setup” .

2 [Control setting]

This function is set to enable IP Control.

3 [Device name setting]

You can set up the name of this TV for displaying on external devices.

4 [Detail setting]

You can set up Login ID, Password and Control port for using IP Control.

Communication conditions for RS-232C

Set the RS-232C communications settings on the PC to match the TV’s communications conditions. The TV’s communications settings are as follows:

Baud rate

Data length

Parity bit

Stop bit

Flow control

9,600 bps

8 bits

None

1 bit

None

Communication procedure

Send the control commands from the PC via the RS232C connector. The TV operates according to the received command and sends a response message to the PC. Do not send multiple commands at the same time. Wait until the PC receives the OK response before sending the next command. Make sure to send “A” with the carriage return and confirm that “ERR” returns before operating.

Command format

Eight ASCII codes +CR

C1 C2 C3 C4 P1 P2 P3 P4

nop

 Command four digits: Command. The text of four

characters.

 Parameter four digits: Parameter 0–9, blank, ?, minus  Return code (0DH): ?

Parameter

Input the parameter values, aligning left, and fill with blank(s) for the remainder (be sure that four values are input for the parameter). When the input parameter is not within an adjustable range, “ERR” returns (refer to “Response code format”).

0009

100

0055

When “?” is input for some commands, the present setting value responds.

????

Response code format

Normal response

Problem response (communication error or incorrect command)

ERR

RS-232C serial control cable (cross type)

(commercially available)

Return code (0DH) Return code (0DH)

Connecting a PC

Command list

CONTROL ITEM COMMAND PARAMETER CONTROL CONTENTS

POWER SETTING

INPUT SELECTION A

INPUT SELECTION B

CHANNEL

AV MODE SELECTION

VOLUME V O L M * * * _ VOLUME (0–100)

POSITION

WIDE MODE

P O W R 0 _ _ _ POWER OFF (STANDBY)

ITGD____

ITVD____TV (CHANNEL FIXED)

I D T V _ _ _ _ DTV (CHANNEL FIXED)

IAVD*___

I N P 5 1 _ _ _ INPUT 5 (COMPONENT)

I N P 5 3 _ _ _ INPUT 5 (VIDEO)

DCCH * * _ _

CHUP____CHANNEL UP

CHDW____CHANNEL DOWN

DTVD***_

DTUP____DTV CHANNEL UP

DTDW____DTV CHANNEL DOWN

A V M D 0 _ _ _ TOGGLE

A V M D 1 _ _ _ STANDARD

A V M D 2 _ _ _ MOVIE

A V M D 3 _ _ _ GAME

A V M D 4 _ _ _ USER

A V M D 5 _ _ _ DYNAMIC (Fixed)

A V M D 6 _ _ _ DYNAMIC

AVMD7_ __PC

A V M D 1 4 _ _ STANDARD (3D)*

A V M D 1 5 _ _ MOVIE (3D)*

A V M D 1 6 _ _ GAME (3D)*

A V M D 1 0 0 _ AUTO

HPOS***_

VPOS***_

CLCK***_

PHSE * * _ _

I D E 0 _ _ _ TOGGLE (AV)

I D E 1 _ _ _ NORMAL (AV)

I D E 2 _ _ _ ZOOM 14:9 (AV)

I D E 3 _ _ _ PANORAMA (AV)

IDE4___

I D E 5 _ _ _ CINEMA 16:9 (AV)

I D E 6 _ _ _ CINEMA 14:9 (AV)

I D E 7 _ _ _ NORMAL (PC)

I D E 8 _ _ _ CINEMA (PC)

I D E 9 _ _ _ FULL (PC)

I D E 1 0 _ _ DOT by DOT (AV/PC)

I D E 1 1 _ _ UNDERSCAN (AV/PC)

IDE12__

IDE13__

INPUT SWITCHING (TOGGLE)

HDMI 1f4 (1f4), INPUT 5f6 (5f6), PC (7)

TV DIRECT CHANNEL (1f99)

DTV DIRECT CHANNEL (1-999)

H-POSITION (AV/PC) (–nn~nn)

V-POSITION (AV/PC) (–nn~nn)

CLOCK (0f180)

PHASE (0f40)

FULL (AV/USB-Video/ Home network-Video)

AUTO (USB-Video/Home network-Video)

ORIGINAL (USB-Video/ Home network-Video)

CONTROL ITEM COMMAND PARAMETER CONTROL CONTENTS

M U T E 0 _ _ _ TOGGLE

MUTE

SURROUND

AUDIO CHANGE

SLEEP TIMER

TELETEXT

DEVICE NAME T V N M 1 _ _ _

SOFTWARE VERSION

IP PROTOCOL VERSION

These commands are available only during 3D mode.

M U T E 1 _ _ _ MUTE

M U T E 2 _ _ _ MUTE OFF

A C S U 0 _ _ _ SURROUND TOGGLE

A C S U 1 _ _ _ SURROUND TS HD ON

A C S U 2 _ _ _ SURROUND OFF

A C S U 4 _ _ _ SURROUND 3D HALL

A C S U 5 _ _ _ SURROUND 3D MOVIE

ACSU6 _ _ _

A C S U 7 _ _ _ SURROUND 3D Stadium

A C H A _ _ _ _ TOGGLE

OF TM0 _ _ _OFF

O F T M 1 _ _ _ SLEEP TIMER 30 MIN

O F T M 2 _ _ _ SLEEP TIMER 1 HOUR

OF TM3 _ _ _

O F T M 4 _ _ _ SLEEP TIMER 2 HOUR

OF TM5 _ _ _

T E X T 0 _ _ _ TEXT OFF

T E X T 1 _ _ _ TEXT ON (TOGGLE)

DCPG * * * _

T D C H 0 _ _ _ 3D OFF

TDCH1___

T D C H 2 _ _ _ SIDE BY SIDE

T D C H 3 _ _ _ TOP AND BOTTOM

TDCH4___

TDCH5___

T D C H 6 _ _ _ 3D AUTO

TDCH7___

SWVN1___

IPPV1

SURROUND 3D STANDARD

SLEEP TIMER 1 HOUR 30 MIN

SLEEP TIMER 2 HOUR 30 MIN

DIRECT PAGE JUMP (100f899)

2D s 3D

3D s 2D (SIDE BY SIDE)

3D s 2D (TOP AND BOTTOM)

3D s 2D*

DISPLAY THE DEVICE NAME

DISPLAY THE SOFTWARE VERSION

DISPLAY THE IP PROTOCOL VERSION

NOTE

• If an underbar (_) appears in the parameter column, enter a space.

• If an asterisk (*) appears, enter a value in the range indicated in brackets under CONTROL CONTENTS.

• Some command on DTV operation may not work in setting of some country.

Enjoying 3D image viewing

You can use special 3D glasses to watch 3D-supported images on this TV.

• You can enjoy 3D movies on this TV by viewing the movie through 3D glasses, sold separately.

• To produce 3D images, liquid crystal shutters in the 3D glasses alternately open and close imperceptibly fast to exactly match alternating left and right video images displayed by the TV.

• Not all consumers can experience and enjoy 3D TV. Some people suffer from stereo blindness which prevents them from perceiving the intended depth of 3D entertainment. Also, some people who watch 3D programming may experience initial feelings of motion sickness as they adjust to the picture. Others may experience headaches, eye fatigue or continued motion sickness, or some viewers might also experience epileptic seizures or strokes. Like a roller coaster, the experience is not for everyone.

CAUTION

• The 3D glasses are precision equipment. Handle them with care.

• Improper use of the 3D glasses or failure to follow these instructions can result in eye strain.

• If you experience dizziness, nausea, or other discomfort while viewing 3D images, immediately discontinue use of the 3D glasses. Using the binocular disparity 3D system of this TV with incompatible 3D broadcasts or software can make images appear with a cross talk blur or create overlapping images.

• When viewing 3D images continuously, be sure to take a break periodically to prevent eye strain.

• If you are nearsighted or farsighted or have astigmatism or a different level of eyesight between the left and right eyes, you should take the necessary steps, such as wearing eyeglasses, to correct your eyesight before viewing 3D images. The 3D glasses can be worn over eyeglasses.

• When viewing 3D images, keep the 3D glasses horizontally level with the TV screen. If you tilt the 3D glasses with respect to the TV screen, the images viewed by the left and right eyes may appear significantly different or images may appear overlapping.

• View 3D images at the appropriate distance from the TV screen. The recommended distance is three times the effective height of the TV screen. Viewing should not be done closer than the recommended distance.

• Be careful of your surroundings when viewing 3D images. When you view 3D images, objects may appear at a distance closer or farther than the actual TV screen. This may cause you to misjudge the distance to the TV screen and possibly result in injury if you accidentally hit the screen or surrounding objects.

• The 3D glasses are not recommended for people aged less than 6.

• When children are viewing 3D images, be sure a parent or guardian is present. Monitor children viewing 3D images, and if they show signs of discomfort, immediately discontinue use of the 3D glasses.

• People with a known history of photosensitivity and people with heart problems or poor health should not use the 3D glasses. This can worsen existing health conditions.

• Do not use the 3D glasses for other purposes (such as general eyeglasses, sunglasses, or protective goggles).

• Do not use the 3D function or 3D glasses while walking or moving around. This may result in injuries due to running into objects, tripping, and/or falling.

• When using the 3D glasses, take care not to accidentally strike the TV screen or other people. Viewing 3D images may cause you to misjudge the distance to the TV screen and accidentally strike the screen, resulting in possible injury.

• It is recommended that you do not view 3D images if you are sleep deprived or if you have been drinking alcohol.

Display format for 3D and 2D images

Image for input signals Selectable mode Description

3D mode (using the 3D glasses)

2D mode (without using the 3D glasses)

Top and Bottom s 2D

2D s 3D

Side by Side

Top and Bottom

Side by Side s 2D

• Converts normal 2D images into 3D images.

• Creates 3D images from 3D images displayed side by side. The image is split into a left and right image, and then the images are stretched and displayed sequentially to create a 3D image.

• Creates 3D images from 3D images displayed on the top and bottom. The image is split into a top and bottom image, and then the images are stretched and displayed sequentially to create a 3D image.

• Creates 2D images from 3D images displayed side by side. Only the left image is stretched and displayed. The image does not appear in 3D.

• Creates 2D images from 3D images displayed on the top and bottom. Only the top image is stretched and displayed. The image does not appear in 3D.

Enjoying 3D image viewing

Viewing 3D images

MENUMEN

NOTE

• The TV screen may temporarily become black when the TV is trying to detect a 3D image signal and when switching from 3D to 2D mode.

Receiving a 3D image signal that can be detected automatically

The image signal may contain a 3D identification signal. You can enable the TV to automatically detect the 3D image type (Page 70).

1 Go to “HOME” > “TV Menu” > “Setup” > “Option”

> “3D setup” > “3D auto change”.

When “3D auto change” is set to “Mode 1” or “Mode 2”

• The 3D display format is detected automatically and the appropriate 3D image is displayed.

3 Take off the 3D glasses and turn off the power of

the 3D glasses.

• Press the power button for at least two seconds.

• The LED light lights for two seconds.

NOTE

• If the input signal switches to 2D, 2D images are displayed automatically.

• 3D mode is canceled automatically when the setting is changed, input source is changed, the input signal resolution is changed or the power is turned off.

Receiving a 3D image signal that cannot be detected automatically

When the TV receives a 3D image signal that cannot be detected automatically, you can select between 3D and 2D image viewing.

1 Press 3D.

• A screen appears prompting you to select between 3D and 2D image viewing.

2 Press c/d to select “3D” or “2D”, and then press

To view in 3D mode

Press c/d to select the 3D signal type (“2D s 3D”, “Side by Side” or “Top and Bottom”), and then press ?.

When “3D auto change” is set to “Off”

The confirmation message is displayed. Press 3D.

Press c/d to select “Yes”, and then press ?.

2 Turn on the power of the 3D glasses, and then

wear the 3D glasses.

• Press the power button for at least two seconds.

• The LED light blinks three times.

NOTE

• If you do not want to switch to 3D mode automatically, set “3D auto change” to “Off”.

• When the TV is receiving a 3D image signal that can be detected automatically, the 3D mode icon is displayed in the channel display.

Switching 3D to 2D mode

When you press 3D while you are watching the TV in 3D mode, the TV switches to 2D mode.

1 Press 3D during the 3D mode. 2 Select “Yes”, and then press ? to switch to 2D

mode.

Side by Side

• If you select the same system as that of the input signal, 3D images are displayed.

• You can select only “2D s 3D” in TV mode.

Turn on the power of the 3D glasses, and then wear the 3D glasses.

• Press the power button for at least two seconds.

• The LED light blinks three times.

To view in 2D mode

• Switching from 3D to 2D mode.

Press c/d to select the 2D signal type (“Side by Side” or “Top and Bottom”), and then press

Side by Side

• If you select the same system as that of the input signal, 2D images are displayed.

Top and Bottom

Enjoying 3D image viewing

Watching 2D images in 3D

You can convert normal 2D images into 3D images.

1 Press 3D. 2 Press c/d to select “2D s 3D”, and then press

3 Turn on the power of the 3D glasses, and then

wear the 3D glasses.

NOTE

• The confirmation message to select either 3D or 2D mode is displayed on the screen once per hour.

• When the TV converts normal 2D images into 3D images, you can display the “2D s 3D convert effect” menu to adjust the convert effect by pressing Y.

Switching to the previous mode

You can switch back to the previous mode by pressing 3D.

1 Press 3D.

• A confirmation message is displayed.

2 Select “Yes”, and then press ?.

• The TV returns to the previous mode.

3D Menu

Pressing 3D in 3D mode displays the 3D menu. Press the coloured buttons to make the necessary settings.

MEN

Configuring the TV settings to enhance 3D image viewing

You can make various settings to enhance 3D image viewing.

SLEEPSLEEP

3D picture adjustments

Basic operation

Go to “HOME” > “TV Menu” > “Setup” > “Picture” > select/adjust the item you want to set.

NOTE

• Which items can be selected/adjusted differs depending on whether the TV is in 2D mode or in 3D mode.

AV mode

The audio and video settings can be changed to suit the programme or input content being watched.

Item

STANDARD (3D)

MOVIE (3D)

GAME (3D)

For a highly defined image in a normal lighting.

For a movie.

Lowers image brightness for easier viewing.

Buttons Description

G button

Y button

B button

Surround (Page 38).

• The surround mode changes each

time you press G.

2D s 3D convert effect (Page 73).

• “2D s 3D convert effect” is available only when selecting “2D s 3D” (refer to Watching 2D images in 3D shown above).

3D setup (Page 73).

UIDE

GUIDE

NOTE

• You can select “AV mode” by pressing # on the

remote control unit.

Enjoying 3D image viewing

3D setup

Basic operation

Go to “HOME” > “TV Menu” > “Setup” > “Option” > “3D setup” > select the menu you want to set.

3D auto change

This function allows the TV to switch to 3D mode automatically when a 3D identification signal is detected.

Item

3D mode is selected automatically when

Mode 1

Mode 2

Off

NOTE

• 3D signals may not be detected depending on the signal format.

3D depth control

Select the method for adjusting the 3D depth.

Auto

Manual

NOTE

• This function is only available when the input signal is 3D.

• This function is not displayed depending on the type of 3D signal.

a 3D signal is detected while viewing video from a VOD service or HDMIconnected equipment.

3D mode is selected automatically when, in addition to detecting a 3D signal while viewing video from a VOD service or HDMI-connected equipment, a video pattern with “Side by Side” or “Top and Bottom” format is also detected.

Auto change is not performed.

Item

Adjusts the depth automatically.

Manually adjusts the depth using the function “Depth change”.

3D still image effect setting

Select the method for adjusting the 3D still image effect (depth).

Item

Auto

Manual

Adjusts the still image effect (depth) automatically.

Manually adjust the still image effect (depth).

NOTE

• This function can be adjusted when viewing 3D still images in USB media mode.

• Even if you selected “Auto”, the 3D still image effect (depth) may not be correctly adjusted depending on the 3D still image.

• 3D still images taken in macro mode will be displayed with excessive depth.

• If you experience discomfort while viewing 3D images, immediately discontinue viewing.

Viewing time info

This function allows you to display the elapsed time of 3D image viewing on the screen.

Item

Yes

The elapsed time is displayed in onehour increments after you start watching 3D images.

Hide the time.

3D test

This function displays 3D images for testing the 3D operation. Clicking “Start” on the screen plays back 3D test images.

NOTE

• If you press B during playback, the previous screen will be displayed.

Depth change

Adjusts the depth manually. “0” is the level where no adjustment is made.

NOTE

• This function is only available when “3D depth control” is "Manual".

2D s 3D convert effect

You can adjust the 3D effect when converting images from 2D mode to 3D mode. Select a desired level of convert effect from e1 to e16.

NOTE

• This function is only available when converting 2D images to 3D images.

• When you use this function, image conversion on the TV will result in some differences in the original images and how they appear.

• 2D images that have been converted to 3D images may be viewed only for personal use.

Enjoying 3D image viewing

Troubleshooting – 3D Images

Problem Possible solution

• 3D images are not displayed. • Is “3D auto change” set to “Off”? Press 3D to switch to 3D mode.

• The 3D glasses turn off automatically. • Is there an obstacle between the 3D glasses and the TV, or is something covering the infrared receiver

AN-3DG10-S

• Pressing the power button on the 3D glasses does not cause the LED light to light.

AN-3DG20-B

• Sliding the switch to 3D to turn on the power does not cause the LED light to light.

3D glasses lenses

• Do not apply pressure to the lenses of the 3D glasses. Also, do not drop or bend the 3D glasses.

• Do not scratch the surface of the lenses of the 3D glasses with a pointed instrument or other object. Doing so may damage the 3D glasses and reduce the quality of 3D images.

• Use only the cloth provided with the 3D glasses to clean the lenses.

3D glasses infrared receiver

• Do not allow the infrared receiver to become dirty, and do not attach stickers to or otherwise cover the infrared receiver. Doing so may prevent the receiver from operating normally.

• If the 3D glasses are affected by other infrared data communication equipment, 3D images may not be displayed correctly.

Caution during viewing

• Do not use devices that emit strong electromagnetic waves (such as cellular phones or wireless transceivers) near the 3D glasses. Doing so may cause the 3D glasses to malfunction.

• The 3D glasses cannot operate fully at extreme high or low temperatures. Use them within the specified usage temperature range.

• If the 3D glasses are used in a room with fluorescent lighting (50/60 Hz), the light within the room may appear to flicker. In this case, either darken or turn off the fluorescent lights when using the 3D glasses.

• Wear the 3D glasses correctly. 3D images will not be correctly visible if the 3D glasses are worn upside down or back-to-front.

• Other displays (such as computer screens, digital clocks, and calculators) may appear dark and difficult to view while wearing the 3D glasses. Do not wear the 3D glasses when watching anything other than 3D images.

• If you lie on your side while watching the TV with 3D glasses, the picture may look dark or may not be visible.

• Be sure to stay within the viewing angle and optimum TV viewing distance when watching 3D images. Otherwise, you may not be able to enjoy the full 3D effect.

• The 3D glasses may not work properly if there is any other 3D product or electronic device turned on near the glasses or TV. If this occurs, turn off the other 3D product or electronic device or keep the device as far away as possible from the 3D glasses.

• Stop using this product in any of the following situations:

− When images consistently appear doubled while you are wearing the 3D glasses.

− When you have difficultly perceiving the 3D effect.

• If the 3D glasses are faulty or damaged, stop using them immediately. Continued use of the 3D glasses may cause eye fatigue, headaches and illness.

• If you have any abnormal skin reaction, stop using the 3D glasses. In very rare instances, such reactions may be due to an allergic reaction to the coating or materials used.

• If your nose or temples become red or you experience any pain or itchiness, stop using the 3D glasses. Pressure caused by long periods of use may lead to such reactions and may result in skin irritation.

• You may not be able to use several menu items while you are watching the TV in 3D mode.

• You cannot use the 3D function in radio or data mode.

Usage range of the 3D glasses

• The 3D glasses can be used by receiving an infrared signal sent from the TV.

Operating range:

• From directly in front of the 3D infrared emitter on the TV: approx. 5 m (within approx. 30° horizontally and 20° vertically)

− The 3D infrared emitter lights in 3D mode.

If “3D auto change” is set to “Mode 1” or “Mode 2” but no 3D images are displayed, check the display

• format of the content being viewed. Some 3D image signals may not be recognised as 3D images automatically. Press 3D to select the appropriate display format for the 3D image.

• Is the power of the 3D glasses turned on?

• Are the 3D glasses set to 2D mode?

• Is there an obstacle between the 3D glasses and the TV, or is something covering the infrared receiver on the 3D glasses? The 3D glasses operate by receiving a signal from the TV. Do not place anything between the 3D infrared emitter on the TV and the infrared receiver on the 3D glasses.

on the 3D glasses? The 3D glasses turn off automatically after three minutes if no signal is received from the TV. Do not place anything between the 3D infrared emitter on the TV and the infrared receiver on the 3D glasses.

• Is the battery in the 3D glasses exhausted? If the LED light does not light after pressing the power button for more than one second, the battery is exhausted. Replace the battery.

• Is the battery in the 3D glasses exhausted? If the LED light does not light after sliding the switch to 3D to turn on the power, the battery is exhausted. Recharge the battery or supply power to the 3D glasses via the TV using the USB cable (supplied accessory) as indicated in the operation manual of the 3D glasses.

NOTE

• These 3D glasses are only for use with SHARP LCD TVs supporting 3D.

Appendix

Troubleshooting

Problem Possible solution

• No power. • Is the AC cord disconnected?

• The TV cannot be operated. • External influences such as lightning, static electricity, etc., may cause improper operation. In this

• Remote control unit does not operate.

• Picture is cut off. • Is the image position correct?

• Strange colour, light colour, or dark colour, or colour misalignment.

• Power is suddenly turned off. • The TV’s internal temperature has increased. Remove any objects blocking the vent or clean.

• No picture. • Are connections to external equipment correct? (Pages 26

• No sound. • Is the volume too low?

• The TV sometimes makes a cracking sound.

• AQUOS.NET top page cannot be displayed.

• Some Internet functions used on a PC are not available from the TV.

• Check if you pressed < on the TV.

• When the power switch does not work, remove the power plug and insert it again, and press

< on the TV after waiting more than five seconds.

case, operate the TV after first turning off the power, or unplugging the AC cord and re-plugging it in after one or two minutes.

• Are batteries inserted with polarity (e, f) aligned?

• Are batteries worn out? (Replace with new batteries.)

• Are you using it under strong or fluorescent lighting?

• Is a fluorescent light illuminating to the remote control sensor?

• Are screen mode adjustments (Wide mode) such as picture size made correctly? (Pages 45f46, 65

and 66)

• Adjust the picture tone (Pages 35

• Is the room too bright? The picture may look dark in a room that is too bright.

• Check the “Colour system” setting (Pages 41 and 48).

• Check the “HDMI auto view” setting (Page 47).

• Is the “Sleep timer” set? Select “Off” from the “Sleep timer” menu (Page 39).

• Is “No signal off” or “No operation off” activated? (Page 39)

• Is the correct input source selected? (Page 18)

• Is a non-compatible signal being input? (Page 67)

• Is the picture adjustment correct? (Pages 35

• Is the antenna connected properly? (Page 9)

• Make sure that headphones are not connected.

• Check if you pressed e on the remote control unit.

• Is the proper item selected in the “Audio select” menu when connecting devices to the HDMI 2 terminal or the PC terminal? (Pages 27, 46 and 66)

• This is not a malfunction. This happens when the cabinet slightly expands and contracts according to changes in temperature. This does not affect the TV’s performance.

• Is the ETHERNET cable connected correctly? (Page 50)

• Check the settings of “Network setup”. (Pages 49 – 51)

• The TV has only limited functions compared with regular PC browsers. (Page 54)

f37).

f29)

f37)

Troubleshooting – Digital broadcasting

Problem Error code Possible solution

• No picture or no sound. — • Is the correct input source selected? (Page 18)

• Block noise appears on the screen. — • Is the antenna pointing in the correct direction?

• DTV broadcasts cannot be received.

• A specific channel cannot be received. — • Check the “Signal strength” and “Quality” (Page 16).

• No broadcast now

E202

E203

• Check the “Signal strength” and “Quality” (Page 16).

• Are physical objects blocking the antenna?

• Is the antenna or antenna cable compatible with DTV broadcast?

• Is the DTV antenna set up properly?

• Is the antenna cable connected properly? (Page 9)

• Is the channel settings correct? (Page 16)

• Check the current broadcast.

Appendix

Reset

If complex adjustments are made so that the settings cannot be restored to normal, you can reset the settings to the factory preset values.

1 Go to “HOME” > “TV Menu” > “Setup” > “View

setting” > “Reset”.

2 If you have already set the password, enter it here. 3 Press c/d to select “Yes”, and then press ?.

• “Now, TV will restart automatically, OK?” displays on the screen.

4 Press c/d to select “Yes”, and then press ?.

• “Now initialising...” displays on the screen and blinks.

• After the reset has completed, the power shuts off and then comes back on. The screen will have returned to its original settings.

5 Press a/b/c/d to select the desired language

listed on the screen, and then press ?. Press c/d to select “HOME” or “STORE”, and

then press ?.

6 Setting the country.

Press a/b/c/d to select your country or area, and then press ?.

• This setting screen only appears during the initial auto installation.

7 The TV searches for and stores all the receivable

TV stations according to their settings and the connected antenna.

• To abort the initial auto installation in progress, press C.

NOTE

• When the TV is in “STORE” mode, repeat steps 1 to 5 to change to “HOME” mode.

• “Reset” is greyed out in 3D mode. To select the “Reset” menu, you need to switch to 2D mode.

Updating your TV via DVB-T (DTV only)

Ensure that your TV software version is always up to date. From time to time SHARP will make updated TV base software and DVB software available.

View setting

Download setup

Go to “HOME” > “TV Menu” > “Setup” > “View setting” > “Individual setting” > “Standby search” > “Download setup”.

Searching for updates

The TV automatically determines whether a new software version is available when the TV is in standby mode.

Item

Yes

Now

Automatically searches for new software updates available when the TV is in standby mode.

Does not search for update information.

Lowers image brightness for easier viewing. Checks if there is new software immediately.

Downloading the software

You can select the method of update.

1 If the software is updated, the confirmation

message “New download information has been detected.” appears.

• If the TV receives the update service while in standby mode, a confirmation message displays after turning on the power.

2 Follow the screen prompts.

Item

Starts downloading immediately. It takes approximately one hour to update. You cannot carry out other operations while

Yes

downloading.

• Cancels the download by pressing

? on the remote control unit when “Discontinue” is displayed on the screen during the update.

Starts downloading automatically several minutes after entering standby mode.

NOTE

• Do not unplug the AC cord while receiving the data, otherwise it will not be captured properly.

• Updating the software may take some time.

Appendix

Getting information

Information

Message list (DTV only)

When new software is detected, you can confirm the update information and download the software from “Message list”.

Go to “HOME” > “TV Menu” > “Setup” > “Information” > “Message list”.

NOTE

• When the TV succeeds at downloading new software, the message is updated in the “Message list” of the “Information” menu.

• The software update will not be carried out if there is no new software available at the specified download time.

Information

Receiver report (DTV only)

Display reports regarding failures and changes for timer settings.

Go to “HOME” > “TV Menu” > “Setup” > “Information” > “Receiver report”.

Information

Updating your TV via USB/Network

Information

Software update

This function allows you to update to the latest software using a USB device or Network.

1 Go to “HOME” > “TV Menu” > “Setup” >

“Information” > “Software update” > “USB update”.

• You can also update the software through the network. Go to “HOME” > “TV Menu” > “Setup” > “Information” > “Software update” > “Network update” > and follow the on-screen instruction.

• A broadband connection and Network setup are required to update the software using the internet (Pages 49 – 51).

2 Press ? and then insert the USB device

containing the software update file.

Identification

You can check the TV ID on the screen for reporting to customer service.

Go to “HOME” > “TV Menu” > “Setup” > “Information” > “Identification”.

CAUTION

• Be sure to insert the USB device correctly into the terminal.

3 The TV displays a confirmation screen while

checking the data in the inserted USB device.

CAUTION

• If the data is not compatible with the system, an error message appears on the screen. Repeat steps 2 and 3 after pressing ?.

• When an error message displays, check to see if:

• The USB device is inserted firmly.

• The USB memory has two or more software update files.

• No data for updating the system exists in the USB memory.

• The software update file is broken.

• The software update file is not compatible with your TV’s software.

• The current system is same as the system update data.

• The USB memory is not formatted by FAT32.

4 The TV displays the software version information

after checking the data.

5 Press c/d to select “Yes” to update the system,

and then press ?.

6 The TV restarts automatically, and the software

update will be complete.

• This operation may take a while.

Appendix

Information on the software licence for this product

Software licence

You can read the software licences in this menu.

Go to “HOME” > “TV Menu” > “Setup” > “Information” > “Software licence”.

Software composition

The software included in this product is comprised of various software components whose individual copyrights are held by SHARP or by third parties.

Warning regarding basic use

Cautions regarding use in high and low temperature environments

• When the TV is used in a low temperature space (e.g., room, office), the picture may leave trails or appear slightly delayed. This is not a malfunction, and the TV will recover when the temperature returns to normal.

• Do not leave the TV in a hot or cold location. Also, do not leave the TV in a location exposed to direct sunlight or near a heater, as this may cause the cabinet to deform and the LCD panel to malfunction. Storage temperature: – 20 °C to e 60 °C.

Appendix

Trademarks

TruSurround HD, SRS and the symbol are trademarks of SRS Labs, Inc. TruSurround HD technology is incorporated under license from SRS Labs, Inc.

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

DivX®, DivX Certified®, DivX Plus® HD and associated logos are trademarks of Rovi Corporation or its subsidiaries and are used under license.

ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, LLC, a subsidiary of Rovi Corporation. This is an official DivX Certified® device that plays DivX video. Visit divx.com for more information and software tools to convert your files into DivX videos. ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup menu. Go to vod.divx.com for more information on how to complete your registration.

LC _ LCFONT+ and LC logo mark are registered trademarks of SHARP Corporation. This product is embedded with LC Font technology, which was developed by SHARP Corporation for clearly displaying easy-to-read characters on an LCD screen. However, other non-LCD fonts are used for displaying some screen pages.

DLNA®, the DLNA Logo and DLNA CERTIFIED™ are trademarks, service marks, or certification marks of the Digital Living Network Alliance.

Audio Engine is a trademark of Yamaha Corporation.

YouTube and the YouTube logo are trademarks of Google Inc.

MHL, the MHL Logo, and Mobile High-Definition Link are trademark or registered trademarks of MHL LLC in the United Stated and other countries.

This product includes DLNA Software 'DiXiM' developed by DigiOn, Inc.

All other company or product names are trademarks or registered trademarks of their respective companies.

Appendix

Specifications

Item

LC-60LE640X

Resolution 1,920 x 1,080

Video colour system PAL/SECAM/NTSC 3.58/NTSC 4.43/PAL 60

TV function TV-standard Analogue PAL ( B/G, D/K, I), SECAM ( B/G, D/K, K/K1), NTSC:(M)

Digital DVB - T

Receiving

VHF/UHF 44.25-863.25 MHz

channel

TV tuning system Auto preset 02ch/07ch/09ch/10ch/28ch at Australia.

STEREO/BILINGUAL NICAM ( B/G, I, D/K), A2 stereo (B/G), BTSC

Audio amplifier 10 W x 2

Terminals ANT (Antenna input)

UHF/VHF 75 q Din type

RS-232C D-Sub 9 pin male connector

15 pin mini D-sub, AUDIO in (shared usage with HDMI2) (

3.5 mm jack)

INPUT 1 (ARC) HDMI HDMI (HDMI input) (480I, 576I, 480P, 576P, 720P/50Hz, 720P/60Hz,

1080I/50Hz, 1080I/60Hz, 1080P/50Hz, 1080P/60Hz, 1080P/24Hz)

INPUT 2 HDMI HDMI (HDMI input) (480I, 576I, 480P, 576P, 720P/50Hz, 720P/60Hz,

1080I/50Hz, 1080I/60Hz, 1080P/50Hz, 1080P/60Hz, 1080P/24Hz), AUDIO in (shared usage with PC) ( 3.5 mm jack)

INPUT 3 HDMI HDMI (HDMI input) (480I, 576I, 480P, 576P, 720P/50Hz, 720P/60Hz,

1080I/50Hz, 1080I/60Hz, 1080P/50Hz, 1080P/60Hz, 1080P/24Hz)

INPUT 4 (MHL) HDMI HDMI (HDMI input) (480I, 576I, 480P, 576P, 720P/50Hz, 720P/60Hz,

1080I/50Hz, 1080I/60Hz, 1080P/50Hz, 1080P/60Hz, 1080P/24Hz)

INPUT 5

AUDIO in, VIDEO in or COMPONENT in (

3.5 mm jack) (480I, 576I, 480P,

576P, 720P/50Hz, 720P/60Hz, 1080I/50Hz, 1080I/60Hz)

INPUT 6

VIDEO in, AUDIO in (

3.5 mm jack)

USB 1 USB

USB 2 (WIRELESS LAN) USB

USB 3 (HDD) USB

ETHERNET (10/100 BASE-T) Network connector

AUDIO IN (HDMI 2/PC)

3.5 mm jack*

DIGITAL AUDIO OUTPUT Optical S/PDIF digital audio output

OUTPUT/Headphones

3.5 mm jack (audio output)

OSD language English/Simplified Chinese/Arabic/French/Portuguese/Russian/Persian/Thai/

Vietnamese/Indonesian

Power requirement AC 110—240 V, 50/60 Hz

Power consumption (method IEC62087) 165 W

(0.3 W Stand by)

Weight With Stand 28.5 kg

Without Stand 25.5 kg

Operating temperature

The HDMI 2 and PC terminals can both use the same audio input terminal.

0 °C to e 40 °C

• As a part of our policy of continuous improvement, SHARP reserves the right to make design and specification changes for product improvement without prior notice. The performance specification figures indicated are nominal values of production units. There may be some deviations from these values in individual units.

Appendix

Removing the stand

For wall mounting with the optional bracket (AN-52AG4) remove the stand.

Before setting TV on the wall

• Remove the connected cables (DVD, VCR, etc) from the terminals.

• Before performing work, make sure to turn off the TV.

• Before performing work spread cushioning over the base area to lay the TV on. This will prevent it from being damaged.

• Detach the four caps at the 4 locations on the rear of the TV.

1 Unfasten the screws at the 4 locations on the rear

of the stand.

2 Detach the stand from the TV (hold the stand so it

will not drop from the edge of the base area).

NOTE

• To attach the stand, perform the above steps in reverse order.

• As the TV is very heavy, be careful when moving it.

Appendix

Mounting the TV on a wall

To use this TV mounted on a wall, remove the AC cord holder and the screws at the 4 locations on the rear of the TV, and then use the screws supplied with the wall mount bracket to secure the bracket to the rear of the TV.

U UTP O

) R / (L O UDI A

L S S E EL R WI

(

• This TV should be mounted on a wall only with the wall mount bracket available from SHARP (Page 6). The use of other wall mount brackets may result in an unstable installation and may cause serious injuries.

• Mounting the LCD colour TV requires special skills and should only be performed by qualified service personnel. Customers should not attempt to do the work themselves. SHARP bears no responsibility for improper mounting or mounting that results in accident or injury.

• You can ask qualified service personnel about using an optional bracket to mount the TV to a wall.

• When you mount the TV on a wall, you should attach the supporting post.

• Detach the AC cord holder on the rear of the TV before mounting the TV on a wall.

AUDIO (

L/R) is s h a

ed w i

th AV IN)

Hanging on the wall

About setting the TV angle

AN-52AG4 wall mount bracket (see the bracket instructions for details).

Vertical mounting Angular mounting

Wall mount audio setup

0/5/10°

AN-52AG4

When you mount the TV on a wall, you can adjust the sound to a more suitable one by setting this function to “Yes”.

Go to “HOME” > “TV Menu” > “Setup” > “View setting” > “Wall mount audio setup”.

Appendix

Dimensional drawings

874

839

747

1384

400

1329

145.5

332

382.5

10°

)

AN L S ES

REL

I (W

AUDIO

(L /R

) is sha

red

with AV I

)

400

106

219

200

T TPU OU

R) /

IO (L D U

178

386

438

AN-52AG4

Active area

NOTE

• Dimensions do not include protrusions such as screws and some parts.

Appendix

CLEARING THE PASSWORD

1 Go to “HOME” >“TV Menu” > “Setup” > “View setting” > “Individual setting” > “Password”. 2 The password input screen displays. 3 Press and hold both CHr and Y+ on the TV simultaneously until the message appears on the screen.

NOTE

• To set the password again, refer to Password on page 43 and follow the instructions.

The Password is

NOTE

• As a precautionary measure, make a note of your password above, remove it from this manual, and keep it in a familiar place.

FOR LOCATION ENQUIRIES WITHIN

AUSTRALIA

REGARDING YOUR LOCAL

SHARP APPROVED SERVICE CENTRE

VISIT OUR WEBSITE AT

www.sharp.net.au

OR CALL SHARP CUSTOMER CARE

1300 135 022

(LOCAL CALL COSTS APPLY WITHIN AUSTRALIA)

SHARP CORPORATION OF AUSTRALIA PTY LTD

www.sharp.net.nz

CONTACT YOUR SELLING DEALER/RETAILER

SPform019(JUNE 2004)

FOR LOCATION ENQUIRIES WITHIN

NEW ZEALAND

REGARDING YOUR LOCAL

SHARP APPROVED SERVICE CENTRE

VISIT OUR WEBSITE AT

OR CALL

SHARP CUSTOMER SERVICES

TELEPHONE: 09 573 0111

FACSIMILE: 09 573 0113

SHARP CORPORATION OF NEW ZEALAND LIMITED

Printed in Malaysia TINS-F385WJZZ 12P08-MA-NP
